Toyota Avalon Hybrid specifications and photos
Toyota Avalon Hybrid specifications are shown with trim options, key technical data, and a model photo gallery. Compare 1 configurations by engine size, power, seating, and transmission. The gallery includes 6 photos for visual reference.
Toyota Avalon Hybrid at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Toyota Avalon Hybrid page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 200 hp and 2492 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 200 hp
- Engine displacement: 2492 cc
- Seating: 5 seats
Photos, trims and specifications for Toyota Avalon Hybrid
This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 2.5 Hybrid (200 HP) e-CVT | 2492 cc | 200 hp | 5 | - |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
Toyota Avalon Hybrid photo gallery
6 images are collected here with the main specifications and trim data for this model.

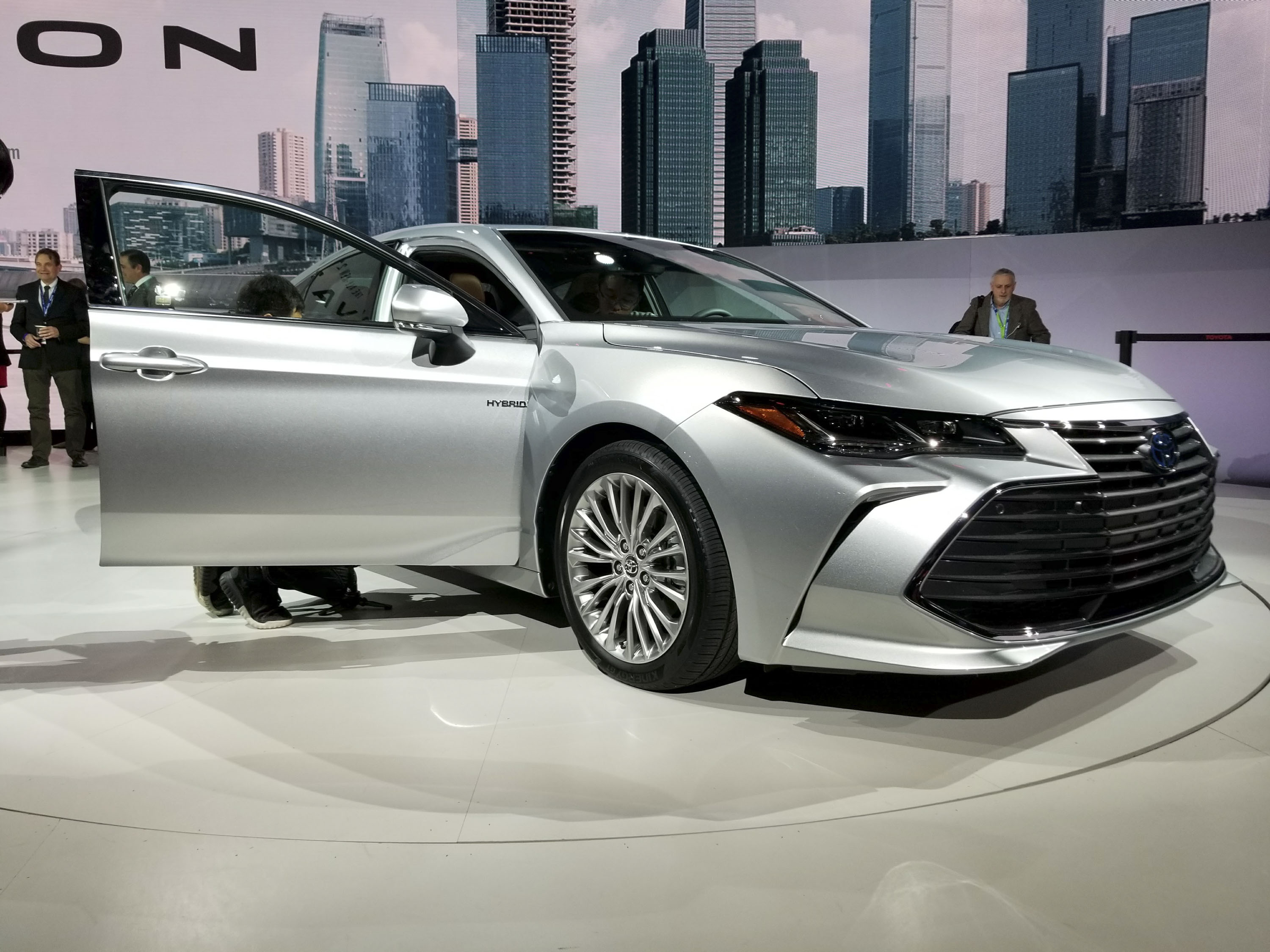

Photo Toyota Avalon Hybrid
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
2.5 Hybrid (200 HP) e-CVT 36 specifications
Specifications
Engine
| Type of engine | Hybrid |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 2492 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 200 |
| Engine | 2.5 Hybrid |
| Compression | 10.4 |
| RPM at max power | 5700 |
| Engine power, hp | 156 |
| Revolutions max. Engine power, vol. / min. | 5700 |
| the engine torque, Nm | 187 |
| Revolutions max. engine torque, vol. / min. | 4400 |
| Engine code | 2AR-FXE |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4960 |
| Height mm | 1460 |
| Wheelbase mm | 2820 |
| Front track, mm | 1590 |
| Rear track, mm | 1580 |
| Kerb weight, kg | 1630 |
| Trunk capacity, L | 396 |
| Fuel tank, l | 64 |
| Turning circle, m | 12.2 |
| Ground clearance, mm | 141 |
| Width (without mirrors) mm | 1835 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 5.8 |
|---|---|
| Fuel consumption (urban), l. 100 km | 6 |
| Fuel consumption (combined), l. 100 km | 5.8 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Drive | Front |
| Transmission | CVT |
| Gearbox | Variable speed drive |
| Transmission manufacturer | Aisin |
| Transmission country of origin | Japan |
Toyota Avalon Hybrid questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Toyota Avalon Hybrid?
This page lists 1 trim for the Toyota Avalon Hybrid, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Toyota Avalon Hybrid?
The listed configurations show a power range of 200 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Toyota Avalon Hybrid?
The available specification data shows engine displacement from 2492 cc across the trims listed on this page.
Are there photos for the Toyota Avalon Hybrid?
Yes. The gallery includes 6 photos for the Toyota Avalon Hybrid, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
