Toyota Corolla Touring Sports specifications and photos

Toyota Corolla Touring Sports specifications are shown with trim options, key technical data, and a model photo gallery. Compare 4 configurations by engine size, power, seating, and transmission. The gallery includes 30 photos for visual reference.

Years 2019
Body type wagon
Trims 4
Photos 30

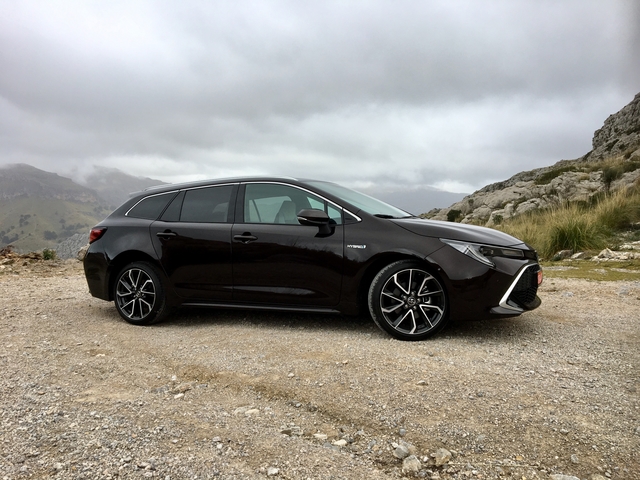

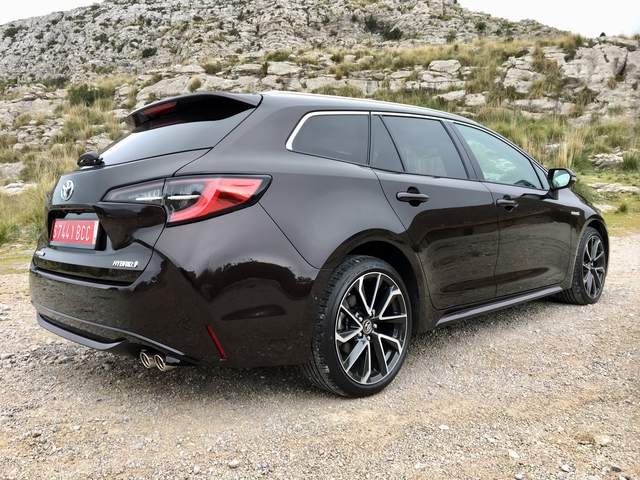

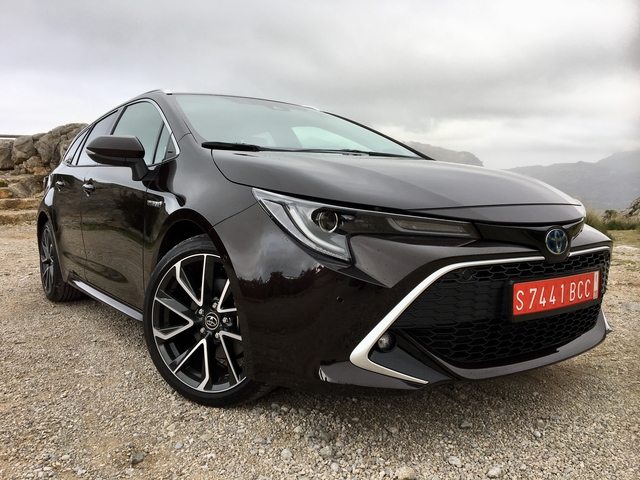

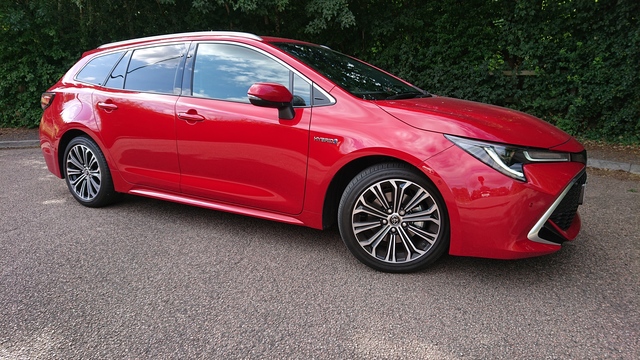

Toyota Corolla Touring Sports 2019 wagon
Overview

Toyota Corolla Touring Sports at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Toyota Corolla Touring Sports page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 116-184 hp and 1197-1987 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 116-184 hp
  • Engine displacement: 1197-1987 cc
  • Transmissions: 6-speed manual
  • Seating: 5 seats
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 116-184 hp
Engine displacement 1197-1987 cc
Seating 5 seats
Transmissions 6-speed manual
Trim / modification Engine Power Seats Transmission
1.2 D-4T (116 HP) 6-speed manual 1197 cc 116 hp 5 6-speed manual
1.2 D-4T (116 HP) Multidrive S 1197 cc 116 hp 5 -
1.8 Hybrid (122 HP) e-CVT 1798 cc 122 hp 5 -
2.0h (184hp) e-CVT 1987 cc 184 hp 5 -

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.2 D-4T (116 HP) 6-speed manual 1.2 D-4T (116 HP) Multidrive S 1.8 Hybrid (122 HP) e-CVT 2.0h (184hp) e-CVT
1.2 D-4T (116 HP) 6-speed manual 30 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1197
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 116
Torque, Nm 185
RPM at max torque 1500-4000
Engine 1.2 D-4T
RPM at max power 5200-5600
Turbo +
Engine code 8NR-FTS

Dimensions

Seats 5
Length mm 4650
Height mm 1435
Wheelbase mm 2700
Front track, mm 1530
Rear track, mm 1530
Trunk capacity, L 596
Width (without mirrors) mm 1790

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 5.8
Acceleration (0-100 km/h), s 9.6
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Toyota
Transmission country of origin Japan
1.2 D-4T (116 HP) Multidrive S 30 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1197
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 116
Torque, Nm 185
RPM at max torque 1500-4000
Engine 1.2 D-4T
RPM at max power 5200-5600
Turbo +
Engine code 8NR-FTS

Dimensions

Seats 5
Length mm 4650
Height mm 1435
Wheelbase mm 2700
Front track, mm 1530
Rear track, mm 1530
Trunk capacity, L 596
Width (without mirrors) mm 1790

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 5.3
Acceleration (0-100 km/h), s 10.3
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Drive Front
Transmission Multidrive S
Gearbox Variable speed drive
Transmission manufacturer Aisin
Transmission country of origin Japan
1.8 Hybrid (122 HP) e-CVT 34 specifications

Specifications

Engine

Type of engine Hybrid
Type of fuel Gasoline
Displacement, cc 1798
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 122
Engine 1.8 Hybrid
Compression 13.0
Power electric motor HP 72
the motor torque Nm 163
Engine power, hp 98
Revolutions max. Engine power, vol. / min. 5200
the engine torque, Nm 142
Revolutions max. engine torque, vol. / min. 3600
Engine code 2ZR-FXE
EV-mode +

Dimensions

Seats 5
Length mm 4650
Height mm 1435
Wheelbase mm 2700
Front track, mm 1530
Rear track, mm 1530
Trunk capacity, L 596
Width (without mirrors) mm 1790

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 3.6
Acceleration (0-100 km/h), s 11.1
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Drive Front
Transmission CVT
Gearbox Variable speed drive
Transmission manufacturer Aisin
Transmission country of origin Japan
2.0h (184hp) e-CVT 31 specifications

Specifications

Engine

Type of engine Hybrid
Type of fuel Gasoline
Displacement, cc 1987
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 184
Engine 2.0h
Compression 14.0
Power electric motor HP 109
the motor torque Nm 202
Engine power, hp 146
the engine torque, Nm 188
Engine code M20A-FXS

Dimensions

Seats 5
Length mm 4650
Height mm 1435
Wheelbase mm 2700
Front track, mm 1530
Rear track, mm 1530
Trunk capacity, L 596
Width (without mirrors) mm 1790

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 3.9
Acceleration (0-100 km/h), s 8
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Drive Front
Transmission CVT
Gearbox Variable speed drive
Transmission manufacturer Aisin
Transmission country of origin Japan
FAQ

Toyota Corolla Touring Sports questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Toyota Corolla Touring Sports?

This page lists 4 trims for the Toyota Corolla Touring Sports, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Toyota Corolla Touring Sports?

The listed configurations show a power range of 116-184 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Toyota Corolla Touring Sports?

The available specification data shows engine displacement from 1197-1987 cc across the trims listed on this page.

Which transmissions are listed for the Toyota Corolla Touring Sports?

The transmission options currently shown for this model are: 6-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the Toyota Corolla Touring Sports?

Yes. The gallery includes 30 photos for the Toyota Corolla Touring Sports, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
