Toyota Grand Highlander specifications and photos
The 2023 Toyota Grand Highlander is a three-row family crossover offered in front- or all-wheel-drive configurations. Introduced at the Chicago Auto Show in February 2023, it expands Toyota's utility lineup to offer more passenger space. The vehicle focuses on cabin utility, modern safety systems, and a choice of turbocharged or hybrid powertrains.
Toyota Grand Highlander at a glance
Quick model context before comparing photos and trim-level specifications.
Positioned as a spacious family utility vehicle, the 2023 Toyota Grand Highlander is built to accommodate up to seven or eight passengers across three rows of seating. Toyota presented the vehicle at the Chicago Auto Show in early 2023, targeting buyers who need more space than a standard Highlander provides. Key to its appeal is a choice of three distinct powertrains, allowing buyers to select based on their driving requirements. The options include a standard 2.4-liter turbocharged gasoline engine, a highly efficient 2.5-liter hybrid system, and the high-output 2.4-liter Turbo Hybrid MAX drivetrain. With front-wheel drive and all-wheel drive configurations available, the model is designed to handle daily commuting, long family trips, and light all-weather excursions. It features multiple driving modes to adapt to different road conditions and terrains, offering a practical combination of versatility, utility, and power for large families.
- Power: 245-362 hp
- Engine displacement: 2393-2487 cc
- Transmissions: 8-speed automatic, CVT, 6-speed automatic
Photos, trims and specifications for Toyota Grand Highlander
This model page brings gallery images, trim comparison, and detailed technical data together for the 2023 generation.
Estimate fuel cost
Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.
Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.
Toyota Grand Highlander overview
Editorial context for design, cabin, performance, practicality, and buyer notes.

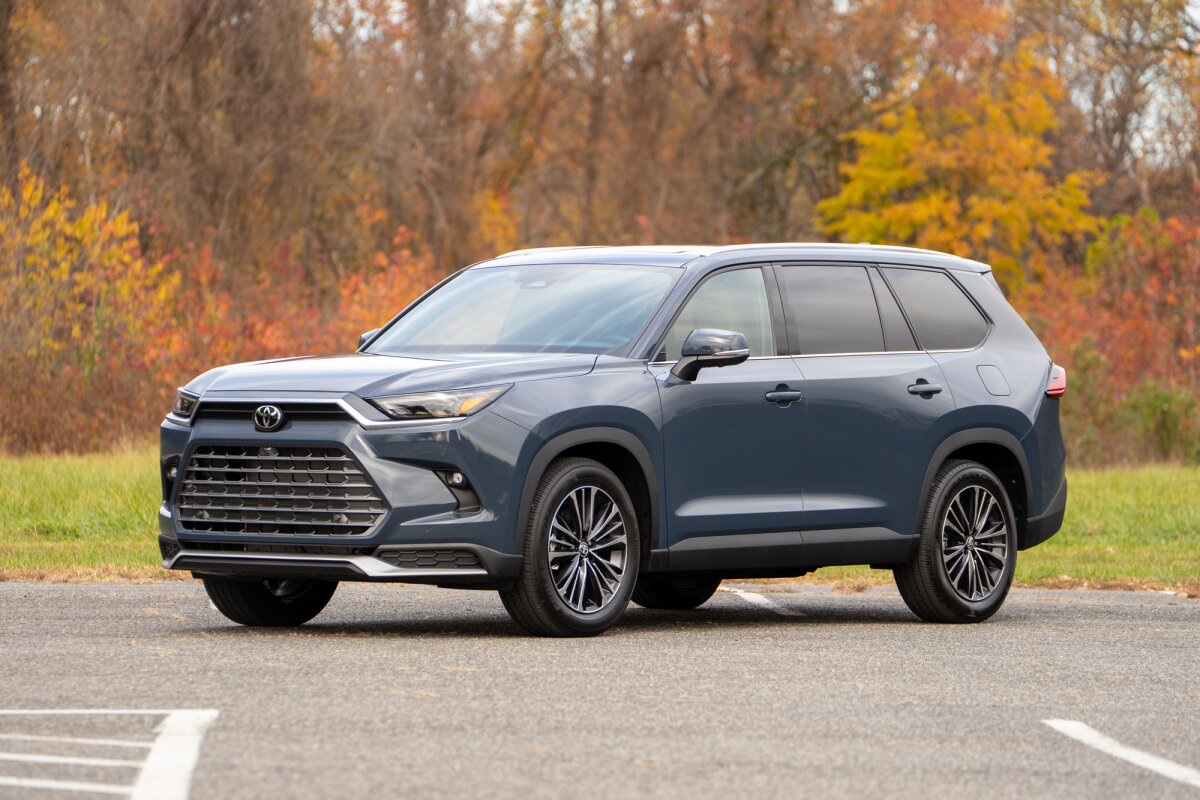

Design
The exterior styling of the 2023 Toyota Grand Highlander uses clean, structural lines to emphasize its size and utility. A prominent trapezoidal grille highlights the front fascia, flanked by sharp headlights. Black protective cladding covers the side sills and wheel arches, while the rear features a clean bumper layout. Depending on the selected trim and powertrain, the vehicle can be equipped with 20-inch alloy wheels. The performance-oriented Hybrid MAX version is distinguished by a dual exhaust system. The vehicle's overall length of 5,115 mm and height of 1,780 mm give it a commanding road presence while maintaining a standard mid-size crossover silhouette.
Interior
Inside the cabin, the Grand Highlander is configured to prioritize passenger comfort and space across all three rows. The materials include soft-touch surfaces on the dashboard, with leather upholstery and wood-grain accents available on higher trims. The driver receives a 10-way power-adjustable seat. Passengers in the second and third rows have access to multiple USB ports and cupholders throughout the interior. Toyota designed the third row to ensure that adult passengers have sufficient legroom and head clearance, alongside convenient entry and exit paths. A 12.3-inch touchscreen multimedia system serves as the infotainment hub, providing standard support for Apple CarPlay and Android Auto integrations.
Performance
Buyers can choose from three powertrains for the 2023 Grand Highlander. The base 2.4-liter turbocharged inline-four petrol engine produces 265 horsepower and 420 Nm of torque, mated to an 8-speed automatic transmission. For improved efficiency, the 2.5-liter hybrid version generates a combined 245 horsepower through an e-CVT, returning an EPA-estimated average fuel consumption of approximately 6.9 liters per 100 kilometers. The top-tier 2.4-liter Turbo Hybrid MAX setup combines a turbocharged engine with two electric motors to deliver 362 horsepower and 542 Nm of torque, enabling a 0-100 km/h acceleration time of 6.5 seconds and a towing capacity of up to 2,268 kg. Active driving modes include Sport, Eco, and Normal, alongside specialized terrain settings.
Practicality
Practicality is a core focus of the Grand Highlander's design. The interior accommodates seven or eight occupants depending on the second-row seating configuration. Behind the third row, the vehicle offers 583 liters of cargo capacity, which can be expanded by folding down the rear seats. The physical dimensions, including a 2,950 mm wheelbase, a 1,990 mm width, and 203 mm of ground clearance, ensure the vehicle remains stable while navigating rougher surfaces. A 67-liter fuel tank is standard across all models, providing a respectable highway range.
Safety and tech
The 2023 Grand Highlander is equipped with the Toyota Safety Sense 3.0 suite of driver-assist technologies. Standard safety features include a pre-collision system with pedestrian detection, lane departure alert with steering assistance, and all-speed adaptive cruise control. It also includes road sign assistance, automatic high-beam headlights, and a proactive driving assistant to help maintain spacing and lane positioning. Technological features in the cabin include a 12.3-inch touchscreen display, wireless smartphone charging, a 4G Wi-Fi hotspot, and multiple USB ports spread across all three rows.
Buyer notes
When shopping for a 2023 Toyota Grand Highlander, buyers should compare the available drivetrain options. The standard 2.4-liter turbo is well-suited for buyers seeking a conventional mechanical automatic transmission and standard performance. The 2.5-liter hybrid is the choice for buyers prioritizing fuel economy, offering an estimated mixed consumption of 6.5 liters per 100 kilometers. For those requiring maximum towing capability and acceleration, the Hybrid MAX provides 362 horsepower but has a higher fuel consumption of 8.7 liters per 100 kilometers. Standard equipment lists and trim availability can vary depending on the local market.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 2.4 (265 hp) 8-speed automatic DirectShift | 2393 cc | 265 hp | 7/8 | 8-speed automatic |
| 2.4 (265 hp) 8-speed automatic DirectShift 4x4 | 2393 cc | 265 hp | 7/8 | 8-speed automatic |
| 2.5h (245 hp) e-CVT | 2487 cc | 245 hp | 7/8 | CVT |
| 2.5h (245 hp) e-CVT 4x4 | 2487 cc | 245 hp | 7/8 | CVT |
| 2.4h (362 hp) 6-speed automatic DirectShift 4x4 | 2393 cc | 362 hp | 7/8 | 6-speed automatic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

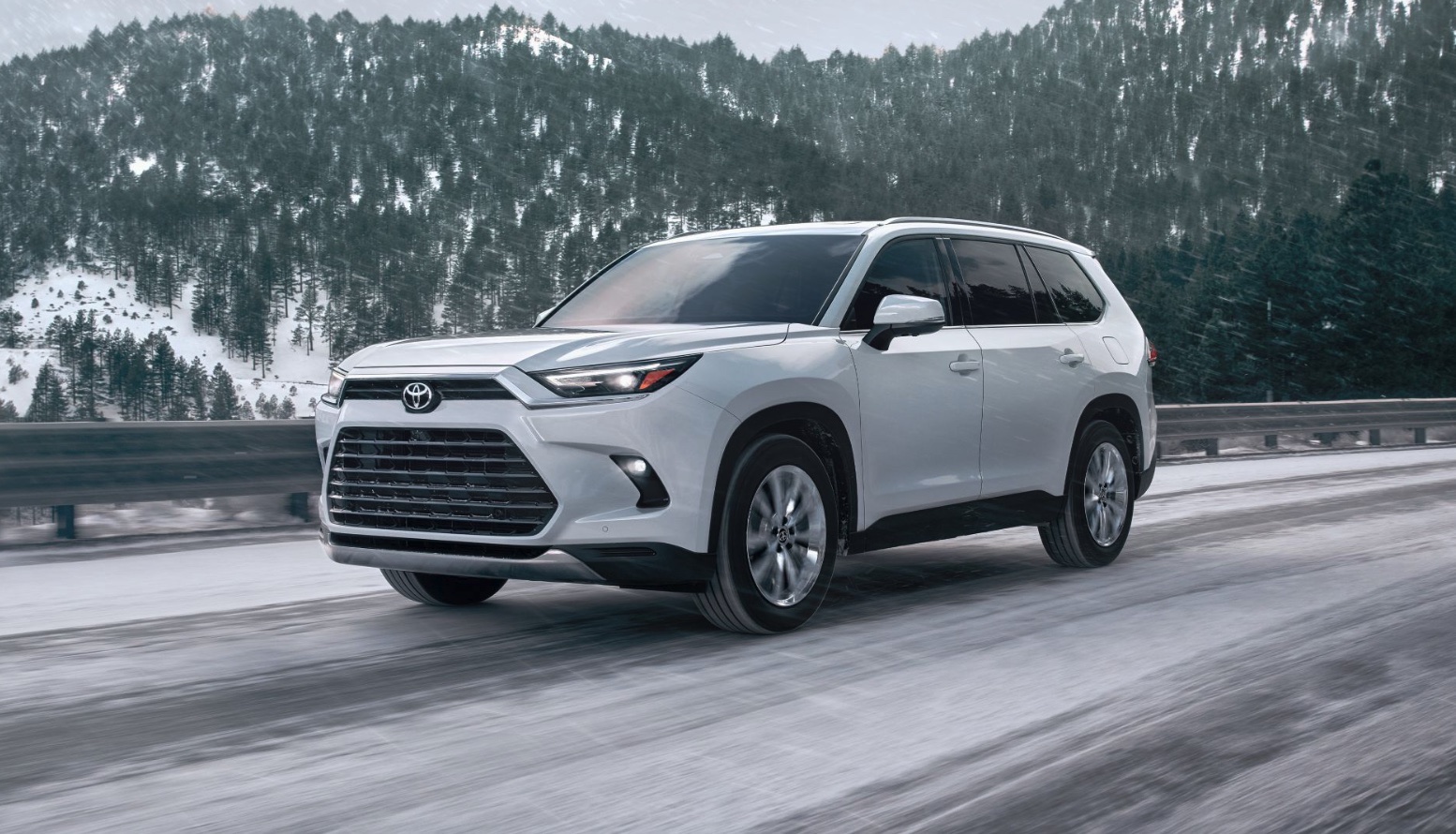

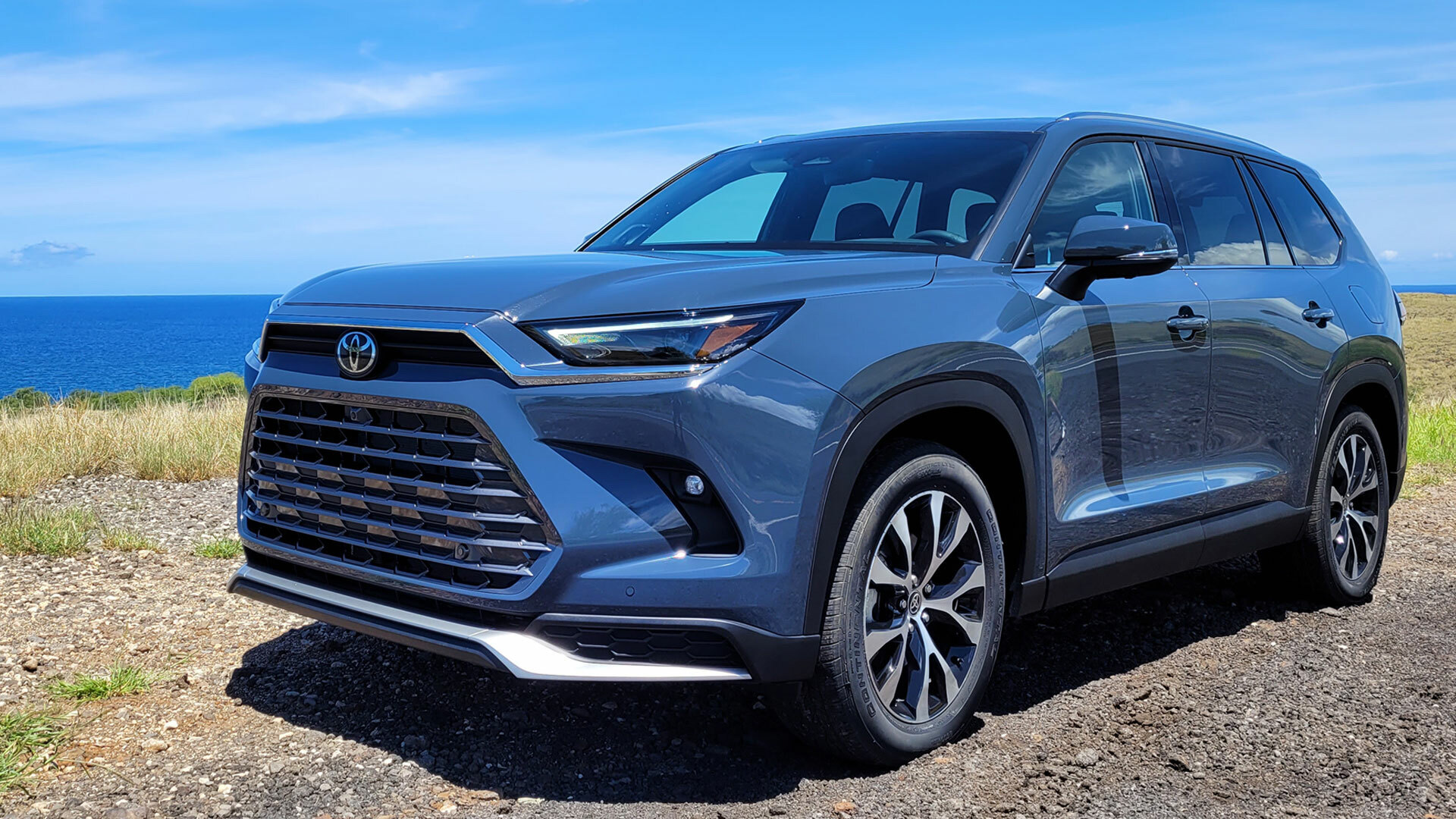

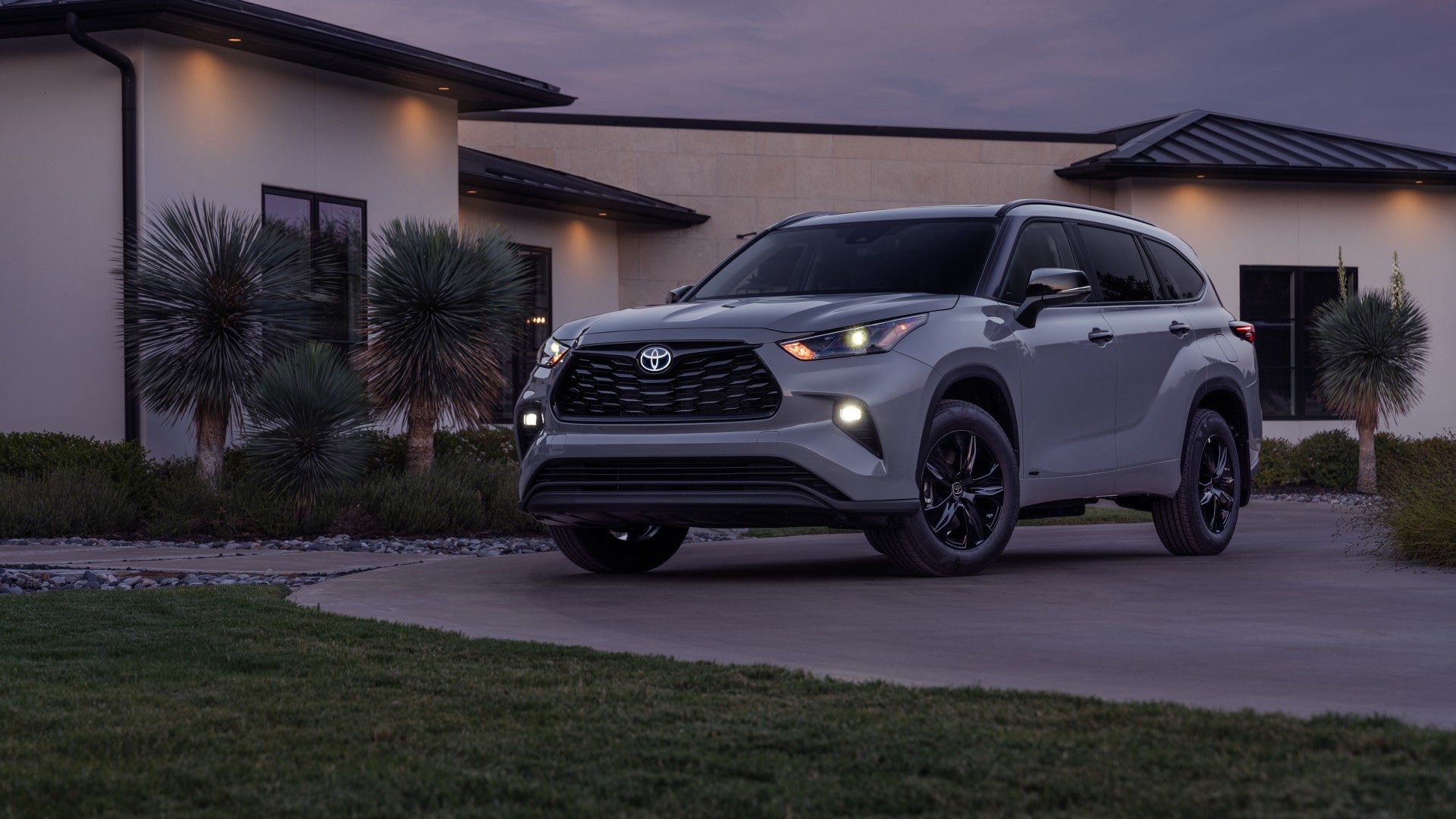

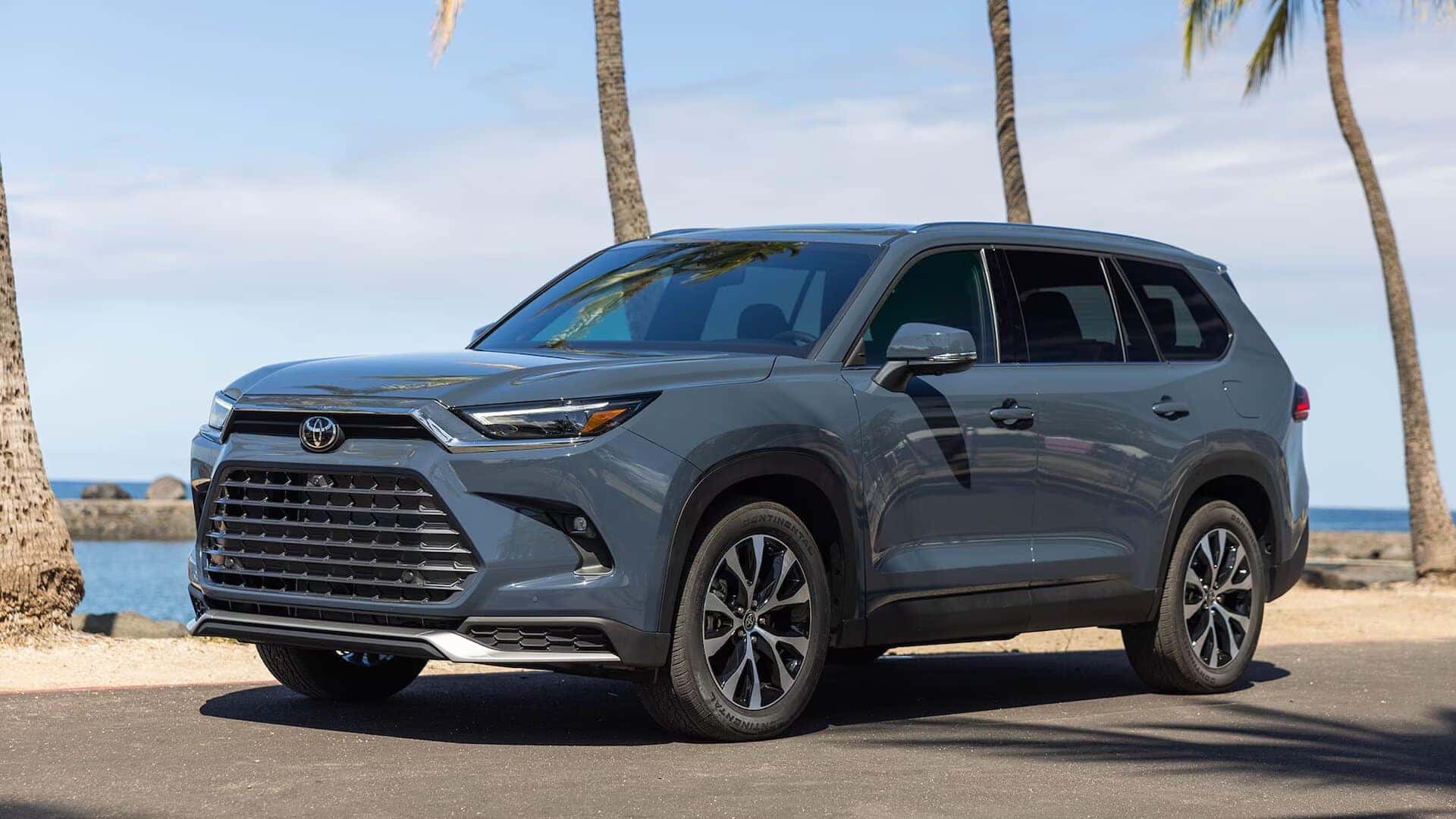

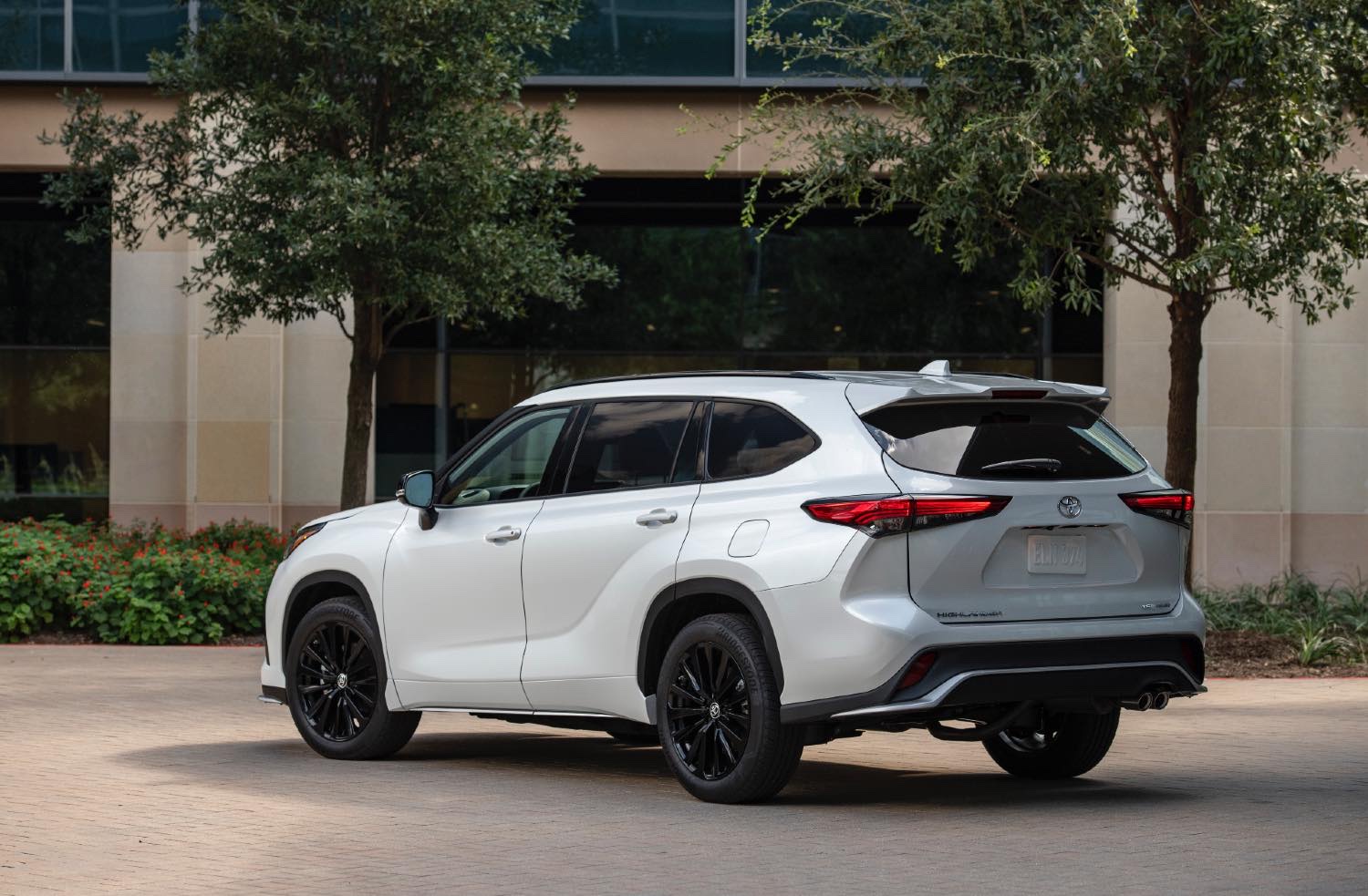

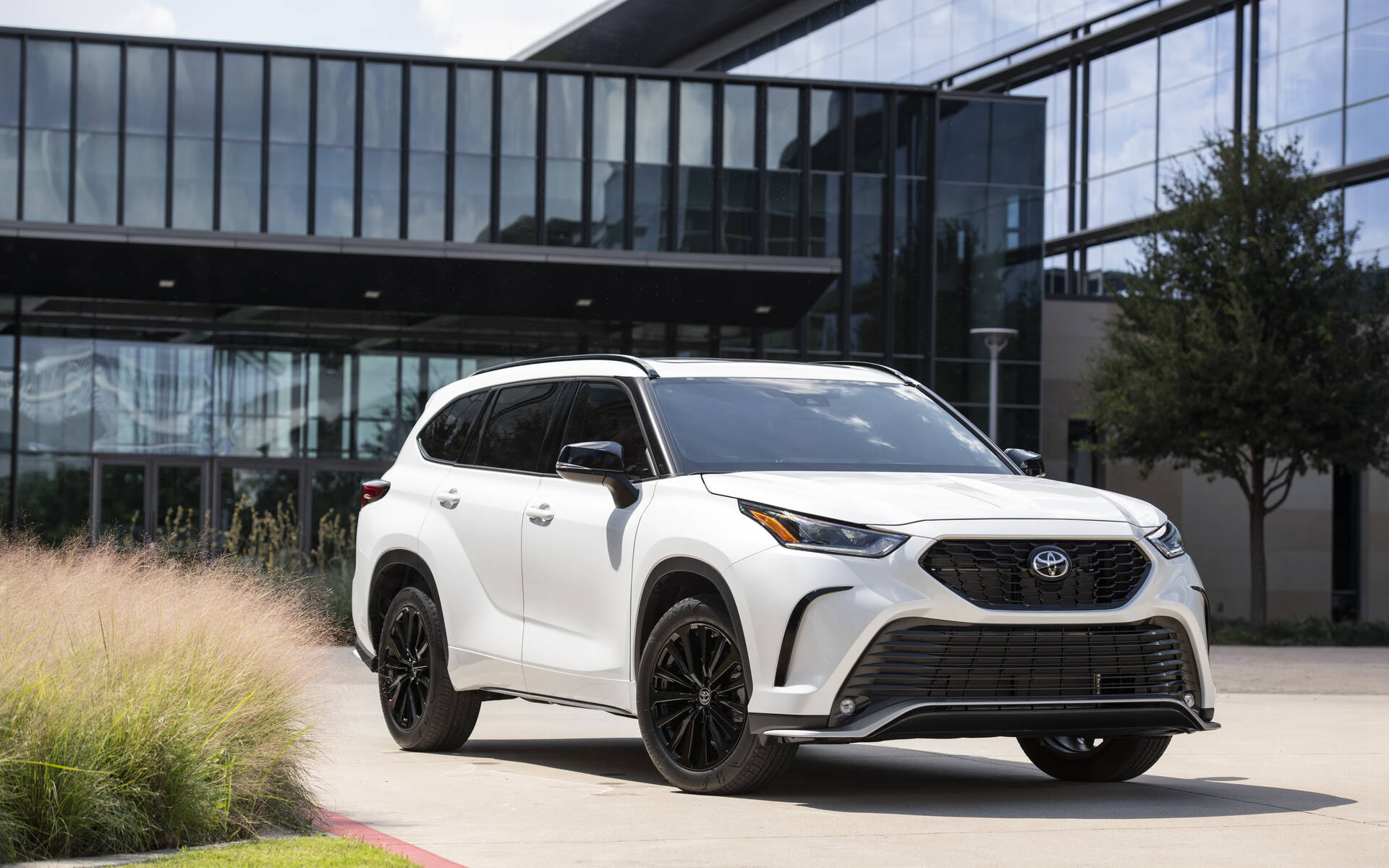

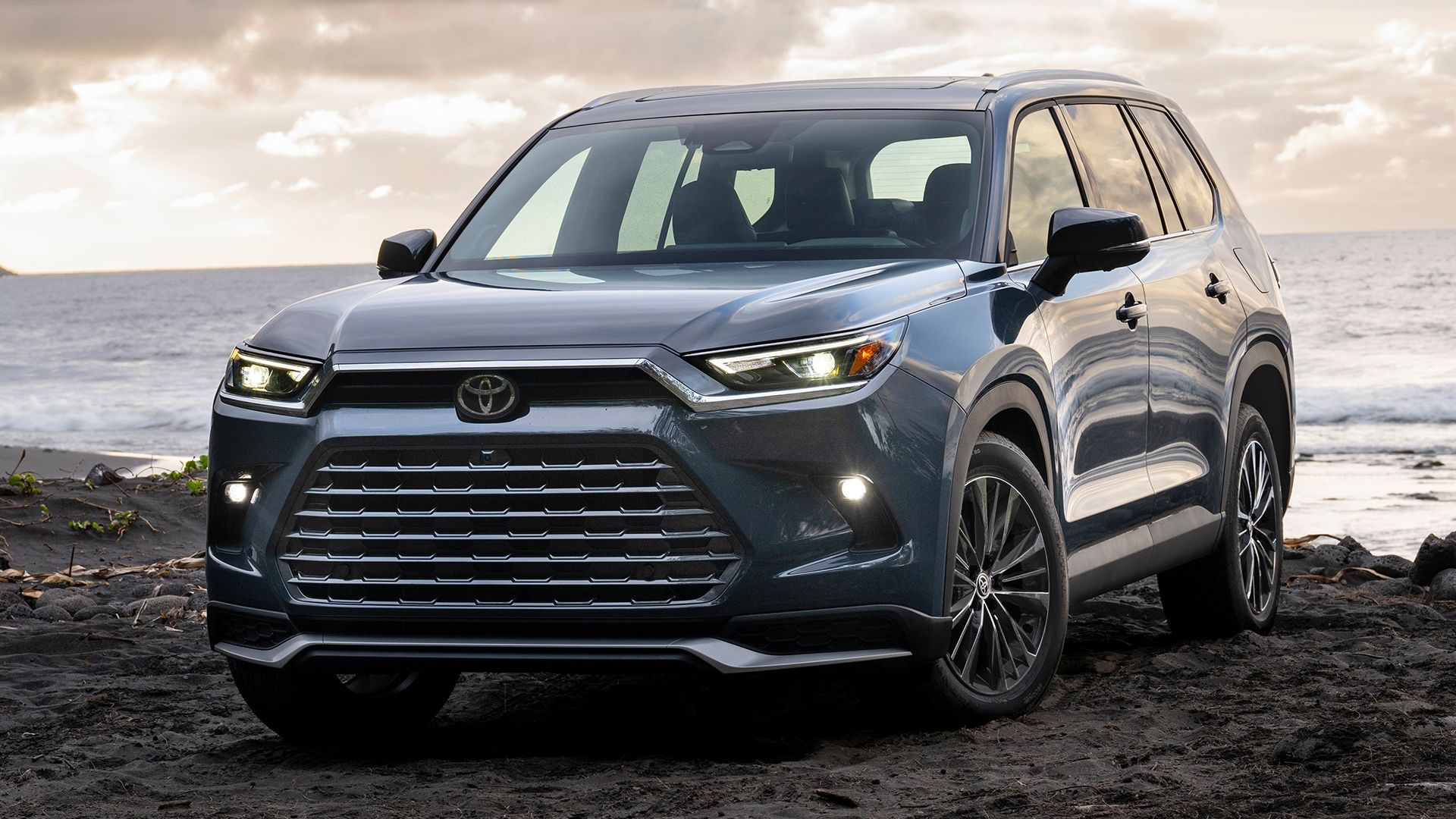

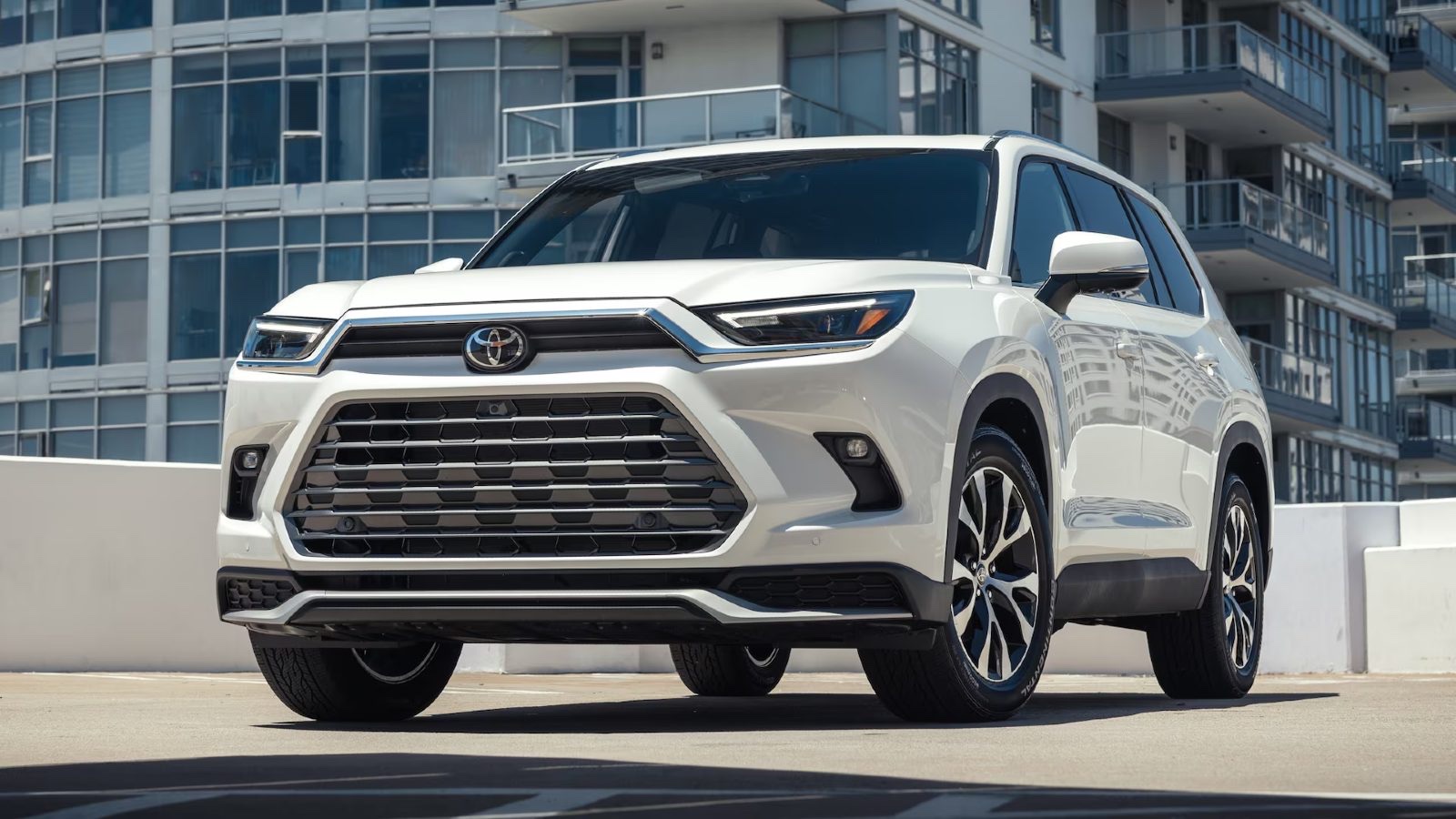

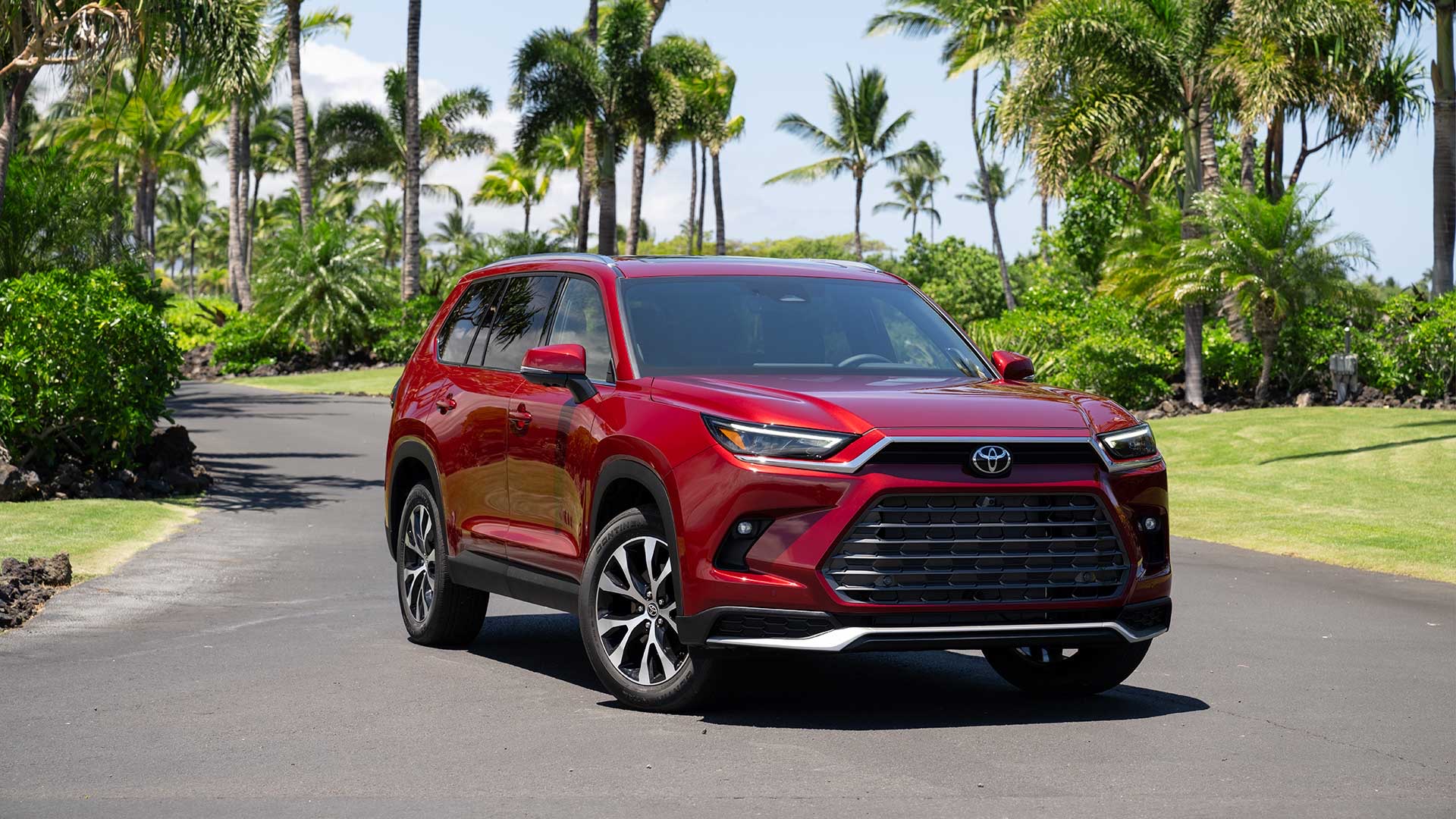

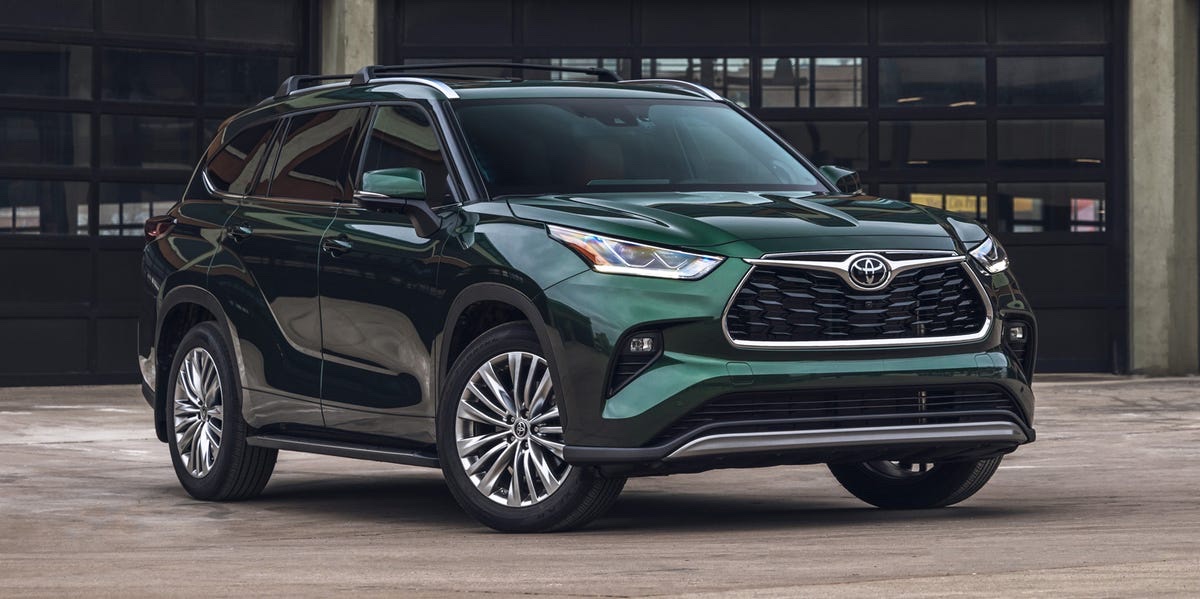

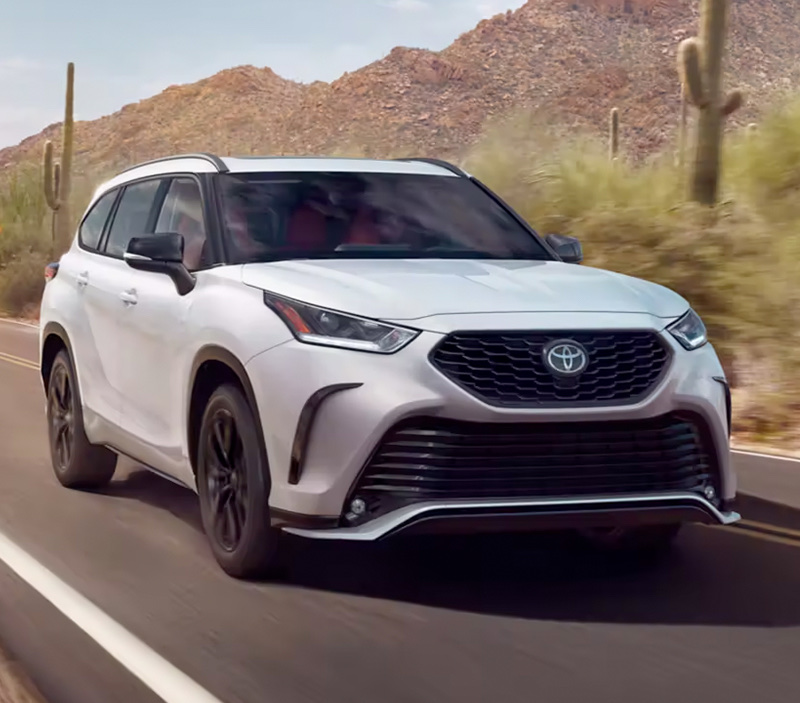

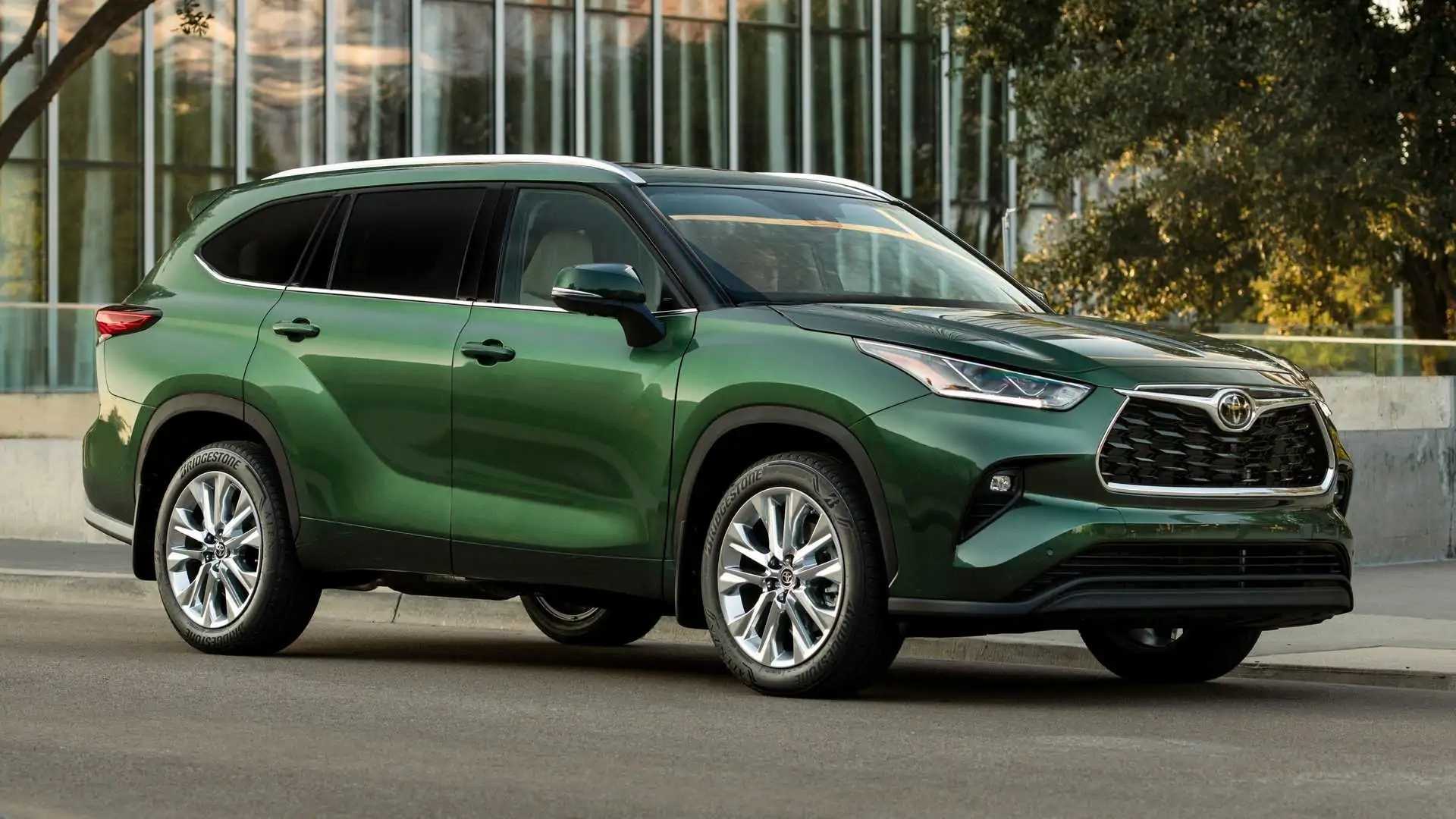

Toyota Grand Highlander photo gallery
20 images are collected here with the main specifications and trim data for this model.

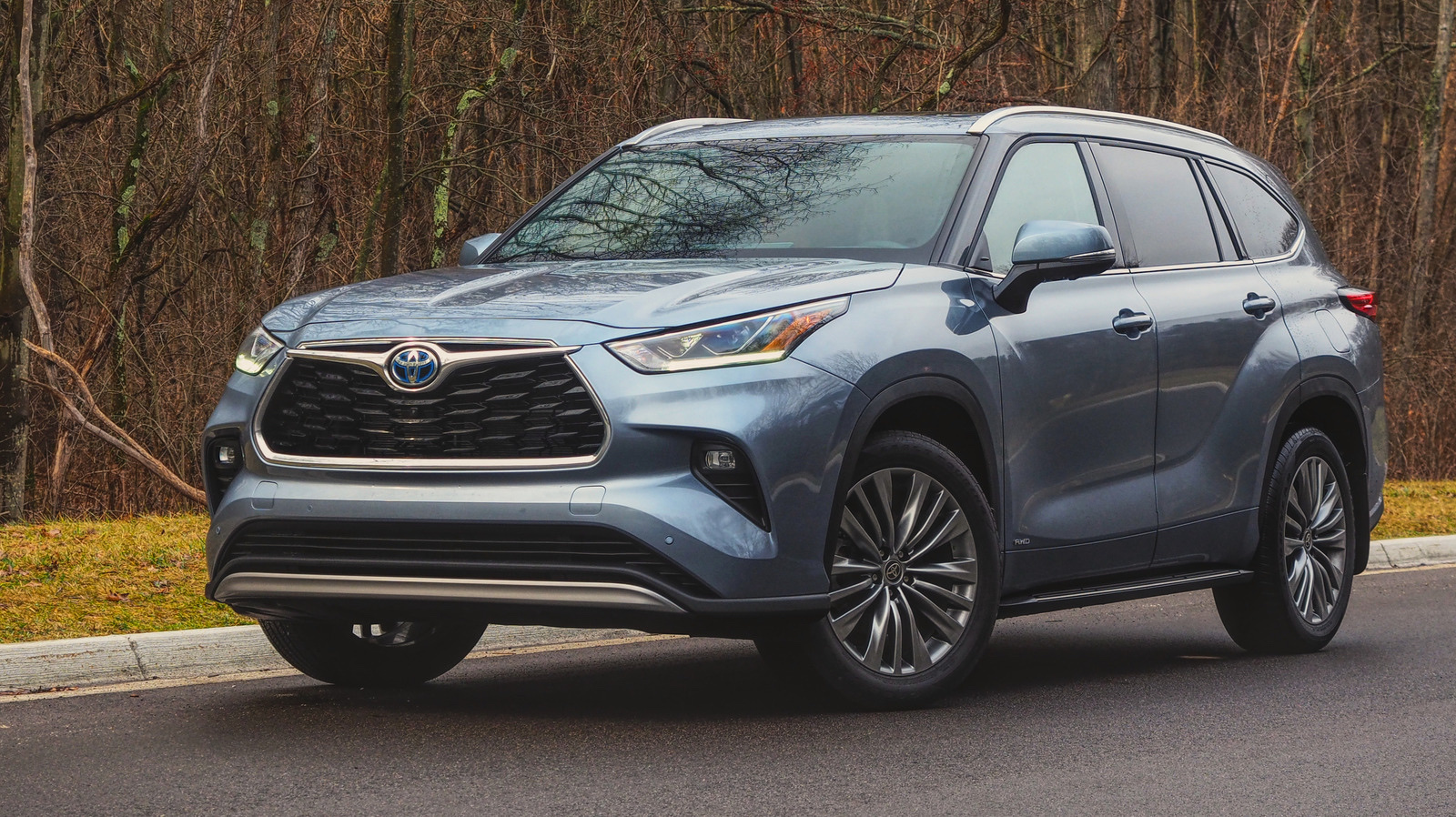

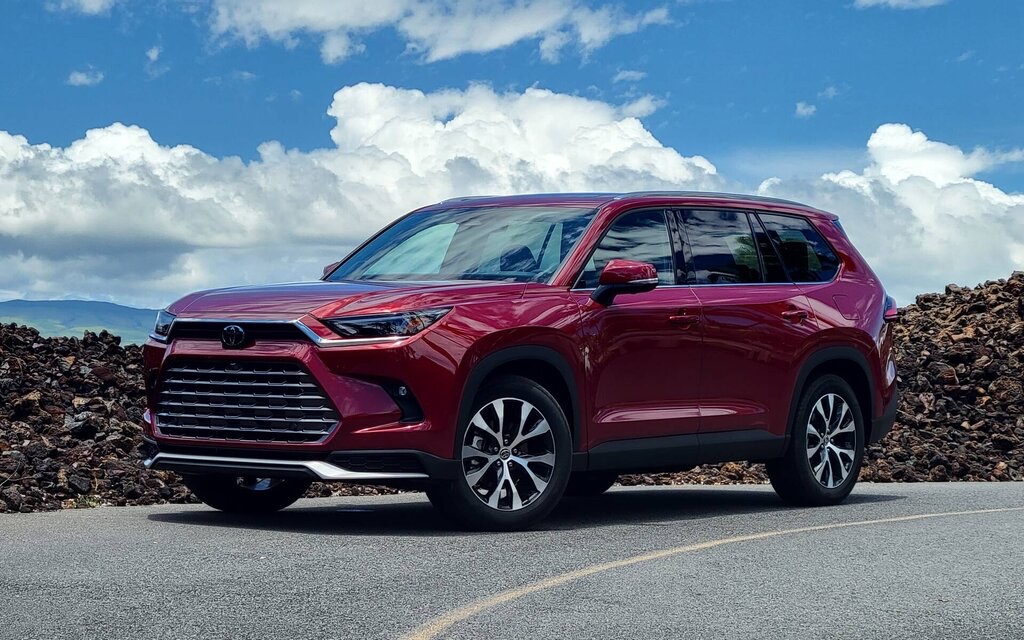

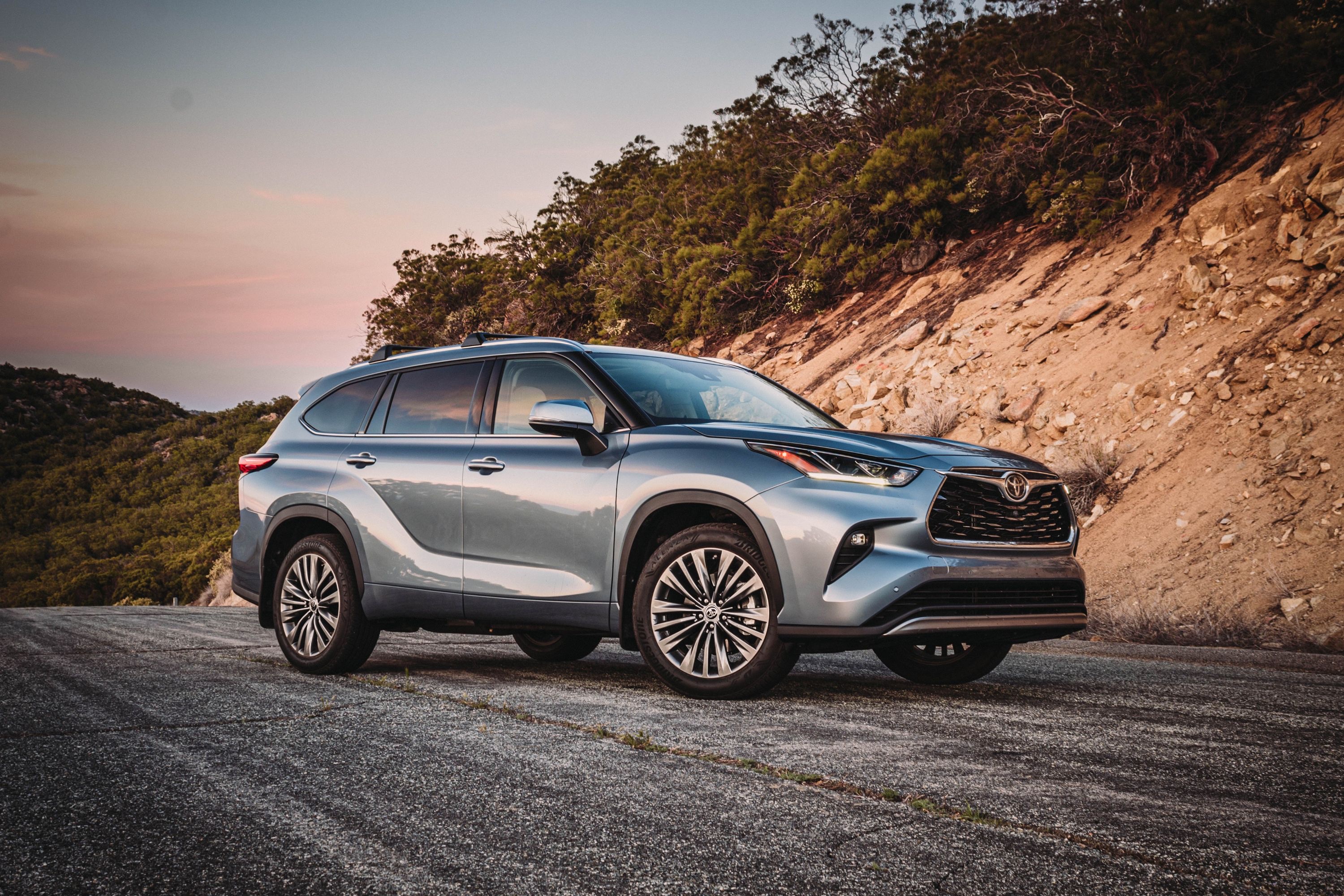

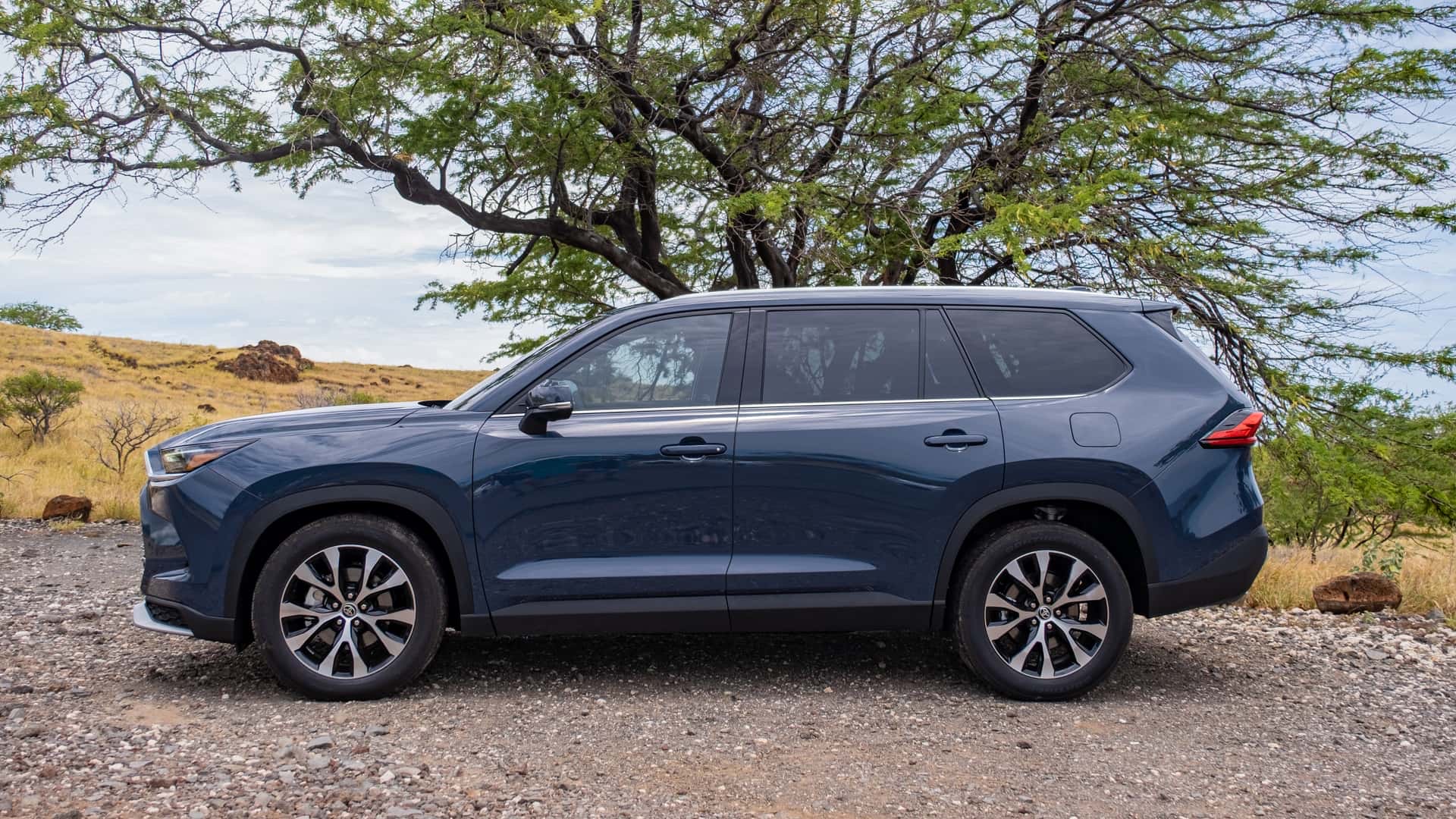

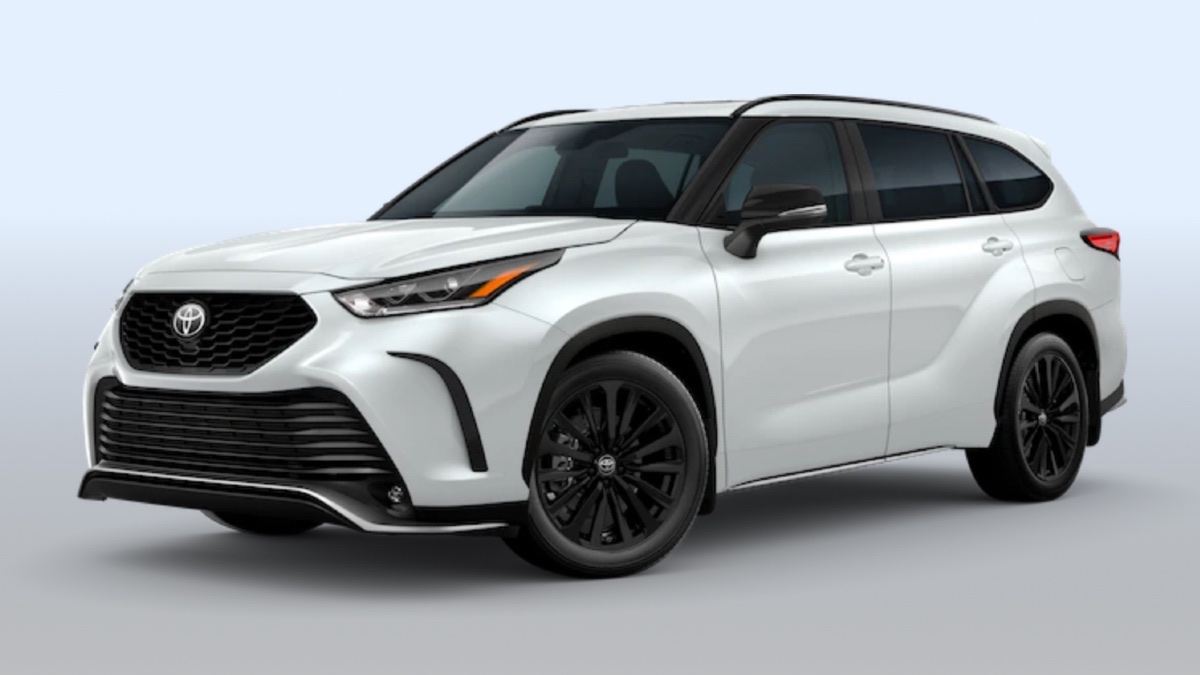

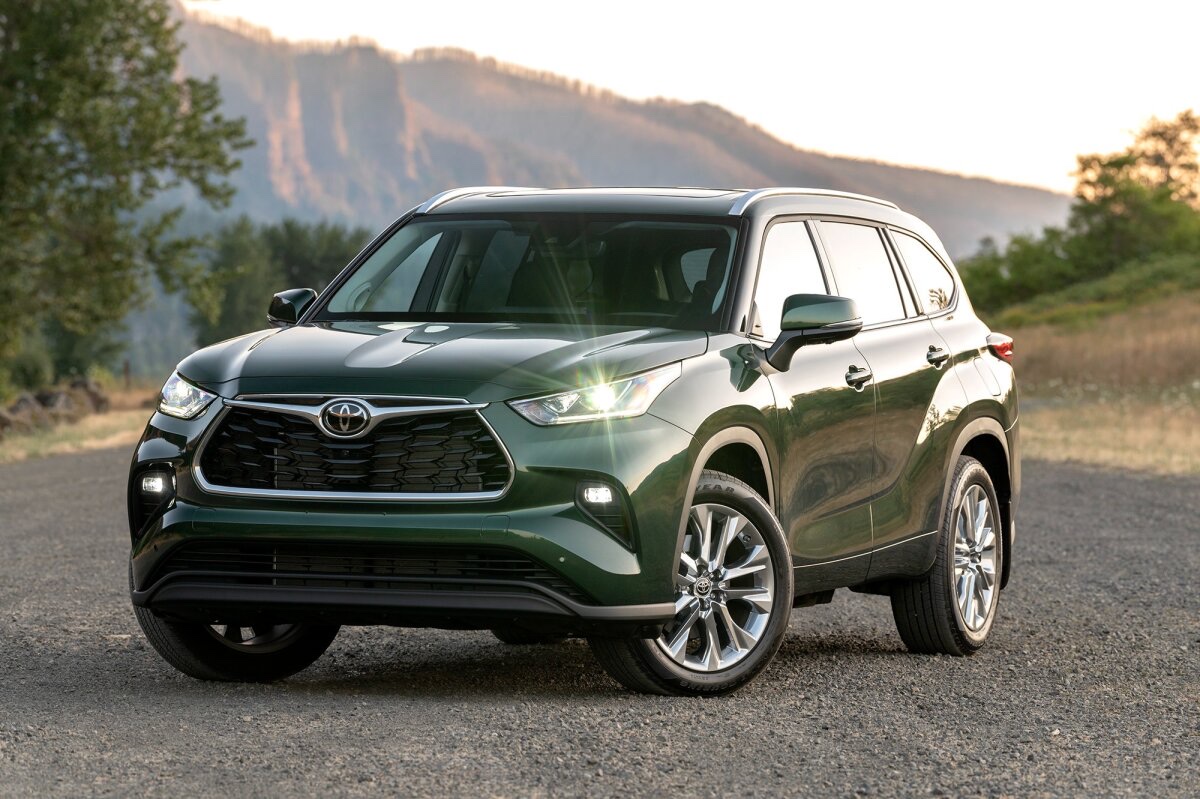

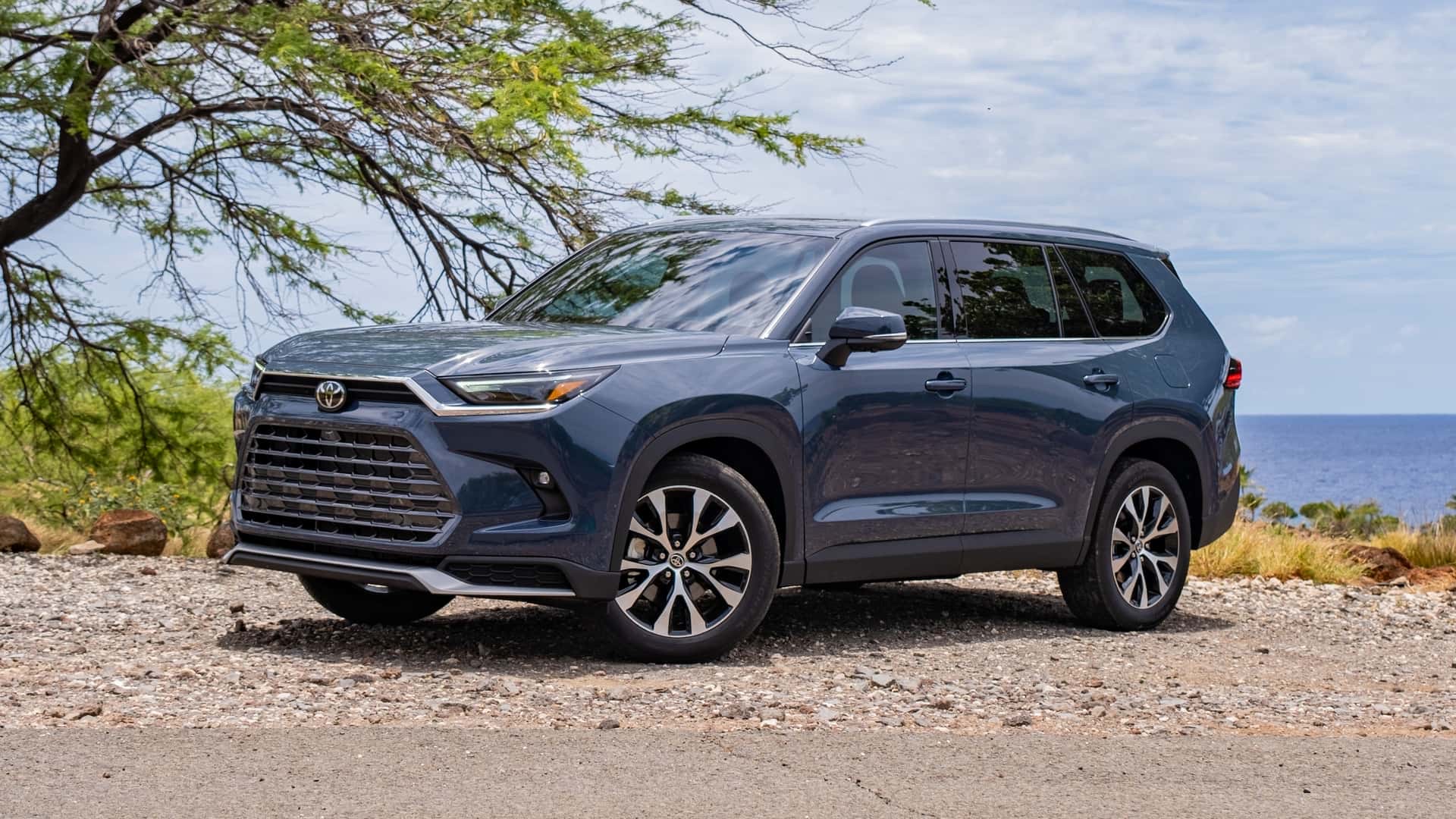

Photo Toyota Grand Highlander
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
2.4 (265 hp) 8-speed automatic DirectShift 32 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 9.8 |
|---|---|
| Acceleration 0-100 km/h, s | 7.5 |
Engine
| Engine | 2.4 |
|---|---|
| Engine code | T24A-FTS |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2393 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 265 |
| RPM at max power | 6000 |
| Torque, Nm | 420 |
| RPM at max torque | 1700-3600 |
Dimensions
| Seats | 7/8 |
|---|---|
| Length, mm | 5115 |
| Height, mm | 1780 |
| Wheelbase, mm | 2950 |
| Front track, mm | 1705 |
| Rear track, mm | 1715 |
| Kerb weight, kg | 1950 |
| Fuel tank capacity, L | 67 |
| Turning circle, m | 11.6 |
| Ground clearance, mm | 203 |
| Width without mirrors, mm | 1990 |
| Trunk capacity, L | 583 |
Transmission and drive
| Transmission | 8-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Front-wheel drive |
| Number of gears | 8 |
| Automatic transmission | + |
2.4 (265 hp) 8-speed automatic DirectShift 4x4 32 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 10.2 |
|---|---|
| Acceleration 0-100 km/h, s | 7.7 |
Engine
| Engine | 2.4 |
|---|---|
| Engine code | T24A-FTS |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2393 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 265 |
| RPM at max power | 6000 |
| Torque, Nm | 420 |
| RPM at max torque | 1700-3600 |
Dimensions
| Seats | 7/8 |
|---|---|
| Length, mm | 5115 |
| Height, mm | 1780 |
| Wheelbase, mm | 2950 |
| Front track, mm | 1705 |
| Rear track, mm | 1715 |
| Kerb weight, kg | 1950 |
| Fuel tank capacity, L | 67 |
| Turning circle, m | 11.6 |
| Ground clearance, mm | 203 |
| Width without mirrors, mm | 1990 |
| Trunk capacity, L | 583 |
Transmission and drive
| Transmission | 8-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 8 |
| Automatic transmission | + |
2.5h (245 hp) e-CVT 36 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.5 |
|---|
Engine
| Engine | 2.5h |
|---|---|
| Engine code | A25A-FXS |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 2487 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 245 |
| RPM at max power | 6000 |
| Number of electric motors | 1 |
| Electric motor power, hp | 182 |
| Combustion engine power, hp | 187 |
| Combustion engine RPM at max power | 6000 |
| Combustion engine torque, Nm | 240 |
| Combustion engine RPM at max torque | 4300-4500 |
| Electric motor torque, Nm | 270 |
Dimensions
| Seats | 7/8 |
|---|---|
| Length, mm | 5115 |
| Height, mm | 1780 |
| Wheelbase, mm | 2950 |
| Front track, mm | 1705 |
| Rear track, mm | 1715 |
| Kerb weight, kg | 1950 |
| Fuel tank capacity, L | 67 |
| Turning circle, m | 11.6 |
| Ground clearance, mm | 203 |
| Width without mirrors, mm | 1990 |
| Trunk capacity, L | 583 |
Transmission and drive
| Transmission | CVT |
|---|---|
| Transmission type | CVT |
| Drive | Front-wheel drive |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
2.5h (245 hp) e-CVT 4x4 36 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.5 |
|---|
Engine
| Engine | 2.5h |
|---|---|
| Engine code | A25A-FXS |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 2487 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 245 |
| RPM at max power | 6000 |
| Number of electric motors | 1 |
| Electric motor power, hp | 182 |
| Combustion engine power, hp | 187 |
| Combustion engine RPM at max power | 6000 |
| Combustion engine torque, Nm | 240 |
| Combustion engine RPM at max torque | 4300-4500 |
| Electric motor torque, Nm | 270 |
Dimensions
| Seats | 7/8 |
|---|---|
| Length, mm | 5115 |
| Height, mm | 1780 |
| Wheelbase, mm | 2950 |
| Front track, mm | 1705 |
| Rear track, mm | 1715 |
| Kerb weight, kg | 1950 |
| Fuel tank capacity, L | 67 |
| Turning circle, m | 11.6 |
| Ground clearance, mm | 203 |
| Width without mirrors, mm | 1990 |
| Trunk capacity, L | 583 |
Transmission and drive
| Transmission | CVT |
|---|---|
| Transmission type | CVT |
| Drive | All-wheel drive |
| Transmission manufacturer | Aisin |
| Automatic transmission | + |
| Transmission country | Japan |
2.4h (362 hp) 6-speed automatic DirectShift 4x4 37 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.7 |
|---|---|
| Acceleration 0-100 km/h, s | 6.5 |
Engine
| Engine | 2.4h |
|---|---|
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 2393 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 362 |
| RPM at max power | 6000 |
| Torque, Nm | 542 |
| RPM at max torque | 2000-3000 |
| Number of electric motors | 2 |
| Electric motor power, hp | 103 |
| Combustion engine power, hp | 265 |
| Combustion engine RPM at max power | 6000 |
| Combustion engine torque, Nm | 450 |
| Combustion engine RPM at max torque | 2000-3000 |
Dimensions
| Seats | 7/8 |
|---|---|
| Length, mm | 5115 |
| Height, mm | 1780 |
| Wheelbase, mm | 2950 |
| Front track, mm | 1705 |
| Rear track, mm | 1715 |
| Kerb weight, kg | 1950 |
| Fuel tank capacity, L | 67 |
| Turning circle, m | 11.6 |
| Ground clearance, mm | 203 |
| Width without mirrors, mm | 1990 |
| Trunk capacity, L | 583 |
Transmission and drive
| Transmission | 6-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 6 |
| Automatic transmission | + |
Toyota Grand Highlander questions
Short answers based on the specifications and photos available in this catalog.
What are the engine options for the 2023 Toyota Grand Highlander?
The 2023 Toyota Grand Highlander is available with three different powertrains. These consist of a 2.4-liter turbocharged petrol engine producing 265 horsepower, a 2.5-liter hybrid system making 245 horsepower, and a high-performance 2.4-liter Turbo Hybrid MAX system that generates 362 horsepower.
How many passengers can the 2023 Toyota Grand Highlander seat?
The Grand Highlander is designed to seat either seven or eight passengers, depending on whether the second row is configured with captain's chairs or a three-passenger bench seat. The third-row seats are specifically designed to provide comfortable legroom and access for adults.
What is the towing capacity of the 2023 Toyota Grand Highlander?
When equipped with the top-tier 2.4-liter Turbo Hybrid MAX powertrain, the 2023 Toyota Grand Highlander can tow up to 2,268 kilograms. Towing capacity may vary for other engine options.
What safety features are standard on the 2023 Toyota Grand Highlander?
The vehicle comes equipped with the Toyota Safety Sense 3.0 suite. This package includes a pre-collision system with pedestrian detection, lane departure warning with steering assist, adaptive cruise control, automatic high beams, and road sign assistance.
What are the key dimensions of the 2023 Toyota Grand Highlander?
The 2023 Grand Highlander has an overall length of 5,115 mm, a width of 1,990 mm, and a height of 1,780 mm. It features a wheelbase of 2,950 mm and has a standard ground clearance of 203 mm.
