Toyota Yaris Hybrid specifications and photos
Toyota Yaris Hybrid specifications are shown with trim options, key technical data, and a model photo gallery. Compare 2 configurations by engine size, power, seating, and transmission. The gallery includes 21 photos for visual reference.
Toyota Yaris Hybrid at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Toyota Yaris Hybrid page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 100 hp and 1497 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 100 hp
- Engine displacement: 1497 cc
- Seating: 5 seats
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 1.5h AT | 1497 cc | 100 hp | 5 | - |
| 1.5i Hybryd (100 HP) e-CVT | 1497 cc | 100 hp | 5 | - |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
Toyota Yaris Hybrid photo gallery
21 images are collected here with the main specifications and trim data for this model.

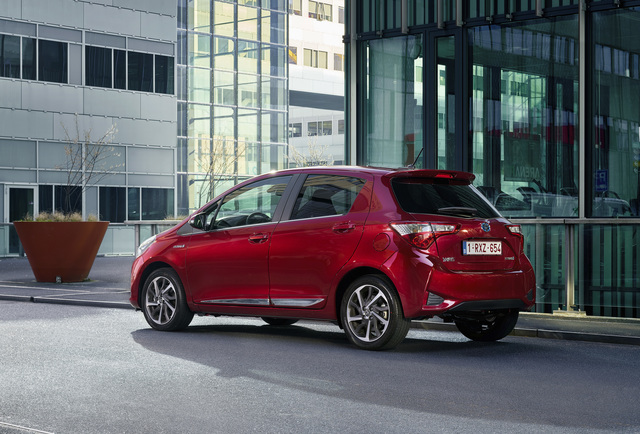

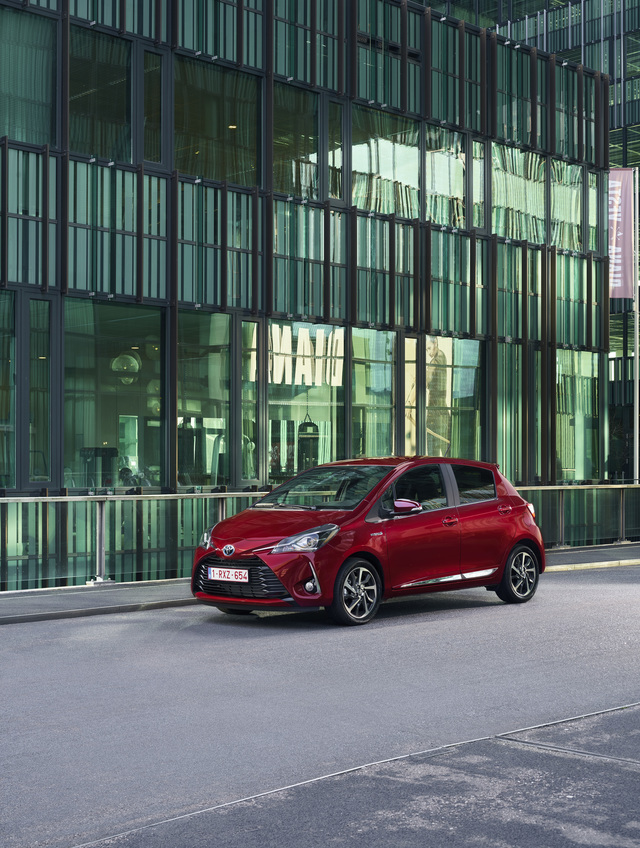

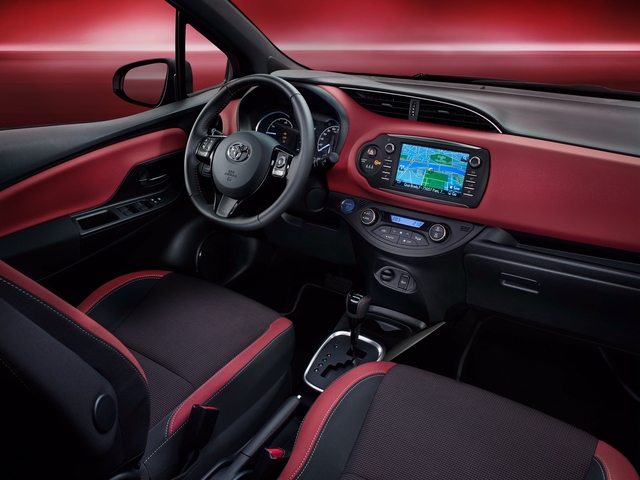

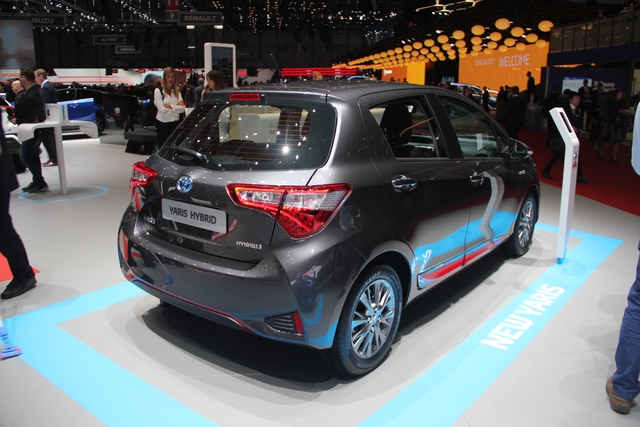

Photo Toyota Yaris Hybrid
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
1.5h AT 47 specifications
Specifications
Engine
| Type of engine | Hybrid |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 1497 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 100 |
| Torque, Nm | 169 |
| RPM at max torque | 3600 |
| Engine | 1.5i Hybryd |
| Compression | 13.4 |
| RPM at max power | 4800 |
| Number of motors | 1 |
| Power electric motor HP | 61 |
| Engine power, hp | 74 |
| Revolutions max. Engine power, vol. / min. | 6000 |
| the engine torque, Nm | 111 |
| Revolutions max. engine torque, vol. / min. | 3600-4400 |
| Engine code | 1NZ-FXE |
| EV-mode | + |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 3945 |
| Height mm | 1510 |
| Wheelbase mm | 2510 |
| Front track, mm | 1460 |
| Rear track, mm | 1445 |
| Kerb weight, kg | 1090 |
| Trunk capacity, L | 286 |
| Fuel tank, l | 36 |
| Gross weight, kg | 1565 |
| Width (without mirrors) mm | 1695 |
Suspension
| Type of front suspension | Independent, such as MacPherson |
|---|---|
| Rear suspension | Torsion beam |
Brake system
| The front brakes | Disk |
|---|---|
| Rear brakes | Drum |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 3.1 |
|---|---|
| Fuel consumption (urban), l. 100 km | 3.3 |
| Fuel consumption (combined), l. 100 km | 3.3 |
| Acceleration (0-100 km/h), s | 11.8 |
| The maximum speed, km / h. | 165 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Drive | Front |
| Transmission | CVT |
| Gearbox | Variable speed drive |
| Transmission manufacturer | Aisin |
| Transmission country of origin | Japan |
1.5i Hybryd (100 HP) e-CVT 41 specifications
Specifications
Engine
| Type of engine | Hybrid |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 1497 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 100 |
| Torque, Nm | 169 |
| RPM at max torque | 3600 |
| Engine | 1.5i Hybryd |
| Compression | 13.4 |
| RPM at max power | 4800 |
| Number of motors | 1 |
| Power electric motor HP | 61 |
| Engine power, hp | 74 |
| Revolutions max. Engine power, vol. / min. | 6000 |
| the engine torque, Nm | 111 |
| Revolutions max. engine torque, vol. / min. | 3600-4400 |
| Engine code | 1NZ-FXE |
| EV-mode | + |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 3945 |
| Height mm | 1510 |
| Wheelbase mm | 2510 |
| Front track, mm | 1460 |
| Rear track, mm | 1445 |
| Trunk capacity, L | 286 |
| Fuel tank, l | 36 |
| Width (without mirrors) mm | 1695 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 3.1 |
|---|---|
| Fuel consumption (urban), l. 100 km | 3.3 |
| Fuel consumption (combined), l. 100 km | 3.3 |
| Acceleration (0-100 km/h), s | 11.8 |
| The maximum speed, km / h. | 165 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Drive | Front |
| Transmission | CVT |
| Gearbox | Variable speed drive |
| Transmission manufacturer | Aisin |
| Transmission country of origin | Japan |
Toyota Yaris Hybrid questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Toyota Yaris Hybrid?
This page lists 2 trims for the Toyota Yaris Hybrid, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Toyota Yaris Hybrid?
The listed configurations show a power range of 100 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Toyota Yaris Hybrid?
The available specification data shows engine displacement from 1497 cc across the trims listed on this page.
Are there photos for the Toyota Yaris Hybrid?
Yes. The gallery includes 21 photos for the Toyota Yaris Hybrid, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
