Audi Q5 (GU) specifications and photos
The 2024 Audi Q5 represents the third generation of this popular premium midsize crossover. Introduced in late 2024, it brings updated exterior styling, a heavily modernized cabin, and mild-hybrid powertrains to the lineup.
Audi Q5 (GU) at a glance
Quick model context before comparing photos and trim-level specifications.
The Audi Q5 continues its role as a core model for the brand, offering a balance of comfort, technology, and everyday usability in a midsize SUV format. This third-generation model, debuting for the 2024 model year, introduces a more digitized interior and updated exterior lighting signatures. It caters to buyers looking for a premium crossover that handles daily commuting and longer trips with equal competence. The inclusion of the MHEV plus system across the engine range highlights a shift towards improved efficiency without moving to a full plug-in hybrid setup for these specific trims.
- Power: 204 hp
- Engine displacement: 1968-1984 cc
- Transmissions: 7 S-tronic
- Seating: 5 seats
Photos, trims and specifications for Audi Q5 (GU)
This model page brings gallery images, trim comparison, and detailed technical data together for the 2024 generation.
Estimate fuel cost
Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.
Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.
Audi Q5 (GU) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design

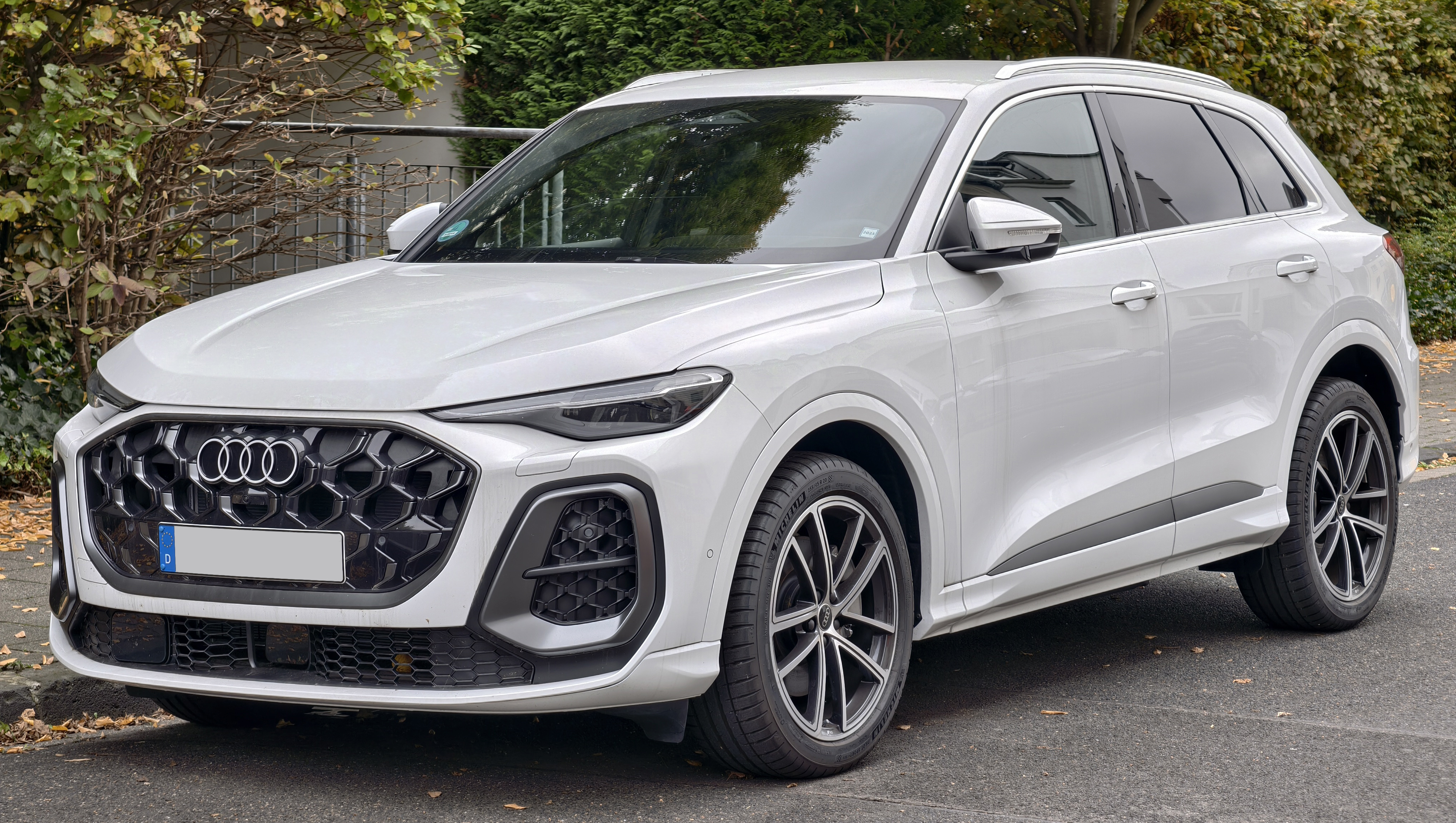

The exterior design of the Q5 features a prominent Singleframe grille that anchors the front end. Advanced lighting is a key element, with digital OLED headlights that can display individual light signatures. The rear styling incorporates a wide light bar that stretches across the tailgate, emphasizing the vehicle's width and providing a distinctive look at night.
Interior
Inside, the cabin utilizes materials like leather, aluminum, and wood trim. The dashboard is dominated by a new digital layout, featuring an 11.9-inch Audi virtual cockpit for the driver and a 14.5-inch MMI central touchscreen running on Android Automotive OS. An optional 10.9-inch display is available for the front passenger, allowing them to control infotainment functions without distracting the driver.
Performance
The powertrain lineup includes 2.0-liter turbocharged four-cylinder engines in both gasoline (TFSI) and diesel (TDI) configurations. Both produce 204 horsepower and are paired with a 7-speed S-tronic dual-clutch transmission. The TFSI variant offers 340 Nm of torque and is available with either front-wheel drive or all-wheel drive, while the TDI delivers 400 Nm and comes standard with all-wheel drive. All models feature a 48-volt MHEV plus system that can provide a temporary boost of 24 horsepower.
Practicality
With a length of 4717 mm and a wheelbase of 2820 mm, the Q5 provides a spacious interior suitable for families. The cargo area offers a capacity of 520 liters, accommodating luggage or daily gear. Its SUV body style and available all-wheel-drive system make it a versatile choice for various weather conditions and road types.
Safety and tech
The technological suite is centered around the new Android Automotive-based infotainment system, displayed on a large 14.5-inch central screen. The digital OLED headlights improve visibility and safety, while the optional passenger screen adds a layer of convenience. The mild-hybrid system not only aids performance but also supports the electrical systems for improved efficiency.
Buyer notes
When comparing trims, buyers should note the difference between the front-wheel-drive and all-wheel-drive TFSI models, as the AWD version offers quicker acceleration. The diesel TDI provides more torque, which may be preferable for frequent highway driving or towing. Availability of the passenger display and specific interior trim materials will depend on the chosen equipment level.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 2.0 TFSI Mild Hybrid (204 hp) 7 S-tronic | 1984 cc | 204 hp | 5 | 7 S-tronic |
| 2.0 TFSI Mild Hybrid (204 hp) 7 S-tronic 4x4 | 1984 cc | 204 hp | 5 | 7 S-tronic |
| 2.0 TDI Mild Hybrid (204 hp) 7 S-tronic 4x4 | 1968 cc | 204 hp | 5 | 7 S-tronic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

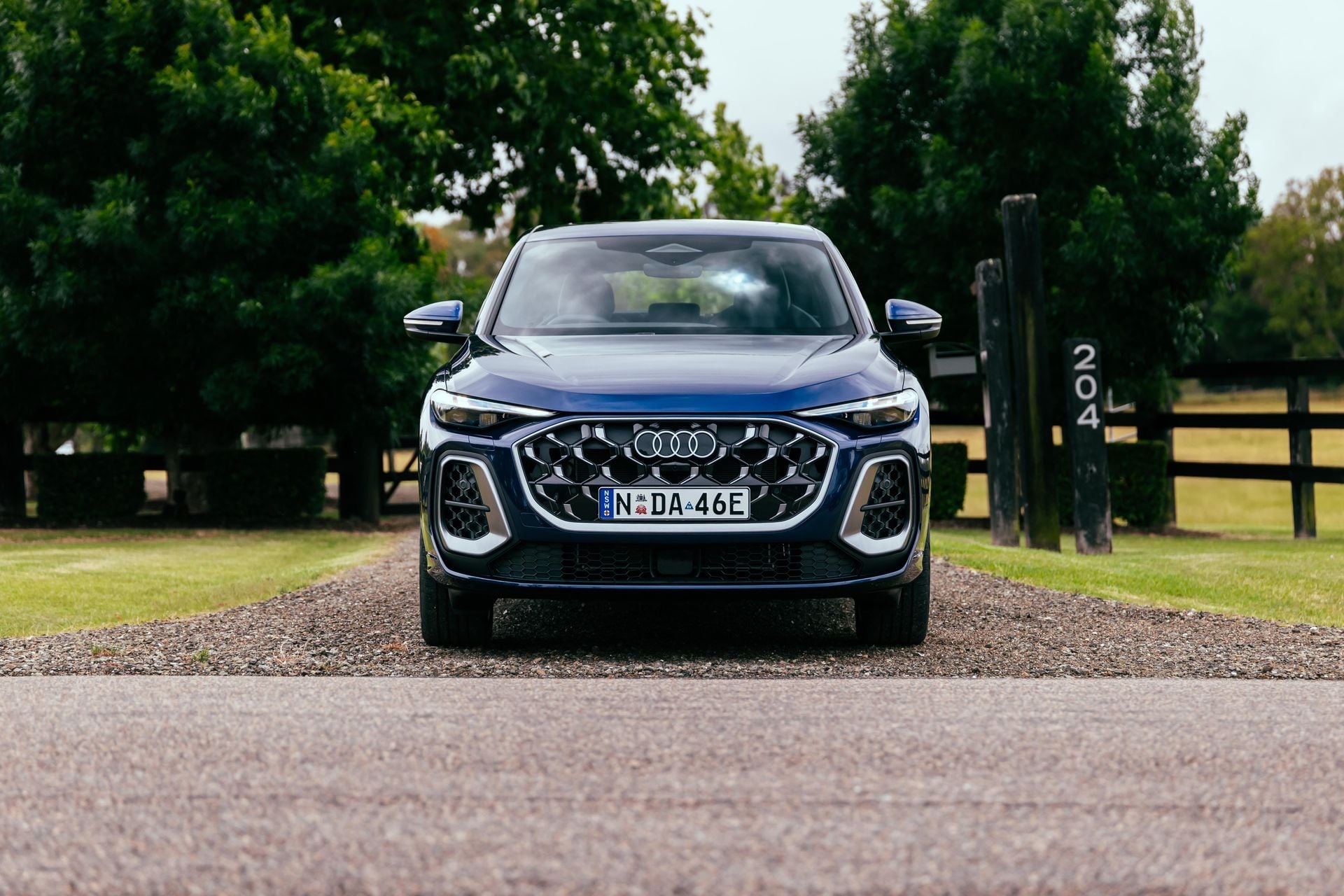

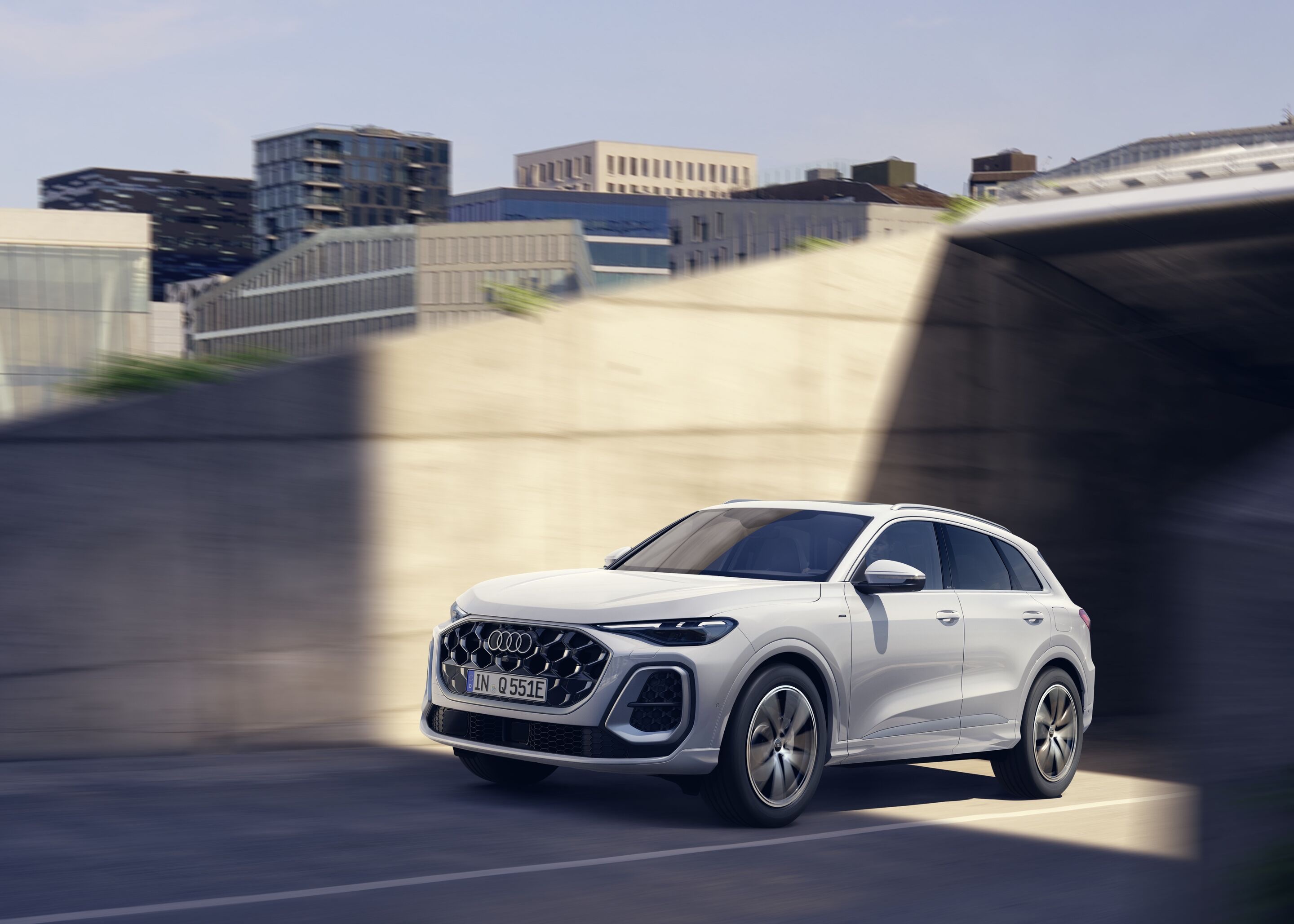

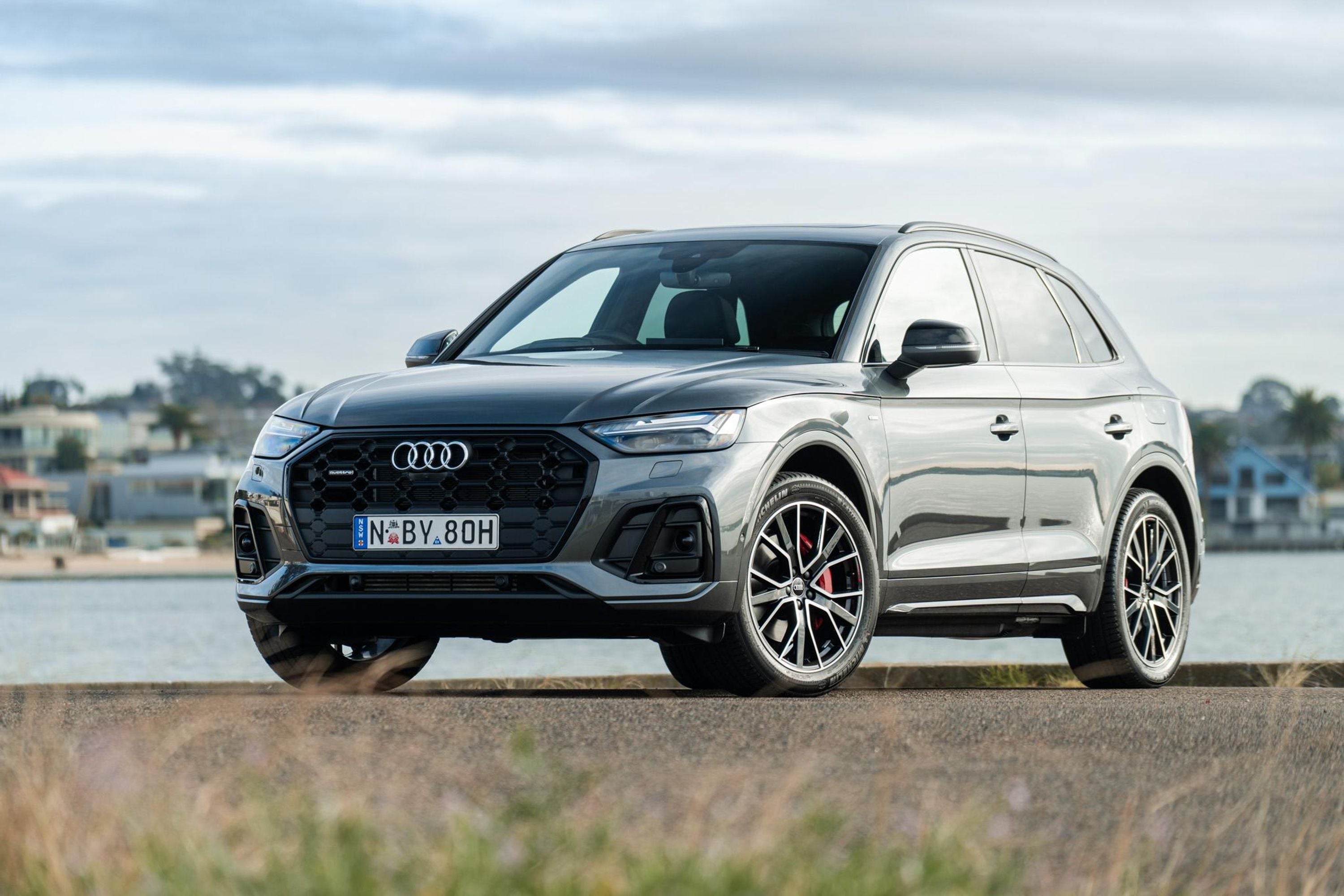

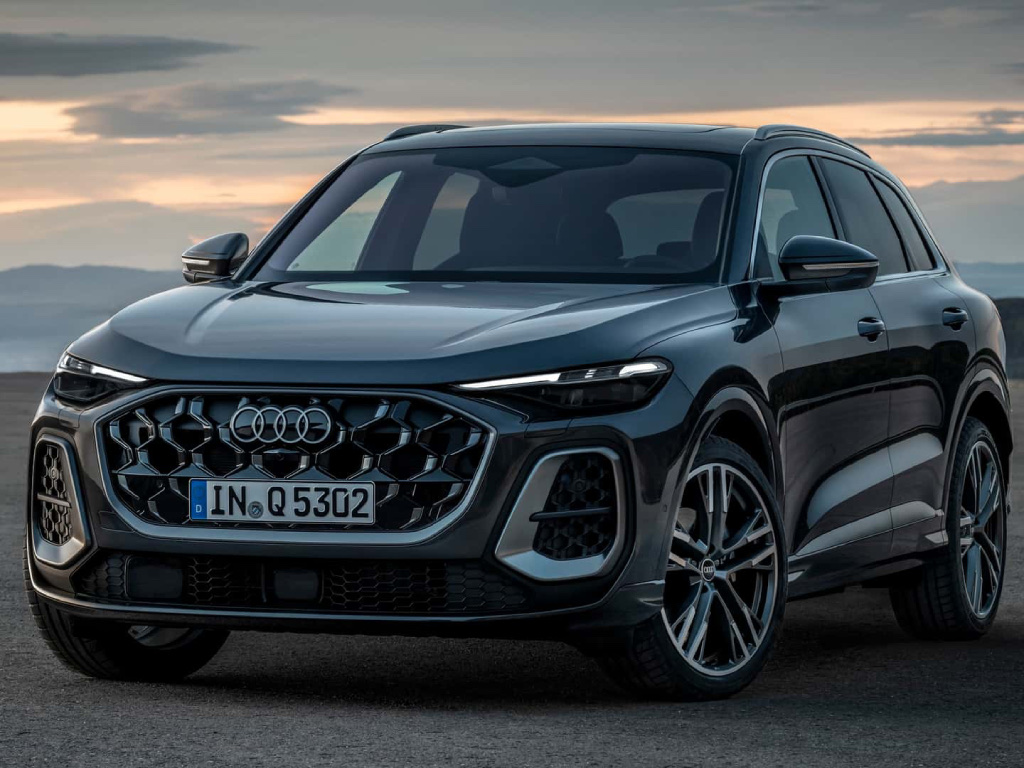

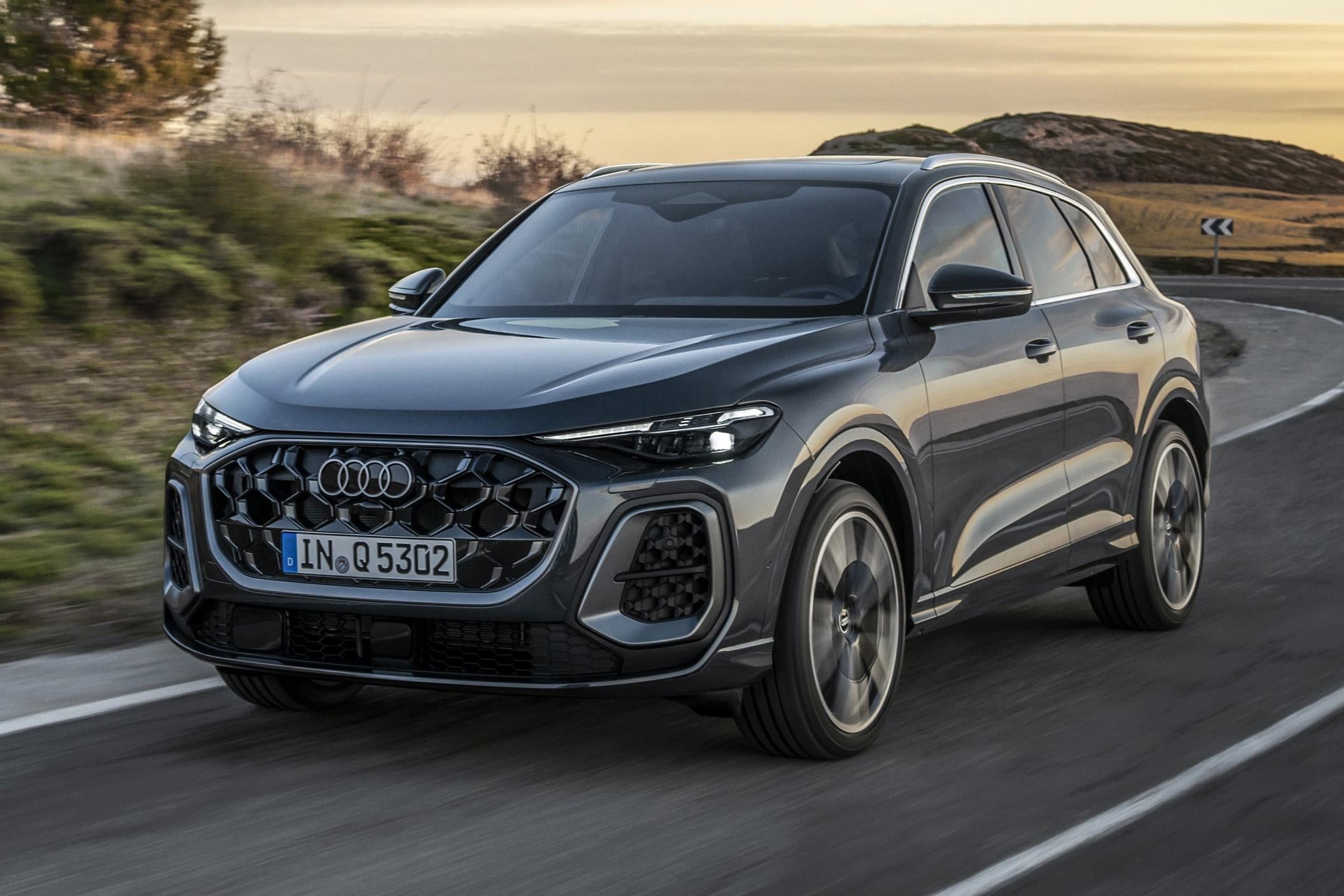

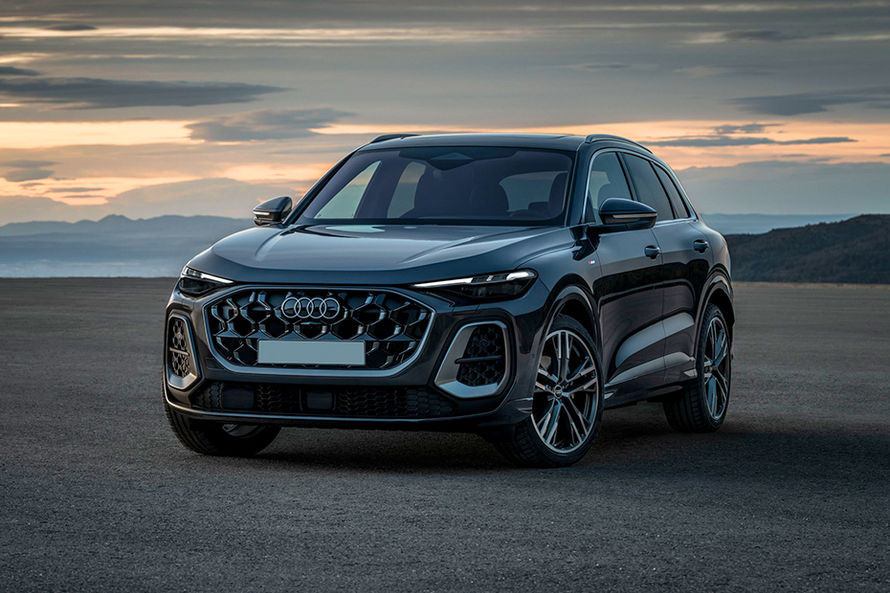

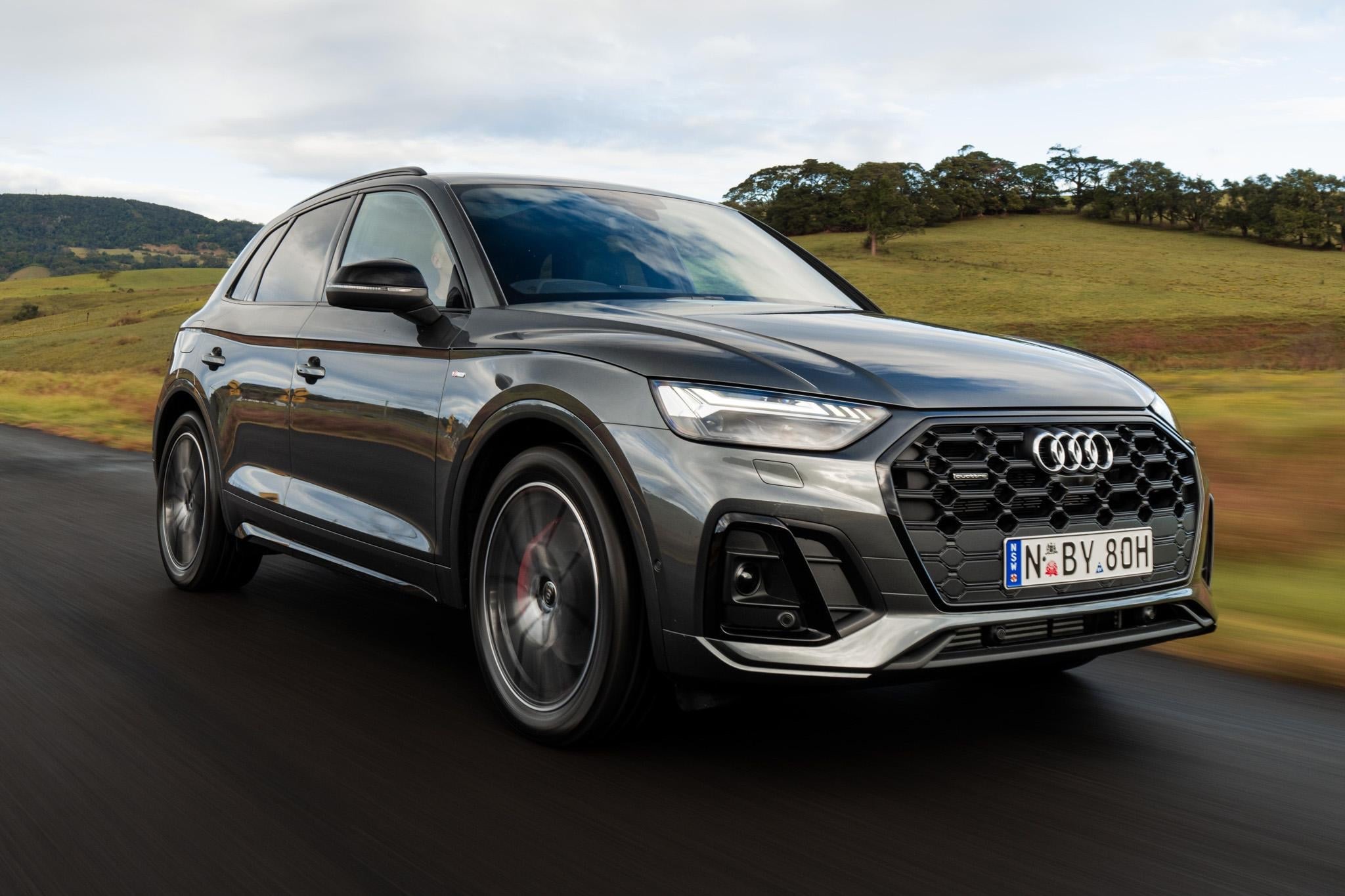

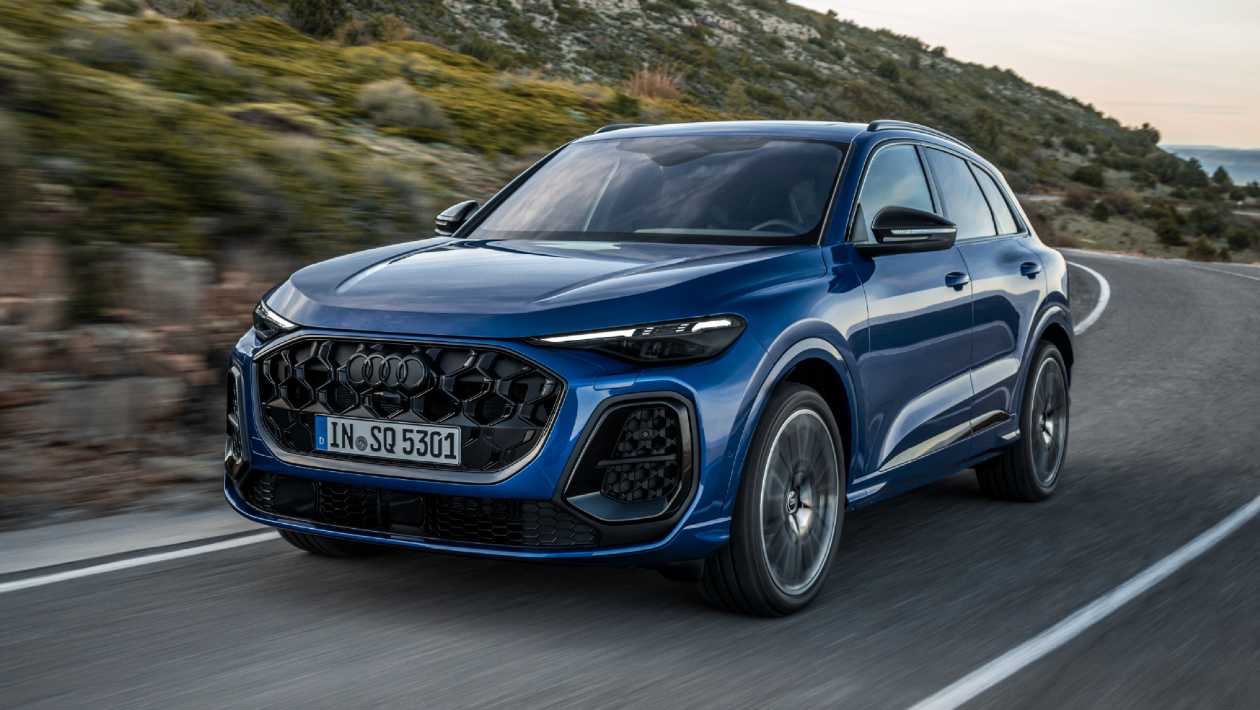

Audi Q5 (GU) photo gallery
18 images are collected here with the main specifications and trim data for this model.

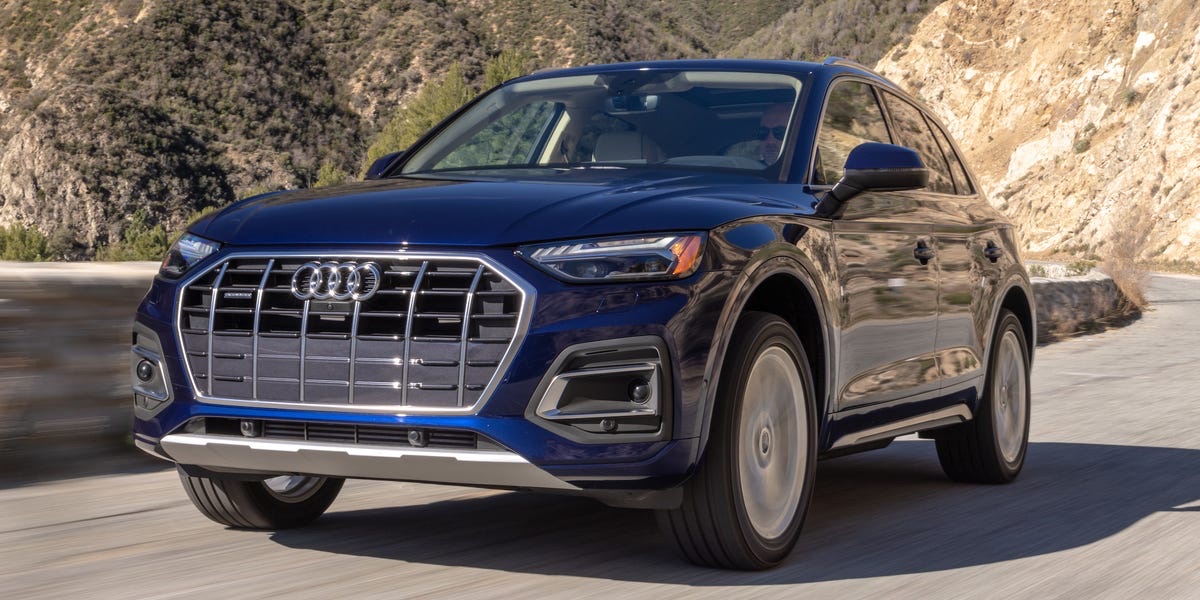

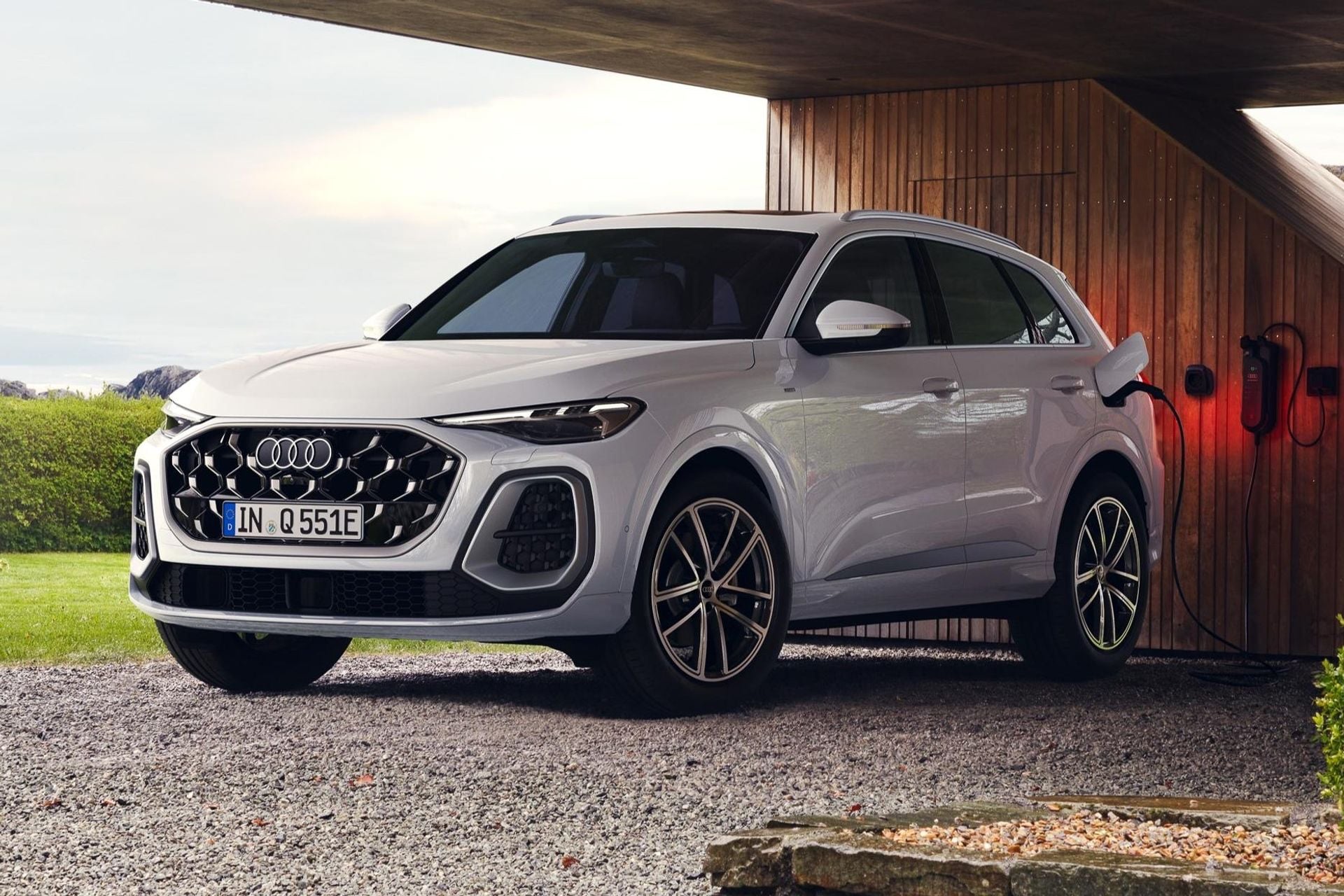

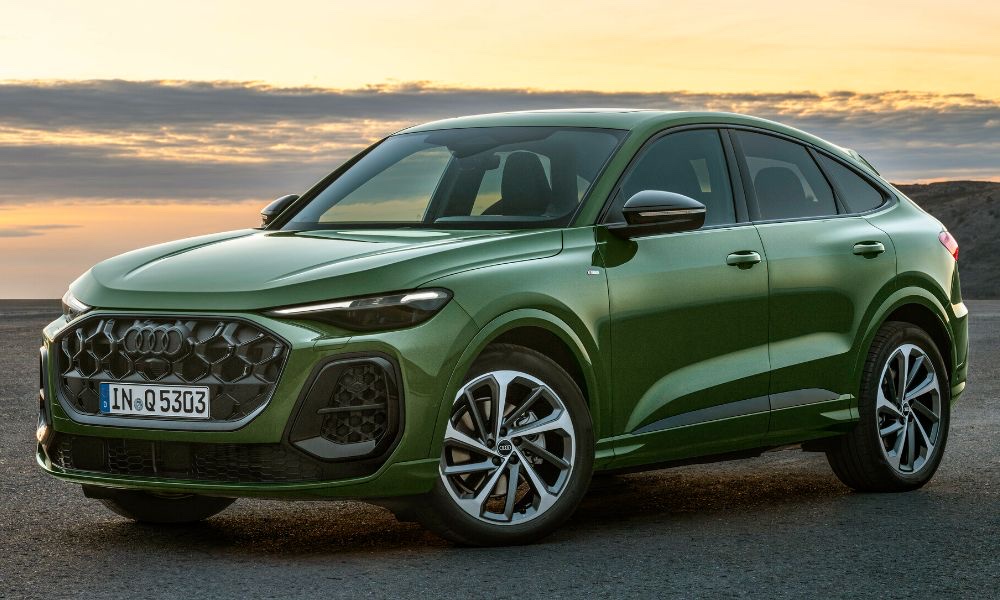

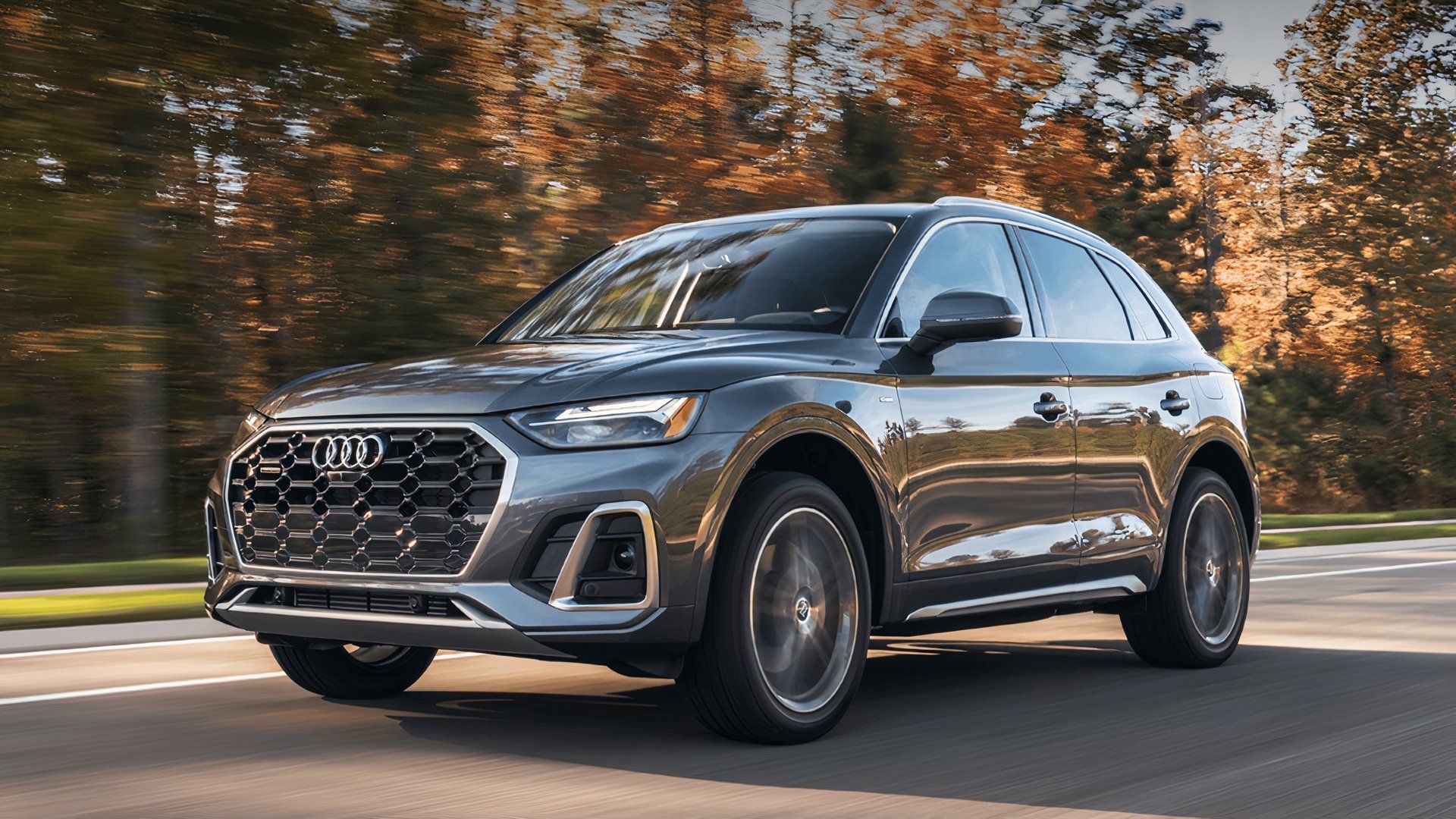

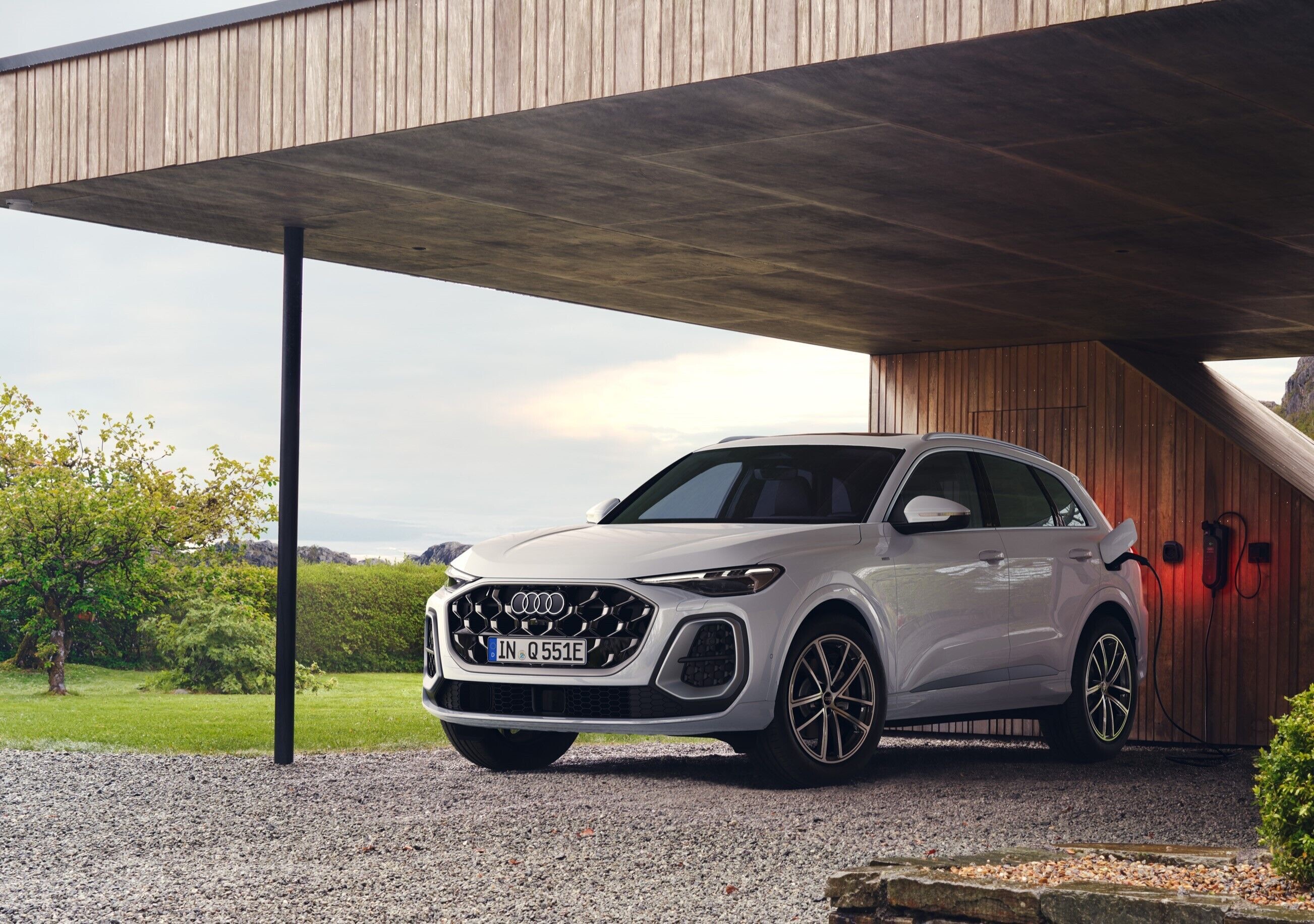

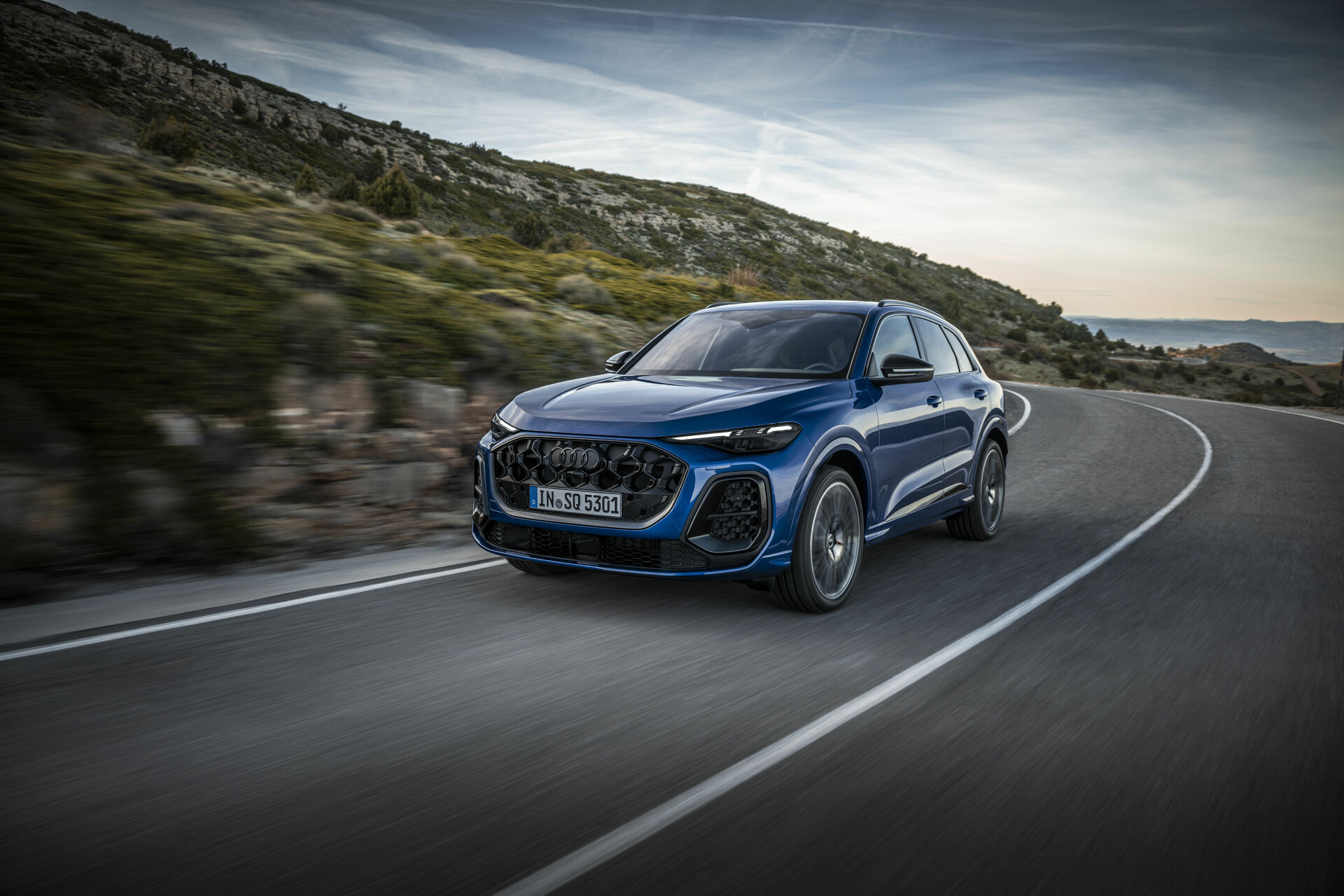

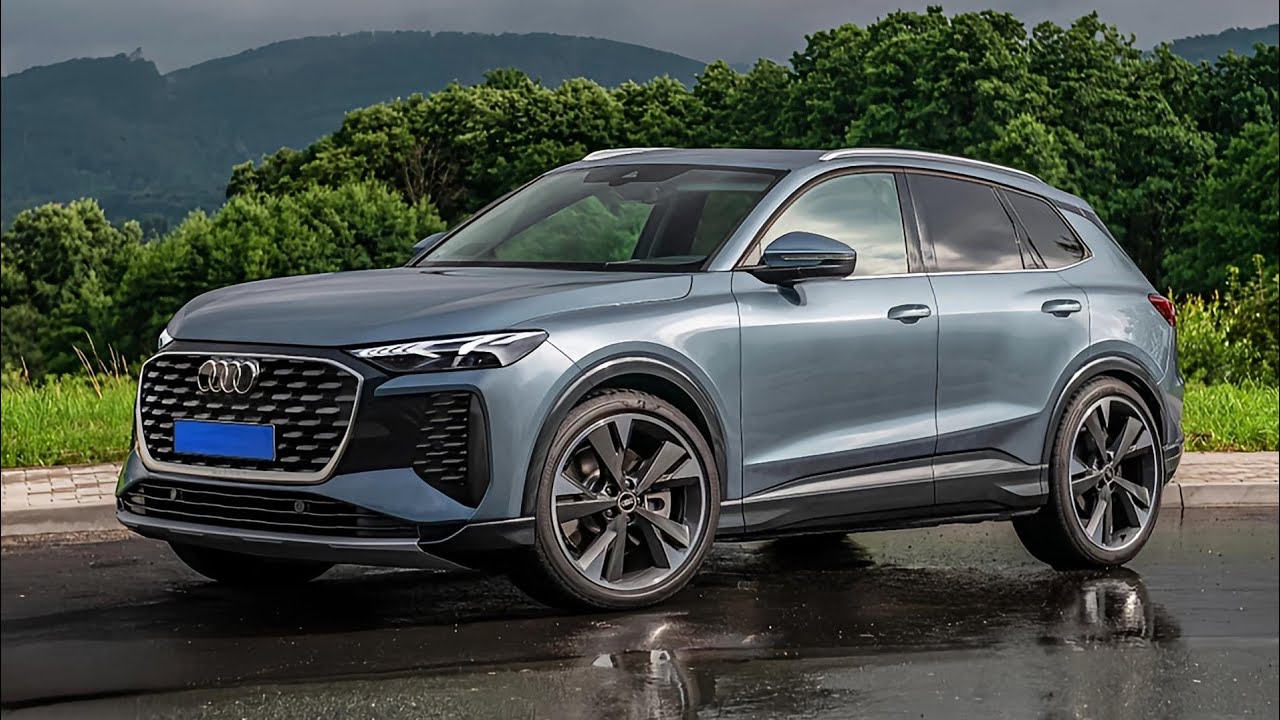

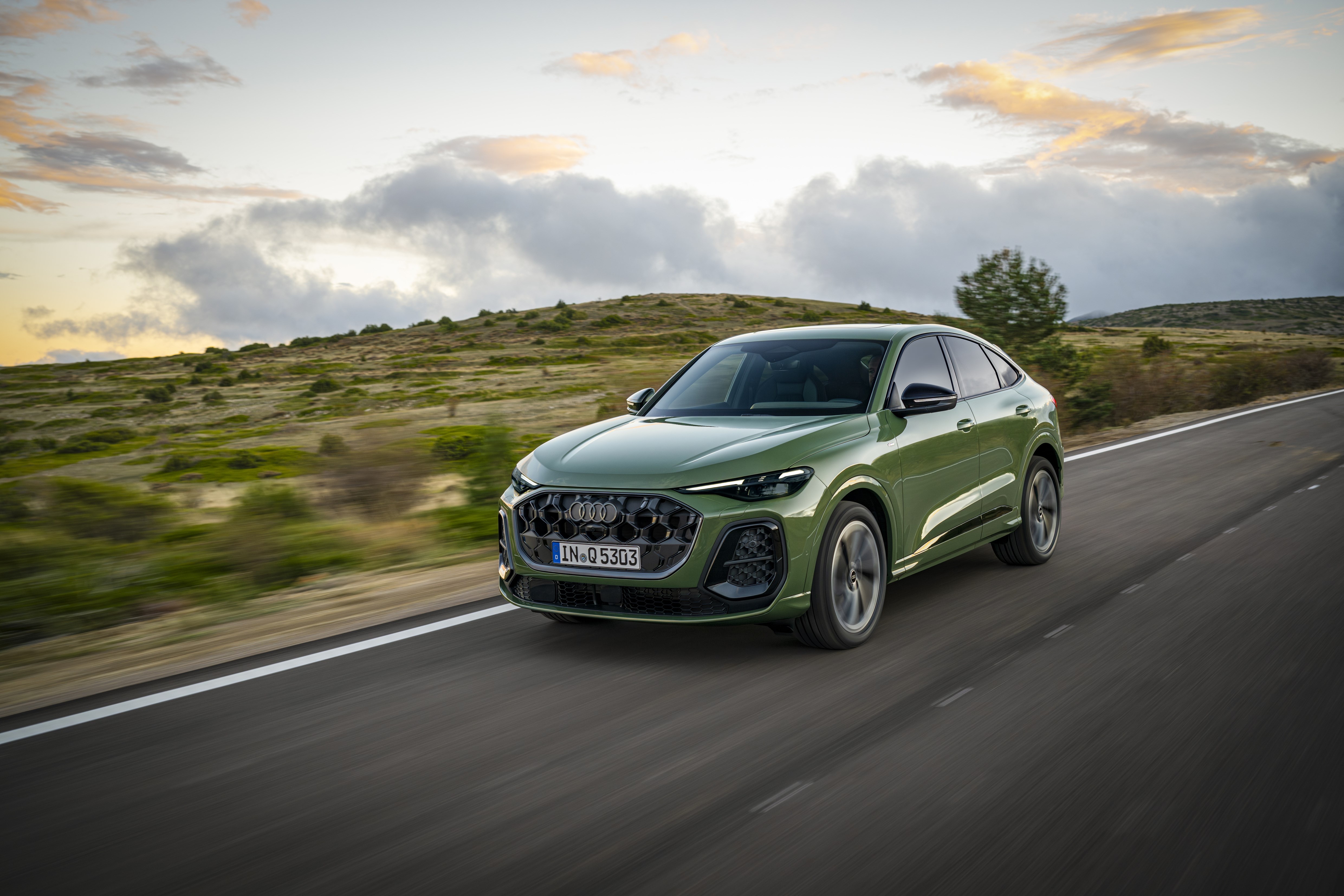

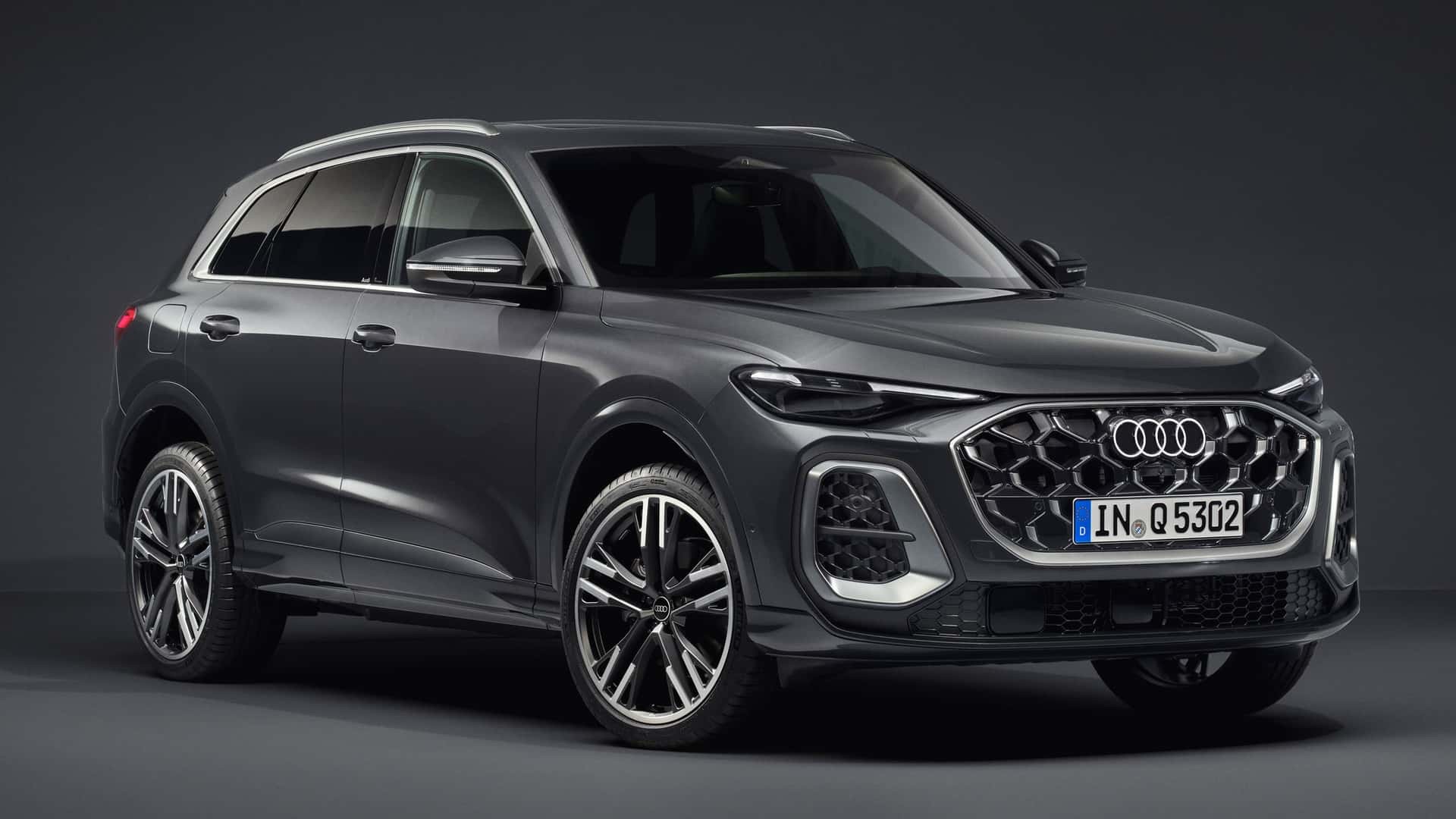

Photo Audi Q5 (GU)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
2.0 TFSI Mild Hybrid (204 hp) 7 S-tronic 38 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.3 |
|---|---|
| Top speed, km/h | 226 |
| Acceleration 0-100 km/h, s | 8.6 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TFSI Mild Hybrid |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1984 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 12.5:1 |
| Power, hp | 204 |
| RPM at max power | 4300-6000 |
| Torque, Nm | 340 |
| RPM at max torque | 2000-4000 |
| Number of electric motors | 1 |
| Electric motor power, hp | 24 |
| Electric motor torque, Nm | 230 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4717 |
| Width, mm | 2155 |
| Height, mm | 1647 |
| Wheelbase, mm | 2820 |
| Front track, mm | 1645 |
| Rear track, mm | 1637 |
| Kerb weight, kg | 1835 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 11.9 |
| Width without mirrors, mm | 1900 |
| Trunk capacity, L | 520 |
Transmission and drive
| Transmission | 7 S-tronic |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | BorgWarner |
| Automatic transmission | + |
2.0 TFSI Mild Hybrid (204 hp) 7 S-tronic 4x4 38 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.6 |
|---|---|
| Top speed, km/h | 226 |
| Acceleration 0-100 km/h, s | 7.2 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TFSI Mild Hybrid |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1984 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 12.5:1 |
| Power, hp | 204 |
| RPM at max power | 4300-6000 |
| Torque, Nm | 340 |
| RPM at max torque | 2000-4000 |
| Number of electric motors | 1 |
| Electric motor power, hp | 24 |
| Electric motor torque, Nm | 230 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4717 |
| Width, mm | 2155 |
| Height, mm | 1647 |
| Wheelbase, mm | 2820 |
| Front track, mm | 1645 |
| Rear track, mm | 1637 |
| Kerb weight, kg | 1835 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 11.9 |
| Width without mirrors, mm | 1900 |
| Trunk capacity, L | 520 |
Transmission and drive
| Transmission | 7 S-tronic |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | All-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | BorgWarner |
| Automatic transmission | + |
2.0 TDI Mild Hybrid (204 hp) 7 S-tronic 4x4 37 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.6 |
|---|---|
| Top speed, km/h | 226 |
| Acceleration 0-100 km/h, s | 7.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 TDI Mild Hybrid |
|---|---|
| Engine code | EA288 evo |
| Engine type | Hybrid |
| Fuel type | Diesel |
| Engine displacement, cc | 1968 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 15.5:1 |
| Power, hp | 204 |
| RPM at max power | 3800-4200 |
| Torque, Nm | 400 |
| RPM at max torque | 1750-3250 |
| Number of electric motors | 1 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4717 |
| Width, mm | 2155 |
| Height, mm | 1647 |
| Wheelbase, mm | 2820 |
| Front track, mm | 1645 |
| Rear track, mm | 1637 |
| Kerb weight, kg | 1835 |
| Fuel tank capacity, L | 65 |
| Turning circle, m | 11.9 |
| Width without mirrors, mm | 1900 |
| Trunk capacity, L | 520 |
Transmission and drive
| Transmission | 7 S-tronic |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | All-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | BorgWarner |
| Automatic transmission | + |
Audi Q5 (GU) questions
Short answers based on the specifications and photos available in this catalog.
What engines are available for the 2024 Audi Q5?
The Q5 is offered with 2.0-liter gasoline (TFSI) and diesel (TDI) engines, both producing 204 horsepower and featuring mild-hybrid technology.
Does the Audi Q5 come with all-wheel drive?
Yes, all-wheel drive is standard on the TDI model and available as an option on the TFSI model, which comes standard with front-wheel drive.
What are the dimensions of the cargo area?
The trunk offers a capacity of 520 liters, providing ample space for everyday errands or family road trips.
What is the infotainment system like?
The vehicle features a 14.5-inch central touchscreen powered by Android Automotive OS, along with an 11.9-inch digital instrument cluster. An optional 10.9-inch screen is available for the front passenger.
What is the MHEV plus system?
It is a mild-hybrid system included with all engines that provides a temporary electrical boost of up to 24 horsepower, assisting with acceleration and efficiency.
