BMW 5 Series Sedan (G60) specifications and photos
The eighth-generation BMW 5 Series Sedan, known by its G60 chassis code, debuted in May 2023. This E-class executive car is available in both rear-wheel drive and all-wheel drive configurations, offering a blend of traditional styling and modernized technology.
BMW 5 Series Sedan (G60) at a glance
Quick model context before comparing photos and trim-level specifications.
Succeeding the popular G30 generation, the 2023 BMW 5 Series Sedan marks a notable step forward in size and technological integration for the brand's core executive model. The G60 generation grew significantly in every direction, stretching 97 mm longer to 5,060 mm, while also gaining 32 mm in width, 36 mm in height, and a 20 mm longer wheelbase. These expanded dimensions translate directly into improved cabin space and passenger comfort. Unlike some of the more radical design departures seen elsewhere in the recent BMW lineup, the G60 5 Series retains a relatively conservative aesthetic that caters to its established buyer base. It continues to offer a broad range of powertrains, ensuring versatility for different driving needs and preferences.
- Power: 197-299 hp
- Engine displacement: 1995-1998 cc
- Transmissions: 8-Steptronic
- Seating: 5 seats
Photos, trims and specifications for BMW 5 Series Sedan (G60)
This model page brings gallery images, trim comparison, and detailed technical data together for the 2023 generation.
BMW 5 Series Sedan (G60) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
BMW has positioned the G60 5 Series as a visually traditional alternative to some of its more polarizing recent models. The exterior styling plays it safe, emphasizing classic sedan proportions while incorporating the larger footprint. At 5,060 mm in length and 1,900 mm in width, it has a substantial road presence. The design cleanly integrates the increased dimensions, resulting in an executive car that feels substantial yet familiar to longtime fans of the Munich-based automaker.
Interior
Inside, the G60 adopts BMW's contemporary dual-screen curved display, pairing a 12.3-inch driver instrument cluster with a 14.9-inch central touchscreen. A notable addition is the Interaction Bar, a slim, illuminated touch-control panel spanning the dashboard and extending into the doors, handling climate and seating adjustments. The traditional gear lever has been swapped for a minimalist toggle switch on the center console. In a first for the brand, the 5 Series comes standard with a fully vegan interior, featuring 'Veganza' synthetic leather on the seats and steering wheel, though traditional Merino leather remains an option.
Performance
The powertrain lineup for the G60 includes mild-hybrid petrol and diesel engines, alongside plug-in hybrid (PHEV) options. Models like the 520i and 520d utilize a 48-volt mild-hybrid system paired with a 2.0-liter turbocharged four-cylinder engine and an 8-speed ZF automatic transmission. The 520d is available with either rear-wheel drive or xDrive all-wheel drive, with the xDrive variant managing 0-100 km/h in 7.3 seconds. For buyers seeking more electric capability, the 530e PHEV delivers a combined 299 horsepower and accelerates from 0-100 km/h in 6.4 seconds.
Practicality
The increased exterior dimensions of the G60 directly benefit its everyday practicality. The longer 2,995 mm wheelbase provides improved rear legroom, making it an accommodating vehicle for adult passengers on longer journeys. The trunk offers a practical 520 liters of cargo capacity, allowing it to handle luggage for road trips or everyday family duties with ease. Its traditional sedan layout remains a highly functional choice for both business and personal use.
Safety and tech
Technology in the G60 is heavily centered around the large curved display and the innovative Interaction Bar, which digitizes many traditional physical controls. While specific driver assistance systems vary by trim, the comprehensive infotainment setup points to a highly connected cabin experience. The shift toward touch-based interfaces for climate and vehicle settings reflects a broader push toward minimalist, software-driven interiors in the premium segment.
Buyer notes
When comparing G60 variants, buyers should consider their daily driving patterns to choose between the efficiency of the mild-hybrid diesel (520d), the balanced performance of the mild-hybrid petrol (520i), or the electric range of the plug-in hybrid (530e). Those in colder climates will likely prefer the 520d xDrive for its all-wheel-drive traction. Note that the standard interior uses the new vegan 'Veganza' material; buyers wanting genuine leather must specify the Merino option.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 520i | 1998 cc | 208 hp | 5 | 8-Steptronic |
| 520d | 1995 cc | 197 hp | 5 | 8-Steptronic |
| 520d xDrive | 1995 cc | 197 hp | 5 | 8-Steptronic |
| 530e | 1998 cc | 299 hp | 5 | 8-Steptronic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

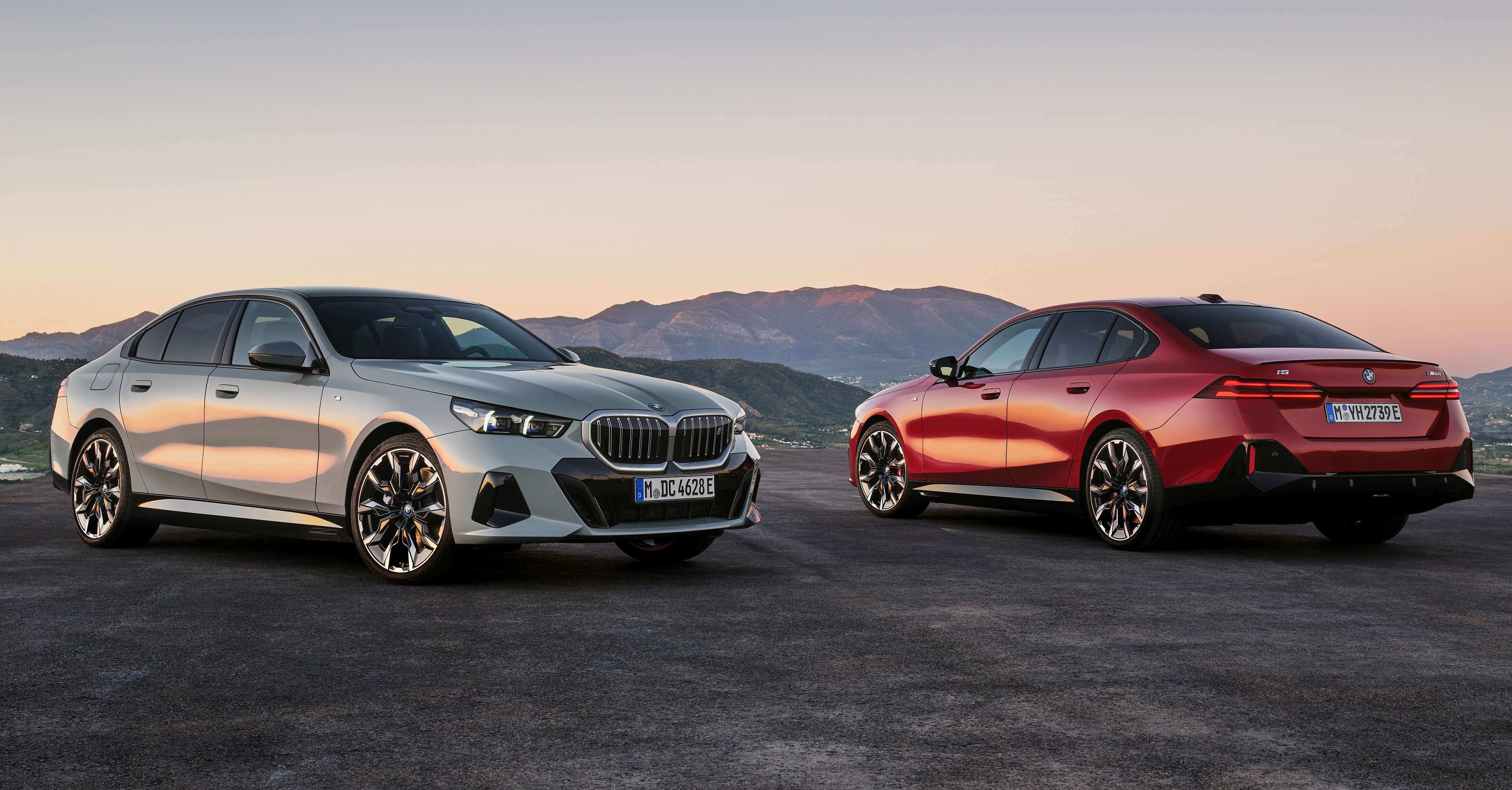

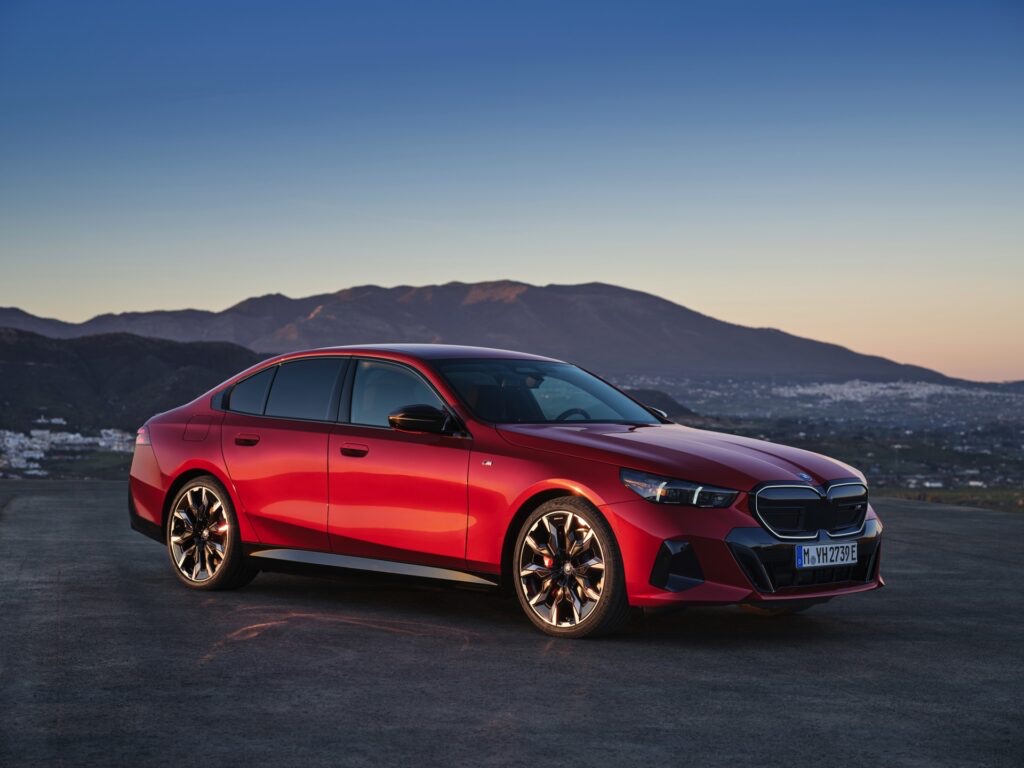

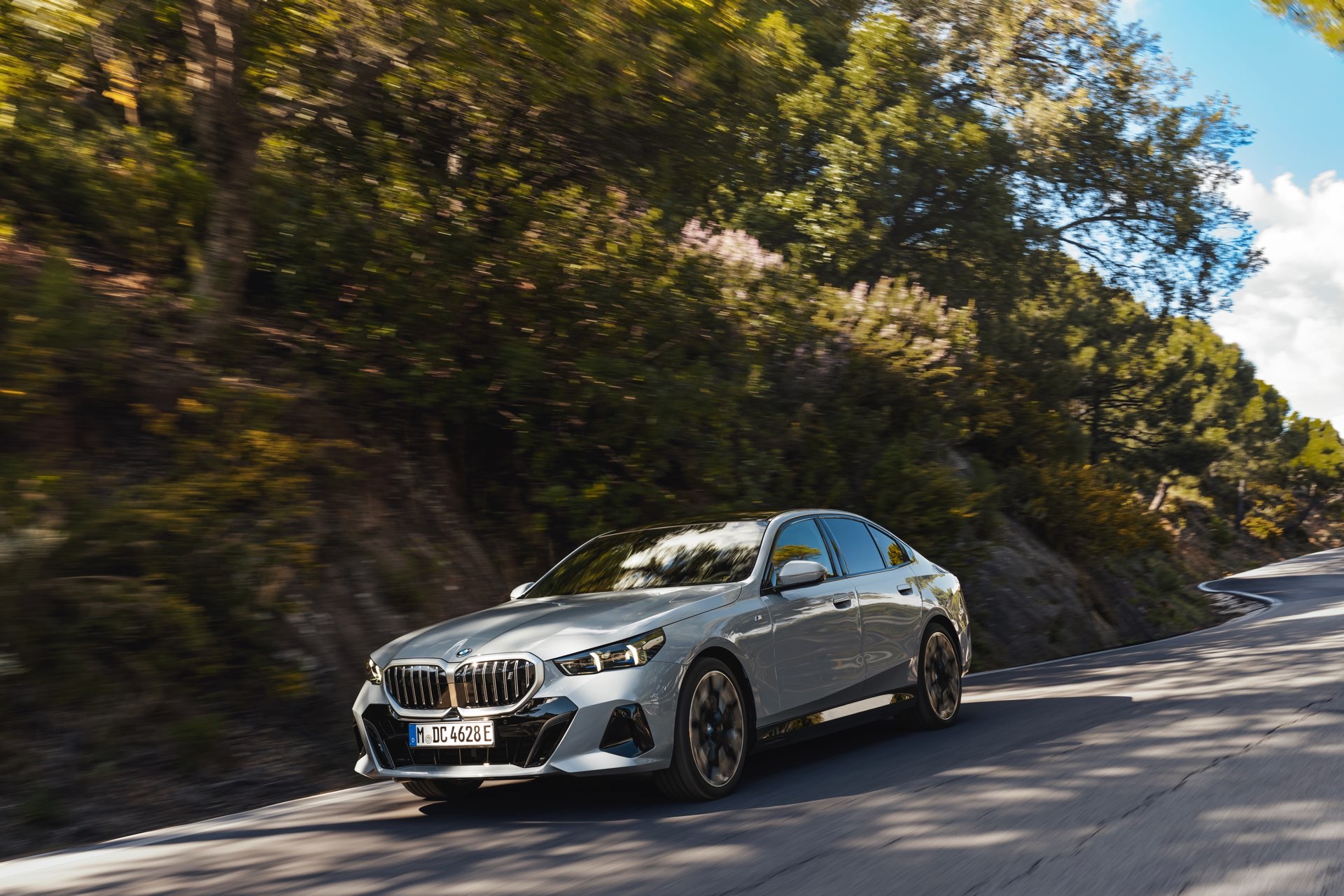

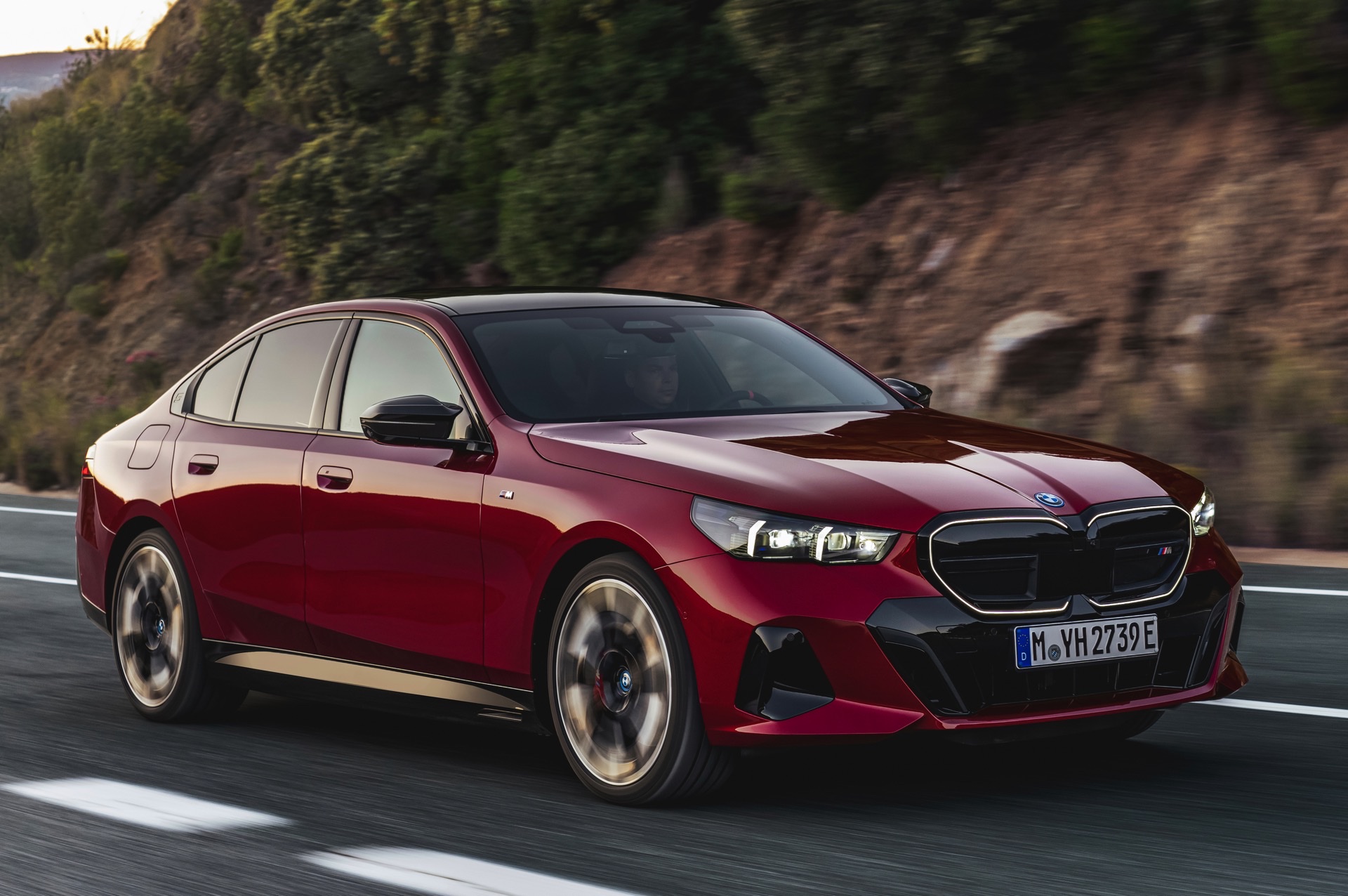

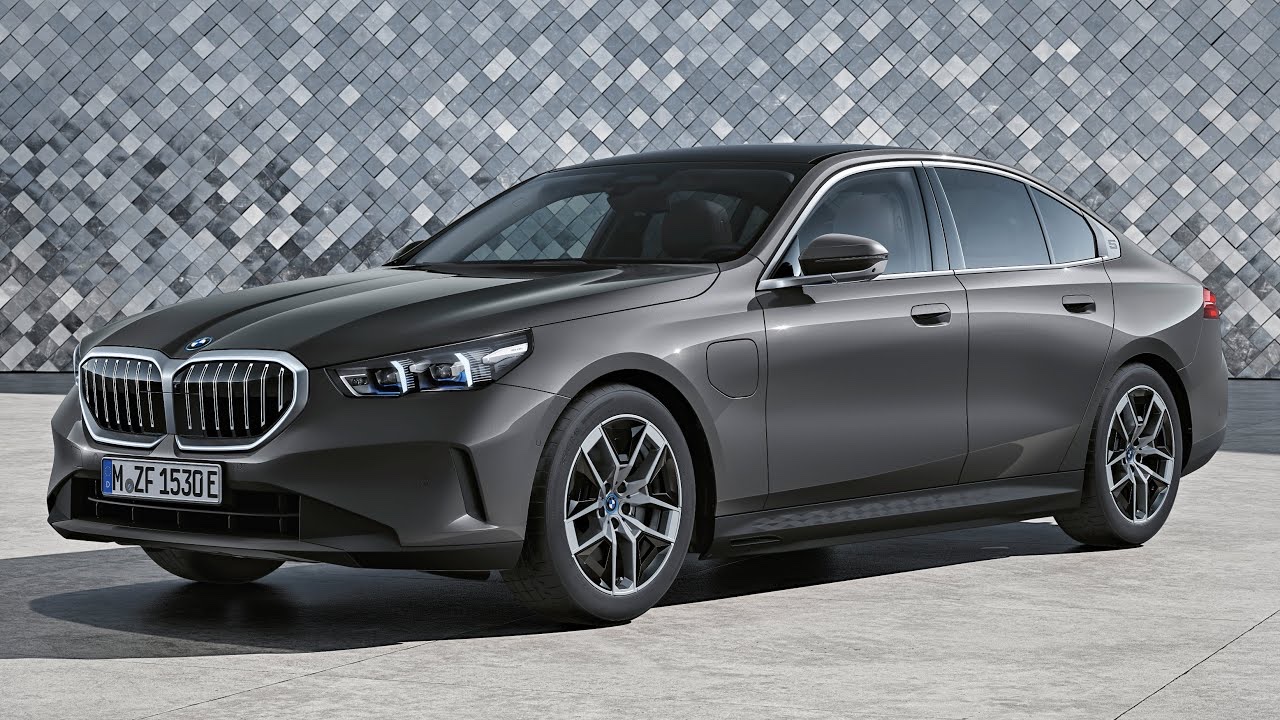

BMW 5 Series Sedan (G60) photo gallery
13 images are collected here with the main specifications and trim data for this model.

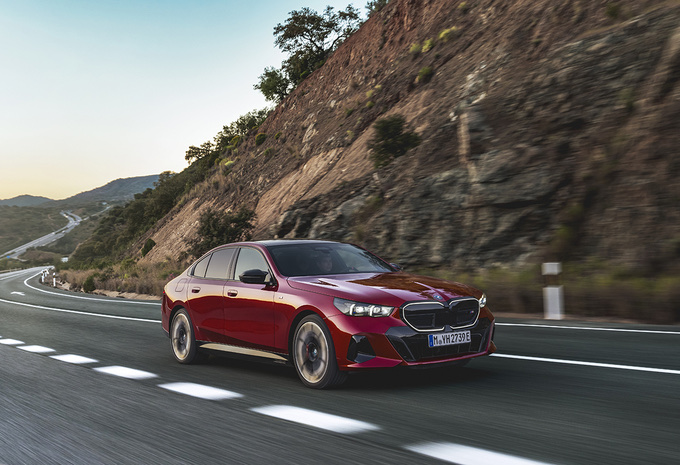

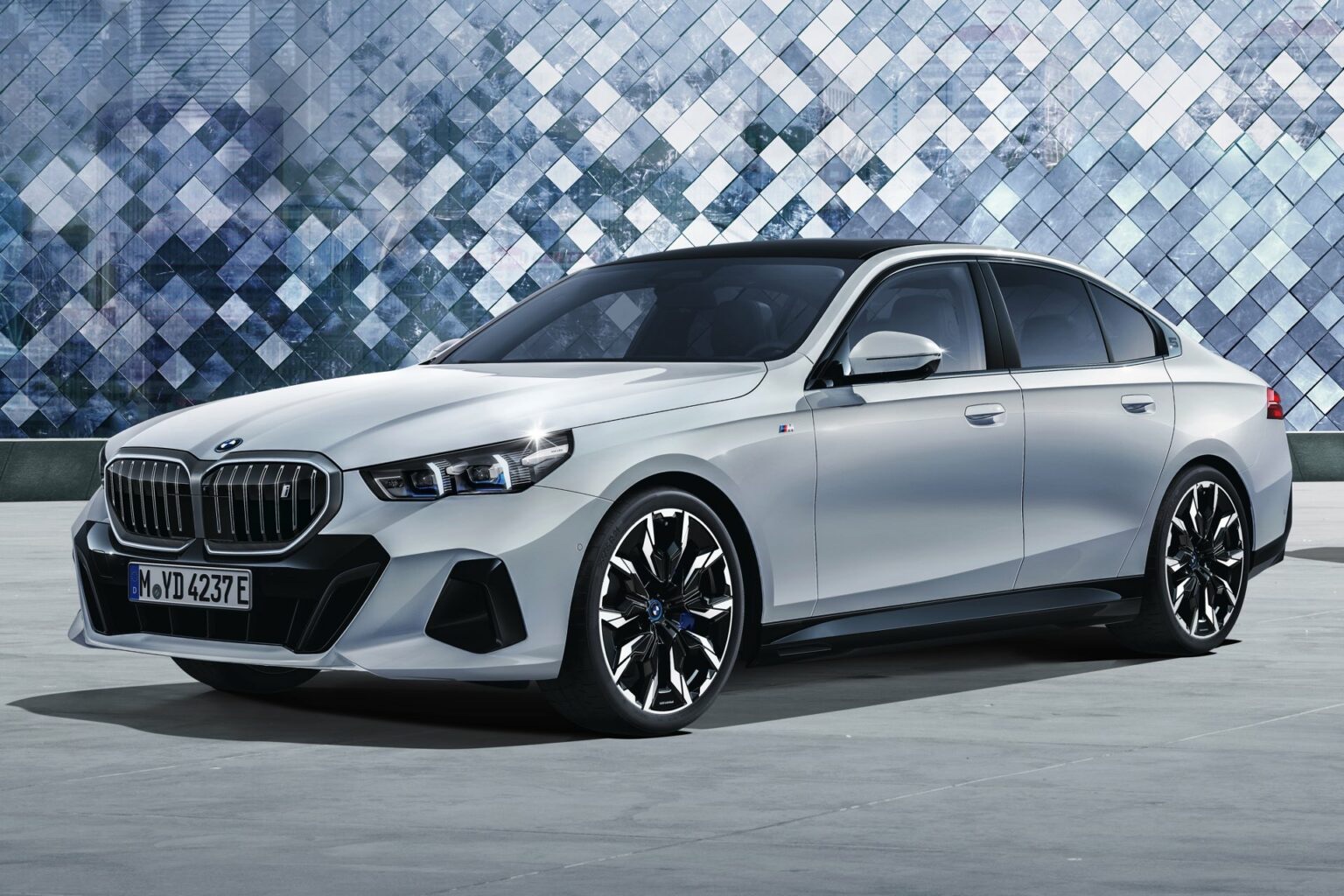

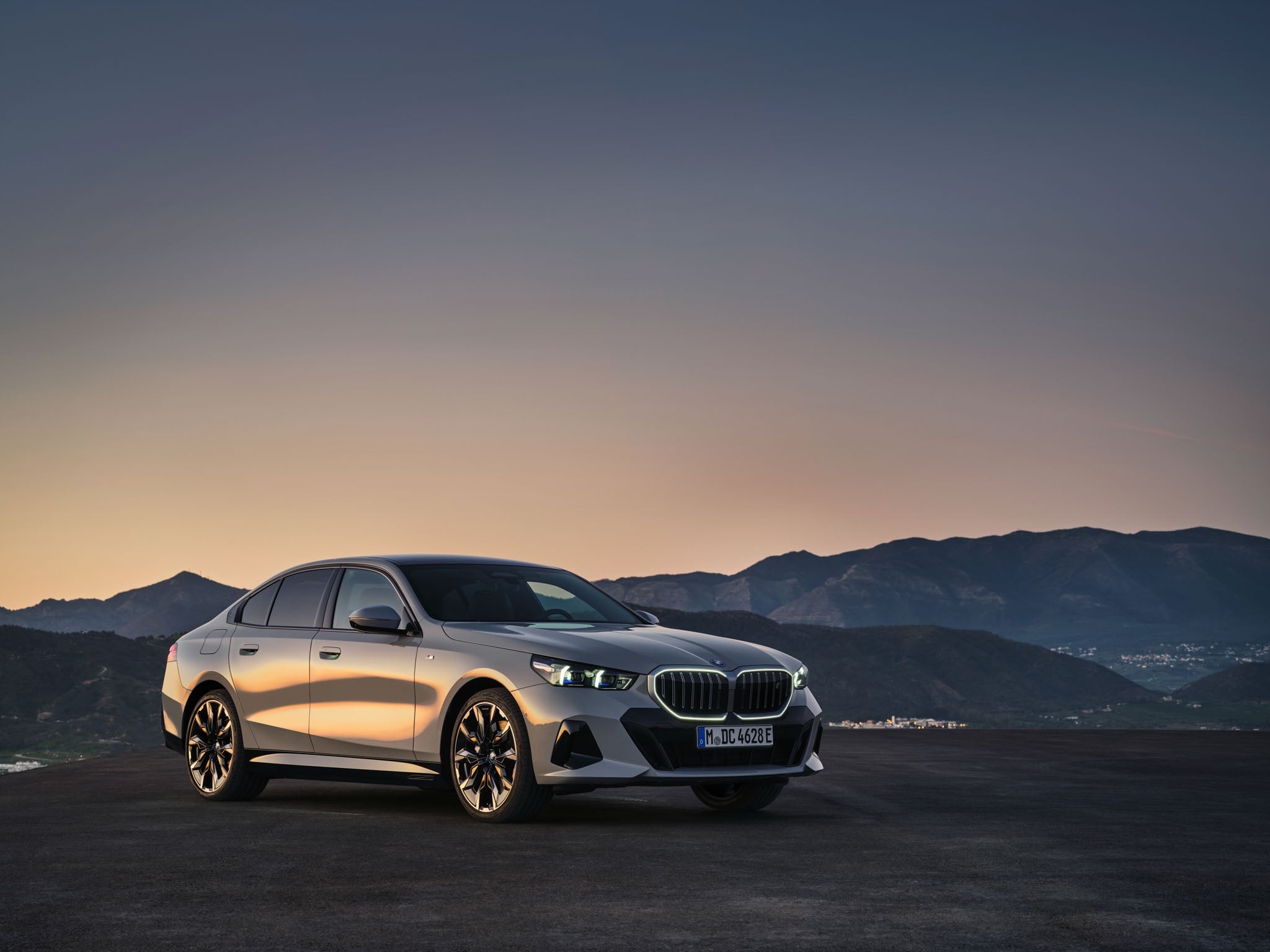

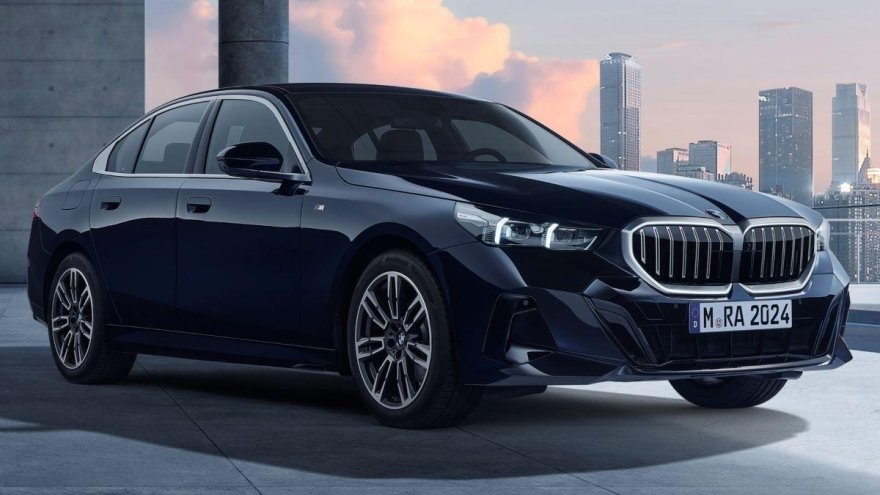

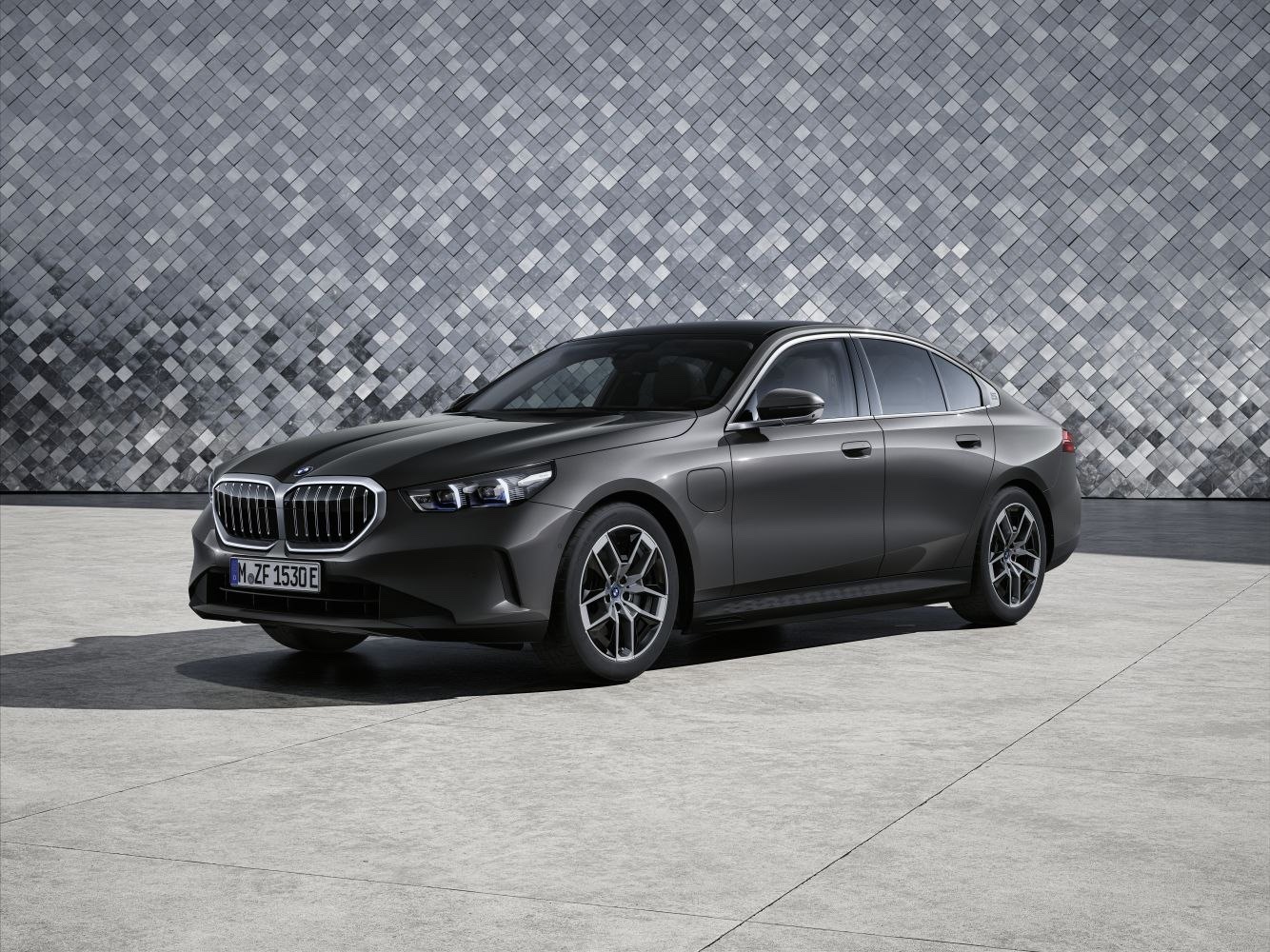

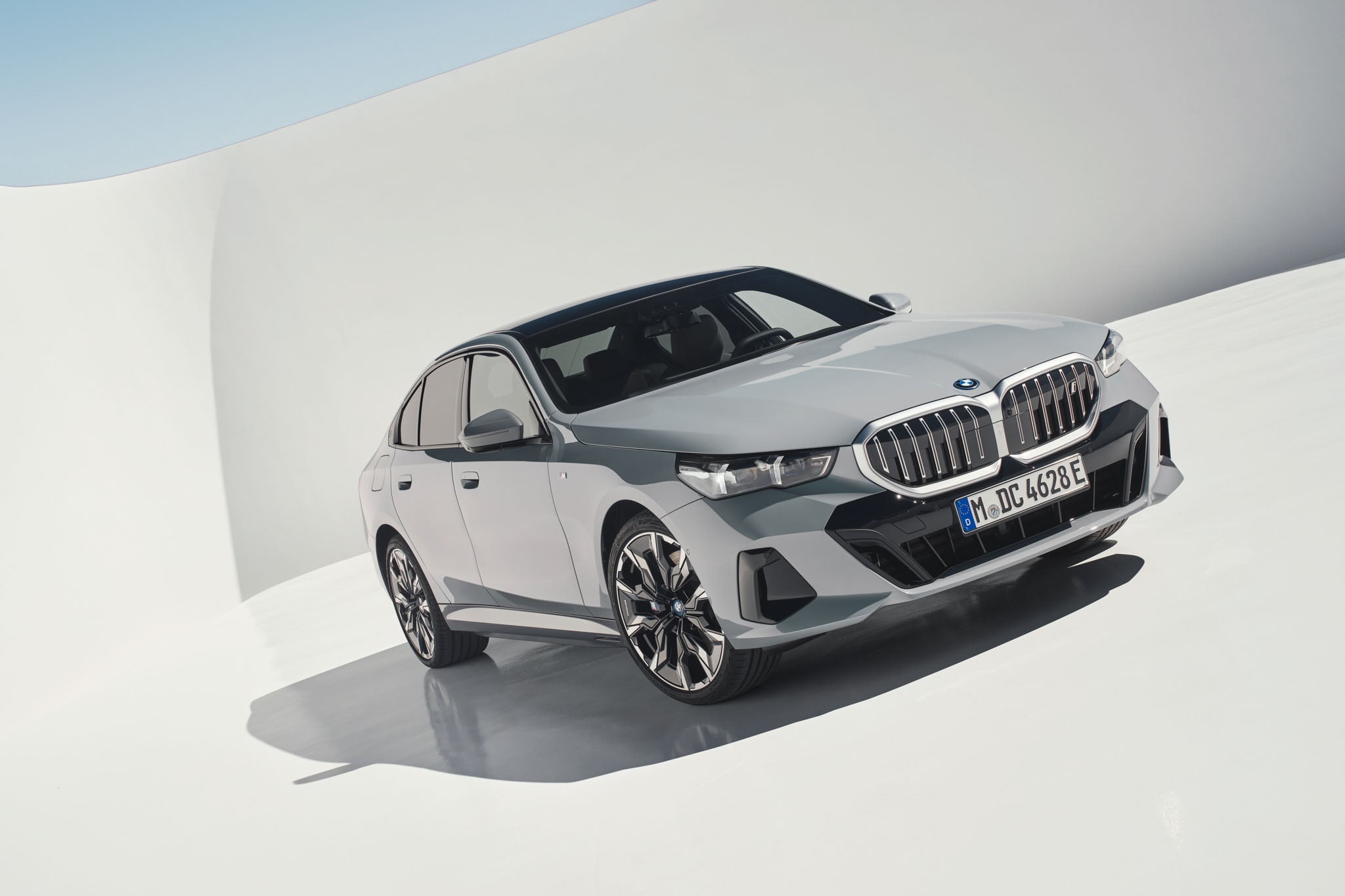

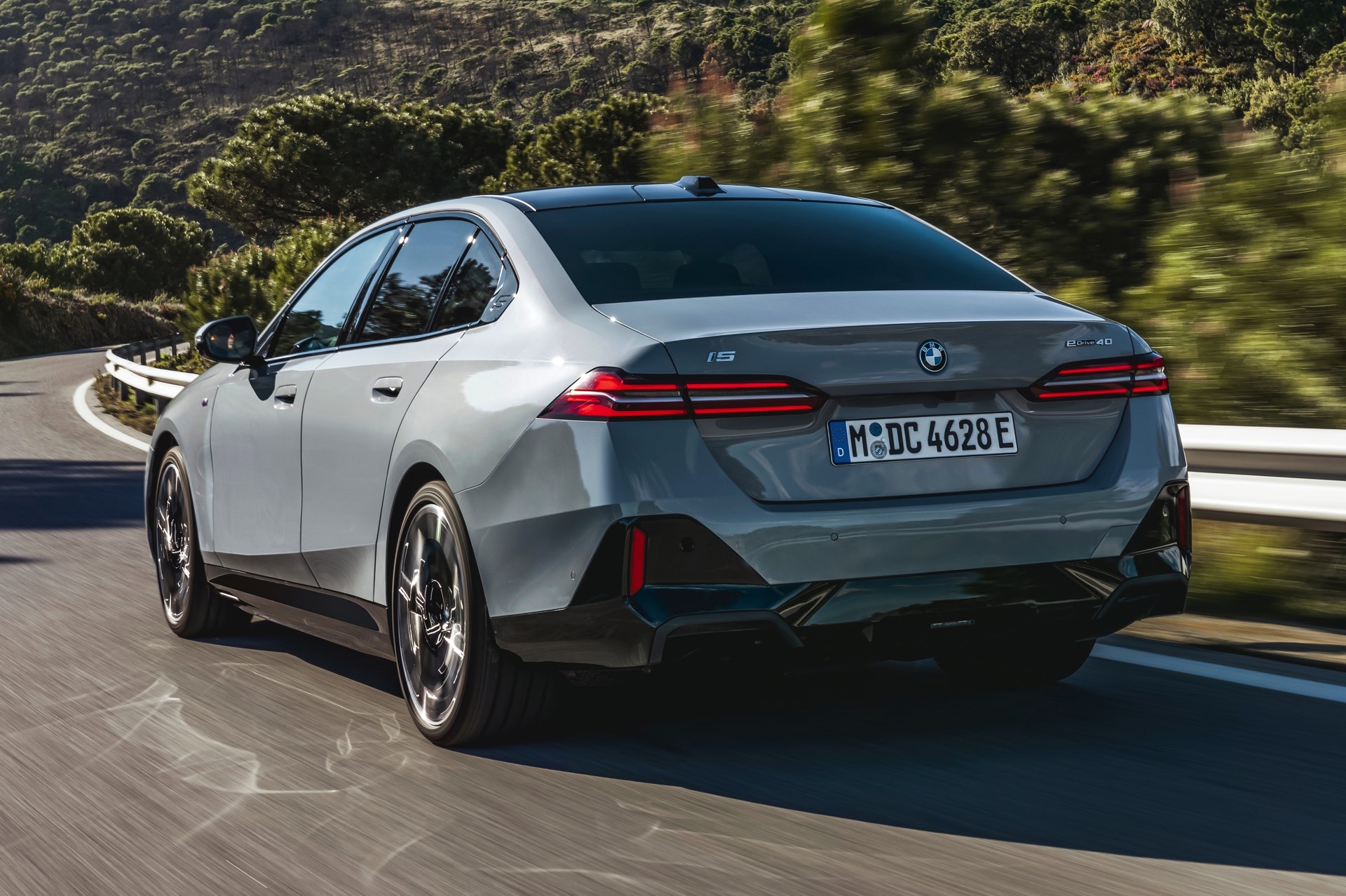

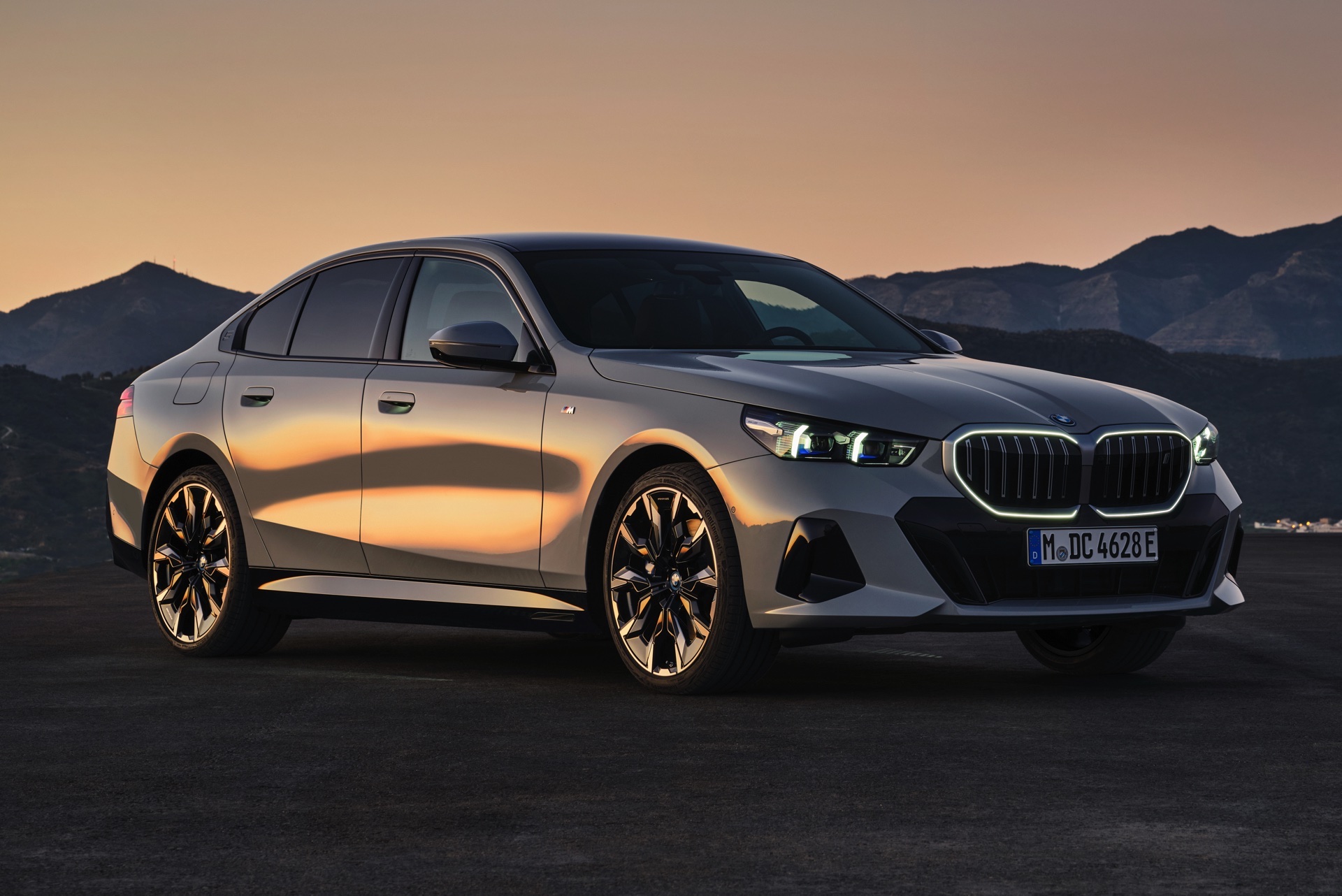

Photo BMW 5 Series Sedan (G60)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
520i 37 specifications
Specifications
Performance and consumption
| Top speed, km/h | 230 |
|---|---|
| Acceleration 0-100 km/h, s | 8.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i MHEV |
|---|---|
| Engine code | B48 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1998 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 208 |
| Torque, Nm | 330 |
| Number of electric motors | 1 |
| Electric motor power, hp | 18 |
| Combustion engine power, hp | 190 |
| Combustion engine RPM at max power | 4400-6500 |
| Combustion engine torque, Nm | 310 |
| Combustion engine RPM at max torque | 1500-4000 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5060 |
| Width, mm | 2156 |
| Height, mm | 1515 |
| Wheelbase, mm | 2995 |
| Kerb weight, kg | 1800 |
| Gross weight, kg | 2335 |
| Fuel tank capacity, L | 60 |
| Width without mirrors, mm | 1900 |
| Trunk capacity, L | 520 |
Transmission and drive
| Transmission | 8-Steptronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
520d 37 specifications
Specifications
Performance and consumption
| Top speed, km/h | 233 |
|---|---|
| Acceleration 0-100 km/h, s | 8.3 |
| Emissions standard | Euro VI |
Engine
| Engine | 20d MHEV |
|---|---|
| Engine code | B47 |
| Engine type | Hybrid |
| Fuel type | Diesel |
| Engine displacement, cc | 1995 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 197 |
| Torque, Nm | 400 |
| Number of electric motors | 1 |
| Electric motor power, hp | 11 |
| Combustion engine power, hp | 197 |
| Combustion engine RPM at max power | 4000 |
| Combustion engine torque, Nm | 400 |
| Combustion engine RPM at max torque | 1500-2750 |
| Electric motor torque, Nm | 25 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5060 |
| Width, mm | 2156 |
| Height, mm | 1515 |
| Wheelbase, mm | 2995 |
| Kerb weight, kg | 1800 |
| Gross weight, kg | 2335 |
| Fuel tank capacity, L | 60 |
| Width without mirrors, mm | 1900 |
| Trunk capacity, L | 520 |
Transmission and drive
| Transmission | 8-Steptronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
520d xDrive 36 specifications
Specifications
Performance and consumption
| Top speed, km/h | 228 |
|---|---|
| Acceleration 0-100 km/h, s | 7.3 |
| Emissions standard | Euro VI |
Engine
| Engine | 20d MHEV |
|---|---|
| Engine code | B47 |
| Engine type | Hybrid |
| Fuel type | Diesel |
| Engine displacement, cc | 1995 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 197 |
| Torque, Nm | 400 |
| Electric motor power, hp | 11 |
| Combustion engine power, hp | 197 |
| Combustion engine RPM at max power | 4000 |
| Combustion engine torque, Nm | 400 |
| Combustion engine RPM at max torque | 1500-2750 |
| Electric motor torque, Nm | 25 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5060 |
| Width, mm | 2156 |
| Height, mm | 1515 |
| Wheelbase, mm | 2995 |
| Kerb weight, kg | 1800 |
| Gross weight, kg | 2335 |
| Fuel tank capacity, L | 60 |
| Width without mirrors, mm | 1900 |
| Trunk capacity, L | 520 |
Transmission and drive
| Transmission | 8-Steptronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
530e 39 specifications
Specifications
Performance and consumption
| Top speed, km/h | 230 |
|---|---|
| Acceleration 0-100 km/h, s | 6.4 |
Engine
| Engine | 2.0h |
|---|---|
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1998 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 299 |
| Torque, Nm | 450 |
| EV mode | + |
| Plug-in charging support | + |
| Electric motor power, hp | 184 |
| Combustion engine power, hp | 190 |
| Combustion engine RPM at max power | 4400-6500 |
| Combustion engine torque, Nm | 310 |
| Combustion engine RPM at max torque | 1500-4000 |
| Electric motor torque, Nm | 250 |
| Electric motor RPM at max torque | 100-5500 |
| Electric motor RPM at max power | 7000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5060 |
| Width, mm | 2156 |
| Height, mm | 1515 |
| Wheelbase, mm | 2995 |
| Kerb weight, kg | 1800 |
| Gross weight, kg | 2335 |
| Fuel tank capacity, L | 60 |
| Width without mirrors, mm | 1900 |
| Trunk capacity, L | 520 |
Transmission and drive
| Transmission | 8-Steptronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
BMW 5 Series Sedan (G60) questions
Short answers based on the specifications and photos available in this catalog.
What is the generation code for the 2023 BMW 5 Series?
The 2023 BMW 5 Series represents the eighth generation of the model and is designated by the factory chassis code G60.
How big is the G60 compared to the previous generation?
The G60 is noticeably larger than its G30 predecessor. It is 97 mm longer, 32 mm wider, and has a 20 mm longer wheelbase, improving overall cabin space.
What engines are available in the new 5 Series Sedan?
The lineup includes mild-hybrid petrol (such as the 520i), mild-hybrid diesel (520d), and plug-in hybrid (530e) powertrains, all paired with an 8-speed automatic transmission.
Is the interior made of real leather?
By default, the G60 features a fully vegan interior utilizing a material called Veganza. However, traditional Merino leather is still available as an optional upgrade.
Does the G60 5 Series come with all-wheel drive?
Yes. While standard models like the 520i and base 520d are rear-wheel drive, the xDrive all-wheel-drive system is available on models like the 520d xDrive.
