BMW M5 Touring (G91) specifications and photos
The 2024 BMW M5 Touring marks the return of the high-performance wagon under the G91 generation. It brings serious track capability to a versatile body style, introducing a plug-in hybrid powertrain to the M5 estate lineup for the first time.
BMW M5 Touring (G91) at a glance
Quick model context before comparing photos and trim-level specifications.
Unveiled in August 2024, the second iteration of the M5 Touring brings the G91 generation into the modern era with a significant shift in its underlying architecture. BMW has positioned this D-class sports wagon as a dual-purpose vehicle that satisfies both high-performance driving and practical family needs. By integrating a sophisticated M HYBRID system, the vehicle adapts to strict modern emissions standards while pushing power output far beyond its predecessors. It competes in a specialized segment of ultra-high-performance estates, catering to buyers who require significant utility and cargo space without sacrificing the aggressive dynamic characteristics typical of the M division.
- Power: 727 hp
- Engine displacement: 4395 cc
- Transmissions: M Steptronic
- Seating: 5 seats
Photos, trims and specifications for BMW M5 Touring (G91)
This model page brings gallery images, trim comparison, and detailed technical data together for the 2024 generation.
Estimate fuel cost
Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.
Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.
BMW M5 Touring (G91) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The exterior of the G91 M5 Touring is defined by aggressive, functional styling cues designed to manage aerodynamics and cooling. It features wide front air intakes and is highlighted by the illuminated Iconic Glow M kidney grille. A prominent roof spoiler and flared wheel arches emphasize the widened track. To manage traction, the wagon sits on staggered wheels, measuring 20 inches at the front and 21 inches at the rear. Buyers can also select from an extensive palette of exterior finishes, including exclusive M-specific shades.
Interior
Inside, the cabin focuses on premium materials and advanced digital integration. Merino leather upholstery covers the heavily bolstered, multi-function heated seats equipped with comprehensive electric adjustments. The dashboard centers around the BMW Curved Display, combining a 12.3-inch digital instrument cluster with a 14.9-inch touchscreen interface. A distinctive BMW Interaction Bar spans the fascia, providing touch-sensitive controls for various cabin functions. Passenger comfort is supported by a standard four-zone automatic climate control system.
Performance
Motivation comes from the M HYBRID powertrain, pairing a 4.4-liter twin-turbocharged V8 with a 145 kW (197 hp) electric motor integrated into the eight-speed ZF M Steptronic transmission. The combined system output reaches 727 horsepower and 1000 Nm of torque, sent to all four wheels via an M-tuned all-wheel-drive system. This setup pushes the 2,475 kg wagon from 0 to 100 km/h in 3.6 seconds, with a top speed limited to 250 km/h. When fully charged, the battery allows for an estimated electric-only driving range of up to 67 kilometers.
Practicality
Despite its extreme performance figures, the M5 Touring remains highly functional for daily use. The wagon body style provides a standard 500 liters of cargo capacity. Measuring nearly 5.1 meters in length with a 3,006 mm wheelbase, it offers substantial cabin space for five occupants. The electric driving mode and 60-liter fuel tank allow for versatile usage, from silent, short-distance urban commuting to long-distance highway travel.
Safety and tech
The technological suite runs on the BMW iDrive 8.5 operating system, which supports touch inputs and advanced voice commands. The navigation system includes augmented reality functions, and the infotainment allows for video streaming while the vehicle is parked. Standard driver assistance features cover essential active safety systems, including lane-keeping assist, adaptive cruise control, and automated parking technologies.
Buyer notes
Prospective buyers evaluating the G91 M5 Touring should weigh the performance benefits of the plug-in hybrid system against the vehicle's substantial curb weight. Since this is an exclusive M model, the standard equipment list is comprehensive, though specific driver assistance packages, interior trims, and exterior color availability can vary depending on the regional market.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 4.4i PHEV (727 hp) M Steptronic 4x4 | 4395 cc | 727 hp | 5 | M Steptronic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

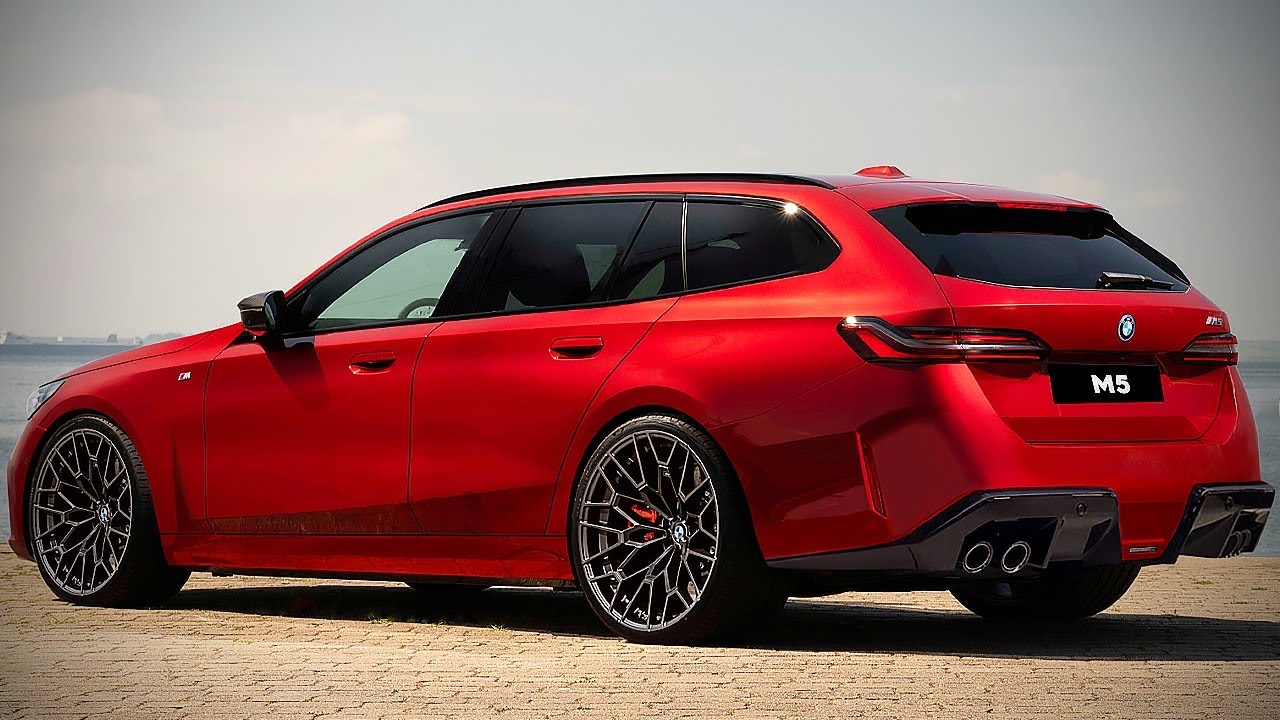

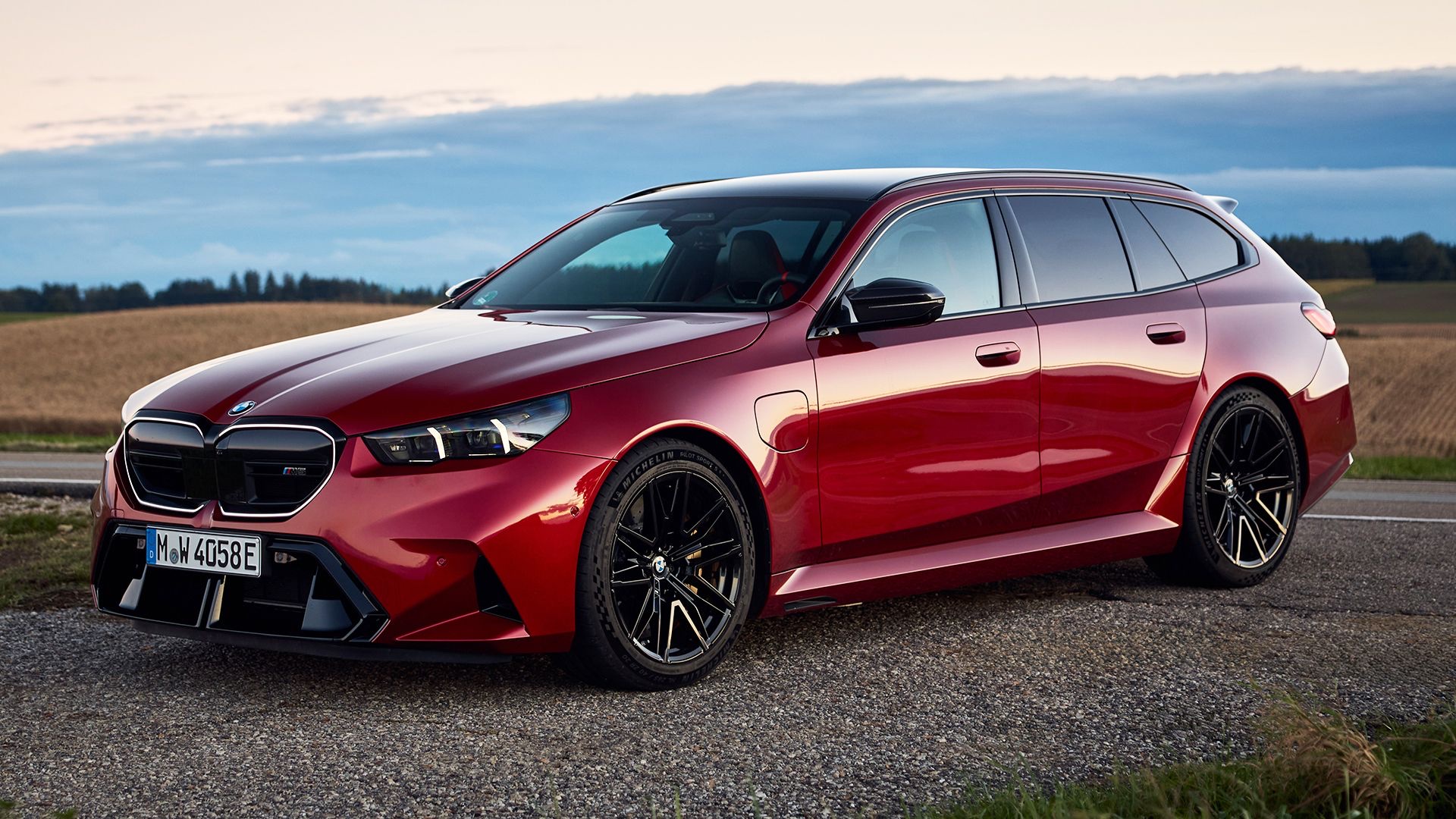

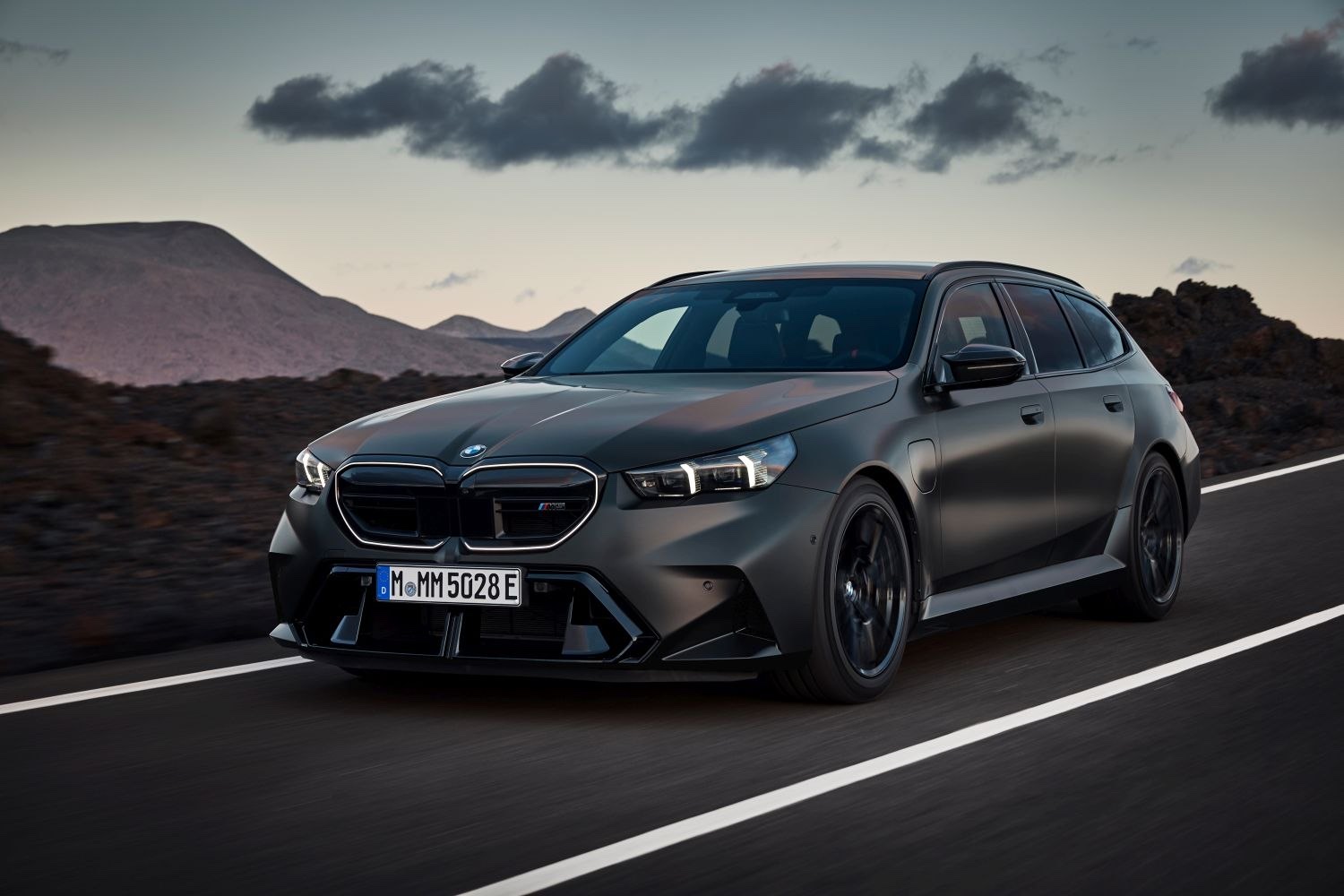

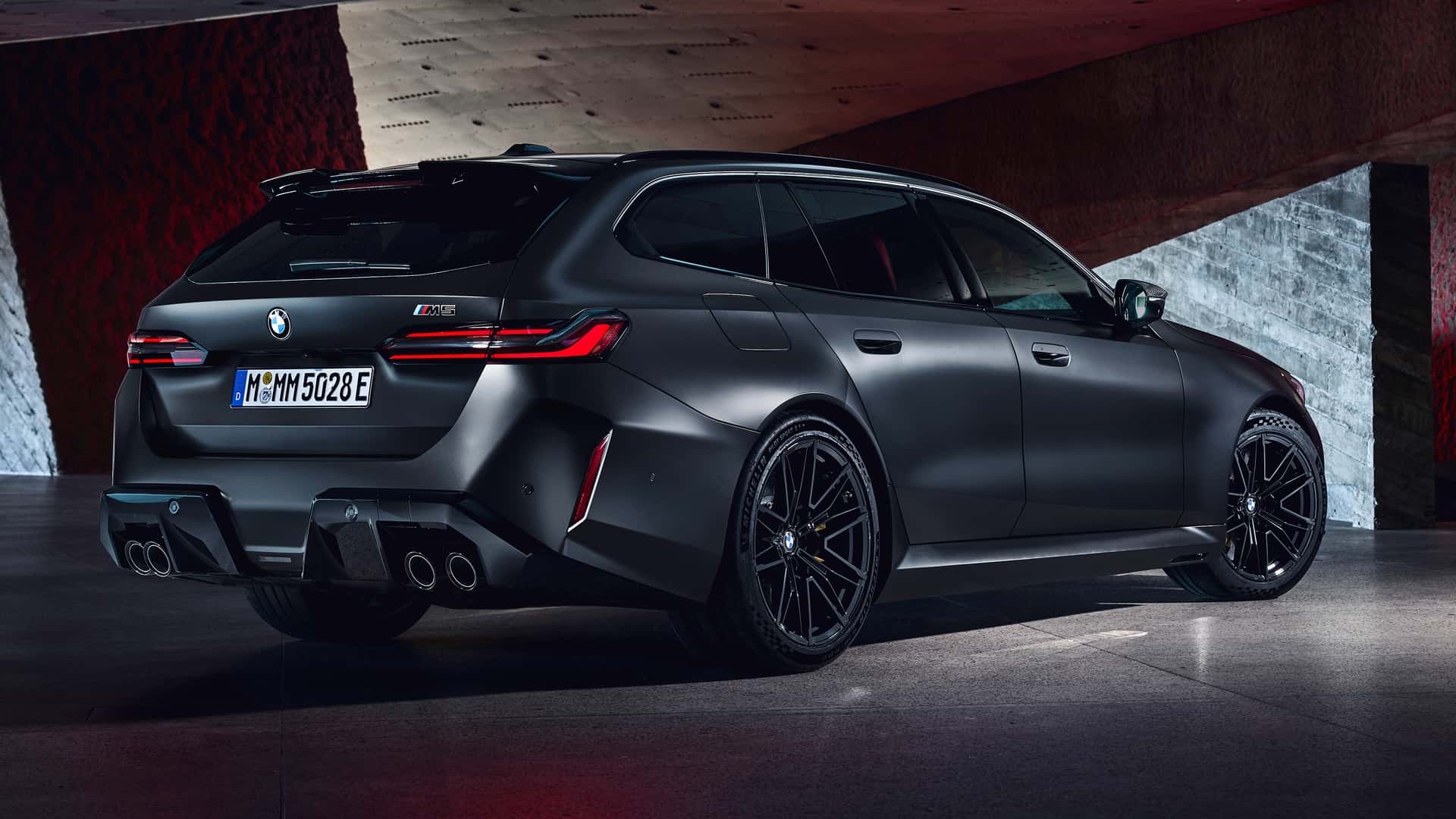

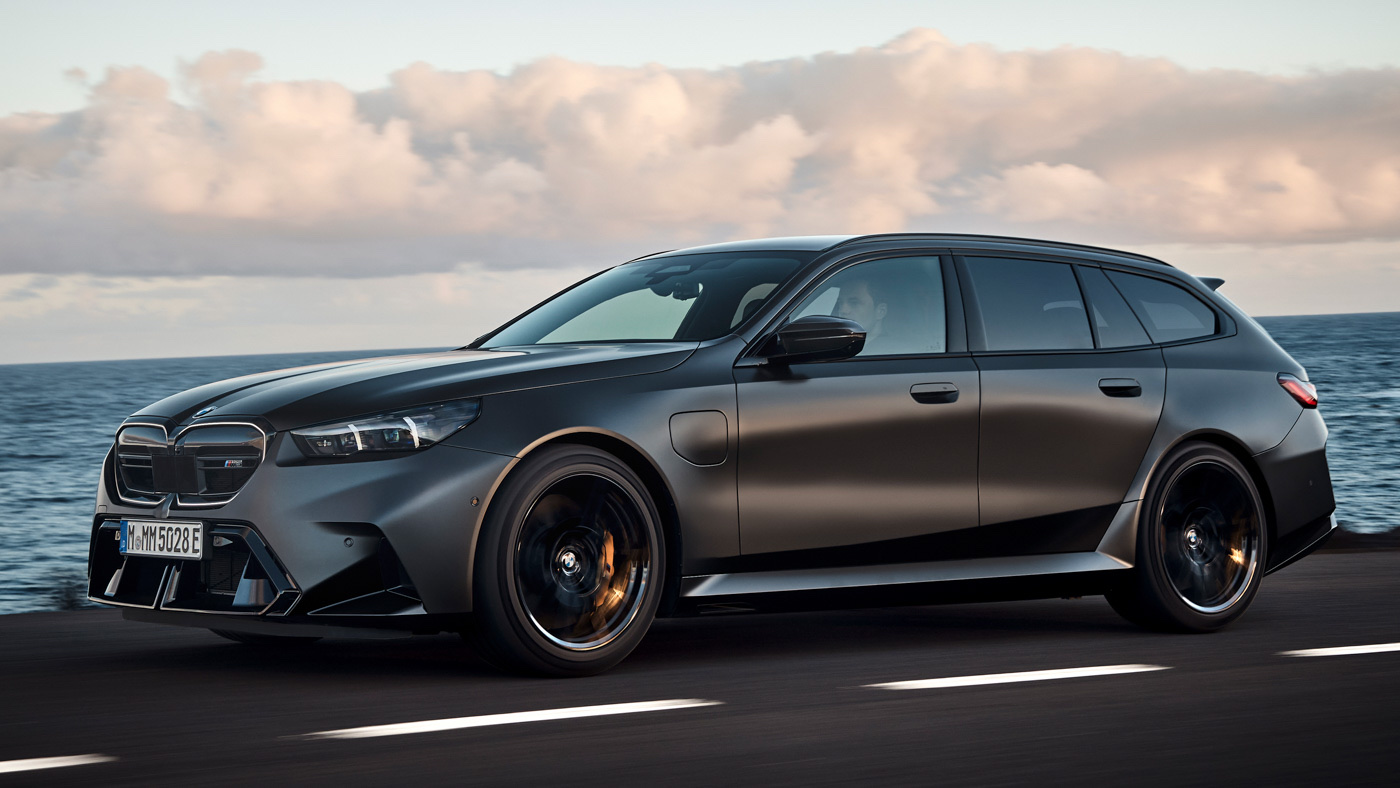

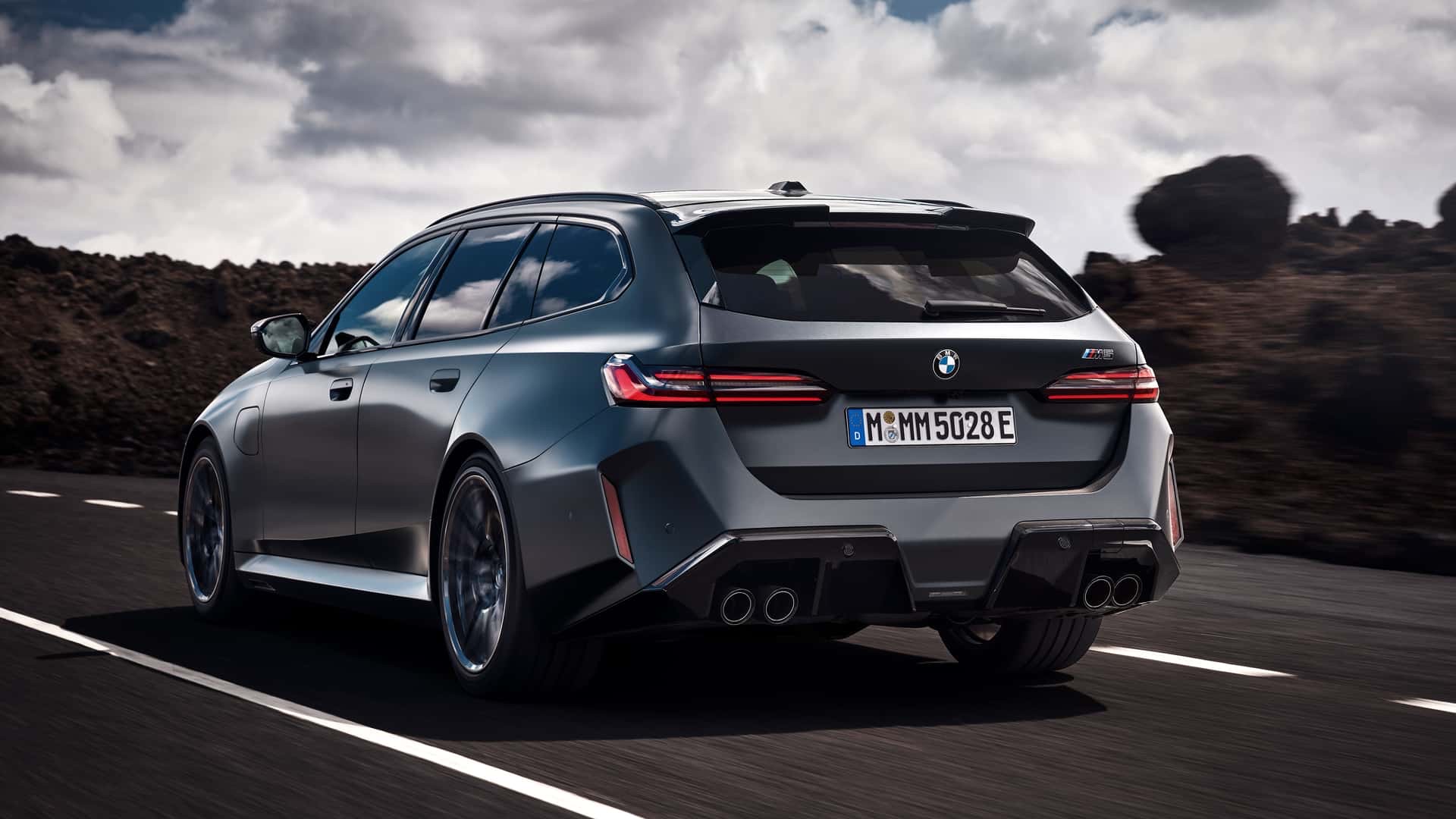

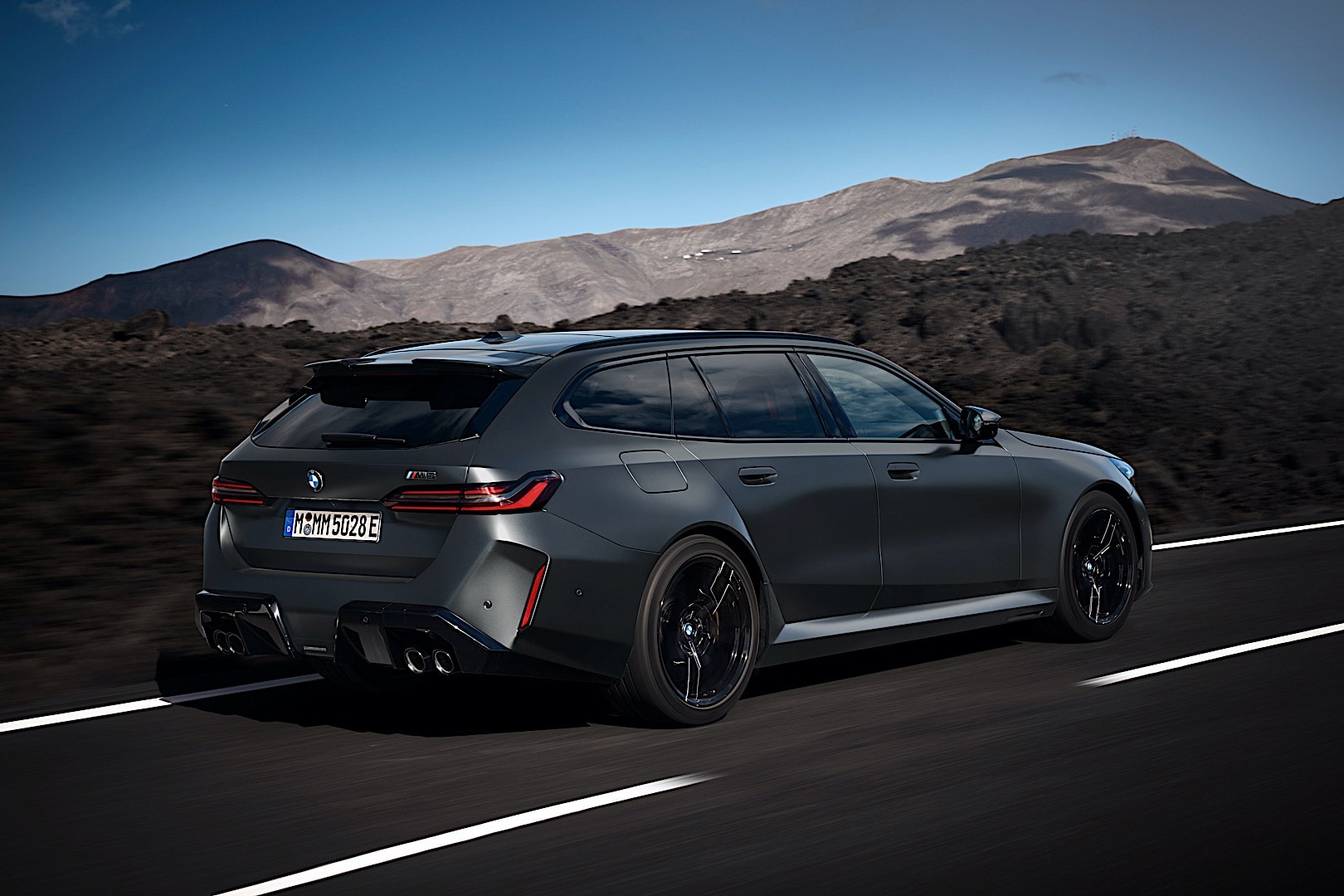

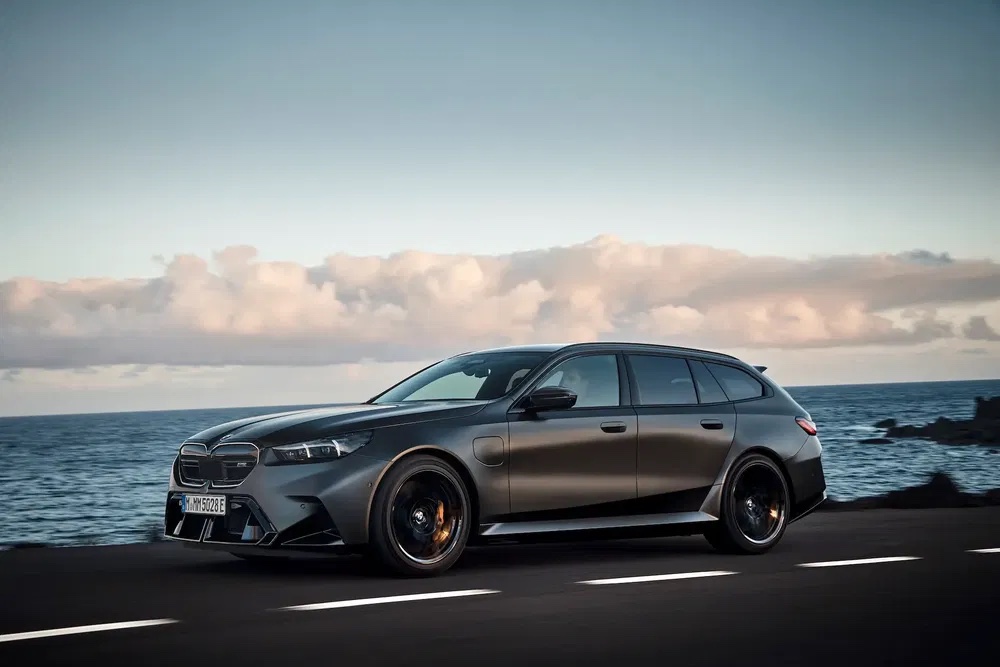

BMW M5 Touring (G91) photo gallery
16 images are collected here with the main specifications and trim data for this model.

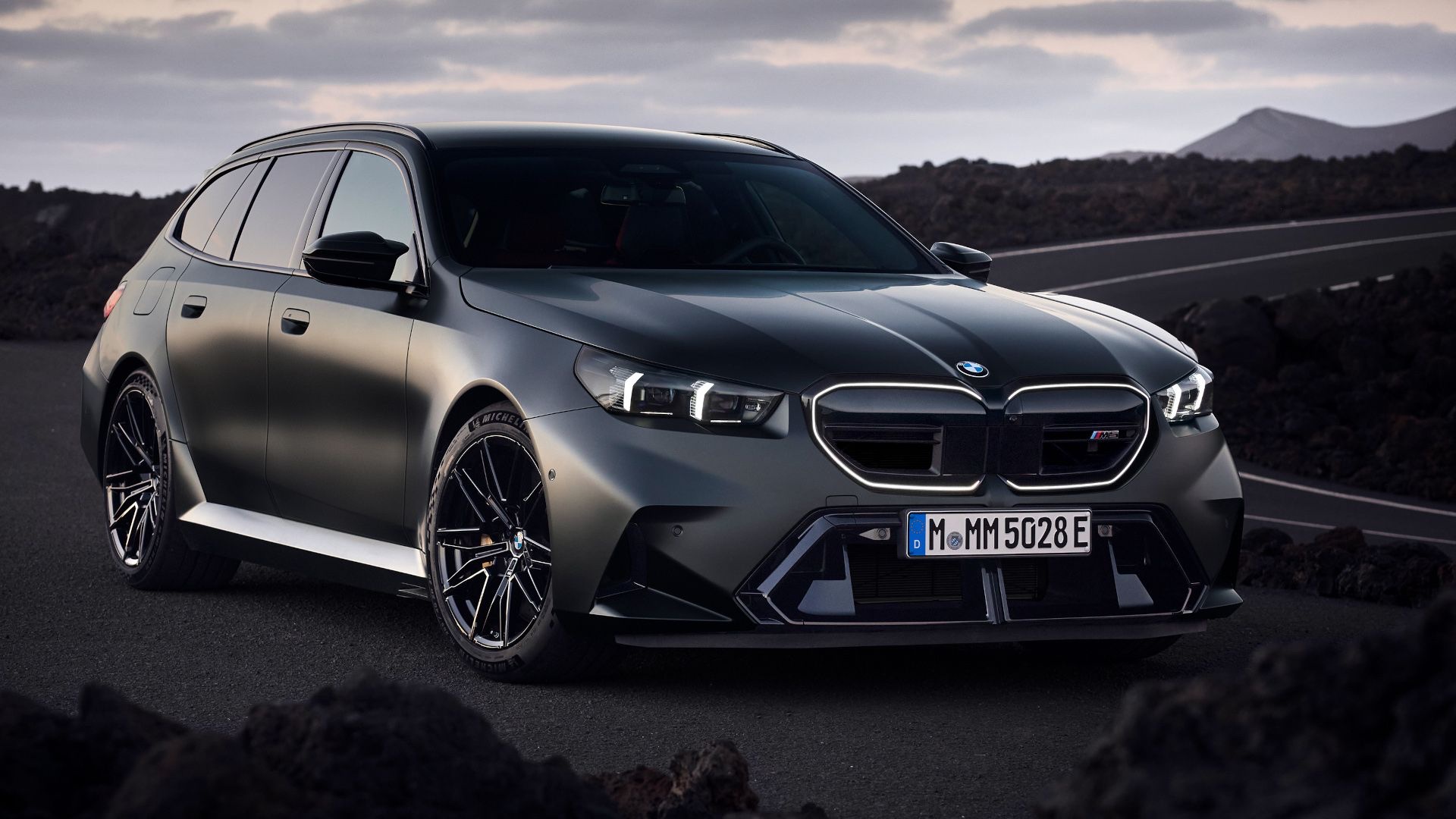

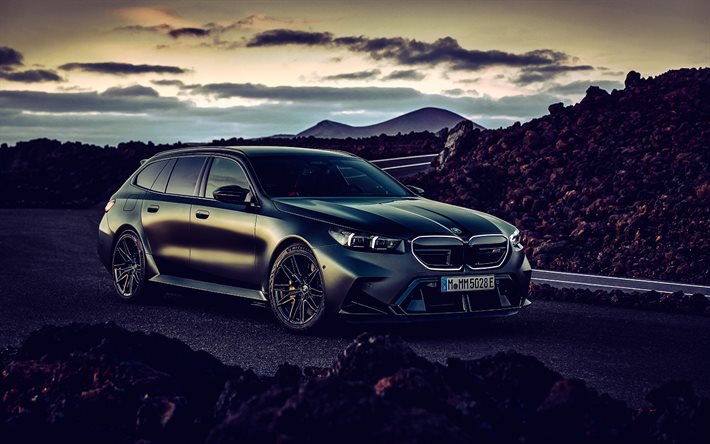

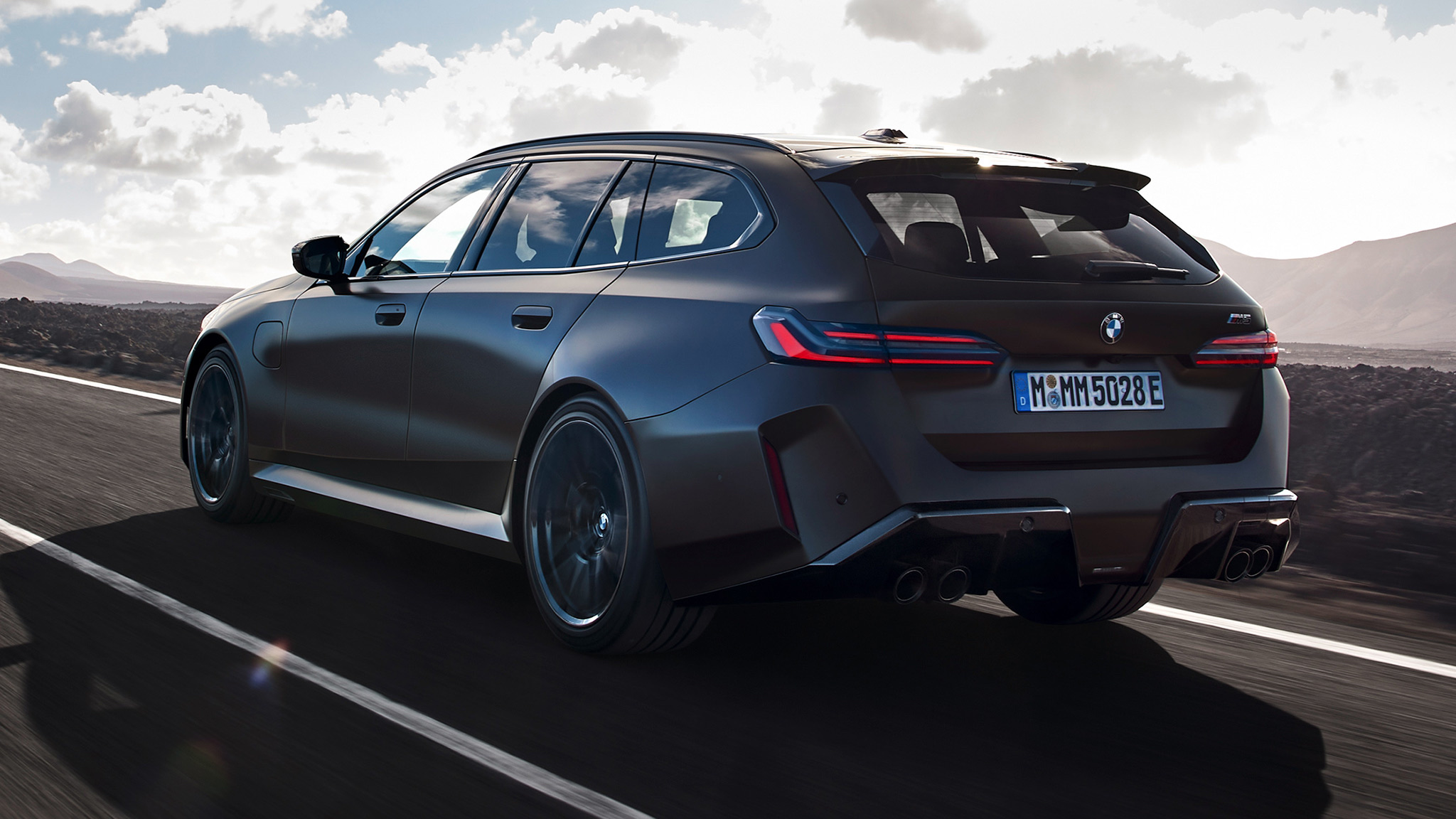

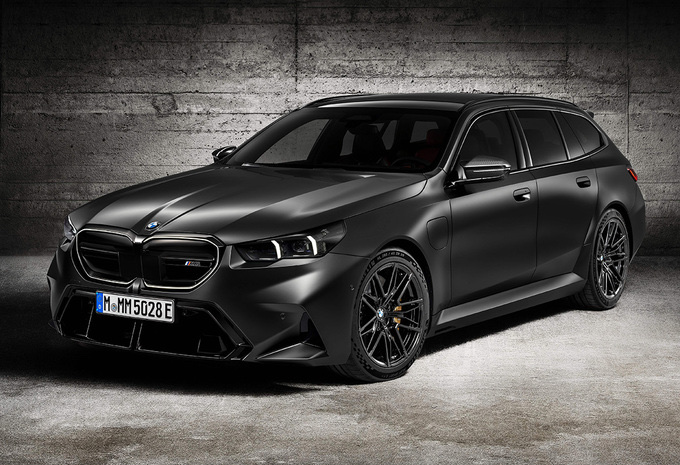

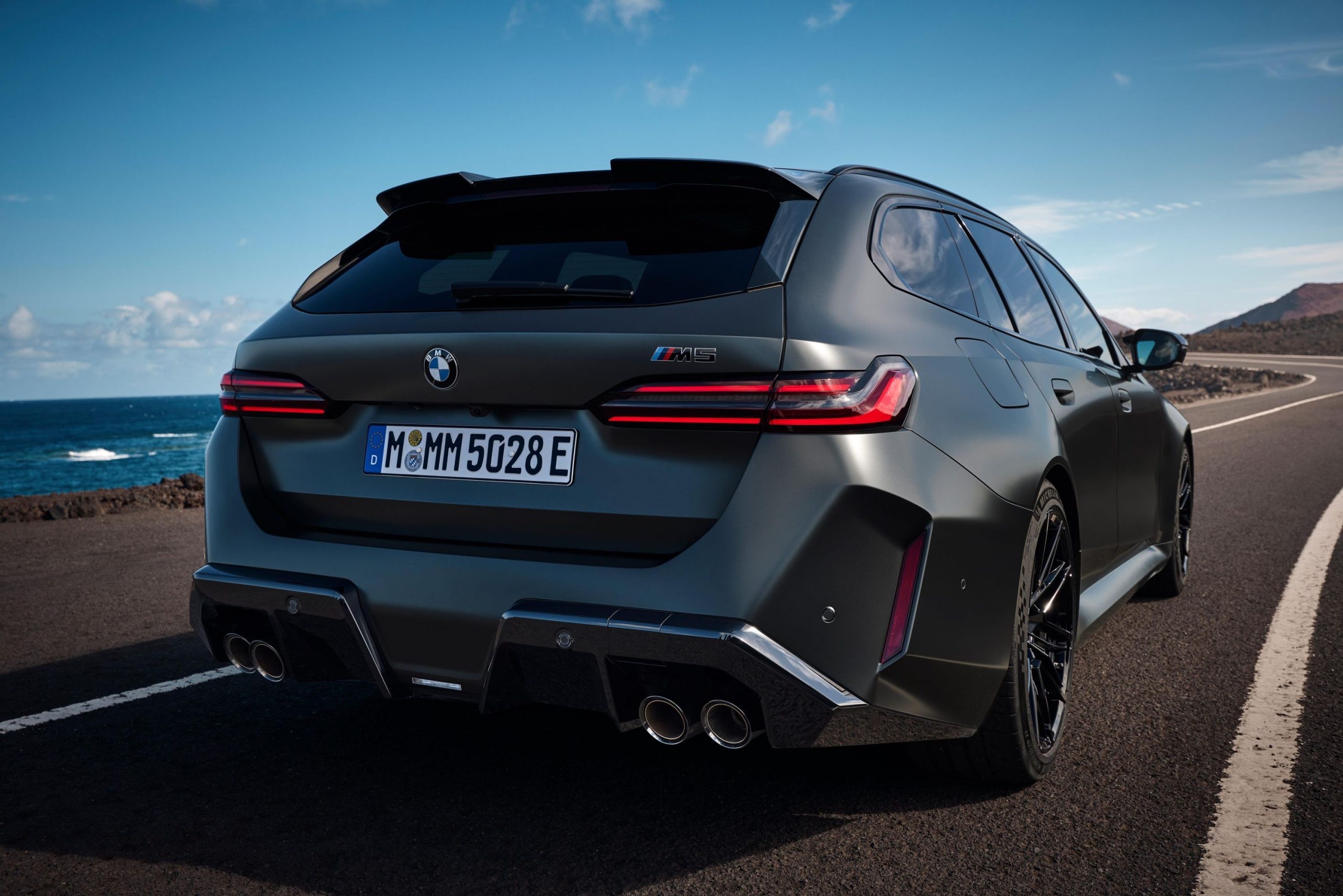

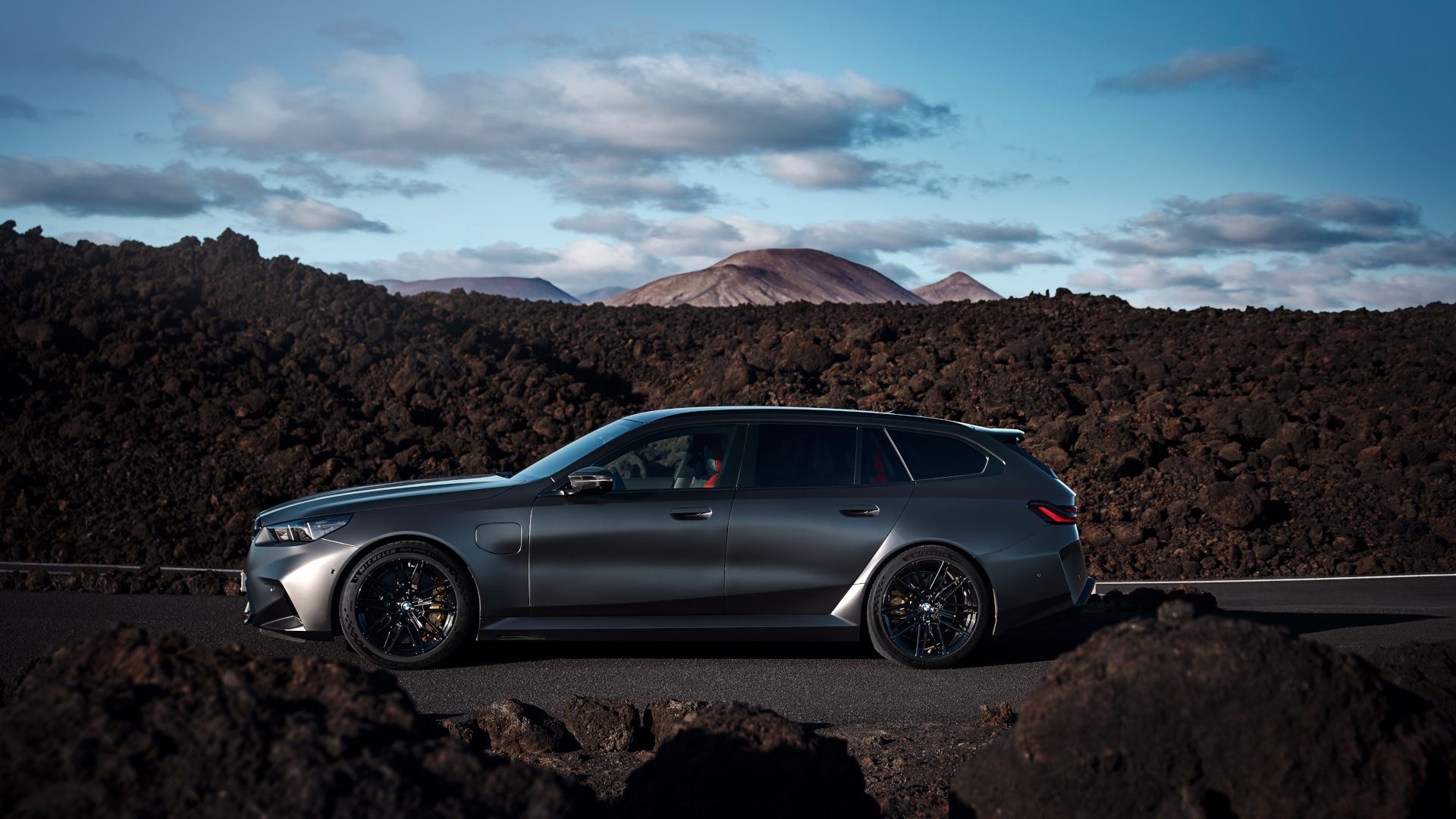

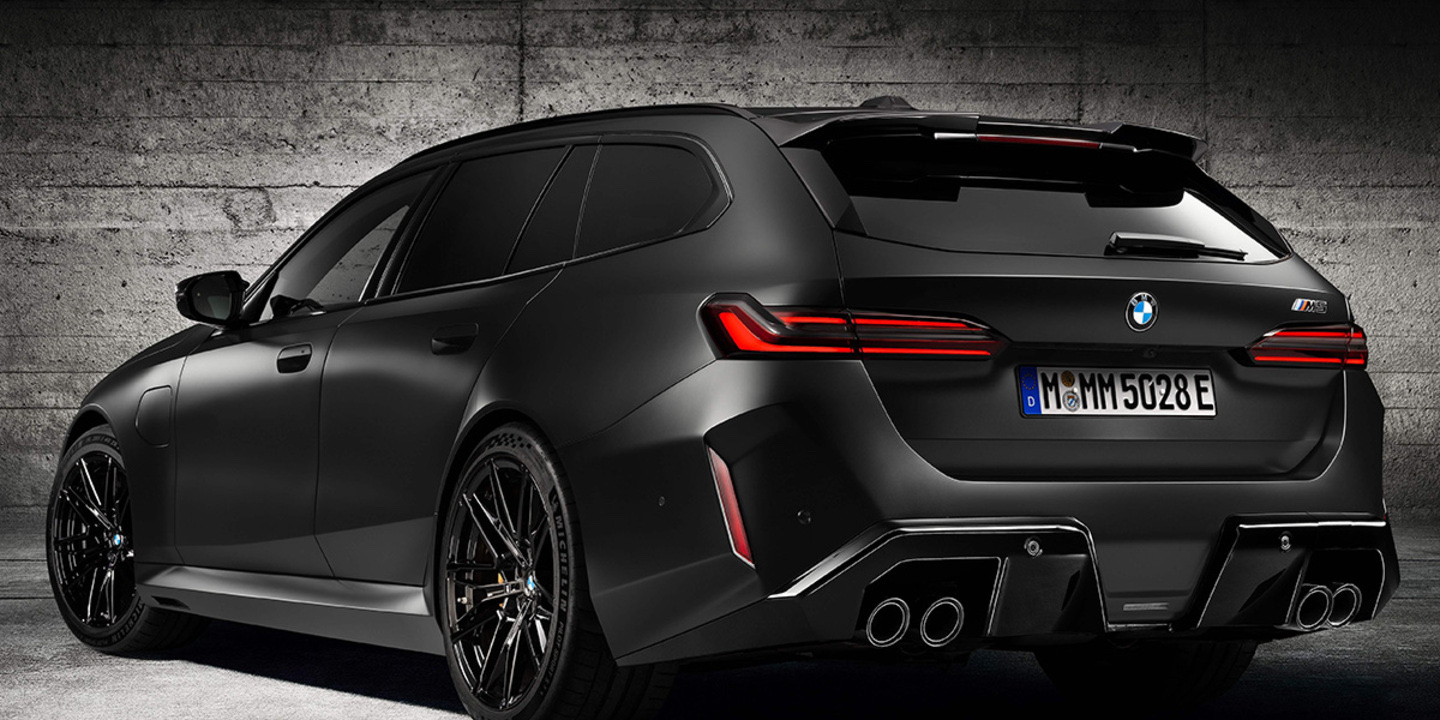

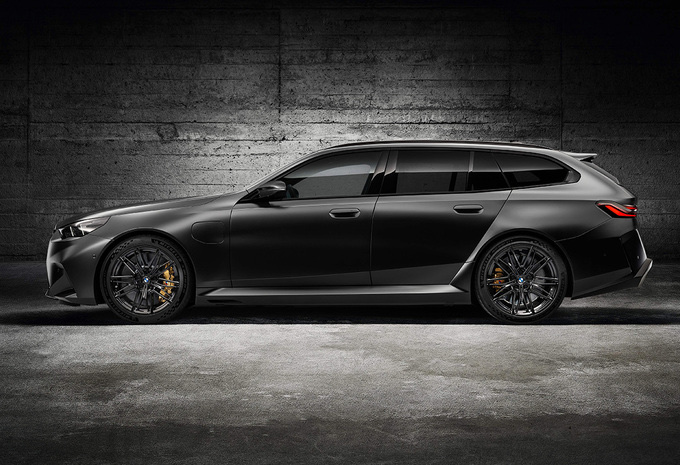

Photo BMW M5 Touring (G91)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
4.4i PHEV (727 hp) M Steptronic 4x4 42 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 2 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 3.6 |
| Emissions standard | Euro VI |
Engine
| Engine | 4.4i PHEV |
|---|---|
| Engine code | S68B44T0 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 4395 |
| Cylinder layout | V-type |
| Number of cylinders | 8 |
| Valves | 32 |
| Power, hp | 727 |
| Torque, Nm | 1000 |
| Number of electric motors | 1 |
| Electric motor power, hp | 197 |
| Combustion engine power, hp | 585 |
| Combustion engine RPM at max power | 5600-6500 |
| Combustion engine torque, Nm | 750 |
| Combustion engine RPM at max torque | 1800-5400 |
| Electric motor torque, Nm | 280 |
| Electric motor RPM at max torque | 1000-5000 |
| Electric motor RPM at max power | 6000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5096 |
| Width, mm | 1970 |
| Height, mm | 1516 |
| Wheelbase, mm | 3006 |
| Front track, mm | 1684 |
| Rear track, mm | 1660 |
| Kerb weight, kg | 2475 |
| Fuel tank capacity, L | 60 |
| Turning circle, m | 12.6 |
| Ground clearance, mm | 118 |
| Trunk capacity, L | 500 |
Transmission and drive
| Transmission | M Steptronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
BMW M5 Touring (G91) questions
Short answers based on the specifications and photos available in this catalog.
What engine is in the 2024 BMW M5 Touring?
It uses a plug-in hybrid system combining a 4.4-liter twin-turbo V8 with an electric motor, producing a total of 727 horsepower and 1000 Nm of torque.
How fast is the G91 M5 Touring?
The wagon accelerates from 0 to 100 km/h in 3.6 seconds and has a top speed of 250 km/h.
Can it drive on electric power alone?
Yes, the M HYBRID system allows for an estimated pure electric driving range of up to 67 kilometers.
How much cargo space does it have?
The M5 Touring offers a standard trunk capacity of 500 liters.
What is the transmission and drivetrain?
It features an 8-speed ZF M Steptronic automatic transmission paired with an M-specific all-wheel-drive system.
