BMW 5 Series Touring (G61) specifications and photos
The eighth-generation BMW 5 Series Touring (G61) is an E-class executive wagon that debuted in early 2024. It brings advanced hybrid and plug-in hybrid powertrains alongside a heavily digitized interior.
BMW 5 Series Touring (G61) at a glance
Quick model context before comparing photos and trim-level specifications.
The 2024 BMW 5 Series Touring marks the eighth generation of the brand's midsize executive estate. Codenamed G61, it is positioned for buyers who want the driving dynamics of the 5 Series sedan but require the cargo flexibility of a wagon. This iteration introduces significant structural and technological updates, notably leaning into electrified drivetrains. The lineup includes 48-volt mild-hybrid setups for both gasoline and diesel engines, alongside a plug-in hybrid variant capable of extended zero-emission driving. The new generation also pushes a highly digital cabin environment and introduces a fully vegan interior layout as standard equipment. It remains available in both rear-wheel drive and xDrive all-wheel drive configurations, utilizing a dependable eight-speed automatic transmission across the board.
- Power: 197-299 hp
- Engine displacement: 1995-1998 cc
- Transmissions: 8-Steptronic
- Seating: 5 seats
Photos, trims and specifications for BMW 5 Series Touring (G61)
This model page brings gallery images, trim comparison, and detailed technical data together for the 2024 generation.
Estimate fuel cost
Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.
Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.
BMW 5 Series Touring (G61) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The exterior of the G61 Touring features an elongated, athletic silhouette distinct to BMW’s estate models. The front end carries a modernized interpretation of the signature twin headlights and kidney grille, with optional BMW Iconic Glow contour lighting available. The roofline slopes gently toward a flat window graphic and a pronounced rear spoiler. Flared wheel arches accommodate standard 18-inch or optional 19-inch alloy wheels. At the rear, the design uses slim LED taillights featuring a distinct L-shaped light signature to emphasize the wagon's width. Overall length has grown to 5060 mm, giving it a substantial presence on the road with a ground clearance of 155 mm.
Interior
Inside, the 5 Series Touring adopts a screen-heavy layout centered around the BMW Curved Display, which houses a 12.3-inch instrument cluster and a 14.9-inch infotainment screen in a single, driver-oriented module. A notable shift for this generation is the standard inclusion of a fully vegan interior, utilizing a leather alternative called Veganza on the seats, dashboard, and door panels. Sport seats are standard, providing structured lateral support. Practicality remains a primary focus for the Touring model, with the cargo area offering 570 liters of standard volume, supported by a long 2995 mm wheelbase that ensures substantial passenger room for all occupants.
Performance
The engine lineup for the G61 is fully electrified to improve efficiency. The entry-level petrol option is the 520i, a 2.0-liter mild-hybrid producing 208 horsepower and 330 Nm of torque. Diesel buyers can opt for the 520d, a 2.0-liter mild-hybrid generating 197 horsepower and 400 Nm of torque, available with either rear-wheel drive or xDrive all-wheel drive. For greater efficiency, the 530e plug-in hybrid pairs a 2.0-liter turbocharged engine with a strong electric motor for a combined 299 horsepower, 450 Nm of torque, and up to 98 kilometers of electric-only range. All power units are mated to a ZF 8-speed Steptronic automatic transmission.
Practicality
As a station wagon, the 5 Series Touring is built around everyday usability and cargo flexibility. The 570-liter cargo hold provides a wide, accessible space for family luggage or bulky equipment. Measuring over five meters in length with nearly three meters between the axles, the G61 ensures ample legroom for both front and rear occupants. The body style serves as a traditional alternative for those who need SUV-like cargo volume but prefer the lower center of gravity and driving characteristics of a passenger car.
Safety and tech
Technology is a major focus for the G61 cabin. The infotainment system runs on BMW Operating System 8.5 with a QuickSelect function for easier menu navigation. It also includes AirConsole integration, allowing passengers to play video games using their smartphones as controllers while the vehicle is parked. On the driver-assist front, the optional Driving Assistant Professional allows for hands-free driving on highways at speeds up to 130 km/h, provided the driver remains attentive. The Parking Assistant Professional enables remote parking maneuvers via a smartphone from up to 200 meters away.
Buyer notes
When evaluating the 5 Series Touring, buyers should consider their daily driving routes to select the right powertrain. The mild-hybrid diesels (520d) remain the most pragmatic choice for high-mileage highway drivers, while the 530e PHEV offers substantial daily efficiency for those with reliable access to charging infrastructure. Standard equipment is generous, particularly with the new vegan interior materials, though features like remote parking and advanced highway assist will require optional packages. Trim availability and exact specifications can vary by region.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 520i | 1998 cc | 208 hp | 5 | 8-Steptronic |
| 530e | 1998 cc | 299 hp | 5 | 8-Steptronic |
| 520d | 1995 cc | 197 hp | 5 | 8-Steptronic |
| 520d xDrive | 1995 cc | 197 hp | 5 | 8-Steptronic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

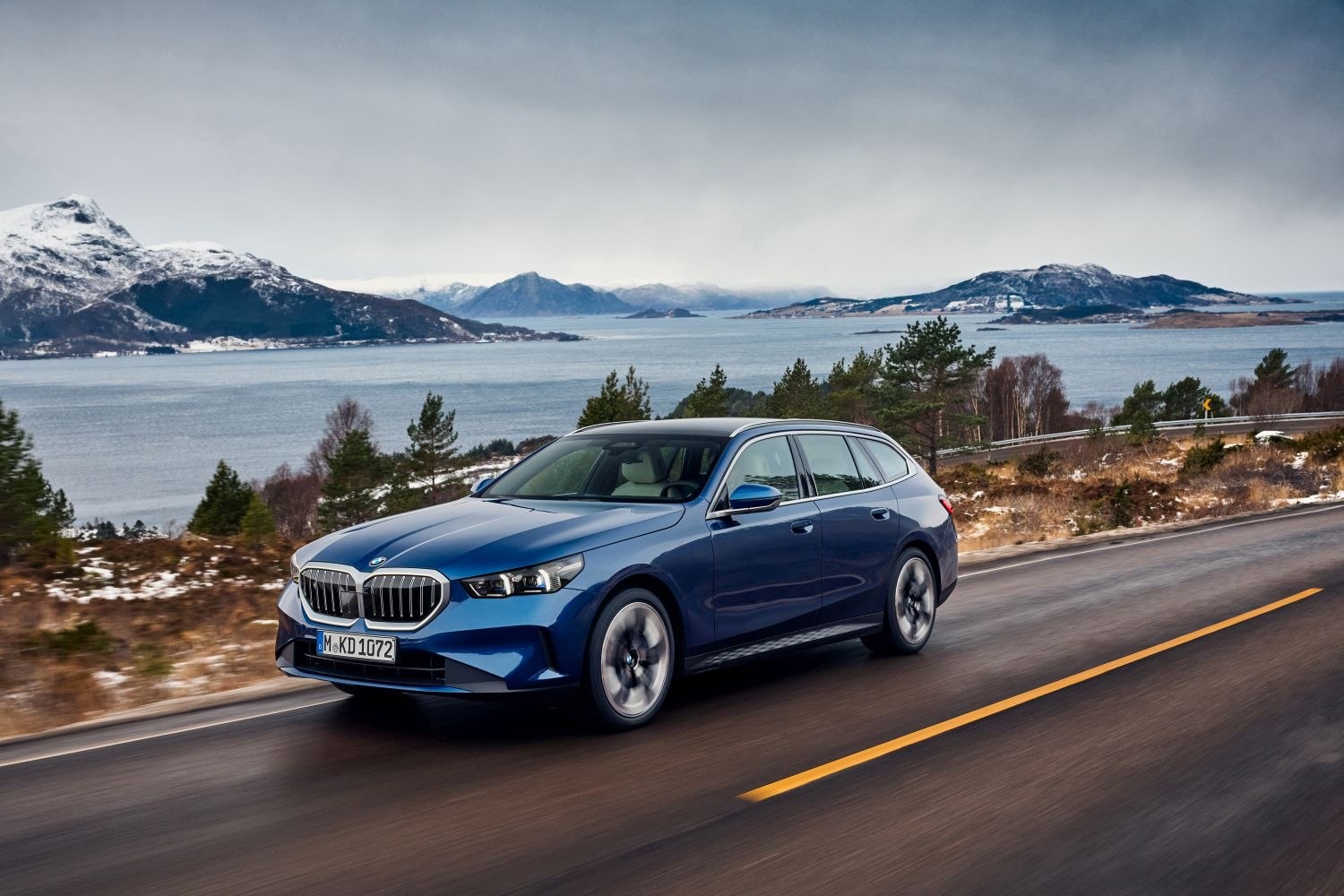

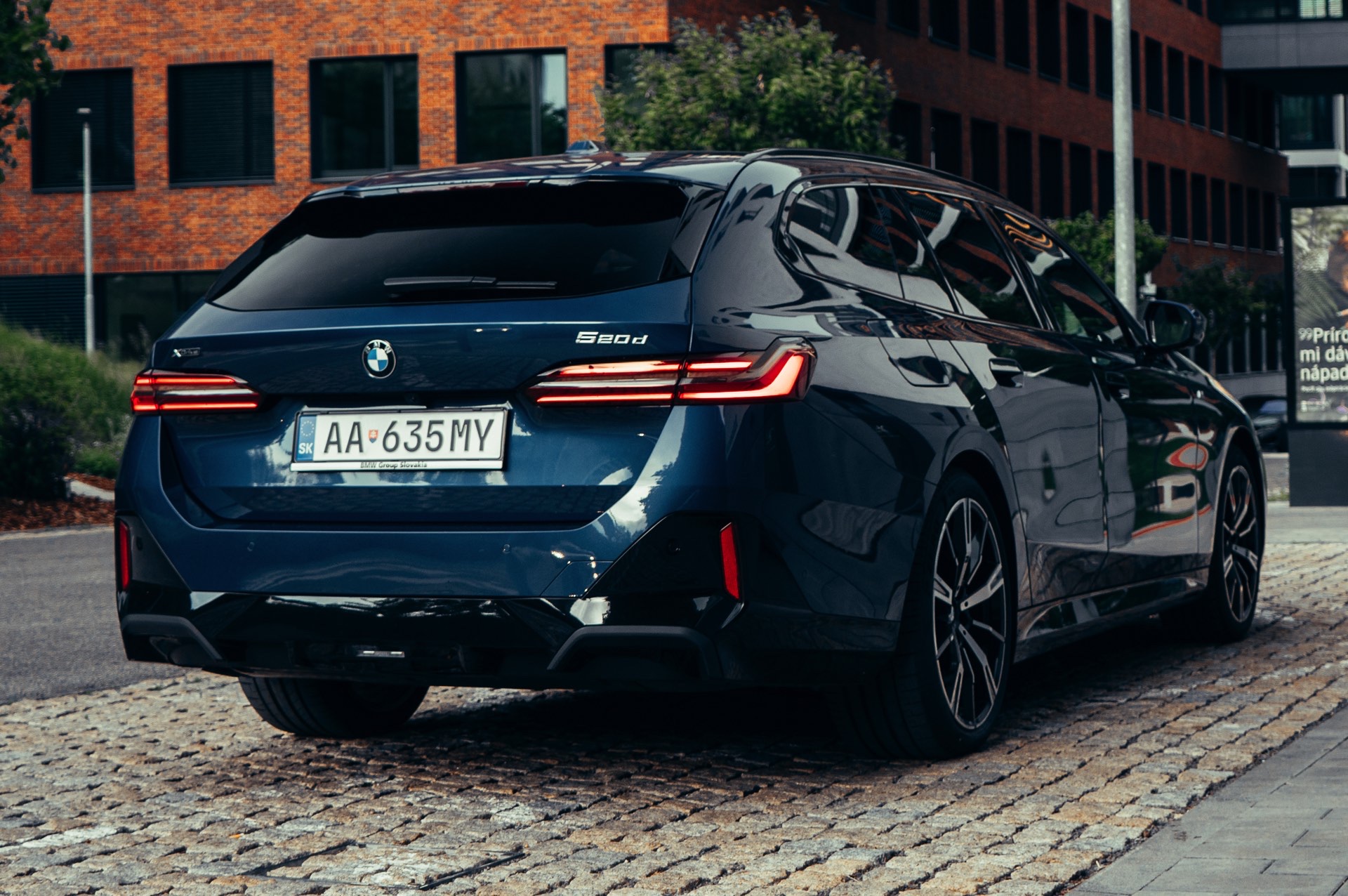

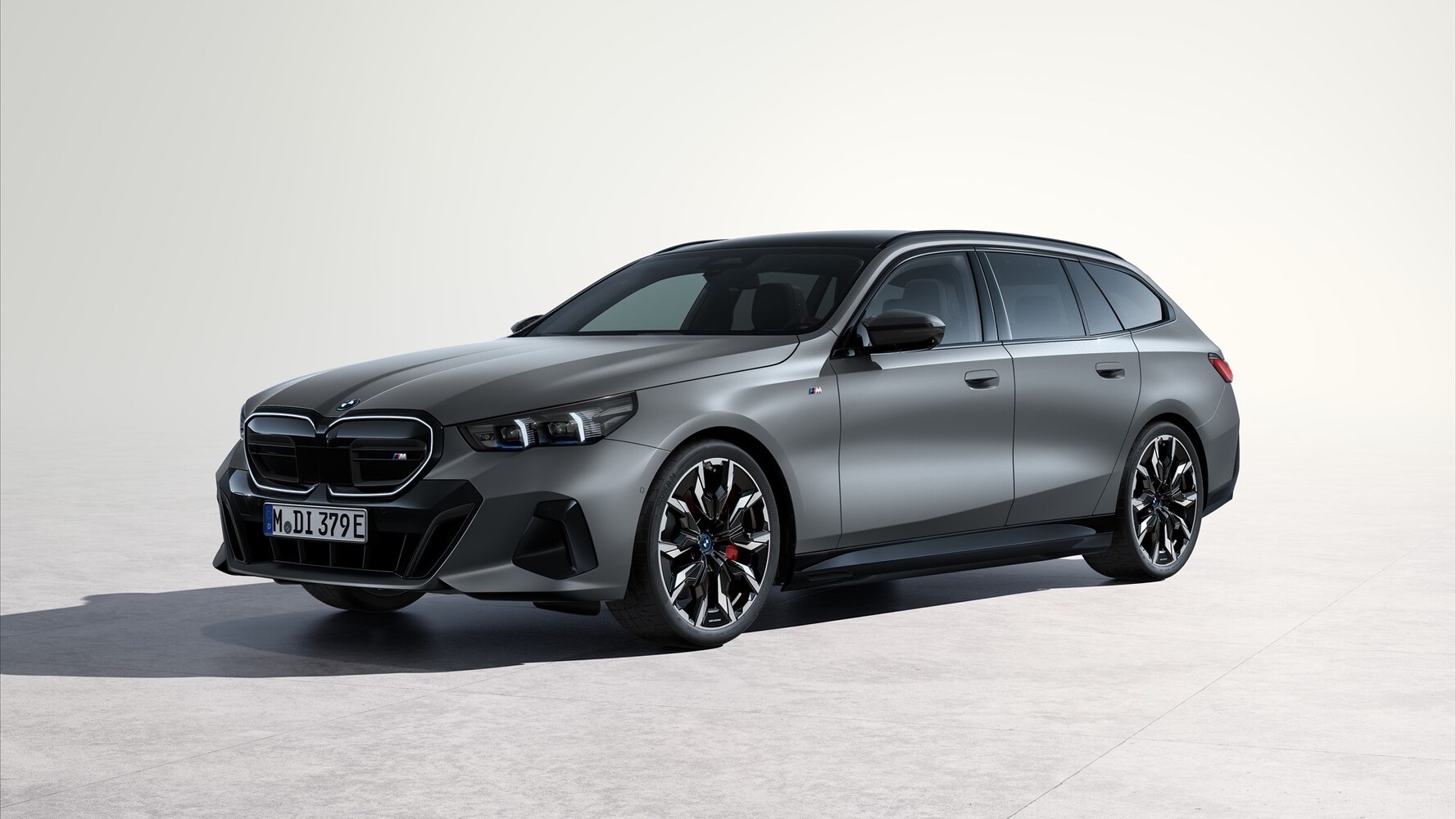

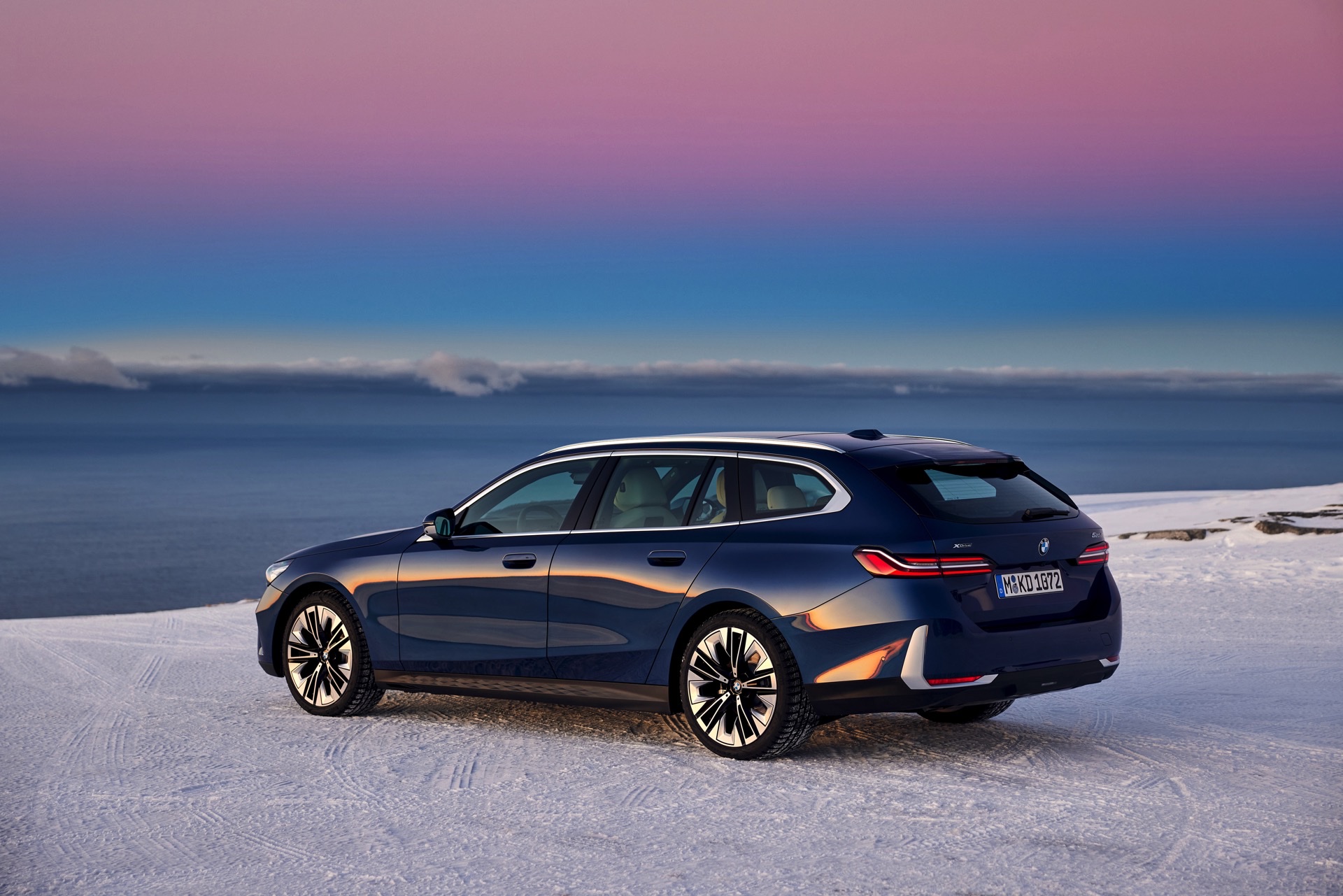

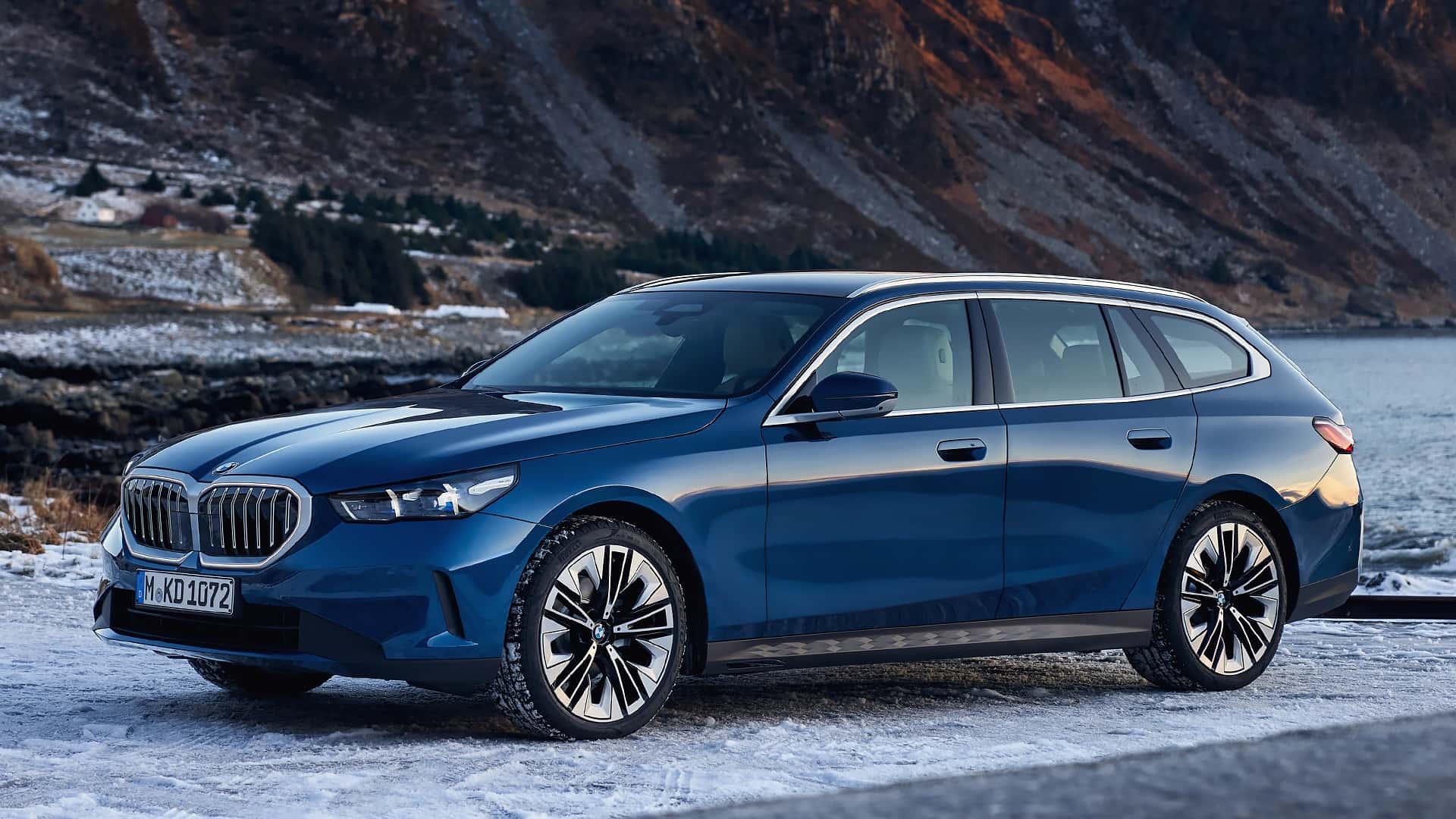

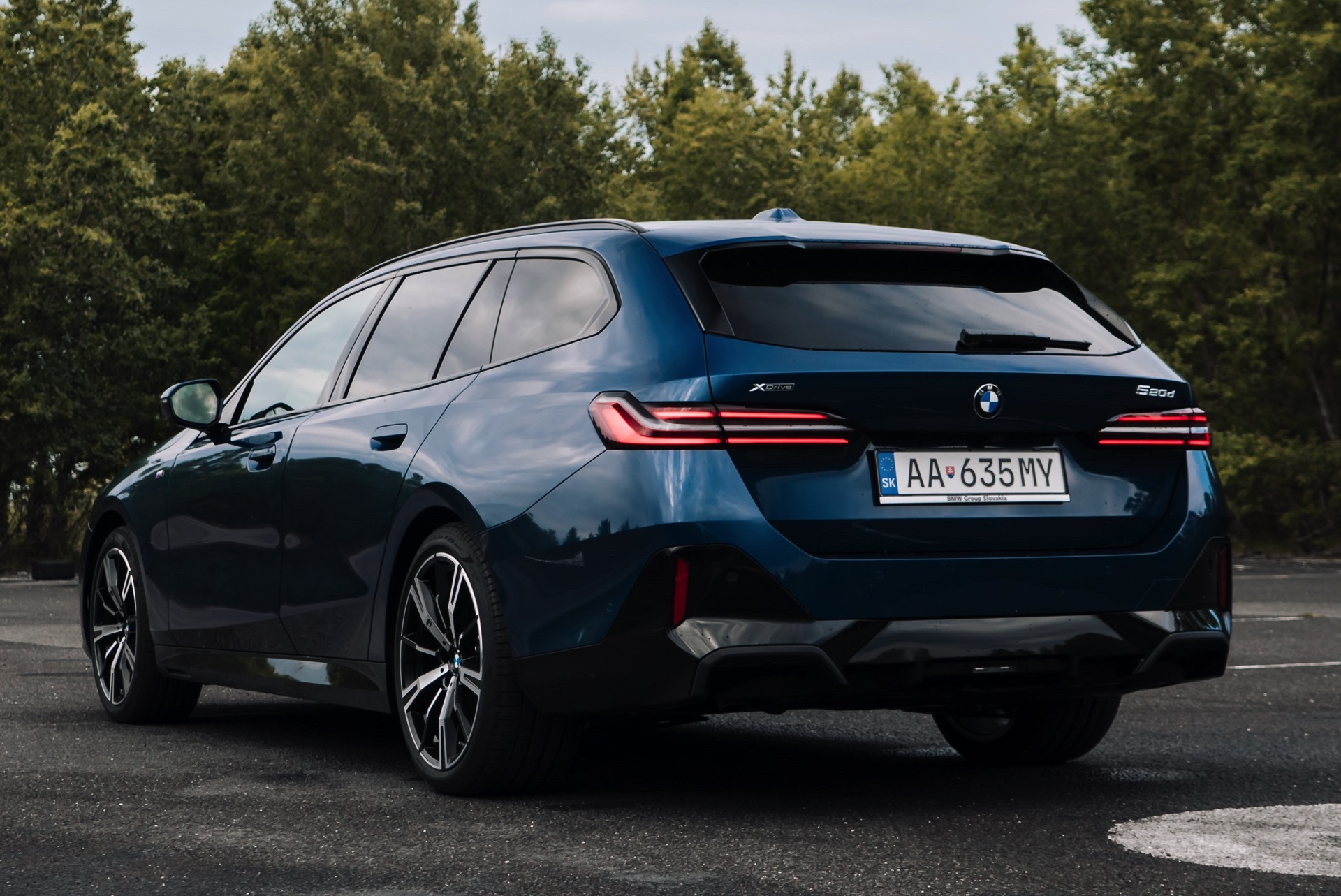

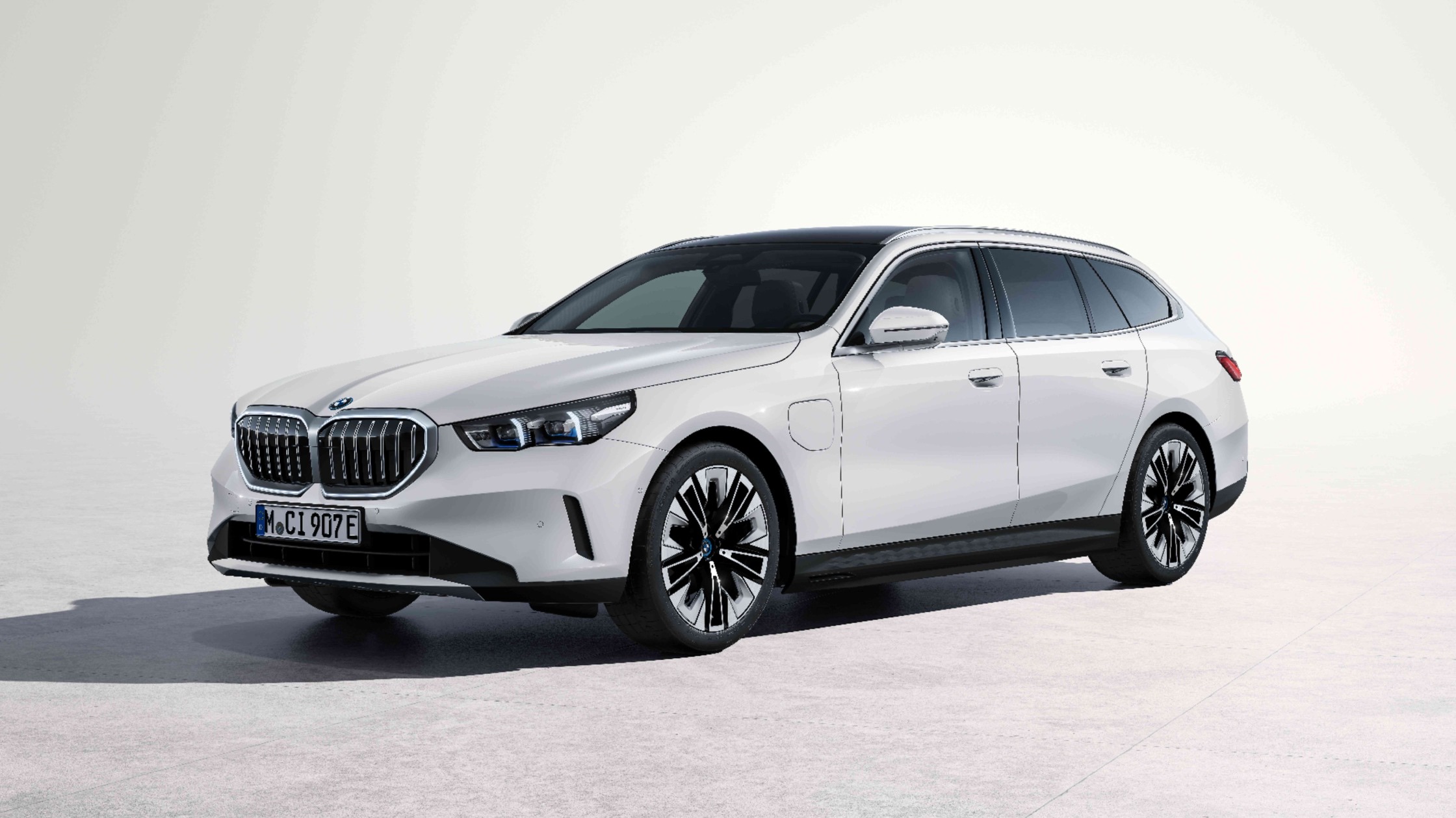

BMW 5 Series Touring (G61) photo gallery
15 images are collected here with the main specifications and trim data for this model.

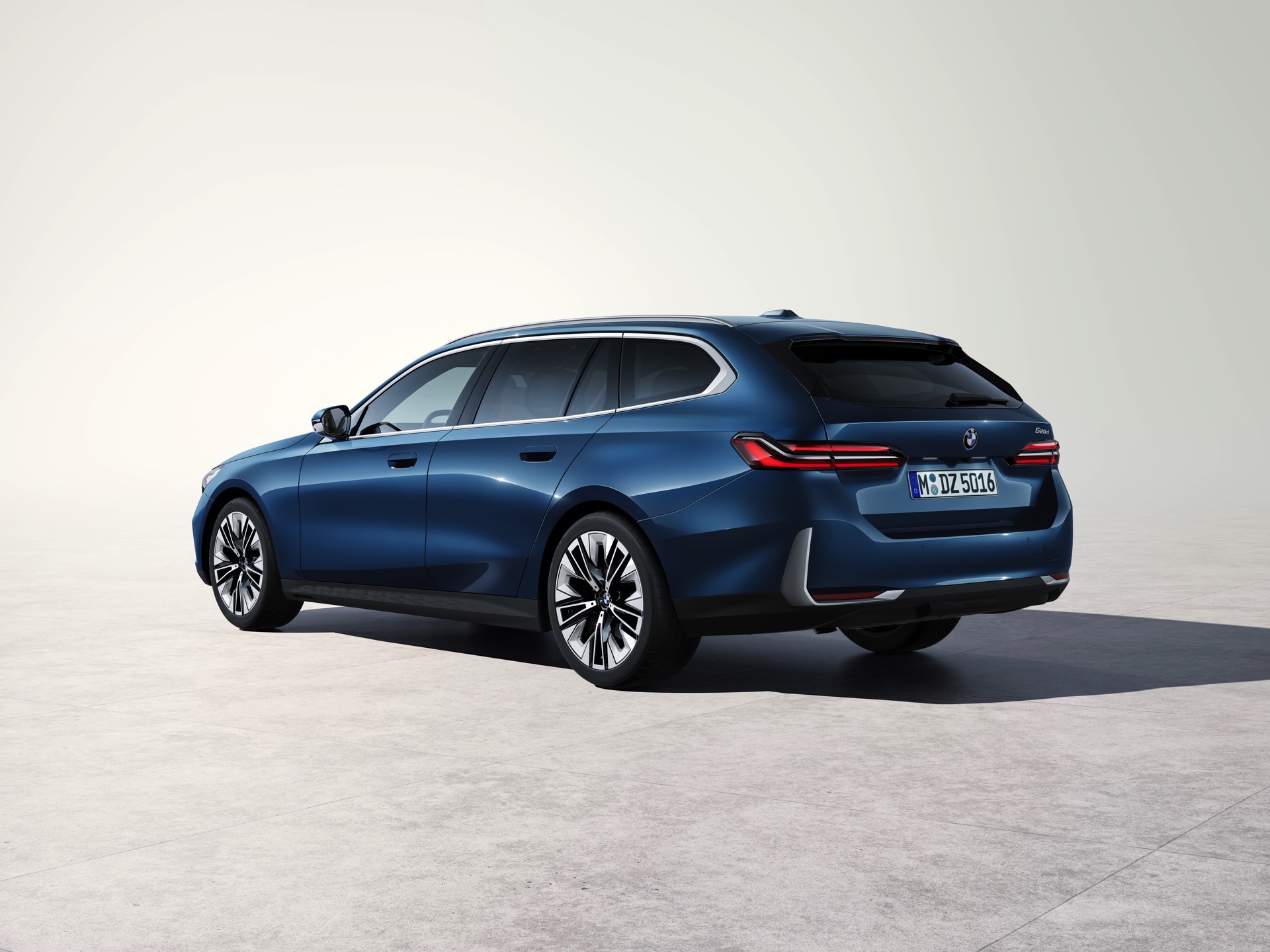

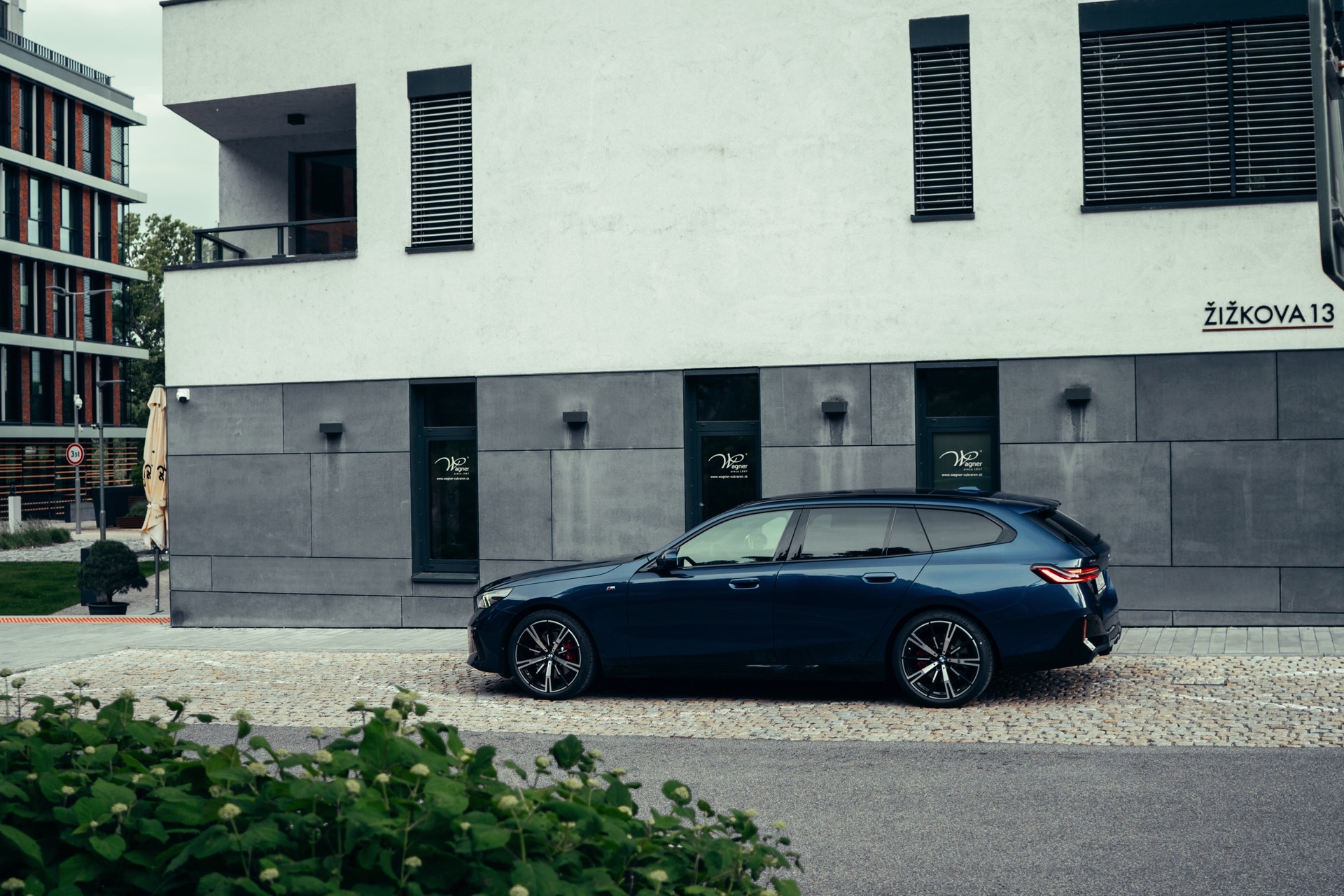

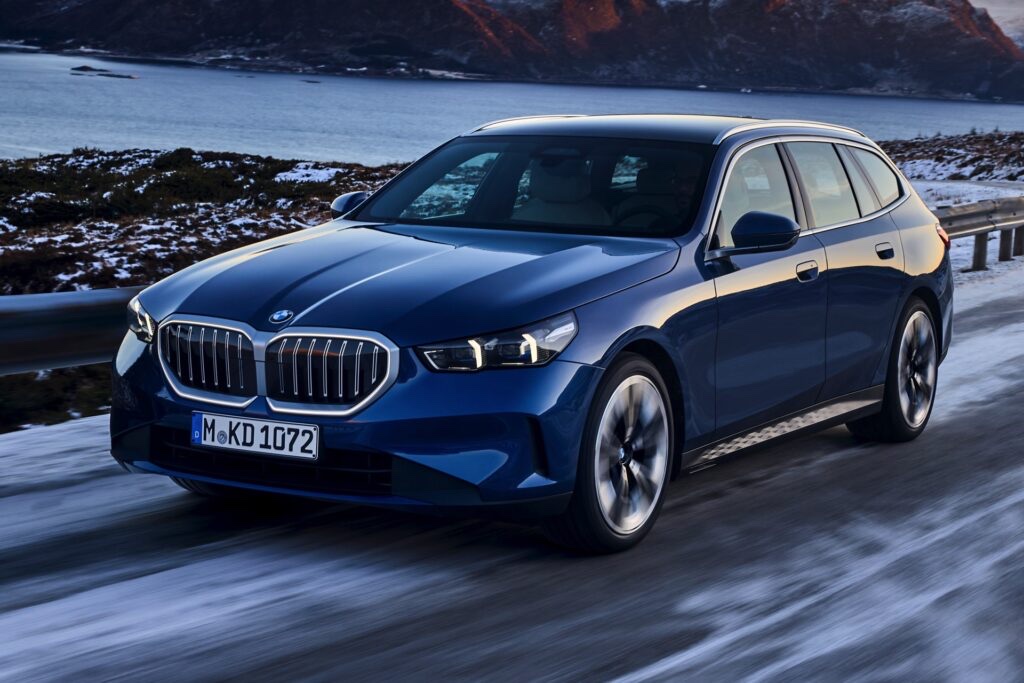

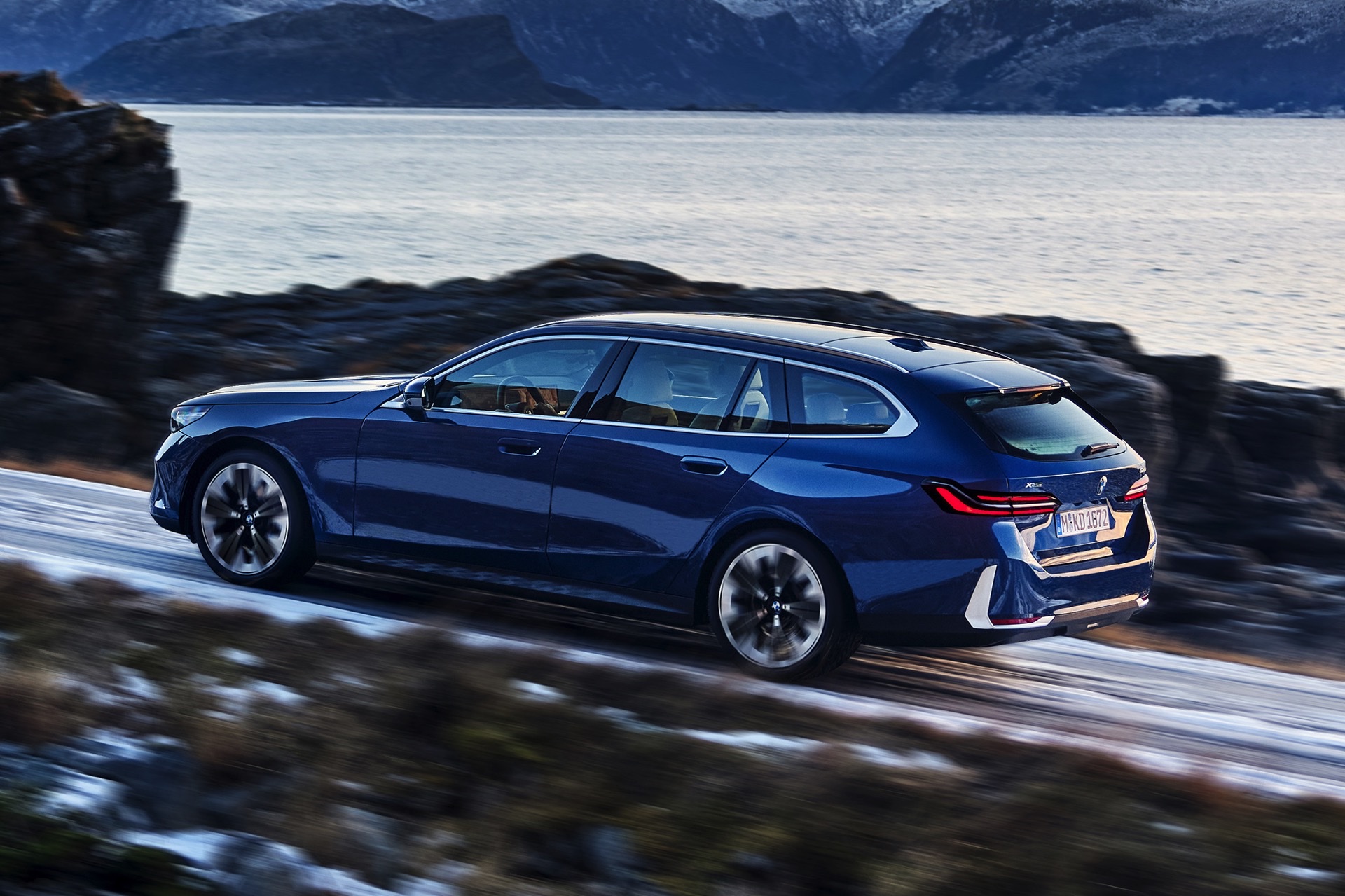

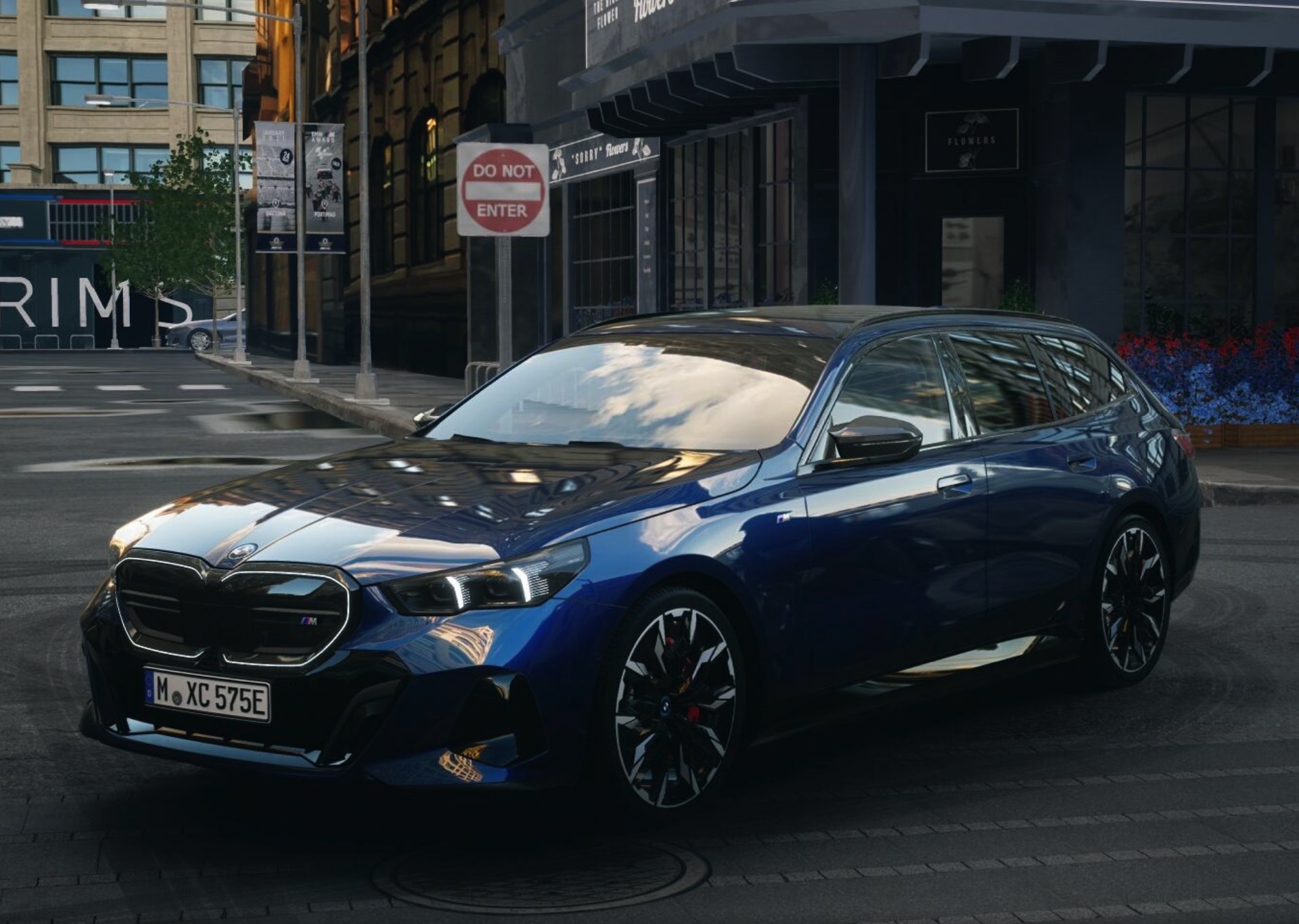

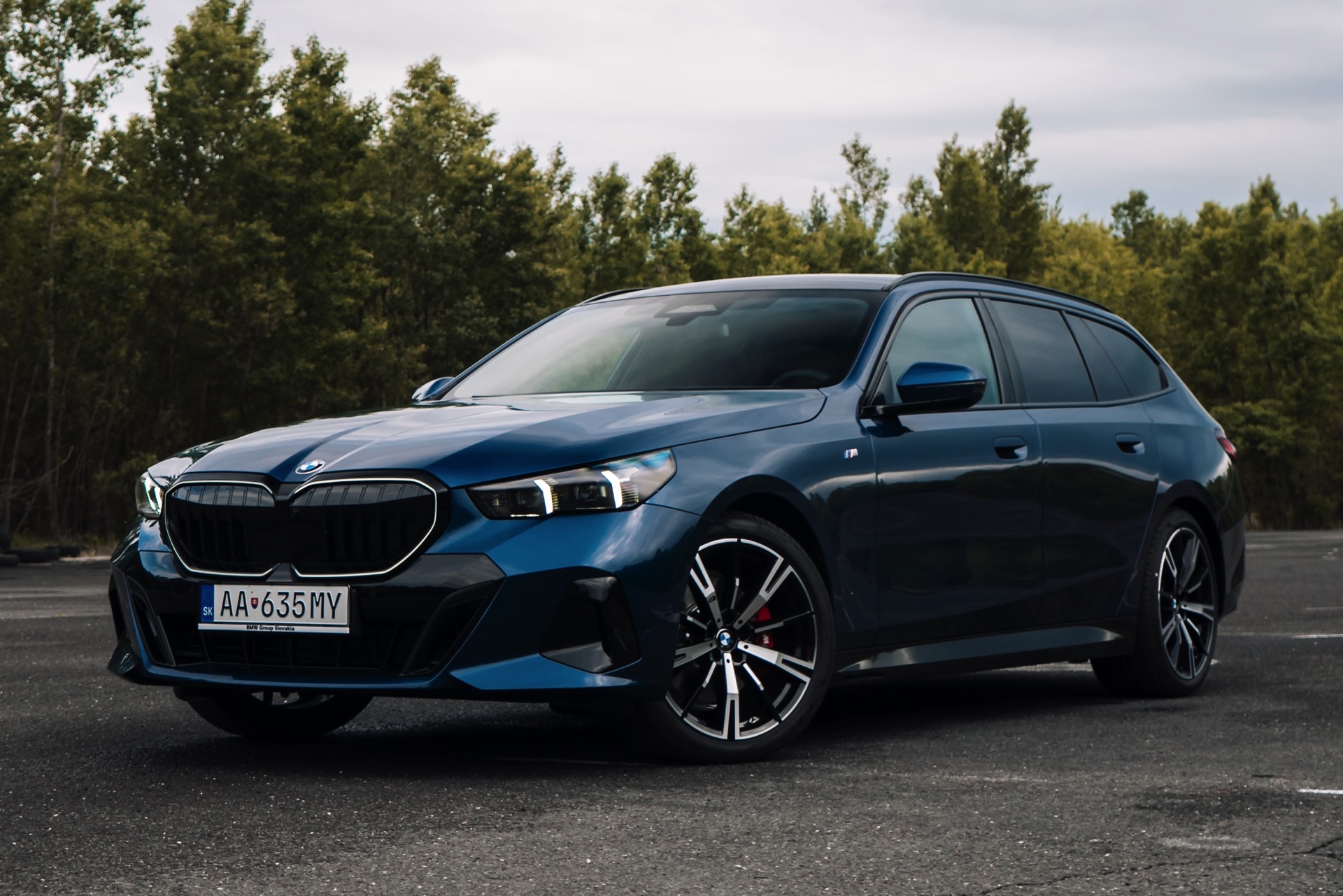

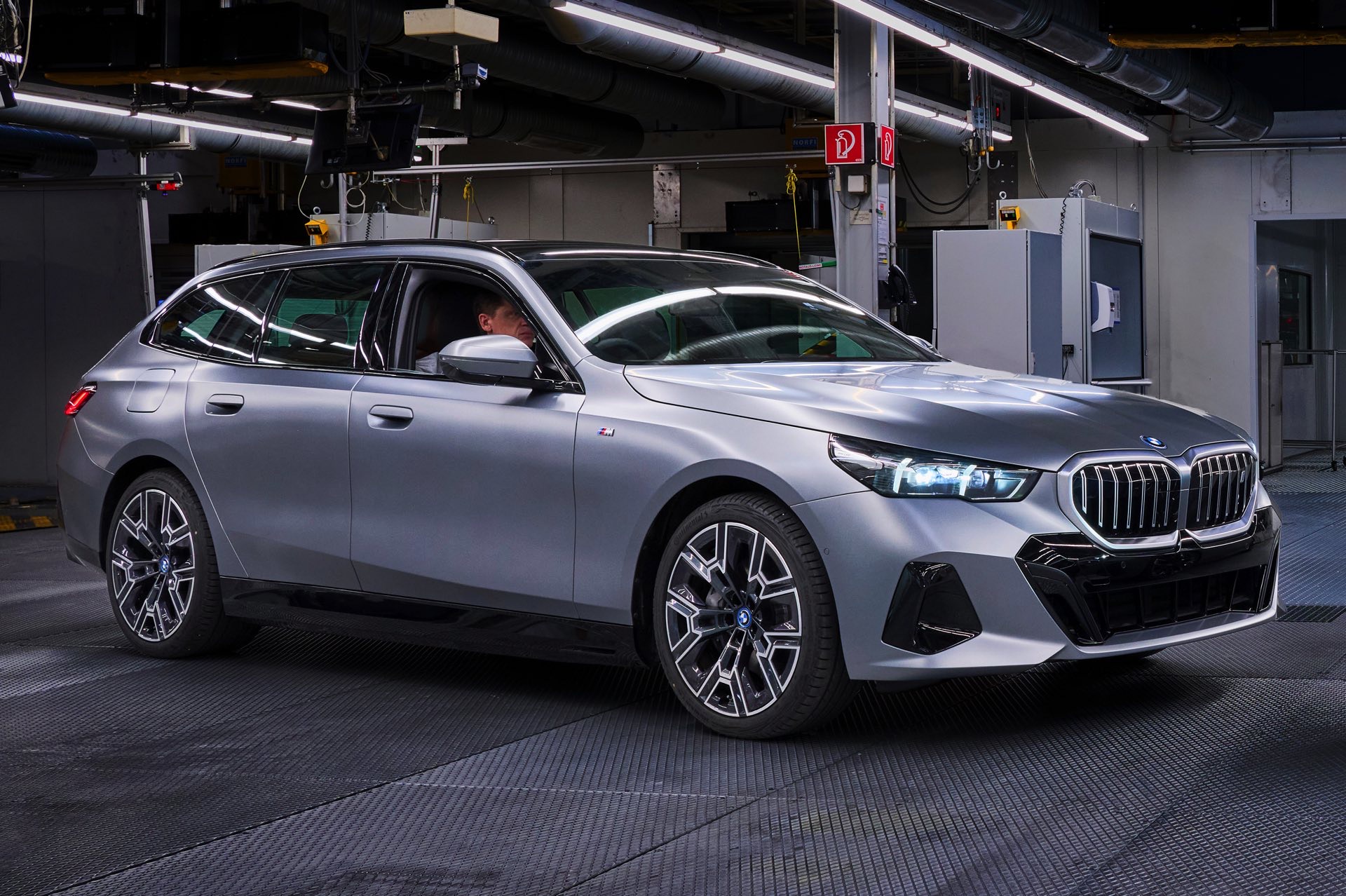

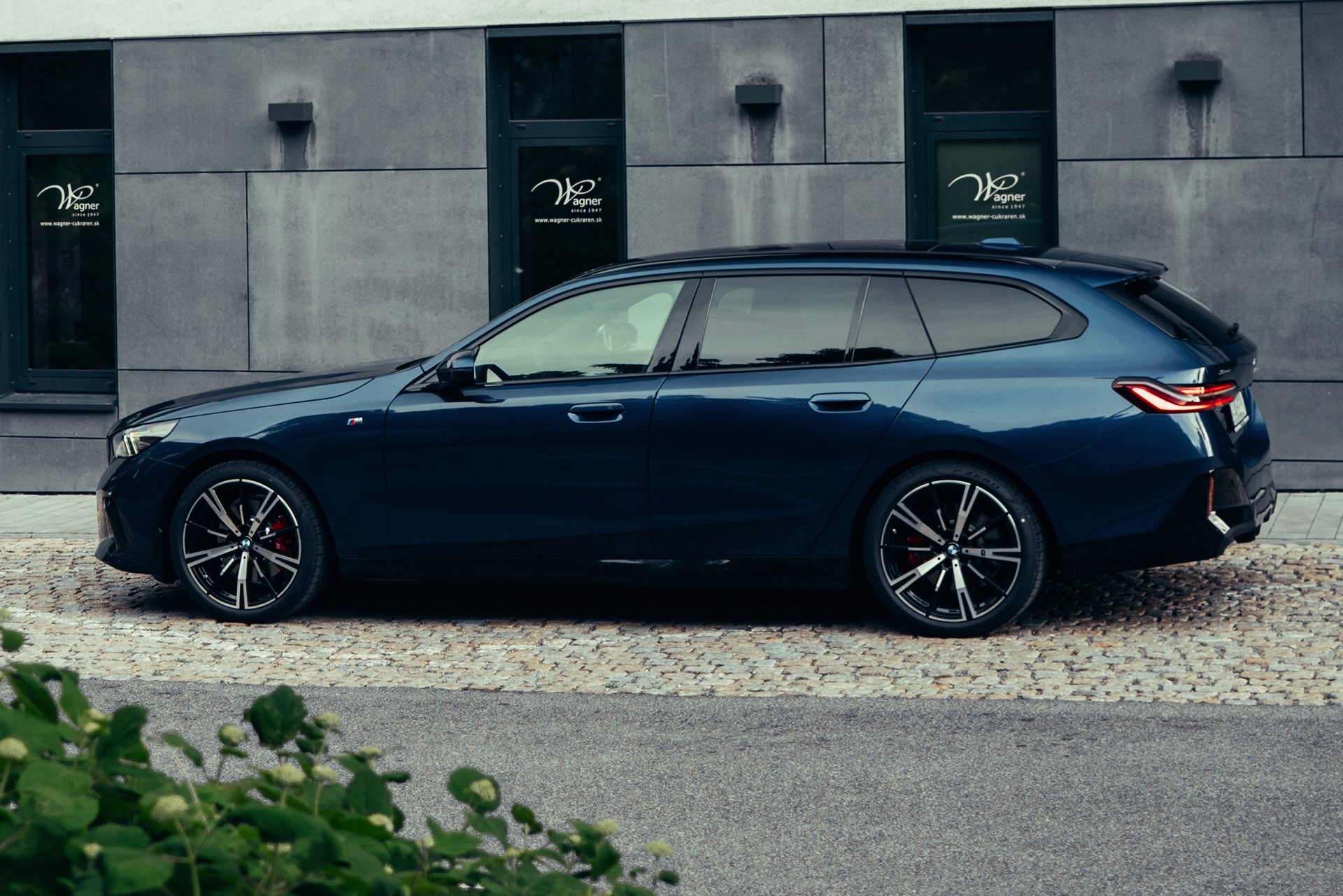

Photo BMW 5 Series Touring (G61)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
520i 40 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.1 |
|---|---|
| Top speed, km/h | 230 |
| Acceleration 0-100 km/h, s | 7.5 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i MHEV |
|---|---|
| Engine code | B48 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1998 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 208 |
| Torque, Nm | 330 |
| Number of electric motors | 1 |
| Electric motor power, hp | 18 |
| Combustion engine power, hp | 190 |
| Combustion engine RPM at max power | 4400-6500 |
| Combustion engine torque, Nm | 310 |
| Combustion engine RPM at max torque | 1500-4000 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5060 |
| Width, mm | 2156 |
| Height, mm | 1515 |
| Wheelbase, mm | 2995 |
| Front track, mm | 1634 |
| Rear track, mm | 1668 |
| Kerb weight, kg | 1850 |
| Turning circle, m | 12.3 |
| Ground clearance, mm | 155 |
| Width without mirrors, mm | 1900 |
| Trunk capacity, L | 570 |
Transmission and drive
| Transmission | 8-Steptronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
530e 43 specifications
Specifications
Performance and consumption
| Top speed, km/h | 220 |
|---|---|
| Acceleration 0-100 km/h, s | 6.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0h |
|---|---|
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1998 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 299 |
| Torque, Nm | 450 |
| Number of electric motors | 1 |
| EV mode | + |
| Plug-in charging support | + |
| Electric motor power, hp | 184 |
| Combustion engine power, hp | 190 |
| Combustion engine RPM at max power | 4400-6500 |
| Combustion engine torque, Nm | 310 |
| Combustion engine RPM at max torque | 1500-4000 |
| Electric motor torque, Nm | 250 |
| Electric motor RPM at max torque | 100-5500 |
| Electric motor RPM at max power | 7000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5060 |
| Width, mm | 2156 |
| Height, mm | 1515 |
| Wheelbase, mm | 2995 |
| Front track, mm | 1634 |
| Rear track, mm | 1668 |
| Kerb weight, kg | 1850 |
| Turning circle, m | 12.3 |
| Ground clearance, mm | 155 |
| Width without mirrors, mm | 1900 |
| Trunk capacity, L | 570 |
Transmission and drive
| Transmission | 8-Steptronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
520d 40 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.9 |
|---|---|
| Top speed, km/h | 220 |
| Acceleration 0-100 km/h, s | 7.5 |
| Emissions standard | Euro VI |
Engine
| Engine | 20d MHEV |
|---|---|
| Engine code | B47 |
| Engine type | Hybrid |
| Fuel type | Diesel |
| Engine displacement, cc | 1995 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 197 |
| Torque, Nm | 400 |
| Number of electric motors | 1 |
| Electric motor power, hp | 11 |
| Combustion engine power, hp | 197 |
| Combustion engine RPM at max power | 4000 |
| Combustion engine torque, Nm | 400 |
| Combustion engine RPM at max torque | 1500-2750 |
| Electric motor torque, Nm | 25 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5060 |
| Width, mm | 2156 |
| Height, mm | 1515 |
| Wheelbase, mm | 2995 |
| Front track, mm | 1634 |
| Rear track, mm | 1668 |
| Kerb weight, kg | 1850 |
| Turning circle, m | 12.3 |
| Ground clearance, mm | 155 |
| Width without mirrors, mm | 1900 |
| Trunk capacity, L | 570 |
Transmission and drive
| Transmission | 8-Steptronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
520d xDrive 40 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.2 |
|---|---|
| Top speed, km/h | 218 |
| Acceleration 0-100 km/h, s | 7.5 |
| Emissions standard | Euro VI |
Engine
| Engine | 20d MHEV |
|---|---|
| Engine code | B47 |
| Engine type | Hybrid |
| Fuel type | Diesel |
| Engine displacement, cc | 1995 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 197 |
| Torque, Nm | 400 |
| Number of electric motors | 1 |
| Electric motor power, hp | 11 |
| Combustion engine power, hp | 197 |
| Combustion engine RPM at max power | 4000 |
| Combustion engine torque, Nm | 400 |
| Combustion engine RPM at max torque | 1500-2750 |
| Electric motor torque, Nm | 25 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5060 |
| Width, mm | 2156 |
| Height, mm | 1515 |
| Wheelbase, mm | 2995 |
| Front track, mm | 1634 |
| Rear track, mm | 1668 |
| Kerb weight, kg | 1850 |
| Turning circle, m | 12.3 |
| Ground clearance, mm | 155 |
| Width without mirrors, mm | 1900 |
| Trunk capacity, L | 570 |
Transmission and drive
| Transmission | 8-Steptronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
BMW 5 Series Touring (G61) questions
Short answers based on the specifications and photos available in this catalog.
What body style is the BMW 5 Series G61?
The G61 is the Touring (station wagon) version of the eighth-generation BMW 5 Series.
What are the engine options for the 2024 5 Series Touring?
The lineup includes 2.0-liter mild-hybrid petrol (520i) and diesel (520d) engines, as well as a plug-in hybrid option (530e).
Does the new 5 Series Touring have a leather interior?
The G61 generation is the first in its class to feature a completely vegan interior as standard, utilizing a high-quality synthetic material called Veganza.
What is the cargo capacity of the BMW 5 Series Touring?
The standard trunk volume for the G61 Touring is 570 liters, accommodating large items easily thanks to the practical wagon body style.
Can the 5 Series Touring be driven hands-free?
Yes, with the optional Driving Assistant Professional, the car can manage steering, speed, and distance on highways at speeds up to 130 km/h, provided the driver continues to monitor the road.
