BMW 1 Series (F70) specifications and photos
The fourth-generation BMW 1 Series, carrying the F70 designation, was introduced in mid-2024. As a premium C-class hatchback, it continues to offer both front-wheel and all-wheel drive configurations.
BMW 1 Series (F70) at a glance
Quick model context before comparing photos and trim-level specifications.
The F70 generation of the BMW 1 Series refines the formula for the compact premium hatchback segment. Moving further away from its rear-wheel-drive roots, this fourth iteration embraces front-wheel and xDrive all-wheel-drive architectures, prioritizing cabin space and daily drivability. The vehicle is aimed at buyers seeking the technological sophistication of larger BMW models in a more city-friendly footprint. Introduced in mid-2024, the F70 updates both its exterior aesthetic and interior digital experience to align with the brand's contemporary design language. The model range covers a broad spectrum, from efficient front-drive three-cylinder variants like the 116i up to the high-performance all-wheel-drive M135. With dimensions measuring 4,361 mm in length and a 2,670 mm wheelbase, the footprint remains strictly compact, while providing 380 liters of trunk capacity for practical use.
- Power: 122-300 hp
- Engine displacement: 1499-1998 cc
- Transmissions: 7-Steptronic
- Seating: 5 seats
Photos, trims and specifications for BMW 1 Series (F70)
This model page brings gallery images, trim comparison, and detailed technical data together for the 2024 generation.
Estimate fuel cost
Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.
Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.
BMW 1 Series (F70) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.

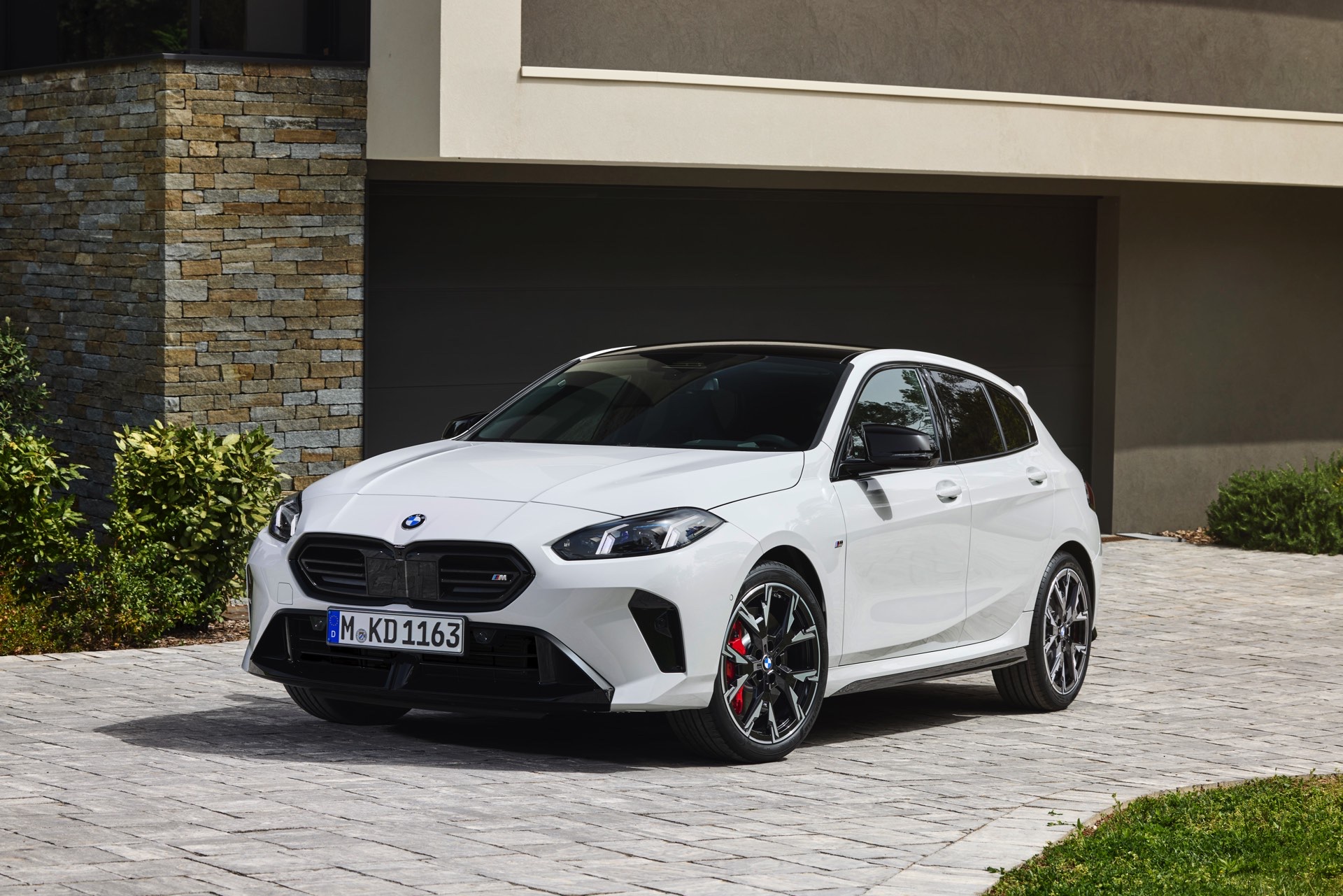

Design
The exterior of the F70 1 Series features an aggressive front fascia defined by a prominent double kidney grille and slim, adaptive LED headlights. The profile showcases a sloping hood that transitions smoothly into dynamic side panels with aerodynamic skirts. Compact side mirrors and a sculpted shoulder line emphasize its stance. At the rear, wide LED taillights visually broaden the hatchback, complemented by subtle aerodynamic elements on the lower bumper. Ground clearance sits at 156 mm.
Interior
Inside, the F70 adopts the modern BMW Curved Display, which houses both the digital instrument cluster and the central touchscreen under a single glass panel. This system runs on BMW Operating System 8, incorporating the Intelligent Personal Assistant for voice controls. The cabin features ergonomic seating with available electrical adjustment, memory functions, and heating. A dual-zone climate control system, ambient interior lighting, and Hi-Fi audio provide a premium environment. Smartphone integration is seamless with standard Apple CarPlay and Android Auto support.
Performance
Powertrain options include both petrol and diesel engines utilizing BMW TwinPower Turbo technology, paired exclusively with a 7-speed Steptronic dual-clutch transmission. The lineup starts with the 1.5-liter three-cylinder 116i producing 122 hp, and the 120, which adds a 48-volt mild-hybrid system for a combined 170 hp. Diesel choices include the 150 hp 118d and the mild-hybrid 120d with 163 hp. The 123 trim brings a 2.0-liter mild-hybrid engine producing 218 hp with all-wheel drive. The flagship M135 xDrive features a 2.0-liter turbocharged four-cylinder delivering 300 hp and 400 Nm, paired with adaptive M suspension. It accelerates from 0 to 100 km/h in 4.9 seconds.
Practicality
As a five-door hatchback, the F70 balances everyday usability with a compact footprint. The 380-liter cargo area is typical for the premium C-segment, providing adequate space for weekly groceries or weekend luggage. The 2,670 mm wheelbase ensures reasonable rear-seat legroom for a car of its size, though it remains well suited for smaller families or urban commuters who prioritize maneuverability over maximum hauling capability.
Safety and tech
The technological suite in the F70 is anchored by the BMW Curved Display and Operating System 8, offering extensive personalization and connected services. Adaptive LED headlights improve nighttime visibility, while the Intelligent Personal Assistant allows drivers to control various vehicle functions hands-free. The integration of 48-volt mild-hybrid technology in several trims, utilizing a 20 hp electric motor built into the transmission, not only improves fuel efficiency but also ensures smoother start-stop operation and low-speed responsiveness.
Buyer notes
Shoppers should pay attention to the drivetrain differences across the lineup. Base models and diesels like the 116i, 120, 118d, and 120d are front-wheel drive, whereas the 123 and M135 come standard with xDrive all-wheel drive. Mild-hybrid tech is also trim-dependent, so buyers focused on fuel economy should verify the specific powertrain code. As with most premium compacts, equipment levels can vary significantly by market, and many advanced interior features or adaptive suspension setups may require option packages.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 116i | 1499 cc | 122 hp | 5 | 7-Steptronic |
| 118d | 1995 cc | 150 hp | 5 | 7-Steptronic |
| 120 | 1499 cc | 170 hp | 5 | 7-Steptronic |
| 120d | 1995 cc | 163 hp | 5 | 7-Steptronic |
| 123 | 1998 cc | 218 hp | 5 | 7-Steptronic |
| M135 | 1998 cc | 300 hp | 5 | 7-Steptronic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

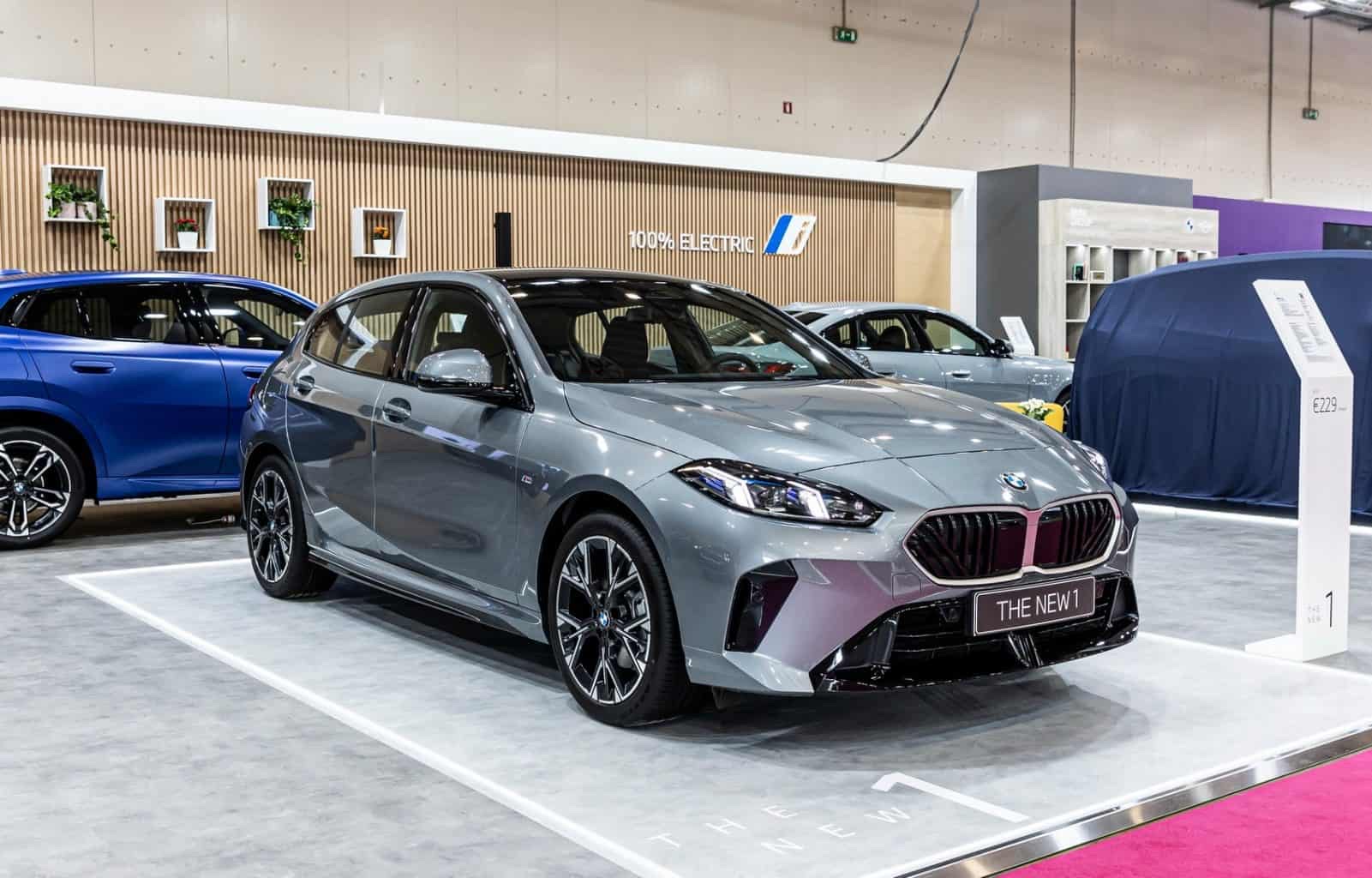

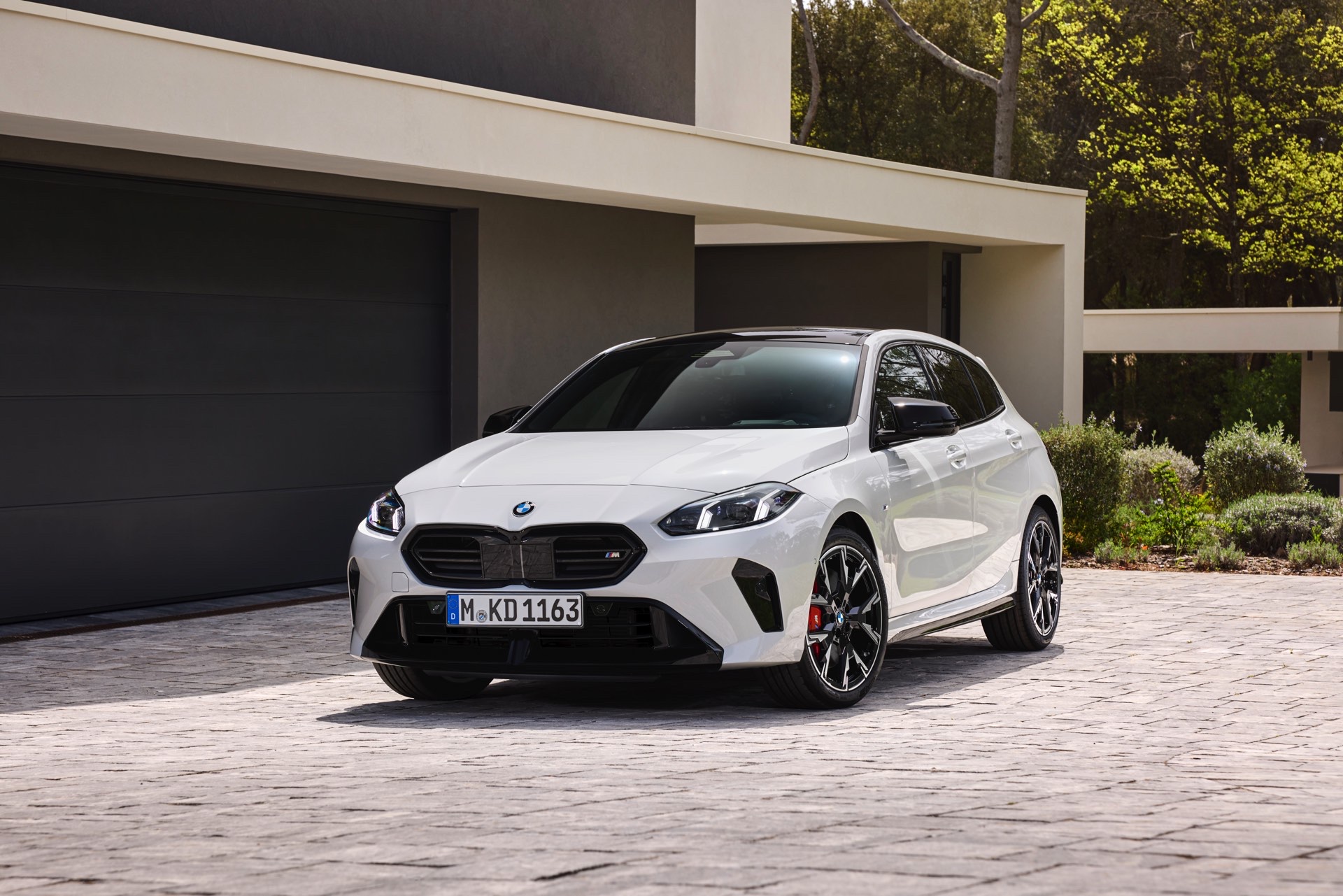

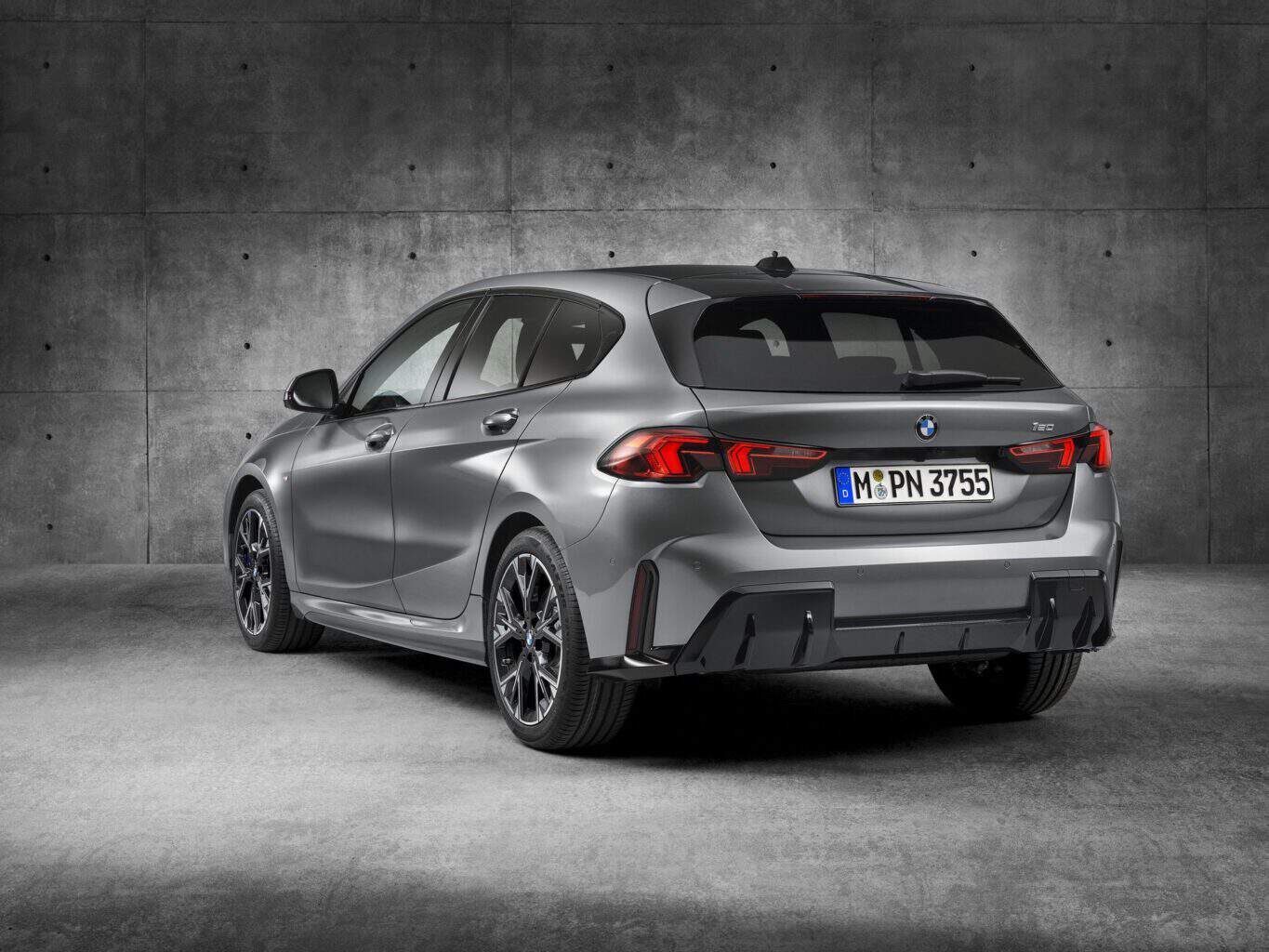

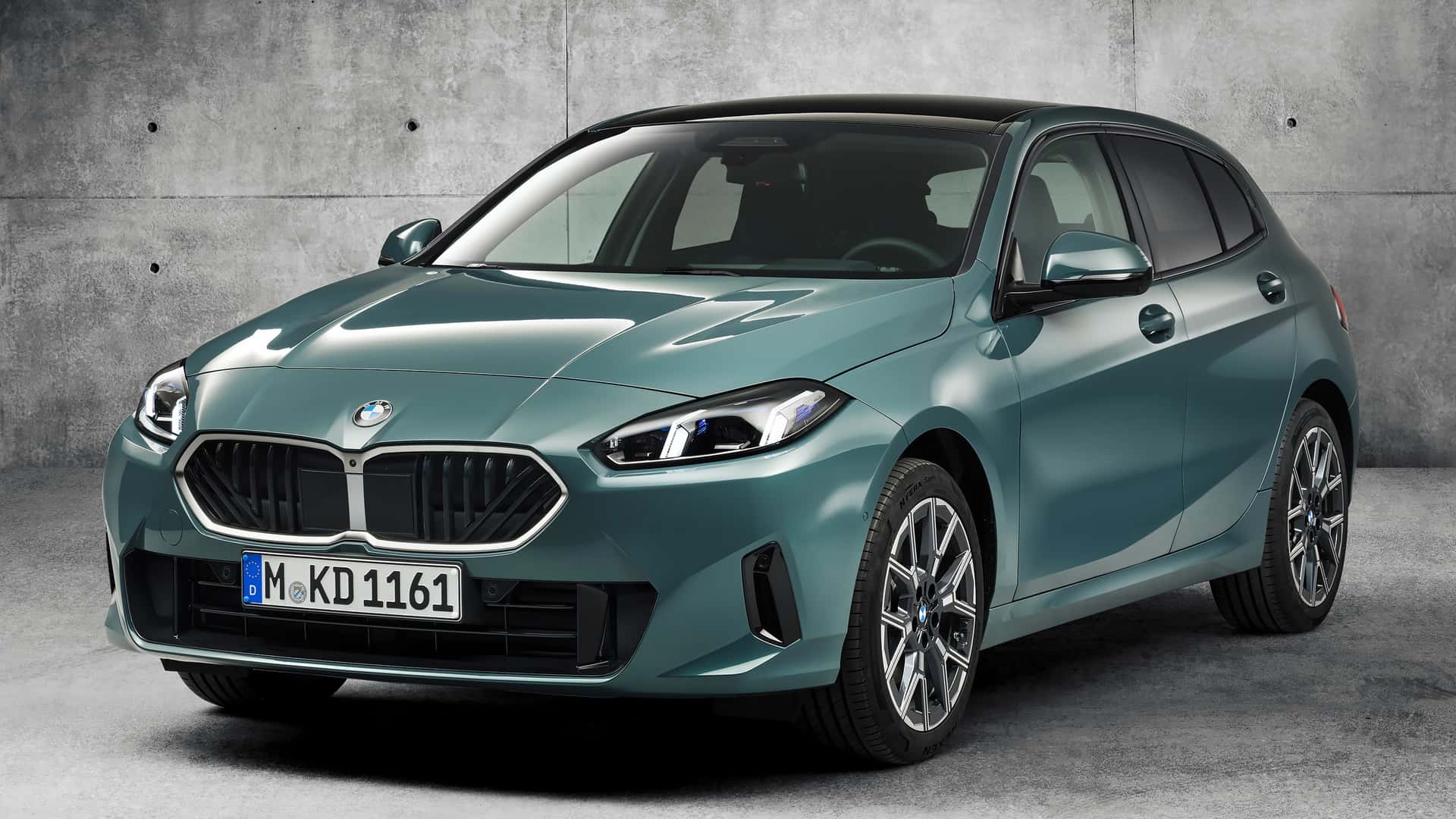

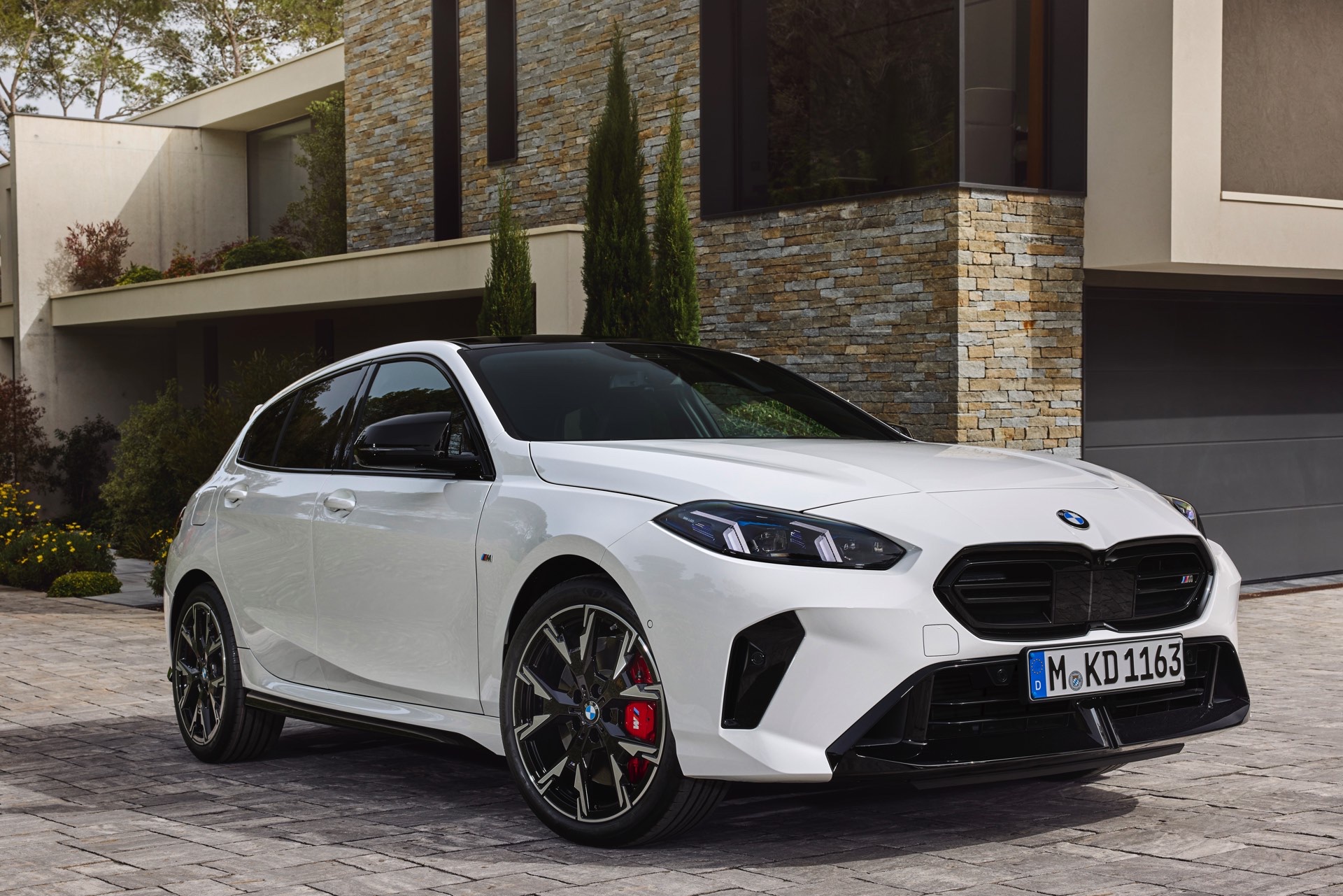

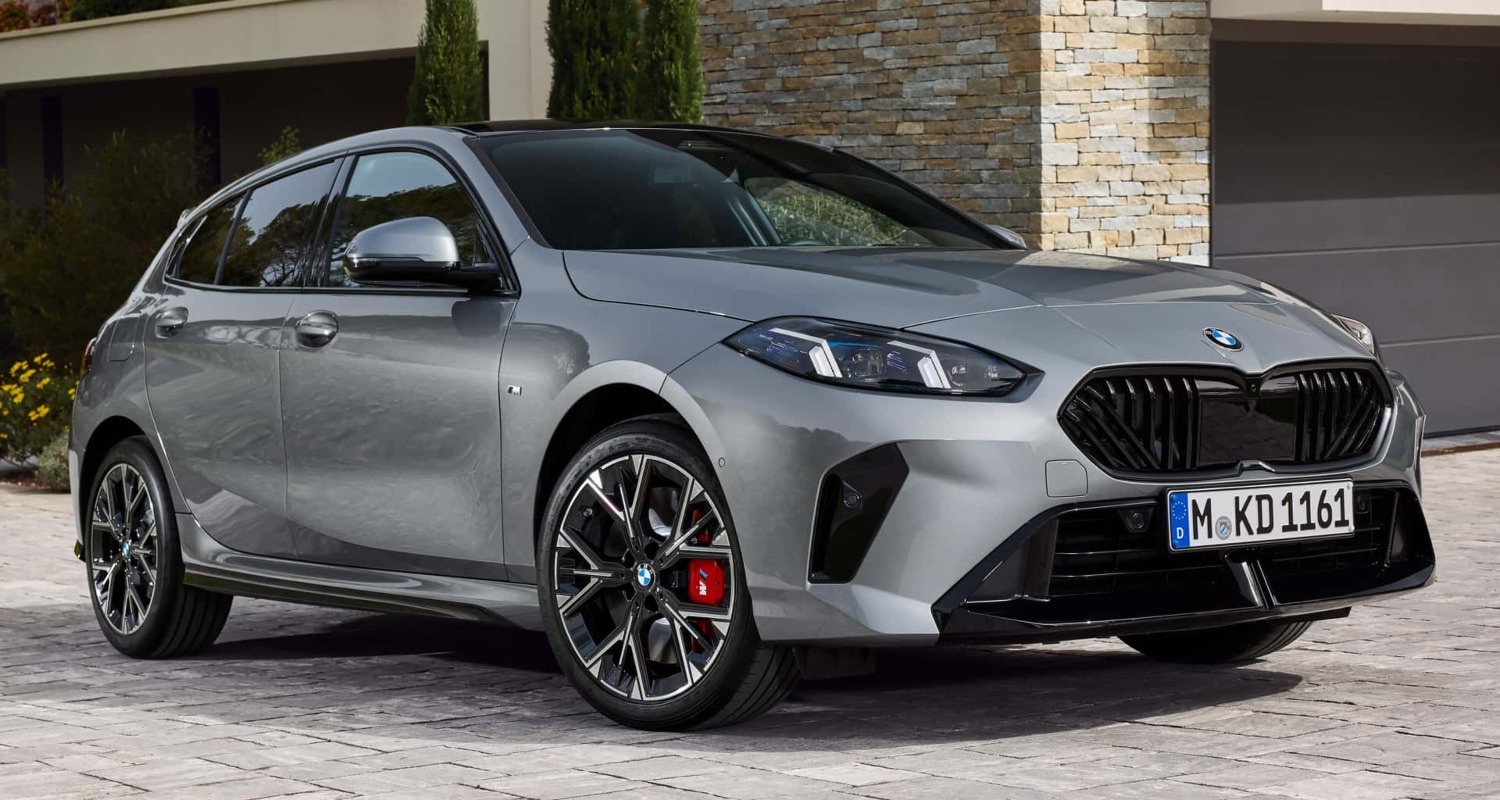

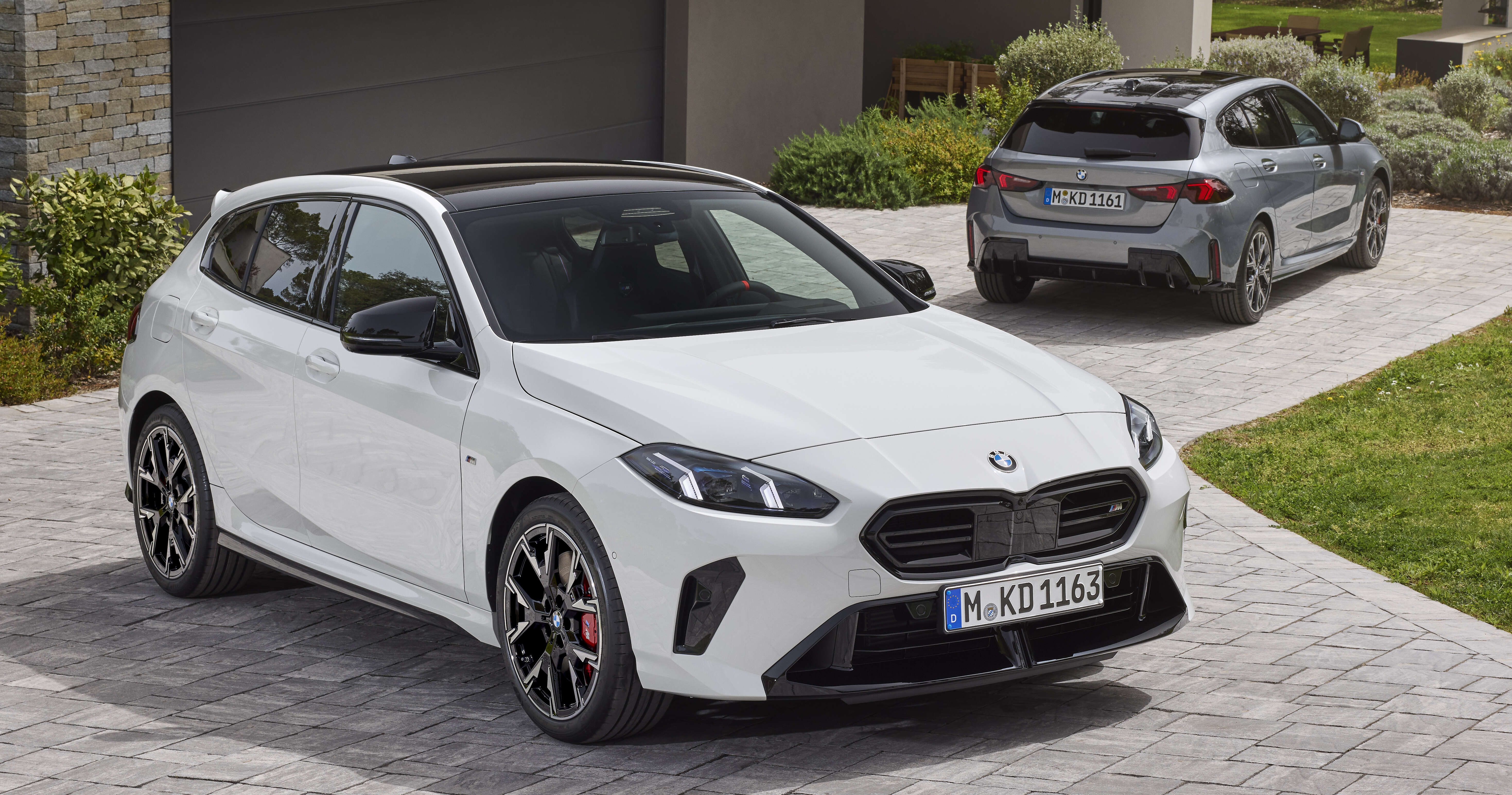

BMW 1 Series (F70) photo gallery
16 images are collected here with the main specifications and trim data for this model.

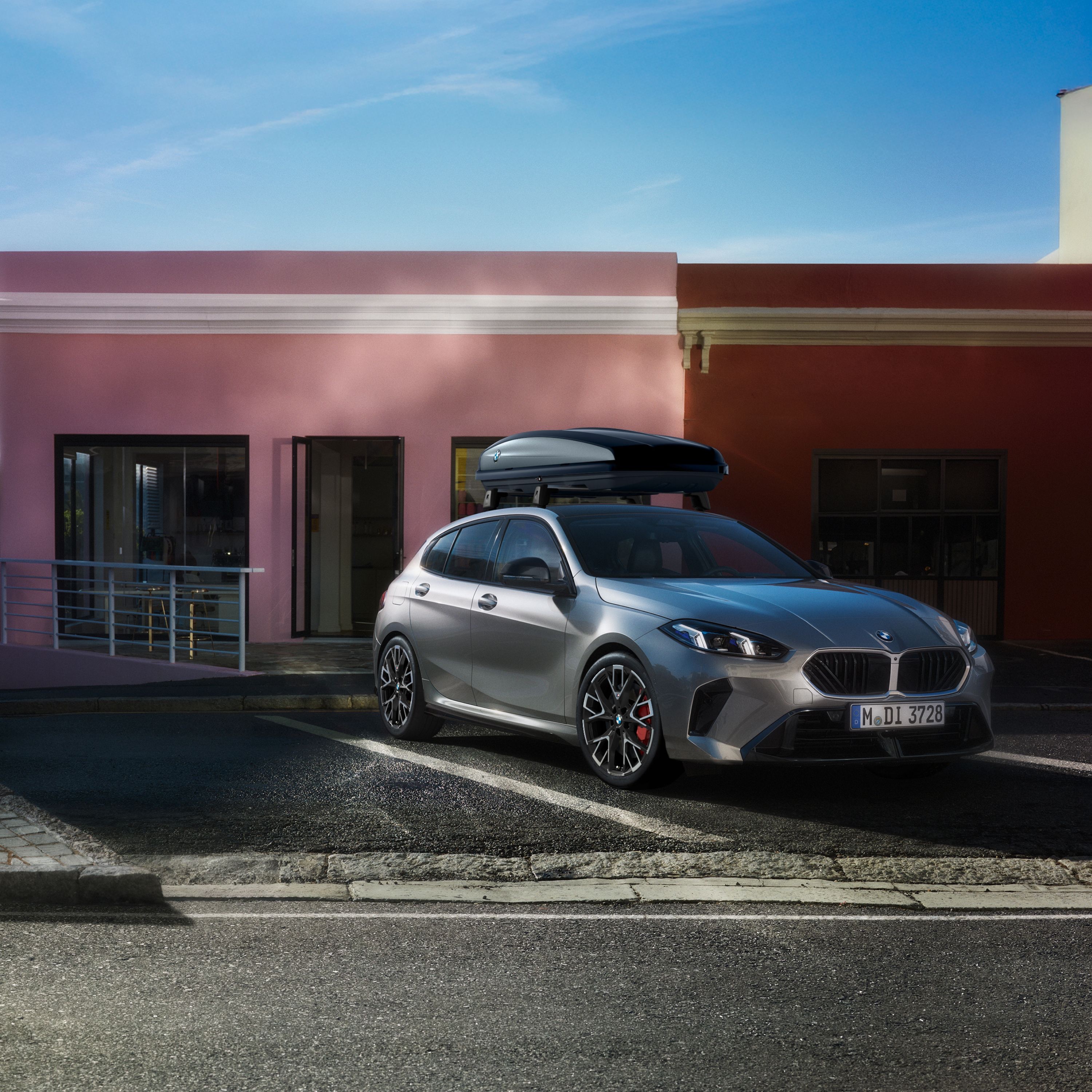

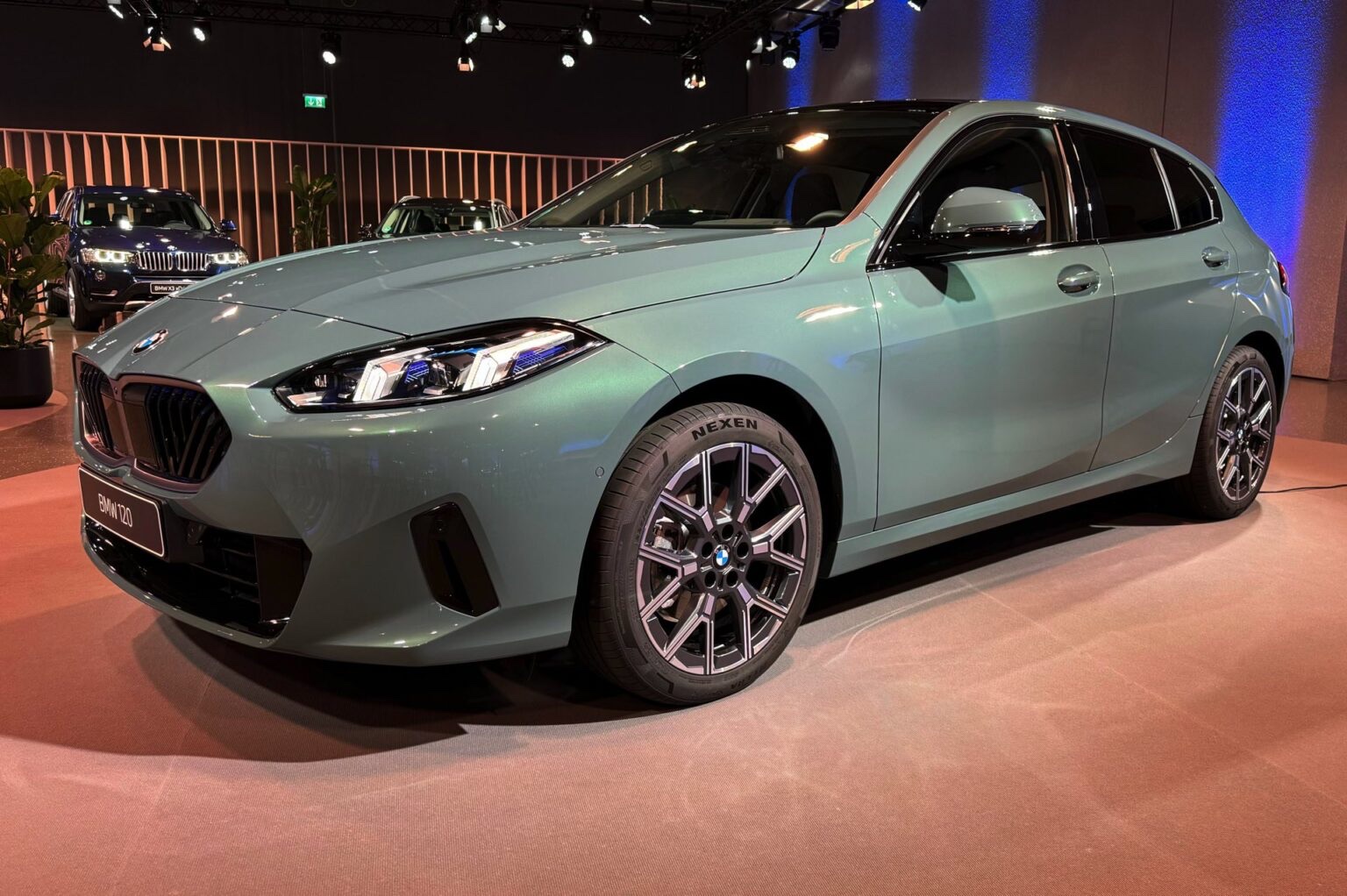

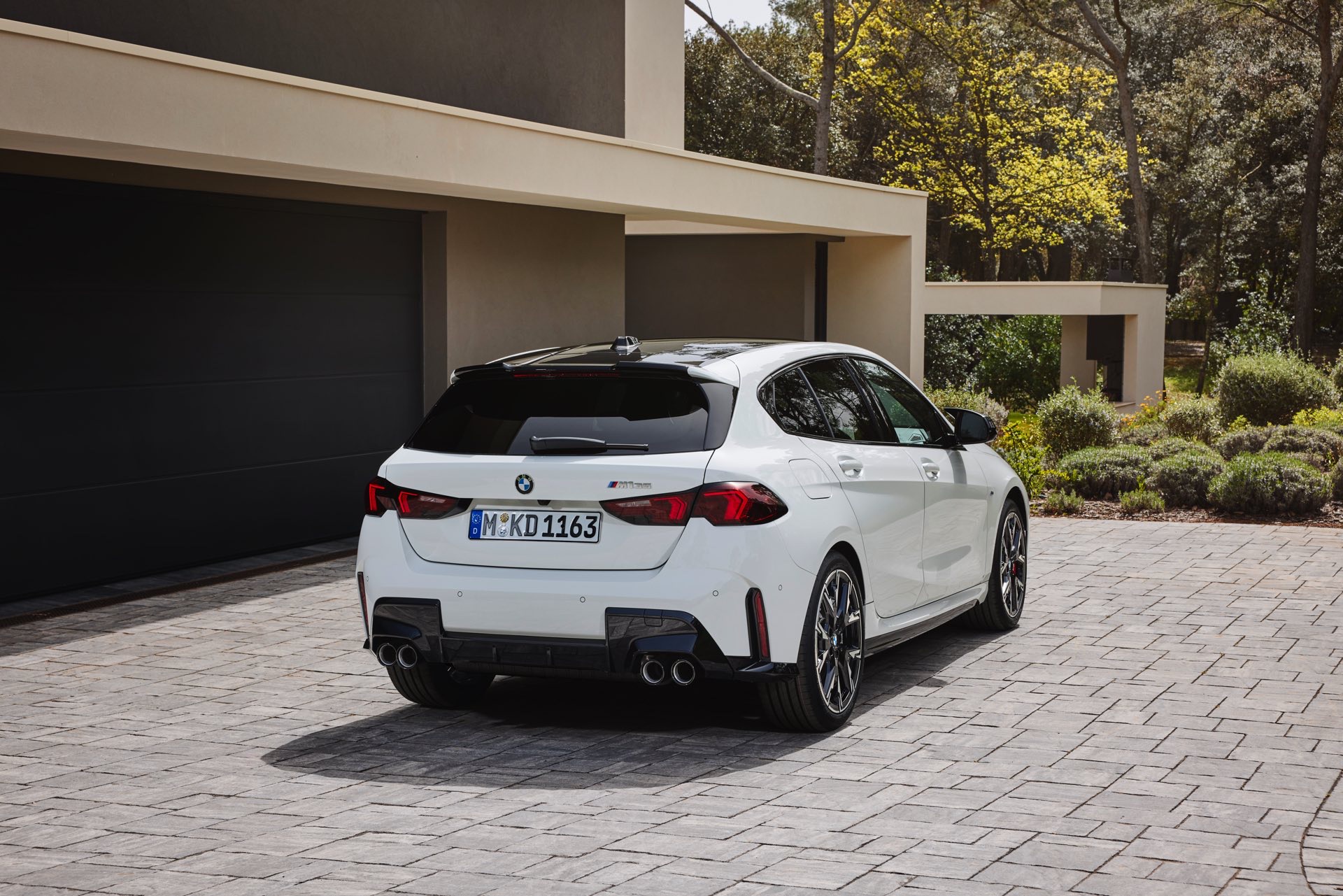

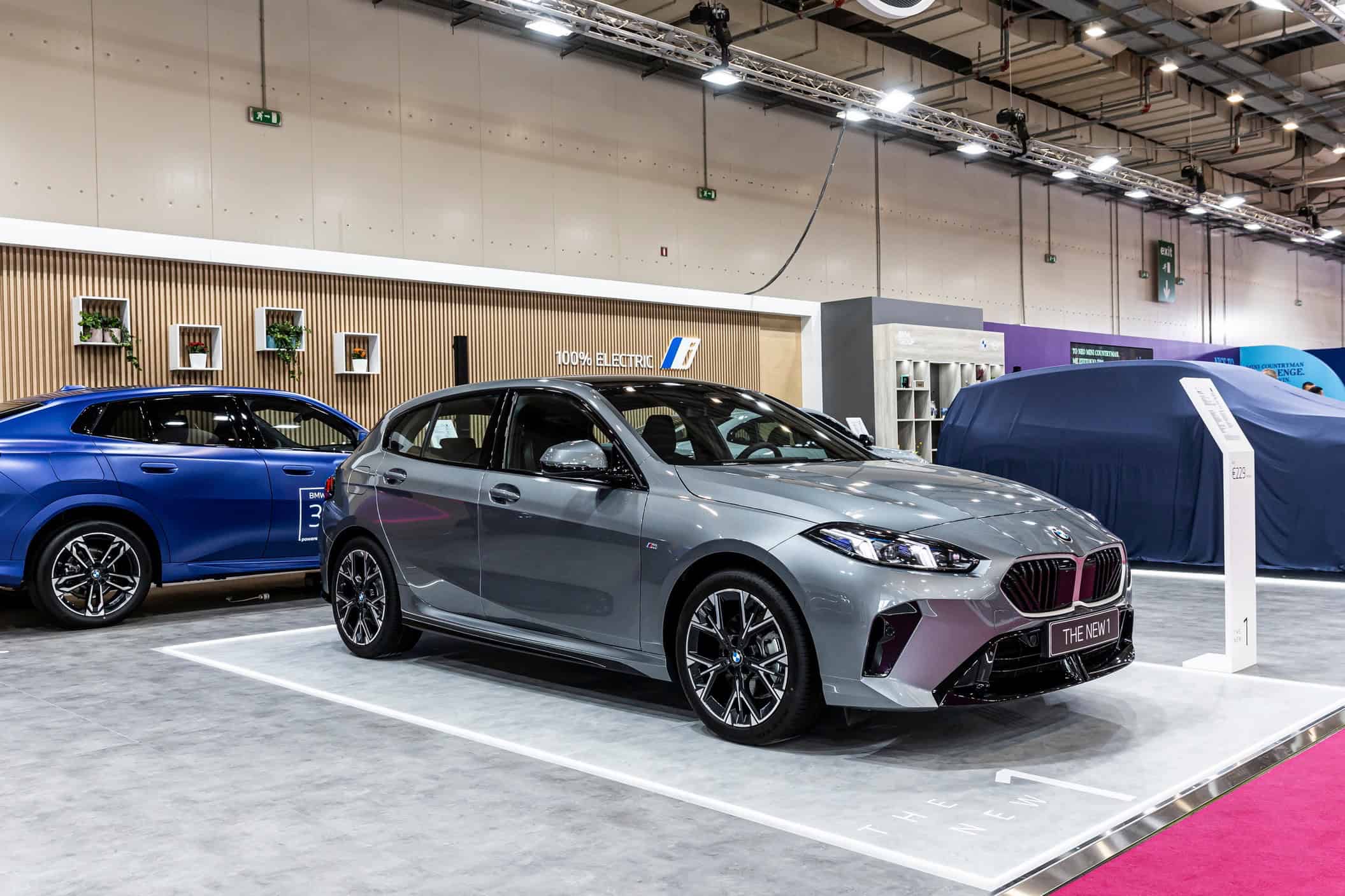

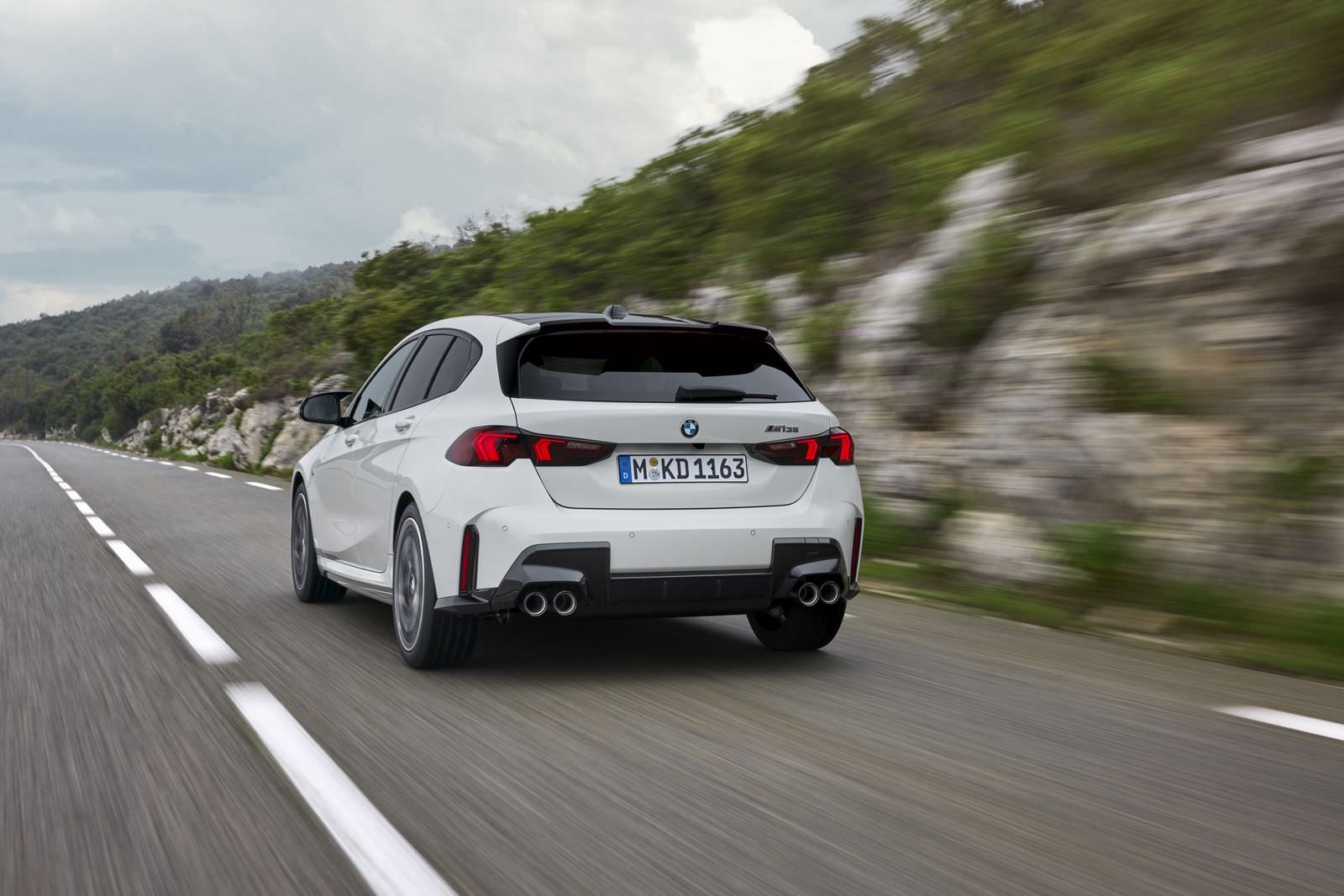

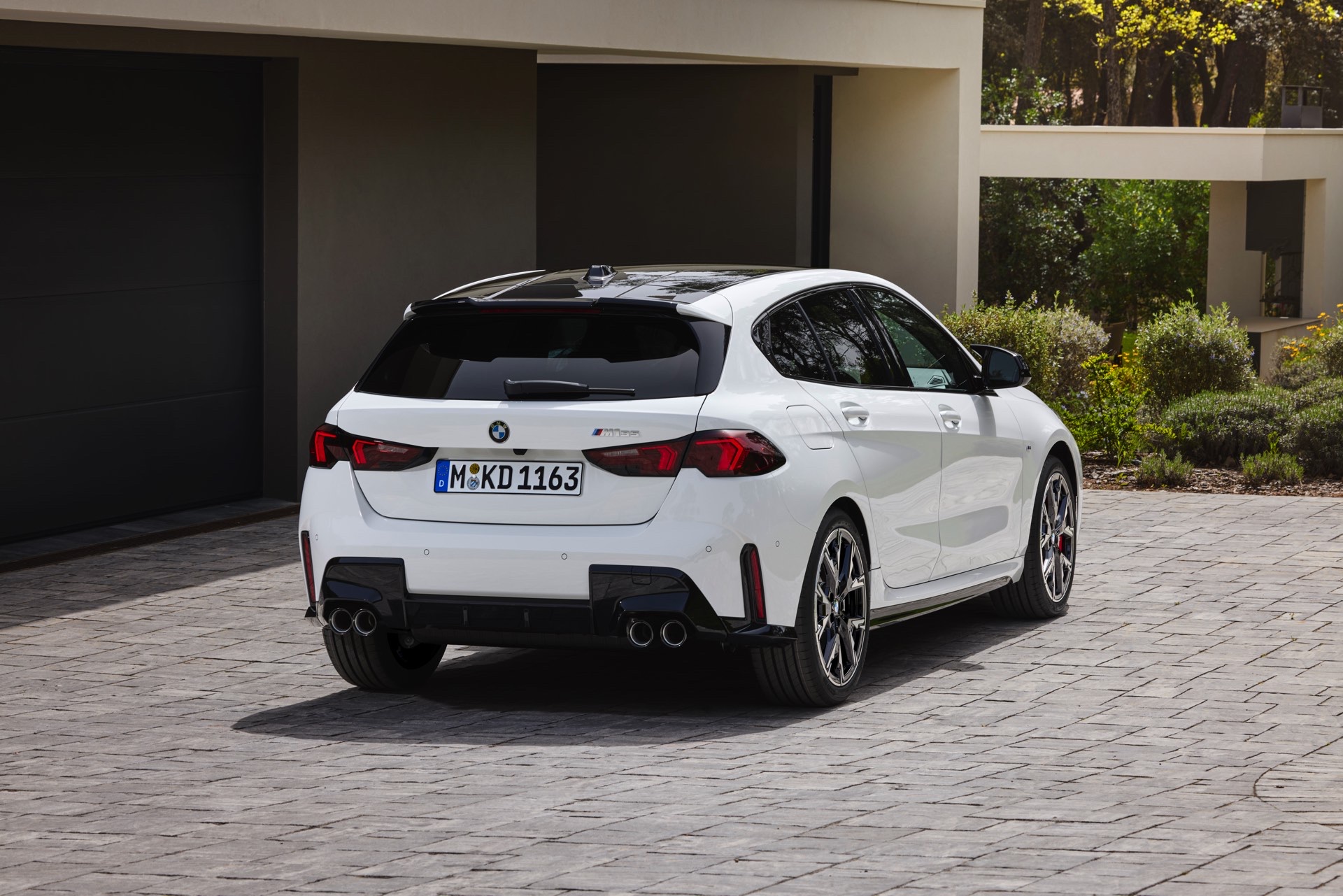

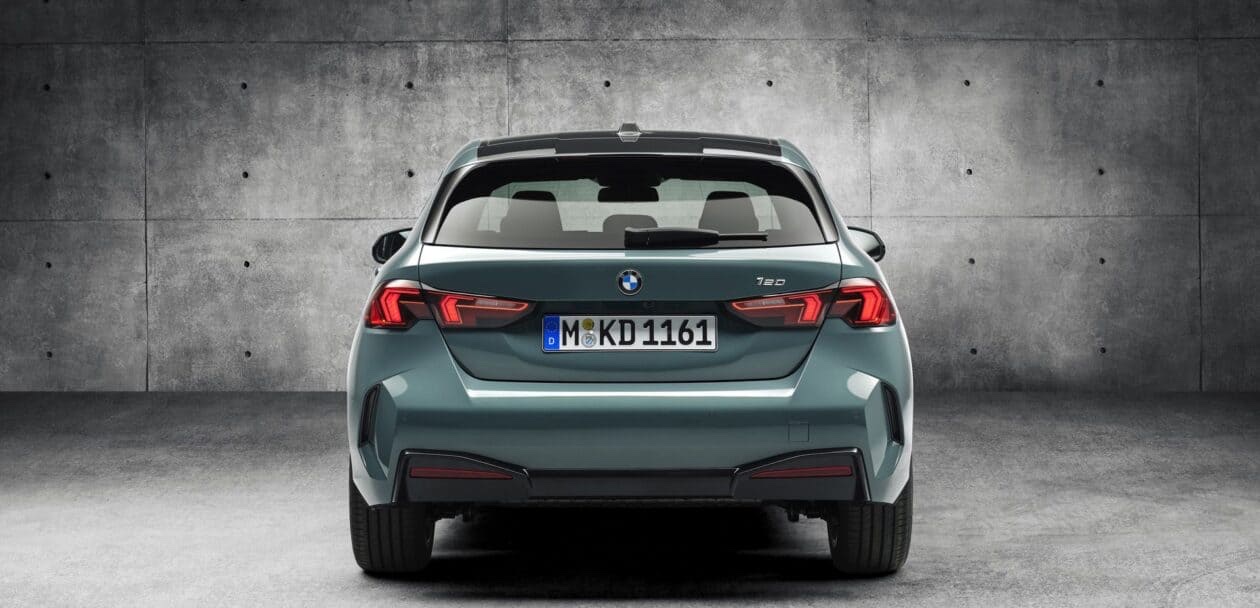

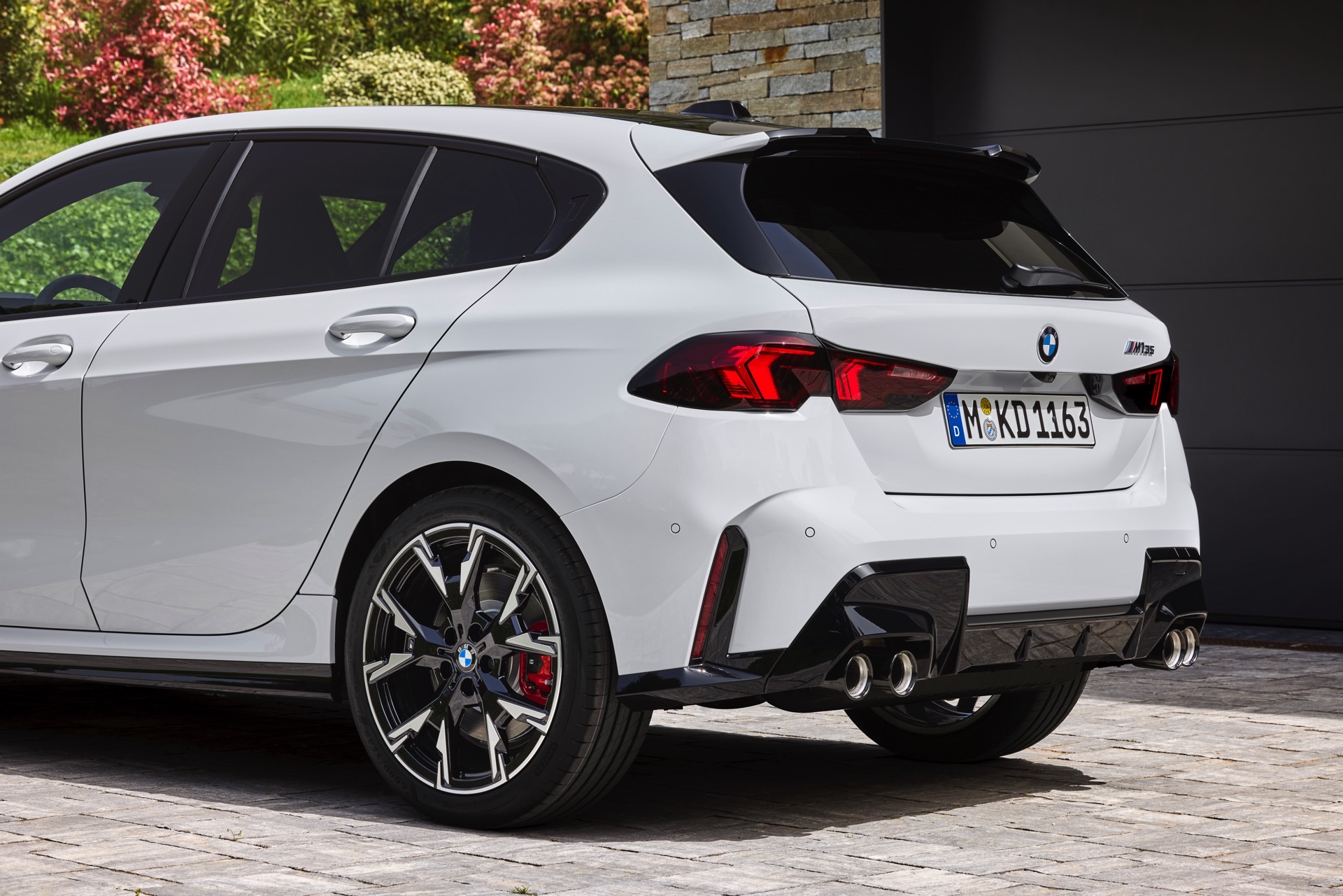

Photo BMW 1 Series (F70)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
116i 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.6 |
|---|---|
| Top speed, km/h | 210 |
| Acceleration 0-100 km/h, s | 9.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5i |
|---|---|
| Engine code | B38 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1499 |
| Cylinder layout | Inline |
| Number of cylinders | 3 |
| Valves | 12 |
| Turbocharger | + |
| Power, hp | 122 |
| RPM at max power | 3900-6500 |
| Torque, Nm | 230 |
| RPM at max torque | 1500-3600 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4361 |
| Width, mm | 2072 |
| Height, mm | 1459 |
| Wheelbase, mm | 2670 |
| Front track, mm | 1561 |
| Rear track, mm | 1562 |
| Kerb weight, kg | 1390 |
| Fuel tank capacity, L | 49 |
| Turning circle, m | 11.7 |
| Ground clearance, mm | 156 |
| Width without mirrors, mm | 1800 |
| Trunk capacity, L | 380 |
Transmission and drive
| Transmission | 7-Steptronic |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Automatic transmission | + |
118d 34 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.2 |
|---|---|
| Top speed, km/h | 222 |
| Acceleration 0-100 km/h, s | 8.3 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0d |
|---|---|
| Engine code | B47 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1995 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 150 |
| RPM at max power | 3750-4000 |
| Torque, Nm | 360 |
| RPM at max torque | 1500-2500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4361 |
| Width, mm | 2072 |
| Height, mm | 1459 |
| Wheelbase, mm | 2670 |
| Front track, mm | 1561 |
| Rear track, mm | 1562 |
| Kerb weight, kg | 1390 |
| Fuel tank capacity, L | 49 |
| Turning circle, m | 11.7 |
| Ground clearance, mm | 156 |
| Width without mirrors, mm | 1800 |
| Trunk capacity, L | 380 |
Transmission and drive
| Transmission | 7-Steptronic |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Automatic transmission | + |
120 38 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6 |
|---|---|
| Top speed, km/h | 226 |
| Acceleration 0-100 km/h, s | 7.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 MHEV |
|---|---|
| Engine code | B38A15M2 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1499 |
| Cylinder layout | Inline |
| Number of cylinders | 3 |
| Valves | 12 |
| Power, hp | 170 |
| Torque, Nm | 280 |
| Electric motor power, hp | 20 |
| Combustion engine power, hp | 156 |
| Combustion engine RPM at max power | 4700-6500 |
| Combustion engine torque, Nm | 240 |
| Combustion engine RPM at max torque | 1500-4400 |
| Electric motor torque, Nm | 55 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4361 |
| Width, mm | 2072 |
| Height, mm | 1459 |
| Wheelbase, mm | 2670 |
| Front track, mm | 1561 |
| Rear track, mm | 1562 |
| Kerb weight, kg | 1390 |
| Fuel tank capacity, L | 49 |
| Turning circle, m | 11.7 |
| Ground clearance, mm | 156 |
| Width without mirrors, mm | 1800 |
| Trunk capacity, L | 380 |
Transmission and drive
| Transmission | 7-Steptronic |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Automatic transmission | + |
120d 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 4.8 |
|---|---|
| Top speed, km/h | 222 |
| Acceleration 0-100 km/h, s | 7.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0d MHEV |
|---|---|
| Engine code | B47C20U2 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1995 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 163 |
| Torque, Nm | 400 |
| Electric motor power, hp | 20 |
| Combustion engine power, hp | 150 |
| Combustion engine RPM at max power | 3750-4000 |
| Combustion engine torque, Nm | 360 |
| Combustion engine RPM at max torque | 1500-2500 |
| Electric motor torque, Nm | 55 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4361 |
| Width, mm | 2072 |
| Height, mm | 1459 |
| Wheelbase, mm | 2670 |
| Front track, mm | 1561 |
| Rear track, mm | 1562 |
| Kerb weight, kg | 1390 |
| Fuel tank capacity, L | 49 |
| Turning circle, m | 11.7 |
| Ground clearance, mm | 156 |
| Width without mirrors, mm | 1800 |
| Trunk capacity, L | 380 |
Transmission and drive
| Transmission | 7-Steptronic |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Automatic transmission | + |
123 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.4 |
|---|---|
| Top speed, km/h | 246 |
| Acceleration 0-100 km/h, s | 6.3 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i MHEV |
|---|---|
| Engine code | B48A20M2 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1998 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 218 |
| Torque, Nm | 360 |
| Electric motor power, hp | 20 |
| Combustion engine power, hp | 204 |
| Combustion engine RPM at max power | 5000-6500 |
| Combustion engine torque, Nm | 320 |
| Combustion engine RPM at max torque | 1500-4000 |
| Electric motor torque, Nm | 55 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4361 |
| Width, mm | 2072 |
| Height, mm | 1459 |
| Wheelbase, mm | 2670 |
| Front track, mm | 1561 |
| Rear track, mm | 1562 |
| Kerb weight, kg | 1390 |
| Fuel tank capacity, L | 49 |
| Turning circle, m | 11.7 |
| Ground clearance, mm | 156 |
| Width without mirrors, mm | 1800 |
| Trunk capacity, L | 380 |
Transmission and drive
| Transmission | 7-Steptronic |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | All-wheel drive |
| Number of gears | 7 |
| Automatic transmission | + |
M135 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.1 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i |
|---|---|
| Engine code | B48A20T20 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1998 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 300 |
| RPM at max power | 5750-6500 |
| Torque, Nm | 400 |
| RPM at max torque | 2000-4500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4361 |
| Width, mm | 2072 |
| Height, mm | 1459 |
| Wheelbase, mm | 2670 |
| Front track, mm | 1561 |
| Rear track, mm | 1562 |
| Kerb weight, kg | 1390 |
| Fuel tank capacity, L | 49 |
| Turning circle, m | 11.7 |
| Ground clearance, mm | 156 |
| Width without mirrors, mm | 1800 |
| Trunk capacity, L | 380 |
Transmission and drive
| Transmission | 7-Steptronic |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | All-wheel drive |
| Number of gears | 7 |
| Automatic transmission | + |
BMW 1 Series (F70) questions
Short answers based on the specifications and photos available in this catalog.
What body style is the BMW 1 Series (F70)?
It is a five-door premium C-class hatchback.
Does the F70 1 Series have front-wheel or all-wheel drive?
The standard models are front-wheel drive, while higher-performance variants like the 123 and M135 feature the xDrive all-wheel-drive system.
What is the cargo capacity of the 2024 BMW 1 Series?
The F70 offers a boot capacity of 380 liters, which is typical for this class of compact vehicle.
Is there a mild-hybrid version available?
Yes, several engines, including the 120 petrol, 120d diesel, and 123 petrol, incorporate a 48-volt mild-hybrid system with a 20 hp electric motor.
What is the fastest version of the F70 1 Series?
The M135 xDrive is the highest performing trim, generating 300 hp and accelerating from 0 to 100 km/h in 4.9 seconds.
