BMW X5 (G05) specifications and photos
The 2023 BMW X5 represents the mid-cycle facelift of the popular fourth-generation G05 SUV. Officially unveiled in early 2023, this update brings revised exterior styling, new powertrain options, and significant technology upgrades to the cabin.
BMW X5 (G05) at a glance
Quick model context before comparing photos and trim-level specifications.
Introduced to the public at the Amelia Island Concours d'Elegance, the updated BMW X5 (G05) refines the fourth-generation luxury SUV formula. While the core architecture remains unchanged, the 2023 facelift introduces a more assertive visual identity and overhauls the interior with BMW's latest digital interfaces. Buyers can choose from a wide range of updated powertrains, including mild-hybrid inline-six and V8 configurations, a capable diesel, and a high-performance plug-in hybrid. Measuring 4935 mm in length with a 2975 mm wheelbase, it maintains its position as a spacious five-seat premium crossover designed for both daily practicality and engaging driving dynamics.
- Power: 286-530 hp
- Engine displacement: 2993-4395 cc
- Transmissions: 8-Steptronic
- Seating: 5 seats
Photos, trims and specifications for BMW X5 (G05)
This model page brings gallery images, trim comparison, and detailed technical data together for the 2023 generation.
Estimate fuel cost
Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.
Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.
BMW X5 (G05) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design

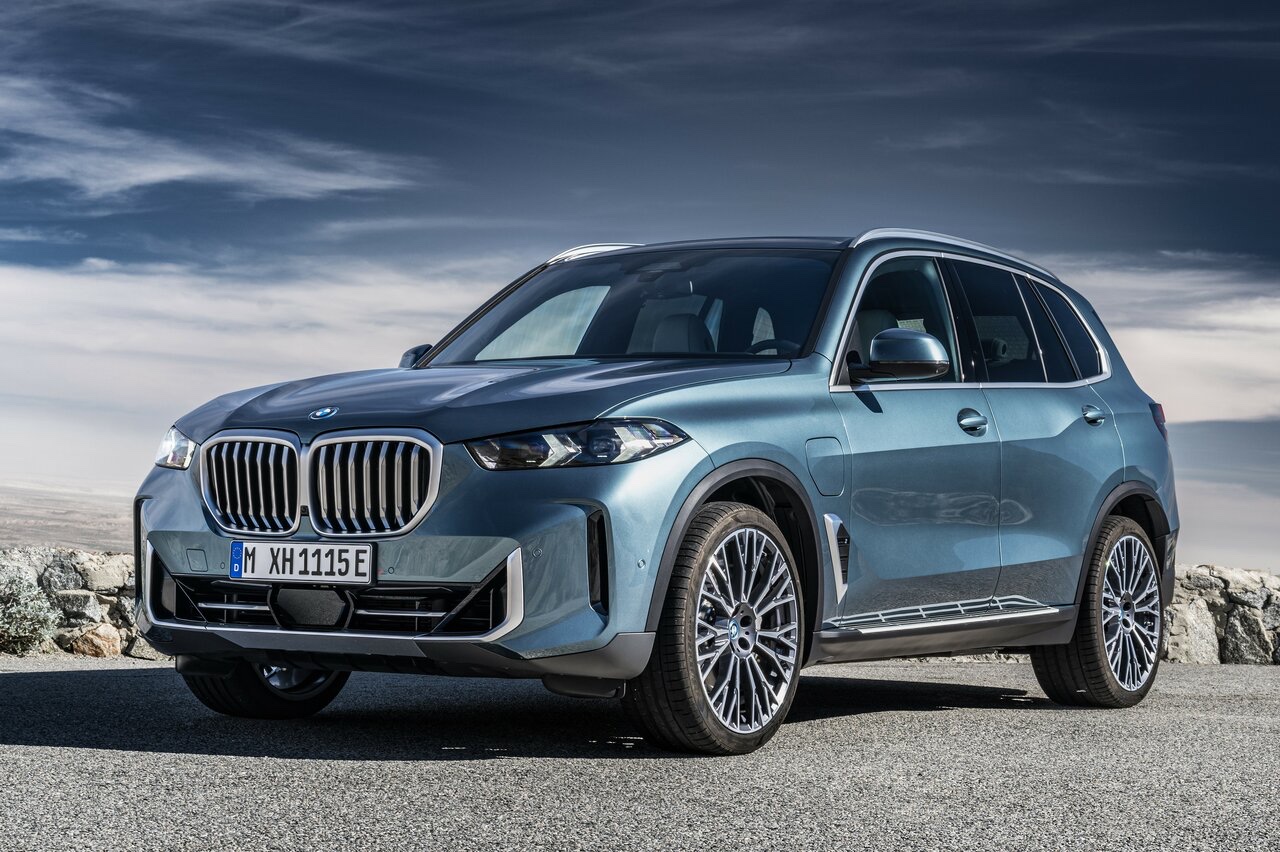

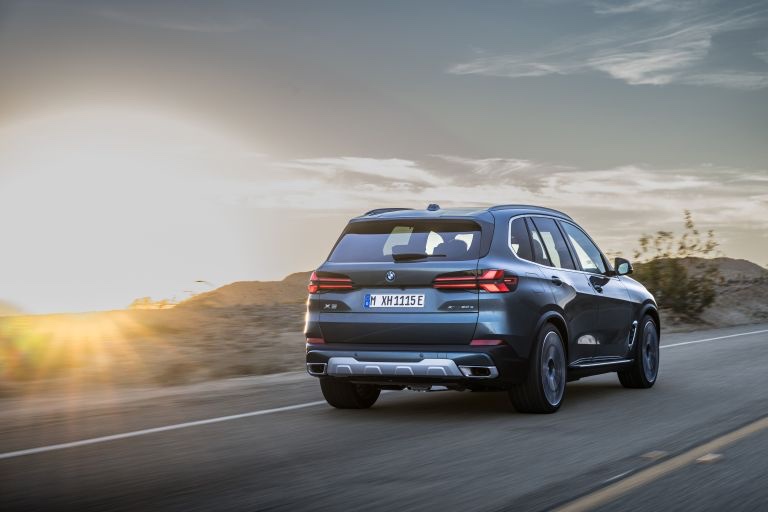

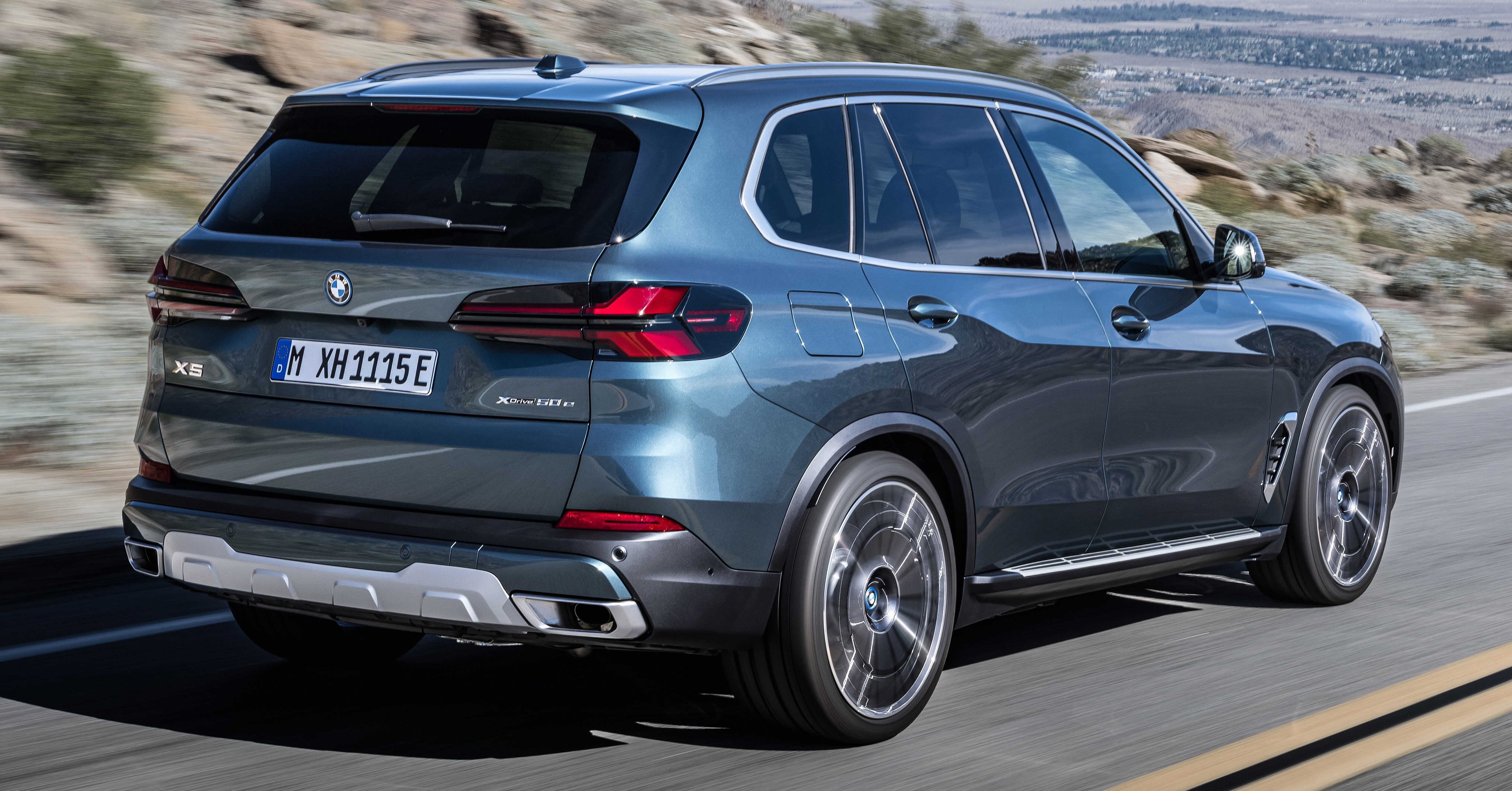

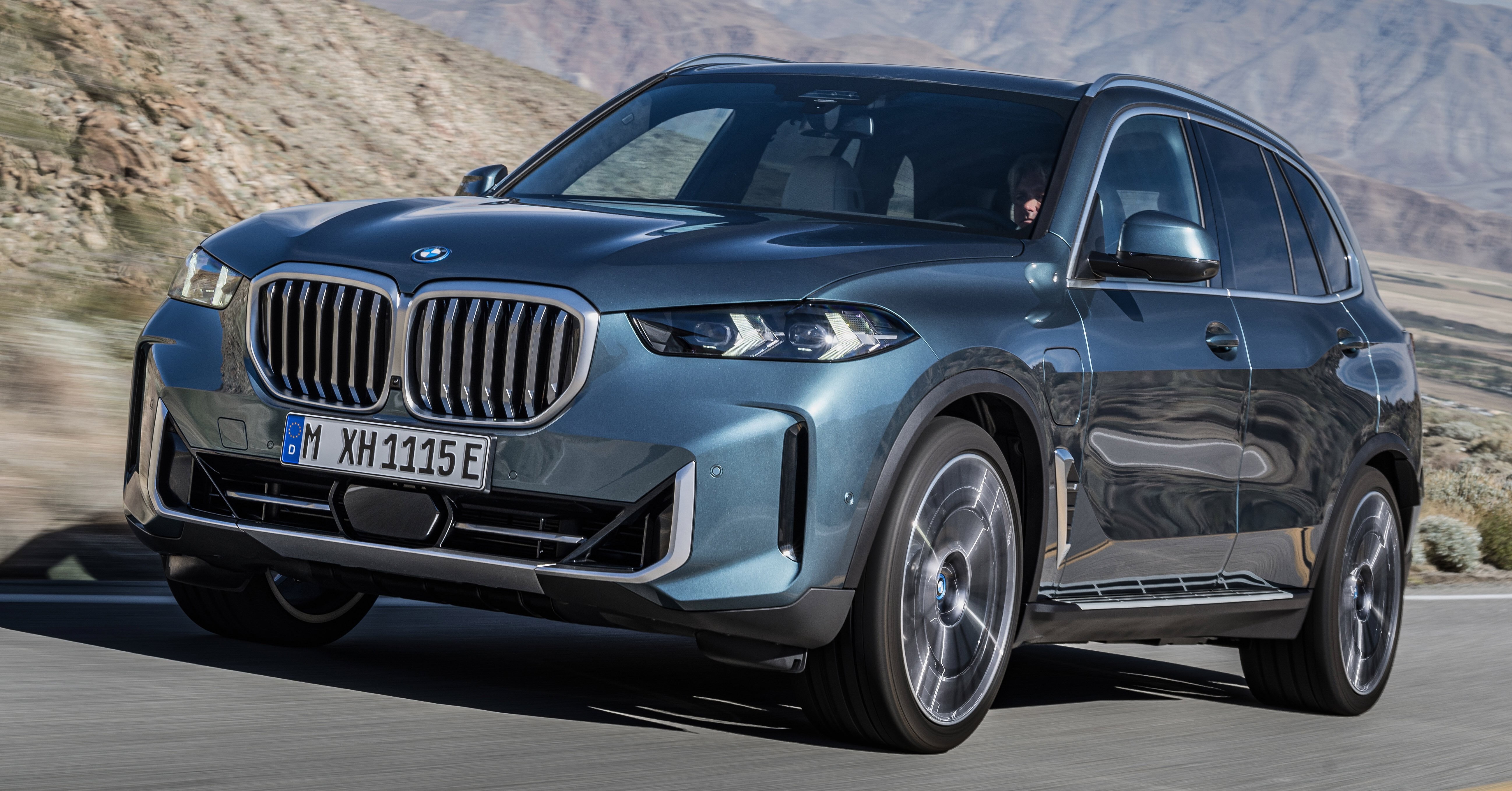

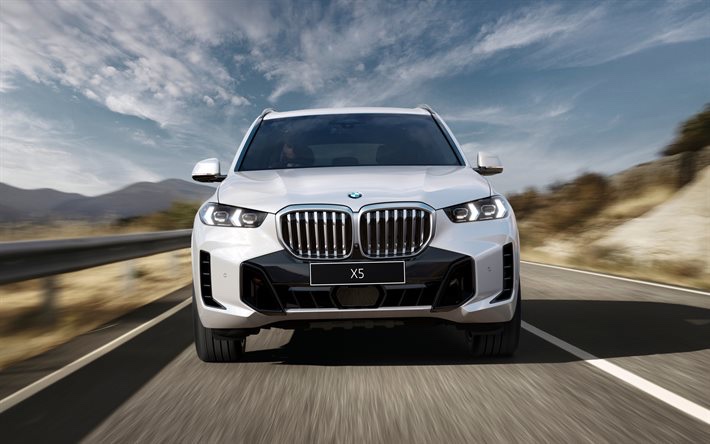

The exterior of the facelifted X5 receives a sharper, more aggressive treatment. At the front, the SUV features a revised grille, slimmer lighting elements, and a restyled bumper with larger air intakes that emphasize its width. The rear profile has also been updated, incorporating a new bumper design, revised diffuser elements, and updated exhaust tailpipes. The overall dimensions remain substantial, with a width of 2004 mm excluding mirrors and a height of 1765 mm, giving the vehicle a commanding presence on the road.
Interior
Inside the cabin, the most notable change is the integration of the iDrive 8 infotainment system. This setup centers around a large touchscreen display that replaces the older, separate screens, bringing improved voice recognition and a modernized digital instrument cluster. BMW has also updated the ambient lighting and introduced new trim materials to keep the environment feeling premium. The five-seat layout provides ample passenger room, while the cargo area offers a baseline capacity of 500 liters for daily utility.
Performance
The 2023 X5 lineup features a diverse engine roster, all paired with an eight-speed ZF automatic transmission and rear- or all-wheel drive. Options include a 3.0-liter turbocharged inline-six (xDrive40i) producing 381 horsepower, and a potent 4.4-liter V8 (M60i) delivering 530 hp and 750 Nm of torque. Diesel buyers have access to a 3.0-liter unit (xDrive30d) generating around 286 to 298 horsepower depending on the exact specification. Additionally, the xDrive50e plug-in hybrid combines a turbocharged inline-six with an electric motor to produce a robust 489 combined horsepower and 700 Nm of torque.
Practicality
As a mid-size luxury SUV, the X5 offers a strong balance of comfort and everyday usability. The 2975 mm wheelbase ensures generous legroom for both front and rear passengers in its standard five-seat configuration. With 500 liters of trunk space, it can easily handle family luggage, groceries, or sports equipment. The availability of adaptive all-wheel drive across most trims further enhances its all-weather capability.
Safety and tech
The technological suite in the updated X5 is highlighted by the iDrive 8 interface, which streamlines cabin controls into a large, continuous display panel. This system features advanced voice commands and modern connectivity options. The transition to the new digital dash also modernizes how driver information and safety alerts are presented, keeping the SUV competitive with newer rivals in the premium segment.
Buyer notes
When shopping for a 2023 BMW X5, the choice largely comes down to powertrain preferences. The xDrive40i offers a solid baseline of performance, while the M60i caters to those seeking V8 power and a 4.3-second 0-100 km/h sprint. The xDrive50e PHEV is a compelling option for buyers wanting electric-only driving range for city commutes without sacrificing total output. Keep in mind that standard equipment and exact engine availability can vary by market.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| xDrive30d | 2993 cc | 286 hp | 5 | 8-Steptronic |
| M60i xDrive | 4395 cc | 530 hp | 5 | 8-Steptronic |
| xDrive40i | 2998 cc | 381 hp | 5 | 8-Steptronic |
| xDrive50e | 2998 cc | 489 hp | 5 | 8-Steptronic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

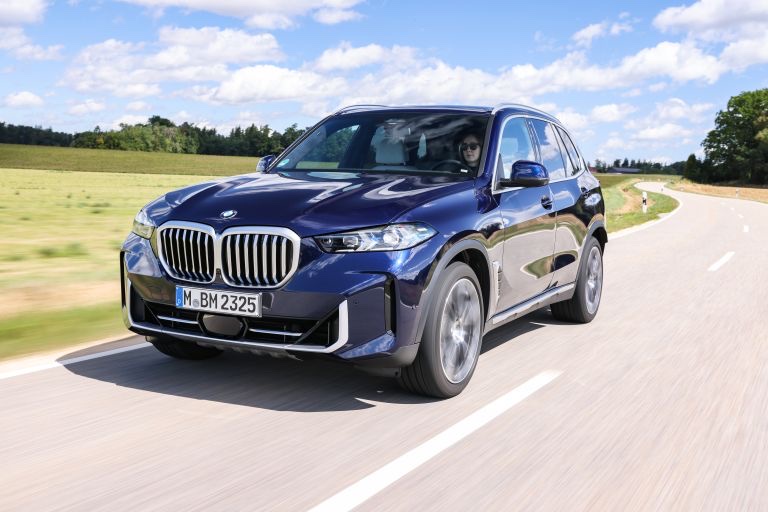

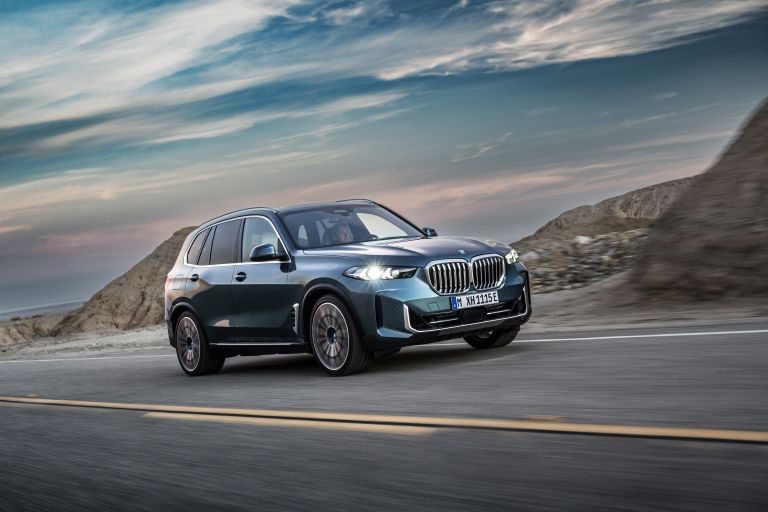

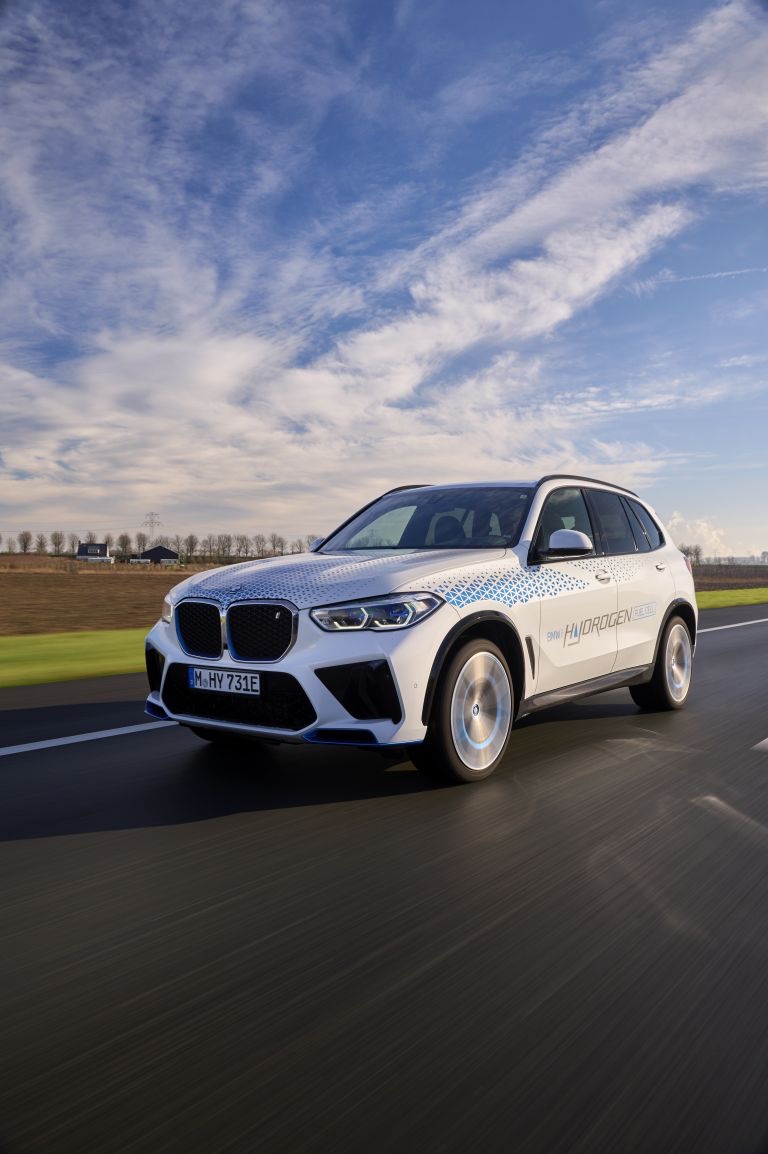

BMW X5 (G05) photo gallery
19 images are collected here with the main specifications and trim data for this model.

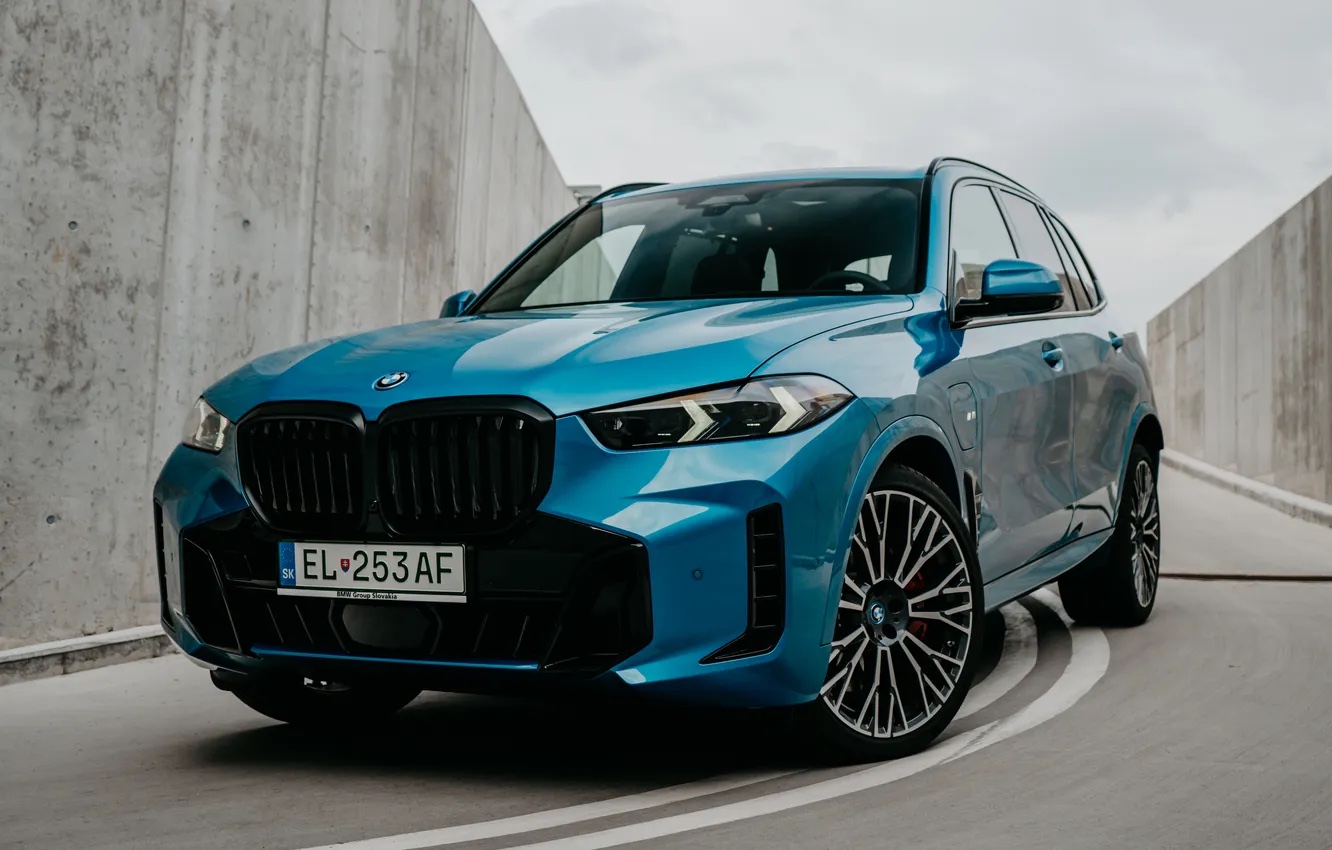

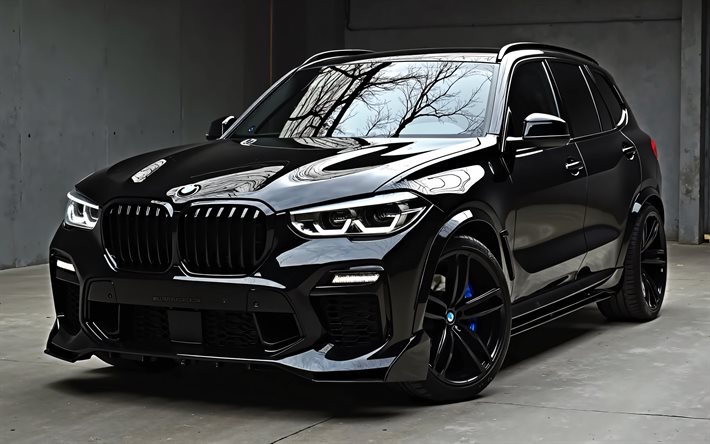

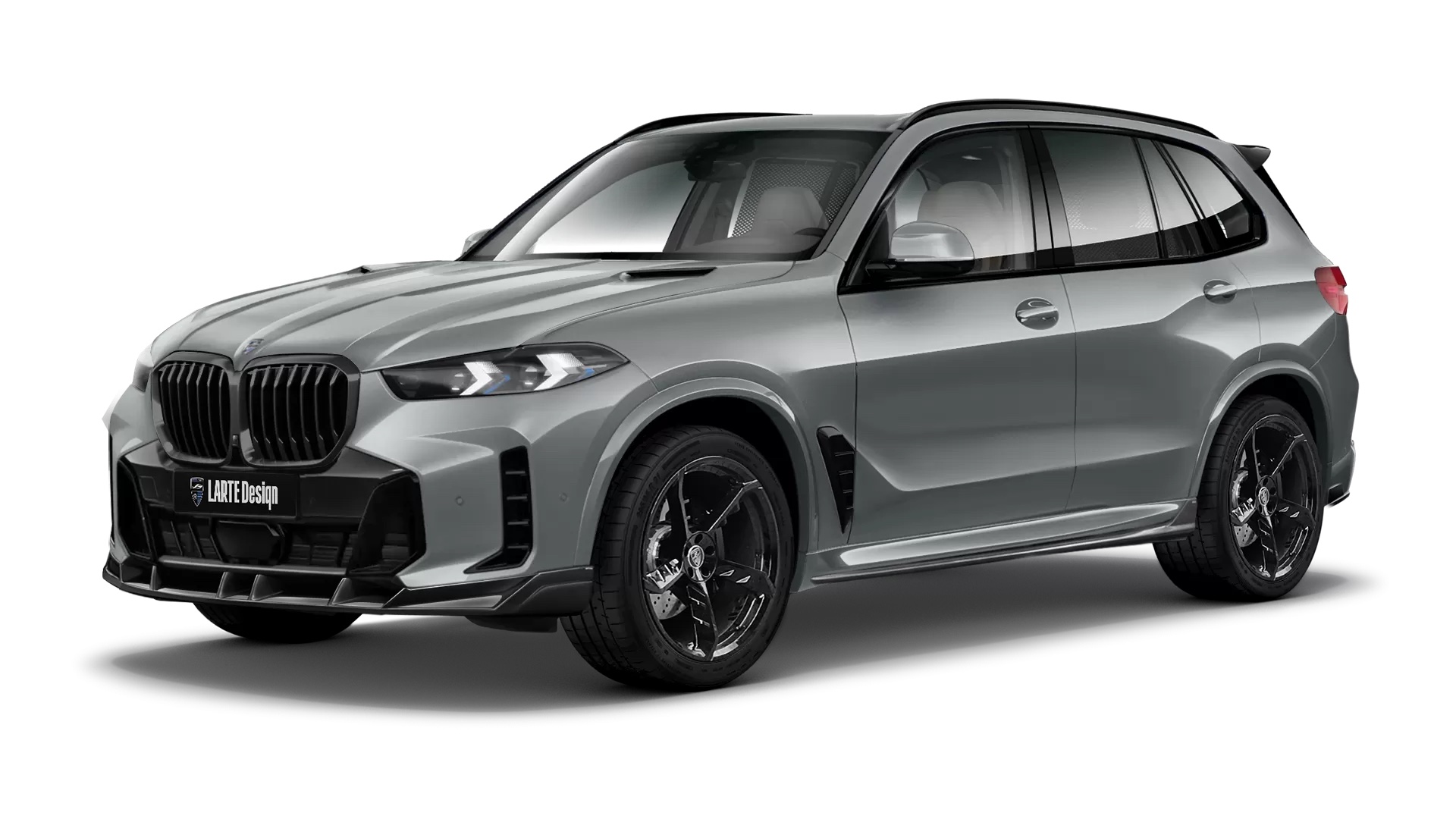

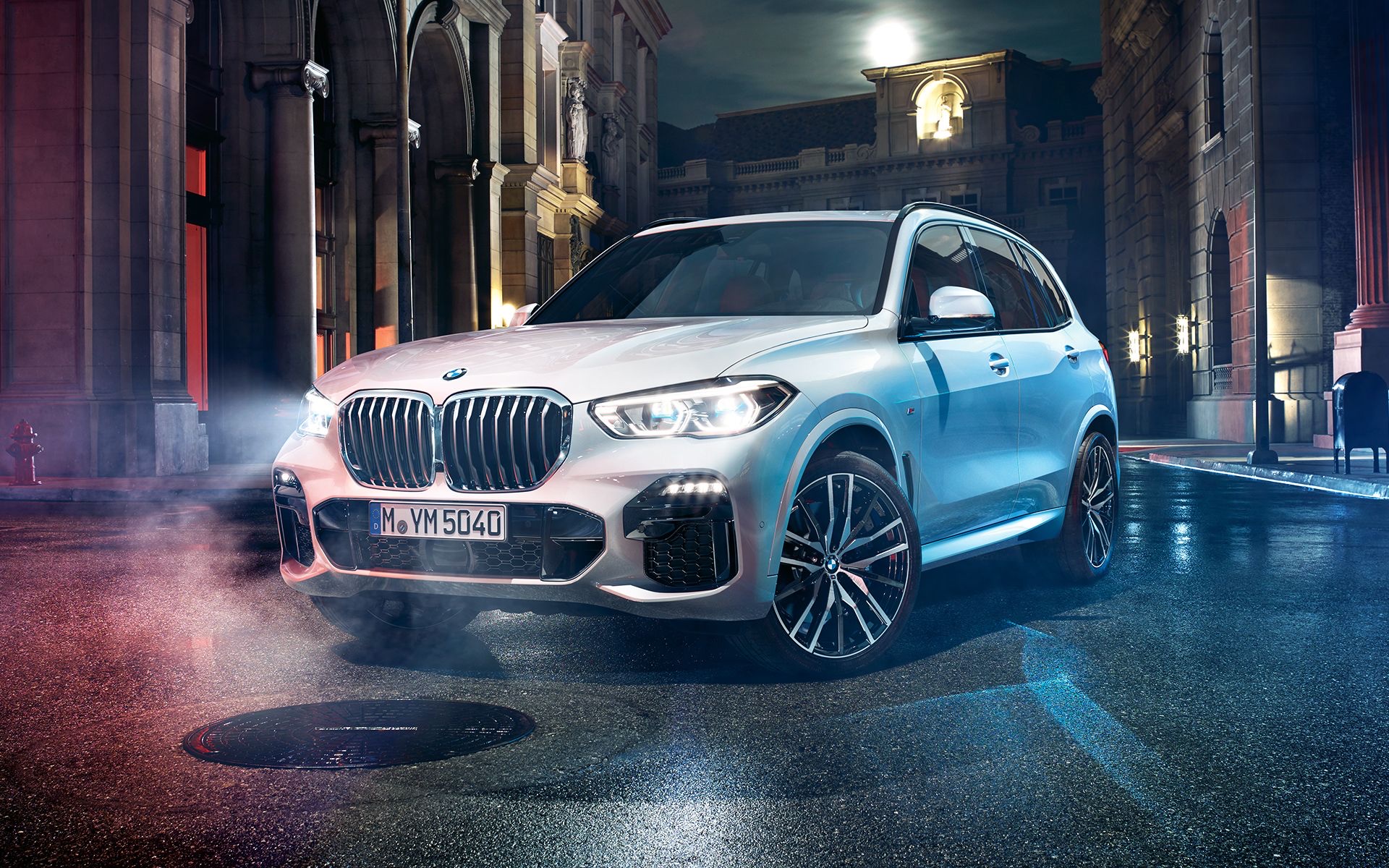

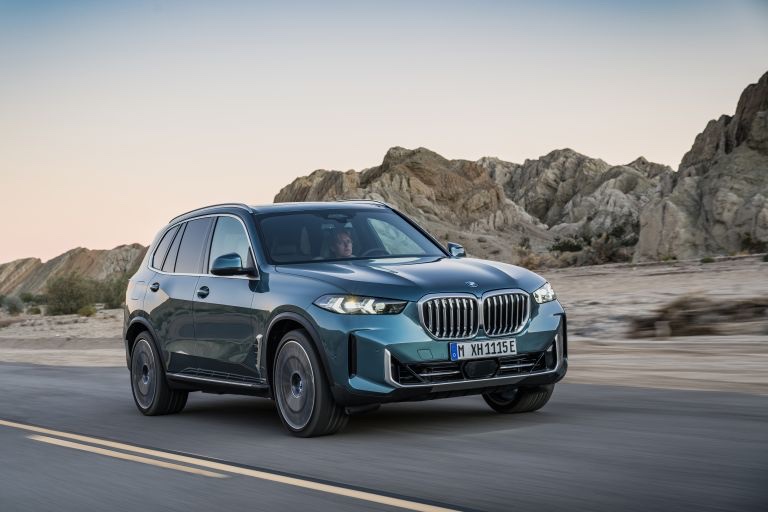

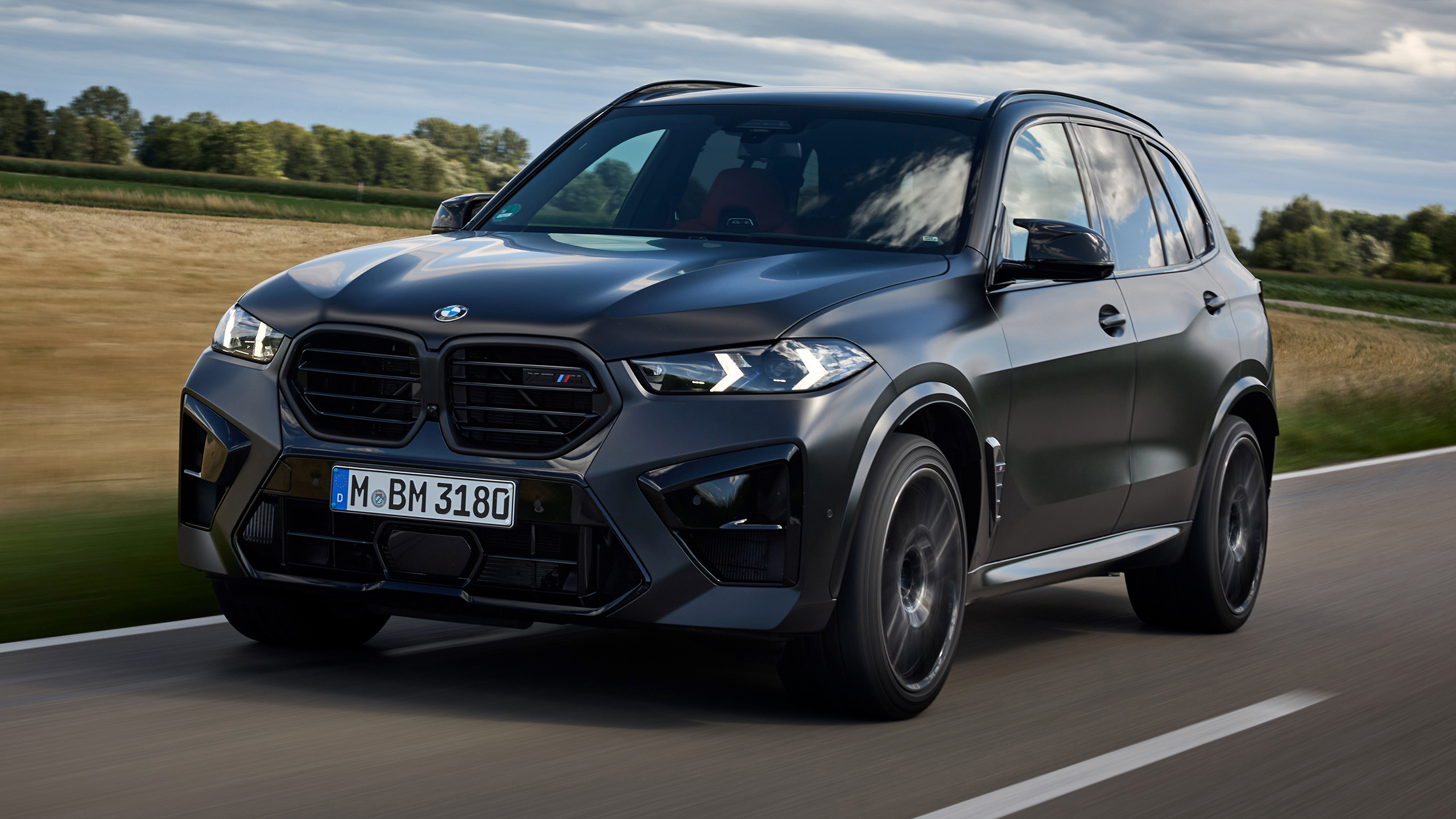

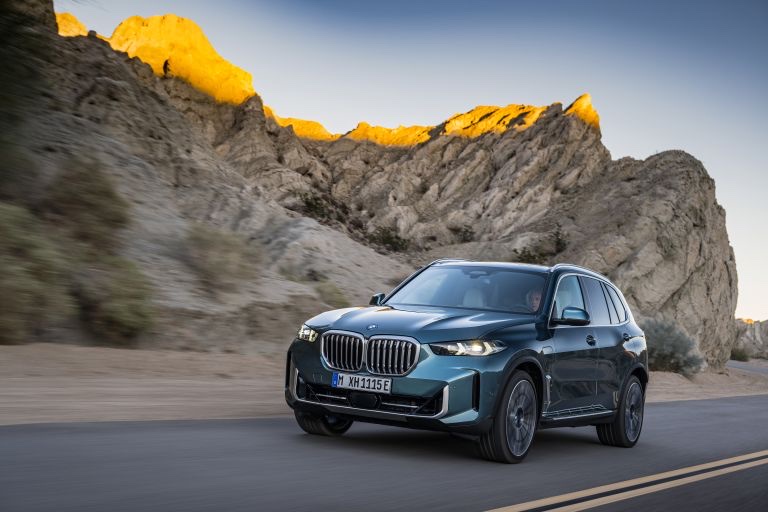

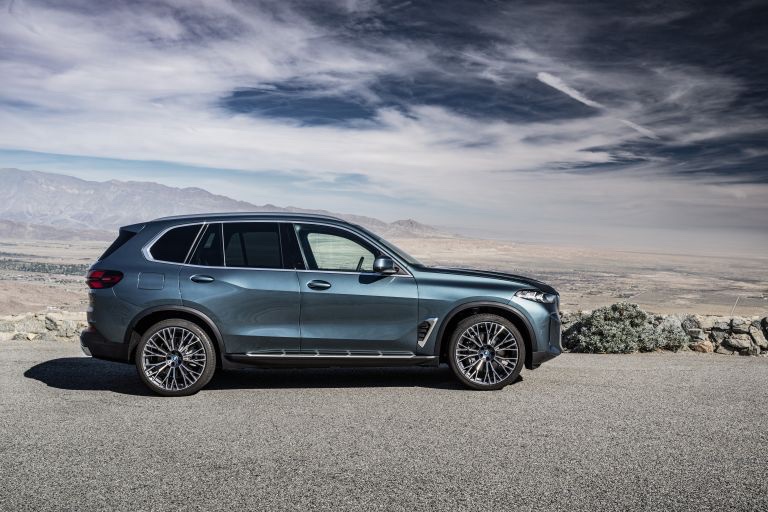

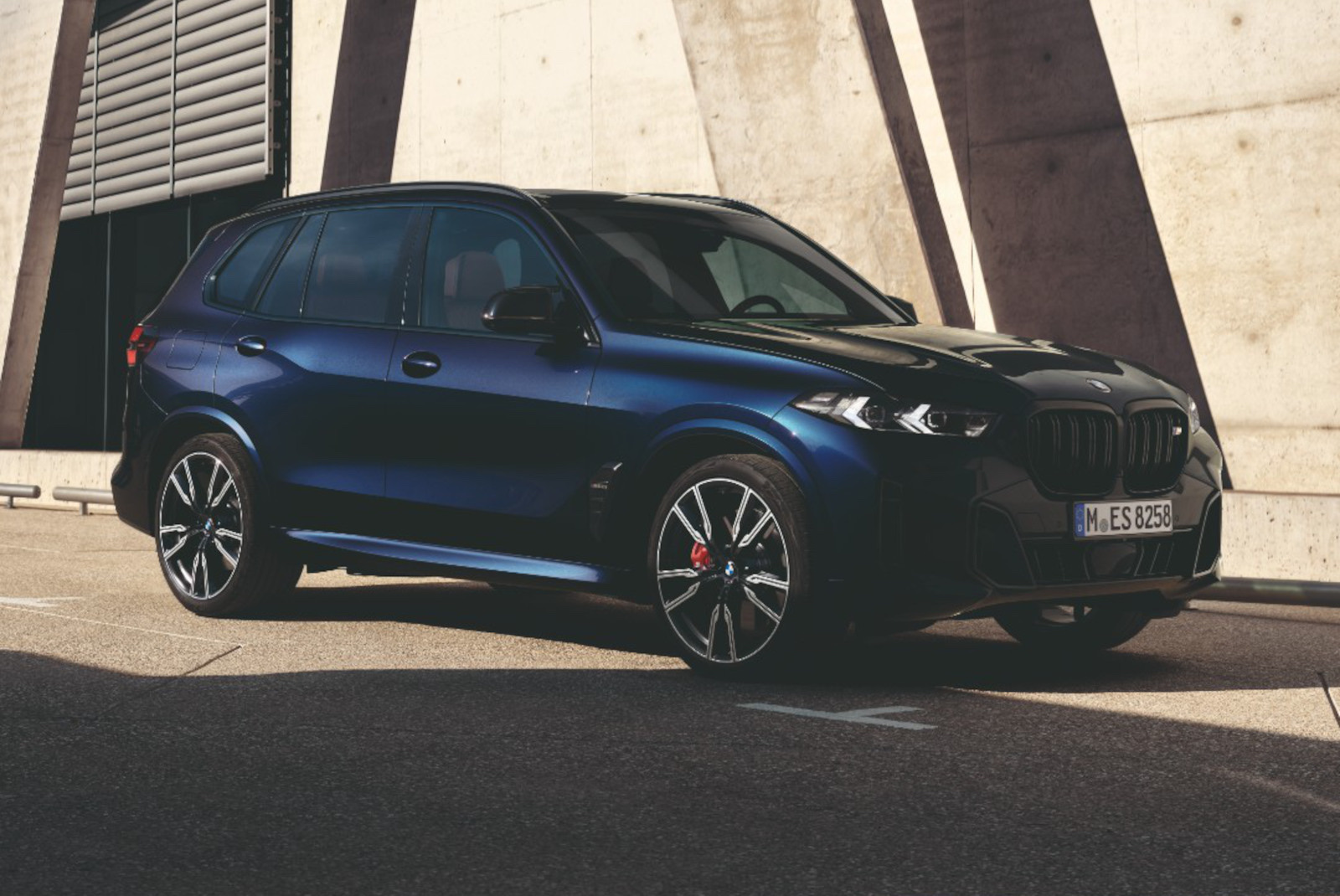

Photo BMW X5 (G05)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
xDrive30d 33 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.2 |
|---|---|
| Top speed, km/h | 233 |
| Acceleration 0-100 km/h, s | 6.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0d |
|---|---|
| Engine code | B57D30M0 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2993 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 16.5:1 |
| Power, hp | 286 |
| RPM at max power | 4000 |
| Torque, Nm | 650 |
| RPM at max torque | 1500 – 2500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4935 |
| Width, mm | 2218 |
| Height, mm | 1765 |
| Wheelbase, mm | 2975 |
| Front track, mm | 1677 |
| Rear track, mm | 1698 |
| Width without mirrors, mm | 2004 |
| Trunk capacity, L | 500 |
Transmission and drive
| Transmission | 8-Steptronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
M60i xDrive 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 12.5 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.3 |
| Emissions standard | Euro VI |
Engine
| Engine | 4.4i |
|---|---|
| Engine code | S68 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 4395 |
| Cylinder layout | V-type |
| Number of cylinders | 8 |
| Valves | 32 |
| Compression ratio | 10.5:1 |
| Power, hp | 530 |
| RPM at max power | 6000 |
| Torque, Nm | 750 |
| RPM at max torque | 1800-4600 |
| Electric motor power, hp | 12 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4935 |
| Width, mm | 2218 |
| Height, mm | 1765 |
| Wheelbase, mm | 2975 |
| Front track, mm | 1677 |
| Rear track, mm | 1698 |
| Width without mirrors, mm | 2004 |
| Trunk capacity, L | 500 |
Transmission and drive
| Transmission | 8-Steptronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
xDrive40i 36 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 9.9 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i |
|---|---|
| Engine code | B58B30M2 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 2998 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Compression ratio | 11.0:1 |
| Power, hp | 381 |
| RPM at max power | 5200-6250 |
| Torque, Nm | 520 |
| RPM at max torque | 1850-5000 |
| Electric motor power, hp | 18 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4935 |
| Width, mm | 2218 |
| Height, mm | 1765 |
| Wheelbase, mm | 2975 |
| Front track, mm | 1677 |
| Rear track, mm | 1698 |
| Width without mirrors, mm | 2004 |
| Trunk capacity, L | 500 |
Transmission and drive
| Transmission | 8-Steptronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
xDrive50e 36 specifications
Specifications
Performance and consumption
| Top speed, km/h | 250 |
|---|---|
| Acceleration 0-100 km/h, s | 4.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0h |
|---|---|
| Engine code | B58 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 2998 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Power, hp | 489 |
| Torque, Nm | 700 |
| EV mode | + |
| Plug-in charging support | + |
| Electric motor power, hp | 197 |
| Combustion engine power, hp | 313 |
| Combustion engine torque, Nm | 450 |
| Electric motor torque, Nm | 280 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4935 |
| Width, mm | 2218 |
| Height, mm | 1765 |
| Wheelbase, mm | 2975 |
| Front track, mm | 1677 |
| Rear track, mm | 1698 |
| Width without mirrors, mm | 2004 |
| Trunk capacity, L | 500 |
Transmission and drive
| Transmission | 8-Steptronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 8 |
| Transmission manufacturer | ZF |
| Automatic transmission | + |
| Transmission country | Germany |
BMW X5 (G05) questions
Short answers based on the specifications and photos available in this catalog.
What are the main changes for the 2023 BMW X5?
The 2023 model is a facelift of the fourth-generation (G05) X5. It features updated exterior styling, the new iDrive 8 infotainment system with a larger screen, and revised powertrains.
What engines are available in the updated X5?
The lineup includes a 3.0-liter inline-six (xDrive40i), a 4.4-liter V8 (M60i), a 3.0-liter diesel (xDrive30d), and a plug-in hybrid (xDrive50e) that produces 489 horsepower.
Is the BMW X5 G05 available as a hybrid?
Yes, the xDrive50e model is a plug-in hybrid that pairs a 3.0-liter inline-six engine with an electric motor for enhanced performance and efficiency.
How much cargo space does the X5 have?
The facelifted X5 offers a standard trunk capacity of 500 liters, making it highly capable for family trips and daily errands.
What is the transmission in the 2023 X5?
All engine variants of the 2023 BMW X5 are paired with an eight-speed ZF automatic transmission.
