BMW 5 Series Sedan (G30) specifications and photos

BMW 5 Series Sedan (G30) specifications are shown with trim options, key technical data, and a model photo gallery. Compare 25 configurations by engine size, power, seating, and transmission. The gallery includes 14 photos for visual reference.

Years 2016 - 2020

Body type sedan

Trims 25

Photos 14

Overview

BMW 5 Series Sedan (G30) at a glance

Quick model context before comparing photos and trim-level specifications.

Use this BMW 5 Series Sedan (G30) page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 184-530 hp and 1995-4395 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

Power: 184-530 hp
Engine displacement: 1995-4395 cc
Transmissions: 8, 6
Seating: 5 seats

Research hub

Photos, trims and specifications for BMW 5 Series Sedan (G30)

This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.

Open photo gallery 14 images Compare trims 25 configurations View detailed specs 1995-4395 cc Explore related pages BMW and similar models

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 184-530 hp

Engine displacement 1995-4395 cc

Seating 5 seats

Transmissions 8, 6

Trim / modification	Engine	Power	Seats	Transmission
530i AT	1998 cc	252 hp	5	8
530i AT xDrive	1998 cc	252 hp	5	8
540i AT	2979 cc	340 hp	5	8
540i AT xDrive	2979 cc	340 hp	5	8
520d MT	1995 cc	190 hp	5	6
520d AT	1995 cc	190 hp	5	8
520d AT xDrive	1995 cc	190 hp	5	8
530d AT	2993 cc	265 hp	5	8
530d AT xDrive	2993 cc	265 hp	5	8
520i	1998 cc	184 hp	5	8
530i	1998 cc	252 hp	5	8
530i xDrive	1998 cc	252 hp	5	8
540i	2979 cc	340 hp	5	8
540i xDrive	2979 cc	340 hp	5	8
M550i xDrive	4395 cc	462 hp	5	8
M550i xDrive	4395 cc	530 hp	5	8
520d	1995 cc	190 hp	5	6
520d	1995 cc	190 hp	5	8
520d xDrive	1995 cc	190 hp	5	8
525d	1995 cc	231 hp	5	8
530d	2993 cc	265 hp	5	8
530d xDrive	2993 cc	265 hp	5	8
540d xDrive	2993 cc	320 hp	5	8
M550d xDrive	2993 cc	400 hp	5	8
530e iPerfomance	1998 cc	252 hp	5	8

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Gallery

BMW 5 Series Sedan (G30) photo gallery

14 images are collected here with the main specifications and trim data for this model.

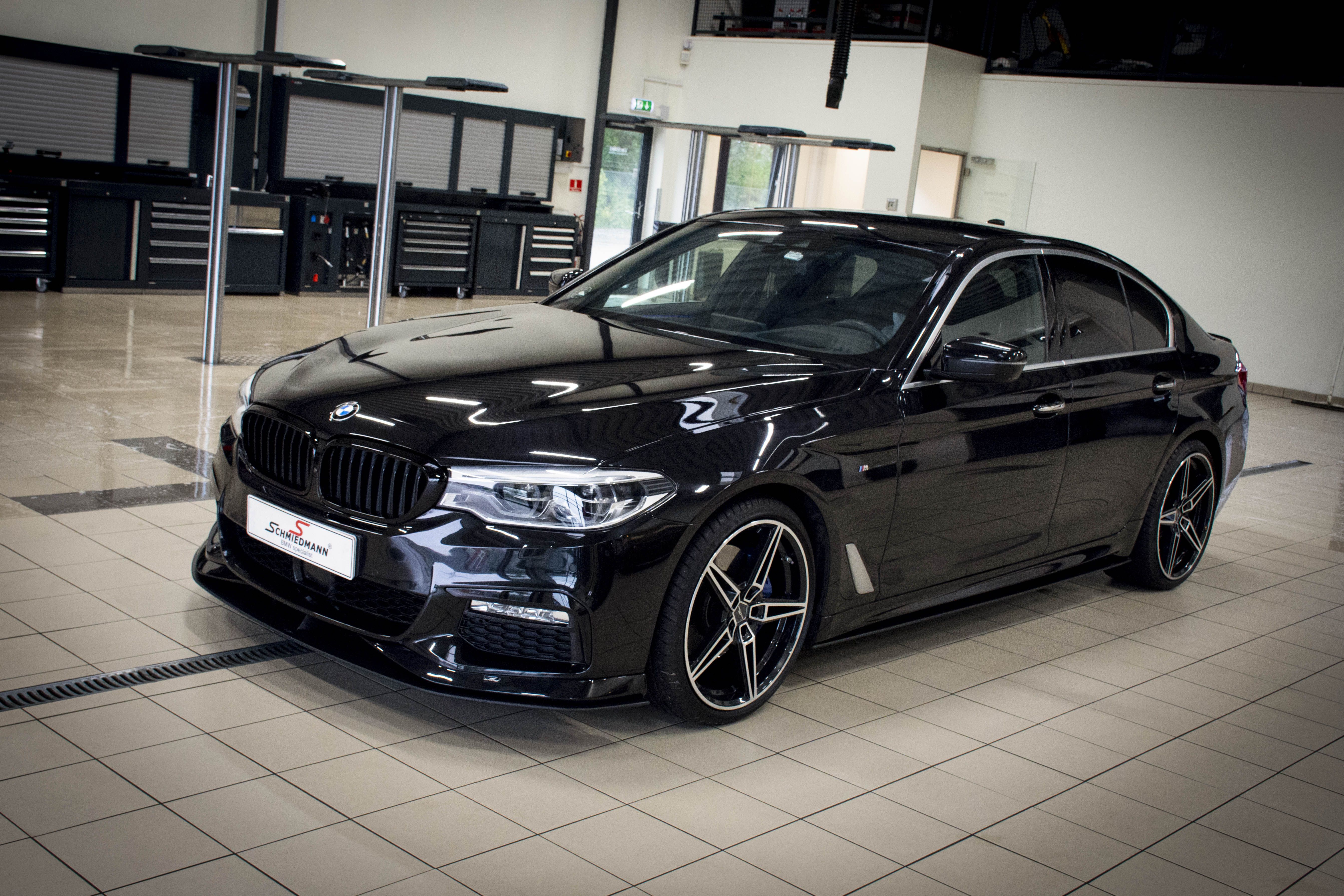

Photo BMW 5 Series Sedan (G30)

Interior of BMW 5 Series Sedan (G30) 2016

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

530i AT 530i AT xDrive 540i AT 540i AT xDrive 520d MT 520d AT 520d AT xDrive 530d AT 530d AT xDrive 520i 530i 530i xDrive 540i 540i xDrive M550i xDrive M550i xDrive 520d 520d 520d xDrive 525d 530d 530d xDrive 540d xDrive M550d xDrive 530e iPerfomance

530i AT 43 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1998
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	252
Torque, Nm	350
RPM at max torque	1450-4800
Engine	2.0i
Compression	10.2
RPM at max power	5200-6500
Turbo	+
Engine code	B48B20

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1466
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1540
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2200
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.3
Fuel consumption (urban), l. 100 km	5.2
Fuel consumption (combined), l. 100 km	5.9
Acceleration (0-100 km/h), s	6.2
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Rear
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

Equipment

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/55 R17

530i AT xDrive 43 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1998
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	252
Torque, Nm	350
RPM at max torque	1450-4800
Engine	2.0i
Compression	10.2
RPM at max power	5200-6500
Turbo	+
Engine code	B48B20

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1466
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1595
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2270
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.8
Fuel consumption (urban), l. 100 km	5.6
Fuel consumption (combined), l. 100 km	6.4
Acceleration (0-100 km/h), s	6
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

Equipment

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/55 R17

540i AT 43 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	2979
Cylinders location	In-line
Number of cylinders	6
Valves	24
Power, hp	340
Torque, Nm	450
RPM at max torque	1380-5200
Engine	3.0i
Compression	10.2
RPM at max power	5500-6500
Turbo	+
Engine code	N54B30

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1466
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1595
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2270
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	9.2
Fuel consumption (urban), l. 100 km	5.6
Fuel consumption (combined), l. 100 km	6.9
Acceleration (0-100 km/h), s	5.1
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Rear
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

Equipment

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/55 R17

540i AT xDrive 43 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	2979
Cylinders location	In-line
Number of cylinders	6
Valves	24
Power, hp	340
Torque, Nm	450
RPM at max torque	1380-5200
Engine	3.0i
Compression	10.2
RPM at max power	5500-6500
Turbo	+
Engine code	N54B30

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1466
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1660
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2340
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	9.6
Fuel consumption (urban), l. 100 km	6.1
Fuel consumption (combined), l. 100 km	7.4
Acceleration (0-100 km/h), s	4.8
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

Equipment

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/55 R17

520d MT 41 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1995
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1750-2500
Engine	2.0d
Compression	16.5
RPM at max power	4000
Turbo	+
Engine code	B47D20

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1466
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1540
Trunk capacity, L	530
Fuel tank, l	66
Turning circle, m	12
Gross weight, kg	2230
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.2
Fuel consumption (urban), l. 100 km	4.1
Fuel consumption (combined), l. 100 km	4.5
Acceleration (0-100 km/h), s	7.7
The maximum speed, km / h.	238
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Rear
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	BMW

Equipment

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/55 R17

520d AT 43 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1995
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1750-2500
Engine	2.0d
Compression	16.5
RPM at max power	4000
Turbo	+
Engine code	B47D20

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1466
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1560
Trunk capacity, L	530
Fuel tank, l	66
Turning circle, m	12
Gross weight, kg	2245
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5
Fuel consumption (urban), l. 100 km	5.1
Fuel consumption (combined), l. 100 km	4.5
Acceleration (0-100 km/h), s	7.5
The maximum speed, km / h.	235
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Rear
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

Equipment

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/55 R17

520d AT xDrive 43 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1995
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1750-2500
Engine	2.0d
Compression	16.5
RPM at max power	4000
Turbo	+
Engine code	B47D20

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1466
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1620
Trunk capacity, L	530
Fuel tank, l	66
Turning circle, m	12
Gross weight, kg	2325
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.4
Fuel consumption (urban), l. 100 km	4.6
Fuel consumption (combined), l. 100 km	4.9
Acceleration (0-100 km/h), s	7.6
The maximum speed, km / h.	232
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

Equipment

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/55 R17

530d AT 43 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	2993
Cylinders location	In-line
Number of cylinders	6
Valves	24
Power, hp	265
Torque, Nm	620
RPM at max torque	2000-2500
Engine	3.0d
Compression	16.5
RPM at max power	4000
Turbo	+
Engine code	B57D30O0

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1466
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1640
Trunk capacity, L	530
Fuel tank, l	66
Turning circle, m	12
Gross weight, kg	2345
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.6
Fuel consumption (urban), l. 100 km	4.4
Fuel consumption (combined), l. 100 km	4.9
Acceleration (0-100 km/h), s	5.7
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Rear
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

Equipment

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/55 R17

530d AT xDrive 43 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	2993
Cylinders location	In-line
Number of cylinders	6
Valves	24
Power, hp	265
Torque, Nm	620
RPM at max torque	2000-2500
Engine	3.0d
Compression	16.5
RPM at max power	4000
Turbo	+
Engine code	B57D30O0

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1466
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1695
Trunk capacity, L	530
Fuel tank, l	66
Turning circle, m	12
Gross weight, kg	2385
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.2
Fuel consumption (urban), l. 100 km	4.9
Fuel consumption (combined), l. 100 km	5.4
Acceleration (0-100 km/h), s	5.4
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

Equipment

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/55 R17

520i 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1998
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	184
Torque, Nm	290
RPM at max torque	1350-4250
Engine	2.0i
RPM at max power	5000-6500
Turbo	+
Engine code	B48A20

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1479
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1615
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2210
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.2
Fuel consumption (urban), l. 100 km	5.1
Fuel consumption (combined), l. 100 km	5.9
Acceleration (0-100 km/h), s	7.8
The maximum speed, km / h.	235
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Rear
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

530i 40 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1998
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	252
Torque, Nm	350
RPM at max torque	1450-4800
Engine	2.0i
Compression	10.2
RPM at max power	5200-6500
Turbo	+
Engine code	B48B20

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1479
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1615
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2210
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.3
Fuel consumption (urban), l. 100 km	5.2
Fuel consumption (combined), l. 100 km	5.9
Acceleration (0-100 km/h), s	6.2
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Rear
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

530i xDrive 40 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1998
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	252
Torque, Nm	350
RPM at max torque	1450-4800
Engine	2.0i
Compression	10.2
RPM at max power	5200-6500
Turbo	+
Engine code	B48B20

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1479
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1615
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2210
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.8
Fuel consumption (urban), l. 100 km	5.6
Fuel consumption (combined), l. 100 km	6.4
Acceleration (0-100 km/h), s	6
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

540i 40 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	2979
Cylinders location	In-line
Number of cylinders	6
Valves	24
Power, hp	340
Torque, Nm	450
RPM at max torque	1380-5200
Engine	3.0i
Compression	10.2
RPM at max power	5500-6500
Turbo	+
Engine code	N54B30

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1479
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1615
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2210
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	9.2
Fuel consumption (urban), l. 100 km	5.6
Fuel consumption (combined), l. 100 km	6.9
Acceleration (0-100 km/h), s	5.1
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Rear
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

540i xDrive 40 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	2979
Cylinders location	In-line
Number of cylinders	6
Valves	24
Power, hp	340
Torque, Nm	450
RPM at max torque	1380-5200
Engine	3.0i
Compression	10.2
RPM at max power	5500-6500
Turbo	+
Engine code	N54B30

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1479
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1615
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2210
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	9.6
Fuel consumption (urban), l. 100 km	6.1
Fuel consumption (combined), l. 100 km	7.4
Acceleration (0-100 km/h), s	4.8
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

M550i xDrive 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	4395
Cylinders location	V-shaped
Number of cylinders	8
Valves	32
Power, hp	462
Torque, Nm	650
RPM at max torque	1800-4750
Engine	4.4i
RPM at max power	5500-6000
Engine code	N63B44O2

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1479
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1615
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2210
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	12.7
Fuel consumption (urban), l. 100 km	7.1
Fuel consumption (combined), l. 100 km	9.1
Acceleration (0-100 km/h), s	4
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	8-Steptronic Sport
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

M550i xDrive 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	4395
Cylinders location	V-shaped
Number of cylinders	8
Valves	32
Power, hp	530
Torque, Nm	750
RPM at max torque	1800-4600
Engine	4.4i
Compression	10.5
RPM at max power	5500-6000
Engine code	N63B44T3

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1479
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1615
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2210
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	13.3
Fuel consumption (urban), l. 100 km	8
Fuel consumption (combined), l. 100 km	9.9
Acceleration (0-100 km/h), s	3.8
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	8-Steptronic Sport
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

520d 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1995
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1750-2500
Engine	2.0d
Compression	16.5
RPM at max power	4000
Turbo	+
Engine code	B47D20

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1479
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1615
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2210
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.2
Fuel consumption (urban), l. 100 km	4.1
Fuel consumption (combined), l. 100 km	4.5
Acceleration (0-100 km/h), s	7.7
The maximum speed, km / h.	238
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Rear
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	BMW

520d 40 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1995
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1750-2500
Engine	2.0d
Compression	16.5
RPM at max power	4000
Turbo	+
Engine code	B47D20

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1479
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1615
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2210
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5
Fuel consumption (urban), l. 100 km	5.1
Fuel consumption (combined), l. 100 km	4.5
Acceleration (0-100 km/h), s	7.5
The maximum speed, km / h.	235
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Rear
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

520d xDrive 40 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1995
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1750-2500
Engine	2.0d
Compression	16.5
RPM at max power	4000
Turbo	+
Engine code	B47D20

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1479
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1615
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2210
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.4
Fuel consumption (urban), l. 100 km	4.6
Fuel consumption (combined), l. 100 km	4.9
Acceleration (0-100 km/h), s	7.6
The maximum speed, km / h.	232
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

525d 40 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1995
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	231
Torque, Nm	500
RPM at max torque	2000
Engine	2.0d
Compression	16.5
RPM at max power	4400
Turbo	+
Engine code	B47D20

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1479
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1615
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2210
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.5
Fuel consumption (urban), l. 100 km	4.5
Fuel consumption (combined), l. 100 km	4.8
Acceleration (0-100 km/h), s	6.6
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Rear
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

530d 40 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	2993
Cylinders location	In-line
Number of cylinders	6
Valves	24
Power, hp	265
Torque, Nm	620
RPM at max torque	2000-2500
Engine	3.0d
Compression	16.5
RPM at max power	4000
Turbo	+
Engine code	B57D30O0

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1479
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1615
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2210
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.6
Fuel consumption (urban), l. 100 km	4.4
Fuel consumption (combined), l. 100 km	4.9
Acceleration (0-100 km/h), s	5.7
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Rear
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

530d xDrive 40 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	2993
Cylinders location	In-line
Number of cylinders	6
Valves	24
Power, hp	265
Torque, Nm	620
RPM at max torque	2000-2500
Engine	3.0d
Compression	16.5
RPM at max power	4000
Turbo	+
Engine code	B57D30O0

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1479
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1615
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2210
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.2
Fuel consumption (urban), l. 100 km	4.9
Fuel consumption (combined), l. 100 km	5.4
Acceleration (0-100 km/h), s	5.4
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

540d xDrive 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	2993
Cylinders location	In-line
Number of cylinders	6
Valves	24
Power, hp	320
Torque, Nm	680
RPM at max torque	1750-2250
Engine	3.0d
Compression	16.5
RPM at max power	4400
Engine code	B57D30T0

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1479
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1615
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2210
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.6
Fuel consumption (urban), l. 100 km	5
Fuel consumption (combined), l. 100 km	5.6
Acceleration (0-100 km/h), s	4.7
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

M550d xDrive 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	2993
Cylinders location	In-line
Number of cylinders	6
Valves	24
Power, hp	400
Torque, Nm	760
RPM at max torque	2000-3000
Engine	3.0d
Compression	16.0
RPM at max power	4400
Engine code	B57D30S0

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1479
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1615
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2210
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.9
Fuel consumption (urban), l. 100 km	5.6
Fuel consumption (combined), l. 100 km	6.1
Acceleration (0-100 km/h), s	4.4
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	8-Steptronic Sport
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

530e iPerfomance 49 specifications

Specifications

Engine

Type of engine	Hybrid
Type of fuel	Gasoline
Displacement, cc	1998
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	252
Torque, Nm	420
RPM at max torque	1450-4000
Engine	2.0h
RPM at max power	4460-6500
Turbo	+
Number of motors	1
Power electric motor HP	113
Revolutions max. electric power, rev / min	3170
the motor torque Nm	250
Revolutions max. motor torque, rev / min	0-3170
Engine power, hp	184
Revolutions max. Engine power, vol. / min.	5000-6500
the engine torque, Nm	290
Revolutions max. engine torque, vol. / min.	1350-4250
Engine code	B48A20
EV-mode	+
The electric range (km)	50
The possibility of charging from the network	+

Dimensions

Seats	5
Length mm	4936
Width	2126
Height mm	1479
Wheelbase mm	2975
Front track, mm	1605
Rear track, mm	1630
Kerb weight, kg	1615
Trunk capacity, L	530
Fuel tank, l	68
Turning circle, m	12
Gross weight, kg	2210
Width (without mirrors) mm	1868

Performance and fuel consumption

Fuel consumption (combined), l. 100 km	2.1
Acceleration (0-100 km/h), s	6.2
The maximum speed, km / h.	235
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Rear
Transmission	8-Steptronic
Gearbox	Machine
Transmission manufacturer	ZF
Transmission country of origin	Germany

FAQ

BMW 5 Series Sedan (G30) questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the BMW 5 Series Sedan (G30)?

This page lists 25 trims for the BMW 5 Series Sedan (G30), with key data shown in the comparison table and full specifications grouped below.

What is the power range for the BMW 5 Series Sedan (G30)?

The listed configurations show a power range of 184-530 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the BMW 5 Series Sedan (G30)?

The available specification data shows engine displacement from 1995-4395 cc across the trims listed on this page.

Which transmissions are listed for the BMW 5 Series Sedan (G30)?

The transmission options currently shown for this model are: 8, 6. Open a trim section to see the full data for a specific configuration.

Are there photos for the BMW 5 Series Sedan (G30)?

Yes. The gallery includes 14 photos for the BMW 5 Series Sedan (G30), including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
