BMW 6 Series Gran Turismo (G32) specifications and photos
BMW 6 Series Gran Turismo (G32) specifications are shown with trim options, key technical data, and a model photo gallery. Compare 7 configurations by engine size, power, seating, and transmission. The gallery includes 23 photos for visual reference.
Years
2017 - 2020
Body type
liftback
Trims
7
Photos
23
Overview
BMW 6 Series Gran Turismo (G32) at a glance
Quick model context before comparing photos and trim-level specifications.
Use this BMW 6 Series Gran Turismo (G32) page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 190-340 hp and 1995-2993 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 190-340 hp
- Engine displacement: 1995-2993 cc
- Transmissions: 8
- Seating: 5 seats
Configurations
Trims and key specifications
Use this table to compare the main differences between available configurations.
Power
190-340 hp
Engine displacement
1995-2993 cc
Seating
5 seats
Transmissions
8
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 630i | 1998 cc | 258 hp | 5 | 8 |
| 640i | 2979 cc | 340 hp | 5 | 8 |
| 640i xDrive | 2979 cc | 340 hp | 5 | 8 |
| 620d | 1995 cc | 190 hp | 5 | 8 |
| 630d | 2993 cc | 265 hp | 5 | 8 |
| 630d xDrive | 2993 cc | 265 hp | 5 | 8 |
| 640d xDrive | 2993 cc | 320 hp | 5 | 8 |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
Gallery
BMW 6 Series Gran Turismo (G32) photo gallery
23 images are collected here with the main specifications and trim data for this model.

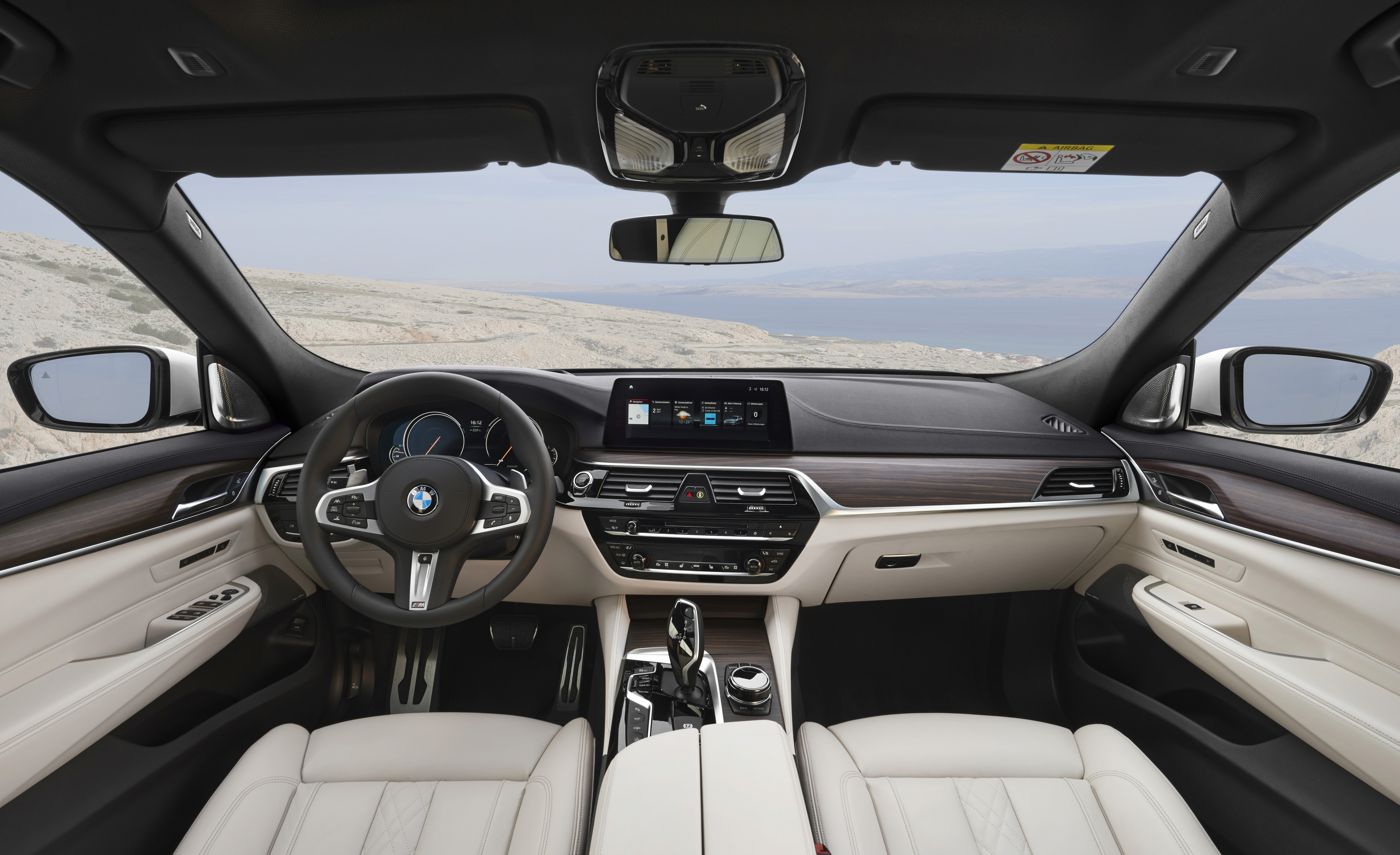

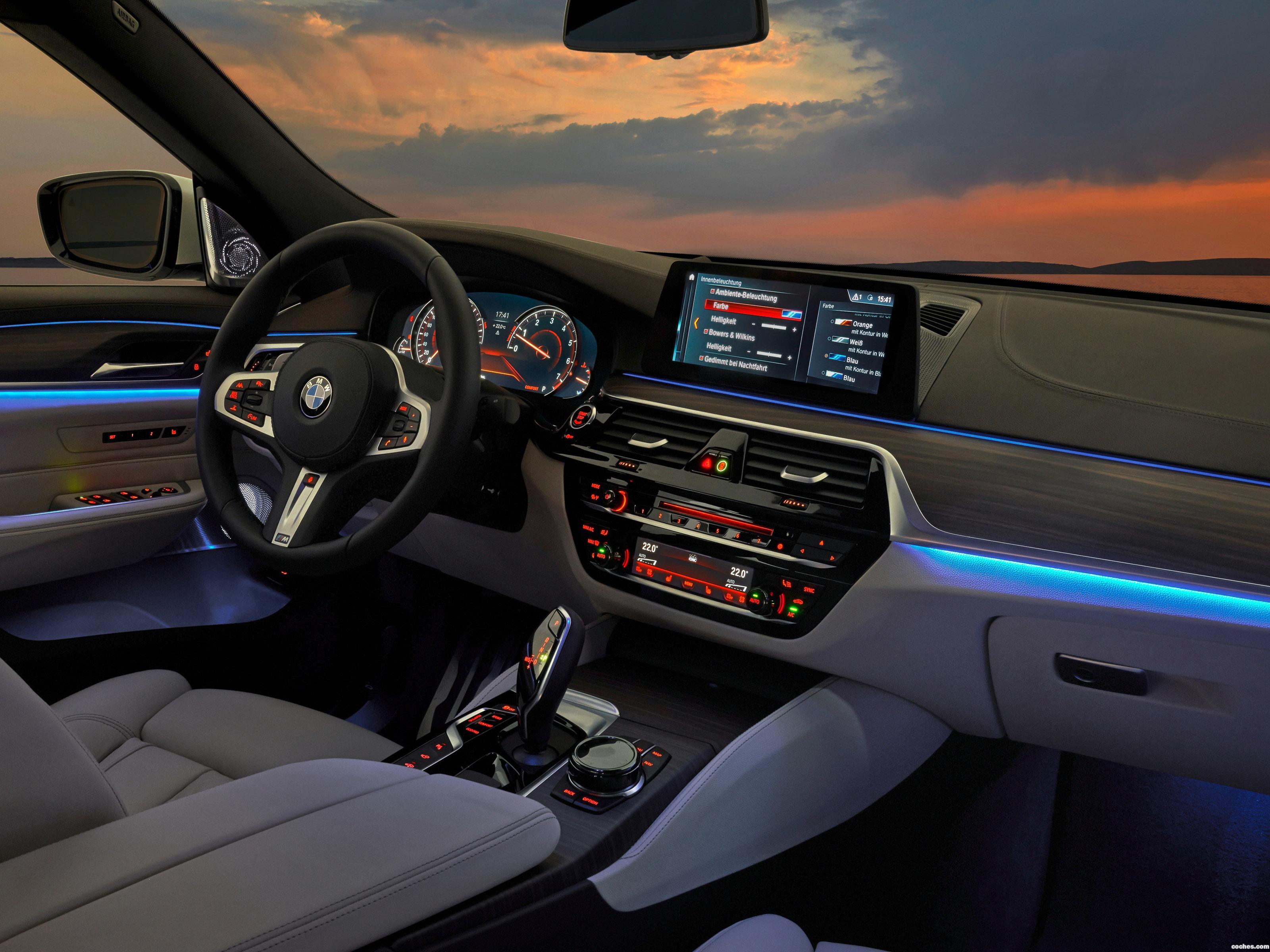

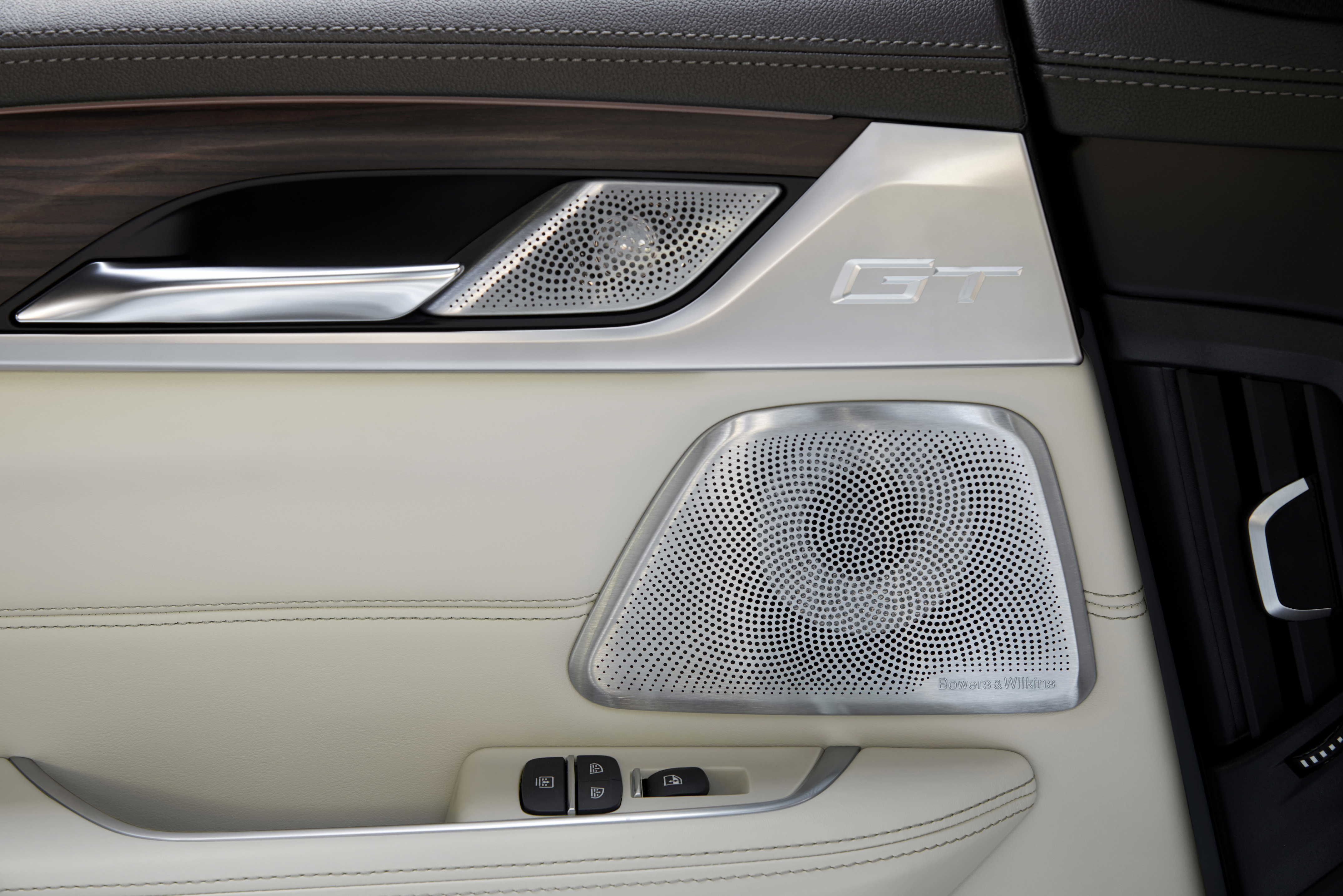

Photo BMW 6 Series Gran Turismo (G32)
Detailed specs
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
630i 40 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 1998 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 258 |
| Torque, Nm | 400 |
| RPM at max torque | 1550-4400 |
| Engine | 2.0i |
| Compression | 10.2 |
| RPM at max power | 5000-6500 |
| Turbo | + |
| Engine code | B48B20 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 5091 |
| Width | 2158 |
| Height mm | 1538 |
| Wheelbase mm | 3070 |
| Front track, mm | 1615 |
| Rear track, mm | 1649 |
| Kerb weight, kg | 1795 |
| Trunk capacity, L | 610 |
| Fuel tank, l | 68 |
| Turning circle, m | 12.3 |
| Gross weight, kg | 2380 |
| Width (without mirrors) mm | 1902 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 8.2 |
|---|---|
| Fuel consumption (urban), l. 100 km | 5.8 |
| Fuel consumption (combined), l. 100 km | 6.6 |
| Acceleration (0-100 km/h), s | 6.3 |
| The maximum speed, km / h. | 250 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Rear |
| Transmission | 8-Steptronic |
| Gearbox | Machine |
| Transmission manufacturer | ZF |
| Transmission country of origin | Germany |
640i 40 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 2979 |
| Cylinders location | In-line |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 340 |
| Torque, Nm | 450 |
| RPM at max torque | 1380-5200 |
| Engine | 3.0i |
| Compression | 10.2 |
| RPM at max power | 5500-6500 |
| Turbo | + |
| Engine code | N54B30 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 5091 |
| Width | 2158 |
| Height mm | 1538 |
| Wheelbase mm | 3070 |
| Front track, mm | 1615 |
| Rear track, mm | 1649 |
| Kerb weight, kg | 1795 |
| Trunk capacity, L | 610 |
| Fuel tank, l | 68 |
| Turning circle, m | 12.3 |
| Gross weight, kg | 2380 |
| Width (without mirrors) mm | 1902 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 9.8 |
|---|---|
| Fuel consumption (urban), l. 100 km | 6 |
| Fuel consumption (combined), l. 100 km | 7.4 |
| Acceleration (0-100 km/h), s | 5.4 |
| The maximum speed, km / h. | 250 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Rear |
| Transmission | 8-Steptronic |
| Gearbox | Machine |
| Transmission manufacturer | ZF |
| Transmission country of origin | Germany |
640i xDrive 40 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 2979 |
| Cylinders location | In-line |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 340 |
| Torque, Nm | 450 |
| RPM at max torque | 1380-5200 |
| Engine | 3.0i |
| Compression | 10.2 |
| RPM at max power | 5500-6500 |
| Turbo | + |
| Engine code | N54B30 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 5091 |
| Width | 2158 |
| Height mm | 1538 |
| Wheelbase mm | 3070 |
| Front track, mm | 1615 |
| Rear track, mm | 1649 |
| Kerb weight, kg | 1795 |
| Trunk capacity, L | 610 |
| Fuel tank, l | 68 |
| Turning circle, m | 12.3 |
| Gross weight, kg | 2380 |
| Width (without mirrors) mm | 1902 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 11.1 |
|---|---|
| Fuel consumption (urban), l. 100 km | 6.5 |
| Fuel consumption (combined), l. 100 km | 8.2 |
| Acceleration (0-100 km/h), s | 5.3 |
| The maximum speed, km / h. | 250 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Full |
| Transmission | 8-Steptronic |
| Gearbox | Machine |
| Transmission manufacturer | ZF |
| Transmission country of origin | Germany |
620d 40 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 1995 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 190 |
| Torque, Nm | 400 |
| RPM at max torque | 1750-2500 |
| Engine | 2.0d |
| Compression | 16.5 |
| RPM at max power | 4000 |
| Turbo | + |
| Engine code | B47D20 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 5091 |
| Width | 2158 |
| Height mm | 1538 |
| Wheelbase mm | 3070 |
| Front track, mm | 1615 |
| Rear track, mm | 1649 |
| Kerb weight, kg | 1795 |
| Trunk capacity, L | 610 |
| Fuel tank, l | 68 |
| Turning circle, m | 12.3 |
| Gross weight, kg | 2380 |
| Width (without mirrors) mm | 1902 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 5.4 |
|---|---|
| Fuel consumption (urban), l. 100 km | 4.6 |
| Fuel consumption (combined), l. 100 km | 4.9 |
| Acceleration (0-100 km/h), s | 7.9 |
| The maximum speed, km / h. | 220 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Rear |
| Transmission | 8-Steptronic |
| Gearbox | Machine |
| Transmission manufacturer | ZF |
| Transmission country of origin | Germany |
630d 40 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 2993 |
| Cylinders location | In-line |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 265 |
| Torque, Nm | 620 |
| RPM at max torque | 2000-2500 |
| Engine | 3.0d |
| Compression | 16.5 |
| RPM at max power | 4000 |
| Turbo | + |
| Engine code | B57D30O0 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 5091 |
| Width | 2158 |
| Height mm | 1538 |
| Wheelbase mm | 3070 |
| Front track, mm | 1615 |
| Rear track, mm | 1649 |
| Kerb weight, kg | 1795 |
| Trunk capacity, L | 610 |
| Fuel tank, l | 68 |
| Turning circle, m | 12.3 |
| Gross weight, kg | 2380 |
| Width (without mirrors) mm | 1902 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 6.1 |
|---|---|
| Fuel consumption (urban), l. 100 km | 4.9 |
| Fuel consumption (combined), l. 100 km | 5.3 |
| Acceleration (0-100 km/h), s | 6.1 |
| The maximum speed, km / h. | 250 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Rear |
| Transmission | 8-Steptronic |
| Gearbox | Machine |
| Transmission manufacturer | ZF |
| Transmission country of origin | Germany |
630d xDrive 40 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 2993 |
| Cylinders location | In-line |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 265 |
| Torque, Nm | 620 |
| RPM at max torque | 2000-2500 |
| Engine | 3.0d |
| Compression | 16.5 |
| RPM at max power | 4000 |
| Turbo | + |
| Engine code | B57D30O0 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 5091 |
| Width | 2158 |
| Height mm | 1538 |
| Wheelbase mm | 3070 |
| Front track, mm | 1615 |
| Rear track, mm | 1649 |
| Kerb weight, kg | 1795 |
| Trunk capacity, L | 610 |
| Fuel tank, l | 68 |
| Turning circle, m | 12.3 |
| Gross weight, kg | 2380 |
| Width (without mirrors) mm | 1902 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 6.7 |
|---|---|
| Fuel consumption (urban), l. 100 km | 5.4 |
| Fuel consumption (combined), l. 100 km | 5.9 |
| Acceleration (0-100 km/h), s | 6 |
| The maximum speed, km / h. | 250 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Full |
| Transmission | 8-Steptronic |
| Gearbox | Machine |
| Transmission manufacturer | ZF |
| Transmission country of origin | Germany |
640d xDrive 39 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 2993 |
| Cylinders location | In-line |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 320 |
| Torque, Nm | 680 |
| RPM at max torque | 1750-2250 |
| Engine | 3.0d |
| Compression | 16.5 |
| RPM at max power | 4400 |
| Engine code | B57D30T0 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 5091 |
| Width | 2158 |
| Height mm | 1538 |
| Wheelbase mm | 3070 |
| Front track, mm | 1615 |
| Rear track, mm | 1649 |
| Kerb weight, kg | 1795 |
| Trunk capacity, L | 610 |
| Fuel tank, l | 68 |
| Turning circle, m | 12.3 |
| Gross weight, kg | 2380 |
| Width (without mirrors) mm | 1902 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 7.2 |
|---|---|
| Fuel consumption (urban), l. 100 km | 5.6 |
| Fuel consumption (combined), l. 100 km | 6.2 |
| Acceleration (0-100 km/h), s | 5.3 |
| The maximum speed, km / h. | 250 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Full |
| Transmission | 8-Steptronic |
| Gearbox | Machine |
| Transmission manufacturer | ZF |
| Transmission country of origin | Germany |
FAQ
BMW 6 Series Gran Turismo (G32) questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the BMW 6 Series Gran Turismo (G32)?
This page lists 7 trims for the BMW 6 Series Gran Turismo (G32), with key data shown in the comparison table and full specifications grouped below.
What is the power range for the BMW 6 Series Gran Turismo (G32)?
The listed configurations show a power range of 190-340 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the BMW 6 Series Gran Turismo (G32)?
The available specification data shows engine displacement from 1995-2993 cc across the trims listed on this page.
Which transmissions are listed for the BMW 6 Series Gran Turismo (G32)?
The transmission options currently shown for this model are: 8. Open a trim section to see the full data for a specific configuration.
Are there photos for the BMW 6 Series Gran Turismo (G32)?
Yes. The gallery includes 23 photos for the BMW 6 Series Gran Turismo (G32), including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
Explore more
Continue exploring BMW
Return to BMW models, browse the gallery, or compare the trims listed above.
