BMW 5 Series Touring (G31) specifications and photos

BMW 5 Series Touring (G31) specifications are shown with trim options, key technical data, and a model photo gallery. Compare 12 configurations by engine size, power, seating, and transmission. The gallery includes 25 photos for visual reference.

Years 2017 - 2020
Body type wagon
Trims 12
Photos 25

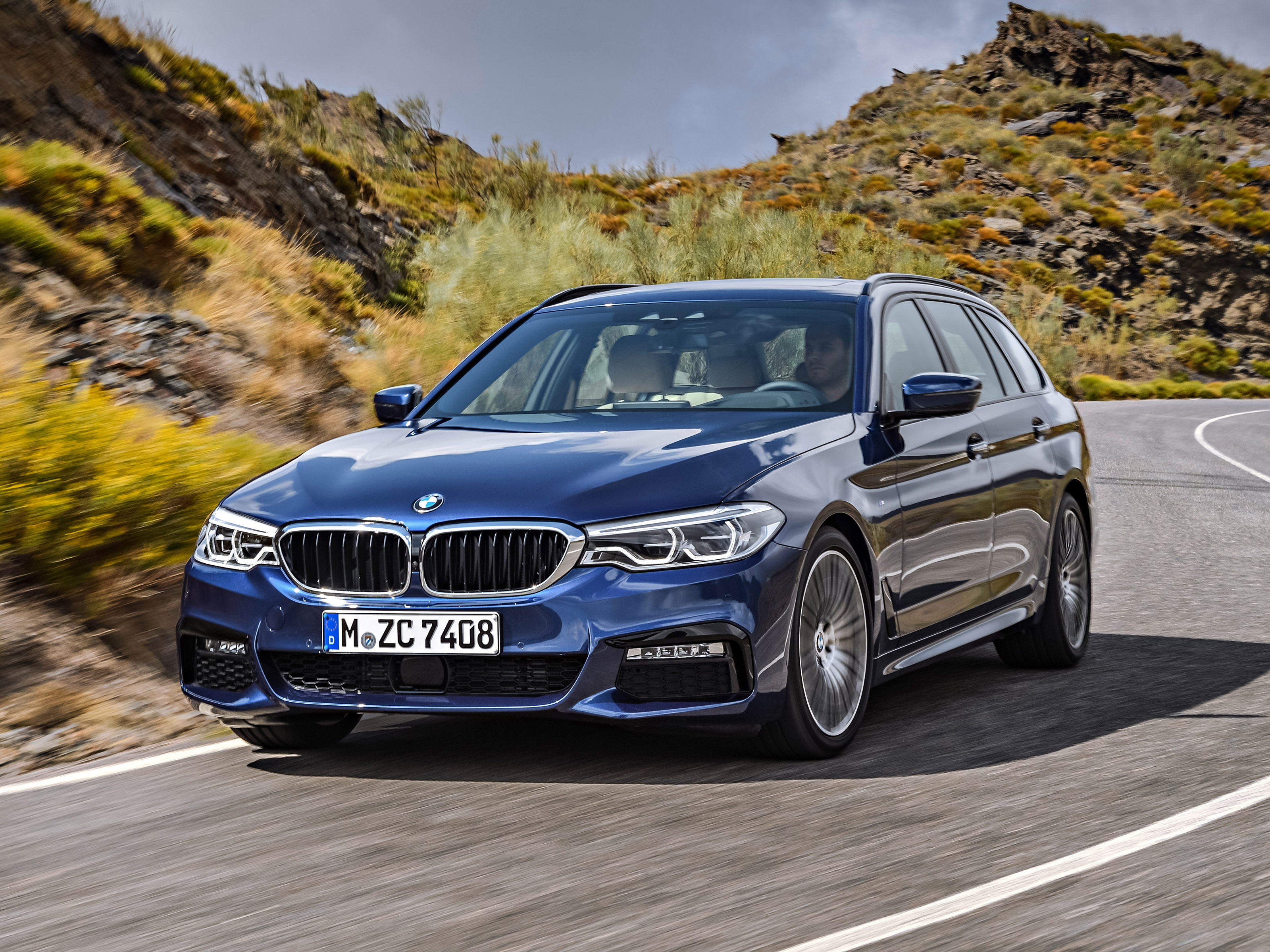

BMW 5 Series Touring (G31) 2017 photo
Overview

BMW 5 Series Touring (G31) at a glance

Quick model context before comparing photos and trim-level specifications.

Use this BMW 5 Series Touring (G31) page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 184-400 hp and 1995-2993 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 184-400 hp
  • Engine displacement: 1995-2993 cc
  • Transmissions: 8, 6
  • Seating: 5 seats
Research hub

Photos, trims and specifications for BMW 5 Series Touring (G31)

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 25 images Compare trims 12 configurations View detailed specs 1995-2993 cc Explore related pages BMW and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 184-400 hp
Engine displacement 1995-2993 cc
Seating 5 seats
Transmissions 8, 6
Trim / modification Engine Power Seats Transmission
520i 1998 cc 184 hp 5 8
530i 1998 cc 252 hp 5 8
530i xDrive 1998 cc 252 hp 5 8
540i xDrive 2979 cc 340 hp 5 8
520d 1995 cc 190 hp 5 6
520d 1995 cc 190 hp 5 8
520d xDrive 1995 cc 190 hp 5 8
525d 1995 cc 231 hp 5 8
530d 2993 cc 265 hp 5 8
530d xDrive 2993 cc 265 hp 5 8
540d xDrive 2993 cc 320 hp 5 8
M550d xDrive 2993 cc 400 hp 5 8

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

520i 530i 530i xDrive 540i xDrive 520d 520d 520d xDrive 525d 530d 530d xDrive 540d xDrive M550d xDrive
520i 39 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 184
Torque, Nm 290
RPM at max torque 1350-4250
Engine 2.0i
RPM at max power 5000-6500
Turbo +
Engine code B48A20

Dimensions

Seats 5
Length mm 4942
Width 2126
Height mm 1498
Wheelbase mm 2975
Front track, mm 1605
Rear track, mm 1630
Kerb weight, kg 1735
Trunk capacity, L 570
Fuel tank, l 68
Turning circle, m 12.5
Gross weight, kg 2360
Width (without mirrors) mm 1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.5
Fuel consumption (urban), l. 100 km 5.5
Fuel consumption (combined), l. 100 km 6.2
Acceleration (0-100 km/h), s 8.2
The maximum speed, km / h. 225
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Rear
Transmission 8-Steptronic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin Germany
530i 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 252
Torque, Nm 350
RPM at max torque 1450-4800
Engine 2.0i
Compression 10.2
RPM at max power 5200-6500
Turbo +
Engine code B48B20

Dimensions

Seats 5
Length mm 4942
Width 2126
Height mm 1498
Wheelbase mm 2975
Front track, mm 1605
Rear track, mm 1630
Kerb weight, kg 1735
Trunk capacity, L 570
Fuel tank, l 68
Turning circle, m 12.5
Gross weight, kg 2360
Width (without mirrors) mm 1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.6
Fuel consumption (urban), l. 100 km 5.5
Fuel consumption (combined), l. 100 km 6.3
Acceleration (0-100 km/h), s 6.5
The maximum speed, km / h. 250
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Rear
Transmission 8-Steptronic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin Germany
530i xDrive 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 252
Torque, Nm 350
RPM at max torque 1450-4800
Engine 2.0i
Compression 10.2
RPM at max power 5200-6500
Turbo +
Engine code B48B20

Dimensions

Seats 5
Length mm 4942
Width 2126
Height mm 1498
Wheelbase mm 2975
Front track, mm 1605
Rear track, mm 1630
Kerb weight, kg 1735
Trunk capacity, L 570
Fuel tank, l 68
Turning circle, m 12.5
Gross weight, kg 2360
Width (without mirrors) mm 1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.6
Fuel consumption (urban), l. 100 km 6
Fuel consumption (combined), l. 100 km 7
Acceleration (0-100 km/h), s 6.3
The maximum speed, km / h. 250
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-Steptronic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin Germany
540i xDrive 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2979
Cylinders location In-line
Number of cylinders 6
Valves 24
Power, hp 340
Torque, Nm 450
RPM at max torque 1380-5200
Engine 3.0i
Compression 10.2
RPM at max power 5500-6500
Turbo +
Engine code N54B30

Dimensions

Seats 5
Length mm 4942
Width 2126
Height mm 1498
Wheelbase mm 2975
Front track, mm 1605
Rear track, mm 1630
Kerb weight, kg 1735
Trunk capacity, L 570
Fuel tank, l 68
Turning circle, m 12.5
Gross weight, kg 2360
Width (without mirrors) mm 1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9.9
Fuel consumption (urban), l. 100 km 6.5
Fuel consumption (combined), l. 100 km 7.7
Acceleration (0-100 km/h), s 5.1
The maximum speed, km / h. 250
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-Steptronic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin Germany
520d 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1995
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 190
Torque, Nm 400
RPM at max torque 1750-2500
Engine 2.0d
Compression 16.5
RPM at max power 4000
Turbo +
Engine code B47D20

Dimensions

Seats 5
Length mm 4942
Width 2126
Height mm 1498
Wheelbase mm 2975
Front track, mm 1605
Rear track, mm 1630
Kerb weight, kg 1735
Trunk capacity, L 570
Fuel tank, l 68
Turning circle, m 12.5
Gross weight, kg 2360
Width (without mirrors) mm 1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.6
Fuel consumption (urban), l. 100 km 4.6
Fuel consumption (combined), l. 100 km 4.9
Acceleration (0-100 km/h), s 8
The maximum speed, km / h. 230
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Rear
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer BMW
520d 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1995
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 190
Torque, Nm 400
RPM at max torque 1750-2500
Engine 2.0d
Compression 16.5
RPM at max power 4000
Turbo +
Engine code B47D20

Dimensions

Seats 5
Length mm 4942
Width 2126
Height mm 1498
Wheelbase mm 2975
Front track, mm 1605
Rear track, mm 1630
Kerb weight, kg 1735
Trunk capacity, L 570
Fuel tank, l 68
Turning circle, m 12.5
Gross weight, kg 2360
Width (without mirrors) mm 1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.2
Fuel consumption (urban), l. 100 km 4.4
Fuel consumption (combined), l. 100 km 4.7
Acceleration (0-100 km/h), s 7.8
The maximum speed, km / h. 225
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Rear
Transmission 8-Steptronic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin Germany
520d xDrive 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1995
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 190
Torque, Nm 400
RPM at max torque 1750-2500
Engine 2.0d
Compression 16.5
RPM at max power 4000
Turbo +
Engine code B47D20

Dimensions

Seats 5
Length mm 4942
Width 2126
Height mm 1498
Wheelbase mm 2975
Front track, mm 1605
Rear track, mm 1630
Kerb weight, kg 1735
Trunk capacity, L 570
Fuel tank, l 68
Turning circle, m 12.5
Gross weight, kg 2360
Width (without mirrors) mm 1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.9
Fuel consumption (urban), l. 100 km 4.9
Fuel consumption (combined), l. 100 km 5.3
Acceleration (0-100 km/h), s 7.9
The maximum speed, km / h. 222
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-Steptronic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin Germany
525d 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1995
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 231
Torque, Nm 500
RPM at max torque 2000
Engine 2.0d
Compression 16.5
RPM at max power 4400
Turbo +
Engine code B47D20

Dimensions

Seats 5
Length mm 4942
Width 2126
Height mm 1498
Wheelbase mm 2975
Front track, mm 1605
Rear track, mm 1630
Kerb weight, kg 1735
Trunk capacity, L 570
Fuel tank, l 68
Turning circle, m 12.5
Gross weight, kg 2360
Width (without mirrors) mm 1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.7
Fuel consumption (urban), l. 100 km 4.8
Fuel consumption (combined), l. 100 km 5.1
Acceleration (0-100 km/h), s 6.8
The maximum speed, km / h. 245
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Rear
Transmission 8-Steptronic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin Germany
530d 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 2993
Cylinders location In-line
Number of cylinders 6
Valves 24
Power, hp 265
Torque, Nm 620
RPM at max torque 2000-2500
Engine 3.0d
Compression 16.5
RPM at max power 4000
Turbo +
Engine code B57D30O0

Dimensions

Seats 5
Length mm 4942
Width 2126
Height mm 1498
Wheelbase mm 2975
Front track, mm 1605
Rear track, mm 1630
Kerb weight, kg 1735
Trunk capacity, L 570
Fuel tank, l 68
Turning circle, m 12.5
Gross weight, kg 2360
Width (without mirrors) mm 1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.8
Fuel consumption (urban), l. 100 km 4.7
Fuel consumption (combined), l. 100 km 5.1
Acceleration (0-100 km/h), s 5.8
The maximum speed, km / h. 250
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Rear
Transmission 8-Steptronic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin Germany
530d xDrive 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 2993
Cylinders location In-line
Number of cylinders 6
Valves 24
Power, hp 265
Torque, Nm 620
RPM at max torque 2000-2500
Engine 3.0d
Compression 16.5
RPM at max power 4000
Turbo +
Engine code B57D30O0

Dimensions

Seats 5
Length mm 4942
Width 2126
Height mm 1498
Wheelbase mm 2975
Front track, mm 1605
Rear track, mm 1630
Kerb weight, kg 1735
Trunk capacity, L 570
Fuel tank, l 68
Turning circle, m 12.5
Gross weight, kg 2360
Width (without mirrors) mm 1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.4
Fuel consumption (urban), l. 100 km 5.2
Fuel consumption (combined), l. 100 km 5.7
Acceleration (0-100 km/h), s 5.6
The maximum speed, km / h. 250
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-Steptronic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin Germany
540d xDrive 39 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 2993
Cylinders location In-line
Number of cylinders 6
Valves 24
Power, hp 320
Torque, Nm 680
RPM at max torque 1750-2250
Engine 3.0d
Compression 16.5
RPM at max power 4400
Engine code B57D30T0

Dimensions

Seats 5
Length mm 4942
Width 2126
Height mm 1498
Wheelbase mm 2975
Front track, mm 1605
Rear track, mm 1630
Kerb weight, kg 1735
Trunk capacity, L 570
Fuel tank, l 68
Turning circle, m 12.5
Gross weight, kg 2360
Width (without mirrors) mm 1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.8
Fuel consumption (urban), l. 100 km 5.3
Fuel consumption (combined), l. 100 km 5.9
Acceleration (0-100 km/h), s 4.9
The maximum speed, km / h. 250
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-Steptronic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin Germany
M550d xDrive 39 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 2993
Cylinders location In-line
Number of cylinders 6
Valves 24
Power, hp 400
Torque, Nm 760
RPM at max torque 2000-3000
Engine 3.0d
Compression 16.0
RPM at max power 4400
Engine code B57D30S0

Dimensions

Seats 5
Length mm 4942
Width 2126
Height mm 1498
Wheelbase mm 2975
Front track, mm 1605
Rear track, mm 1630
Kerb weight, kg 1735
Trunk capacity, L 570
Fuel tank, l 68
Turning circle, m 12.5
Gross weight, kg 2360
Width (without mirrors) mm 1868

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.7
Fuel consumption (urban), l. 100 km 6.1
Fuel consumption (combined), l. 100 km 6.7
Acceleration (0-100 km/h), s 4.6
The maximum speed, km / h. 250
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-Steptronic Sport
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin Germany
FAQ

BMW 5 Series Touring (G31) questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the BMW 5 Series Touring (G31)?

This page lists 12 trims for the BMW 5 Series Touring (G31), with key data shown in the comparison table and full specifications grouped below.

What is the power range for the BMW 5 Series Touring (G31)?

The listed configurations show a power range of 184-400 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the BMW 5 Series Touring (G31)?

The available specification data shows engine displacement from 1995-2993 cc across the trims listed on this page.

Which transmissions are listed for the BMW 5 Series Touring (G31)?

The transmission options currently shown for this model are: 8, 6. Open a trim section to see the full data for a specific configuration.

Are there photos for the BMW 5 Series Touring (G31)?

Yes. The gallery includes 25 photos for the BMW 5 Series Touring (G31), including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
