BMW i3s (I01) specifications and photos
BMW i3s (I01) specifications are shown with trim options, key technical data, and a model photo gallery. Compare 3 configurations by engine size, power, seating, and transmission. The gallery includes 25 photos for visual reference.
BMW i3s (I01) at a glance
Quick model context before comparing photos and trim-level specifications.
Use this BMW i3s (I01) page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 183-184 hp and 647 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 183-184 hp
- Engine displacement: 647 cc
- Seating: 4 seats
Photos, trims and specifications for BMW i3s (I01)
This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 94 Ah (183 hp) | - | 183 hp | 4 | - |
| 94 Ah REX (183 HP) Gearbox | 647 cc | 183 hp | 4 | - |
| 120 Ah (184 hp) | - | 184 hp | 4 | - |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
BMW i3s (I01) photo gallery
25 images are collected here with the main specifications and trim data for this model.

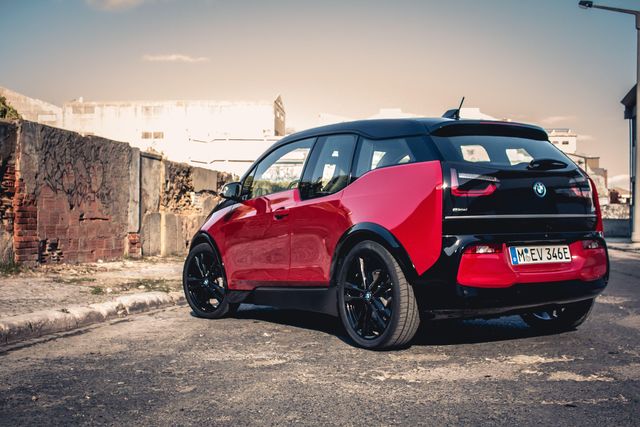

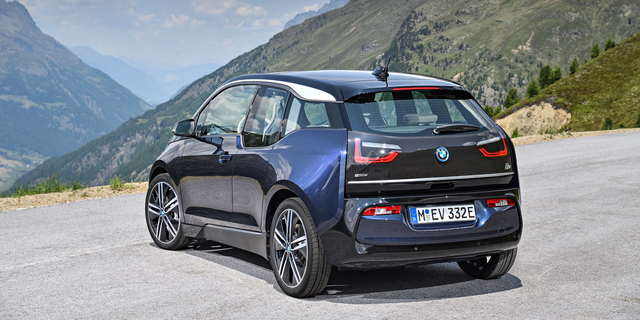

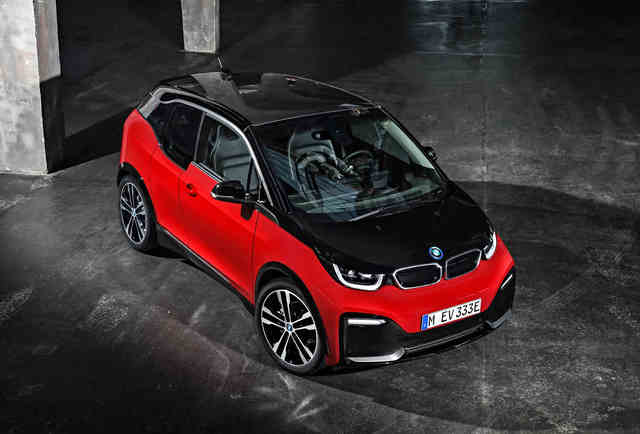

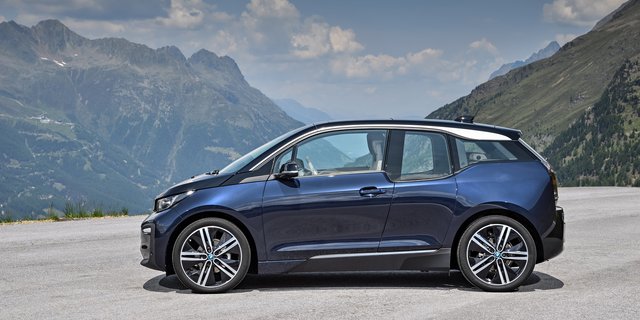

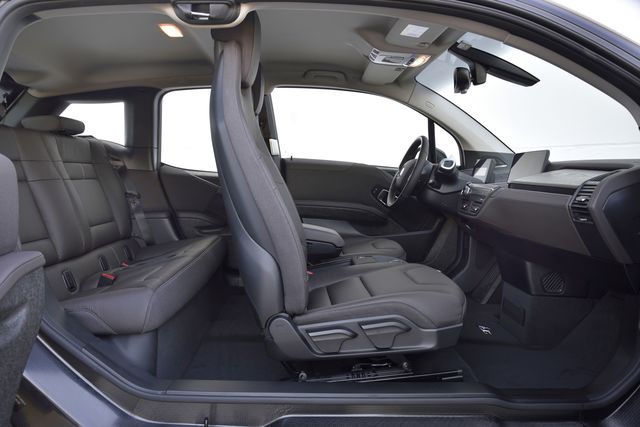

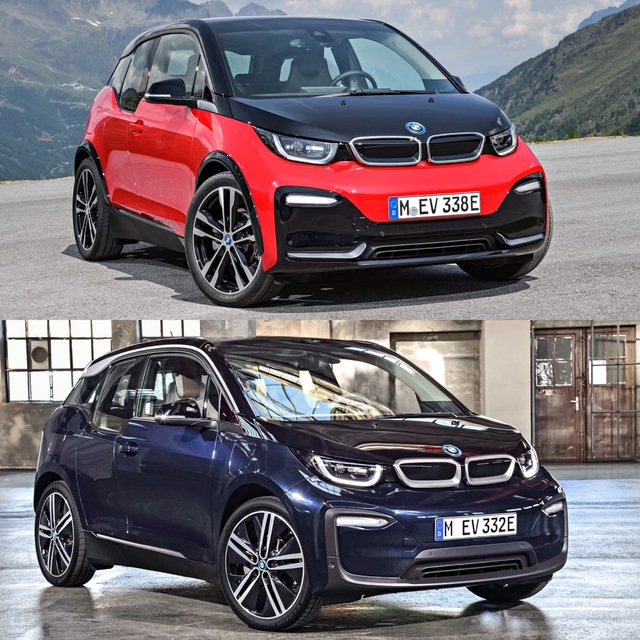

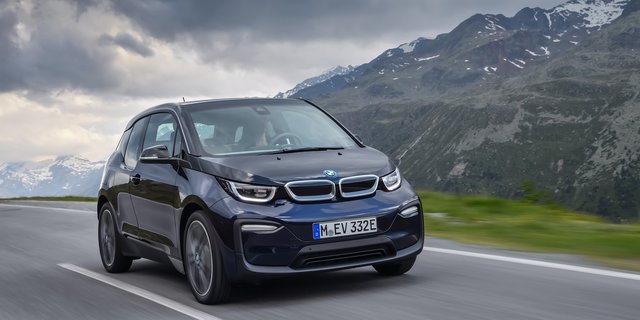

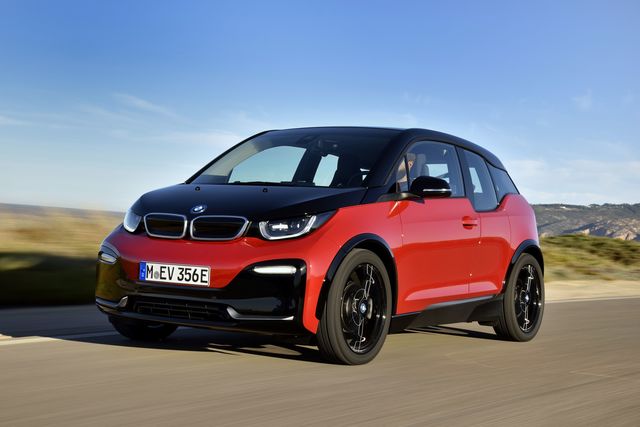

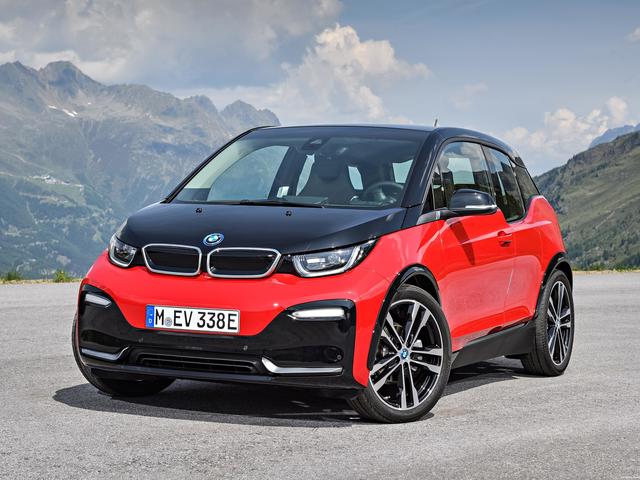

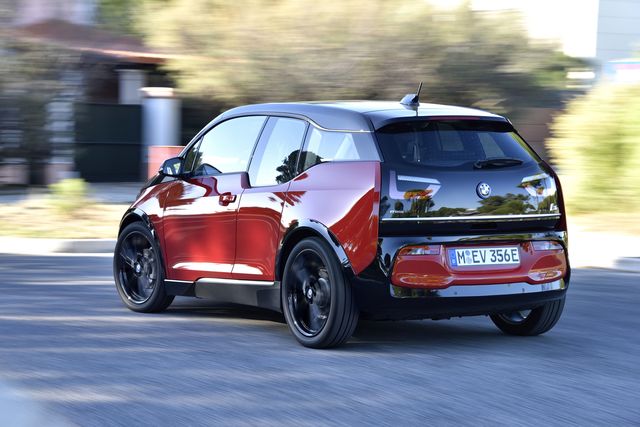

Photo BMW i3s (I01)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
94 Ah (183 hp) 25 specifications
Specifications
Engine
| Type of engine | Electro |
|---|---|
| Power, hp | 183 |
| Torque, Nm | 270 |
| Engine | 94 Ah |
| Number of motors | 1 |
| The electric range (km) | 200 |
| The possibility of charging from the network | + |
Dimensions
| Seats | 4 |
|---|---|
| Length mm | 4006 |
| Width | 2039 |
| Height mm | 1590 |
| Wheelbase mm | 2570 |
| Front track, mm | 1592 |
| Rear track, mm | 1586 |
| Kerb weight, kg | 1365 |
| Turning circle, m | 10.3 |
| Gross weight, kg | 1730 |
| Width (without mirrors) mm | 1791 |
| The volume of the cargo compartment, m3 | 260 |
Performance and fuel consumption
| Acceleration (0-100 km/h), s | 6.9 |
|---|---|
| The maximum speed, km / h. | 160 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Drive | Rear |
| Transmission | Gearbox |
| Gearbox | Multi-plate clutch robot |
94 Ah REX (183 HP) Gearbox 33 specifications
Specifications
Engine
| Type of engine | Electro |
|---|---|
| Displacement, cc | 647 |
| Cylinders location | In-line |
| Number of cylinders | 2 |
| Valves | 4 |
| Power, hp | 183 |
| Torque, Nm | 270 |
| Engine | 94 Ah REX |
| Number of motors | 1 |
| Power electric motor HP | 183 |
| the motor torque Nm | 270 |
| Engine power, hp | 38 |
| the engine torque, Nm | 56 |
| The electric range (km) | 330 |
| The possibility of charging from the network | + |
Dimensions
| Seats | 4 |
|---|---|
| Length mm | 4006 |
| Width | 2039 |
| Height mm | 1590 |
| Wheelbase mm | 2570 |
| Front track, mm | 1592 |
| Rear track, mm | 1586 |
| Kerb weight, kg | 1365 |
| Turning circle, m | 10.3 |
| Gross weight, kg | 1730 |
| Width (without mirrors) mm | 1791 |
| The volume of the cargo compartment, m3 | 260 |
Performance and fuel consumption
| Acceleration (0-100 km/h), s | 7.7 |
|---|---|
| The maximum speed, km / h. | 160 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Drive | Rear |
| Transmission | Gearbox |
| Gearbox | Multi-plate clutch robot |
120 Ah (184 hp) 24 specifications
Specifications
Engine
| Type of engine | Electro |
|---|---|
| Power, hp | 184 |
| Torque, Nm | 270 |
| Engine | 120 Ah |
| Number of motors | 1 |
| The possibility of charging from the network | + |
Dimensions
| Seats | 4 |
|---|---|
| Length mm | 4006 |
| Width | 2039 |
| Height mm | 1590 |
| Wheelbase mm | 2570 |
| Front track, mm | 1592 |
| Rear track, mm | 1586 |
| Kerb weight, kg | 1365 |
| Turning circle, m | 10.3 |
| Gross weight, kg | 1730 |
| Width (without mirrors) mm | 1791 |
| The volume of the cargo compartment, m3 | 260 |
Performance and fuel consumption
| Acceleration (0-100 km/h), s | 6.9 |
|---|---|
| The maximum speed, km / h. | 160 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Drive | Rear |
| Transmission | Gearbox |
| Gearbox | Multi-plate clutch robot |
BMW i3s (I01) questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the BMW i3s (I01)?
This page lists 3 trims for the BMW i3s (I01), with key data shown in the comparison table and full specifications grouped below.
What is the power range for the BMW i3s (I01)?
The listed configurations show a power range of 183-184 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the BMW i3s (I01)?
The available specification data shows engine displacement from 647 cc across the trims listed on this page.
Are there photos for the BMW i3s (I01)?
Yes. The gallery includes 25 photos for the BMW i3s (I01), including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
