BMW iX (i20) specifications and photos
The BMW iX (i20) is a premium all-wheel-drive electric SUV that marks a new era in the brand's design and technological approach. Introduced as a first-generation model for 2021, it serves as a flagship for BMW's expanding EV lineup.
BMW iX (i20) at a glance
Quick model context before comparing photos and trim-level specifications.
Built on a modified, electrified version of the CLAR platform, the iX incorporates advanced materials like aluminum and carbon fiber to reduce weight and increase body rigidity. It is positioned as a technologically advanced mid-size luxury crossover, measuring roughly 4.95 meters in length. The iX introduces BMW's fifth-generation eDrive technology, integrating the electric motor, power electronics, and transmission into a single compact housing. It also serves as the launch vehicle for the latest iDrive system and Operating System 8, signaling the interior and interface direction for future BMW models. Aimed at buyers looking for long electric range, high performance, and distinctive styling, the iX competes in the rapidly growing premium EV segment.
- Power: 326-523 hp
- Transmissions: single-speed reduction gear
- Seating: 5 seats
Photos, trims and specifications for BMW iX (i20)
This model page brings gallery images, trim comparison, and detailed technical data together for the 2021 generation.
BMW iX (i20) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The exterior design draws heavy inspiration from the iNext concept. The front fascia is dominated by a massive, closed-off decorative grille that intelligently conceals the vehicle's camera and radar sensors. The iX features very slim lighting units, a black body kit accented with signature electric blue inserts, and black trim on the rear pillars. Aerodynamic efficiency was a priority, resulting in a low drag coefficient of 0.25. The SUV rides on standard 20-inch alloy wheels, with options up to 22 inches, and can be equipped with advanced laser headlights.
Interior
Inside, the iX eliminates the traditional central transmission tunnel, creating a spacious and open cabin layout. The dashboard is minimalist, highlighted by the BMW Curved Display, which combines a 12.3-inch digital instrument cluster and a 14.6-inch touchscreen under a single pane of glass. The central control console is styled as a standalone island between the front seats. BMW utilizes sustainable and recycled materials throughout the cabin, complemented by a unique hexagonal steering wheel. Cargo space is a practical 500 liters, and luxury options like a panoramic roof and a 30-speaker Bowers & Wilkins audio system are available.
Performance
The iX features a dual-motor, all-wheel-drive powertrain available in multiple output levels. The xDrive40 model delivers 326 horsepower and 630 Nm of torque, utilizing a 77 kWh battery for a 0-100 km/h time of 6.1 seconds and a range of up to 425 km. The more powerful xDrive50 has 523 horsepower, 765 Nm of torque, and a larger 112 kWh battery, pushing the WLTP range up to 630 km and reducing the 0-100 km/h sprint to roughly 4.1 seconds. Both variants support 200 kW fast charging, allowing a 10% to 80% charge in just over 30 minutes, and feature adaptive brake recuperation.
Practicality
As a five-seat mid-size SUV, the iX offers substantial interior room, benefiting from its long 3,000 mm wheelbase and flat floor architecture. The 500-liter cargo capacity is adequate for daily family use and road trips. Options like air suspension and rear-wheel steering enhance maneuverability in tight spaces and improve overall ride comfort, making it a highly capable everyday vehicle.
Safety and tech
The iX is heavily equipped with advanced driver assistance systems, designed with the hardware to support Level 3 autonomous driving capabilities in the future. The Operating System 8 interface provides seamless connectivity and over-the-air updates. Standard and optional safety features include adaptive cruise control, lane keeping assist, blind-spot monitoring, and a comprehensive suite of parking cameras. Comfort tech includes four-zone climate control, along with heated, ventilated, and massaging front seats.
Buyer notes
When comparing the xDrive40 and xDrive50, buyers should primarily consider their range and performance needs, as the interior luxury remains relatively consistent across the board. The xDrive50's significantly larger battery offers substantial peace of mind for longer trips and faster acceleration. Note that high-end features like the premium audio system, air suspension, and laser lights may be optional depending on the market and specific trim level selected.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| xDrive40 | - | 326 hp | 5 | single-speed reduction gear |
| xDrive50 | - | 523 hp | 5 | single-speed reduction gear |
| xDrive40 | - | 326 hp | 5 | single-speed reduction gear |
| xDrive50 | - | 523 hp | 5 | single-speed reduction gear |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

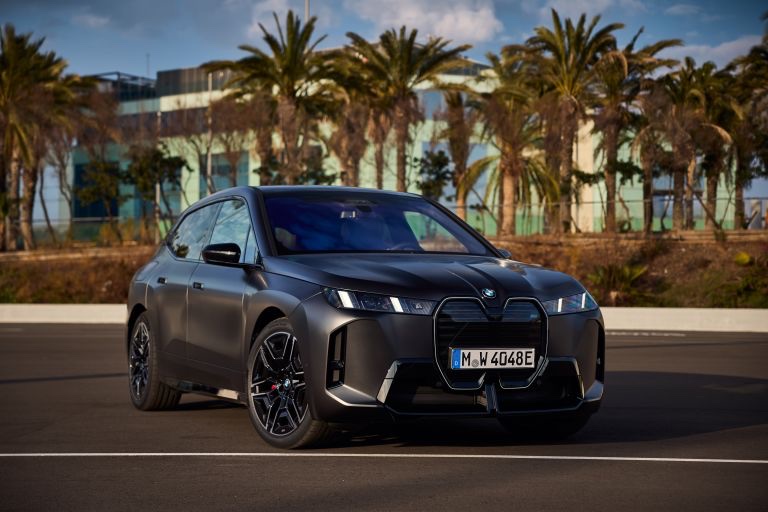

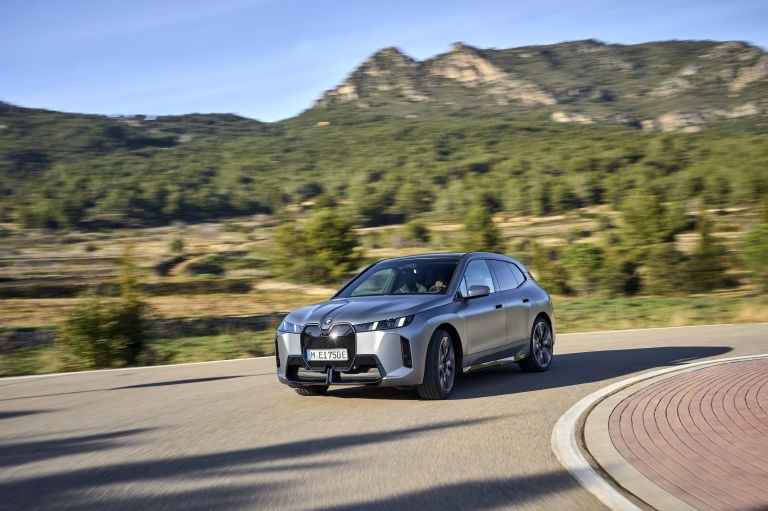

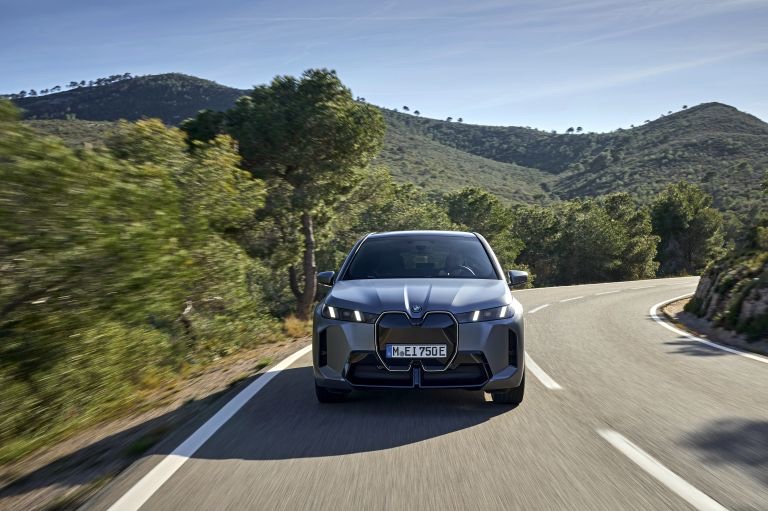

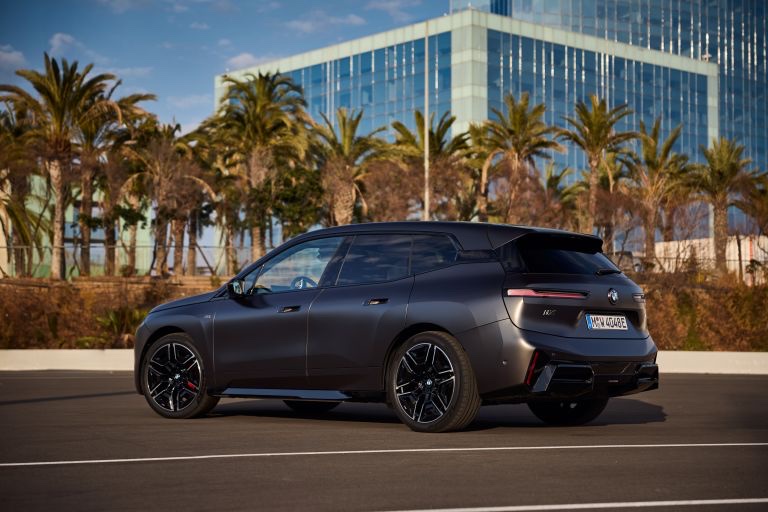

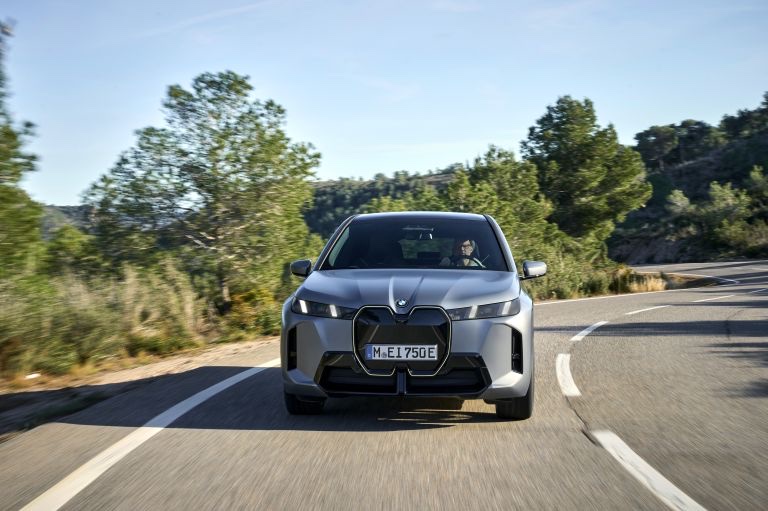

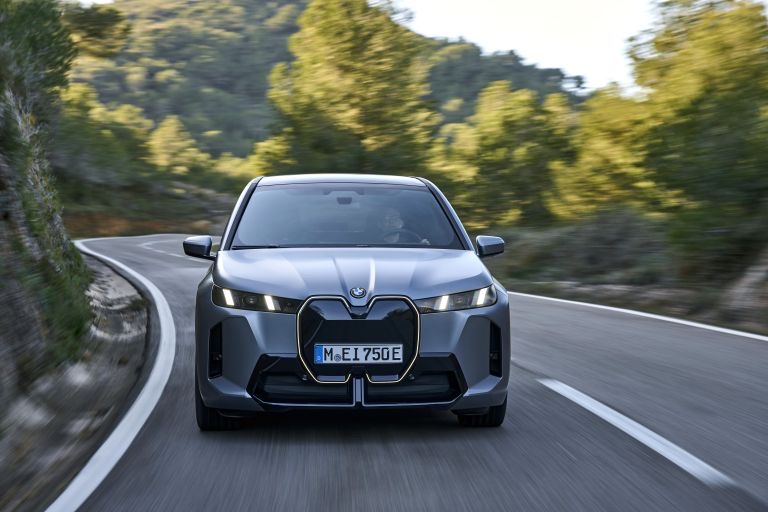

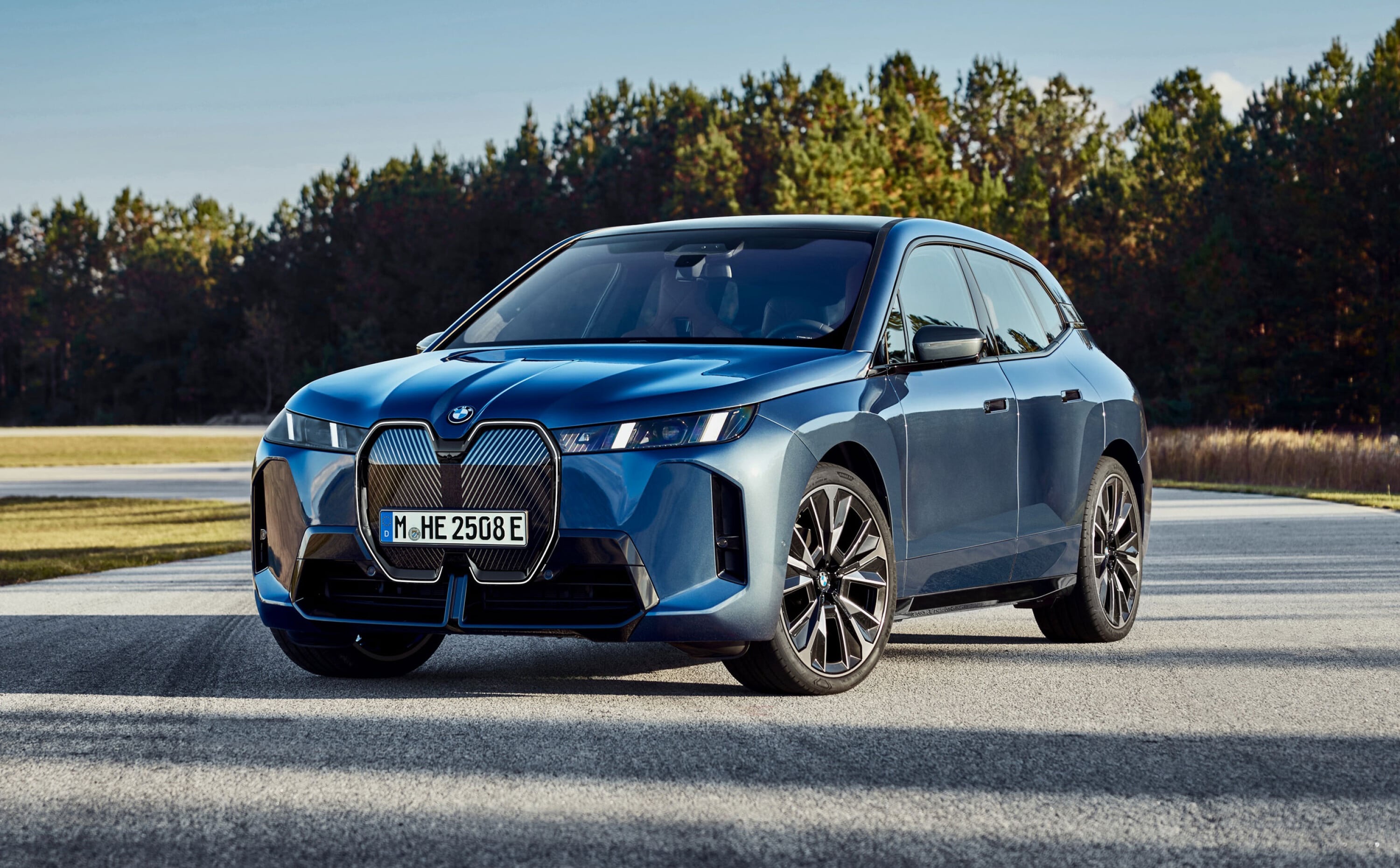

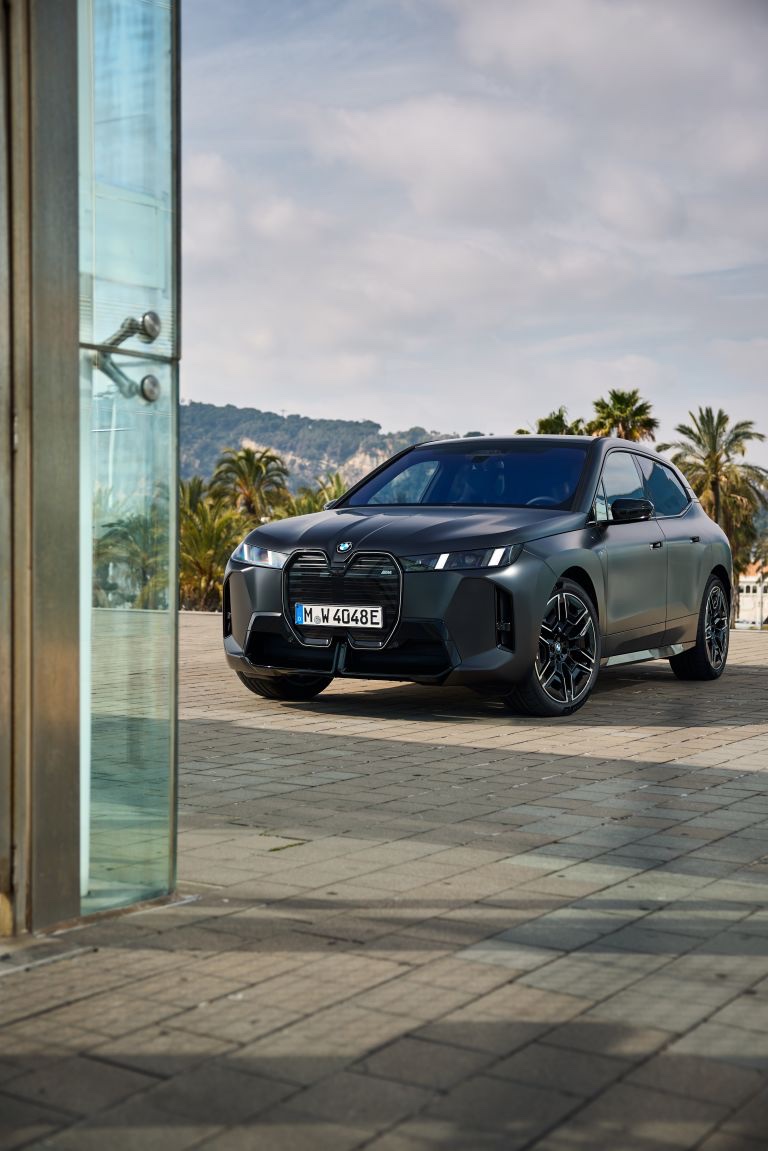

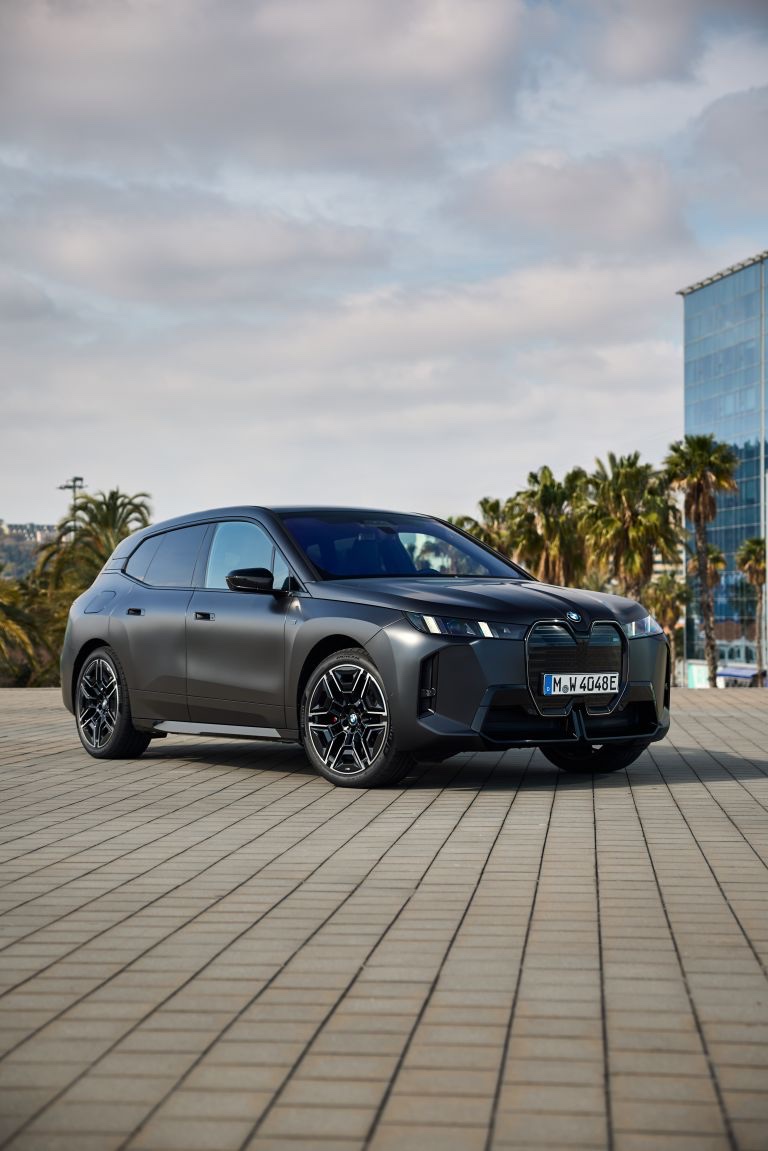

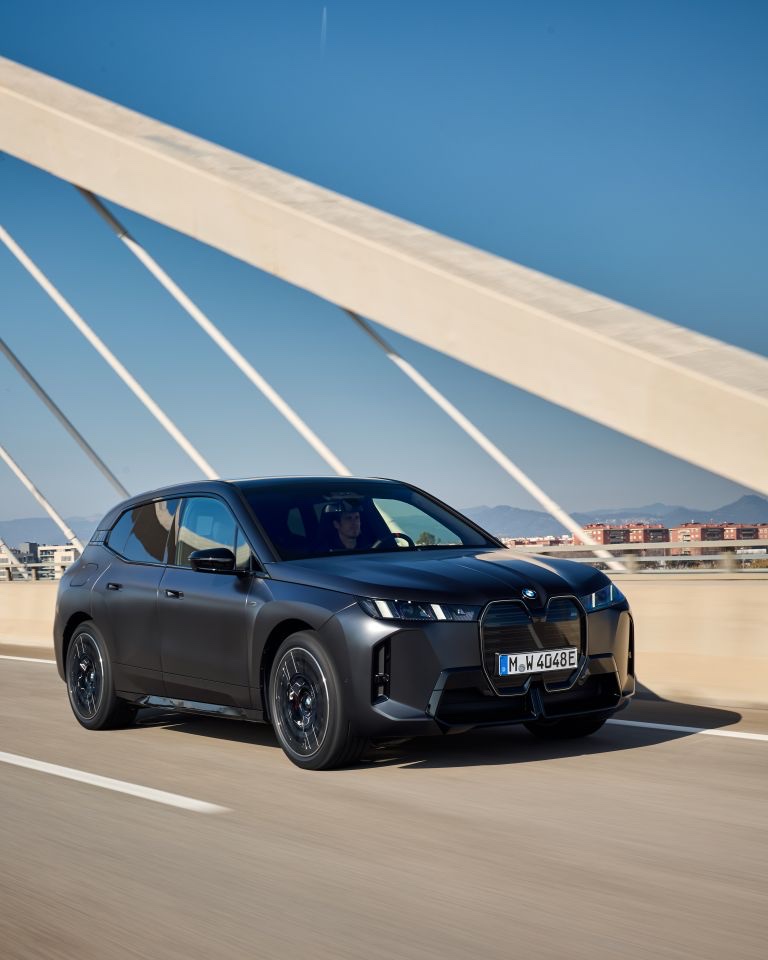

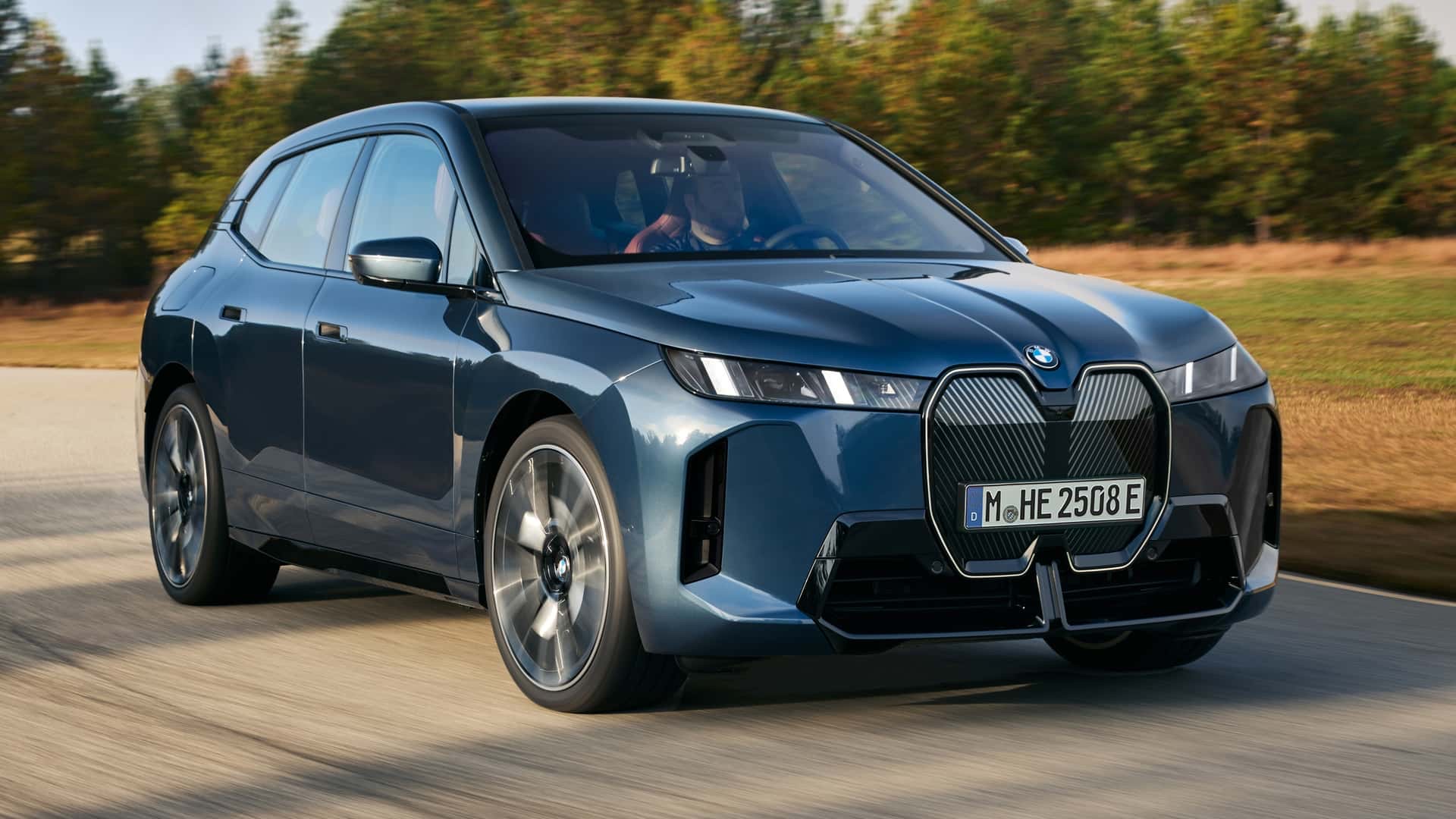

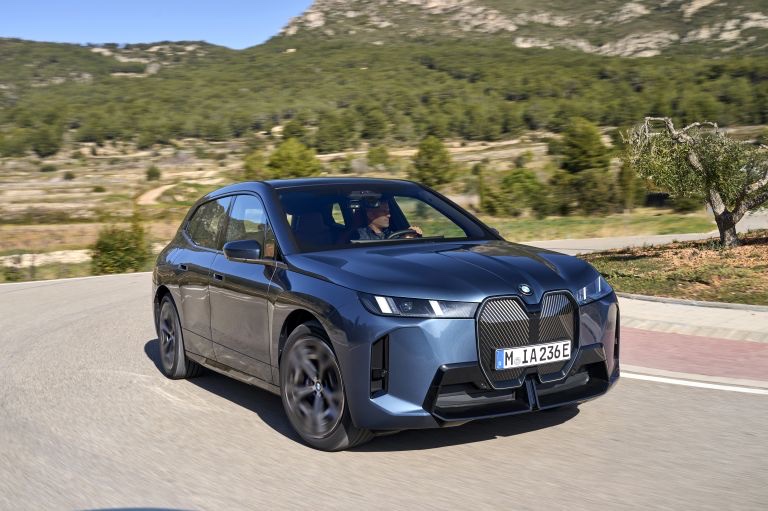

BMW iX (i20) photo gallery
20 images are collected here with the main specifications and trim data for this model.

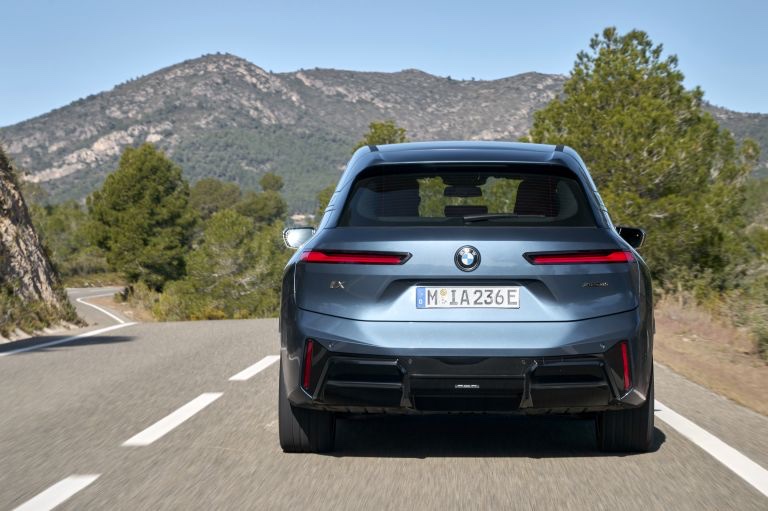

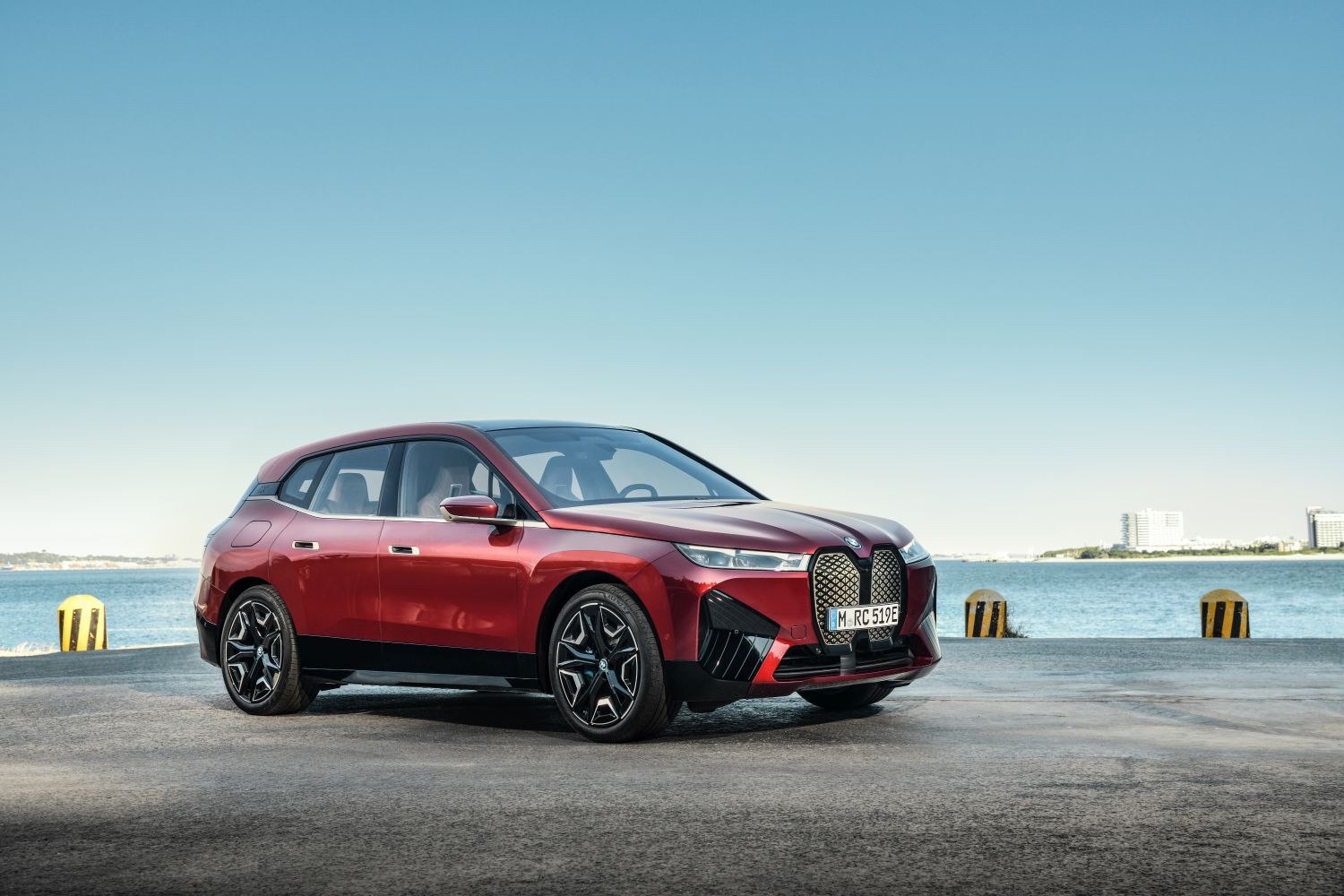

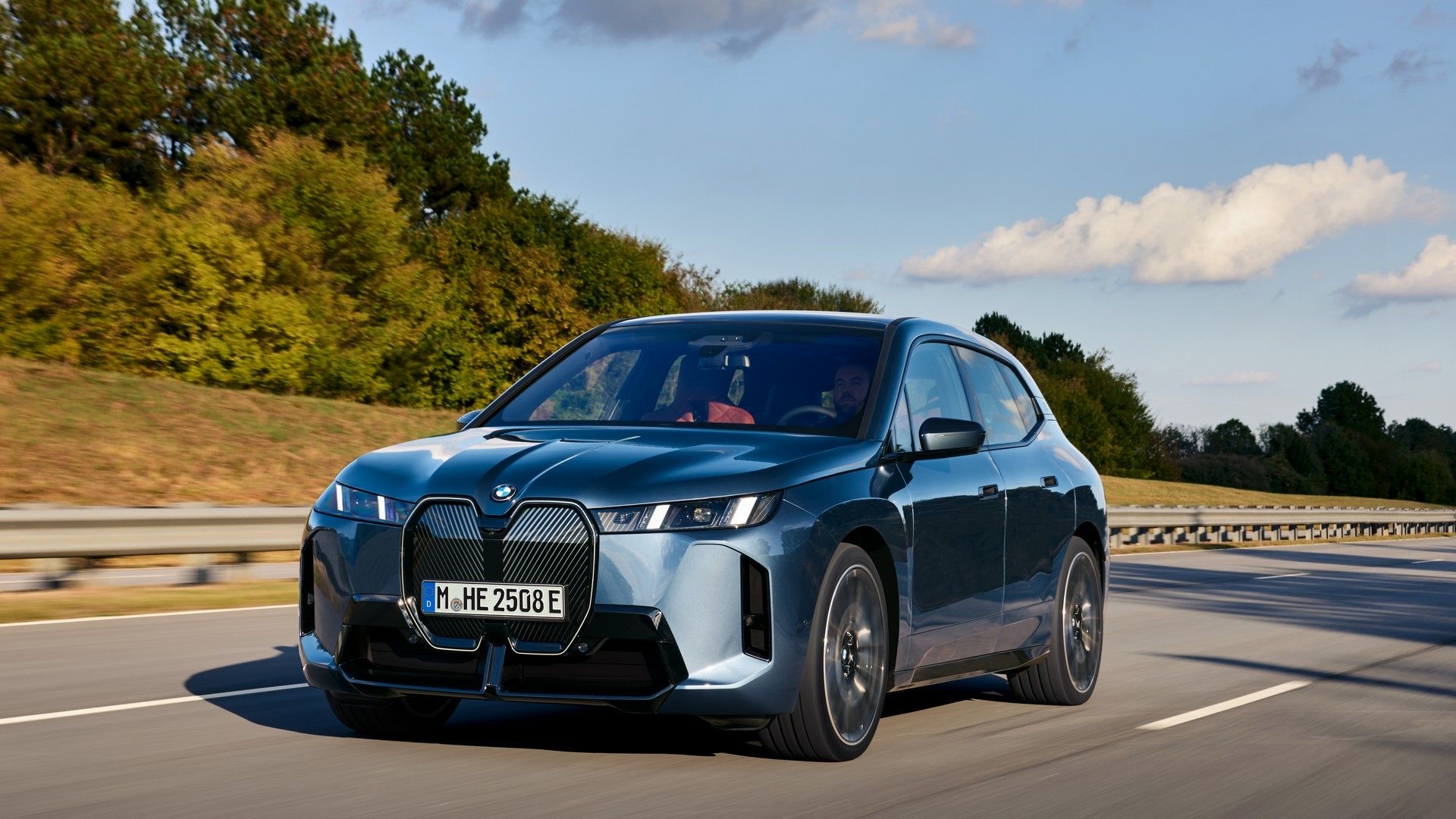

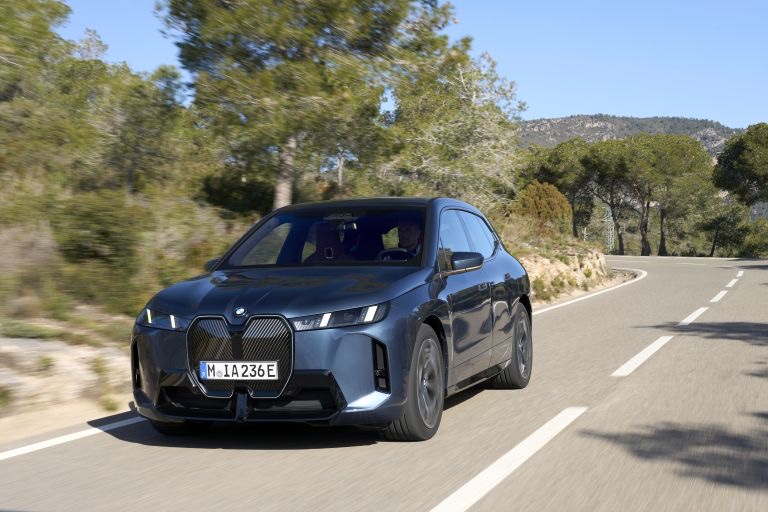

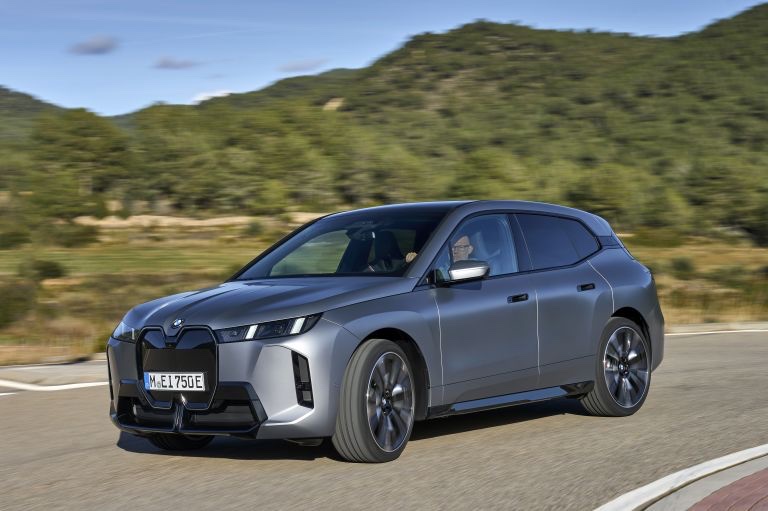

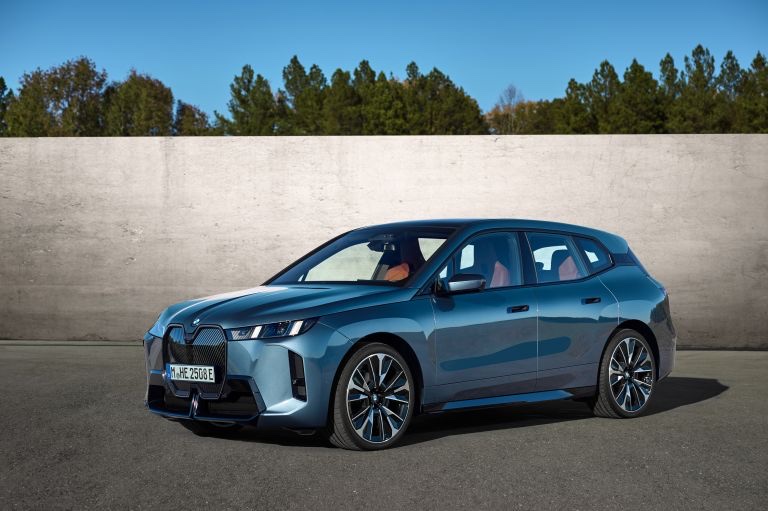

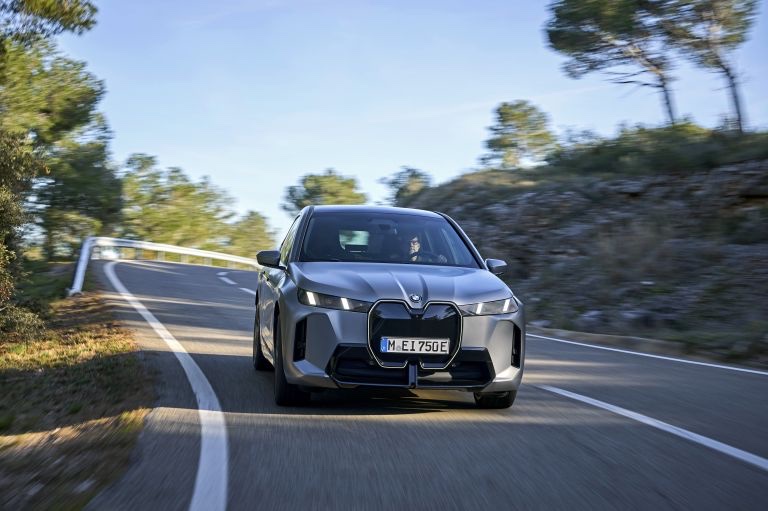

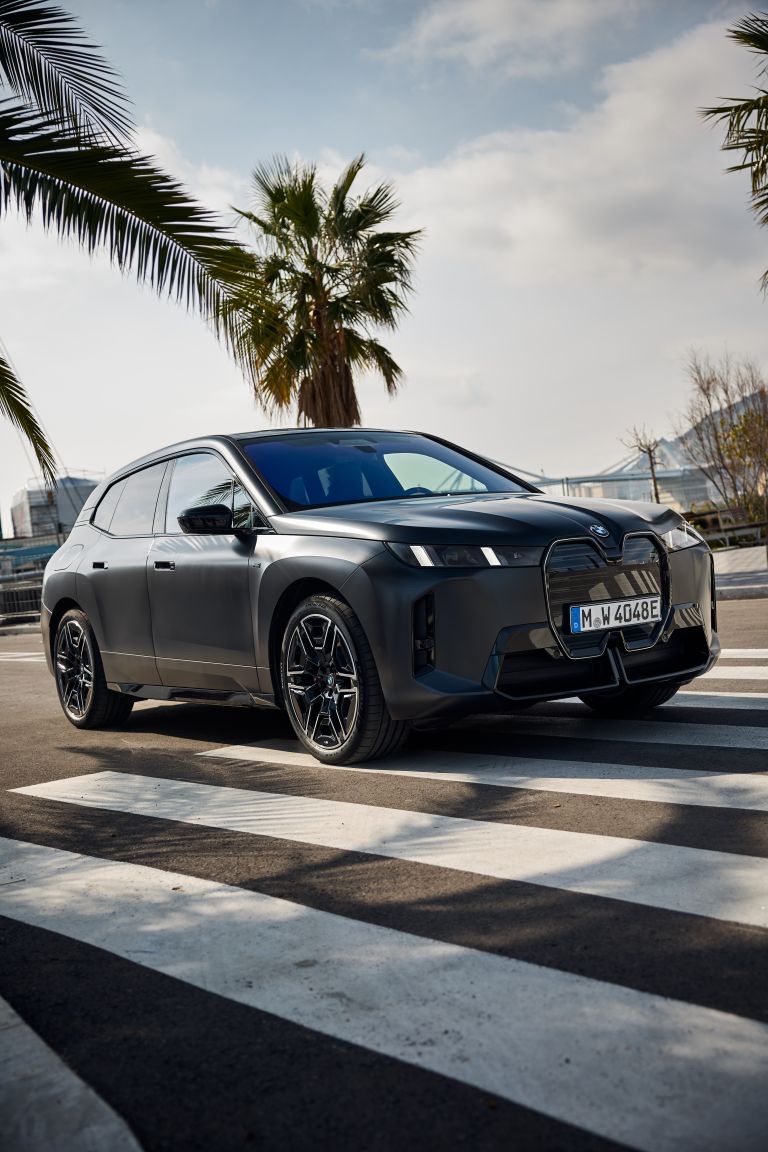

Photo BMW iX (i20)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
xDrive40 25 specifications
Specifications
Performance and consumption
| Top speed, km/h | 200 |
|---|---|
| Acceleration 0-100 km/h, s | 6.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 77 kWh |
|---|---|
| Engine type | Electric |
| Power, hp | 326 |
| Torque, Nm | 630 |
| Number of electric motors | 2 |
| EV mode | + |
| Plug-in charging support | + |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4953 |
| Width, mm | 2203 |
| Height, mm | 1695 |
| Wheelbase, mm | 3000 |
| Front track, mm | 1679 |
| Rear track, mm | 1709 |
| Kerb weight, kg | 2440 |
| Gross weight, kg | 3010 |
| Width without mirrors, mm | 1967 |
| Trunk capacity, L | 500 |
Transmission and drive
| Transmission | single-speed reduction gear |
|---|---|
| Transmission type | automated manual |
| Drive | All-wheel drive |
| Automatic transmission | + |
xDrive50 25 specifications
Specifications
Performance and consumption
| Top speed, km/h | 200 |
|---|---|
| Acceleration 0-100 km/h, s | 4.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 112 kWh |
|---|---|
| Engine type | Electric |
| Power, hp | 523 |
| Torque, Nm | 765 |
| Number of electric motors | 2 |
| EV mode | + |
| Plug-in charging support | + |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4953 |
| Width, mm | 2203 |
| Height, mm | 1695 |
| Wheelbase, mm | 3000 |
| Front track, mm | 1679 |
| Rear track, mm | 1709 |
| Kerb weight, kg | 2440 |
| Gross weight, kg | 3010 |
| Width without mirrors, mm | 1967 |
| Trunk capacity, L | 500 |
Transmission and drive
| Transmission | single-speed reduction gear |
|---|---|
| Transmission type | automated manual |
| Drive | All-wheel drive |
| Automatic transmission | + |
xDrive40 95 specifications
Specifications
Performance and consumption
| Top speed, km/h | 200 |
|---|---|
| Acceleration 0-100 km/h, s | 6.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 77 kWh |
|---|---|
| Engine type | Electric |
| Power, hp | 326 |
| Torque, Nm | 630 |
| Number of electric motors | 2 |
| EV mode | + |
| Plug-in charging support | + |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4953 |
| Width, mm | 2203 |
| Height, mm | 1695 |
| Wheelbase, mm | 3000 |
| Front track, mm | 1679 |
| Rear track, mm | 1709 |
| Kerb weight, kg | 2440 |
| Gross weight, kg | 3010 |
| Turning circle, m | 12.6 |
| Width without mirrors, mm | 1967 |
| Trunk capacity, L | 500 |
Transmission and drive
| Transmission | single-speed reduction gear |
|---|---|
| Transmission type | automated manual |
| Drive | All-wheel drive |
| Automatic transmission | + |
Suspension
| Front suspension type | Independent multi-link air suspension with anti-roll bar |
|---|---|
| Rear suspension type | Independent multi-link air suspension with anti-roll bar |
Brake system
| Front brakes | Ventilated disc |
|---|---|
| Rear brakes | Ventilated disc |
Steering
| Power steering | Electric power steering |
|---|
Equipment
Exterior
| Rear spoiler | + |
|---|
Comfort
| Cruise control | + |
|---|---|
| Paddle shifters | + |
| Tire pressure monitoring | + |
| Start/Stop engine button | + |
| Multifunction steering wheel | + |
| Keyless entry and start | + |
| Steering wheel position memory | + |
Interior
| Trip computer | + |
|---|---|
| Leather-trimmed interior elements | + |
| Leather/cloth interior trim | + |
Wheels
| Rim diameter | 20 |
|---|---|
| Rim type | Alloy |
| Spare wheel | Tire repair kit |
| Tires | 245/50R20 |
Climate and sound insulation
| Heated front seats | + |
|---|---|
| Heated steering wheel | + |
| Dual-zone climate control | + |
Off-road
| Hill descent control | + |
|---|---|
| Hill-start assist | + |
Seats
| Power front seats | + |
|---|---|
| Seat memory | + |
Headlights and lighting
| Xenon headlights | + |
|---|---|
| Front fog lights | + |
| Light sensor | + |
| Headlight leveling | + |
| LED headlights | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| CD player | + |
| Subwoofer | + |
| Navigation system | + |
| Audio system | Harman Kardon |
| Radio | + |
| AUX input | + |
| USB | + |
| Number of speakers | 18 |
Trunk
| Power tailgate | + |
|---|
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Heated rear window | + |
| Front power windows | + |
| Rear power windows | + |
| Panoramic roof | + |
| Power-adjustable side mirrors | + |
| Power-folding side mirrors | + |
Visibility and parking
| Rear-view camera | + |
|---|---|
| Front parking sensors | + |
| Rear parking sensors | + |
| Front view camera | + |
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Traction control | + |
| Vehicle stability control | + |
| Dynamic stability control | + |
| Collision mitigation braking system | + |
| Blind spot monitoring | + |
| Lane keeping assist | + |
Anti-theft systems
| Remote central locking | + |
|---|---|
| Immobilizer | + |
| Alarm system | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
xDrive50 95 specifications
Specifications
Performance and consumption
| Top speed, km/h | 200 |
|---|---|
| Acceleration 0-100 km/h, s | 4.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 112 kWh |
|---|---|
| Engine type | Electric |
| Power, hp | 523 |
| Torque, Nm | 765 |
| Number of electric motors | 2 |
| EV mode | + |
| Plug-in charging support | + |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4953 |
| Width, mm | 2203 |
| Height, mm | 1695 |
| Wheelbase, mm | 3000 |
| Front track, mm | 1679 |
| Rear track, mm | 1709 |
| Kerb weight, kg | 2440 |
| Gross weight, kg | 3010 |
| Turning circle, m | 12.6 |
| Width without mirrors, mm | 1967 |
| Trunk capacity, L | 500 |
Transmission and drive
| Transmission | single-speed reduction gear |
|---|---|
| Transmission type | automated manual |
| Drive | All-wheel drive |
| Automatic transmission | + |
Suspension
| Front suspension type | Independent multi-link air suspension with anti-roll bar |
|---|---|
| Rear suspension type | Independent multi-link air suspension with anti-roll bar |
Brake system
| Front brakes | Ventilated disc |
|---|---|
| Rear brakes | Ventilated disc |
Steering
| Power steering | Electric power steering |
|---|
Equipment
Exterior
| Rear spoiler | + |
|---|
Comfort
| Cruise control | + |
|---|---|
| Paddle shifters | + |
| Tire pressure monitoring | + |
| Start/Stop engine button | + |
| Multifunction steering wheel | + |
| Keyless entry and start | + |
| Steering wheel position memory | + |
Interior
| Trip computer | + |
|---|---|
| Leather-trimmed interior elements | + |
| Leather/cloth interior trim | + |
Wheels
| Rim diameter | 20 |
|---|---|
| Rim type | Alloy |
| Spare wheel | Tire repair kit |
| Tires | 245/50R20 |
Climate and sound insulation
| Heated front seats | + |
|---|---|
| Heated steering wheel | + |
| Dual-zone climate control | + |
Off-road
| Hill descent control | + |
|---|---|
| Hill-start assist | + |
Seats
| Power front seats | + |
|---|---|
| Seat memory | + |
Headlights and lighting
| Xenon headlights | + |
|---|---|
| Front fog lights | + |
| Light sensor | + |
| Headlight leveling | + |
| LED headlights | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| CD player | + |
| Subwoofer | + |
| Navigation system | + |
| Audio system | Harman Kardon |
| Radio | + |
| AUX input | + |
| USB | + |
| Number of speakers | 18 |
Trunk
| Power tailgate | + |
|---|
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Heated rear window | + |
| Front power windows | + |
| Rear power windows | + |
| Panoramic roof | + |
| Power-adjustable side mirrors | + |
| Power-folding side mirrors | + |
Visibility and parking
| Rear-view camera | + |
|---|---|
| Front parking sensors | + |
| Rear parking sensors | + |
| Front view camera | + |
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Traction control | + |
| Vehicle stability control | + |
| Dynamic stability control | + |
| Collision mitigation braking system | + |
| Blind spot monitoring | + |
| Lane keeping assist | + |
Anti-theft systems
| Remote central locking | + |
|---|---|
| Immobilizer | + |
| Alarm system | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
BMW iX (i20) questions
Short answers based on the specifications and photos available in this catalog.
What type of vehicle is the BMW iX (i20)?
The BMW iX is a premium all-electric, all-wheel-drive mid-size luxury SUV.
What is the battery size and range of the BMW iX?
The xDrive40 has a 77 kWh battery with up to 425 km of range, while the xDrive50 uses a 112 kWh battery for up to 630 km of WLTP range.
How fast can the BMW iX charge?
Both versions support DC fast charging up to 200 kW, which can replenish the battery from 10% to 80% in approximately 31 to 35 minutes.
Does the BMW iX have air suspension?
Yes, an adaptive air suspension system is available, often paired with rear-wheel steering for improved handling and ride comfort.
