BMW iX3 (G08) specifications and photos

The 2020 BMW iX3 (G08) is the brand's first fully electric midsize SUV, introduced as a zero-emission alternative to the traditional X3. This rear-wheel-drive crossover represents a significant expansion of BMW's electric lineup beyond the urban-focused i3 and the niche i8 sports car.

Years 2020
Body type suv
Trims 2
Photos 15

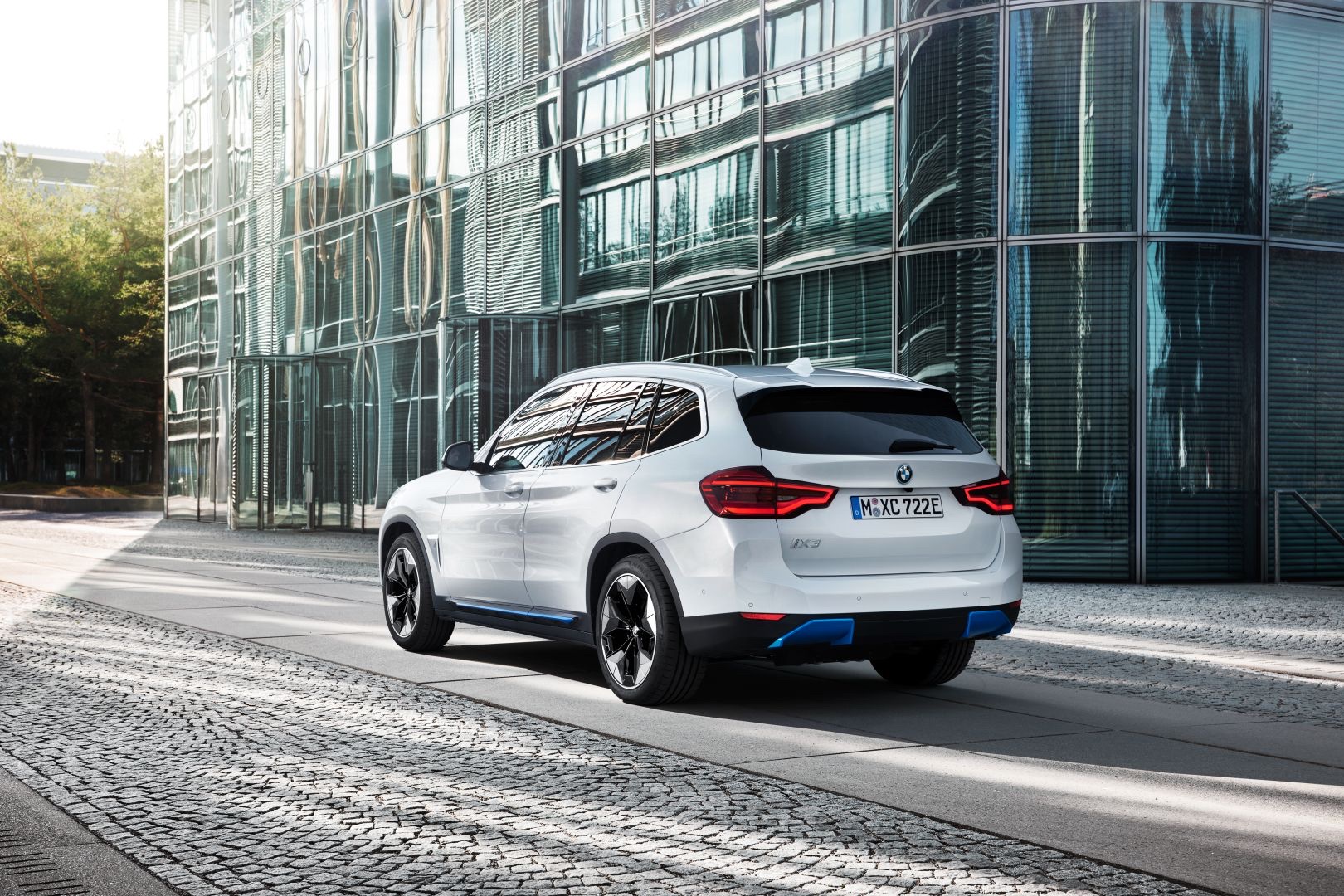

Rear three-quarter view of a white 2020 BMW iX3 SUV parked beside a glass building.
Overview

BMW iX3 (G08) at a glance

Quick model context before comparing photos and trim-level specifications.

Unveiled in July 2020, the first-generation BMW iX3 is built on the established X3 architecture but incorporates a fully electric drivetrain. Unlike purpose-built electric platforms, the iX3 retains the familiar proportions and central tunnel of its combustion-engine counterpart, making the transition to EV power feel straightforward for current BMW owners. The powertrain integrates the electric motor, electronics, and transmission within a single housing on the rear subframe. A low-mounted battery pack drops the vehicle's center of gravity by 7.5 centimeters compared to the standard X3, enhancing stability. It is aimed at buyers who want a premium electric SUV without compromising the conventional styling and practicality associated with the brand's traditional models.

  • Power: 286 hp
  • Transmissions: single-speed reduction gear
  • Seating: 5 seats
Research hub

Photos, trims and specifications for BMW iX3 (G08)

This model page brings gallery images, trim comparison, and detailed technical data together for the 2020 generation.

Open photo gallery 15 images Compare trims 2 configurations View detailed specs Technical data Explore related pages BMW and similar models
Model guide

BMW iX3 (G08) overview

Editorial context for design, cabin, performance, practicality, and buyer notes.

Design

The exterior of the iX3 stays highly faithful to the standard X3, with model-specific visual cues denoting its electric nature. The traditional kidney grille is closed off to improve aerodynamics and features bright blue surrounds. Blue accents continue on the brand logos and the specially designed rear diffuser. The front and rear bumpers have been reprofiled to reduce drag, while the side profile is distinguished by unique sill plates and aerodynamic 19-inch or 20-inch alloy wheels that help maximize driving efficiency.

Interior

Inside, the cabin carries over the familiar layout of the X3 but introduces subtle electric-themed detailing. Blue accents appear on the steering wheel emblem, gear selector, and the dedicated start button, which features a startup sound composed by Hans Zimmer. The technology suite includes a 12.3-inch digital instrument cluster and a 10.25-inch central display with EV-specific readouts. Passenger space remains identical to the standard X3, featuring a 2,864 mm wheelbase, rear armrests, and independent climate control for rear occupants.

Performance

Power comes from a rear-mounted electric motor producing 286 horsepower and 400 Nm of torque. This setup allows the rear-wheel-drive SUV to accelerate from 0 to 100 km/h in 6.8 seconds, with an electronically limited top speed of 180 km/h. It utilizes an 80 kWh lithium-ion battery (74 kWh usable capacity), providing an estimated range of 460 kilometers on the WLTP cycle. The iX3 supports 150 kW DC fast charging, allowing a recharge to 80 percent in approximately 34 minutes. Drivers can choose from multiple recuperation settings, including an adaptive mode and a dedicated B mode for one-pedal driving.

Practicality

The iX3 remains highly practical for everyday family use. Despite housing a large underfloor battery pack, cargo capacity is generous, offering 510 liters behind the rear seats. The rear bench retains its 40:20:40 split-folding capability, expanding total storage volume to 1,560 liters when fully folded flat. Although the interior space is largely uncompromised, buyers should note that the physical central tunnel in the rear footwell remains due to the shared platform architecture.

Safety and tech

Standard European base models come well-equipped with the Driving Assistant Professional suite, providing comprehensive active safety features. Technology highlights include standard LED lighting, front and rear parking sensors, and a power-operated tailgate. The infotainment system supports wireless Apple CarPlay and Android Auto, integrated navigation, and a wireless smartphone charging pad. Adaptive suspension is also fitted as standard equipment to balance ride comfort and dynamics.

Buyer notes

When evaluating the iX3, buyers should note that it is exclusively rear-wheel drive, lacking the xDrive all-wheel-drive system found on other X3 variants. Its shared platform means it doesn't offer a front trunk, but the familiar interior and physical controls will appeal to those who prefer conventional cabin layouts over minimalist EV designs. Regional availability and specific trim features will vary by market.

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 286 hp
Seating 5 seats
Transmissions single-speed reduction gear
Trim / modification Engine Power Seats Transmission
80 kWh (286 hp) - 286 hp 5 single-speed reduction gear
80 kWh - 286 hp 5 single-speed reduction gear

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

80 kWh (286 hp) 80 kWh
80 kWh (286 hp) 27 specifications

Specifications

Performance and consumption

Top speed, km/h 180
Acceleration 0-100 km/h, s 6.8
Emissions standard Euro VI

Engine

Engine 80 kWh
Engine code 232 Ah
Engine type Electric
Power, hp 286
RPM at max power 6000
Torque, Nm 400
RPM at max torque 17000
Number of electric motors 1
EV mode +

Dimensions

Seats 5
Length, mm 4734
Width, mm 2138
Height, mm 1668
Wheelbase, mm 2864
Kerb weight, kg 2185
Gross weight, kg 2725
Turning circle, m 12.1
Ground clearance, mm 179
Width without mirrors, mm 1891
Trunk capacity, L 510

Transmission and drive

Transmission single-speed reduction gear
Transmission type automated manual
Drive Rear-wheel drive
Automatic transmission +
80 kWh 81 specifications

Specifications

Performance and consumption

Top speed, km/h 180
Acceleration 0-100 km/h, s 6.8
Emissions standard Euro VI

Engine

Engine 80 kWh
Engine code 232 Ah
Engine type Electric
Power, hp 286
RPM at max power 6000
Torque, Nm 400
RPM at max torque 17000
Number of electric motors 1
EV mode +

Dimensions

Seats 5
Length, mm 4734
Width, mm 2138
Height, mm 1668
Wheelbase, mm 2864
Kerb weight, kg 2185
Gross weight, kg 2725
Turning circle, m 12.1
Ground clearance, mm 179
Width without mirrors, mm 1891
Trunk capacity, L 510

Transmission and drive

Transmission single-speed reduction gear
Transmission type automated manual
Drive Rear-wheel drive
Automatic transmission +

Suspension

Front suspension type Independent with anti-roll bar
Rear suspension type Independent multi-link with anti-roll bar

Brake system

Front brakes Disc
Rear brakes Disc

Steering

Power steering Electric power steering

Equipment

Exterior

Rear spoiler +

Comfort

Cruise control +
Paddle shifters +
Tire pressure monitoring +
Start/Stop engine button +
Multifunction steering wheel +
Adjustable steering column +

Interior

Trip computer +
Leather-trimmed interior elements +
Leather interior +

Wheels

Rim diameter 18
Rim type Alloy
Tires 225/60R18

Technologies

Adjustable speed limiter +

Climate and sound insulation

Heated front seats +

Off-road

Hill descent control +
Hill-start assist +

Seats

Child seat anchors (LATCH/Isofix) +

Headlights and lighting

Xenon headlights +
Front fog lights +
Light sensor +
Headlight leveling +
Headlight washers +

Multimedia and instruments

Bluetooth hands-free +
CD player +
Subwoofer +
Navigation system +

Trunk

Power tailgate +

Glass, mirrors and sunroof

Rain sensor +
Heated side mirrors +
Heated rear window +
Front power windows +
Rear power windows +
Power-adjustable side mirrors +

Visibility and parking

Rear-view camera +
Front parking sensors +
Rear parking sensors +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic stability control +
Traction control +
Blind spot monitoring +
Lane keeping assist +

Anti-theft systems

Immobilizer +
Alarm system +
Central locking +

Airbags

Driver airbag +
Passenger airbag +
Side airbags +
Curtain airbags +
FAQ

BMW iX3 (G08) questions

Short answers based on the specifications and photos available in this catalog.

What body style is the 2020 BMW iX3?

The BMW iX3 is a five-door midsize premium SUV based on the conventional X3 platform.

What is the electric range of the iX3?

It is equipped with an 80 kWh battery that provides an estimated driving range of 460 km based on the WLTP cycle.

Is the BMW iX3 all-wheel drive?

No, the 2020 iX3 is offered exclusively with a rear-wheel-drive setup, utilizing a single electric motor mounted on the rear axle.

How practical is the iX3 for cargo?

It offers 510 liters of boot space, which can be expanded to 1,560 liters by folding down the 40:20:40 split rear seats.

How fast can the iX3 charge?

The vehicle supports up to 150 kW DC fast charging, which can replenish the battery to 80 percent in around 34 minutes.
