BMW X1 (U11) specifications and photos

The BMW X1 (U11) is a premium compact crossover that debuted in the spring of 2022, marking the third generation of the popular model line. It introduces updated styling, larger dimensions, and advanced cabin technology while maintaining the versatility expected of a small family SUV.

Years 2022
Body type suv
Trims 4
Photos 18

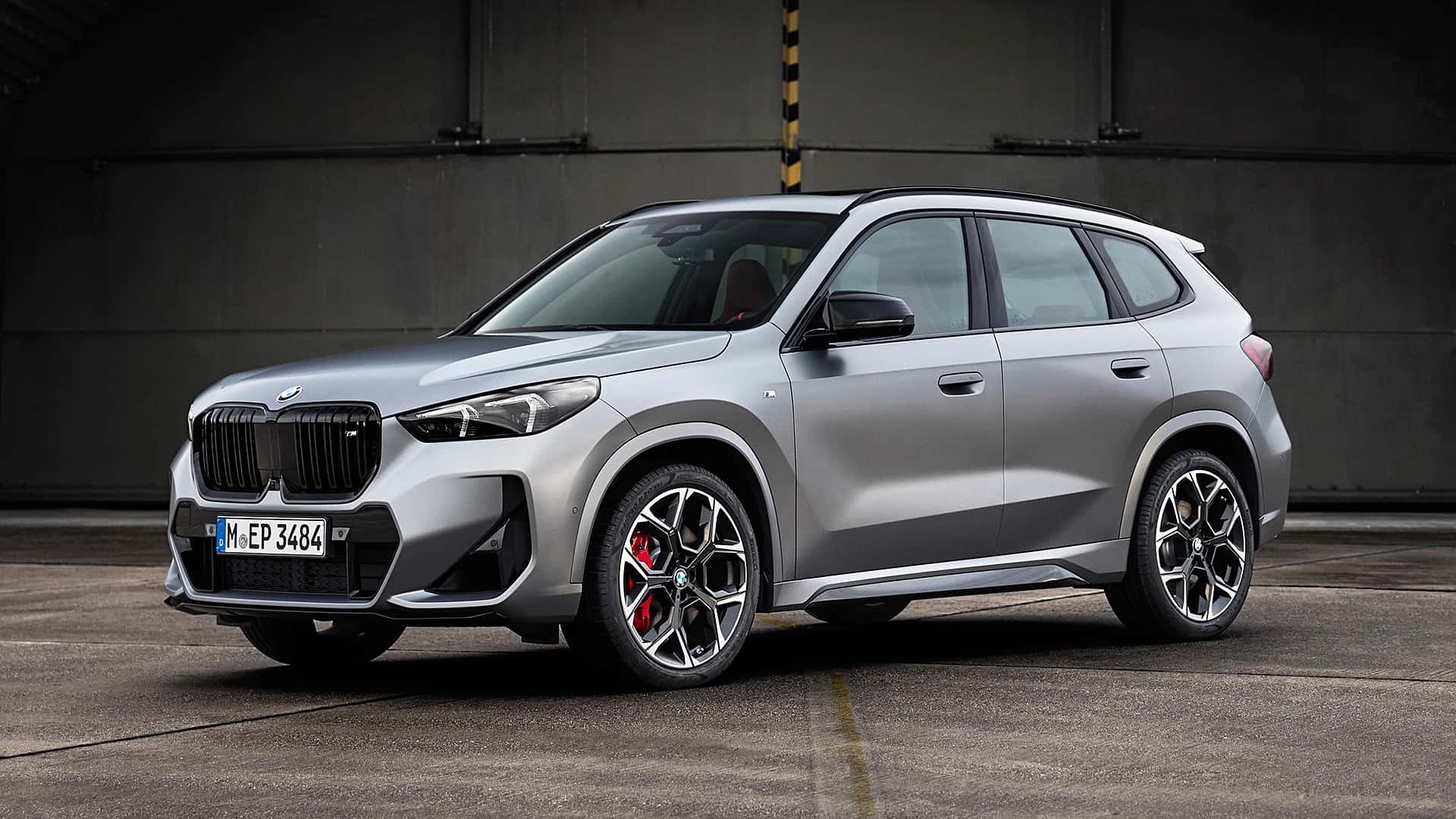

Three-quarter front view of a silver 2022 BMW X1 SUV parked outdoors in front of a structure.
Overview

BMW X1 (U11) at a glance

Quick model context before comparing photos and trim-level specifications.

Codenamed U11, the third-generation BMW X1 replaces its predecessor (the F48) and brings significant structural and technological updates. Built on the UKL platform, it retains a MacPherson strut front and independent rear suspension layout, but grows notably in size to offer better interior room and road presence. The footprint has expanded, adding 53 mm in length, 24 mm in width, and 44 mm in height, alongside a lengthened wheelbase. These changes push the compact SUV closer to mid-size territory, providing a more substantial feel. Available in both front-wheel-drive (sDrive) and all-wheel-drive (xDrive) configurations, the U11 appeals to buyers seeking a premium urban crossover with modern digital features and practical daily utility.

  • Power: 136-218 hp
  • Engine displacement: 1499-1998 cc
  • Transmissions: 7-Steptronic
  • Seating: 5 seats
Research hub

Photos, trims and specifications for BMW X1 (U11)

This model page brings gallery images, trim comparison, and detailed technical data together for the 2022 generation.

Open photo gallery 18 images Compare trims 4 configurations View detailed specs 1499-1998 cc Explore related pages BMW and similar models
Running costs

Estimate fuel cost

Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.

Cost per 100 km -
Monthly cost -
Yearly cost -

Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.

Model guide

BMW X1 (U11) overview

Editorial context for design, cabin, performance, practicality, and buyer notes.

Design

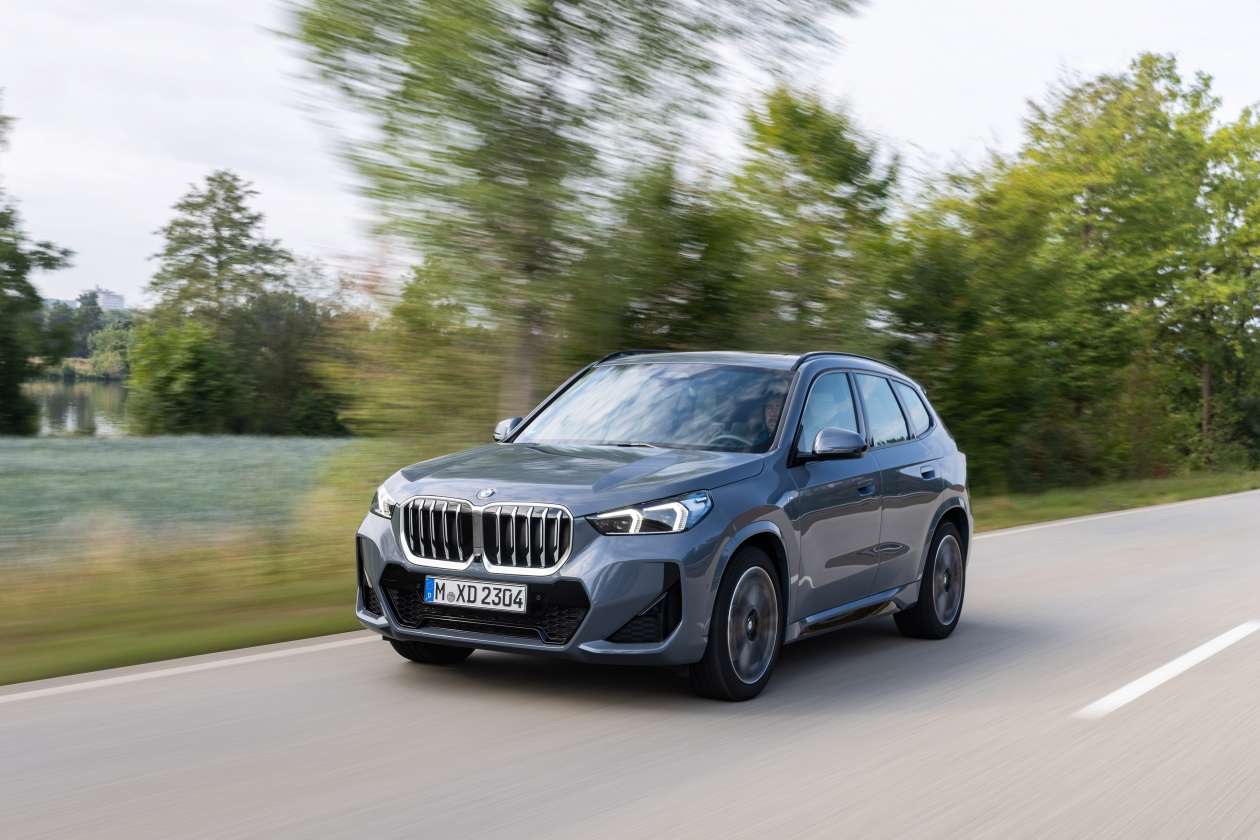

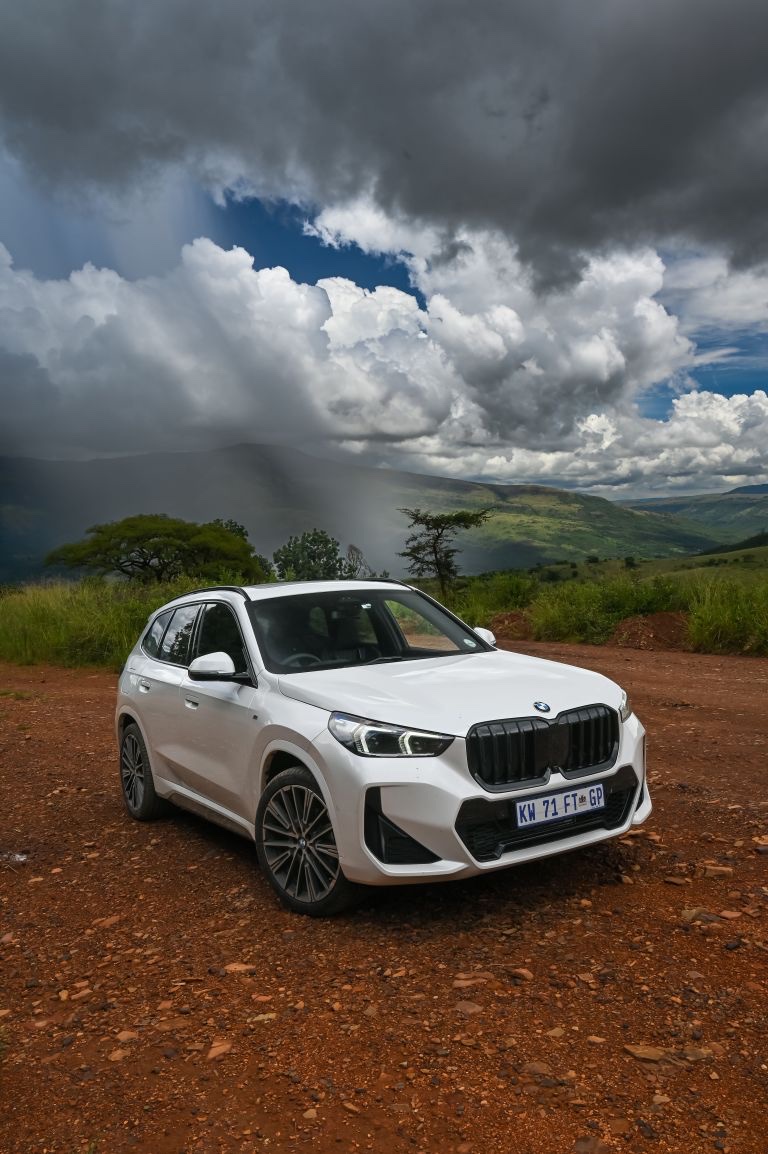

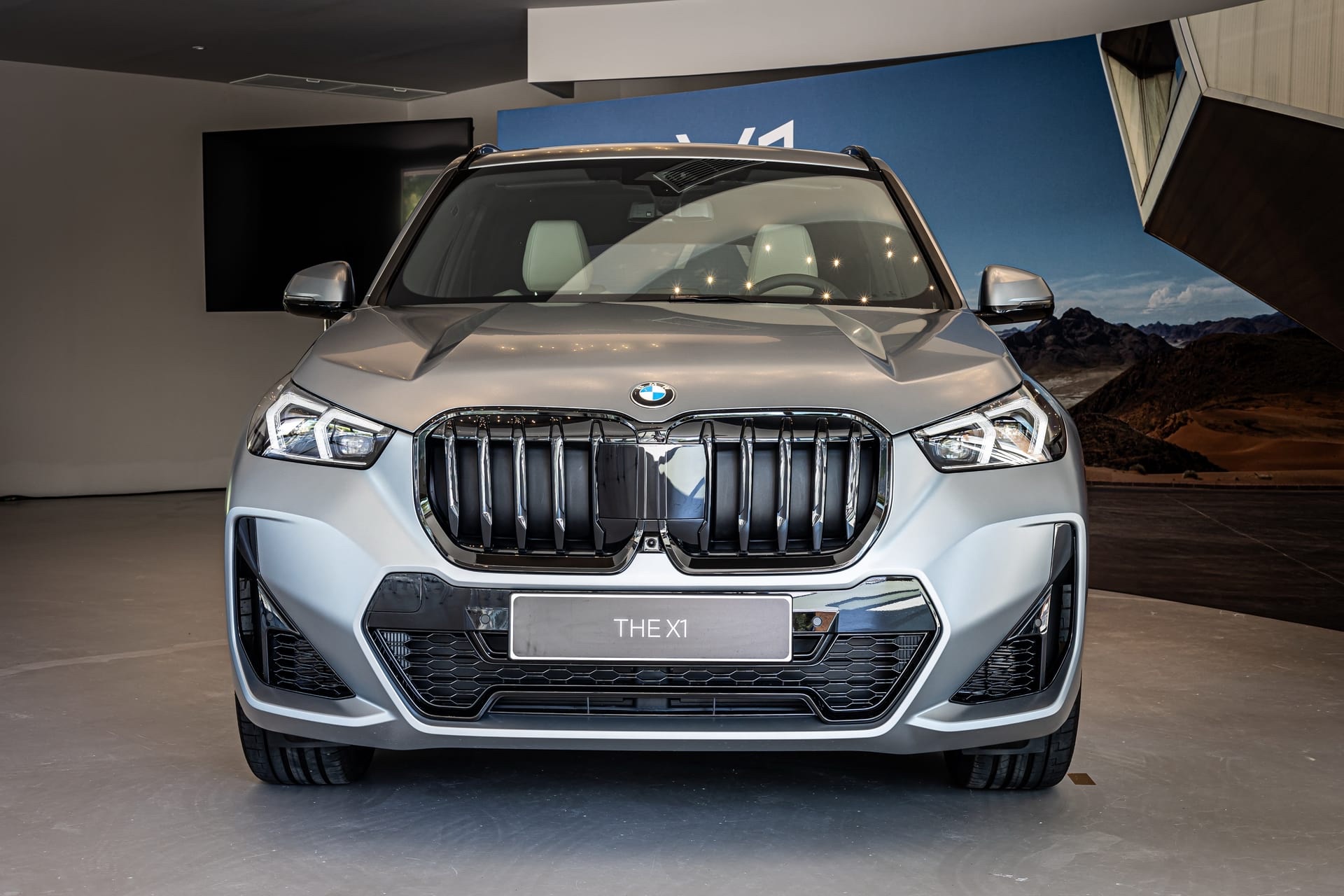

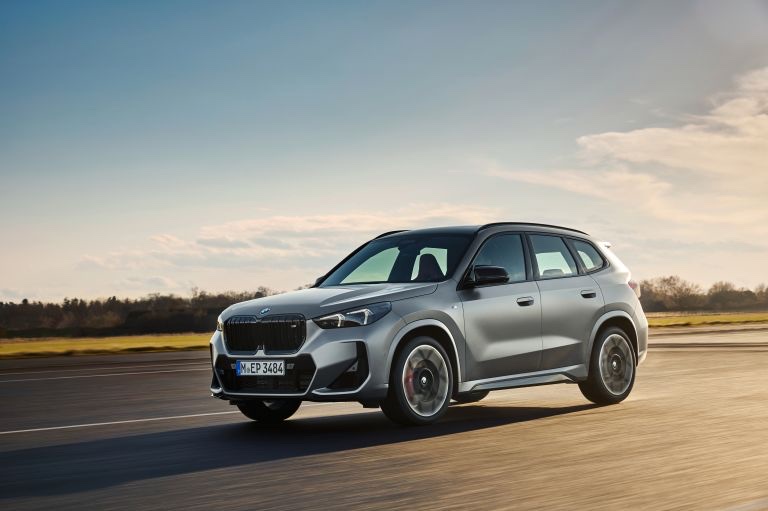

The exterior of the U11 generation preserves the familiar X1 silhouette but adopts more aggressive and contemporary styling cues. The front fascia is defined by a significantly larger kidney grille and distinct fang-like elements integrated into the bumper. Flush-fitting door handles improve aerodynamics and give the profile a cleaner look, while the lighting signatures have been sharpened with new internal LED structures. The wider track and increased overall height give the vehicle a more planted, confident stance on the road.

Interior

Inside the cabin, the X1 undergoes a radical transformation, highlighted by the adoption of BMW's iDrive 8 system. The traditional dashboard is replaced by a sweeping curved display that integrates both the digital instrument cluster and the primary infotainment screen. Physical buttons have been drastically reduced, with most functions now managed via touch interfaces or voice commands. The center console has been redesigned for a more open feel. Front occupants benefit from newly designed, highly adjustable seats, with sport seats available as an option. Rear passengers also gain flexibility with an optional sliding second-row bench that moves up to 13 centimeters.

Performance

At launch, the X1 is offered with a mix of turbocharged petrol and diesel engines, all paired to a seven-speed dual-clutch automatic transmission. The entry-level sDrive18i features a 1.5-liter three-cylinder engine making 136 horsepower, while the front-drive sDrive18d uses a 2.0-liter diesel with 150 horsepower. For more power and all-wheel drive, the xDrive23i and xDrive23d deliver 218 hp and 211 hp, respectively. These higher-tier variants also incorporate a 48-volt mild-hybrid system, utilizing a 19-horsepower starter-generator to enhance efficiency and provide smoother low-speed operation.

Practicality

The increased exterior dimensions translate directly into enhanced everyday utility. Cargo capacity ranges from 500 liters with the rear seats in place up to a generous 1,600 liters when folded down. This makes the U11 highly capable for family duties, road trips, and daily errands. The optional sliding rear seat further optimizes the balance between passenger legroom and luggage space depending on the immediate need.

Safety and tech

The technological centerpiece of the new X1 is the iDrive 8 operating system and its prominent curved display. This interface houses the vehicle's navigation, media, and connectivity features, operating largely without physical switchgear. While specific driver assistance systems vary by market and trim, the U11 supports a modern suite of active safety technologies typical of BMW's current lineup, aided by the updated digital architecture.

Buyer notes

When comparing trims, shoppers should consider whether they need the all-weather capability of the xDrive system or if the front-wheel-drive sDrive models suffice. The mild-hybrid technology on the 23i and 23d models offers a slight advantage in urban efficiency and refinement. Buyers prioritizing passenger comfort over maximum cargo space should look for models equipped with the optional sliding rear bench, as it significantly enhances interior flexibility.

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 136-218 hp
Engine displacement 1499-1998 cc
Seating 5 seats
Transmissions 7-Steptronic
Trim / modification Engine Power Seats Transmission
sDrive18i 1499 cc 136 hp 5 7-Steptronic
xDrive23i 1998 cc 218 hp 5 7-Steptronic
sDrive18d 1995 cc 150 hp 5 7-Steptronic
xDrive23d 1995 cc 211 hp 5 7-Steptronic

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

sDrive18i xDrive23i sDrive18d xDrive23d
sDrive18i 34 specifications

Specifications

Performance and consumption

Fuel consumption combined, L/100 km 7
Top speed, km/h 208
Acceleration 0-100 km/h, s 9.2
Emissions standard Euro VI

Engine

Engine 1.5i
Engine code B38
Engine type Internal combustion engine
Fuel type Gasoline
Engine displacement, cc 1499
Cylinder layout Inline
Number of cylinders 3
Valves 12
Turbocharger +
Power, hp 136
RPM at max power 4400-6500
Torque, Nm 230
RPM at max torque 1500-4000

Dimensions

Seats 5
Length, mm 4500
Width, mm 2104
Height, mm 1642
Wheelbase, mm 2692
Front track, mm 1592
Rear track, mm 1593
Kerb weight, kg 1730
Gross weight, kg 2220
Fuel tank capacity, L 45
Width without mirrors, mm 1845
Trunk capacity, L 500

Transmission and drive

Transmission 7-Steptronic
Transmission type 2-speed automated manual
Drive Front-wheel drive
Number of gears 7
Automatic transmission +
xDrive23i 34 specifications

Specifications

Performance and consumption

Fuel consumption combined, L/100 km 7.2
Top speed, km/h 233
Acceleration 0-100 km/h, s 7.1
Emissions standard Euro VI

Engine

Engine 2.0i
Engine code B48
Engine type Internal combustion engine
Fuel type Gasoline
Engine displacement, cc 1998
Cylinder layout Inline
Number of cylinders 4
Valves 16
Turbocharger +
Power, hp 218
RPM at max power 5000-6500
Torque, Nm 360
RPM at max torque 1500-400

Dimensions

Seats 5
Length, mm 4500
Width, mm 2104
Height, mm 1642
Wheelbase, mm 2692
Front track, mm 1592
Rear track, mm 1593
Kerb weight, kg 1730
Gross weight, kg 2220
Fuel tank capacity, L 45
Width without mirrors, mm 1845
Trunk capacity, L 500

Transmission and drive

Transmission 7-Steptronic
Transmission type 2-speed automated manual
Drive All-wheel drive
Number of gears 7
Automatic transmission +
sDrive18d 35 specifications

Specifications

Performance and consumption

Fuel consumption combined, L/100 km 5.5
Top speed, km/h 210
Acceleration 0-100 km/h, s 8.9
Emissions standard Euro VI

Engine

Engine 2.0d
Engine code B47D20
Engine type Internal combustion engine
Fuel type Diesel
Engine displacement, cc 1995
Cylinder layout Inline
Number of cylinders 4
Valves 16
Turbocharger +
Compression ratio 16.5:1
Power, hp 150
RPM at max power 4000
Torque, Nm 360
RPM at max torque 1500-2250

Dimensions

Seats 5
Length, mm 4500
Width, mm 2104
Height, mm 1642
Wheelbase, mm 2692
Front track, mm 1592
Rear track, mm 1593
Kerb weight, kg 1730
Gross weight, kg 2220
Fuel tank capacity, L 45
Width without mirrors, mm 1845
Trunk capacity, L 500

Transmission and drive

Transmission 7-Steptronic
Transmission type 2-speed automated manual
Drive Front-wheel drive
Number of gears 7
Automatic transmission +
xDrive23d 34 specifications

Specifications

Performance and consumption

Fuel consumption combined, L/100 km 5.3
Top speed, km/h 225
Acceleration 0-100 km/h, s 7.4
Emissions standard Euro VI

Engine

Engine 2.0d
Engine code B47
Engine type Internal combustion engine
Fuel type Diesel
Engine displacement, cc 1995
Cylinder layout Inline
Number of cylinders 4
Valves 16
Turbocharger +
Power, hp 211
RPM at max power 4000
Torque, Nm 400
RPM at max torque 1500-2750

Dimensions

Seats 5
Length, mm 4500
Width, mm 2104
Height, mm 1642
Wheelbase, mm 2692
Front track, mm 1592
Rear track, mm 1593
Kerb weight, kg 1730
Gross weight, kg 2220
Fuel tank capacity, L 45
Width without mirrors, mm 1845
Trunk capacity, L 500

Transmission and drive

Transmission 7-Steptronic
Transmission type 2-speed automated manual
Drive All-wheel drive
Number of gears 7
Automatic transmission +
FAQ

BMW X1 (U11) questions

Short answers based on the specifications and photos available in this catalog.

What generation is the 2022 BMW X1?

The 2022 BMW X1, codenamed U11, represents the third generation of the model.

Is the new X1 larger than the previous generation?

Yes, the U11 is 53 mm longer, 24 mm wider, and 44 mm taller than its predecessor, with a longer wheelbase for improved interior space.

What are the engine options for the U11 X1?

Options include a 1.5-liter three-cylinder petrol (sDrive18i), a 2.0-liter four-cylinder petrol (xDrive23i), and 2.0-liter four-cylinder diesels (sDrive18d and xDrive23d). The higher-output models feature a mild-hybrid system.

Does the X1 have a touchscreen?

Yes, it features BMW's iDrive 8 system, which integrates the digital gauge cluster and a large touchscreen into a single curved panel, minimizing physical buttons.

How practical is the cargo area?

The trunk offers 500 liters of standard volume, which can be expanded to 1,600 liters with the rear seats folded, making it highly versatile for a compact SUV.
