BMW X1 (F48) specifications and photos

BMW X1 (F48) specifications are shown with trim options, key technical data, and a model photo gallery. Compare 13 configurations by engine size, power, seating, and transmission. The gallery includes 49 photos for visual reference.

Years 2019
Body type suv
Trims 13
Photos 49

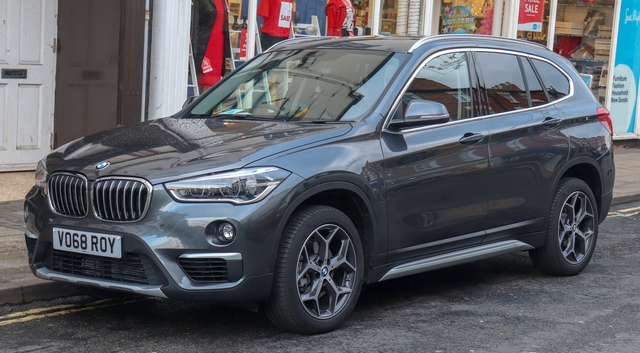

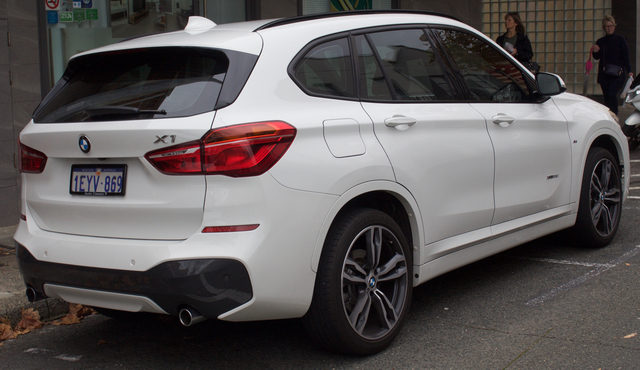

BMW X1 (F48) 2019 photo
Overview

BMW X1 (F48) at a glance

Quick model context before comparing photos and trim-level specifications.

Use this BMW X1 (F48) page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 140-231 hp and 1499-1998 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 140-231 hp
  • Engine displacement: 1499-1998 cc
  • Transmissions: 6, 7, 8
  • Seating: 5 seats
Research hub

Photos, trims and specifications for BMW X1 (F48)

This model page brings gallery images, trim comparison, and detailed technical data together for the 2019 generation.

Open photo gallery 49 images Compare trims 13 configurations View detailed specs 1499-1998 cc Explore related pages BMW and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 140-231 hp
Engine displacement 1499-1998 cc
Seating 5 seats
Transmissions 6, 7, 8
Trim / modification Engine Power Seats Transmission
sDrive18i 1499 cc 140 hp 5 6
sDrive18i 1499 cc 140 hp 5 7
sDrive20i 1998 cc 192 hp 5 7
xDrive20i 1998 cc 192 hp 5 8
xDrive25i 1998 cc 231 hp 5 8
sDrive18d 1995 cc 150 hp 5 6
xDrive18d 1995 cc 150 hp 5 6
sDrive18d 1995 cc 150 hp 5 8
xDrive18d 1995 cc 150 hp 5 8
sDrive20d 1995 cc 190 hp 5 8
xDrive20d 1995 cc 190 hp 5 8
xDrive25d 1995 cc 231 hp 5 8
xDrive25e 1499 cc 220 hp 5 6

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

sDrive18i sDrive18i sDrive20i xDrive20i xDrive25i sDrive18d xDrive18d sDrive18d xDrive18d sDrive20d xDrive20d xDrive25d xDrive25e
sDrive18i 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1499
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 140
Torque, Nm 220
RPM at max torque 1800-4200
Engine 1.5i
RPM at max power 4600-6500
Turbo +
Engine code B38A15M1

Dimensions

Seats 5
Length mm 4447
Width 2060
Height mm 1598
Wheelbase mm 2670
Front track, mm 1561
Rear track, mm 1562
Kerb weight, kg 1505
Trunk capacity, L 505
Fuel tank, l 51
Turning circle, m 11.4
Gross weight, kg 2025
Width (without mirrors) mm 1821

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.3
Fuel consumption (urban), l. 100 km 5.1
Fuel consumption (combined), l. 100 km 5.9
Acceleration (0-100 km/h), s 9.7
The maximum speed, km / h. 205
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer BMW
sDrive18i 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1499
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 140
Torque, Nm 220
RPM at max torque 1800-4200
Engine 1.5i
RPM at max power 4600-6500
Turbo +
Engine code B38A15M1

Dimensions

Seats 5
Length mm 4447
Width 2060
Height mm 1598
Wheelbase mm 2670
Front track, mm 1561
Rear track, mm 1562
Kerb weight, kg 1505
Trunk capacity, L 505
Fuel tank, l 51
Turning circle, m 11.4
Gross weight, kg 2025
Width (without mirrors) mm 1821

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.9
Fuel consumption (urban), l. 100 km 4.9
Fuel consumption (combined), l. 100 km 5.7
Acceleration (0-100 km/h), s 9.7
The maximum speed, km / h. 203
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-Steptronic
Gearbox 2 clutch robot
sDrive20i 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 192
Torque, Nm 280
RPM at max torque 1350-4600
Engine 2.0i
Compression 11
RPM at max power 5000-6000
Turbo +
Engine code B48A20M1

Dimensions

Seats 5
Length mm 4447
Width 2060
Height mm 1598
Wheelbase mm 2670
Front track, mm 1561
Rear track, mm 1562
Kerb weight, kg 1505
Trunk capacity, L 505
Fuel tank, l 51
Turning circle, m 11.4
Gross weight, kg 2025
Width (without mirrors) mm 1821

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.1
Fuel consumption (urban), l. 100 km 5.4
Fuel consumption (combined), l. 100 km 6.1
Acceleration (0-100 km/h), s 7.7
The maximum speed, km / h. 226
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-Steptronic
Gearbox 2 clutch robot
xDrive20i 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 192
Torque, Nm 280
RPM at max torque 1350-4600
Engine 2.0i
Compression 11
RPM at max power 5000-6000
Turbo +
Engine code B48A20M1

Dimensions

Seats 5
Length mm 4447
Width 2060
Height mm 1598
Wheelbase mm 2670
Front track, mm 1561
Rear track, mm 1562
Kerb weight, kg 1505
Trunk capacity, L 505
Fuel tank, l 51
Turning circle, m 11.4
Gross weight, kg 2025
Width (without mirrors) mm 1821

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.7
Fuel consumption (urban), l. 100 km 6.1
Fuel consumption (combined), l. 100 km 6.7
Acceleration (0-100 km/h), s 7.4
The maximum speed, km / h. 223
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
xDrive25i 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 231
Torque, Nm 350
RPM at max torque 1250-5000
Engine 2.0i
Compression 10.2
RPM at max power 5000
Turbo +
Engine code B48B20O0

Dimensions

Seats 5
Length mm 4447
Width 2060
Height mm 1598
Wheelbase mm 2670
Front track, mm 1561
Rear track, mm 1562
Kerb weight, kg 1505
Trunk capacity, L 505
Fuel tank, l 51
Turning circle, m 11.4
Gross weight, kg 2025
Width (without mirrors) mm 1821

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.8
Fuel consumption (urban), l. 100 km 6.2
Fuel consumption (combined), l. 100 km 6.8
Acceleration (0-100 km/h), s 6.5
The maximum speed, km / h. 235
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
sDrive18d 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1995
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 350
RPM at max torque 1750-2500
Engine 2.0d
RPM at max power 4000
Turbo +
Engine code B47C20U0

Dimensions

Seats 5
Length mm 4447
Width 2060
Height mm 1598
Wheelbase mm 2670
Front track, mm 1561
Rear track, mm 1562
Kerb weight, kg 1505
Trunk capacity, L 505
Fuel tank, l 51
Turning circle, m 11.4
Gross weight, kg 2025
Width (without mirrors) mm 1821

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.3
Fuel consumption (urban), l. 100 km 4.2
Fuel consumption (combined), l. 100 km 4.6
Acceleration (0-100 km/h), s 9.3
The maximum speed, km / h. 205
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer BMW
xDrive18d 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1995
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 350
RPM at max torque 1750-2500
Engine 2.0d
RPM at max power 4000
Turbo +
Engine code B47C20U0

Dimensions

Seats 5
Length mm 4447
Width 2060
Height mm 1598
Wheelbase mm 2670
Front track, mm 1561
Rear track, mm 1562
Kerb weight, kg 1505
Trunk capacity, L 505
Fuel tank, l 51
Turning circle, m 11.4
Gross weight, kg 2025
Width (without mirrors) mm 1821

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.6
Fuel consumption (urban), l. 100 km 4.7
Fuel consumption (combined), l. 100 km 5
Acceleration (0-100 km/h), s 9.3
The maximum speed, km / h. 204
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Full
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer BMW
sDrive18d 39 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1995
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 350
RPM at max torque 1750-2500
Engine 2.0d
RPM at max power 4000
Turbo +
Engine code B47C20U0

Dimensions

Seats 5
Length mm 4447
Width 2060
Height mm 1598
Wheelbase mm 2670
Front track, mm 1561
Rear track, mm 1562
Kerb weight, kg 1505
Trunk capacity, L 505
Fuel tank, l 51
Turning circle, m 11.4
Gross weight, kg 2025
Width (without mirrors) mm 1821

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.3
Fuel consumption (urban), l. 100 km 4.2
Fuel consumption (combined), l. 100 km 4.6
Acceleration (0-100 km/h), s 9.4
The maximum speed, km / h. 205
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
xDrive18d 39 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1995
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 150
Torque, Nm 350
RPM at max torque 1750-2500
Engine 2.0d
RPM at max power 4000
Turbo +
Engine code B47C20U0

Dimensions

Seats 5
Length mm 4447
Width 2060
Height mm 1598
Wheelbase mm 2670
Front track, mm 1561
Rear track, mm 1562
Kerb weight, kg 1505
Trunk capacity, L 505
Fuel tank, l 51
Turning circle, m 11.4
Gross weight, kg 2025
Width (without mirrors) mm 1821

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.5
Fuel consumption (urban), l. 100 km 4.6
Fuel consumption (combined), l. 100 km 4.9
Acceleration (0-100 km/h), s 9.4
The maximum speed, km / h. 204
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
sDrive20d 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1995
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 190
Torque, Nm 400
RPM at max torque 1750-2500
Engine 2.0d
Compression 16.5
RPM at max power 4000
Turbo +
Engine code B47D20

Dimensions

Seats 5
Length mm 4447
Width 2060
Height mm 1598
Wheelbase mm 2670
Front track, mm 1561
Rear track, mm 1562
Kerb weight, kg 1505
Trunk capacity, L 505
Fuel tank, l 51
Turning circle, m 11.4
Gross weight, kg 2025
Width (without mirrors) mm 1821

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.3
Fuel consumption (urban), l. 100 km 4.4
Fuel consumption (combined), l. 100 km 4.7
Acceleration (0-100 km/h), s 7.9
The maximum speed, km / h. 222
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
xDrive20d 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1995
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 190
Torque, Nm 400
RPM at max torque 1750-2500
Engine 2.0d
Compression 16.5
RPM at max power 4000
Turbo +
Engine code B47D20

Dimensions

Seats 5
Length mm 4447
Width 2060
Height mm 1598
Wheelbase mm 2670
Front track, mm 1561
Rear track, mm 1562
Kerb weight, kg 1505
Trunk capacity, L 505
Fuel tank, l 51
Turning circle, m 11.4
Gross weight, kg 2025
Width (without mirrors) mm 1821

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.6
Fuel consumption (urban), l. 100 km 4.7
Fuel consumption (combined), l. 100 km 5
Acceleration (0-100 km/h), s 7.8
The maximum speed, km / h. 219
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
xDrive25d 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1995
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 231
Torque, Nm 450
RPM at max torque 1750-4000
Engine 2.0d
Compression 16.5
RPM at max power 4000
Turbo +
Engine code B47C20T0

Dimensions

Seats 5
Length mm 4447
Width 2060
Height mm 1598
Wheelbase mm 2670
Front track, mm 1561
Rear track, mm 1562
Kerb weight, kg 1505
Trunk capacity, L 505
Fuel tank, l 51
Turning circle, m 11.4
Gross weight, kg 2025
Width (without mirrors) mm 1821

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.9
Fuel consumption (urban), l. 100 km 4.8
Fuel consumption (combined), l. 100 km 5.2
Acceleration (0-100 km/h), s 6.6
The maximum speed, km / h. 235
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Full
Transmission 8-speed automatic
Gearbox Machine
Transmission manufacturer Aisin
Transmission country of origin Japan
xDrive25e 44 specifications

Specifications

Engine

Type of engine Hybrid
Type of fuel Gasoline
Displacement, cc 1499
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 220
Torque, Nm 385
Engine 1.5h
Turbo +
Number of motors 1
Power electric motor HP 95
the motor torque Nm 165
Engine power, hp 125
Revolutions max. Engine power, vol. / min. 5000-5500
the engine torque, Nm 220
Revolutions max. engine torque, vol. / min. 1500-3800
Engine code B38A15M1
EV-mode +
The possibility of charging from the network +

Dimensions

Seats 5
Length mm 4447
Width 2060
Height mm 1598
Wheelbase mm 2670
Front track, mm 1561
Rear track, mm 1562
Kerb weight, kg 1505
Trunk capacity, L 505
Fuel tank, l 51
Turning circle, m 11.4
Gross weight, kg 2025
Width (without mirrors) mm 1821

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 1.9
Acceleration (0-100 km/h), s 6.9
The maximum speed, km / h. 193
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Full
Transmission 6-Steptronic
Gearbox Machine
Transmission manufacturer ZF
Transmission country of origin Germany
FAQ

BMW X1 (F48) questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the BMW X1 (F48)?

This page lists 13 trims for the BMW X1 (F48), with key data shown in the comparison table and full specifications grouped below.

What is the power range for the BMW X1 (F48)?

The listed configurations show a power range of 140-231 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the BMW X1 (F48)?

The available specification data shows engine displacement from 1499-1998 cc across the trims listed on this page.

Which transmissions are listed for the BMW X1 (F48)?

The transmission options currently shown for this model are: 6, 7, 8. Open a trim section to see the full data for a specific configuration.

Are there photos for the BMW X1 (F48)?

Yes. The gallery includes 49 photos for the BMW X1 (F48), including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
