BYD Leopard 5 specifications and photos
The BYD Leopard 5 is a mid-size plug-in hybrid SUV that debuted in late 2023. Also marketed under BYD's premium FangChengBao brand, it pairs traditional off-road styling with a high-output electrified powertrain.
BYD Leopard 5 at a glance
Quick model context before comparing photos and trim-level specifications.
Introduced to the Chinese market in August 2023, the BYD Leopard 5 represents the brand's push into the off-road vehicle segment. Often sold under the FangChengBao (FCB) sub-brand, this SUV features a boxy aesthetic over a highly capable plug-in hybrid system. It is designed for buyers who require the utility of a daily family vehicle along with the hardware to handle challenging terrain. Measuring 4,890 mm in length with a 2,800 mm wheelbase and a generous 220 mm of ground clearance, the Leopard 5 is sized to compete with established mid-size off-roaders while offering the efficiency and instant torque of a dual-motor hybrid setup.
- Power: 687 hp
- Engine displacement: 1497 cc
- Transmissions: CVT
- Seating: 5 seats
Photos, trims and specifications for BYD Leopard 5
This model page brings gallery images, trim comparison, and detailed technical data together for the 2023 generation.
BYD Leopard 5 overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design

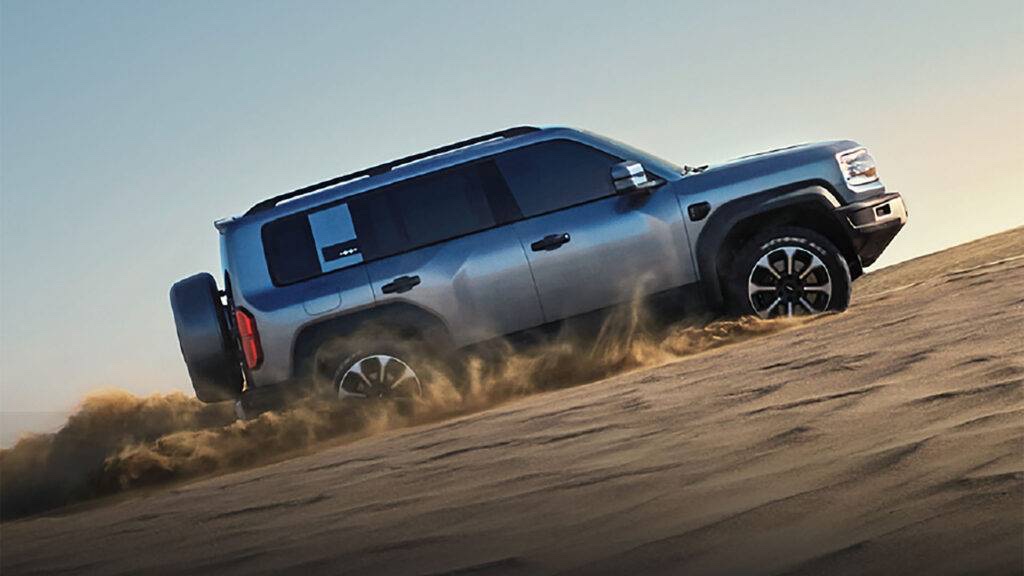

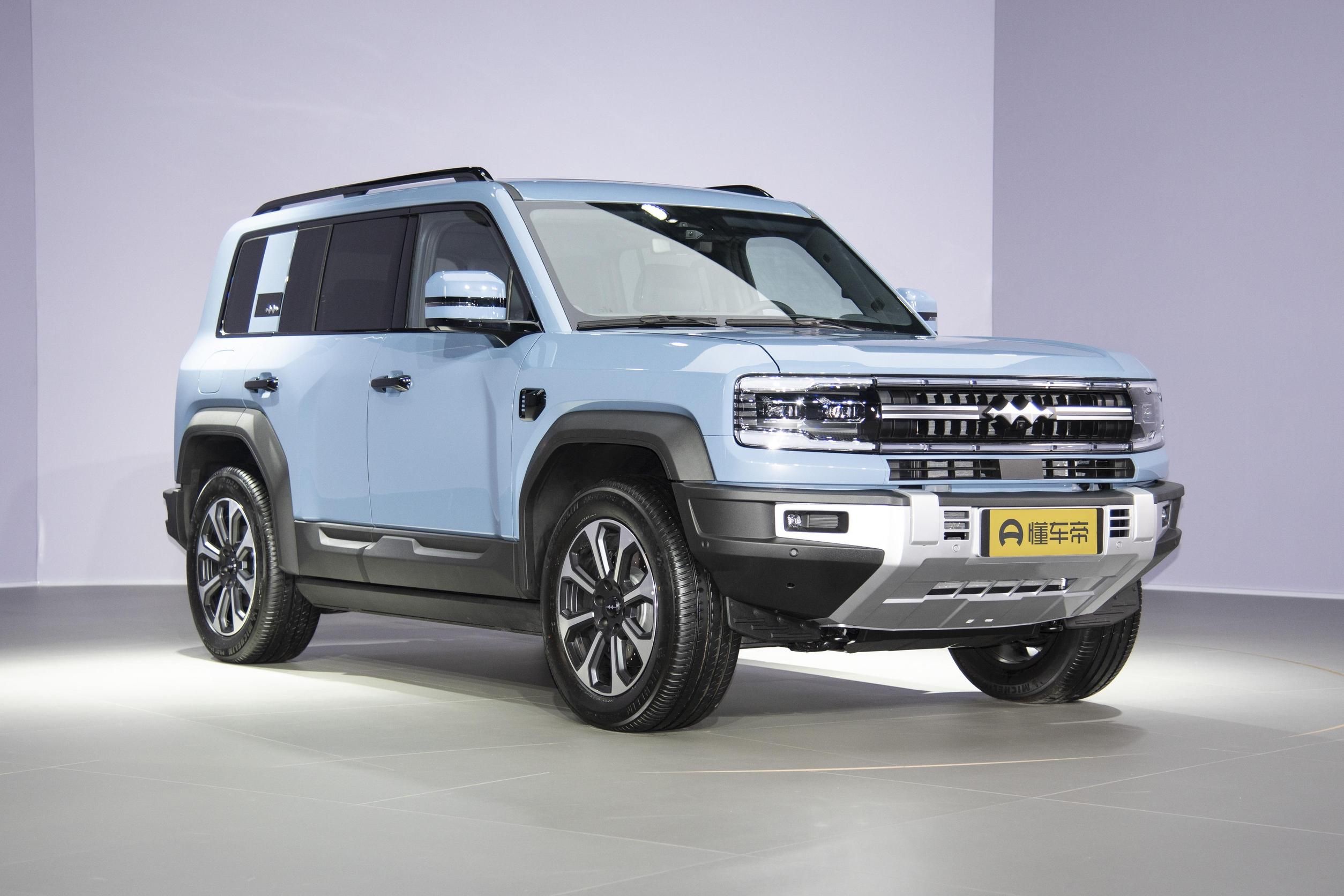

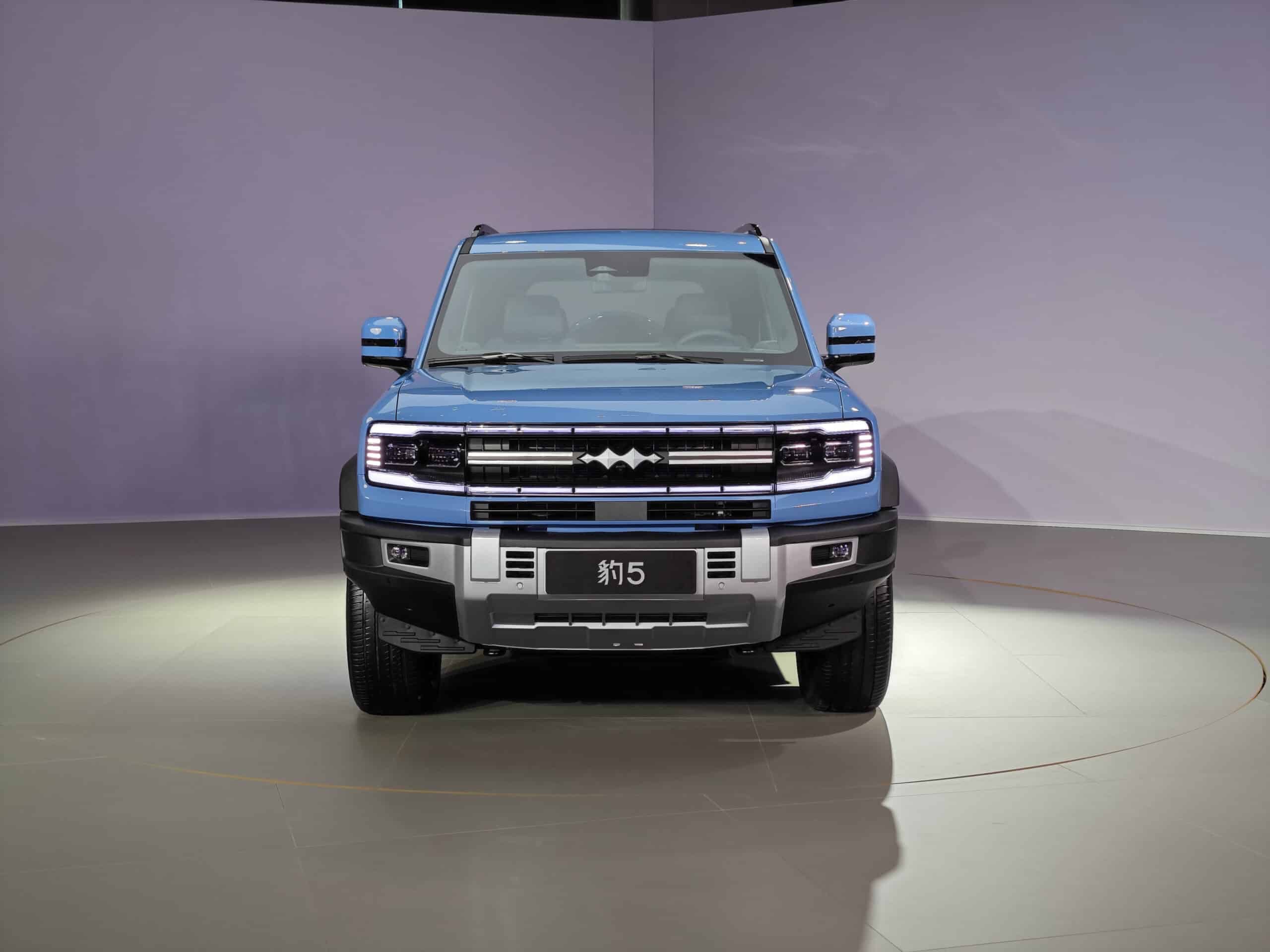

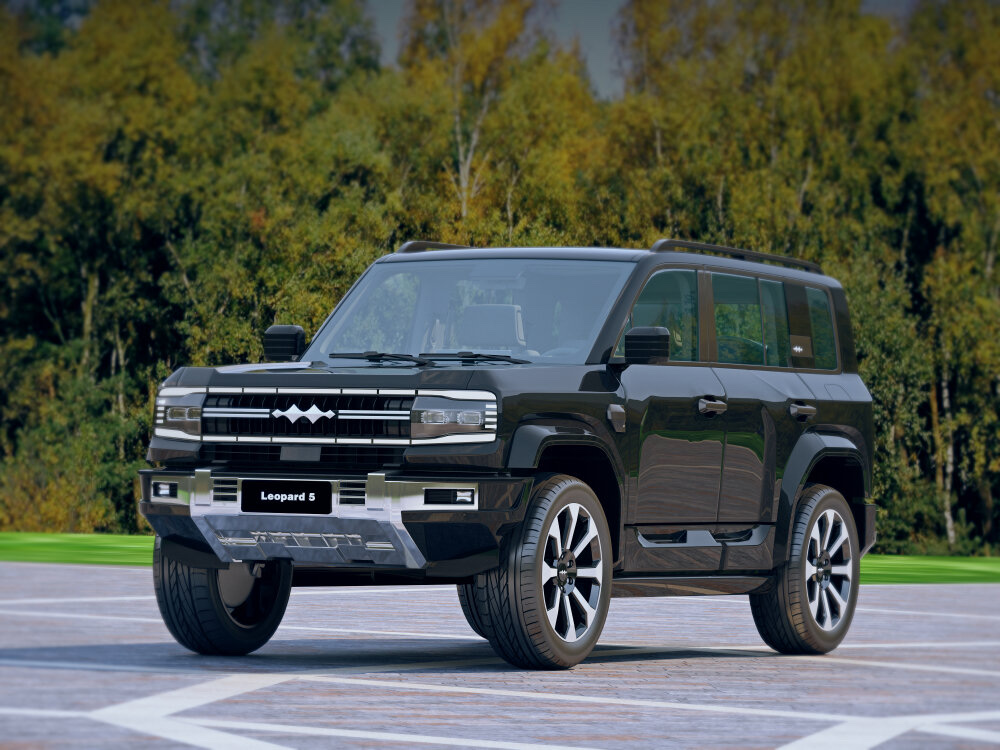

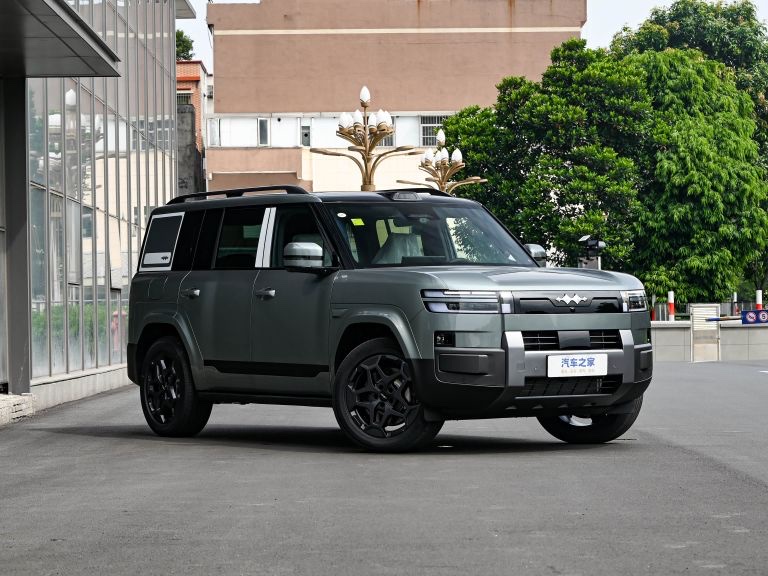

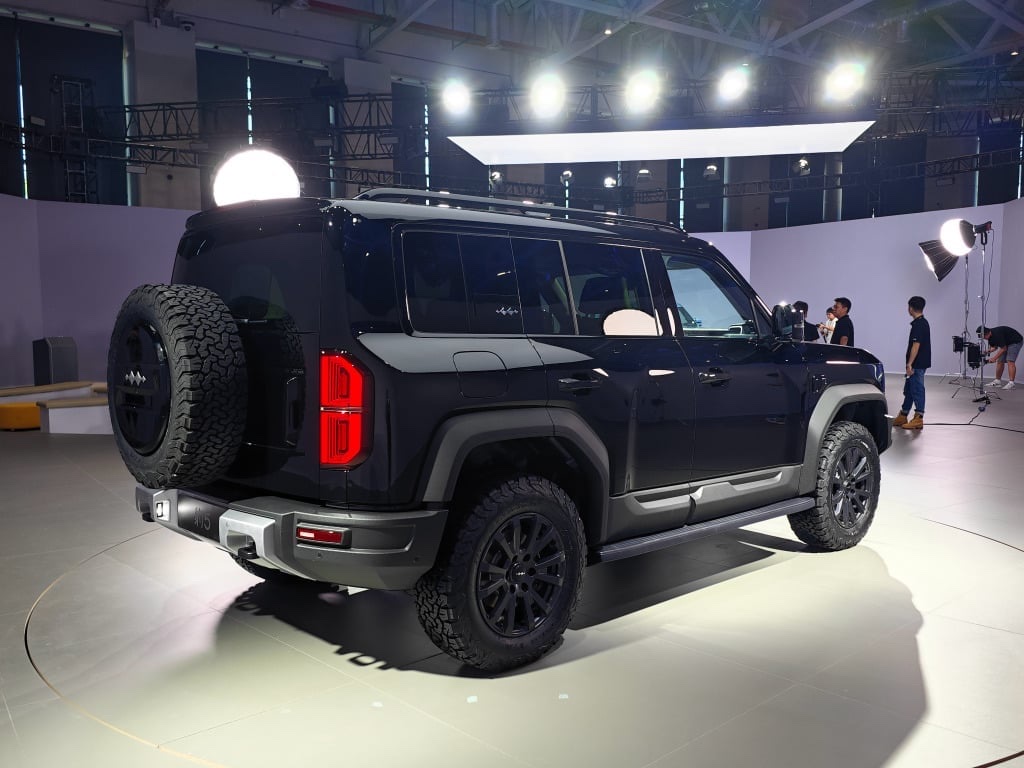

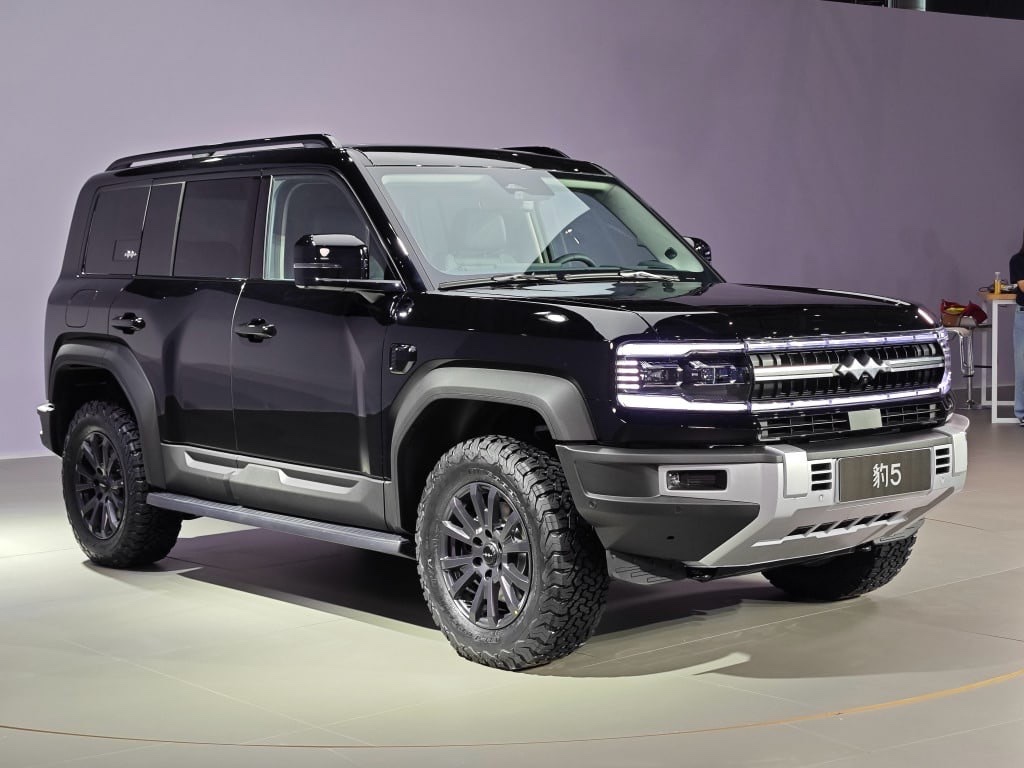

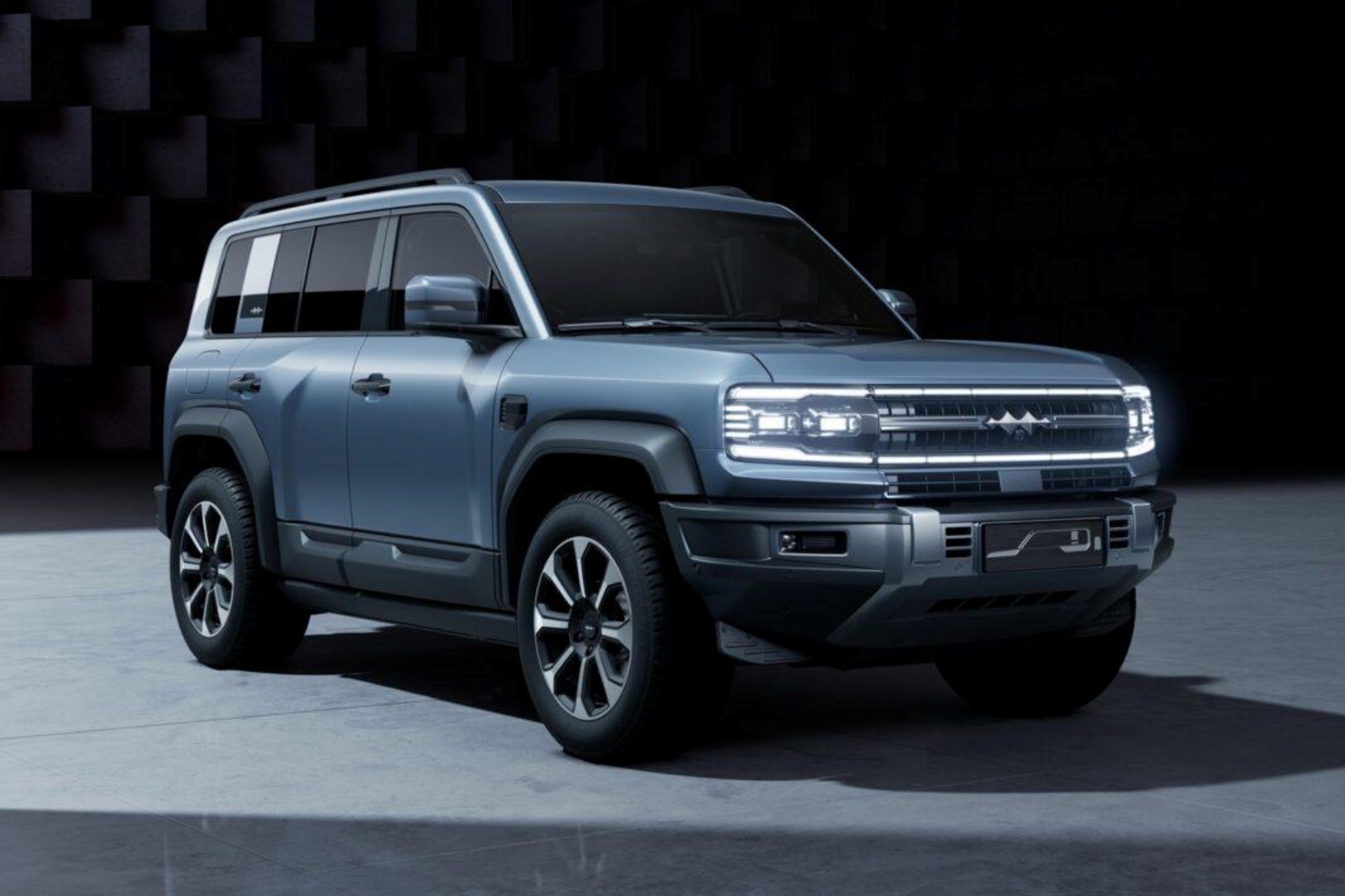

The exterior of the Leopard 5 utilizes classic off-road design cues. It features a squared-off silhouette, pronounced wheel arches, and a flat roofline equipped with roof rails. The front fascia incorporates a wide grille area and adaptive LED headlights. At the rear, the side-hinged tailgate carries an external spare tire, reinforcing its utilitarian purpose. It rides on 18-inch alloy wheels wrapped in 265/65 profile tires, balancing on-road driving dynamics with off-road durability.
Interior

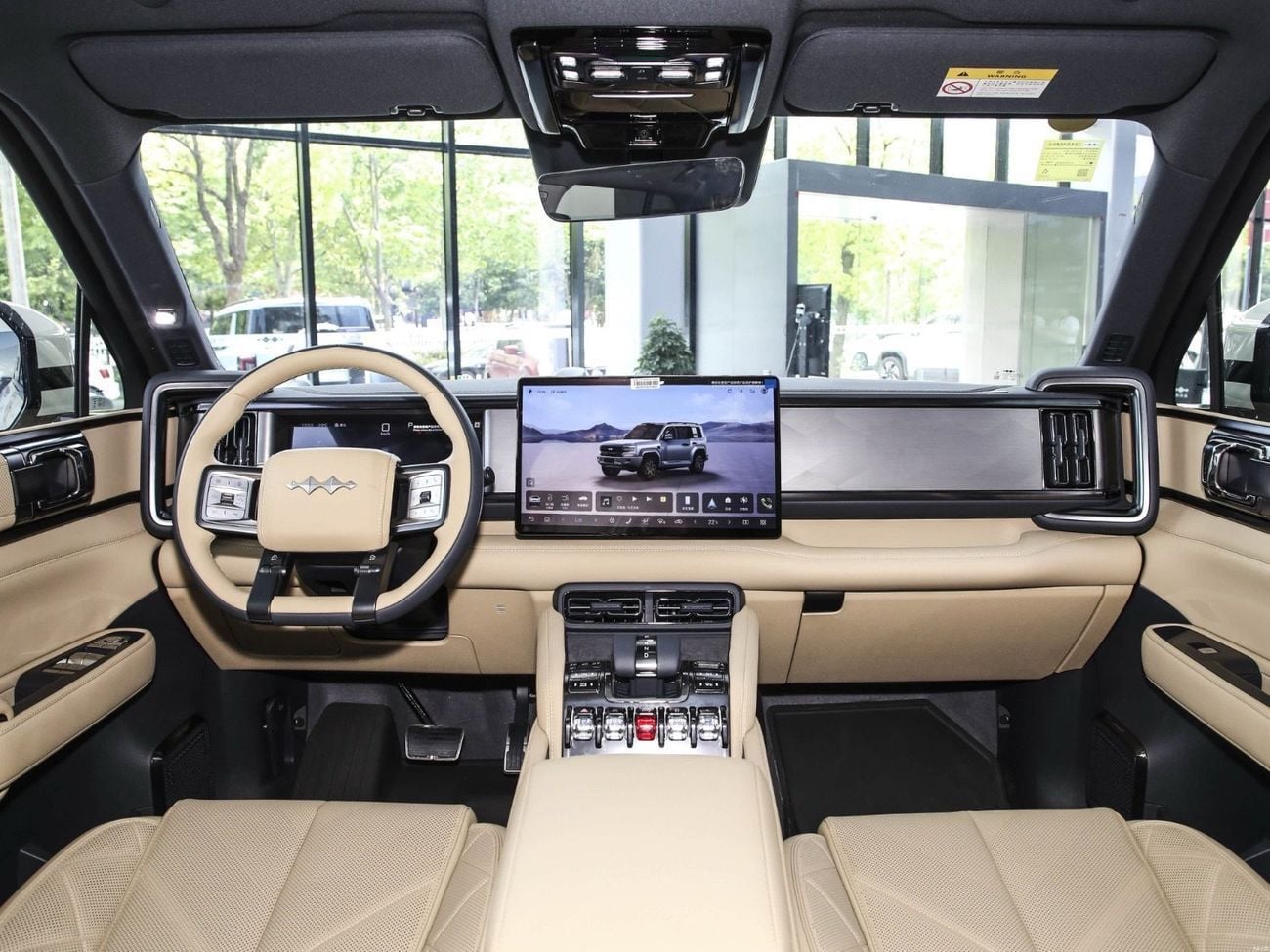

Inside, the Leopard 5 offers a digitized and well-appointed cabin. The dashboard relies on three primary displays: a digital instrument cluster, a 15.6-inch central infotainment screen, and a dedicated 12.3-inch display for the front passenger. Premium equipment includes available Nappa leather upholstery, multi-color ambient lighting, and a center console equipped with a built-in refrigerator. The seats offer heating, ventilation, and massage functions on higher trims. A Devialet audio system, available with up to 20 speakers, handles sound reproduction.
Performance
Propulsion comes from a series-parallel plug-in hybrid system. A 1.5-liter turbocharged four-cylinder engine acts primarily as a generator but can drive the wheels directly at higher cruising speeds. The vehicle is heavily reliant on two electric motors, producing 200 kW up front and 285 kW at the rear. This all-wheel-drive setup generates a combined output of 687 horsepower and 760 Nm of torque, enabling the SUV to accelerate from 0 to 100 km/h in 4.8 seconds. Power is managed via an E-CVT.
Practicality
As a five-seat SUV, the Leopard 5 is built for everyday use and extended travel. The cabin provides ample room for passengers, while the rear seats can be folded to expand cargo capacity. Its substantial 83-liter fuel tank, combined with the plug-in hybrid battery, ensures a significant driving range between fuel stops. The inclusion of side steps and a durable exterior design adds to its functional appeal in remote or rugged environments.
Safety and tech
The vehicle includes a comprehensive suite of advanced driver-assistance systems. Standard technology covers full-speed adaptive cruise control, lane-keeping assist, active emergency braking, and a 360-degree surround-view camera. A head-up display (HUD) keeps essential driving data in the driver's line of sight. Upper trim levels integrate the Huawei Qiankun system, which expands semi-autonomous driving capabilities to include advanced reversing assistance and traffic light recognition.
Buyer notes
When comparing configurations of the Leopard 5, buyers should evaluate the battery size and the resulting electric range. The vehicle is offered with either a 31.8 kWh or 47.8 kWh lithium iron phosphate (LFP) battery, providing an electric-only range of 125 km to 210 km on the CLTC testing cycle. Equipment such as the Devialet sound system, the passenger-side screen, and the advanced Huawei ADAS features will vary depending on the selected trim level.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 1.5T Plugin Hybrid (687 hp) E-CVT 4x4 | 1497 cc | 687 hp | 5 | CVT |
| 1.5T Plug-in Hybrid (687 hp) E-CVT 4x4 | 1497 cc | 687 hp | 5 | CVT |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
BYD Leopard 5 photo gallery
16 images are collected here with the main specifications and trim data for this model.

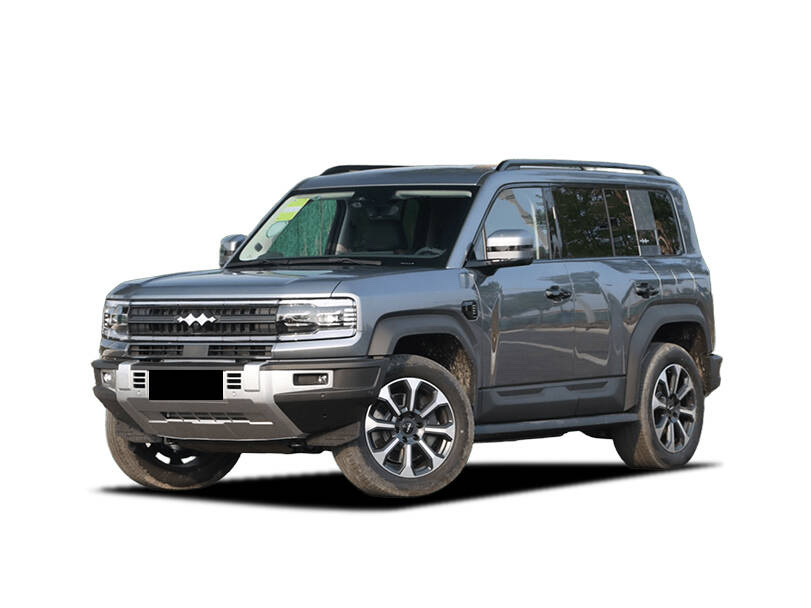

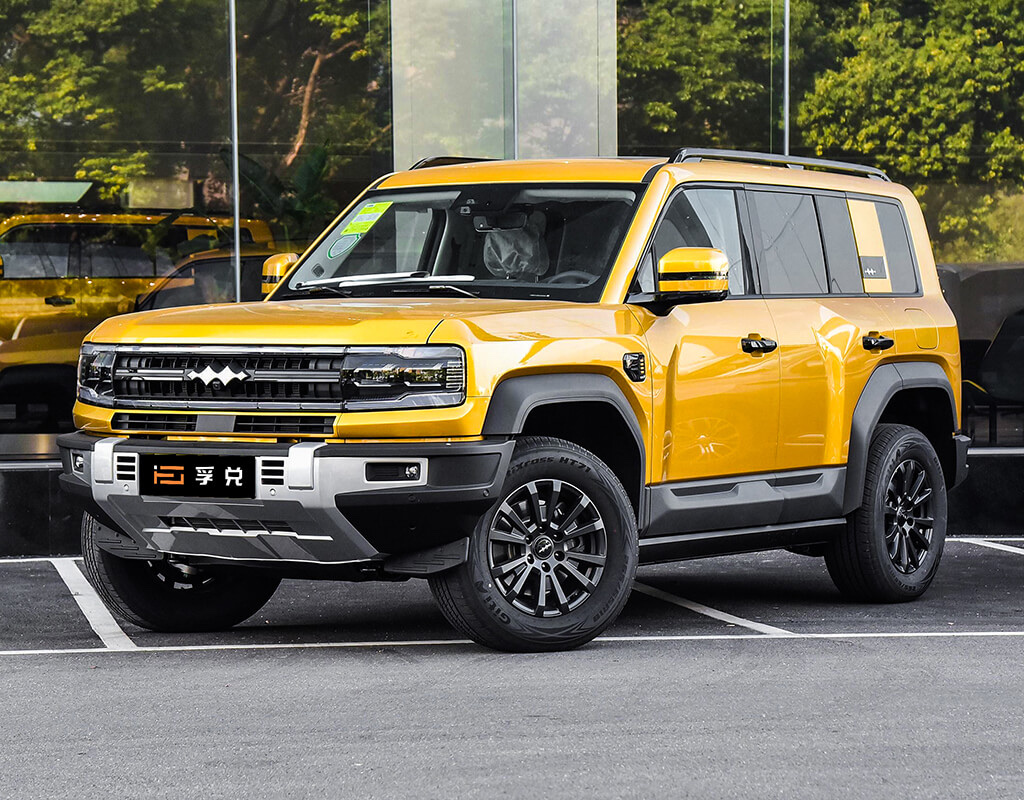

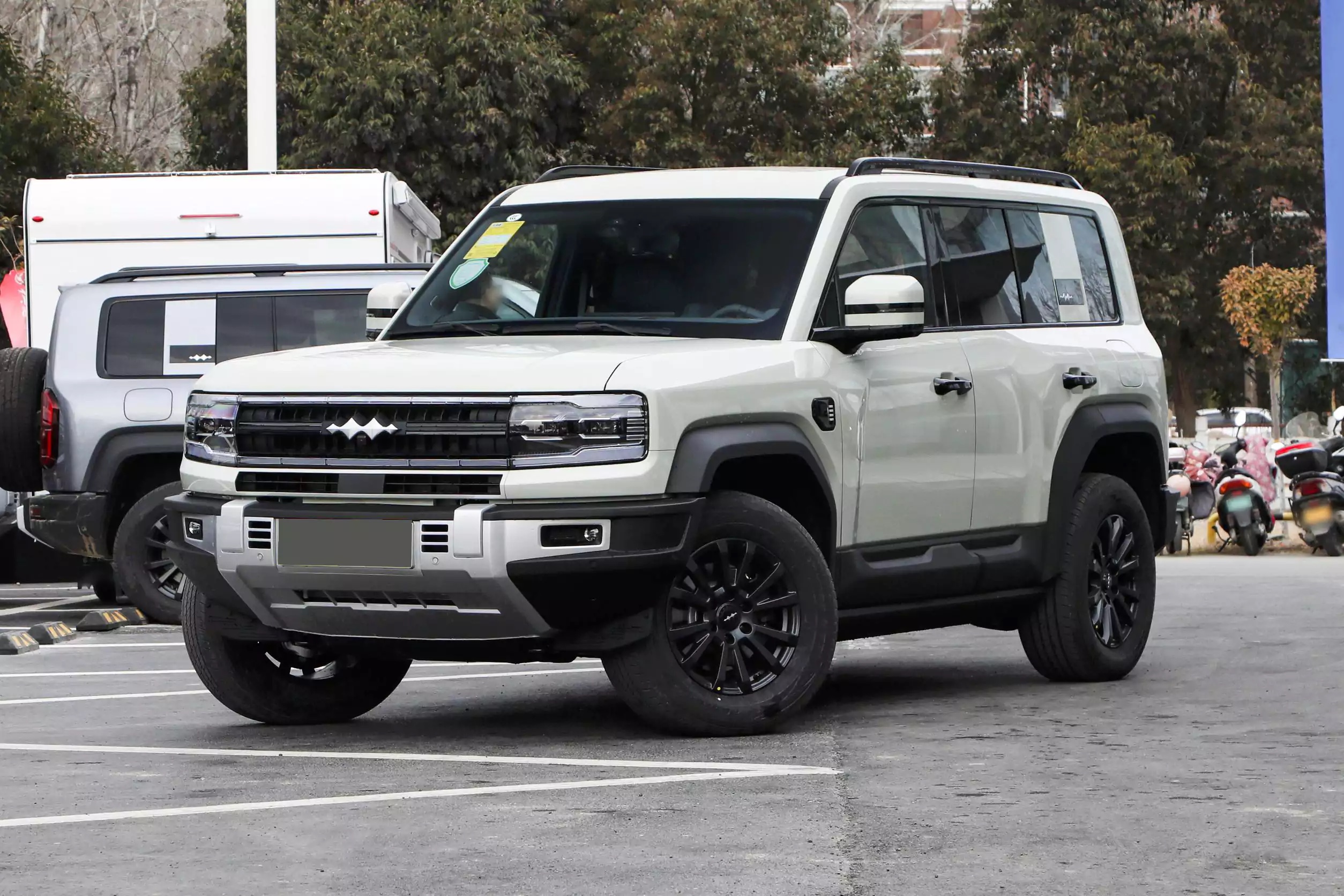

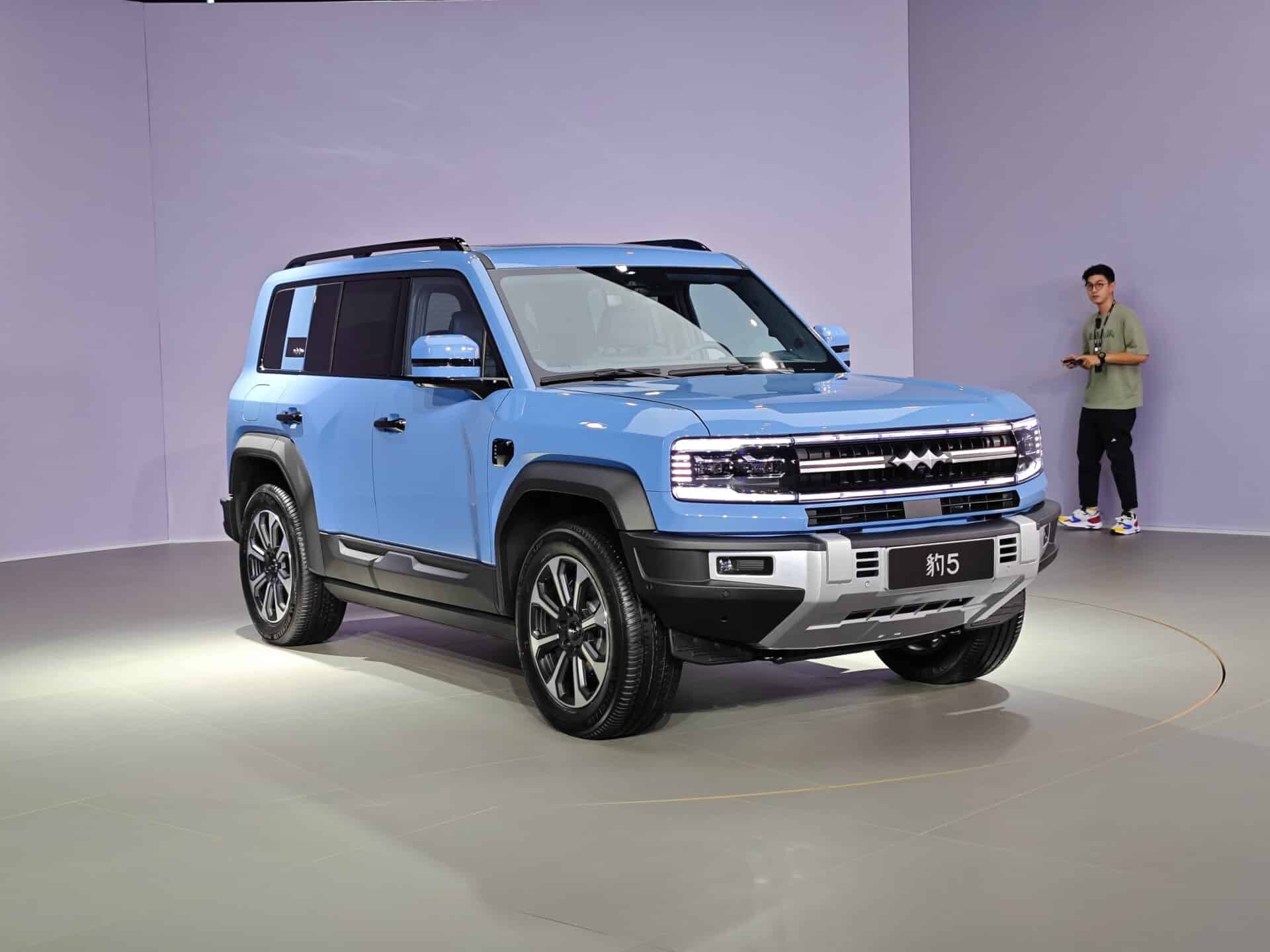

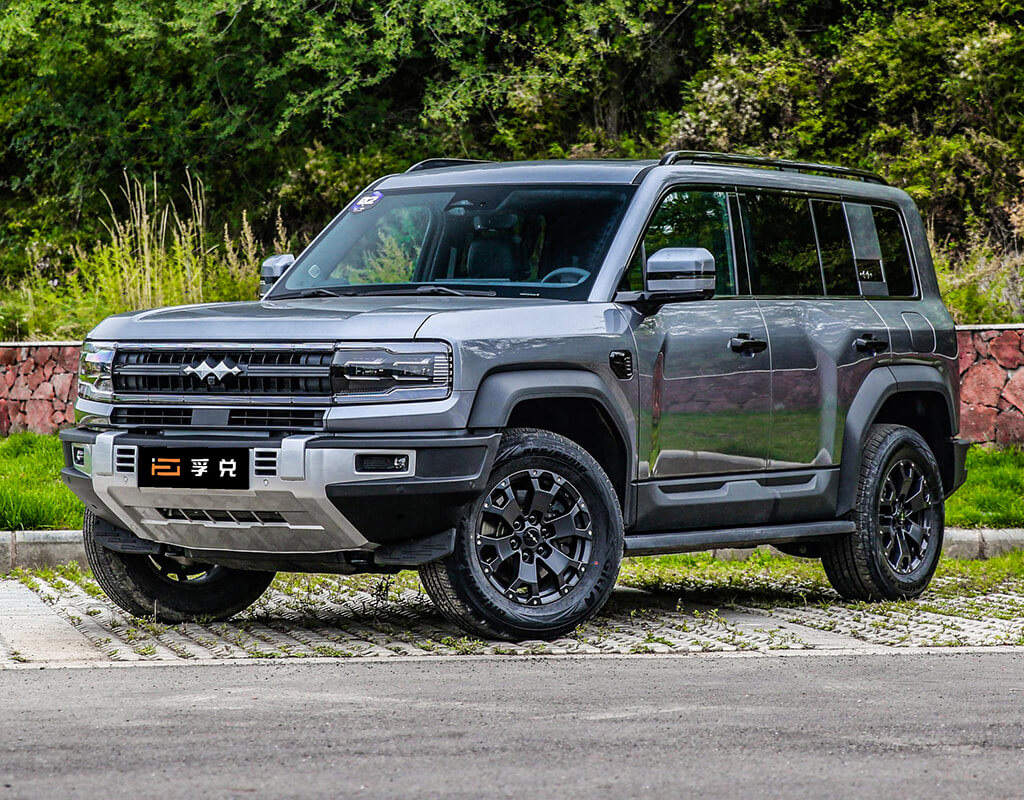

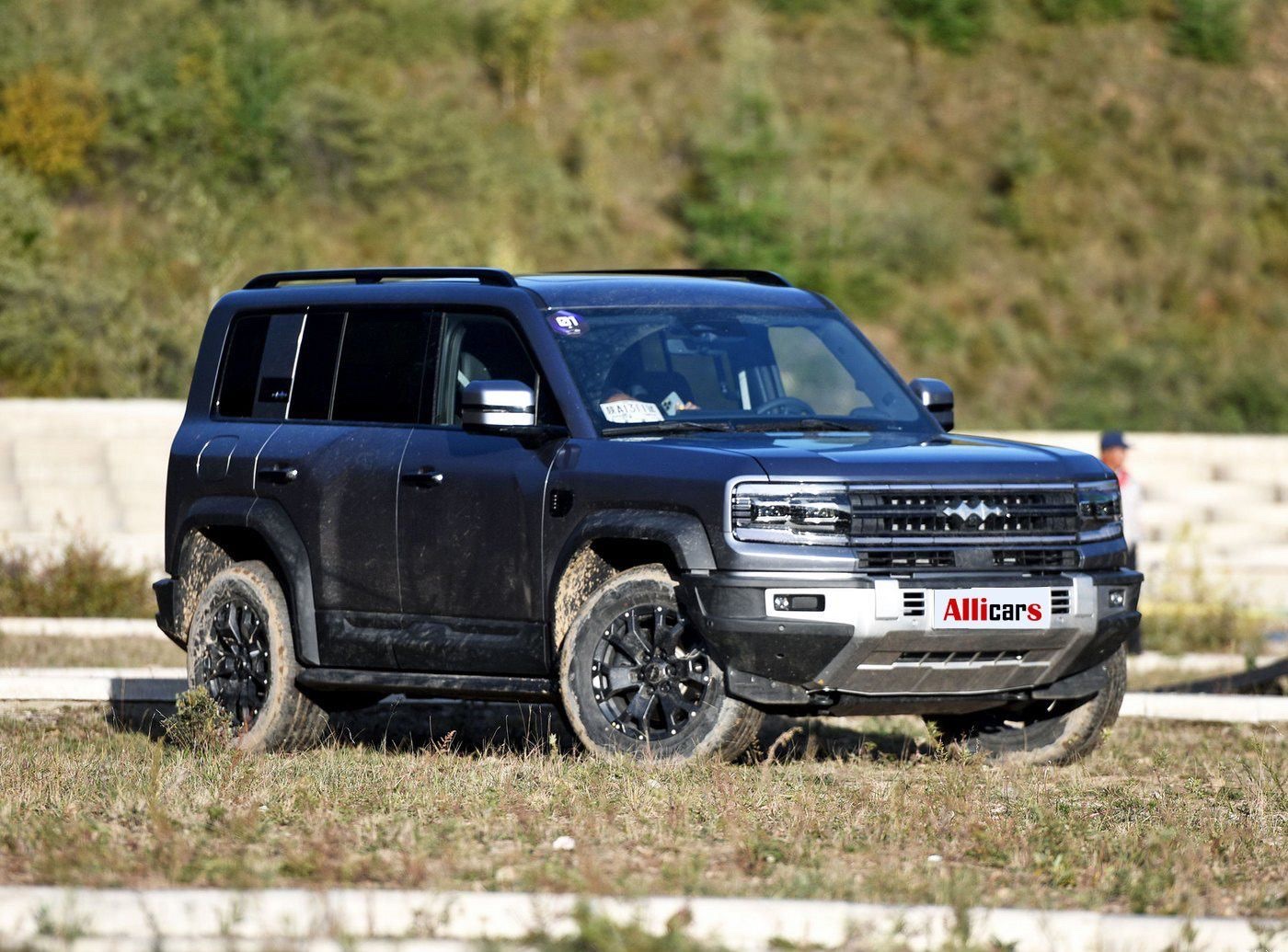

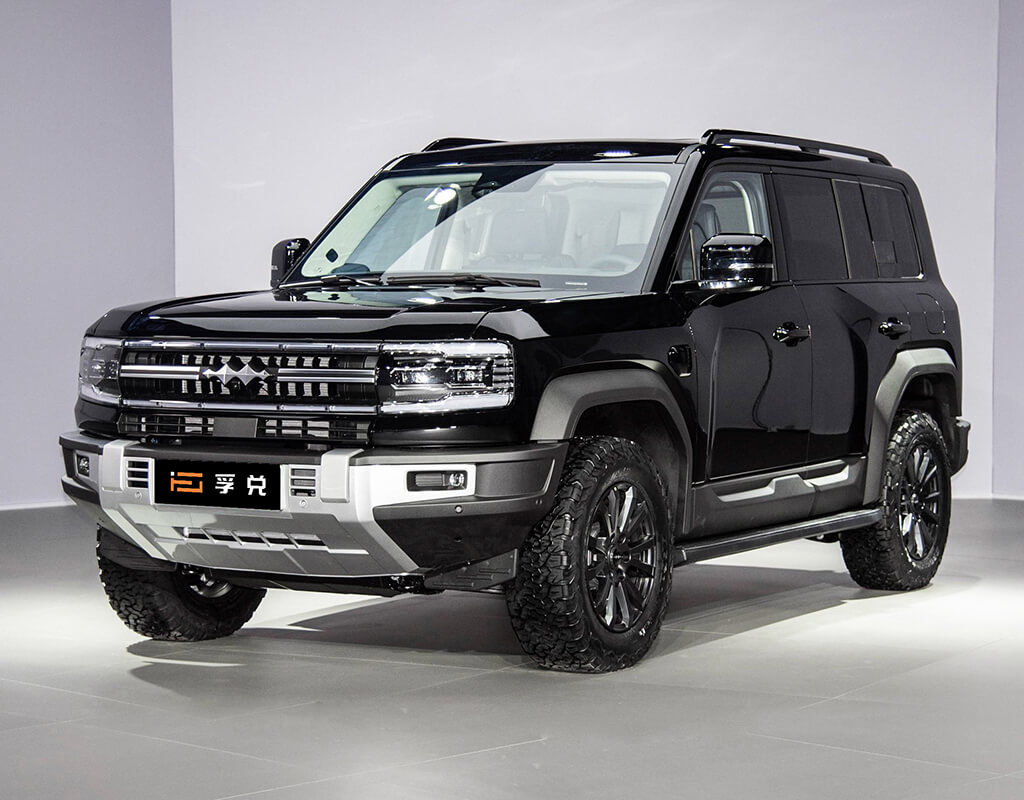

Photo BYD Leopard 5
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
1.5T Plugin Hybrid (687 hp) E-CVT 4x4 31 specifications
Specifications
Performance and consumption
| Top speed, km/h | 180 |
|---|---|
| Acceleration 0-100 km/h, s | 4.8 |
Engine
| Engine | 1.5T Plugin Hybrid |
|---|---|
| Engine code | BYD476ZQF |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1497 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 687 |
| Torque, Nm | 760 |
| Number of electric motors | 2 |
| Electric motor power, hp | 388 |
| Electric range, km | 210 |
| Combustion engine power, hp | 194 |
| Combustion engine torque, Nm | 273 |
| Electric motor torque, Nm | 400 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4890 |
| Width, mm | 1970 |
| Height, mm | 1920 |
| Wheelbase, mm | 2800 |
| Front track, mm | 1660 |
| Rear track, mm | 1660 |
| Fuel tank capacity, L | 83 |
| Ground clearance, mm | 220 |
Transmission and drive
| Transmission | CVT |
|---|---|
| Drive | All-wheel drive |
| Automatic transmission | + |
1.5T Plug-in Hybrid (687 hp) E-CVT 4x4 31 specifications
Specifications
Performance and consumption
| Top speed, km/h | 180 |
|---|---|
| Acceleration 0-100 km/h, s | 4.8 |
Engine
| Engine | 1.5T Plug-in Hybrid |
|---|---|
| Engine code | BYD476ZQF |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1497 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 687 |
| Torque, Nm | 760 |
| Number of electric motors | 2 |
| Electric motor power, hp | 388 |
| Electric range, km | 125 |
| Combustion engine power, hp | 194 |
| Combustion engine torque, Nm | 273 |
| Electric motor torque, Nm | 400 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4890 |
| Width, mm | 1970 |
| Height, mm | 1920 |
| Wheelbase, mm | 2800 |
| Front track, mm | 1660 |
| Rear track, mm | 1660 |
| Fuel tank capacity, L | 83 |
| Ground clearance, mm | 220 |
Transmission and drive
| Transmission | CVT |
|---|---|
| Drive | All-wheel drive |
| Automatic transmission | + |
BYD Leopard 5 questions
Short answers based on the specifications and photos available in this catalog.
What type of vehicle is the BYD Leopard 5?
It is a five-seat, mid-size plug-in hybrid SUV engineered for both daily driving and off-road capability.
How much power does the hybrid system produce?
The combined output of the 1.5-liter turbo engine and the dual electric motors is 687 horsepower and 760 Nm of torque.
What is the electric range of the Leopard 5?
Depending on the battery option (31.8 kWh or 47.8 kWh), it can travel between 125 km and 210 km on electric power alone, according to the CLTC cycle.
Does it come with four-wheel drive?
Yes, the dual-motor setup provides standard all-wheel drive, dynamically distributing torque between the front and rear axles as needed.
What are the exterior dimensions?
The Leopard 5 measures 4,890 mm in length, 1,970 mm in width, and 1,920 mm in height, with a wheelbase of 2,800 mm and 220 mm of ground clearance.
