Cadillac Escalade specifications and photos
The 2020 Cadillac Escalade represents the fifth generation of the brand's flagship luxury SUV. It introduces a major platform overhaul, including an independent rear suspension, curved OLED interior displays, and an available turbodiesel engine option.
Cadillac Escalade at a glance
Quick model context before comparing photos and trim-level specifications.
Unveiled in early 2020, the fifth-generation Escalade serves as the pinnacle of Cadillac's lineup. For this iteration, engineers moved away from the solid rear axle of previous models, adopting an independent multi-link rear suspension. This shift improves ride dynamics and lowers the interior floor, resulting in significantly more passenger and cargo space. The SUV is offered in a standard wheelbase or the extended ESV configuration, catering to buyers who require maximum interior volume. Trim levels range from the base Luxury to the well-equipped Premium Luxury and Platinum variants, all pairing body-on-frame ruggedness with high-end cabin technology.
- Power: 281-426 hp
- Engine displacement: 2999-6162 cc
- Transmissions: 10-speed automatic
- Seating: 7 seats
Cadillac Escalade overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The exterior design retains the Escalade's imposing presence, highlighted by a massive front grille and standard 22-inch wheels. Cadillac updated the lighting signature, utilizing slim horizontal headlights positioned above vertical daytime running lights. The rear profile is defined by striking vertical taillights that measure nearly a meter in height, emphasizing the vehicle's stature. Both standard and ESV body styles present a blocky, traditional SUV silhouette that prioritizes interior headroom and road presence.
Interior
Inside, the cabin is dominated by an industry-first curved OLED display setup, combining a 7.2-inch control panel, a 14.2-inch digital instrument cluster with augmented reality navigation, and a 16.9-inch infotainment screen. The standard configuration features second-row captain's chairs and a three-seat third row, accommodating up to seven passengers. Thanks to the new suspension layout, third-row legroom expanded significantly to 886 mm. Audio duties are handled by a standard 19-speaker AKG system, with a 36-speaker AKG system available on higher trims to ease communication across the large cabin.
Performance
Buyers can choose between two distinct powertrains. The primary engine is a 6.2-liter V8 producing 426 horsepower and 623 Nm of torque, equipped with cylinder deactivation for improved efficiency under light loads. Alternatively, a 3.0-liter inline-six Duramax turbodiesel is available, generating 281 horsepower and matching the V8's 623 Nm of torque. Both engines are mated to a 10-speed automatic transmission. The Escalade is available in rear-wheel drive or four-wheel drive setups, with options like Magnetic Ride Control and Air Ride adaptive suspension to further refine the ride.
Practicality
The transition to an independent rear suspension fundamentally improves the Escalade's everyday practicality. The standard model now offers 722 liters of cargo space behind the third row, while the extended ESV version provides a massive 1,214 liters. The lower interior floor makes loading cargo and accessing the third row easier, making it a highly capable vehicle for large families or long-distance travel.
Safety and tech
Technological integration is a major focus for the 2020 Escalade. It features an array of driver assistance systems, including standard 360-degree cameras and available night vision. A standout feature is Cadillac's Super Cruise, an advanced hands-free driving system for compatible highways that includes automated lane-change capabilities. Rear passengers can be equipped with dual 12.6-inch touchscreen displays for entertainment on longer journeys.
Buyer notes
When comparing Escalade models, buyers should weigh their need for the standard versus the extended ESV wheelbase, as the ESV drastically increases rear cargo capacity. The choice between the traditional V8 and the torquey Duramax diesel will depend on typical driving conditions and heavy-duty needs. Note that specific availability of features like Super Cruise, the 36-speaker audio system, and Air Ride suspension may vary across different trim levels and regional markets.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 6.2i (426 hp) 10-speed automatic | 6162 cc | 426 hp | 7 | 10-speed automatic |
| 6.2i (426 hp) 10-speed automatic 4x4 | 6162 cc | 426 hp | 7 | 10-speed automatic |
| 3.0 Duramax (281 hp) 10-speed automatic | 2999 cc | 281 hp | 7 | 10-speed automatic |
| 3.0 Duramax (281 hp) 10-speed automatic 4x4 | 2999 cc | 281 hp | 7 | 10-speed automatic |
| 3.0D AT Platinum Sport 4WD | 2999 cc | 281 hp | 7 | 10-speed automatic |
| 3.0D AT Premium Luxury ESV 4WD | 2999 cc | 281 hp | 7 | 10-speed automatic |
| 6.2-speed automatic Luxury ESV 4WD | 6162 cc | 426 hp | 7 | 10-speed automatic |
| 6.2-speed automatic Platinum ESV 4WD | 6162 cc | 426 hp | 7 | 10-speed automatic |
| 6.2-speed automatic Premium Luxury ESV 4WD | 6162 cc | 426 hp | 7 | 10-speed automatic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

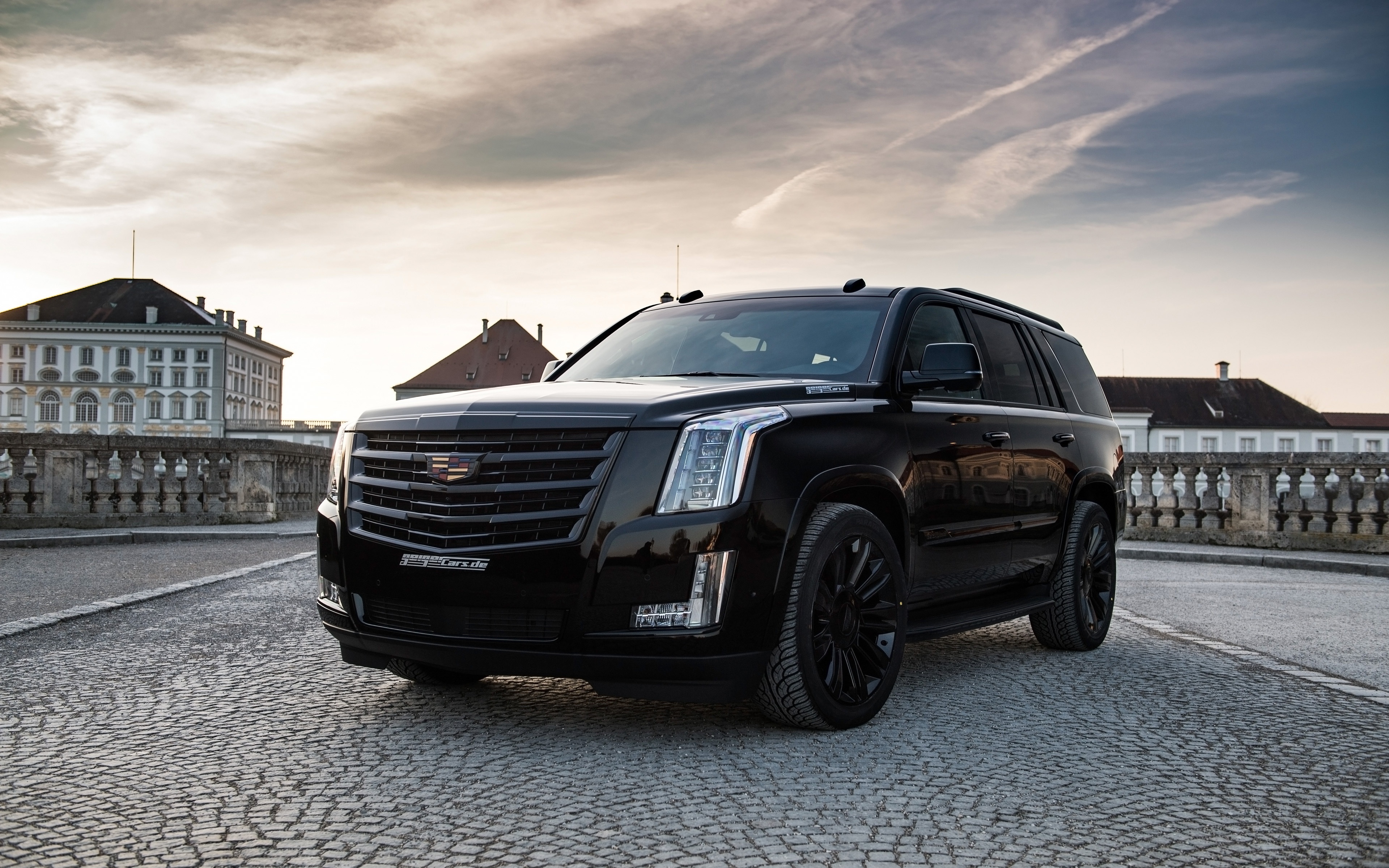

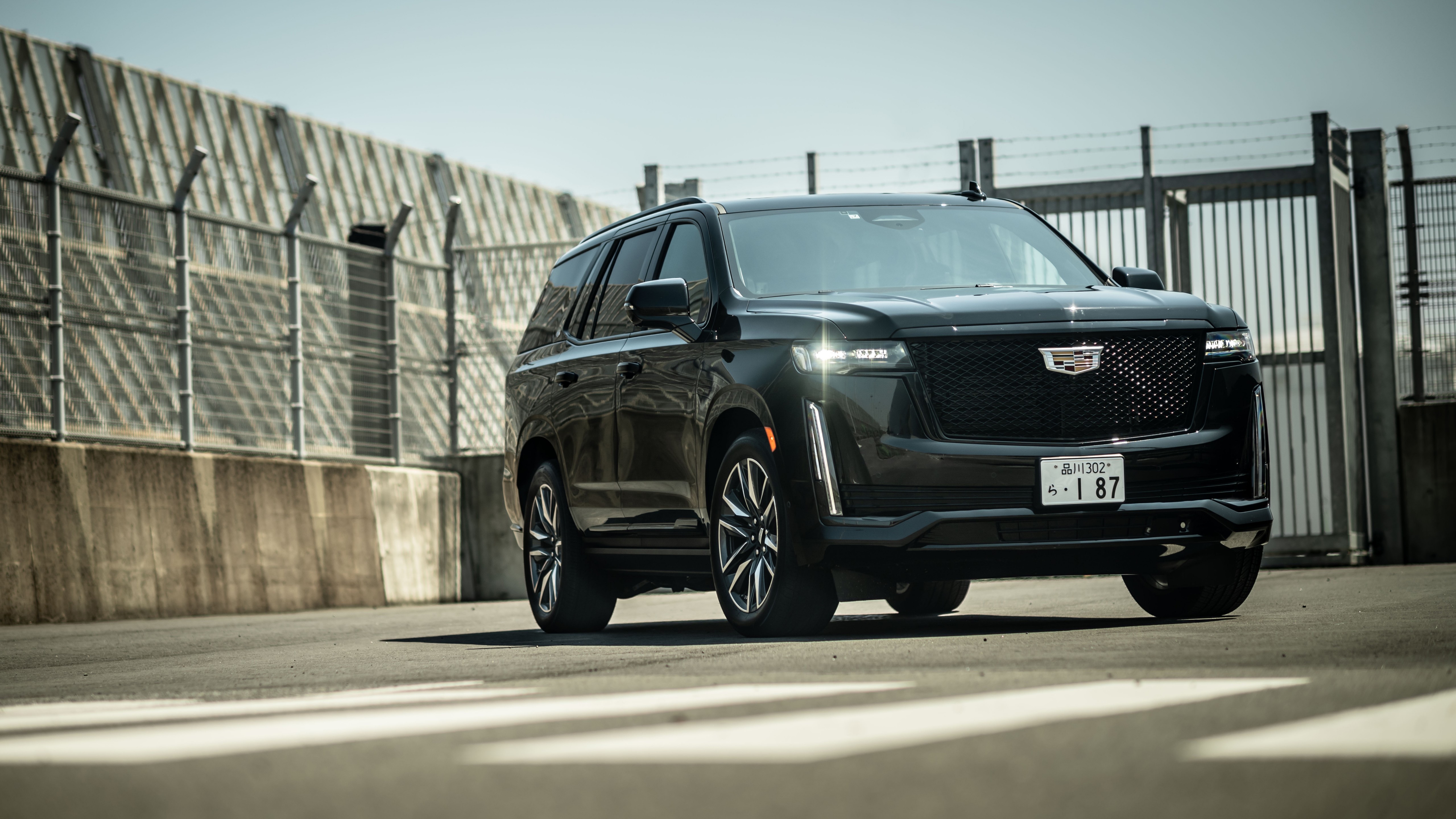

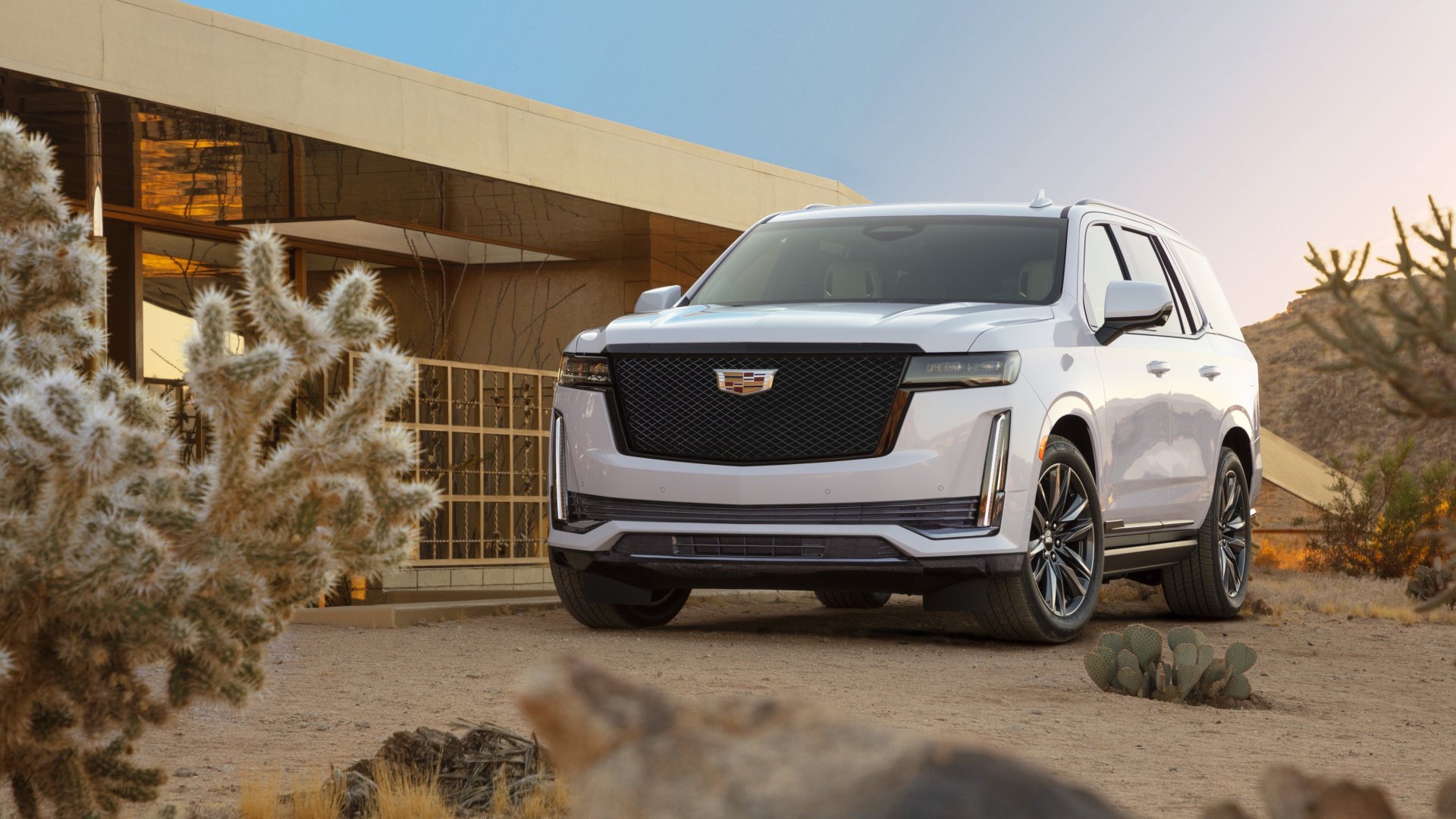

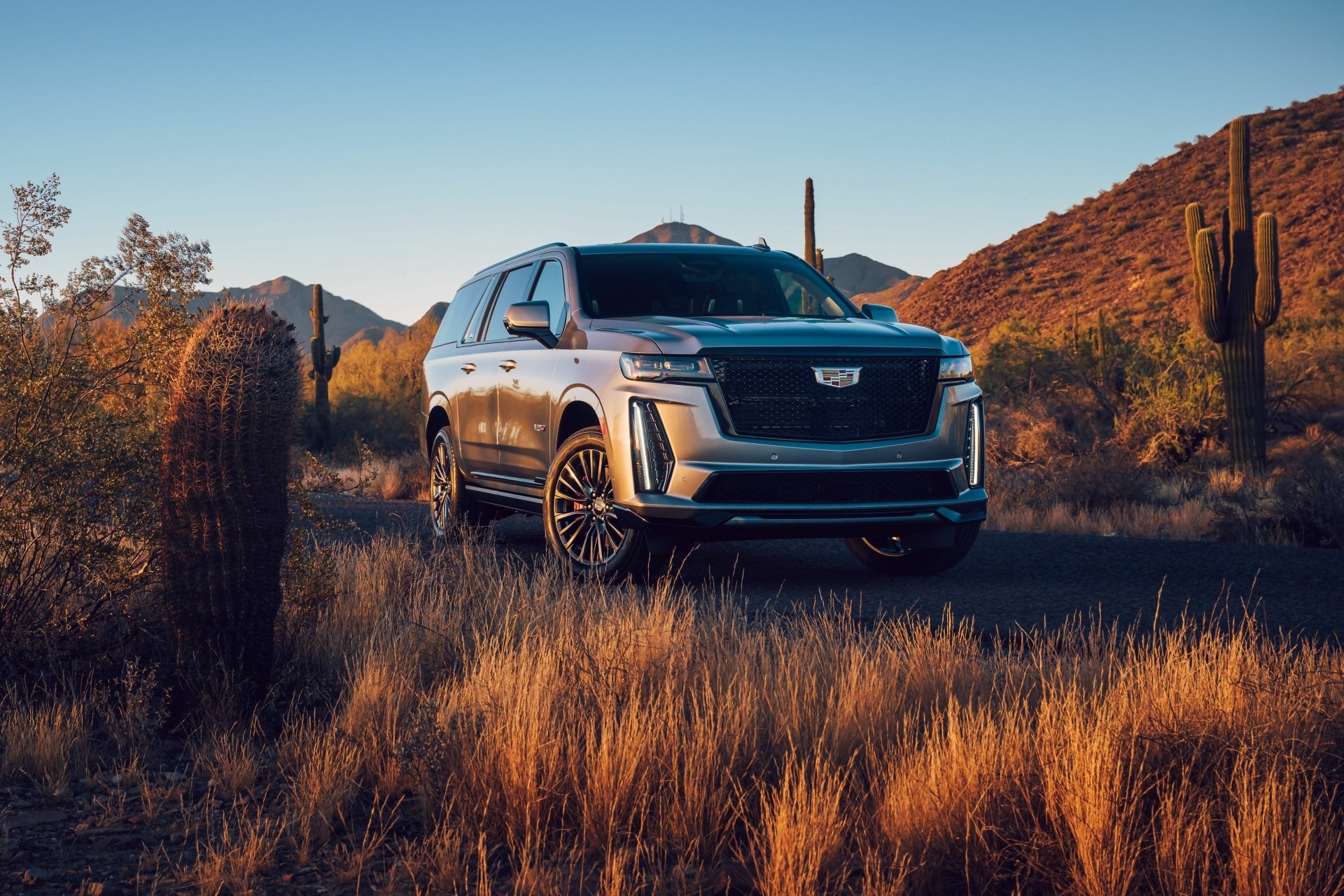

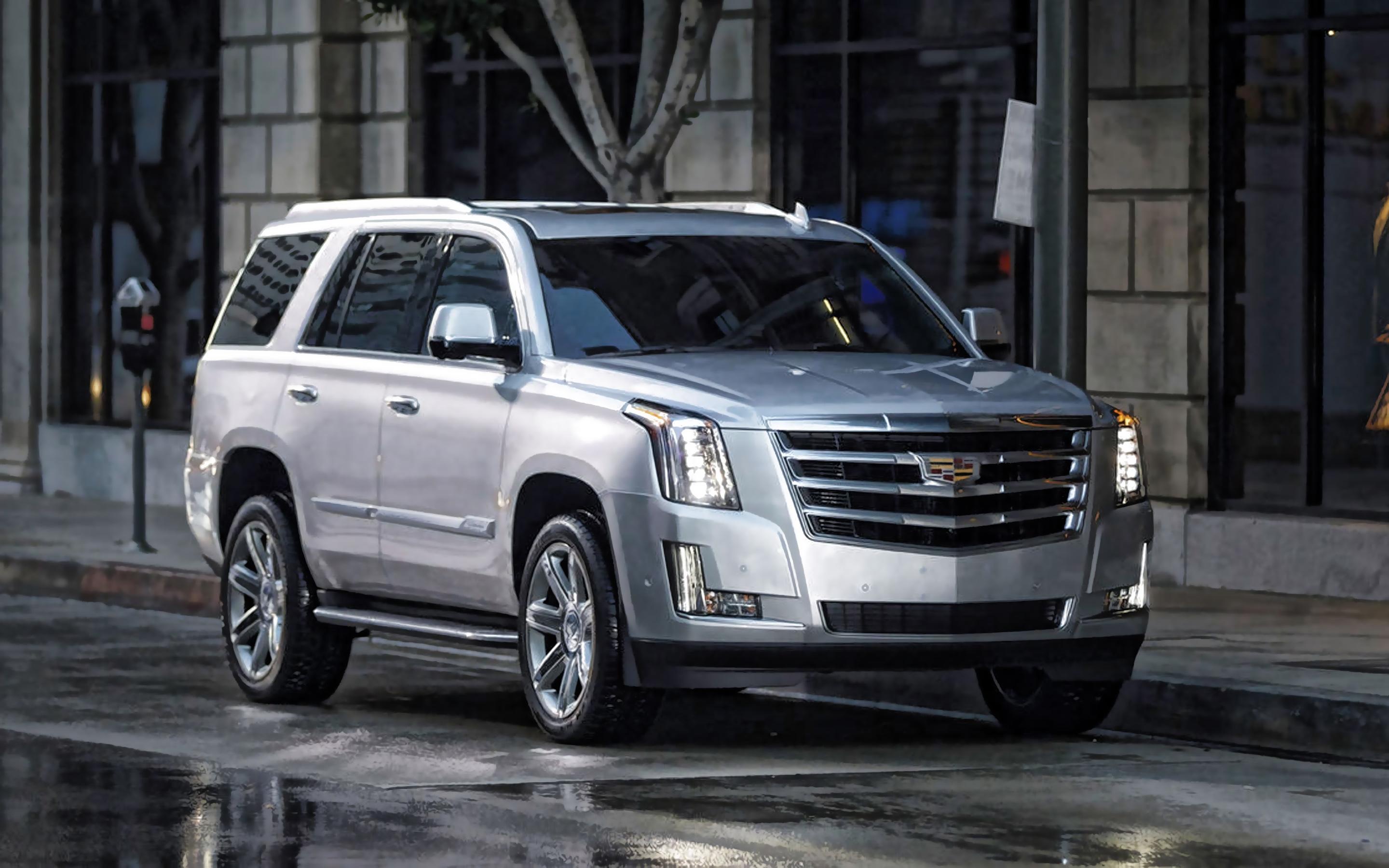

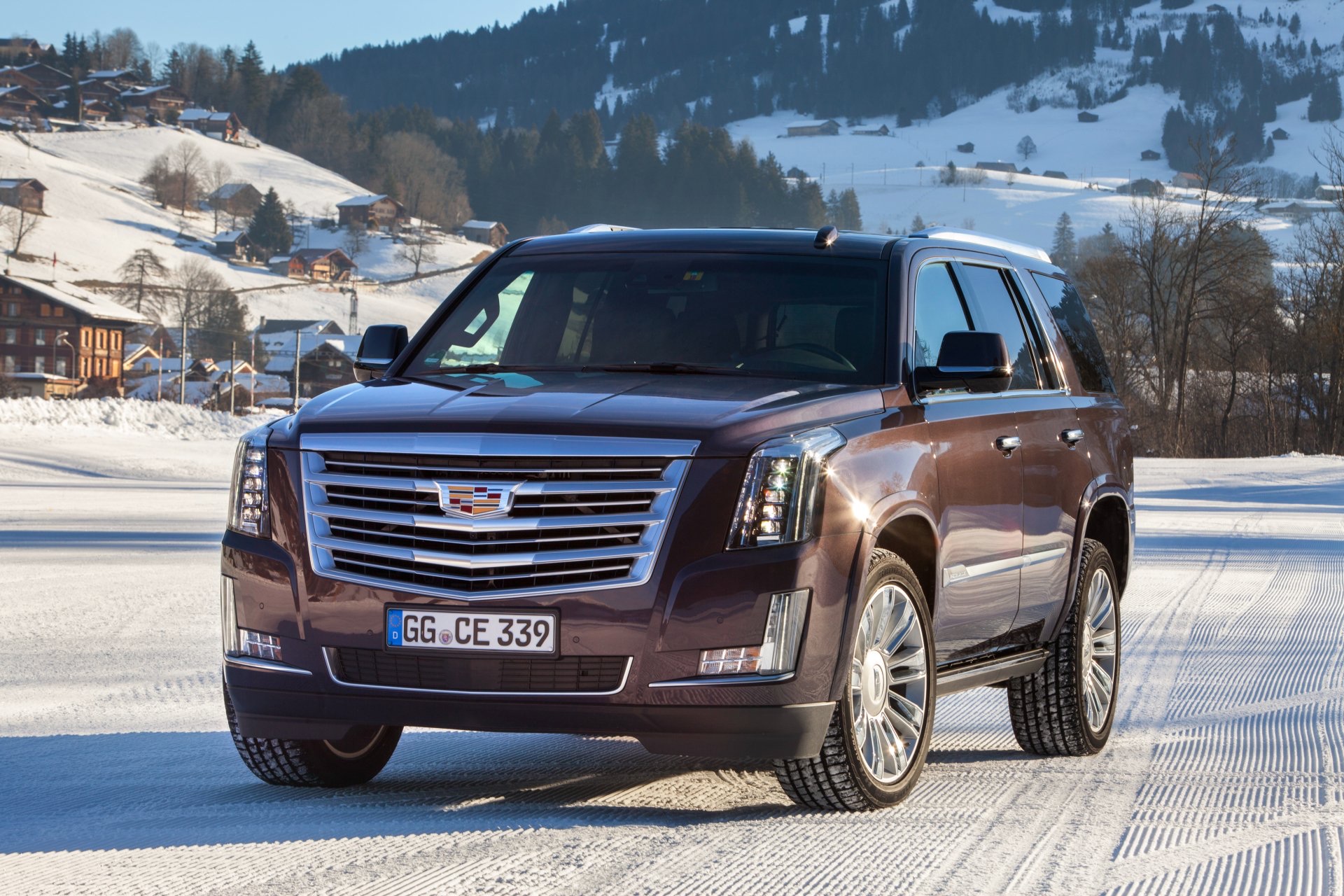

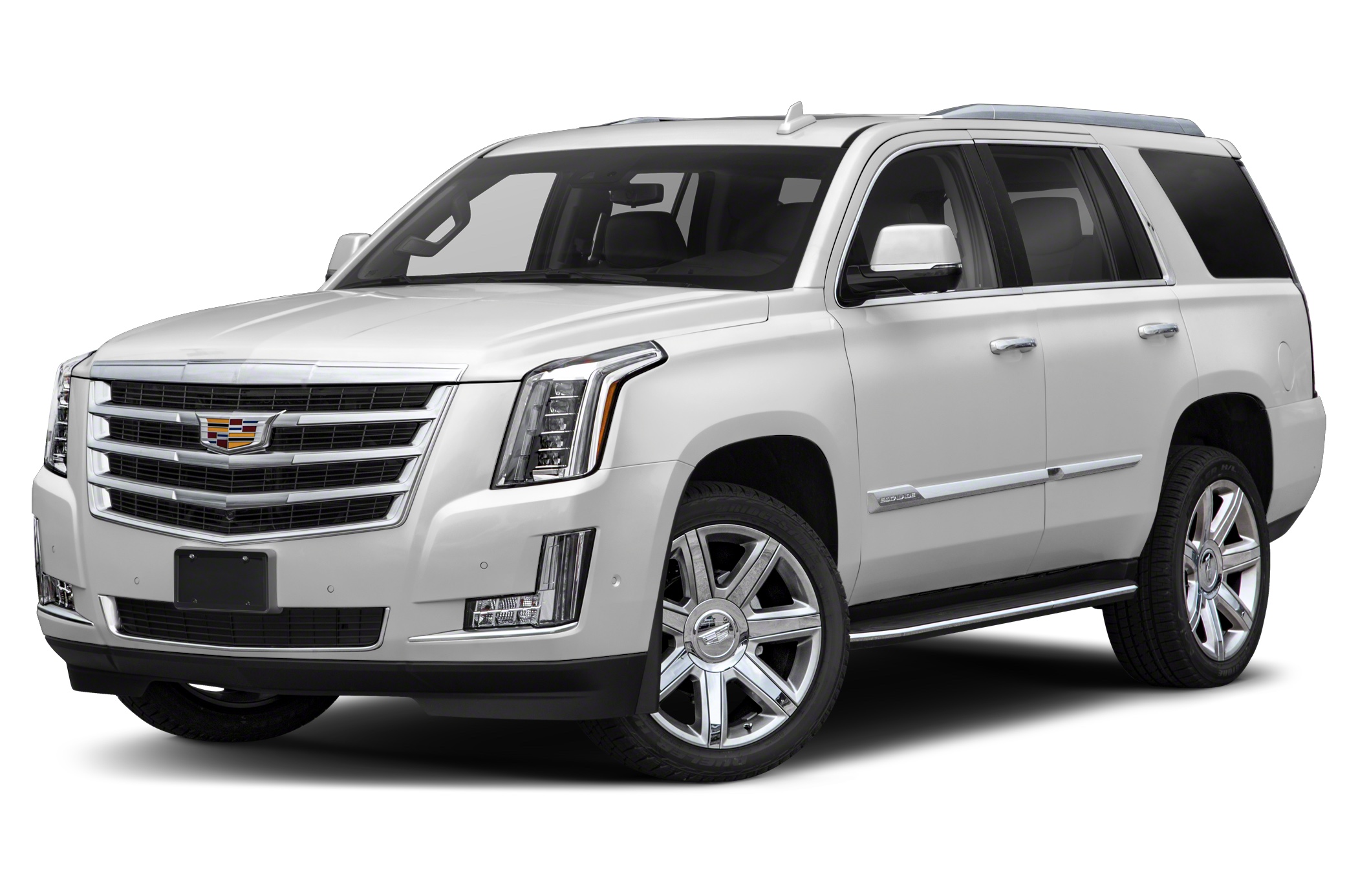

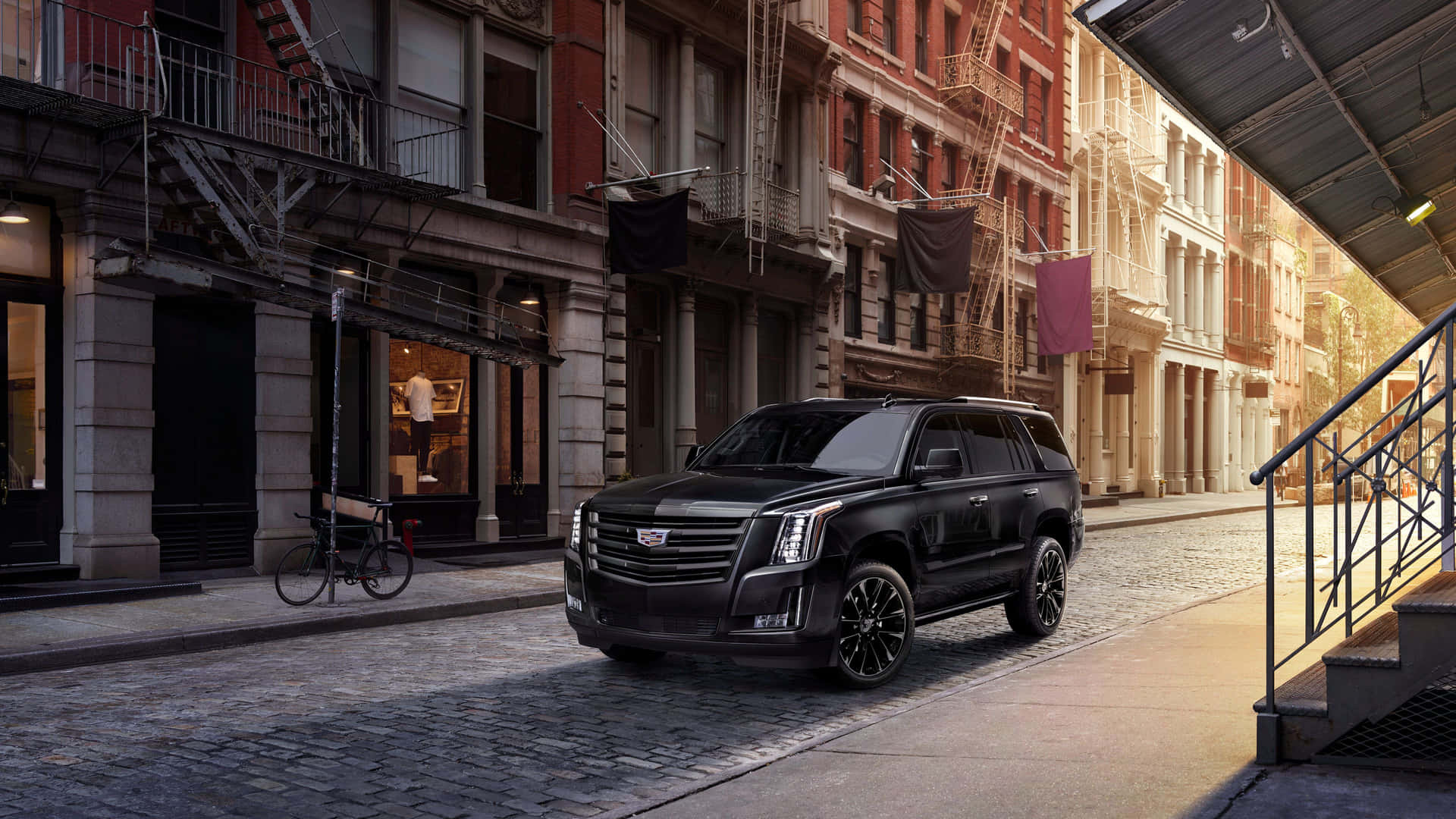

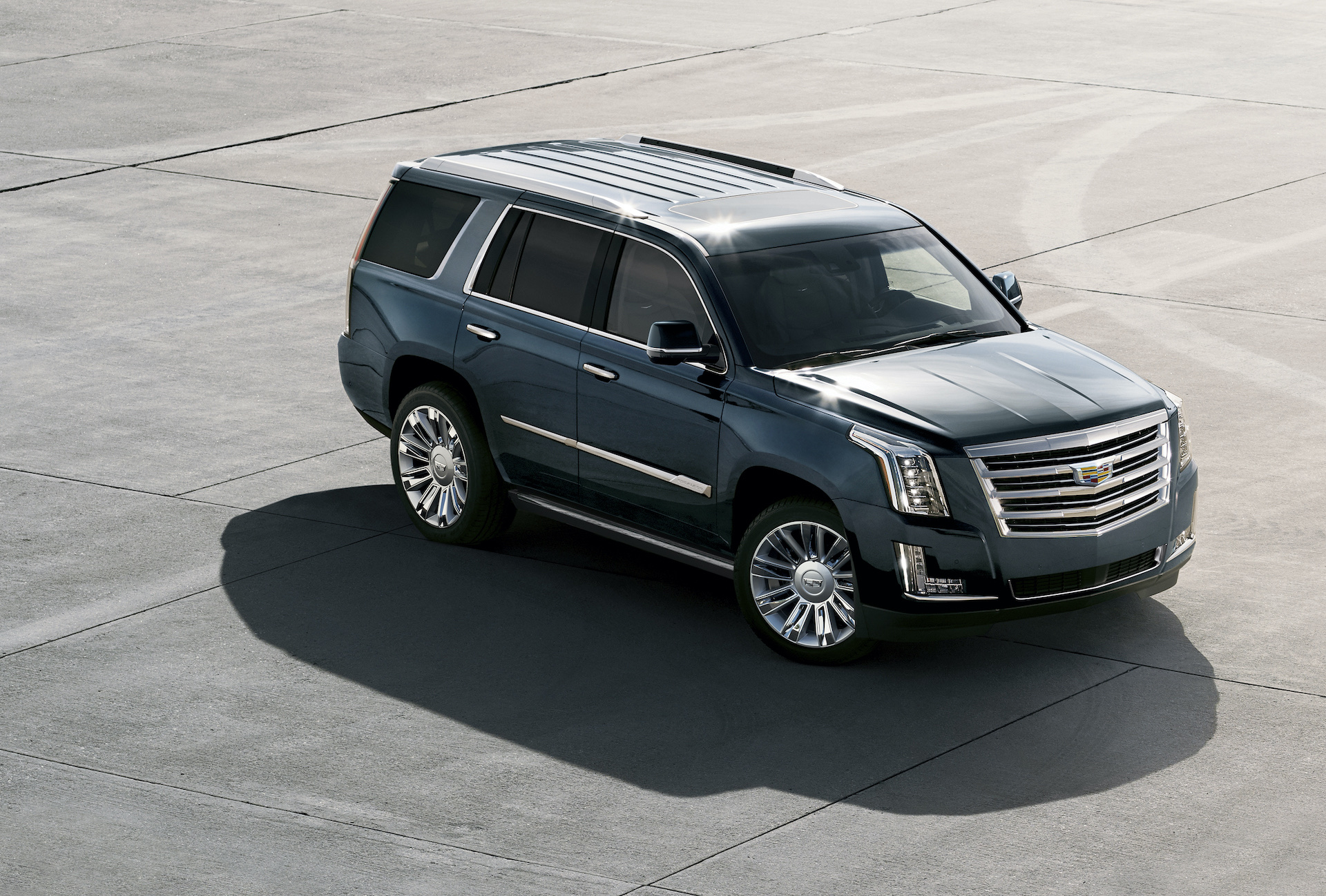

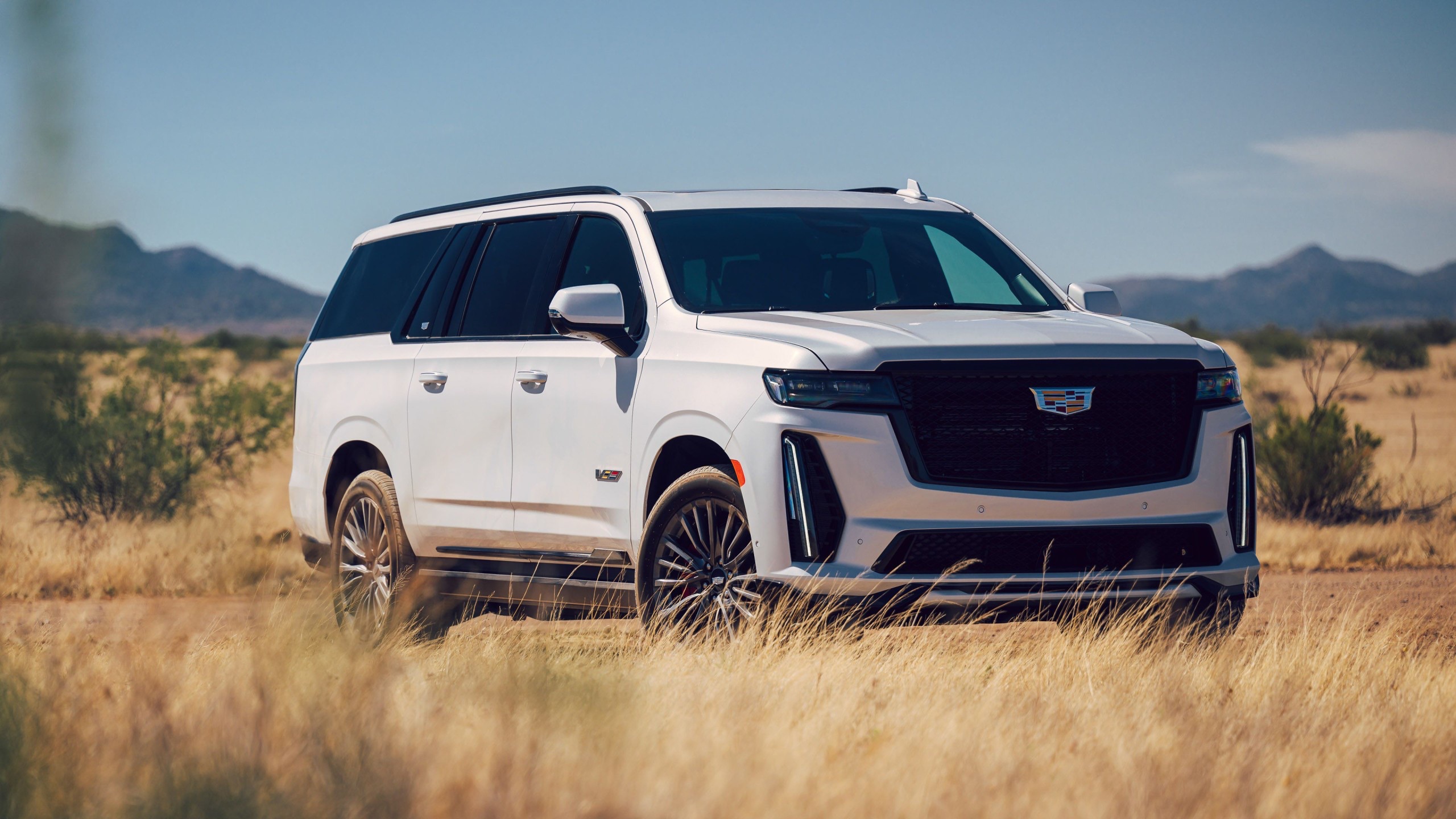

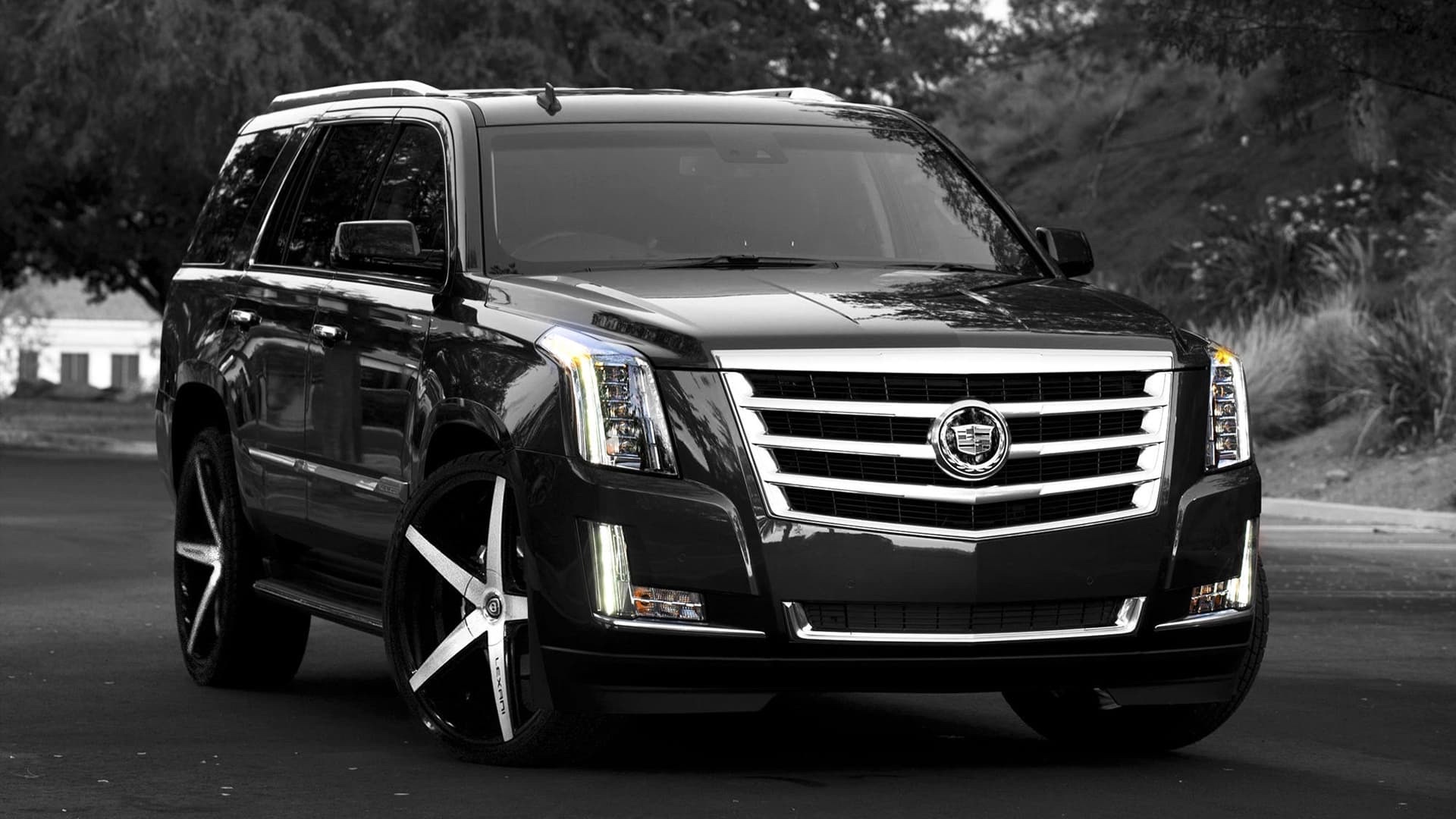

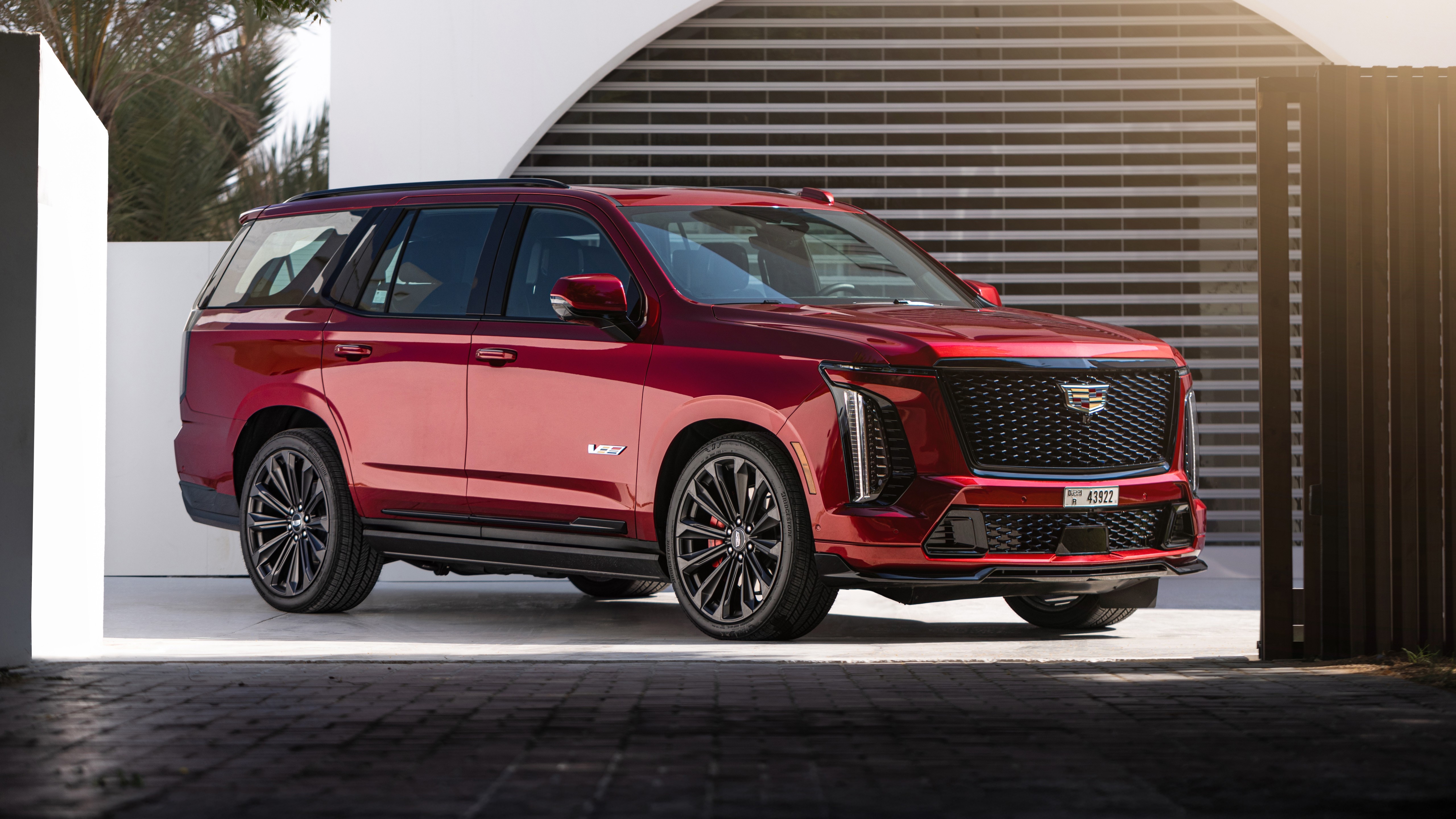

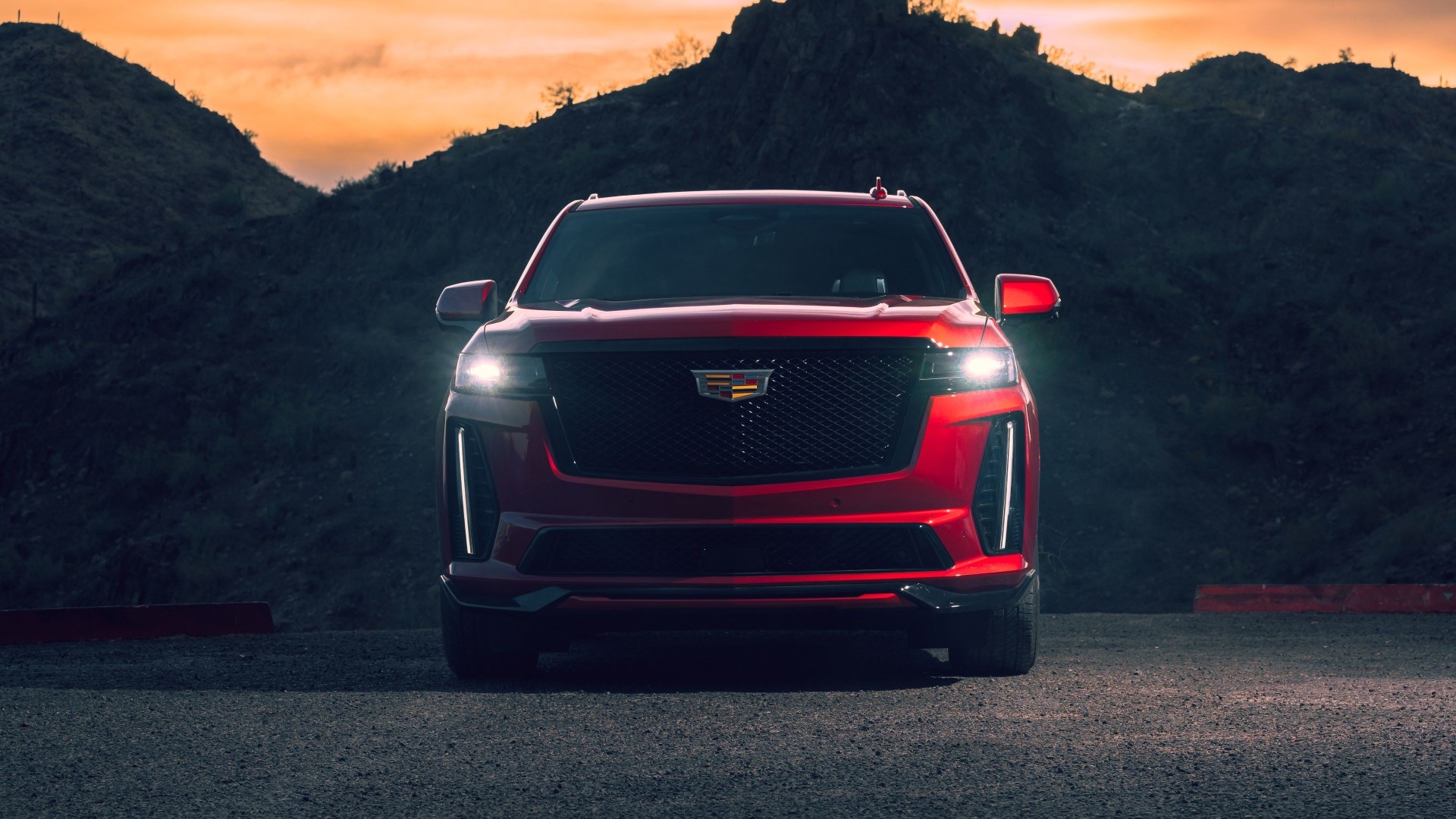

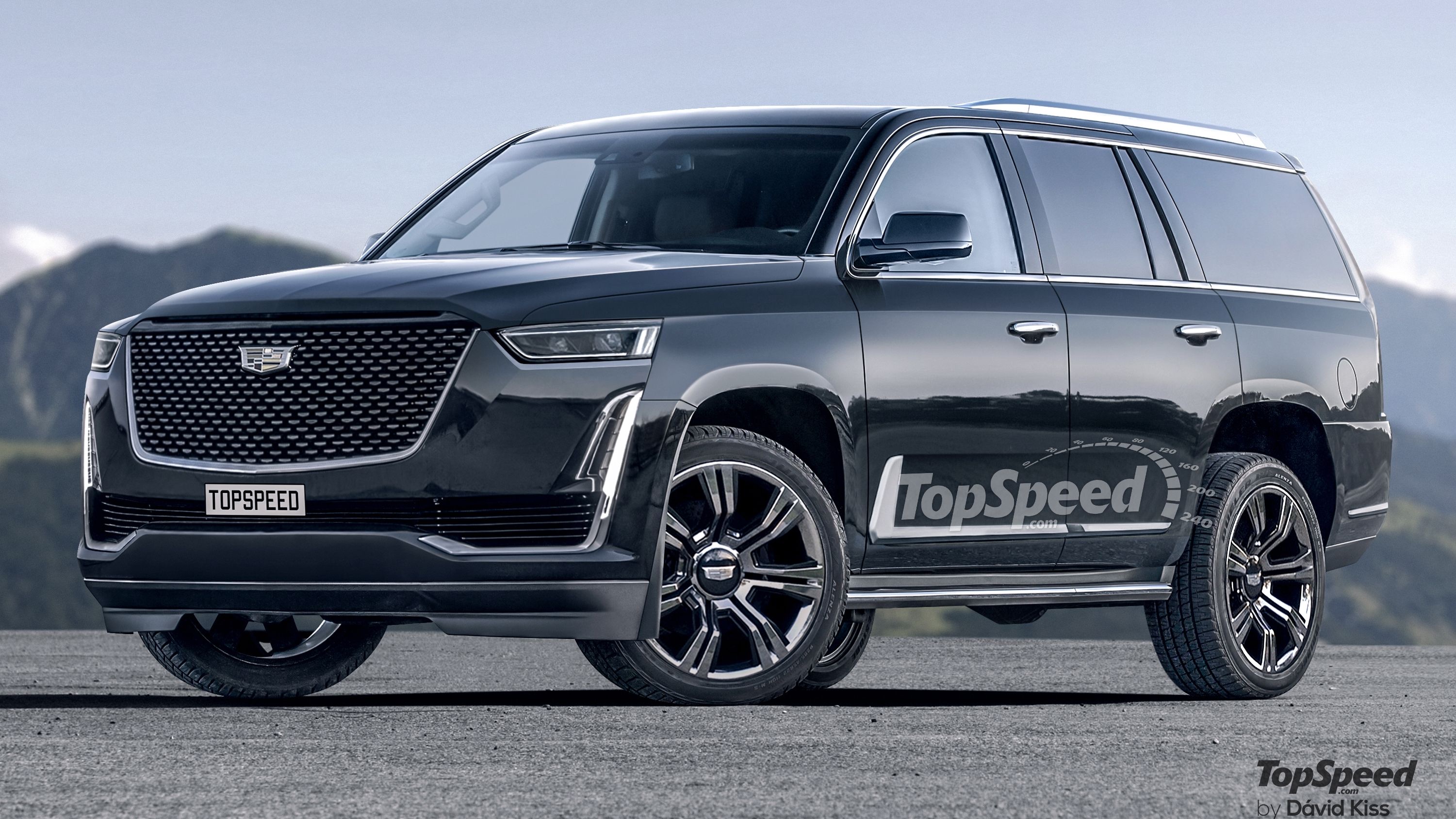

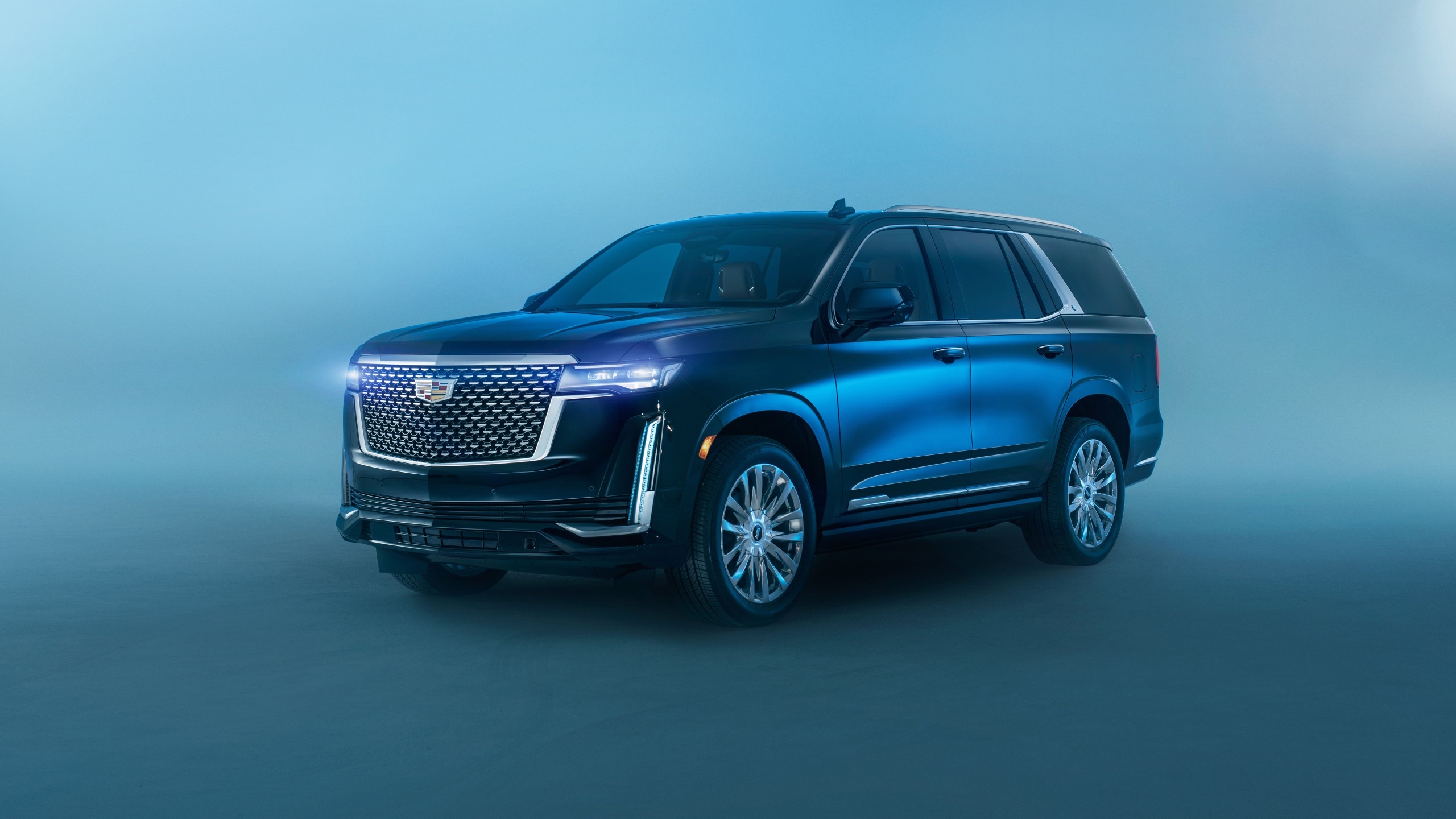

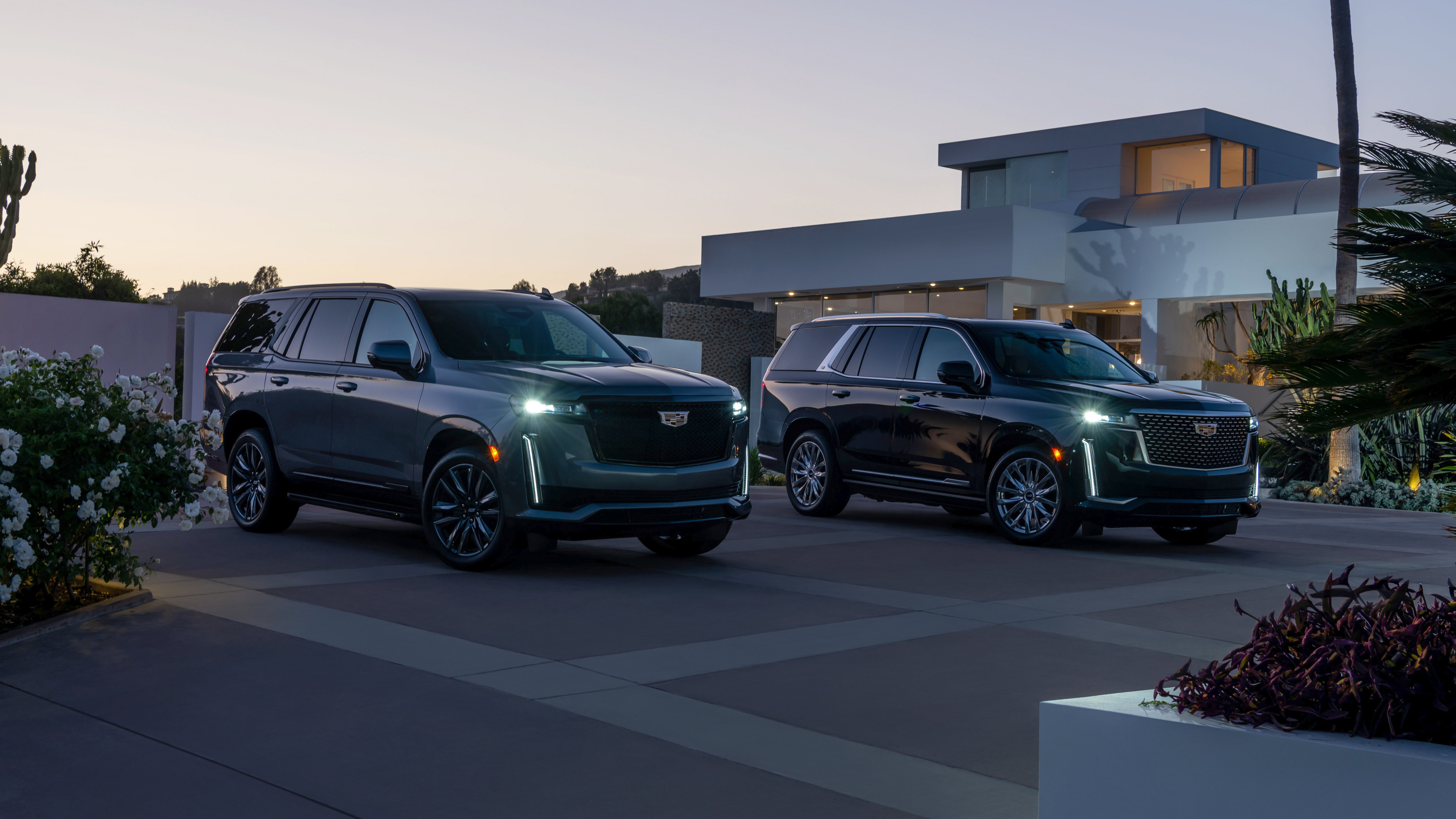

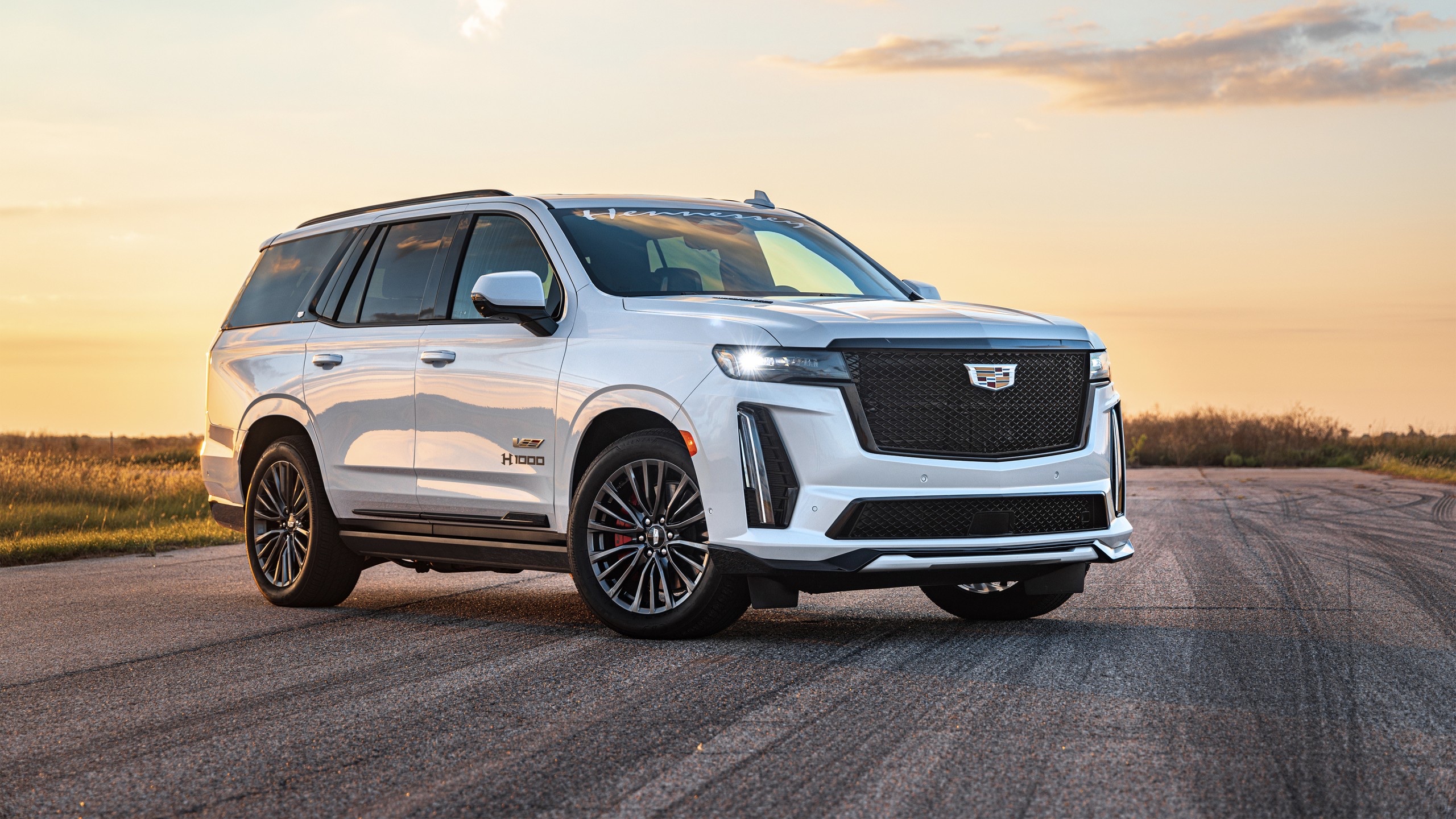

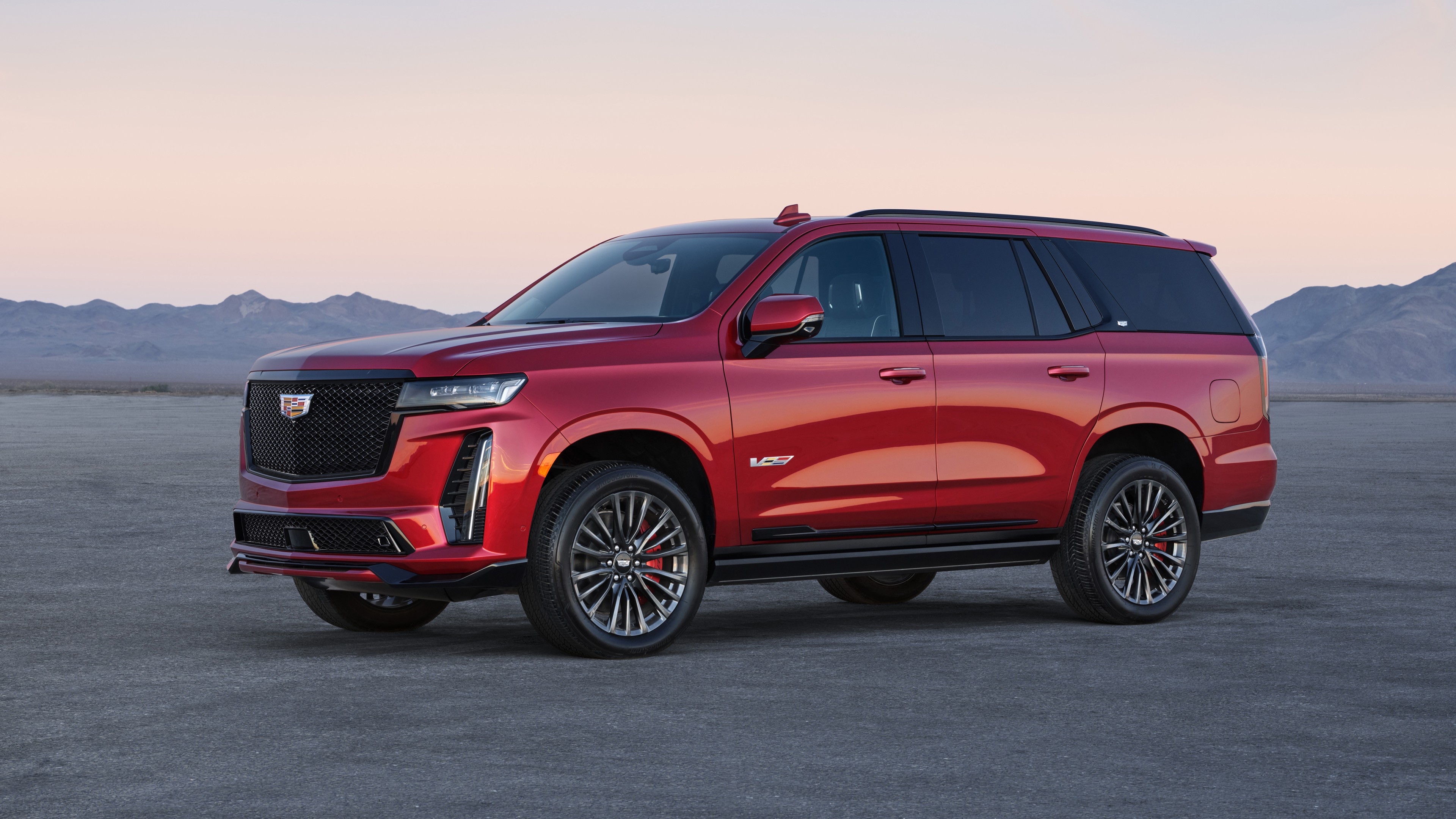

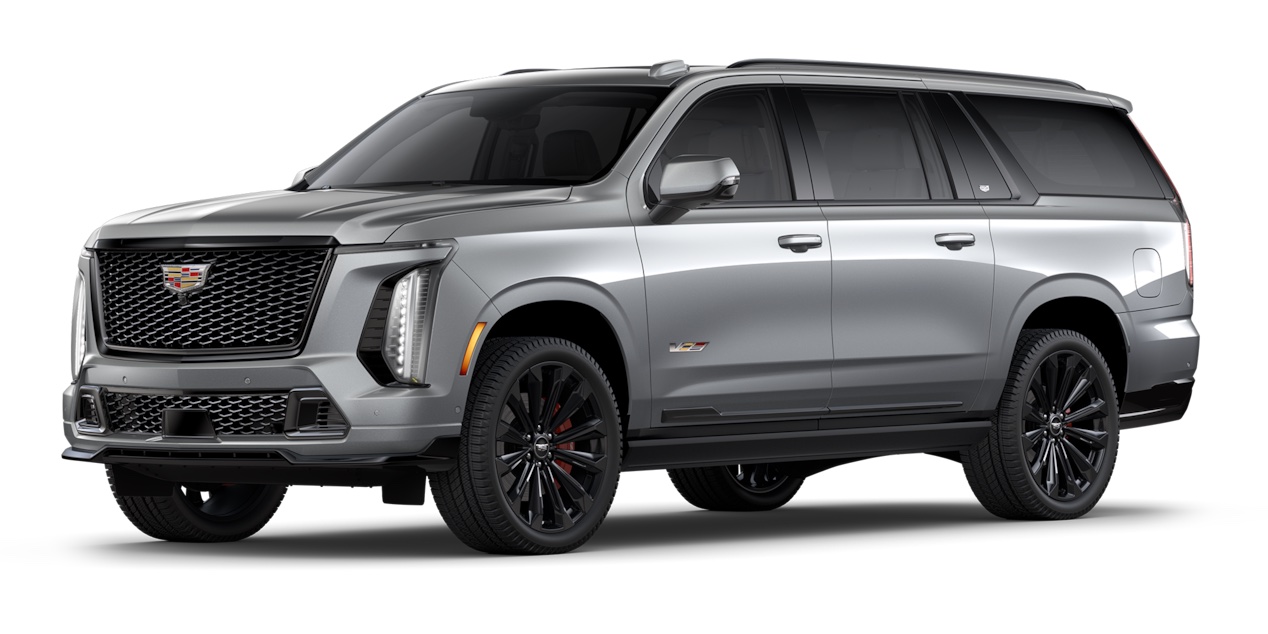

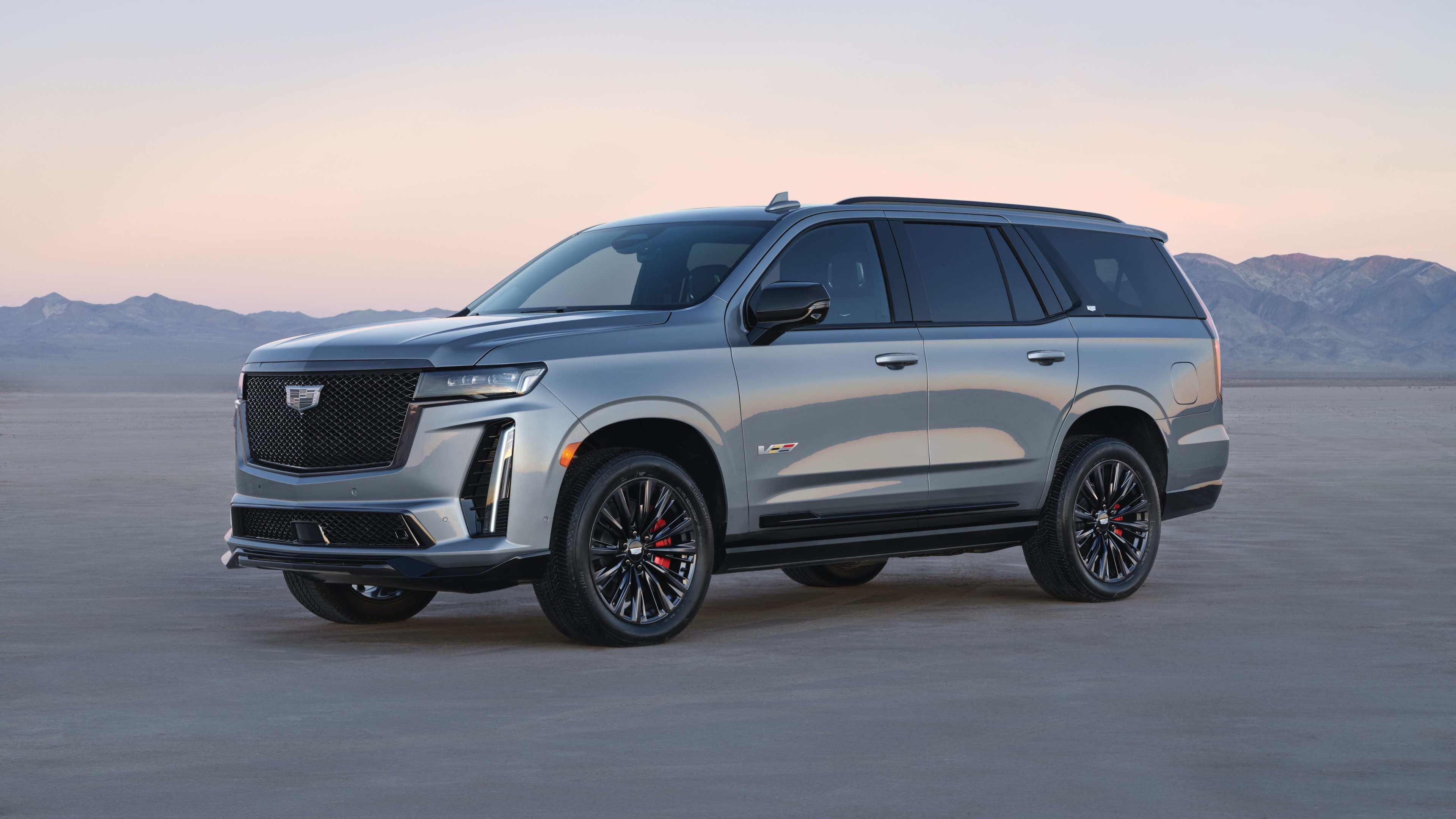

Cadillac Escalade photo gallery
20 images are collected here with the main specifications and trim data for this model.
Photo Cadillac Escalade
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
6.2i (426 hp) 10-speed automatic 31 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 15.7 |
|---|---|
| Fuel consumption highway, L/100 km | 11.8 |
| Fuel consumption combined, L/100 km | 13.8 |
Engine
| Engine | 6.2i |
|---|---|
| Engine code | L86 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 6162 |
| Cylinder layout | V-type |
| Number of cylinders | 8 |
| Valves | 16 |
| Compression ratio | 11.5:1 |
| Power, hp | 426 |
| RPM at max power | 5600 |
| Torque, Nm | 623 |
| RPM at max torque | 4100 |
Dimensions
| Seats | 7 |
|---|---|
| Length, mm | 5382 |
| Height, mm | 1948 |
| Wheelbase, mm | 3071 |
| Gross weight, kg | 3357 |
| Fuel tank capacity, L | 91 |
| Width without mirrors, mm | 2060 |
| Trunk capacity, L | 722 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | GM |
| Automatic transmission | + |
| Transmission country | USA |
6.2i (426 hp) 10-speed automatic 4x4 31 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 16.8 |
|---|---|
| Fuel consumption highway, L/100 km | 12.4 |
| Fuel consumption combined, L/100 km | 14.7 |
Engine
| Engine | 6.2i |
|---|---|
| Engine code | L86 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 6162 |
| Cylinder layout | V-type |
| Number of cylinders | 8 |
| Valves | 16 |
| Compression ratio | 11.5:1 |
| Power, hp | 426 |
| RPM at max power | 5600 |
| Torque, Nm | 623 |
| RPM at max torque | 4100 |
Dimensions
| Seats | 7 |
|---|---|
| Length, mm | 5382 |
| Height, mm | 1948 |
| Wheelbase, mm | 3071 |
| Gross weight, kg | 3357 |
| Fuel tank capacity, L | 91 |
| Width without mirrors, mm | 2060 |
| Trunk capacity, L | 722 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | GM |
| Automatic transmission | + |
| Transmission country | USA |
3.0 Duramax (281 hp) 10-speed automatic 29 specifications
Specifications
Engine
| Engine | 3.0 Duramax |
|---|---|
| Engine code | LM2 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Compression ratio | 15.0:1 |
| Power, hp | 281 |
| RPM at max power | 3750 |
| Torque, Nm | 624 |
| RPM at max torque | 1500 |
Dimensions
| Seats | 7 |
|---|---|
| Length, mm | 5382 |
| Height, mm | 1948 |
| Wheelbase, mm | 3071 |
| Gross weight, kg | 3357 |
| Fuel tank capacity, L | 91 |
| Width without mirrors, mm | 2060 |
| Trunk capacity, L | 722 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | GM |
| Automatic transmission | + |
| Transmission country | USA |
3.0 Duramax (281 hp) 10-speed automatic 4x4 29 specifications
Specifications
Engine
| Engine | 3.0 Duramax |
|---|---|
| Engine code | LM2 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Compression ratio | 15.0:1 |
| Power, hp | 281 |
| RPM at max power | 3750 |
| Torque, Nm | 624 |
| RPM at max torque | 1500 |
Dimensions
| Seats | 7 |
|---|---|
| Length, mm | 5382 |
| Height, mm | 1948 |
| Wheelbase, mm | 3071 |
| Gross weight, kg | 3357 |
| Fuel tank capacity, L | 91 |
| Width without mirrors, mm | 2060 |
| Trunk capacity, L | 722 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | GM |
| Automatic transmission | + |
| Transmission country | USA |
3.0D AT Platinum Sport 4WD 105 specifications
Specifications
Engine
| Engine | 3.0 Duramax |
|---|---|
| Engine code | LM2 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Compression ratio | 15.0:1 |
| Power, hp | 281 |
| RPM at max power | 3750 |
| Torque, Nm | 624 |
| RPM at max torque | 1500 |
Dimensions
| Seats | 7 |
|---|---|
| Length, mm | 5766 |
| Height, mm | 1948 |
| Wheelbase, mm | 3407 |
| Kerb weight, kg | 2780 |
| Gross weight, kg | 3420 |
| Fuel tank capacity, L | 113 |
| Ground clearance, mm | 229 |
| Width without mirrors, mm | 2060 |
| Trunk capacity, L | 1214 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | GM |
| Automatic transmission | + |
| Transmission country | USA |
Brake system
| Front brakes | Ventilated disc |
|---|---|
| Rear brakes | Ventilated disc |
Steering
| Power steering | Electric power steering |
|---|
Equipment
Exterior
| Rear spoiler | + |
|---|---|
| Roof rails | + |
| Mud flaps | + |
Comfort
| Cruise control | + |
|---|---|
| Tire pressure monitoring | + |
| Start/Stop engine button | + |
| Multifunction steering wheel | + |
| Keyless entry and start | + |
| Steering wheel position memory | + |
| Adjustable steering column | + |
| Refrigerator | + |
Interior
| Trip computer | + |
|---|---|
| Leather-trimmed interior elements | + |
| Wood interior trim | + |
Technologies
| Adjustable speed limiter | + |
|---|
Climate and sound insulation
| Four-zone climate control | + |
|---|---|
| Heated front seats | + |
| Heated rear seats | + |
| Ventilated front seats | + |
| Heated steering wheel | + |
| Ventilated rear seats | + |
Off-road
| Hill descent control | + |
|---|---|
| Hill-start assist | + |
| Hill descent control | + |
Seats
| Power front seats | + |
|---|---|
| Child seat anchors (LATCH/Isofix) | + |
| Seat memory | + |
Headlights and lighting
| Xenon headlights | + |
|---|---|
| Front fog lights | + |
| Light sensor | + |
| Headlight leveling | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| CD player | + |
| Subwoofer | + |
| Navigation system | + |
| Audio system | AKG; |
| Head-up display | + |
| MP3 support | + |
| USB | + |
| Number of speakers | 36 |
| Rear-seat entertainment system | + |
| Digital TV | + |
Trunk
| Power tailgate | + |
|---|
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Heated rear window | + |
| Front power windows | + |
| Rear power windows | + |
| Panoramic roof | + |
| Power sunroof | + |
| Power-adjustable side mirrors | + |
Visibility and parking
| Rear-view camera | + |
|---|---|
| Front parking sensors | + |
| Rear parking sensors | + |
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Traction control | + |
| Electronic differential lock simulation | + |
| Collision mitigation braking system | + |
| Attention Assist driver fatigue monitoring | + |
| Adaptive front lighting system | + |
| Blind spot monitoring | + |
| Lane keeping assist | + |
| Forward collision warning | + |
Anti-theft systems
| Immobilizer | + |
|---|---|
| Alarm system | + |
| Central locking | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
3.0D AT Premium Luxury ESV 4WD 102 specifications
Specifications
Engine
| Engine | 3.0 Duramax |
|---|---|
| Engine code | LM2 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Compression ratio | 15.0:1 |
| Power, hp | 281 |
| RPM at max power | 3750 |
| Torque, Nm | 624 |
| RPM at max torque | 1500 |
Dimensions
| Seats | 7 |
|---|---|
| Length, mm | 5766 |
| Height, mm | 1948 |
| Wheelbase, mm | 3407 |
| Kerb weight, kg | 2780 |
| Gross weight, kg | 3420 |
| Fuel tank capacity, L | 113 |
| Ground clearance, mm | 229 |
| Width without mirrors, mm | 2060 |
| Trunk capacity, L | 1214 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | GM |
| Automatic transmission | + |
| Transmission country | USA |
Brake system
| Front brakes | Ventilated disc |
|---|---|
| Rear brakes | Ventilated disc |
Steering
| Power steering | Electric power steering |
|---|
Equipment
Exterior
| Rear spoiler | + |
|---|---|
| Roof rails | + |
| Mud flaps | + |
Comfort
| Cruise control | + |
|---|---|
| Tire pressure monitoring | + |
| Start/Stop engine button | + |
| Multifunction steering wheel | + |
| Keyless entry and start | + |
| Steering wheel position memory | + |
| Adjustable steering column | + |
| Refrigerator | + |
Interior
| Trip computer | + |
|---|---|
| Leather-trimmed interior elements | + |
| Wood interior trim | + |
Technologies
| Adjustable speed limiter | + |
|---|
Climate and sound insulation
| Heated front seats | + |
|---|---|
| Heated rear seats | + |
| Ventilated front seats | + |
| Heated steering wheel | + |
Off-road
| Hill descent control | + |
|---|---|
| Hill-start assist | + |
| Hill descent control | + |
Seats
| Power front seats | + |
|---|---|
| Child seat anchors (LATCH/Isofix) | + |
| Seat memory | + |
Headlights and lighting
| Xenon headlights | + |
|---|---|
| Front fog lights | + |
| Light sensor | + |
| Headlight leveling | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| CD player | + |
| Subwoofer | + |
| Navigation system | + |
| Head-up display | + |
| MP3 support | + |
| USB | + |
| Number of speakers | 36 |
| Rear-seat entertainment system | + |
| Digital TV | + |
Trunk
| Power tailgate | + |
|---|
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Heated rear window | + |
| Front power windows | + |
| Rear power windows | + |
| Panoramic roof | + |
| Power sunroof | + |
| Power-adjustable side mirrors | + |
Visibility and parking
| Rear-view camera | + |
|---|---|
| Front parking sensors | + |
| Rear parking sensors | + |
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Traction control | + |
| Electronic differential lock simulation | + |
| Collision mitigation braking system | + |
| Attention Assist driver fatigue monitoring | + |
| Adaptive front lighting system | + |
| Blind spot monitoring | + |
| Lane keeping assist | + |
| Forward collision warning | + |
Anti-theft systems
| Immobilizer | + |
|---|---|
| Alarm system | + |
| Central locking | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
6.2-speed automatic Luxury ESV 4WD 102 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 16.8 |
|---|---|
| Fuel consumption highway, L/100 km | 12.4 |
| Fuel consumption combined, L/100 km | 14.7 |
Engine
| Engine | 6.2i |
|---|---|
| Engine code | L86 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 6162 |
| Cylinder layout | V-type |
| Number of cylinders | 8 |
| Valves | 16 |
| Compression ratio | 11.5:1 |
| Power, hp | 426 |
| RPM at max power | 5600 |
| Torque, Nm | 623 |
| RPM at max torque | 4100 |
Dimensions
| Seats | 7 |
|---|---|
| Length, mm | 5766 |
| Height, mm | 1948 |
| Wheelbase, mm | 3407 |
| Gross weight, kg | 3420 |
| Fuel tank capacity, L | 91 |
| Width without mirrors, mm | 2060 |
| Trunk capacity, L | 1214 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | GM |
| Automatic transmission | + |
| Transmission country | USA |
Brake system
| Front brakes | Ventilated disc |
|---|---|
| Rear brakes | Ventilated disc |
Steering
| Power steering | Electric power steering |
|---|
Equipment
Exterior
| Rear spoiler | + |
|---|---|
| Roof rails | + |
| Mud flaps | + |
Comfort
| Cruise control | + |
|---|---|
| Tire pressure monitoring | + |
| Start/Stop engine button | + |
| Multifunction steering wheel | + |
| Keyless entry and start | + |
| Steering wheel position memory | + |
| Adjustable steering column | + |
| Refrigerator | + |
Interior
| Trip computer | + |
|---|---|
| Leather-trimmed interior elements | + |
| Wood interior trim | + |
Technologies
| Adjustable speed limiter | + |
|---|
Climate and sound insulation
| Heated front seats | + |
|---|---|
| Heated rear seats | + |
| Ventilated front seats | + |
| Heated steering wheel | + |
Off-road
| Crawl Control with downhill assist | + |
|---|---|
| Hill descent control | + |
| Hill-start assist | + |
Seats
| Power front seats | + |
|---|---|
| Child seat anchors (LATCH/Isofix) | + |
| Seat memory | + |
Headlights and lighting
| Xenon headlights | + |
|---|---|
| Front fog lights | + |
| Light sensor | + |
| Headlight leveling | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| CD player | + |
| Subwoofer | + |
| Navigation system | + |
| MP3 support | + |
| Rear passenger TFT display | + |
| USB | + |
| Head-up display | + |
| Rear passenger DVD system | + |
Trunk
| Power tailgate | + |
|---|
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Heated rear window | + |
| Front power windows | + |
| Rear power windows | + |
| Panoramic roof | + |
| Power sunroof | + |
| Power-adjustable side mirrors | + |
Visibility and parking
| Rear-view camera | + |
|---|---|
| Front parking sensors | + |
| Rear parking sensors | + |
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Traction control | + |
| Dynamic stability control | + |
| Electronic differential lock simulation | + |
| Collision mitigation braking system | + |
| Attention Assist driver fatigue monitoring | + |
| Adaptive front lighting system | + |
| Blind spot monitoring | + |
| Lane keeping assist | + |
| Forward collision warning | + |
Anti-theft systems
| Immobilizer | + |
|---|---|
| Alarm system | + |
| Central locking | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
6.2-speed automatic Platinum ESV 4WD 104 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 16.8 |
|---|---|
| Fuel consumption highway, L/100 km | 12.4 |
| Fuel consumption combined, L/100 km | 14.7 |
Engine
| Engine | 6.2i |
|---|---|
| Engine code | L86 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 6162 |
| Cylinder layout | V-type |
| Number of cylinders | 8 |
| Valves | 16 |
| Compression ratio | 11.5:1 |
| Power, hp | 426 |
| RPM at max power | 5600 |
| Torque, Nm | 623 |
| RPM at max torque | 4100 |
Dimensions
| Seats | 7 |
|---|---|
| Length, mm | 5766 |
| Height, mm | 1948 |
| Wheelbase, mm | 3407 |
| Kerb weight, kg | 2780 |
| Gross weight, kg | 3420 |
| Fuel tank capacity, L | 113 |
| Ground clearance, mm | 229 |
| Width without mirrors, mm | 2060 |
| Trunk capacity, L | 1214 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | GM |
| Automatic transmission | + |
| Transmission country | USA |
Brake system
| Front brakes | Ventilated disc |
|---|---|
| Rear brakes | Ventilated disc |
Steering
| Power steering | Electric power steering |
|---|
Equipment
Exterior
| Rear spoiler | + |
|---|---|
| Roof rails | + |
| Mud flaps | + |
Comfort
| Cruise control | + |
|---|---|
| Tire pressure monitoring | + |
| Start/Stop engine button | + |
| Multifunction steering wheel | + |
| Keyless entry and start | + |
| Steering wheel position memory | + |
| Adjustable steering column | + |
| Refrigerator | + |
Interior
| Trip computer | + |
|---|---|
| Leather-trimmed interior elements | + |
| Wood interior trim | + |
Technologies
| Adjustable speed limiter | + |
|---|
Climate and sound insulation
| Heated front seats | + |
|---|---|
| Heated rear seats | + |
| Ventilated front seats | + |
| Heated steering wheel | + |
Off-road
| Hill descent control | + |
|---|---|
| Hill-start assist | + |
| Hill descent control | + |
Seats
| Power front seats | + |
|---|---|
| Child seat anchors (LATCH/Isofix) | + |
| Seat memory | + |
Headlights and lighting
| Xenon headlights | + |
|---|---|
| Front fog lights | + |
| Light sensor | + |
| Headlight leveling | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| CD player | + |
| Subwoofer | + |
| Navigation system | + |
| Head-up display | + |
| MP3 support | + |
| USB | + |
| Number of speakers | 36 |
| Rear-seat entertainment system | + |
| Digital TV | + |
Trunk
| Power tailgate | + |
|---|
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Heated rear window | + |
| Front power windows | + |
| Rear power windows | + |
| Panoramic roof | + |
| Power sunroof | + |
| Power-adjustable side mirrors | + |
Visibility and parking
| Rear-view camera | + |
|---|---|
| Front parking sensors | + |
| Rear parking sensors | + |
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Traction control | + |
| Electronic differential lock simulation | + |
| Collision mitigation braking system | + |
| Attention Assist driver fatigue monitoring | + |
| Adaptive front lighting system | + |
| Blind spot monitoring | + |
| Lane keeping assist | + |
| Forward collision warning | + |
Anti-theft systems
| Immobilizer | + |
|---|---|
| Alarm system | + |
| Central locking | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
6.2-speed automatic Premium Luxury ESV 4WD 104 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 16.8 |
|---|---|
| Fuel consumption highway, L/100 km | 12.4 |
| Fuel consumption combined, L/100 km | 14.7 |
Engine
| Engine | 6.2i |
|---|---|
| Engine code | L86 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 6162 |
| Cylinder layout | V-type |
| Number of cylinders | 8 |
| Valves | 16 |
| Compression ratio | 11.5:1 |
| Power, hp | 426 |
| RPM at max power | 5600 |
| Torque, Nm | 623 |
| RPM at max torque | 4100 |
Dimensions
| Seats | 7 |
|---|---|
| Length, mm | 5766 |
| Height, mm | 1948 |
| Wheelbase, mm | 3407 |
| Kerb weight, kg | 2780 |
| Gross weight, kg | 3420 |
| Fuel tank capacity, L | 113 |
| Ground clearance, mm | 229 |
| Width without mirrors, mm | 2060 |
| Trunk capacity, L | 1214 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | GM |
| Automatic transmission | + |
| Transmission country | USA |
Brake system
| Front brakes | Ventilated disc |
|---|---|
| Rear brakes | Ventilated disc |
Steering
| Power steering | Electric power steering |
|---|
Equipment
Exterior
| Rear spoiler | + |
|---|---|
| Roof rails | + |
| Mud flaps | + |
Comfort
| Cruise control | + |
|---|---|
| Tire pressure monitoring | + |
| Start/Stop engine button | + |
| Multifunction steering wheel | + |
| Keyless entry and start | + |
| Steering wheel position memory | + |
| Adjustable steering column | + |
| Refrigerator | + |
Interior
| Trip computer | + |
|---|---|
| Leather-trimmed interior elements | + |
| Wood interior trim | + |
Technologies
| Adjustable speed limiter | + |
|---|
Climate and sound insulation
| Heated front seats | + |
|---|---|
| Heated rear seats | + |
| Ventilated front seats | + |
| Heated steering wheel | + |
Off-road
| Hill descent control | + |
|---|---|
| Hill-start assist | + |
| Hill descent control | + |
Seats
| Power front seats | + |
|---|---|
| Child seat anchors (LATCH/Isofix) | + |
| Seat memory | + |
Headlights and lighting
| Xenon headlights | + |
|---|---|
| Front fog lights | + |
| Light sensor | + |
| Headlight leveling | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| CD player | + |
| Subwoofer | + |
| Navigation system | + |
| Head-up display | + |
| MP3 support | + |
| USB | + |
| Number of speakers | 36 |
| Rear-seat entertainment system | + |
| Digital TV | + |
Trunk
| Power tailgate | + |
|---|
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Heated rear window | + |
| Front power windows | + |
| Rear power windows | + |
| Panoramic roof | + |
| Power sunroof | + |
| Power-adjustable side mirrors | + |
Visibility and parking
| Rear-view camera | + |
|---|---|
| Front parking sensors | + |
| Rear parking sensors | + |
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Traction control | + |
| Electronic differential lock simulation | + |
| Collision mitigation braking system | + |
| Attention Assist driver fatigue monitoring | + |
| Adaptive front lighting system | + |
| Blind spot monitoring | + |
| Lane keeping assist | + |
| Forward collision warning | + |
Anti-theft systems
| Immobilizer | + |
|---|---|
| Alarm system | + |
| Central locking | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
Cadillac Escalade questions
Short answers based on the specifications and photos available in this catalog.
What body style is the Cadillac Escalade?
The Escalade is a large, full-size luxury SUV. It is available in a standard wheelbase and an extended-length ESV version.
What engine options are available?
It offers a 6.2-liter V8 gasoline engine with 426 hp and a 3.0-liter Duramax turbodiesel inline-six with 281 hp. Both pair with a 10-speed automatic transmission.
Is it practical for family use?
Yes, it is highly practical for large families, offering standard seating for seven, a spacious third row with improved legroom, and substantial cargo capacity, especially in the ESV model.
What is the main tech feature inside?
The dashboard is defined by a massive, multi-screen curved OLED interface that includes augmented reality navigation, accompanied by an available 36-speaker AKG audio system.
Does the 2020 Escalade have a solid rear axle?
No, the fifth-generation 2020 Escalade transitioned to an independent multi-link rear suspension to improve ride quality and interior space.
Continue exploring Cadillac
Return to Cadillac models, browse the gallery, or compare the trims listed above.
