Chery Tiggo 9 PHEV specifications and photos

The Chery Tiggo 9 PHEV is a plug-in hybrid midsize crossover that serves as a global flagship for the brand. Introduced for global markets in early 2024, it combines a seven-seat layout with an advanced all-wheel-drive hybrid powertrain.

Years 2024
Body type suv
Trims 2
Photos 19
Chery Tiggo 9 PHEV 2024 SUV
Overview

Chery Tiggo 9 PHEV at a glance

Quick model context before comparing photos and trim-level specifications.

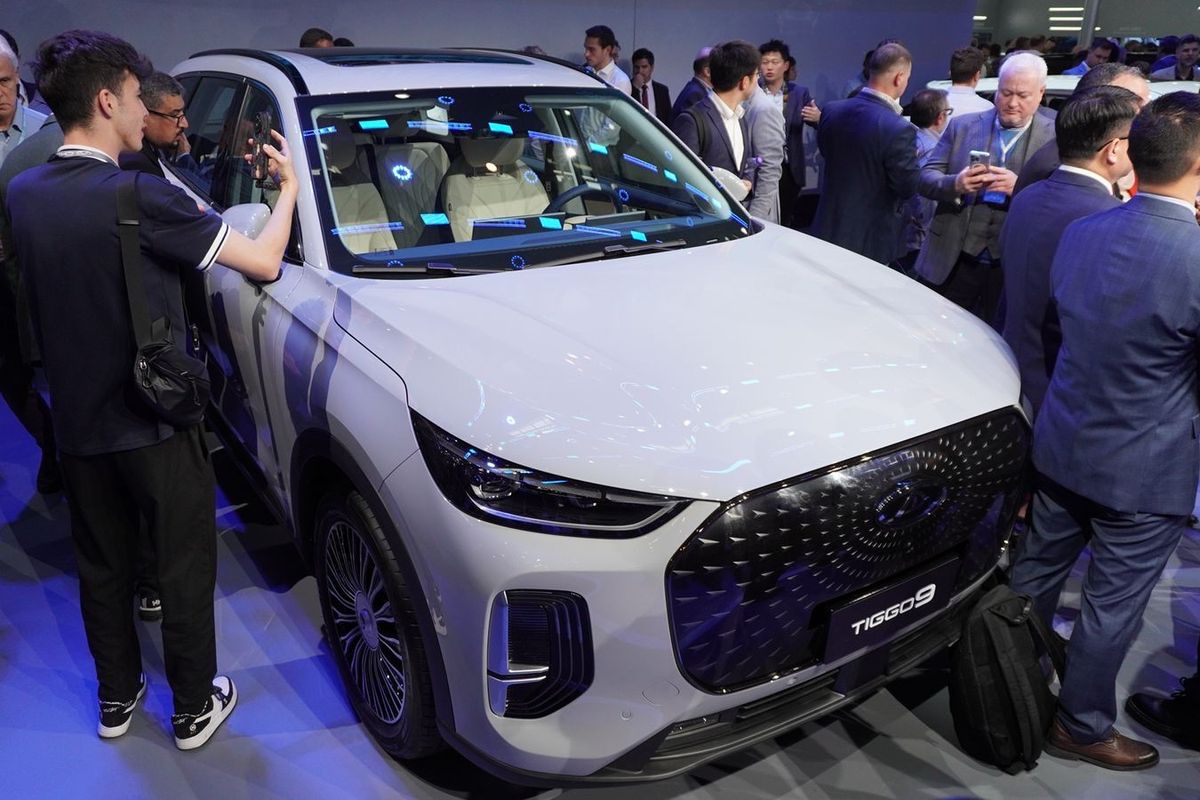

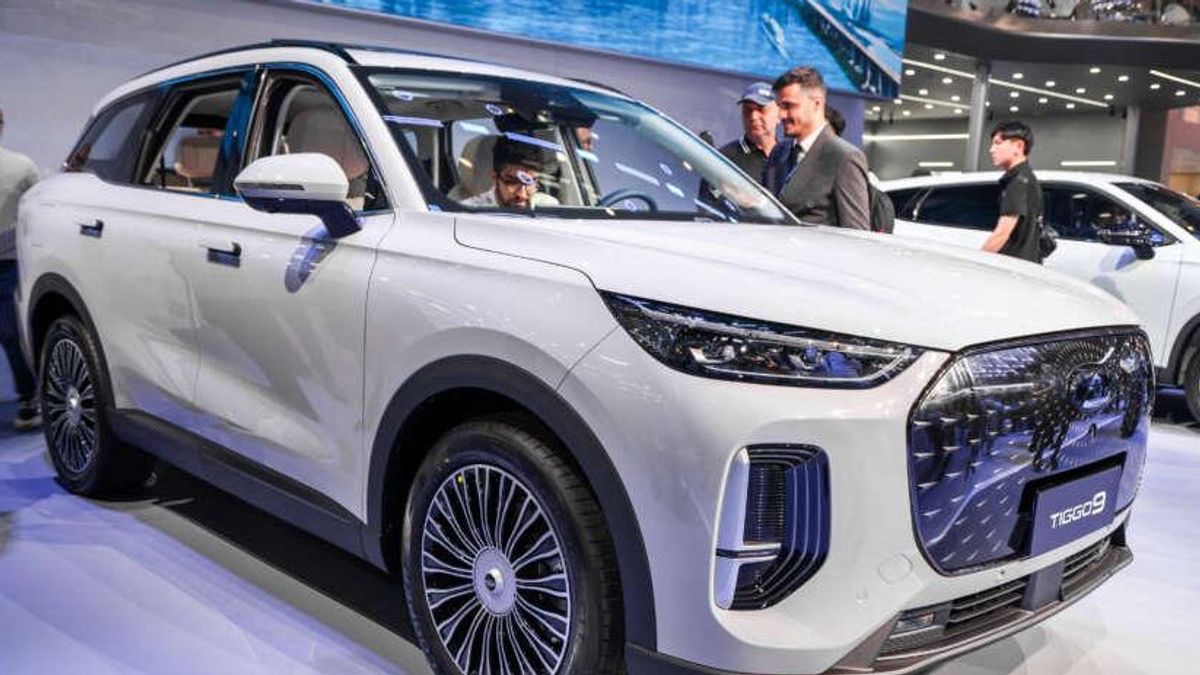

Debuting globally at the 2024 Beijing Auto Show following its initial Chinese market launch, the Tiggo 9 PHEV represents Chery's push into the higher-end plug-in hybrid segment. Positioned as a family-oriented K2-class SUV, it utilizes the Chery Super Hybrid platform to deliver a balance of utility and electrified performance. The vehicle is aimed at buyers who need the practicality of three rows of seating alongside the efficiency and localized zero-emission capability of a plug-in hybrid system. It incorporates a comprehensive suite of modern driver assistance features and a heavily digitized cabin environment.

  • Power: 428 hp
  • Engine displacement: 1499 cc
  • Transmissions: 3DHT
  • Seating: 7 seats
Research hub

Photos, trims and specifications for Chery Tiggo 9 PHEV

This model page brings gallery images, trim comparison, and detailed technical data together for the 2024 generation.

Open photo gallery 19 images Compare trims 2 configurations View detailed specs 1499 cc Explore related pages Chery and similar models
Model guide

Chery Tiggo 9 PHEV overview

Editorial context for design, cabin, performance, practicality, and buyer notes.

Design

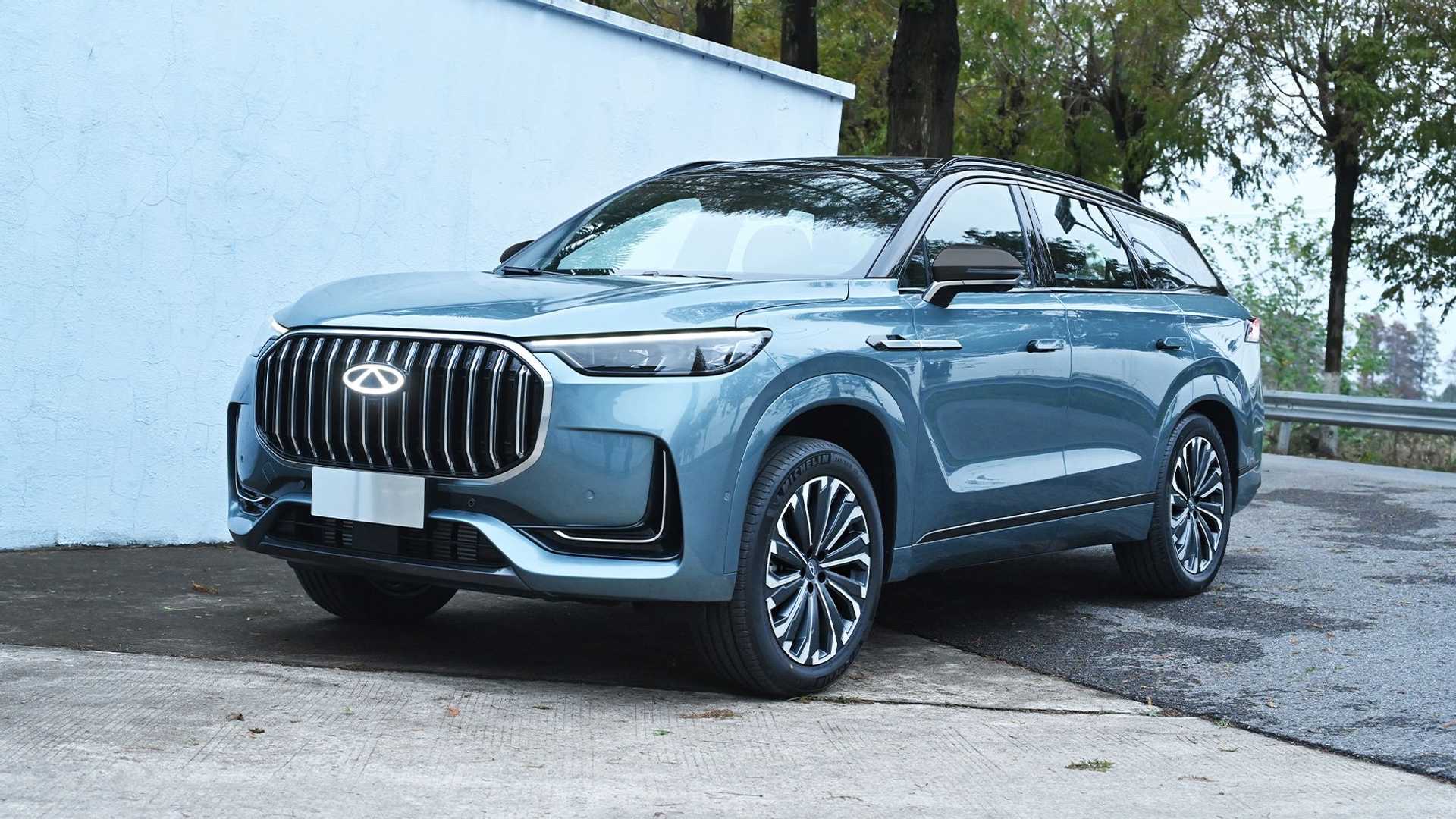

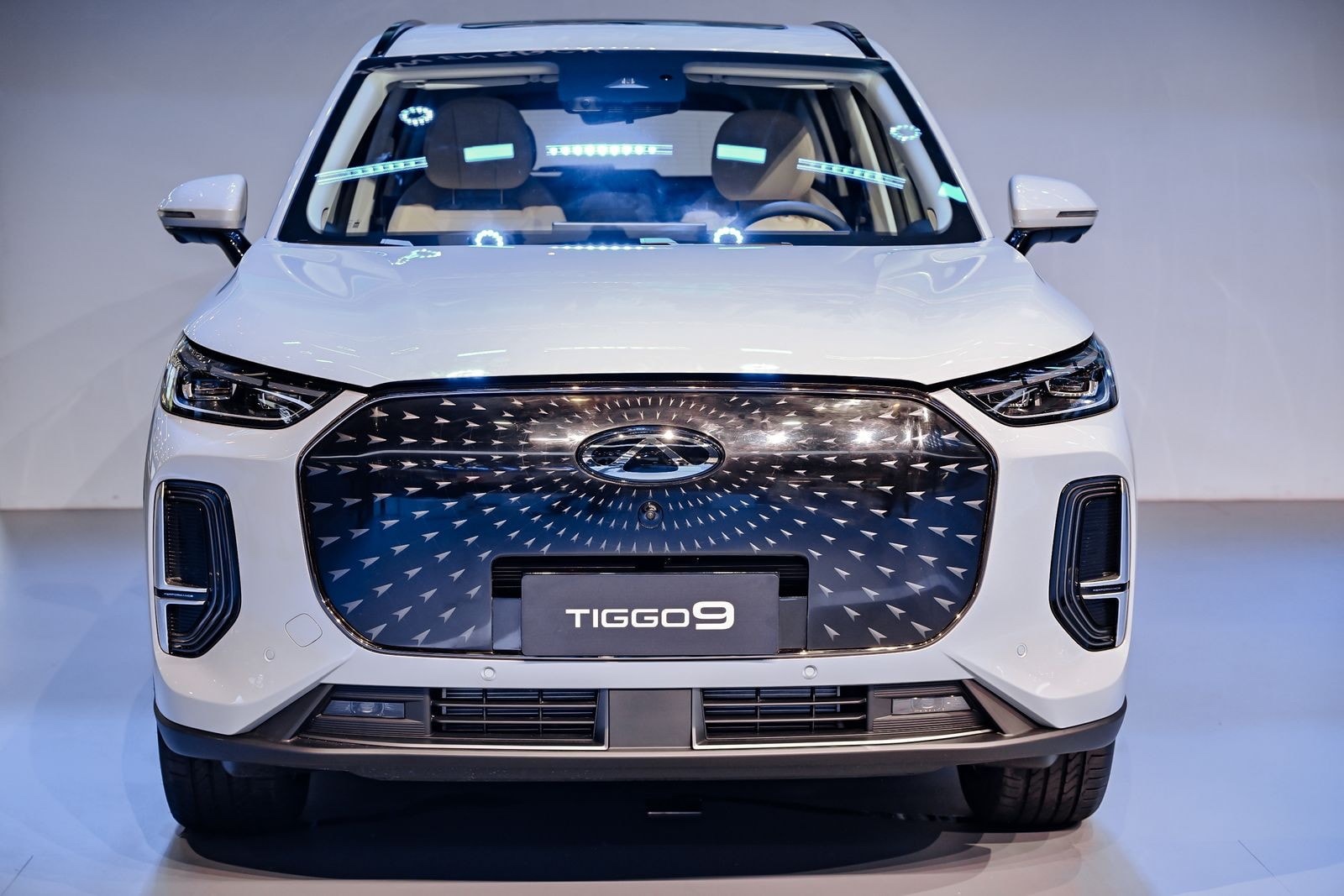

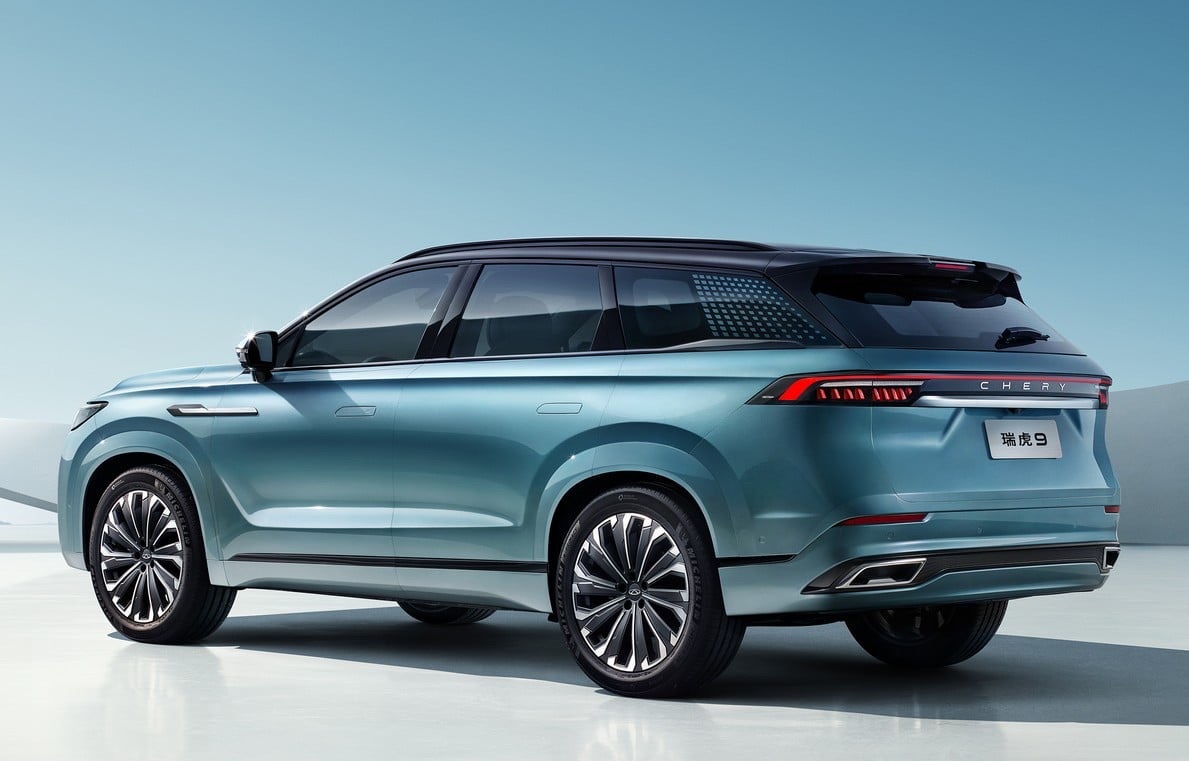

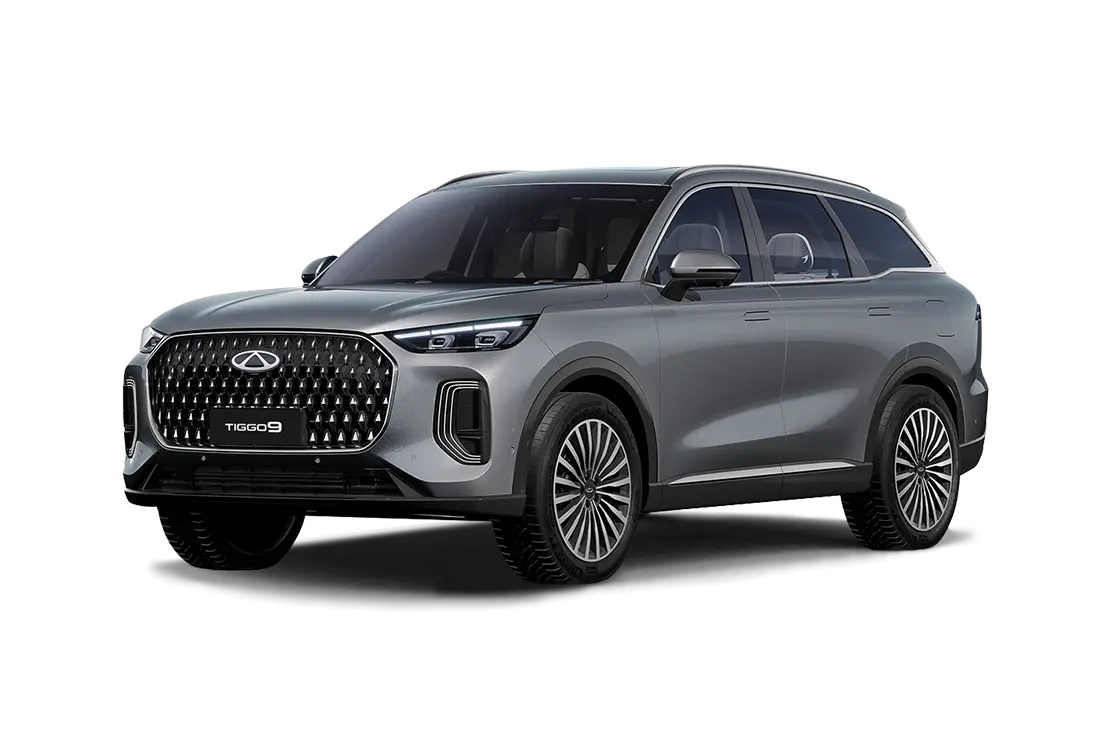

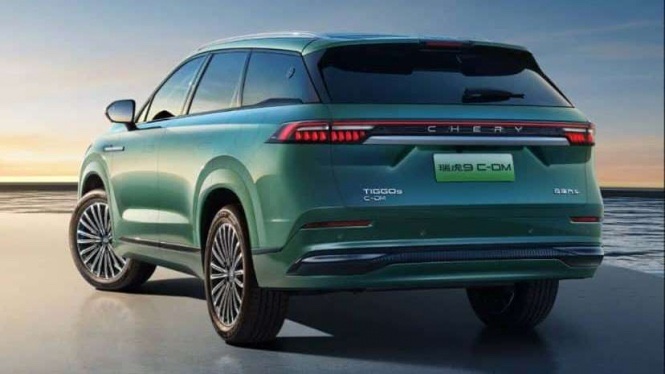

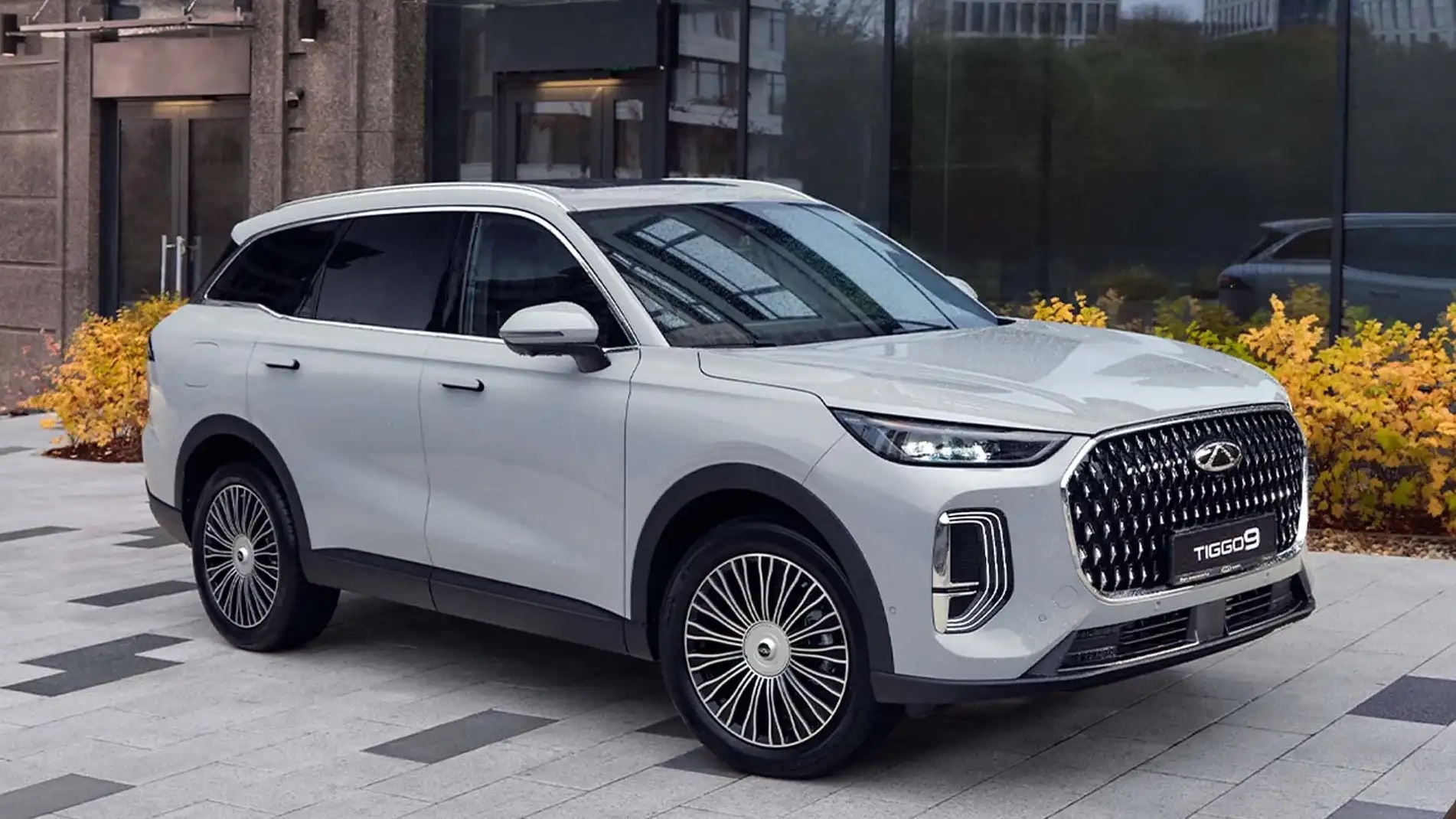

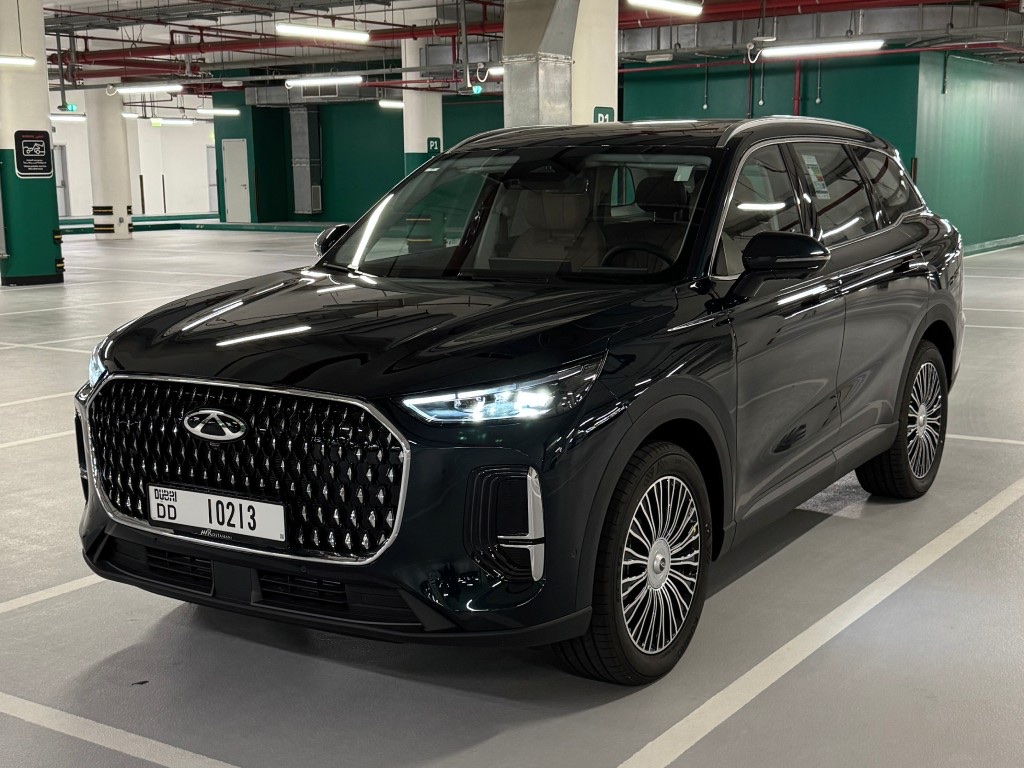

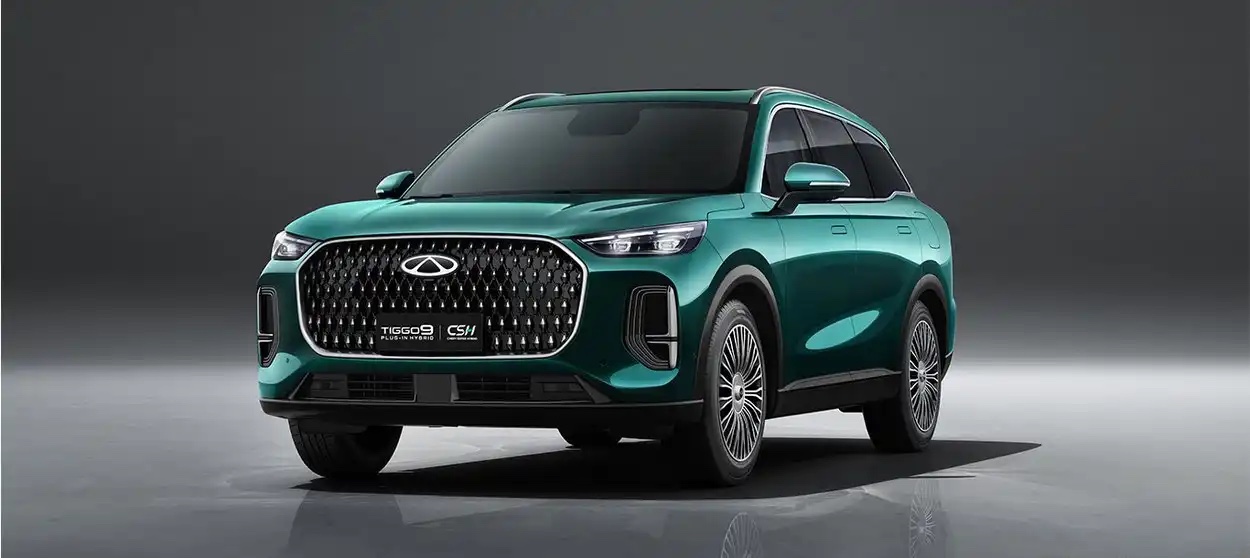

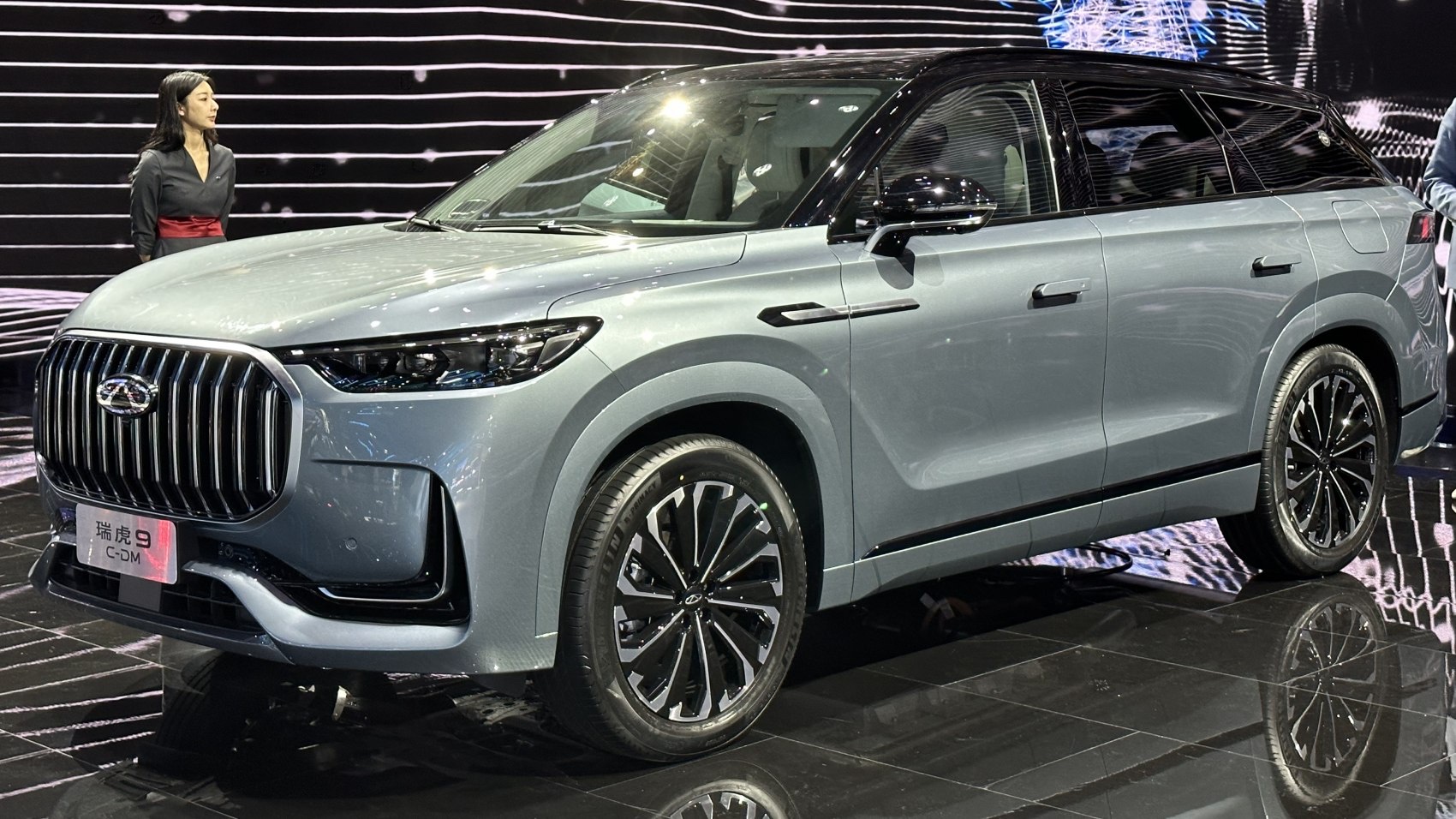

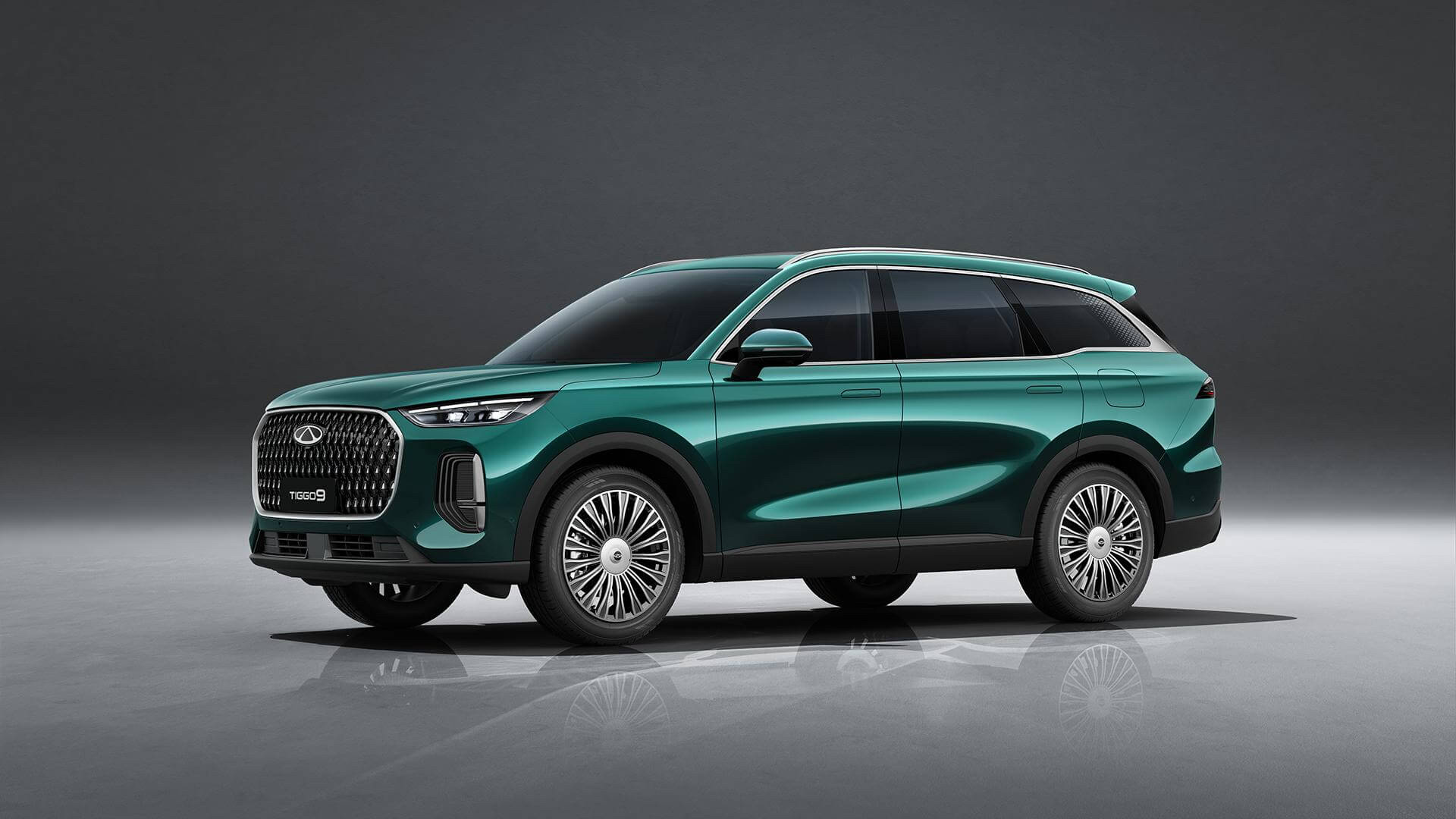

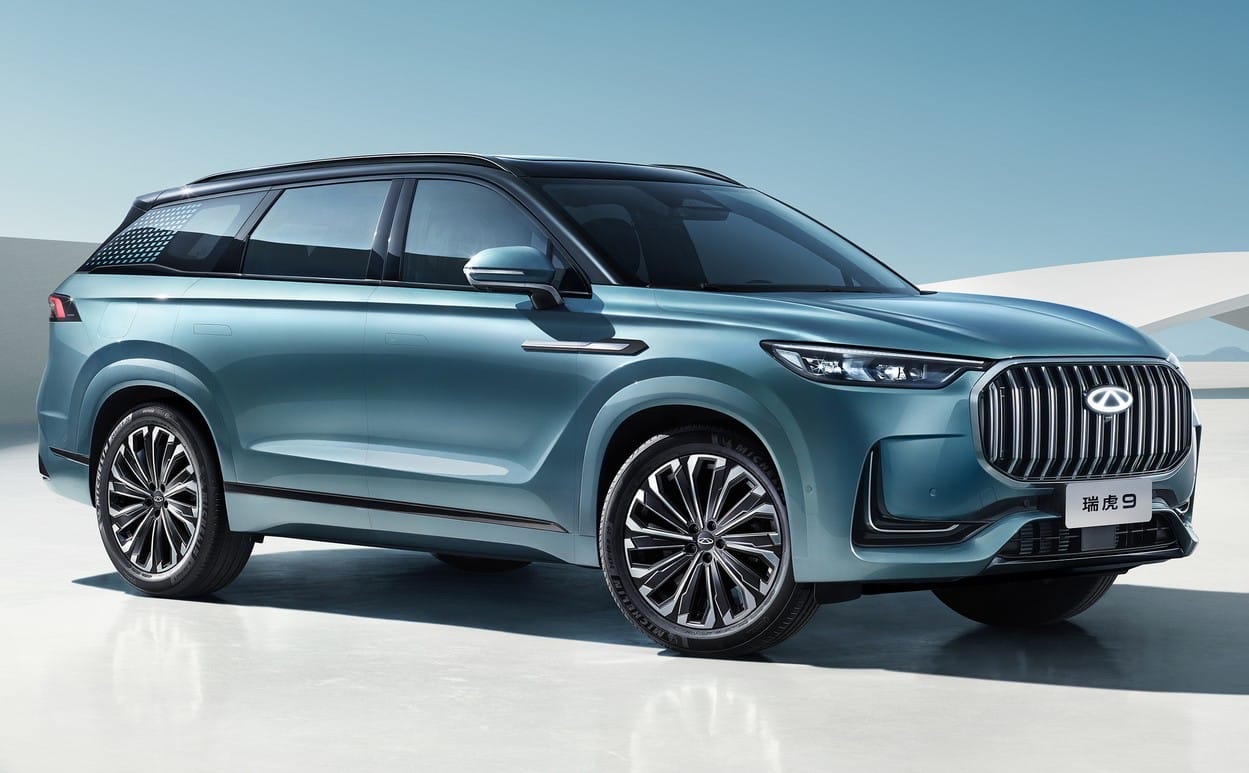

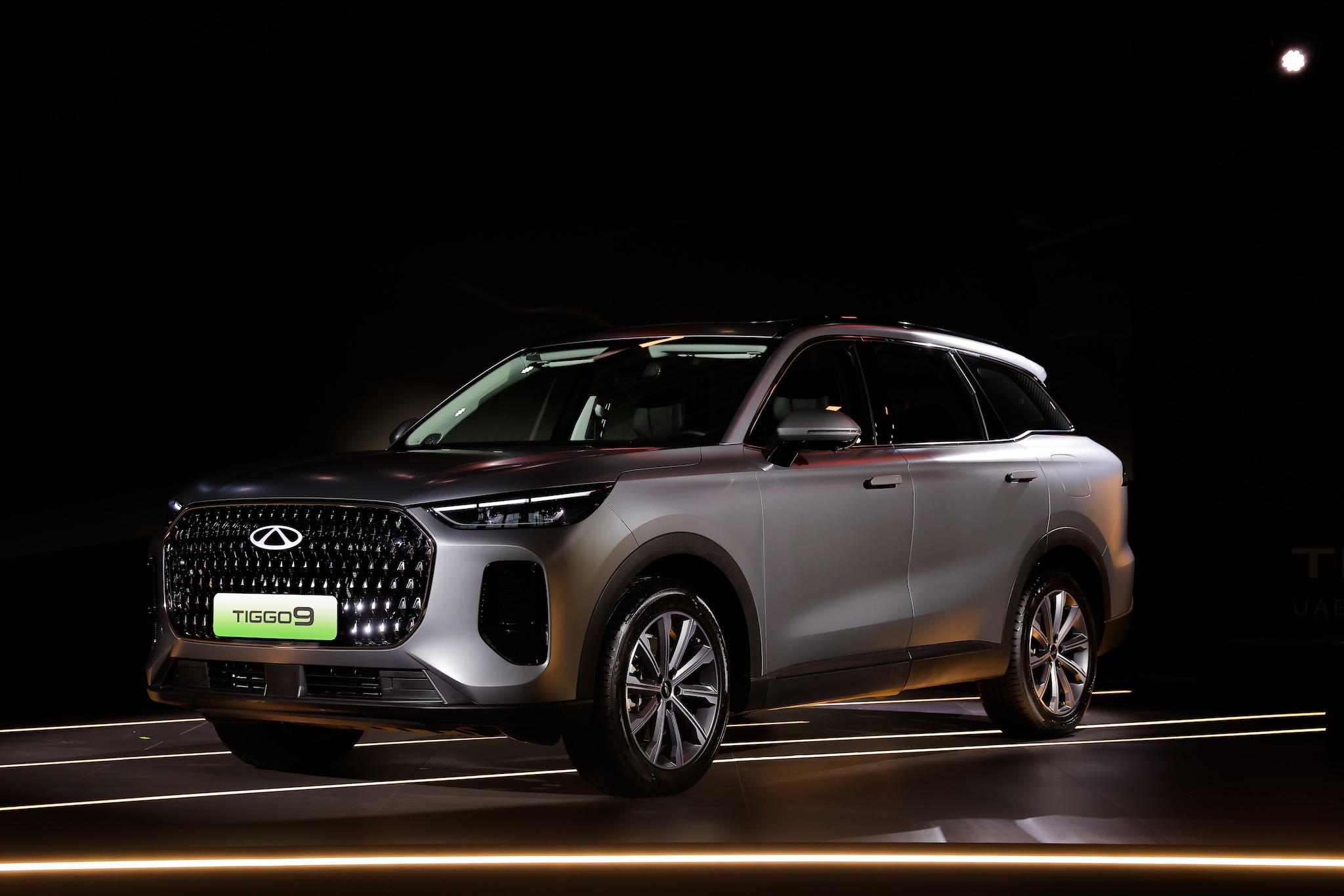

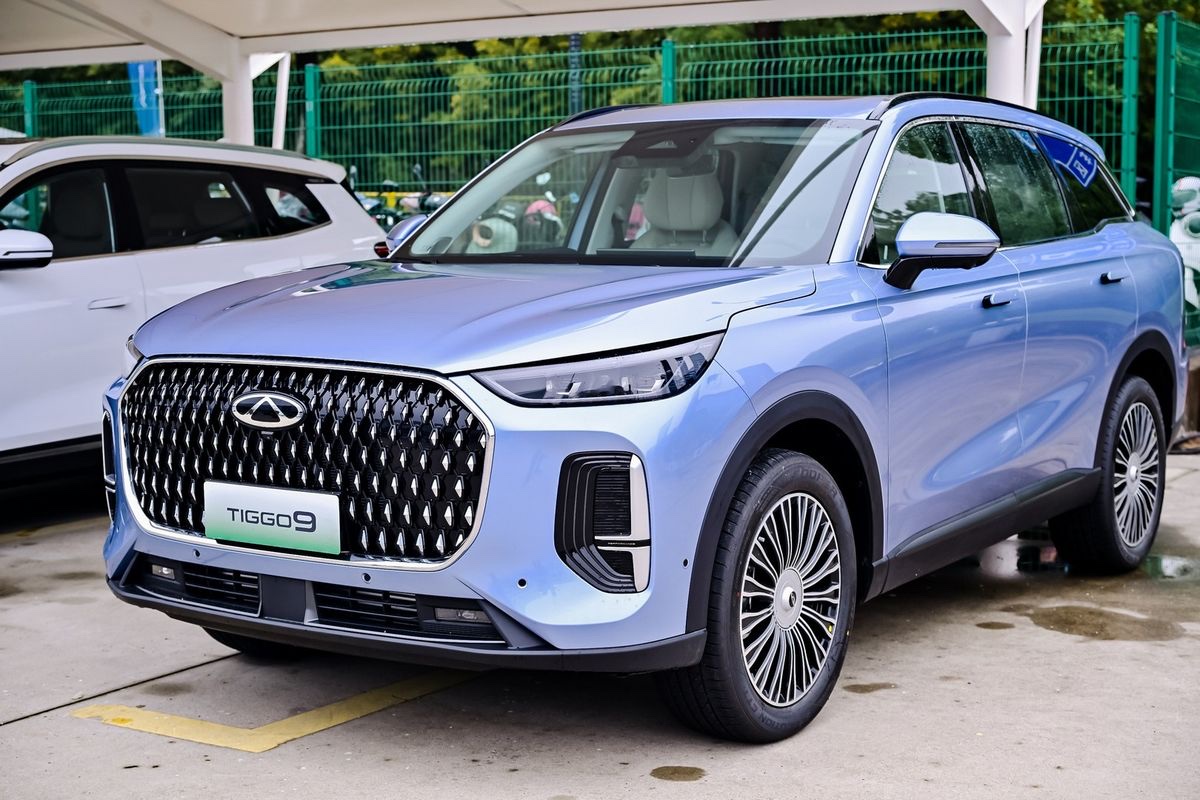

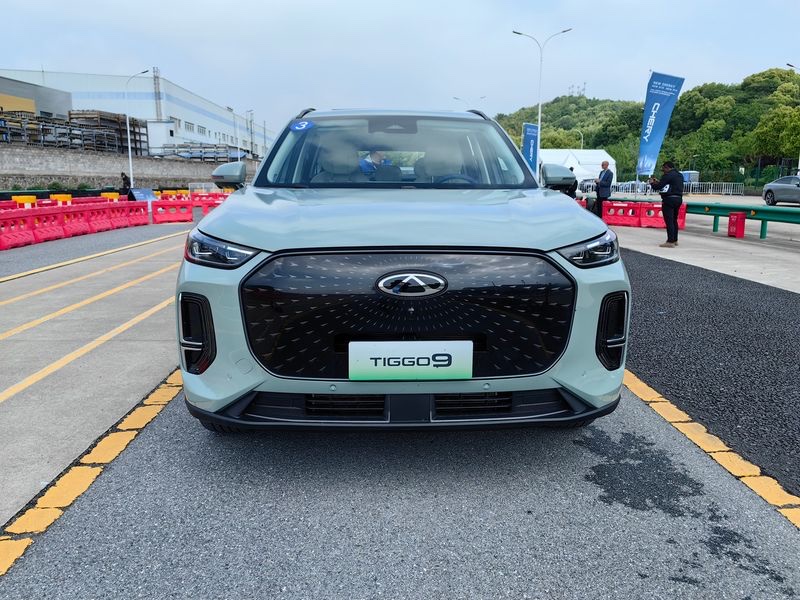

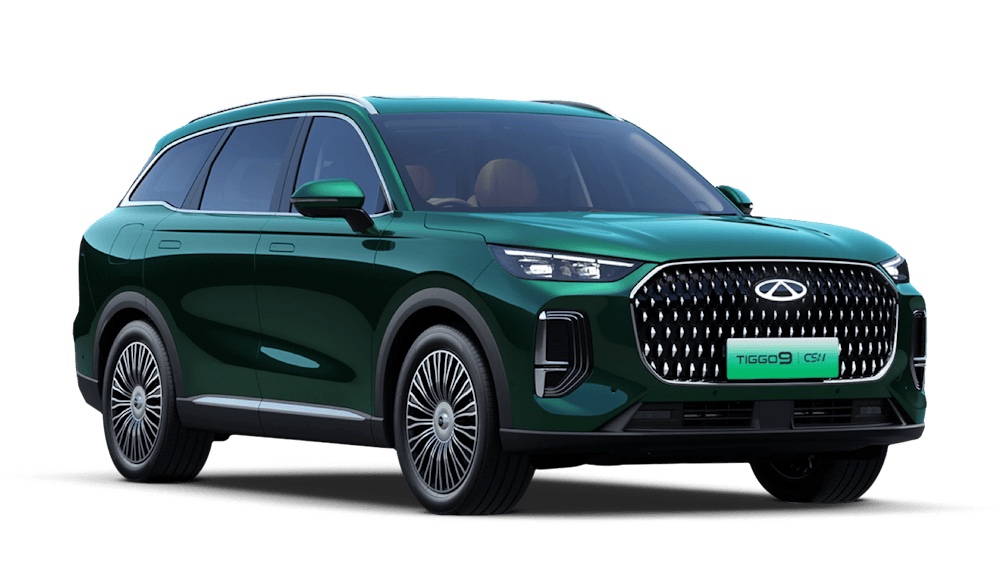

The exterior styling follows a structured, proportionate approach characterized by clean lines and balanced volumes. The front end is dominated by a large, prominent grille paired with slim LED headlights and large lower air intakes. Its profile features a high beltline, short overhangs, and large 20-inch alloy wheels that contribute to a substantial footprint. The rear design incorporates a diffuser element and horizontally spanning Diamond LED taillights that emphasize the vehicle's 1925mm width. Roof rails and a panoramic sunroof add functional and visual detail to the upper body.

Interior

Inside, the Tiggo 9 PHEV offers a seven-seat configuration with an emphasis on material quality, utilizing a mix of leather, suede-like fabrics, and wood-style trim. The dashboard is centered around a large 15.6-inch high-definition multimedia display that manages most vehicle functions. Passenger comfort is supported by a multi-zone climate control system equipped with an ionizer and advanced air filtration. Both the front and second-row seats feature heating and ventilation, while the third row folds flat to expand cargo space. A 14-speaker premium audio system and customizable ambient lighting complete the cabin experience.

Performance

The powertrain utilizes a 1.5-liter turbocharged four-cylinder gasoline engine paired with three electric motors and a 3DHT transmission, sending power to all four wheels. This setup generates a combined output of 428 horsepower and 580 Nm of torque, enabling a 0-100 km/h acceleration time of 5.4 seconds. The 34.46 kWh NMC battery pack provides an electric-only driving range of up to 147.6 kilometers. The system supports fast charging, capable of replenishing the battery from 30% to 80% in approximately 18 minutes.

Practicality

As a three-row crossover measuring 4810mm in length with a 2800mm wheelbase, the Tiggo 9 PHEV is designed primarily for family transport and everyday versatility. The flexible seating arrangement, including a 60/40 split for the second row and a 50/50 split for the third, allows users to adapt the interior space for passengers or larger cargo items. An electrically operated tailgate further improves ease of access to the rear storage area.

Safety and tech

The SUV is equipped with a comprehensive array of safety technologies, including 10 airbags and advanced driver assistance systems. Key features include adaptive cruise control, autonomous emergency braking, lane keeping assist, and rear cross-traffic alert. For low-speed maneuvering, it provides an automated parking assistant and a 360-degree surround-view camera system. A head-up display ensures critical driving data remains directly in the driver's line of sight.

Buyer notes

When evaluating the Chery Tiggo 9 PHEV, buyers should note its substantial combined power output and standard all-wheel-drive configuration. The plug-in hybrid system requires regular access to charging to maximize its efficiency benefits and 147-kilometer electric range. While the Premium trim offers an extensive list of standard equipment, including advanced climate and seating features, exact specifications and trim availability can vary depending on the local market.

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 428 hp
Engine displacement 1499 cc
Seating 7 seats
Transmissions 3DHT
Trim / modification Engine Power Seats Transmission
1.5h AT Premium 1499 cc 428 hp 7 3DHT
1.5h TGDI (428 hp) 3DHT 4x4 1499 cc 428 hp 7 3DHT

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.5h AT Premium 1.5h TGDI (428 hp) 3DHT 4x4
1.5h AT Premium 130 specifications

Specifications

Performance and consumption

Top speed, km/h 180
Acceleration 0-100 km/h, s 5.4
Emissions standard Euro VI

Engine

Engine 1.5h TGDI
Engine code SQRH4J15
Engine type Hybrid
Fuel type Gasoline
Engine displacement, cc 1499
Cylinder layout Inline
Number of cylinders 4
Valves 16
Turbocharger +
Power, hp 428
Torque, Nm 580
Number of electric motors 3
Electric motor power, hp 238
Combustion engine power, hp 143
Combustion engine RPM at max power 5200
Combustion engine torque, Nm 215
Combustion engine RPM at max torque 2500
Electric motor torque, Nm 310
CO2 emissions, g/km 170

Dimensions

Seats 7
Length, mm 4810
Width, mm 1925
Height, mm 1741
Wheelbase, mm 2800
Front track, mm 1638
Rear track, mm 1638
Kerb weight, kg 2308
Fuel tank capacity, L 60
Ground clearance, mm 147

Transmission and drive

Transmission 3DHT
Drive All-wheel drive
Number of gears 3
Automatic transmission +

Suspension

Front suspension type Independent MacPherson strut
Rear suspension type Independent multi-link

Brake system

Front brakes Disc
Rear brakes Disc

Steering

Power steering Electric power steering

Equipment

Exterior

Roof rails +

Comfort

Tire pressure monitoring +
Multifunction steering wheel +
Keyless entry and start +
Adjustable steering column +
Electronic parking brake lever +
Side mirror position memory +
Adaptive cruise control +

Interior

Leather-trimmed interior elements +
Illuminated vanity mirrors +
Eco-leather seat upholstery +

Wheels

Rim diameter 20
Rim type Alloy
Spare wheel Tire repair kit
Tires 245/50R20

Technologies

Adjustable speed limiter +

Climate and sound insulation

Heated front seats +
Heated rear seats +
Ventilated front seats +
Heated steering wheel +
Dual-zone climate control +
Ventilated rear seats +
Rear air vents +

Off-road

Hill descent control +
Hill-start assist +

Seats

Power front seats +
Child seat anchors (LATCH/Isofix) +
Seat memory +
Rear armrest +
Height-adjustable driver's seat +
Height-adjustable passenger seat +
60/40 split-folding rear seat +
Power driver lumbar adjustment +
Cooled front armrest +
50/50 split-folding third-row seats +
Front passenger seat massage +
Power-adjustable second-row passenger seats +

Headlights and lighting

Light sensor +
LED headlights +
LED tail lights +
Rear fog lights +
LED daytime running lights +
Automatic high-beam assist +

Multimedia and instruments

Bluetooth hands-free +
Radio +
Head-up display +
USB +
Number of speakers 14
Apple CarPlay / Android Auto +
Touchscreen +
Wireless phone charging +
Steering wheel controls +

Trunk

Power tailgate +

Glass, mirrors and sunroof

Rain sensor +
Heated side mirrors +
Front power windows +
Rear power windows +
Panoramic roof +
Power-adjustable side mirrors +
Power-folding side mirrors +

Visibility and parking

Front parking sensors +
Rear parking sensors +
Surround view camera system +
Active park assist +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic stability control +
Blind spot monitoring +
Lane keeping assist +
Auto Hold +
Electronic brakeforce distribution +
Child locks +
Driver fatigue detection +
Autonomous emergency braking +
Lane departure warning +
Brake assist system +
Forward collision warning +
Rear cross-traffic alert +
Traction control system +
Lane change assist +
Traffic jam assist +
Lane departure prevention +

Anti-theft systems

Remote central locking +
Immobilizer +
Alarm system +

Airbags

Driver airbag +
Passenger airbag +
Side airbags +
Curtain airbags +
Driver knee airbag +
1.5h TGDI (428 hp) 3DHT 4x4 35 specifications

Specifications

Performance and consumption

Top speed, km/h 180
Acceleration 0-100 km/h, s 5.4
Emissions standard Euro VI

Engine

Engine 1.5h TGDI
Engine code SQRH4J15
Engine type Hybrid
Fuel type Gasoline
Engine displacement, cc 1499
Cylinder layout Inline
Number of cylinders 4
Valves 16
Turbocharger +
Power, hp 428
Torque, Nm 580
Number of electric motors 3
Electric motor power, hp 238
Combustion engine power, hp 143
Combustion engine RPM at max power 5200
Combustion engine torque, Nm 215
Combustion engine RPM at max torque 2500
Electric motor torque, Nm 310

Dimensions

Seats 7
Length, mm 4810
Width, mm 1925
Height, mm 1741
Wheelbase, mm 2800
Front track, mm 1638
Rear track, mm 1638
Kerb weight, kg 2308
Fuel tank capacity, L 60
Ground clearance, mm 147

Transmission and drive

Transmission 3DHT
Drive All-wheel drive
Number of gears 3
Automatic transmission +
FAQ

Chery Tiggo 9 PHEV questions

Short answers based on the specifications and photos available in this catalog.

What body style is the Chery Tiggo 9 PHEV?

It is a midsize crossover SUV featuring a plug-in hybrid powertrain and a three-row, seven-seat interior layout.

What powertrain does it use?

The vehicle utilizes a 1.5-liter turbocharged gas engine combined with three electric motors and a 34.46 kWh battery, producing 428 horsepower and 580 Nm of torque.

What is the electric range of the Tiggo 9 PHEV?

When fully charged, the 34.46 kWh battery can provide up to 147.6 kilometers of electric-only driving range.

Is it practical for family use?

Yes, its 2800mm wheelbase and seven-seat configuration provide flexibility for carrying multiple passengers, while folding rear rows offer adaptable cargo space.

What advanced safety features are included?

It features 10 airbags, adaptive cruise control, autonomous emergency braking, a 360-degree camera system, and automated parking assist.
