Chevrolet Aveo Hatchback 5d specifications and photos

Chevrolet Aveo Hatchback 5d specifications are shown with trim options, key technical data, and a model photo gallery. Compare 8 configurations by engine size, power, seating, and transmission. The gallery includes 11 photos for visual reference.

Years 2017 - 2019
Body type hatchback
Trims 8
Photos 11

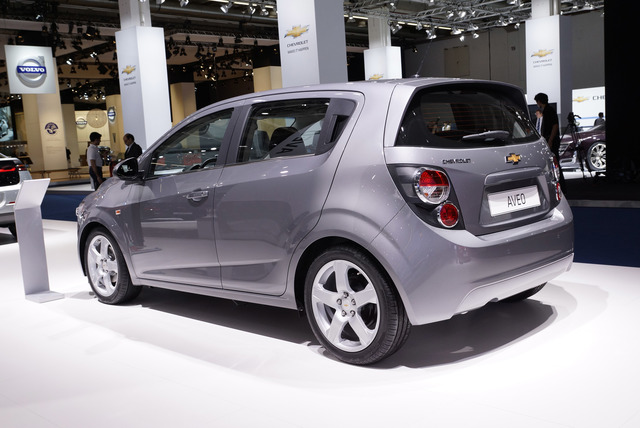

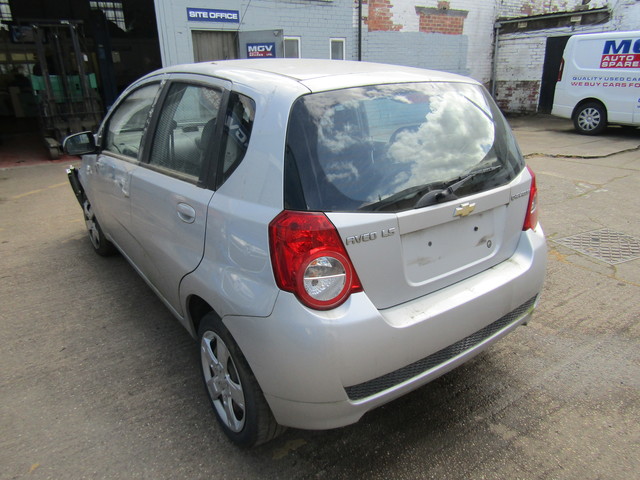

Rear view of Chevrolet Aveo Hatchback 5d 2017
Overview

Chevrolet Aveo Hatchback 5d at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Chevrolet Aveo Hatchback 5d page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 140 hp and 1364-1800 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 140 hp
  • Engine displacement: 1364-1800 cc
  • Transmissions: 6, 5, 6-speed manual
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Chevrolet Aveo Hatchback 5d

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 11 images Compare trims 8 configurations View detailed specs 1364-1800 cc Explore related pages Chevrolet and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 140 hp
Engine displacement 1364-1800 cc
Seating 5 seats
Transmissions 6, 5, 6-speed manual
Trim / modification Engine Power Seats Transmission
1.4 6MT 1364 cc 140 hp 5 6
1.4 6AT 1364 cc 140 hp 5 6
1.8 5MT 1800 cc 140 hp 5 5
1.8 6AT 1800 cc 140 hp 5 6
1.4i (140 h.p.) 6-speed manual 1364 cc 140 hp 5 6-speed manual
1.4i (140 h.p.) 6-speed automatic 1364 cc 140 hp 5 6-speed automatic
1.8i (140 h.p.) 5-speed manual 1800 cc 140 hp 5 5-speed manual
1.8i (140 HP) 6-speed automatic 1800 cc 140 hp 5 6-speed automatic

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.4 6MT 1.4 6AT 1.8 5MT 1.8 6AT 1.4i (140 h.p.) 6-speed manual 1.4i (140 h.p.) 6-speed automatic 1.8i (140 h.p.) 5-speed manual 1.8i (140 HP) 6-speed automatic
1.4 6MT 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1364
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 200
RPM at max torque 1850-4900
Engine 1.4i
Compression 10.5
RPM at max power 6000
Turbo +
Engine code LUJ

Dimensions

Seats 5
Length mm 4060
Width 1735
Height mm 1515
Wheelbase mm 2525
Front track, mm 1510
Rear track, mm 1510
Kerb weight, kg 1175
Trunk capacity, L 538
Fuel tank, l 46
Turning circle, m 10.5

Suspension

Type of front suspension Independent, such as MacPherson
Rear suspension Torsion beam

Brake system

The front brakes Disk
Rear brakes Disk

Steering

Power steering Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8
Fuel consumption (urban), l. 100 km 6.5
Fuel consumption (combined), l. 100 km 7.3

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
1.4 6AT 40 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1364
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 200
RPM at max torque 1850-4900
Engine 1.4i
Compression 10.5
RPM at max power 6000
Turbo +
Engine code LUJ

Dimensions

Seats 5
Length mm 4060
Width 1735
Height mm 1515
Wheelbase mm 2525
Front track, mm 1510
Rear track, mm 1510
Kerb weight, kg 1195
Trunk capacity, L 538
Fuel tank, l 46
Turning circle, m 10.5

Suspension

Type of front suspension Independent, such as MacPherson
Rear suspension Torsion beam

Brake system

The front brakes Disk
Rear brakes Disk

Steering

Power steering Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9.1
Fuel consumption (urban), l. 100 km 7.2
Fuel consumption (combined), l. 100 km 8.2

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer GM
Transmission country of origin USA
1.8 5MT 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1800
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 175
RPM at max torque 3800
Engine 1.8i
Compression 10.5
RPM at max power 6300
Engine code LUW/2H0

Dimensions

Seats 5
Length mm 4060
Width 1735
Height mm 1515
Wheelbase mm 2525
Front track, mm 1510
Rear track, mm 1510
Kerb weight, kg 1263
Trunk capacity, L 538
Fuel tank, l 46
Turning circle, m 10.5

Suspension

Type of front suspension Independent, such as MacPherson
Rear suspension Torsion beam

Brake system

The front brakes Disk
Rear brakes Disk

Steering

Power steering Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9.4
Fuel consumption (urban), l. 100 km 7.1
Fuel consumption (combined), l. 100 km 8.4

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.8 6AT 39 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1800
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 175
RPM at max torque 3800
Engine 1.8i
Compression 10.5
RPM at max power 6300
Engine code LUW/2H0

Dimensions

Seats 5
Length mm 4060
Width 1735
Height mm 1515
Wheelbase mm 2525
Front track, mm 1510
Rear track, mm 1510
Kerb weight, kg 1292
Trunk capacity, L 538
Fuel tank, l 46
Turning circle, m 10.5

Suspension

Type of front suspension Independent, such as MacPherson
Rear suspension Torsion beam

Brake system

The front brakes Disk
Rear brakes Disk

Steering

Power steering Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9.8
Fuel consumption (urban), l. 100 km 6.9
Fuel consumption (combined), l. 100 km 8.4

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer GM
Transmission country of origin USA
1.4i (140 h.p.) 6-speed manual 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1364
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 200
RPM at max torque 1850-4900
Engine 1.4i
Compression 10.5
RPM at max power 6000
Turbo +
Engine code LUJ

Dimensions

Seats 5
Length mm 4060
Width 1735
Height mm 1515
Wheelbase mm 2525
Front track, mm 1510
Rear track, mm 1510
Kerb weight, kg 1195
Trunk capacity, L 538
Fuel tank, l 46
Turning circle, m 11

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8
Fuel consumption (urban), l. 100 km 6.5
Fuel consumption (combined), l. 100 km 7.3

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
1.4i (140 h.p.) 6-speed automatic 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1364
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 200
RPM at max torque 1850-4900
Engine 1.4i
Compression 10.5
RPM at max power 6000
Turbo +
Engine code LUJ

Dimensions

Seats 5
Length mm 4060
Width 1735
Height mm 1515
Wheelbase mm 2525
Front track, mm 1510
Rear track, mm 1510
Kerb weight, kg 1195
Trunk capacity, L 538
Fuel tank, l 46
Turning circle, m 11

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9.1
Fuel consumption (urban), l. 100 km 7.2
Fuel consumption (combined), l. 100 km 8.2

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer GM
Transmission country of origin USA
1.8i (140 h.p.) 5-speed manual 31 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1800
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 175
RPM at max torque 3800
Engine 1.8i
Compression 10.5
RPM at max power 6300
Engine code LUW/2H0

Dimensions

Seats 5
Length mm 4060
Width 1735
Height mm 1515
Wheelbase mm 2525
Front track, mm 1510
Rear track, mm 1510
Kerb weight, kg 1195
Trunk capacity, L 538
Fuel tank, l 46
Turning circle, m 11

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9.4
Fuel consumption (urban), l. 100 km 7.1
Fuel consumption (combined), l. 100 km 8.4

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.8i (140 HP) 6-speed automatic 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1800
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 175
RPM at max torque 3800
Engine 1.8i
Compression 10.5
RPM at max power 6300
Engine code LUW/2H0

Dimensions

Seats 5
Length mm 4060
Width 1735
Height mm 1515
Wheelbase mm 2525
Front track, mm 1510
Rear track, mm 1510
Kerb weight, kg 1195
Trunk capacity, L 538
Fuel tank, l 46
Turning circle, m 11

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9.8
Fuel consumption (urban), l. 100 km 6.9
Fuel consumption (combined), l. 100 km 8.4

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer GM
Transmission country of origin USA
FAQ

Chevrolet Aveo Hatchback 5d questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Chevrolet Aveo Hatchback 5d?

This page lists 8 trims for the Chevrolet Aveo Hatchback 5d, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Chevrolet Aveo Hatchback 5d?

The listed configurations show a power range of 140 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Chevrolet Aveo Hatchback 5d?

The available specification data shows engine displacement from 1364-1800 cc across the trims listed on this page.

Which transmissions are listed for the Chevrolet Aveo Hatchback 5d?

The transmission options currently shown for this model are: 6, 5, 6-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the Chevrolet Aveo Hatchback 5d?

Yes. The gallery includes 11 photos for the Chevrolet Aveo Hatchback 5d, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
