Chevrolet Cruze Station Wagon specifications and photos

Chevrolet Cruze Station Wagon specifications are shown with trim options, key technical data, and a model photo gallery. Compare 6 configurations by engine size, power, seating, and transmission. The gallery includes 24 photos for visual reference.

Years 2016 - 2018
Body type wagon
Trims 6
Photos 24

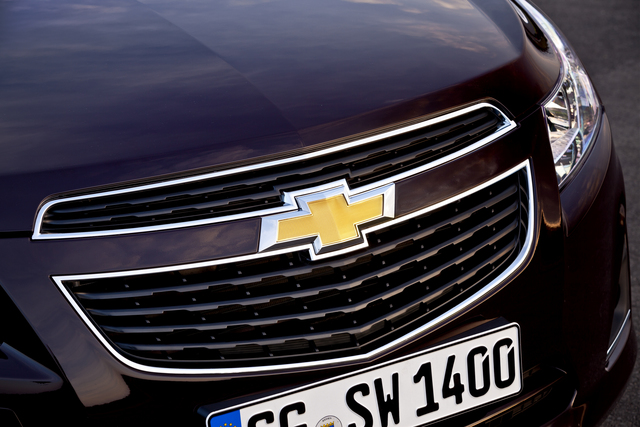

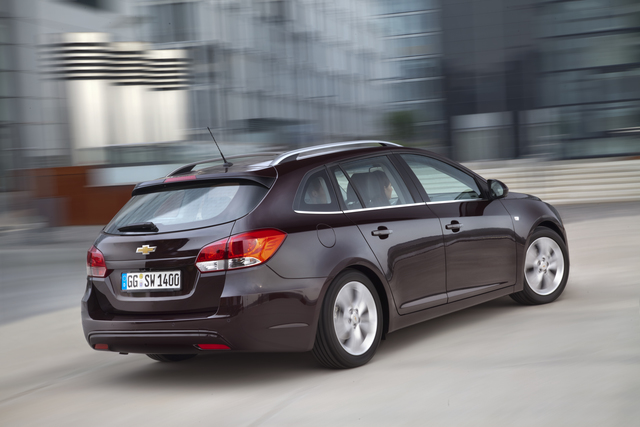

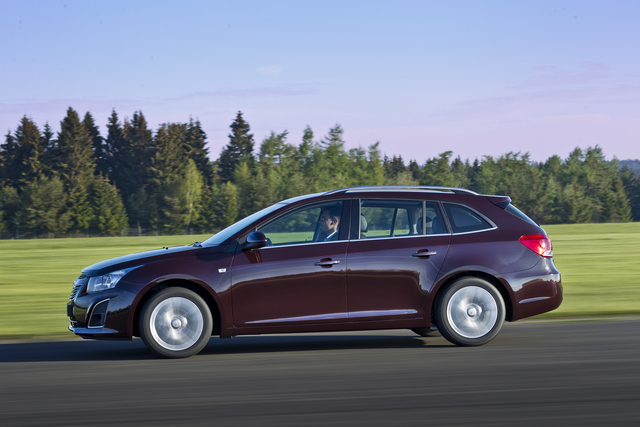

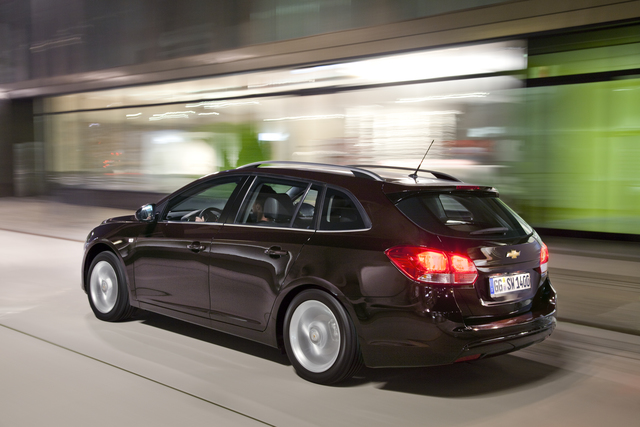

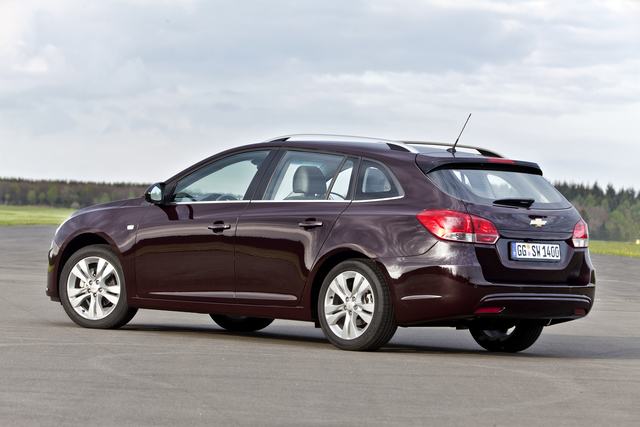

Chevrolet Cruze Station Wagon 2016 photo
Overview

Chevrolet Cruze Station Wagon at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Chevrolet Cruze Station Wagon page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 117-140 hp and 1364-1598 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 117-140 hp
  • Engine displacement: 1364-1598 cc
  • Transmissions: 5, 6, 6-speed manual
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Chevrolet Cruze Station Wagon

This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.

Open photo gallery 24 images Compare trims 6 configurations View detailed specs 1364-1598 cc Explore related pages Chevrolet and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 117-140 hp
Engine displacement 1364-1598 cc
Seating 5 seats
Transmissions 5, 6, 6-speed manual
Trim / modification Engine Power Seats Transmission
1.6 MT5 LS 1598 cc 117 hp 5 5
1.4 Ecotec MT6 LT 1364 cc 140 hp 5 6
1.4 Ecotec AT6 LTZ 1364 cc 140 hp 5 6
1.6i (117 h.p.) 5-mech 1598 cc 117 hp 5 5
1.4i (140 h.p.) 6-speed manual 1364 cc 140 hp 5 6-speed manual
1.4i (140 h.p.) 6-speed automatic 1364 cc 140 hp 5 6-speed automatic

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.6 MT5 LS 1.4 Ecotec MT6 LT 1.4 Ecotec AT6 LTZ 1.6i (117 h.p.) 5-mech 1.4i (140 h.p.) 6-speed manual 1.4i (140 h.p.) 6-speed automatic
1.6 MT5 LS 83 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 117
Torque, Nm 157
RPM at max torque 4000
Engine 1.6i
Compression 11
RPM at max power 6200

Dimensions

Seats 5
Length mm 4681
Width 1797
Height mm 1521
Wheelbase mm 2685
Front track, mm 1544
Rear track, mm 1558
Kerb weight, kg 1405
Trunk capacity, L 500
Fuel tank, l 60
Turning circle, m 10.9
Gross weight, kg 1940

Suspension

Type of front suspension Independent, spring, McPherson, with stabilizer
Rear suspension Semi-dependent, spring, with stabilizer

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Steering

Power steering Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9
Fuel consumption (urban), l. 100 km 5.1
Fuel consumption (combined), l. 100 km 6.6
Acceleration (0-100 km/h), s 13.4
The maximum speed, km / h. 191
The rate of toxicity Euro V

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics

Equipment

Comfort

Cruise Control +
Tyre pressure monitoring +
Adjustable steering column +
Adjustable head restraints +

Interior

On-board computer +
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +

Wheels

Disc diameter 16
Rim type Steel
Tires 205/60R16
Spare wheel Full size

Cabin climate and noise insulation

Air Conditioning +

Glass, mirrors and sunroof

Front power windows +
Heated side mirrors +
Rear electric windows +
Tinted glass +

Multimedia and instruments

Steering wheel controls +
AUX +
Bluetooth hands free +
CD player +
USB +
Number of speakers 6
MP3 +

Headlights and lighting

Rear fog lights +

Seats

Armrest front +
height-adjustable driver's seat +
Isofix child seat (LATCH, Isofix) +
Passenger seat height adjustable +
The back of the rear seat folds 60/40 +

Visibility and parking

Rear Parking Sensors +

Exterior

Roof rails +

Body and exterior paint

Door handles in body color +
Exterior mirrors in body color +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD) +
The emergency braking (Brake Assist) +
Control System traction (TCS) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +
Children's locks +

Anti-theft systems

Alarm +
alarm +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
1.4 Ecotec MT6 LT 92 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1364
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 200
RPM at max torque 1850-4900
Engine 1.4i
Compression 10.5
RPM at max power 6000
Turbo +
Engine code LUJ

Dimensions

Seats 5
Length mm 4681
Width 1797
Height mm 1521
Wheelbase mm 2685
Front track, mm 1544
Rear track, mm 1558
Kerb weight, kg 1405
Trunk capacity, L 500
Fuel tank, l 60
Turning circle, m 10.9
Gross weight, kg 1940

Suspension

Type of front suspension Independent, spring, McPherson, with stabilizer
Rear suspension Semi-dependent, spring, with stabilizer

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Steering

Power steering Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.5
Fuel consumption (urban), l. 100 km 4.8
Fuel consumption (combined), l. 100 km 5.8
Acceleration (0-100 km/h), s 9.5
The maximum speed, km / h. 200
The rate of toxicity Euro V

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics

Equipment

Comfort

Cruise Control +
Tyre pressure monitoring +
Adjustable steering column +
Adjustable head restraints +

Interior

On-board computer +
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +

Wheels

Disc diameter 16
Rim type Steel
Tires 205/60R16
Spare wheel Full size

Cabin climate and noise insulation

Heated front seats +
Climate control +

Glass, mirrors and sunroof

Front power windows +
The rain sensor +
Heated side mirrors +
Rear electric windows +
Tinted glass +

Multimedia and instruments

Steering wheel controls +
AUX +
Bluetooth hands free +
CD player +
USB +
Number of speakers 6
color touch screen +
MP3 +

Headlights and lighting

Light sensor +
Rear fog lights +
LED lights daylight +

Seats

Armrest front +
height-adjustable driver's seat +
Isofix child seat (LATCH, Isofix) +
Passenger seat height adjustable +
The back of the rear seat folds 60/40 +

Visibility and parking

Rear View Camera +
Rear Parking Sensors +

Exterior

Roof rails +

Body and exterior paint

Door handles in body color +
Exterior mirrors in body color +

Fuel economy

Start-Stop System +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD) +
The emergency braking (Brake Assist) +
Control System traction (TCS) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +
Children's locks +

Anti-theft systems

Alarm +
alarm +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
1.4 Ecotec AT6 LTZ 99 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1364
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 200
RPM at max torque 1850-4900
Engine 1.4i
Compression 10.5
RPM at max power 6000
Turbo +
Engine code LUJ

Dimensions

Seats 5
Length mm 4681
Width 1797
Height mm 1521
Wheelbase mm 2685
Front track, mm 1544
Rear track, mm 1558
Kerb weight, kg 1405
Trunk capacity, L 500
Fuel tank, l 60
Turning circle, m 10.9
Gross weight, kg 1940

Suspension

Type of front suspension Independent, spring, McPherson, with stabilizer
Rear suspension Semi-dependent, spring, with stabilizer

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Steering

Power steering Electric power

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.6
Fuel consumption (urban), l. 100 km 5.1
Fuel consumption (combined), l. 100 km 6.4
Acceleration (0-100 km/h), s 10.8
The maximum speed, km / h. 202
The rate of toxicity Euro V

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer GM
Transmission country of origin USA

Equipment

Comfort

Cruise Control +
Tyre pressure monitoring +
Adjustable steering column +
Adjustable head restraints +

Interior

On-board computer +
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +
Combination trim leather / fabric +

Wheels

Disc diameter 17
Rim type Alloy
Tires 215/50R17
Spare wheel Full size

Cabin climate and noise insulation

Heated front seats +
Climate control +

Glass, mirrors and sunroof

Front power windows +
The rain sensor +
Heated side mirrors +
Rear electric windows +
Electric folding mirrors +
Tinted glass +

Multimedia and instruments

Steering wheel controls +
AUX +
Bluetooth hands free +
CD player +
USB +
Number of speakers 6
color touch screen +
MP3 +

Headlights and lighting

Light sensor +
Rear fog lights +
LED lights daylight +

Seats

Rear Armrest +
Armrest front +
height-adjustable driver's seat +
Isofix child seat (LATCH, Isofix) +
Passenger seat height adjustable +
The back of the rear seat folds 60/40 +

Visibility and parking

Rear View Camera +
Rear Parking Sensors +

Exterior

Roof rails +

Body and exterior paint

Door handles in body color +
Exterior mirrors in body color +

Fuel economy

Start-Stop System +

Security

Electronic systems

Anti-lock braking system (ABS) +
Electronic Brakeforce Distribution (EBD, EBV, REF, EBFD) +
The emergency braking (Brake Assist) +
Control System traction (TCS) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +
Children's locks +

Anti-theft systems

Alarm +
alarm +
Other Keyless access and engine start;

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
Curtain airbags +
1.6i (117 h.p.) 5-mech 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 117
Torque, Nm 157
RPM at max torque 4000
Engine 1.6i
Compression 11
RPM at max power 6200

Dimensions

Seats 5
Length mm 4681
Width 1797
Height mm 1521
Wheelbase mm 2685
Front track, mm 1544
Rear track, mm 1558
Kerb weight, kg 1405
Trunk capacity, L 500
Fuel tank, l 60
Turning circle, m 10.9
Gross weight, kg 1940

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9
Fuel consumption (urban), l. 100 km 5.1
Fuel consumption (combined), l. 100 km 6.6
Acceleration (0-100 km/h), s 13.4
The maximum speed, km / h. 191
The rate of toxicity Euro V

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
1.4i (140 h.p.) 6-speed manual 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1364
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 200
RPM at max torque 1850-4900
Engine 1.4i
Compression 10.5
RPM at max power 6000
Turbo +
Engine code LUJ

Dimensions

Seats 5
Length mm 4681
Width 1797
Height mm 1521
Wheelbase mm 2685
Front track, mm 1544
Rear track, mm 1558
Kerb weight, kg 1405
Trunk capacity, L 500
Fuel tank, l 60
Turning circle, m 10.9
Gross weight, kg 1940

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.5
Fuel consumption (urban), l. 100 km 4.8
Fuel consumption (combined), l. 100 km 5.8
Acceleration (0-100 km/h), s 9.5
The maximum speed, km / h. 200
The rate of toxicity Euro V

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
1.4i (140 h.p.) 6-speed automatic 39 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1364
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 200
RPM at max torque 1850-4900
Engine 1.4i
Compression 10.5
RPM at max power 6000
Turbo +
Engine code LUJ

Dimensions

Seats 5
Length mm 4681
Width 1797
Height mm 1521
Wheelbase mm 2685
Front track, mm 1544
Rear track, mm 1558
Kerb weight, kg 1405
Trunk capacity, L 500
Fuel tank, l 60
Turning circle, m 10.9
Gross weight, kg 1940

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.6
Fuel consumption (urban), l. 100 km 5.1
Fuel consumption (combined), l. 100 km 6.4
Acceleration (0-100 km/h), s 10.8
The maximum speed, km / h. 202
The rate of toxicity Euro V

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer GM
Transmission country of origin USA
FAQ

Chevrolet Cruze Station Wagon questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Chevrolet Cruze Station Wagon?

This page lists 6 trims for the Chevrolet Cruze Station Wagon, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Chevrolet Cruze Station Wagon?

The listed configurations show a power range of 117-140 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Chevrolet Cruze Station Wagon?

The available specification data shows engine displacement from 1364-1598 cc across the trims listed on this page.

Which transmissions are listed for the Chevrolet Cruze Station Wagon?

The transmission options currently shown for this model are: 5, 6, 6-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the Chevrolet Cruze Station Wagon?

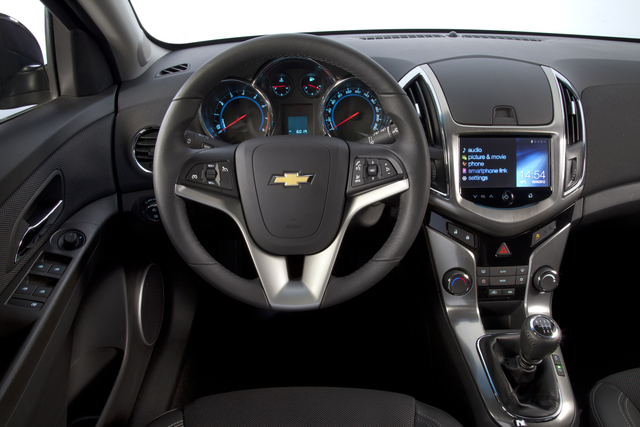

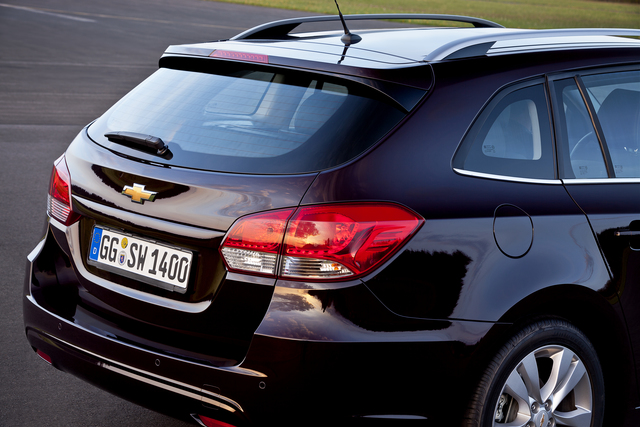

Yes. The gallery includes 24 photos for the Chevrolet Cruze Station Wagon, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
