Chevrolet Malibu specifications and photos

Chevrolet Malibu specifications are shown with trim options, key technical data, and a model photo gallery. Compare 6 configurations by engine size, power, seating, and transmission. The gallery includes 26 photos for visual reference.

Years 2016 - 2018
Body type sedan
Trims 6
Photos 26

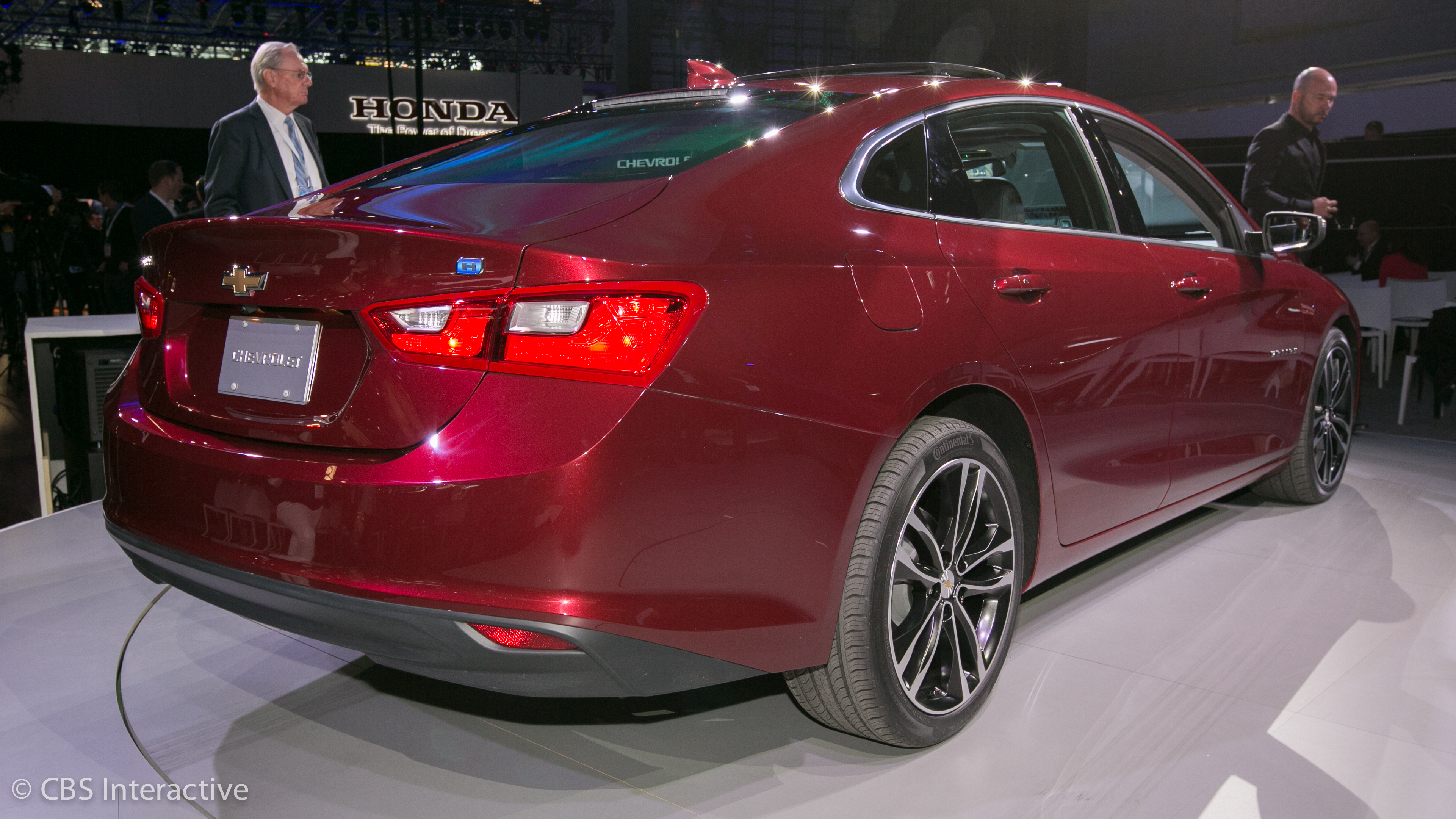

Chevrolet Malibu 2016 photo
Overview

Chevrolet Malibu at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Chevrolet Malibu page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 163-253 hp and 1490-1998 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 163-253 hp
  • Engine displacement: 1490-1998 cc
  • Transmissions: 6, 9, 6-speed automatic
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Chevrolet Malibu

This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.

Open photo gallery 26 images Compare trims 6 configurations View detailed specs 1490-1998 cc Explore related pages Chevrolet and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 163-253 hp
Engine displacement 1490-1998 cc
Seating 5 seats
Transmissions 6, 9, 6-speed automatic
Trim / modification Engine Power Seats Transmission
1.5 AT 1490 cc 163 hp 5 6
1.8 Hybrid AT 1796 cc 182 hp 5 -
2.0 AT 1998 cc 253 hp 5 9
1.5i (163 h.p.) 6-speed automatic 1490 cc 163 hp 5 6-speed automatic
2.0i (253 hp) 9-speed automatic 1998 cc 253 hp 5 9-speed automatic
1.8h (182 HP) CVT Voltec 1796 cc 182 hp 5 -

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.5 AT 1.8 Hybrid AT 2.0 AT 1.5i (163 h.p.) 6-speed automatic 2.0i (253 hp) 9-speed automatic 1.8h (182 HP) CVT Voltec
1.5 AT 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1490
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 163
Torque, Nm 250
RPM at max torque 2000-4000
Engine 1.5i
Compression 10.0
RPM at max power 5600
Turbo +
Engine code LFV

Dimensions

Seats 5
Length mm 4922
Width 1854
Height mm 1465
Wheelbase mm 2829
Front track, mm 1590
Rear track, mm 1587
Turning circle, m 11.5

Suspension

Type of front suspension Independent McPherson type with anti-roll bar
Rear suspension Multi-link independent with anti-roll bar

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.7
Fuel consumption (urban), l. 100 km 6.4
Fuel consumption (combined), l. 100 km 7.6
Acceleration (0-100 km/h), s 8.6
The maximum speed, km / h. 215

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer GM
Transmission country of origin USA
1.8 Hybrid AT 37 specifications

Specifications

Engine

Type of engine Hybrid
Type of fuel Gasoline
Displacement, cc 1796
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 182
Torque, Nm 375
Engine 1.8h
Compression 11.5
Number of motors 2
Engine power, hp 122
Revolutions max. Engine power, vol. / min. 5000
the engine torque, Nm 175
Revolutions max. engine torque, vol. / min. 4750
Engine code LKN
EV-mode +
The possibility of charging from the network +

Dimensions

Seats 5
Length mm 4922
Width 1854
Height mm 1465
Wheelbase mm 2829
Front track, mm 1590
Rear track, mm 1587
Turning circle, m 11.5

Suspension

Type of front suspension Independent McPherson type with anti-roll bar
Rear suspension Multi-link independent with anti-roll bar

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 5.1

Transmission and drive

Automatic transmission +
Drive Front
Transmission CVT
Gearbox Variable speed drive
Transmission manufacturer GM
Transmission country of origin USA
2.0 AT 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 253
Torque, Nm 353
RPM at max torque 2000-5000
Engine 2.0i
Compression 9.5
RPM at max power 5300
Turbo +
Engine code LTG

Dimensions

Seats 5
Length mm 4922
Width 1854
Height mm 1465
Wheelbase mm 2829
Front track, mm 1590
Rear track, mm 1587
Turning circle, m 11.5

Suspension

Type of front suspension Independent McPherson type with anti-roll bar
Rear suspension Multi-link independent with anti-roll bar

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 10.7
Fuel consumption (urban), l. 100 km 7.3
Fuel consumption (combined), l. 100 km 8.7
Acceleration (0-100 km/h), s 6.7
The maximum speed, km / h. 250

Transmission and drive

Automatic transmission +
Number of gears 9
Drive Front
Transmission 9-speed automatic
Gearbox Machine
Transmission manufacturer GM
Transmission country of origin USA
1.5i (163 h.p.) 6-speed automatic 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1490
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 163
Torque, Nm 250
RPM at max torque 2000-4000
Engine 1.5i
Compression 10.0
RPM at max power 5600
Turbo +
Engine code LFV

Dimensions

Seats 5
Length mm 4925
Height mm 1470
Wheelbase mm 2830
Front track, mm 1594
Rear track, mm 1597
Fuel tank, l 62
Turning circle, m 11.5
Width (without mirrors) mm 1855

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.7
Fuel consumption (urban), l. 100 km 6.4
Fuel consumption (combined), l. 100 km 7.6
Acceleration (0-100 km/h), s 8.6
The maximum speed, km / h. 215

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer GM
Transmission country of origin USA
2.0i (253 hp) 9-speed automatic 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1998
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 253
Torque, Nm 353
RPM at max torque 2000-5000
Engine 2.0i
Compression 9.5
RPM at max power 5300
Turbo +
Engine code LTG

Dimensions

Seats 5
Length mm 4925
Height mm 1470
Wheelbase mm 2830
Front track, mm 1594
Rear track, mm 1597
Fuel tank, l 62
Turning circle, m 11.5
Width (without mirrors) mm 1855

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 10.7
Fuel consumption (urban), l. 100 km 7.3
Fuel consumption (combined), l. 100 km 8.7
Acceleration (0-100 km/h), s 6.7
The maximum speed, km / h. 250

Transmission and drive

Automatic transmission +
Number of gears 9
Drive Front
Transmission 9-speed automatic
Gearbox Machine
Transmission manufacturer GM
Transmission country of origin USA
1.8h (182 HP) CVT Voltec 34 specifications

Specifications

Engine

Type of engine Hybrid
Type of fuel Gasoline
Displacement, cc 1796
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 182
Torque, Nm 375
Engine 1.8h
Compression 11.5
Number of motors 2
Engine power, hp 122
Revolutions max. Engine power, vol. / min. 5000
the engine torque, Nm 175
Revolutions max. engine torque, vol. / min. 4750
Engine code LKN
EV-mode +
The possibility of charging from the network +

Dimensions

Seats 5
Length mm 4925
Height mm 1470
Wheelbase mm 2830
Front track, mm 1594
Rear track, mm 1597
Fuel tank, l 62
Turning circle, m 11.5
Width (without mirrors) mm 1855

Performance and fuel consumption

Fuel consumption (combined), l. 100 km 5.1

Transmission and drive

Automatic transmission +
Drive Front
Transmission CVT
Gearbox Variable speed drive
Transmission manufacturer GM
Transmission country of origin USA
FAQ

Chevrolet Malibu questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Chevrolet Malibu?

This page lists 6 trims for the Chevrolet Malibu, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Chevrolet Malibu?

The listed configurations show a power range of 163-253 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Chevrolet Malibu?

The available specification data shows engine displacement from 1490-1998 cc across the trims listed on this page.

Which transmissions are listed for the Chevrolet Malibu?

The transmission options currently shown for this model are: 6, 9, 6-speed automatic. Open a trim section to see the full data for a specific configuration.

Are there photos for the Chevrolet Malibu?

Yes. The gallery includes 26 photos for the Chevrolet Malibu, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
