Chevrolet Cruze Hatchback specifications and photos

Chevrolet Cruze Hatchback specifications are shown with trim options, key technical data, and a model photo gallery. Compare 4 configurations by engine size, power, seating, and transmission. The gallery includes 15 photos for visual reference.

Years 2016 - 2018
Body type hatchback
Trims 4
Photos 15

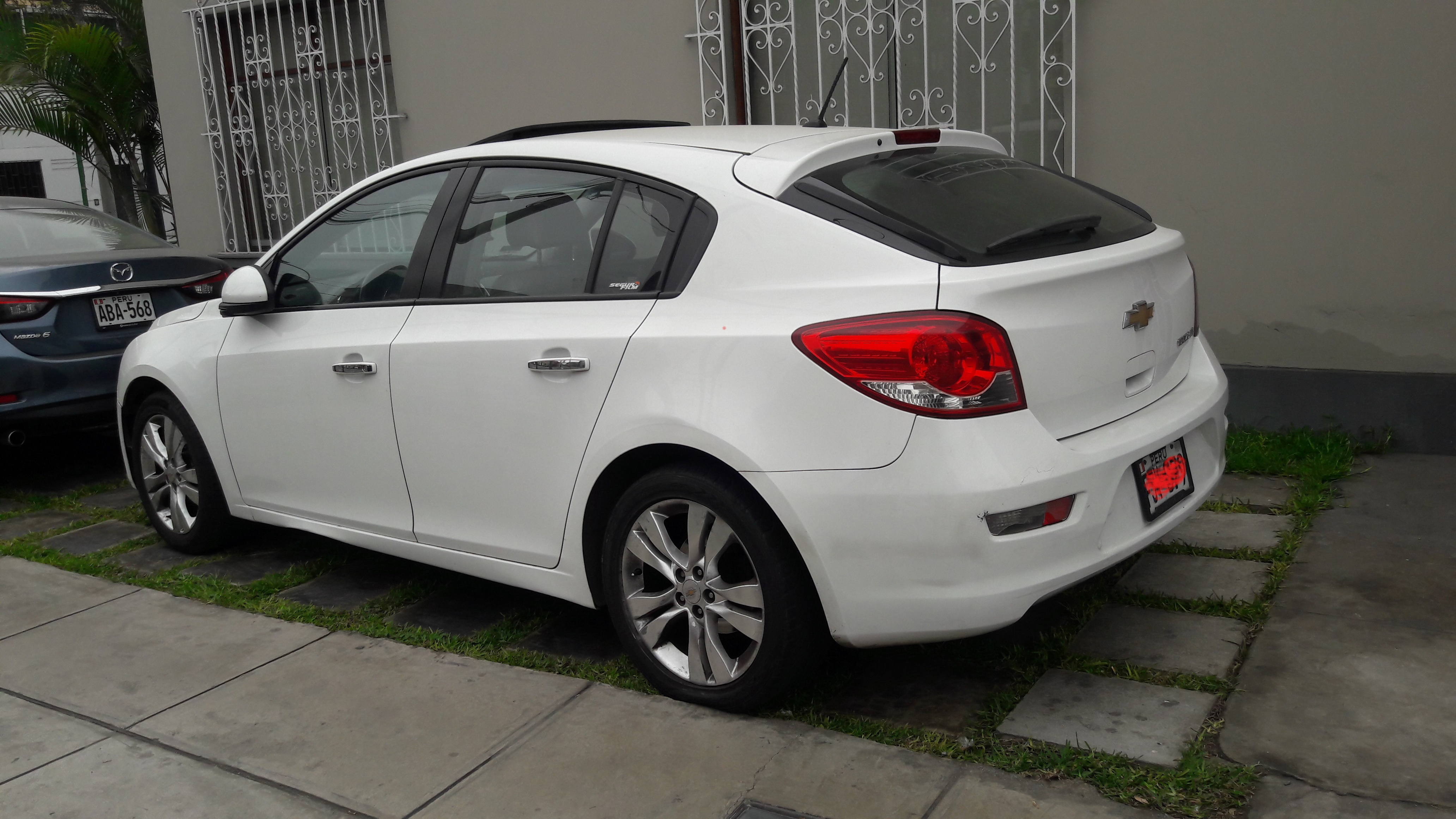

Rear view of Chevrolet Cruze Hatchback 2016
Overview

Chevrolet Cruze Hatchback at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Chevrolet Cruze Hatchback page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 137-153 hp and 1399-1598 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 137-153 hp
  • Engine displacement: 1399-1598 cc
  • Transmissions: 6-speed manual, 6-speed automatic, 9-speed automatic
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Chevrolet Cruze Hatchback

This model page brings gallery images, trim comparison, and detailed technical data together for the 2016 generation.

Open photo gallery 15 images Compare trims 4 configurations View detailed specs 1399-1598 cc Explore related pages Chevrolet and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 137-153 hp
Engine displacement 1399-1598 cc
Seating 5 seats
Transmissions 6-speed manual, 6-speed automatic, 9-speed automatic
Trim / modification Engine Power Seats Transmission
1.4i (153 HP) 6-speed manual 1399 cc 153 hp 5 6-speed manual
1.4i (153 HP) 6-speed automatic 1399 cc 153 hp 5 6-speed automatic
1.6d (137 h.p.) 6-speed manual 1598 cc 137 hp 5 6-speed manual
1.6d (137 hp) 9-speed automatic 1598 cc 137 hp 5 9-speed automatic

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.4i (153 HP) 6-speed manual 1.4i (153 HP) 6-speed automatic 1.6d (137 h.p.) 6-speed manual 1.6d (137 hp) 9-speed automatic
1.4i (153 HP) 6-speed manual 30 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1399
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 153
Torque, Nm 240
RPM at max torque 2000-4000
Engine 1.4i
Compression 10
RPM at max power 5600
Turbo +
Engine code LE2

Dimensions

Seats 5
Length mm 4453
Height mm 1466
Wheelbase mm 2700
Trunk capacity, L 623
Fuel tank, l 52
Width (without mirrors) mm 1790

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.7
Fuel consumption (urban), l. 100 km 6.1
Fuel consumption (combined), l. 100 km 7.6
Acceleration (0-100 km/h), s 8.2
The maximum speed, km / h. 215

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
1.4i (153 HP) 6-speed automatic 33 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1399
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 153
Torque, Nm 240
RPM at max torque 2000-4000
Engine 1.4i
Compression 10
RPM at max power 5600
Turbo +
Engine code LE2

Dimensions

Seats 5
Length mm 4453
Height mm 1466
Wheelbase mm 2700
Trunk capacity, L 623
Fuel tank, l 52
Width (without mirrors) mm 1790

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.1
Fuel consumption (urban), l. 100 km 6.2
Fuel consumption (combined), l. 100 km 7.4
Acceleration (0-100 km/h), s 8.2
The maximum speed, km / h. 213

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer GM
Transmission country of origin USA
1.6d (137 h.p.) 6-speed manual 25 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 137
Torque, Nm 325
Engine 1.6d
Turbo +
Engine code LH7

Dimensions

Seats 5
Length mm 4453
Height mm 1466
Wheelbase mm 2700
Trunk capacity, L 623
Fuel tank, l 52
Width (without mirrors) mm 1790

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.1
Fuel consumption (urban), l. 100 km 4.9
Acceleration (0-100 km/h), s 8.1

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
1.6d (137 hp) 9-speed automatic 28 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1598
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 137
Torque, Nm 325
Engine 1.6d
Turbo +
Engine code LH7

Dimensions

Seats 5
Length mm 4453
Height mm 1466
Wheelbase mm 2700
Trunk capacity, L 623
Fuel tank, l 52
Width (without mirrors) mm 1790

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.8
Fuel consumption (urban), l. 100 km 5.2
Fuel consumption (combined), l. 100 km 6.7

Transmission and drive

Automatic transmission +
Number of gears 9
Drive Front
Transmission 9-speed automatic
Gearbox Machine
Transmission manufacturer GM
Transmission country of origin USA
FAQ

Chevrolet Cruze Hatchback questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Chevrolet Cruze Hatchback?

This page lists 4 trims for the Chevrolet Cruze Hatchback, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Chevrolet Cruze Hatchback?

The listed configurations show a power range of 137-153 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Chevrolet Cruze Hatchback?

The available specification data shows engine displacement from 1399-1598 cc across the trims listed on this page.

Which transmissions are listed for the Chevrolet Cruze Hatchback?

The transmission options currently shown for this model are: 6-speed manual, 6-speed automatic, 9-speed automatic. Open a trim section to see the full data for a specific configuration.

Are there photos for the Chevrolet Cruze Hatchback?

Yes. The gallery includes 15 photos for the Chevrolet Cruze Hatchback, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
