Chevrolet Suburban specifications and photos

Chevrolet Suburban specifications are shown with trim options, key technical data, and a model photo gallery. Compare 4 configurations by engine size, power, seating, and transmission. The gallery includes 20 photos for visual reference.

Years 2020
Body type suv
Trims 4
Photos 20
Chevrolet Suburban 2020 suv
Overview

Chevrolet Suburban at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Chevrolet Suburban page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 360-426 hp and 5328-6162 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 360-426 hp
  • Engine displacement: 5328-6162 cc
  • Transmissions: 10-speed automatic, 10
  • Seating: 8 seats
Research hub

Photos, trims and specifications for Chevrolet Suburban

This model page brings gallery images, trim comparison, and detailed technical data together for the 2020 generation.

Open photo gallery 20 images Compare trims 4 configurations View detailed specs 5328-6162 cc Explore related pages Chevrolet and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 360-426 hp
Engine displacement 5328-6162 cc
Seating 8 seats
Transmissions 10-speed automatic, 10
Trim / modification Engine Power Seats Transmission
5.3i (360 hp) 10-speed automatic 5328 cc 360 hp 8 10-speed automatic
5.3i (360 hp) 10-speed 4x4 automatic transmission 5328 cc 360 hp 8 10
6.2i (426 h.p.) 10-speed automatic 6162 cc 426 hp 8 10-speed automatic
6.2i (426 h.p.) 10-speed automatic transmission 4x4 6162 cc 426 hp 8 10-speed automatic

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

5.3i (360 hp) 10-speed automatic 5.3i (360 hp) 10-speed 4x4 automatic transmission 6.2i (426 h.p.) 10-speed automatic 6.2i (426 h.p.) 10-speed automatic transmission 4x4
5.3i (360 hp) 10-speed automatic 33 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 5328
Cylinders location V-shaped
Number of cylinders 8
Valves 16
Power, hp 360
Torque, Nm 519
RPM at max torque 4100
Engine 5.3i
Compression 11.0
RPM at max power 5600
Engine code L83/L8B

Dimensions

Seats 8
Length mm 5733
Height mm 1923
Wheelbase mm 3406
Kerb weight, kg 2559
Trunk capacity, L 1175
Fuel tank, l 106
Ground clearance, mm 203
Gross weight, kg 3402
Width (without mirrors) mm 2060

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 14.7
Fuel consumption (urban), l. 100 km 11.8
Fuel consumption (combined), l. 100 km 13.1

Transmission and drive

Automatic transmission +
Number of gears 10
Drive Rear
Transmission 10-speed automatic
Gearbox Machine
Transmission manufacturer GM
Transmission country of origin USA
5.3i (360 hp) 10-speed 4x4 automatic transmission 33 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 5328
Cylinders location V-shaped
Number of cylinders 8
Valves 16
Power, hp 360
Torque, Nm 519
RPM at max torque 4100
Engine 5.3i
Compression 11.0
RPM at max power 5600
Engine code L83/L8B

Dimensions

Seats 8
Length mm 5733
Height mm 1923
Wheelbase mm 3406
Kerb weight, kg 2559
Trunk capacity, L 1175
Fuel tank, l 106
Ground clearance, mm 203
Gross weight, kg 3402
Width (without mirrors) mm 2060

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 15.7
Fuel consumption (urban), l. 100 km 12.4
Fuel consumption (combined), l. 100 km 13.8

Transmission and drive

Automatic transmission +
Number of gears 10
Drive Full
Transmission 10-speed automatic
Gearbox Machine
Transmission manufacturer GM
Transmission country of origin USA
6.2i (426 h.p.) 10-speed automatic 33 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 6162
Cylinders location V-shaped
Number of cylinders 8
Valves 16
Power, hp 426
Torque, Nm 623
RPM at max torque 4100
Engine 6.2i
Compression 11.5
RPM at max power 5600
Engine code L86

Dimensions

Seats 8
Length mm 5733
Height mm 1923
Wheelbase mm 3406
Kerb weight, kg 2559
Trunk capacity, L 1175
Fuel tank, l 106
Ground clearance, mm 203
Gross weight, kg 3402
Width (without mirrors) mm 2060

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 15.7
Fuel consumption (urban), l. 100 km 11.8
Fuel consumption (combined), l. 100 km 13.8

Transmission and drive

Automatic transmission +
Number of gears 10
Drive Rear
Transmission 10-speed automatic
Gearbox Machine
Transmission manufacturer GM
Transmission country of origin USA
6.2i (426 h.p.) 10-speed automatic transmission 4x4 33 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 6162
Cylinders location V-shaped
Number of cylinders 8
Valves 16
Power, hp 426
Torque, Nm 623
RPM at max torque 4100
Engine 6.2i
Compression 11.5
RPM at max power 5600
Engine code L86

Dimensions

Seats 8
Length mm 5733
Height mm 1923
Wheelbase mm 3406
Kerb weight, kg 2559
Trunk capacity, L 1175
Fuel tank, l 106
Ground clearance, mm 203
Gross weight, kg 3402
Width (without mirrors) mm 2060

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 16.8
Fuel consumption (urban), l. 100 km 12.4
Fuel consumption (combined), l. 100 km 14.7

Transmission and drive

Automatic transmission +
Number of gears 10
Drive Full
Transmission 10-speed automatic
Gearbox Machine
Transmission manufacturer GM
Transmission country of origin USA
FAQ

Chevrolet Suburban questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Chevrolet Suburban?

This page lists 4 trims for the Chevrolet Suburban, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Chevrolet Suburban?

The listed configurations show a power range of 360-426 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Chevrolet Suburban?

The available specification data shows engine displacement from 5328-6162 cc across the trims listed on this page.

Which transmissions are listed for the Chevrolet Suburban?

The transmission options currently shown for this model are: 10-speed automatic, 10. Open a trim section to see the full data for a specific configuration.

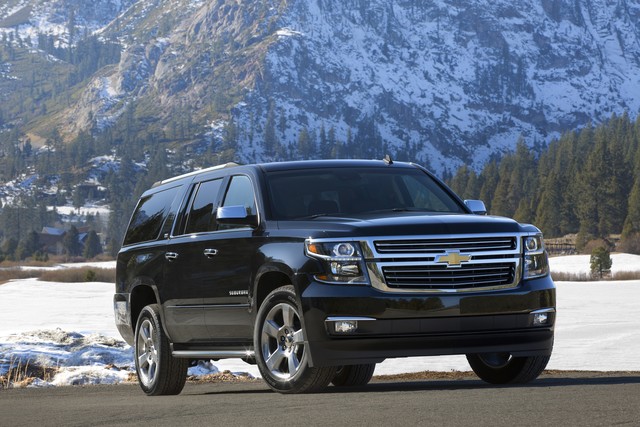

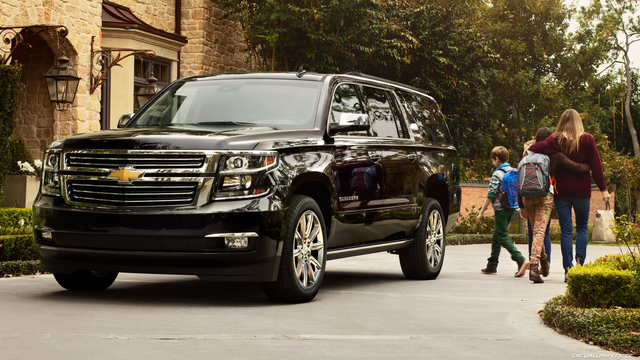

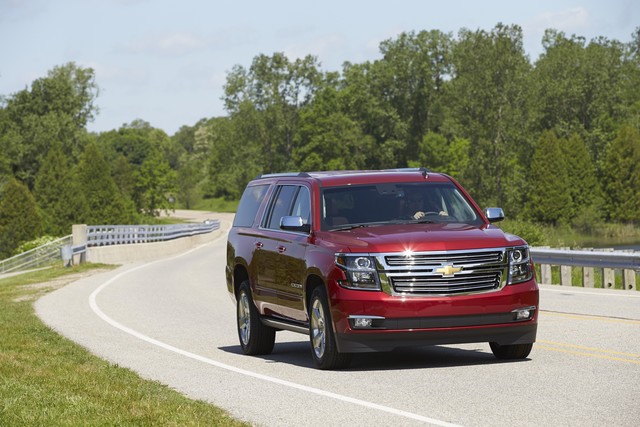

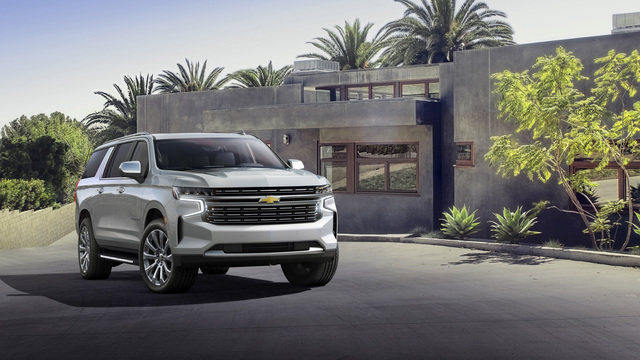

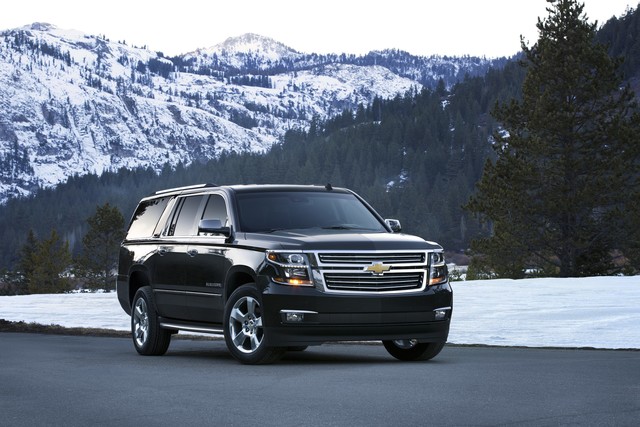

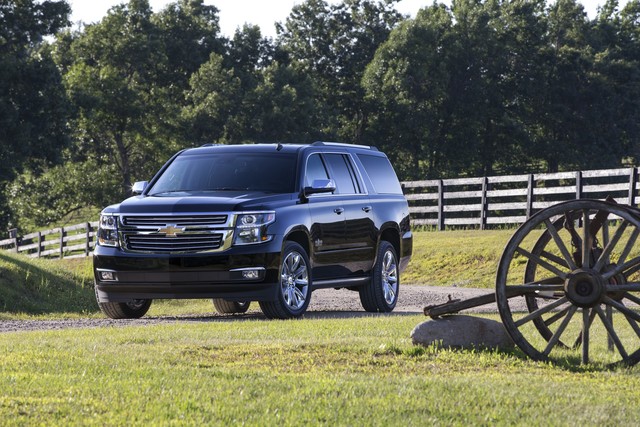

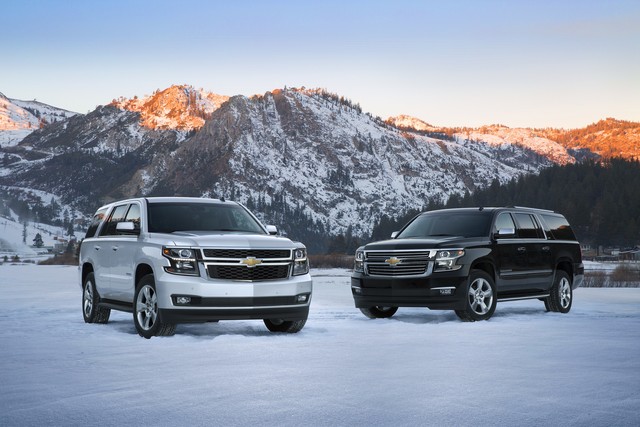

Are there photos for the Chevrolet Suburban?

Yes. The gallery includes 20 photos for the Chevrolet Suburban, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
