Ford Expedition specifications and photos
The fifth-generation Ford Expedition, unveiled in late 2024, is a full-size SUV engineered for substantial passenger capacity and heavy-duty utility. It combines a robust body-on-frame architecture with modern digital interfaces and a versatile interior layout.
Ford Expedition at a glance
Quick model context before comparing photos and trim-level specifications.
The 2024 Ford Expedition represents the fifth generation of the brand's flagship utility vehicle, making its debut in Dearborn, Michigan. Positioned in the heavy-duty passenger segment, it caters to large families and buyers requiring significant towing and cargo capabilities without sacrificing cabin comfort. Available with both rear-wheel and four-wheel-drive layouts, the vehicle maintains its traditional large-scale footprint while introducing refined interior ergonomics. Ford focused this iteration on enhanced cabin flexibility, upgraded technology, and outdoor utility, making it a highly adaptable platform for everyday commuting, road trips, and active outdoor lifestyles.
- Power: 400-440 hp
- Engine displacement: 3497 cc
- Transmissions: 10-speed automatic
Photos, trims and specifications for Ford Expedition
This model page brings gallery images, trim comparison, and detailed technical data together for the 2024 generation.
Ford Expedition overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The exterior styling of the new Expedition emphasizes a commanding presence with modernized aerodynamic elements. The front fascia features a revised grille flanked by updated LED lighting and sharp hood contours that add definition to its large profile. While the overall shape remains boxy to maximize interior volume, the body lines have been refined for a contemporary appearance. Buyers can outfit the SUV with a range of wheel designs, peaking at massive 24-inch premium alloy wheels that fill out the prominent wheel arches. A standout functional addition to the exterior is the new Split Gate at the rear, designed to enhance cargo access and serve as a versatile staging area.
Interior
The cabin is focused on expansive passenger space and premium material options, including high-end leather and natural wood trim on upper models. The front row features ergonomic, heated seating, while the second row can be optioned with a flexible central console table. Ford introduced a Third-Row Flexible Seating configuration, allowing owners to fold down specific sections of the rear bench for long items without displacing all rear passengers. The dashboard is dominated by an enormous 24-inch central display unit that serves as the command center for the vehicle. An available panoramic roof helps brighten the massive cabin, which comfortably seats seven or eight passengers depending on the configuration.
Performance
Powering the Expedition is Ford's proven 3.5-liter EcoBoost V6 engine, utilizing twin turbochargers alongside port and direct fuel injection. The standard configuration delivers 400 horsepower at 5,200 rpm and 651 Nm of torque at 3,300 rpm. For those requiring more capability, a High Output version—available on models like the Tremor—pushes performance to 440 horsepower and 691 Nm of torque. All variants are paired with a 10-speed SelectShift automatic transmission. The SUV is offered in both standard rear-wheel drive and an available four-wheel-drive system, providing traction solutions for various climates and towing demands.
Practicality
With a 3,112 mm wheelbase and an overall length of 5,331 mm, the Expedition provides exceptional everyday utility. It offers 612 liters of cargo space behind the third row, which expands significantly when the rear seats are folded. The new Split Gate design allows the rear cargo area to double as a convenient space for outdoor activities and tailgating. Additionally, a built-in exterior zone lighting system makes it a highly capable companion for camping or nighttime loading. The vehicle's 211 mm of ground clearance ensures it can handle rougher terrain and unpaved roads with confidence.
Safety and tech
The technological centerpiece of the new Expedition is the 24-inch primary display screen, which manages infotainment, navigation, and vehicle settings. The modern electrical architecture supports comprehensive digital integration and connectivity features. Advanced LED exterior lighting ensures strong nighttime visibility, and the exterior zone lighting system allows drivers to illuminate the immediate perimeter of the vehicle via the central screen, a useful tool for setting up remote campsites or navigating dark driveways.
Buyer notes
Shoppers comparing the 2024 Expedition should carefully evaluate their powertrain needs. While the standard 400-horsepower EcoBoost V6 is more than adequate for most driving conditions, the 440-horsepower High Output version is beneficial for frequent heavy towing or off-road use. Interior layout is another key consideration; choosing between a second-row bench for eight-passenger capacity or captain's chairs for seven passengers significantly alters cabin accessibility. Keep in mind that standout features like the 24-inch display, 24-inch wheels, and the Split Gate may be restricted to higher trim levels or specific optional packages.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 3.5 EcoBoost (400 hp) 10-speed automatic SelectShift | 3497 cc | 400 hp | 7/8 | 10-speed automatic |
| 3.5 EcoBoost (400 hp) 10-speed automatic SelectShift 4x4 | 3497 cc | 400 hp | 7/8 | 10-speed automatic |
| 3.5 EcoBoost (440 hp) 10-speed automatic SelectShift | 3497 cc | 440 hp | 7/8 | 10-speed automatic |
| 3.5 EcoBoost (440 hp) 10-speed automatic SelectShift 4x4 | 3497 cc | 440 hp | 7/8 | 10-speed automatic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

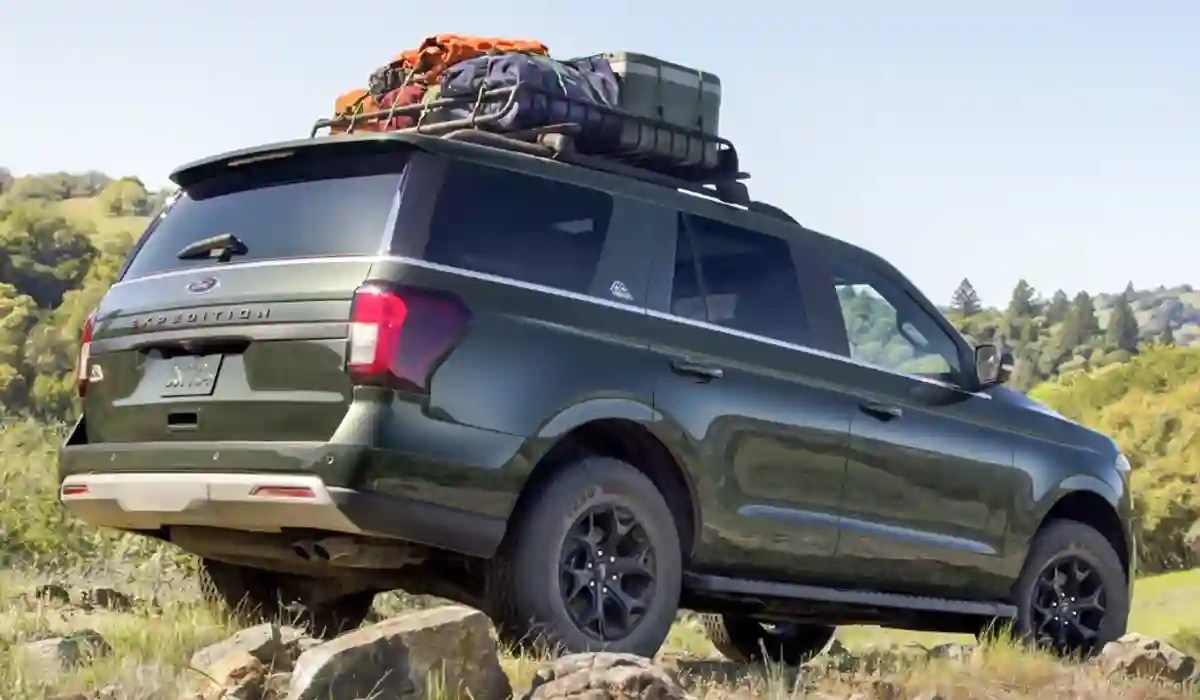

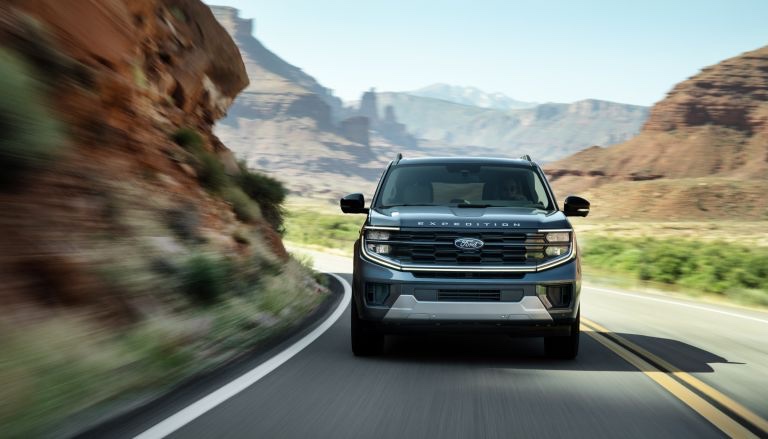

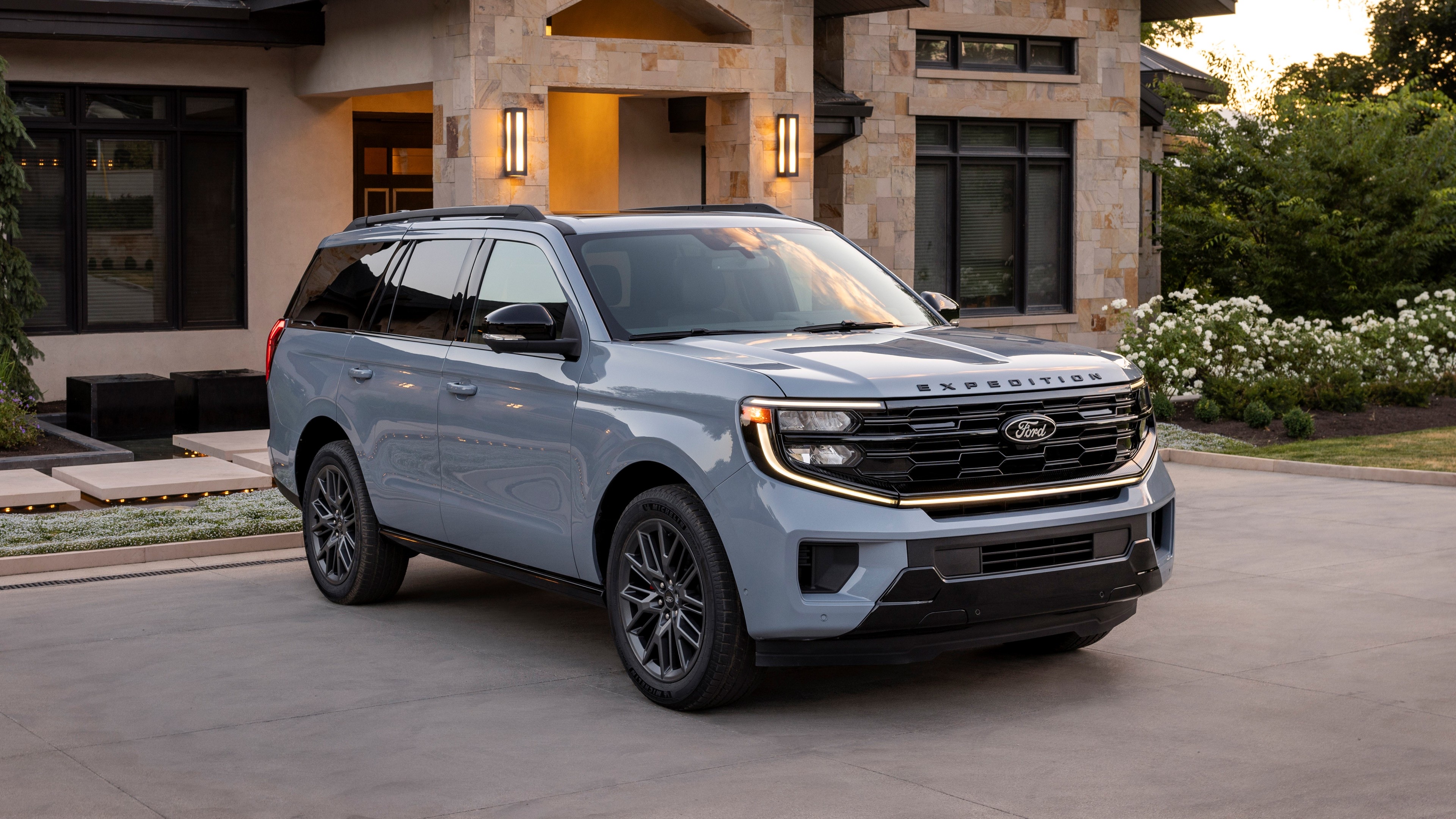

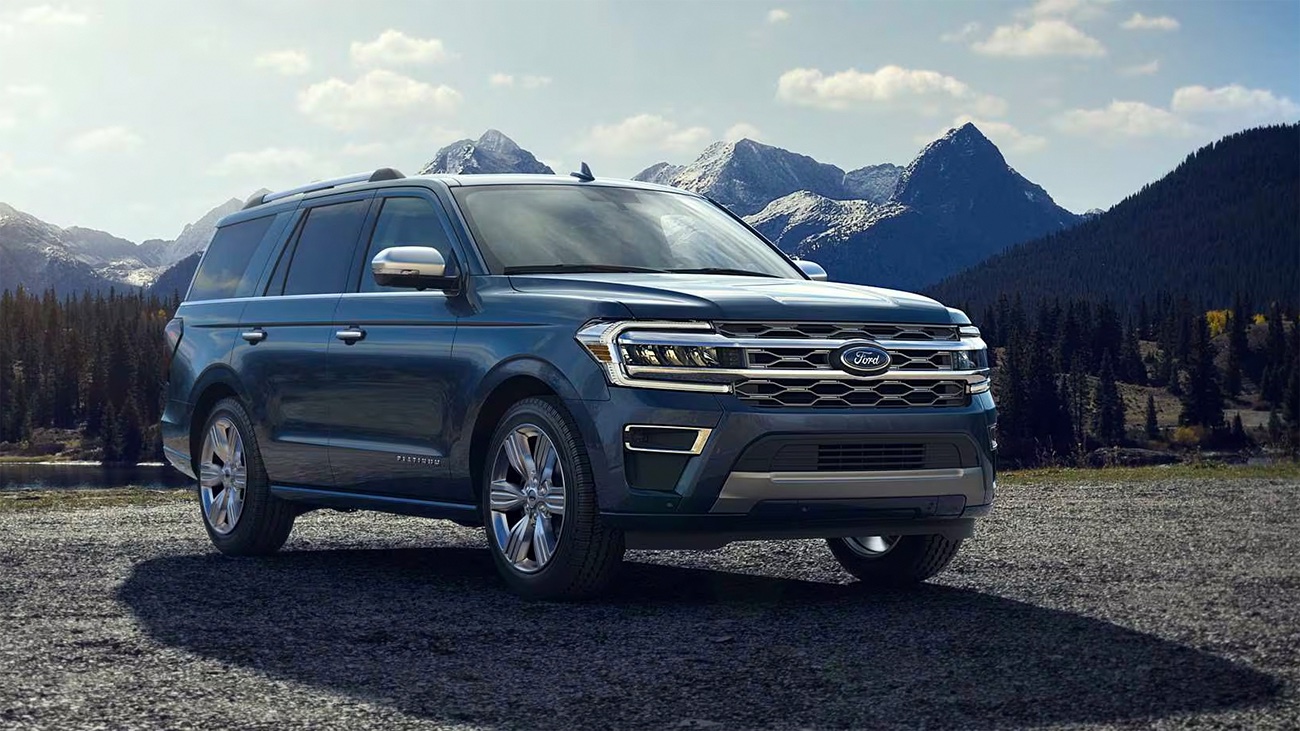

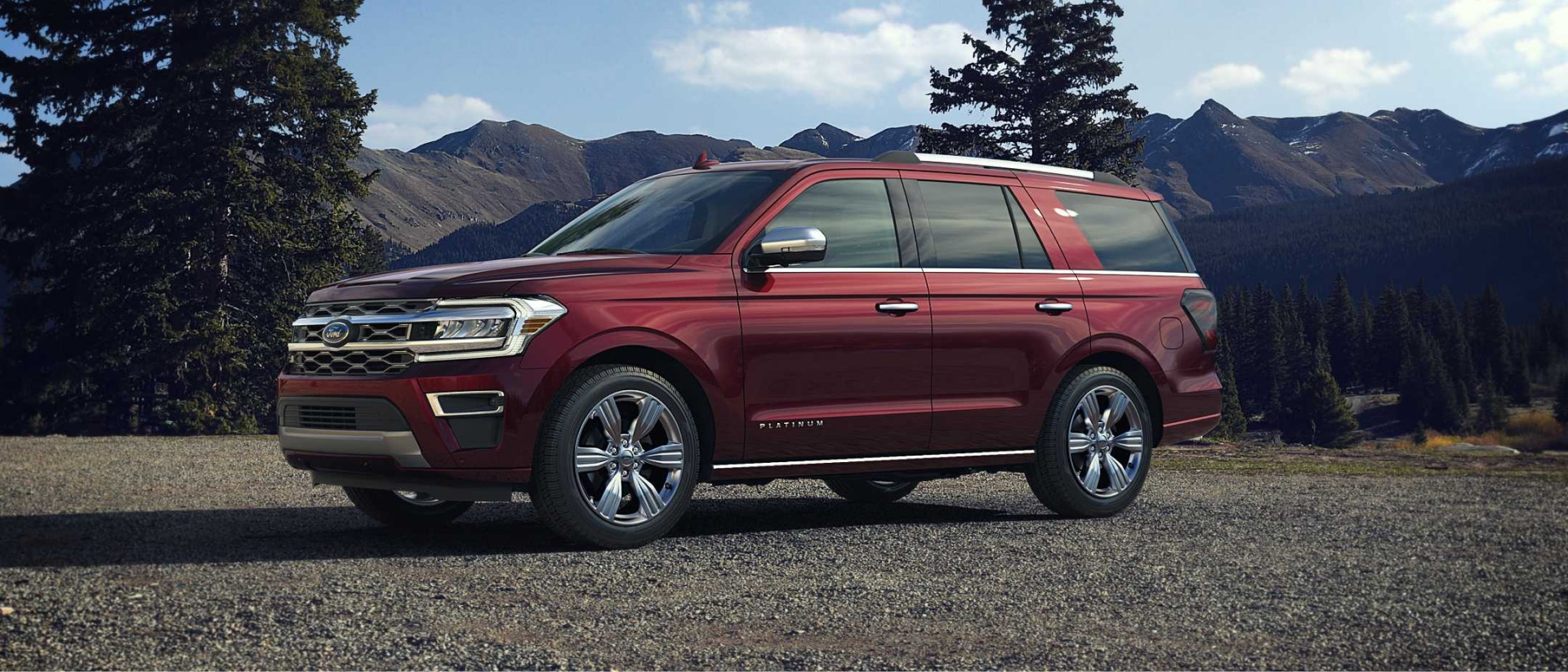

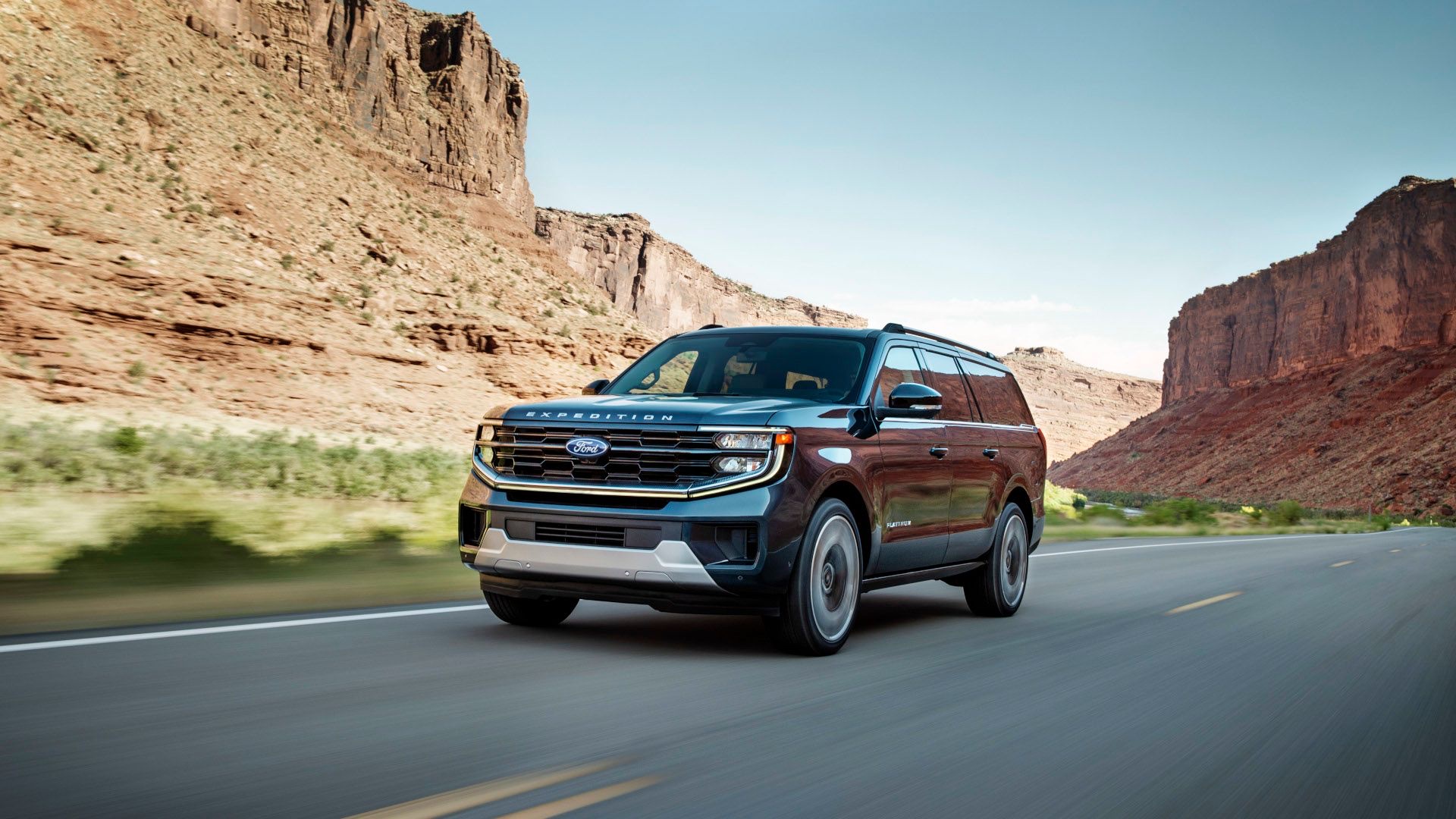

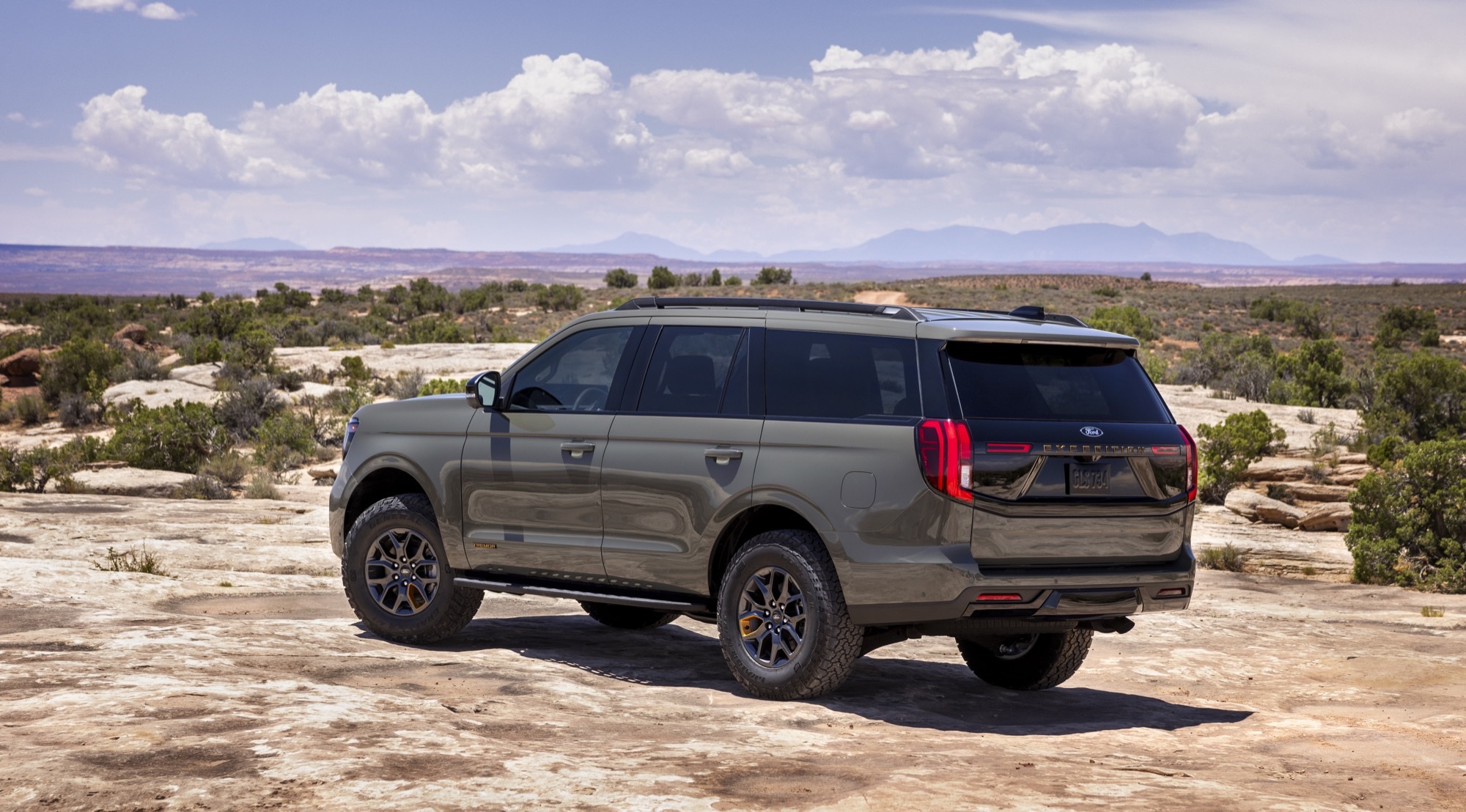

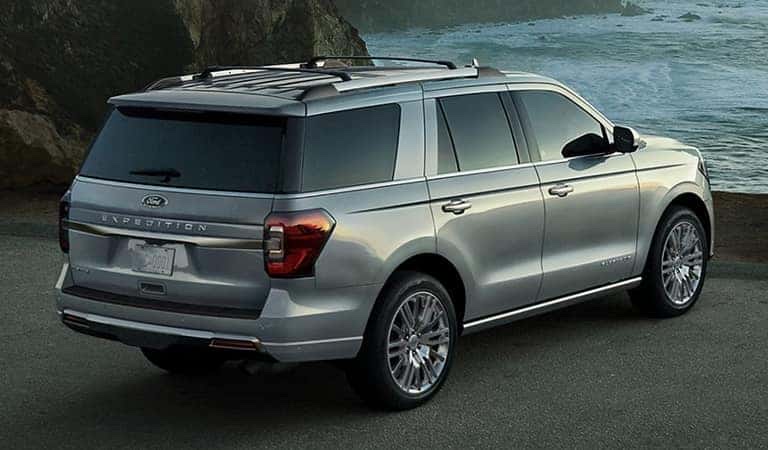

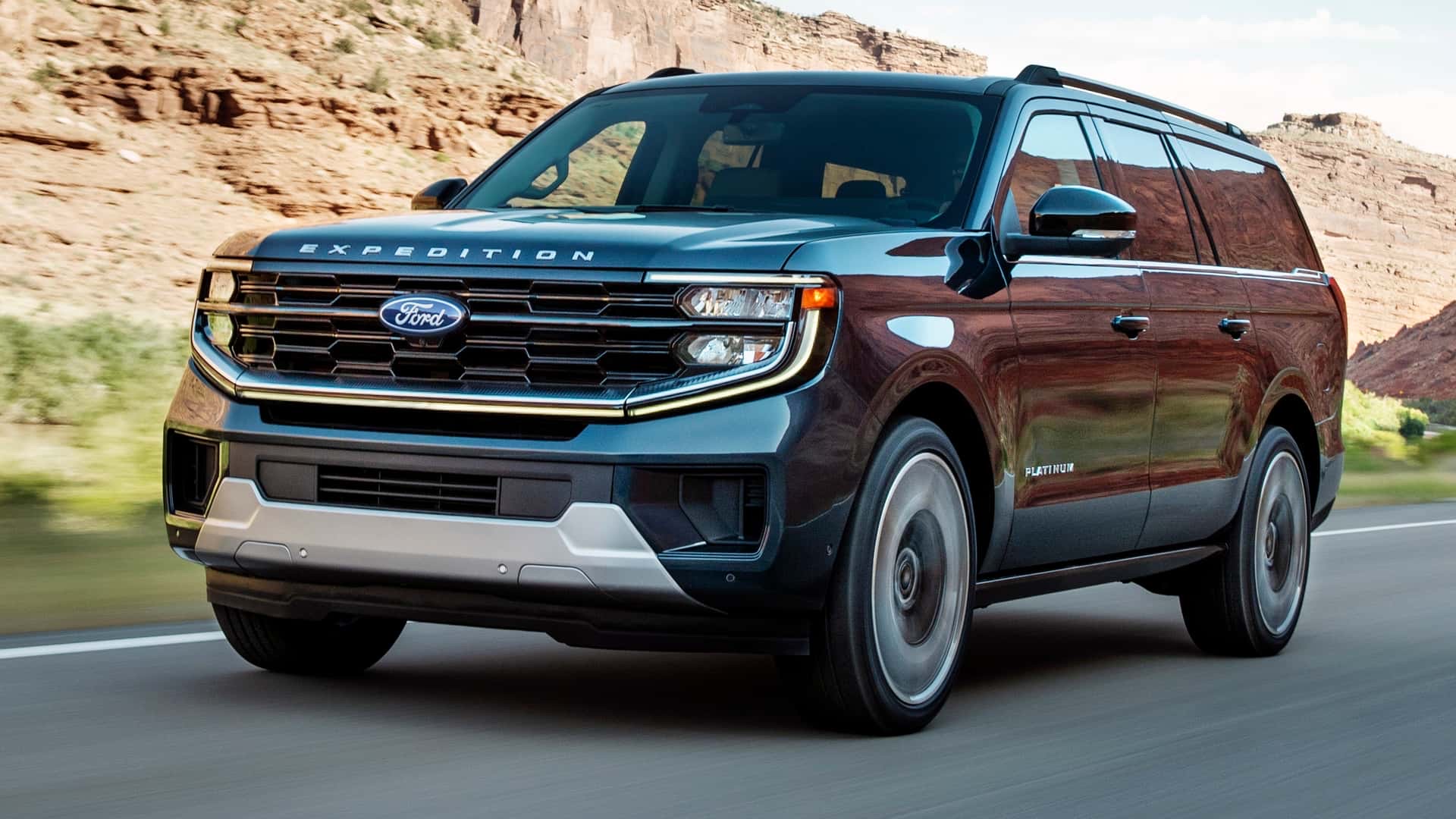

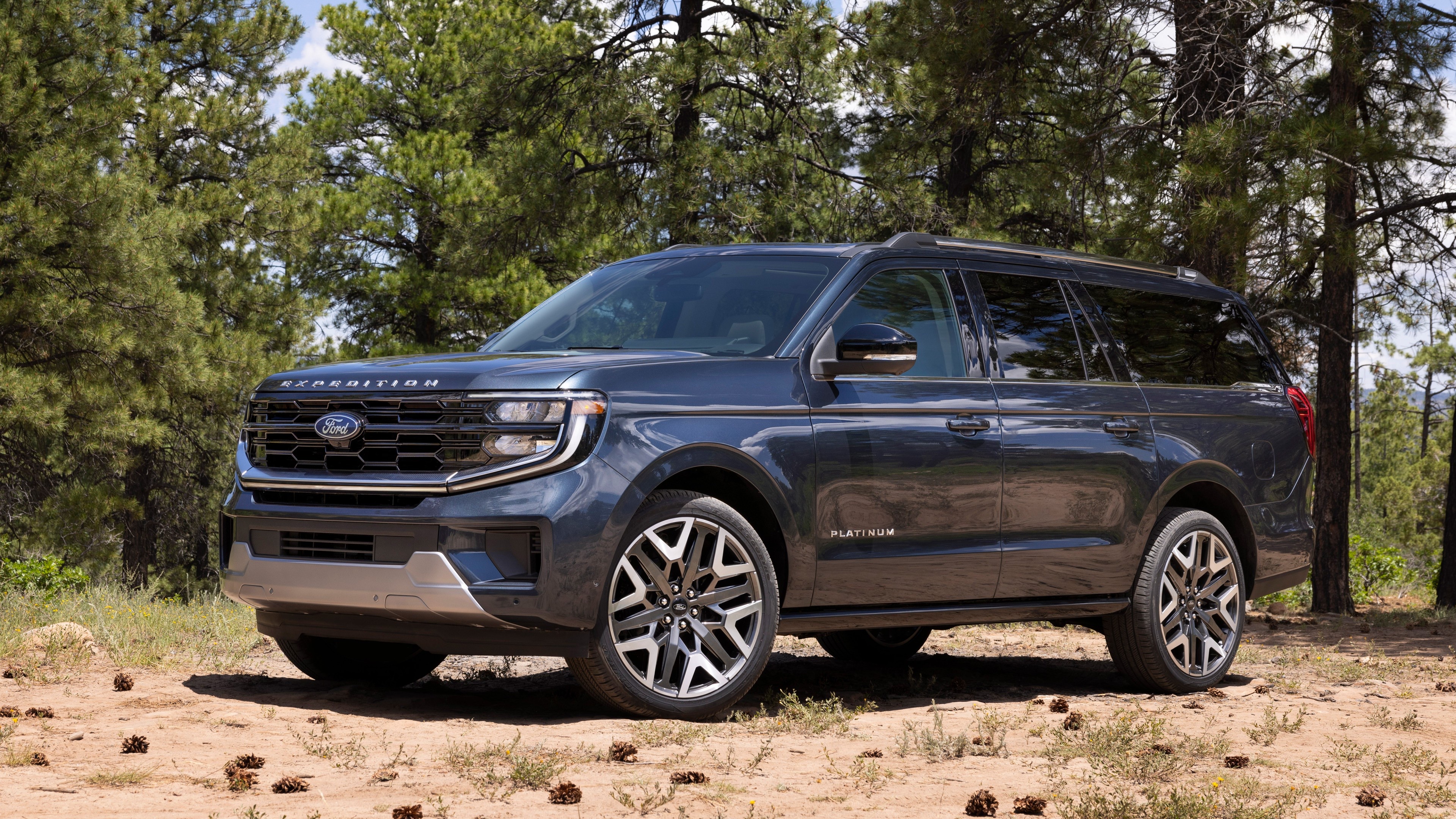

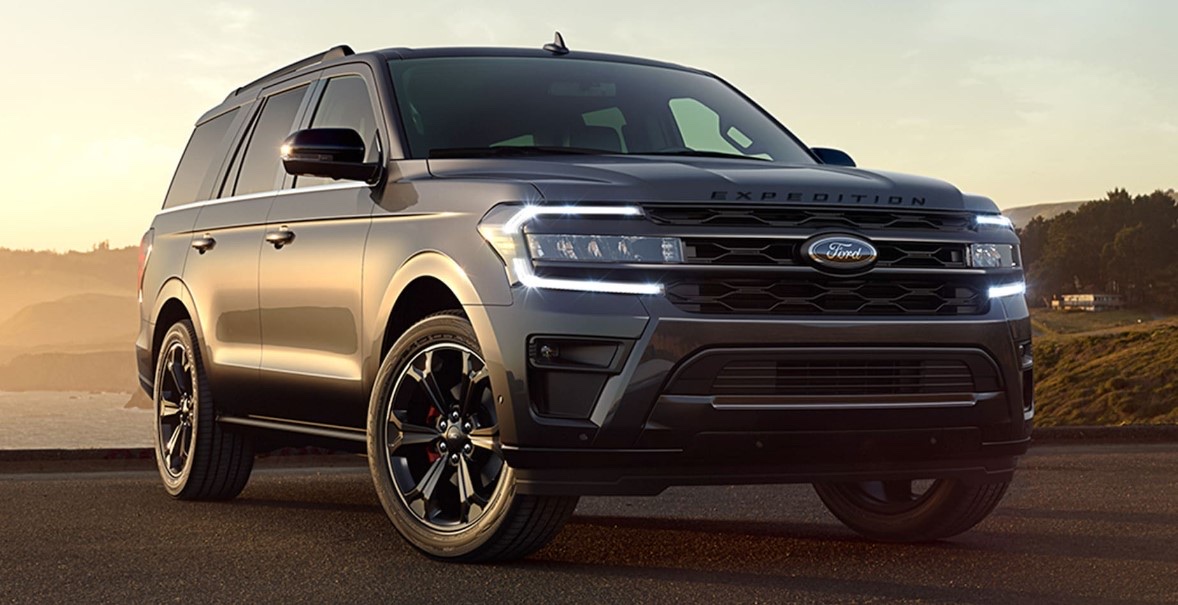

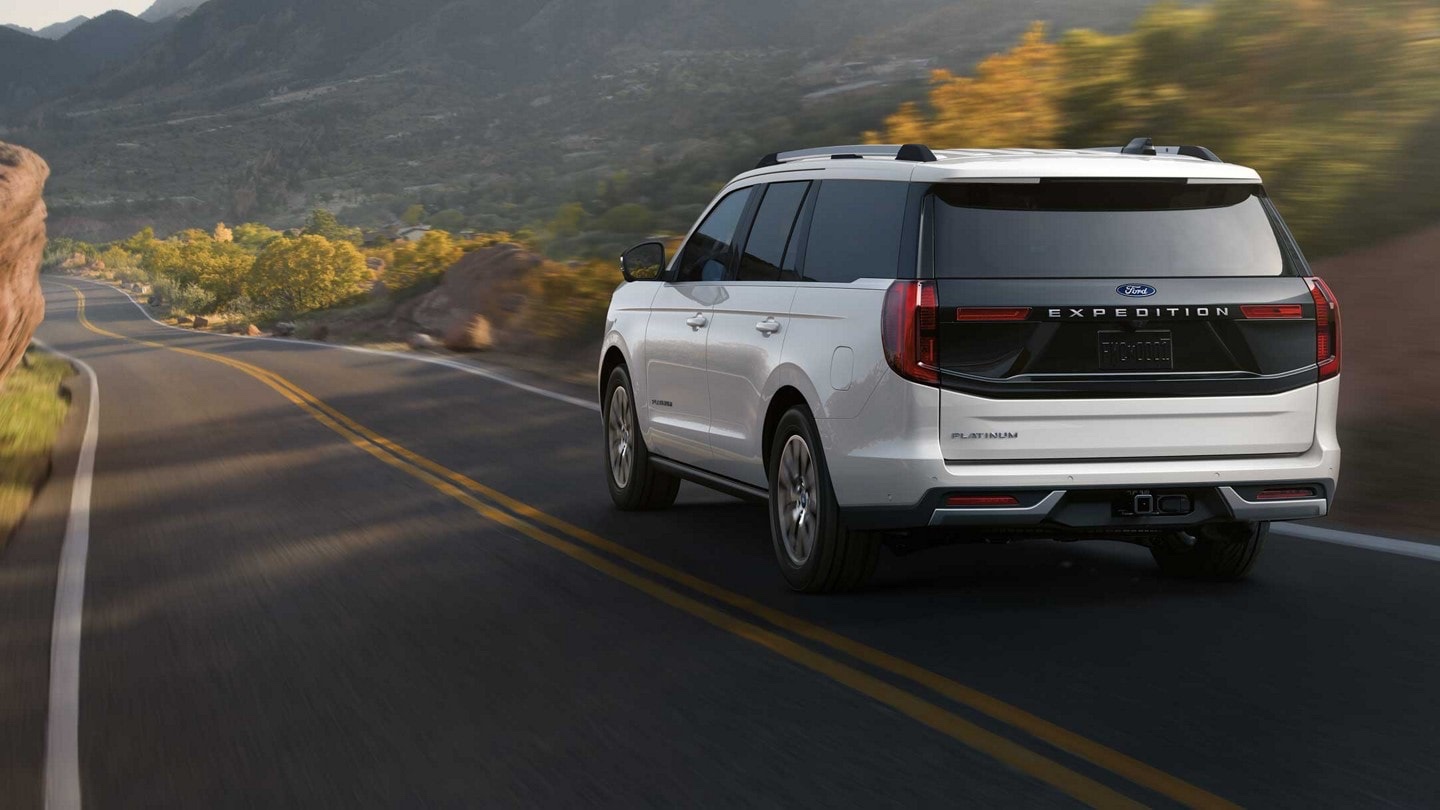

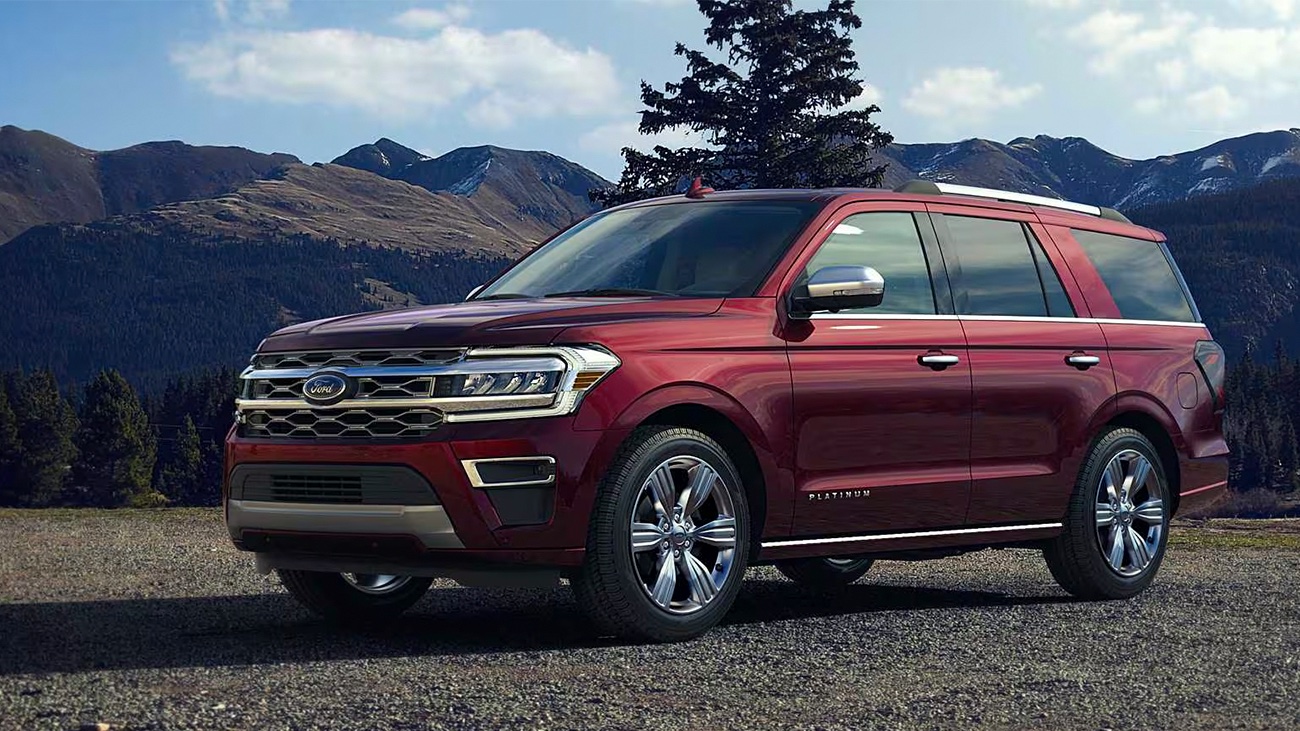

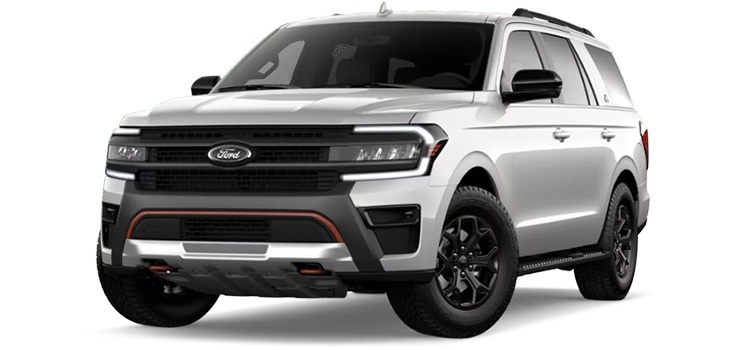

Ford Expedition photo gallery
22 images are collected here with the main specifications and trim data for this model.

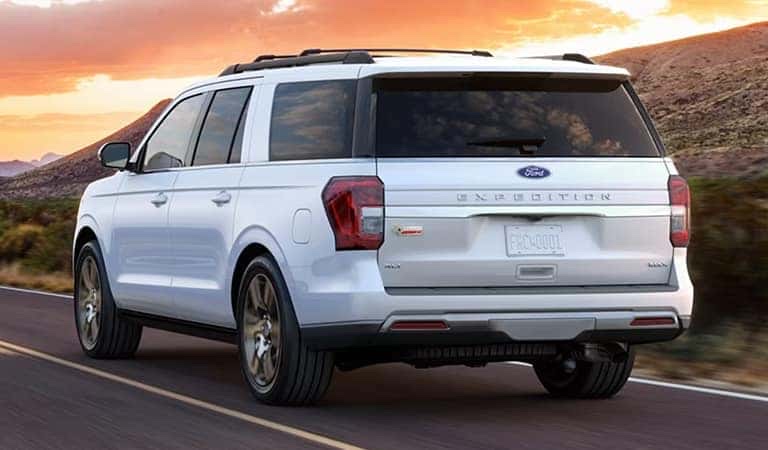

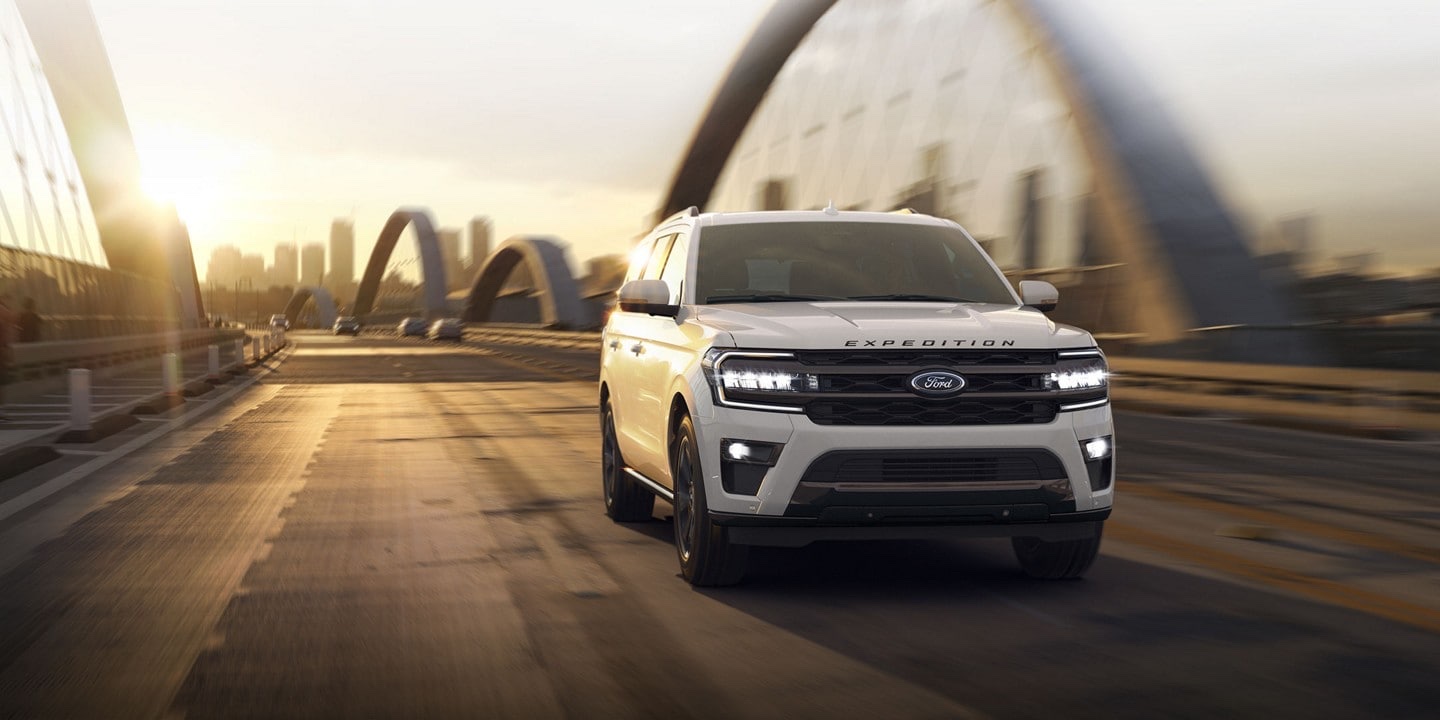

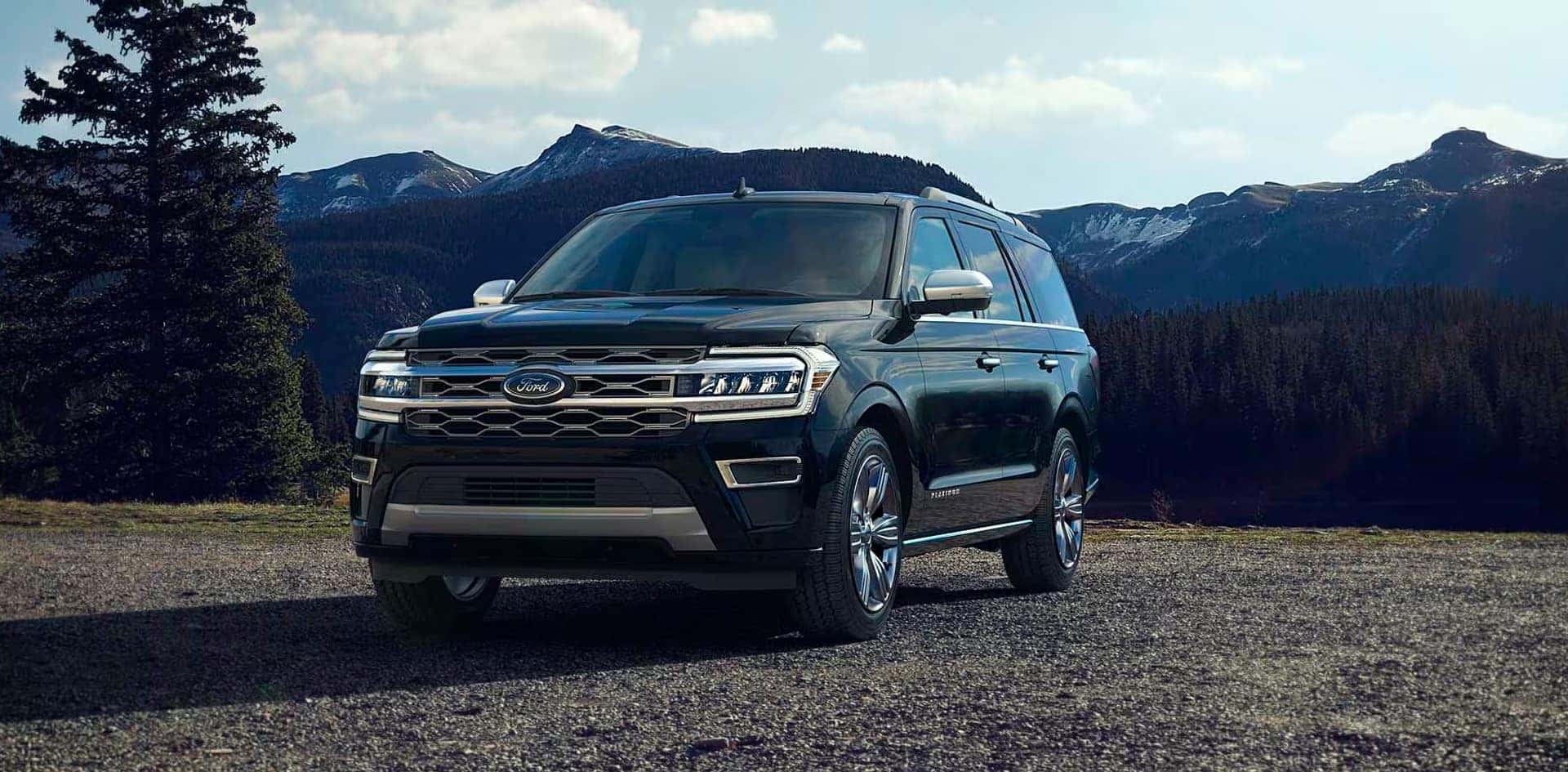

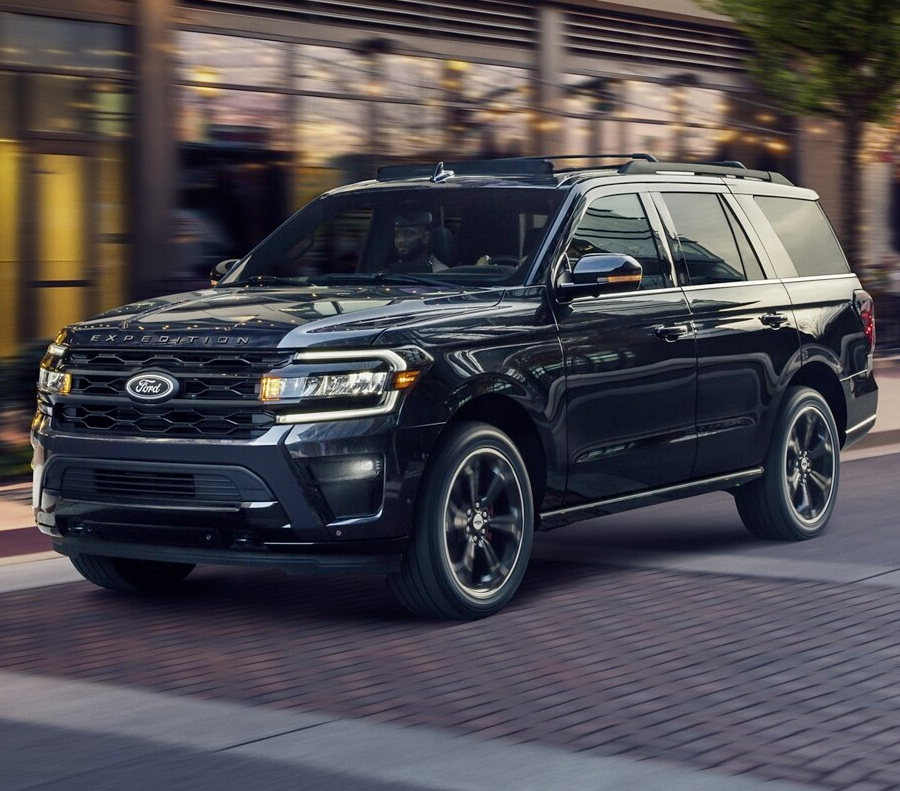

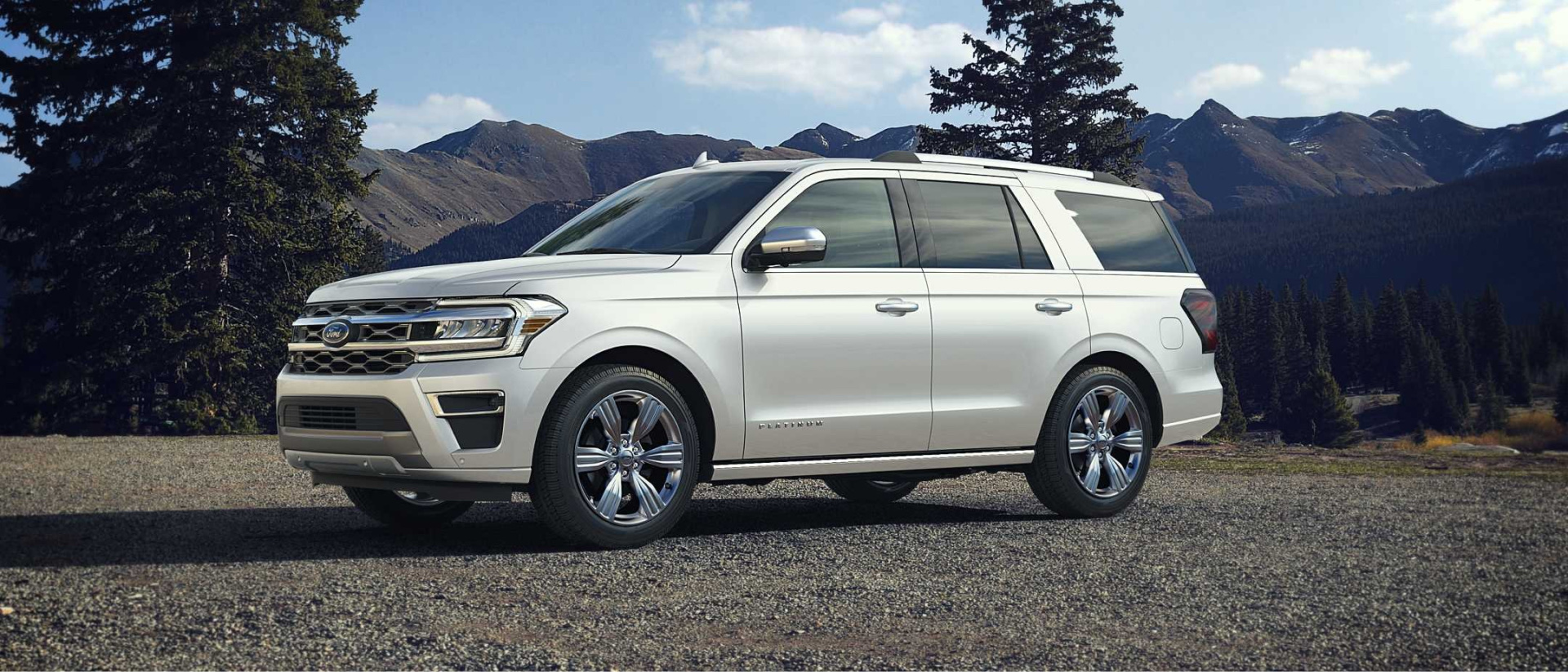

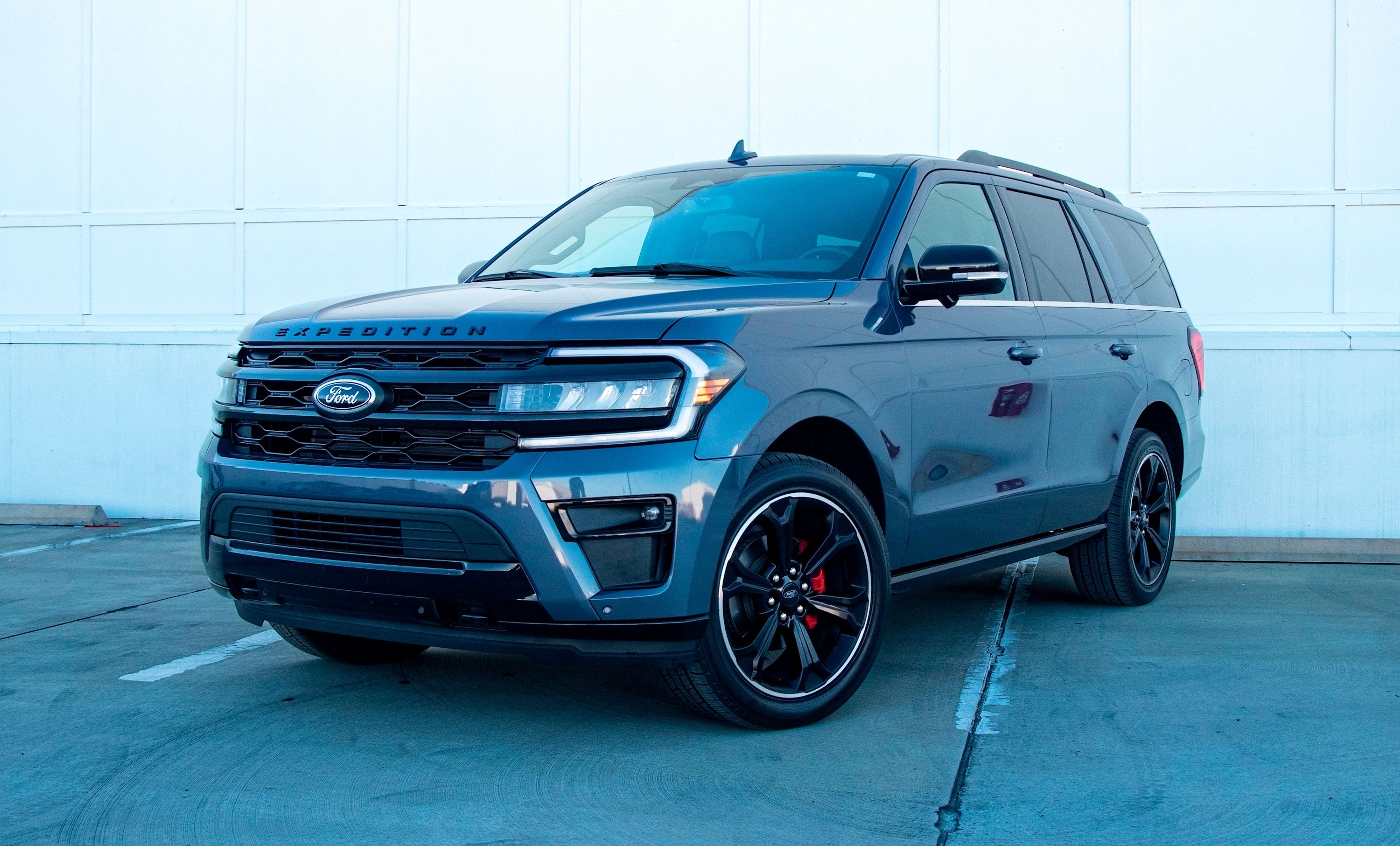

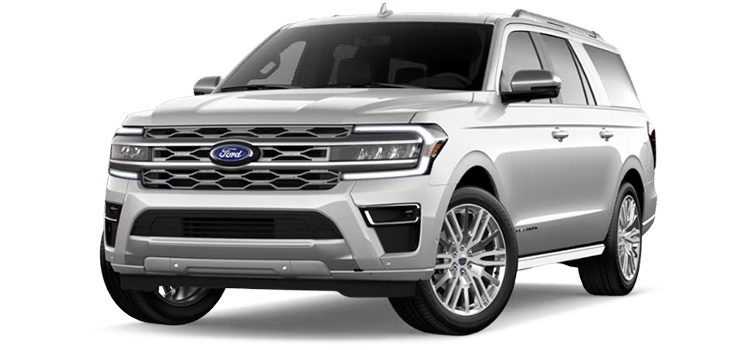

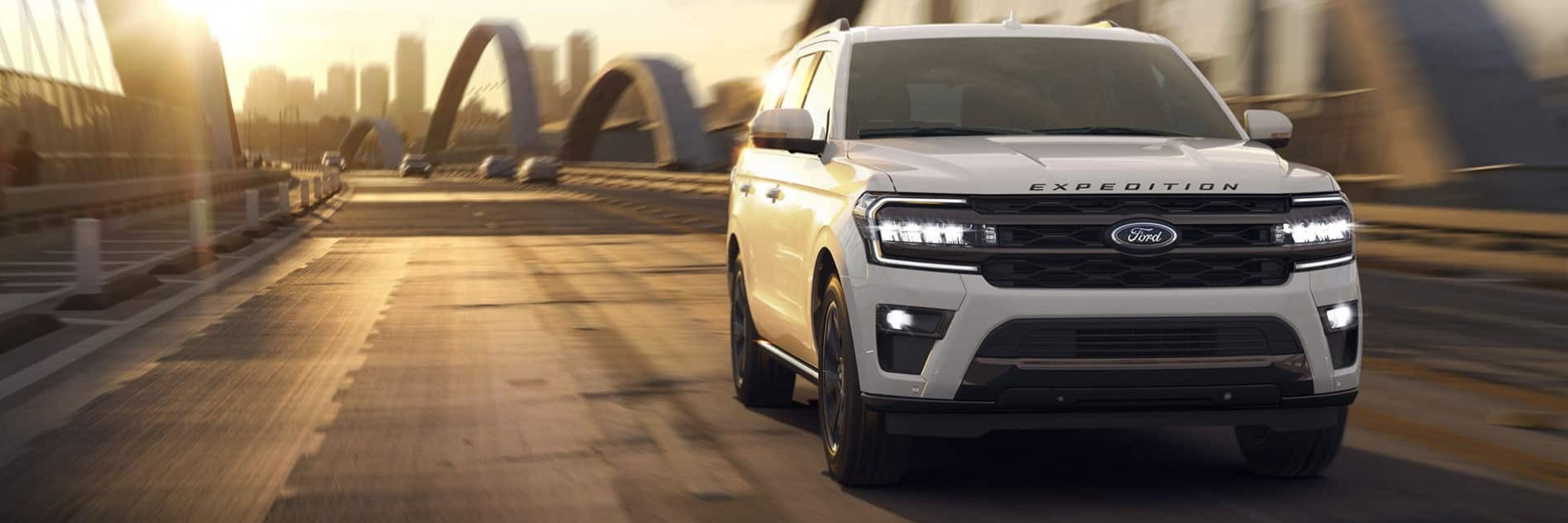

Photo Ford Expedition
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
3.5 EcoBoost (400 hp) 10-speed automatic SelectShift 29 specifications
Specifications
Engine
| Engine | 3.5 EcoBoost |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 3497 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 400 |
| RPM at max power | 5200 |
| Torque, Nm | 651 |
| RPM at max torque | 3300 |
Dimensions
| Seats | 7/8 |
|---|---|
| Length, mm | 5331 |
| Width, mm | 2149 |
| Height, mm | 1984 |
| Wheelbase, mm | 3112 |
| Front track, mm | 1730 |
| Rear track, mm | 1722 |
| Kerb weight, kg | 2451 |
| Fuel tank capacity, L | 88 |
| Ground clearance, mm | 211 |
| Width without mirrors, mm | 2032 |
| Trunk capacity, L | 612 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
3.5 EcoBoost (400 hp) 10-speed automatic SelectShift 4x4 29 specifications
Specifications
Engine
| Engine | 3.5 EcoBoost |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 3497 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 400 |
| RPM at max power | 5200 |
| Torque, Nm | 651 |
| RPM at max torque | 3300 |
Dimensions
| Seats | 7/8 |
|---|---|
| Length, mm | 5331 |
| Width, mm | 2149 |
| Height, mm | 1984 |
| Wheelbase, mm | 3112 |
| Front track, mm | 1730 |
| Rear track, mm | 1722 |
| Kerb weight, kg | 2451 |
| Fuel tank capacity, L | 88 |
| Ground clearance, mm | 211 |
| Width without mirrors, mm | 2032 |
| Trunk capacity, L | 612 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
3.5 EcoBoost (440 hp) 10-speed automatic SelectShift 29 specifications
Specifications
Engine
| Engine | 3.5 EcoBoost |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 3497 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 440 |
| RPM at max power | 5400 |
| Torque, Nm | 691 |
| RPM at max torque | 3300 |
Dimensions
| Seats | 7/8 |
|---|---|
| Length, mm | 5331 |
| Width, mm | 2149 |
| Height, mm | 1984 |
| Wheelbase, mm | 3112 |
| Front track, mm | 1730 |
| Rear track, mm | 1722 |
| Kerb weight, kg | 2451 |
| Fuel tank capacity, L | 88 |
| Ground clearance, mm | 211 |
| Width without mirrors, mm | 2032 |
| Trunk capacity, L | 612 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
3.5 EcoBoost (440 hp) 10-speed automatic SelectShift 4x4 29 specifications
Specifications
Engine
| Engine | 3.5 EcoBoost |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 3497 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 440 |
| RPM at max power | 5400 |
| Torque, Nm | 691 |
| RPM at max torque | 3300 |
Dimensions
| Seats | 7/8 |
|---|---|
| Length, mm | 5331 |
| Width, mm | 2149 |
| Height, mm | 1984 |
| Wheelbase, mm | 3112 |
| Front track, mm | 1730 |
| Rear track, mm | 1722 |
| Kerb weight, kg | 2451 |
| Fuel tank capacity, L | 88 |
| Ground clearance, mm | 211 |
| Width without mirrors, mm | 2032 |
| Trunk capacity, L | 612 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
Ford Expedition questions
Short answers based on the specifications and photos available in this catalog.
What is the engine size in the 2024 Ford Expedition?
It is powered by a twin-turbo 3.5-liter EcoBoost V6 engine. This powerplant is available in standard 400-horsepower and High Output 440-horsepower configurations.
How many people can the Expedition seat?
The cabin can accommodate seven or eight passengers. This depends on whether the second row is equipped with a three-person bench seat or individual captain's chairs.
What are the dimensions of the vehicle?
The standard 2024 Ford Expedition measures 5,331 mm in length, 2,149 mm in width, and 1,984 mm in height, riding on a 3,112 mm wheelbase.
Does it have all-wheel drive?
Buyers can choose between standard rear-wheel drive or an available four-wheel-drive system. Both drivetrain options are paired with a 10-speed automatic transmission.
What is the Split Gate feature?
The Split Gate is a specialized rear tailgate design intended to improve access to the trunk. It can also act as a versatile seating or staging space for tailgating and outdoor relaxation.
