Ford Explorer specifications and photos

Ford Explorer specifications are shown with trim options, key technical data, and a model photo gallery. Compare 6 configurations by engine size, power, seating, and transmission. The gallery includes 11 photos for visual reference.

Years 2017 - 2019
Body type suv
Trims 6
Photos 11

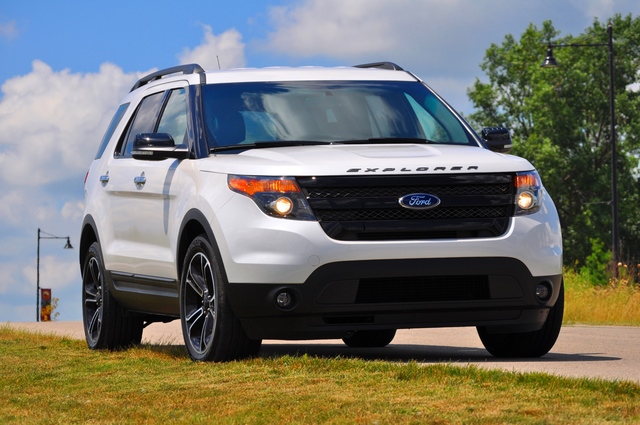

Ford Explorer 2017 SUV
Overview

Ford Explorer at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Ford Explorer page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 249-365 hp and 2261-3496 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 249-365 hp
  • Engine displacement: 2261-3496 cc
  • Transmissions: 6
  • Seating: 7 seats
Research hub

Photos, trims and specifications for Ford Explorer

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 11 images Compare trims 6 configurations View detailed specs 2261-3496 cc Explore related pages Ford and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 249-365 hp
Engine displacement 2261-3496 cc
Seating 7 seats
Transmissions 6
Trim / modification Engine Power Seats Transmission
3.5 Ti-VCT (249 HP) 6-car SelectShift 4x4 3496 cc 249 hp 7 6
2.3 EcoBoost (280 HP) 6-car SelectShift 2261 cc 280 hp 7 6
2.3 EcoBoost (280 HP) 6-car SelectShift 4x4 2261 cc 280 hp 7 6
3.5 Duratec (290 hp) 6-car SelectShift 3496 cc 290 hp 7 6
3.5 Duratec (290 hp) 6-car SelectShift 4x4 3496 cc 290 hp 7 6
3.5 EcoBoost (365 hp) 6-car SelectShift 4x4 3496 cc 365 hp 7 6

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

3.5 Ti-VCT (249 HP) 6-car SelectShift 4x4 2.3 EcoBoost (280 HP) 6-car SelectShift 2.3 EcoBoost (280 HP) 6-car SelectShift 4x4 3.5 Duratec (290 hp) 6-car SelectShift 3.5 Duratec (290 hp) 6-car SelectShift 4x4 3.5 EcoBoost (365 hp) 6-car SelectShift 4x4
3.5 Ti-VCT (249 HP) 6-car SelectShift 4x4 33 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3496
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 249
Torque, Nm 346
RPM at max torque 4000
Engine 3.5 Ti-VCT
RPM at max power 6500

Dimensions

Seats 7
Length mm 5047
Width 2291
Height mm 1788
Wheelbase mm 2860
Front track, mm 1701
Rear track, mm 1701
Trunk capacity, L 595
Fuel tank, l 70
Ground clearance, mm 211
Width (without mirrors) mm 1988

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 13.8
Fuel consumption (urban), l. 100 km 10.2
Fuel consumption (combined), l. 100 km 12.4
Acceleration (0-100 km/h), s 8.7
The maximum speed, km / h. 183

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Full
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Ford
2.3 EcoBoost (280 HP) 6-car SelectShift 33 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2261
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 280
Torque, Nm 420
RPM at max torque 3000
Engine 2.3 EcoBoost
Compression 10
RPM at max power 5600
Turbo +

Dimensions

Seats 7
Length mm 5047
Width 2291
Height mm 1788
Wheelbase mm 2860
Front track, mm 1701
Rear track, mm 1701
Trunk capacity, L 595
Fuel tank, l 70
Ground clearance, mm 211
Width (without mirrors) mm 1988

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 12.4
Fuel consumption (urban), l. 100 km 8.8
Fuel consumption (combined), l. 100 km 10.7

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Ford
2.3 EcoBoost (280 HP) 6-car SelectShift 4x4 33 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 2261
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 280
Torque, Nm 420
RPM at max torque 3000
Engine 2.3 EcoBoost
Compression 10
RPM at max power 5600
Turbo +

Dimensions

Seats 7
Length mm 5047
Width 2291
Height mm 1788
Wheelbase mm 2860
Front track, mm 1701
Rear track, mm 1701
Trunk capacity, L 595
Fuel tank, l 70
Ground clearance, mm 211
Width (without mirrors) mm 1988

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 13
Fuel consumption (urban), l. 100 km 9.5
Fuel consumption (combined), l. 100 km 11.2

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Full
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Ford
3.5 Duratec (290 hp) 6-car SelectShift 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3496
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 290
Torque, Nm 346
RPM at max torque 4000
Engine 3.5 Duratec
Compression 10.8
RPM at max power 6500

Dimensions

Seats 7
Length mm 5047
Width 2291
Height mm 1788
Wheelbase mm 2860
Front track, mm 1701
Rear track, mm 1701
Trunk capacity, L 595
Fuel tank, l 70
Ground clearance, mm 211
Width (without mirrors) mm 1988

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 13.8
Fuel consumption (urban), l. 100 km 9.8
Fuel consumption (combined), l. 100 km 11.8

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Ford
3.5 Duratec (290 hp) 6-car SelectShift 4x4 32 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3496
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 290
Torque, Nm 346
RPM at max torque 4000
Engine 3.5 Duratec
Compression 10.8
RPM at max power 6500

Dimensions

Seats 7
Length mm 5047
Width 2291
Height mm 1788
Wheelbase mm 2860
Front track, mm 1701
Rear track, mm 1701
Trunk capacity, L 595
Fuel tank, l 70
Ground clearance, mm 211
Width (without mirrors) mm 1988

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 14.7
Fuel consumption (urban), l. 100 km 10.7
Fuel consumption (combined), l. 100 km 12.4

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Full
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Ford
3.5 EcoBoost (365 hp) 6-car SelectShift 4x4 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 3496
Cylinders location V-shaped
Number of cylinders 6
Valves 24
Power, hp 365
Torque, Nm 475
RPM at max torque 1500-3500
Engine 3.5 EcoBoost
Compression 10.0
RPM at max power 5500
Turbo +

Dimensions

Seats 7
Length mm 5047
Width 2291
Height mm 1788
Wheelbase mm 2860
Front track, mm 1701
Rear track, mm 1701
Trunk capacity, L 595
Fuel tank, l 70
Ground clearance, mm 211
Width (without mirrors) mm 1988

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 14.7
Fuel consumption (urban), l. 100 km 10.7
Fuel consumption (combined), l. 100 km 13
The maximum speed, km / h. 193

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Full
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Ford
FAQ

Ford Explorer questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Ford Explorer?

This page lists 6 trims for the Ford Explorer, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Ford Explorer?

The listed configurations show a power range of 249-365 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Ford Explorer?

The available specification data shows engine displacement from 2261-3496 cc across the trims listed on this page.

Which transmissions are listed for the Ford Explorer?

The transmission options currently shown for this model are: 6. Open a trim section to see the full data for a specific configuration.

Are there photos for the Ford Explorer?

Yes. The gallery includes 11 photos for the Ford Explorer, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
