Ford Focus Wagon Active specifications and photos

Ford Focus Wagon Active specifications are shown with trim options, key technical data, and a model photo gallery. Compare 11 configurations by engine size, power, seating, and transmission. The gallery includes 9 photos for visual reference.

Years 2018
Body type wagon
Trims 11
Photos 9

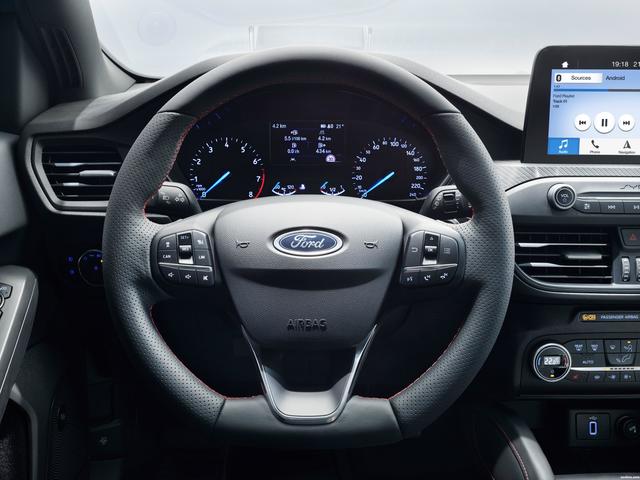

Interior of Ford Focus Wagon Active 2018
Overview

Ford Focus Wagon Active at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Ford Focus Wagon Active page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 120-182 hp and 998-1997 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 120-182 hp
  • Engine displacement: 998-1997 cc
  • Transmissions: 8, 6-speed manual, 8-speed automatic
  • Seating: 5 seats
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 120-182 hp
Engine displacement 998-1997 cc
Seating 5 seats
Transmissions 8, 6-speed manual, 8-speed automatic
Trim / modification Engine Power Seats Transmission
1.5 EcoBoost AT Active Plus 1498 cc 150 hp 5 8
1.0 EcoBoost (125 h.p.) 6-speed manual 998 cc 125 hp 5 6-speed manual
1.0 EcoBoost (125 HP) 8-speed automatic 998 cc 125 hp 5 8-speed automatic
1.5 EcoBoost (150 h.p.) 6-speed manual 1498 cc 150 hp 5 6-speed manual
1.5 EcoBoost (150 HP) 8-speed automatic 1498 cc 150 hp 5 8-speed automatic
1.5 EcoBoost (182 hp) 6-speed manual 1498 cc 182 hp 5 6-speed manual
1.5 EcoBoost (182 HP) 8-speed automatic 1498 cc 182 hp 5 8-speed automatic
1.5 EcoBlue (120 hp) 6-speed manual 1499 cc 120 hp 5 6-speed manual
1.5 EcoBlue (120 HP) 8-speed automatic 1499 cc 120 hp 5 8-speed automatic
2.0 EcoBlue (150 h.p.) 6-speed manual 1997 cc 150 hp 5 6-speed manual
2.0 EcoBlue (150 h.p.) 8-speed automatic 1997 cc 150 hp 5 8-speed automatic

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.5 EcoBoost AT Active Plus 1.0 EcoBoost (125 h.p.) 6-speed manual 1.0 EcoBoost (125 HP) 8-speed automatic 1.5 EcoBoost (150 h.p.) 6-speed manual 1.5 EcoBoost (150 HP) 8-speed automatic 1.5 EcoBoost (182 hp) 6-speed manual 1.5 EcoBoost (182 HP) 8-speed automatic 1.5 EcoBlue (120 hp) 6-speed manual 1.5 EcoBlue (120 HP) 8-speed automatic 2.0 EcoBlue (150 h.p.) 6-speed manual 2.0 EcoBlue (150 h.p.) 8-speed automatic
1.5 EcoBoost AT Active Plus 57 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1498
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 150
Torque, Nm 240
RPM at max torque 1600
Engine 1.5 EcoBoost
RPM at max power 6000
Turbo +

Dimensions

Seats 5
Length mm 4693
Width 1979
Height mm 1504
Wheelbase mm 2700
Kerb weight, kg 1445
Trunk capacity, L 608
Fuel tank, l 53
Turning circle, m 10.7
Width (without mirrors) mm 1825

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.8
Fuel consumption (urban), l. 100 km 5.2
Fuel consumption (combined), l. 100 km 6.2
Acceleration (0-100 km/h), s 9.1
The maximum speed, km / h. 206
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine

Equipment

Interior

Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +

Wheels

Disc diameter 17
Rim type Alloy
Tires 215/50R17
Spare wheel Dokatka

Glass, mirrors and sunroof

Heated side mirrors +
Power mirrors +
Electric folding mirrors +

Multimedia and instruments

Steering wheel controls +
Touch Screen +
Bluetooth hands free +
CD player +
USB +
Number of speakers 6
Apple CarPlay / Android Auto +

Headlights and lighting

Front fog lights +
LED headlights +
Rear fog lights +
Rear LED lights +
LED lights daylight +

Seats

Armrest front +

Exterior

Rear spoiler +

Body and exterior paint

Door handles in body color +
Exterior mirrors in body color +
1.0 EcoBoost (125 h.p.) 6-speed manual 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 998
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 125
Torque, Nm 170
RPM at max torque 1400
Engine 1.0 EcoBoost
Compression 10
RPM at max power 6000
Turbo +

Dimensions

Seats 5
Length mm 4693
Width 1979
Height mm 1504
Wheelbase mm 2700
Kerb weight, kg 1383
Trunk capacity, L 608
Fuel tank, l 52
Turning circle, m 10.7
Gross weight, kg 1925
Width (without mirrors) mm 1844

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.2
Fuel consumption (urban), l. 100 km 4.4
Fuel consumption (combined), l. 100 km 5.1
Acceleration (0-100 km/h), s 10.3
The maximum speed, km / h. 198
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Ford
1.0 EcoBoost (125 HP) 8-speed automatic 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 998
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 125
Torque, Nm 170
RPM at max torque 1400
Engine 1.0 EcoBoost
Compression 10
RPM at max power 6000
Turbo +

Dimensions

Seats 5
Length mm 4693
Width 1979
Height mm 1504
Wheelbase mm 2700
Kerb weight, kg 1383
Trunk capacity, L 608
Fuel tank, l 52
Turning circle, m 10.7
Gross weight, kg 1925
Width (without mirrors) mm 1844

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.5
Fuel consumption (urban), l. 100 km 5.1
Fuel consumption (combined), l. 100 km 6
Acceleration (0-100 km/h), s 11.4
The maximum speed, km / h. 193
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
1.5 EcoBoost (150 h.p.) 6-speed manual 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1498
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 150
Torque, Nm 240
RPM at max torque 1600
Engine 1.5 EcoBoost
RPM at max power 6000
Turbo +

Dimensions

Seats 5
Length mm 4693
Width 1979
Height mm 1504
Wheelbase mm 2700
Kerb weight, kg 1383
Trunk capacity, L 608
Fuel tank, l 52
Turning circle, m 10.7
Gross weight, kg 1925
Width (without mirrors) mm 1844

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.2
Fuel consumption (urban), l. 100 km 4.8
Fuel consumption (combined), l. 100 km 5.7
Acceleration (0-100 km/h), s 9
The maximum speed, km / h. 208
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Ford
1.5 EcoBoost (150 HP) 8-speed automatic 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1498
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 150
Torque, Nm 240
RPM at max torque 1600
Engine 1.5 EcoBoost
RPM at max power 6000
Turbo +

Dimensions

Seats 5
Length mm 4693
Width 1979
Height mm 1504
Wheelbase mm 2700
Kerb weight, kg 1383
Trunk capacity, L 608
Fuel tank, l 52
Turning circle, m 10.7
Gross weight, kg 1925
Width (without mirrors) mm 1844

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.8
Fuel consumption (urban), l. 100 km 5.2
Fuel consumption (combined), l. 100 km 6.2
Acceleration (0-100 km/h), s 9.1
The maximum speed, km / h. 206
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
1.5 EcoBoost (182 hp) 6-speed manual 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1498
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 182
Torque, Nm 240
RPM at max torque 1600
Engine 1.5 EcoBoost
RPM at max power 6000
Turbo +

Dimensions

Seats 5
Length mm 4693
Width 1979
Height mm 1504
Wheelbase mm 2700
Kerb weight, kg 1383
Trunk capacity, L 608
Fuel tank, l 52
Turning circle, m 10.7
Gross weight, kg 1925
Width (without mirrors) mm 1844

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.2
Fuel consumption (urban), l. 100 km 4.8
Fuel consumption (combined), l. 100 km 5.7
Acceleration (0-100 km/h), s 8.5
The maximum speed, km / h. 220
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Ford
1.5 EcoBoost (182 HP) 8-speed automatic 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1498
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 182
Torque, Nm 240
RPM at max torque 1600
Engine 1.5 EcoBoost
RPM at max power 6000
Turbo +

Dimensions

Seats 5
Length mm 4693
Width 1979
Height mm 1504
Wheelbase mm 2700
Kerb weight, kg 1383
Trunk capacity, L 608
Fuel tank, l 52
Turning circle, m 10.7
Gross weight, kg 1925
Width (without mirrors) mm 1844

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.7
Fuel consumption (urban), l. 100 km 5.1
Fuel consumption (combined), l. 100 km 6.1
Acceleration (0-100 km/h), s 8.6
The maximum speed, km / h. 218
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
1.5 EcoBlue (120 hp) 6-speed manual 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1499
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 120
Torque, Nm 300
RPM at max torque 1750-2250
Engine 1.5 EcoBlue
Compression 16.0
RPM at max power 3600
Turbo +

Dimensions

Seats 5
Length mm 4693
Width 1979
Height mm 1504
Wheelbase mm 2700
Kerb weight, kg 1383
Trunk capacity, L 608
Fuel tank, l 52
Turning circle, m 10.7
Gross weight, kg 1925
Width (without mirrors) mm 1844

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.3
Fuel consumption (urban), l. 100 km 3.7
Fuel consumption (combined), l. 100 km 3.9
Acceleration (0-100 km/h), s 10.3
The maximum speed, km / h. 194
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Ford
1.5 EcoBlue (120 HP) 8-speed automatic 35 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1499
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 120
Torque, Nm 300
RPM at max torque 1750-2250
Engine 1.5 EcoBlue
Compression 16.0
RPM at max power 3600
Turbo +

Dimensions

Seats 5
Length mm 4693
Width 1979
Height mm 1504
Wheelbase mm 2700
Kerb weight, kg 1383
Trunk capacity, L 608
Fuel tank, l 52
Turning circle, m 10.7
Gross weight, kg 1925
Width (without mirrors) mm 1844

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.2
Fuel consumption (urban), l. 100 km 4.4
Fuel consumption (combined), l. 100 km 4.7
Acceleration (0-100 km/h), s 10.5
The maximum speed, km / h. 191
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
2.0 EcoBlue (150 h.p.) 6-speed manual 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1997
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 150
Torque, Nm 370
RPM at max torque 2000
Engine 2.0 EcoBlue
RPM at max power 3500
Turbo +

Dimensions

Seats 5
Length mm 4693
Width 1979
Height mm 1504
Wheelbase mm 2700
Kerb weight, kg 1383
Trunk capacity, L 608
Fuel tank, l 52
Turning circle, m 10.7
Gross weight, kg 1925
Width (without mirrors) mm 1844

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.7
Fuel consumption (urban), l. 100 km 3.9
Fuel consumption (combined), l. 100 km 4.6
Acceleration (0-100 km/h), s 8.7
The maximum speed, km / h. 208
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Ford
2.0 EcoBlue (150 h.p.) 8-speed automatic 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1997
Cylinders location In-line
Number of cylinders 4
Valves 8
Power, hp 150
Torque, Nm 370
RPM at max torque 2000
Engine 2.0 EcoBlue
RPM at max power 3500
Turbo +

Dimensions

Seats 5
Length mm 4693
Width 1979
Height mm 1504
Wheelbase mm 2700
Kerb weight, kg 1383
Trunk capacity, L 608
Fuel tank, l 52
Turning circle, m 10.7
Gross weight, kg 1925
Width (without mirrors) mm 1844

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.6
Fuel consumption (urban), l. 100 km 4.2
Fuel consumption (combined), l. 100 km 4.7
Acceleration (0-100 km/h), s 9.5
The maximum speed, km / h. 205
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 8
Drive Front
Transmission 8-speed automatic
Gearbox Machine
FAQ

Ford Focus Wagon Active questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Ford Focus Wagon Active?

This page lists 11 trims for the Ford Focus Wagon Active, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Ford Focus Wagon Active?

The listed configurations show a power range of 120-182 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Ford Focus Wagon Active?

The available specification data shows engine displacement from 998-1997 cc across the trims listed on this page.

Which transmissions are listed for the Ford Focus Wagon Active?

The transmission options currently shown for this model are: 8, 6-speed manual, 8-speed automatic. Open a trim section to see the full data for a specific configuration.

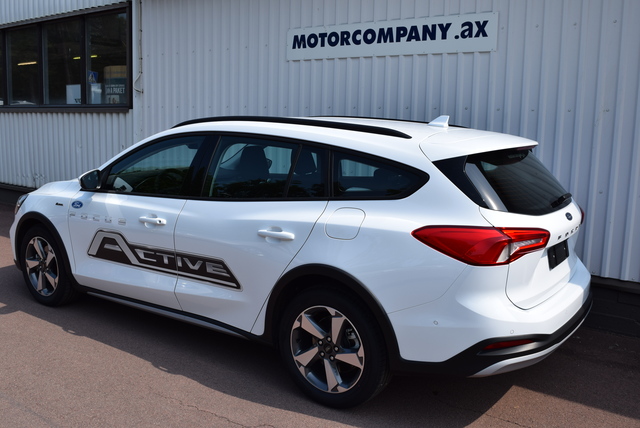

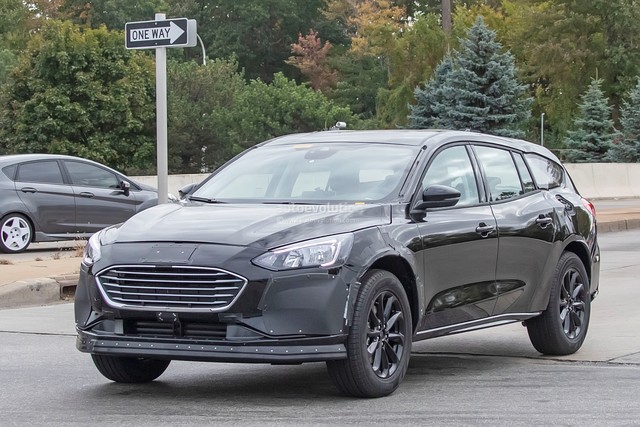

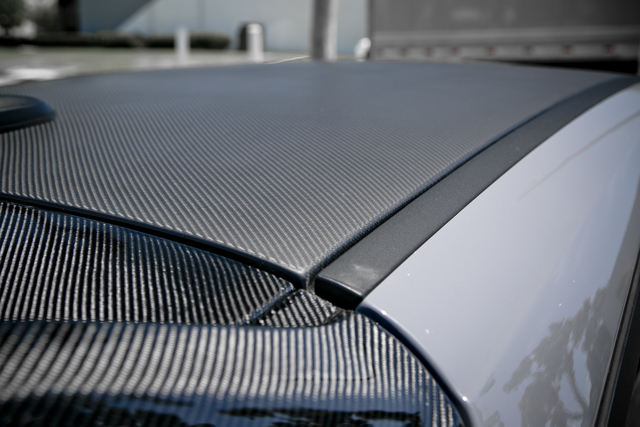

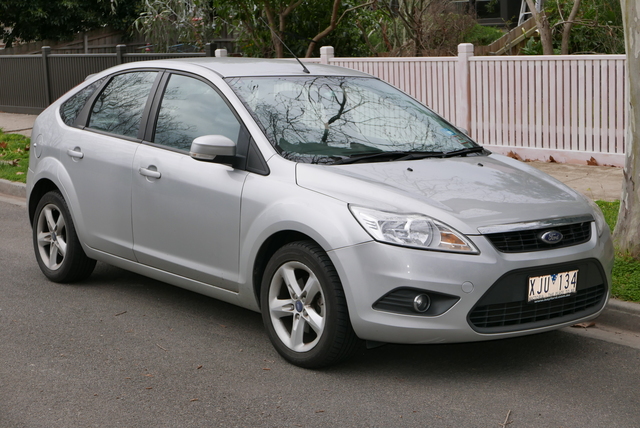

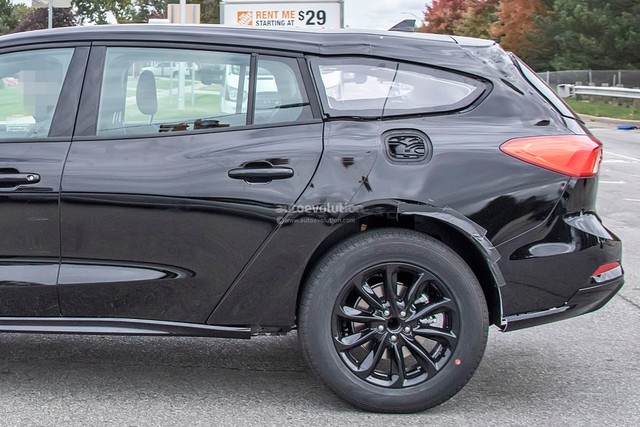

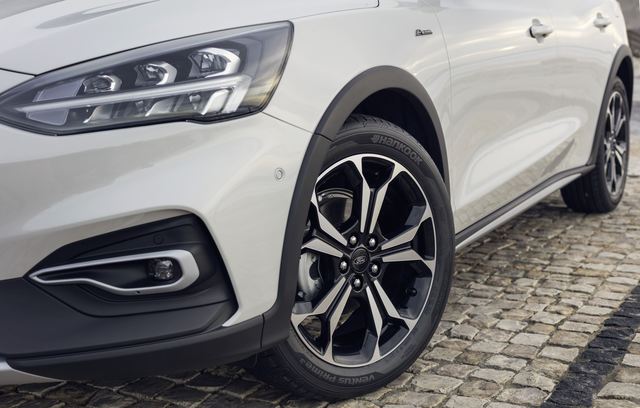

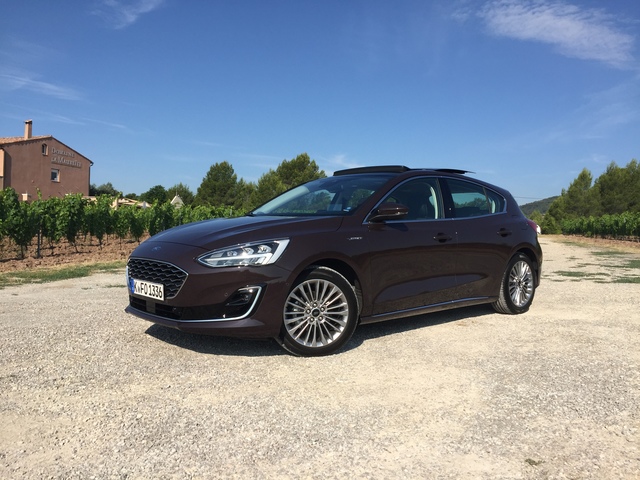

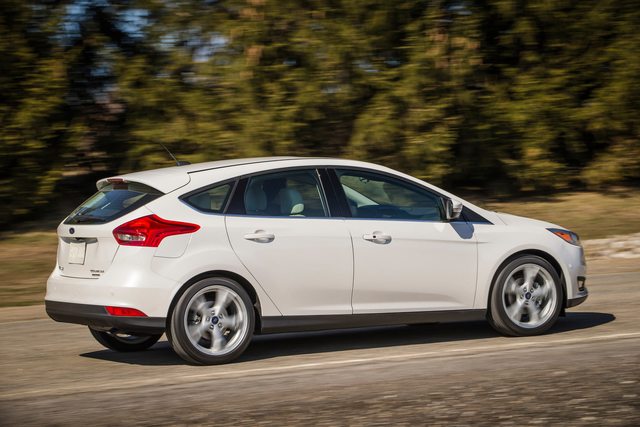

Are there photos for the Ford Focus Wagon Active?

Yes. The gallery includes 9 photos for the Ford Focus Wagon Active, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.

Explore more

Continue exploring Ford

Return to Ford models, browse the gallery, or compare the trims listed above.

All Ford models Focus Wagon Active generations View photo gallery Read FAQ Compare trims
