Ford Galaxy specifications and photos
The 2019 Ford Galaxy is a spacious seven-seat minivan that represents a restyling of its third generation. Unveiled in late 2019, it introduces updated styling, new powertrain options including a hybrid, and enhanced interior convenience.
Ford Galaxy at a glance
Quick model context before comparing photos and trim-level specifications.
Entering the market as an updated third-generation model, the 2019 Ford Galaxy continues its role as a dedicated family people mover. Measuring 4,848 mm in length, the Galaxy prioritizes passenger space and cargo flexibility over crossover styling. This restyling brings subtle visual tweaks, most notably a revised front fascia and the addition of the premium Vignale trim level. Inside, the traditional gear lever has been replaced by a modern rotary dial for automatic transmissions. The powertrain lineup has been expanded to include a more efficient hybrid option alongside the robust diesel engines, catering to varying driving needs and fuel economy preferences.
- Power: 190-240 hp
- Engine displacement: 1997-2488 cc
- Transmissions: eCVT, 8-speed automatic
Ford Galaxy overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design

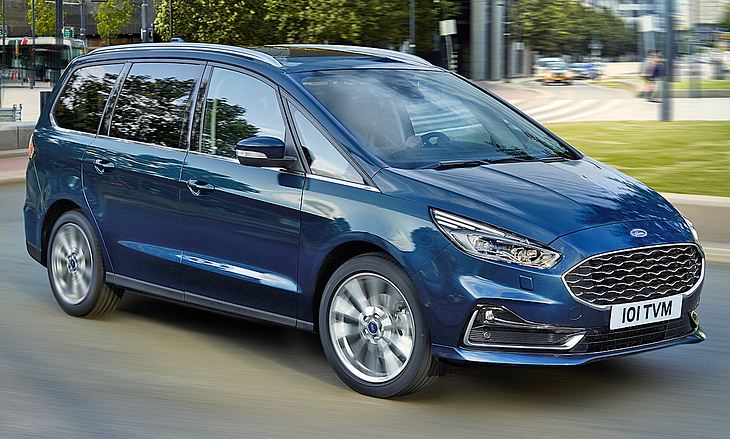

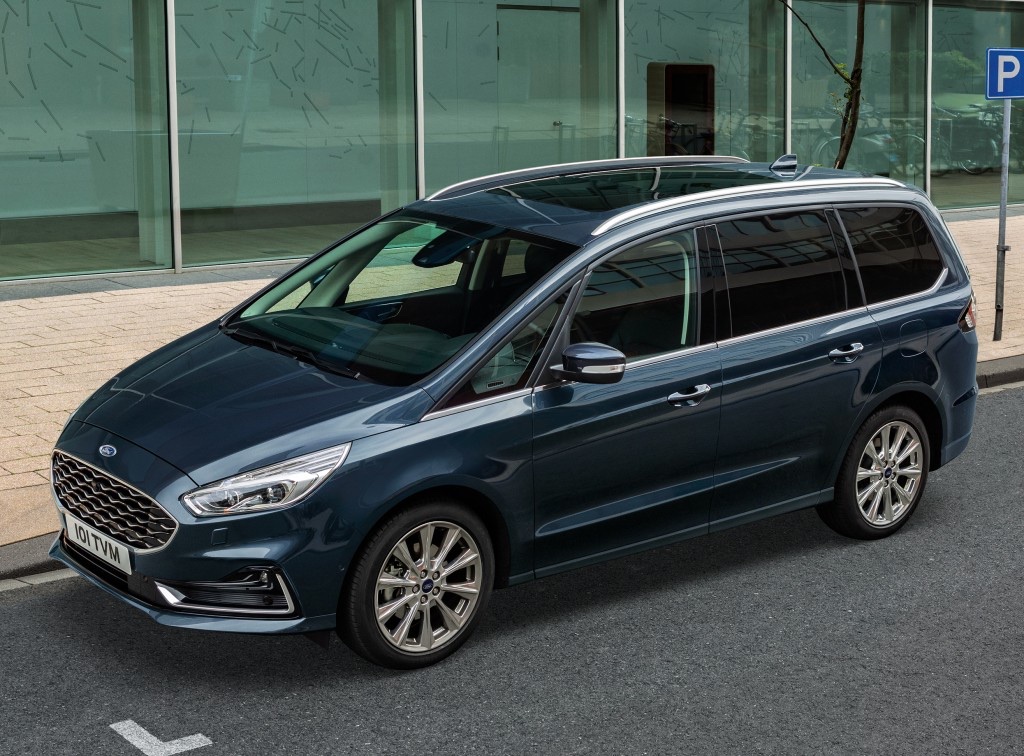

The exterior design of the updated Galaxy features a refined front end, highlighted by a redesigned bumper with prominent grey inserts around the fog lights and an enlarged chrome grille. Its traditional minivan silhouette maximizes interior volume while maintaining a clean, understated appearance on the road.
Interior
Inside, the Galaxy comes standard with seven seats across three rows. The second-row seats fold individually, and the two third-row seats also operate independently. For added convenience, the available Easy FoldFlat system allows power folding and raising of the rear rows. The front row features the Sync 3 infotainment system with an 8-inch touchscreen, and optional 18-way adjustable AGR-certified seats with heating and massage functions.
Performance
Powertrain options include a diesel and a new hybrid system. The 2.0-liter EcoBlue diesel engine is available in 150, 190, and 240 horsepower variants, paired with either a six-speed manual or an eight-speed automatic. All-wheel drive is available on the 190-hp version. The hybrid powertrain combines a 2.5-liter gasoline engine with an electric motor and a CVT, delivering a total of 190 horsepower and prioritizing fuel efficiency.
Practicality
As a dedicated MPV, practicality is the Galaxy's strong suit. Cargo capacity ranges from 250 liters behind the third row to a massive 2,339 liters when both rear rows are folded flat into the floor. The independent seating adjustments make it easy to configure the cabin for passengers, bulky items, or both.
Safety and tech
The Galaxy is equipped with a suite of modern driver assistance systems. Available features include adaptive cruise control with Stop&Go functionality, lane-keeping assist, blind-spot monitoring, rear cross-traffic alert, and traffic sign recognition, ensuring a safer driving experience for families.
Buyer notes
When considering the Ford Galaxy, buyers should evaluate their primary driving routes to choose between the efficient hybrid powertrain or the torquey diesel options. The availability of all-wheel drive is a notable advantage for those in colder climates, while the power-folding rear seats are a highly recommended convenience feature.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 2.5 HEV (190 hp) eCVT | 2488 cc | 190 hp | 5/7 | eCVT |
| 2.0 EcoBlue (190 hp) 8-speed automatic | 1997 cc | 190 hp | 5/7 | 8-speed automatic |
| 2.0 EcoBlue (190 hp) 8-speed automatic 4x4 | 1997 cc | 190 hp | 5/7 | 8-speed automatic |
| 2.0 EcoBlue Bi-Turbo (240 hp) 8-speed automatic | 1997 cc | 240 hp | 5/7 | 8-speed automatic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
Ford Galaxy photo gallery
17 images are collected here with the main specifications and trim data for this model.

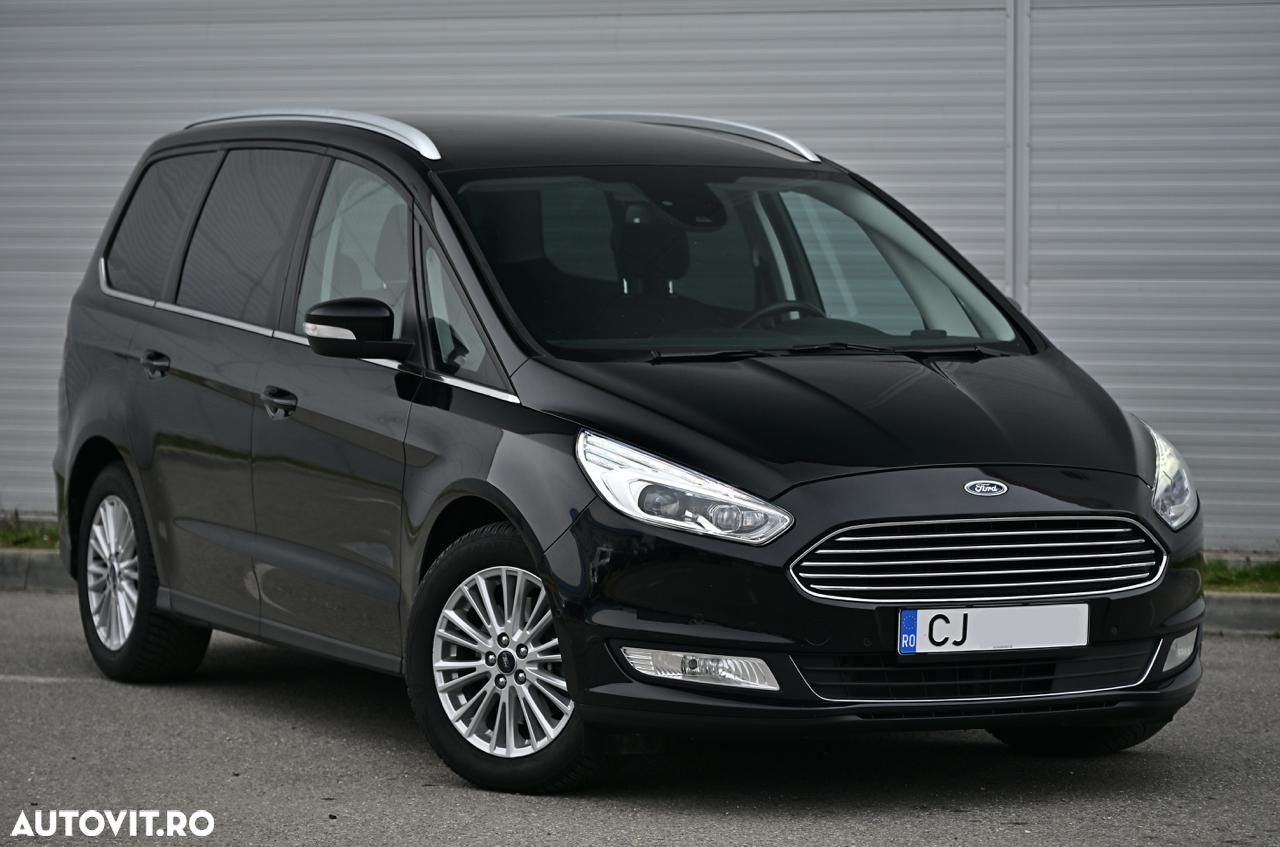

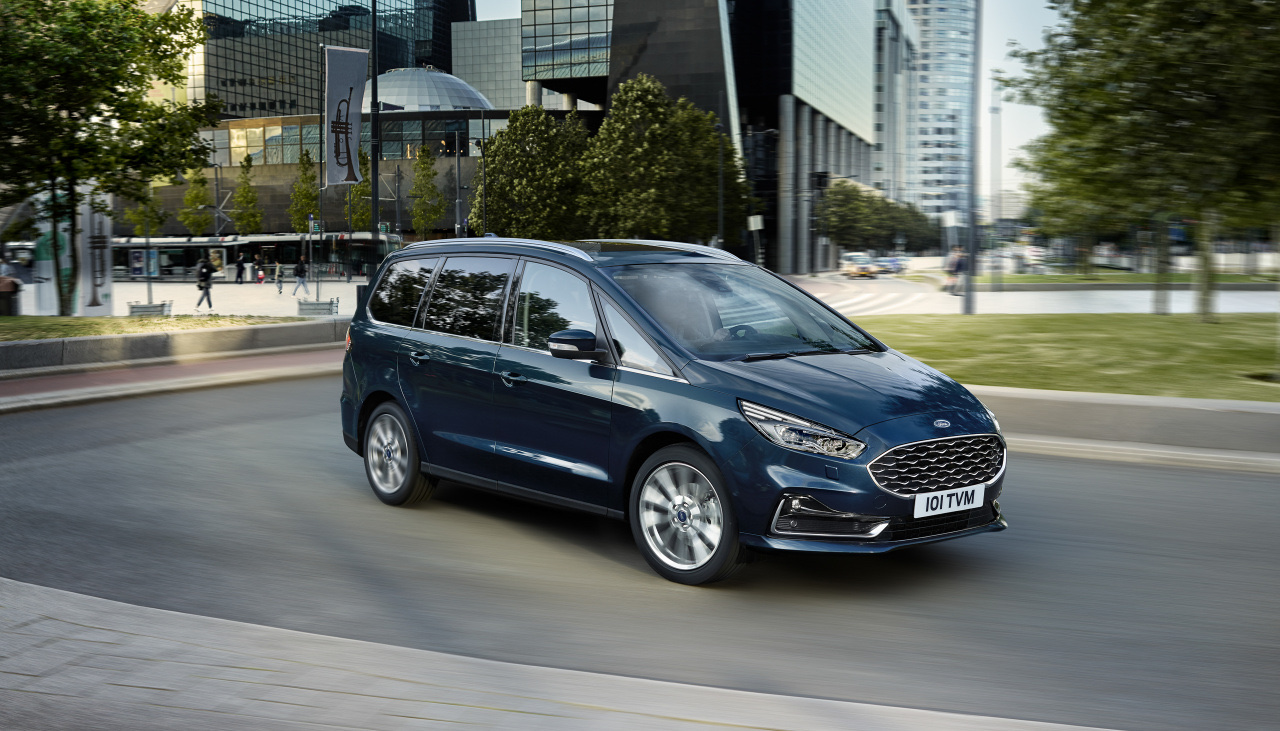

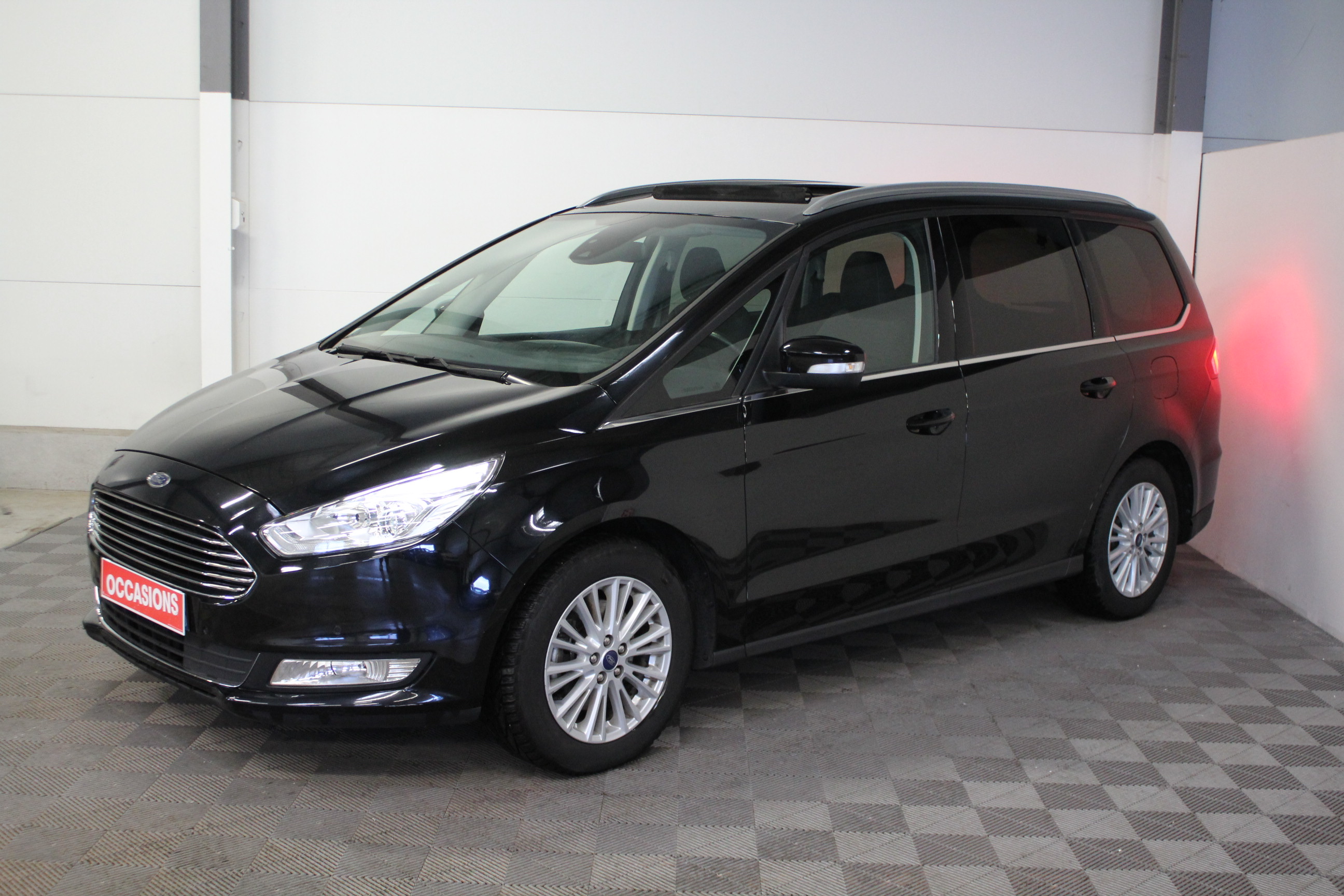

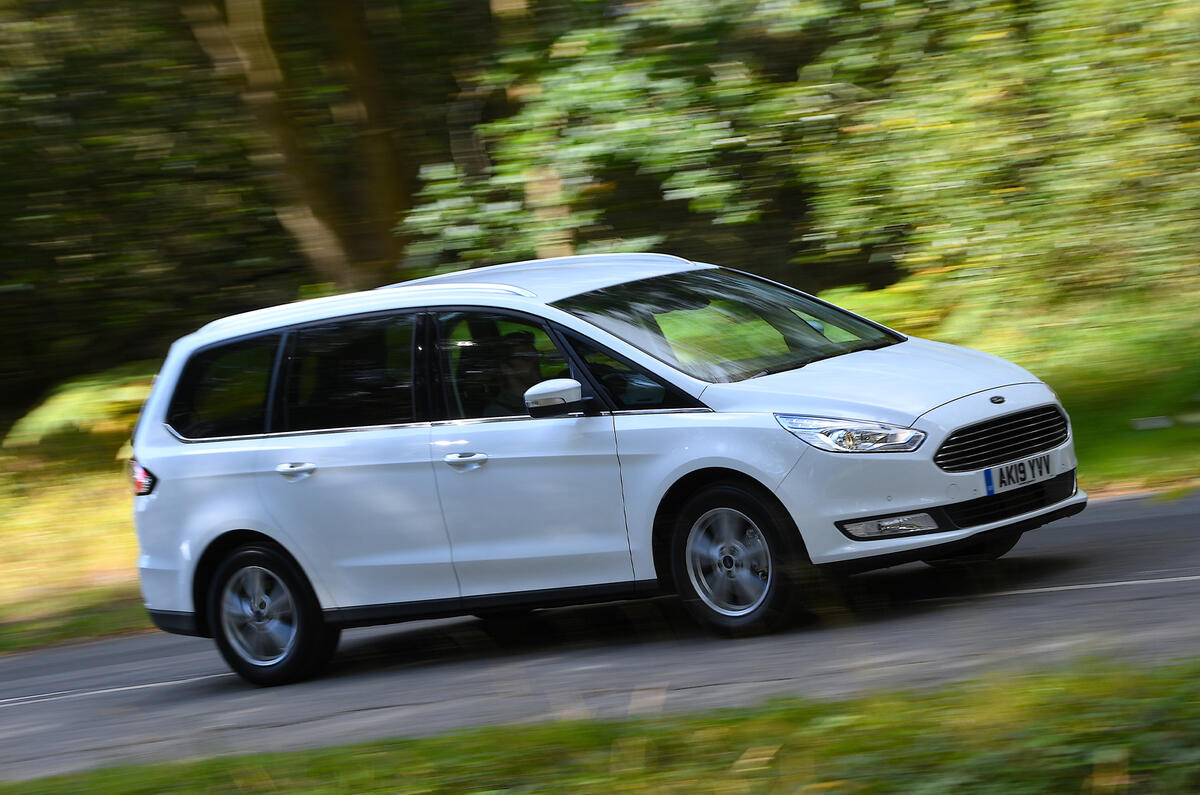

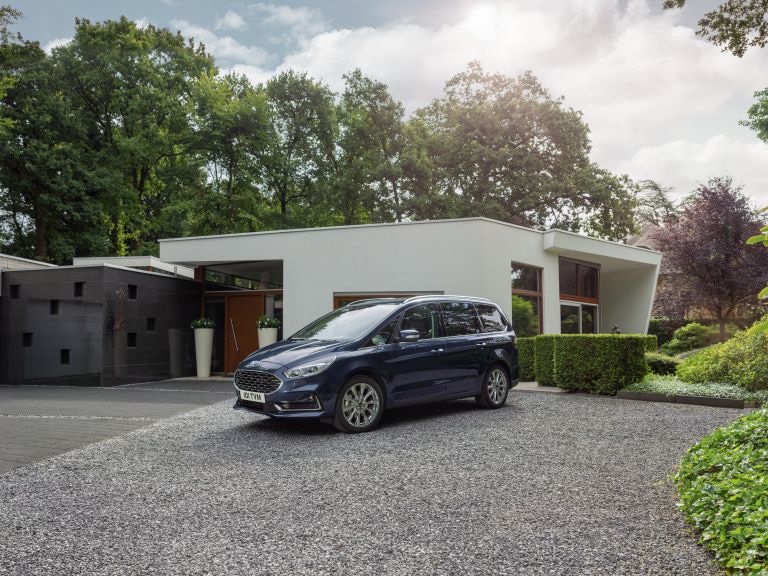

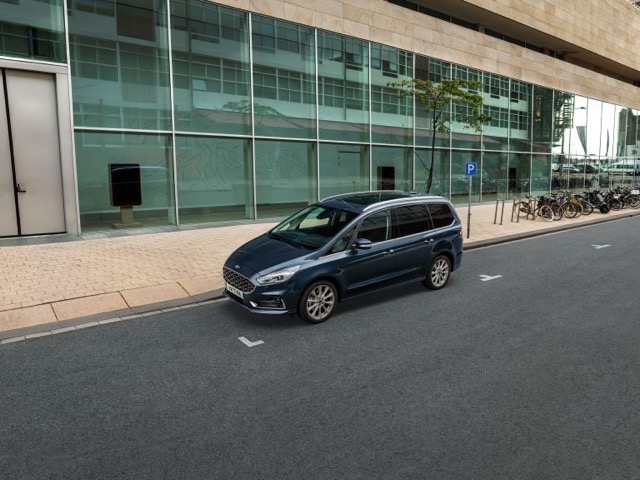

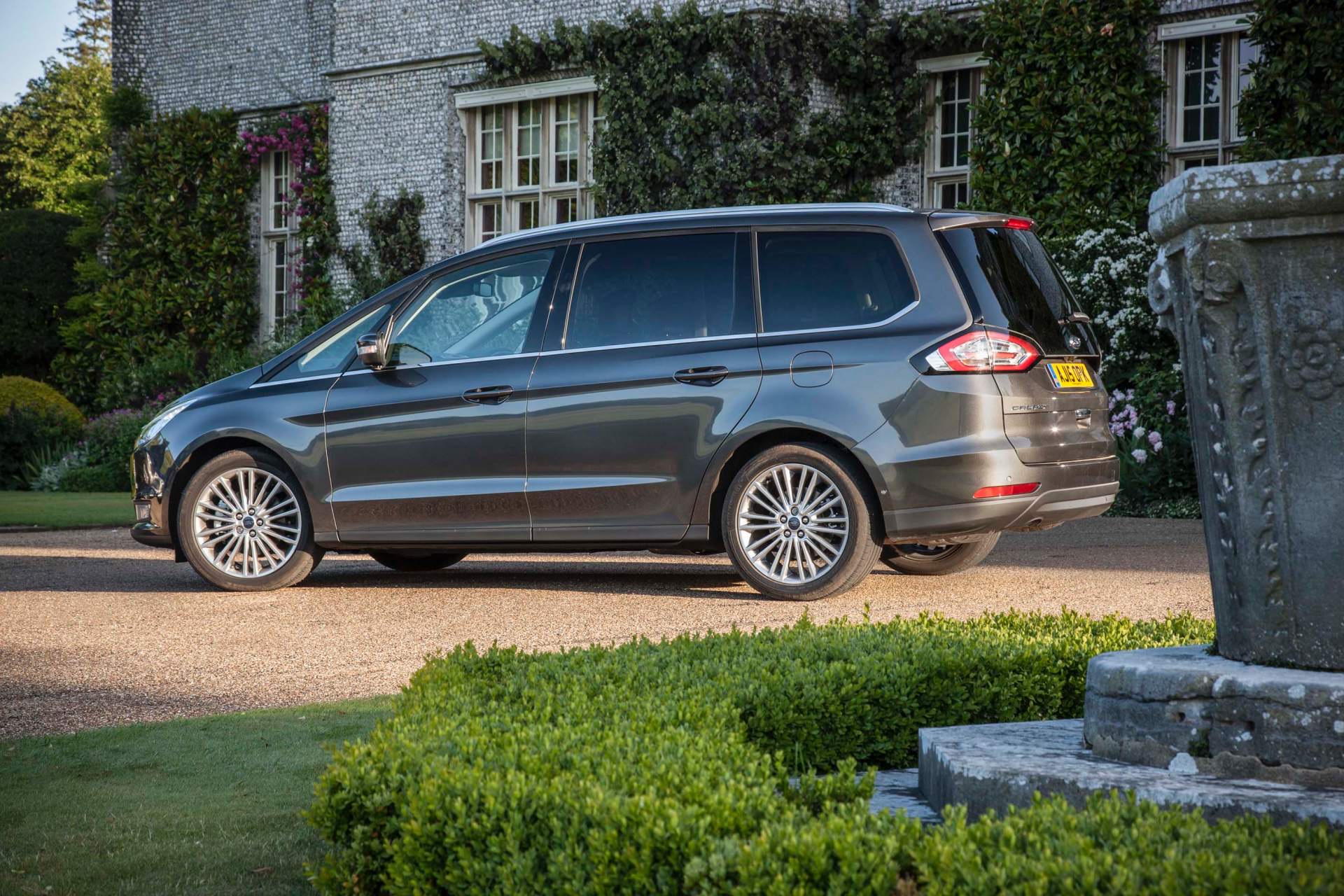

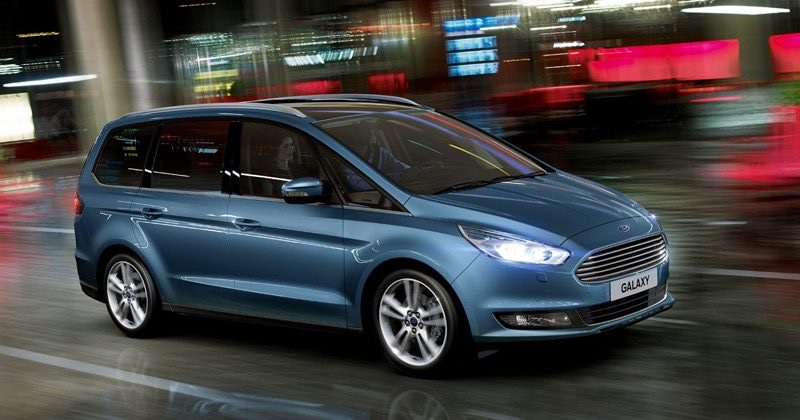

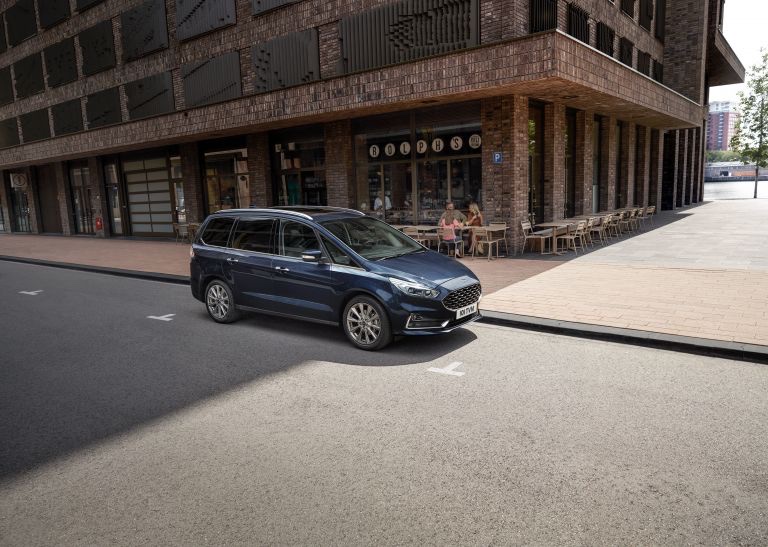

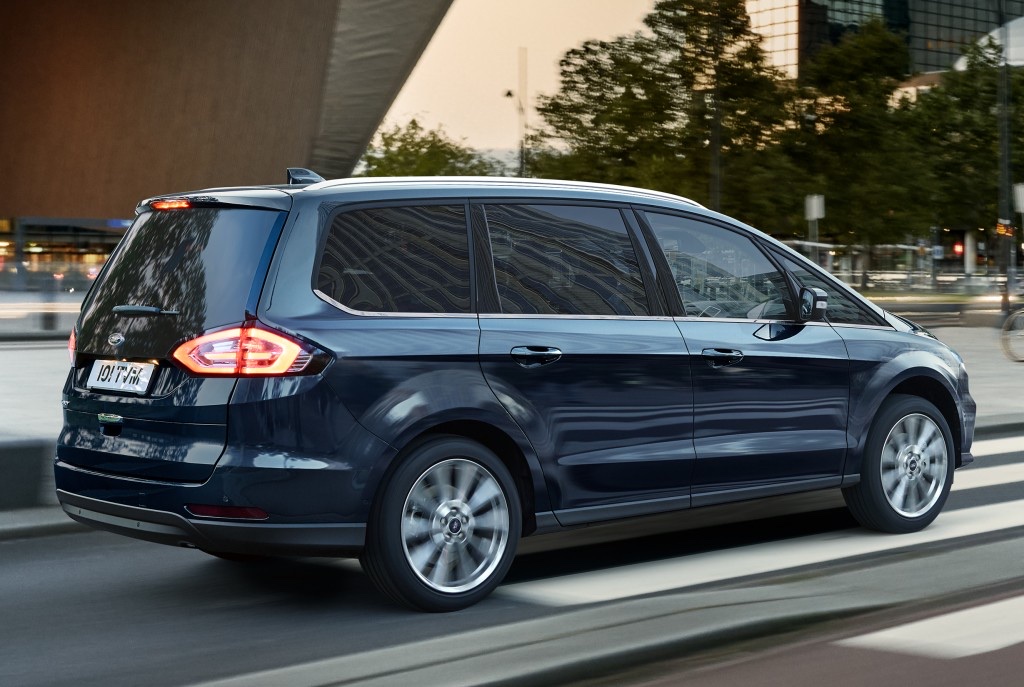

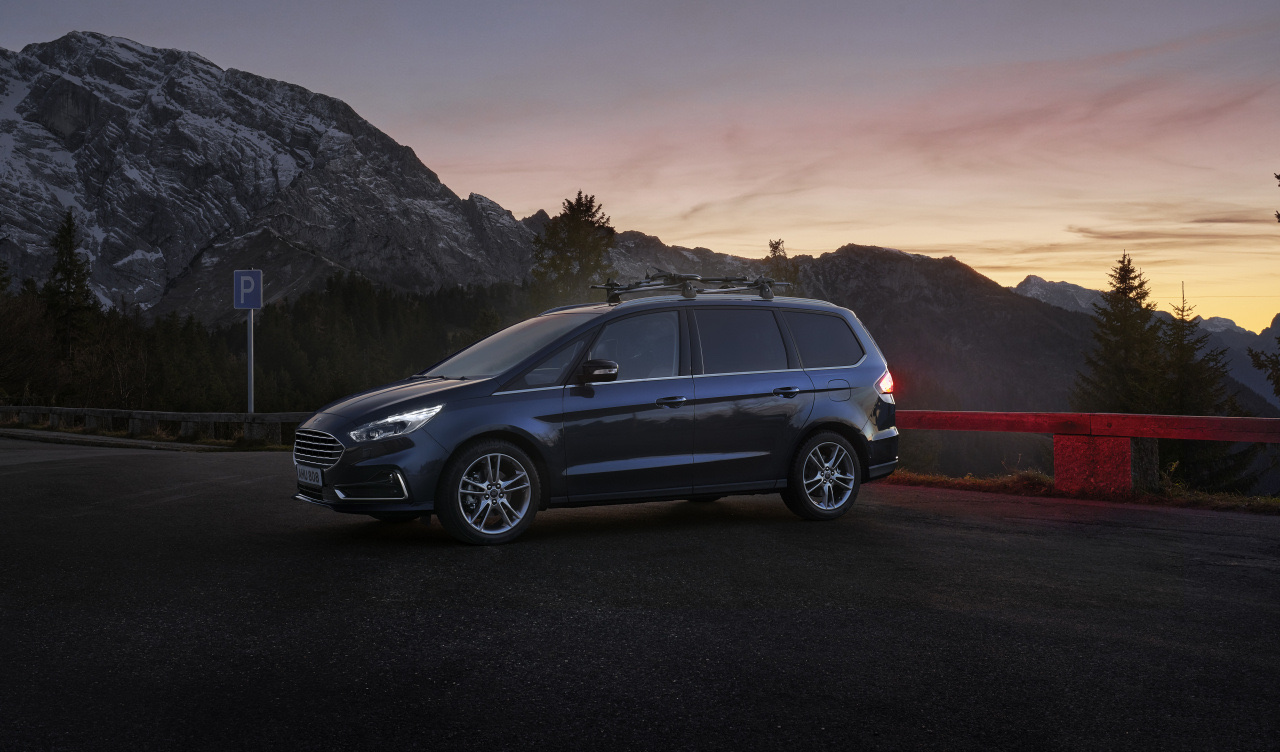

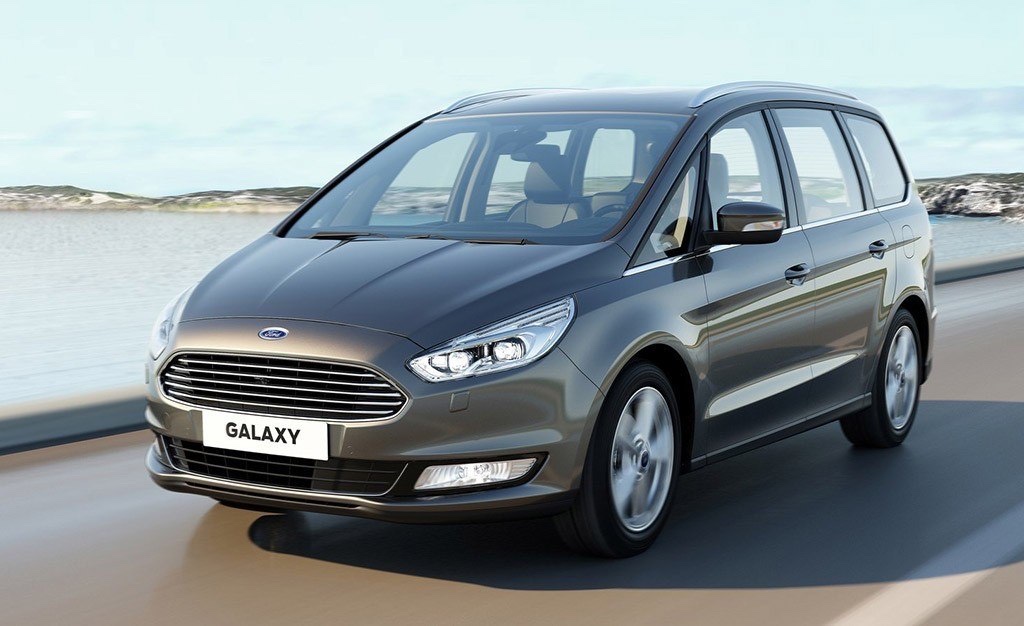

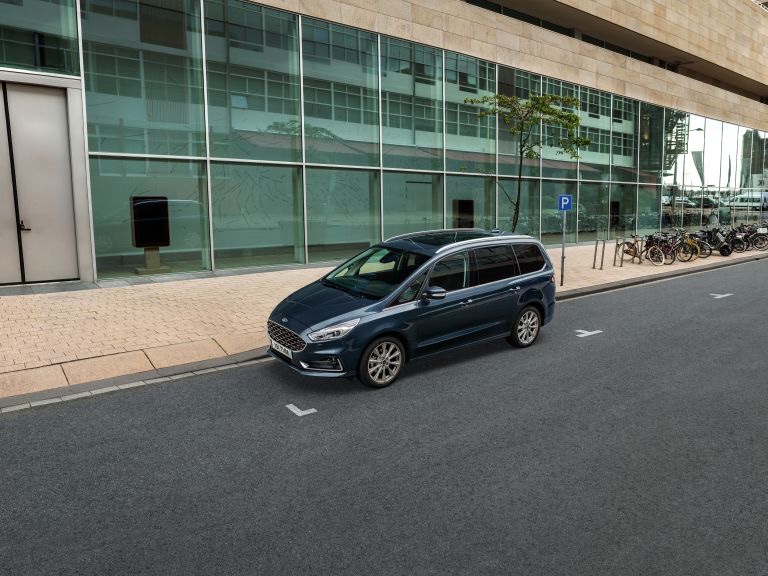

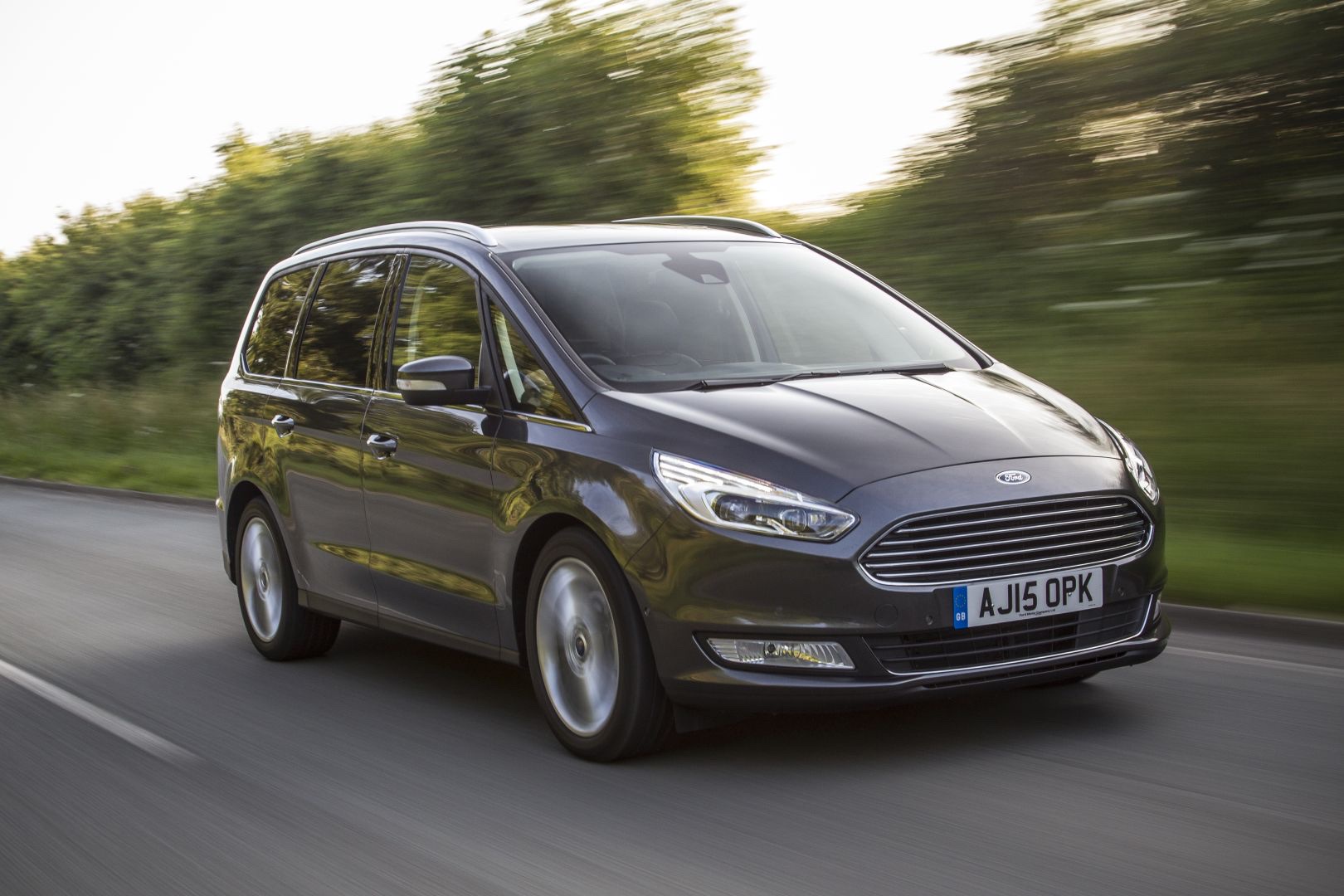

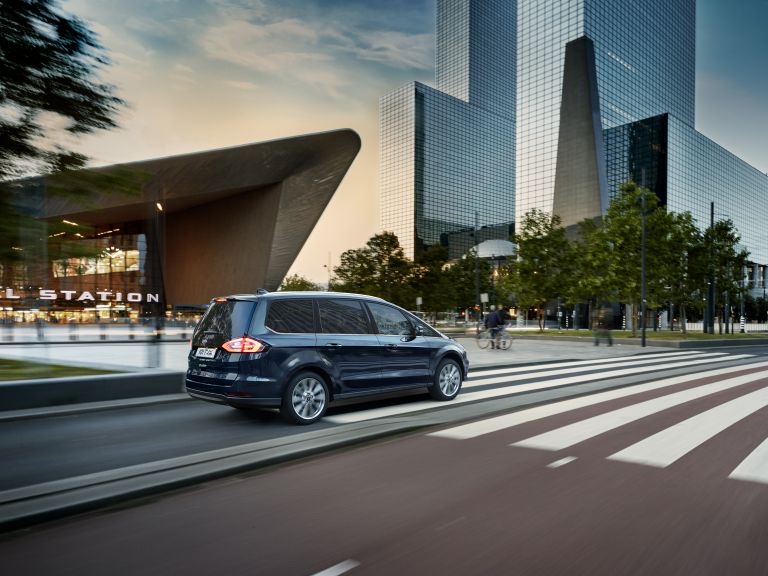

Photo Ford Galaxy
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
2.5 HEV (190 hp) eCVT 33 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.7 |
|---|---|
| Top speed, km/h | 182 |
| Acceleration 0-100 km/h, s | 10 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.5 HEV |
|---|---|
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 2488 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 190 |
| RPM at max power | 550 |
| Torque, Nm | 200 |
| RPM at max torque | 4500 |
| Electric motor power, hp | 133 |
| Combustion engine power, hp | 150 |
Dimensions
| Seats | 5/7 |
|---|---|
| Length, mm | 4848 |
| Width, mm | 2137 |
| Height, mm | 1747 |
| Wheelbase, mm | 2850 |
| Kerb weight, kg | 1955 |
| Gross weight, kg | 2595 |
| Fuel tank capacity, L | 65 |
| Ground clearance, mm | 150 |
| Width without mirrors, mm | 1916 |
| Trunk capacity, L | 250 |
Transmission and drive
| Transmission | eCVT |
|---|---|
| Transmission type | CVT |
| Drive | Front-wheel drive |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
2.0 EcoBlue (190 hp) 8-speed automatic 32 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.7 |
|---|---|
| Top speed, km/h | 204 |
| Acceleration 0-100 km/h, s | 9.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 EcoBlue |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1997 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 190 |
| RPM at max power | 3500 |
| Torque, Nm | 400 |
| RPM at max torque | 2000 |
Dimensions
| Seats | 5/7 |
|---|---|
| Length, mm | 4848 |
| Width, mm | 2137 |
| Height, mm | 1747 |
| Wheelbase, mm | 2850 |
| Kerb weight, kg | 1955 |
| Gross weight, kg | 2595 |
| Fuel tank capacity, L | 65 |
| Ground clearance, mm | 150 |
| Width without mirrors, mm | 1916 |
| Trunk capacity, L | 250 |
Transmission and drive
| Transmission | 8-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Front-wheel drive |
| Number of gears | 8 |
| Automatic transmission | + |
2.0 EcoBlue (190 hp) 8-speed automatic 4x4 32 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.5 |
|---|---|
| Top speed, km/h | 202 |
| Acceleration 0-100 km/h, s | 10 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 EcoBlue |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1997 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 190 |
| RPM at max power | 3500 |
| Torque, Nm | 400 |
| RPM at max torque | 2000 |
Dimensions
| Seats | 5/7 |
|---|---|
| Length, mm | 4848 |
| Width, mm | 2137 |
| Height, mm | 1747 |
| Wheelbase, mm | 2850 |
| Kerb weight, kg | 1955 |
| Gross weight, kg | 2595 |
| Fuel tank capacity, L | 65 |
| Ground clearance, mm | 150 |
| Width without mirrors, mm | 1916 |
| Trunk capacity, L | 250 |
Transmission and drive
| Transmission | 8-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 8 |
| Automatic transmission | + |
2.0 EcoBlue Bi-Turbo (240 hp) 8-speed automatic 31 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.3 |
|---|---|
| Top speed, km/h | 216 |
| Acceleration 0-100 km/h, s | 8.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 EcoBlue Bi-Turbo |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1997 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 240 |
| RPM at max power | 3750 |
| Torque, Nm | 500 |
| RPM at max torque | 2000–2500 |
Dimensions
| Seats | 5/7 |
|---|---|
| Length, mm | 4848 |
| Width, mm | 2137 |
| Height, mm | 1747 |
| Wheelbase, mm | 2850 |
| Kerb weight, kg | 1955 |
| Gross weight, kg | 2595 |
| Fuel tank capacity, L | 65 |
| Ground clearance, mm | 150 |
| Width without mirrors, mm | 1916 |
| Trunk capacity, L | 250 |
Transmission and drive
| Transmission | 8-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | Front-wheel drive |
| Number of gears | 8 |
| Automatic transmission | + |
Ford Galaxy questions
Short answers based on the specifications and photos available in this catalog.
What body style is the 2019 Ford Galaxy?
The 2019 Ford Galaxy is a large, seven-seat minivan or multi-purpose vehicle (MPV).
What engines are available?
It offers a 2.0-liter EcoBlue diesel engine in multiple power outputs (up to 240 hp) and a 2.5-liter hybrid powertrain.
Is all-wheel drive available?
Yes, the 190-horsepower diesel variant can be equipped with an all-wheel-drive system.
How much cargo space does it have?
Cargo volume is 250 liters behind the third row, 844 liters behind the second row, and up to 2,339 liters with all rear seats folded flat.
