Ford Explorer ST specifications and photos
Ford Explorer ST specifications are shown with trim options, key technical data, and a model photo gallery. Compare 1 configurations by engine size, power, seating, and transmission. The gallery includes 9 photos for visual reference.
Ford Explorer ST at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Ford Explorer ST page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 406 hp and 2998 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 406 hp
- Engine displacement: 2998 cc
- Transmissions: 10-speed automatic
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 3.0 EcoBoost (406 HP) 10-speed automatic 4x4 | 2998 cc | 406 hp | 6/7 | 10-speed automatic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
Ford Explorer ST photo gallery
9 images are collected here with the main specifications and trim data for this model.

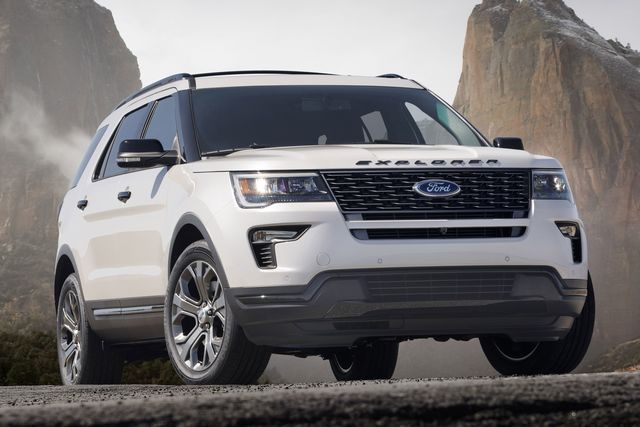

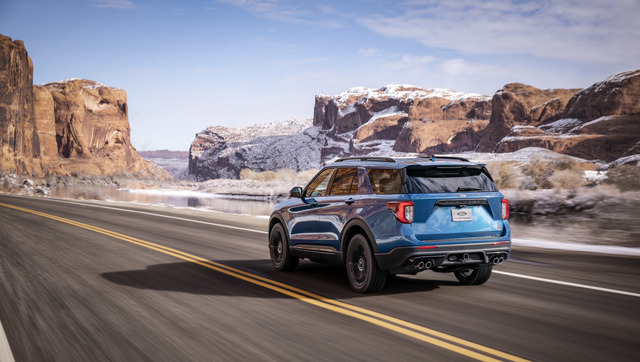

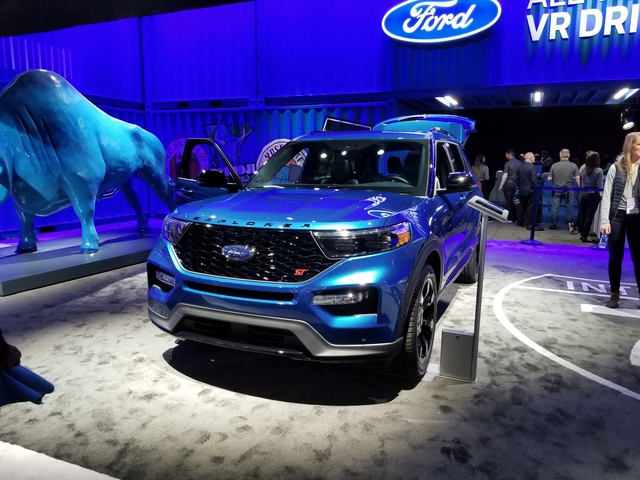

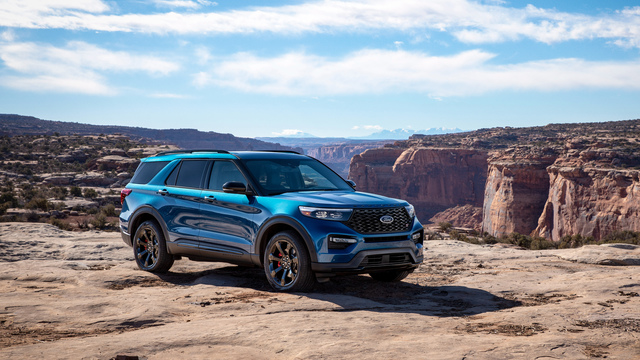

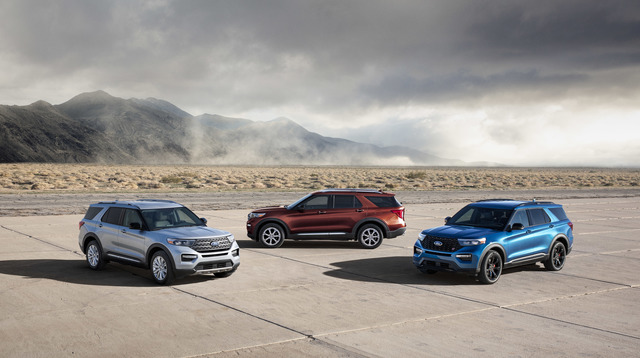

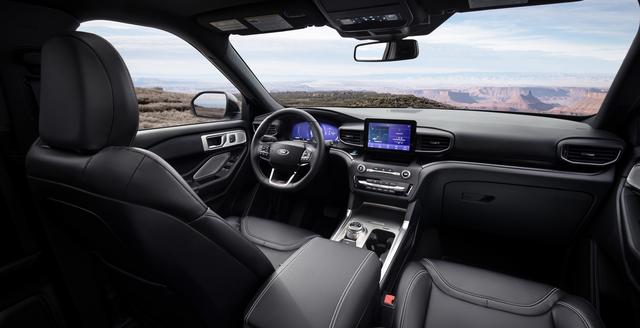

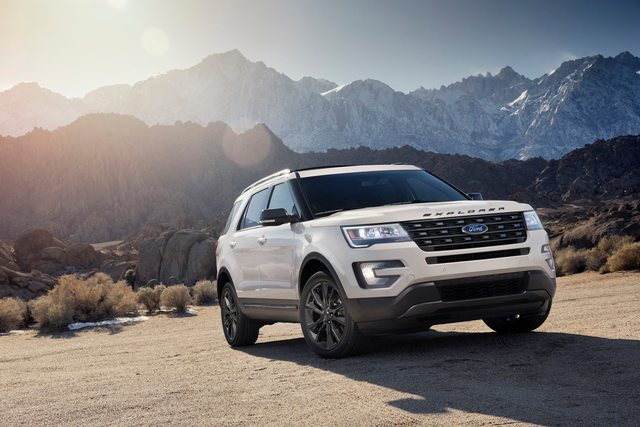

Photo Ford Explorer ST
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
3.0 EcoBoost (406 HP) 10-speed automatic 4x4 29 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 2998 |
| Cylinders location | V-shaped |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 406 |
| Torque, Nm | 536 |
| RPM at max torque | 2750 |
| Engine | 3.0 EcoBoost |
| RPM at max power | 5750 |
Dimensions
| Seats | 6/7 |
|---|---|
| Length mm | 5063 |
| Width | 2268 |
| Height mm | 1782 |
| Wheelbase mm | 3025 |
| Front track, mm | 1700 |
| Rear track, mm | 1700 |
| Trunk capacity, L | 515 |
| Fuel tank, l | 76 |
| Ground clearance, mm | 201 |
| Width (without mirrors) mm | 2004 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 10 |
| Drive | Full |
| Transmission | 10-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | Ford |
| Transmission country of origin | USA |
Ford Explorer ST questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Ford Explorer ST?
This page lists 1 trim for the Ford Explorer ST, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Ford Explorer ST?
The listed configurations show a power range of 406 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Ford Explorer ST?
The available specification data shows engine displacement from 2998 cc across the trims listed on this page.
Which transmissions are listed for the Ford Explorer ST?
The transmission options currently shown for this model are: 10-speed automatic. Open a trim section to see the full data for a specific configuration.
Are there photos for the Ford Explorer ST?
Yes. The gallery includes 9 photos for the Ford Explorer ST, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
