Ford Ranger specifications and photos
The 2022 Ford Ranger represents the fifth generation of the globally popular midsize pickup truck. Debuting in late 2021, it introduces significant updates to its platform, powertrain lineup, and technology to remain competitive in the utility segment.
Ford Ranger at a glance
Quick model context before comparing photos and trim-level specifications.
After a successful decade-long run with its predecessor, the fifth-generation Ford Ranger arrives with comprehensive improvements built on an updated T6 platform, which it shares with the modern Volkswagen Amarok. The 2022 model is designed to cater to both commercial and lifestyle buyers, moving away from its purely utilitarian roots to offer a more refined, tech-forward experience. Ford engineers extended the truck's wheelbase and track width by exactly 50 mm. This dimensional change translates directly to a roomier cabin environment and a more capable cargo bed capacity. Available with standard rear-wheel drive, part-time four-wheel drive, or an advanced full-time 4WD system with a center differential, the new Ranger is engineered to tackle demanding work sites and off-road trails alike. It also features a dedicated low range and multiple off-road electronic driving modes.
- Power: 170-260 hp
- Engine displacement: 1995-2993 cc
- Transmissions: 6-speed automatic, 10-speed automatic, 6-speed manual
- Seating: 5 seats
Ford Ranger overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The exterior styling of the 2022 Ranger aligns closely with Ford's broader global truck family, borrowing distinct visual cues from the full-size F-150 and the compact Maverick. The front end is bolder and more modern, highlighted by available advanced matrix headlights on higher trim levels. By pushing the wheels closer to the corners, Ford created shorter front overhangs. This design choice not only gives the truck a more aggressive stance but also significantly improves its approach angle for off-road navigation. The widened track provides a more planted look on the road while smoothly accommodating the functionally larger cargo bed area integrated into the rear bodywork.
Interior
Inside, the Ranger takes a significant leap forward, leaving behind the spartan feel of older commercial utility vehicles. The dashboard is now centered around a prominent, vertically oriented touchscreen'available in either 10.1-inch or 12-inch sizes depending on the trim'running a modern infotainment system equipped with Apple CarPlay and Android Auto. A fully digital instrument cluster replaces traditional analog gauges, creating a high-tech cabin environment. Buyers can expect elevated comfort features in higher tiers, including heated and ventilated front seats, dual-zone automatic climate control, a heated steering wheel, and a network of 360-degree cameras to assist with parking and tight maneuvering.
Performance
The powertrain lineup has been thoroughly revamped for the fifth generation. The older 3.2-liter inline-five has been replaced by a robust 3.0-liter V6 diesel producing up to 260 horsepower and 600 Nm of torque. The core of the lineup features a 2.0-liter EcoBlue turbodiesel, available in a single-turbo 170-horsepower variant or a twin-turbocharged version delivering 205 horsepower and 500 Nm. Transmission options vary by engine: a new 6-speed manual, a traditional 6-speed automatic for lower-output variants, and a modernized 10-speed automatic for the high-torque powerplants. Drivers can choose from up to six off-road electronic driving modes to optimize traction.
Practicality
Utility remains a core focus for the Ranger. The 50 mm increase in track width allows the cargo bed to comfortably fit a standard full-size construction pallet or a large sheet of building plywood flat between the wheel arches. Payload and towing capabilities are supported by a heavy-duty multi-leaf rear suspension system. Inside, the enlarged dimensions result in better passenger space, making the dual-cab configuration highly practical for families or crew transport. A 220V power outlet is also available to run tools, laptops, or camping equipment directly from the vehicle.
Safety and tech
The 2022 Ranger is equipped with a comprehensive suite of modern active safety and driver-assistance systems. Core features include autonomous emergency braking, lane-keeping assist, adaptive cruise control, and tire pressure monitoring. Maneuvering this midsize truck in tight spaces is made significantly easier with available 360-degree surround-view cameras, as well as front and rear parking sensors. Hill descent control and advanced traction management systems provide additional security and controlled braking when navigating steep or loose off-road terrain.
Buyer notes
When shopping for a 2022 Ford Ranger, buyers should pay close attention to the specific powertrain and drivetrain combinations. The base XL and mid-level XLT trims offer reliable 2.0-liter engines paired with manual or 6-speed automatic transmissions, serving well as dependable work trucks. Moving up to the Limited trim unlocks the 10-speed automatic transmission, advanced all-wheel-drive configurations, and superior interior technology. Note that rear brake setups vary, with drums used on lower trims and discs equipped on higher specifications. Additionally, certain engines, like the 2.3-liter EcoBoost gasoline option, may only be available in specific regional markets.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 2.0 EcoBlue (170 hp) 6-speed automatic SelectShift 4x4 | 1997 cc | 170 hp | 5 | 6-speed automatic |
| 2.0 EcoBlue (205 hp) 10-speed automatic 4x4 | 1997 cc | 205 hp | 5 | 10-speed automatic |
| 3.0 Duratorq (260 hp) 10-speed automatic 4x4 | 2993 cc | 260 hp | 5 | 10-speed automatic |
| 2.0 EcoBlue (170 hp) 6-speed manual 4x4 | 1995 cc | 170 hp | 5 | 6-speed manual |
| 2.0 EcoBlue AT Limited | 1997 cc | 205 hp | 5 | 10-speed automatic |
| 2.0 EcoBlue AT XLT | 1997 cc | 170 hp | 5 | 6-speed automatic |
| 2.0 EcoBlue MT XL | 1995 cc | 170 hp | 5 | 6-speed manual |
| 2.0 EcoBlue MT XLT | 1995 cc | 170 hp | 5 | 6-speed manual |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

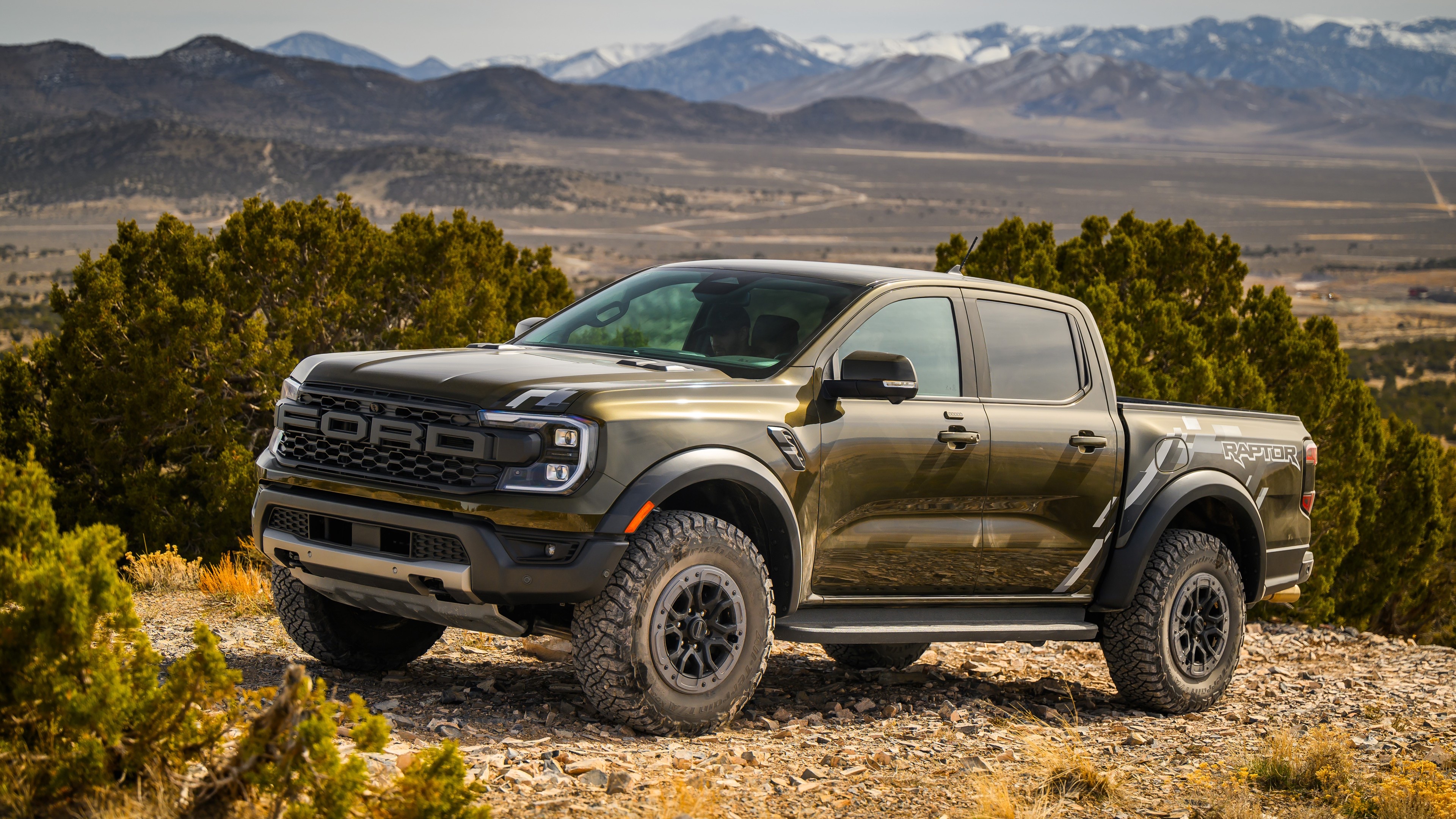

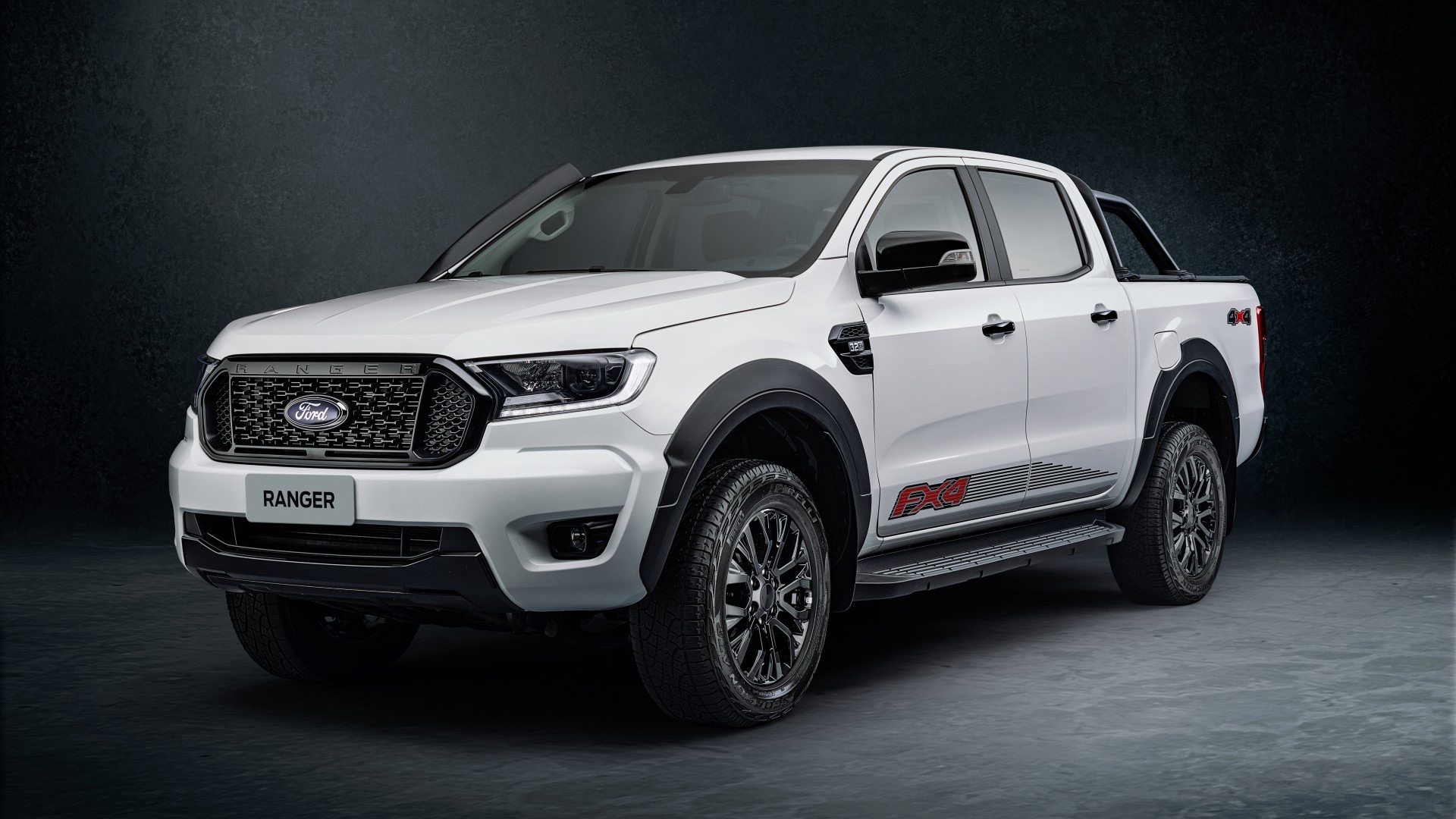

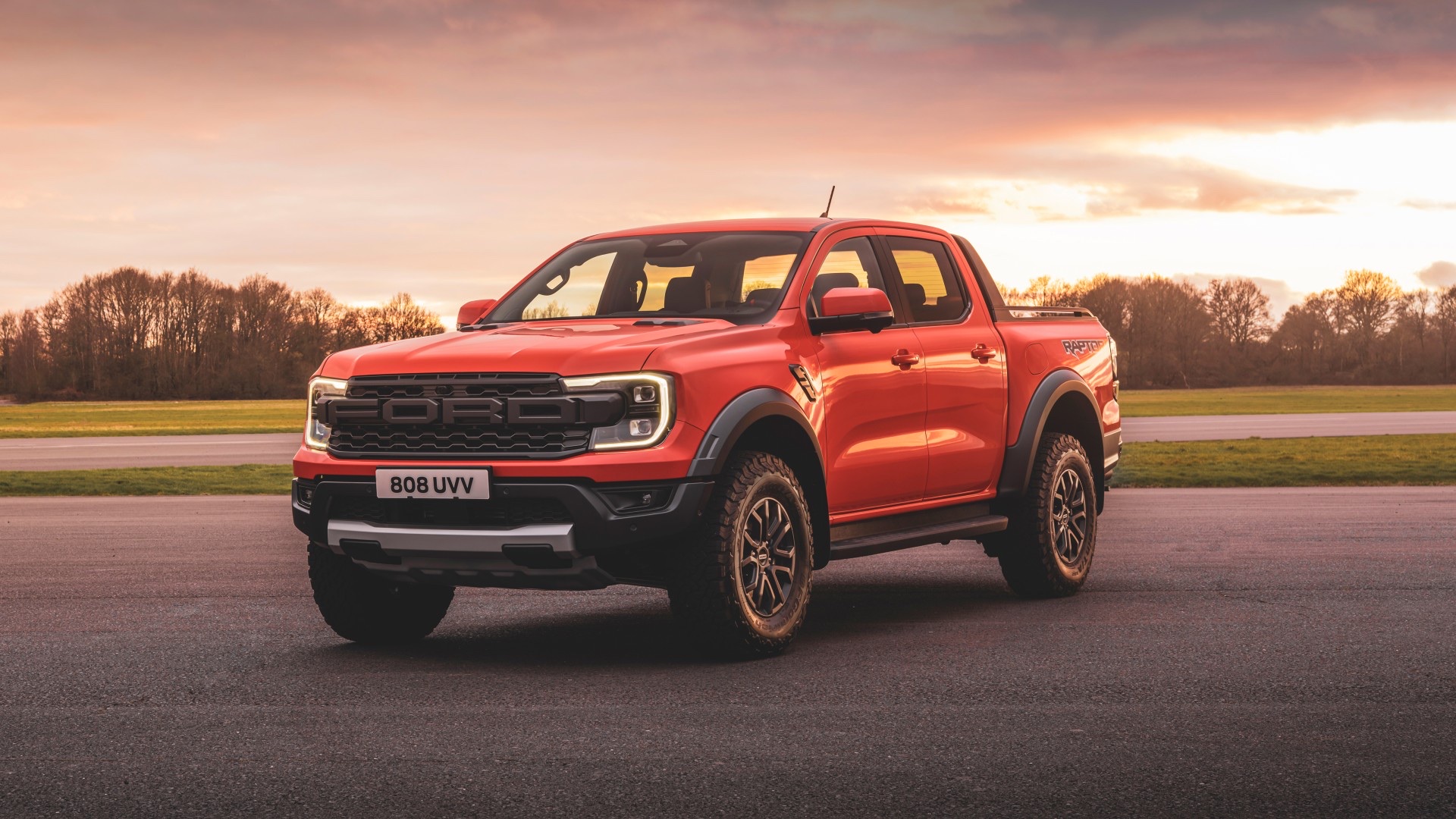

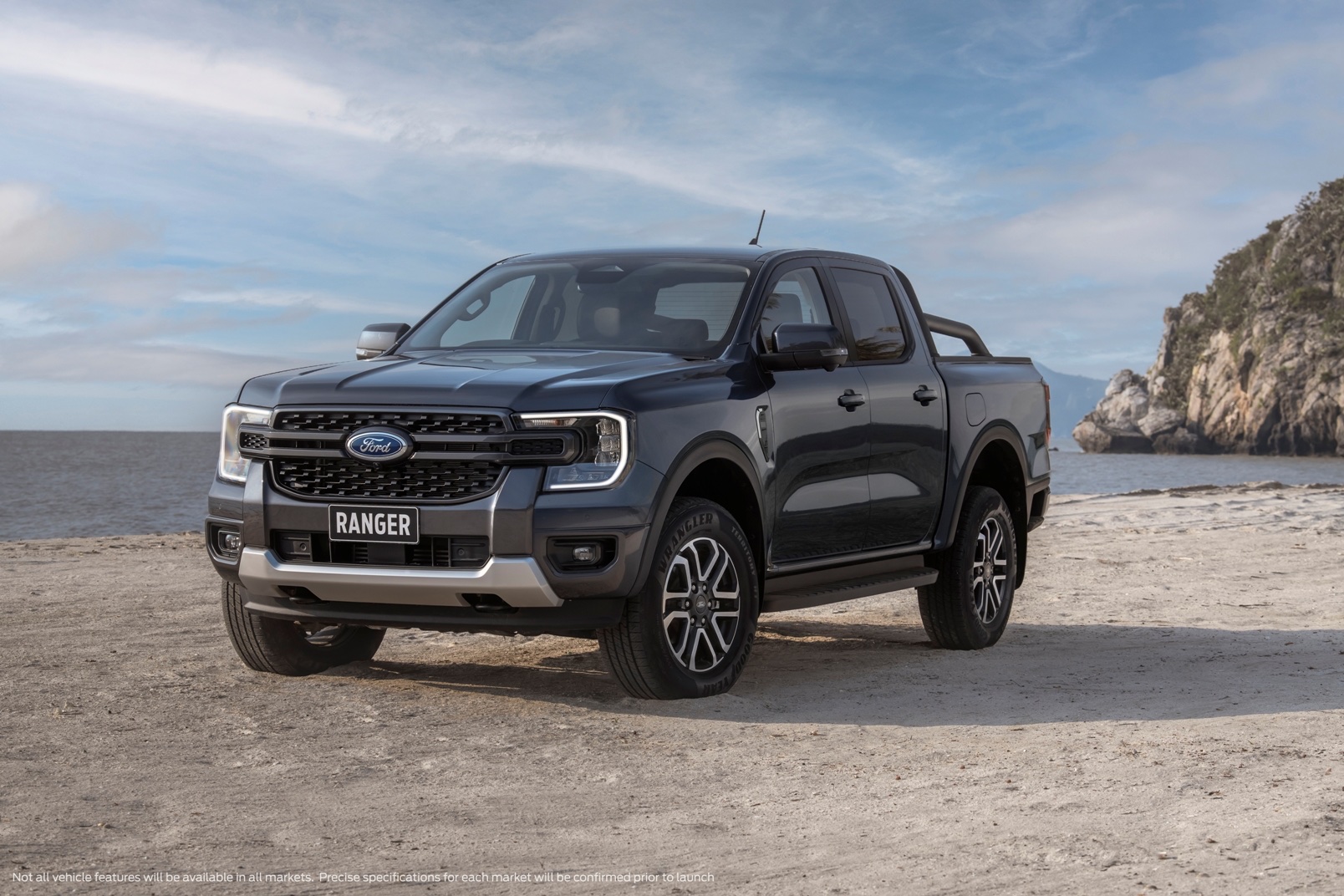

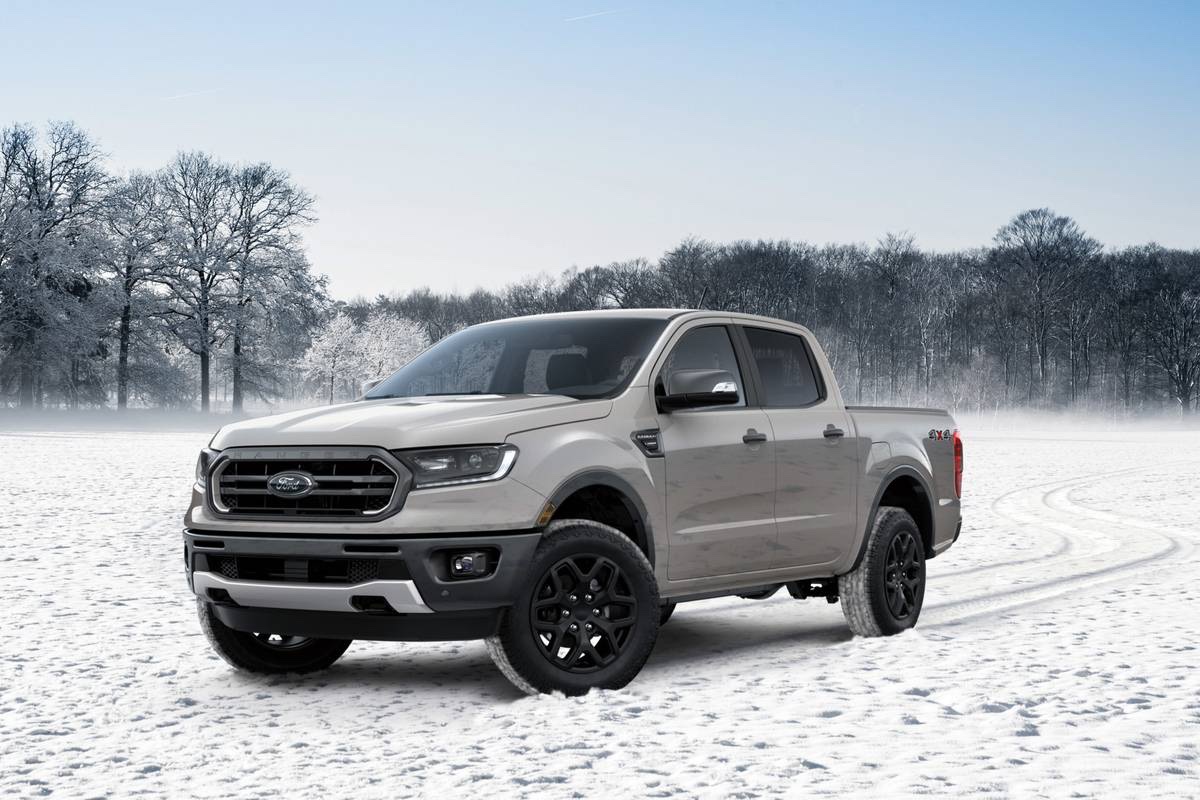

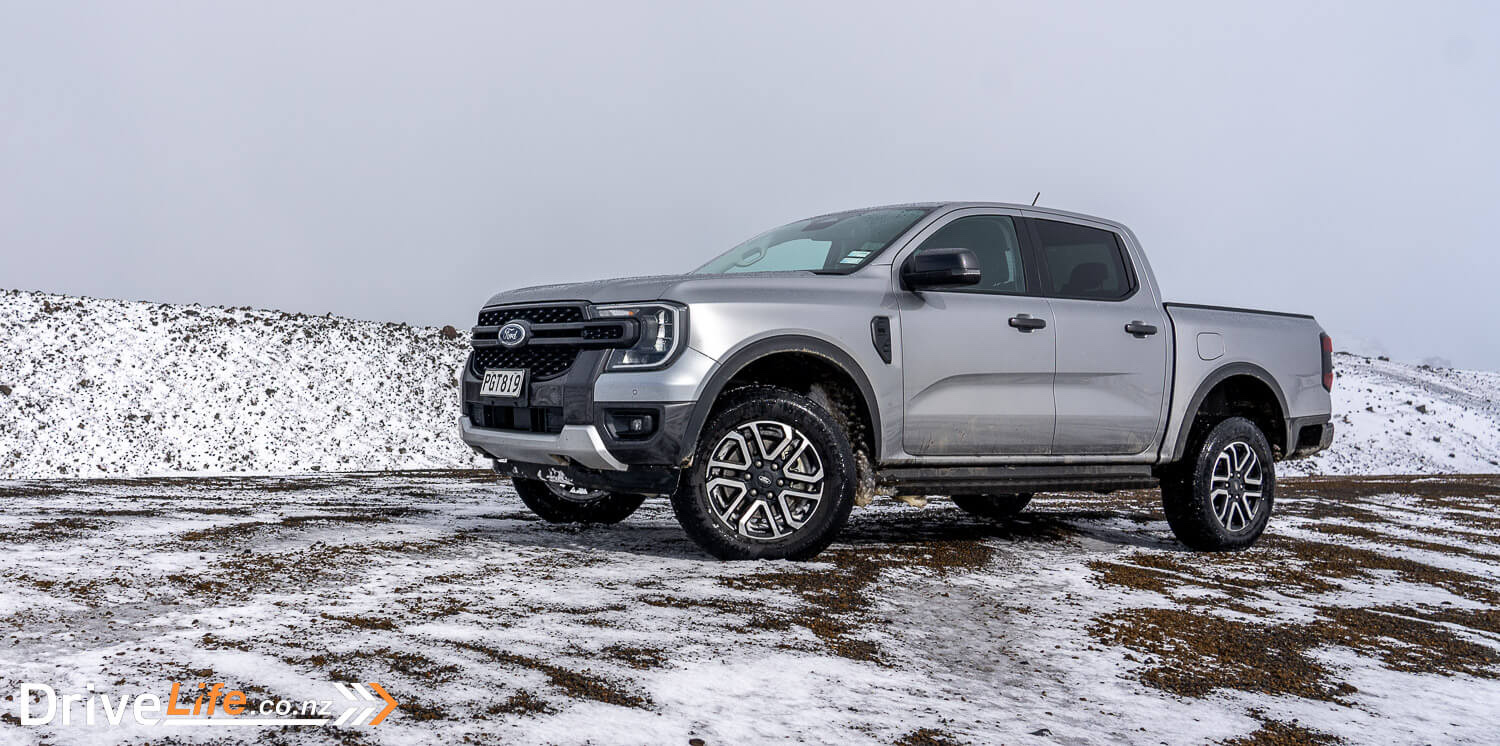

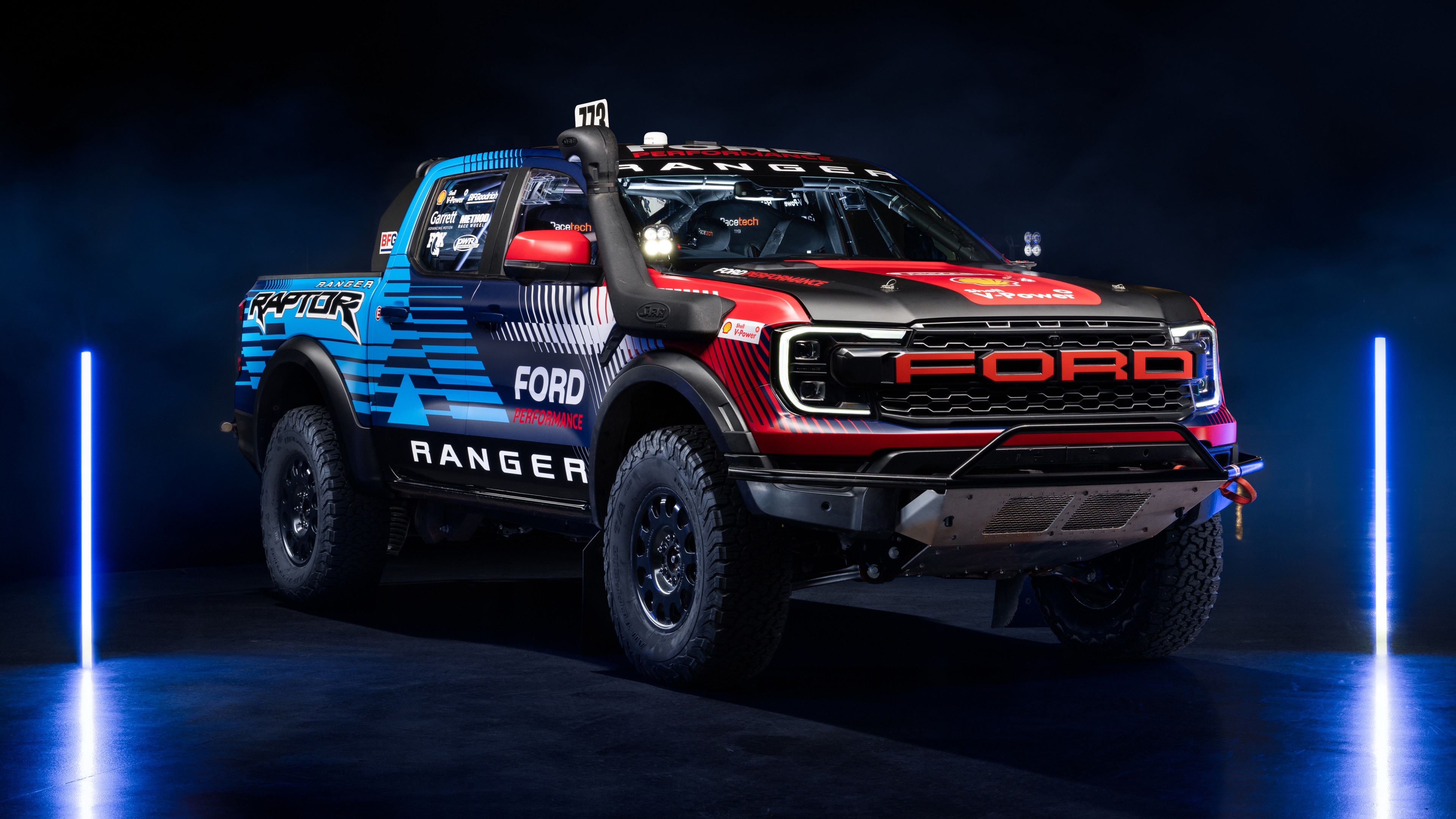

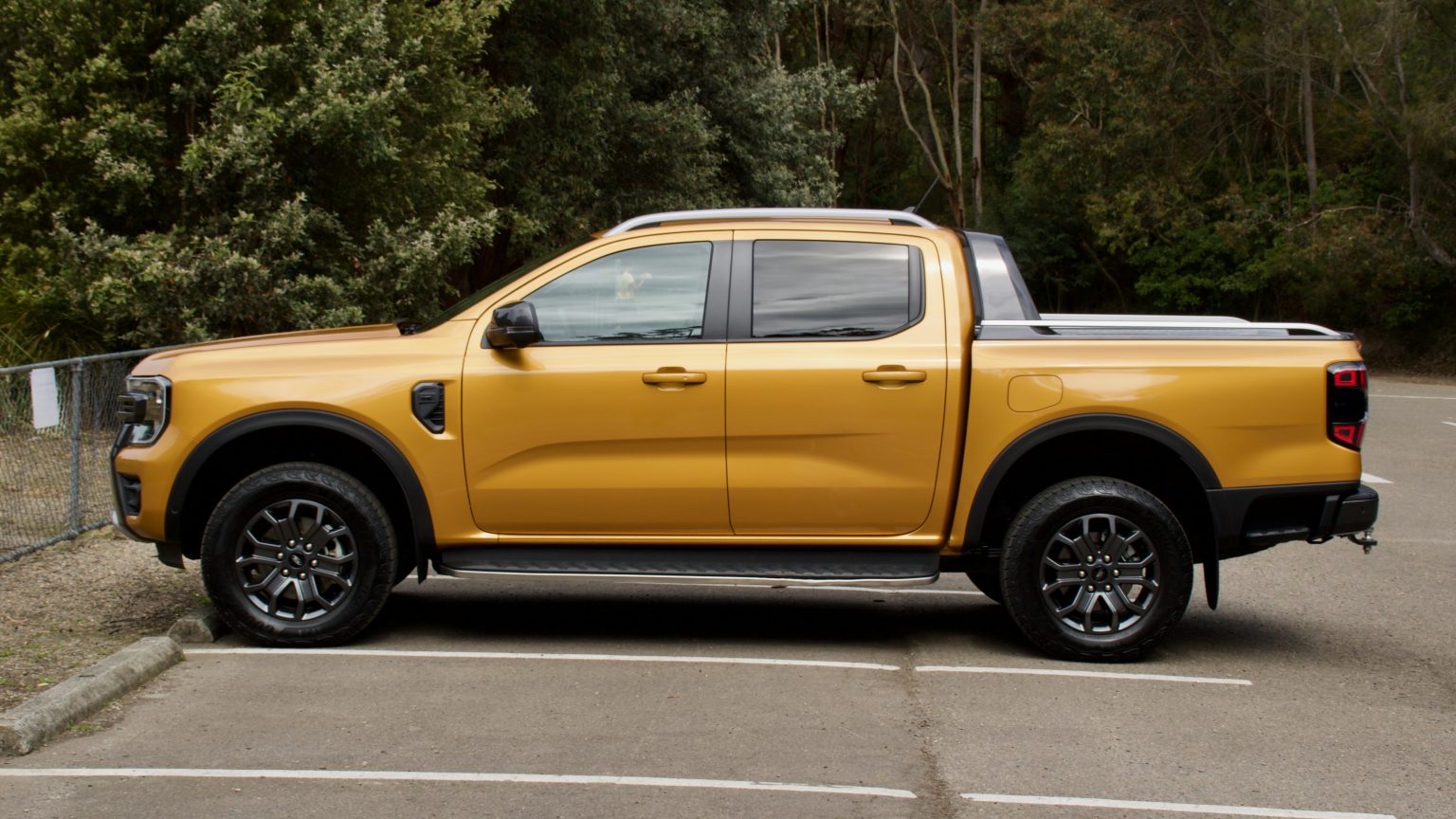

Ford Ranger photo gallery
15 images are collected here with the main specifications and trim data for this model.

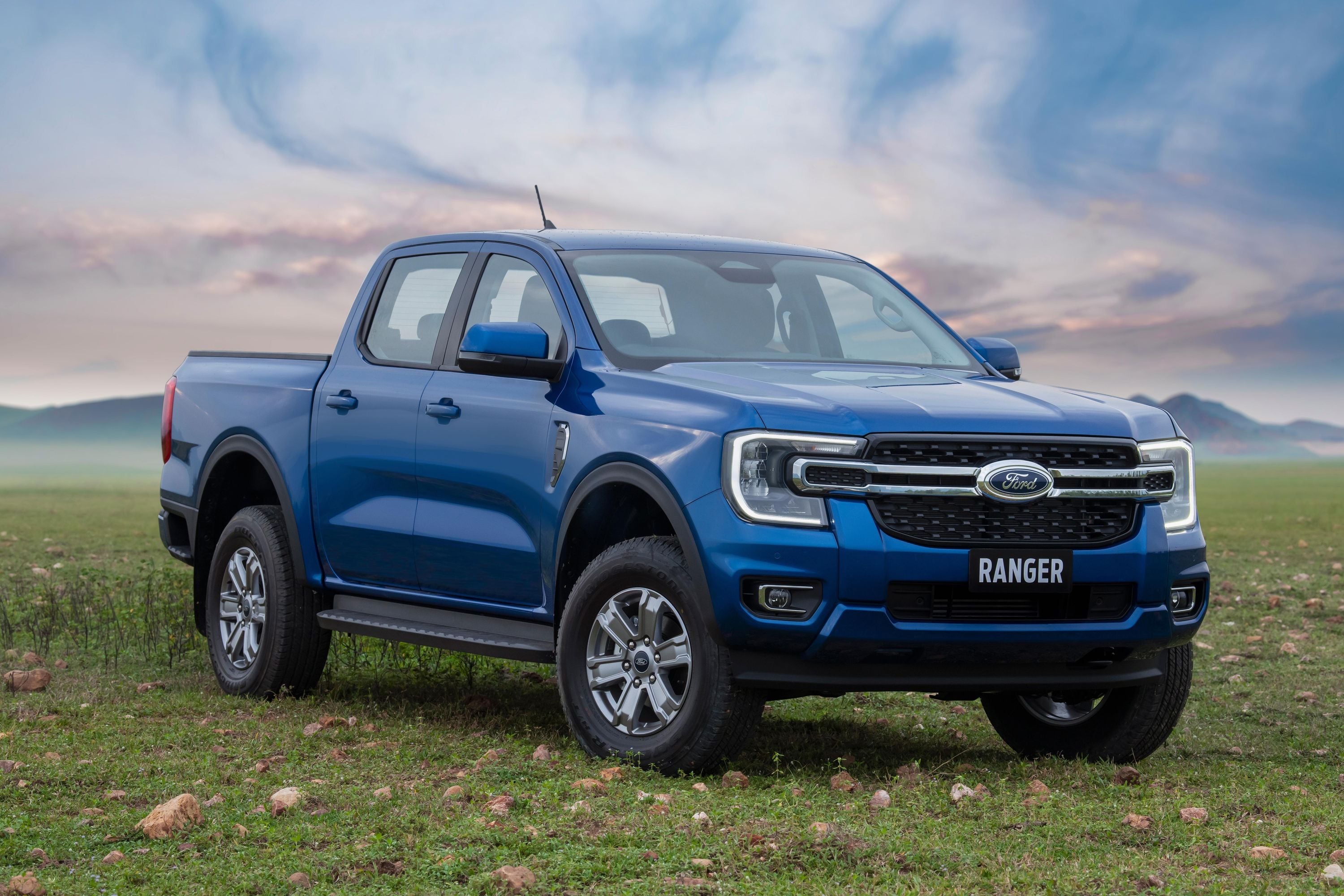

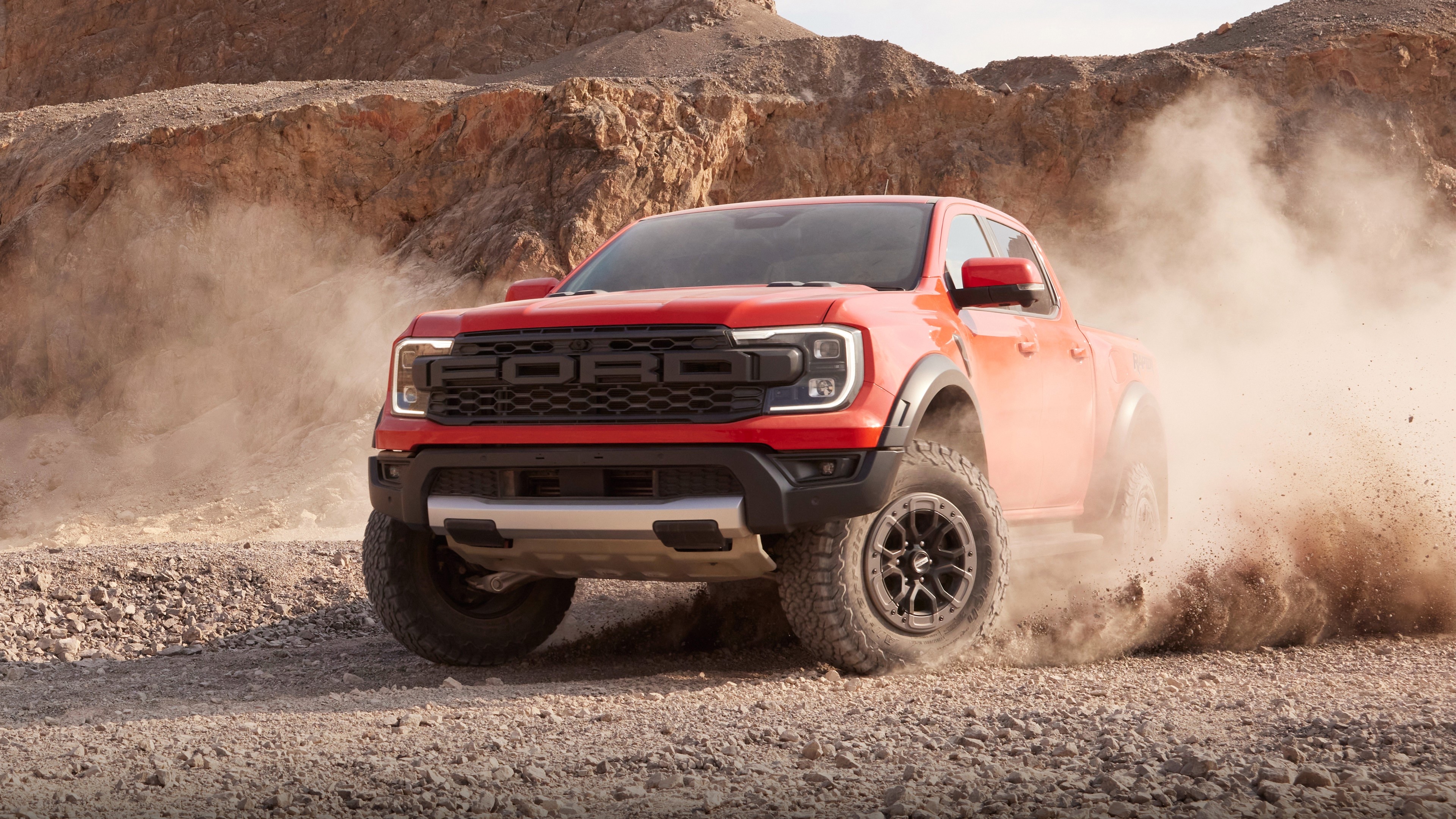

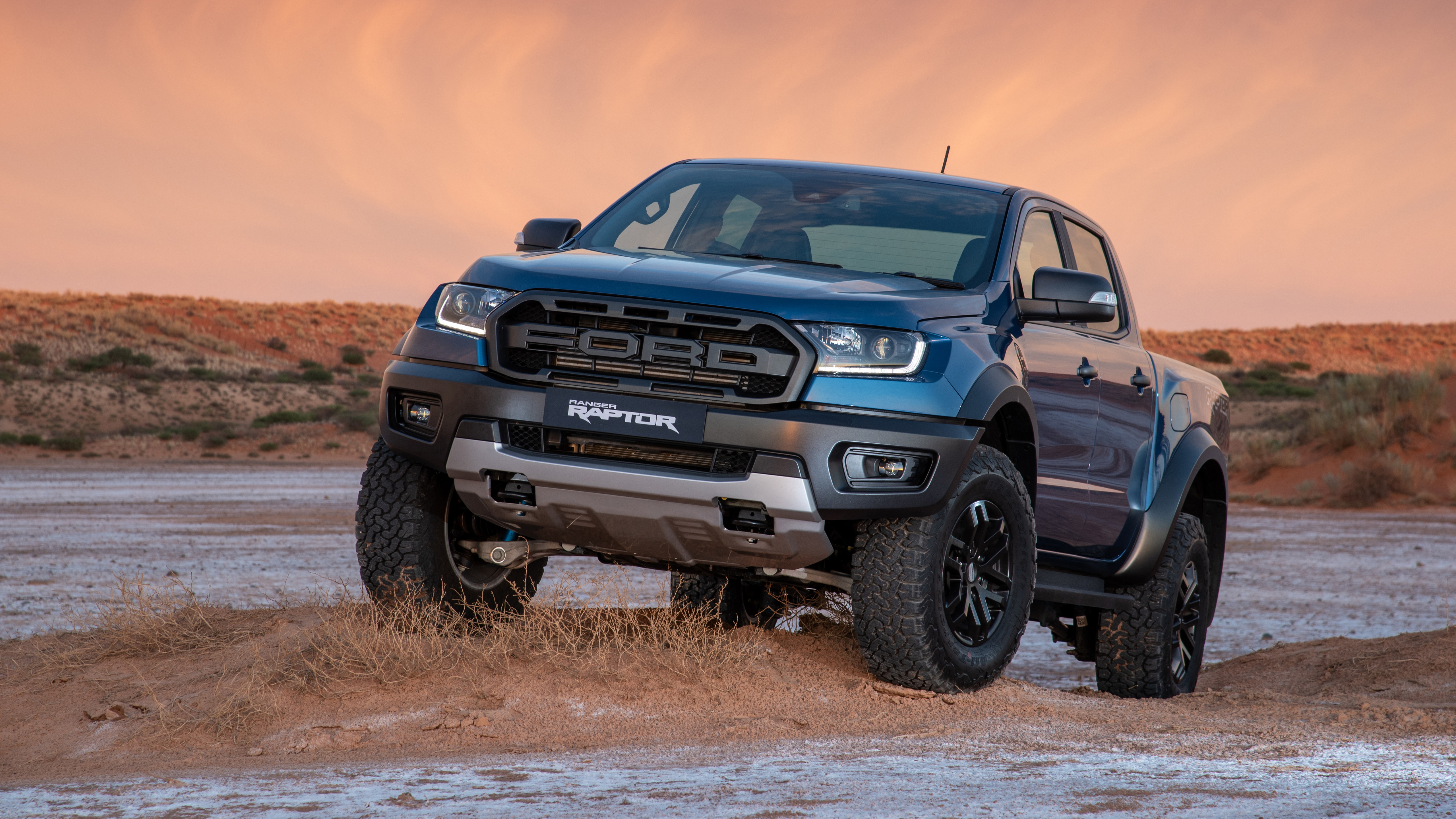

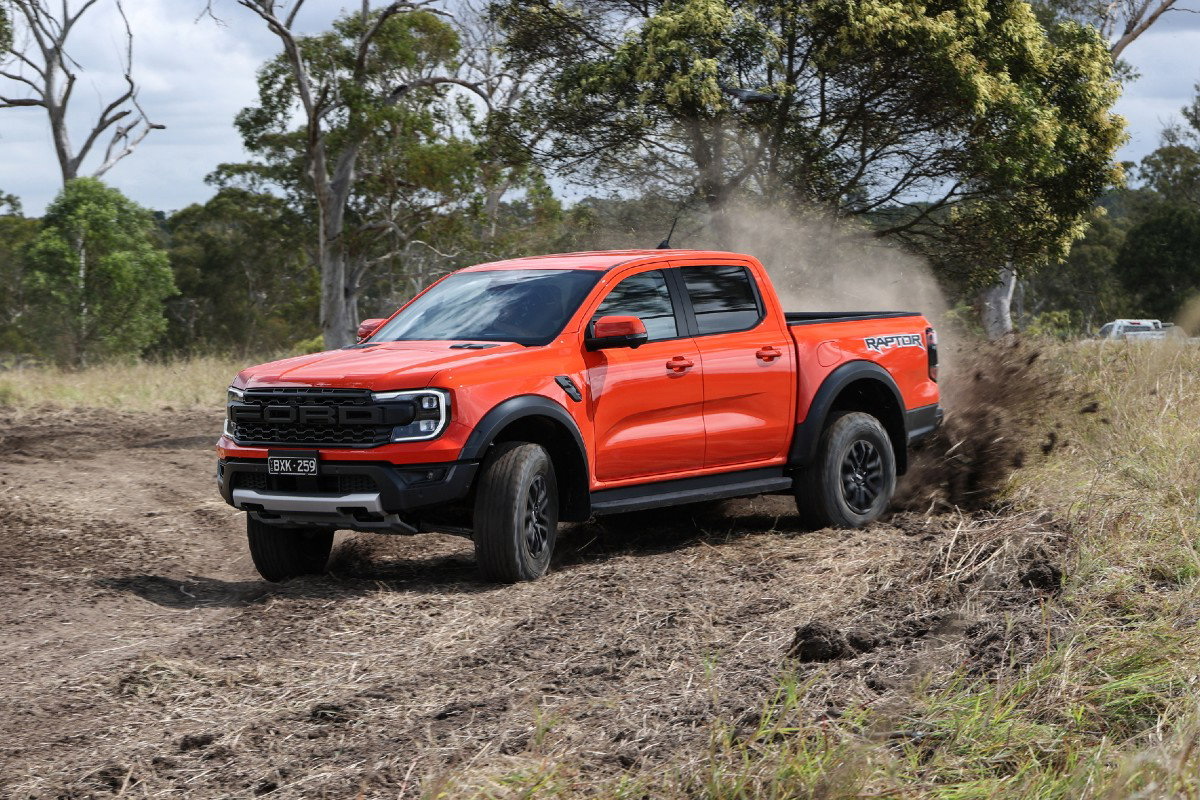

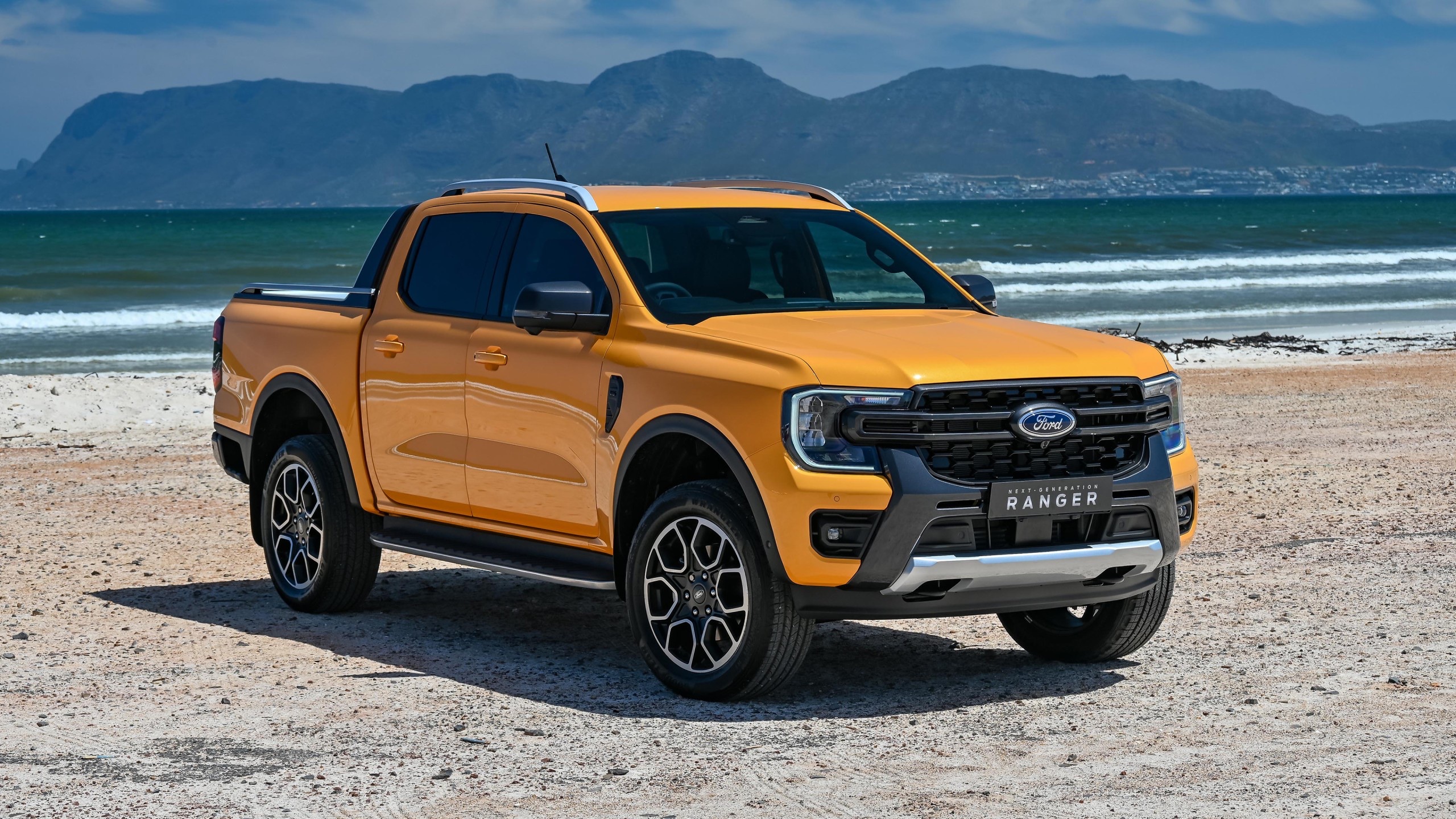

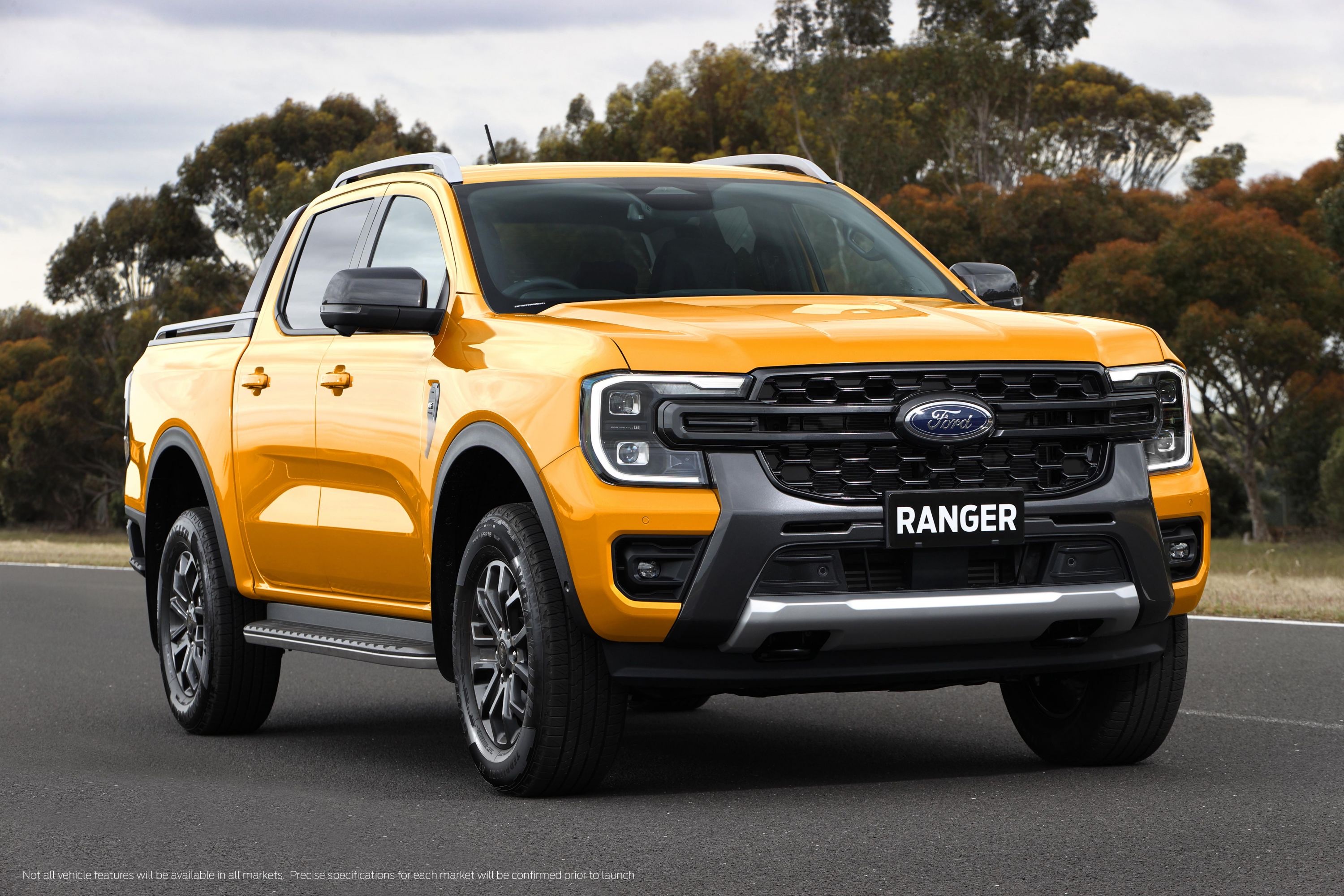

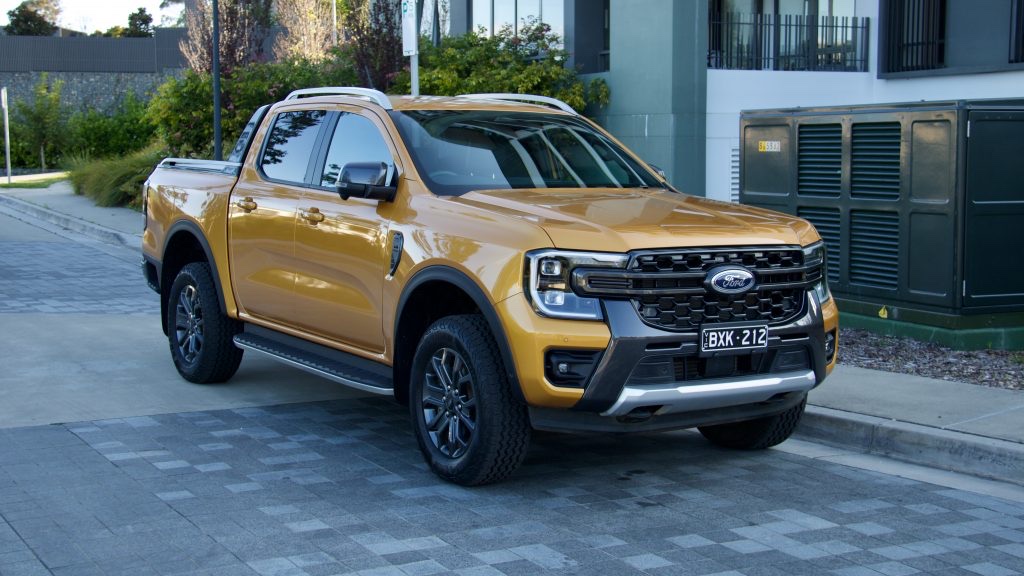

Photo Ford Ranger
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
2.0 EcoBlue (170 hp) 6-speed automatic SelectShift 4x4 34 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.7 |
|---|---|
| Top speed, km/h | 180 |
| Acceleration 0-100 km/h, s | 12.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 EcoBlue |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1997 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 8 |
| Turbocharger | + |
| Power, hp | 170 |
| RPM at max power | 3500 |
| Torque, Nm | 405 |
| RPM at max torque | 1750-2500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5370 |
| Width, mm | 2280 |
| Height, mm | 1884 |
| Wheelbase, mm | 3270 |
| Front track, mm | 1620 |
| Rear track, mm | 1620 |
| Kerb weight, kg | 2198 |
| Gross weight, kg | 3190 |
| Fuel tank capacity, L | 80 |
| Turning circle, m | 12.9 |
| Width without mirrors, mm | 1918 |
Transmission and drive
| Transmission | 6-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
2.0 EcoBlue (205 hp) 10-speed automatic 4x4 34 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.8 |
|---|---|
| Top speed, km/h | 180 |
| Acceleration 0-100 km/h, s | 10.5 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 EcoBlue |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1997 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 205 |
| RPM at max power | 3750 |
| Torque, Nm | 500 |
| RPM at max torque | 1750-2000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5370 |
| Width, mm | 2280 |
| Height, mm | 1884 |
| Wheelbase, mm | 3270 |
| Front track, mm | 1620 |
| Rear track, mm | 1620 |
| Kerb weight, kg | 2198 |
| Gross weight, kg | 3190 |
| Fuel tank capacity, L | 80 |
| Turning circle, m | 12.9 |
| Width without mirrors, mm | 1918 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
| Transmission country | USA |
3.0 Duratorq (260 hp) 10-speed automatic 4x4 32 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 9.7 |
|---|
Engine
| Engine | 3.0 Duratorq |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2993 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 16:1 |
| Power, hp | 260 |
| RPM at max power | 3250 |
| Torque, Nm | 600 |
| RPM at max torque | 1750 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5370 |
| Width, mm | 2280 |
| Height, mm | 1884 |
| Wheelbase, mm | 3270 |
| Front track, mm | 1620 |
| Rear track, mm | 1620 |
| Kerb weight, kg | 2198 |
| Gross weight, kg | 3190 |
| Fuel tank capacity, L | 80 |
| Turning circle, m | 12.9 |
| Width without mirrors, mm | 1918 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
| Transmission country | USA |
2.0 EcoBlue (170 hp) 6-speed manual 4x4 33 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.5 |
|---|---|
| Top speed, km/h | 180 |
| Acceleration 0-100 km/h, s | 11.6 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 EcoBlue |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1995 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 170 |
| RPM at max power | 3750 |
| Torque, Nm | 420 |
| RPM at max torque | 1750-2000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5370 |
| Width, mm | 2280 |
| Height, mm | 1884 |
| Wheelbase, mm | 3270 |
| Front track, mm | 1620 |
| Rear track, mm | 1620 |
| Kerb weight, kg | 2198 |
| Gross weight, kg | 3190 |
| Fuel tank capacity, L | 80 |
| Turning circle, m | 12.9 |
| Width without mirrors, mm | 1918 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | All-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Ford |
2.0 EcoBlue AT Limited 110 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.8 |
|---|---|
| Top speed, km/h | 180 |
| Acceleration 0-100 km/h, s | 10.5 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 EcoBlue |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1997 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 205 |
| RPM at max power | 3750 |
| Torque, Nm | 500 |
| RPM at max torque | 1750-2000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5370 |
| Width, mm | 2280 |
| Height, mm | 1884 |
| Wheelbase, mm | 3270 |
| Front track, mm | 1620 |
| Rear track, mm | 1620 |
| Kerb weight, kg | 2313 |
| Gross weight, kg | 3280 |
| Fuel tank capacity, L | 80 |
| Turning circle, m | 12.9 |
| Width without mirrors, mm | 1918 |
Transmission and drive
| Transmission | 10-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 10 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
| Transmission country | USA |
Suspension
| Front suspension type | Independent multi-link spring suspension with anti-roll bar |
|---|---|
| Rear suspension type | Dependent multi-leaf spring suspension with shock absorbers |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
Equipment
Exterior
| Mud flaps | + |
|---|
Comfort
| Tire pressure monitoring | + |
|---|---|
| Start/Stop engine button | + |
| Adjustable steering column | + |
| Electric parking brake | + |
| Adaptive cruise control | + |
| Smart keyless entry and start | + |
Interior
| Multifunction instrument display | + |
|---|---|
| 12V power outlet | + |
| Leatherette seat upholstery | + |
| 220V power outlet | + |
Wheels
| Rim diameter | 18 |
|---|---|
| Rim type | Alloy |
| Tires | 255/65R18 |
Technologies
| Adjustable speed limiter | + |
|---|---|
| Power inverter | + |
Climate and sound insulation
| Heated front seats | + |
|---|---|
| Heated steering wheel | + |
| Dual-zone climate control | + |
| Rear passenger footwell heating ducts | + |
Off-road
| Engine protection plate | + |
|---|---|
| Hill descent control | + |
| Fuel tank protection | + |
Seats
| Front armrest | + |
|---|---|
| Rear armrest | + |
| Height-adjustable driver's seat | + |
| Height-adjustable passenger seat | + |
| Power-adjustable driver's seat | + |
Headlights and lighting
| Front fog lights | + |
|---|---|
| Automatic high/low beam switching | + |
| LED headlights | + |
| LED tail lights | + |
| Rear fog lights | + |
| LED daytime running lights | + |
Multimedia and instruments
| USB | + |
|---|---|
| Number of speakers | 6 |
| Apple CarPlay / Android Auto | + |
| Touchscreen | + |
| Steering wheel controls | + |
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Heated rear window | + |
| Front power windows | + |
| Rear power windows | + |
| Power-adjustable side mirrors | + |
| Power-folding side mirrors | + |
| Tinted glass | + |
Visibility and parking
| Rear-view camera | + |
|---|---|
| Front parking sensors | + |
| Rear parking sensors | + |
Fuel economy
| Start-stop system | + |
|---|
Body paint and exterior parts
| Body-colored door handles | + |
|---|---|
| Body-colored side mirrors | + |
| Body-colored bumper | + |
Security
Electronic systems
| Electronic stability control | + |
|---|---|
| Collision mitigation braking system | + |
| Lane keeping assist | + |
| Auto Hold | + |
| Electronic brakeforce distribution | + |
| Child locks | + |
| Autonomous emergency braking | + |
| Lane departure warning | + |
| Traction control system | + |
Anti-theft systems
| Remote central locking | + |
|---|
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
| Driver knee airbag | + |
| Passenger airbag deactivation | + |
| Front passenger knee airbag | + |
| Front center airbag | + |
2.0 EcoBlue AT XLT 102 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.7 |
|---|---|
| Top speed, km/h | 180 |
| Acceleration 0-100 km/h, s | 12.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 EcoBlue |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1997 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 8 |
| Turbocharger | + |
| Power, hp | 170 |
| RPM at max power | 3500 |
| Torque, Nm | 405 |
| RPM at max torque | 1750-2500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5370 |
| Width, mm | 2280 |
| Height, mm | 1884 |
| Wheelbase, mm | 3270 |
| Front track, mm | 1620 |
| Rear track, mm | 1620 |
| Kerb weight, kg | 2254 |
| Gross weight, kg | 3230 |
| Fuel tank capacity, L | 80 |
| Turning circle, m | 12.9 |
| Width without mirrors, mm | 1918 |
Transmission and drive
| Transmission | 6-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Ford |
| Automatic transmission | + |
Suspension
| Front suspension type | Independent multi-link spring suspension with anti-roll bar |
|---|---|
| Rear suspension type | Dependent multi-leaf spring suspension with shock absorbers |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Drum |
Equipment
Exterior
| Mud flaps | + |
|---|
Comfort
| Tire pressure monitoring | + |
|---|---|
| Adjustable steering column | + |
| Adaptive cruise control | + |
Interior
| Multifunction instrument display | + |
|---|---|
| 12V power outlet | + |
| 220V power outlet | + |
| Cloth seat upholstery | + |
Wheels
| Rim diameter | 16 |
|---|---|
| Rim type | Alloy |
| Tires | 255/70R16 |
Technologies
| Adjustable speed limiter | + |
|---|---|
| Power inverter | + |
Climate and sound insulation
| Dual-zone climate control | + |
|---|---|
| Rear passenger footwell heating ducts | + |
Off-road
| Engine protection plate | + |
|---|---|
| Hill descent control | + |
| Fuel tank protection | + |
Seats
| Front armrest | + |
|---|---|
| Rear armrest | + |
| Height-adjustable driver's seat | + |
| Height-adjustable passenger seat | + |
Headlights and lighting
| Front fog lights | + |
|---|---|
| Automatic high/low beam switching | + |
| Rear fog lights | + |
| LED daytime running lights | + |
| Halogen headlights | + |
Multimedia and instruments
| USB | + |
|---|---|
| Number of speakers | 6 |
| Apple CarPlay / Android Auto | + |
| Touchscreen | + |
| Steering wheel controls | + |
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Heated rear window | + |
| Front power windows | + |
| Rear power windows | + |
| Power-adjustable side mirrors | + |
| Power-folding side mirrors | + |
Visibility and parking
| Rear-view camera | + |
|---|---|
| Front parking sensors | + |
| Rear parking sensors | + |
Fuel economy
| Start-stop system | + |
|---|
Body paint and exterior parts
| Body-colored door handles | + |
|---|---|
| Body-colored side mirrors | + |
| Black grille | + |
| Body-colored bumper | + |
Security
Electronic systems
| Electronic stability control | + |
|---|---|
| Collision mitigation braking system | + |
| Lane keeping assist | + |
| Electronic brakeforce distribution | + |
| Child locks | + |
| Autonomous emergency braking | + |
| Lane departure warning | + |
| Traction control system | + |
Anti-theft systems
| Remote central locking | + |
|---|
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
| Driver knee airbag | + |
| Passenger airbag deactivation | + |
| Front passenger knee airbag | + |
| Front center airbag | + |
2.0 EcoBlue MT XL 83 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.5 |
|---|---|
| Top speed, km/h | 180 |
| Acceleration 0-100 km/h, s | 11.6 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 EcoBlue |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1995 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 170 |
| RPM at max power | 3750 |
| Torque, Nm | 420 |
| RPM at max torque | 1750-2000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5370 |
| Width, mm | 2280 |
| Height, mm | 1884 |
| Wheelbase, mm | 3270 |
| Front track, mm | 1620 |
| Rear track, mm | 1620 |
| Kerb weight, kg | 2198 |
| Gross weight, kg | 3190 |
| Fuel tank capacity, L | 80 |
| Turning circle, m | 12.9 |
| Width without mirrors, mm | 1918 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | All-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Ford |
Suspension
| Front suspension type | Independent multi-link spring suspension with anti-roll bar |
|---|---|
| Rear suspension type | Dependent multi-leaf spring suspension with shock absorbers |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Drum |
Equipment
Exterior
| Mud flaps | + |
|---|
Comfort
| Adjustable steering column | + |
|---|
Interior
| Multifunction instrument display | + |
|---|---|
| 12V power outlet | + |
| Cloth seat upholstery | + |
Wheels
| Rim diameter | 16 |
|---|---|
| Rim type | Steel |
| Tires | 255/70R16 |
Climate and sound insulation
| Air conditioning | + |
|---|
Off-road
| Hill-start assist | + |
|---|---|
| Engine protection plate | + |
| Hill descent control | + |
| Fuel tank protection | + |
Seats
| Front armrest | + |
|---|---|
| Rear armrest | + |
| Height-adjustable driver's seat | + |
| Height-adjustable passenger seat | + |
Headlights and lighting
| Rear fog lights | + |
|---|---|
| LED daytime running lights | + |
| Halogen headlights | + |
Multimedia and instruments
| USB | + |
|---|---|
| Number of speakers | 4 |
| Apple CarPlay / Android Auto | + |
| Touchscreen | + |
| Steering wheel controls | + |
Glass, mirrors and sunroof
| Heated rear window | + |
|---|---|
| Front power windows | + |
| Rear power windows | + |
| Power-adjustable side mirrors | + |
Fuel economy
| Start-stop system | + |
|---|
Body paint and exterior parts
| Black side mirrors | + |
|---|---|
| Black grille | + |
| Black front bumper | + |
Security
Electronic systems
| Electronic stability control | + |
|---|---|
| Electronic brakeforce distribution | + |
| Child locks | + |
| Traction control system | + |
Anti-theft systems
| Remote central locking | + |
|---|
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
| Driver knee airbag | + |
| Passenger airbag deactivation | + |
| Front passenger knee airbag | + |
| Front center airbag | + |
2.0 EcoBlue MT XLT 102 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 8.5 |
|---|---|
| Top speed, km/h | 180 |
| Acceleration 0-100 km/h, s | 11.6 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 EcoBlue |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1995 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 170 |
| RPM at max power | 3750 |
| Torque, Nm | 420 |
| RPM at max torque | 1750-2000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5370 |
| Width, mm | 2280 |
| Height, mm | 1884 |
| Wheelbase, mm | 3270 |
| Front track, mm | 1620 |
| Rear track, mm | 1620 |
| Kerb weight, kg | 2231 |
| Gross weight, kg | 3230 |
| Fuel tank capacity, L | 80 |
| Turning circle, m | 12.9 |
| Width without mirrors, mm | 1918 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | All-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Ford |
Suspension
| Front suspension type | Independent multi-link spring suspension with anti-roll bar |
|---|---|
| Rear suspension type | Dependent multi-leaf spring suspension with shock absorbers |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Drum |
Equipment
Exterior
| Mud flaps | + |
|---|
Comfort
| Tire pressure monitoring | + |
|---|---|
| Adjustable steering column | + |
| Adaptive cruise control | + |
Interior
| Multifunction instrument display | + |
|---|---|
| 12V power outlet | + |
| 220V power outlet | + |
| Cloth seat upholstery | + |
Wheels
| Rim diameter | 16 |
|---|---|
| Rim type | Alloy |
| Tires | 255/70R16 |
Technologies
| Adjustable speed limiter | + |
|---|---|
| Power inverter | + |
Climate and sound insulation
| Dual-zone climate control | + |
|---|---|
| Rear passenger footwell heating ducts | + |
Off-road
| Hill-start assist | + |
|---|---|
| Engine protection plate | + |
| Hill descent control | + |
| Fuel tank protection | + |
Seats
| Front armrest | + |
|---|---|
| Rear armrest | + |
| Height-adjustable driver's seat | + |
| Height-adjustable passenger seat | + |
Headlights and lighting
| Front fog lights | + |
|---|---|
| Automatic high/low beam switching | + |
| Rear fog lights | + |
| LED daytime running lights | + |
| Halogen headlights | + |
Multimedia and instruments
| USB | + |
|---|---|
| Number of speakers | 6 |
| Apple CarPlay / Android Auto | + |
| Touchscreen | + |
| Steering wheel controls | + |
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Heated rear window | + |
| Front power windows | + |
| Rear power windows | + |
| Power-adjustable side mirrors | + |
| Power-folding side mirrors | + |
Visibility and parking
| Rear-view camera | + |
|---|---|
| Front parking sensors | + |
| Rear parking sensors | + |
Fuel economy
| Start-stop system | + |
|---|
Body paint and exterior parts
| Body-colored door handles | + |
|---|---|
| Body-colored side mirrors | + |
| Black grille | + |
| Body-colored bumper | + |
Security
Electronic systems
| Electronic stability control | + |
|---|---|
| Collision mitigation braking system | + |
| Lane keeping assist | + |
| Electronic brakeforce distribution | + |
| Child locks | + |
| Autonomous emergency braking | + |
| Lane departure warning | + |
| Traction control system | + |
Anti-theft systems
| Remote central locking | + |
|---|
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
| Driver knee airbag | + |
| Passenger airbag deactivation | + |
| Front passenger knee airbag | + |
| Front center airbag | + |
Ford Ranger questions
Short answers based on the specifications and photos available in this catalog.
What body style is the 2022 Ford Ranger?
The 2022 Ford Ranger is a midsize pickup truck available primarily in a dual-cab configuration.
What generation is the 2022 model?
This represents the fifth generation of the Ranger, debuting in late 2021 with an updated T6 platform.
What engines are available for the new Ranger?
Options include a 2.0-liter EcoBlue turbodiesel (170 hp or 205 hp) and a larger 3.0-liter V6 diesel. A 2.3-liter EcoBoost gasoline engine is also offered in certain international markets.
Does the cargo bed fit a full-size pallet?
Yes, thanks to a 50 mm wider track, the cargo bed can accommodate a standard full-size pallet or a sheet of plywood laid flat.
What kind of transmissions are offered?
The Ranger can be equipped with a 6-speed manual, a traditional 6-speed automatic, or a modernized 10-speed automatic transmission, depending on the chosen engine and trim level.
Continue exploring Ford
Return to Ford models, browse the gallery, or compare the trims listed above.
