Ford Transit Connect specifications and photos

Ford Transit Connect specifications are shown with trim options, key technical data, and a model photo gallery. Compare 8 configurations by engine size, power, seating, and transmission. The gallery includes 37 photos for visual reference.

Years 2018

Body type van

Trims 8

Photos 37

Overview

Ford Transit Connect at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Ford Transit Connect page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 75-120 hp and 998-1499 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

Power: 75-120 hp
Engine displacement: 998-1499 cc
Transmissions: 6, 6-speed manual, 8-speed automatic
Seating: 3 seats

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 75-120 hp

Engine displacement 998-1499 cc

Seating 3 seats

Transmissions 6, 6-speed manual, 8-speed automatic

Trim / modification	Engine	Power	Seats	Transmission
1.5D MT VAN 200 L1 100 Trend	1499 cc	100 hp	3	6
1.5D MT VAN 230 L2 100 Trend	1499 cc	100 hp	3	6
1.0 EcoBoost (100 HP) 6-Mech	998 cc	100 hp	3-7	6
1.5 EcoBlue (75 h.p.) 6-speed manual	1499 cc	75 hp	3-7	6-speed manual
1.5 EcoBlue (100 h.p.) 6-speed manual	1499 cc	100 hp	3-7	6-speed manual
1.5 EcoBlue (100 HP) 8-speed automatic	1499 cc	100 hp	3-7	8-speed automatic
1.5 EcoBlue (120 hp) 6-speed manual	1499 cc	120 hp	3-7	6-speed manual
1.5 EcoBlue (120 HP) 8-speed automatic	1499 cc	120 hp	3-7	8-speed automatic

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Gallery

Ford Transit Connect photo gallery

37 images are collected here with the main specifications and trim data for this model.

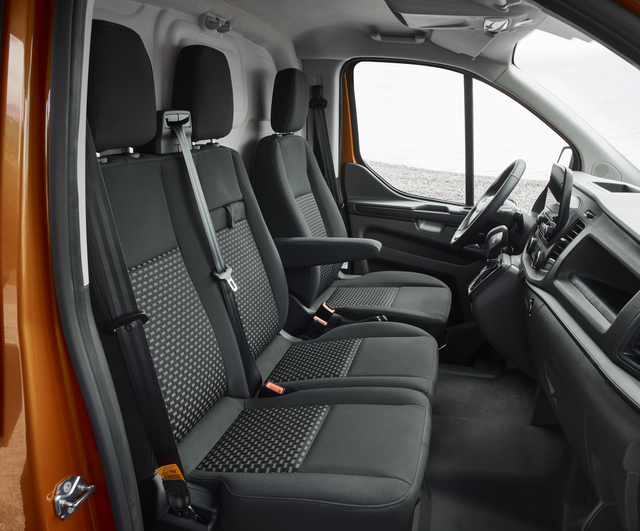

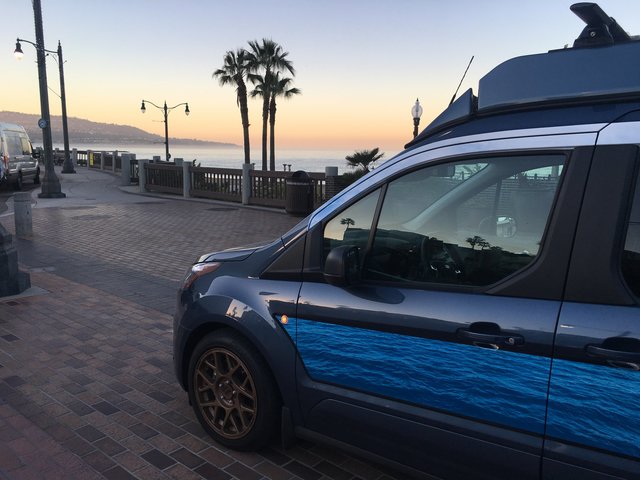

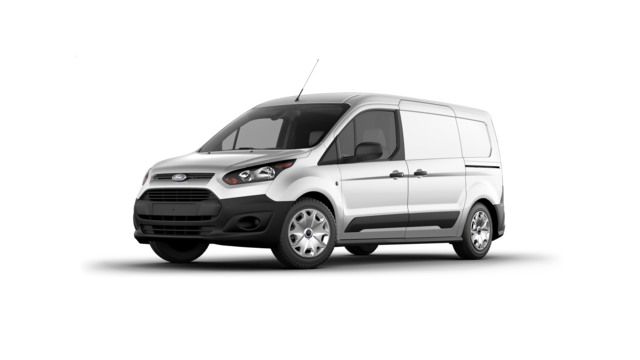

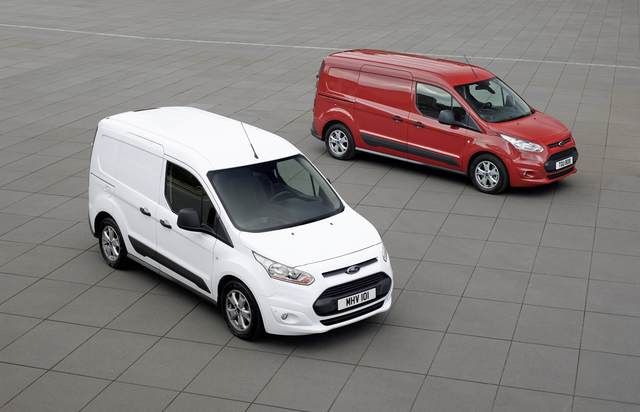

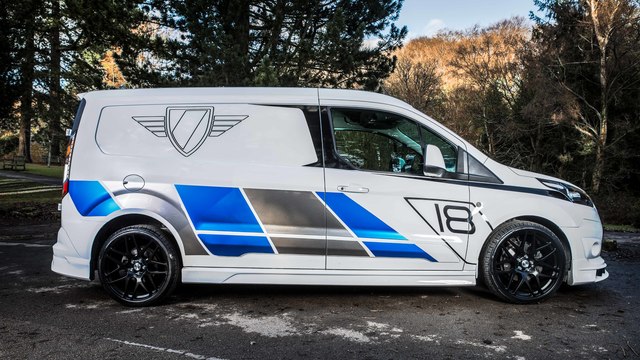

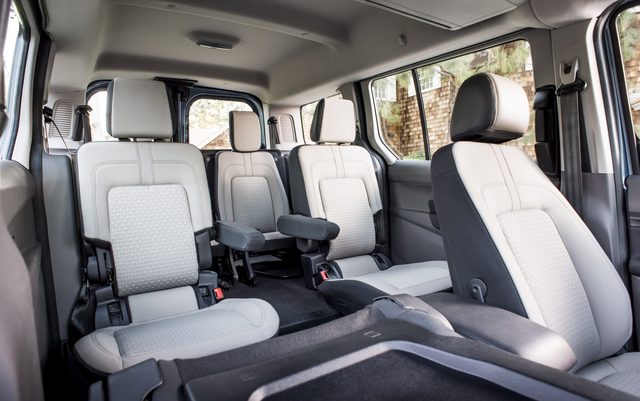

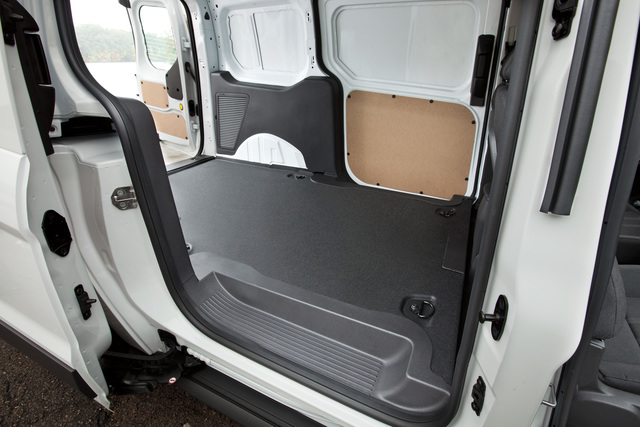

Photo Ford Transit Connect

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.5D MT VAN 200 L1 100 Trend 1.5D MT VAN 230 L2 100 Trend 1.0 EcoBoost (100 HP) 6-Mech 1.5 EcoBlue (75 h.p.) 6-speed manual 1.5 EcoBlue (100 h.p.) 6-speed manual 1.5 EcoBlue (100 HP) 8-speed automatic 1.5 EcoBlue (120 hp) 6-speed manual 1.5 EcoBlue (120 HP) 8-speed automatic

1.5D MT VAN 200 L1 100 Trend 66 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1499
Cylinders location	In-line
Number of cylinders	4
Valves	8
Power, hp	100
Torque, Nm	240
RPM at max torque	1750-2500
Engine	1.5 EcoBlue
RPM at max power	3600
Turbo	+

Dimensions

Seats	3
Length mm	4425
Width	2137
Height mm	1860
Wheelbase mm	2662
Front track, mm	1568
Rear track, mm	1582
Kerb weight, kg	1521
Fuel tank, l	57
Turning circle, m	11.7
Ground clearance, mm	148
Gross weight, kg	2170
Width (without mirrors) mm	1967
The volume of the cargo compartment, m3	2.6

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.6
Fuel consumption (urban), l. 100 km	4.8
Fuel consumption (combined), l. 100 km	5.1
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Ford

Equipment

Comfort

Tyre pressure monitoring	+
Adjustable steering column	+

Interior

On-board computer	+

Wheels

Disc diameter	16
Rim type	Steel
Tires	205/60R16

Cabin climate and noise insulation

Air Conditioning	+
Heated driver's seat	+

Glass, mirrors and sunroof

Front power windows	+
Heated side mirrors	+
Power mirrors	+
Rear windshield	+

Multimedia and instruments

Steering wheel controls	+
Bluetooth hands free	+
USB	+
Number of speakers	4

Headlights and lighting

Front fog lights	+

Seats

height-adjustable driver's seat	+

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA)	+

Trunk

Highlighting the trunk	+

Exterior

Right unglazed sliding door	+
Solid rear-hinged door	+

Fuel economy

Start-Stop System	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Traction Control System (Traction control, ASR)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+
System roll control (RSC)	+
Electronic Brake Assist (EBA, FEB)	+

Anti-theft systems

alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+

1.5D MT VAN 230 L2 100 Trend 66 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1499
Cylinders location	In-line
Number of cylinders	4
Valves	8
Power, hp	100
Torque, Nm	240
RPM at max torque	1750-2500
Engine	1.5 EcoBlue
RPM at max power	3600
Turbo	+

Dimensions

Seats	3
Length mm	4825
Width	2137
Height mm	1860
Wheelbase mm	3062
Front track, mm	1568
Rear track, mm	1582
Kerb weight, kg	1590
Fuel tank, l	57
Turning circle, m	12.5
Ground clearance, mm	148
Gross weight, kg	2285
Width (without mirrors) mm	1967
The volume of the cargo compartment, m3	3.2

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.6
Fuel consumption (urban), l. 100 km	4.8
Fuel consumption (combined), l. 100 km	5.1
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Ford

Equipment

Comfort

Tyre pressure monitoring	+
Adjustable steering column	+

Interior

On-board computer	+

Wheels

Disc diameter	16
Rim type	Steel
Tires	205/60R16

Cabin climate and noise insulation

Air Conditioning	+
Heated driver's seat	+

Glass, mirrors and sunroof

Front power windows	+
Heated side mirrors	+
Power mirrors	+
Rear windshield	+

Multimedia and instruments

Steering wheel controls	+
Bluetooth hands free	+
USB	+
Number of speakers	4

Headlights and lighting

Front fog lights	+

Seats

height-adjustable driver's seat	+

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA)	+

Trunk

Highlighting the trunk	+

Exterior

Right unglazed sliding door	+
Solid rear-hinged door	+

Fuel economy

Start-Stop System	+

Security

Electronic systems

Anti-lock braking system (ABS)	+
Traction Control System (Traction control, ASR)	+
Vehicle Stability Control (ESP, DSC, ESC, VSC)	+
System roll control (RSC)	+
Electronic Brake Assist (EBA, FEB)	+

Anti-theft systems

alarm	+
Central locking with remote control	+

Airbags

Driver's airbag	+

1.0 EcoBoost (100 HP) 6-Mech 35 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	998
Cylinders location	In-line
Number of cylinders	3
Valves	12
Power, hp	100
Torque, Nm	170
RPM at max torque	1400
Engine	1.0 EcoBoost
Compression	10
RPM at max power	6000
Turbo	+

Dimensions

Seats	3-7
Length mm	4425
Width	2137
Height mm	1860
Wheelbase mm	2662
Front track, mm	1568
Rear track, mm	1582
Kerb weight, kg	1558
Fuel tank, l	57
Turning circle, m	11.7
Ground clearance, mm	148
Gross weight, kg	2370
Width (without mirrors) mm	1967

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.1
Fuel consumption (urban), l. 100 km	5.9
Fuel consumption (combined), l. 100 km	6.4
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Ford

1.5 EcoBlue (75 h.p.) 6-speed manual 34 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1499
Cylinders location	In-line
Number of cylinders	4
Valves	8
Power, hp	75
Torque, Nm	220
RPM at max torque	1750-2250
Engine	1.5 EcoBlue
RPM at max power	3600
Turbo	+

Dimensions

Seats	3-7
Length mm	4425
Width	2137
Height mm	1860
Wheelbase mm	2662
Front track, mm	1568
Rear track, mm	1582
Kerb weight, kg	1558
Fuel tank, l	57
Turning circle, m	11.7
Ground clearance, mm	148
Gross weight, kg	2370
Width (without mirrors) mm	1967

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.5
Fuel consumption (urban), l. 100 km	4.7
Fuel consumption (combined), l. 100 km	5
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Ford

1.5 EcoBlue (100 h.p.) 6-speed manual 34 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1499
Cylinders location	In-line
Number of cylinders	4
Valves	8
Power, hp	100
Torque, Nm	240
RPM at max torque	1750-2500
Engine	1.5 EcoBlue
RPM at max power	3600
Turbo	+

Dimensions

Seats	3-7
Length mm	4425
Width	2137
Height mm	1860
Wheelbase mm	2662
Front track, mm	1568
Rear track, mm	1582
Kerb weight, kg	1558
Fuel tank, l	57
Turning circle, m	11.7
Ground clearance, mm	148
Gross weight, kg	2370
Width (without mirrors) mm	1967

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.6
Fuel consumption (urban), l. 100 km	4.8
Fuel consumption (combined), l. 100 km	5.1
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Ford

1.5 EcoBlue (100 HP) 8-speed automatic 34 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1499
Cylinders location	In-line
Number of cylinders	4
Valves	8
Power, hp	100
Torque, Nm	240
RPM at max torque	1750-2500
Engine	1.5 EcoBlue
RPM at max power	3600
Turbo	+

Dimensions

Seats	3-7
Length mm	4425
Width	2137
Height mm	1860
Wheelbase mm	2662
Front track, mm	1568
Rear track, mm	1582
Kerb weight, kg	1558
Fuel tank, l	57
Turning circle, m	11.7
Ground clearance, mm	148
Gross weight, kg	2370
Width (without mirrors) mm	1967

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.1
Fuel consumption (urban), l. 100 km	5.3
Fuel consumption (combined), l. 100 km	5.6
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Front
Transmission	8-speed automatic
Gearbox	Machine

1.5 EcoBlue (120 hp) 6-speed manual 34 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1499
Cylinders location	In-line
Number of cylinders	4
Valves	8
Power, hp	120
Torque, Nm	270
RPM at max torque	1750-2500
Engine	1.5 EcoBlue
RPM at max power	3600
Turbo	+

Dimensions

Seats	3-7
Length mm	4425
Width	2137
Height mm	1860
Wheelbase mm	2662
Front track, mm	1568
Rear track, mm	1582
Kerb weight, kg	1558
Fuel tank, l	57
Turning circle, m	11.7
Ground clearance, mm	148
Gross weight, kg	2370
Width (without mirrors) mm	1967

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.7
Fuel consumption (urban), l. 100 km	4.9
Fuel consumption (combined), l. 100 km	5.2
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Ford

1.5 EcoBlue (120 HP) 8-speed automatic 34 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1499
Cylinders location	In-line
Number of cylinders	4
Valves	8
Power, hp	120
Torque, Nm	270
RPM at max torque	1750-2500
Engine	1.5 EcoBlue
RPM at max power	3600
Turbo	+

Dimensions

Seats	3-7
Length mm	4425
Width	2137
Height mm	1860
Wheelbase mm	2662
Front track, mm	1568
Rear track, mm	1582
Kerb weight, kg	1558
Fuel tank, l	57
Turning circle, m	11.7
Ground clearance, mm	148
Gross weight, kg	2370
Width (without mirrors) mm	1967

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.7
Fuel consumption (urban), l. 100 km	5.3
Fuel consumption (combined), l. 100 km	5.4
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Front
Transmission	8-speed automatic
Gearbox	Machine

FAQ

Ford Transit Connect questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Ford Transit Connect?

This page lists 8 trims for the Ford Transit Connect, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Ford Transit Connect?

The listed configurations show a power range of 75-120 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Ford Transit Connect?

The available specification data shows engine displacement from 998-1499 cc across the trims listed on this page.

Which transmissions are listed for the Ford Transit Connect?

The transmission options currently shown for this model are: 6, 6-speed manual, 8-speed automatic. Open a trim section to see the full data for a specific configuration.

Are there photos for the Ford Transit Connect?

Yes. The gallery includes 37 photos for the Ford Transit Connect, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.

Explore more

Continue exploring Ford

Return to Ford models, browse the gallery, or compare the trims listed above.

All Ford models Transit Connect generations View photo gallery Read FAQ Compare trims
