Haval F7 specifications and photos
Haval F7 specifications are shown with trim options, key technical data, and a model photo gallery. Compare 2 configurations by engine size, power, seating, and transmission. The gallery includes 4 photos for visual reference.
Haval F7 at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Haval F7 page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 150-190 hp and 1497-1967 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 150-190 hp
- Engine displacement: 1497-1967 cc
- Transmissions: 7
- Seating: 5 seats
Photos, trims and specifications for Haval F7
This model page brings gallery images, trim comparison, and detailed technical data together for the 2018 generation.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 1.5i (150 h.p.) 7-DCT | 1497 cc | 150 hp | 5 | 7 |
| 2.0i (190 HP) 7-DCT | 1967 cc | 190 hp | 5 | 7 |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
Haval F7 photo gallery
4 images are collected here with the main specifications and trim data for this model.

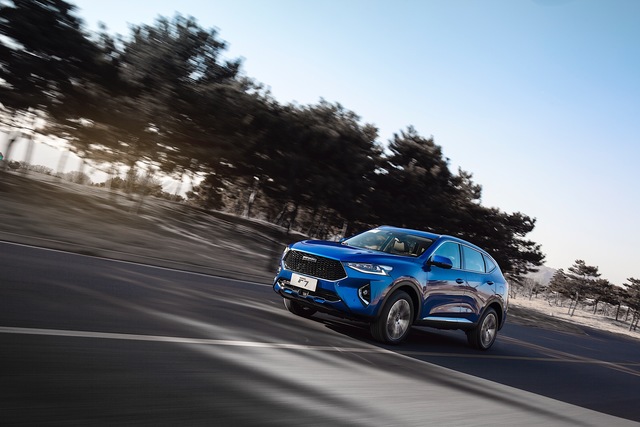

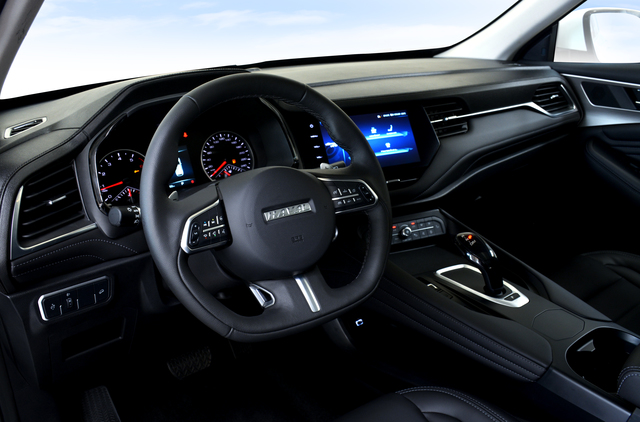

Photo Haval F7
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
1.5i (150 h.p.) 7-DCT 27 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 1497 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 150 |
| Torque, Nm | 285 |
| RPM at max torque | 1400-3000 |
| Engine | 1.5i |
| RPM at max power | 5000-5600 |
| Turbo | + |
| Engine code | GW4B15 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4620 |
| Height mm | 1690 |
| Wheelbase mm | 2725 |
| Width (without mirrors) mm | 1846 |
Performance and fuel consumption
| Fuel consumption (combined), l. 100 km | 6.8 |
|---|---|
| The maximum speed, km / h. | 180 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 7 |
| Drive | Front |
| Transmission | 7-speed dual-clutch |
| Gearbox | 2 clutch robot |
| Transmission manufacturer | Great Wall (China) |
| Transmission country of origin | China |
2.0i (190 HP) 7-DCT 27 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 1967 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 190 |
| Torque, Nm | 345 |
| RPM at max torque | 2000-3200 |
| Engine | 2.0i |
| RPM at max power | 5200-5500 |
| Turbo | + |
| Engine code | GW4C20NT |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4620 |
| Height mm | 1690 |
| Wheelbase mm | 2725 |
| Width (without mirrors) mm | 1846 |
Performance and fuel consumption
| Fuel consumption (combined), l. 100 km | 7.3 |
|---|---|
| The maximum speed, km / h. | 195 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 7 |
| Drive | Front |
| Transmission | 7-speed dual-clutch |
| Gearbox | 2 clutch robot |
| Transmission manufacturer | Great Wall (China) |
| Transmission country of origin | China |
Haval F7 questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Haval F7?
This page lists 2 trims for the Haval F7, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Haval F7?
The listed configurations show a power range of 150-190 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Haval F7?
The available specification data shows engine displacement from 1497-1967 cc across the trims listed on this page.
Which transmissions are listed for the Haval F7?
The transmission options currently shown for this model are: 7. Open a trim section to see the full data for a specific configuration.
Are there photos for the Haval F7?
Yes. The gallery includes 4 photos for the Haval F7, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
