Hyundai IONIQ hybrid specifications and photos
Hyundai IONIQ hybrid specifications are shown with trim options, key technical data, and a model photo gallery. Compare 2 configurations by engine size, power, seating, and transmission. The gallery includes 29 photos for visual reference.
Hyundai IONIQ hybrid at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Hyundai IONIQ hybrid page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 141 hp and 1580 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 141 hp
- Engine displacement: 1580 cc
- Transmissions: 6
- Seating: 5 seats
Photos, trims and specifications for Hyundai IONIQ hybrid
This model page brings gallery images, trim comparison, and detailed technical data together for the 2019 generation.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 1.6 GDI Plug-in (141 HP) 6-DCT | 1580 cc | 141 hp | 5 | 6 |
| 1.6 GDi Hybrid (141 HP) 6-DCT | 1580 cc | 141 hp | 5 | 6 |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

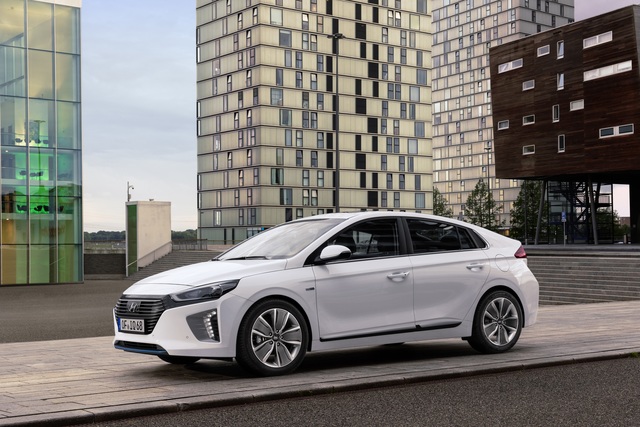

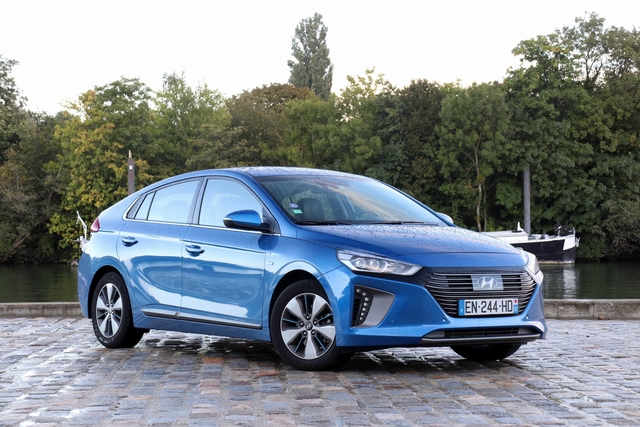

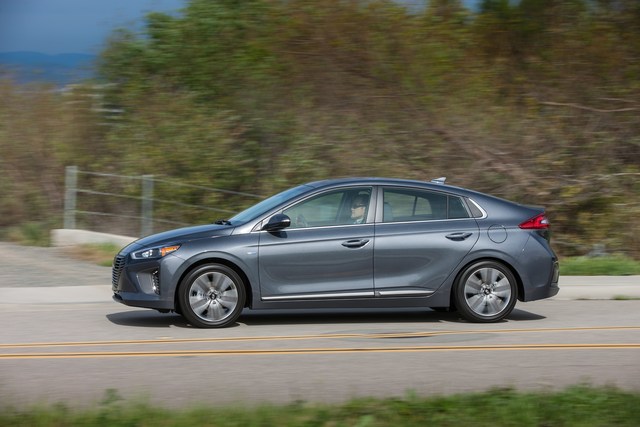

Hyundai IONIQ hybrid photo gallery
29 images are collected here with the main specifications and trim data for this model.

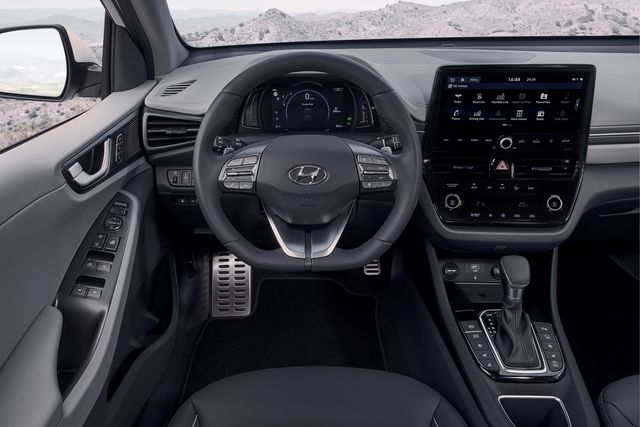

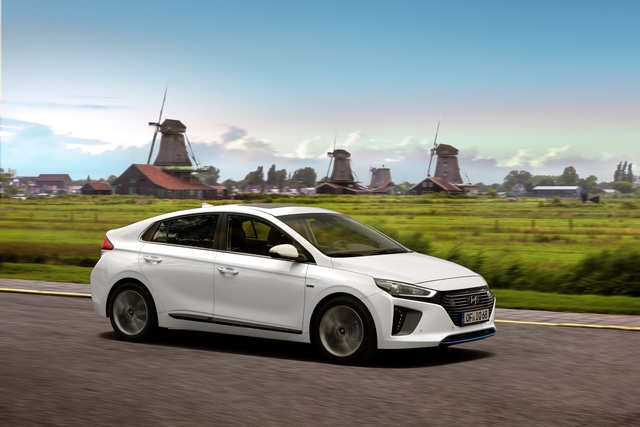

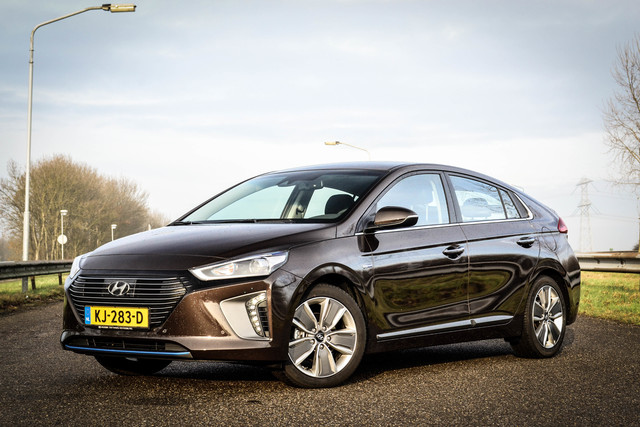

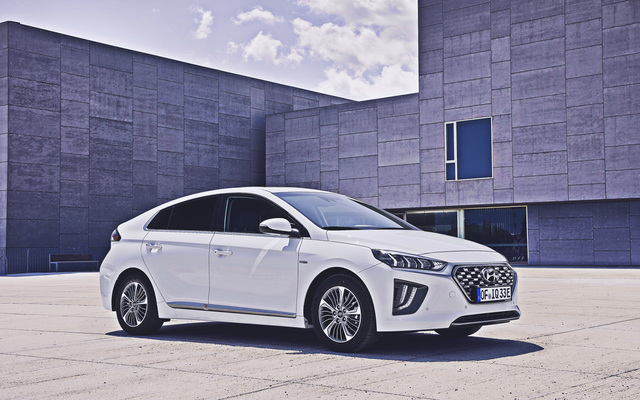

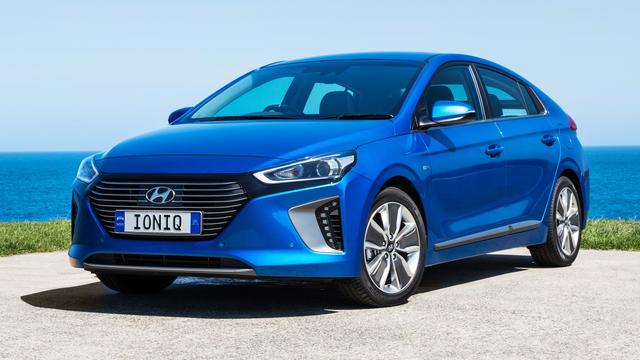

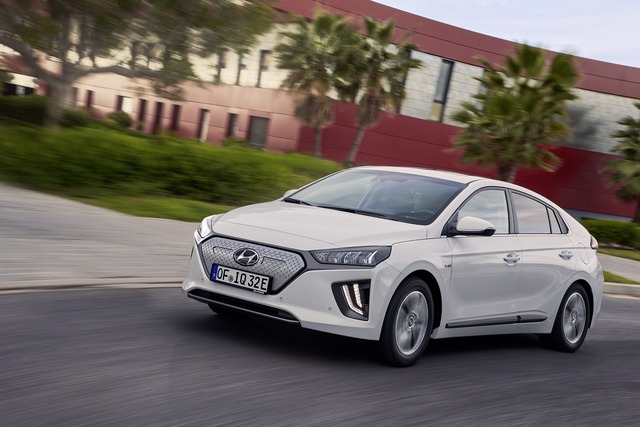

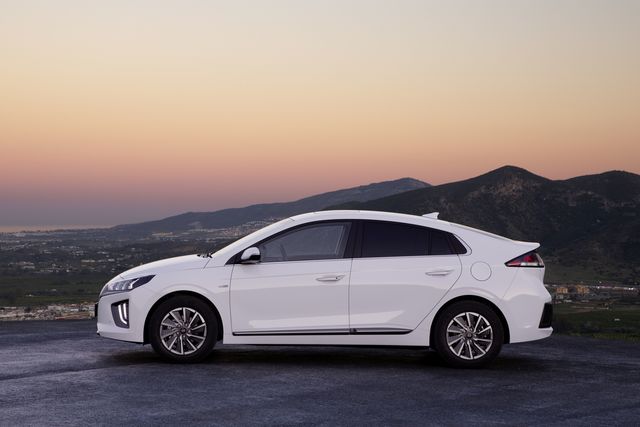

Photo Hyundai IONIQ hybrid
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
1.6 GDI Plug-in (141 HP) 6-DCT 44 specifications
Specifications
Engine
| Type of engine | Hybrid |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 1580 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 141 |
| Torque, Nm | 265 |
| RPM at max torque | 1000-2400 |
| Engine | 1.6 GDI Plug-in |
| RPM at max power | 5700 |
| Number of motors | 1 |
| Power electric motor HP | 61 |
| Revolutions max. electric power, rev / min | 1798-2500 |
| the motor torque Nm | 170 |
| Revolutions max. motor torque, rev / min | 0-1798 |
| Engine power, hp | 105 |
| Revolutions max. Engine power, vol. / min. | 5700 |
| the engine torque, Nm | 147 |
| Revolutions max. engine torque, vol. / min. | 4000 |
| EV-mode | + |
| The possibility of charging from the network | + |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4470 |
| Height mm | 1460 |
| Wheelbase mm | 2700 |
| Front track, mm | 1549 |
| Rear track, mm | 1563 |
| Kerb weight, kg | 1477 |
| Fuel tank, l | 45 |
| Ground clearance, mm | 145 |
| Gross weight, kg | 1870 |
| Width (without mirrors) mm | 1820 |
Performance and fuel consumption
| Fuel consumption (combined), l. 100 km | 1.1 |
|---|---|
| Acceleration (0-100 km/h), s | 10.6 |
| The maximum speed, km / h. | 178 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 6 |
| Drive | Front |
| Transmission | 6-speed dual-clutch |
| Gearbox | 2 clutch robot |
| Transmission manufacturer | + |
| Transmission country of origin | + |
1.6 GDi Hybrid (141 HP) 6-DCT 44 specifications
Specifications
Engine
| Type of engine | Hybrid |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 1580 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 141 |
| Torque, Nm | 265 |
| RPM at max torque | 4000 |
| Engine | 1.6 GDi Hybrid |
| RPM at max power | 5700 |
| Number of motors | 1 |
| Power electric motor HP | 44 |
| Revolutions max. electric power, rev / min | 1798-2500 |
| the motor torque Nm | 170 |
| Revolutions max. motor torque, rev / min | 0-1798 |
| Engine power, hp | 105 |
| Revolutions max. Engine power, vol. / min. | 5700 |
| the engine torque, Nm | 147 |
| Revolutions max. engine torque, vol. / min. | 4000 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4470 |
| Height mm | 1460 |
| Wheelbase mm | 2700 |
| Front track, mm | 1549 |
| Rear track, mm | 1563 |
| Kerb weight, kg | 1477 |
| Fuel tank, l | 45 |
| Ground clearance, mm | 145 |
| Gross weight, kg | 1870 |
| Width (without mirrors) mm | 1820 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 3.8 |
|---|---|
| Fuel consumption (urban), l. 100 km | 4.5 |
| Fuel consumption (combined), l. 100 km | 4.2 |
| Acceleration (0-100 km/h), s | 10.8 |
| The maximum speed, km / h. | 185 |
| The rate of toxicity | Euro VI |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 6 |
| Drive | Front |
| Transmission | 6-speed dual-clutch |
| Gearbox | 2 clutch robot |
| Transmission manufacturer | + |
| Transmission country of origin | + |
Hyundai IONIQ hybrid questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Hyundai IONIQ hybrid?
This page lists 2 trims for the Hyundai IONIQ hybrid, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Hyundai IONIQ hybrid?
The listed configurations show a power range of 141 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Hyundai IONIQ hybrid?
The available specification data shows engine displacement from 1580 cc across the trims listed on this page.
Which transmissions are listed for the Hyundai IONIQ hybrid?
The transmission options currently shown for this model are: 6. Open a trim section to see the full data for a specific configuration.
Are there photos for the Hyundai IONIQ hybrid?

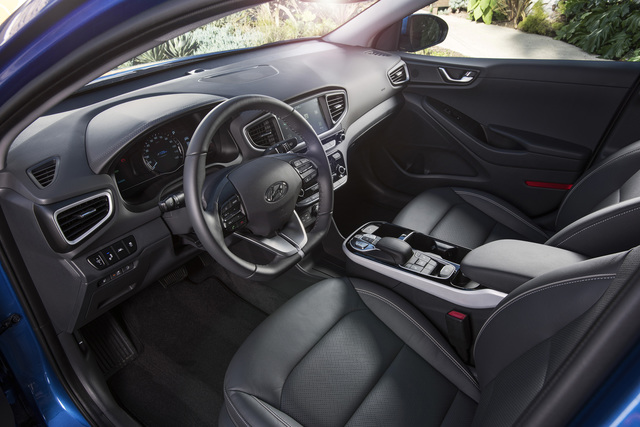

Yes. The gallery includes 29 photos for the Hyundai IONIQ hybrid, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
