Hyundai ix20 specifications and photos

Hyundai ix20 specifications are shown with trim options, key technical data, and a model photo gallery. Compare 11 configurations by engine size, power, seating, and transmission. The gallery includes 18 photos for visual reference.

Years 2015

Body type minivan

Trims 11

Photos 18

Overview

Hyundai ix20 at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Hyundai ix20 page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 90-128 hp and 1396-1591 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

Power: 90-128 hp
Engine displacement: 1396-1591 cc
Transmissions: 5, 6, 6-speed manual
Seating: 5 seats

Research hub

Photos, trims and specifications for Hyundai ix20

This model page brings gallery images, trim comparison, and detailed technical data together for the 2015 generation.

Open photo gallery 18 images Compare trims 11 configurations View detailed specs 1396-1591 cc Explore related pages Hyundai and similar models

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 90-128 hp

Engine displacement 1396-1591 cc

Seating 5 seats

Transmissions 5, 6, 6-speed manual

Trim / modification	Engine	Power	Seats	Transmission
1.4 blue MPI 90 MT	1396 cc	90 hp	5	5
1.6 MPI 125 MT	1591 cc	125 hp	5	6
1.6 blue MPI 125 MT	1591 cc	125 hp	5	6
1.6 MPI 125 AT	1591 cc	125 hp	5	6
1.4 blue CRDI 90 MT	1396 cc	90 hp	5	6
1.6 blue CRDI 116 MT	1582 cc	128 hp	5	6
1.4 MPi (90 HP) 5-Mech	1396 cc	90 hp	5	5
1.6 MPi (125 hp) 6-MP	1591 cc	125 hp	5	6
1.6 MPi (125 hp) 6-car HiVec H-Matic	1591 cc	125 hp	5	6
1.4 CRDI (90 hp) 6-speed manual	1396 cc	90 hp	5	6-speed manual
1.6 CRDi (128 hp) 6-speed manual	1582 cc	128 hp	5	6-speed manual

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Gallery

Hyundai ix20 photo gallery

18 images are collected here with the main specifications and trim data for this model.

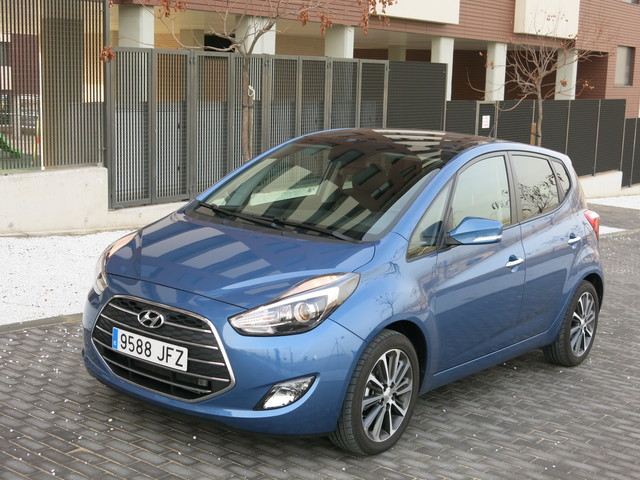

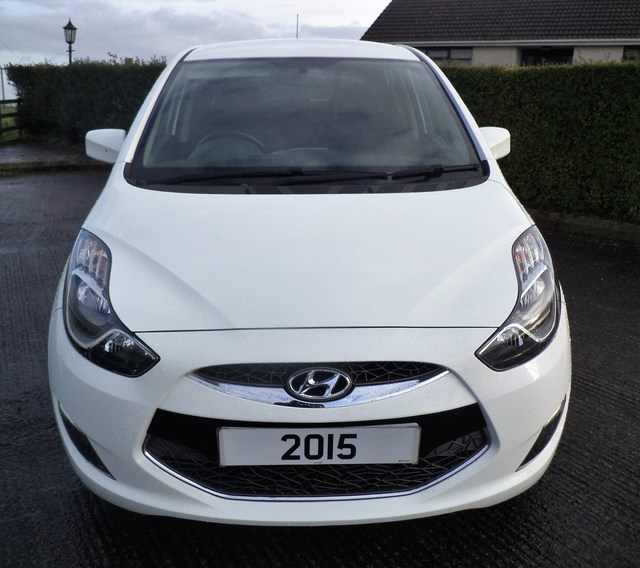

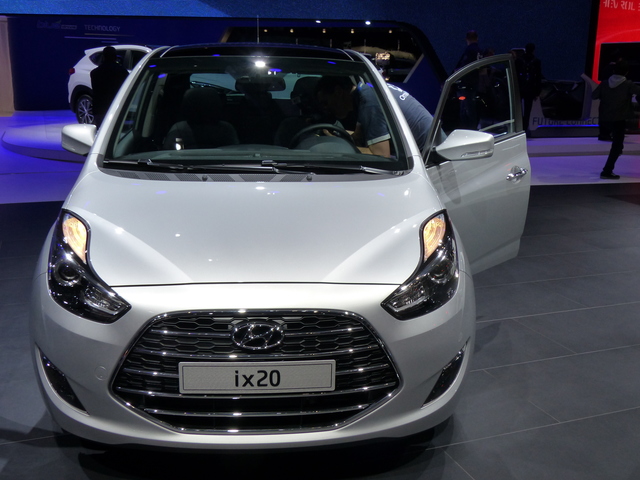

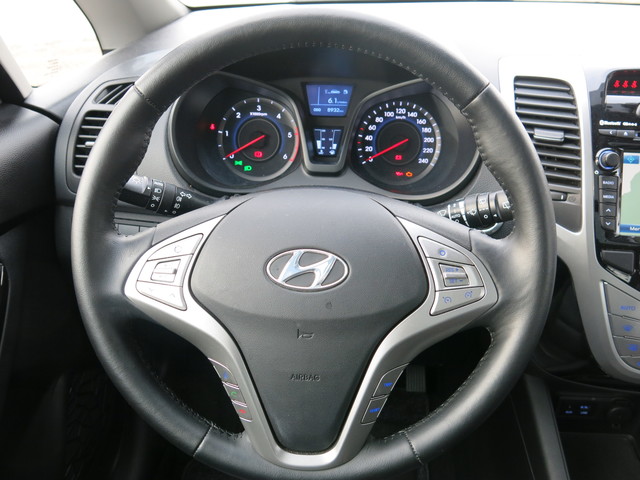

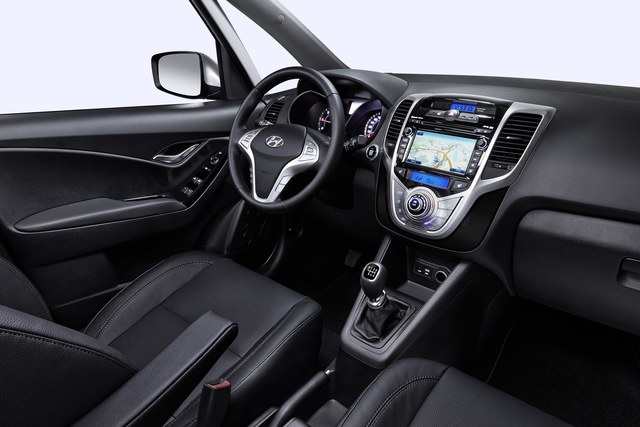

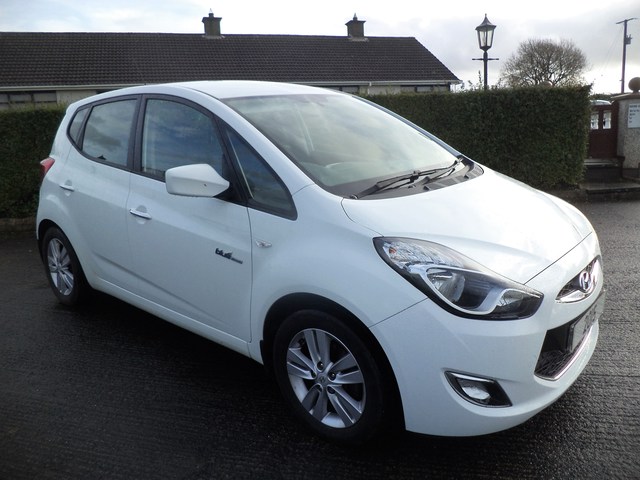

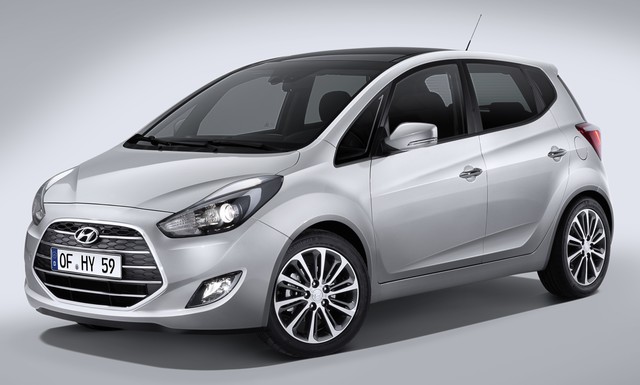

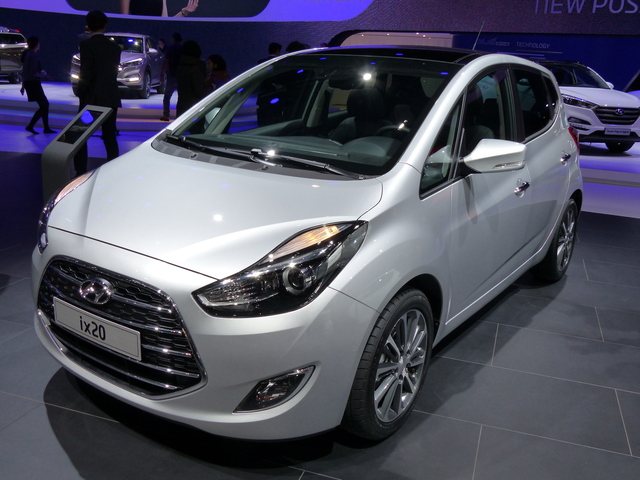

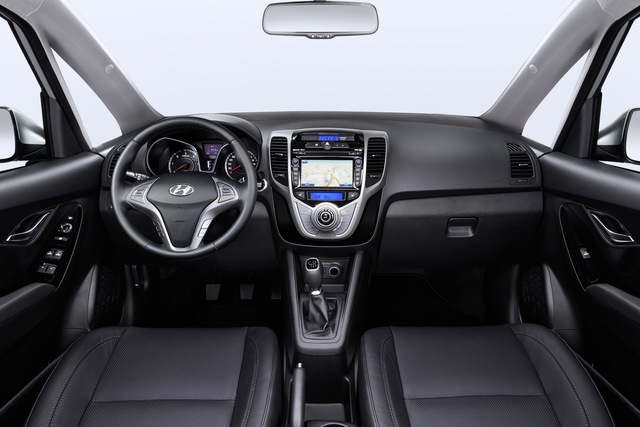

Photo Hyundai ix20

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.4 blue MPI 90 MT 1.6 MPI 125 MT 1.6 blue MPI 125 MT 1.6 MPI 125 AT 1.4 blue CRDI 90 MT 1.6 blue CRDI 116 MT 1.4 MPi (90 HP) 5-Mech 1.6 MPi (125 hp) 6-MP 1.6 MPi (125 hp) 6-car HiVec H-Matic 1.4 CRDI (90 hp) 6-speed manual 1.6 CRDi (128 hp) 6-speed manual

1.4 blue MPI 90 MT 42 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1396
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	90
Torque, Nm	137
RPM at max torque	4000
Engine	1.4 MPi
Compression	10.5
RPM at max power	6000

Dimensions

Seats	5
Length mm	4120
Height mm	1600
Wheelbase mm	2615
Front track, mm	1547
Rear track, mm	1551
Kerb weight, kg	1253
Trunk capacity, L	440
Fuel tank, l	50
Turning circle, m	10.4
Gross weight, kg	1710
Width (without mirrors) mm	1765

Suspension

Type of front suspension	McPherson
Rear suspension	Torsion beam

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.6
Fuel consumption (urban), l. 100 km	5.1
Fuel consumption (combined), l. 100 km	5.6
Acceleration (0-100 km/h), s	12.7
The maximum speed, km / h.	168
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	5
Drive	Front
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	Hyundai
Transmission country of origin	Korea

Equipment

Wheels

Disc diameter	15

1.6 MPI 125 MT 43 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1591
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	125
Torque, Nm	156
RPM at max torque	4200
Engine	1.6 MPi
Compression	11.0
RPM at max power	6300
Engine code	G4FC

Dimensions

Seats	5
Length mm	4120
Height mm	1600
Wheelbase mm	2615
Front track, mm	1547
Rear track, mm	1551
Kerb weight, kg	1255
Trunk capacity, L	440
Fuel tank, l	50
Turning circle, m	10.4
Gross weight, kg	1710
Width (without mirrors) mm	1765

Suspension

Type of front suspension	McPherson
Rear suspension	Torsion beam

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.4
Fuel consumption (urban), l. 100 km	5.7
Fuel consumption (combined), l. 100 km	6.4
Acceleration (0-100 km/h), s	10.8
The maximum speed, km / h.	185
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Hyundai
Transmission country of origin	South Korea

Equipment

Wheels

Disc diameter	17

1.6 blue MPI 125 MT 43 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1591
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	125
Torque, Nm	156
RPM at max torque	4200
Engine	1.6 MPi
Compression	11.0
RPM at max power	6300
Engine code	G4FC

Dimensions

Seats	5
Length mm	4120
Height mm	1600
Wheelbase mm	2615
Front track, mm	1547
Rear track, mm	1551
Kerb weight, kg	1255
Trunk capacity, L	440
Fuel tank, l	50
Turning circle, m	10.4
Gross weight, kg	1710
Width (without mirrors) mm	1765

Suspension

Type of front suspension	McPherson
Rear suspension	Torsion beam

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.4
Fuel consumption (urban), l. 100 km	5.7
Fuel consumption (combined), l. 100 km	6.4
Acceleration (0-100 km/h), s	10.8
The maximum speed, km / h.	185
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Hyundai
Transmission country of origin	South Korea

Equipment

Wheels

Disc diameter	15

1.6 MPI 125 AT 43 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1591
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	125
Torque, Nm	156
RPM at max torque	4200
Engine	1.6 MPi
Compression	11.0
RPM at max power	6300
Engine code	G4FC

Dimensions

Seats	5
Length mm	4120
Height mm	1600
Wheelbase mm	2615
Front track, mm	1547
Rear track, mm	1551
Kerb weight, kg	1297
Trunk capacity, L	440
Fuel tank, l	50
Turning circle, m	10.4
Gross weight, kg	1730
Width (without mirrors) mm	1765

Suspension

Type of front suspension	McPherson
Rear suspension	Torsion beam

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.6
Fuel consumption (urban), l. 100 km	5.2
Fuel consumption (combined), l. 100 km	6.5
Acceleration (0-100 km/h), s	11.5
The maximum speed, km / h.	180
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	6
Drive	Front
Transmission	6-car HiVec H-Matic
Gearbox	Machine
Transmission manufacturer	Hyundai

Equipment

Wheels

Disc diameter	17

1.4 blue CRDI 90 MT 44 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1396
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	90
Torque, Nm	240
RPM at max torque	1500-2500
Engine	1.4 CRDI
Compression	17.0
RPM at max power	4000
Turbo	+
Engine code	D4FC

Dimensions

Seats	5
Length mm	4120
Height mm	1600
Wheelbase mm	2615
Front track, mm	1547
Rear track, mm	1551
Kerb weight, kg	1345
Trunk capacity, L	440
Fuel tank, l	50
Turning circle, m	10.4
Gross weight, kg	1800
Width (without mirrors) mm	1765

Suspension

Type of front suspension	McPherson
Rear suspension	Torsion beam

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	4.9
Fuel consumption (urban), l. 100 km	3.8
Fuel consumption (combined), l. 100 km	4.2
Acceleration (0-100 km/h), s	14.2
The maximum speed, km / h.	167
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Hyundai
Transmission country of origin	South Korea

Equipment

Wheels

Disc diameter	15

1.6 blue CRDI 116 MT 44 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1582
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	128
Torque, Nm	264
RPM at max torque	1900-2750
Engine	1.6 CRDi
Compression	17.3
RPM at max power	4000
Turbo	+
Engine code	D4FB

Dimensions

Seats	5
Length mm	4120
Height mm	1600
Wheelbase mm	2615
Front track, mm	1547
Rear track, mm	1551
Kerb weight, kg	1356
Trunk capacity, L	440
Fuel tank, l	50
Turning circle, m	10.4
Gross weight, kg	1810
Width (without mirrors) mm	1765

Suspension

Type of front suspension	McPherson
Rear suspension	Torsion beam

Brake system

The front brakes	Ventilated disc
Rear brakes	Disk

Steering

Power steering	Electromechanical

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.1
Fuel consumption (urban), l. 100 km	4
Fuel consumption (combined), l. 100 km	4.4
Acceleration (0-100 km/h), s	11.4
The maximum speed, km / h.	183
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Hyundai
Transmission country of origin	South Korea

Equipment

Wheels

Disc diameter	15

1.4 MPi (90 HP) 5-Mech 36 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1396
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	90
Torque, Nm	137
RPM at max torque	4000
Engine	1.4 MPi
Compression	10.5
RPM at max power	6000

Dimensions

Seats	5
Length mm	4120
Height mm	1600
Wheelbase mm	2615
Front track, mm	1547
Rear track, mm	1551
Kerb weight, kg	1345
Trunk capacity, L	440
Fuel tank, l	50
Turning circle, m	10.4
Gross weight, kg	1800
Width (without mirrors) mm	1765

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.6
Fuel consumption (urban), l. 100 km	5.1
Fuel consumption (combined), l. 100 km	5.6
Acceleration (0-100 km/h), s	12.7
The maximum speed, km / h.	168
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	5
Drive	Front
Transmission	5-speed manual
Gearbox	Mechanics
Transmission manufacturer	Hyundai
Transmission country of origin	Korea

1.6 MPi (125 hp) 6-MP 37 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1591
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	125
Torque, Nm	156
RPM at max torque	4200
Engine	1.6 MPi
Compression	11.0
RPM at max power	6300
Engine code	G4FC

Dimensions

Seats	5
Length mm	4120
Height mm	1600
Wheelbase mm	2615
Front track, mm	1547
Rear track, mm	1551
Kerb weight, kg	1345
Trunk capacity, L	440
Fuel tank, l	50
Turning circle, m	10.4
Gross weight, kg	1800
Width (without mirrors) mm	1765

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.4
Fuel consumption (urban), l. 100 km	5.7
Fuel consumption (combined), l. 100 km	6.4
Acceleration (0-100 km/h), s	10.8
The maximum speed, km / h.	185
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Hyundai
Transmission country of origin	South Korea

1.6 MPi (125 hp) 6-car HiVec H-Matic 37 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1591
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	125
Torque, Nm	156
RPM at max torque	4200
Engine	1.6 MPi
Compression	11.0
RPM at max power	6300
Engine code	G4FC

Dimensions

Seats	5
Length mm	4120
Height mm	1600
Wheelbase mm	2615
Front track, mm	1547
Rear track, mm	1551
Kerb weight, kg	1345
Trunk capacity, L	440
Fuel tank, l	50
Turning circle, m	10.4
Gross weight, kg	1800
Width (without mirrors) mm	1765

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.6
Fuel consumption (urban), l. 100 km	5.2
Fuel consumption (combined), l. 100 km	6.5
Acceleration (0-100 km/h), s	11.5
The maximum speed, km / h.	180
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	6
Drive	Front
Transmission	6-car HiVec H-Matic
Gearbox	Machine
Transmission manufacturer	Hyundai

1.4 CRDI (90 hp) 6-speed manual 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1396
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	90
Torque, Nm	240
RPM at max torque	1500-2500
Engine	1.4 CRDI
Compression	17.0
RPM at max power	4000
Turbo	+
Engine code	D4FC

Dimensions

Seats	5
Length mm	4120
Height mm	1600
Wheelbase mm	2615
Front track, mm	1547
Rear track, mm	1551
Kerb weight, kg	1345
Trunk capacity, L	440
Fuel tank, l	50
Turning circle, m	10.4
Gross weight, kg	1800
Width (without mirrors) mm	1765

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	4.9
Fuel consumption (urban), l. 100 km	3.8
Fuel consumption (combined), l. 100 km	4.2
Acceleration (0-100 km/h), s	14.2
The maximum speed, km / h.	167
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Hyundai
Transmission country of origin	South Korea

1.6 CRDi (128 hp) 6-speed manual 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1582
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	128
Torque, Nm	264
RPM at max torque	1900-2750
Engine	1.6 CRDi
Compression	17.3
RPM at max power	4000
Turbo	+
Engine code	D4FB

Dimensions

Seats	5
Length mm	4120
Height mm	1600
Wheelbase mm	2615
Front track, mm	1547
Rear track, mm	1551
Kerb weight, kg	1345
Trunk capacity, L	440
Fuel tank, l	50
Turning circle, m	10.4
Gross weight, kg	1800
Width (without mirrors) mm	1765

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.1
Fuel consumption (urban), l. 100 km	4
Fuel consumption (combined), l. 100 km	4.4
Acceleration (0-100 km/h), s	11.4
The maximum speed, km / h.	183
The rate of toxicity	Euro VI

Transmission and drive

Number of gears	6
Drive	Front
Transmission	6-speed manual
Gearbox	Mechanics
Transmission manufacturer	Hyundai
Transmission country of origin	South Korea

FAQ

Hyundai ix20 questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Hyundai ix20?

This page lists 11 trims for the Hyundai ix20, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Hyundai ix20?

The listed configurations show a power range of 90-128 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Hyundai ix20?

The available specification data shows engine displacement from 1396-1591 cc across the trims listed on this page.

Which transmissions are listed for the Hyundai ix20?

The transmission options currently shown for this model are: 5, 6, 6-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the Hyundai ix20?

Yes. The gallery includes 18 photos for the Hyundai ix20, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
