Hyundai i30 Wagon specifications and photos

Hyundai i30 Wagon specifications are shown with trim options, key technical data, and a model photo gallery. Compare 10 configurations by engine size, power, seating, and transmission. The gallery includes 15 photos for visual reference.

Years 2015 - 2016
Body type wagon
Trims 10
Photos 15

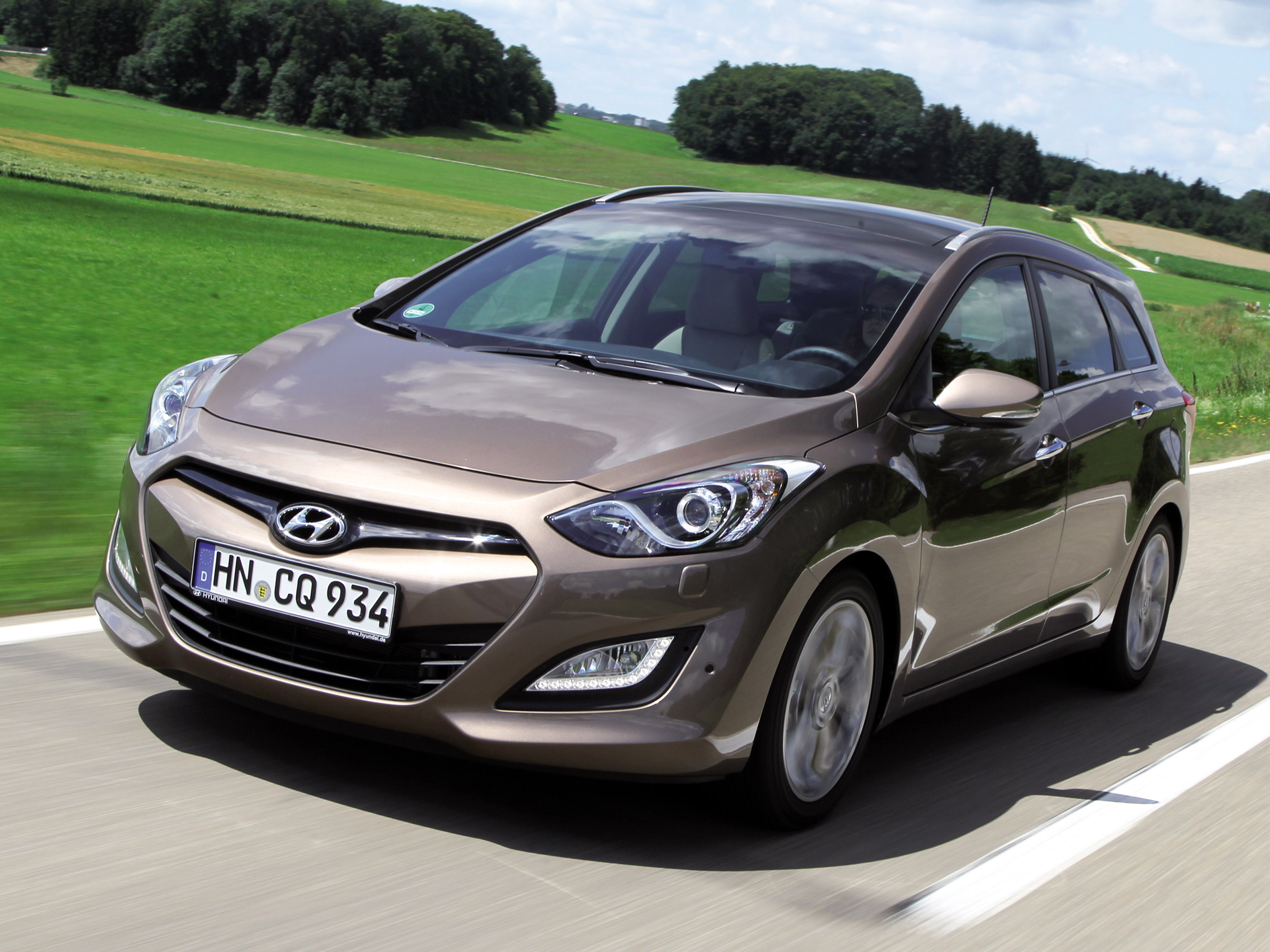

Hyundai i30 Wagon 2015 photo
Overview

Hyundai i30 Wagon at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Hyundai i30 Wagon page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 90-140 hp and 1396-1591 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 90-140 hp
  • Engine displacement: 1396-1591 cc
  • Transmissions: 6, 6-speed automatic, 6-speed manual
  • Seating: 5 seats
Research hub

Photos, trims and specifications for Hyundai i30 Wagon

This model page brings gallery images, trim comparison, and detailed technical data together for the 2015 generation.

Open photo gallery 15 images Compare trims 10 configurations View detailed specs 1396-1591 cc Explore related pages Hyundai and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 90-140 hp
Engine displacement 1396-1591 cc
Seating 5 seats
Transmissions 6, 6-speed automatic, 6-speed manual
Trim / modification Engine Power Seats Transmission
1.4 MPi (100 hp) 6-MPP 1396 cc 100 hp 5 6
1.6 MPi (130 hp) 6-MPP 1591 cc 130 hp 5 6
1.6 MPi (130 hp) 6-speed automatic 1591 cc 130 hp 5 6-speed automatic
1.6 GDI (140 HP) 6-speed manual 1591 cc 140 hp 5 6-speed manual
1.6 GDI (140 hp) 7-DCT 1591 cc 140 hp 5 7
1.4 CRDI (90 hp) 6-speed manual 1396 cc 90 hp 5 6-speed manual
1.6 CRDI (110 hp) 6-speed manual 1582 cc 110 hp 5 6-speed manual
1.6 CRDI (136 hp) 6-speed manual 1582 cc 136 hp 5 6-speed manual
1.6 CRDI (136 hp) 7-DCT 1582 cc 136 hp 5 7
1.6 CRDi (136 hp) 7-DCT 1582 cc 136 hp 5 7

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.4 MPi (100 hp) 6-MPP 1.6 MPi (130 hp) 6-MPP 1.6 MPi (130 hp) 6-speed automatic 1.6 GDI (140 HP) 6-speed manual 1.6 GDI (140 hp) 7-DCT 1.4 CRDI (90 hp) 6-speed manual 1.6 CRDI (110 hp) 6-speed manual 1.6 CRDI (136 hp) 6-speed manual 1.6 CRDI (136 hp) 7-DCT 1.6 CRDi (136 hp) 7-DCT
1.4 MPi (100 hp) 6-MPP 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1396
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 100
Torque, Nm 133
RPM at max torque 4200
Engine 1.4 MPi
Compression 10.5
RPM at max power 5500
Engine code G4FA

Dimensions

Seats 5
Length mm 4485
Height mm 1500
Wheelbase mm 2650
Front track, mm 1563
Rear track, mm 1571
Kerb weight, kg 1203
Trunk capacity, L 528
Fuel tank, l 53
Ground clearance, mm 140
Gross weight, kg 1820
Width (without mirrors) mm 1780

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.8
Fuel consumption (urban), l. 100 km 4.9
Fuel consumption (combined), l. 100 km 6
Acceleration (0-100 km/h), s 13
The maximum speed, km / h. 181
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Hyundai
Transmission country of origin South Korea
1.6 MPi (130 hp) 6-MPP 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1591
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 130
Torque, Nm 155
RPM at max torque 4850
Engine 1.6 MPi
Compression 10.5
RPM at max power 6300
Engine code G4FG

Dimensions

Seats 5
Length mm 4485
Height mm 1500
Wheelbase mm 2650
Front track, mm 1563
Rear track, mm 1571
Kerb weight, kg 1203
Trunk capacity, L 528
Fuel tank, l 53
Ground clearance, mm 140
Gross weight, kg 1820
Width (without mirrors) mm 1780

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.7
Fuel consumption (urban), l. 100 km 5.4
Fuel consumption (combined), l. 100 km 6.6
Acceleration (0-100 km/h), s 11.2
The maximum speed, km / h. 190
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Hyundai
Transmission country of origin South Korea
1.6 MPi (130 hp) 6-speed automatic 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1591
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 130
Torque, Nm 155
RPM at max torque 4850
Engine 1.6 MPi
Compression 10.5
RPM at max power 6300
Engine code G4FG

Dimensions

Seats 5
Length mm 4485
Height mm 1500
Wheelbase mm 2650
Front track, mm 1563
Rear track, mm 1571
Kerb weight, kg 1203
Trunk capacity, L 528
Fuel tank, l 53
Ground clearance, mm 140
Gross weight, kg 1820
Width (without mirrors) mm 1780

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 9
Fuel consumption (urban), l. 100 km 5.5
Fuel consumption (combined), l. 100 km 6.8
Acceleration (0-100 km/h), s 12.3
The maximum speed, km / h. 190
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-speed automatic
Gearbox Machine
Transmission manufacturer Hyundai
1.6 GDI (140 HP) 6-speed manual 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1591
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 167
RPM at max torque 4850
Engine 1.6 GDI
Compression 11
RPM at max power 6300
Engine code G4FD

Dimensions

Seats 5
Length mm 4485
Height mm 1500
Wheelbase mm 2650
Front track, mm 1563
Rear track, mm 1571
Kerb weight, kg 1203
Trunk capacity, L 528
Fuel tank, l 53
Ground clearance, mm 140
Gross weight, kg 1820
Width (without mirrors) mm 1780

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 8.1
Fuel consumption (urban), l. 100 km 5.1
Fuel consumption (combined), l. 100 km 6.2
Acceleration (0-100 km/h), s 10.2
The maximum speed, km / h. 192
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Hyundai
Transmission country of origin South Korea
1.6 GDI (140 hp) 7-DCT 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1591
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 140
Torque, Nm 167
RPM at max torque 4850
Engine 1.6 GDI
Compression 11
RPM at max power 6300
Engine code G4FD

Dimensions

Seats 5
Length mm 4485
Height mm 1500
Wheelbase mm 2650
Front track, mm 1563
Rear track, mm 1571
Kerb weight, kg 1203
Trunk capacity, L 528
Fuel tank, l 53
Ground clearance, mm 140
Gross weight, kg 1820
Width (without mirrors) mm 1780

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7.5
Fuel consumption (urban), l. 100 km 4.8
Fuel consumption (combined), l. 100 km 5.8
Acceleration (0-100 km/h), s 11
The maximum speed, km / h. 193
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
1.4 CRDI (90 hp) 6-speed manual 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1396
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 90
Torque, Nm 240
RPM at max torque 1500-2500
Engine 1.4 CRDI
Compression 17.0
RPM at max power 4000
Turbo +
Engine code D4FC

Dimensions

Seats 5
Length mm 4485
Height mm 1500
Wheelbase mm 2650
Front track, mm 1563
Rear track, mm 1571
Kerb weight, kg 1203
Trunk capacity, L 528
Fuel tank, l 53
Ground clearance, mm 140
Gross weight, kg 1820
Width (without mirrors) mm 1780

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.1
Fuel consumption (urban), l. 100 km 3.7
Fuel consumption (combined), l. 100 km 4.2
Acceleration (0-100 km/h), s 13.9
The maximum speed, km / h. 172
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Hyundai
Transmission country of origin South Korea
1.6 CRDI (110 hp) 6-speed manual 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1582
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 110
Torque, Nm 280
RPM at max torque 1500-3000
Engine 1.6 CRDI
Compression 17.3
RPM at max power 4000
Turbo +

Dimensions

Seats 5
Length mm 4485
Height mm 1500
Wheelbase mm 2650
Front track, mm 1563
Rear track, mm 1571
Kerb weight, kg 1203
Trunk capacity, L 528
Fuel tank, l 53
Ground clearance, mm 140
Gross weight, kg 1820
Width (without mirrors) mm 1780

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.7
Fuel consumption (urban), l. 100 km 3.6
Fuel consumption (combined), l. 100 km 4
Acceleration (0-100 km/h), s 11.5
The maximum speed, km / h. 188
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Hyundai
Transmission country of origin South Korea
1.6 CRDI (136 hp) 6-speed manual 38 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1582
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 136
Torque, Nm 280
RPM at max torque 1500-3000
Engine 1.6 CRDI
Compression 17.3
RPM at max power 4000
Turbo +
Engine code D4FB

Dimensions

Seats 5
Length mm 4485
Height mm 1500
Wheelbase mm 2650
Front track, mm 1563
Rear track, mm 1571
Kerb weight, kg 1203
Trunk capacity, L 528
Fuel tank, l 53
Ground clearance, mm 140
Gross weight, kg 1820
Width (without mirrors) mm 1780

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.7
Fuel consumption (urban), l. 100 km 3.6
Fuel consumption (combined), l. 100 km 4
Acceleration (0-100 km/h), s 10.5
The maximum speed, km / h. 194
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Hyundai
Transmission country of origin South Korea
1.6 CRDI (136 hp) 7-DCT 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1582
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 136
Torque, Nm 300
RPM at max torque 1750-2500
Engine 1.6 CRDI
Compression 17.3
RPM at max power 4000
Turbo +

Dimensions

Seats 5
Length mm 4485
Height mm 1500
Wheelbase mm 2650
Front track, mm 1563
Rear track, mm 1571
Kerb weight, kg 1203
Trunk capacity, L 528
Fuel tank, l 53
Ground clearance, mm 140
Gross weight, kg 1820
Width (without mirrors) mm 1780

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.1
Fuel consumption (urban), l. 100 km 4
Fuel consumption (combined), l. 100 km 4.4
Acceleration (0-100 km/h), s 12.2
The maximum speed, km / h. 185
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
1.6 CRDi (136 hp) 7-DCT 37 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1582
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 136
Torque, Nm 306
RPM at max torque 1750-2500
Engine 1.6 CRDi
Compression 17.3
RPM at max power 4000
Turbo +
Engine code D4FB

Dimensions

Seats 5
Length mm 4485
Height mm 1500
Wheelbase mm 2650
Front track, mm 1563
Rear track, mm 1571
Kerb weight, kg 1203
Trunk capacity, L 528
Fuel tank, l 53
Ground clearance, mm 140
Gross weight, kg 1820
Width (without mirrors) mm 1780

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 5.1
Fuel consumption (urban), l. 100 km 4
Fuel consumption (combined), l. 100 km 4.4
Acceleration (0-100 km/h), s 10.9
The maximum speed, km / h. 197
The rate of toxicity Euro VI

Transmission and drive

Automatic transmission +
Number of gears 7
Drive Front
Transmission 7-speed dual-clutch
Gearbox 2 clutch robot
FAQ

Hyundai i30 Wagon questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Hyundai i30 Wagon?

This page lists 10 trims for the Hyundai i30 Wagon, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Hyundai i30 Wagon?

The listed configurations show a power range of 90-140 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Hyundai i30 Wagon?

The available specification data shows engine displacement from 1396-1591 cc across the trims listed on this page.

Which transmissions are listed for the Hyundai i30 Wagon?

The transmission options currently shown for this model are: 6, 6-speed automatic, 6-speed manual. Open a trim section to see the full data for a specific configuration.

Are there photos for the Hyundai i30 Wagon?

Yes. The gallery includes 15 photos for the Hyundai i30 Wagon, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
