Jaguar XF Sportbrake specifications and photos
Jaguar XF Sportbrake specifications are shown with trim options, key technical data, and a model photo gallery. Compare 7 configurations by engine size, power, seating, and transmission. The gallery includes 26 photos for visual reference.
Years
2017
Body type
wagon
Trims
7
Photos
26
Overview
Jaguar XF Sportbrake at a glance
Quick model context before comparing photos and trim-level specifications.
Use this Jaguar XF Sportbrake page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 163-300 hp and 1998-2993 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.
- Power: 163-300 hp
- Engine displacement: 1998-2993 cc
- Transmissions: 8, 6
- Seating: 5 seats
Research hub
Photos, trims and specifications for Jaguar XF Sportbrake
This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.
Configurations
Trims and key specifications
Use this table to compare the main differences between available configurations.
Power
163-300 hp
Engine displacement
1998-2993 cc
Seating
5 seats
Transmissions
8, 6
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 25t | 1998 cc | 250 hp | 5 | 8 |
| E-Perfomance | 1999 cc | 163 hp | 5 | 6 |
| E-Perfomance | 1999 cc | 163 hp | 5 | 8 |
| 20d | 1999 cc | 180 hp | 5 | 8 |
| 20d | 1999 cc | 180 hp | 5 | 8 |
| 25d | 1999 cc | 240 hp | 5 | 8 |
| 30d | 2993 cc | 300 hp | 5 | 8 |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

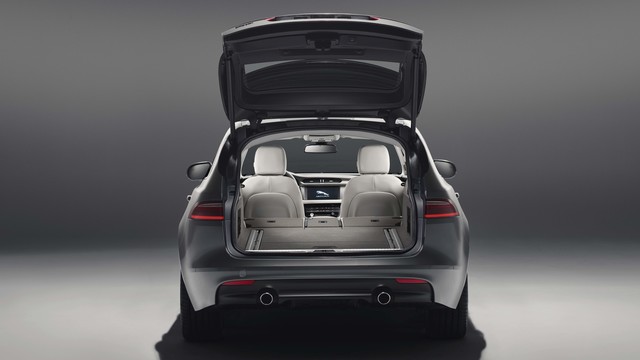

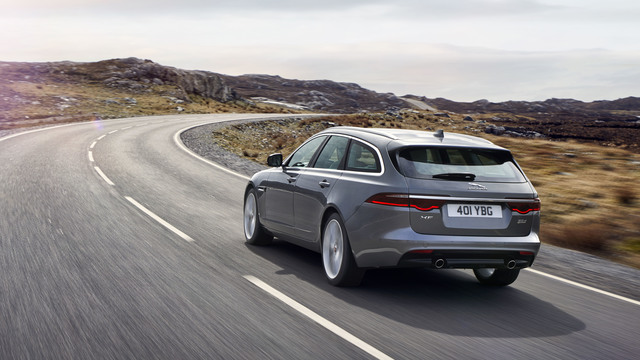

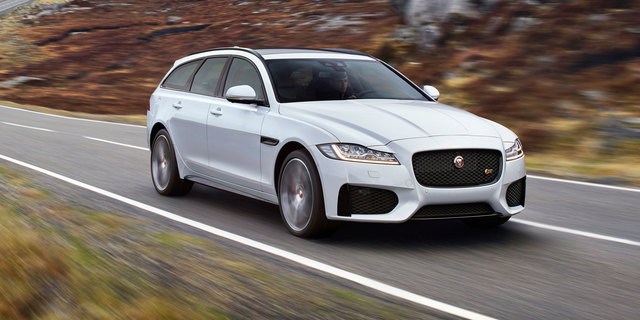

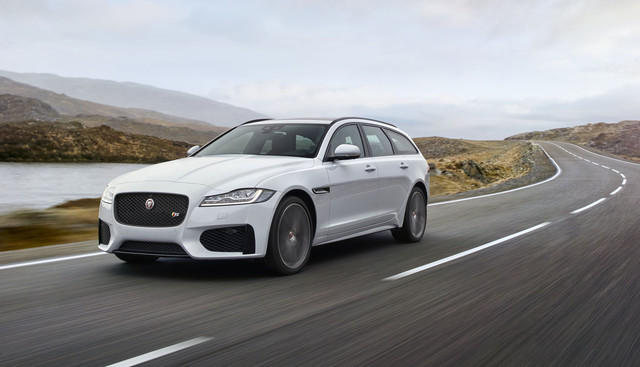

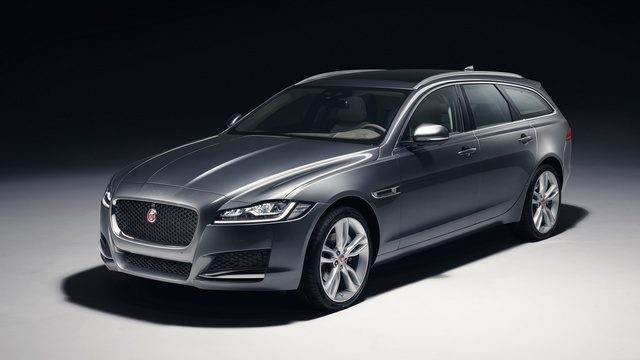

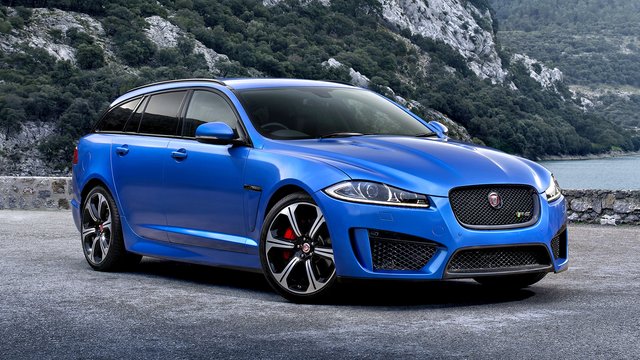

Gallery
Jaguar XF Sportbrake photo gallery
26 images are collected here with the main specifications and trim data for this model.
Photo Jaguar XF Sportbrake
Detailed specs
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
25t 38 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Gasoline |
| Displacement, cc | 1998 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 250 |
| Torque, Nm | 365 |
| RPM at max torque | 1200 |
| Engine | 2.0i |
| RPM at max power | 5500 |
| Turbo | + |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4955 |
| Width | 2091 |
| Height mm | 1496 |
| Wheelbase mm | 2960 |
| Front track, mm | 1597 |
| Rear track, mm | 1599 |
| Kerb weight, kg | 1770 |
| Trunk capacity, L | 565 |
| Fuel tank, l | 66 |
| Turning circle, m | 11.6 |
| Ground clearance, mm | 116 |
| Gross weight, kg | 2375 |
| Width (without mirrors) mm | 1987 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 8.5 |
|---|---|
| Fuel consumption (urban), l. 100 km | 5.9 |
| Fuel consumption (combined), l. 100 km | 6.8 |
| Acceleration (0-100 km/h), s | 7.1 |
| The maximum speed, km / h. | 241 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Rear |
| Transmission | 8-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | ZF |
| Transmission country of origin | Germany |
E-Perfomance 36 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 1999 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 163 |
| Torque, Nm | 380 |
| RPM at max torque | 1750-2500 |
| Engine | 2.0d |
| Compression | 15.5 |
| RPM at max power | 4000 |
| Turbo | + |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4955 |
| Width | 2091 |
| Height mm | 1496 |
| Wheelbase mm | 2960 |
| Front track, mm | 1597 |
| Rear track, mm | 1599 |
| Kerb weight, kg | 1770 |
| Trunk capacity, L | 565 |
| Fuel tank, l | 66 |
| Turning circle, m | 11.6 |
| Ground clearance, mm | 116 |
| Gross weight, kg | 2375 |
| Width (without mirrors) mm | 1987 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 5.6 |
|---|---|
| Fuel consumption (urban), l. 100 km | 3.9 |
| Fuel consumption (combined), l. 100 km | 4.5 |
| Acceleration (0-100 km/h), s | 9.3 |
| The maximum speed, km / h. | 219 |
Transmission and drive
| Number of gears | 6 |
|---|---|
| Drive | Rear |
| Transmission | 6-speed manual |
| Gearbox | Mechanics |
E-Perfomance 39 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 1999 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 163 |
| Torque, Nm | 380 |
| RPM at max torque | 1750-2500 |
| Engine | 2.0d |
| Compression | 15.5 |
| RPM at max power | 4000 |
| Turbo | + |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4955 |
| Width | 2091 |
| Height mm | 1496 |
| Wheelbase mm | 2960 |
| Front track, mm | 1597 |
| Rear track, mm | 1599 |
| Kerb weight, kg | 1770 |
| Trunk capacity, L | 565 |
| Fuel tank, l | 66 |
| Turning circle, m | 11.6 |
| Ground clearance, mm | 116 |
| Gross weight, kg | 2375 |
| Width (without mirrors) mm | 1987 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 5.7 |
|---|---|
| Fuel consumption (urban), l. 100 km | 3.8 |
| Fuel consumption (combined), l. 100 km | 4.5 |
| Acceleration (0-100 km/h), s | 9.4 |
| The maximum speed, km / h. | 219 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Rear |
| Transmission | 8-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | ZF |
| Transmission country of origin | Germany |
20d 38 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 1999 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 180 |
| Torque, Nm | 430 |
| RPM at max torque | 1500 |
| Engine | 2.0 TD4 |
| RPM at max power | 4000 |
| Turbo | + |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4955 |
| Width | 2091 |
| Height mm | 1496 |
| Wheelbase mm | 2960 |
| Front track, mm | 1597 |
| Rear track, mm | 1599 |
| Kerb weight, kg | 1770 |
| Trunk capacity, L | 565 |
| Fuel tank, l | 66 |
| Turning circle, m | 11.6 |
| Ground clearance, mm | 116 |
| Gross weight, kg | 2375 |
| Width (without mirrors) mm | 1987 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 5.5 |
|---|---|
| Fuel consumption (urban), l. 100 km | 4.1 |
| Fuel consumption (combined), l. 100 km | 4.6 |
| Acceleration (0-100 km/h), s | 8.8 |
| The maximum speed, km / h. | 221 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Rear |
| Transmission | 8-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | ZF |
| Transmission country of origin | Germany |
20d 38 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 1999 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 180 |
| Torque, Nm | 430 |
| RPM at max torque | 1500 |
| Engine | 2.0 TD4 |
| RPM at max power | 4000 |
| Turbo | + |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4955 |
| Width | 2091 |
| Height mm | 1496 |
| Wheelbase mm | 2960 |
| Front track, mm | 1597 |
| Rear track, mm | 1599 |
| Kerb weight, kg | 1770 |
| Trunk capacity, L | 565 |
| Fuel tank, l | 66 |
| Turning circle, m | 11.6 |
| Ground clearance, mm | 116 |
| Gross weight, kg | 2375 |
| Width (without mirrors) mm | 1987 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 5.8 |
|---|---|
| Fuel consumption (urban), l. 100 km | 4.6 |
| Fuel consumption (combined), l. 100 km | 5 |
| Acceleration (0-100 km/h), s | 8.9 |
| The maximum speed, km / h. | 219 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Full |
| Transmission | 8-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | ZF |
| Transmission country of origin | Germany |
25d 38 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 1999 |
| Cylinders location | In-line |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 240 |
| Torque, Nm | 500 |
| RPM at max torque | 1500 |
| Engine | 2.0 SD4 |
| Compression | 15.5 |
| RPM at max power | 4000 |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4955 |
| Width | 2091 |
| Height mm | 1496 |
| Wheelbase mm | 2960 |
| Front track, mm | 1597 |
| Rear track, mm | 1599 |
| Kerb weight, kg | 1770 |
| Trunk capacity, L | 565 |
| Fuel tank, l | 66 |
| Turning circle, m | 11.6 |
| Ground clearance, mm | 116 |
| Gross weight, kg | 2375 |
| Width (without mirrors) mm | 1987 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 7.5 |
|---|---|
| Fuel consumption (urban), l. 100 km | 4.8 |
| Fuel consumption (combined), l. 100 km | 5.8 |
| Acceleration (0-100 km/h), s | 6.7 |
| The maximum speed, km / h. | 241 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Full |
| Transmission | 8-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | ZF |
| Transmission country of origin | Germany |
30d 38 specifications
Specifications
Engine
| Type of engine | ICE |
|---|---|
| Type of fuel | Diesel |
| Displacement, cc | 2993 |
| Cylinders location | V-shaped |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 300 |
| Torque, Nm | 700 |
| RPM at max torque | 1500 |
| Engine | 3.0 SDV6 |
| RPM at max power | 400 |
| Turbo | + |
Dimensions
| Seats | 5 |
|---|---|
| Length mm | 4955 |
| Width | 2091 |
| Height mm | 1496 |
| Wheelbase mm | 2960 |
| Front track, mm | 1597 |
| Rear track, mm | 1599 |
| Kerb weight, kg | 1770 |
| Trunk capacity, L | 565 |
| Fuel tank, l | 66 |
| Turning circle, m | 11.6 |
| Ground clearance, mm | 116 |
| Gross weight, kg | 2375 |
| Width (without mirrors) mm | 1987 |
Performance and fuel consumption
| Fuel consumption (urban cycle), l. 100 km | 6.7 |
|---|---|
| Fuel consumption (urban), l. 100 km | 5.1 |
| Fuel consumption (combined), l. 100 km | 5.7 |
| Acceleration (0-100 km/h), s | 6.6 |
| The maximum speed, km / h. | 250 |
Transmission and drive
| Automatic transmission | + |
|---|---|
| Number of gears | 8 |
| Drive | Rear |
| Transmission | 8-speed automatic |
| Gearbox | Machine |
| Transmission manufacturer | ZF |
| Transmission country of origin | Germany |
FAQ
Jaguar XF Sportbrake questions
Short answers based on the specifications and photos available in this catalog.
How many trims are listed for the Jaguar XF Sportbrake?
This page lists 7 trims for the Jaguar XF Sportbrake, with key data shown in the comparison table and full specifications grouped below.
What is the power range for the Jaguar XF Sportbrake?
The listed configurations show a power range of 163-300 hp. Exact output can vary by engine, transmission, market, and model year.
What engine displacement is shown for the Jaguar XF Sportbrake?
The available specification data shows engine displacement from 1998-2993 cc across the trims listed on this page.
Which transmissions are listed for the Jaguar XF Sportbrake?
The transmission options currently shown for this model are: 8, 6. Open a trim section to see the full data for a specific configuration.
Are there photos for the Jaguar XF Sportbrake?
Yes. The gallery includes 26 photos for the Jaguar XF Sportbrake, including exterior and interior views where available.
Why can specifications differ for the same model?
Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
