KIA Stonic specifications and photos

KIA Stonic specifications are shown with trim options, key technical data, and a model photo gallery. Compare 7 configurations by engine size, power, seating, and transmission. The gallery includes 23 photos for visual reference.

Years 2017
Body type suv
Trims 7
Photos 23

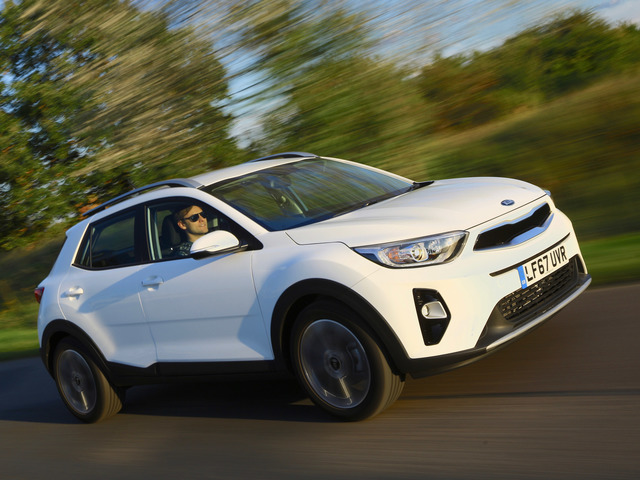

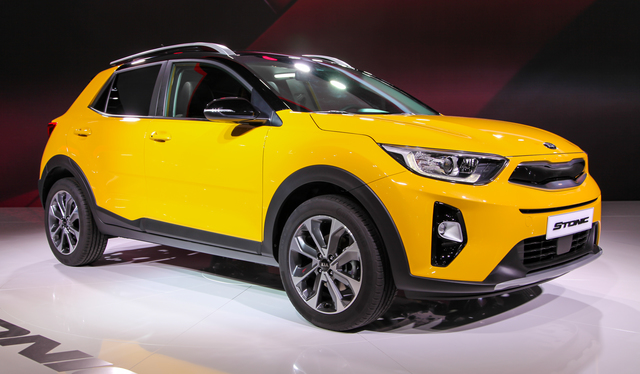

KIA Stonic 2017 photo
Overview

KIA Stonic at a glance

Quick model context before comparing photos and trim-level specifications.

Use this KIA Stonic page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 84-120 hp and 998-1582 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

  • Power: 84-120 hp
  • Engine displacement: 998-1582 cc
  • Transmissions: 6, 5, 6-speed manual
  • Seating: 5 seats
Research hub

Photos, trims and specifications for KIA Stonic

This model page brings gallery images, trim comparison, and detailed technical data together for the 2017 generation.

Open photo gallery 23 images Compare trims 7 configurations View detailed specs 998-1582 cc Explore related pages KIA and similar models
Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 84-120 hp
Engine displacement 998-1582 cc
Seating 5 seats
Transmissions 6, 5, 6-speed manual
Trim / modification Engine Power Seats Transmission
1.4 AT Business 1368 cc 100 hp 5 6
1.4 AT Prestige 1368 cc 100 hp 5 6
1.2 MPi (84 hp) 5-MPP 1248 cc 84 hp 5 5
1.4 MPi (100 HP) 6-Mech 1368 cc 100 hp 5 6
1.4 MPi (100 hp) 6-auto H-matic 1368 cc 100 hp 5 6
1.0 T-GDI (120 hp) 6-speed manual 998 cc 120 hp 5 6-speed manual
1.6 CRDi (110 h.p.) 6-speed manual 1582 cc 110 hp 5 6-speed manual

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

1.4 AT Business 1.4 AT Prestige 1.2 MPi (84 hp) 5-MPP 1.4 MPi (100 HP) 6-Mech 1.4 MPi (100 hp) 6-auto H-matic 1.0 T-GDI (120 hp) 6-speed manual 1.6 CRDi (110 h.p.) 6-speed manual
1.4 AT Business 78 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1368
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 100
Torque, Nm 134
RPM at max torque 4000
Engine 1.4 MPi
RPM at max power 6000
Engine code G4LC

Dimensions

Seats 5
Width 1760
Height mm 1520
Wheelbase mm 2580
Front track, mm 1532
Rear track, mm 1539
Trunk capacity, L 332
Fuel tank, l 45
Turning circle, m 10.4
Ground clearance, mm 165

Suspension

Type of front suspension McPherson with anti-roll bar
Rear suspension CTBA - semi-independent spring, torsion type, with telescopic hydraulic shock absorbers

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Steering

Power steering Electric power

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-car H-matic
Gearbox Machine
Transmission manufacturer Kia Motors

Equipment

Comfort

Cruise Control +
Tyre pressure monitoring +
Adjustable steering column +

Interior

On-board computer +
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +

Wheels

Disc diameter 15
Rim type Alloy
Tires 185/65R15
Spare wheel Dokatka

Cabin climate and noise insulation

Heated front seats +
Heated steering wheel +
Air Conditioning +
The supply of warm air to the feet of the rear passengers +

Glass, mirrors and sunroof

Front power windows +
Heated side mirrors +
Heated rear window +
Power mirrors +
Rear electric windows +
Electric folding mirrors +
AERO-windshield wipers +

Multimedia and instruments

Steering wheel controls +
Touch Screen +
AUX +
Bluetooth hands free +
USB +
Number of speakers 4

Headlights and lighting

Front fog lights +
Light sensor +
Rear fog lights +
Daylight (halogen headlights) +

Seats

height-adjustable driver's seat +
The back of the rear seat folds 60/40 +

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA) +

Trunk

Highlighting the trunk +

Exterior

Rear spoiler +
Fenders +
Roof rails +

Body and exterior paint

Exterior mirrors in body color +

Security

Electronic systems

Anti-lock braking system (ABS) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +

Anti-theft systems

alarm +
Central locking with remote control +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
1.4 AT Prestige 82 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1368
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 100
Torque, Nm 134
RPM at max torque 4000
Engine 1.4 MPi
RPM at max power 6000
Engine code G4LC

Dimensions

Seats 5
Width 1760
Height mm 1520
Wheelbase mm 2580
Front track, mm 1532
Rear track, mm 1539
Trunk capacity, L 332
Fuel tank, l 45
Turning circle, m 10.4
Ground clearance, mm 165

Suspension

Type of front suspension McPherson with anti-roll bar
Rear suspension CTBA - semi-independent spring, torsion type, with telescopic hydraulic shock absorbers

Brake system

The front brakes Ventilated disc
Rear brakes Disk

Steering

Power steering Electric power

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-car H-matic
Gearbox Machine
Transmission manufacturer Kia Motors

Equipment

Comfort

Cruise Control +
Tyre pressure monitoring +
Adjustable steering column +

Interior

On-board computer +
Decoration Leather interior elements (leather steering wheel, gearshift lever, etc.) +

Wheels

Disc diameter 17
Rim type Alloy
Tires 205/55R17
Spare wheel Dokatka

Cabin climate and noise insulation

Heated front seats +
Heated steering wheel +
Air Conditioning +
The supply of warm air to the feet of the rear passengers +

Glass, mirrors and sunroof

Front power windows +
Heated side mirrors +
Heated rear window +
Power mirrors +
Rear electric windows +
Electric folding mirrors +
Tinted glass +
AERO-windshield wipers +

Multimedia and instruments

Steering wheel controls +
Navigation system +
Touch Screen +
AUX +
Bluetooth hands free +
USB +
Number of speakers 4

Headlights and lighting

Front fog lights +
Light sensor +
Rear fog lights +
Rear LED lights +
Daylight (halogen headlights) +

Seats

height-adjustable driver's seat +
The back of the rear seat folds 60/40 +

Visibility and parking

Rear View Camera +

Off-road

aid climbing the hill (HAC; HSA; Hill Holder; HLA) +

Trunk

Highlighting the trunk +

Exterior

Rear spoiler +
Fenders +
Roof rails +

Body and exterior paint

Exterior mirrors in body color +

Security

Electronic systems

Anti-lock braking system (ABS) +
Vehicle Stability Control (ESP, DSC, ESC, VSC) +

Anti-theft systems

alarm +
Central locking with remote control +

Airbags

Driver's airbag +
Passenger Airbag +
Side airbags +
1.2 MPi (84 hp) 5-MPP 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1248
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 84
Torque, Nm 122
RPM at max torque 4000
Engine 1.2 MPi
Compression 10.5
RPM at max power 6000
Engine code G4LA

Dimensions

Seats 5
Length mm 4140
Width 1760
Height mm 1520
Wheelbase mm 2580
Front track, mm 1532
Rear track, mm 1539
Trunk capacity, L 332
Fuel tank, l 45
Turning circle, m 10.4
Ground clearance, mm 165

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6.4
Fuel consumption (urban), l. 100 km 4.6
Fuel consumption (combined), l. 100 km 5.2
Acceleration (0-100 km/h), s 13.2
The maximum speed, km / h. 165
The rate of toxicity Euro VI

Transmission and drive

Number of gears 5
Drive Front
Transmission 5-speed manual
Gearbox Mechanics
Transmission manufacturer Hyundai-KIA
Transmission country of origin South Korea
1.4 MPi (100 HP) 6-Mech 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1368
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 100
Torque, Nm 134
RPM at max torque 4000
Engine 1.4 MPi
RPM at max power 6000
Engine code G4LC

Dimensions

Seats 5
Length mm 4140
Width 1760
Height mm 1520
Wheelbase mm 2580
Front track, mm 1532
Rear track, mm 1539
Trunk capacity, L 332
Fuel tank, l 45
Turning circle, m 10.4
Ground clearance, mm 165

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 7
Fuel consumption (urban), l. 100 km 4.6
Fuel consumption (combined), l. 100 km 5.5
Acceleration (0-100 km/h), s 12.6
The maximum speed, km / h. 172
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Kia Motors
1.4 MPi (100 hp) 6-auto H-matic 29 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 1368
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 100
Torque, Nm 134
RPM at max torque 4000
Engine 1.4 MPi
RPM at max power 6000
Engine code G4LC

Dimensions

Seats 5
Length mm 4140
Width 1760
Height mm 1520
Wheelbase mm 2580
Front track, mm 1532
Rear track, mm 1539
Trunk capacity, L 332
Fuel tank, l 45
Turning circle, m 10.4
Ground clearance, mm 165

Transmission and drive

Automatic transmission +
Number of gears 6
Drive Front
Transmission 6-car H-matic
Gearbox Machine
Transmission manufacturer Kia Motors
1.0 T-GDI (120 hp) 6-speed manual 36 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Gasoline
Displacement, cc 998
Cylinders location In-line
Number of cylinders 3
Valves 12
Power, hp 120
Torque, Nm 172
RPM at max torque 1500-4000
Engine 1.0 T-GDI
Compression 10.0
RPM at max power 6000
Turbo +
Engine code G3LC

Dimensions

Seats 5
Length mm 4140
Width 1760
Height mm 1520
Wheelbase mm 2580
Front track, mm 1532
Rear track, mm 1539
Trunk capacity, L 332
Fuel tank, l 45
Turning circle, m 10.4
Ground clearance, mm 165

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 6
Fuel consumption (urban), l. 100 km 4.5
Fuel consumption (combined), l. 100 km 5
Acceleration (0-100 km/h), s 10.3
The maximum speed, km / h. 185
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Kia Motors
1.6 CRDi (110 h.p.) 6-speed manual 34 specifications

Specifications

Engine

Type of engine ICE
Type of fuel Diesel
Displacement, cc 1582
Cylinders location In-line
Number of cylinders 4
Valves 16
Power, hp 110
Torque, Nm 260
RPM at max torque 1500-2750
Engine 1.6 CRDi
RPM at max power 4000
Turbo +

Dimensions

Seats 5
Length mm 4140
Width 1760
Height mm 1520
Wheelbase mm 2580
Front track, mm 1532
Rear track, mm 1539
Trunk capacity, L 332
Fuel tank, l 45
Turning circle, m 10.4
Ground clearance, mm 165

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km 4.9
Fuel consumption (urban), l. 100 km 3.8
Fuel consumption (combined), l. 100 km 4.2
Acceleration (0-100 km/h), s 11.3
The maximum speed, km / h. 180
The rate of toxicity Euro VI

Transmission and drive

Number of gears 6
Drive Front
Transmission 6-speed manual
Gearbox Mechanics
Transmission manufacturer Kia Motors
FAQ

KIA Stonic questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the KIA Stonic?

This page lists 7 trims for the KIA Stonic, with key data shown in the comparison table and full specifications grouped below.

What is the power range for the KIA Stonic?

The listed configurations show a power range of 84-120 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the KIA Stonic?

The available specification data shows engine displacement from 998-1582 cc across the trims listed on this page.

Which transmissions are listed for the KIA Stonic?

The transmission options currently shown for this model are: 6, 5, 6-speed manual. Open a trim section to see the full data for a specific configuration.

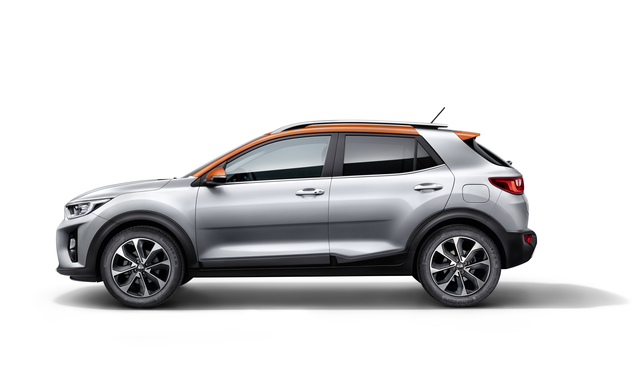

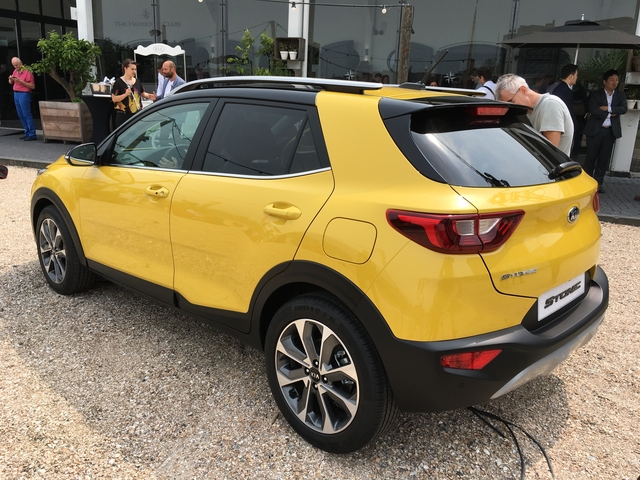

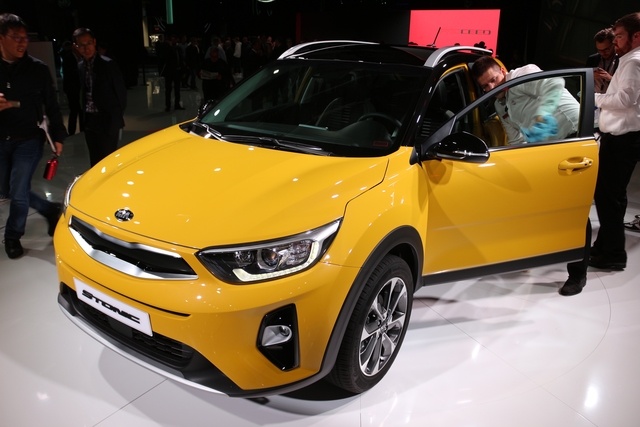

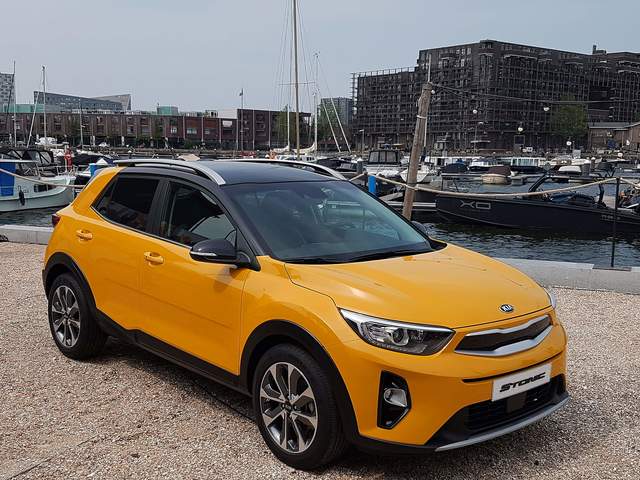

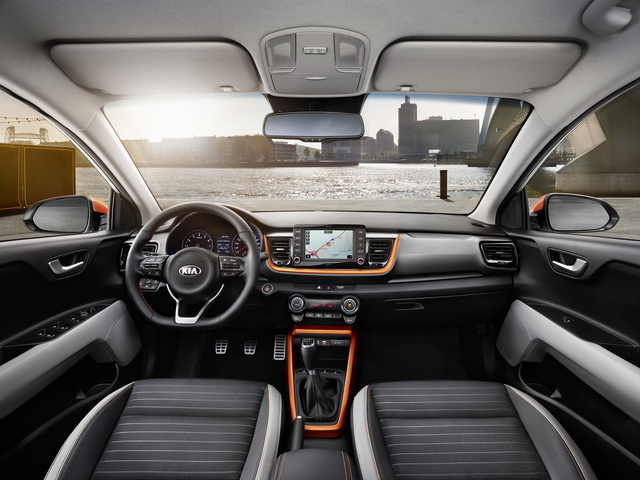

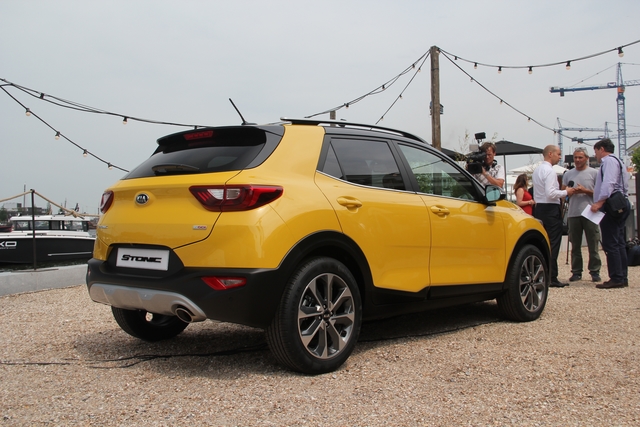

Are there photos for the KIA Stonic?

Yes. The gallery includes 23 photos for the KIA Stonic, including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
