Mazda CX-90 specifications and photos
The 2023 Mazda CX-90 is a full-size, three-row SUV introduced to replace the outgoing CX-9. Serving as the brand's flagship, it rides on an all-new platform and pushes Mazda further into the premium vehicle segment.
Mazda CX-90 at a glance
Quick model context before comparing photos and trim-level specifications.
Revealed in early 2023, the Mazda CX-90 represents a significant shift for the automaker. It is built on a new longitudinal engine architecture with a rear-wheel-drive bias, moving the brand decidedly upmarket. Measuring over five meters in length and nearly two meters wide, it offers a more substantial presence than its predecessors. The CX-90 is designed to accommodate large families while delivering a more engaging driving experience, characteristic of the brand. With its introduction, Mazda aims to compete directly with established luxury SUVs, offering high-end materials, advanced technology, and a focus on sophisticated design and driving dynamics.
- Power: 345 hp
- Engine displacement: 3283 cc
- Transmissions: 8-speed automatic
- Seating: 6-7 seats
Photos, trims and specifications for Mazda CX-90
This model page brings gallery images, trim comparison, and detailed technical data together for the 2023 generation.
Estimate fuel cost
Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.
Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.
Mazda CX-90 overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The exterior design maintains Mazda's signature styling language while adapting it to a larger scale. The CX-90 features a prominent, wide grille and an elongated hood that emphasizes its rear-wheel-drive architecture. Modern styling cues include compact LED headlights and slim taillights that stretch across the rear. The vehicle's substantial dimensions, measuring 5,120 mm in length with a 3,120 mm wheelbase, give it a commanding stance, which is further enhanced by available 21-inch alloy wheels. The overall look is clean, well-proportioned, and intentionally upscale.
Interior
Inside, the CX-90 focuses on a premium experience, offering seating configurations for up to eight passengers depending on the market and trim. High-level trims feature upscale materials such as Nappa leather, wood, and chrome accents. The cabin is centered around a 12.3-inch touchscreen infotainment display and a digital instrument cluster, supplemented by a head-up display. Passenger comfort is addressed with available three-zone climate control, ventilated front seats, heated seats for the first two rows, and USB charging ports accessible to all rows. A panoramic sunroof and a 12-speaker Bose audio system are also available on higher trims.
Performance
The CX-90 introduces Mazda's most powerful production engines to date. Options include a turbocharged 3.3-liter inline-six engine paired with a 48-volt mild-hybrid system, producing 345 horsepower and 500 Nm of torque. This powertrain can accelerate the SUV from 0 to 100 km/h in 6.9 seconds. A plug-in hybrid (PHEV) variant is also available, combining a 2.5-liter four-cylinder engine with an electric motor for a total output of 328 horsepower and an estimated electric-only range of about 60 kilometers. Both powertrains are mated to a new eight-speed automatic transmission and an all-wheel-drive system with torque vectoring.
Practicality
As a large three-row SUV, the CX-90 is geared toward family transportation. It offers flexible seating with either a middle-row bench or captain's chairs, accommodating seven or eight occupants. While prioritizing passenger space, it still provides a baseline cargo capacity of 257 liters behind the third row, which expands significantly when the rear seats are folded flat. With a ground clearance of 203 mm, it is well-suited for everyday driving conditions and varied weather.
Safety and tech
Mazda has equipped the CX-90 with a comprehensive suite of safety and driver-assistance technologies. Standard and available features include adaptive cruise control, automatic emergency braking, lane keeping assist, and blind-spot monitoring. Driver fatigue detection and a 360-degree surround-view camera system enhance daily usability and parking maneuvers. The infotainment system supports Apple CarPlay and Android Auto, ensuring modern connectivity standards are met.
Buyer notes
When considering the Mazda CX-90, buyers should weigh the benefits of the inline-six mild-hybrid against the plug-in hybrid option based on their daily driving habits and access to charging. The trim levels, such as the Premium-Line and Premium-Sport, dictate the availability of high-end features like Nappa leather and advanced driver assists. It is important to note that seating configurations and exact equipment availability may vary depending on the specific market.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 3.3 SkyActiv MHEV (345 hp) 8-speed automatic 4x4 | 3283 cc | 345 hp | 6/7 | 8-speed automatic |
| 3.3 SkyActiv AT Premium-Line | 3283 cc | 345 hp | 7 | 8-speed automatic |
| 3.3 SkyActiv AT Premium-Sport | 3283 cc | 345 hp | 6 | 8-speed automatic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

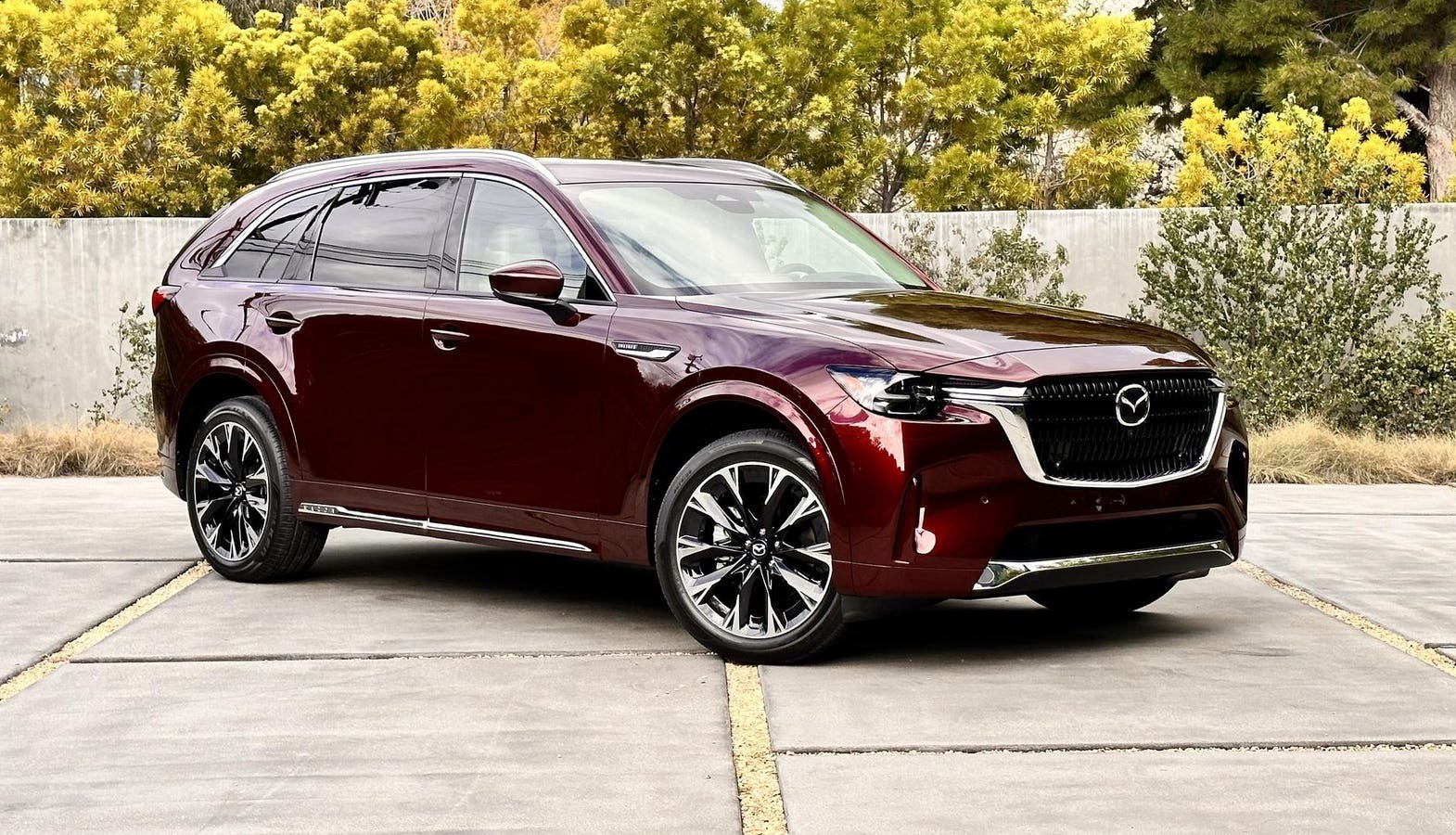

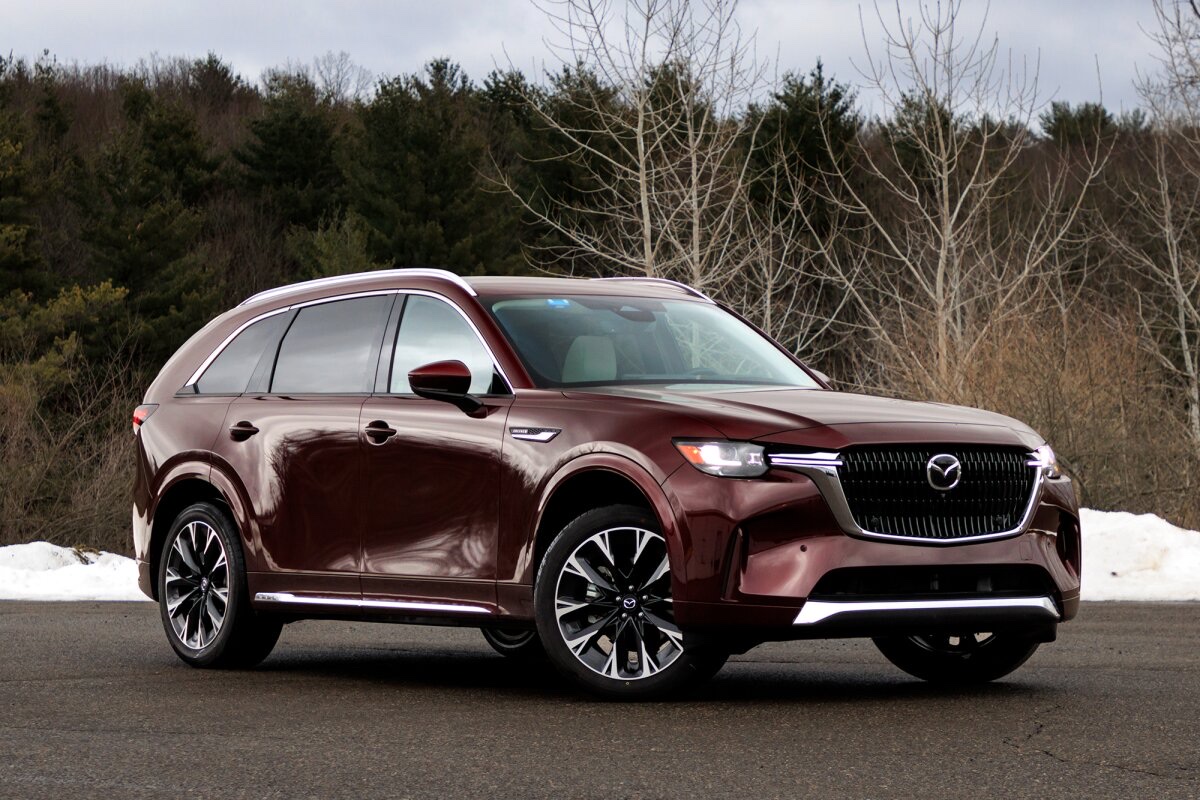

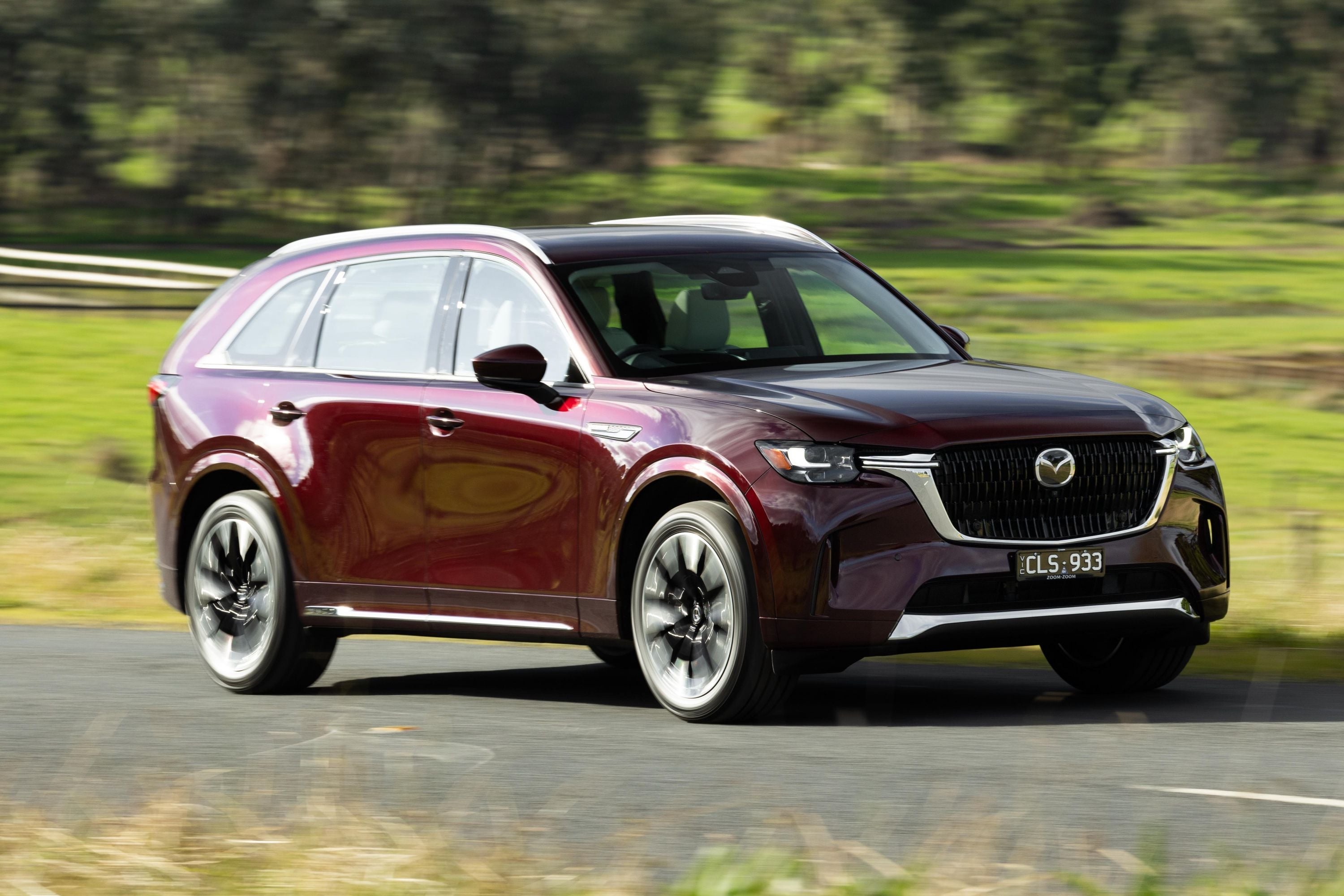

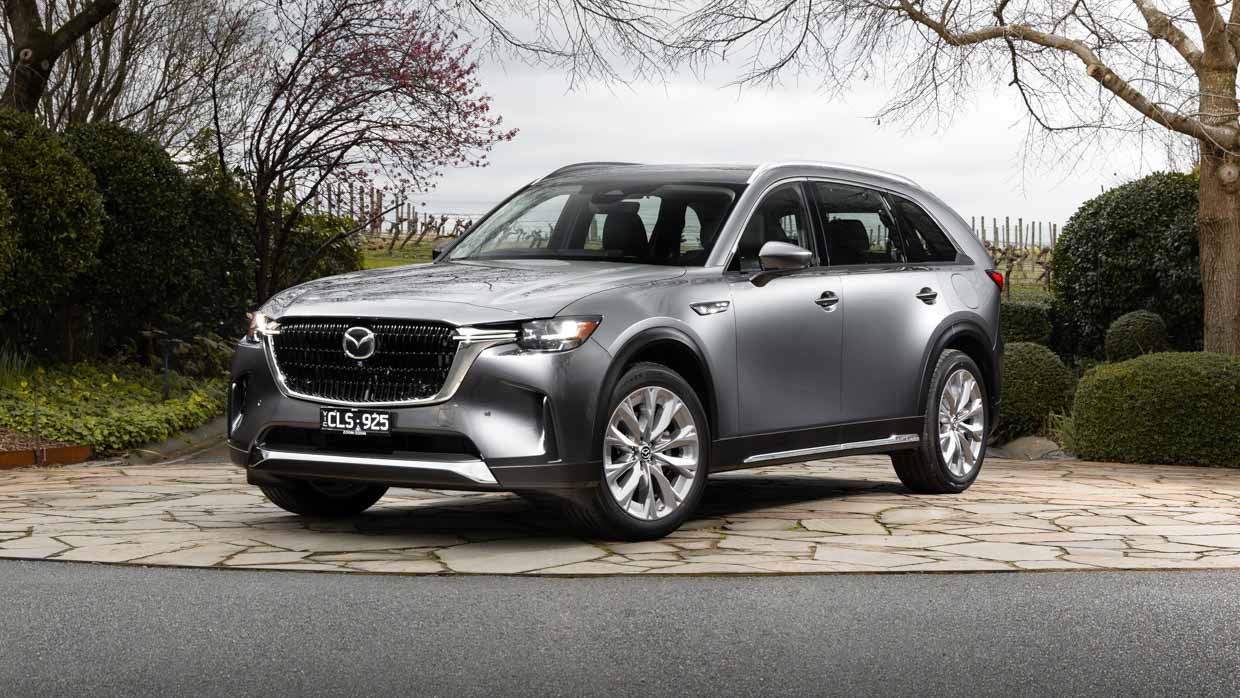

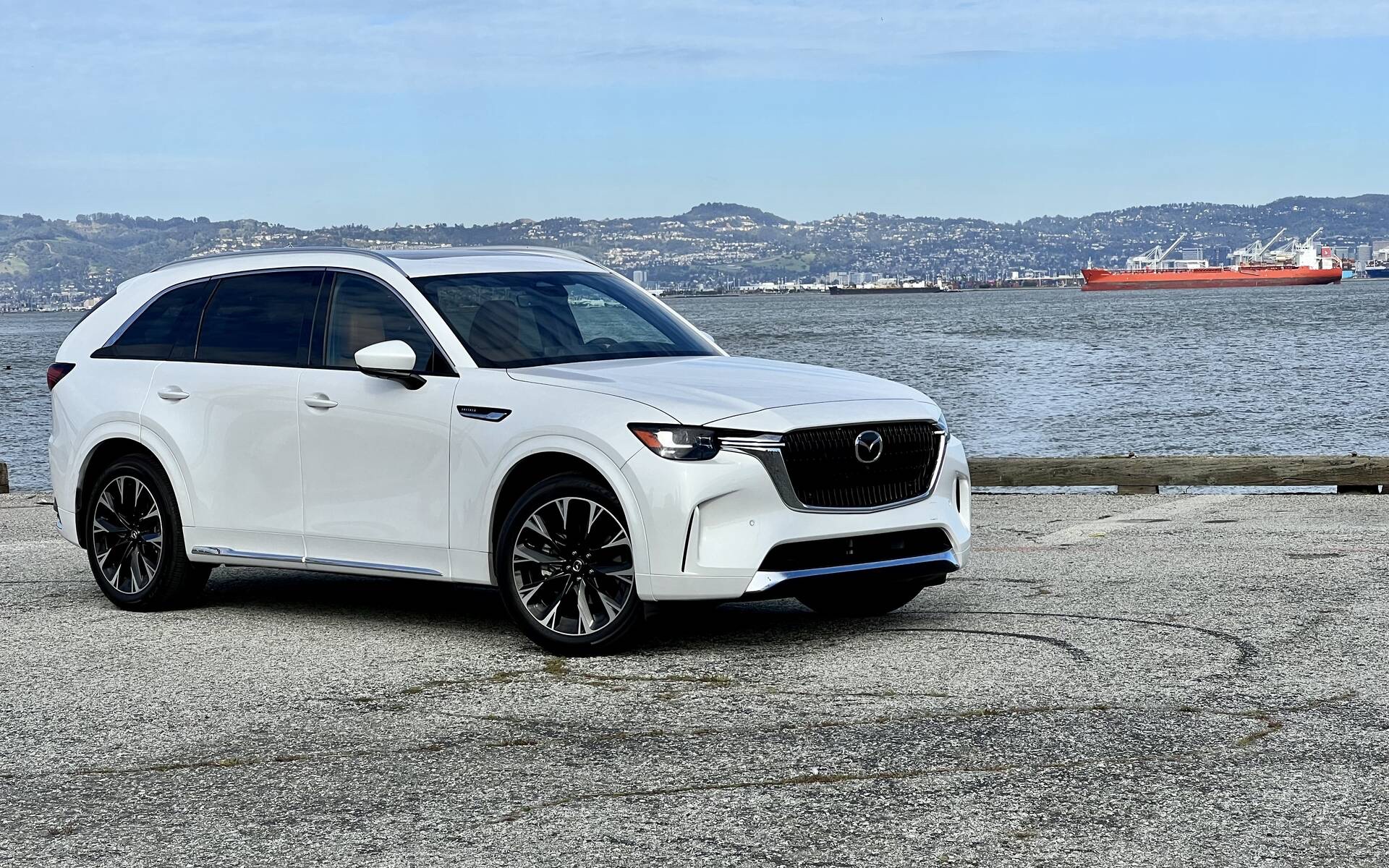

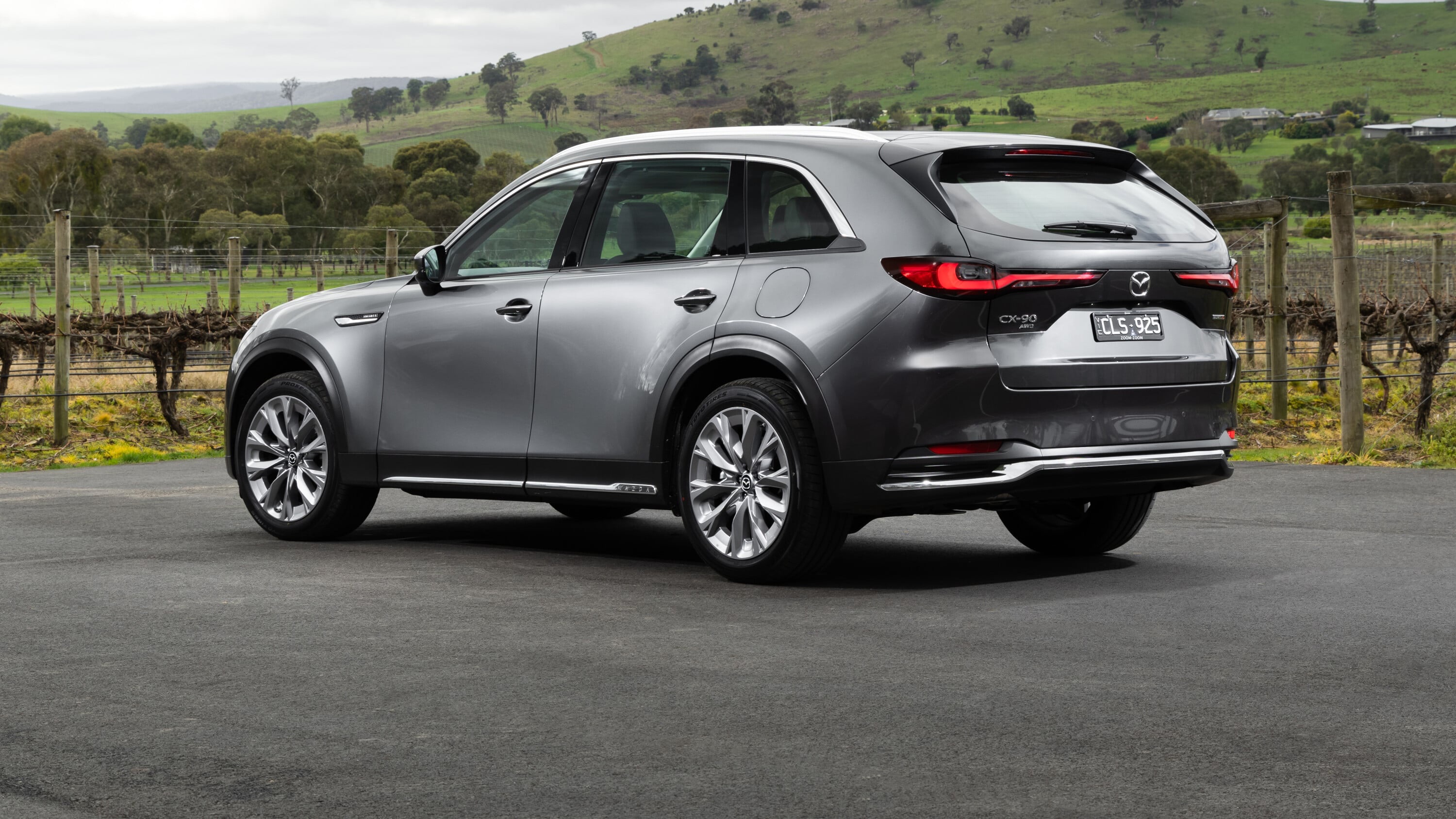

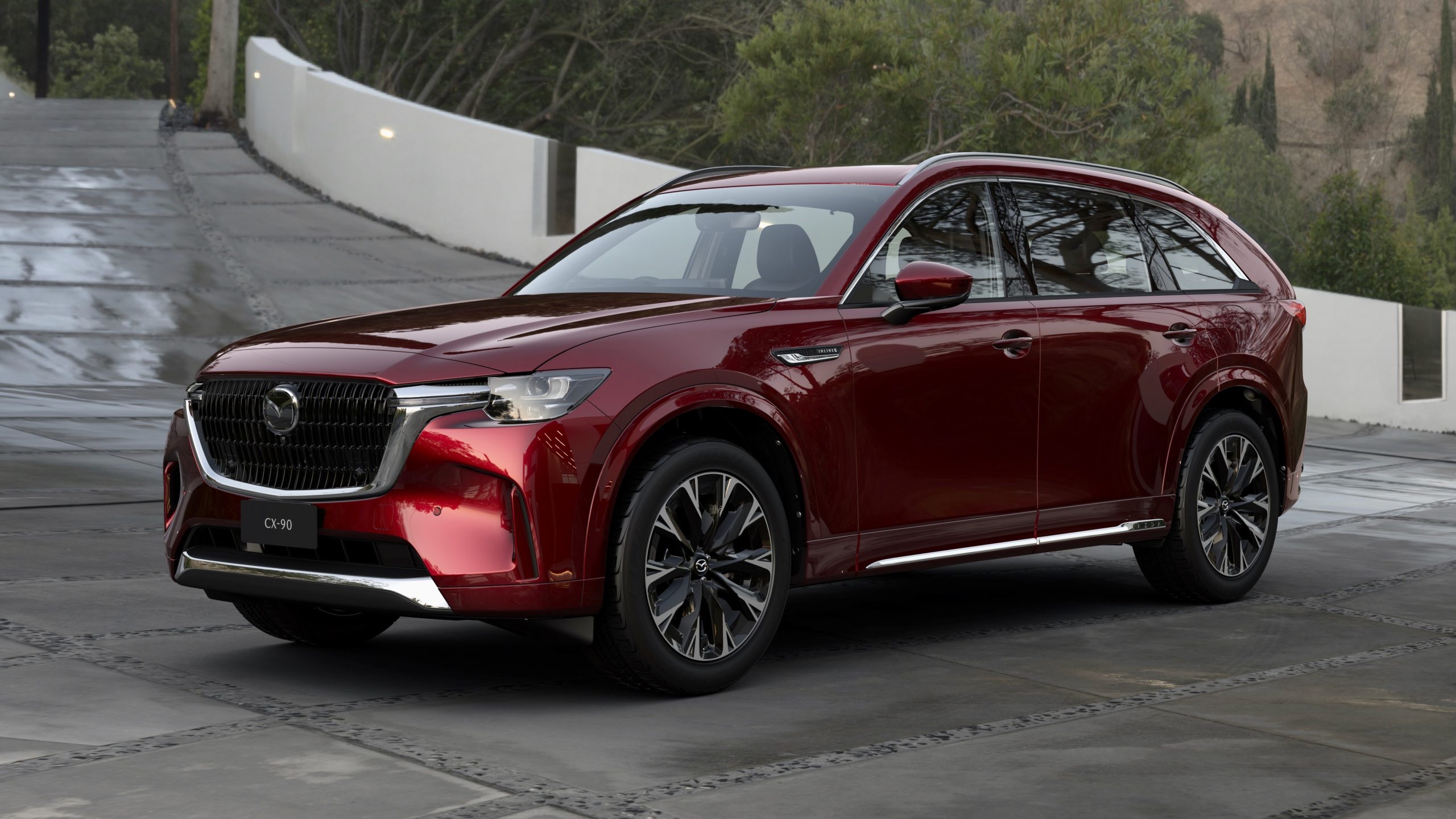

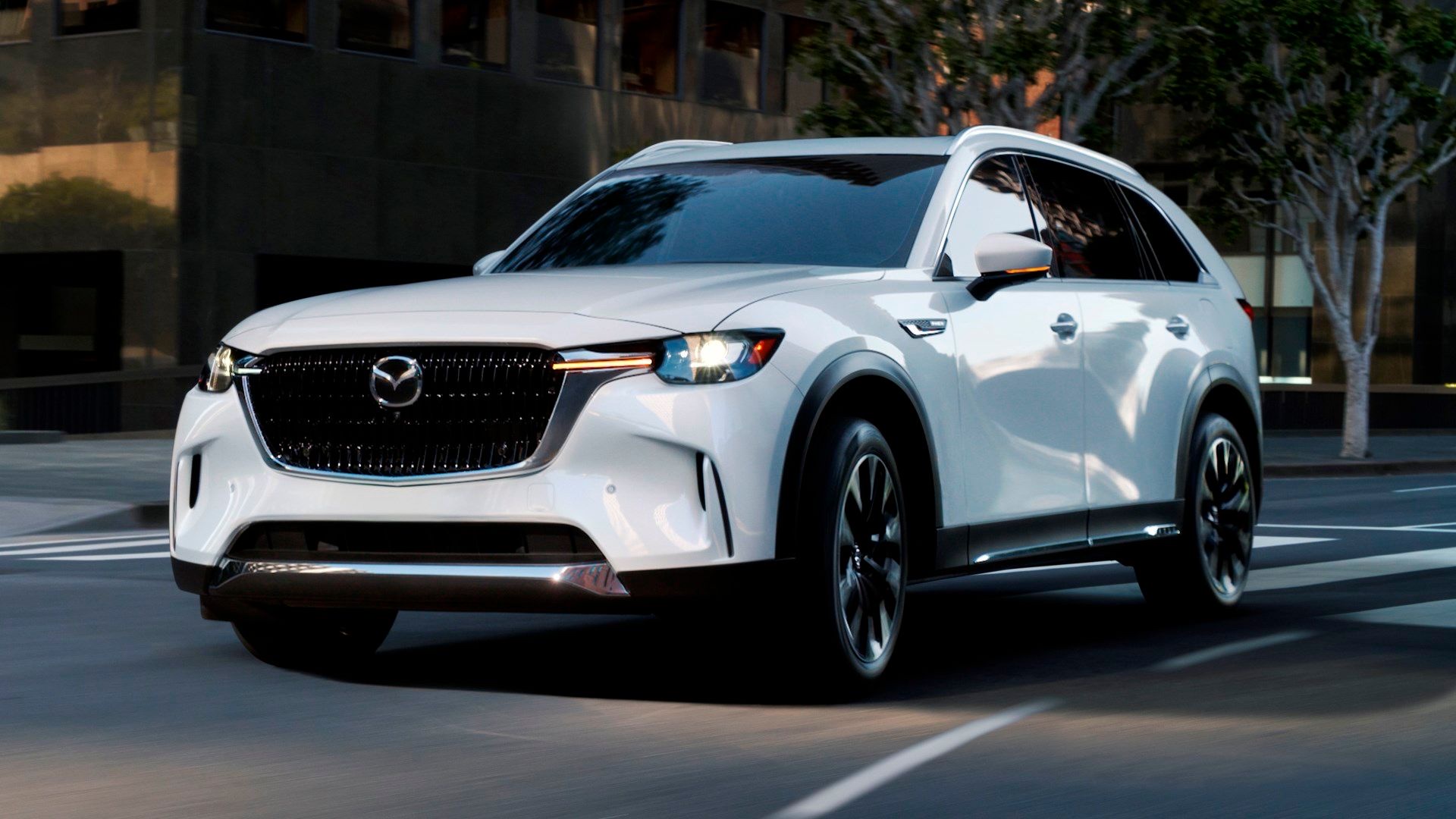

Mazda CX-90 photo gallery
18 images are collected here with the main specifications and trim data for this model.

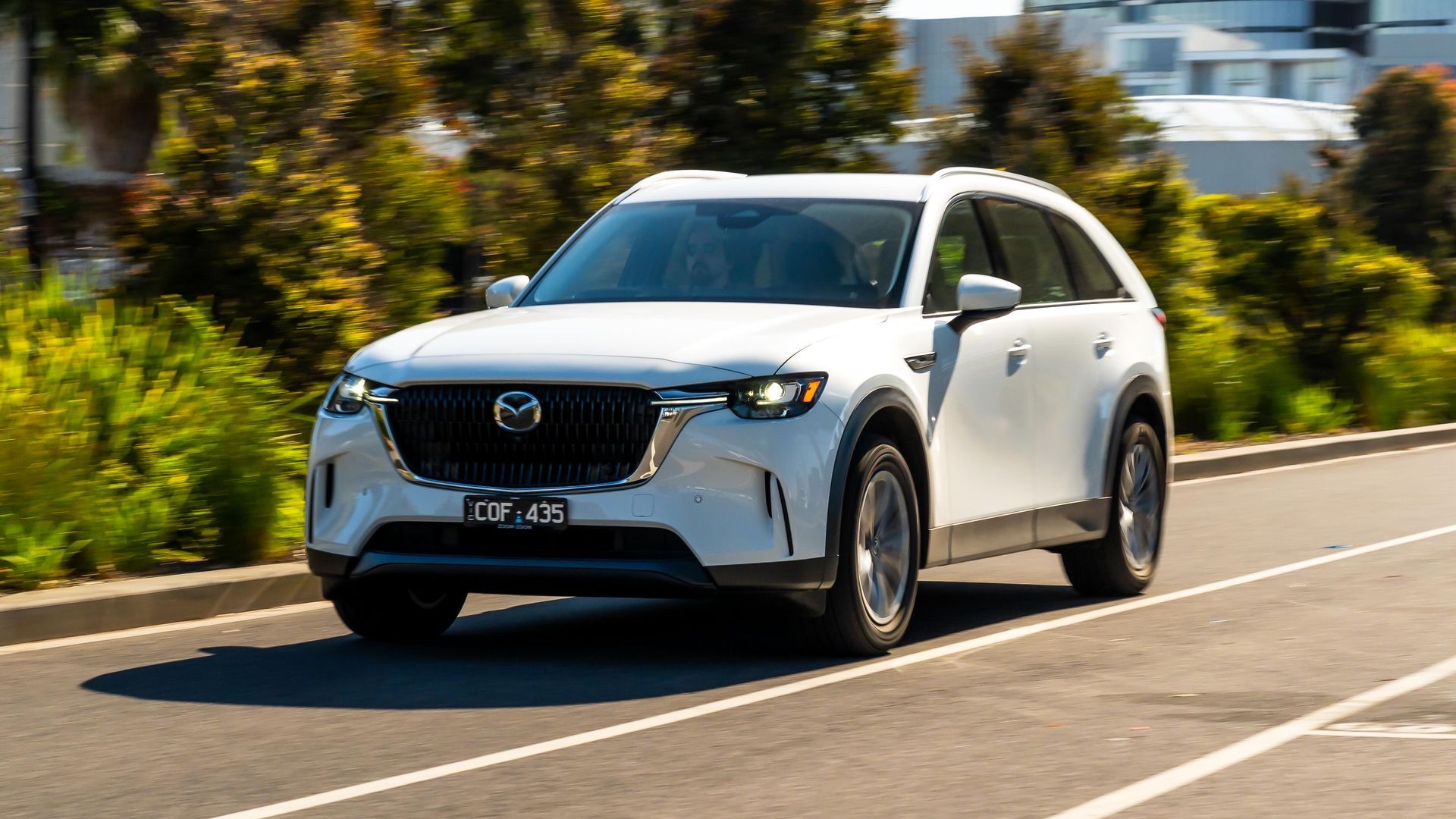

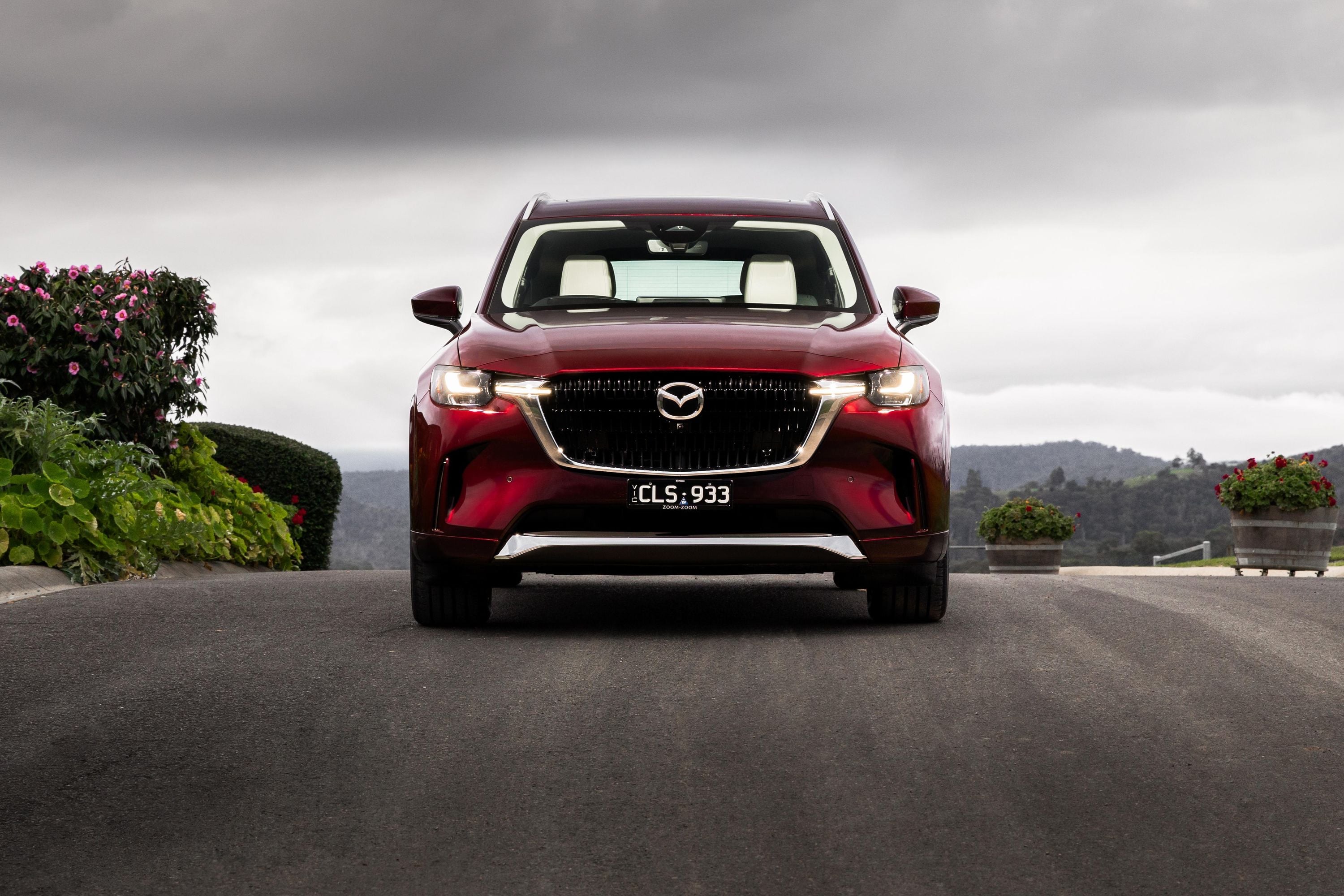

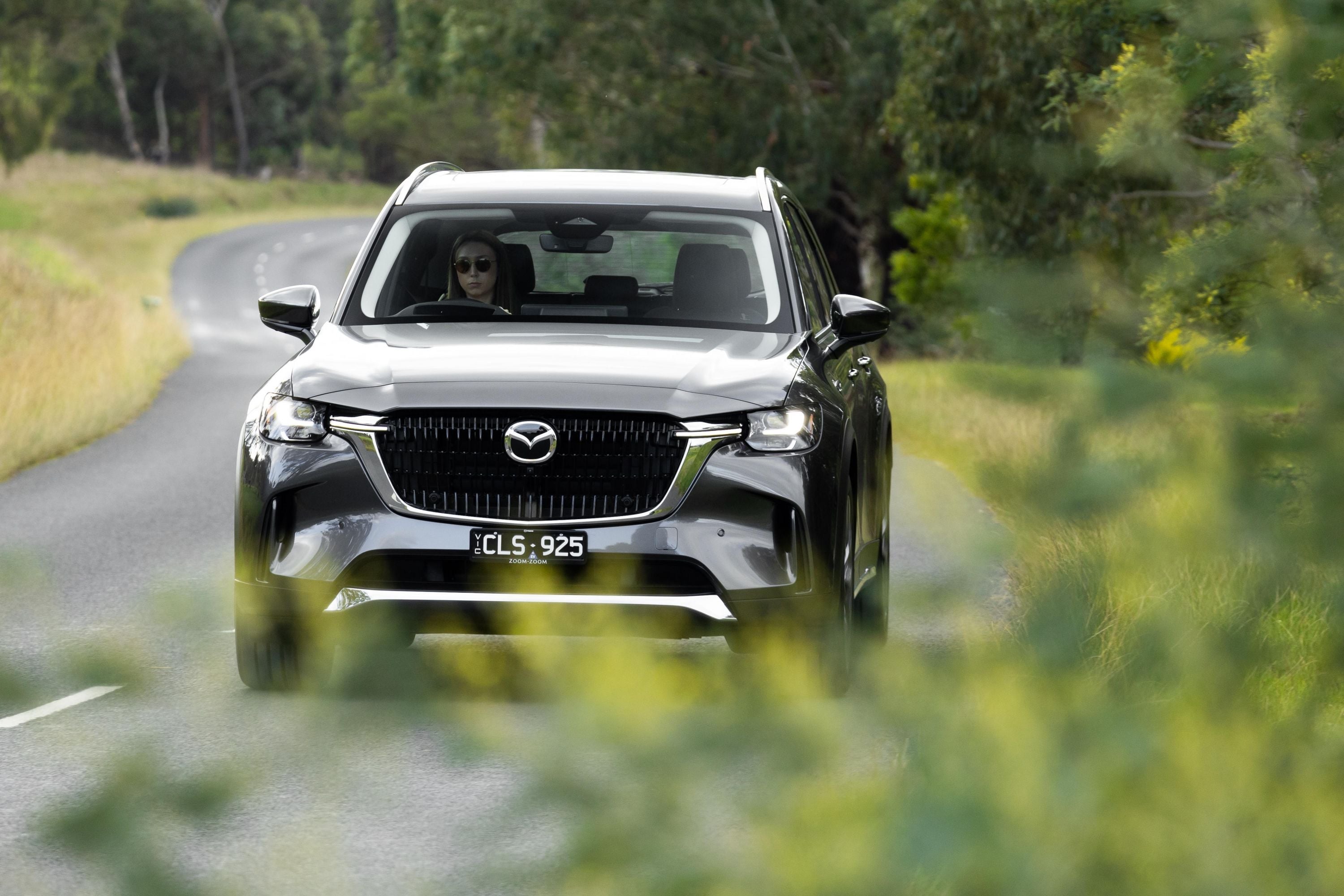

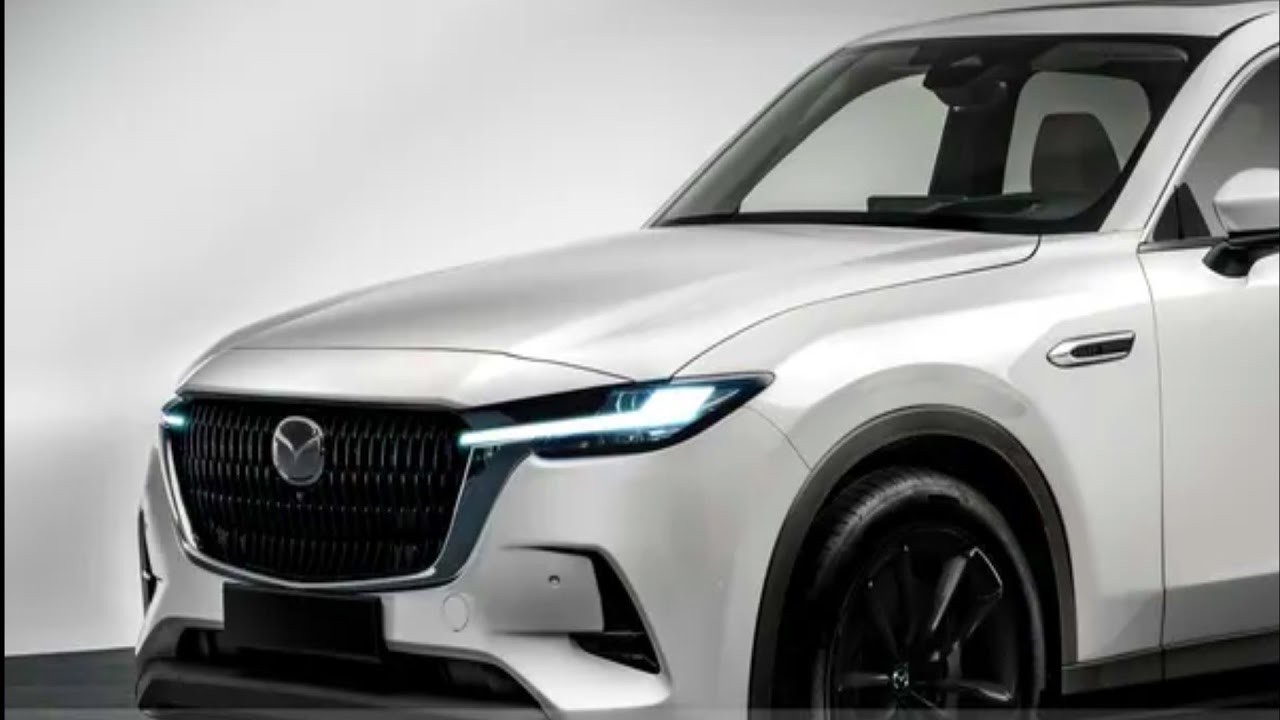

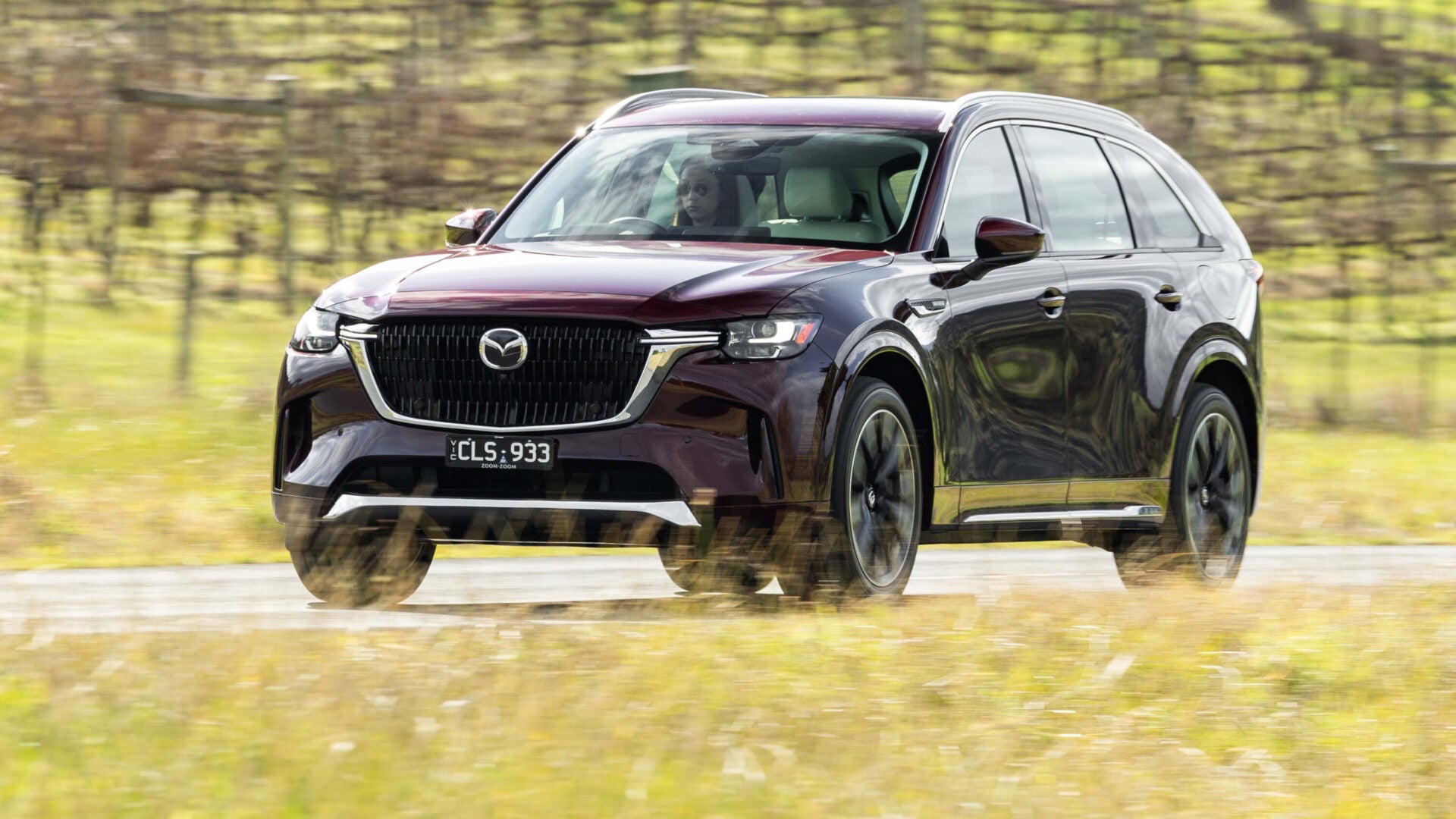

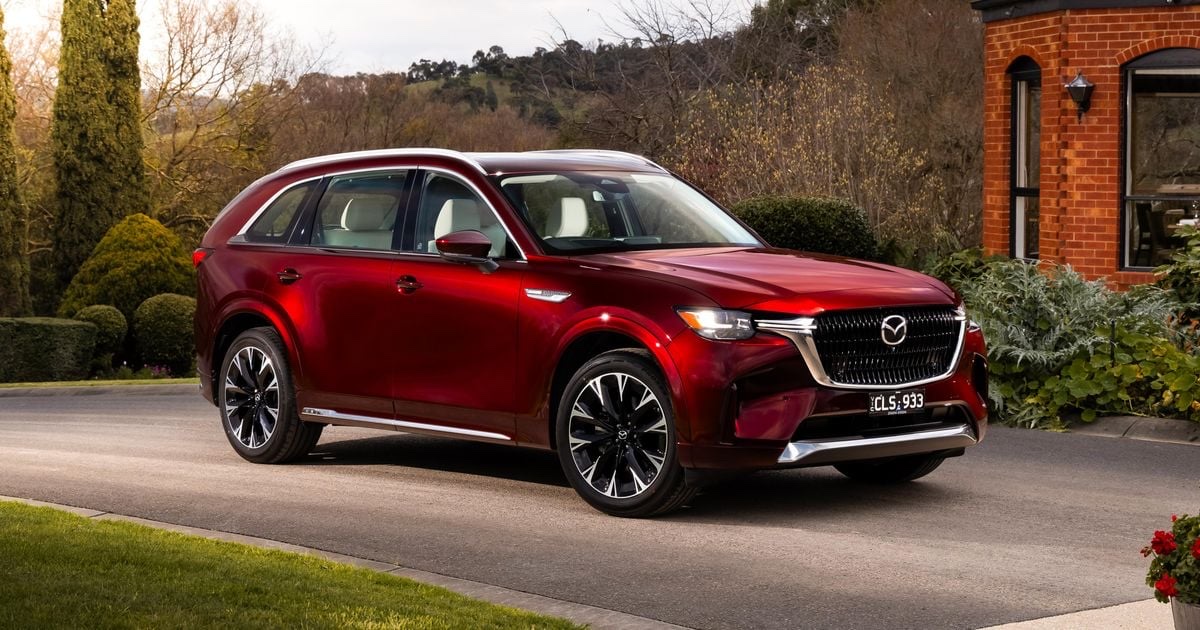

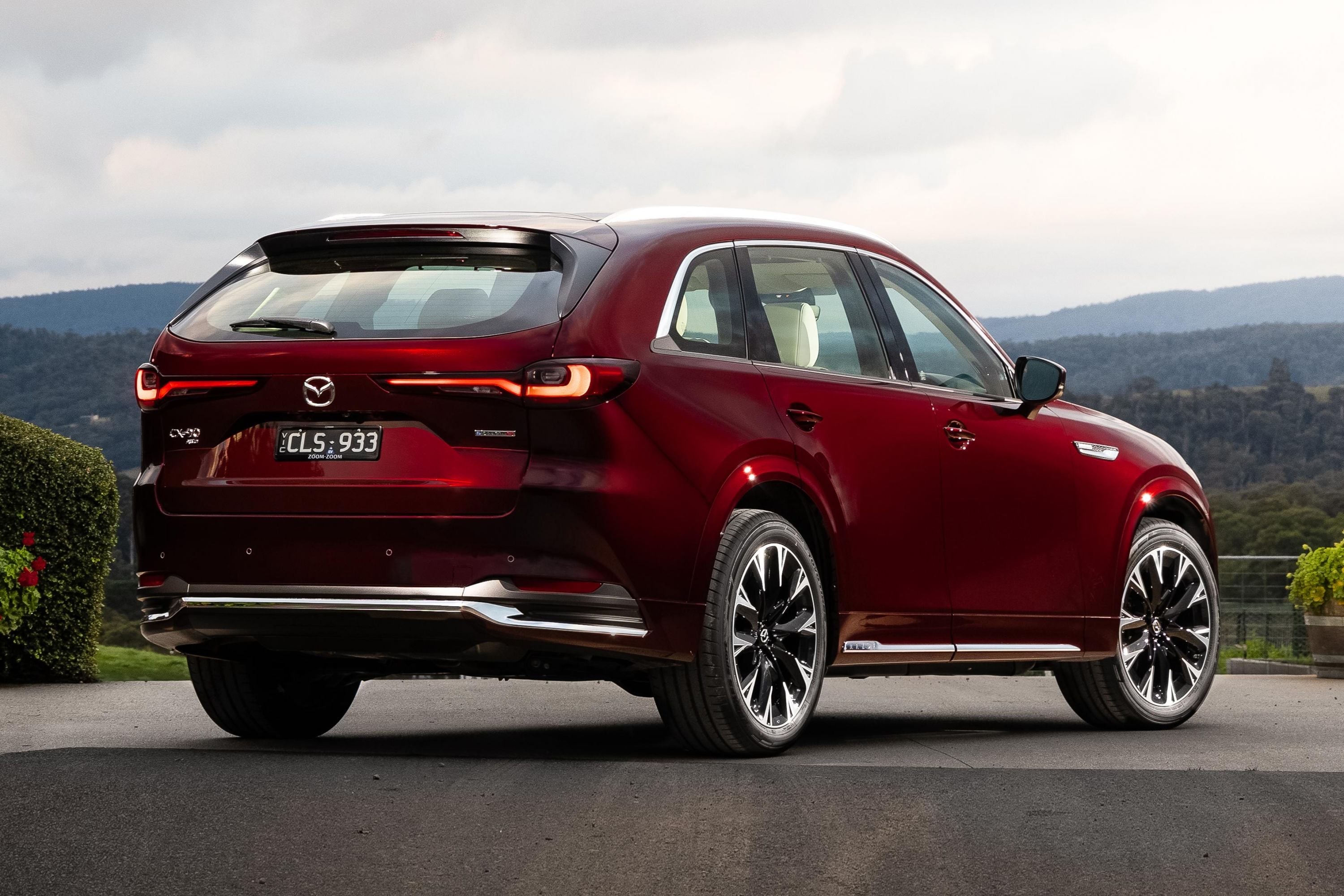

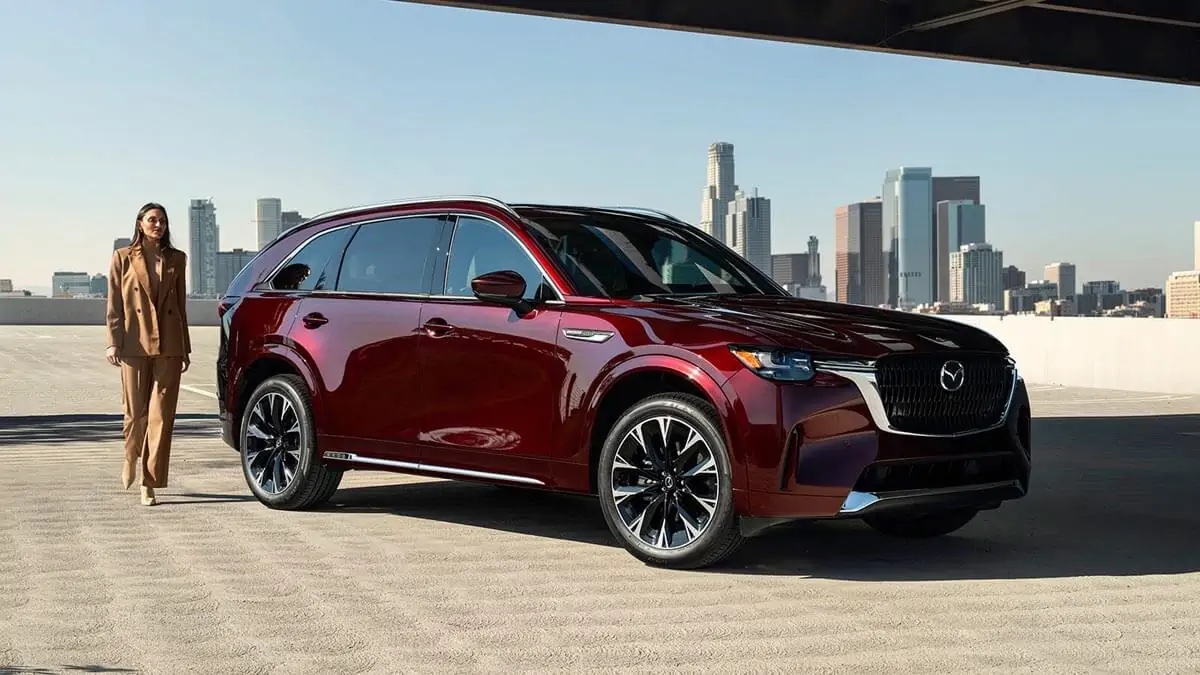

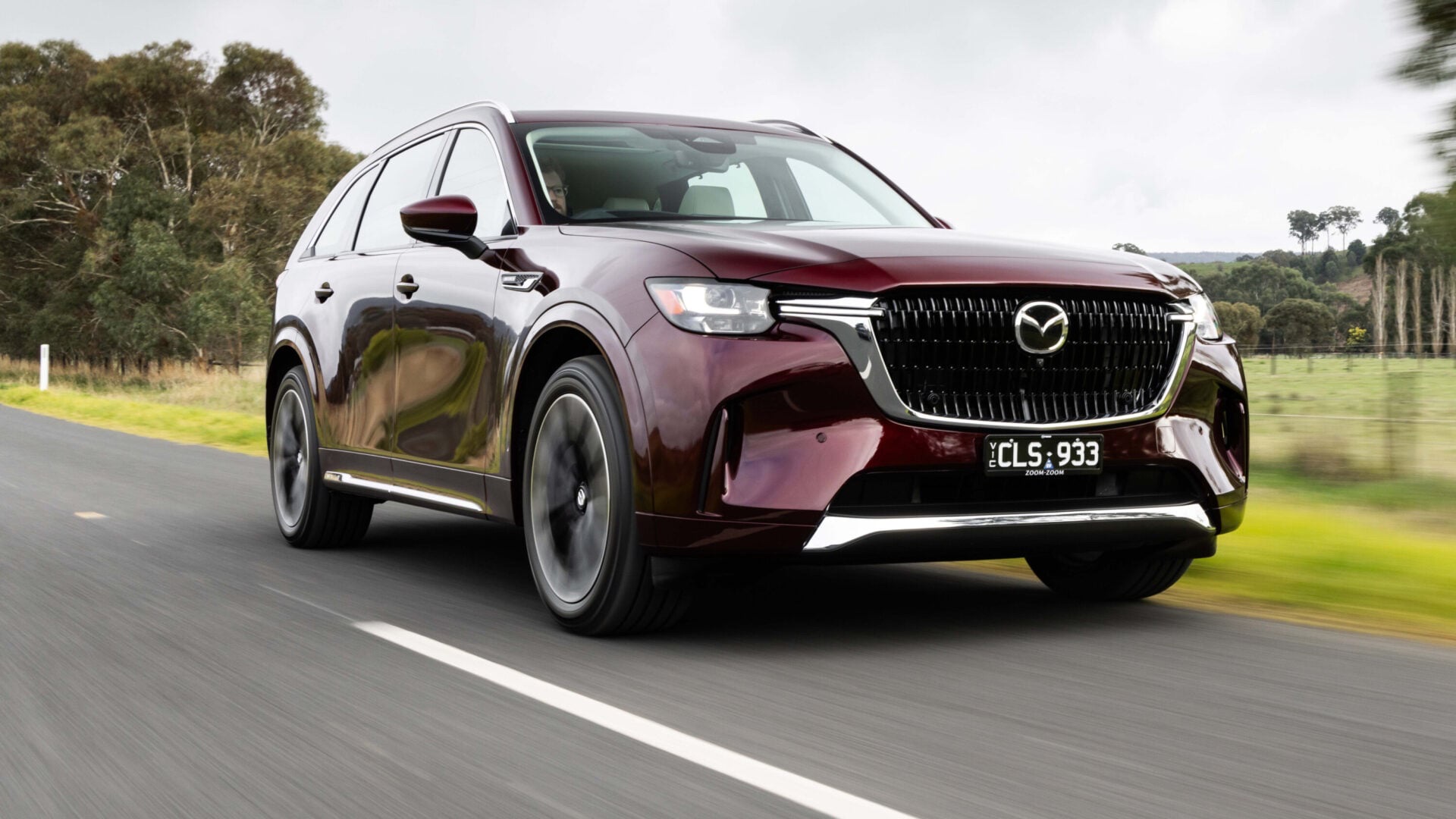

Photo Mazda CX-90
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
3.3 SkyActiv MHEV (345 hp) 8-speed automatic 4x4 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 11.6 |
|---|---|
| Fuel consumption highway, L/100 km | 7.2 |
| Fuel consumption combined, L/100 km | 8.6 |
| Top speed, km/h | 210 |
| Acceleration 0-100 km/h, s | 6.9 |
| Emissions standard | Euro V |
Engine
| Engine | 3.3 SkyActiv MHEV |
|---|---|
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 3283 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Compression ratio | 12.0:1 |
| Power, hp | 345 |
| RPM at max power | 5000-6000 |
| Torque, Nm | 500 |
| RPM at max torque | 2000-4500 |
| Electric motor torque, Nm | 153 |
| Electric motor RPM at max torque | 200 |
Dimensions
| Seats | 6/7 |
|---|---|
| Length, mm | 5120 |
| Width, mm | 2157 |
| Height, mm | 1748 |
| Wheelbase, mm | 3120 |
| Front track, mm | 1705 |
| Rear track, mm | 1708 |
| Kerb weight, kg | 2103 |
| Gross weight, kg | 2803 |
| Fuel tank capacity, L | 74 |
| Turning circle, m | 11.8 |
| Ground clearance, mm | 203 |
| Width without mirrors, mm | 1994 |
| Trunk capacity, L | 257 |
Transmission and drive
| Transmission | 8-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 8 |
3.3 SkyActiv AT Premium-Line 120 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 11.6 |
|---|---|
| Fuel consumption highway, L/100 km | 7.2 |
| Fuel consumption combined, L/100 km | 8.6 |
| Top speed, km/h | 210 |
| Acceleration 0-100 km/h, s | 6.9 |
| Emissions standard | Euro V |
Engine
| Engine | 3.3 SkyActiv MHEV |
|---|---|
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 3283 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Compression ratio | 12.0:1 |
| Power, hp | 345 |
| RPM at max power | 5000-6000 |
| Torque, Nm | 500 |
| RPM at max torque | 2000-4500 |
| Electric motor torque, Nm | 153 |
| Electric motor RPM at max torque | 200 |
Dimensions
| Seats | 7 |
|---|---|
| Length, mm | 5120 |
| Width, mm | 2157 |
| Height, mm | 1748 |
| Wheelbase, mm | 3120 |
| Front track, mm | 1705 |
| Rear track, mm | 1708 |
| Kerb weight, kg | 2103 |
| Gross weight, kg | 2803 |
| Fuel tank capacity, L | 74 |
| Turning circle, m | 11.8 |
| Ground clearance, mm | 203 |
| Width without mirrors, mm | 1994 |
| Trunk capacity, L | 257 |
Transmission and drive
| Transmission | 8-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 8 |
Suspension
| Front suspension type | Double wishbone |
|---|---|
| Rear suspension type | Multi-link |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
Equipment
Comfort
| Paddle shifters | + |
|---|---|
| Tire pressure monitoring | + |
| Start/Stop engine button | + |
| Power-adjustable steering wheel | + |
| Side mirror position memory | + |
| Adaptive cruise control | + |
| Electromechanical parking brake | + |
| I-key synchronized memory system | + |
Interior
| Trip computer | + |
|---|---|
| Leather-trimmed interior elements | + |
| Multifunction instrument display | + |
| Illuminated vanity mirrors | + |
| Nappa leather seat upholstery | + |
Wheels
| Rim diameter | 21 |
|---|---|
| Rim type | Alloy |
| Spare wheel | Space-saver spare wheel |
| Tires | 275/45R21 |
Climate and sound insulation
| Heated front seats | + |
|---|---|
| Heated rear seats | + |
| Ventilated front seats | + |
| Heated steering wheel | + |
| Three-zone climate control | + |
Off-road
| Hill descent control | + |
|---|---|
| Hill-start assist | + |
Seats
| Power front seats | + |
|---|---|
| Seat memory | + |
| 40/20/40 split-folding second-row seats | + |
Headlights and lighting
| Light sensor | + |
|---|---|
| LED headlights | + |
| LED daytime running lights | + |
| Headlight washers | + |
| Adaptive LED lighting system | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| Audio system | BOSE; |
| Radio | + |
| USB | + |
| Number of speakers | 12 |
| Apple CarPlay / Android Auto | + |
| Wireless phone charging | + |
| Steering wheel controls | + |
| Head-up display | + |
| TFT display | + |
Trunk
| Power tailgate | + |
|---|---|
| Hands-free trunk opening | + |
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Front power windows | + |
| Rear power windows | + |
| Power sunroof | + |
| Heated windshield wiper area | + |
| Power-adjustable side mirrors | + |
| Power-folding side mirrors | + |
| Tinted glass | + |
| Panoramic sunroof | + |
Visibility and parking
| Front parking sensors | + |
|---|---|
| Rear parking sensors | + |
| Surround view camera system | + |
Fuel economy
| Start-stop system | + |
|---|
Body paint and exterior parts
| Body-colored side mirrors | + |
|---|---|
| Black grille | + |
| Body-colored bumpers | + |
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Blind spot monitoring | + |
| Lane keeping assist | + |
| Auto Hold | + |
| Driver fatigue detection | + |
| Front cross-traffic alert with automatic braking | + |
| Lane departure warning | + |
| Rear cross-traffic alert | + |
| Emergency stop signal | + |
| Smart brake support | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
| Driver knee airbag | + |
3.3 SkyActiv AT Premium-Sport 119 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 11.6 |
|---|---|
| Fuel consumption highway, L/100 km | 7.2 |
| Fuel consumption combined, L/100 km | 8.6 |
| Top speed, km/h | 210 |
| Acceleration 0-100 km/h, s | 6.9 |
| Emissions standard | Euro V |
Engine
| Engine | 3.3 SkyActiv MHEV |
|---|---|
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 3283 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Compression ratio | 12.0:1 |
| Power, hp | 345 |
| RPM at max power | 5000-6000 |
| Torque, Nm | 500 |
| RPM at max torque | 2000-4500 |
| Electric motor torque, Nm | 153 |
| Electric motor RPM at max torque | 200 |
Dimensions
| Seats | 6 |
|---|---|
| Length, mm | 5120 |
| Width, mm | 2157 |
| Height, mm | 1748 |
| Wheelbase, mm | 3120 |
| Front track, mm | 1705 |
| Rear track, mm | 1708 |
| Kerb weight, kg | 2103 |
| Gross weight, kg | 2803 |
| Fuel tank capacity, L | 74 |
| Turning circle, m | 11.8 |
| Ground clearance, mm | 203 |
| Width without mirrors, mm | 1994 |
| Trunk capacity, L | 257 |
Transmission and drive
| Transmission | 8-speed automatic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 8 |
Suspension
| Front suspension type | Double wishbone |
|---|---|
| Rear suspension type | Multi-link |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
Equipment
Comfort
| Paddle shifters | + |
|---|---|
| Tire pressure monitoring | + |
| Start/Stop engine button | + |
| Power-adjustable steering wheel | + |
| Side mirror position memory | + |
| Adaptive cruise control | + |
| Electromechanical parking brake | + |
| I-key synchronized memory system | + |
Interior
| Trip computer | + |
|---|---|
| Leather-trimmed interior elements | + |
| Multifunction instrument display | + |
| Illuminated vanity mirrors | + |
| Nappa leather seat upholstery | + |
Wheels
| Rim diameter | 21 |
|---|---|
| Rim type | Alloy |
| Spare wheel | Space-saver spare wheel |
| Tires | 275/45R21 |
Climate and sound insulation
| Heated front seats | + |
|---|---|
| Heated rear seats | + |
| Ventilated front seats | + |
| Heated steering wheel | + |
| Three-zone climate control | + |
Off-road
| Hill descent control | + |
|---|---|
| Hill-start assist | + |
Seats
| Power front seats | + |
|---|---|
| Seat memory | + |
Headlights and lighting
| Light sensor | + |
|---|---|
| LED headlights | + |
| LED daytime running lights | + |
| Headlight washers | + |
| Adaptive LED lighting system | + |
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| Audio system | BOSE; |
| Radio | + |
| USB | + |
| Number of speakers | 12 |
| Apple CarPlay / Android Auto | + |
| Wireless phone charging | + |
| Steering wheel controls | + |
| Head-up display | + |
| TFT display | + |
Trunk
| Power tailgate | + |
|---|---|
| Hands-free trunk opening | + |
Glass, mirrors and sunroof
| Rain sensor | + |
|---|---|
| Heated side mirrors | + |
| Front power windows | + |
| Rear power windows | + |
| Power sunroof | + |
| Heated windshield wiper area | + |
| Power-adjustable side mirrors | + |
| Power-folding side mirrors | + |
| Tinted glass | + |
| Panoramic sunroof | + |
Visibility and parking
| Front parking sensors | + |
|---|---|
| Rear parking sensors | + |
| Surround view camera system | + |
Fuel economy
| Start-stop system | + |
|---|
Body paint and exterior parts
| Body-colored side mirrors | + |
|---|---|
| Black grille | + |
| Body-colored bumpers | + |
Security
Electronic systems
| Anti-lock braking system (ABS) | + |
|---|---|
| Electronic stability control | + |
| Blind spot monitoring | + |
| Lane keeping assist | + |
| Auto Hold | + |
| Driver fatigue detection | + |
| Front cross-traffic alert with automatic braking | + |
| Lane departure warning | + |
| Rear cross-traffic alert | + |
| Emergency stop signal | + |
| Smart brake support | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
| Driver knee airbag | + |
Mazda CX-90 questions
Short answers based on the specifications and photos available in this catalog.
What type of vehicle is the Mazda CX-90?
The Mazda CX-90 is a full-size, three-row SUV designed as the flagship model for the brand, replacing the older CX-9.
What engine options are available for the 2023 CX-90?
The CX-90 is offered with a 345-horsepower 3.3-liter turbocharged inline-six mild-hybrid engine or a 328-horsepower 2.5-liter plug-in hybrid powertrain.
How many passengers can the Mazda CX-90 seat?
Depending on the interior configuration and selected trim, the CX-90 can accommodate seven or eight passengers across its three rows.
Is the CX-90 all-wheel drive?
Yes, all versions of the Mazda CX-90 come standard with an eight-speed automatic transmission and a rear-biased all-wheel-drive system.
What are the key interior features?
The cabin includes premium materials like available Nappa leather, a 12.3-inch central touchscreen, a digital instrument panel, and available features like three-zone climate control and a Bose audio system.
