Mercedes E-Class All Terrain (X213) specifications and photos
The 2020 Mercedes-Benz E-Class All-Terrain represents the facelifted version of the fifth-generation X213 chassis. As a lifted, all-wheel-drive luxury wagon, it caters to drivers who want the practicality and comfort of the E-Class alongside enhanced capability for unpaved roads and adverse weather.
Mercedes E-Class All Terrain (X213) at a glance
Quick model context before comparing photos and trim-level specifications.
Introduced in March 2020, this mid-cycle refresh updates the E-Class All-Terrain with revised styling, modernized cabin technology, and an expanded suite of driver assists. Mercedes retained the core formula, providing a spacious estate car with standard 4Matic all-wheel drive, increased ground clearance, and standard air suspension. The 2020 update brings the wagon in line with the rest of the E-Class family while emphasizing its rugged character with specific grille designs and protective cladding. It stands as a premium alternative to traditional luxury SUVs, offering a lower center of gravity and excellent highway manners without sacrificing winter usability or light off-road utility.
- Power: 194-367 hp
- Engine displacement: 1950-2999 cc
- Transmissions: 9G-Tronic
- Seating: 5 seats
Mercedes E-Class All Terrain (X213) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The facelift introduces narrower front headlights featuring a distinct boomerang-style daytime running light signature. The exterior is defined by model-specific lower body cladding, extended wheel arches, and redesigned front and rear bumpers with chrome-finished skid plates on the Avantgarde line. The front grille features dual horizontal chrome bars, a styling cue borrowed from the Mercedes-Benz SUV lineup. Standard equipment includes 19-inch wheels, with 20-inch options available, giving the wagon a substantial and planted stance on the road.
Interior
Inside, the cabin layout is dominated by the updated MBUX infotainment system, which integrates dual 12.3-inch displays under a single continuous glass panel. The traditional rotary dial on the center console has been replaced by a touchpad and voice command functionality. A new steering wheel with built-in capacitive sensors detects when the driver's hands are on the rim. The wagon body style ensures ample rear headroom, and the 40:20:40 split-folding rear seats allow the standard 640-liter trunk to expand up to 1,820 liters for larger cargo. Optional Energizing massage front seats are available to enhance long-distance comfort.
Performance
The All-Terrain is equipped exclusively with the 9G-Tronic automatic transmission and 4Matic all-wheel drive. The powertrain lineup includes efficient four-cylinder and potent six-cylinder options. The diesel range starts with the 194-hp E 220 d and peaks with the 330-hp, 700-Nm E 400 d inline-six, which reaches 100 km/h in 5.4 seconds. Gasoline models include the E 200 (197 hp) and the robust E 450, a 3.0-liter inline-six generating 367 hp and 500 Nm, supported by a 22-hp mild-hybrid starter-generator. The standard Air Ride Control suspension can raise the vehicle by an additional 20 mm at speeds up to 35 km/h for rougher terrain.
Practicality
As an estate car, the All-Terrain excels in everyday family use. It sits 35 mm higher than the standard E-Class wagon, providing slightly better visibility and easier entry or exit, while remaining much more accessible than a full-size SUV for loading roof racks or heavy cargo. The 640-liter boot space is wide and highly usable, comfortably handling luggage, sporting equipment, or large groceries.
Safety and tech
The 2020 update brings a robust package of driver assistance features, including an adaptive cruise control system that utilizes navigation data to adjust speeds for upcoming curves or junctions. A traffic jam assist function is also available. Optional tech highlights include Multibeam LED matrix headlights, a 360-degree camera system, a head-up display, and a premium Burmester audio system alongside standard wireless smartphone charging.
Buyer notes
When reviewing the 2020 E-Class All-Terrain, shoppers should closely examine the powertrain options, as availability between the mild-hybrid E 450, the entry E 200, and the heavy-duty E 400 d diesel can vary significantly by market. Buyers should also check whether specific driver assistance features were optioned by the original owner, as many advanced tech items, like the head-up display and matrix lighting, were standalone extras rather than standard equipment.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 220d 4Matic | 1950 cc | 194 hp | 5 | 9G-Tronic |
| 400d 4Matic | 2925 cc | 330 hp | 5 | 9G-Tronic |
| 200 4Matic | 1991 cc | 197 hp | 5 | 9G-Tronic |
| 450 4Matic | 2999 cc | 367 hp | 5 | 9G-Tronic |
| E 200 4MATIC | 1991 cc | 197 hp | 5 | 9G-Tronic |
| E 220 d 4MATIC | 1950 cc | 194 hp | 5 | 9G-Tronic |
| E 400 d 4MATIC | 2925 cc | 330 hp | 5 | 9G-Tronic |
| E 450 4MATIC | 2999 cc | 367 hp | 5 | 9G-Tronic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

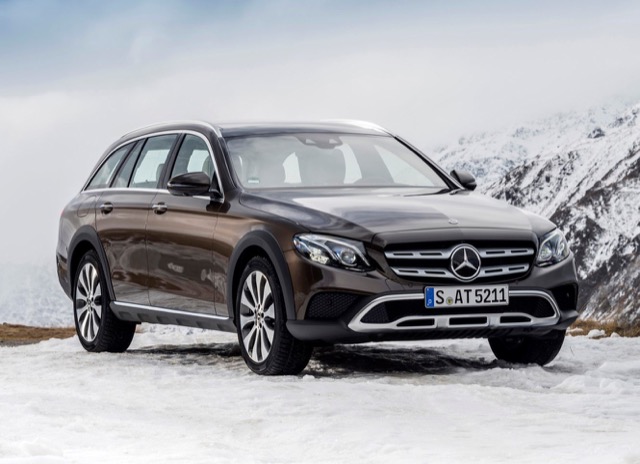

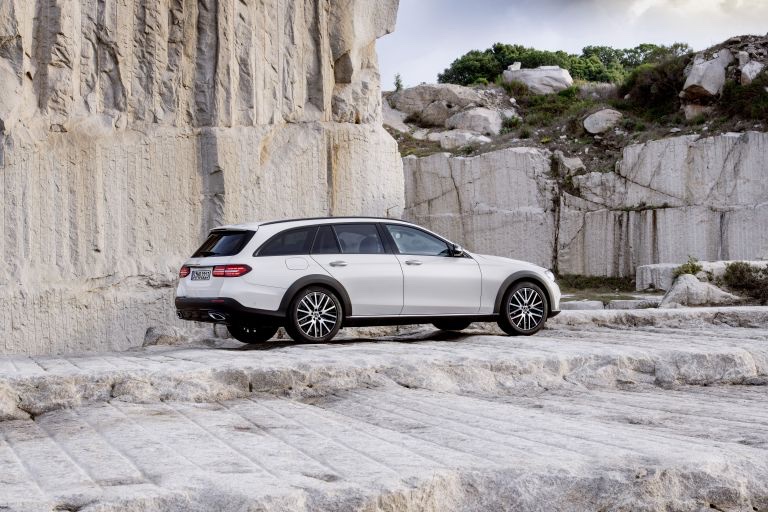

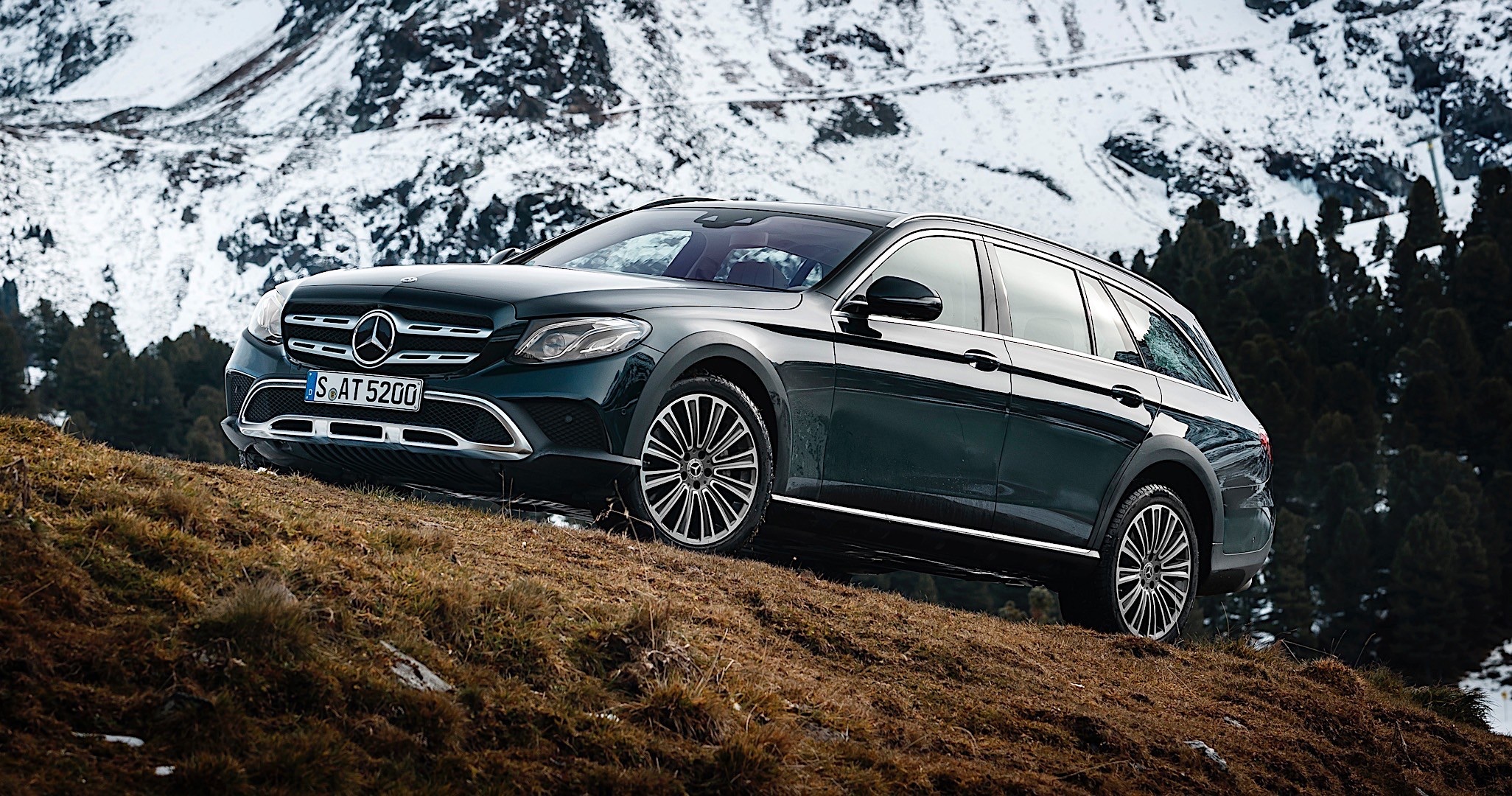

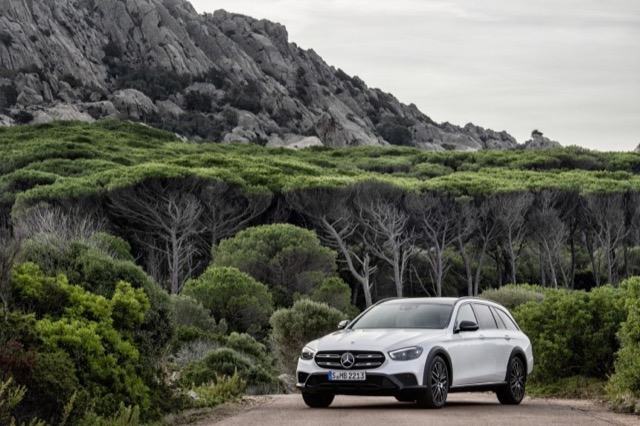

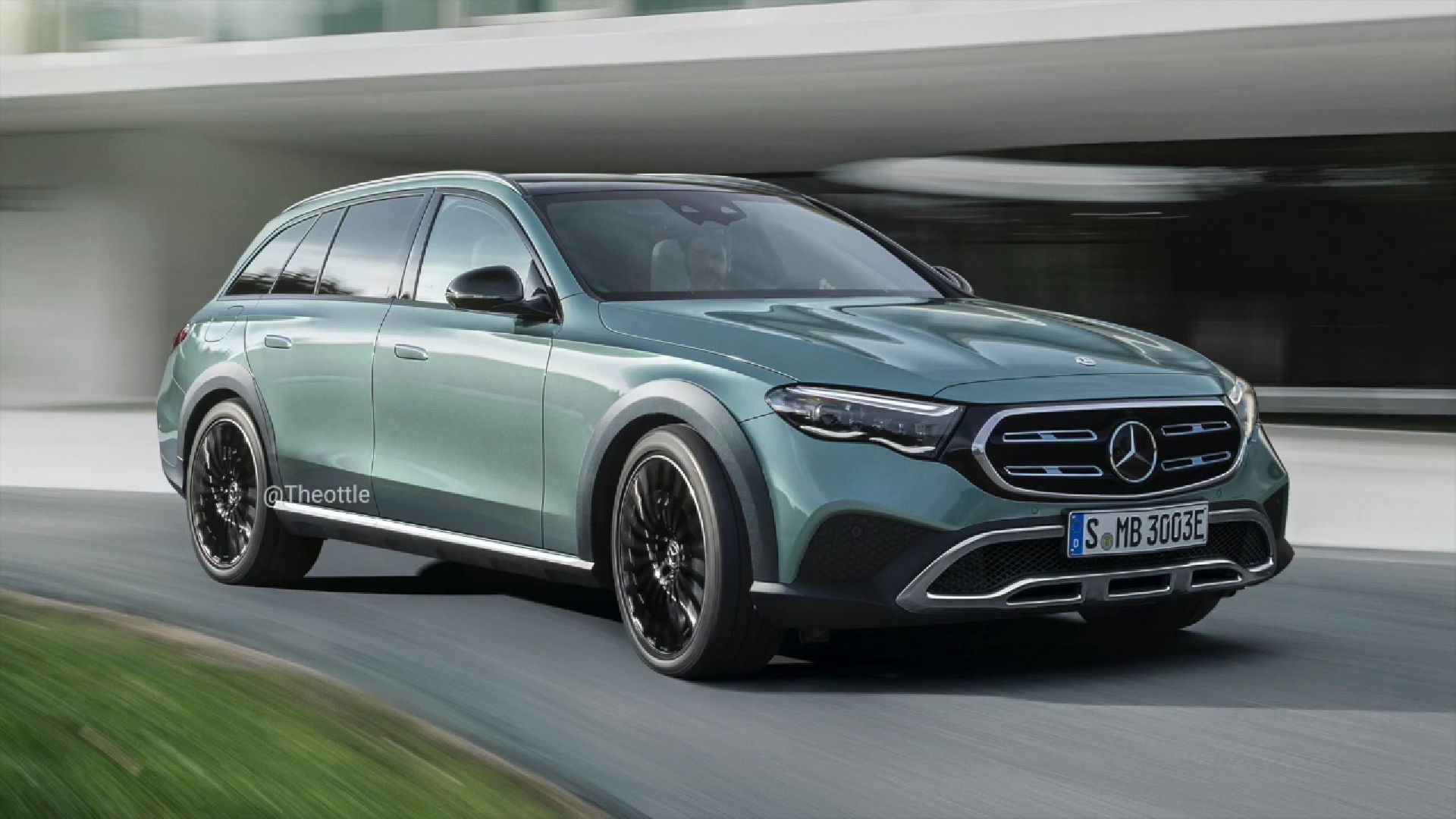

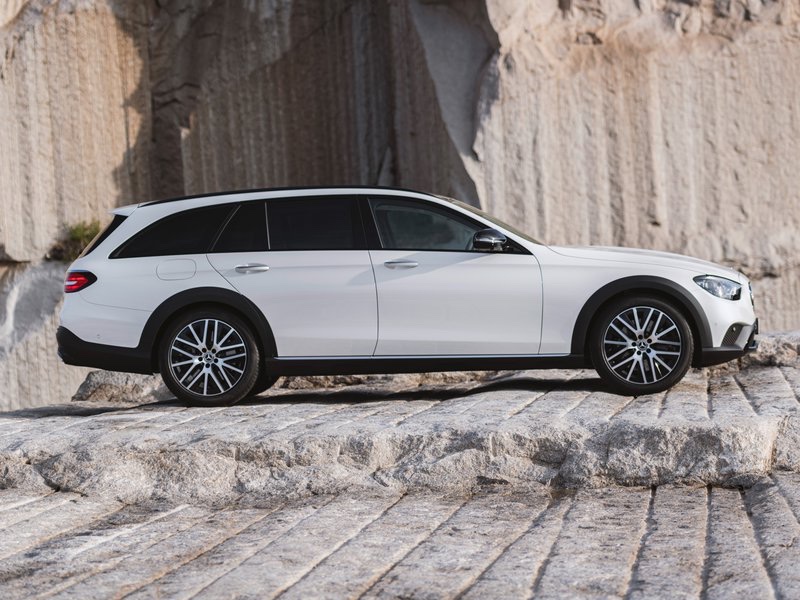

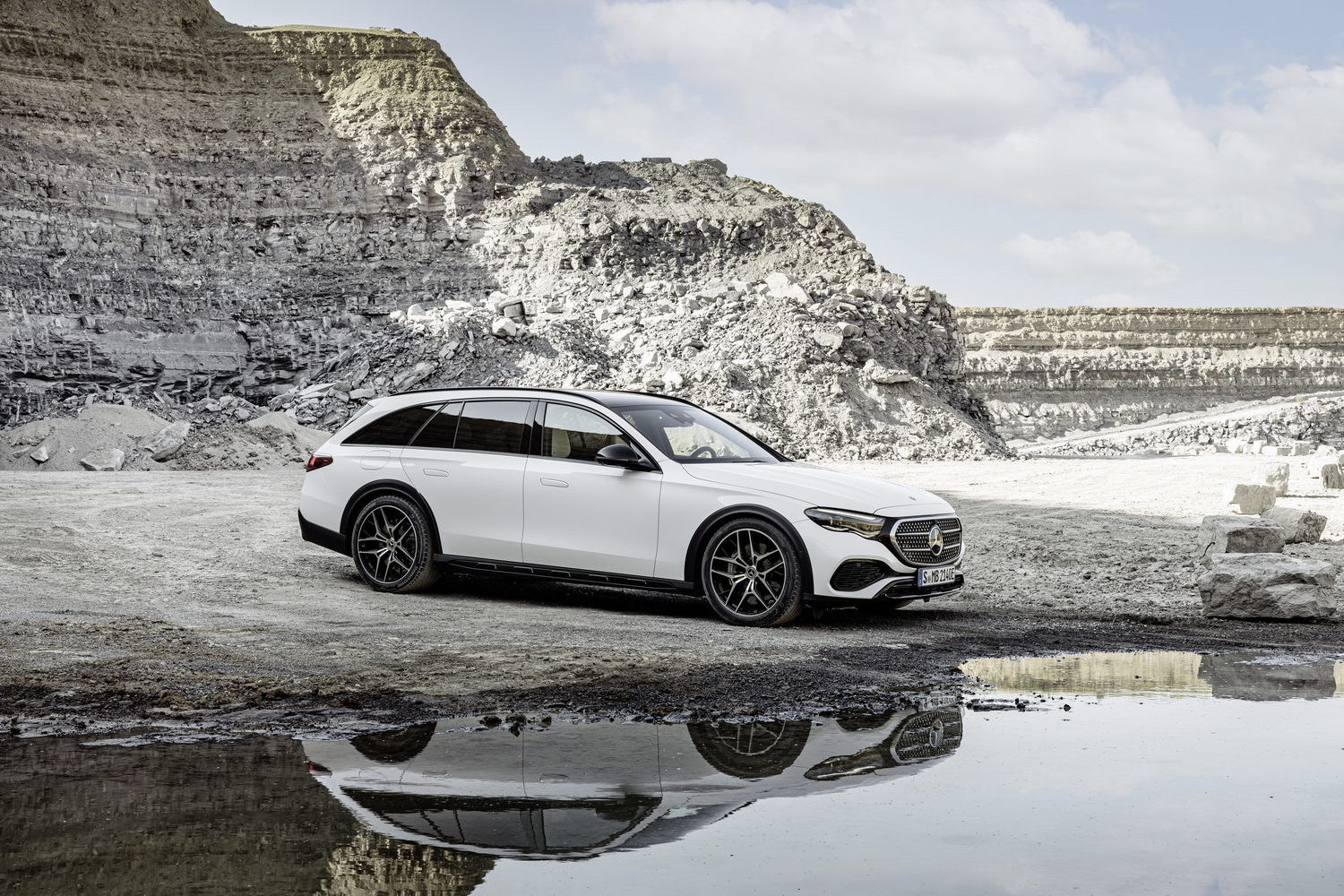

Mercedes E-Class All Terrain (X213) photo gallery
14 images are collected here with the main specifications and trim data for this model.

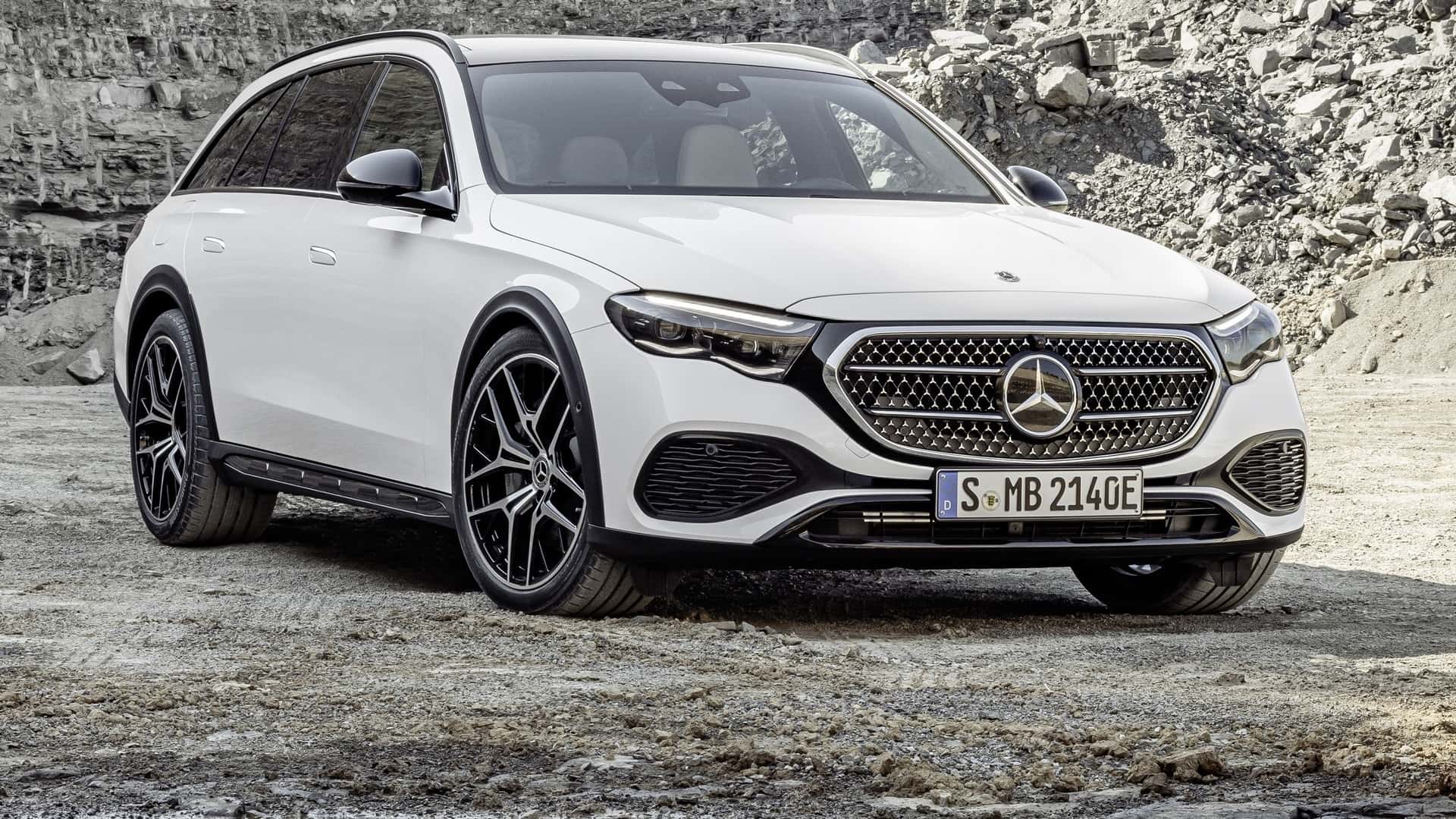

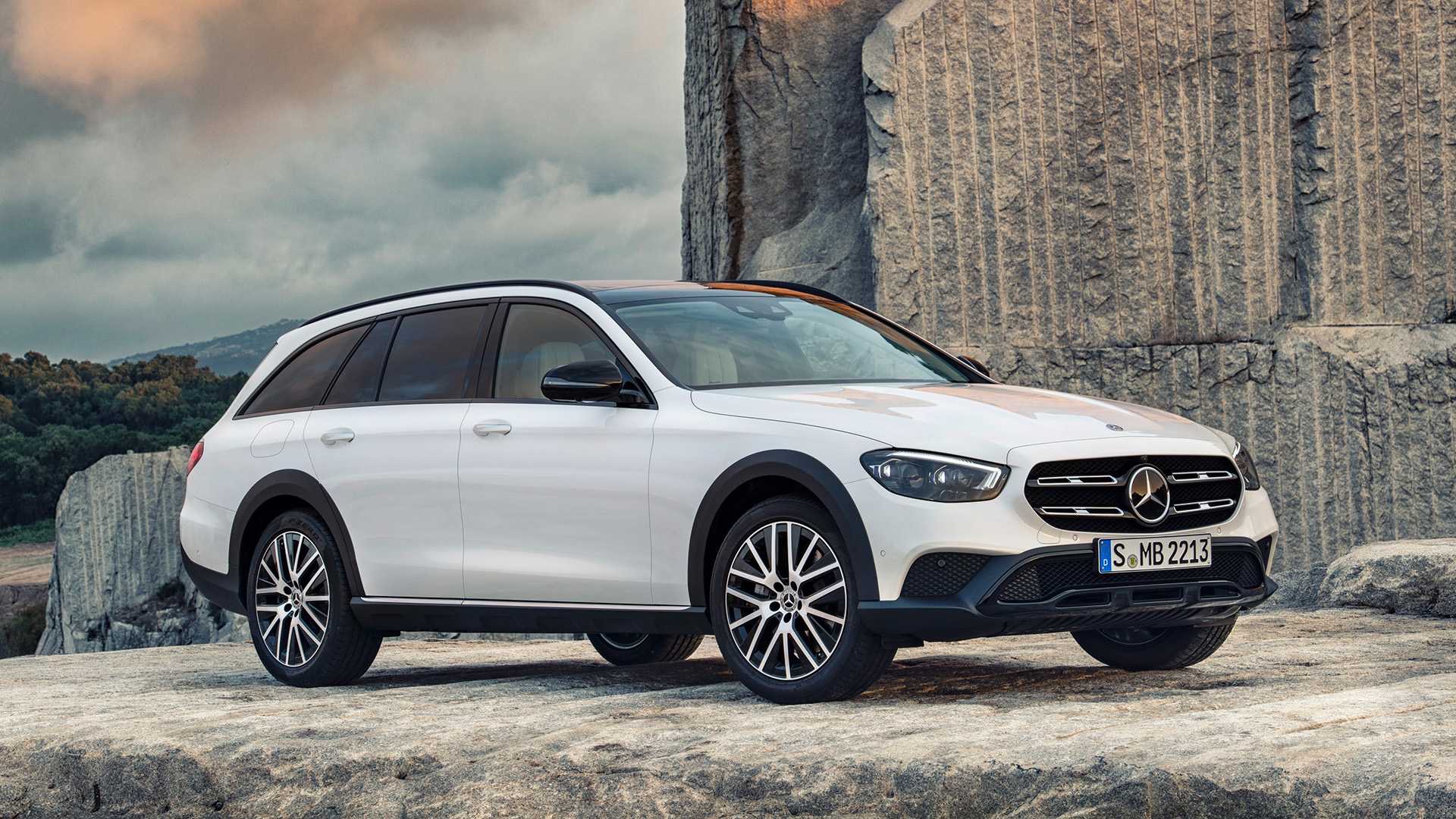

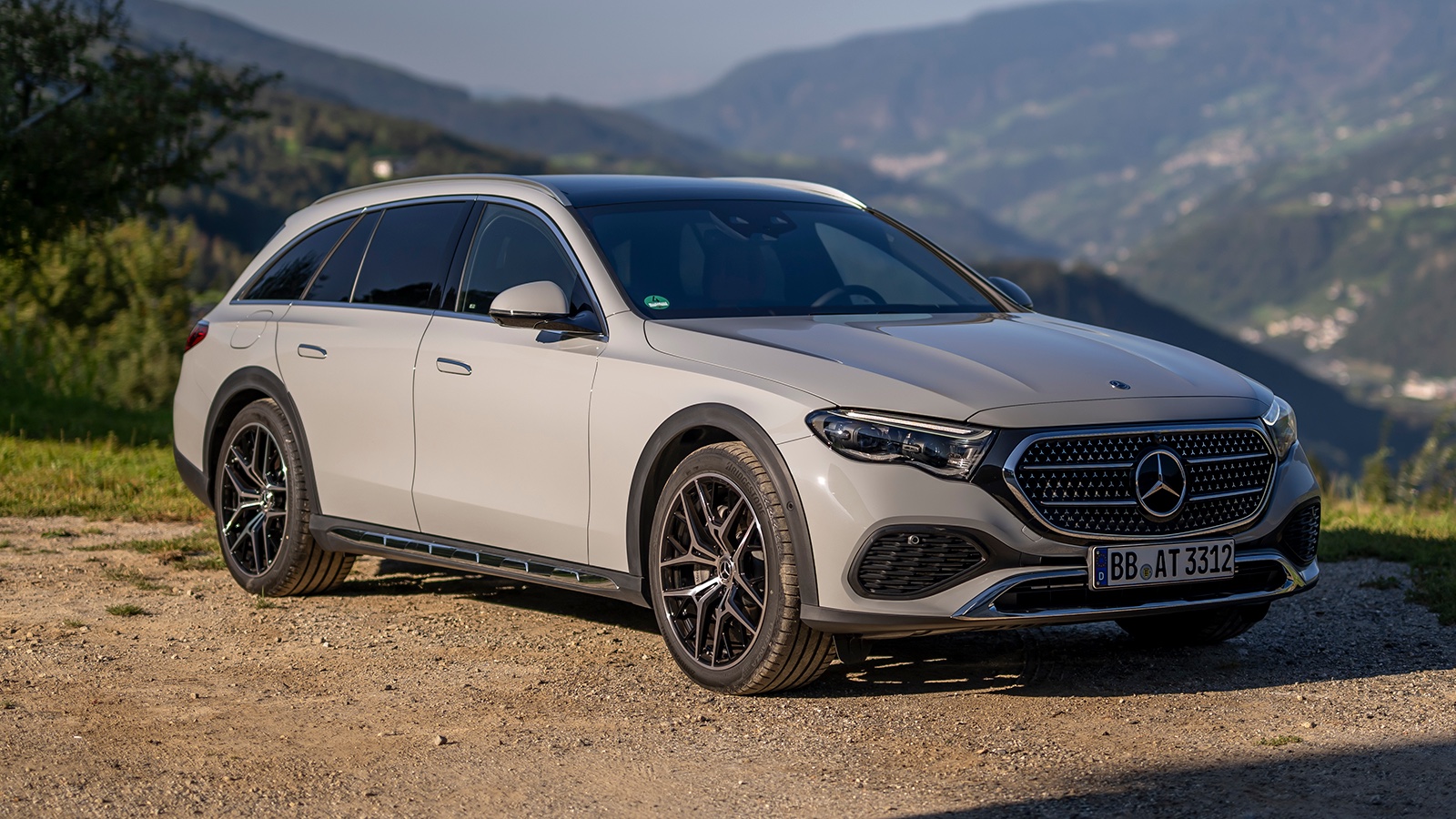

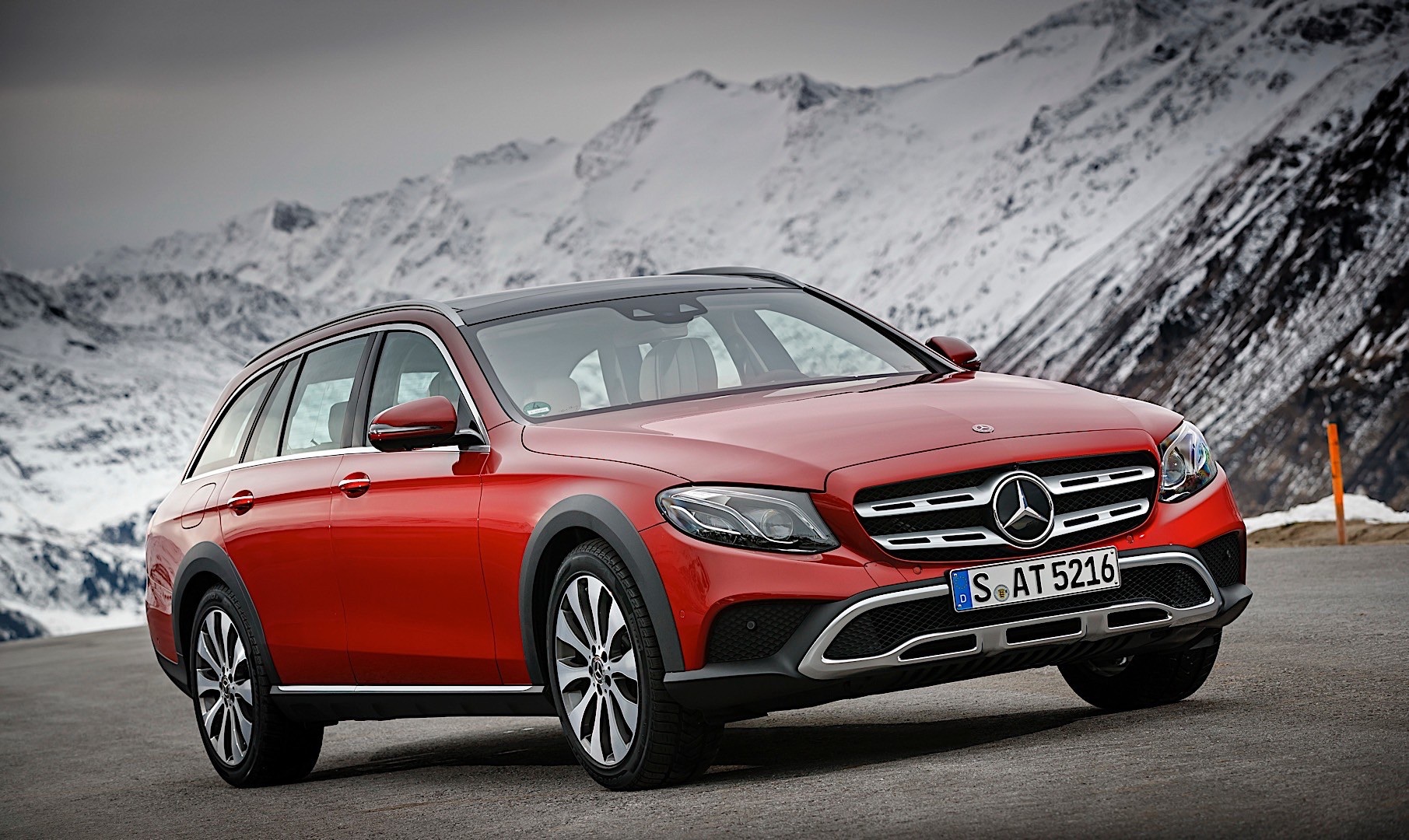

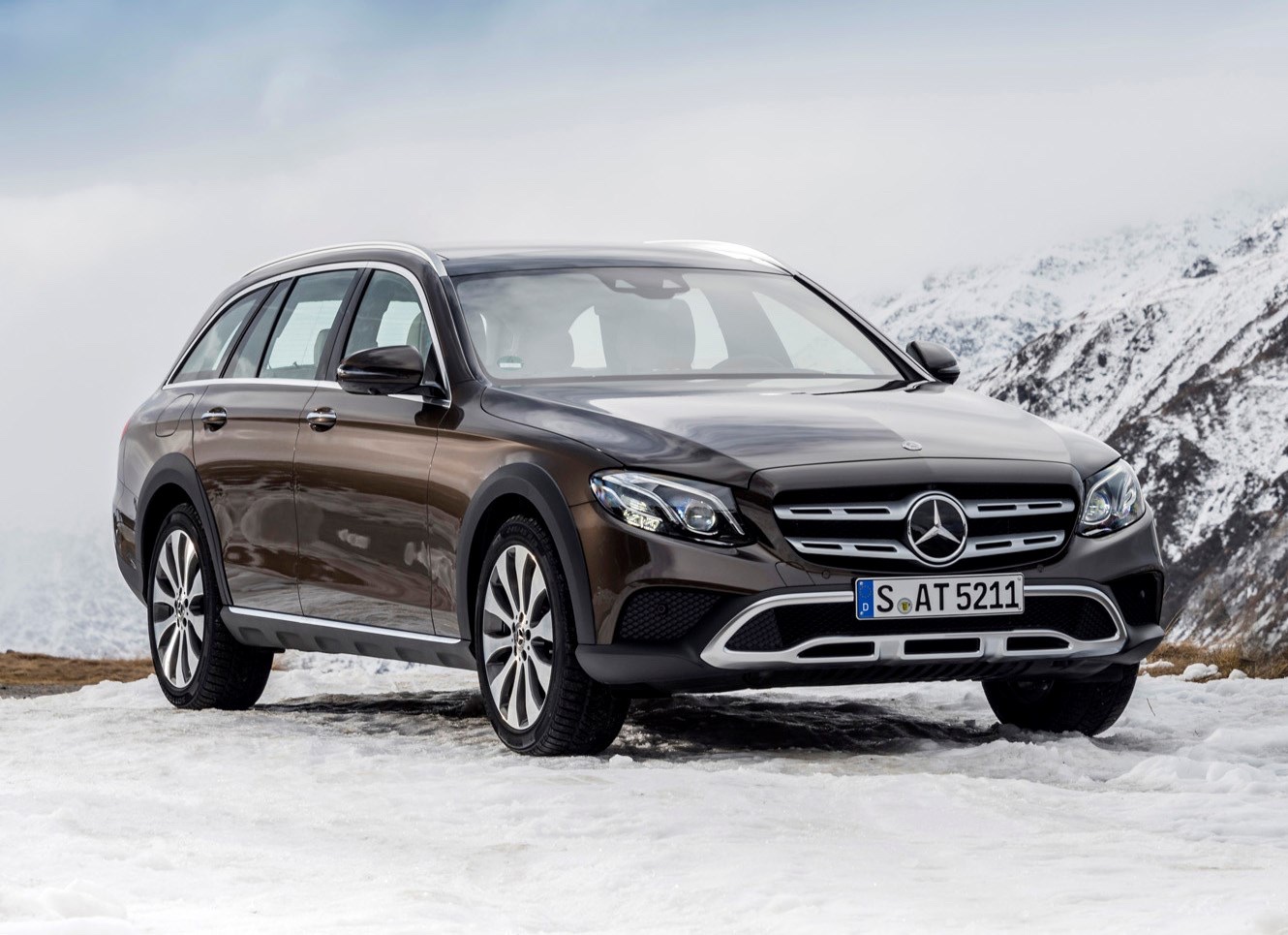

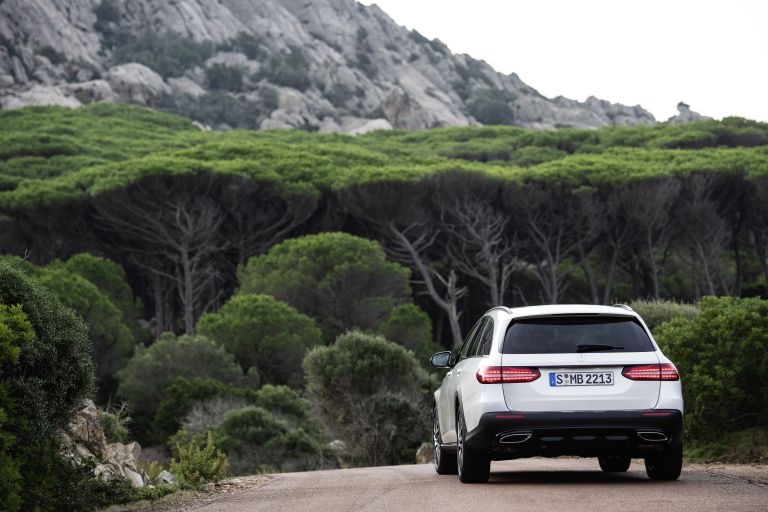

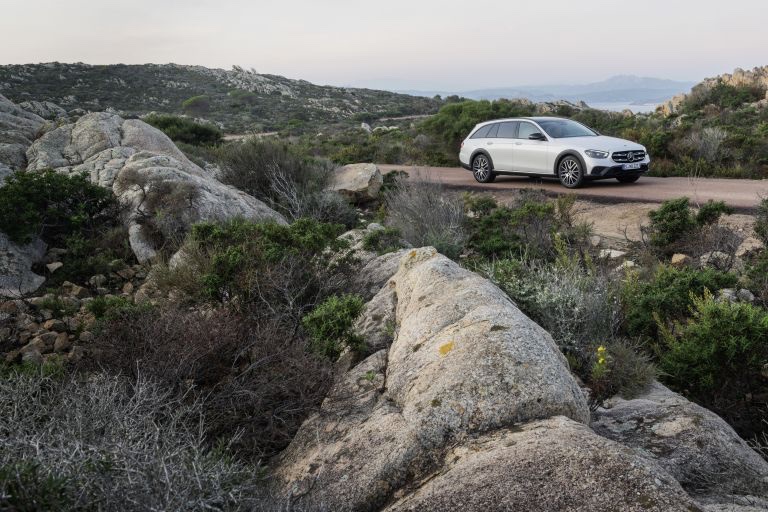

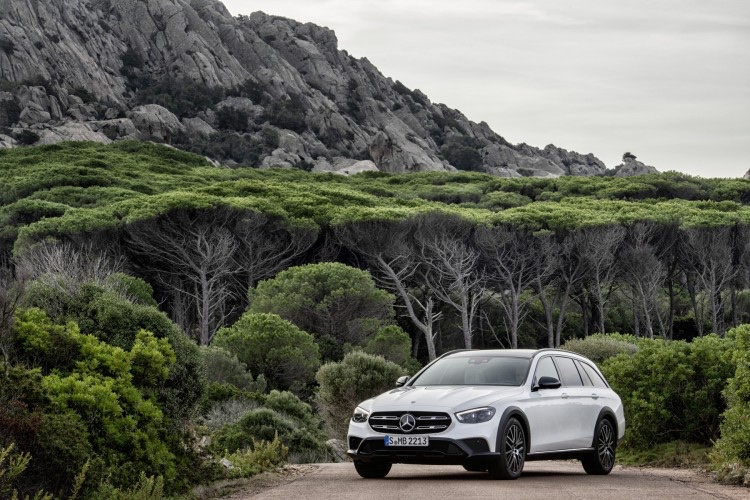

Photo Mercedes E-Class All Terrain (X213)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
220d 4Matic 38 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 7 |
|---|---|
| Fuel consumption highway, L/100 km | 5.3 |
| Fuel consumption combined, L/100 km | 5.9 |
| Top speed, km/h | 231 |
| Acceleration 0-100 km/h, s | 8 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1950 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 194 |
| RPM at max power | 4200 |
| Torque, Nm | 400 |
| RPM at max torque | 1600-2800 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4947 |
| Width, mm | 2065 |
| Height, mm | 1497 |
| Wheelbase, mm | 2939 |
| Front track, mm | 1607 |
| Kerb weight, kg | 1965 |
| Gross weight, kg | 2590 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.9 |
| Ground clearance, mm | 136 |
| Width without mirrors, mm | 1861 |
| Trunk capacity, L | 640 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
400d 4Matic 40 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 8.4 |
|---|---|
| Fuel consumption highway, L/100 km | 5.8 |
| Fuel consumption combined, L/100 km | 6.7 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.9d |
|---|---|
| Engine code | OM656 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2925 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Compression ratio | 15.5:1 |
| Power, hp | 330 |
| RPM at max power | 3600-4000 |
| Torque, Nm | 700 |
| RPM at max torque | 1200-3000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4947 |
| Width, mm | 2065 |
| Height, mm | 1497 |
| Wheelbase, mm | 2939 |
| Front track, mm | 1607 |
| Kerb weight, kg | 1965 |
| Gross weight, kg | 2590 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.9 |
| Ground clearance, mm | 136 |
| Width without mirrors, mm | 1861 |
| Trunk capacity, L | 640 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
200 4Matic 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 10 |
|---|---|
| Fuel consumption highway, L/100 km | 6.4 |
| Fuel consumption combined, L/100 km | 7.7 |
| Top speed, km/h | 225 |
| Acceleration 0-100 km/h, s | 8.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i |
|---|---|
| Engine code | M274 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1991 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 197 |
| RPM at max power | 5500 |
| Torque, Nm | 320 |
| RPM at max torque | 4000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4947 |
| Width, mm | 2065 |
| Height, mm | 1497 |
| Wheelbase, mm | 2939 |
| Front track, mm | 1607 |
| Kerb weight, kg | 1965 |
| Gross weight, kg | 2590 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.9 |
| Ground clearance, mm | 136 |
| Width without mirrors, mm | 1861 |
| Trunk capacity, L | 640 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
450 4Matic 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 11.7 |
|---|---|
| Fuel consumption highway, L/100 km | 6.8 |
| Fuel consumption combined, L/100 km | 8.6 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i |
|---|---|
| Engine code | M256 E30 DEH LA G R |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 10.5:1 |
| Power, hp | 367 |
| RPM at max power | 5500-6000 |
| Torque, Nm | 500 |
| RPM at max torque | 2000-4200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4947 |
| Width, mm | 2065 |
| Height, mm | 1497 |
| Wheelbase, mm | 2939 |
| Front track, mm | 1607 |
| Kerb weight, kg | 1965 |
| Gross weight, kg | 2590 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.9 |
| Ground clearance, mm | 136 |
| Width without mirrors, mm | 1861 |
| Trunk capacity, L | 640 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 200 4MATIC 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 10 |
|---|---|
| Fuel consumption highway, L/100 km | 6.4 |
| Fuel consumption combined, L/100 km | 7.7 |
| Top speed, km/h | 225 |
| Acceleration 0-100 km/h, s | 8.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i |
|---|---|
| Engine code | M274 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1991 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 197 |
| RPM at max power | 5500 |
| Torque, Nm | 320 |
| RPM at max torque | 4000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4947 |
| Width, mm | 2065 |
| Height, mm | 1497 |
| Wheelbase, mm | 2939 |
| Front track, mm | 1607 |
| Kerb weight, kg | 1965 |
| Gross weight, kg | 2590 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.9 |
| Ground clearance, mm | 136 |
| Width without mirrors, mm | 1861 |
| Trunk capacity, L | 640 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 220 d 4MATIC 38 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 7 |
|---|---|
| Fuel consumption highway, L/100 km | 5.3 |
| Fuel consumption combined, L/100 km | 5.9 |
| Top speed, km/h | 231 |
| Acceleration 0-100 km/h, s | 8 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1950 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 194 |
| RPM at max power | 4200 |
| Torque, Nm | 400 |
| RPM at max torque | 1600-2800 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4947 |
| Width, mm | 2065 |
| Height, mm | 1497 |
| Wheelbase, mm | 2939 |
| Front track, mm | 1607 |
| Kerb weight, kg | 1965 |
| Gross weight, kg | 2590 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.9 |
| Ground clearance, mm | 136 |
| Width without mirrors, mm | 1861 |
| Trunk capacity, L | 640 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 400 d 4MATIC 40 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 8.4 |
|---|---|
| Fuel consumption highway, L/100 km | 5.8 |
| Fuel consumption combined, L/100 km | 6.7 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.9d |
|---|---|
| Engine code | OM656 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2925 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Turbocharger | + |
| Compression ratio | 15.5:1 |
| Power, hp | 330 |
| RPM at max power | 3600-4000 |
| Torque, Nm | 700 |
| RPM at max torque | 1200-3000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4947 |
| Width, mm | 2065 |
| Height, mm | 1497 |
| Wheelbase, mm | 2939 |
| Front track, mm | 1607 |
| Kerb weight, kg | 1965 |
| Gross weight, kg | 2590 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.9 |
| Ground clearance, mm | 136 |
| Width without mirrors, mm | 1861 |
| Trunk capacity, L | 640 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 450 4MATIC 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 11.7 |
|---|---|
| Fuel consumption highway, L/100 km | 6.8 |
| Fuel consumption combined, L/100 km | 8.6 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i |
|---|---|
| Engine code | M256 E30 DEH LA G R |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 10.5:1 |
| Power, hp | 367 |
| RPM at max power | 5500-6000 |
| Torque, Nm | 500 |
| RPM at max torque | 2000-4200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4947 |
| Width, mm | 2065 |
| Height, mm | 1497 |
| Wheelbase, mm | 2939 |
| Front track, mm | 1607 |
| Kerb weight, kg | 1965 |
| Gross weight, kg | 2590 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.9 |
| Ground clearance, mm | 136 |
| Width without mirrors, mm | 1861 |
| Trunk capacity, L | 640 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Mercedes E-Class All Terrain (X213) questions
Short answers based on the specifications and photos available in this catalog.
What body style is the E-Class All-Terrain?
It is a five-door luxury station wagon featuring increased ground clearance and rugged exterior styling cues.
What engines are available in this model?
The lineup includes 2.0L and 2.9L diesels (E 220 d, E 400 d), as well as 2.0L and 3.0L gasoline engines (E 200, E 450), the latter featuring mild-hybrid technology.
Does the All-Terrain come with all-wheel drive?
Yes, every E-Class All-Terrain is equipped with the Mercedes 4Matic all-wheel-drive system and a 9-speed automatic transmission as standard.
How large is the trunk?
The cargo area offers 640 liters of space with the rear seats in place, expanding to a maximum of 1,820 liters when the second row is folded down.
Is the air suspension standard?
Yes, it includes the Air Ride Control system natively, which allows the driver to increase the ride height by an extra 20 mm at low speeds.
Continue exploring Mercedes
Return to Mercedes models, browse the gallery, or compare the trims listed above.
