Mercedes E-Class Cabriolet (A238) specifications and photos
The 2020 Mercedes-Benz E-Class Cabriolet (A238) is a luxury four-seat convertible that combines elegant design with advanced mild-hybrid powertrains. Arriving as a mid-cycle update to the fifth-generation E-Class, it brings sharper styling, upgraded cabin technology, and refined open-air comfort features.
Mercedes E-Class Cabriolet (A238) at a glance
Quick model context before comparing photos and trim-level specifications.
Introduced via a digital premiere in May 2020, the facelifted A238 E-Class Cabriolet refines the established formula of Mercedes' midsize drop-top. The update aligns the convertible with the rest of the E-Class family, bringing a refreshed front fascia and a tech-forward interior centered around the latest MBUX infotainment system. Mercedes focused heavily on powertrain efficiency for this iteration, integrating 48-volt mild-hybrid systems into the lineup and replacing the older V6 engines with smooth-running inline-six units. Designed to offer a premium open-top grand touring experience, the cabriolet balances daily usability with the dynamic performance expected from the brand, culminating in the potent AMG E 53 variant.
- Power: 194-435 hp
- Engine displacement: 1950-2999 cc
- Transmissions: 9G-Tronic, 9G-AMG SPEEDSHIFT TCT, 9G-AMG SPEEDSHIFT TC
- Seating: 4 seats
Mercedes E-Class Cabriolet (A238) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The exterior styling of the restyled E-Class Cabriolet is marked by a flatter headlight shape and a revised inverted-trapezoid grille. Standard models come with LED lighting, while advanced Multibeam matrix headlights are available. The rear features updated taillight internals for a fresher look. The classic multi-layer acoustic soft top can be operated at speeds up to 50 km/h, taking just 20 seconds to open or close. It is available in black, dark brown, blue, or red to contrast or complement the body paint.
Interior
Inside the cabin, the updated A238 features a redesigned steering wheel equipped with capacitive sensors, allowing the driver assistance systems to detect when hands are on the wheel. The dashboard is dominated by the MBUX multimedia system, which pairs a standard 10.25-inch display with optional dual 12.3-inch screens in higher trims. Voice and gesture controls come standard. To ensure comfort during top-down driving, buyers can opt for the AirScarf neck-heating system and the AirCap wind deflector, which deploy to minimize cabin turbulence.
Performance
The engine range includes a mix of turbocharged petrol and diesel options, paired with a 9G-Tronic automatic transmission. The petrol lineup starts with the 197-hp E 200 and the 258-hp E 300, moving up to the E 450 4Matic, which features a 3.0-liter inline-six producing 367 hp and 500 Nm of torque, aided by a mild-hybrid EQ Boost system. Diesel options include the 194-hp E 220 d and the powerful 330-hp E 400 d. At the top of the range, the Mercedes-AMG E 53 4Matic+ utilizes an electrified 3.0-liter inline-six generating 435 hp and 520 Nm, enabling a 0-100 km/h sprint in just 4.5 seconds.
Practicality
Despite its focus on open-air cruising, the E-Class Cabriolet retains sensible everyday usability for a luxury two-door. It offers seating for four adults and a reinforced body structure designed to maintain rigidity and safety without the fixed roof. The trunk provides 285 liters of cargo capacity, which is adequate for weekend getaways, though buyers should note the vehicle's substantial curb weight, starting around 1,830 kg for base versions.
Safety and tech
Safety and technology see significant upgrades, particularly with the integration of the capacitive steering wheel that prevents drivers from relying entirely on adaptive cruise control without physical engagement. Available tech features include augmented reality navigation, a head-up display, and a 360-degree camera system with automatic parking assistance. Safety equipment is comprehensive, featuring active electronic assists and pop-up roll bars that deploy instantly in the event of a rollover.
Buyer notes
Buyers comparing trims should note the distinction between rear-wheel drive and 4Matic all-wheel drive, as the latter adds all-weather capability but also increases overall weight. Those prioritizing top-down comfort should look for models equipped with the AirScarf and AirCap packages, as well as the available multi-contour ventilated seats. The E 450 offers a sweet spot of inline-six refinement and mild-hybrid efficiency, while the AMG E 53 is the definitive choice for performance enthusiasts seeking sharper handling via the AMG Ride Control+ suspension.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 200 | 1991 cc | 197 hp | 4 | 9G-Tronic |
| 200 4Matic | 1991 cc | 197 hp | 4 | 9G-Tronic |
| 300 | 1991 cc | 258 hp | 4 | 9G-Tronic |
| 450 4Matic | 2999 cc | 367 hp | 4 | 9G-Tronic |
| 53 AMG 4Matic+ | 2999 cc | 435 hp | 4 | 9G-AMG SPEEDSHIFT TCT |
| 220d | 1950 cc | 194 hp | 4 | 9G-Tronic |
| 220d 4Matic | 1950 cc | 194 hp | 4 | 9G-Tronic |
| 400d 4Matic | 2925 cc | 330 hp | 4 | 9G-Tronic |
| E 200 4MATIC | 1991 cc | 197 hp | 4 | 9G-Tronic |
| E 200 | 1991 cc | 197 hp | 4 | 9G-Tronic |
| E 220 d 4MATIC | 1950 cc | 194 hp | 4 | 9G-Tronic |
| E 220 d | 1950 cc | 194 hp | 4 | 9G-Tronic |
| E 300 | 1991 cc | 258 hp | 4 | 9G-Tronic |
| E 400 d 4MATIC | 2925 cc | 330 hp | 4 | 9G-Tronic |
| E 450 4MATIC | 2999 cc | 367 hp | 4 | 9G-Tronic |
| E 53 AMG 4Matic+ | 2999 cc | 435 hp | 4 | 9G-AMG SPEEDSHIFT TC |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

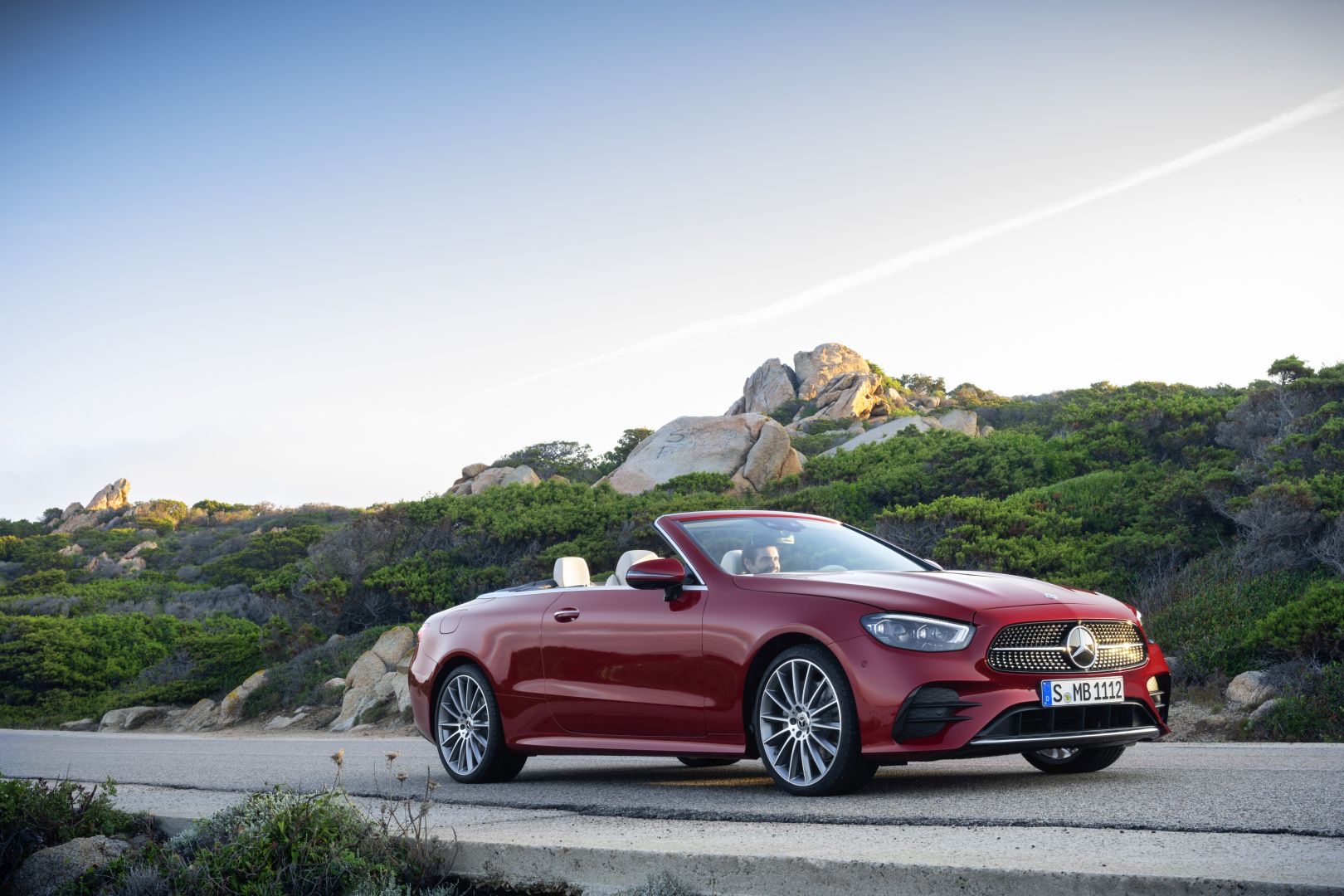

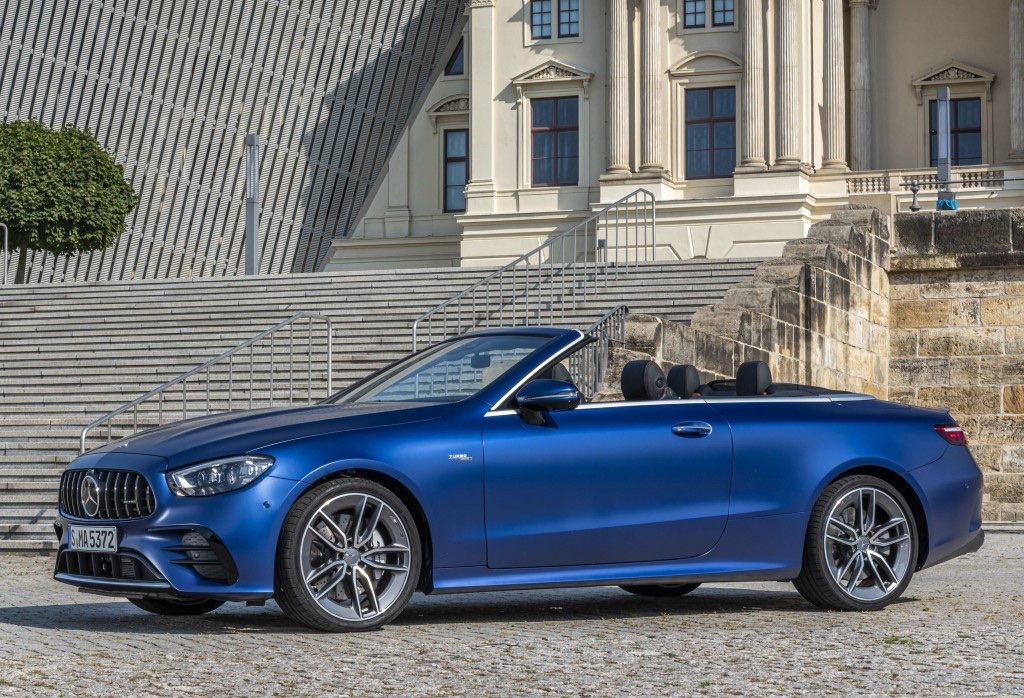

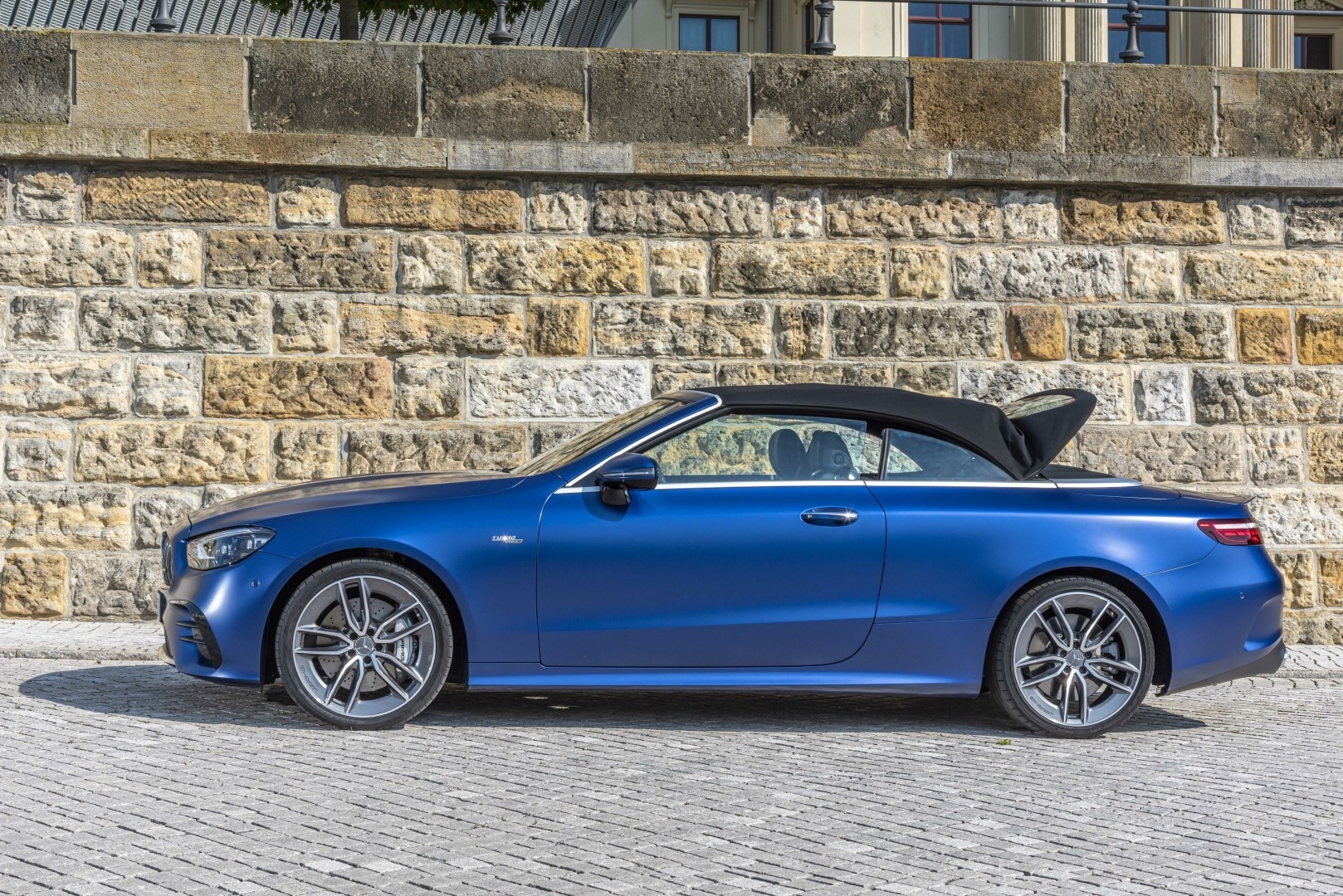

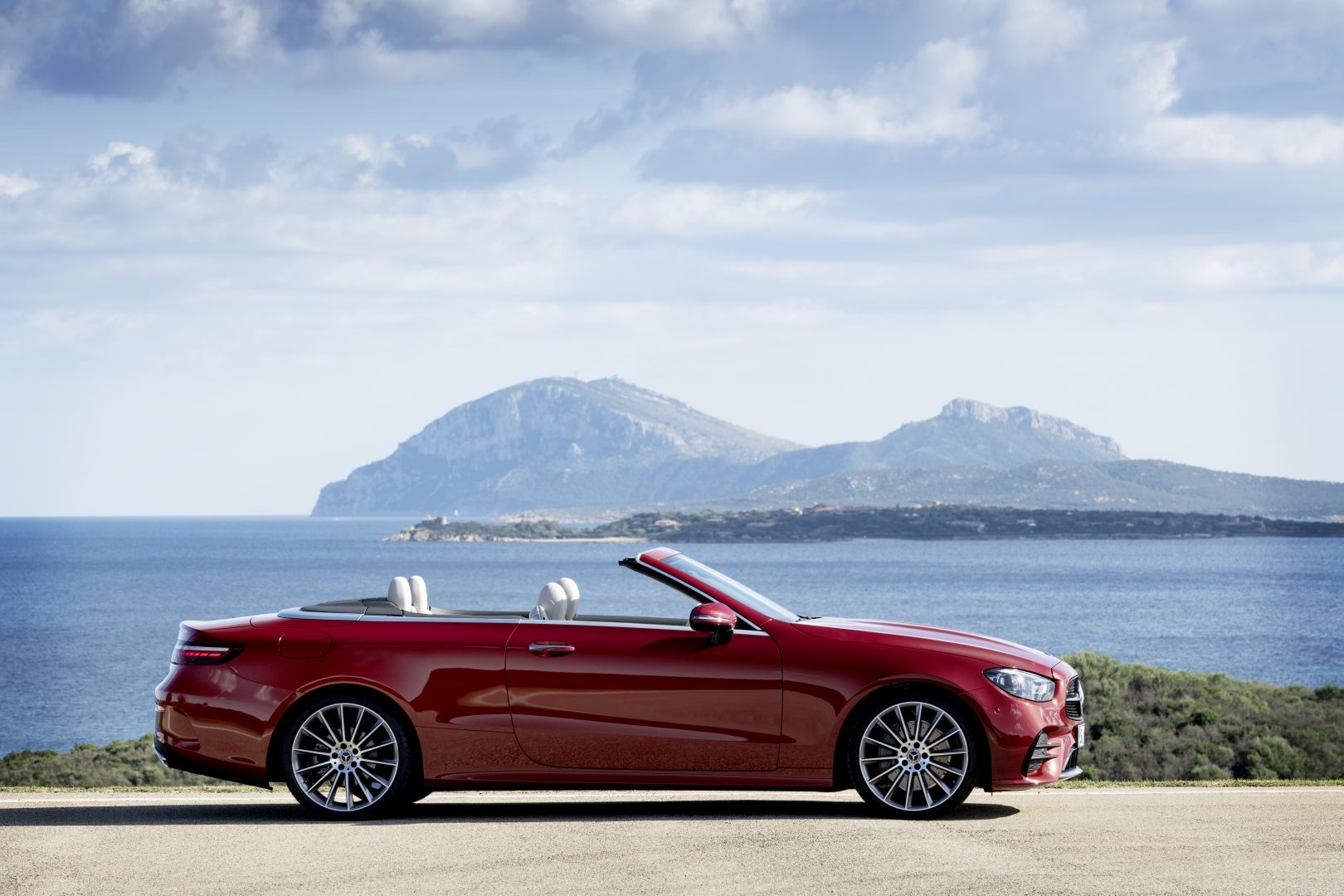

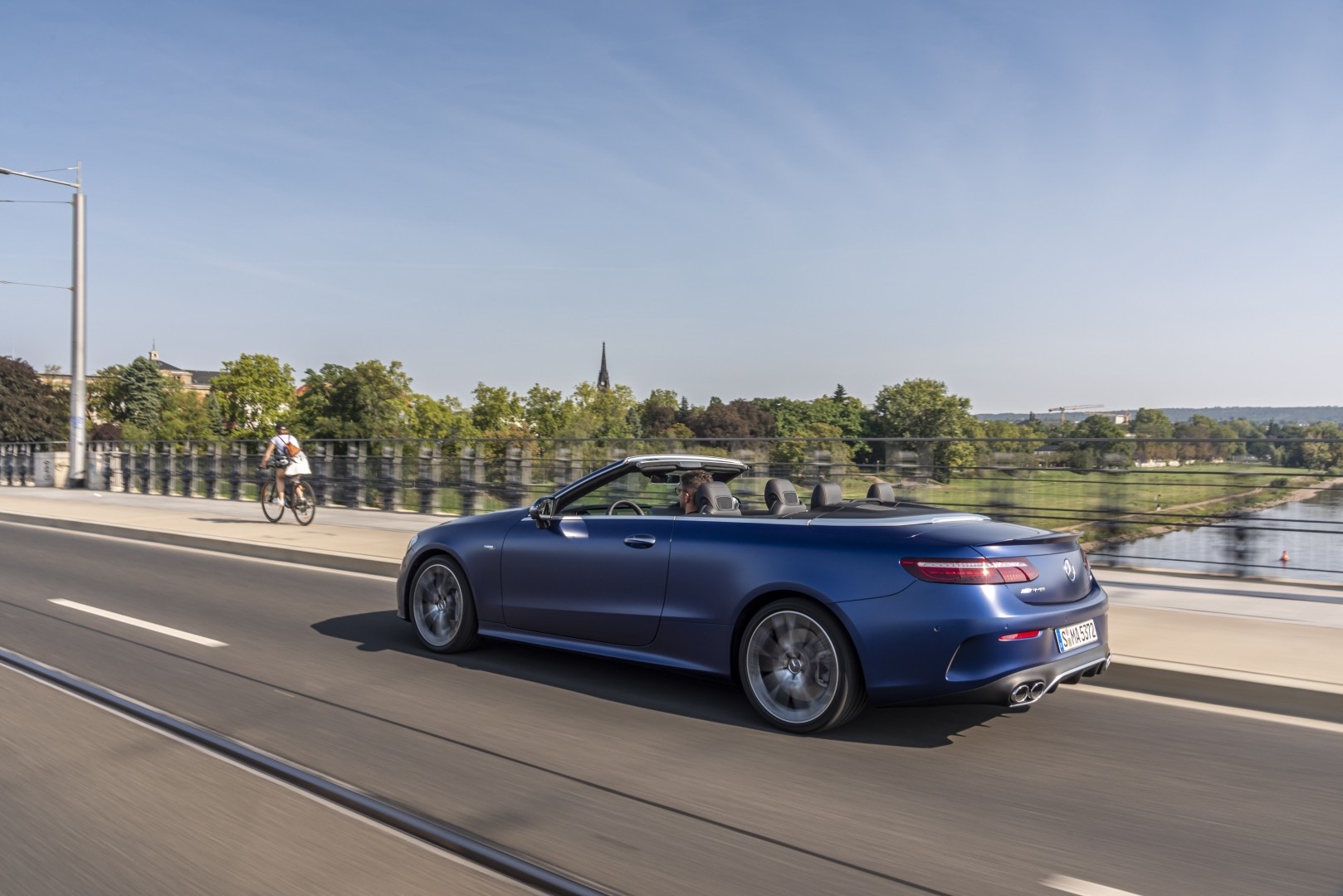

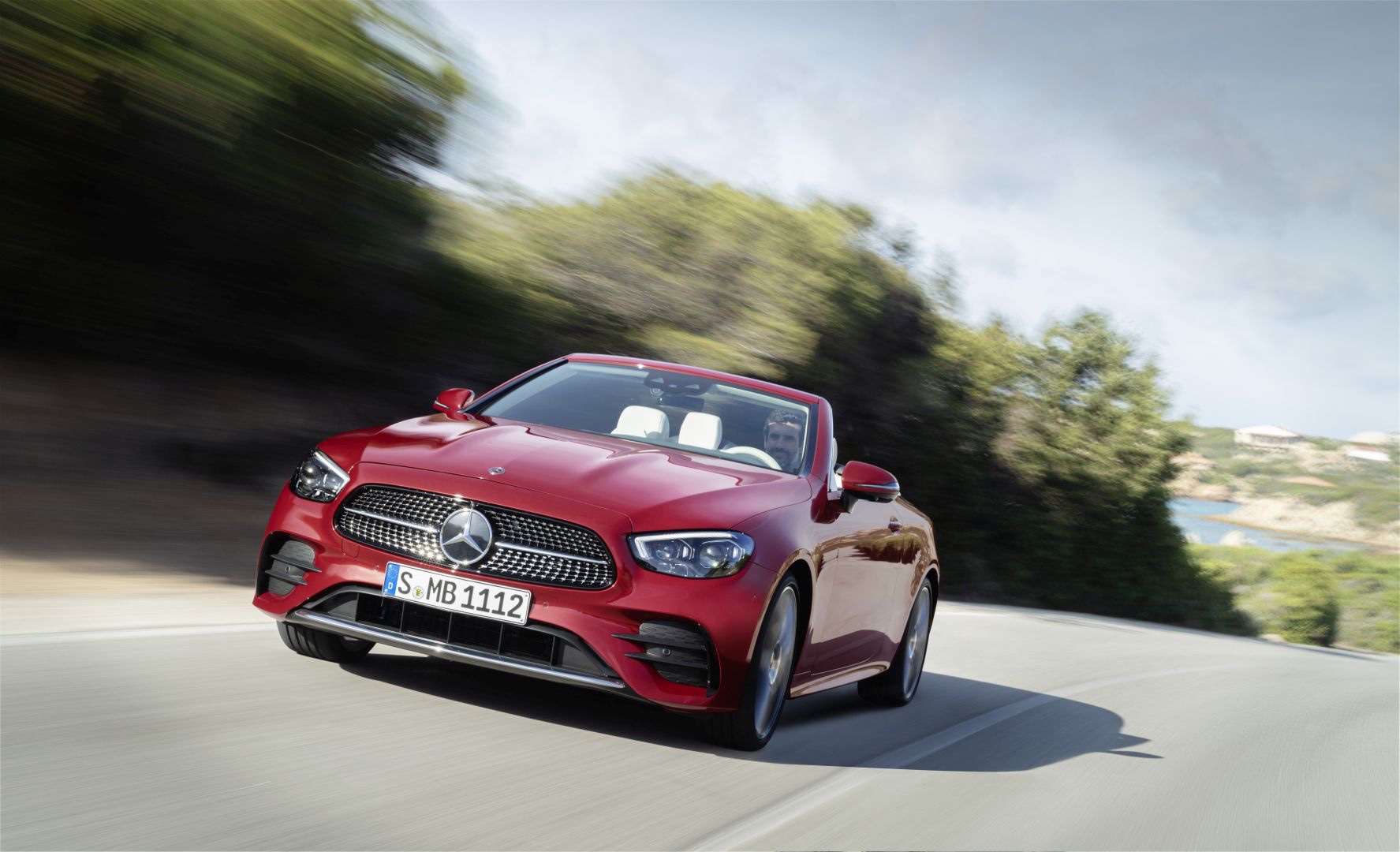

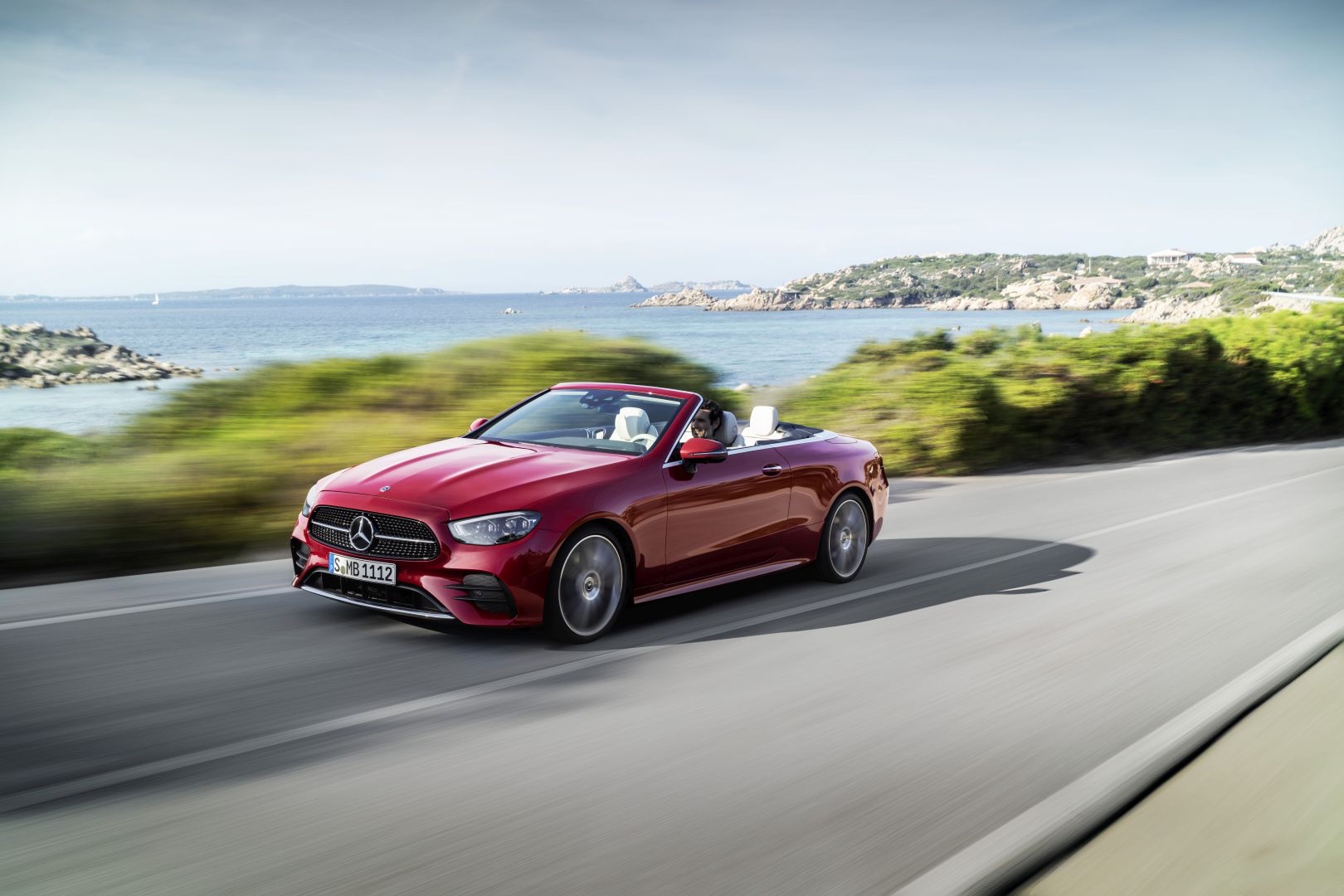

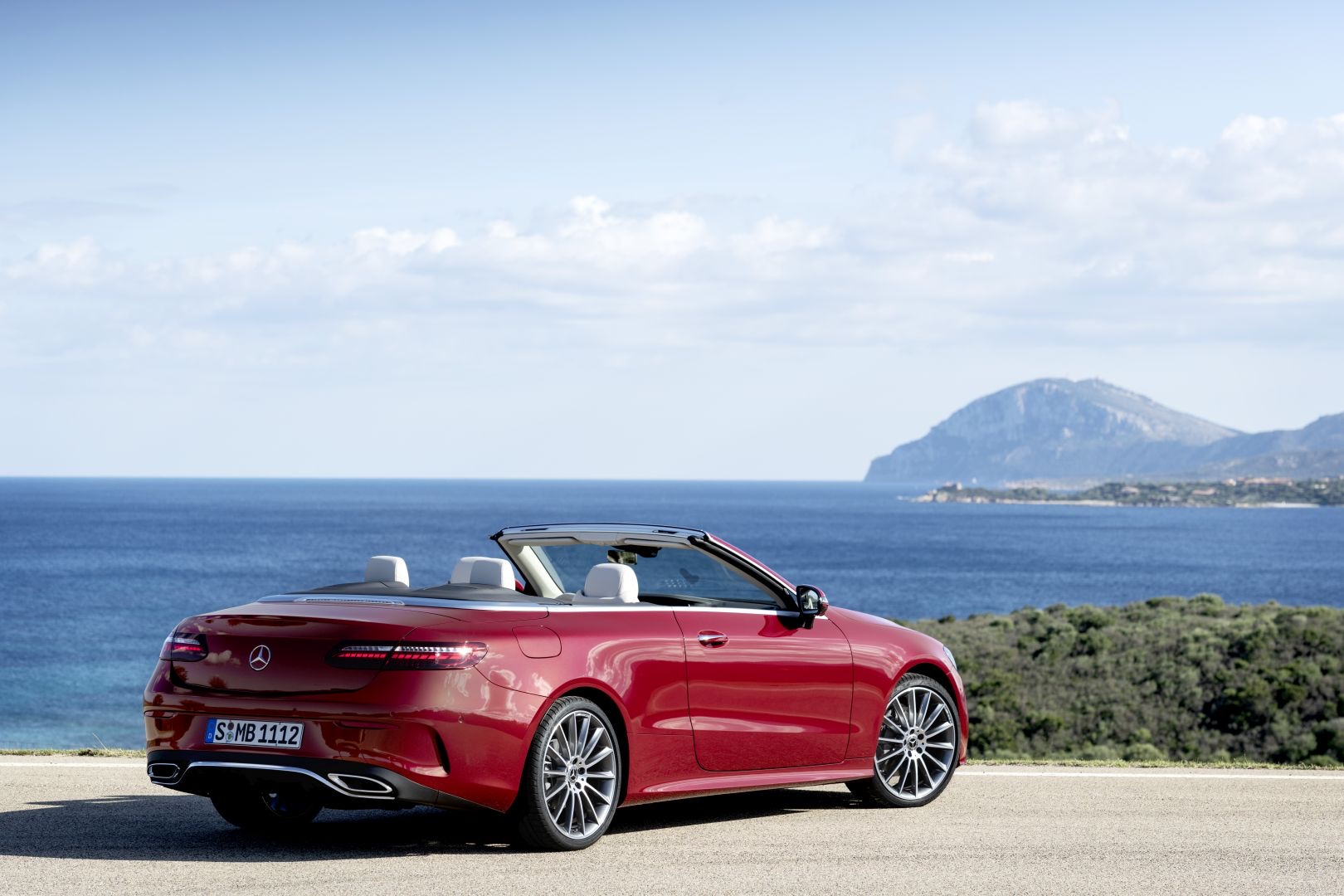

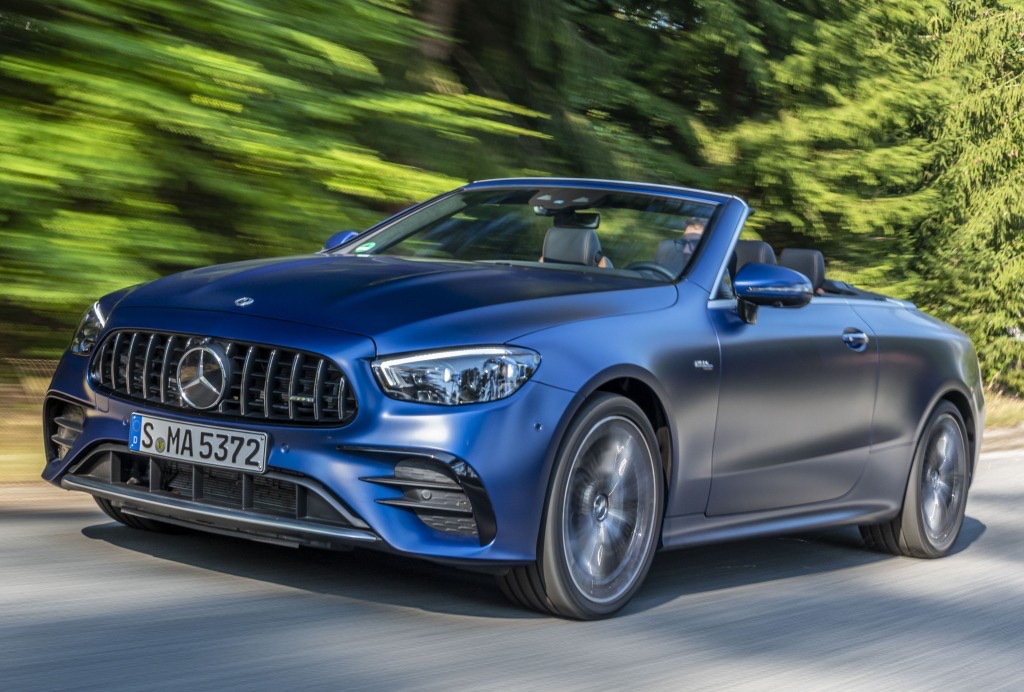

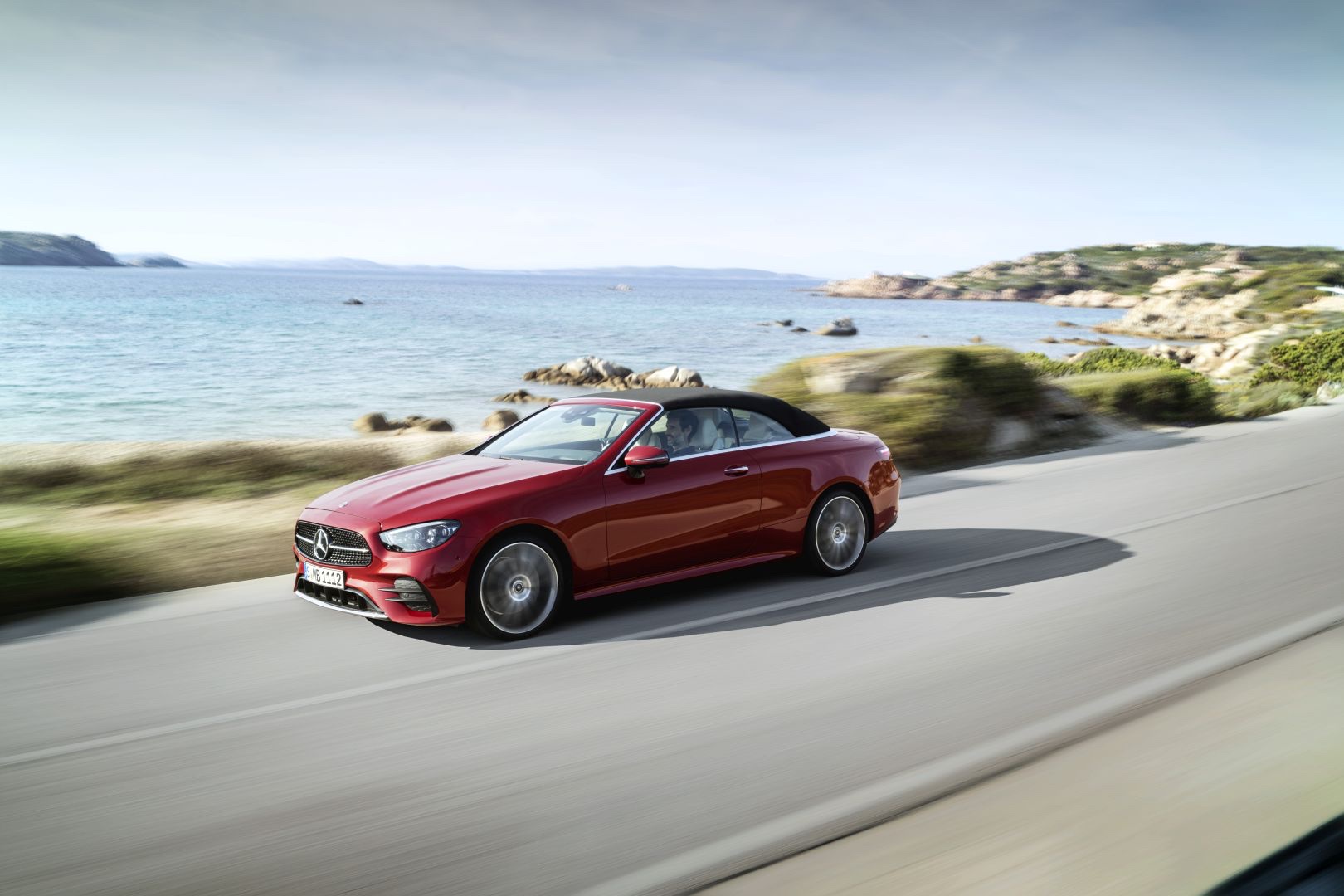

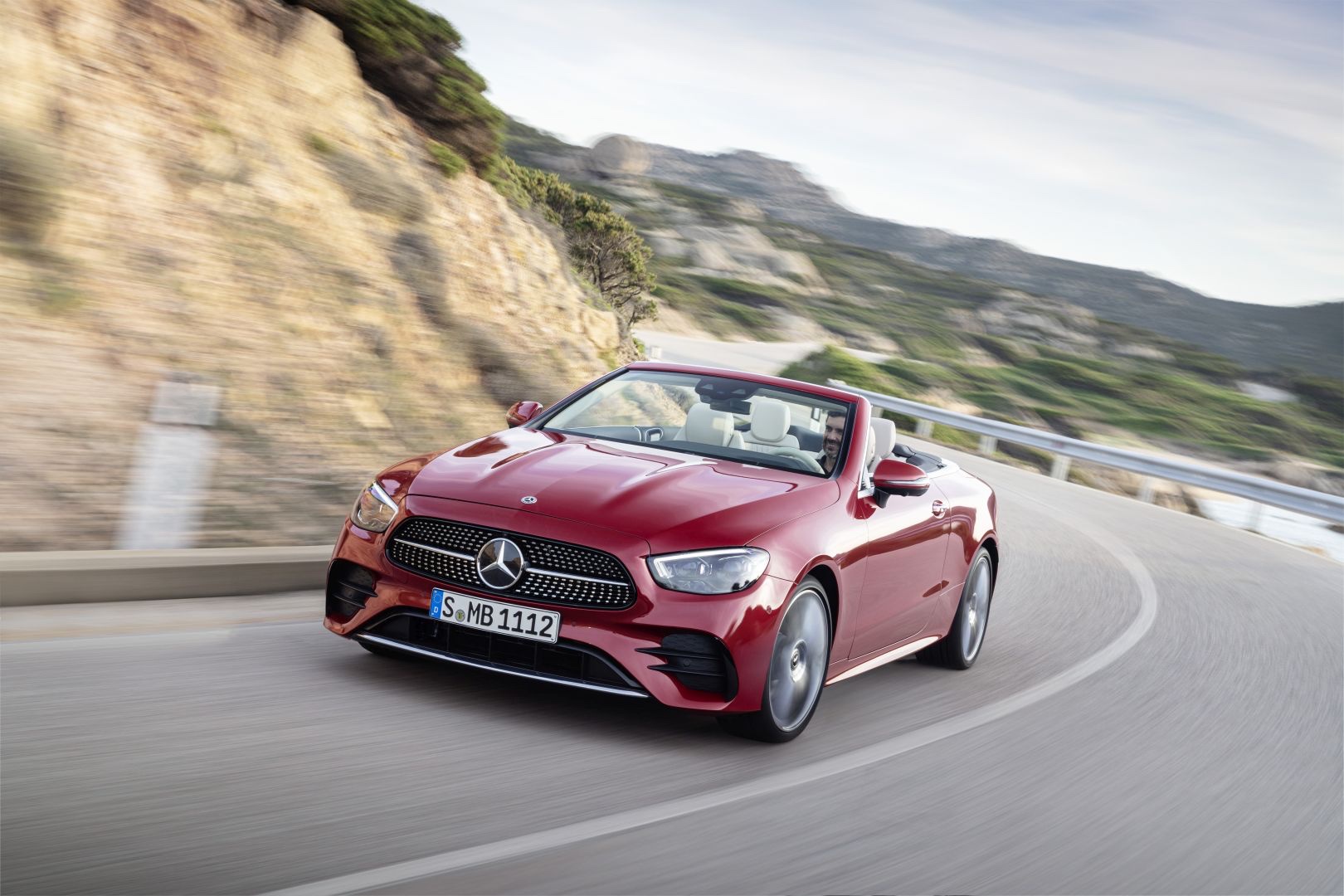

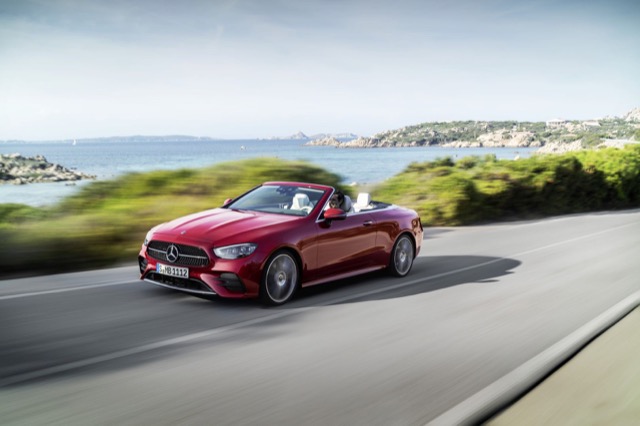

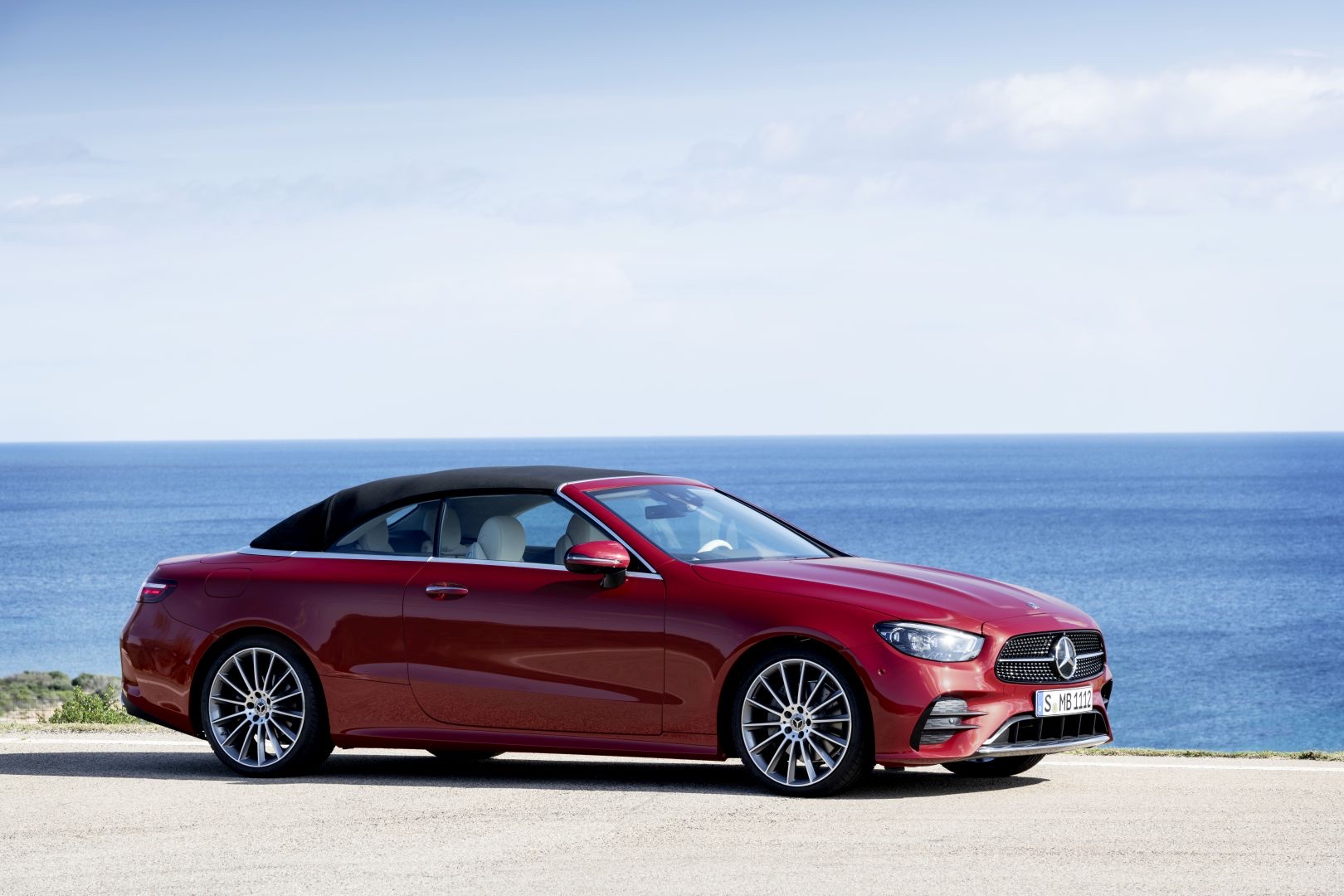

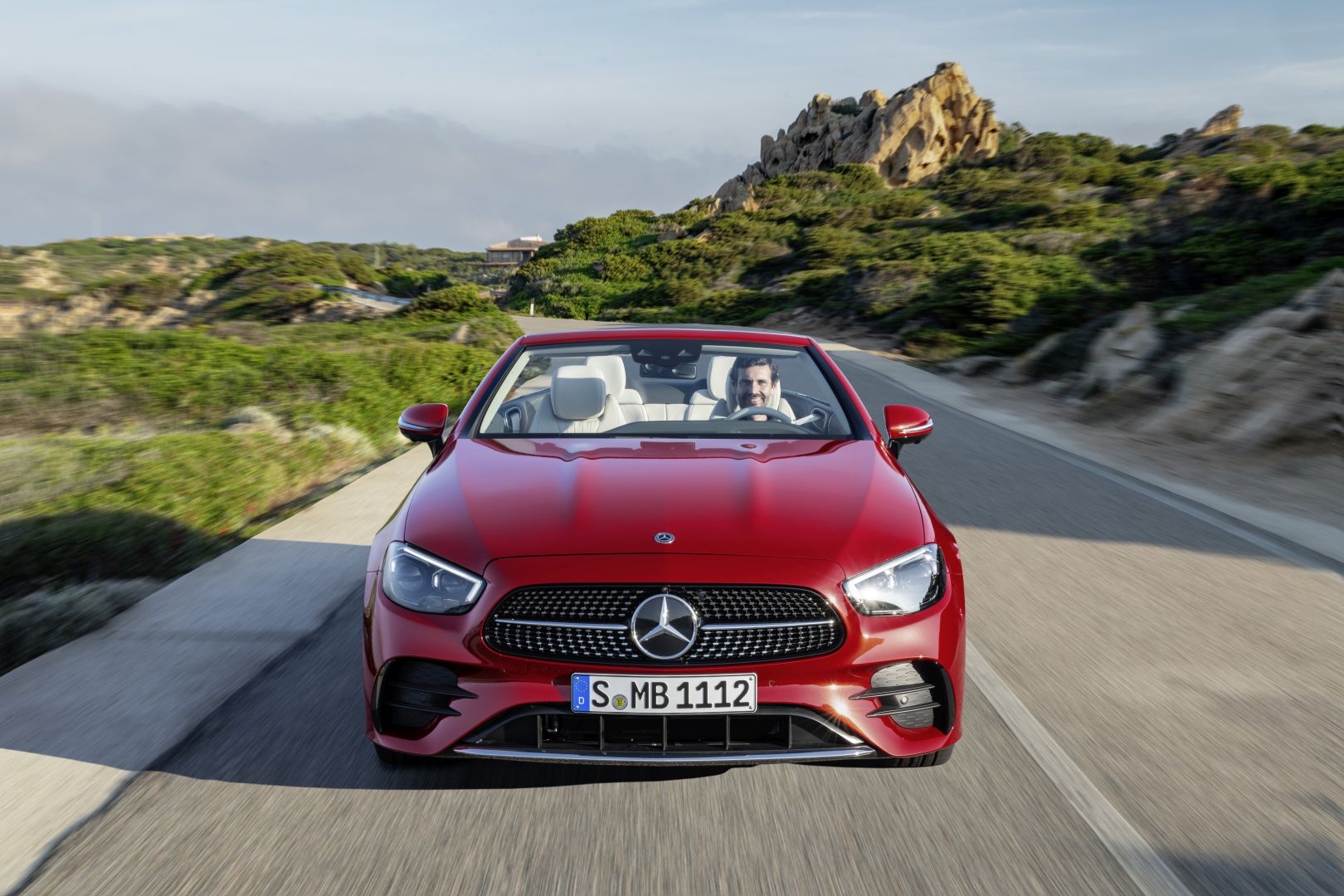

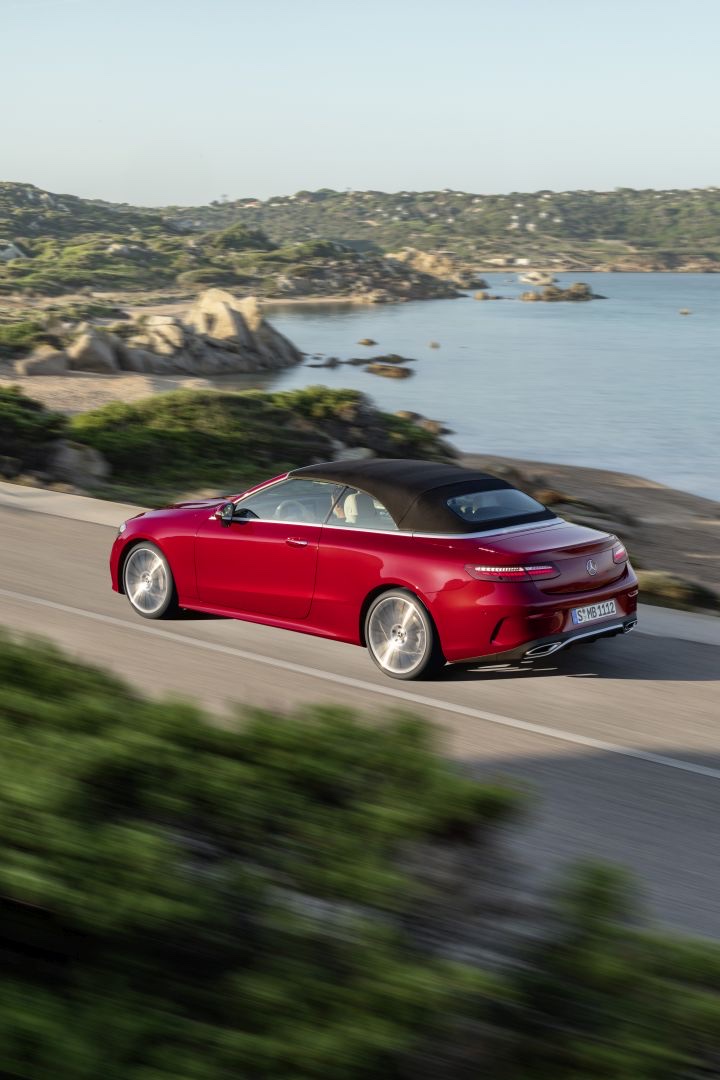

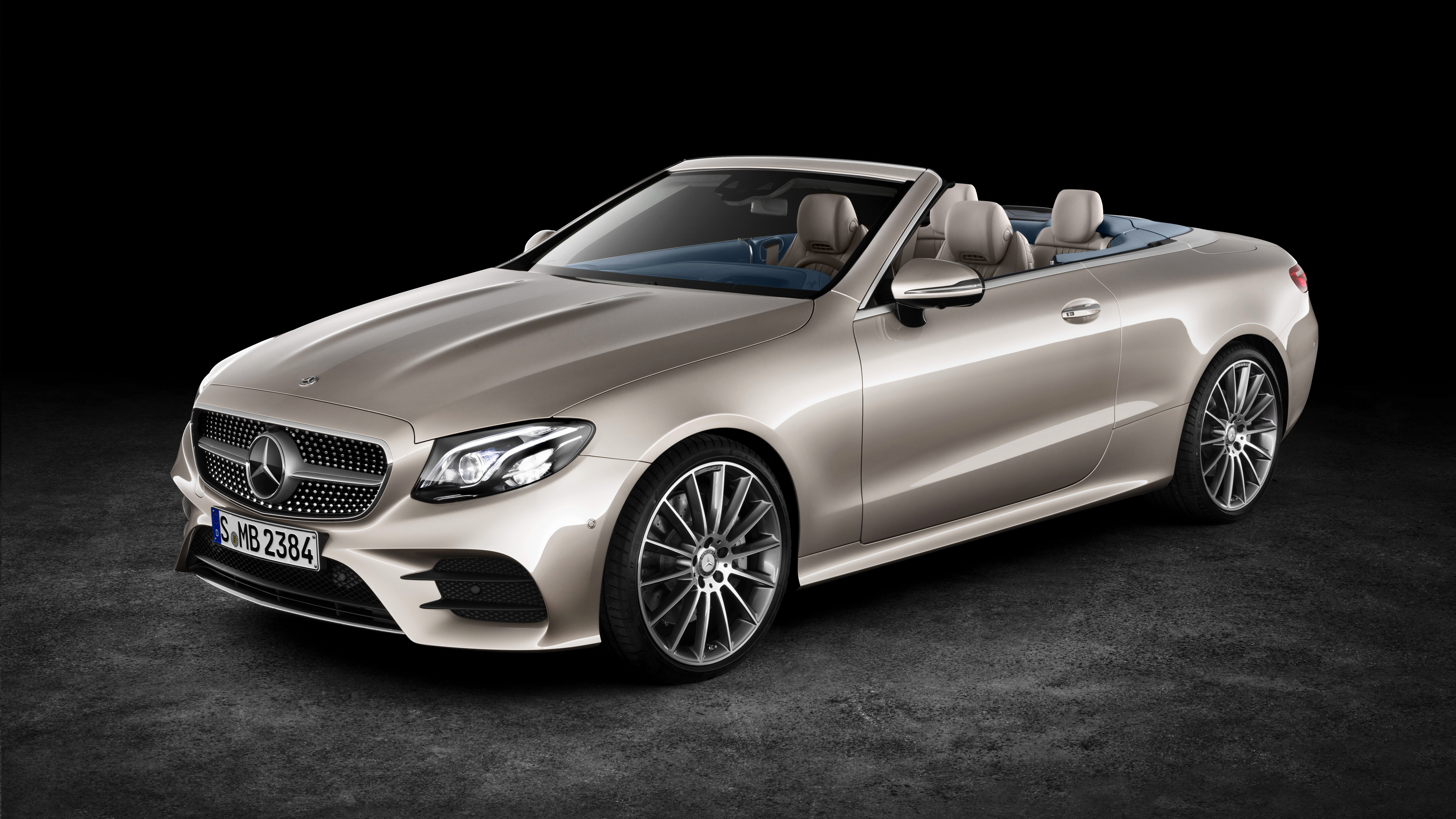

Mercedes E-Class Cabriolet (A238) photo gallery
20 images are collected here with the main specifications and trim data for this model.

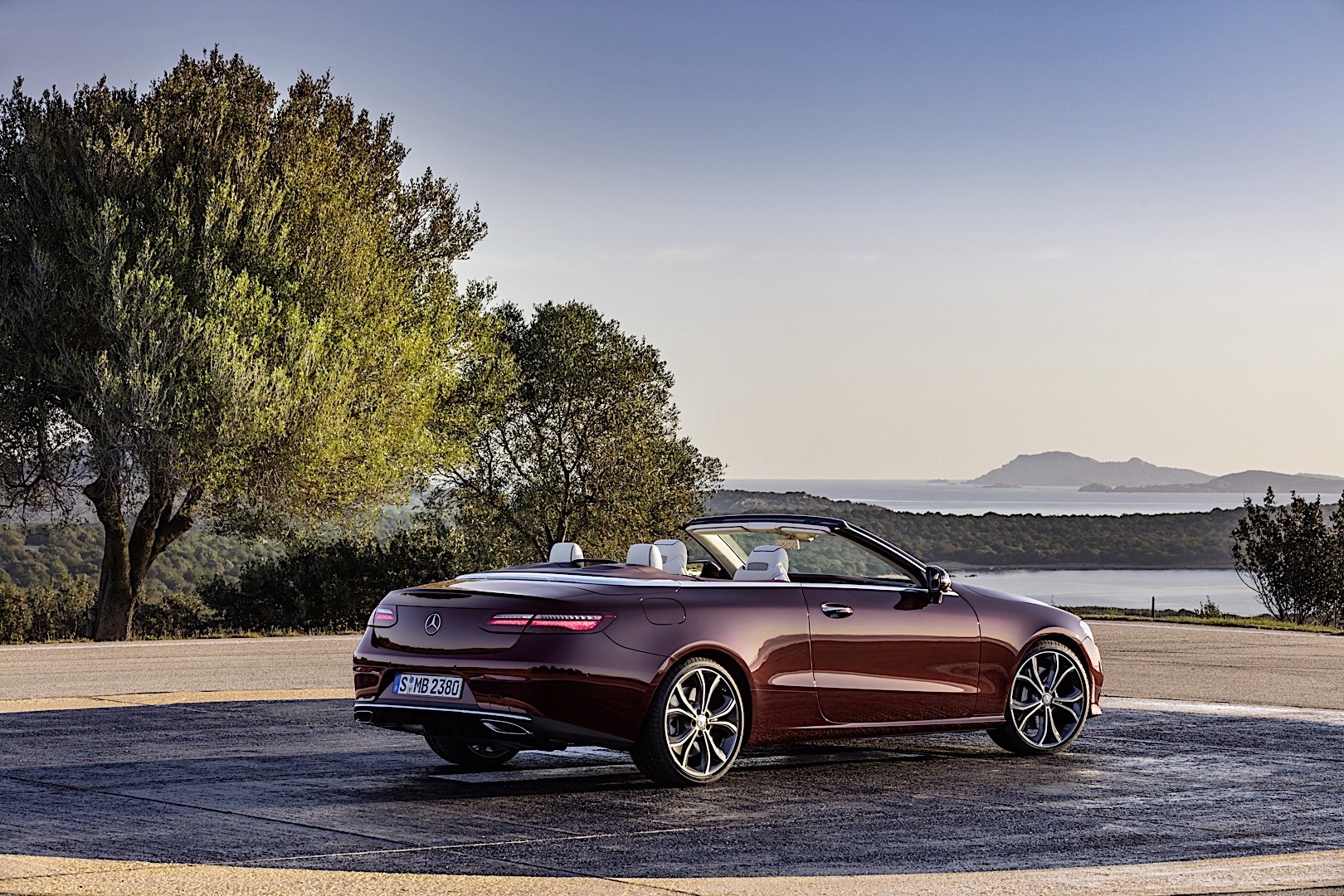

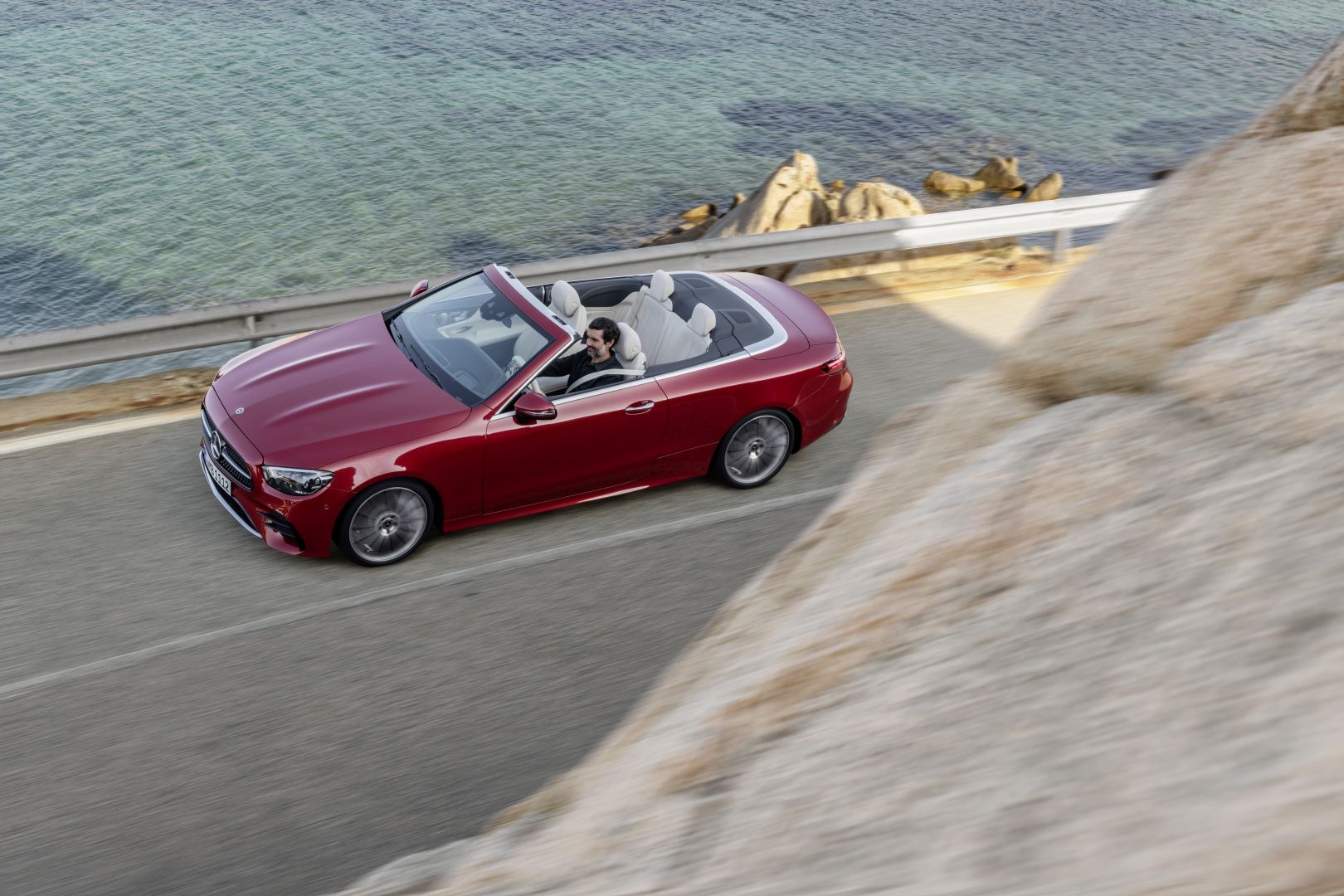

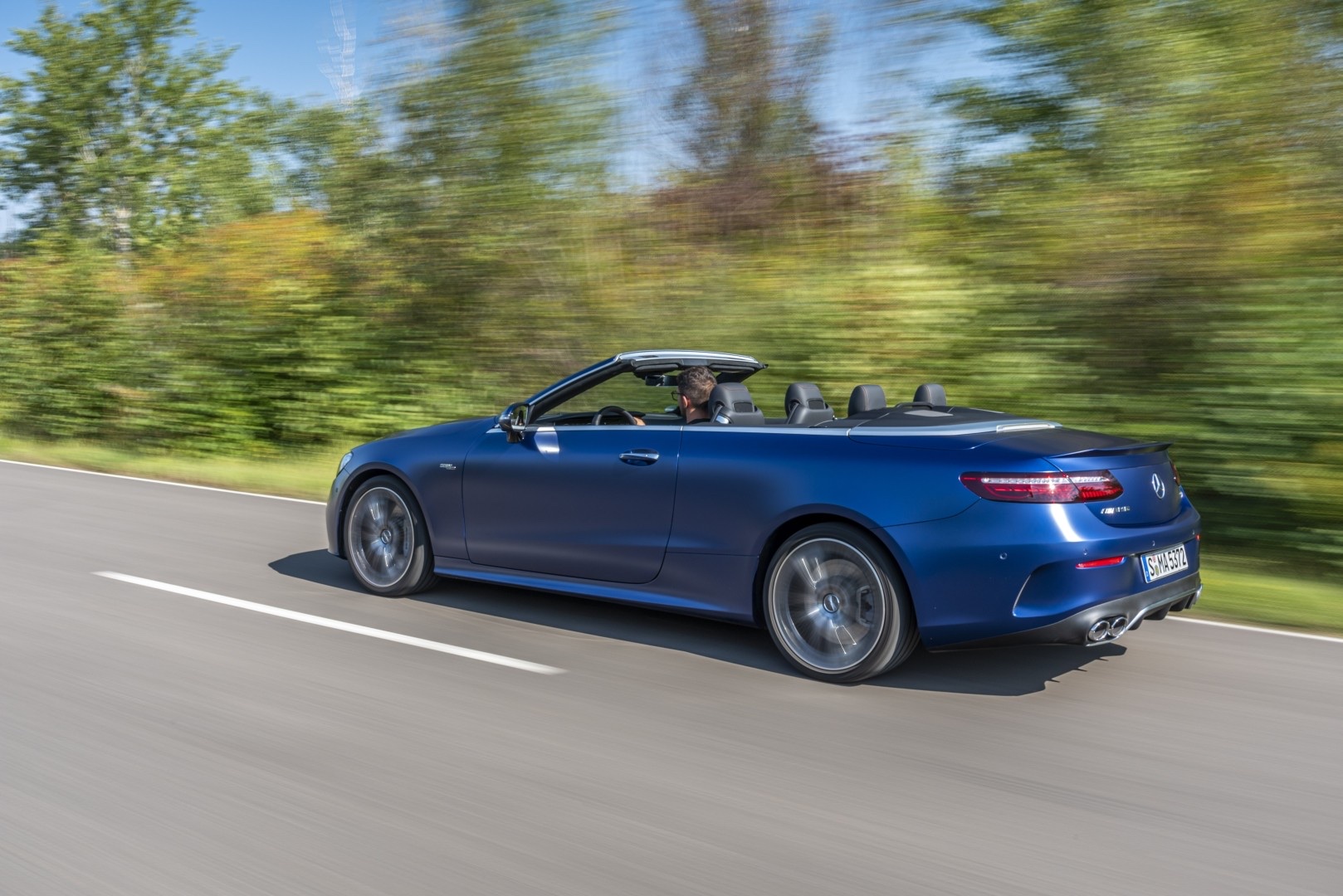

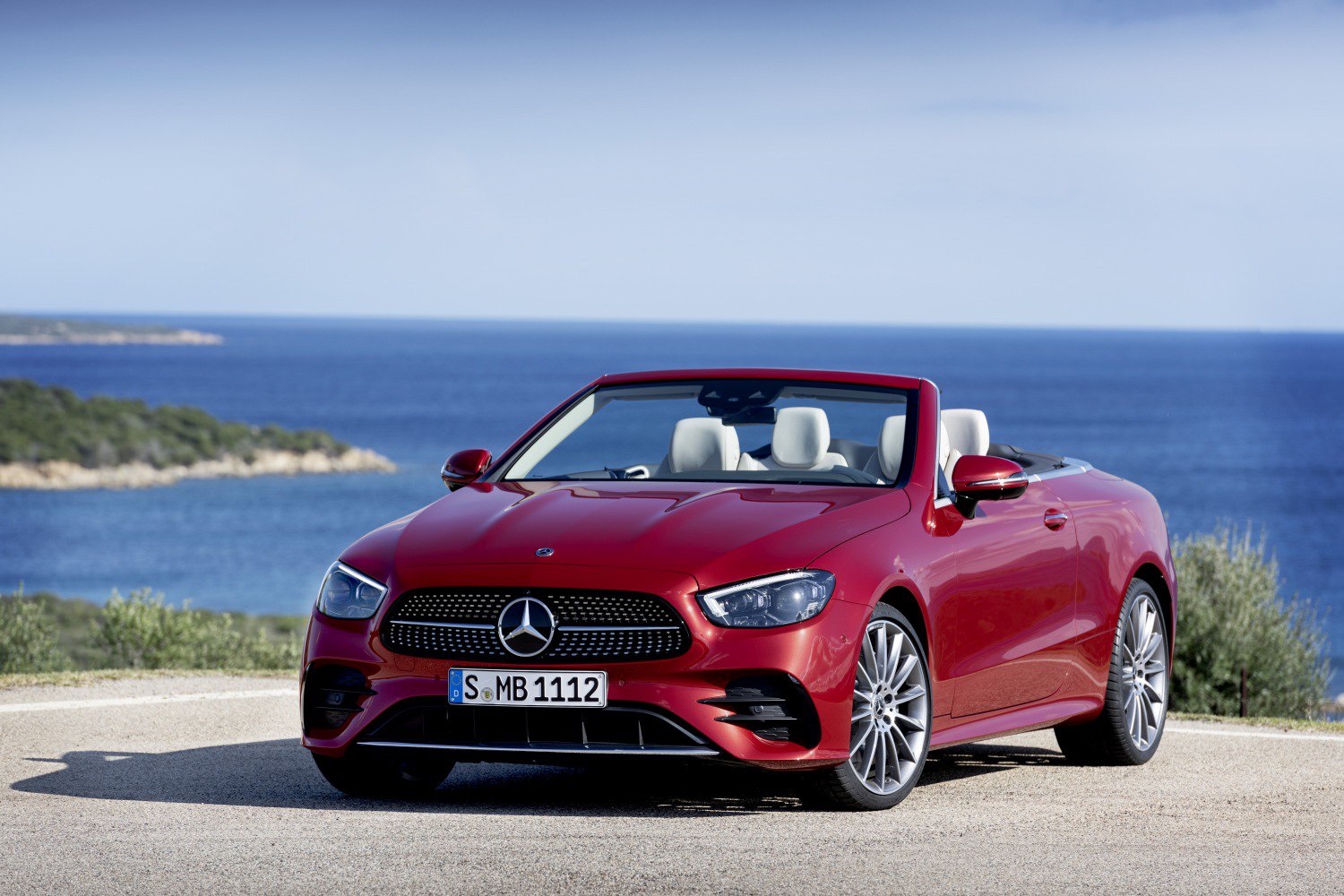

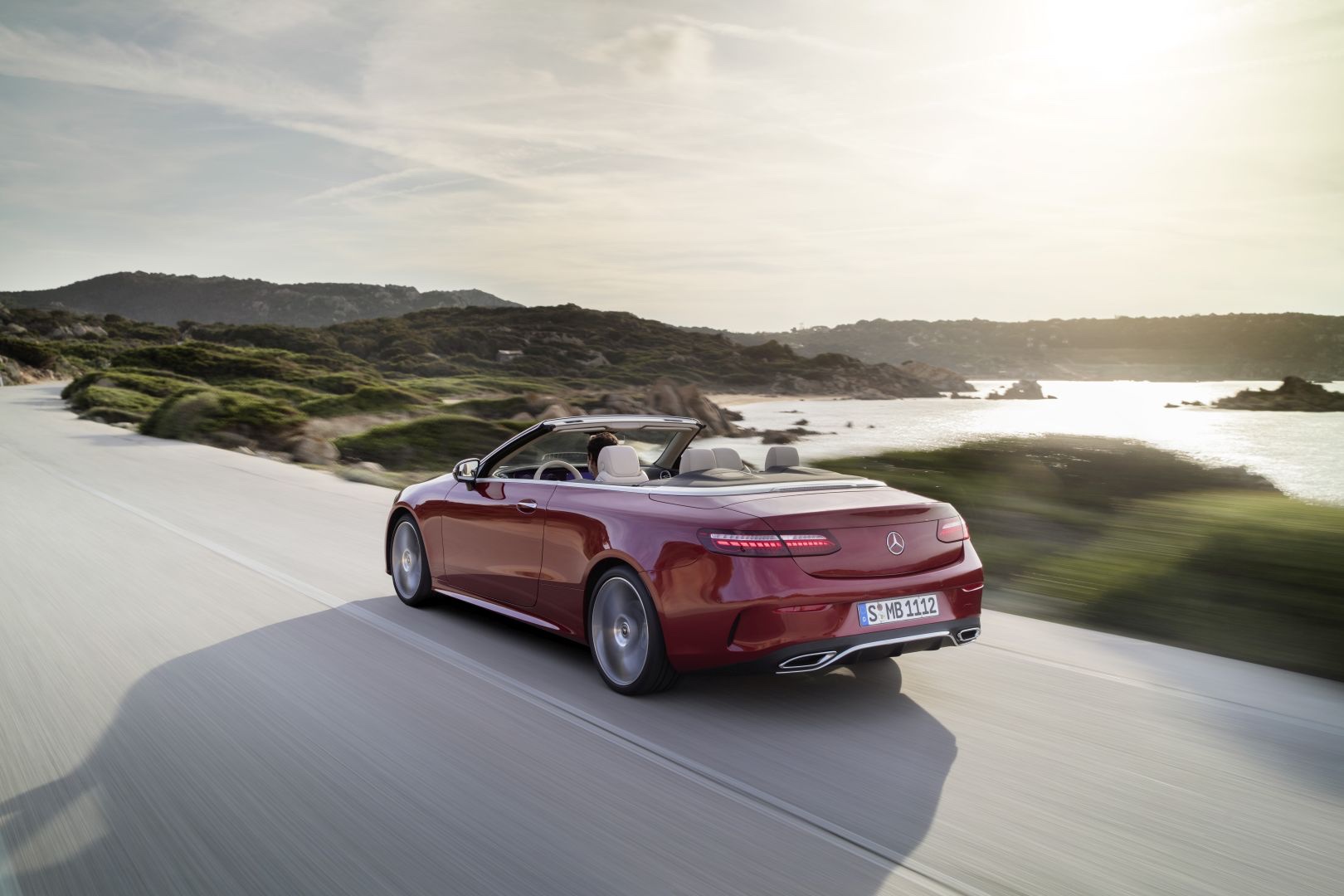

Photo Mercedes E-Class Cabriolet (A238)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
200 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 9.5 |
|---|---|
| Fuel consumption highway, L/100 km | 6 |
| Fuel consumption combined, L/100 km | 7.3 |
| Top speed, km/h | 234 |
| Acceleration 0-100 km/h, s | 7.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i |
|---|---|
| Engine code | M274 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1991 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 197 |
| RPM at max power | 5500 |
| Torque, Nm | 320 |
| RPM at max torque | 4000 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4835 |
| Width, mm | 2055 |
| Height, mm | 1430 |
| Wheelbase, mm | 2873 |
| Front track, mm | 1605 |
| Kerb weight, kg | 1830 |
| Gross weight, kg | 2340 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.4 |
| Ground clearance, mm | 98 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 285 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Front-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
200 4Matic 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 9.9 |
|---|---|
| Fuel consumption highway, L/100 km | 6.4 |
| Fuel consumption combined, L/100 km | 7.7 |
| Top speed, km/h | 230 |
| Acceleration 0-100 km/h, s | 8 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i |
|---|---|
| Engine code | M274 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1991 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 197 |
| RPM at max power | 5500 |
| Torque, Nm | 320 |
| RPM at max torque | 4000 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4835 |
| Width, mm | 2055 |
| Height, mm | 1430 |
| Wheelbase, mm | 2873 |
| Front track, mm | 1605 |
| Kerb weight, kg | 1830 |
| Gross weight, kg | 2340 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.4 |
| Ground clearance, mm | 98 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 285 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
300 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 9.5 |
|---|---|
| Fuel consumption highway, L/100 km | 6.1 |
| Fuel consumption combined, L/100 km | 7.4 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 6.6 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i |
|---|---|
| Engine code | M274 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1991 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 258 |
| RPM at max power | 5800-6100 |
| Torque, Nm | 370 |
| RPM at max torque | 1800-4000 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4835 |
| Width, mm | 2055 |
| Height, mm | 1430 |
| Wheelbase, mm | 2873 |
| Front track, mm | 1605 |
| Kerb weight, kg | 1830 |
| Gross weight, kg | 2340 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.4 |
| Ground clearance, mm | 98 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 285 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
450 4Matic 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 11.9 |
|---|---|
| Fuel consumption highway, L/100 km | 6.9 |
| Fuel consumption combined, L/100 km | 8.7 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.2 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i |
|---|---|
| Engine code | M256 E30 DEH LA G R |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 10.5:1 |
| Power, hp | 367 |
| RPM at max power | 5500-6000 |
| Torque, Nm | 500 |
| RPM at max torque | 2000-4200 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4835 |
| Width, mm | 2055 |
| Height, mm | 1430 |
| Wheelbase, mm | 2873 |
| Front track, mm | 1605 |
| Kerb weight, kg | 1830 |
| Gross weight, kg | 2340 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.4 |
| Ground clearance, mm | 98 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 285 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
53 AMG 4Matic+ 40 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 12.1 |
|---|---|
| Fuel consumption highway, L/100 km | 7.5 |
| Fuel consumption combined, L/100 km | 9.2 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.5 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i |
|---|---|
| Engine code | M256 E30 DEH LA G |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 435 |
| RPM at max power | 5900-6100 |
| Torque, Nm | 520 |
| RPM at max torque | 1800-5500 |
| Electric motor power, hp | 22 |
| Electric motor torque, Nm | 250 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4835 |
| Width, mm | 2055 |
| Height, mm | 1430 |
| Wheelbase, mm | 2873 |
| Front track, mm | 1605 |
| Kerb weight, kg | 1830 |
| Gross weight, kg | 2340 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.4 |
| Ground clearance, mm | 98 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 285 |
Transmission and drive
| Transmission | 9G-AMG SPEEDSHIFT TCT |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
220d 38 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 6.2 |
|---|---|
| Fuel consumption highway, L/100 km | 4.6 |
| Fuel consumption combined, L/100 km | 5.2 |
| Top speed, km/h | 237 |
| Acceleration 0-100 km/h, s | 7.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1950 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 194 |
| RPM at max power | 4200 |
| Torque, Nm | 400 |
| RPM at max torque | 1600-2800 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4835 |
| Width, mm | 2055 |
| Height, mm | 1430 |
| Wheelbase, mm | 2873 |
| Front track, mm | 1605 |
| Kerb weight, kg | 1830 |
| Gross weight, kg | 2340 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.4 |
| Ground clearance, mm | 98 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 285 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
220d 4Matic 38 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 6.7 |
|---|---|
| Fuel consumption highway, L/100 km | 5.1 |
| Fuel consumption combined, L/100 km | 5.7 |
| Top speed, km/h | 234 |
| Acceleration 0-100 km/h, s | 7.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1950 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 194 |
| RPM at max power | 4200 |
| Torque, Nm | 400 |
| RPM at max torque | 1600-2800 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4835 |
| Width, mm | 2055 |
| Height, mm | 1430 |
| Wheelbase, mm | 2873 |
| Front track, mm | 1605 |
| Kerb weight, kg | 1830 |
| Gross weight, kg | 2340 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.4 |
| Ground clearance, mm | 98 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 285 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
400d 4Matic 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 8.7 |
|---|---|
| Fuel consumption highway, L/100 km | 5.5 |
| Fuel consumption combined, L/100 km | 6.7 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0d |
|---|---|
| Engine code | OM 656 D 29 SCR |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2925 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 15.5:1 |
| Power, hp | 330 |
| RPM at max power | 3600–4200 |
| Torque, Nm | 700 |
| RPM at max torque | 1200–3200 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4835 |
| Width, mm | 2055 |
| Height, mm | 1430 |
| Wheelbase, mm | 2873 |
| Front track, mm | 1605 |
| Kerb weight, kg | 1830 |
| Gross weight, kg | 2340 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.4 |
| Ground clearance, mm | 98 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 285 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 200 4MATIC 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 9.9 |
|---|---|
| Fuel consumption highway, L/100 km | 6.4 |
| Fuel consumption combined, L/100 km | 7.7 |
| Top speed, km/h | 230 |
| Acceleration 0-100 km/h, s | 8 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i |
|---|---|
| Engine code | M274 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1991 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 197 |
| RPM at max power | 5500 |
| Torque, Nm | 320 |
| RPM at max torque | 4000 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4835 |
| Width, mm | 2055 |
| Height, mm | 1430 |
| Wheelbase, mm | 2873 |
| Front track, mm | 1605 |
| Kerb weight, kg | 1830 |
| Gross weight, kg | 2340 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.4 |
| Ground clearance, mm | 98 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 285 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 200 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 9.5 |
|---|---|
| Fuel consumption highway, L/100 km | 6 |
| Fuel consumption combined, L/100 km | 7.3 |
| Top speed, km/h | 234 |
| Acceleration 0-100 km/h, s | 7.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i |
|---|---|
| Engine code | M274 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1991 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 197 |
| RPM at max power | 5500 |
| Torque, Nm | 320 |
| RPM at max torque | 4000 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4835 |
| Width, mm | 2055 |
| Height, mm | 1430 |
| Wheelbase, mm | 2873 |
| Front track, mm | 1605 |
| Kerb weight, kg | 1830 |
| Gross weight, kg | 2340 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.4 |
| Ground clearance, mm | 98 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 285 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Front-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 220 d 4MATIC 38 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 6.7 |
|---|---|
| Fuel consumption highway, L/100 km | 5.1 |
| Fuel consumption combined, L/100 km | 5.7 |
| Top speed, km/h | 234 |
| Acceleration 0-100 km/h, s | 7.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1950 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 194 |
| RPM at max power | 4200 |
| Torque, Nm | 400 |
| RPM at max torque | 1600-2800 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4835 |
| Width, mm | 2055 |
| Height, mm | 1430 |
| Wheelbase, mm | 2873 |
| Front track, mm | 1605 |
| Kerb weight, kg | 1830 |
| Gross weight, kg | 2340 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.4 |
| Ground clearance, mm | 98 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 285 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 220 d 38 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 6.2 |
|---|---|
| Fuel consumption highway, L/100 km | 4.6 |
| Fuel consumption combined, L/100 km | 5.2 |
| Top speed, km/h | 237 |
| Acceleration 0-100 km/h, s | 7.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1950 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 194 |
| RPM at max power | 4200 |
| Torque, Nm | 400 |
| RPM at max torque | 1600-2800 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4835 |
| Width, mm | 2055 |
| Height, mm | 1430 |
| Wheelbase, mm | 2873 |
| Front track, mm | 1605 |
| Kerb weight, kg | 1830 |
| Gross weight, kg | 2340 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.4 |
| Ground clearance, mm | 98 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 285 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 300 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 9.5 |
|---|---|
| Fuel consumption highway, L/100 km | 6.1 |
| Fuel consumption combined, L/100 km | 7.4 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 6.6 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i |
|---|---|
| Engine code | M274 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1991 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 258 |
| RPM at max power | 5800-6100 |
| Torque, Nm | 370 |
| RPM at max torque | 1800-4000 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4835 |
| Width, mm | 2055 |
| Height, mm | 1430 |
| Wheelbase, mm | 2873 |
| Front track, mm | 1605 |
| Kerb weight, kg | 1830 |
| Gross weight, kg | 2340 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.4 |
| Ground clearance, mm | 98 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 285 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 400 d 4MATIC 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 8.7 |
|---|---|
| Fuel consumption highway, L/100 km | 5.5 |
| Fuel consumption combined, L/100 km | 6.7 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0d |
|---|---|
| Engine code | OM 656 D 29 SCR |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2925 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 15.5:1 |
| Power, hp | 330 |
| RPM at max power | 3600–4200 |
| Torque, Nm | 700 |
| RPM at max torque | 1200–3200 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4835 |
| Width, mm | 2055 |
| Height, mm | 1430 |
| Wheelbase, mm | 2873 |
| Front track, mm | 1605 |
| Kerb weight, kg | 1830 |
| Gross weight, kg | 2340 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.4 |
| Ground clearance, mm | 98 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 285 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 450 4MATIC 39 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 11.9 |
|---|---|
| Fuel consumption highway, L/100 km | 6.9 |
| Fuel consumption combined, L/100 km | 8.7 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 5.2 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i |
|---|---|
| Engine code | M256 E30 DEH LA G R |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Compression ratio | 10.5:1 |
| Power, hp | 367 |
| RPM at max power | 5500-6000 |
| Torque, Nm | 500 |
| RPM at max torque | 2000-4200 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4835 |
| Width, mm | 2055 |
| Height, mm | 1430 |
| Wheelbase, mm | 2873 |
| Front track, mm | 1605 |
| Kerb weight, kg | 1830 |
| Gross weight, kg | 2340 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.4 |
| Ground clearance, mm | 98 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 285 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
E 53 AMG 4Matic+ 40 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 12.1 |
|---|---|
| Fuel consumption highway, L/100 km | 7.5 |
| Fuel consumption combined, L/100 km | 9.2 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.5 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0i |
|---|---|
| Engine code | M256 E30 DEH LA G |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 2999 |
| Cylinder layout | Inline |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 435 |
| RPM at max power | 5900-6100 |
| Torque, Nm | 520 |
| RPM at max torque | 1800-5500 |
| Electric motor power, hp | 22 |
| Electric motor torque, Nm | 250 |
Dimensions
| Seats | 4 |
|---|---|
| Length, mm | 4835 |
| Width, mm | 2055 |
| Height, mm | 1430 |
| Wheelbase, mm | 2873 |
| Front track, mm | 1605 |
| Kerb weight, kg | 1830 |
| Gross weight, kg | 2340 |
| Fuel tank capacity, L | 50 |
| Turning circle, m | 11.4 |
| Ground clearance, mm | 98 |
| Width without mirrors, mm | 1860 |
| Trunk capacity, L | 285 |
Transmission and drive
| Transmission | 9G-AMG SPEEDSHIFT TC |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Mercedes E-Class Cabriolet (A238) questions
Short answers based on the specifications and photos available in this catalog.
What body style is the A238 E-Class?
The A238 is a two-door luxury cabriolet with a multi-layer fabric soft top.
Does the 2020 E-Class Cabriolet have hybrid engines?
Yes, several updated powertrains, including the E 450 and AMG E 53, feature a 48-volt mild-hybrid system (EQ Boost) to improve efficiency and provide additional low-end power.
How fast does the roof open?
The soft top can be opened or closed in about 20 seconds at vehicle speeds of up to 50 km/h.
What is the fastest version of the A238 Cabriolet?
The top-tier model is the Mercedes-AMG E 53 4Matic+, which uses a 435-hp 3.0-liter inline-six to accelerate from 0 to 100 km/h in 4.5 seconds.
Is it practical for family use?
While it offers seating for four, the two-door layout and 285-liter trunk mean it is well suited for couples or families with occasional rear-seat passengers.
Continue exploring Mercedes
Return to Mercedes models, browse the gallery, or compare the trims listed above.
