Mercedes Maybach GLS (X167) specifications and photos
The 2020 Mercedes-Maybach GLS (X167) is an ultra-luxury, full-size SUV that builds upon the standard GLS platform. It focuses primarily on rear-passenger comfort, premium interior materials, and an exclusive exterior presence.
Mercedes Maybach GLS (X167) at a glance
Quick model context before comparing photos and trim-level specifications.
Introduced globally in late 2019, the Mercedes-Maybach GLS represents the brand's flagship entry into the luxury SUV segment. Rather than simply adding equipment to the standard Mercedes-Benz GLS, this model significantly reconfigures the vehicle's interior layout to maximize passenger space. By eliminating the third row and moving the second row rearward by 120mm, it provides an executive-level environment. Available in both four- and five-seat configurations, it caters to buyers who prefer being chauffeured as much as driving themselves. Beyond the cabin adjustments, the Maybach variant incorporates bespoke acoustic insulation, specialized drive modes for smoother power delivery, and advanced suspension technologies aimed at isolating the cabin from road imperfections.
- Power: 558 hp
- Engine displacement: 3982 cc
- Transmissions: 9G-Tronic
- Seating: 5 seats
Photos, trims and specifications for Mercedes Maybach GLS (X167)
This model page brings gallery images, trim comparison, and detailed technical data together for the 2020 generation.
Estimate fuel cost
Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.
Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.
Mercedes Maybach GLS (X167) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design

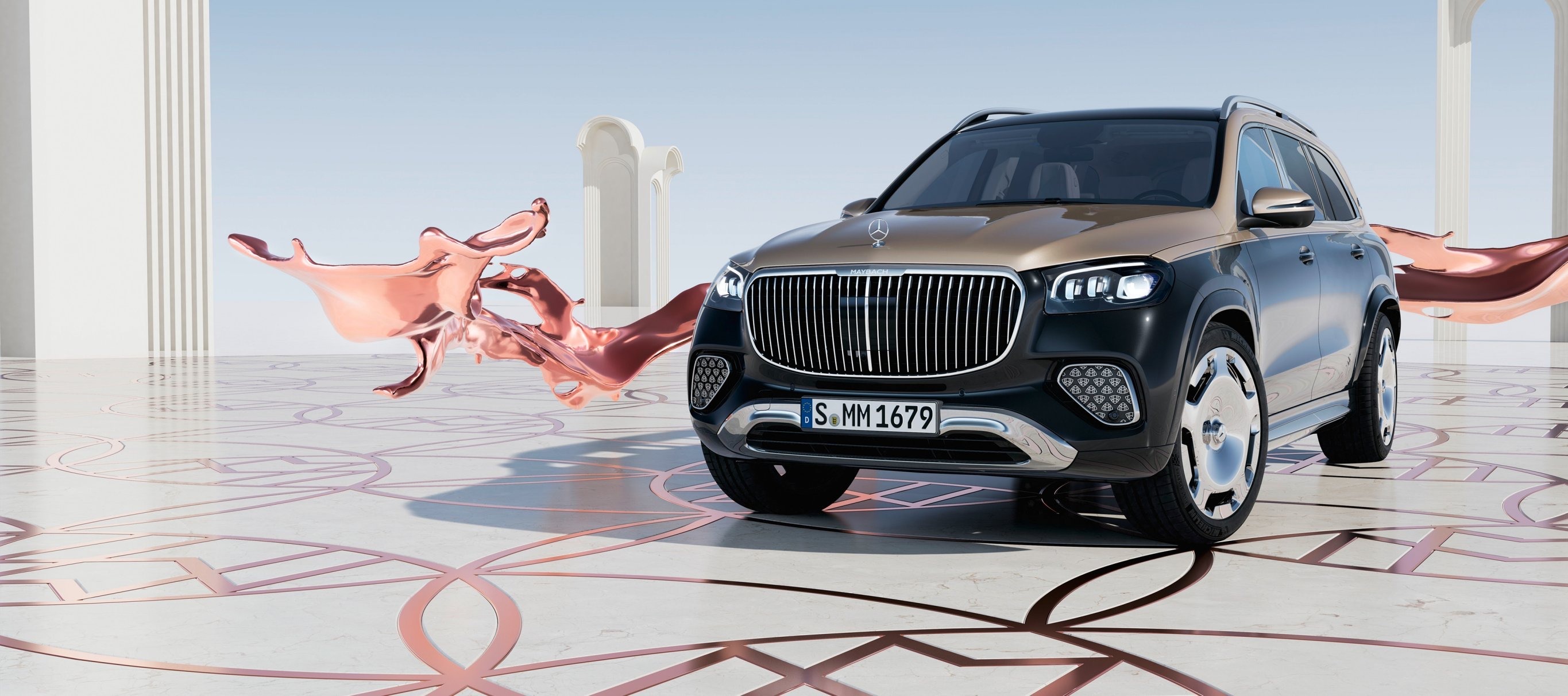

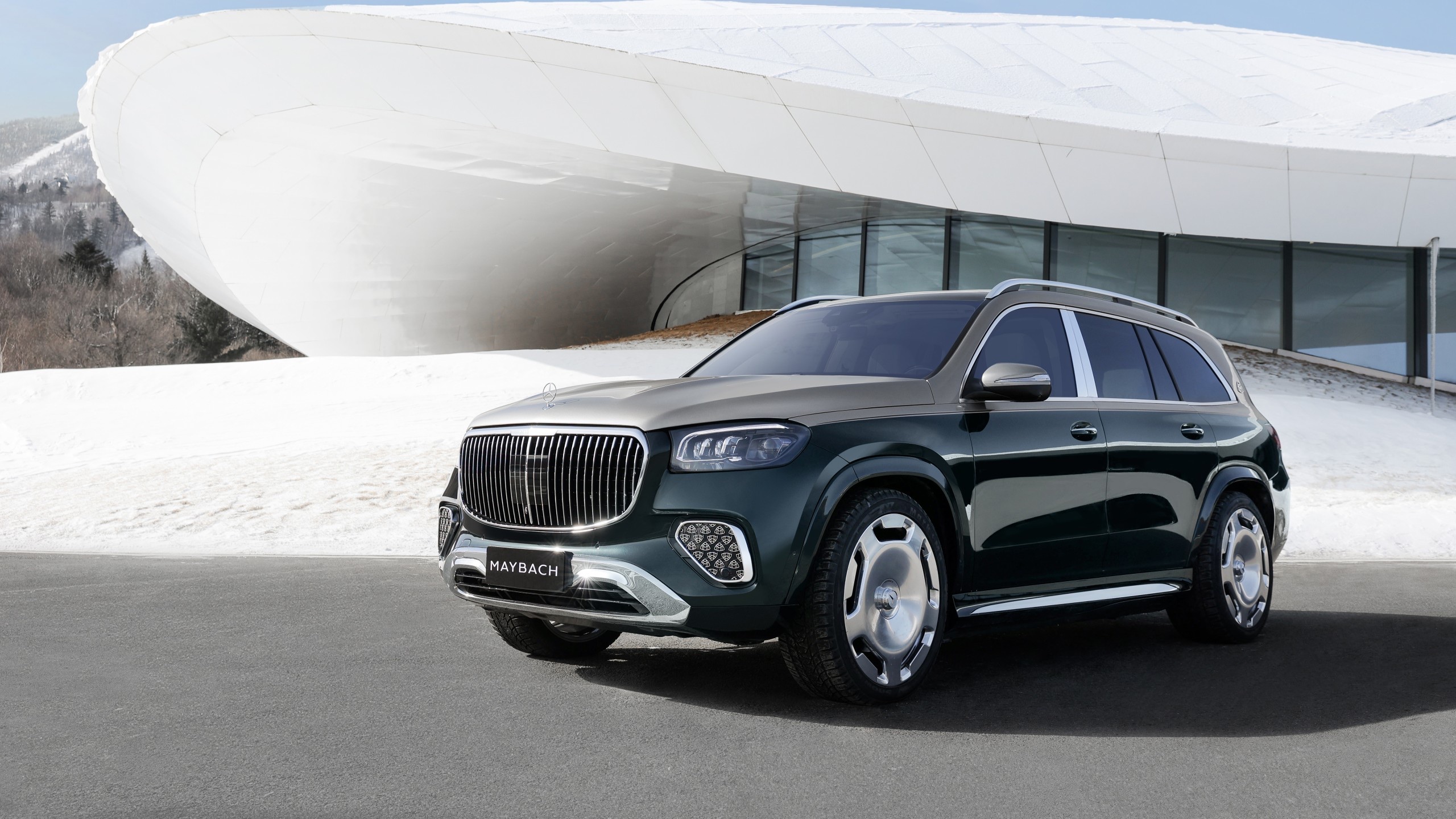

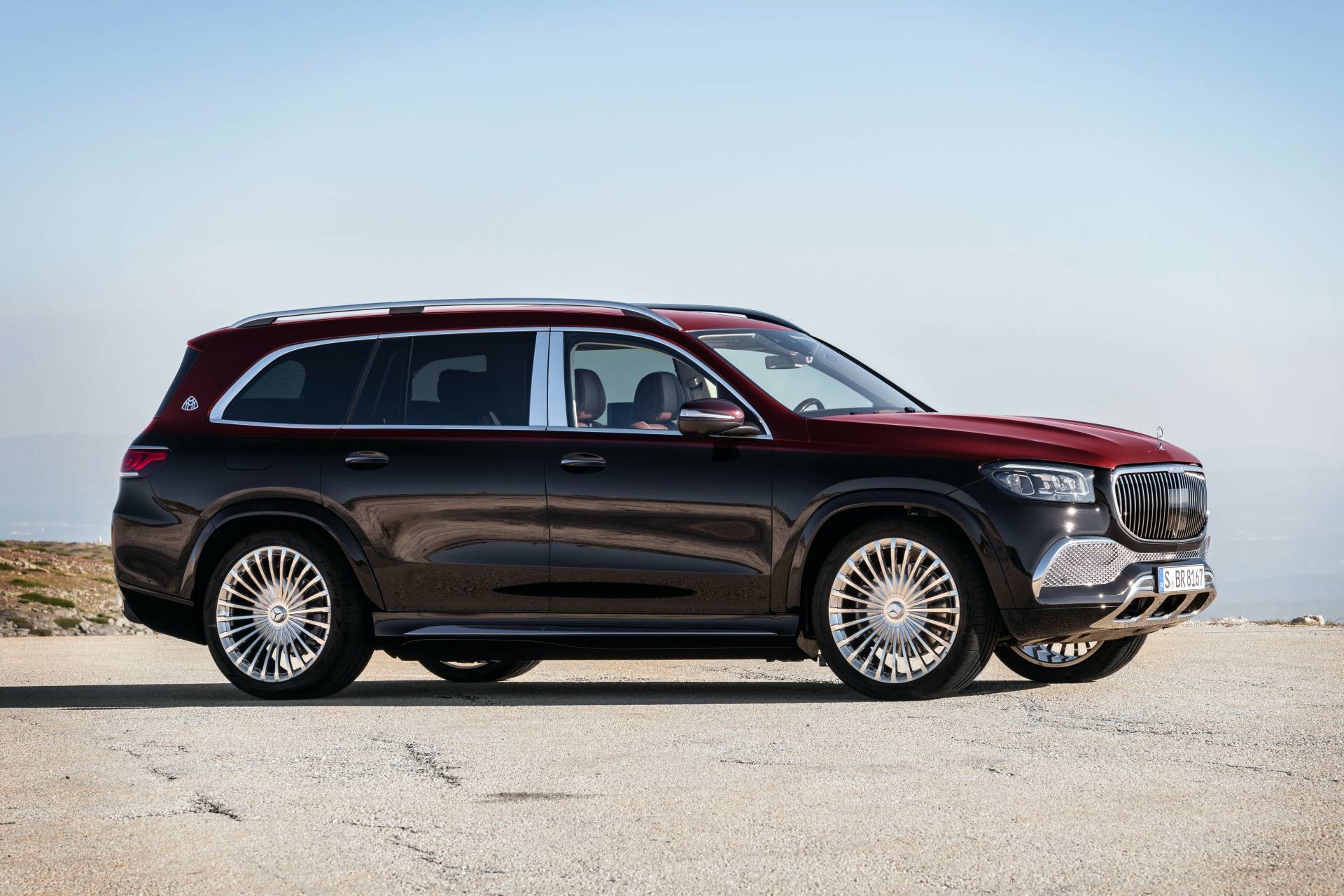

The exterior of the Maybach GLS is distinguished from the standard model by a prominent grille with vertical chrome louvers and specific front bumper treatments. Chrome detailing is applied extensively around the windows, B-pillars, and lower body sections. Maybach emblems are positioned on the D-pillars. The SUV rides on exclusive 22- or 23-inch alloy wheels and features power-deployable aluminum running boards that extend automatically in less than a second when the doors are opened. A signature two-tone paint scheme is available in eight different combinations.
Interior
The cabin emphasizes rear-seat luxury, offering either a classic three-seat bench or a two-seat executive layout. In the two-seat configuration, the rear chairs recline up to 43.5 degrees and include built-in calf supports. Rear passengers control the infotainment, climate, and seating functions via a dedicated tablet. Options for the rear compartment include folding tables housed in the center console, a refrigerator, and custom silver flutes. The front cabin mirrors the standard GLS's dual 12.3-inch displays but uses higher-grade materials. A 27-speaker, 1590-watt Burmester audio system is standard, featuring internal microphones to facilitate conversation between the front and rear rows.
Performance
Power comes from a 4.0-liter twin-turbo V8 producing 558 horsepower and 730 Nm of torque. This engine is paired with an integrated starter-generator that can briefly provide an additional 22 horsepower and 250 Nm to assist acceleration and smooth out operation. A 9-speed automatic transmission (9G-Tronic) routes power to an all-wheel-drive system capable of sending up to 100 percent of torque to either axle. The SUV accelerates from 0 to 100 km/h in 4.9 seconds. A Maybach-specific drive mode alters the powertrain mapping to start in second gear and disables the start/stop function to prioritize occupant comfort.
Practicality
Because the third row is removed to increase passenger legroom, seating capacity is limited to four or five people depending on the chosen configuration. The trunk volume measures 520 liters behind the second row. While it sacrifices passenger capacity compared to a standard three-row GLS, the Maybach variant prioritizes outright comfort and space for adults in the back. With a curb weight of 2,785 kg and a turning circle of 12.5 meters, it is a substantial vehicle suited primarily for luxury transport rather than utility.
Safety and tech
The Maybach GLS features the standard AirMatic air suspension with adaptive damping, which automatically lowers the ride height by 15mm at higher speeds or allows manual lowering for easier access under 30 km/h. The optional E-Active Body Control system uses a stereo camera to scan the road surface ahead and adjusts the suspension proactively to counteract body roll, pitch, and dive. The MBUX infotainment system includes dual touchscreens in the front, individual screens for the rear, voice command capabilities, and a touchpad controller.
Buyer notes
When reviewing the Mercedes-Maybach GLS, buyers should note the major difference between the four-seat and five-seat interior layouts, as the center console in the four-seat version is fixed and extends through the rear cabin. The signature two-tone paint and the advanced E-Active Body Control suspension are optional features that significantly alter the vehicle's appearance and ride dynamics. While the V8 powertrain is standard for the 600 model, the availability of specific interior trims, the rear refrigeration unit, and the 23-inch wheels will vary based on regional market offerings.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 600 | 3982 cc | 558 hp | 5 | 9G-Tronic |
| GLS 600 4MATIC | 3982 cc | 558 hp | 5 | 9G-Tronic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

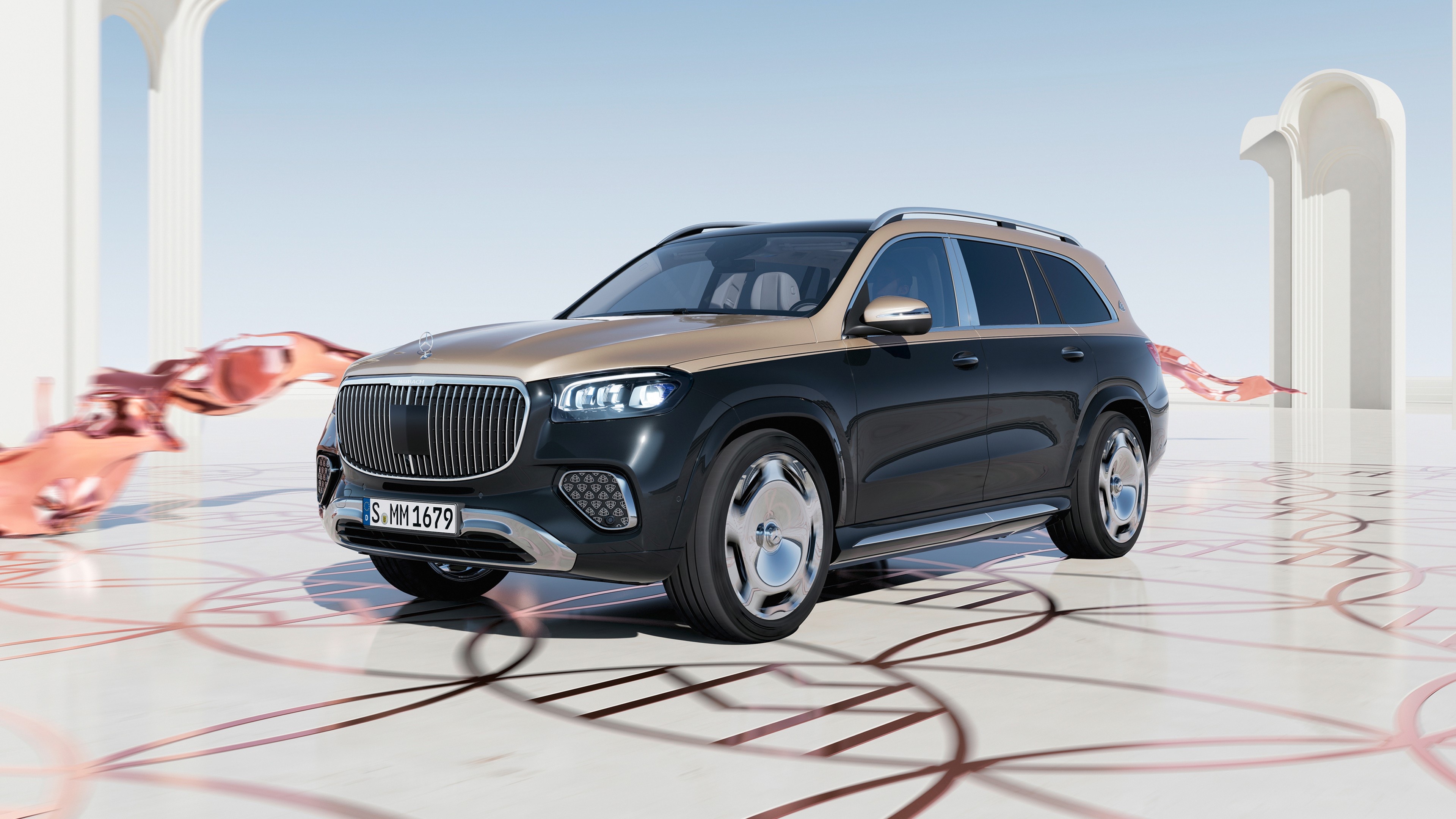

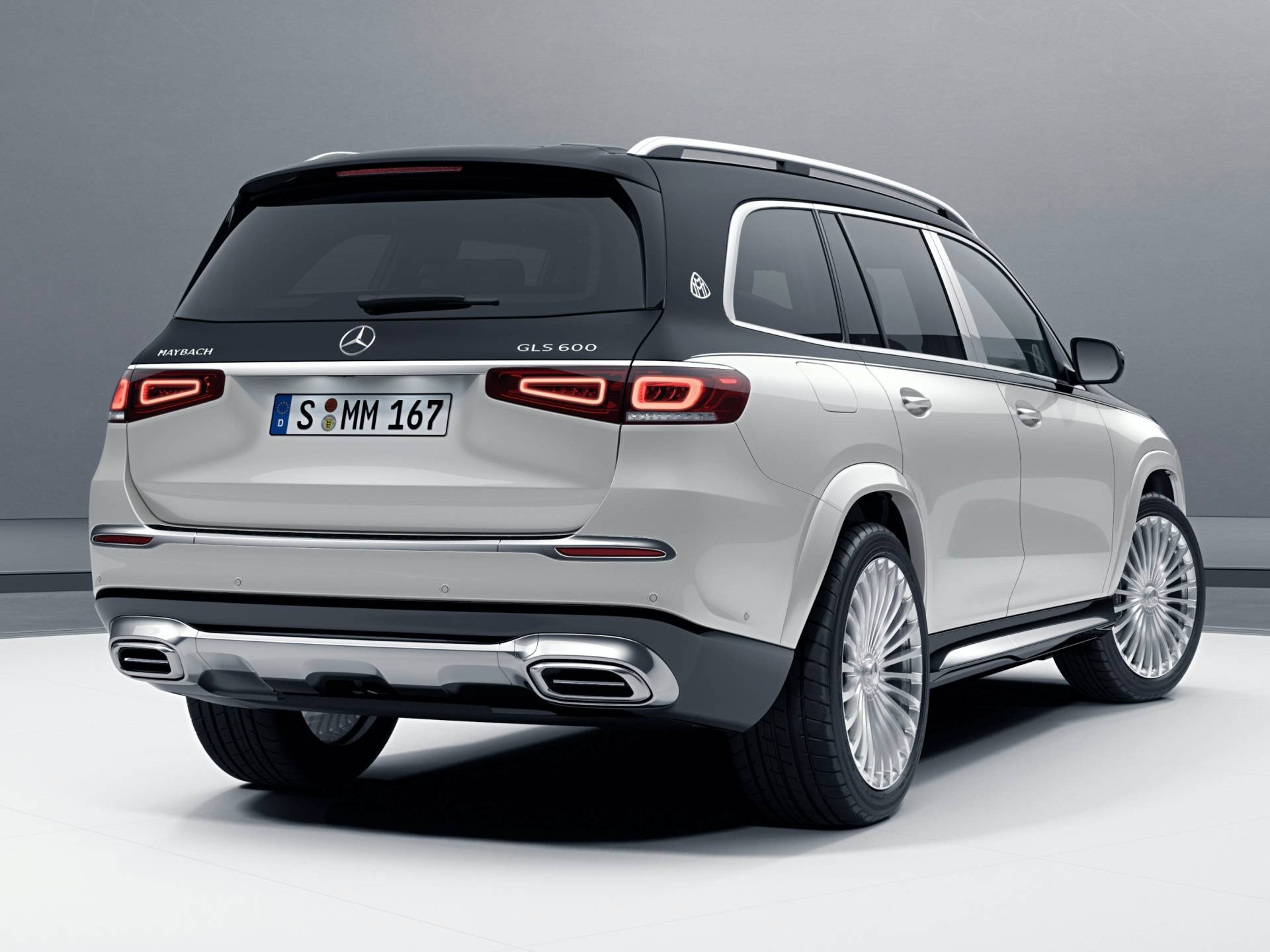

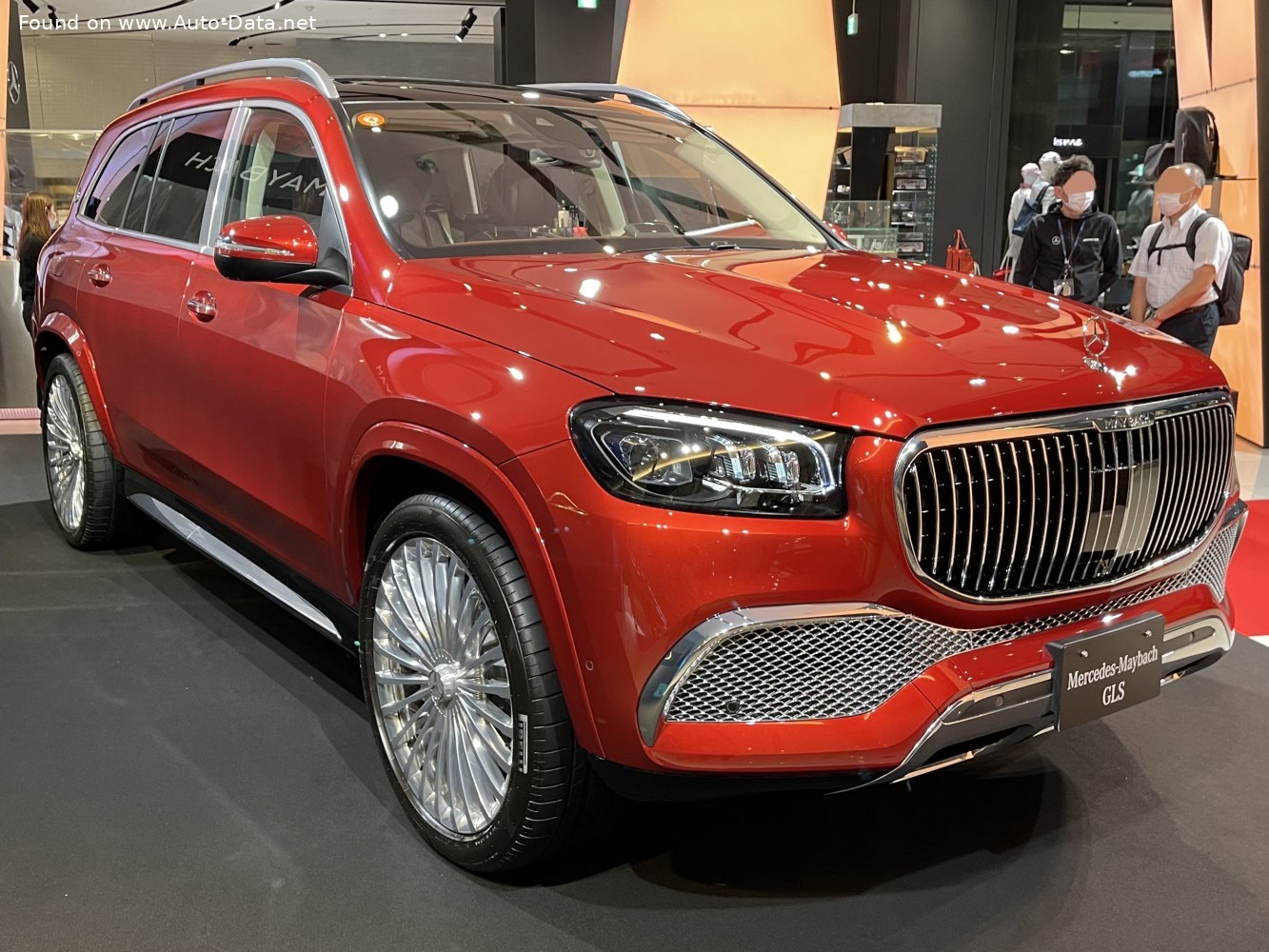

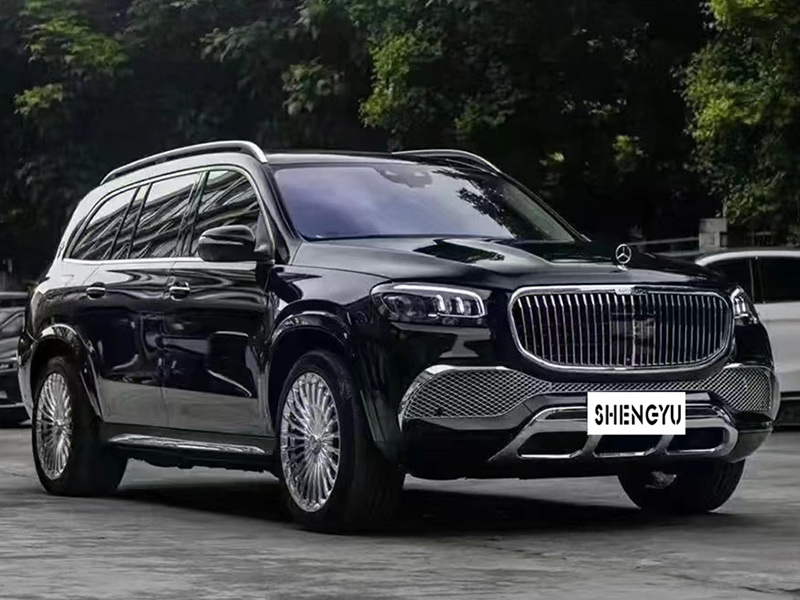

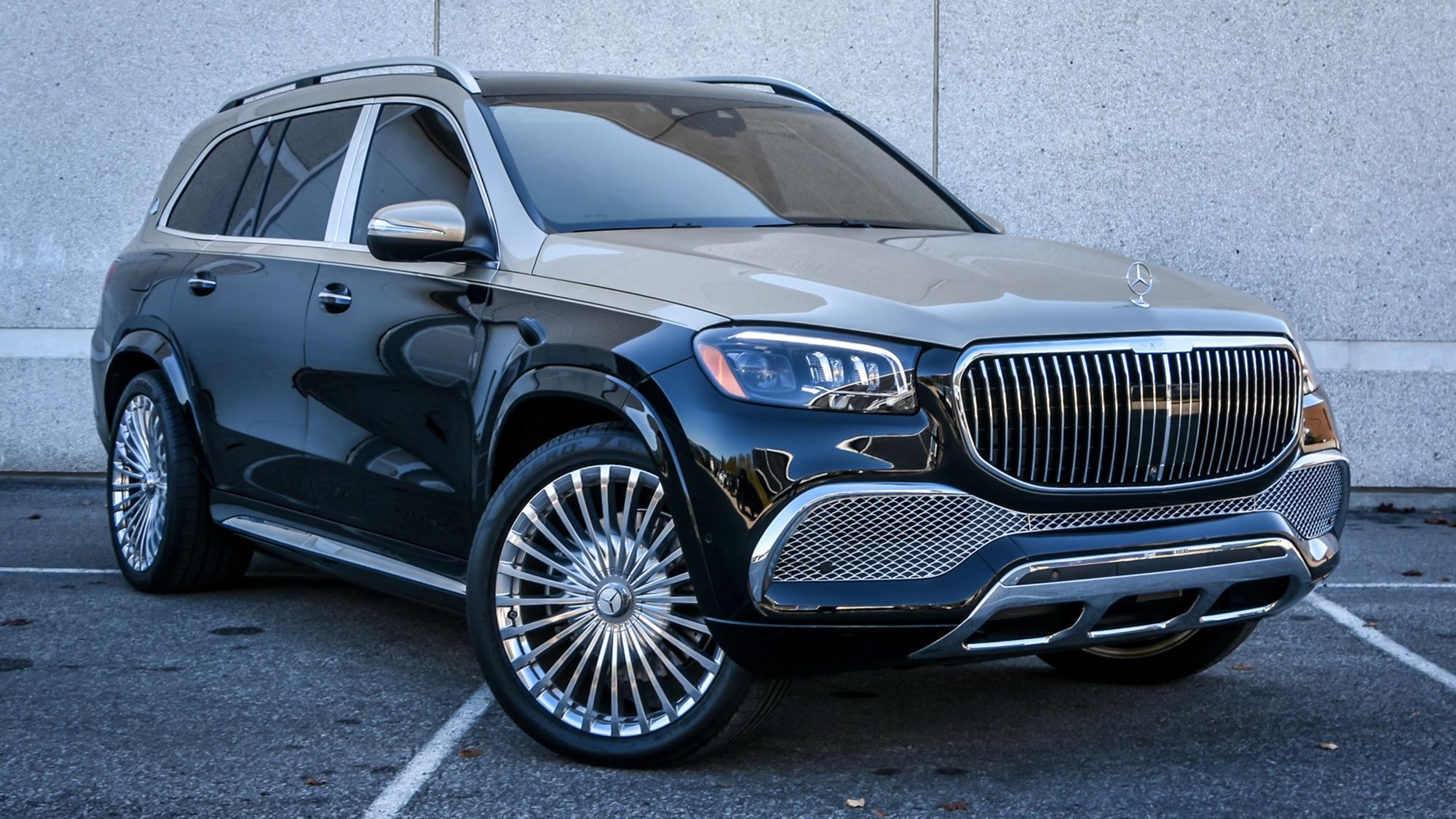

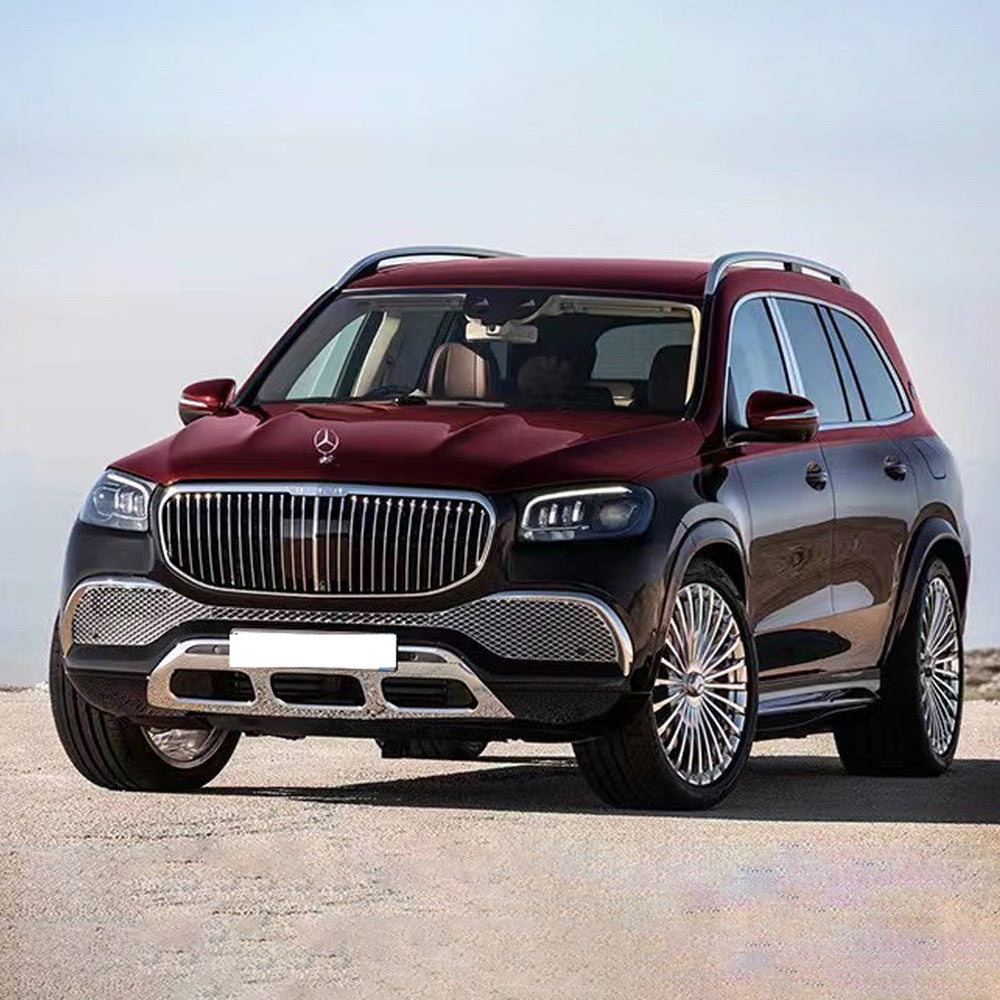

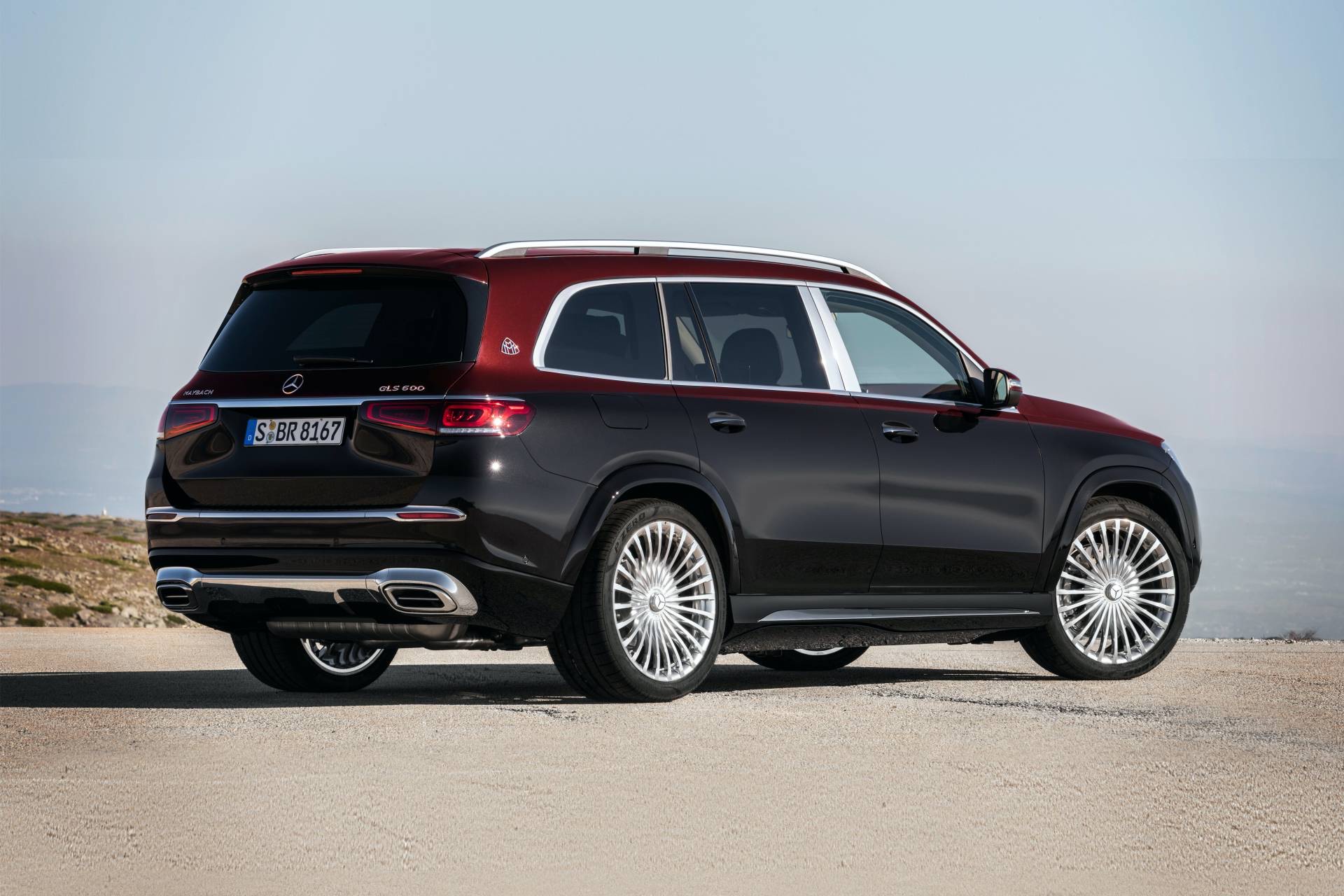

Mercedes Maybach GLS (X167) photo gallery
18 images are collected here with the main specifications and trim data for this model.

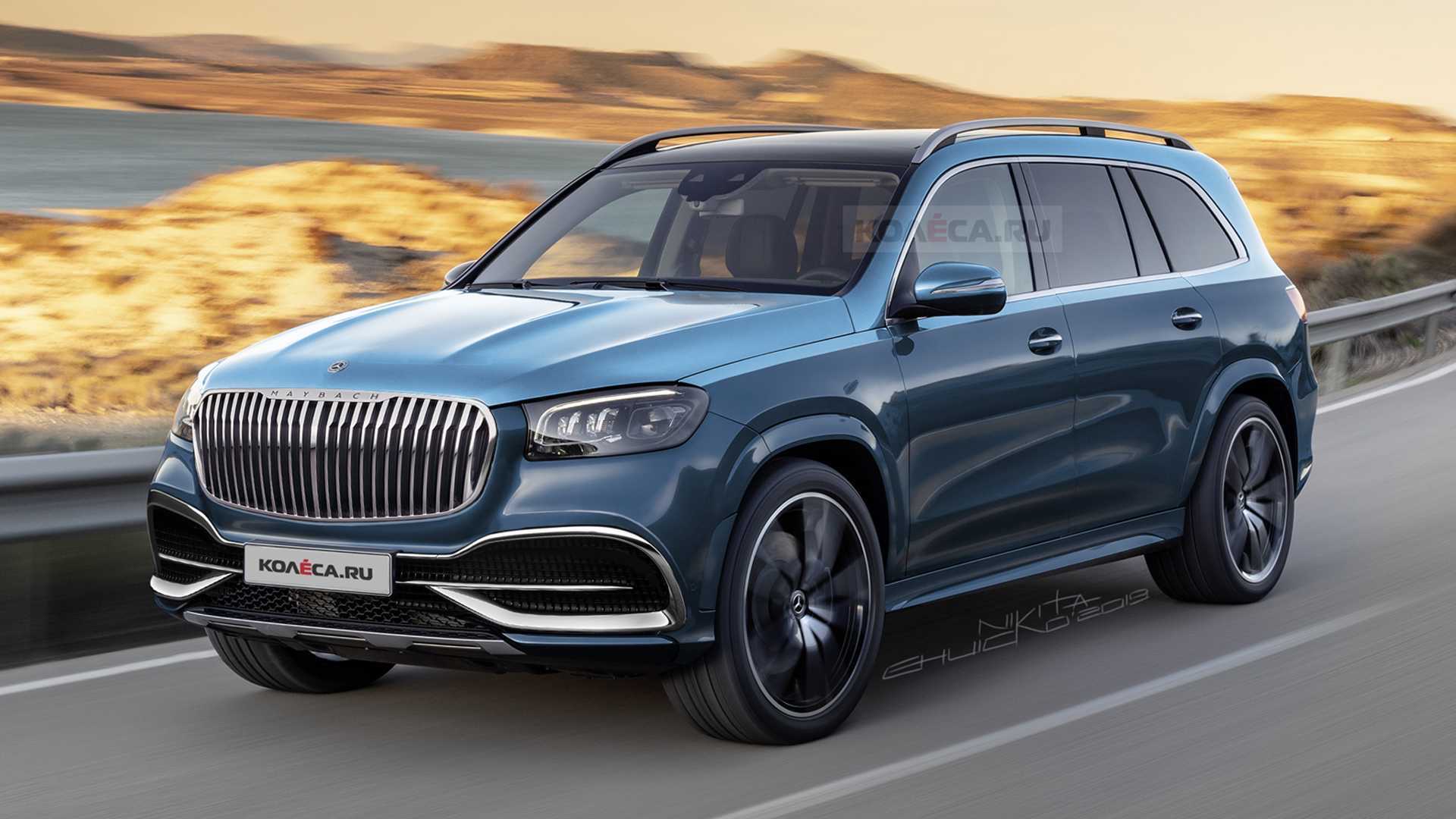

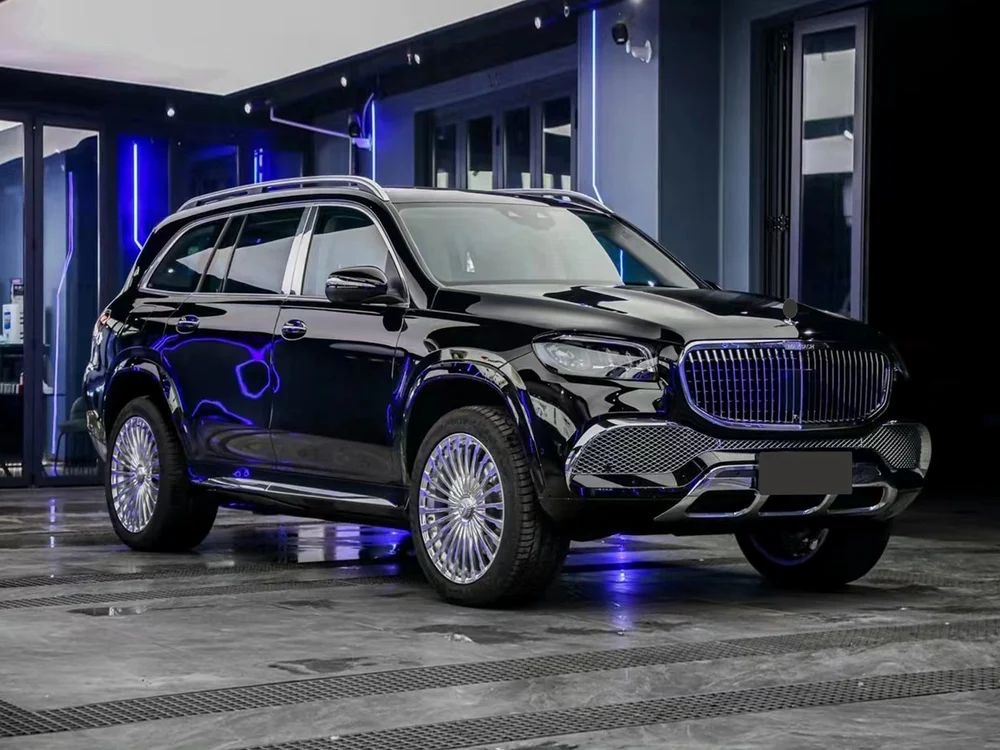

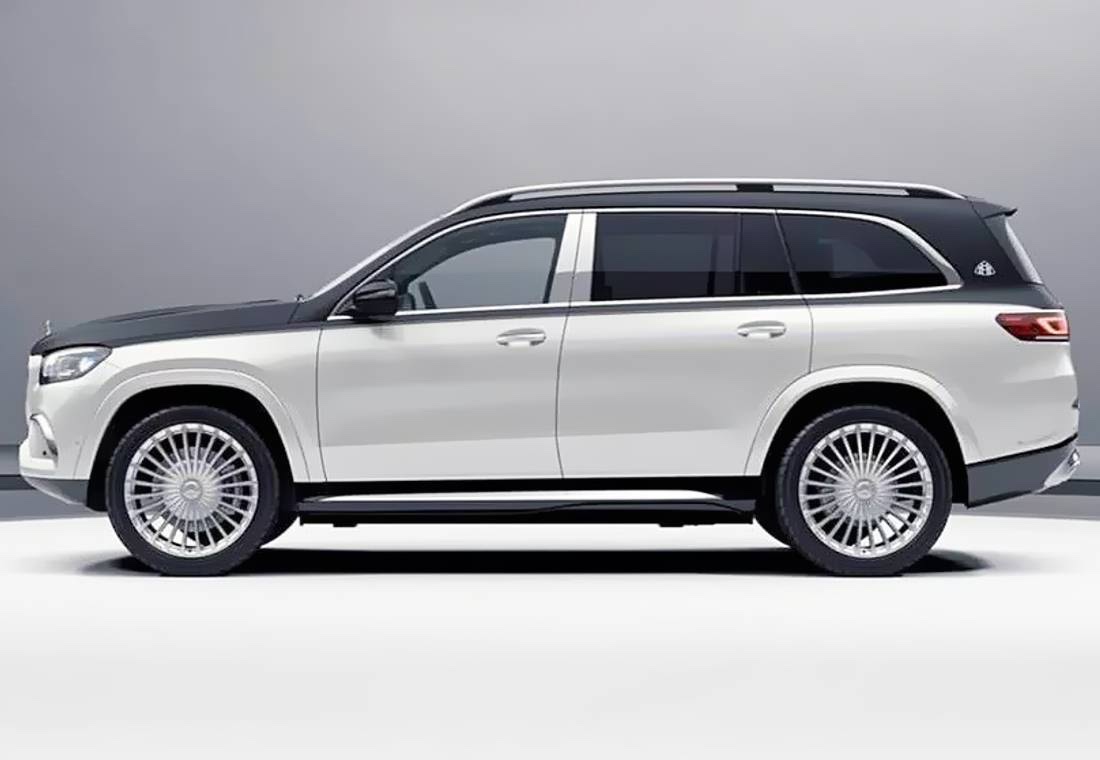

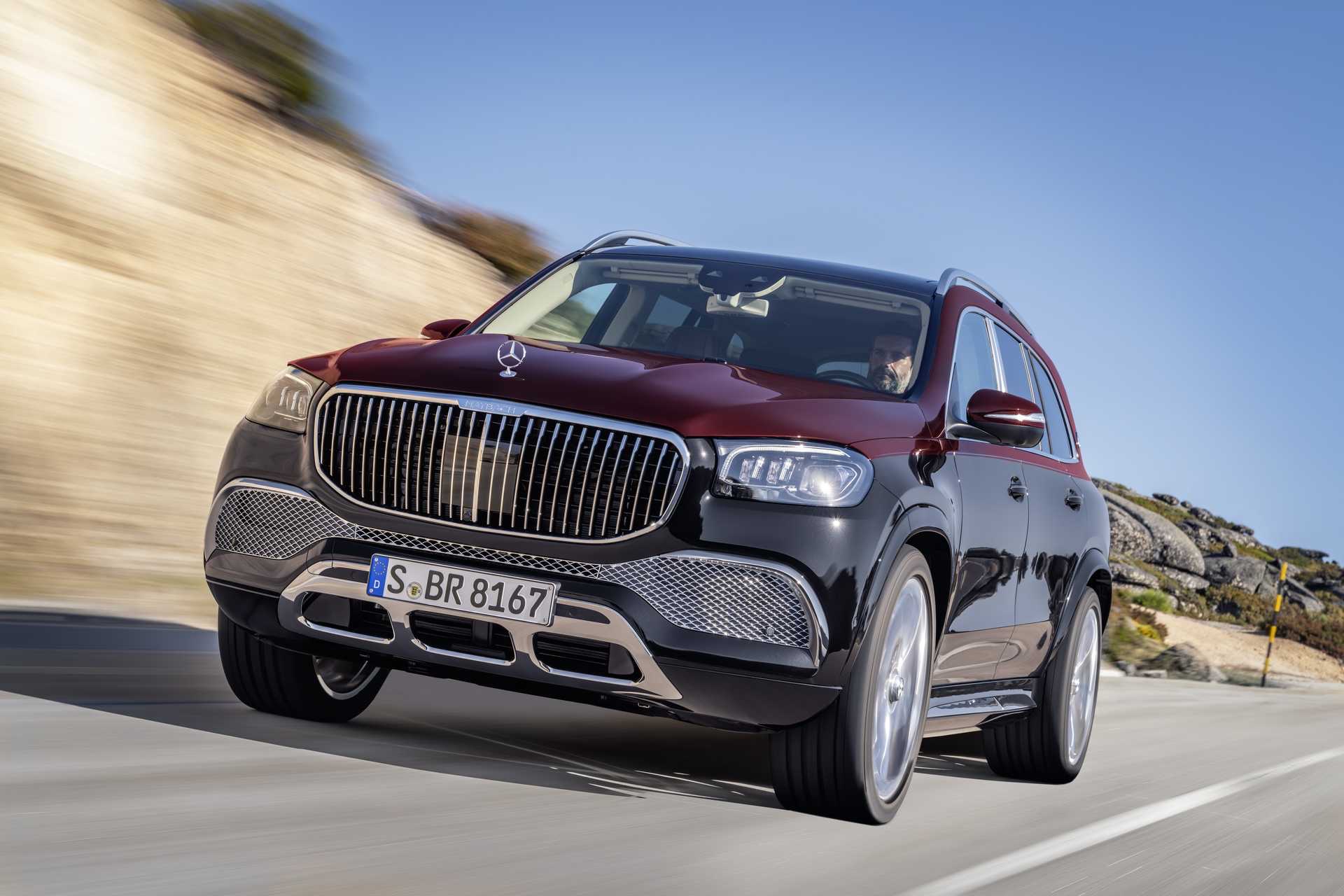

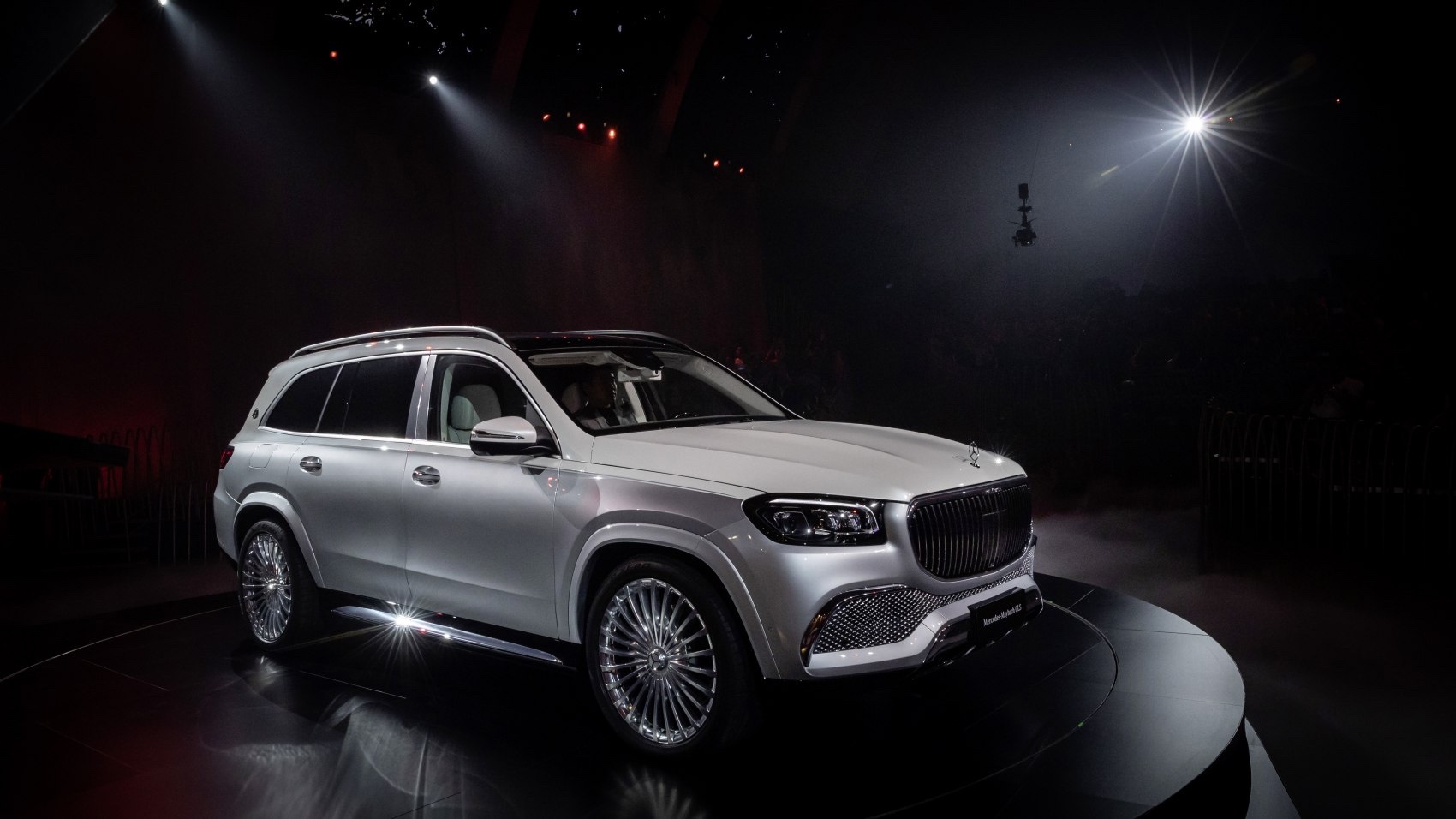

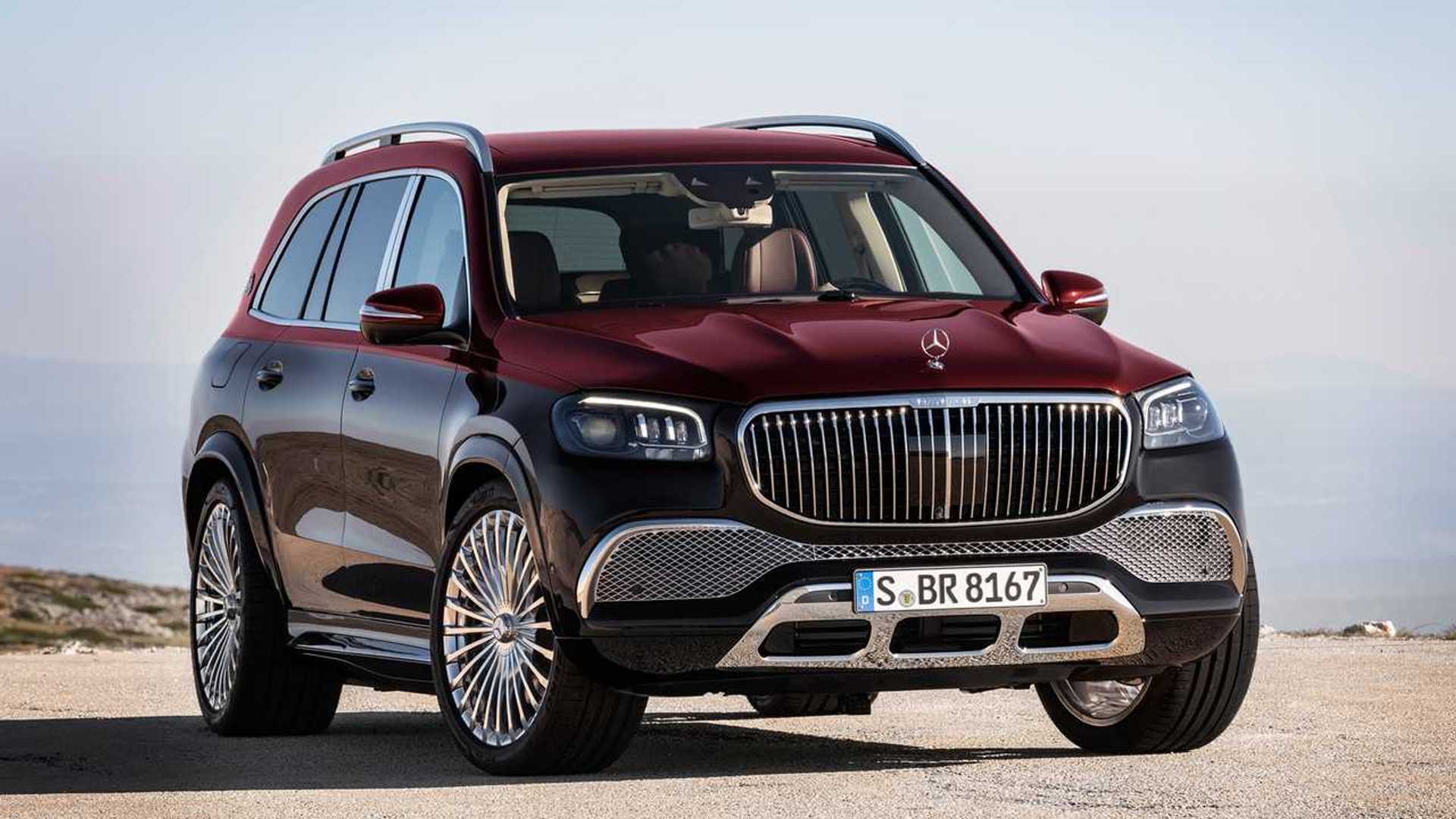

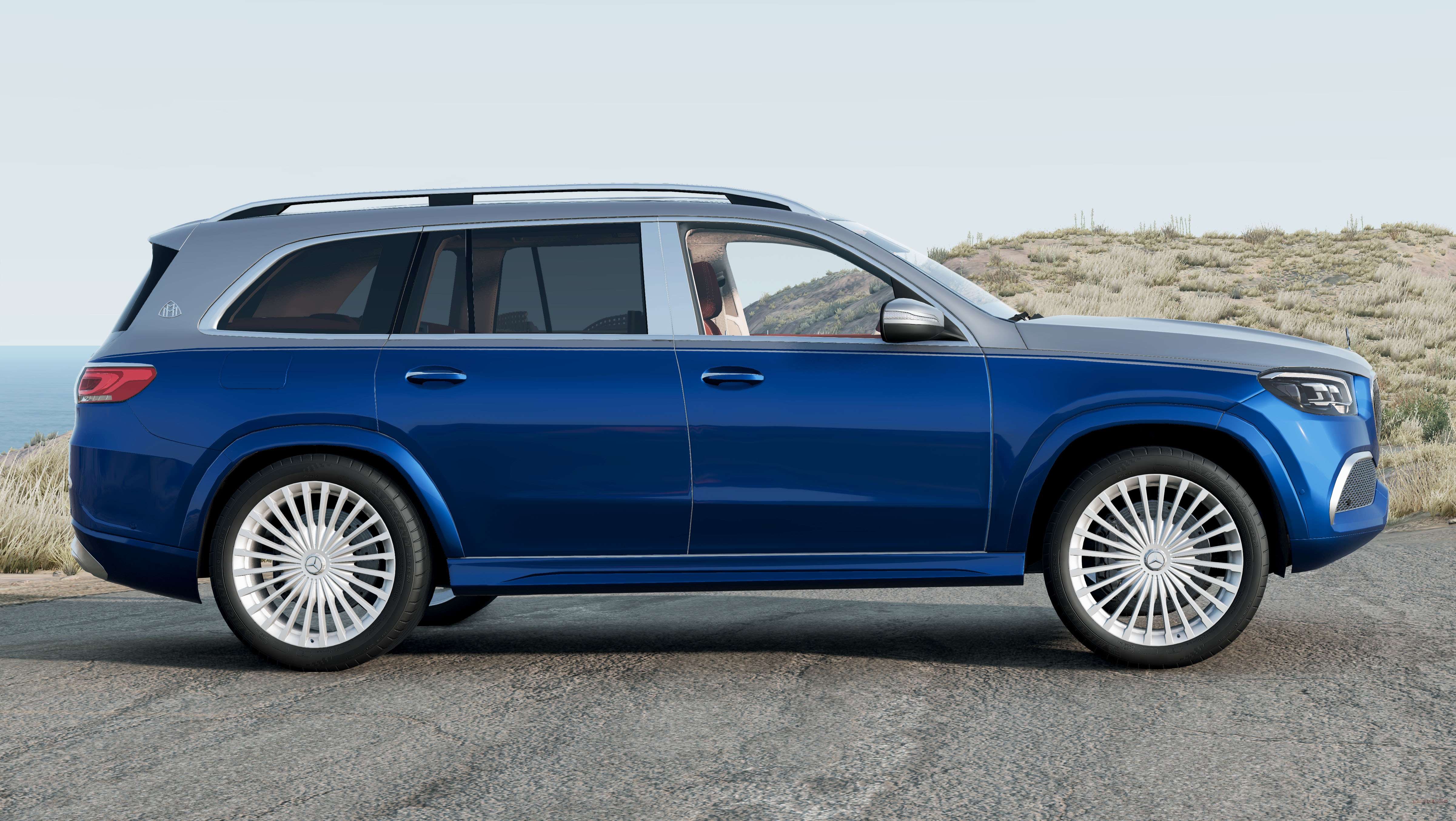

Photo Mercedes Maybach GLS (X167)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
600 38 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 16 |
|---|---|
| Fuel consumption highway, L/100 km | 9.7 |
| Fuel consumption combined, L/100 km | 12 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 4.0i |
|---|---|
| Engine code | M 177 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 3982 |
| Cylinder layout | V-type |
| Number of cylinders | 8 |
| Valves | 32 |
| Compression ratio | 10.5:1 |
| Power, hp | 558 |
| RPM at max power | 6000–6500 |
| Torque, Nm | 730 |
| RPM at max torque | 2500–5000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5205 |
| Width, mm | 2157 |
| Height, mm | 1838 |
| Wheelbase, mm | 3135 |
| Front track, mm | 1699 |
| Rear track, mm | 1723 |
| Kerb weight, kg | 2785 |
| Gross weight, kg | 3250 |
| Fuel tank capacity, L | 90 |
| Turning circle, m | 12.5 |
| Cargo compartment volume, m3 | 520 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
GLS 600 4MATIC 40 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 16 |
|---|---|
| Fuel consumption highway, L/100 km | 9.7 |
| Fuel consumption combined, L/100 km | 12 |
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 4.0i |
|---|---|
| Engine code | M 177 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 3982 |
| Cylinder layout | V-type |
| Number of cylinders | 8 |
| Valves | 32 |
| Compression ratio | 10.5:1 |
| Power, hp | 558 |
| RPM at max power | 6000–6500 |
| Torque, Nm | 730 |
| RPM at max torque | 2500–5000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 5205 |
| Width, mm | 2157 |
| Height, mm | 1838 |
| Wheelbase, mm | 3135 |
| Front track, mm | 1699 |
| Rear track, mm | 1723 |
| Kerb weight, kg | 2785 |
| Gross weight, kg | 3250 |
| Fuel tank capacity, L | 90 |
| Turning circle, m | 12.5 |
| Cargo compartment volume, m3 | 520 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
Mercedes Maybach GLS (X167) questions
Short answers based on the specifications and photos available in this catalog.
What type of vehicle is the Mercedes-Maybach GLS?
It is a full-size, ultra-luxury SUV based on the standard Mercedes-Benz GLS. It features high-end materials, exclusive styling, and a modified cabin layout designed for maximum rear passenger comfort.
Does the Maybach GLS have a third row of seats?
No, the third row has been removed. The second row is moved rearward by 120mm to maximize legroom, providing seating for a maximum of four or five people depending on the configuration.
What engine does the Maybach GLS 600 use?
It is powered by a 4.0-liter twin-turbo V8 engine generating 558 horsepower. It is supplemented by a mild-hybrid starter-generator that adds brief bursts of extra power for acceleration and efficiency.
How fast is the Maybach GLS?
The SUV can accelerate from 0 to 100 km/h in 4.9 seconds. Its top speed is electronically limited to 250 km/h.
What is the E-Active Body Control system?
It is an optional, advanced suspension system that uses a forward-facing camera to scan the road. It adjusts the vehicle's dampers in real-time to minimize body roll, pitch, and improve overall ride quality over bumps.
