Mercedes E-Class T-Modell (S213) specifications and photos

Mercedes E-Class T-Modell (S213) specifications are shown with trim options, key technical data, and a model photo gallery. Compare 28 configurations by engine size, power, seating, and transmission. The gallery includes 15 photos for visual reference.

Years 2017

Body type wagon

Trims 28

Photos 15

Overview

Mercedes E-Class T-Modell (S213) at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Mercedes E-Class T-Modell (S213) page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 150-612 hp and 1950-3982 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

Power: 150-612 hp
Engine displacement: 1950-3982 cc
Transmissions: 9
Seating: 5 seats

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 150-612 hp

Engine displacement 1950-3982 cc

Seating 5 seats

Transmissions 9

Trim / modification	Engine	Power	Seats	Transmission
E 200 AT	1991 cc	184 hp	5	9
E 200 AT 4Matic	1991 cc	184 hp	5	9
E 53 AMG 4MATIC	2999 cc	435 hp	5	9
E 63 AMG 4MATIC	3982 cc	571 hp	5	9
E 63 S AMG 4MATIC	3982 cc	612 hp	5	9
E 200 d AT	1950 cc	150 hp	5	9
E 220 d AT	1950 cc	190 hp	5	9
E 220 d AT 4MATIC	1950 cc	190 hp	5	9
E 300 d AT	1950 cc	245 hp	5	9
E 350 d AT	2987 cc	258 hp	5	9
200	1991 cc	184 hp	5	9
200 4Matic	1991 cc	184 hp	5	9
250	1991 cc	211 hp	5	9
400 4Matic	3498 cc	333 hp	5	9
450 4Matic	2996 cc	367 hp	5	9
43 AMG 4Matic	2996 cc	400 hp	5	9
53 AMG 4Matic+	2999 cc	435 hp	5	9
63 AMG 4Matic+	3982 cc	571 hp	5	9
63 S AMG 4Matic+	3982 cc	612 hp	5	9
200d	1950 cc	150 hp	5	9
220d	1950 cc	190 hp	5	9
220d 4Matic	1950 cc	190 hp	5	9
300d	1950 cc	245 hp	5	9
350d	2987 cc	258 hp	5	9
350d 4Matic	2987 cc	258 hp	5	9
350d	2925 cc	286 hp	5	9
400d 4Matic	2925 cc	340 hp	5	9
300de	1950 cc	306 hp	5	9

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Gallery

Mercedes E-Class T-Modell (S213) photo gallery

15 images are collected here with the main specifications and trim data for this model.

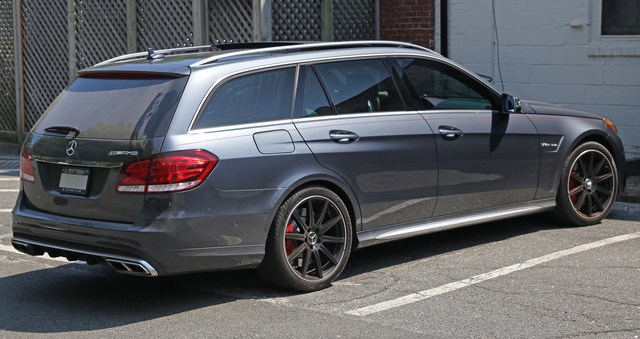

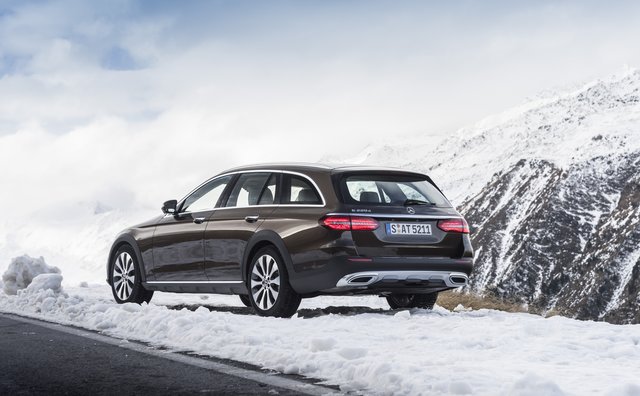

Photo Mercedes E-Class T-Modell (S213)

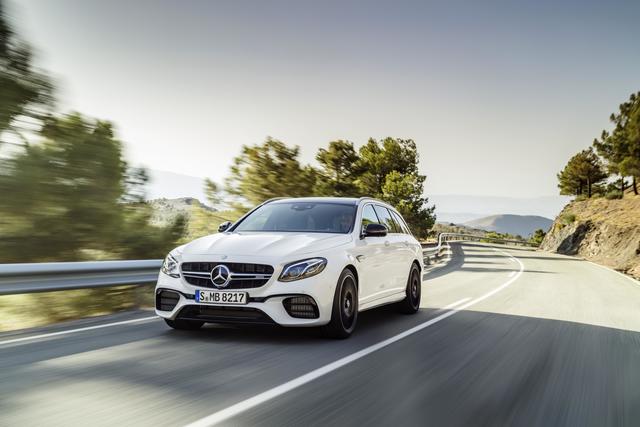

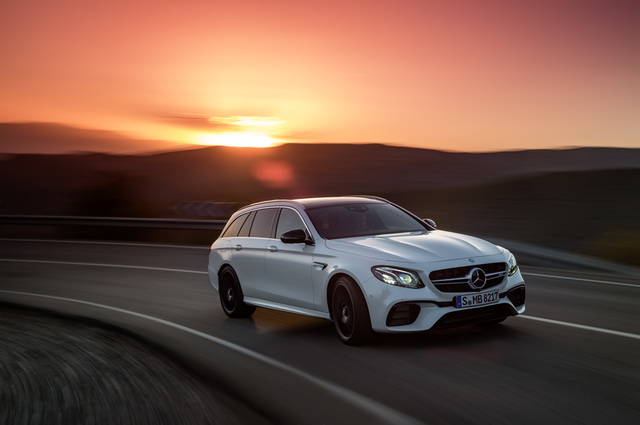

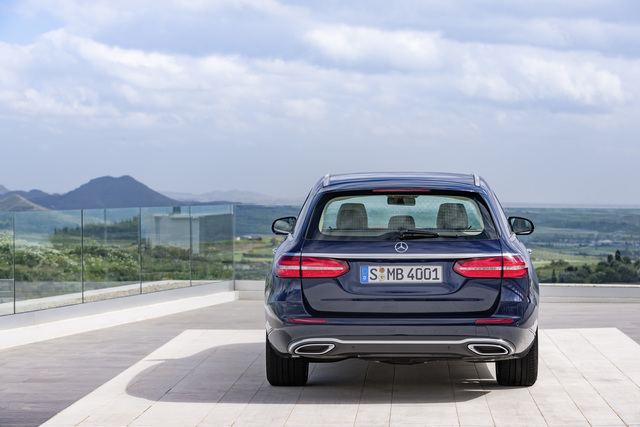

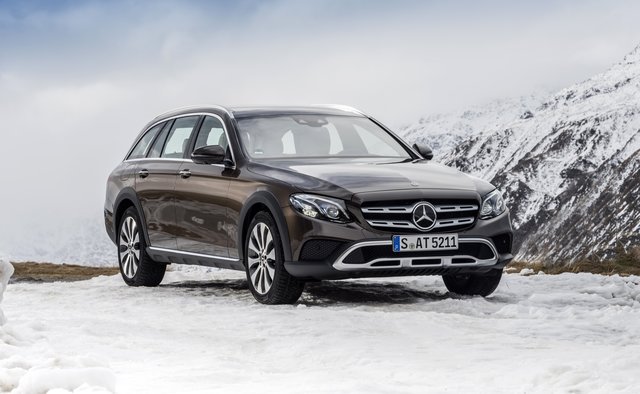

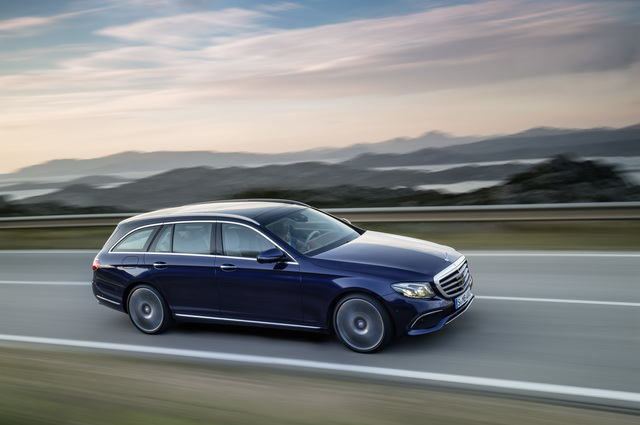

Mercedes E-Class T-Modell (S213) 2017 wagon

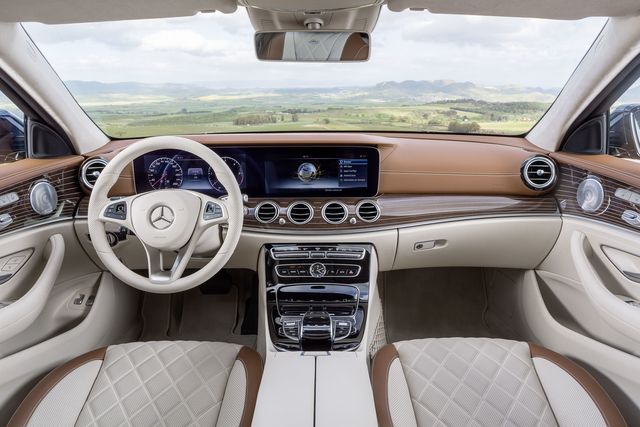

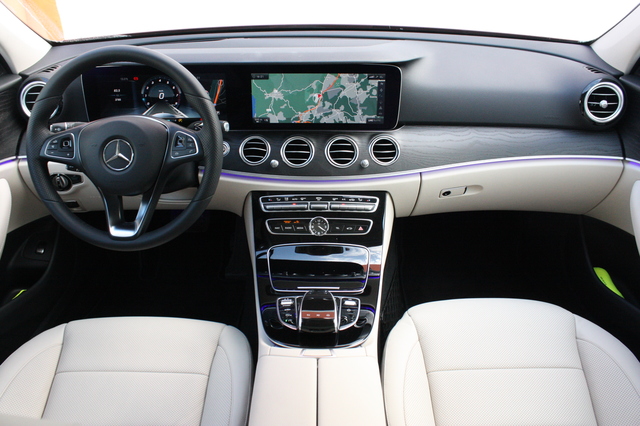

Interior of Mercedes E-Class T-Modell (S213) 2017

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

E 200 AT E 200 AT 4Matic E 53 AMG 4MATIC E 63 AMG 4MATIC E 63 S AMG 4MATIC E 200 d AT E 220 d AT E 220 d AT 4MATIC E 300 d AT E 350 d AT 200 200 4Matic 250 400 4Matic 450 4Matic 43 AMG 4Matic 53 AMG 4Matic+ 63 AMG 4Matic+ 63 S AMG 4Matic+ 200d 220d 220d 4Matic 300d 350d 350d 4Matic 350d 400d 4Matic 300de

E 200 AT 44 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1991
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	184
Torque, Nm	300
RPM at max torque	1200-4000
Engine	2.0i
Compression	9.8
RPM at max power	5500
Turbo	+
Engine code	M270 DE20 AL

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1705
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2375
Width (without mirrors) mm	1852

Brake system

The front brakes	Ventilated disc
Rear brakes	Ventilated disc

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.2
Fuel consumption (urban), l. 100 km	5.6
Fuel consumption (combined), l. 100 km	6.6
Acceleration (0-100 km/h), s	8.1
The maximum speed, km / h.	231

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Rear
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

Equipment

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/55R17

E 200 AT 4Matic 45 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1991
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	184
Torque, Nm	300
RPM at max torque	1200-4000
Engine	2.0i
Compression	9.8
RPM at max power	5500
Turbo	+
Engine code	M270 DE20 AL

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1705
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2375
Width (without mirrors) mm	1852

Brake system

The front brakes	Ventilated disc
Rear brakes	Ventilated disc

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	9
Fuel consumption (urban), l. 100 km	6.4
Fuel consumption (combined), l. 100 km	7.5
Acceleration (0-100 km/h), s	8.3
The maximum speed, km / h.	228
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Full
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

Equipment

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/55R17

E 53 AMG 4MATIC 45 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	2999
Cylinders location	In-line
Number of cylinders	6
Valves	24
Power, hp	435
Torque, Nm	520
RPM at max torque	1800-5500
Engine	3.0i
RPM at max power	5900-6100
Power electric motor HP	22
the motor torque Nm	250
Engine code	M256 E30 DEH LA G

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1930
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2505
Width (without mirrors) mm	1852

Brake system

The front brakes	Ventilated disc
Rear brakes	Ventilated disc

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	11.6
Fuel consumption (urban), l. 100 km	7.3
Fuel consumption (combined), l. 100 km	8.9
Acceleration (0-100 km/h), s	4.5
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Full
Transmission	9G-AMG SPEEDSHIFT TC
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

Equipment

Wheels

Disc diameter	19
Rim type	Alloy
Tires	245/40ZR19, 275/35ZR19

E 63 AMG 4MATIC 43 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	3982
Cylinders location	V-shaped
Number of cylinders	8
Valves	32
Power, hp	571
Torque, Nm	750
RPM at max torque	2250-5000
Engine	4.0i
RPM at max power	5750-6500
Engine code	M177 DE40 AL

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1930
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2505
Width (without mirrors) mm	1852

Brake system

The front brakes	Ventilated disc
Rear brakes	Ventilated disc

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	12.1
Fuel consumption (urban), l. 100 km	7.8
Fuel consumption (combined), l. 100 km	9.4
Acceleration (0-100 km/h), s	3.6
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Full
Transmission	9G-AMG SPEEDSHIFT MC
Gearbox	1 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

Equipment

Wheels

Disc diameter	19
Rim type	Alloy
Tires	245/40ZR19, 275/35ZR19

E 63 S AMG 4MATIC 43 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	3982
Cylinders location	V-shaped
Number of cylinders	8
Valves	32
Power, hp	612
Torque, Nm	850
RPM at max torque	2500-4500
Engine	4.0i
RPM at max power	5750-6500
Engine code	M177 DE40 AL

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1930
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2505
Width (without mirrors) mm	1852

Brake system

The front brakes	Ventilated disc
Rear brakes	Ventilated disc

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	12.1
Fuel consumption (urban), l. 100 km	7.8
Fuel consumption (combined), l. 100 km	9.4
Acceleration (0-100 km/h), s	3.5
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Full
Transmission	9G-AMG SPEEDSHIFT MC
Gearbox	1 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

Equipment

Wheels

Disc diameter	19
Rim type	Alloy
Tires	245/40ZR19, 275/35ZR19

E 200 d AT 44 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1950
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	360
RPM at max torque	1400-2800
Engine	2.0 CDi
Compression	15.5
RPM at max power	3200-4800
Turbo	+
Engine code	OM654 D20 SCR

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Brake system

The front brakes	Ventilated disc
Rear brakes	Ventilated disc

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	4.9
Fuel consumption (urban), l. 100 km	4.4
Fuel consumption (combined), l. 100 km	4.6
Acceleration (0-100 km/h), s	8.7
The maximum speed, km / h.	217

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Rear
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

Equipment

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/55R17

E 220 d AT 44 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1950
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1600-2800
Engine	2.0 CDi
Compression	15.5
RPM at max power	3800
Turbo	+
Engine code	OM654 D20 SCR

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1780
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Brake system

The front brakes	Ventilated disc
Rear brakes	Ventilated disc

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	4.9
Fuel consumption (urban), l. 100 km	4.4
Fuel consumption (combined), l. 100 km	4.6
Acceleration (0-100 km/h), s	7.7
The maximum speed, km / h.	235

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Rear
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

Equipment

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/55R17

E 220 d AT 4MATIC 45 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1950
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1600-2800
Engine	2.0 CDi
Compression	15.5
RPM at max power	3800
Turbo	+
Engine code	OM654 D20 SCR

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1780
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Brake system

The front brakes	Ventilated disc
Rear brakes	Ventilated disc

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.7
Fuel consumption (urban), l. 100 km	5
Fuel consumption (combined), l. 100 km	5.2
Acceleration (0-100 km/h), s	7.8
The maximum speed, km / h.	233
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Full
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

Equipment

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/55R17

E 300 d AT 43 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1950
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	245
Torque, Nm	500
RPM at max torque	1600-2400
Engine	2.0 CDi
RPM at max power	4200
Engine code	OM654 D20 G SCR

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Brake system

The front brakes	Ventilated disc
Rear brakes	Ventilated disc

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.7
Fuel consumption (urban), l. 100 km	4.7
Fuel consumption (combined), l. 100 km	5.4
Acceleration (0-100 km/h), s	6.5
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Rear
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

Equipment

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/55R17

E 350 d AT 44 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	2987
Cylinders location	V-shaped
Number of cylinders	6
Valves	24
Power, hp	258
Torque, Nm	620
RPM at max torque	1600-2400
Engine	3.0 CDi
Compression	15.5
RPM at max power	3600
Turbo	+
Engine code	OM642 LS DE30 LA

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1890
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2560
Width (without mirrors) mm	1852

Brake system

The front brakes	Ventilated disc
Rear brakes	Ventilated disc

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.8
Fuel consumption (urban), l. 100 km	5.2
Fuel consumption (combined), l. 100 km	5.8
Acceleration (0-100 km/h), s	6
The maximum speed, km / h.	250

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Rear
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

Equipment

Wheels

Disc diameter	17
Rim type	Alloy
Tires	225/55R17

200 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1991
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	184
Torque, Nm	300
RPM at max torque	1200-4000
Engine	2.0i
Compression	9.8
RPM at max power	5500
Turbo	+
Engine code	M270 DE20 AL

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.2
Fuel consumption (urban), l. 100 km	5.6
Fuel consumption (combined), l. 100 km	6.6
Acceleration (0-100 km/h), s	8.1
The maximum speed, km / h.	231

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Rear
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

200 4Matic 40 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1991
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	184
Torque, Nm	300
RPM at max torque	1200-4000
Engine	2.0i
Compression	9.8
RPM at max power	5500
Turbo	+
Engine code	M270 DE20 AL

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	9
Fuel consumption (urban), l. 100 km	6.4
Fuel consumption (combined), l. 100 km	7.5
Acceleration (0-100 km/h), s	8.3
The maximum speed, km / h.	228
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Full
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

250 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1991
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	211
Torque, Nm	350
RPM at max torque	1200-4000
Engine	2.0i
Compression	9.8
RPM at max power	5500
Turbo	+
Engine code	M270 DE20 AL

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	8.2
Fuel consumption (urban), l. 100 km	5.6
Fuel consumption (combined), l. 100 km	6.6
Acceleration (0-100 km/h), s	7.2
The maximum speed, km / h.	243

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Rear
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

400 4Matic 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	3498
Cylinders location	V-shaped
Number of cylinders	6
Valves	24
Power, hp	333
Torque, Nm	480
RPM at max torque	1200-4000
Engine	3.5i
Compression	10.5
RPM at max power	5500
Engine code	M276 DES35 AL

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	11.1
Fuel consumption (urban), l. 100 km	6.6
Fuel consumption (combined), l. 100 km	8.2
Acceleration (0-100 km/h), s	5.4
The maximum speed, km / h.	250

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Full
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

450 4Matic 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	2996
Cylinders location	V-shaped
Number of cylinders	6
Valves	32
Power, hp	367
Torque, Nm	500
RPM at max torque	1800-4500
Engine	3.0i
RPM at max power	5500-6000
Engine code	M276 DE30AL

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	12.3
Fuel consumption (urban), l. 100 km	6.9
Fuel consumption (combined), l. 100 km	8.9
Acceleration (0-100 km/h), s	5.3
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Full
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

43 AMG 4Matic 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	2996
Cylinders location	V-shaped
Number of cylinders	6
Valves	24
Power, hp	400
Torque, Nm	520
RPM at max torque	2500-5000
Engine	3.0i
Compression	10.7
RPM at max power	6100
Engine code	M276 DE30 AL

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	11.1
Fuel consumption (urban), l. 100 km	7.1
Fuel consumption (combined), l. 100 km	8.6
Acceleration (0-100 km/h), s	4.7
The maximum speed, km / h.	250

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Full
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

53 AMG 4Matic+ 40 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	2999
Cylinders location	In-line
Number of cylinders	6
Valves	24
Power, hp	435
Torque, Nm	520
RPM at max torque	1800-5500
Engine	3.0i
RPM at max power	5900-6100
Power electric motor HP	22
the motor torque Nm	250
Engine code	M256 E30 DEH LA G

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	11.6
Fuel consumption (urban), l. 100 km	7.3
Fuel consumption (combined), l. 100 km	8.9
Acceleration (0-100 km/h), s	4.5
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Full
Transmission	9G-AMG SPEEDSHIFT TCT
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

63 AMG 4Matic+ 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	3982
Cylinders location	V-shaped
Number of cylinders	8
Valves	32
Power, hp	571
Torque, Nm	750
RPM at max torque	2250-5000
Engine	4.0i
RPM at max power	5750-6500
Engine code	M177 DE40 AL

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	12.1
Fuel consumption (urban), l. 100 km	7.8
Fuel consumption (combined), l. 100 km	9.4
Acceleration (0-100 km/h), s	3.6
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Full
Transmission	9G-AMG SPEEDSHIFT MCT
Gearbox	1 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

63 S AMG 4Matic+ 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	3982
Cylinders location	V-shaped
Number of cylinders	8
Valves	32
Power, hp	612
Torque, Nm	850
RPM at max torque	2500-4500
Engine	4.0i
RPM at max power	5750-6500
Engine code	M177 DE40 AL

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	12.1
Fuel consumption (urban), l. 100 km	7.8
Fuel consumption (combined), l. 100 km	9.4
Acceleration (0-100 km/h), s	3.5
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Full
Transmission	9G-AMG SPEEDSHIFT MCT
Gearbox	1 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

200d 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1950
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	360
RPM at max torque	1400-2800
Engine	2.0 CDi
Compression	15.5
RPM at max power	3200-4800
Turbo	+
Engine code	OM654 D20 SCR

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	4.9
Fuel consumption (urban), l. 100 km	4.4
Fuel consumption (combined), l. 100 km	4.6
Acceleration (0-100 km/h), s	8.7
The maximum speed, km / h.	217

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Rear
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

220d 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1950
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1600-2800
Engine	2.0 CDi
Compression	15.5
RPM at max power	3800
Turbo	+
Engine code	OM654 D20 SCR

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	4.9
Fuel consumption (urban), l. 100 km	4.4
Fuel consumption (combined), l. 100 km	4.6
Acceleration (0-100 km/h), s	7.7
The maximum speed, km / h.	235

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Rear
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

220d 4Matic 40 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1950
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1600-2800
Engine	2.0 CDi
Compression	15.5
RPM at max power	3800
Turbo	+
Engine code	OM654 D20 SCR

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	5.7
Fuel consumption (urban), l. 100 km	5
Fuel consumption (combined), l. 100 km	5.2
Acceleration (0-100 km/h), s	7.8
The maximum speed, km / h.	233
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Full
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

300d 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1950
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	245
Torque, Nm	500
RPM at max torque	1600-2400
Engine	2.0 CDi
RPM at max power	4200
Engine code	OM654 D20 G SCR

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.7
Fuel consumption (urban), l. 100 km	4.7
Fuel consumption (combined), l. 100 km	5.4
Acceleration (0-100 km/h), s	6.5
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Rear
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

350d 39 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	2987
Cylinders location	V-shaped
Number of cylinders	6
Valves	24
Power, hp	258
Torque, Nm	620
RPM at max torque	1600-2400
Engine	3.0 CDi
Compression	15.5
RPM at max power	3600
Turbo	+
Engine code	OM642 LS DE30 LA

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.8
Fuel consumption (urban), l. 100 km	5.2
Fuel consumption (combined), l. 100 km	5.8
Acceleration (0-100 km/h), s	6
The maximum speed, km / h.	250

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Rear
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

350d 4Matic 40 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	2987
Cylinders location	V-shaped
Number of cylinders	6
Valves	24
Power, hp	258
Torque, Nm	620
RPM at max torque	1600-2400
Engine	3.0 CDi
Compression	15.5
RPM at max power	3600
Turbo	+
Engine code	OM642 LS DE30 LA

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.9
Fuel consumption (urban), l. 100 km	5.6
Fuel consumption (combined), l. 100 km	6.6
Acceleration (0-100 km/h), s	6
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Full
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

350d 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	2925
Cylinders location	In-line
Number of cylinders	6
Valves	24
Power, hp	286
Torque, Nm	600
RPM at max torque	1200-3200
Engine	3.0d
RPM at max power	3600-4600
Engine code	OM656 D29RSCR

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	6.6
Fuel consumption (urban), l. 100 km	5.1
Fuel consumption (combined), l. 100 km	5.7
Acceleration (0-100 km/h), s	5.7
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Rear
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

400d 4Matic 38 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	2925
Cylinders location	In-line
Number of cylinders	6
Valves	24
Power, hp	340
Torque, Nm	700
RPM at max torque	1200-3200
Engine	3.0d
RPM at max power	3600-4400
Engine code	OM656 D29SCR

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Performance and fuel consumption

Fuel consumption (urban cycle), l. 100 km	7.3
Fuel consumption (urban), l. 100 km	5.5
Fuel consumption (combined), l. 100 km	6.1
Acceleration (0-100 km/h), s	5.1
The maximum speed, km / h.	250
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Full
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

300de 38 specifications

Specifications

Engine

Type of engine	Hybrid
Type of fuel	Diesel
Displacement, cc	1950
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	306
Torque, Nm	700
Engine	2.0 CDi H
Turbo	+
Number of motors	1
Power electric motor HP	122
the motor torque Nm	440
Engine power, hp	194
the engine torque, Nm	400

Dimensions

Seats	5
Length mm	4933
Width	2065
Height mm	1475
Wheelbase mm	2939
Front track, mm	1600
Rear track, mm	1609
Kerb weight, kg	1760
Trunk capacity, L	640
Fuel tank, l	50
Turning circle, m	11.6
Gross weight, kg	2450
Width (without mirrors) mm	1852

Performance and fuel consumption

Fuel consumption (combined), l. 100 km	1.7
Acceleration (0-100 km/h), s	6
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	9
Drive	Rear
Transmission	9G-Tronic
Gearbox	Machine
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

FAQ

Mercedes E-Class T-Modell (S213) questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Mercedes E-Class T-Modell (S213)?

This page lists 28 trims for the Mercedes E-Class T-Modell (S213), with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Mercedes E-Class T-Modell (S213)?

The listed configurations show a power range of 150-612 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Mercedes E-Class T-Modell (S213)?

The available specification data shows engine displacement from 1950-3982 cc across the trims listed on this page.

Which transmissions are listed for the Mercedes E-Class T-Modell (S213)?

The transmission options currently shown for this model are: 9. Open a trim section to see the full data for a specific configuration.

Are there photos for the Mercedes E-Class T-Modell (S213)?

Yes. The gallery includes 15 photos for the Mercedes E-Class T-Modell (S213), including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.

Explore more

Continue exploring Mercedes

Return to Mercedes models, browse the gallery, or compare the trims listed above.

All Mercedes models E-Class T-Modell (S213) generations View photo gallery Read FAQ Compare trims
