Mercedes T-Class specifications and photos
The 2022 Mercedes-Benz T-Class is a front-wheel-drive premium minivan designed to offer practical space alongside a higher level of comfort and technology. Introduced in April 2022, it targets buyers seeking a versatile family or lifestyle vehicle with passenger-car refinement.
Mercedes T-Class at a glance
Quick model context before comparing photos and trim-level specifications.
Developed to bring luxury-brand sensibilities to the compact van segment, the T-Class focuses on balancing everyday utility with elevated materials and modern technology. Unlike traditional utilitarian vans, this model emphasizes passenger comfort, offering a quiet, refined cabin and advanced safety features. It serves as an upscale alternative in the small van market, catering to families, active lifestyle buyers, and shuttle services who need the space of a commercial vehicle but want the driving experience and aesthetic of a modern passenger car. The lineup includes efficient petrol and diesel powertrains, paired with either manual or dual-clutch automatic transmissions. Its introduction expands the brand's presence in the multipurpose vehicle category, bridging the gap between practical cargo carriers and premium family transport.
- Power: 95-131 hp
- Engine displacement: 1332-1461 cc
- Transmissions: 6-speed manual, dual-clutch
- Seating: 5 seats
Mercedes T-Class overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The exterior design integrates standard brand cues, including a prominent chrome grille with a large central emblem and sculpted hood lines. Standard features on higher trims like the Progressive line include bright LED headlights. The profile features muscular wheel arches housing 17-inch five-spoke alloy wheels, while large window areas improve visibility and let natural light into the cabin. An exclusive rubellite red metallic paint option is also available. Overall, the proportions are clean and modern, avoiding the purely boxy look of a typical commercial van in favor of a cohesive, well-proportioned aesthetic.
Interior
Inside, the T-Class elevates the segment standard with high-quality materials such as ARTICO synthetic leather, MICROCUT microfibre, and NEOTEX, which provides a nubuck-like texture. The dashboard layout mirrors contemporary passenger cars, featuring wing-shaped horizontal lines, turbine-style air vents, and a central touchscreen running the MBUX infotainment system. A multifunction steering wheel with touch controls is standard. Ergonomic seats offer height adjustment, and the overall fit and finish aim to deliver a premium atmosphere for up to five occupants, prioritizing both visual appeal and tactile comfort.
Performance
Powertrain options include 1.3-liter petrol and 1.5-liter diesel engines. The petrol range features the T 160 with 102 horsepower and the T 180 with 131 horsepower. Diesel options include the 95-horsepower T 160 d and the 116-horsepower T 180 d, the latter offering an overboost function for temporary power increases up to 121 horsepower and 295 Nm of torque during acceleration. All engines come standard with an ECO Start/Stop system. Buyers can choose between a standard six-speed manual gearbox and an optional seven-speed dual-clutch automatic (7G-DCT) on most variants, all sending power exclusively to the front wheels.
Practicality
As a small minivan, utility is a strong point. The vehicle features sliding doors on both sides, making entry and exit easier in tight parking spaces or when loading children. The rear seats can fold down to create a nearly flat load floor, expanding the standard 520-liter trunk capacity. With a length of 4498 mm and a width of 1859 mm, it remains easy to maneuver in urban environments while offering substantial interior flexibility for transporting sports gear, luggage, or bulky items.
Safety and tech
Safety equipment is comprehensive, with seven airbags standard, including a central airbag between the front seats. Standard driver assistance systems include Active Brake Assist with cross-traffic detection, Lane Keeping Assist, Blind Spot Assist, and Crosswind Assist. For additional convenience, optional packages add features like DISTRONIC active distance assist, active steering assist, and a Parking Package that bundles a rearview camera with PARKTRONIC parking sensors to aid in tight urban maneuvers.
Buyer notes
When configuring a T-Class, buyers should consider their primary driving environment. The diesel engines offer excellent fuel economy for high-mileage users, while the petrol engines provide a quiet, smooth experience for city driving. The 7G-DCT automatic transmission is a worthwhile upgrade for urban commuters dealing with heavy traffic. Families should also weigh the benefits of the advanced Driving Assistance and Parking packages, which add valuable active safety tech and ease of use in daily driving scenarios.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| T 160 | 1332 cc | 102 hp | 5 | 6-speed manual |
| T 180 | 1332 cc | 131 hp | 5 | 6-speed manual |
| T 180 | 1332 cc | 131 hp | 5 | dual-clutch |
| T 160d | 1461 cc | 95 hp | 5 | 6-speed manual |
| T 160d | 1461 cc | 95 hp | 5 | dual-clutch |
| T 180d | 1461 cc | 116 hp | 5 | 6-speed manual |
| T 180d | 1461 cc | 116 hp | 5 | dual-clutch |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

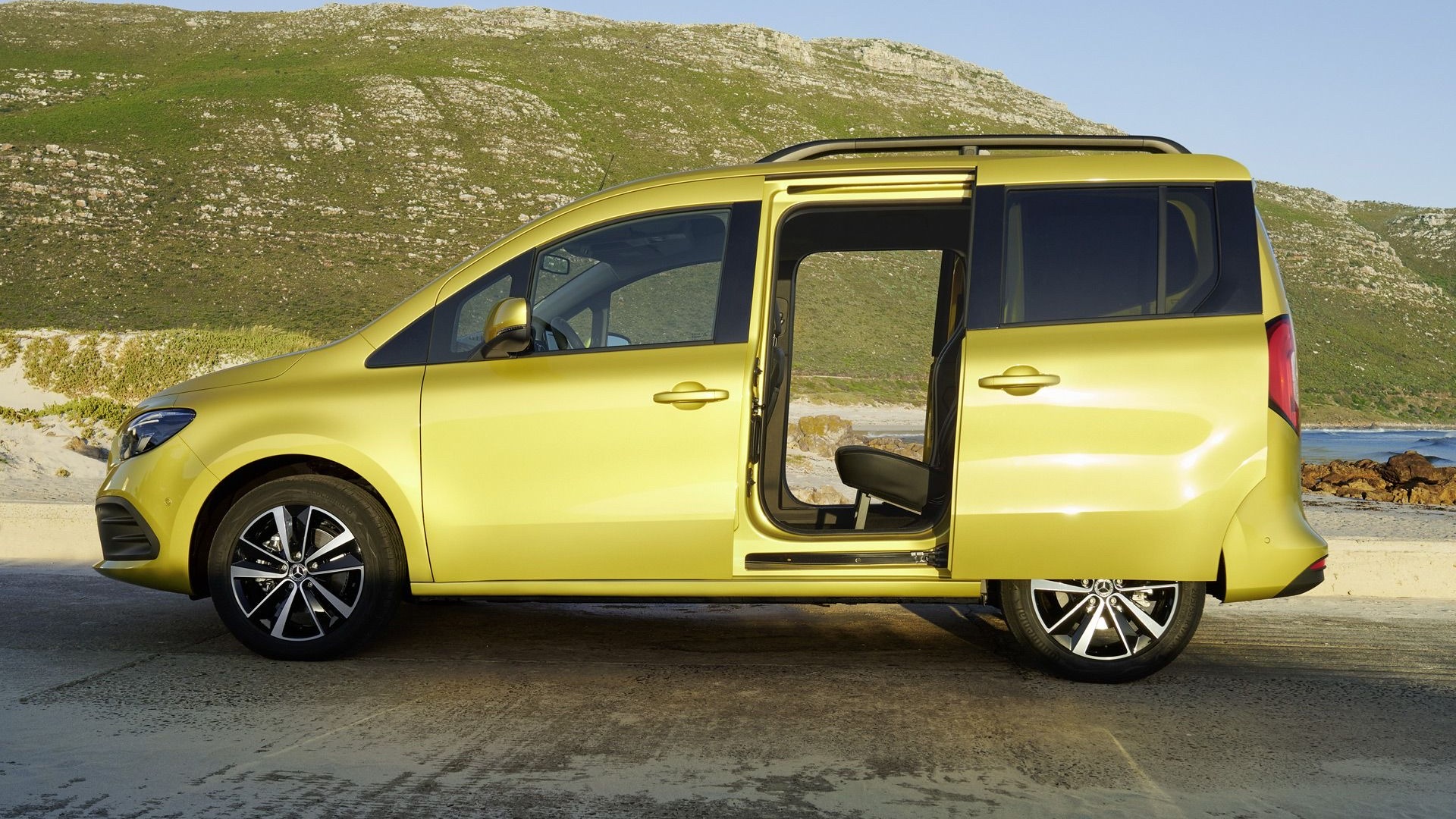

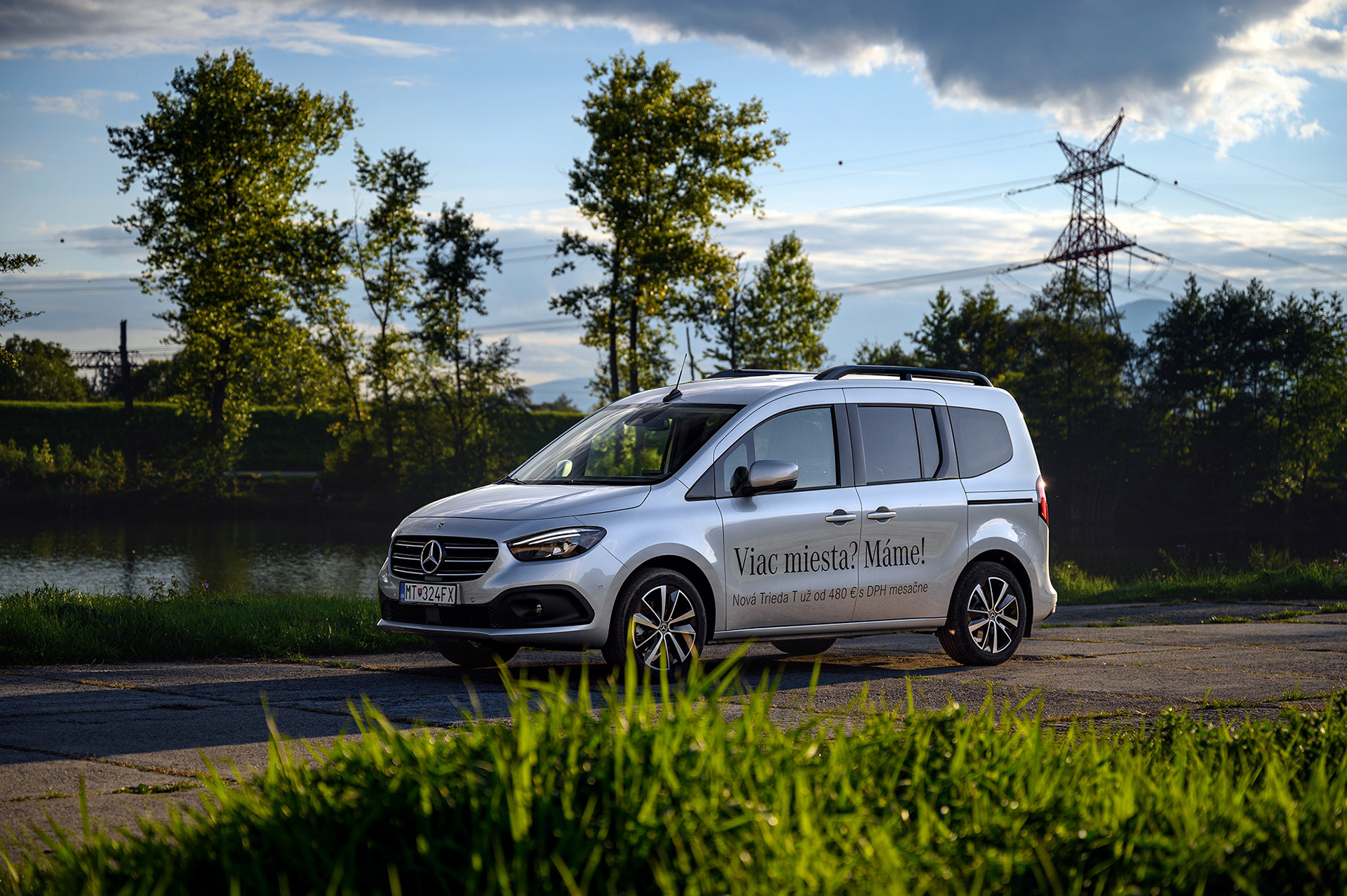

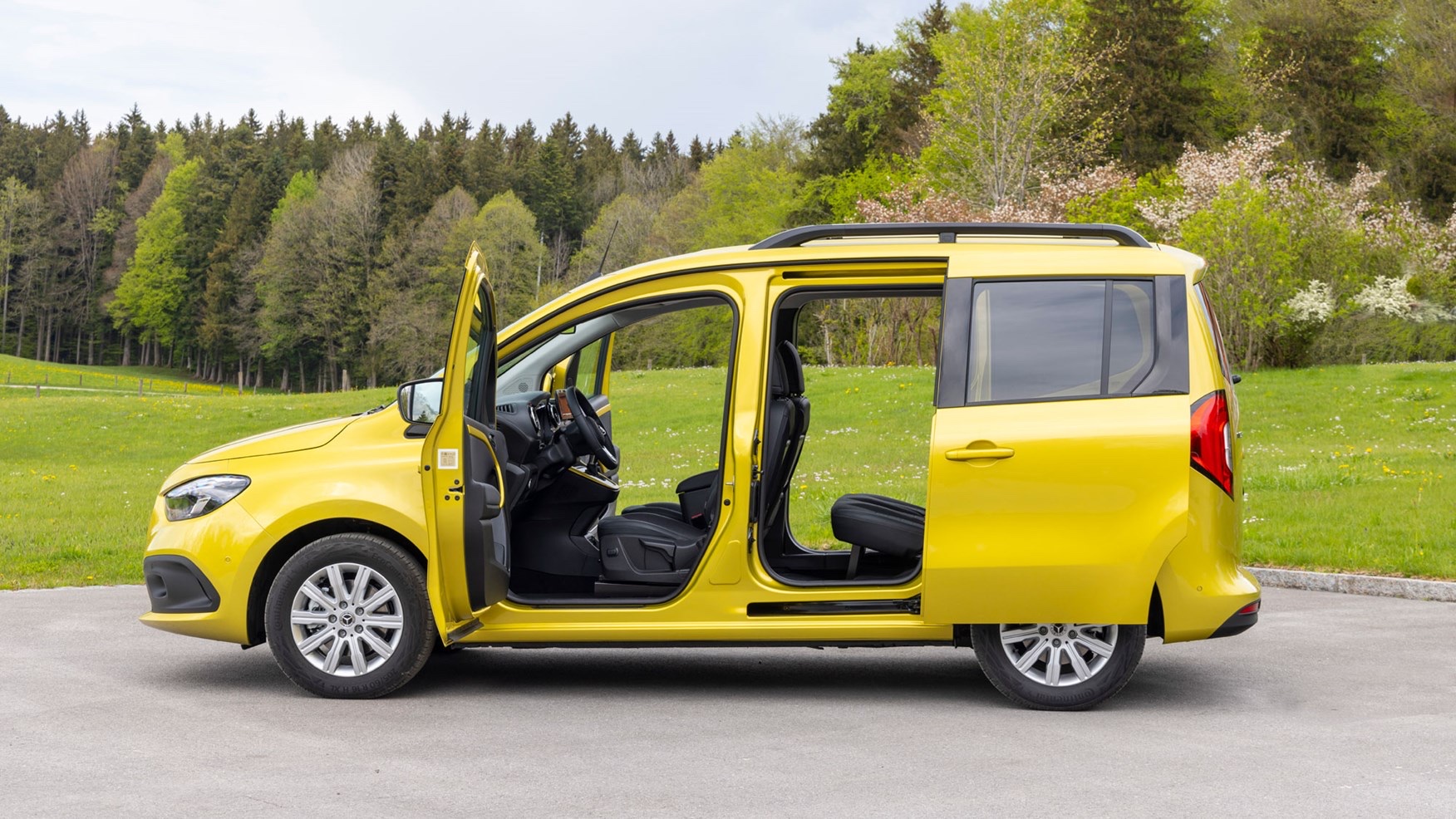

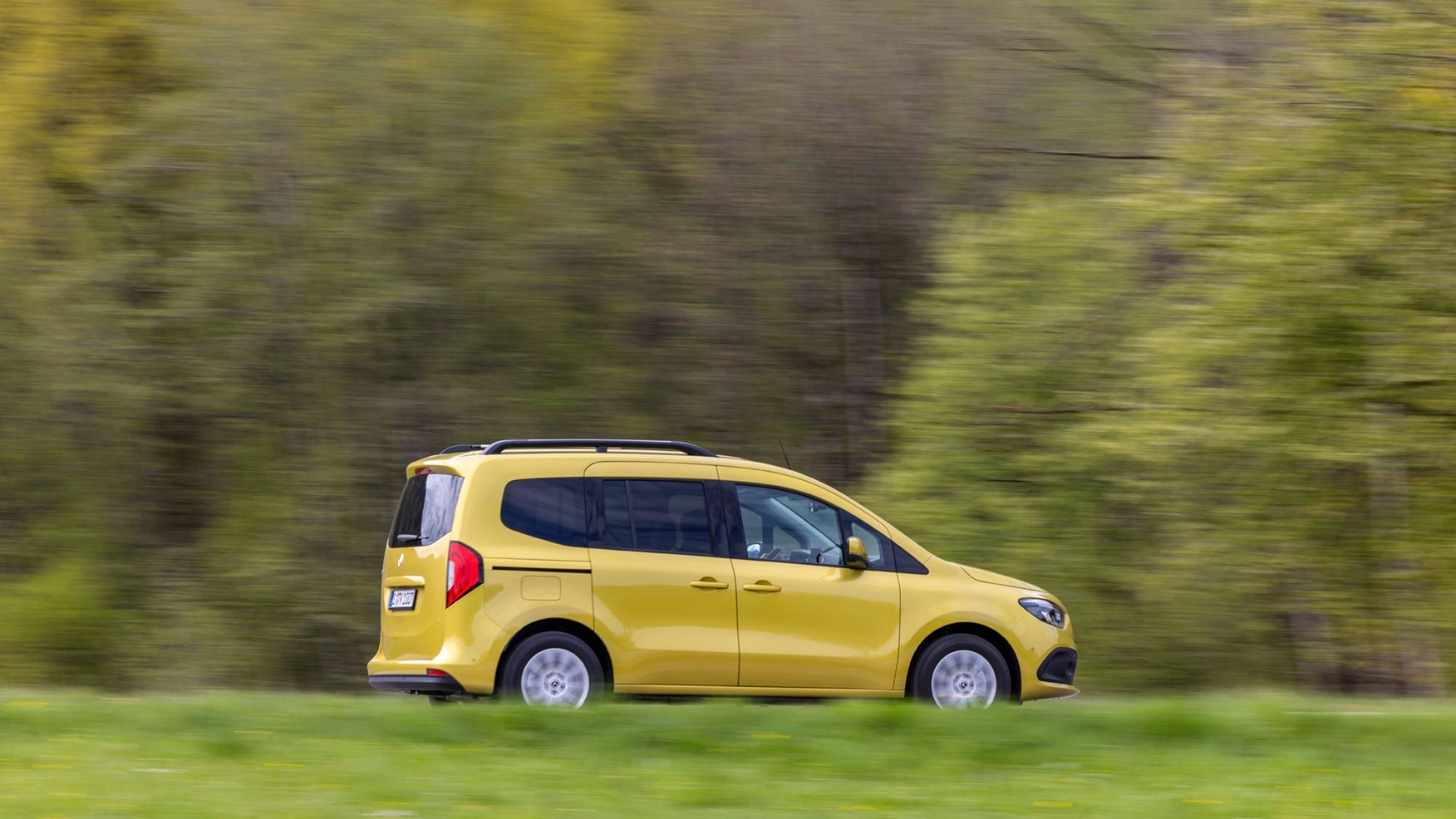

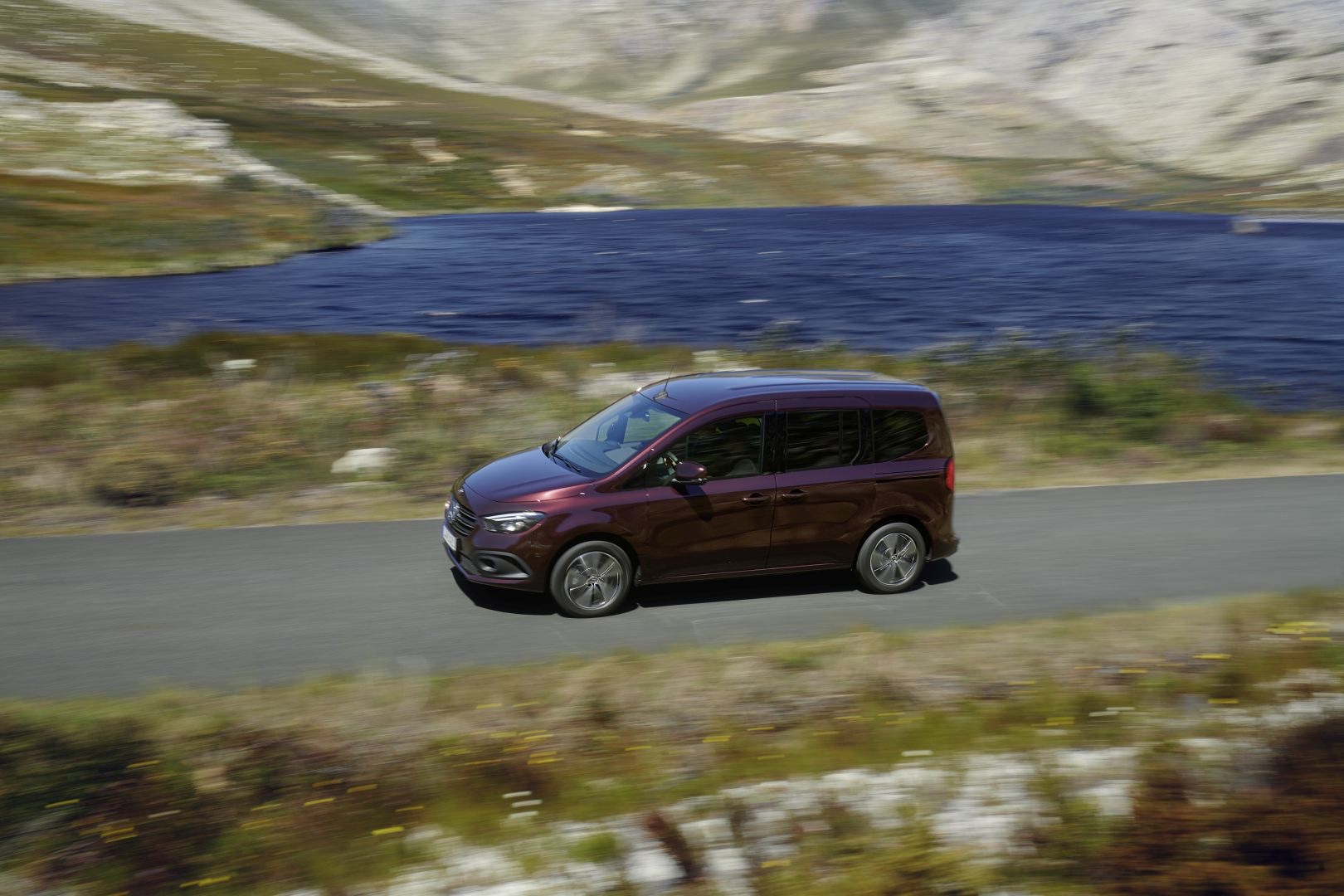

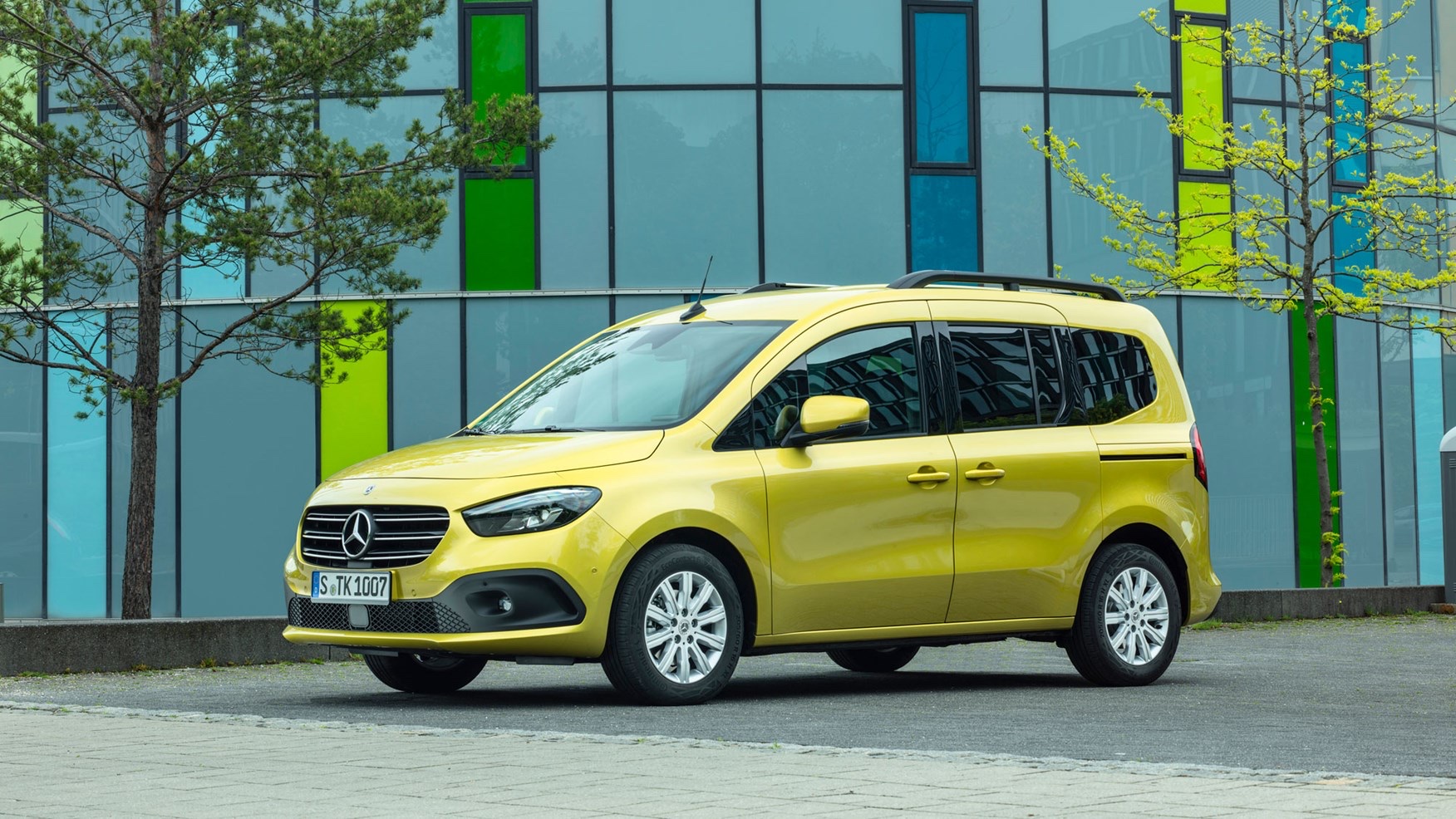

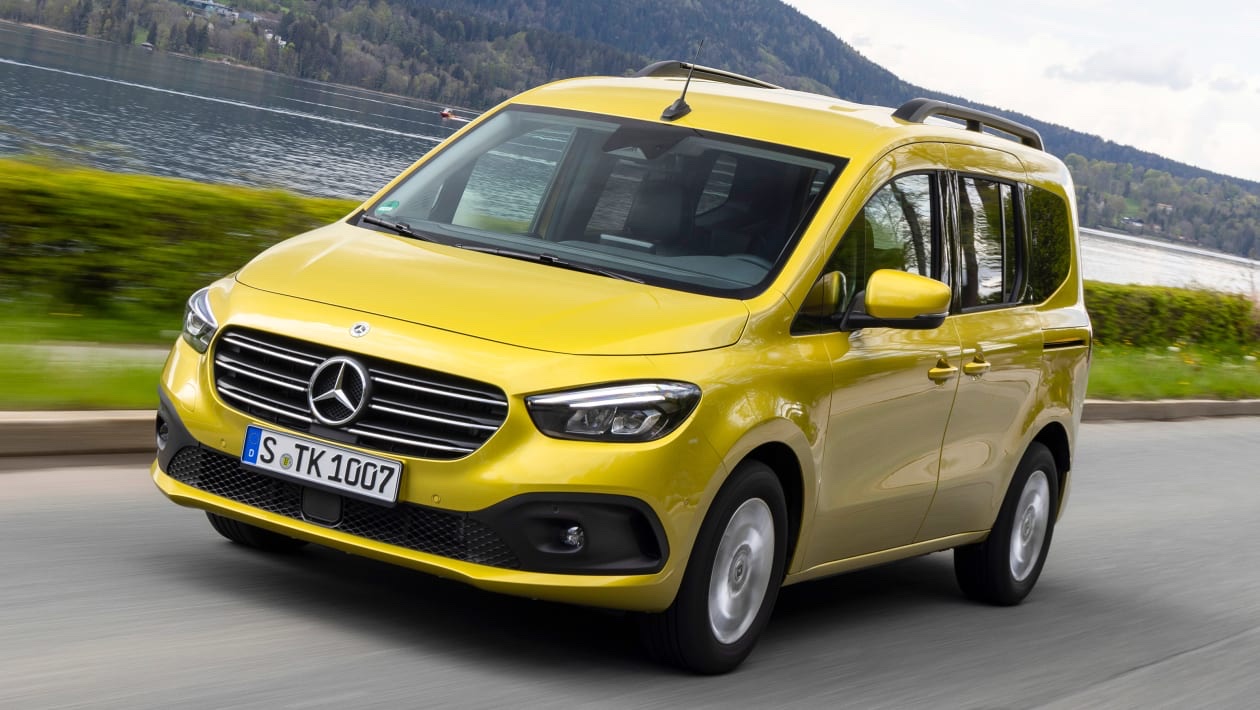

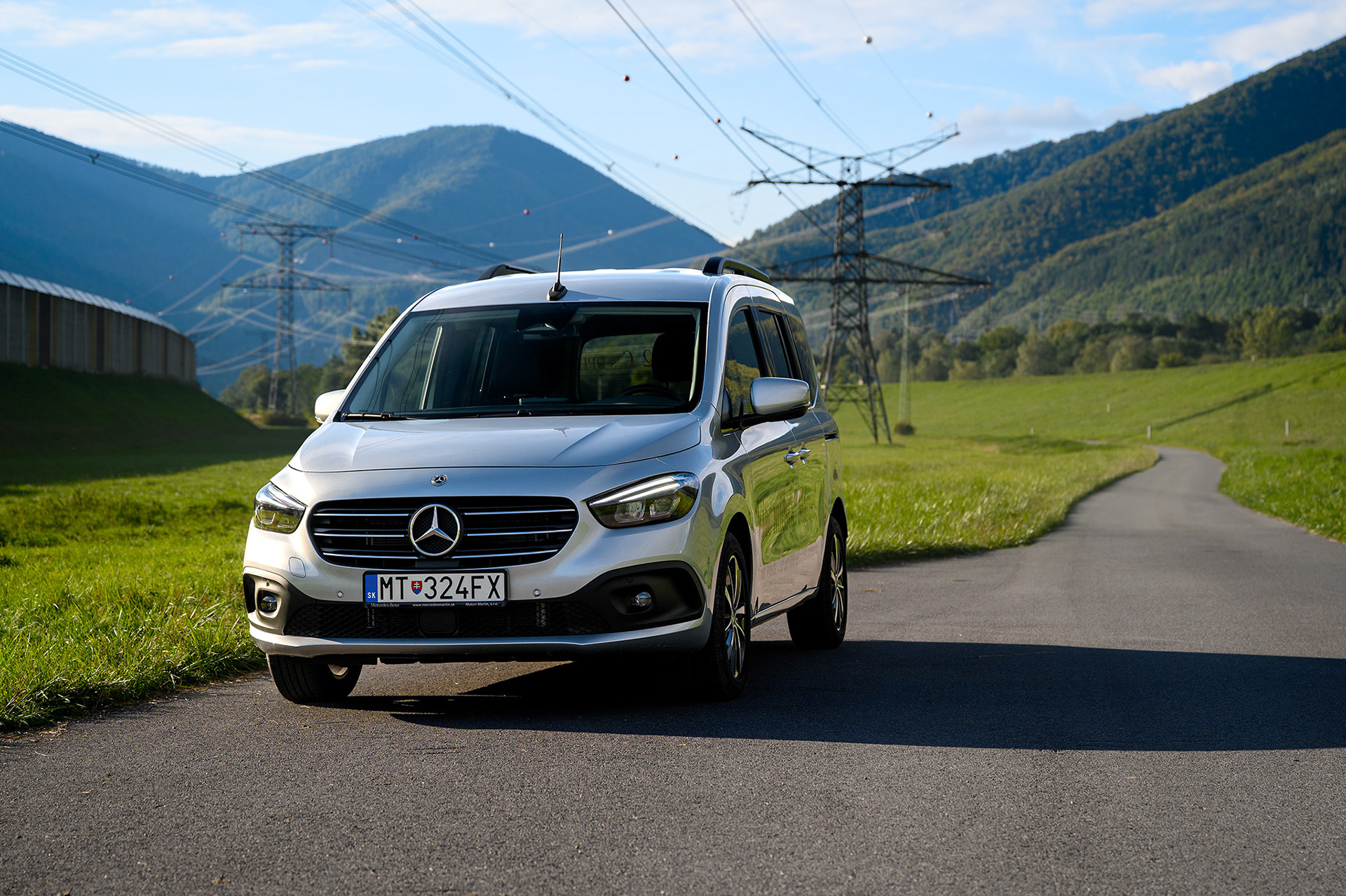

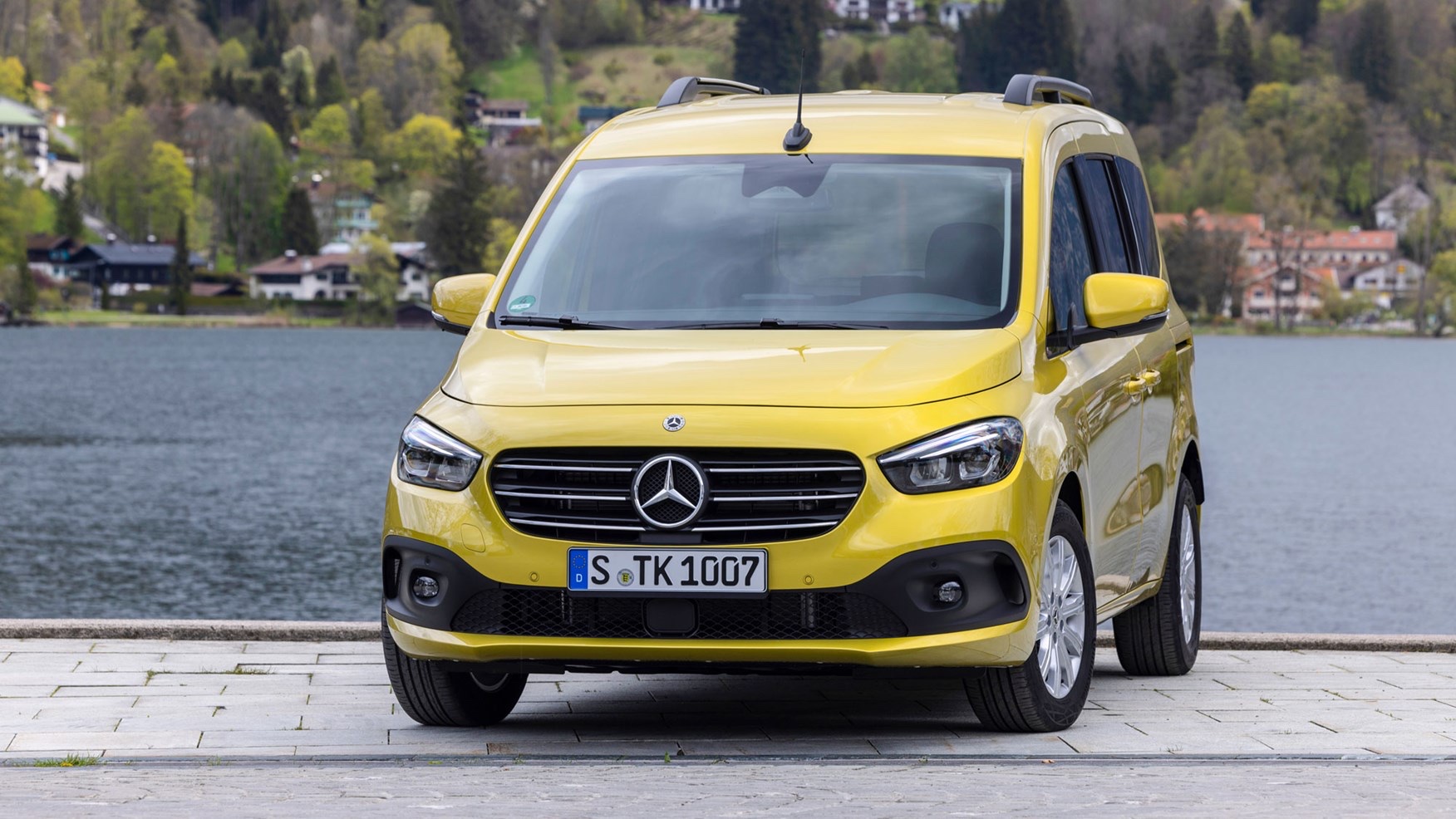

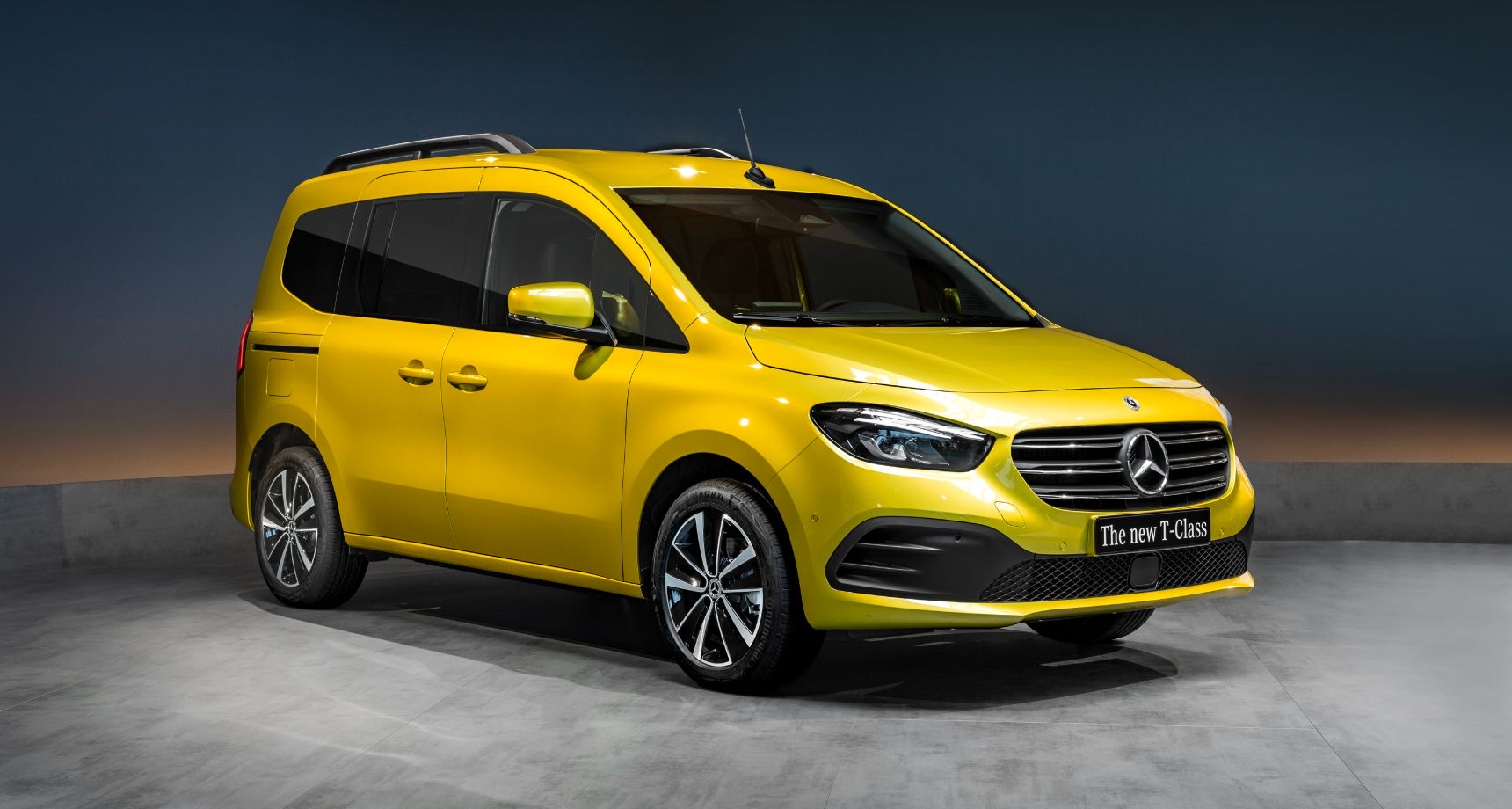

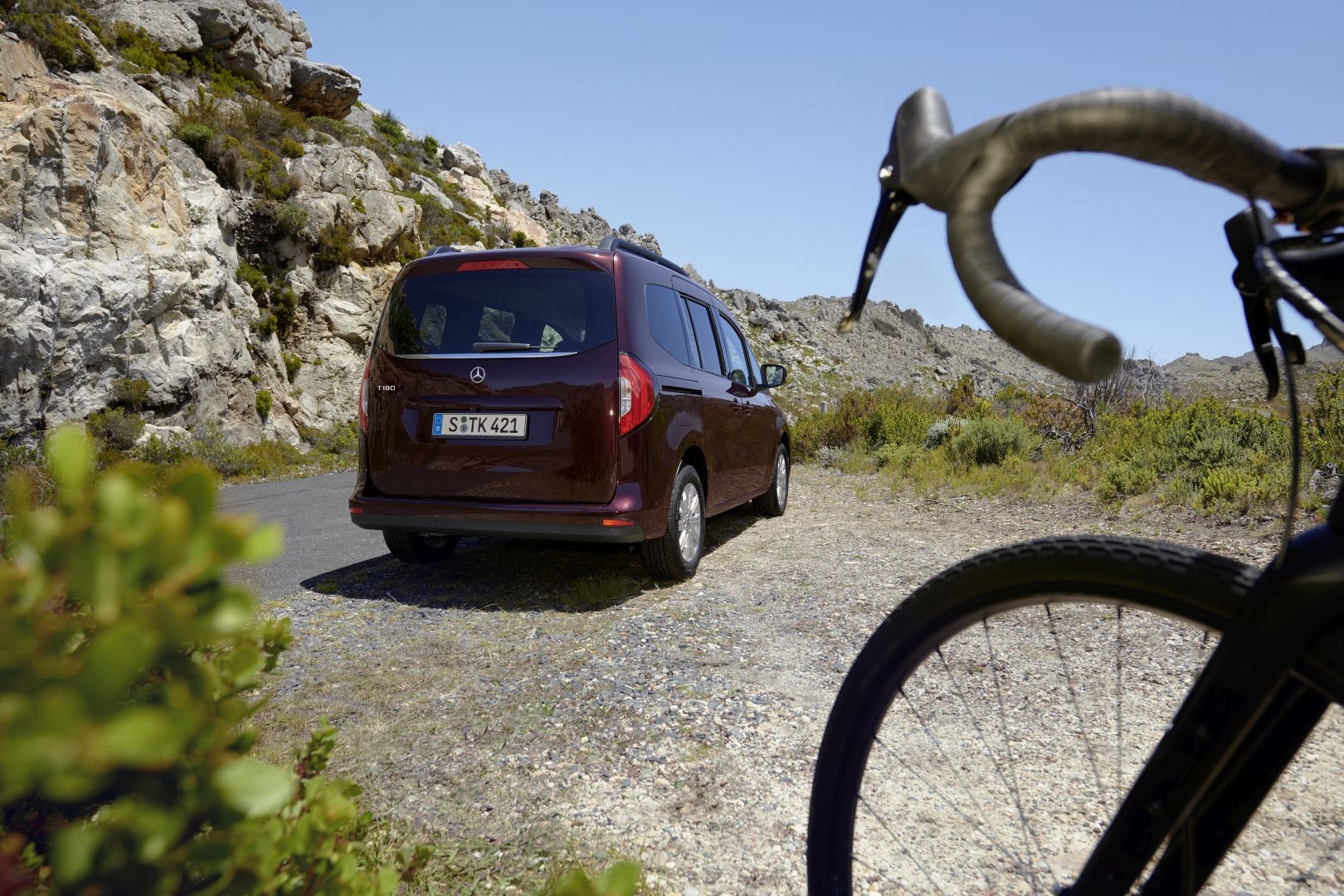

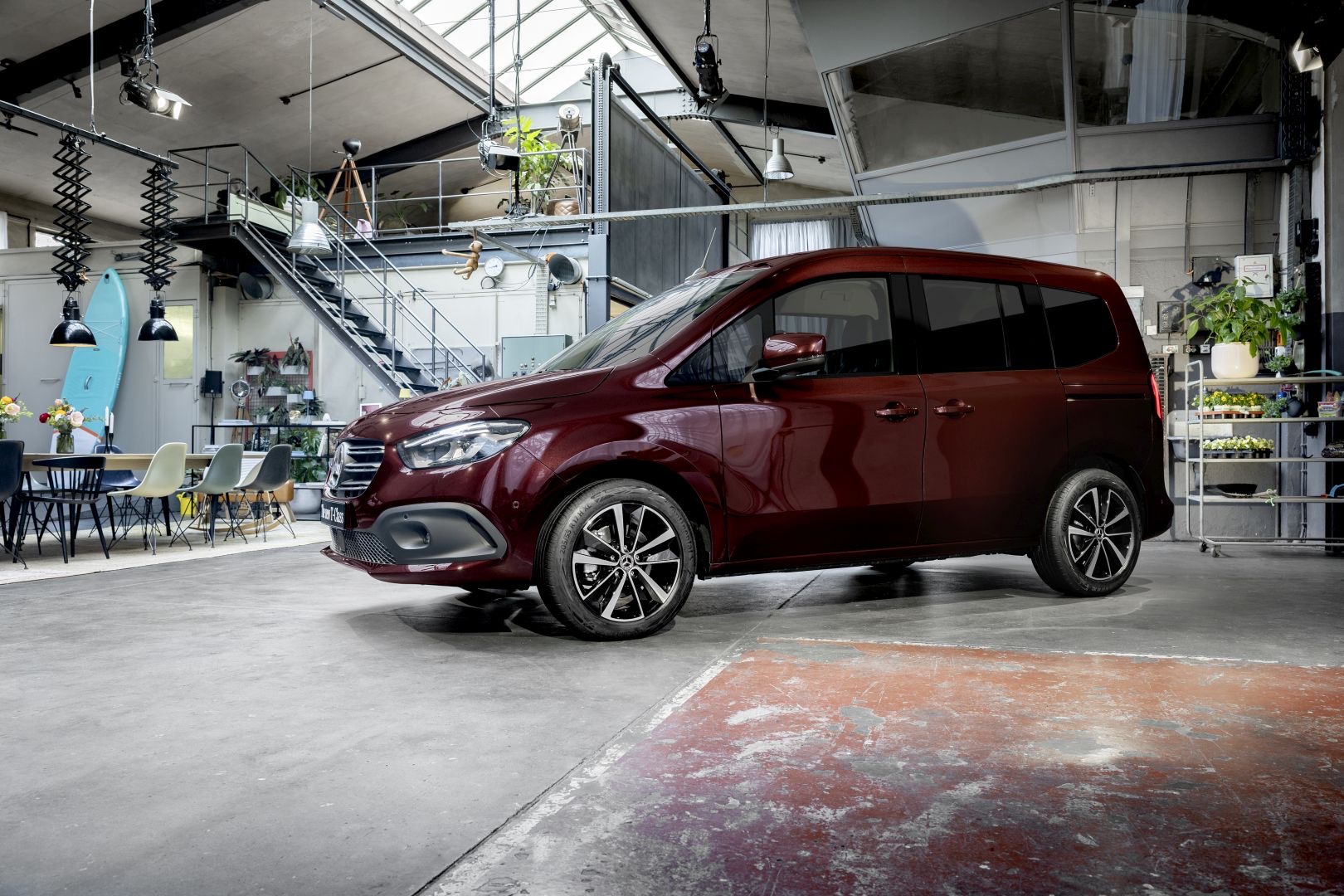

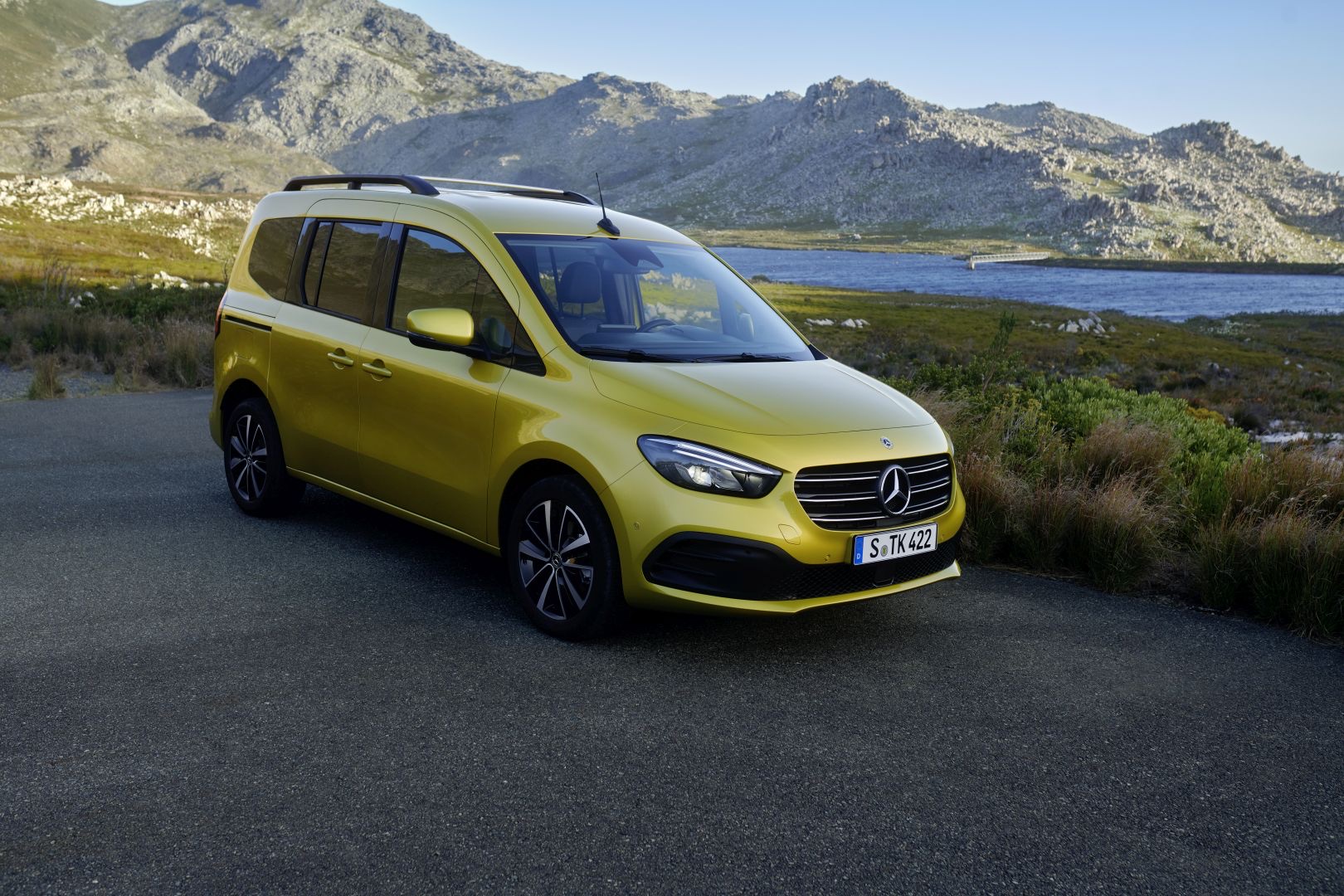

Mercedes T-Class photo gallery
14 images are collected here with the main specifications and trim data for this model.
Photo Mercedes T-Class
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
T 160 33 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.7 |
|---|---|
| Top speed, km/h | 168 |
| Acceleration 0-100 km/h, s | 14.7 |
Engine
| Engine | 1.3i |
|---|---|
| Engine code | M282 (Renault H5Ht) |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1332 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 102 |
| RPM at max power | 4500 |
| Torque, Nm | 200 |
| RPM at max torque | 1500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4498 |
| Width, mm | 2159 |
| Height, mm | 1811 |
| Wheelbase, mm | 2716 |
| Front track, mm | 1584 |
| Rear track, mm | 1596 |
| Kerb weight, kg | 1556 |
| Fuel tank capacity, L | 54 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1859 |
| Trunk capacity, L | 520 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Daimler AG |
| Transmission country | Germany |
T 180 34 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.7 |
|---|---|
| Top speed, km/h | 183 |
| Acceleration 0-100 km/h, s | 12.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.3i |
|---|---|
| Engine code | M282 (Renault H5Ht) |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1332 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 131 |
| RPM at max power | 5000 |
| Torque, Nm | 240 |
| RPM at max torque | 1600 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4498 |
| Width, mm | 2159 |
| Height, mm | 1811 |
| Wheelbase, mm | 2716 |
| Front track, mm | 1584 |
| Rear track, mm | 1596 |
| Kerb weight, kg | 1556 |
| Fuel tank capacity, L | 54 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1859 |
| Trunk capacity, L | 520 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Daimler AG |
| Transmission country | Germany |
T 180 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.6 |
|---|---|
| Top speed, km/h | 184 |
| Acceleration 0-100 km/h, s | 11.6 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.3i |
|---|---|
| Engine code | M282 (Renault H5Ht) |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1332 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 131 |
| RPM at max power | 5000 |
| Torque, Nm | 240 |
| RPM at max torque | 1600 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4498 |
| Width, mm | 2159 |
| Height, mm | 1811 |
| Wheelbase, mm | 2716 |
| Front track, mm | 1584 |
| Rear track, mm | 1596 |
| Kerb weight, kg | 1556 |
| Fuel tank capacity, L | 54 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1859 |
| Trunk capacity, L | 520 |
Transmission and drive
| Transmission | dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
T 160d 34 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.3 |
|---|---|
| Top speed, km/h | 164 |
| Acceleration 0-100 km/h, s | 15.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 CDI |
|---|---|
| Engine code | OM607 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1461 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 95 |
| RPM at max power | 3750 |
| Torque, Nm | 260 |
| RPM at max torque | 1750 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4498 |
| Width, mm | 2159 |
| Height, mm | 1811 |
| Wheelbase, mm | 2716 |
| Front track, mm | 1584 |
| Rear track, mm | 1596 |
| Kerb weight, kg | 1556 |
| Fuel tank capacity, L | 54 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1859 |
| Trunk capacity, L | 520 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Daimler AG |
| Transmission country | Germany |
T 160d 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.5 |
|---|---|
| Top speed, km/h | 165 |
| Acceleration 0-100 km/h, s | 15.3 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 CDI |
|---|---|
| Engine code | OM607 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1461 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 95 |
| RPM at max power | 3750 |
| Torque, Nm | 260 |
| RPM at max torque | 1750 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4498 |
| Width, mm | 2159 |
| Height, mm | 1811 |
| Wheelbase, mm | 2716 |
| Front track, mm | 1584 |
| Rear track, mm | 1596 |
| Kerb weight, kg | 1556 |
| Fuel tank capacity, L | 54 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1859 |
| Trunk capacity, L | 520 |
Transmission and drive
| Transmission | dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
T 180d 34 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.6 |
|---|---|
| Top speed, km/h | 175 |
| Acceleration 0-100 km/h, s | 13.6 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 CDI |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1461 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 116 |
| RPM at max power | 3750 |
| Torque, Nm | 270 |
| RPM at max torque | 1750 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4498 |
| Width, mm | 2159 |
| Height, mm | 1811 |
| Wheelbase, mm | 2716 |
| Front track, mm | 1584 |
| Rear track, mm | 1596 |
| Kerb weight, kg | 1556 |
| Fuel tank capacity, L | 54 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1859 |
| Trunk capacity, L | 520 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
| Transmission manufacturer | Daimler AG |
| Transmission country | Germany |
T 180d 35 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.5 |
|---|---|
| Top speed, km/h | 177 |
| Acceleration 0-100 km/h, s | 13.2 |
| Emissions standard | Euro VI |
Engine
| Engine | 1.5 CDI |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1461 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 116 |
| RPM at max power | 3750 |
| Torque, Nm | 270 |
| RPM at max torque | 1750 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4498 |
| Width, mm | 2159 |
| Height, mm | 1811 |
| Wheelbase, mm | 2716 |
| Front track, mm | 1584 |
| Rear track, mm | 1596 |
| Kerb weight, kg | 1556 |
| Fuel tank capacity, L | 54 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1859 |
| Trunk capacity, L | 520 |
Transmission and drive
| Transmission | dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Mercedes T-Class questions
Short answers based on the specifications and photos available in this catalog.
What body style is the Mercedes-Benz T-Class?
It is a compact, front-wheel-drive minivan designed primarily for passenger use and family transport.
What engines are available for the T-Class?
The lineup includes a 1.3-liter turbocharged petrol engine and a 1.5-liter turbodiesel, both available in two different power outputs.
Does it have an automatic transmission option?
Yes, a seven-speed dual-clutch automatic transmission (7G-DCT) is available on most engine configurations, alongside a standard six-speed manual.
Is the interior practical for families?
Yes, it features dual sliding rear doors for easy access, seating for five, and a 520-liter trunk that can be expanded by folding down the rear seats.
What safety features are included?
The T-Class comes standard with seven airbags, Active Brake Assist, Lane Keeping Assist, Blind Spot Assist, and Crosswind Assist.
