Mercedes EQS SUV (X296) specifications and photos
The 2022 Mercedes-Benz EQS SUV serves as the brand's fourth electric crossover and the first built on the dedicated Modular Electric Architecture (MEA) platform. It debuted in April 2022 as a taller, more versatile counterpart to the EQS sedan.
Mercedes EQS SUV (X296) at a glance
Quick model context before comparing photos and trim-level specifications.
Positioned within the full-size luxury electric segment, the EQS SUV takes the core engineering of the EQS sedan and adapts it into a practical crossover format. While it shares the same 3.21-meter wheelbase as its sedan sibling, the SUV configuration is notably wider and taller, changing the overall proportions and interior packaging. Mercedes-Benz designed this vehicle from the ground up on a dedicated electric platform rather than modifying an existing combustion-engine chassis. Buyers can choose from rear-wheel or all-wheel drive configurations, with varying battery ranges and power outputs tailored to different driving requirements and climates.
- Power: 360-544 hp
- Transmissions: single-speed reduction gear
- Seating: 7 seats
Photos, trims and specifications for Mercedes EQS SUV (X296)
This model page brings gallery images, trim comparison, and detailed technical data together for the 2022 generation.
Mercedes EQS SUV (X296) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.

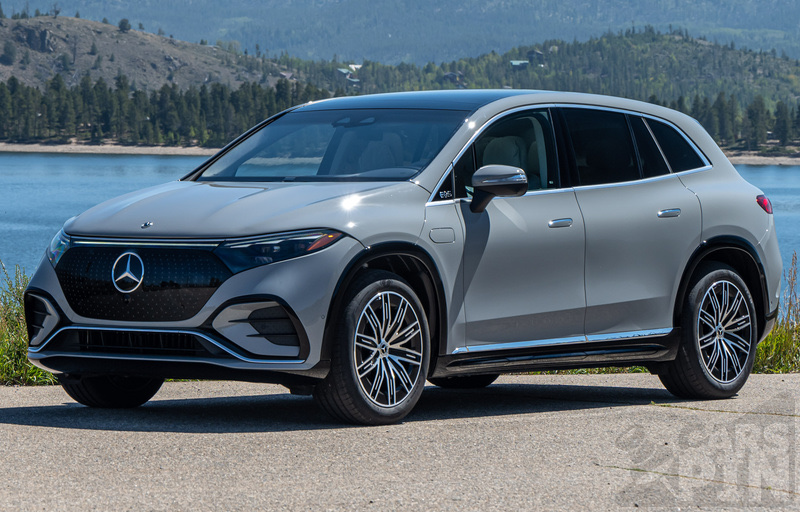

Design
The exterior of the EQS SUV measures 5,125 mm in length, 1,959 mm in width, and 1,718 mm in height. Compared to the standard EQS sedan, this makes the SUV slightly shorter by 90 mm, yet 30 mm wider and 200 mm taller. The design incorporates standard Airmatic air suspension, which has the ability to raise the vehicle's ride height by an additional inch for improved clearance. Rear-wheel steering is also integrated into the chassis, allowing the rear wheels to turn up to 4.5 or 10 degrees to improve low-speed maneuverability.
Interior
Inside, the cabin layout heavily borrows from the EQS sedan, highlighted by the availability of the expansive Hyperscreen that spans the entire front dashboard. The vehicle can be configured with either five or seven seats. In the five-seat layout, cargo capacity ranges from 645 liters behind the second row up to 2,100 liters with the seats folded flat. The seven-seat configuration reduces overall cargo space slightly, offering between 565 and 2,020 liters of total volume depending on how the seating is arranged.
Performance
The lineup includes three primary powertrain variants. The entry-level 450+ utilizes a single electric motor driving the rear wheels, producing 360 horsepower and 568 Nm of torque, with an estimated WLTP range between 540 and 671 kilometers. The 450 4Matic adds a front motor for all-wheel drive, maintaining 360 horsepower but increasing torque to 800 Nm. The top-tier 580 4Matic delivers over 520 horsepower and 858 Nm of torque, capable of a 0-100 km/h acceleration time of 4.6 seconds. All models support 200-kW DC fast charging. Drive modes include Eco, Comfort, Sport, Individual, and an SUV-specific Offroad setting.
Practicality
As a dedicated utility vehicle, the EQS SUV offers substantial flexibility for families and cargo hauling. The option to add a third row makes it suitable for larger groups, while the dedicated EV platform ensures the floor remains flat, maximizing legroom for rear passengers. The standard air suspension and available off-road driving mode provide additional versatility for rougher surfaces or inclement weather, though its primary focus remains on-road comfort.
Safety and tech
The technological centerpiece is the MBUX Hyperscreen interface, replacing traditional physical buttons with digital displays across the dash. Mechanically, the inclusion of up to 10 degrees of rear-wheel steering acts as a significant driving aid, effectively reducing the turning radius to 11.9 meters and making this large vehicle easier to navigate in tight urban spaces or parking lots. The electric drivetrain management is handled through a standard automatic reduction gearbox.
Buyer notes
When comparing trims, buyers should weigh the extended range of the rear-wheel-drive 450+ against the improved traction and acceleration of the dual-motor 4Matic variants. The 580 4Matic offers a significant jump in power, reducing the 0-100 km/h time down to 4.6 seconds. Note that the optional seven-seat configuration slightly reduces maximum cargo volume. Taking full advantage of the 200-kW charging capability requires access to high-power DC fast-charging stations.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 450+ | - | 360 hp | 7 | single-speed reduction gear |
| 450 4Matic | - | 360 hp | 7 | single-speed reduction gear |
| 580 4Matic | - | 544 hp | 7 | single-speed reduction gear |
| EQS 450 4Matic | - | 360 hp | 7 | single-speed reduction gear |
| EQS 580 4Matic | - | 544 hp | 7 | single-speed reduction gear |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

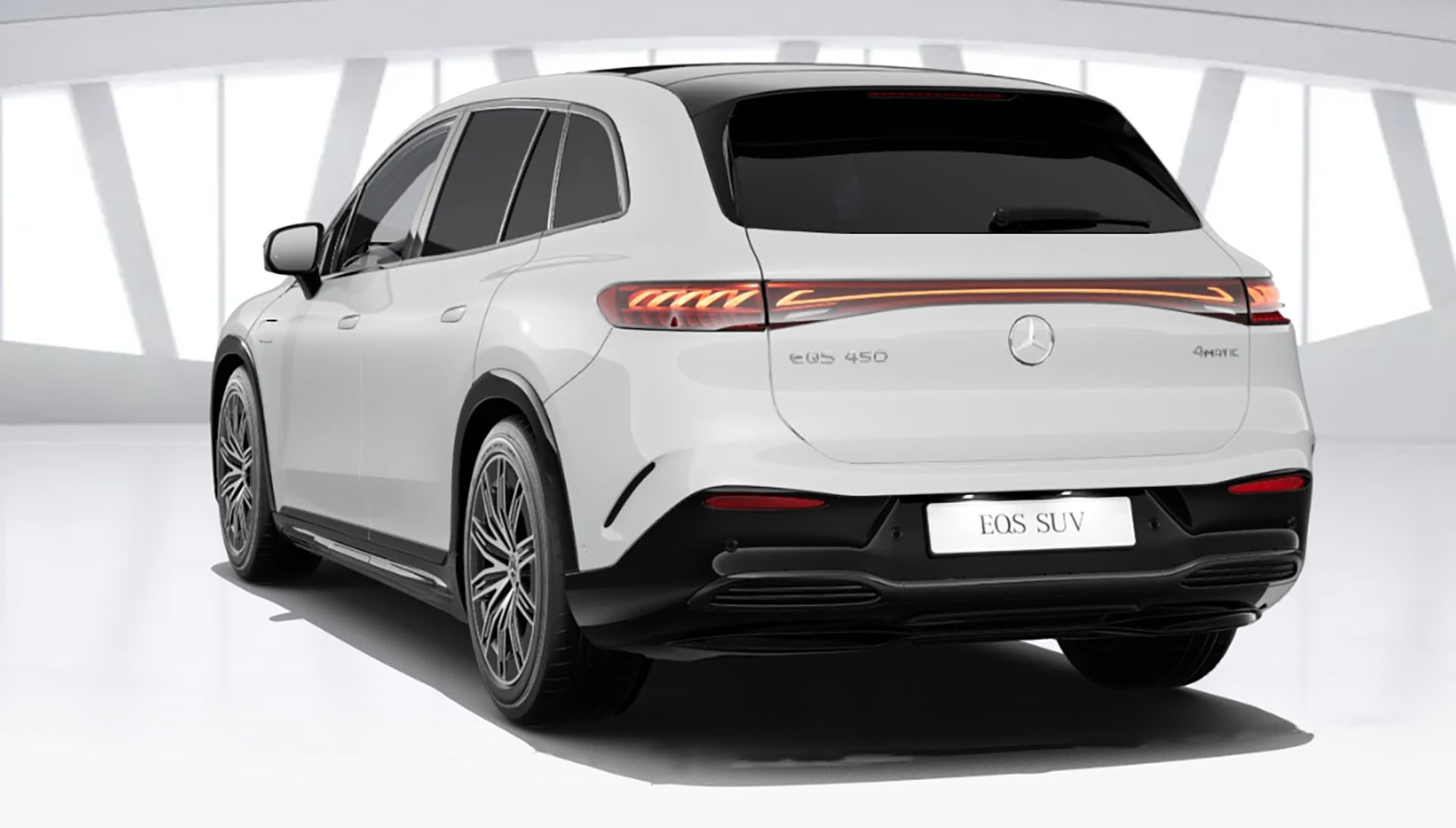

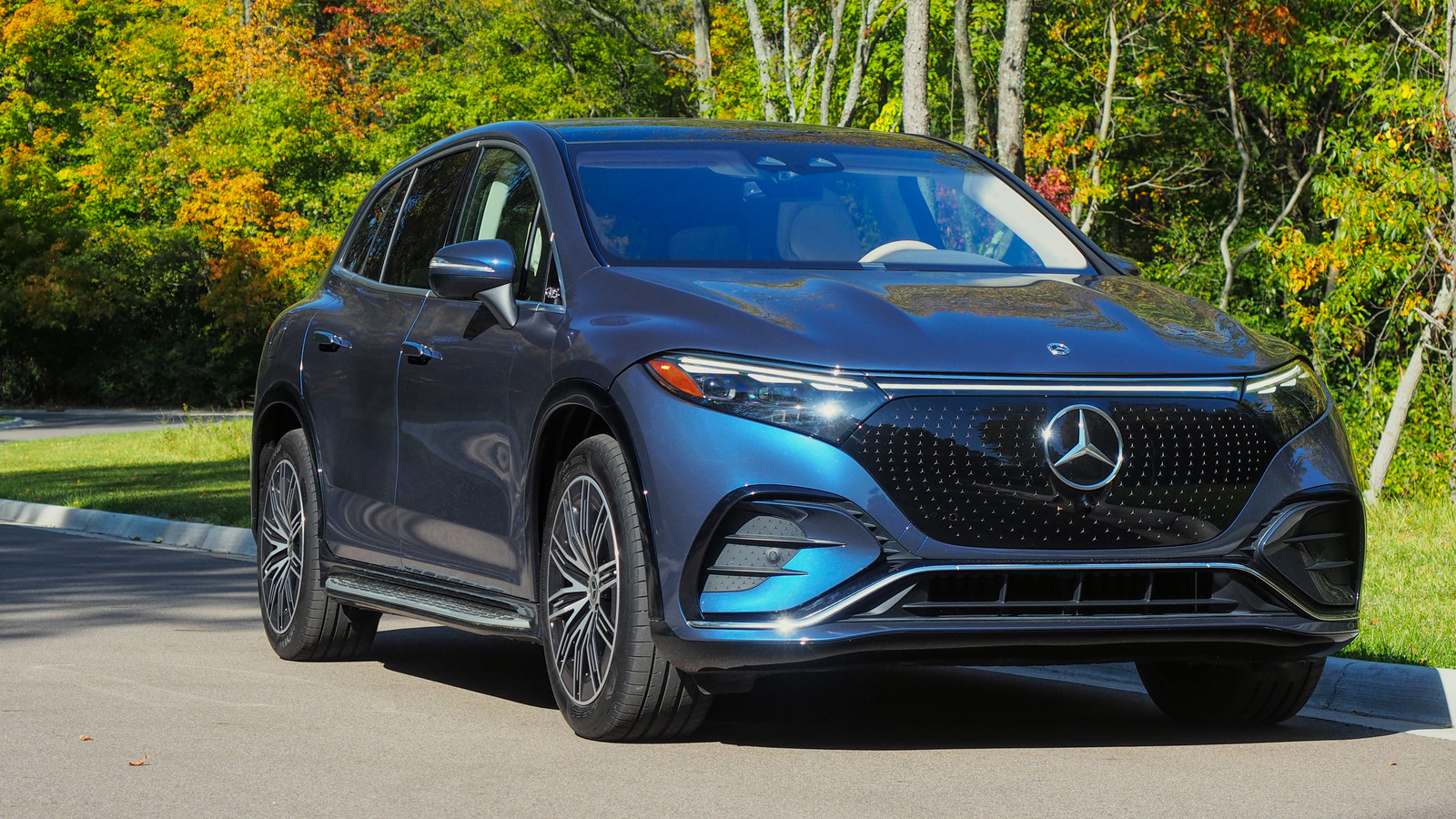

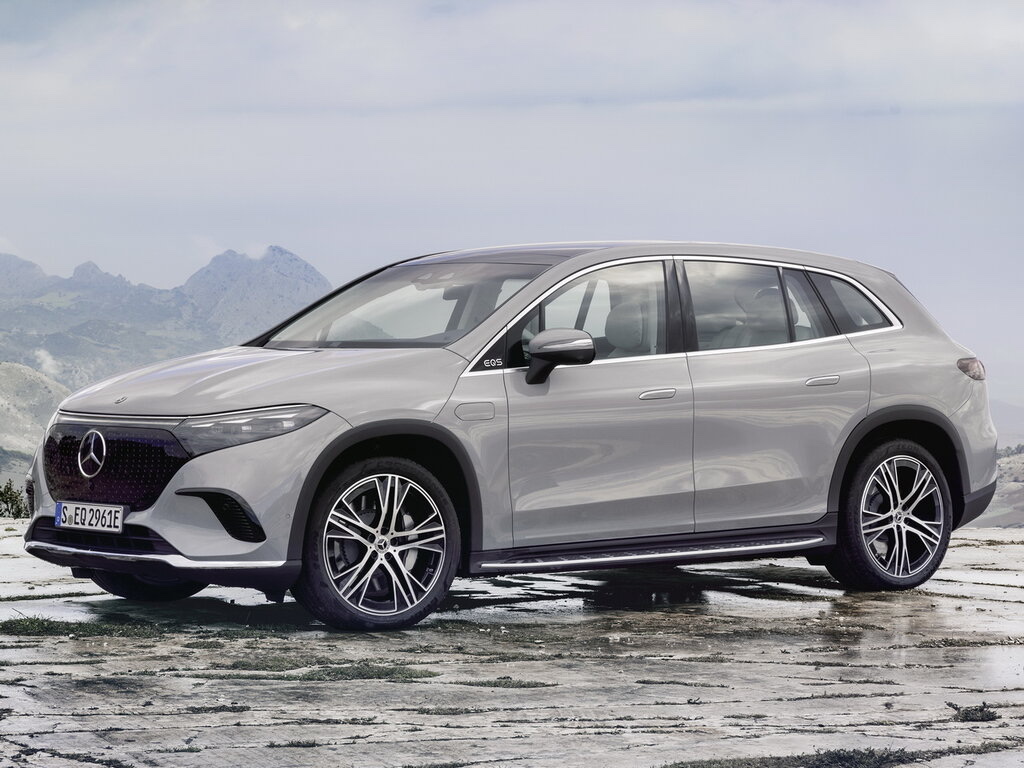

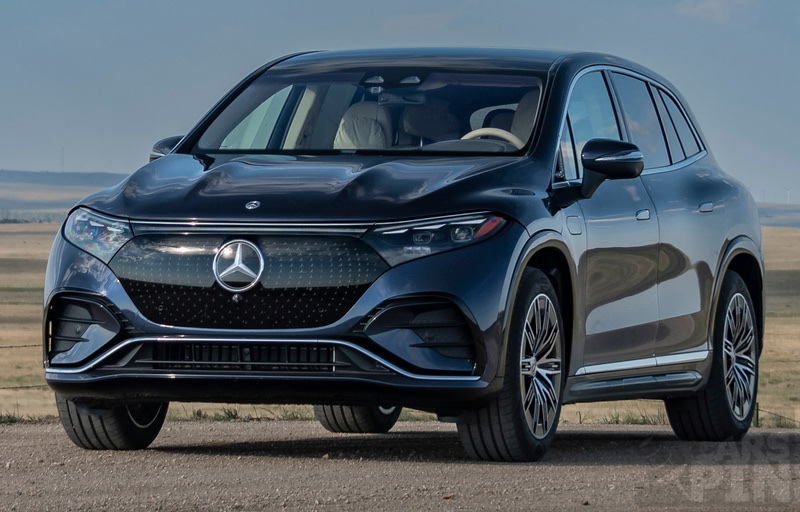

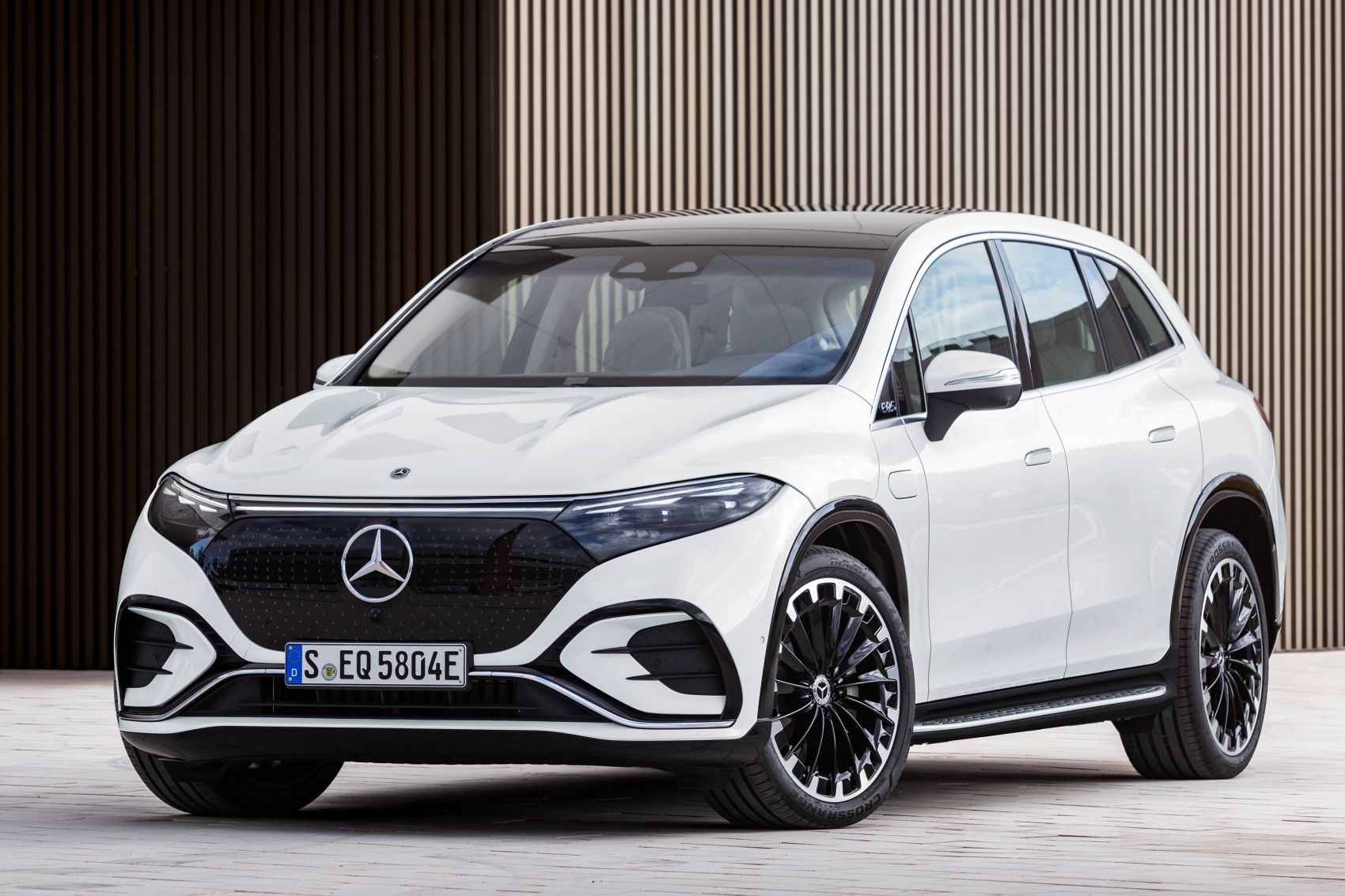

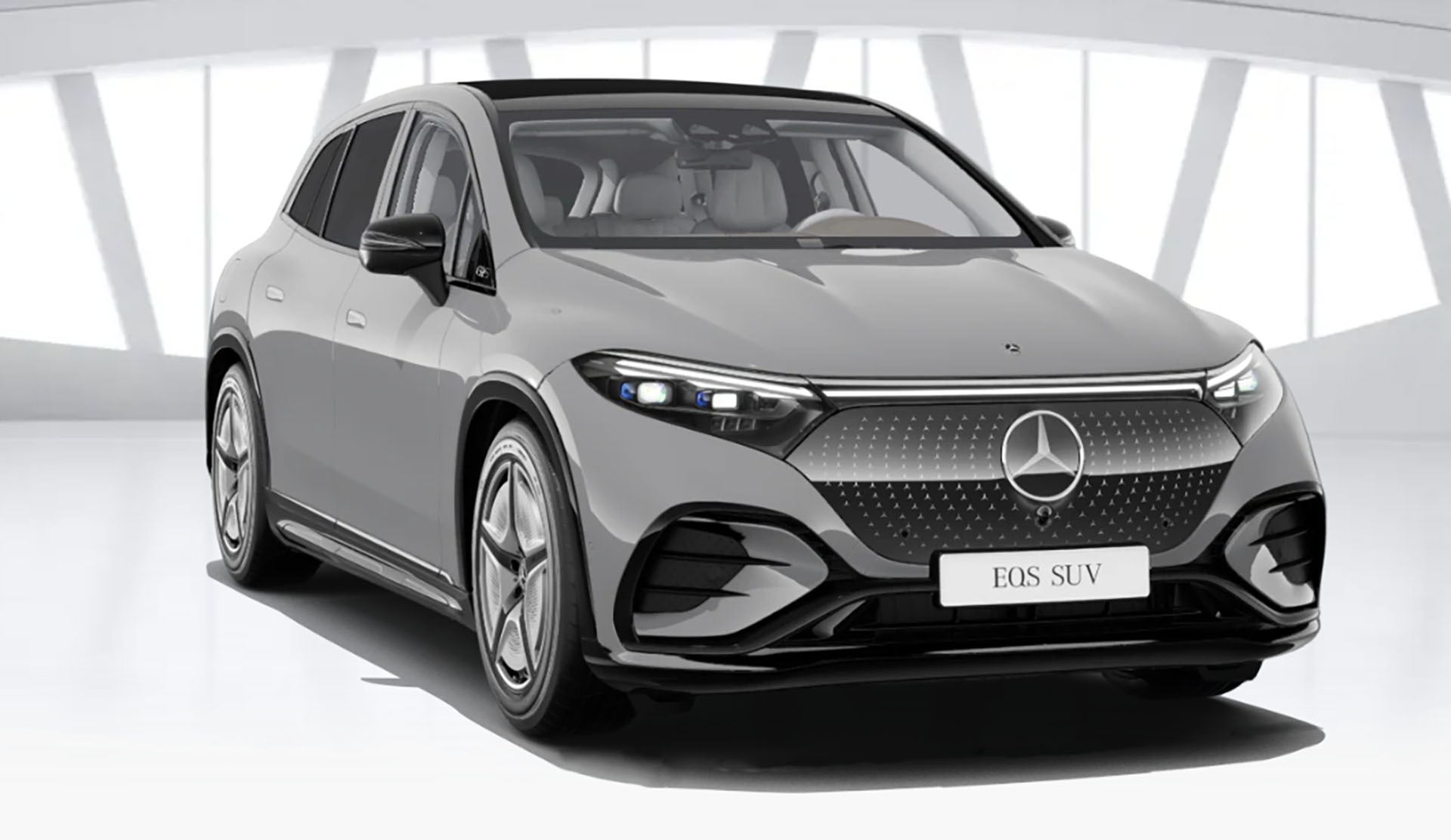

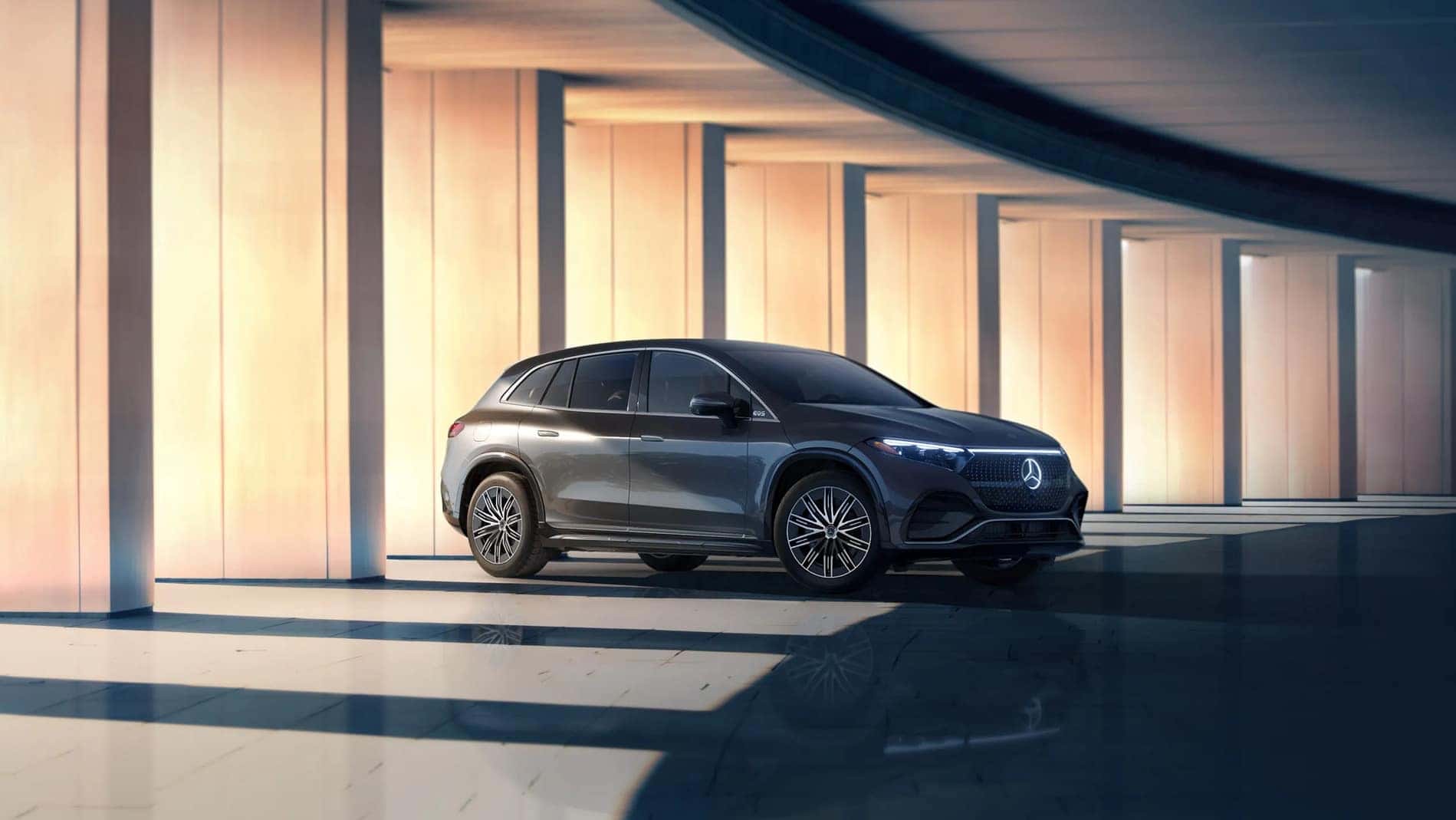

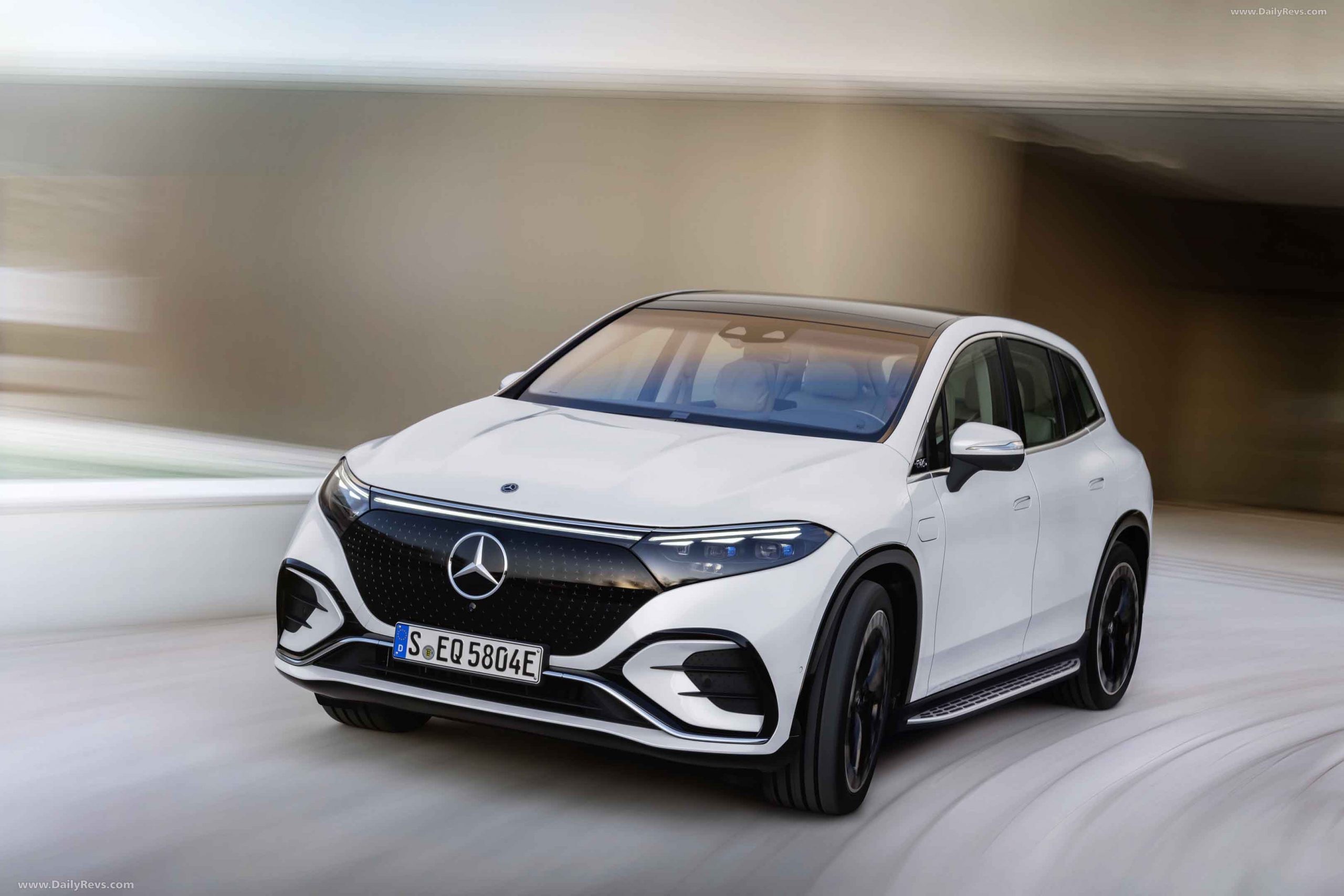

Mercedes EQS SUV (X296) photo gallery
18 images are collected here with the main specifications and trim data for this model.

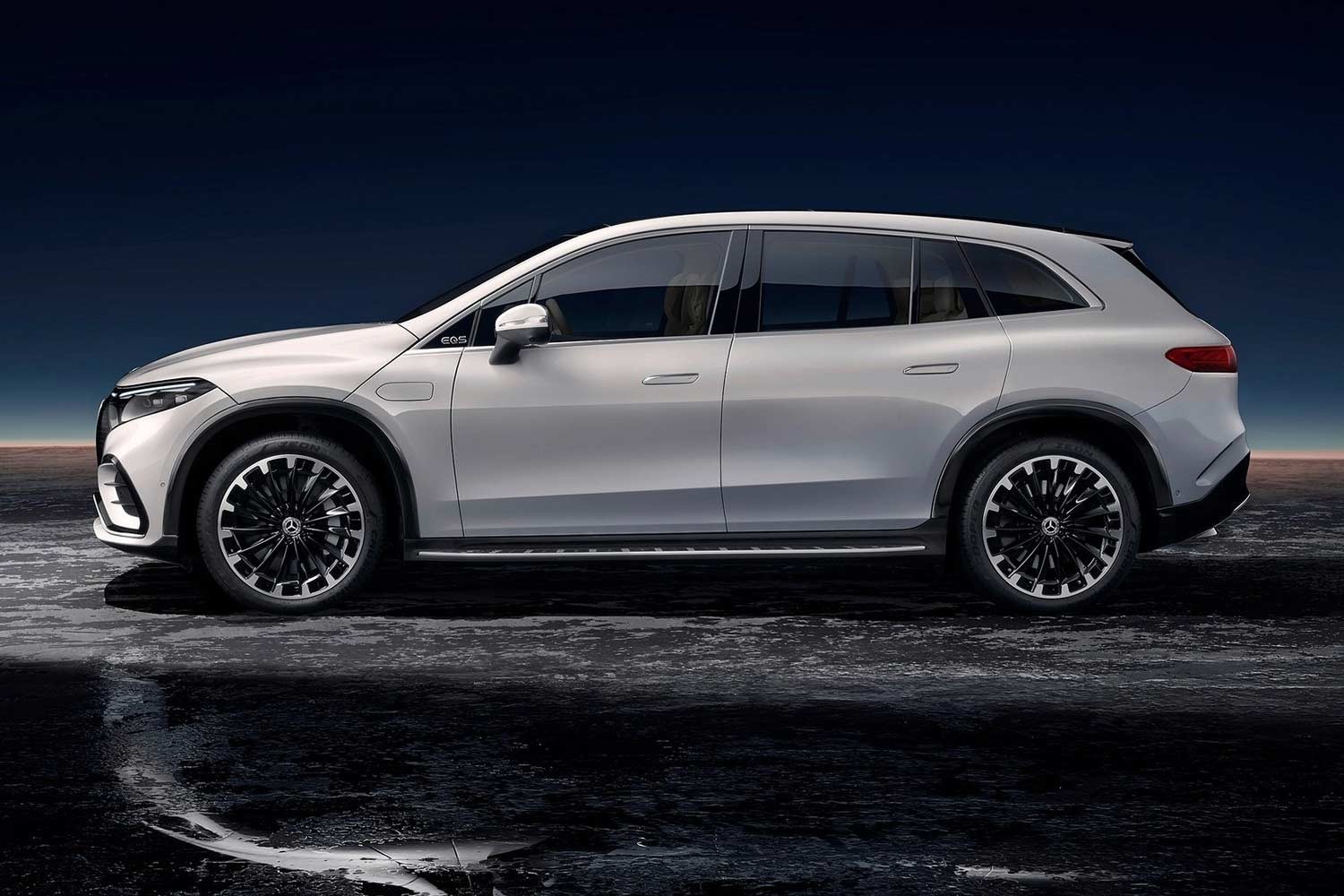

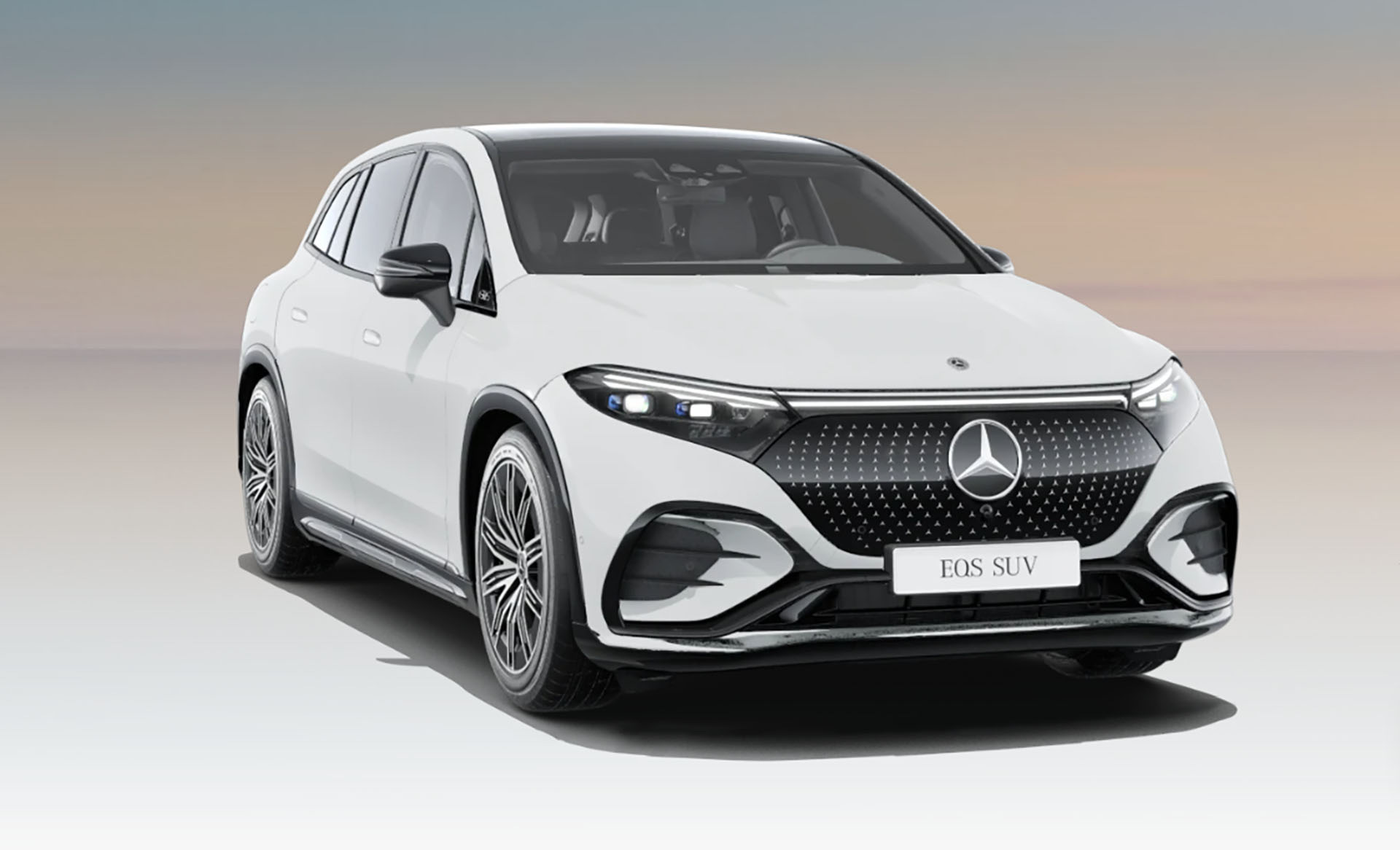

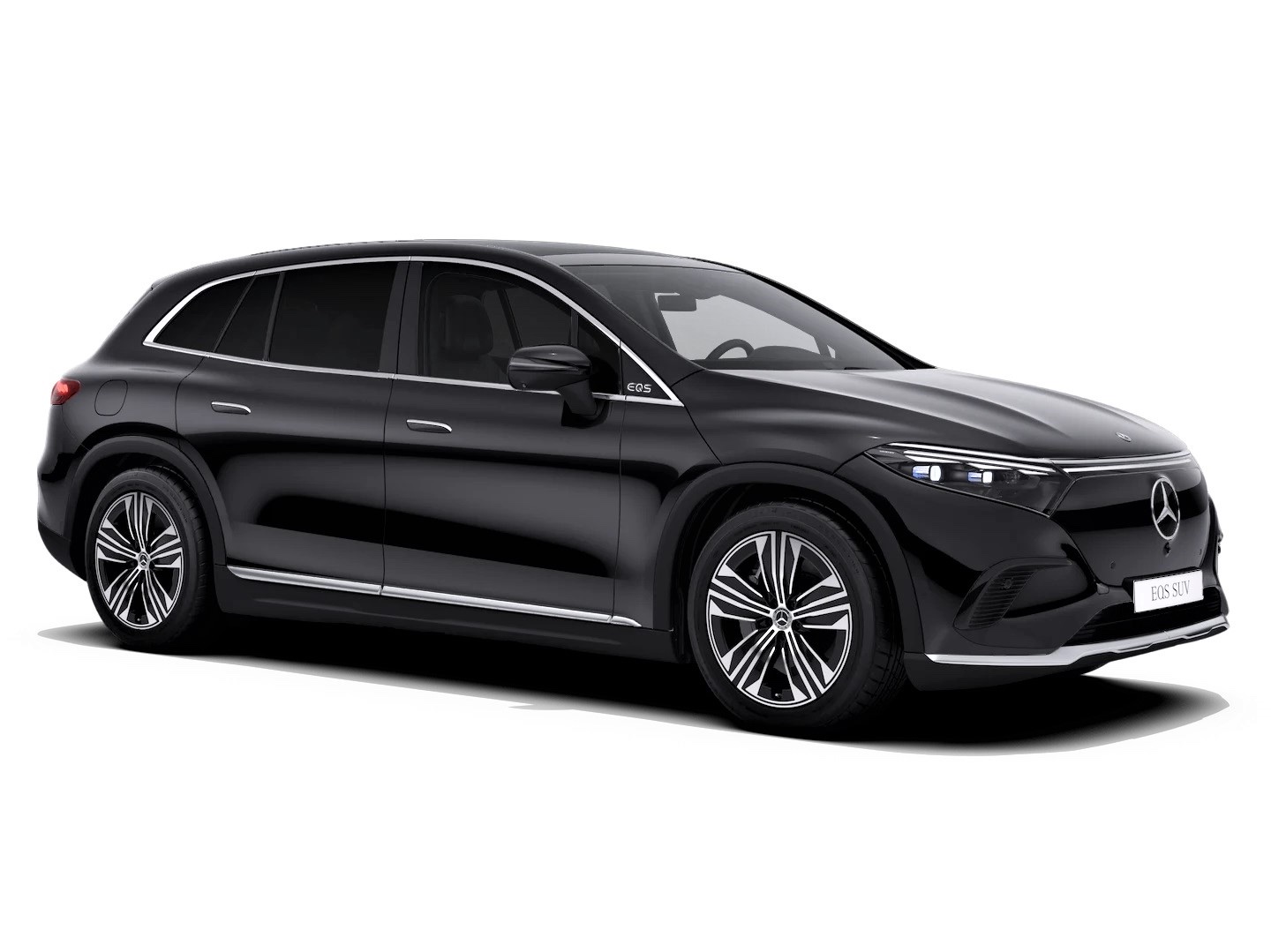

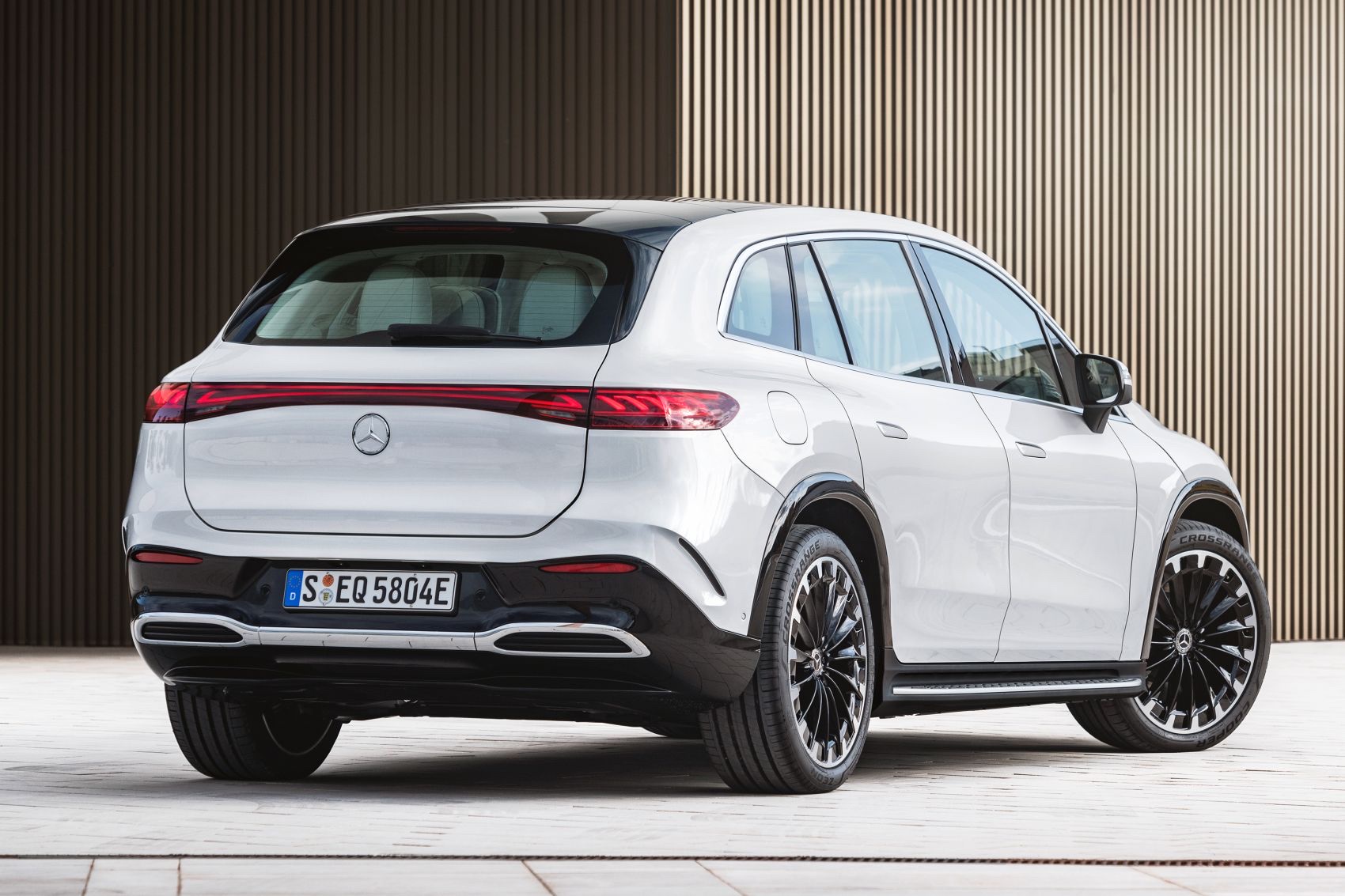

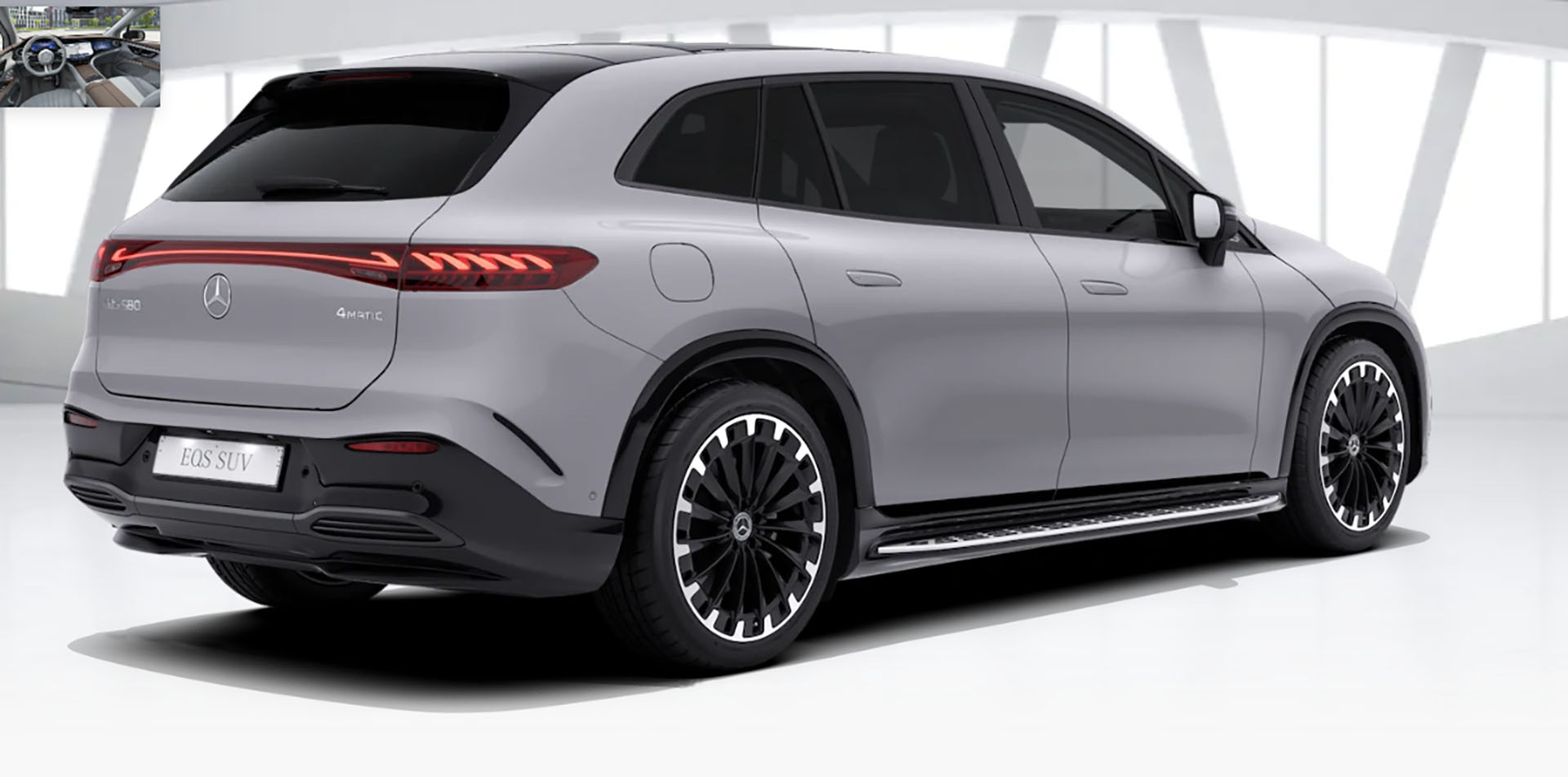

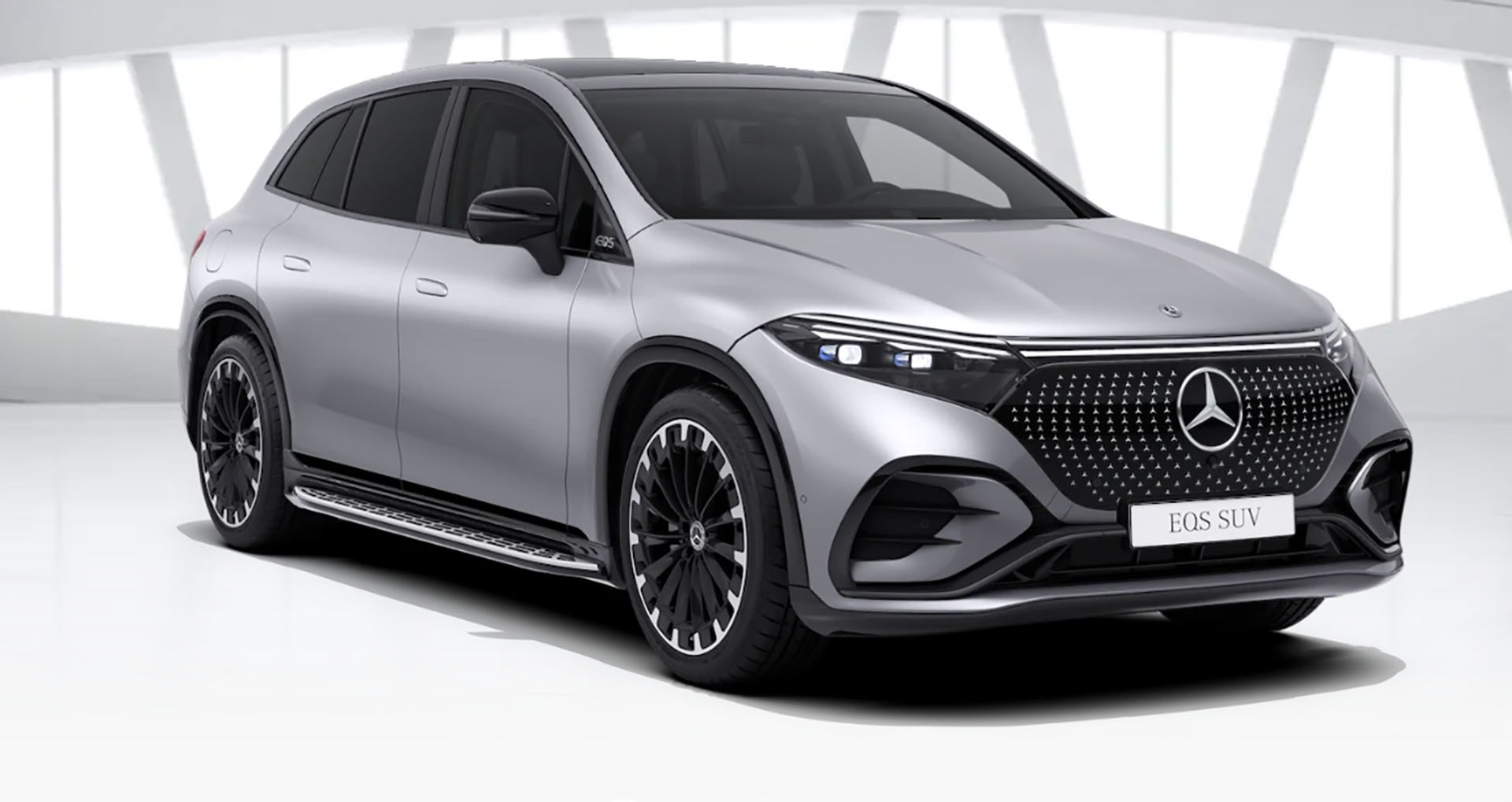

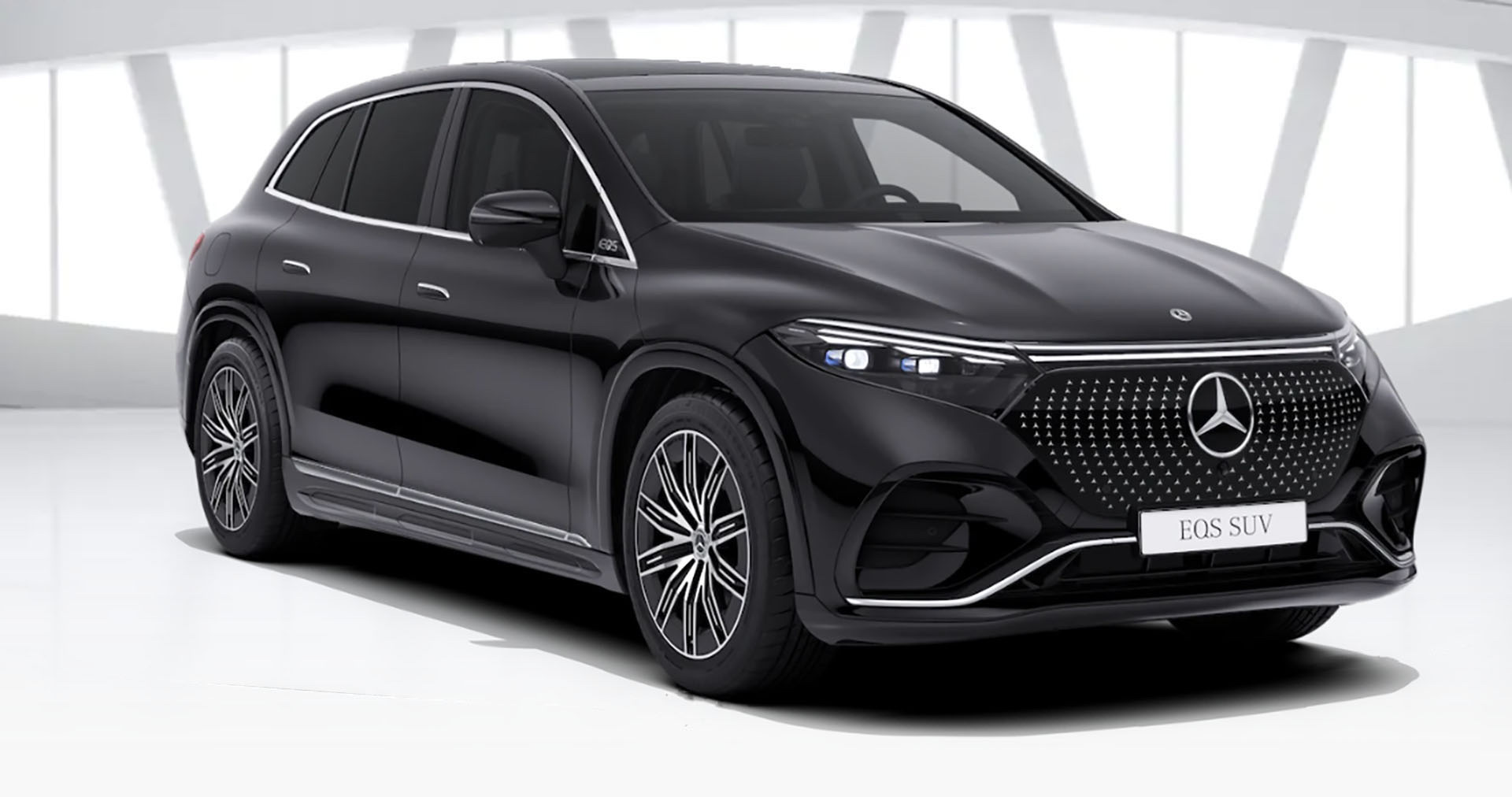

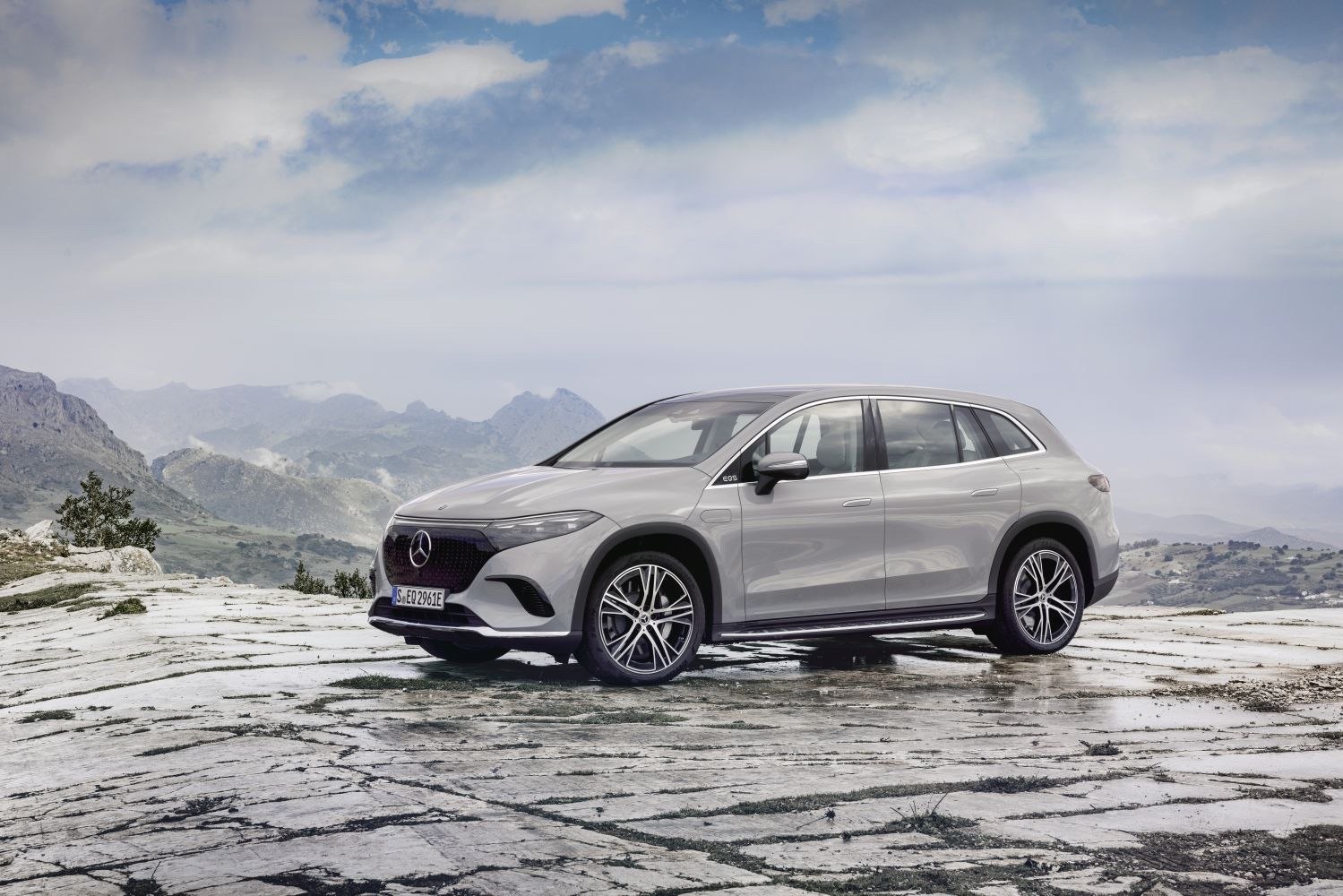

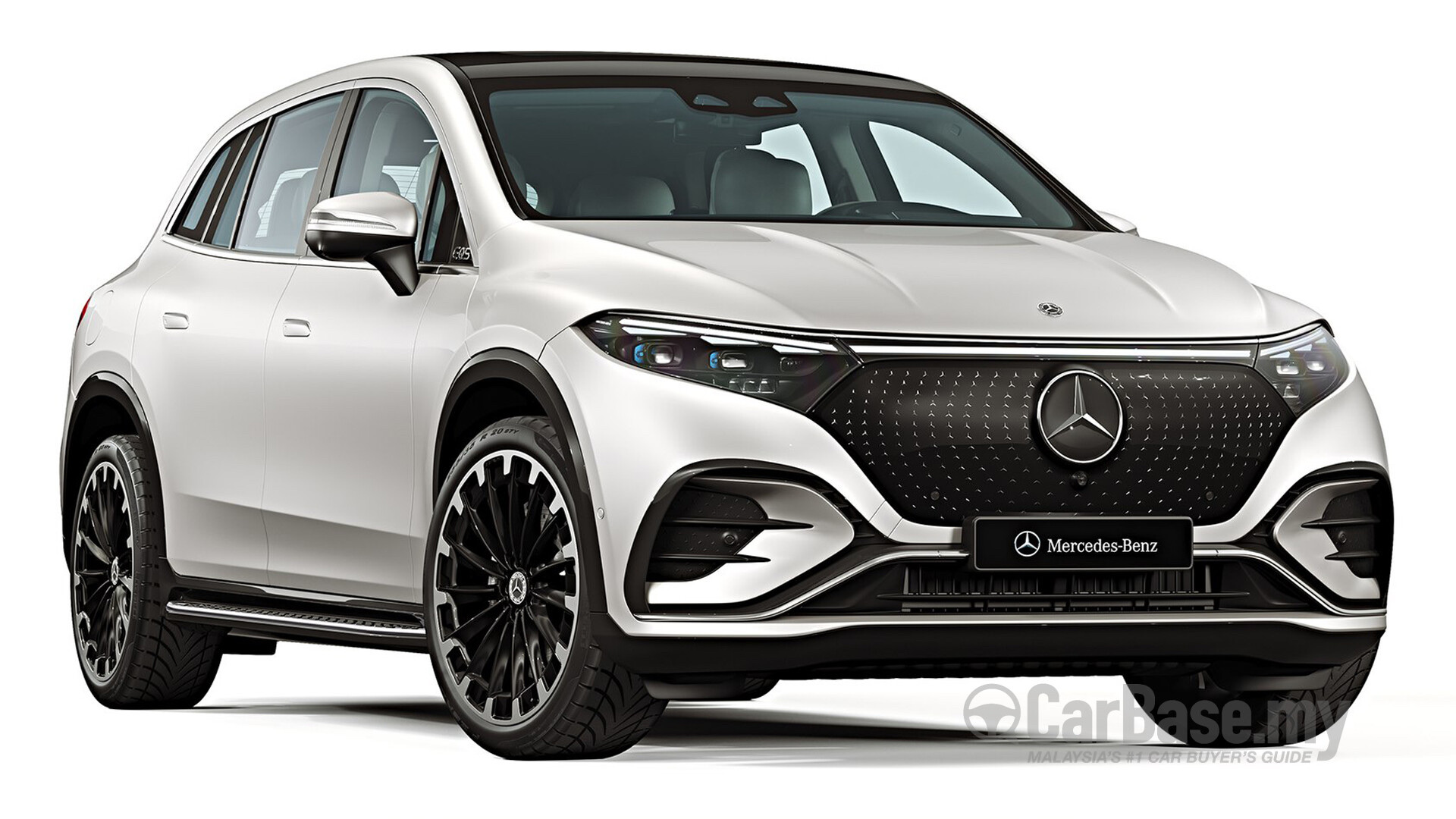

Photo Mercedes EQS SUV (X296)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
450+ 23 specifications
Specifications
Performance and consumption
| Top speed, km/h | 210 |
|---|---|
| Acceleration 0-100 km/h, s | 6.7 |
Engine
| Engine | 265 kW |
|---|---|
| Engine type | Hybrid |
| Power, hp | 360 |
| Torque, Nm | 568 |
| Number of electric motors | 1 |
| Plug-in charging support | + |
Dimensions
| Seats | 7 |
|---|---|
| Length, mm | 5125 |
| Width, mm | 2157 |
| Height, mm | 1718 |
| Wheelbase, mm | 3210 |
| Front track, mm | 1668 |
| Rear track, mm | 1681 |
| Kerb weight, kg | 2695 |
| Gross weight, kg | 3265 |
| Turning circle, m | 11.9 |
| Width without mirrors, mm | 1959 |
| Trunk capacity, L | 645 |
Transmission and drive
| Transmission | single-speed reduction gear |
|---|---|
| Drive | Rear-wheel drive |
| Automatic transmission | + |
450 4Matic 23 specifications
Specifications
Performance and consumption
| Top speed, km/h | 210 |
|---|---|
| Acceleration 0-100 km/h, s | 6 |
Engine
| Engine | 265 kW |
|---|---|
| Engine type | Electric |
| Power, hp | 360 |
| Torque, Nm | 800 |
| Number of electric motors | 2 |
| Plug-in charging support | + |
Dimensions
| Seats | 7 |
|---|---|
| Length, mm | 5125 |
| Width, mm | 2157 |
| Height, mm | 1718 |
| Wheelbase, mm | 3210 |
| Front track, mm | 1668 |
| Rear track, mm | 1681 |
| Kerb weight, kg | 2695 |
| Gross weight, kg | 3265 |
| Turning circle, m | 11.9 |
| Width without mirrors, mm | 1959 |
| Trunk capacity, L | 645 |
Transmission and drive
| Transmission | single-speed reduction gear |
|---|---|
| Drive | All-wheel drive |
| Automatic transmission | + |
580 4Matic 23 specifications
Specifications
Performance and consumption
| Top speed, km/h | 210 |
|---|---|
| Acceleration 0-100 km/h, s | 4.6 |
Engine
| Engine | 400 kW |
|---|---|
| Engine type | Electric |
| Power, hp | 544 |
| Torque, Nm | 858 |
| Number of electric motors | 2 |
| Plug-in charging support | + |
Dimensions
| Seats | 7 |
|---|---|
| Length, mm | 5125 |
| Width, mm | 2157 |
| Height, mm | 1718 |
| Wheelbase, mm | 3210 |
| Front track, mm | 1668 |
| Rear track, mm | 1681 |
| Kerb weight, kg | 2695 |
| Gross weight, kg | 3265 |
| Turning circle, m | 11.9 |
| Width without mirrors, mm | 1959 |
| Trunk capacity, L | 645 |
Transmission and drive
| Transmission | single-speed reduction gear |
|---|---|
| Drive | All-wheel drive |
| Automatic transmission | + |
EQS 450 4Matic 23 specifications
Specifications
Performance and consumption
| Top speed, km/h | 210 |
|---|---|
| Acceleration 0-100 km/h, s | 6 |
Engine
| Engine | 265 kW |
|---|---|
| Engine type | Electric |
| Power, hp | 360 |
| Torque, Nm | 800 |
| Number of electric motors | 2 |
| Plug-in charging support | + |
Dimensions
| Seats | 7 |
|---|---|
| Length, mm | 5125 |
| Width, mm | 2157 |
| Height, mm | 1718 |
| Wheelbase, mm | 3210 |
| Front track, mm | 1668 |
| Rear track, mm | 1681 |
| Kerb weight, kg | 2695 |
| Gross weight, kg | 3265 |
| Turning circle, m | 11.9 |
| Width without mirrors, mm | 1959 |
| Trunk capacity, L | 645 |
Transmission and drive
| Transmission | single-speed reduction gear |
|---|---|
| Drive | All-wheel drive |
| Automatic transmission | + |
EQS 580 4Matic 23 specifications
Specifications
Performance and consumption
| Top speed, km/h | 210 |
|---|---|
| Acceleration 0-100 km/h, s | 4.6 |
Engine
| Engine | 400 kW |
|---|---|
| Engine type | Electric |
| Power, hp | 544 |
| Torque, Nm | 858 |
| Number of electric motors | 2 |
| Plug-in charging support | + |
Dimensions
| Seats | 7 |
|---|---|
| Length, mm | 5125 |
| Width, mm | 2157 |
| Height, mm | 1718 |
| Wheelbase, mm | 3210 |
| Front track, mm | 1668 |
| Rear track, mm | 1681 |
| Kerb weight, kg | 2695 |
| Gross weight, kg | 3265 |
| Turning circle, m | 11.9 |
| Width without mirrors, mm | 1959 |
| Trunk capacity, L | 645 |
Transmission and drive
| Transmission | single-speed reduction gear |
|---|---|
| Drive | All-wheel drive |
| Automatic transmission | + |
Mercedes EQS SUV (X296) questions
Short answers based on the specifications and photos available in this catalog.
Is the Mercedes-Benz EQS SUV fully electric?
Yes, the EQS SUV is a fully electric vehicle built on Mercedes-Benz's dedicated Modular Electric Architecture (MEA) platform.
How many seats does the EQS SUV have?
The vehicle can be configured with a standard five-seat layout or an optional third row to accommodate up to seven passengers.
What is the driving range of the 2022 EQS SUV?
Depending on the specific drivetrain configuration, the WLTP estimated range varies from 511 kilometers on the dual-motor models to up to 671 kilometers on the single-motor 450+ variant.
How much cargo space is available?
The five-seat model provides between 645 and 2,100 liters of space. The seven-seat version offers slightly less, with 565 to 2,020 liters depending on which seats are folded.
How fast does the EQS SUV charge?
It supports up to 200-kW DC fast charging, which can add approximately 250 kilometers of range in 15 minutes under optimal conditions.
