Mercedes GLC-Class (X254) specifications and photos
The Mercedes-Benz GLC, entering its second generation under the X254 index in 2022, continues as a central piece of the brand's crossover lineup. It introduces updated dimensions, fully electrified powertrains, and technology heavily influenced by the C-Class.
Years
2022
Body type
suv
Trims
20
Photos
19
Overview
Mercedes GLC-Class (X254) at a glance
Quick model context before comparing photos and trim-level specifications.
Succeeding a highly successful lineage that includes the GLK, the new GLC (X254) is built on the modular MRA platform. It measures 4716 mm in length, an increase of 61 mm over the previous model, while sitting slightly lower. The track has been widened for a more planted stance. The chassis utilizes a classic double-wishbone front and multi-link rear suspension setup, with options for a sport suspension, an Offroad Engineering package that adds 20 mm of clearance, or a full air suspension system. A notable addition to this generation is the available rear-axle steering, capable of turning the wheels up to 4.5 degrees to improve low-speed maneuverability.
- Power: 163-421 hp
- Engine displacement: 1991-2989 cc
- Transmissions: 9G-Tronic
- Seating: 5 seats
Model guide
Mercedes GLC-Class (X254) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
The exterior dimensions have evolved to create a sleeker, more elongated profile. The 4716 mm length and 1640 mm height give it a stretched appearance, while the width remains steady at 1890 mm. The widened front and rear tracks, measuring 1627 mm and 1640 mm respectively, contribute to a confident footprint on the road, aligning with the refined design language expected from modern Mercedes SUVs.
Interior

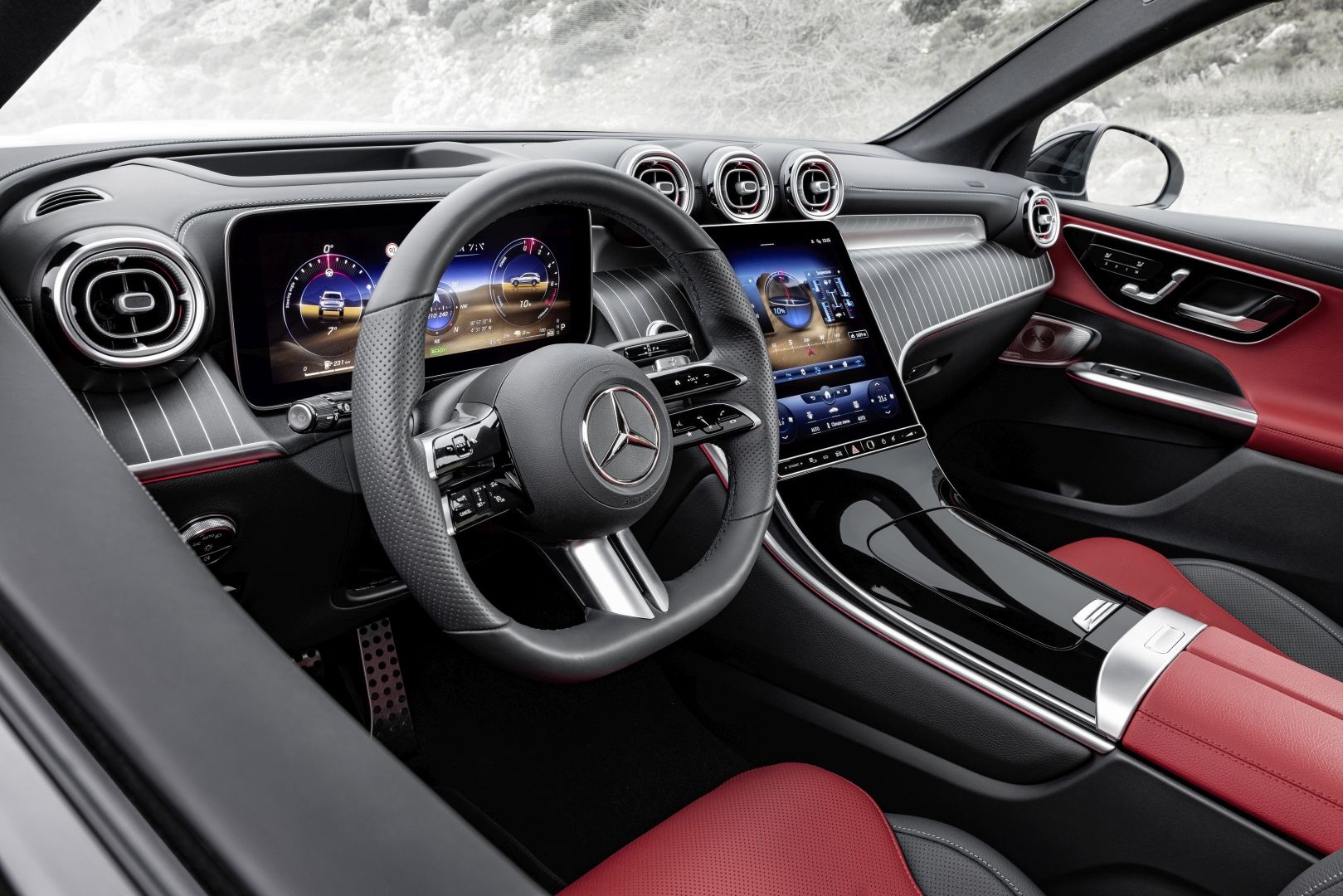

Inside, the GLC draws heavily from the C-Class, offering a familiar and tech-forward environment. A key highlight is the integration of the latest MBUX infotainment system, managing most cabin functions. The physical footprint improvements also benefit practicality, with the trunk space expanding to accommodate up to 620 liters of cargo, making the cabin highly versatile for daily use.
Performance
The engine lineup is entirely electrified, utilizing 9G-Tronic automatic transmissions and 4Matic all-wheel drive. Mild-hybrid options include the GLC 200 (204 hp), GLC 300 (258 hp), and the diesel GLC 200d (197 hp), all using a 48-volt starter-generator that can briefly provide an additional 23 hp. For those seeking plug-in capability, the range includes the GLC 300e, 400e, and diesel 300de, which integrate a 136 hp electric motor, offering up to 100 km of electric-only range on the WLTP cycle.
Practicality
With a 620-liter cargo capacity, the GLC (X254) serves well as a premium family crossover. Its five-seat configuration and varied suspension options, ranging from standard coil springs to adjustable air setups, allow owners to tailor the ride to prioritize either load-carrying stability or everyday passenger comfort.
Safety and tech
The technological suite is anchored by the newest iteration of the MBUX system, ensuring advanced connectivity and digital control. While specific active safety features depend on the chosen trim, the availability of rear-axle steering and advanced plug-in hybrid energy management systems highlight the engineering focus on dynamic control and modern driving assistance.
Buyer notes
Prospective buyers should consider their daily driving habits when choosing between the mild-hybrid and plug-in hybrid (PHEV) models, as the PHEVs offer significant electric-only range suitable for short commutes. Additionally, the optional air suspension and rear-axle steering are worth exploring for those who frequently navigate tight urban spaces or desire a more adaptable ride quality.
Configurations
Trims and key specifications
Use this table to compare the main differences between available configurations.
Power
163-421 hp
Engine displacement
1991-2989 cc
Seating
5 seats
Transmissions
9G-Tronic
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 200 4Matic | 1999 cc | 204 hp | 5 | 9G-Tronic |
| 300 4Matic | 1999 cc | 258 hp | 5 | 9G-Tronic |
| 220d 4Matic | 1993 cc | 197 hp | 5 | 9G-Tronic |
| 200d 4MATIC | 1993 cc | 163 hp | 5 | 9G-Tronic |
| 300d 4MATIC | 1993 cc | 269 hp | 5 | 9G-Tronic |
| 450d 4MATIC | 2989 cc | 367 hp | 5 | 9G-Tronic |
| 300e 4MATIC | 1999 cc | 313 hp | 5 | 9G-Tronic |
| 300de 4MATIC | 1993 cc | 335 hp | 5 | 9G-Tronic |
| AMG 43 4MATIC | 1991 cc | 421 hp | 5 | 9G-Tronic |
| 400e 4MATIC | 1999 cc | 381 hp | 5 | 9G-Tronic |
| GLC 200 4Matic | 1999 cc | 204 hp | 5 | 9G-Tronic |
| GLC 200d 4Matic | 1993 cc | 163 hp | 5 | 9G-Tronic |
| GLC 220d 4Matic | 1993 cc | 163 hp | 5 | 9G-Tronic |
| GLC 300 4Matic | 1999 cc | 258 hp | 5 | 9G-Tronic |
| GLC 300d 4Matic | 1993 cc | 269 hp | 5 | 9G-Tronic |
| GLC 300de 4Matic | 1993 cc | 335 hp | 5 | 9G-Tronic |
| GLC 300e 4Matic | 1999 cc | 313 hp | 5 | 9G-Tronic |
| GLC 400e 4Matic | 1999 cc | 381 hp | 5 | 9G-Tronic |
| GLC 450d 4Matic | 2989 cc | 367 hp | 5 | 9G-Tronic |
| GLC AMG 43 4MATIC | 1991 cc | 421 hp | 5 | 9G-Tronic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.
Gallery

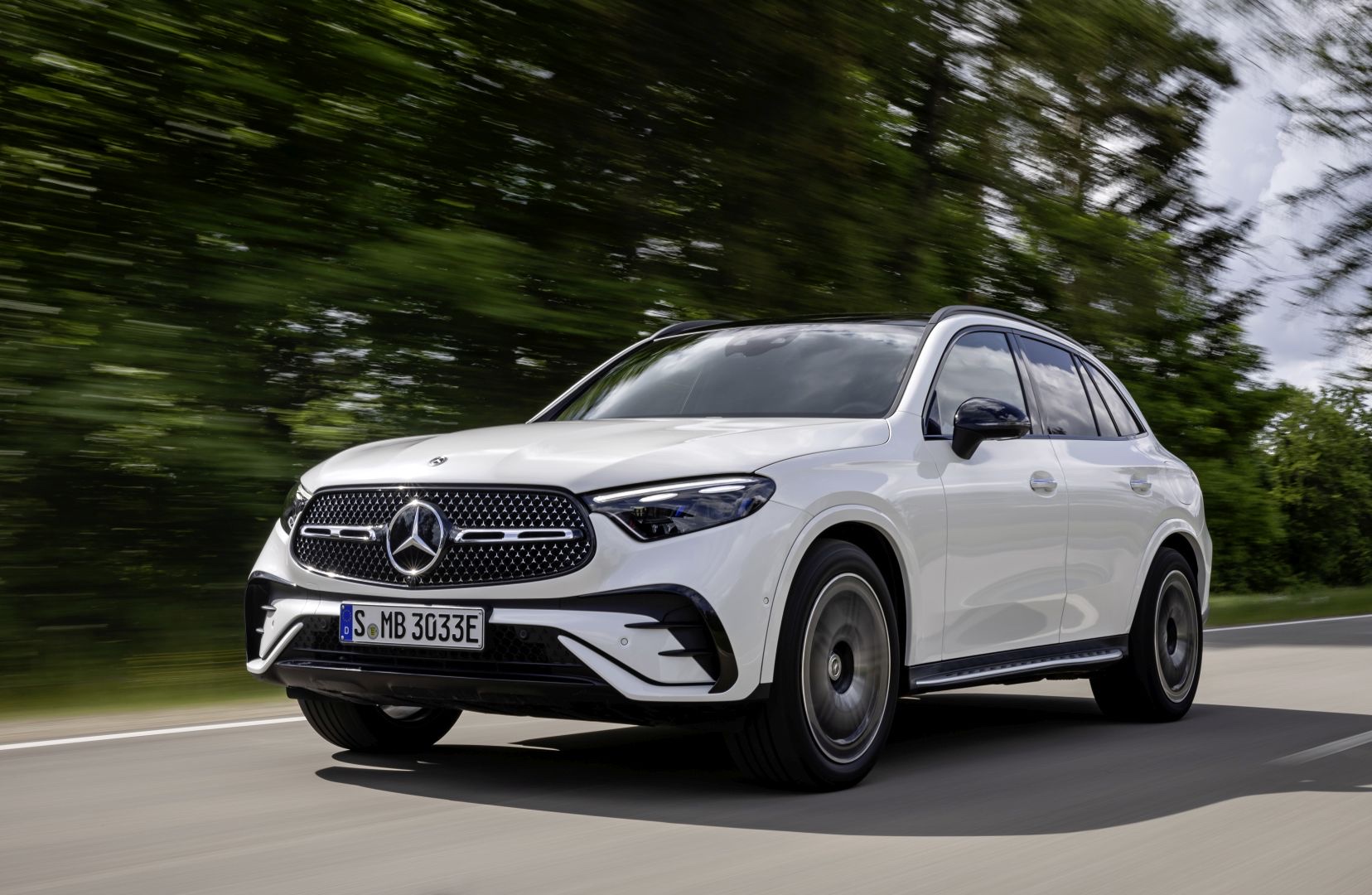

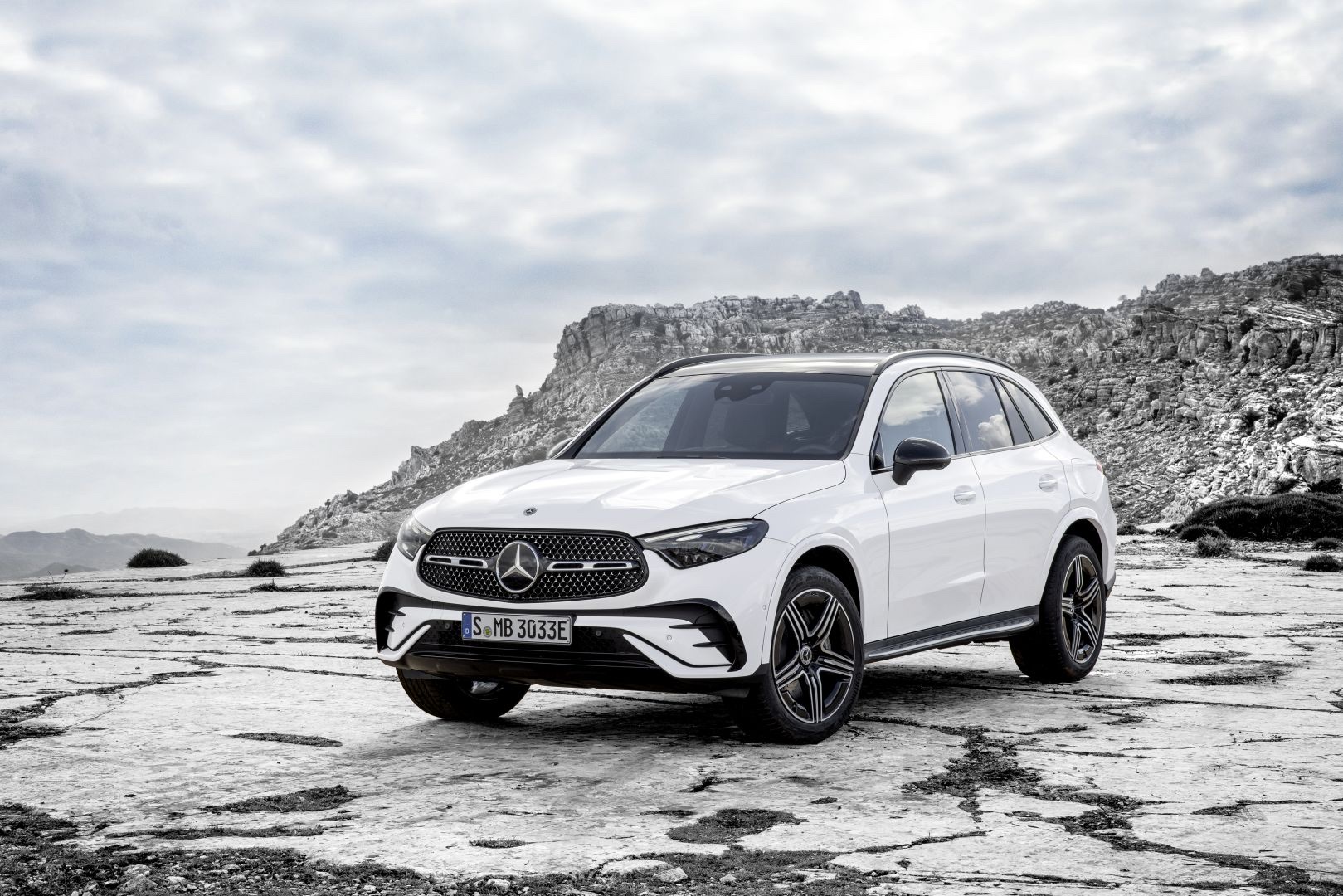

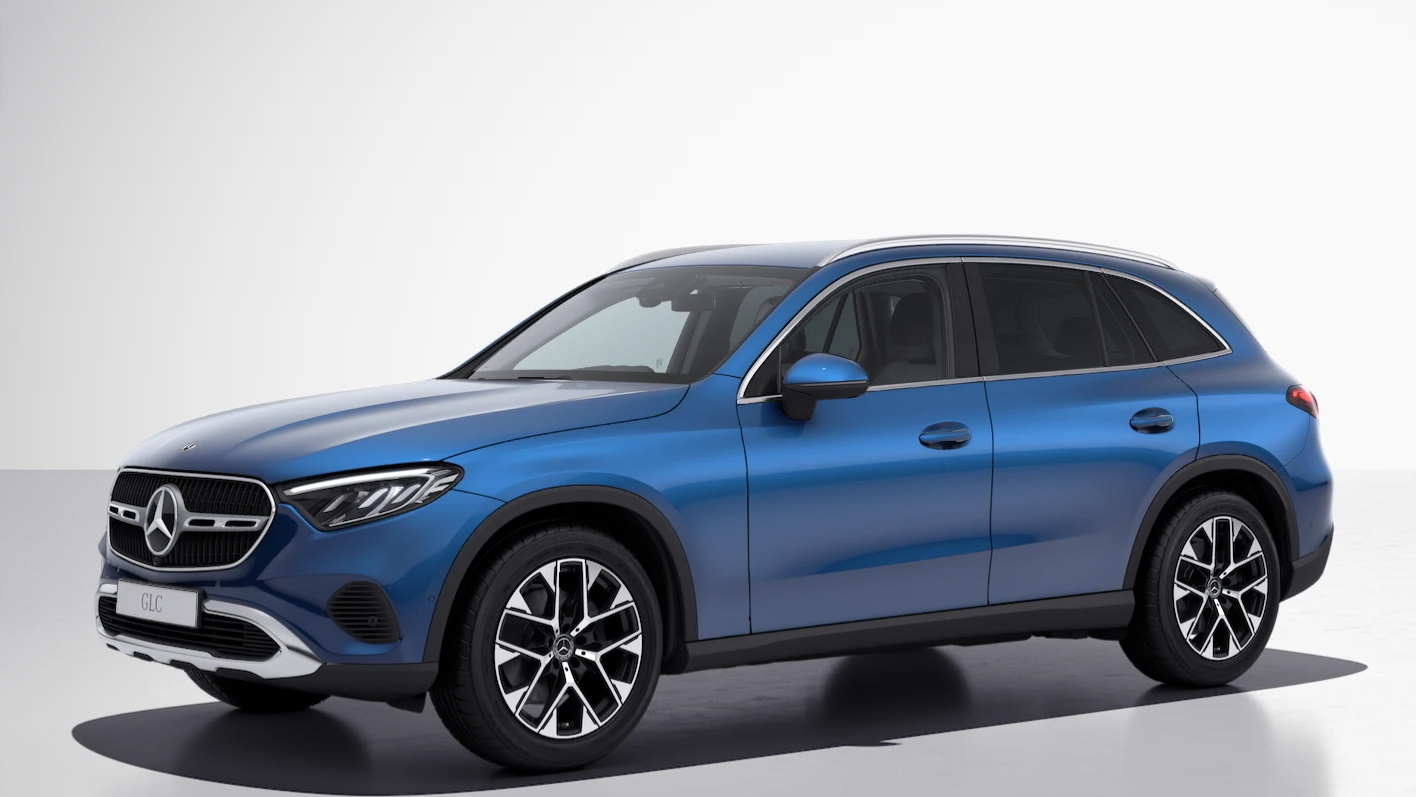

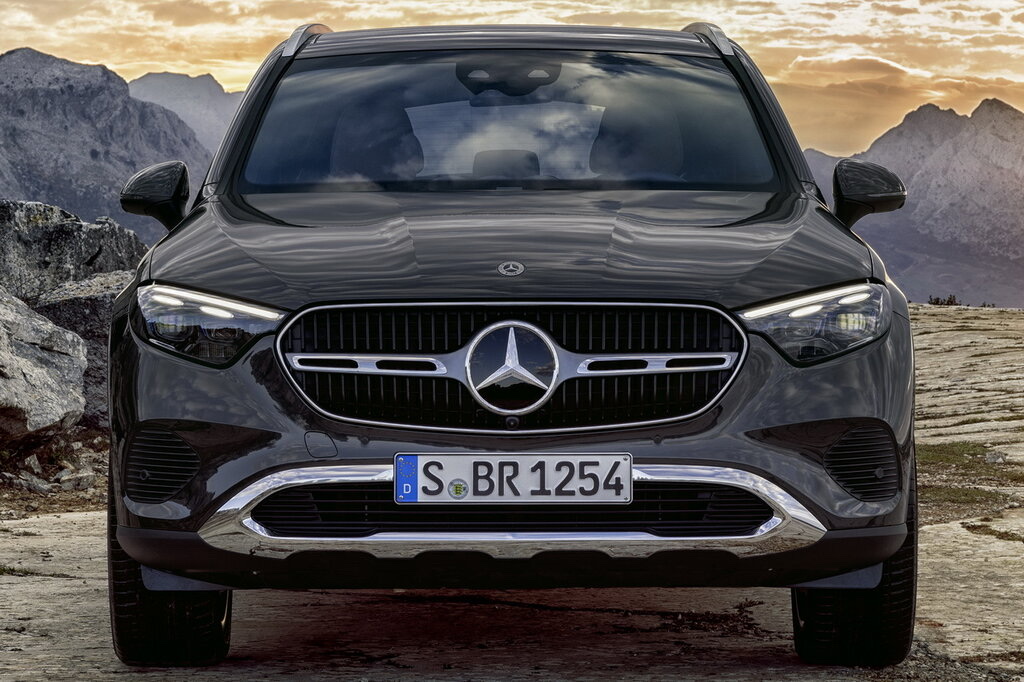

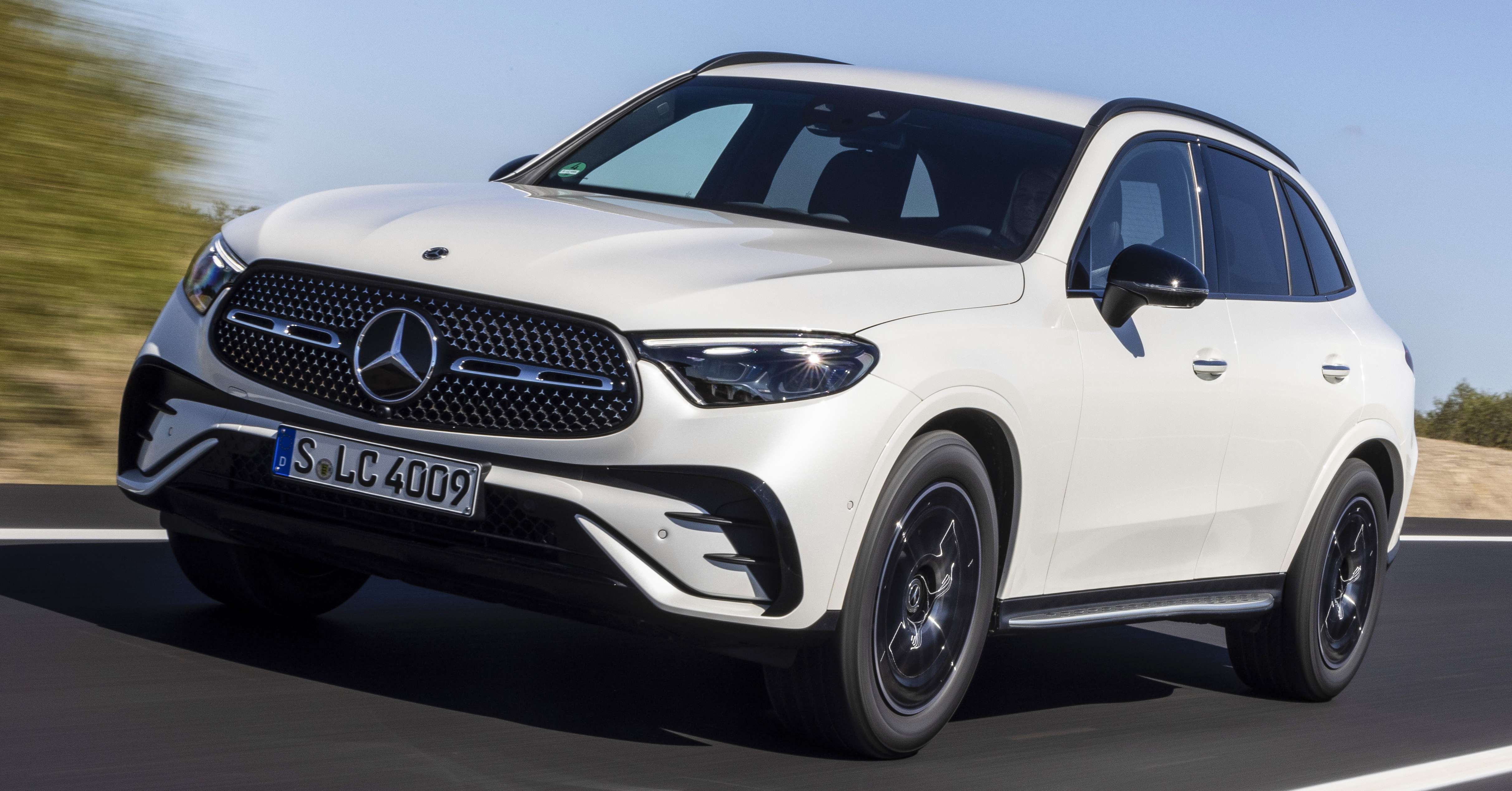

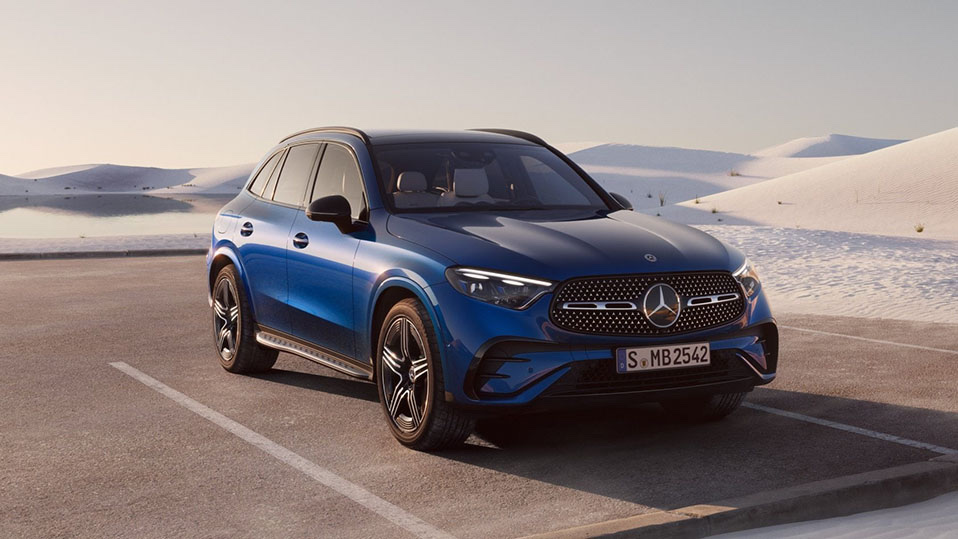

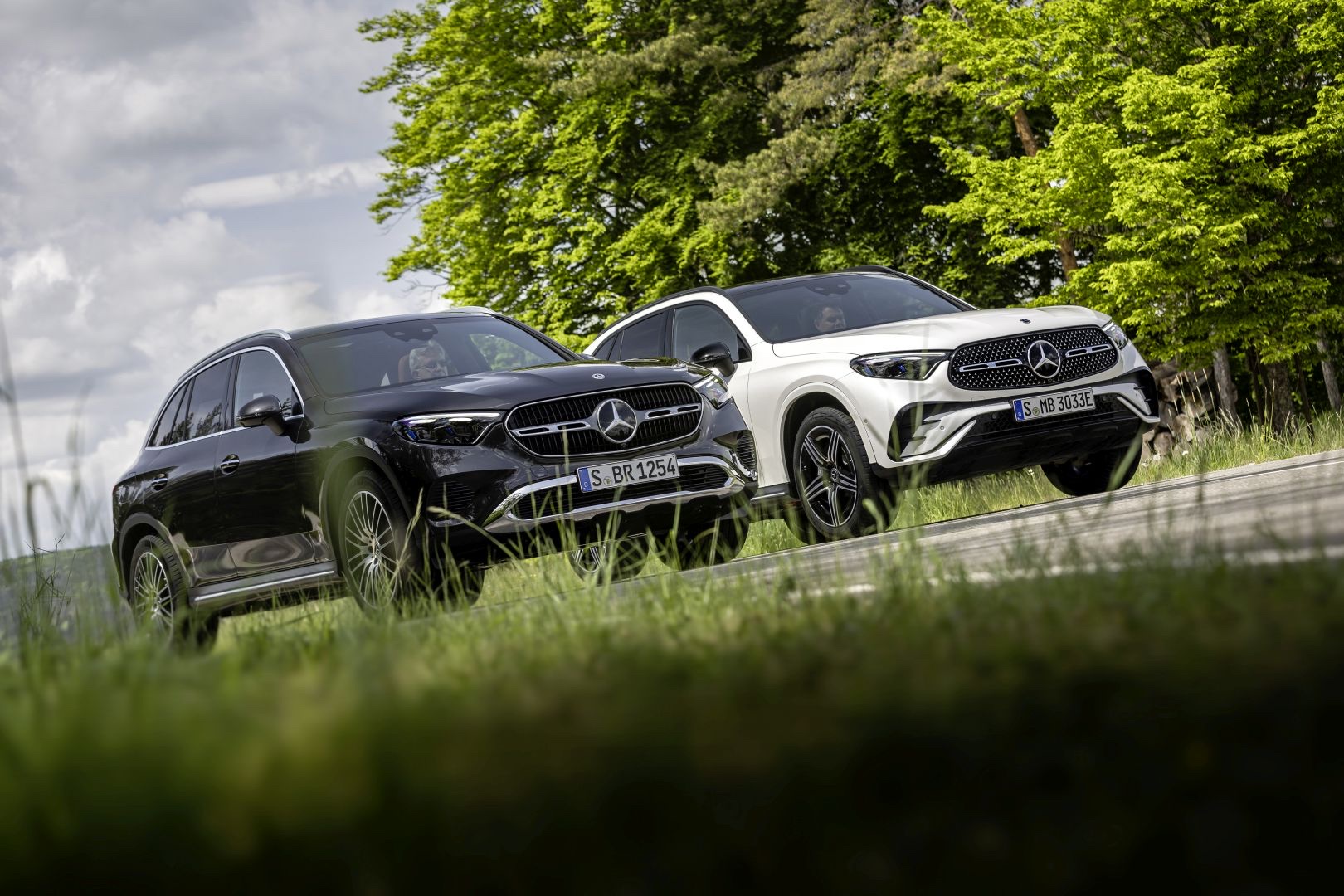

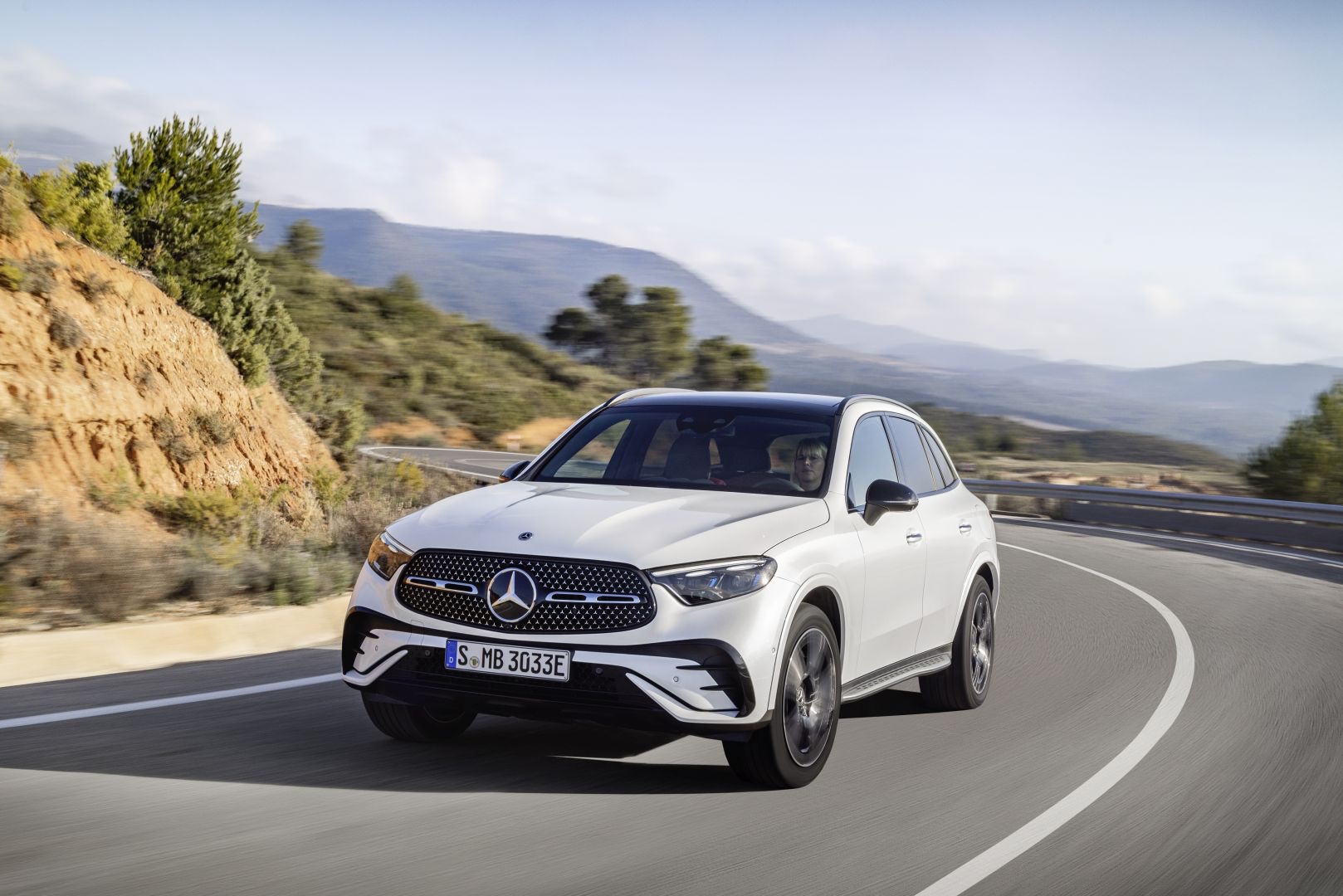

Mercedes GLC-Class (X254) photo gallery
19 images are collected here with the main specifications and trim data for this model.

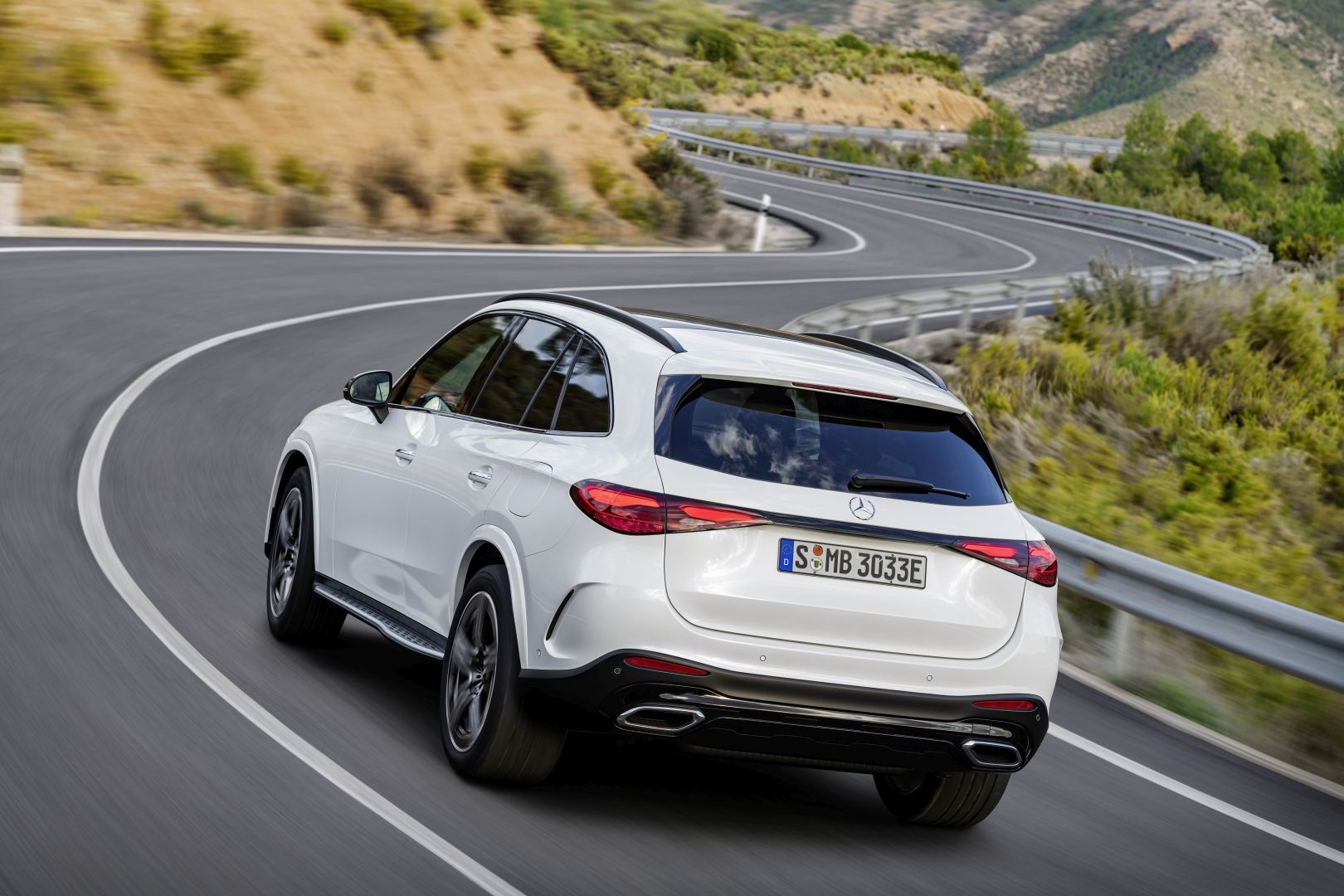

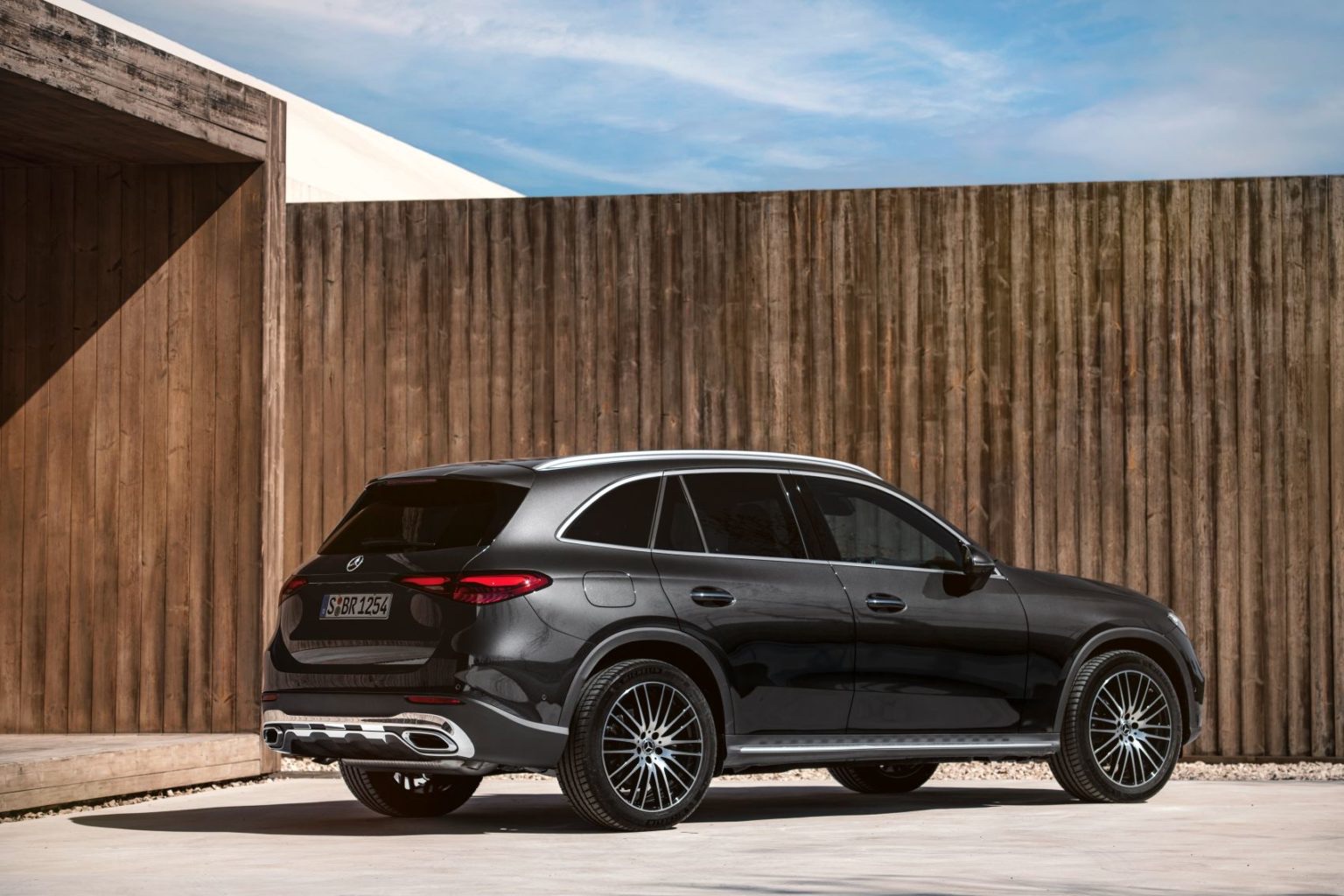

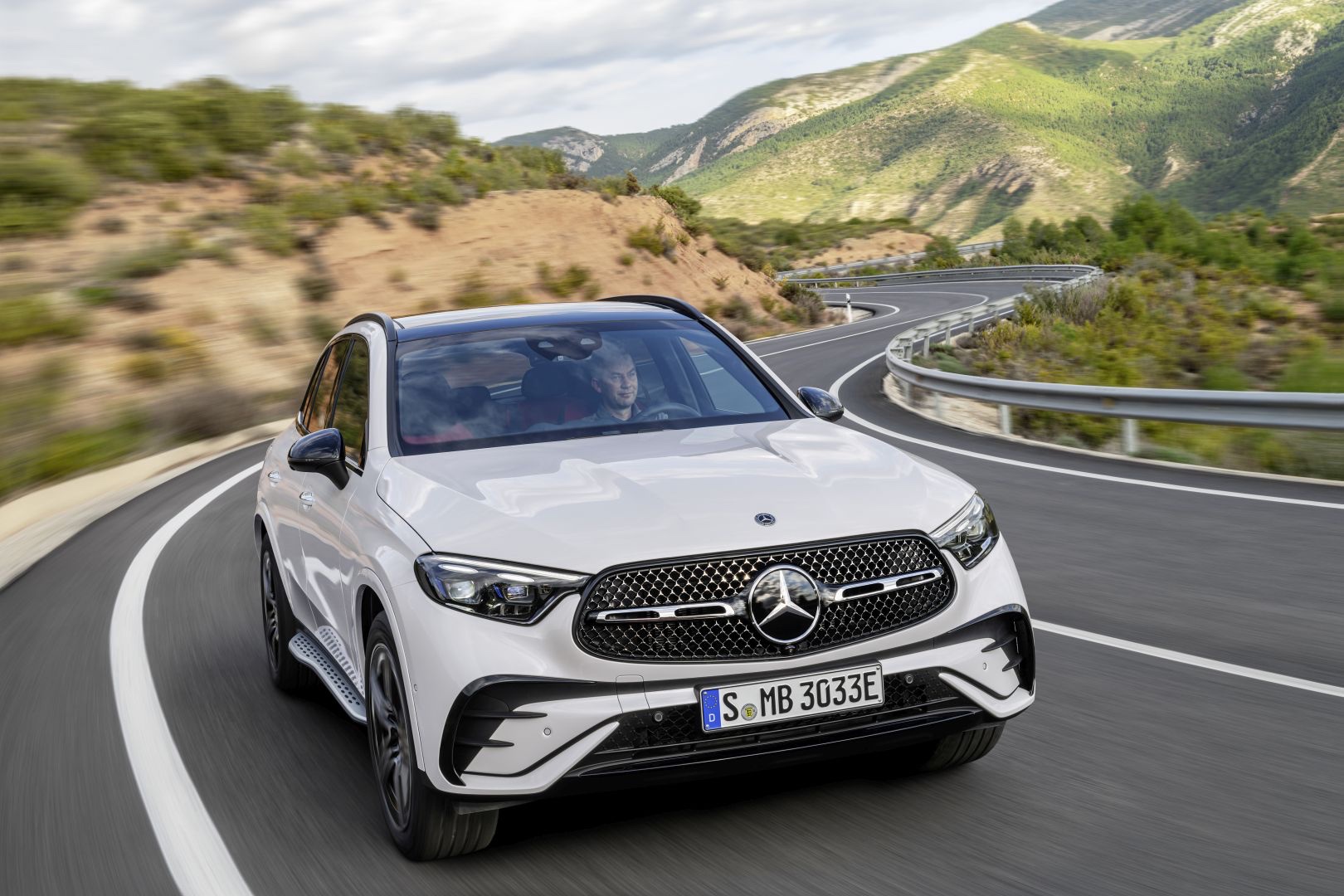

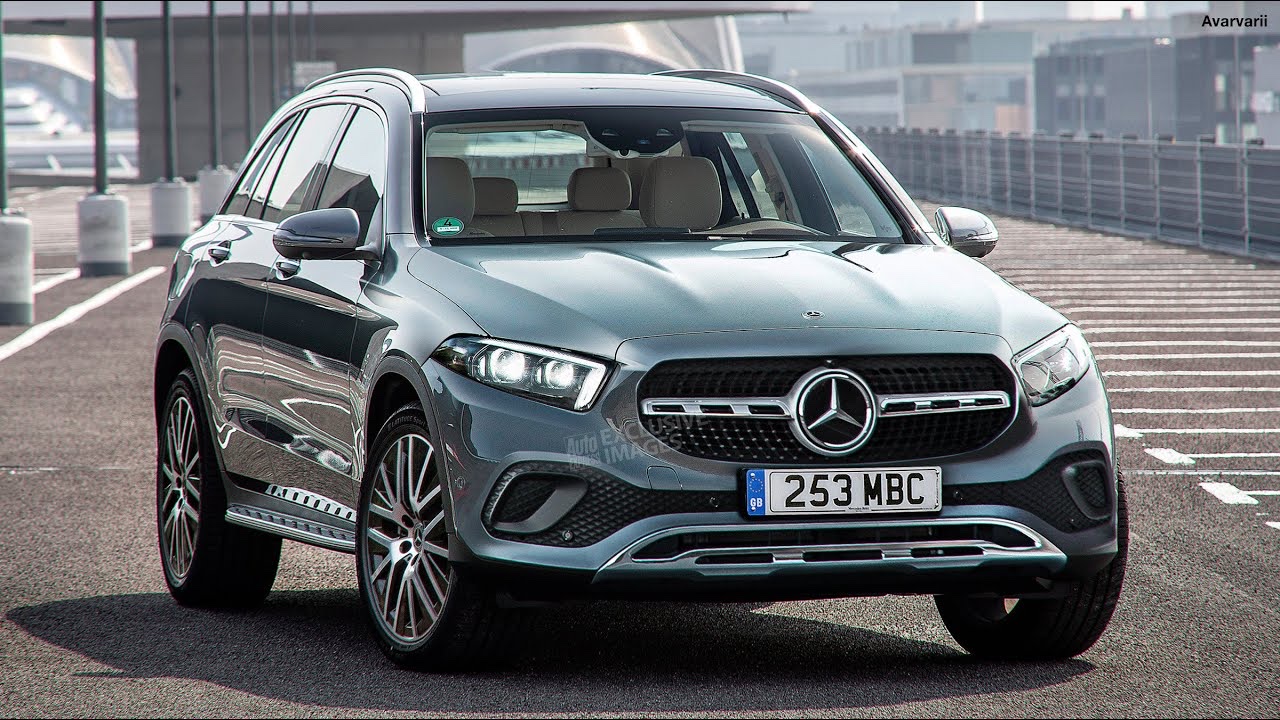

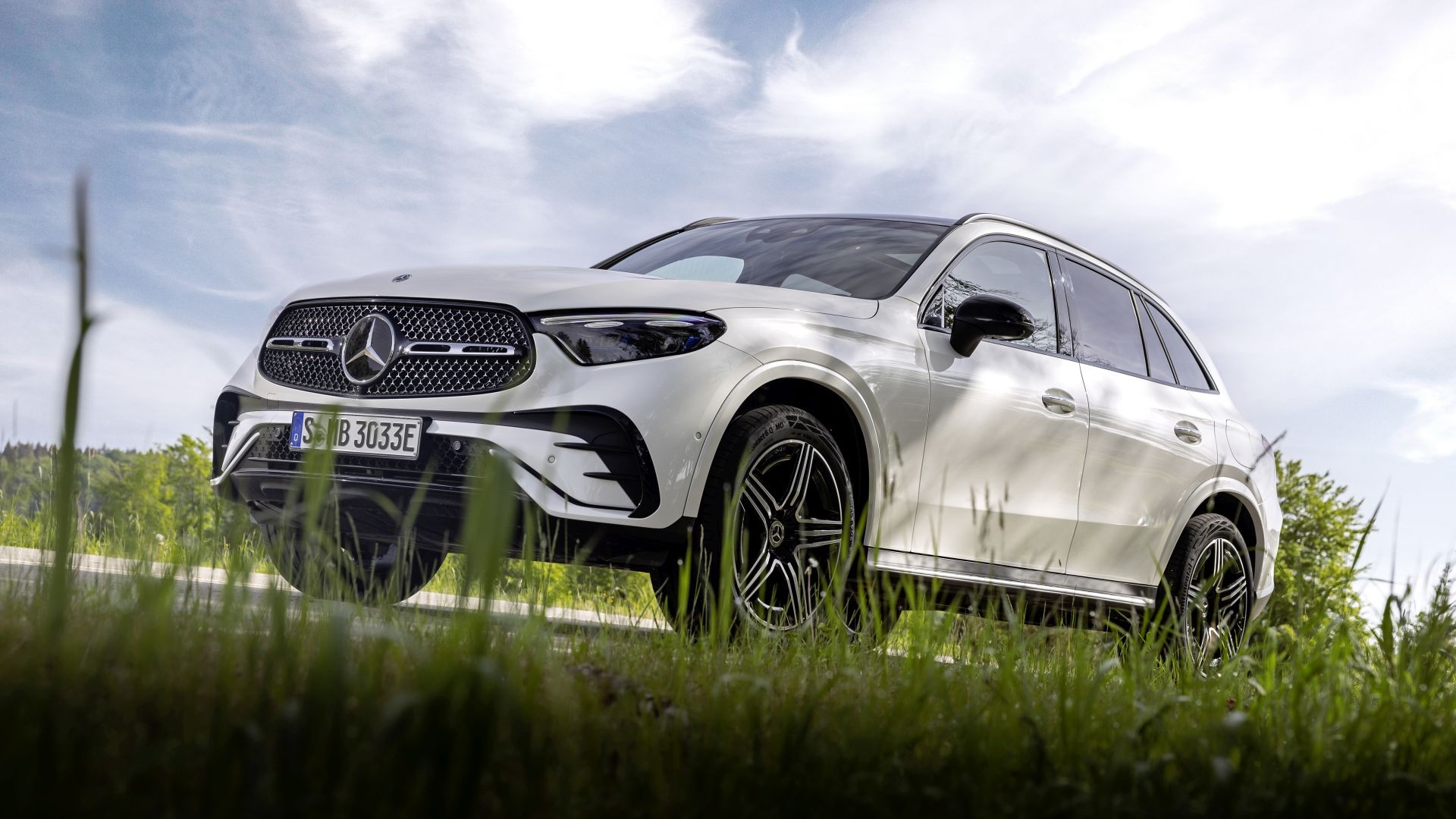

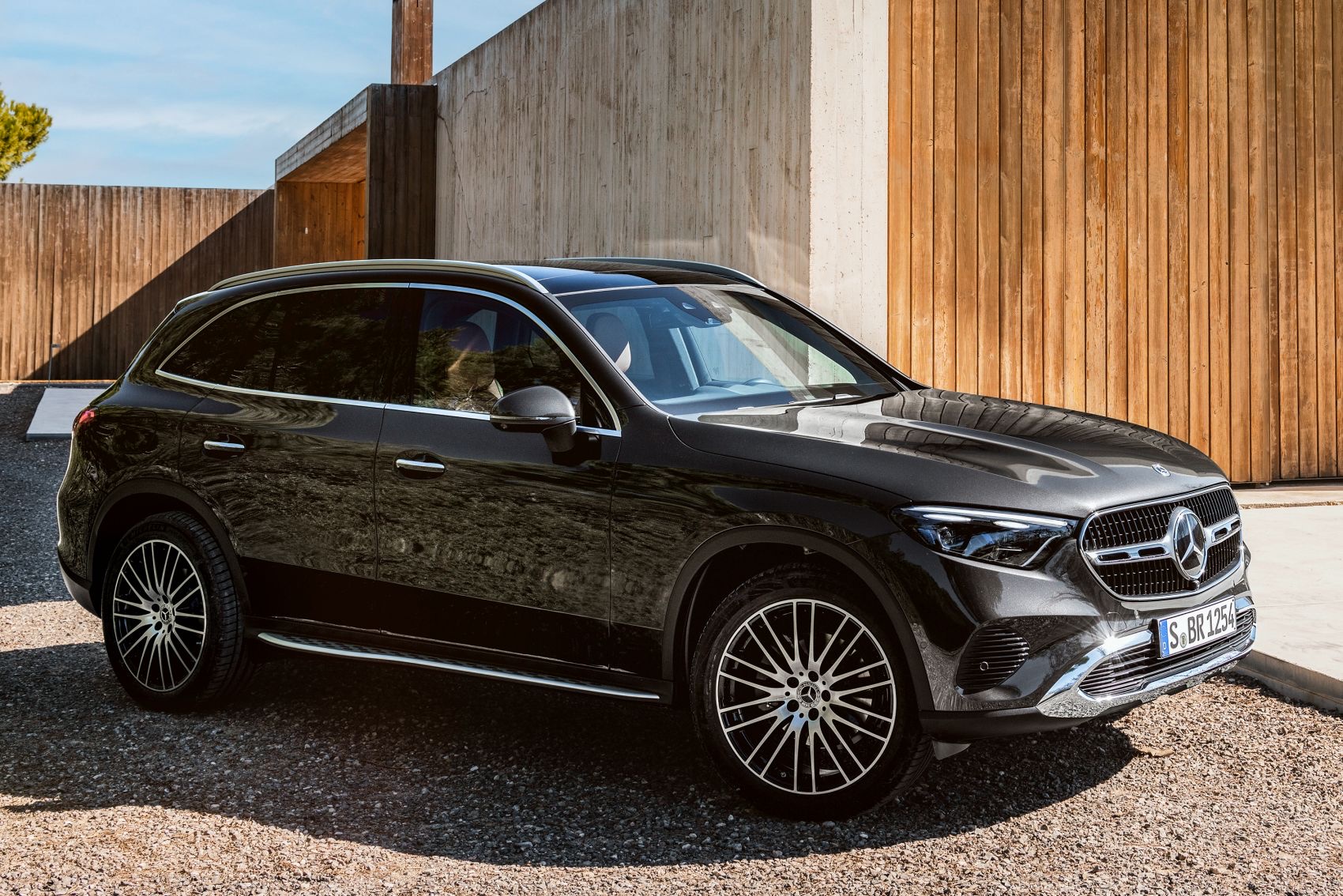

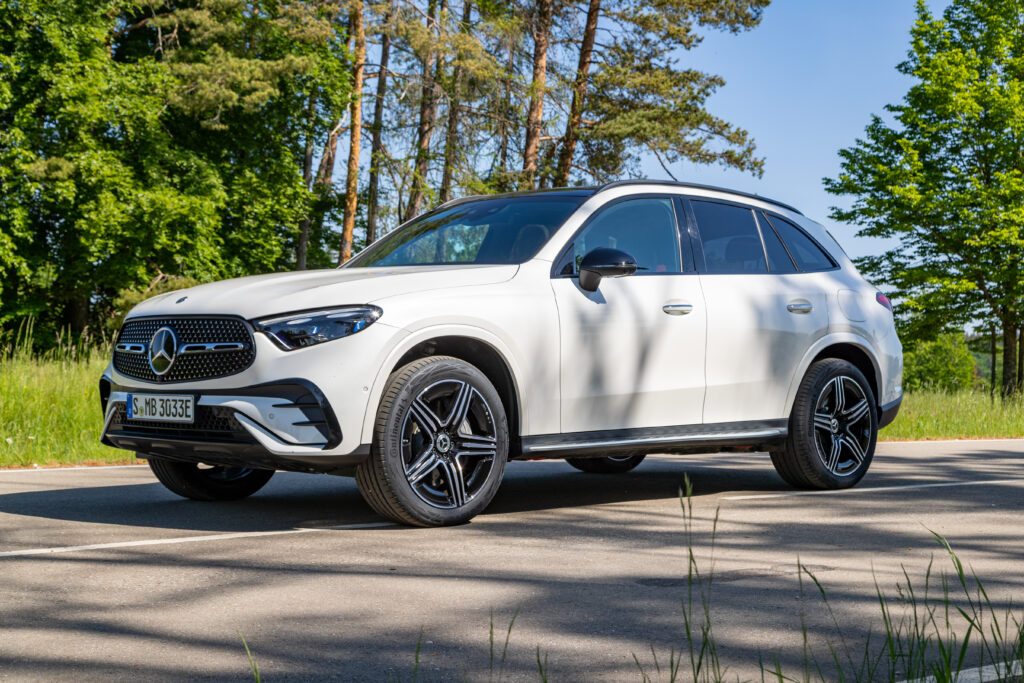

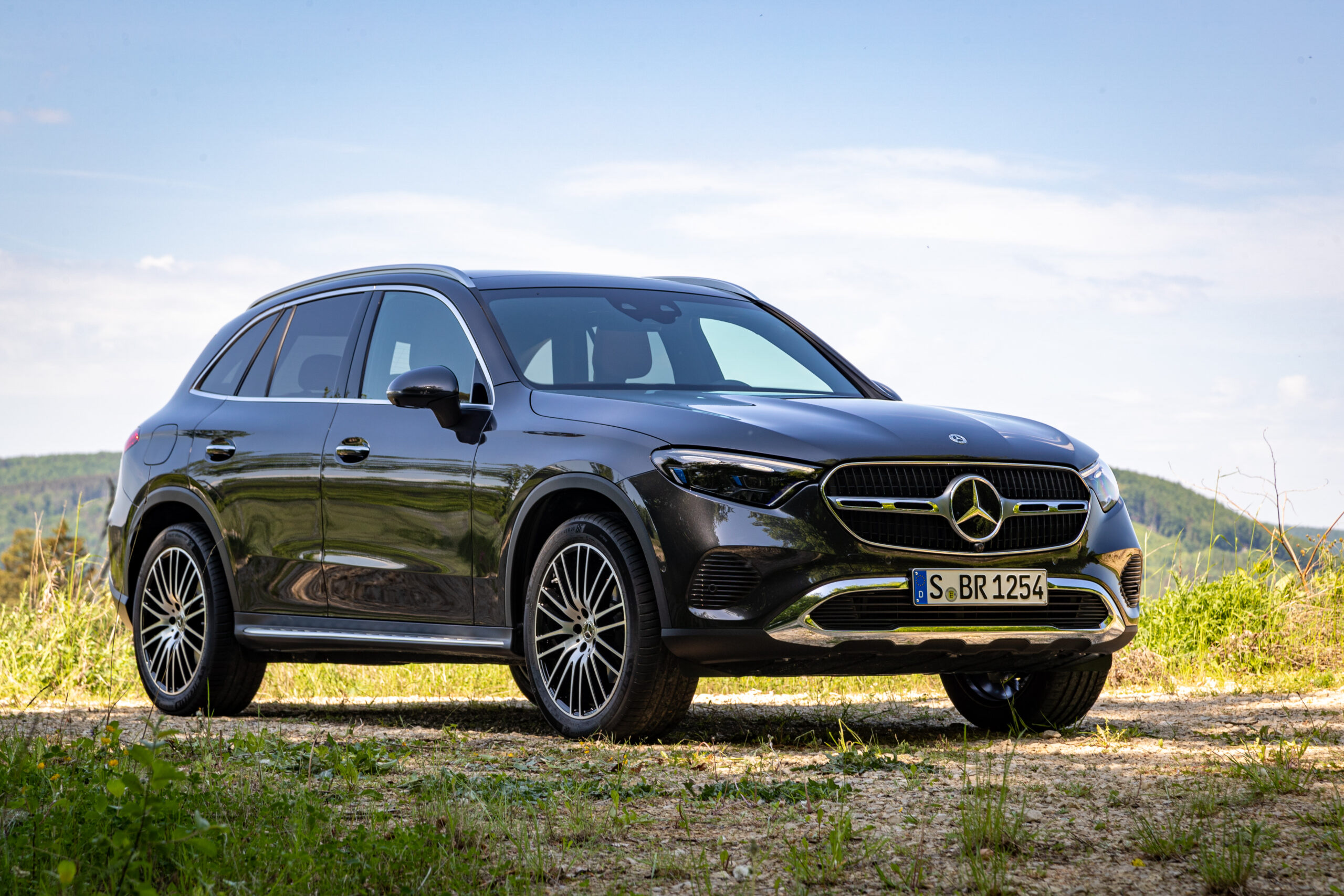

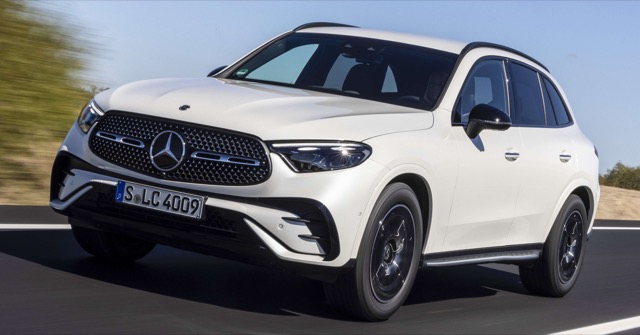

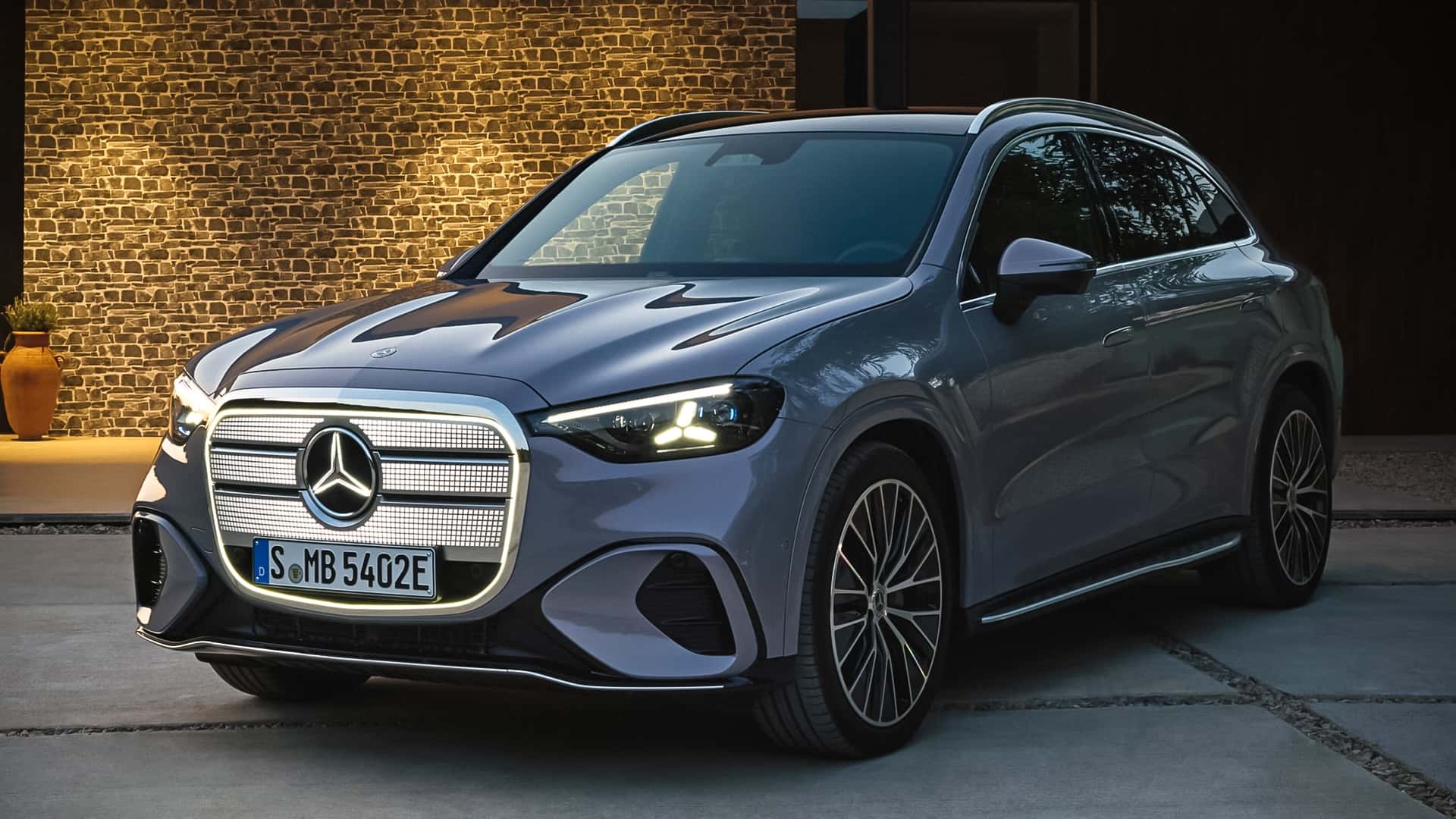

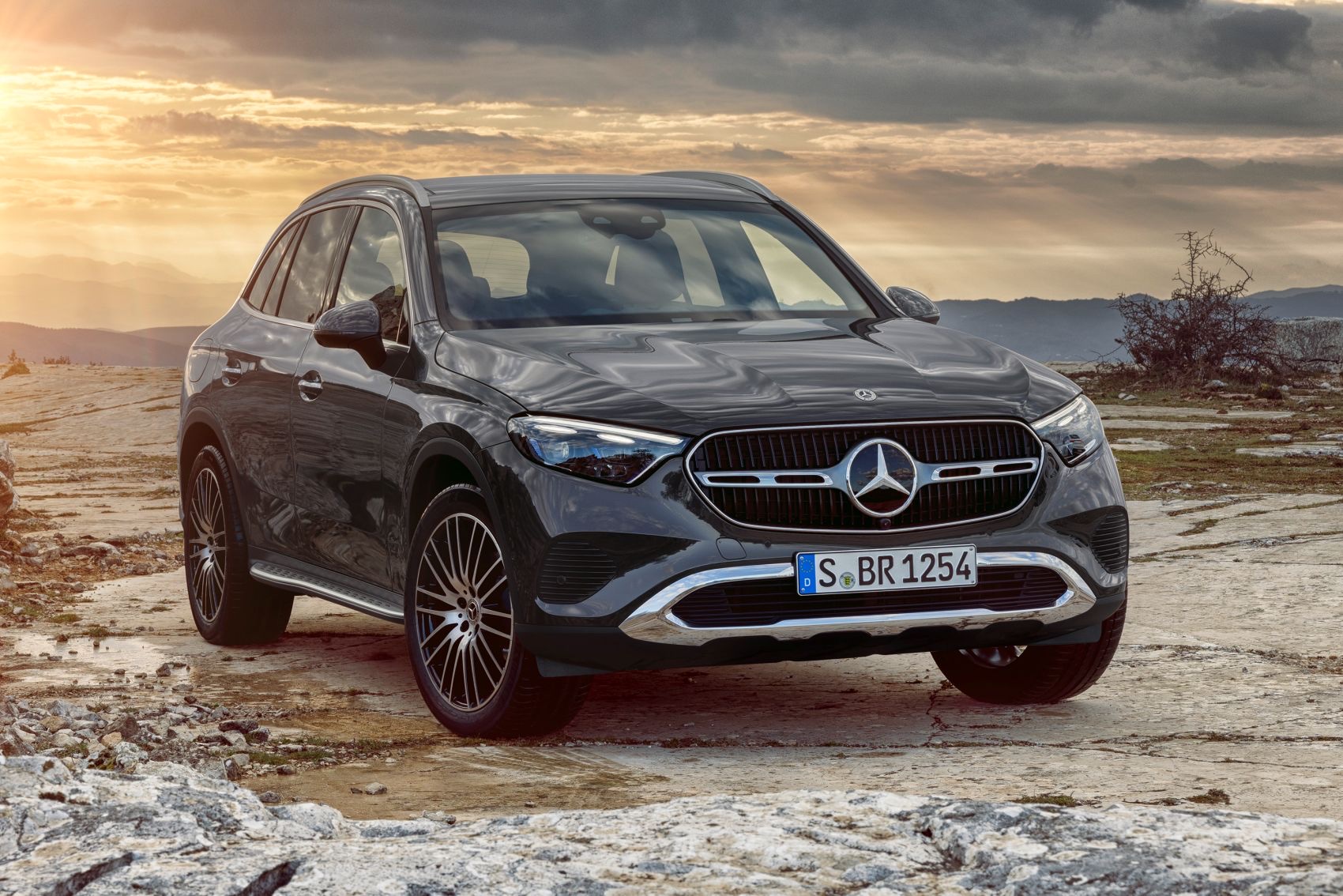

Photo Mercedes GLC-Class (X254)
Detailed specs
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
200 4Matic
300 4Matic
220d 4Matic
200d 4MATIC
300d 4MATIC
450d 4MATIC
300e 4MATIC
300de 4MATIC
AMG 43 4MATIC
400e 4MATIC
GLC 200 4Matic
GLC 200d 4Matic
GLC 220d 4Matic
GLC 300 4Matic
GLC 300d 4Matic
GLC 300de 4Matic
GLC 300e 4Matic
GLC 400e 4Matic
GLC 450d 4Matic
GLC AMG 43 4MATIC
200 4Matic 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.3 |
|---|---|
| Top speed, km/h | 221 |
| Acceleration 0-100 km/h, s | 7.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i Mild Hybrid |
|---|---|
| Engine code | M254 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1999 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 204 |
| RPM at max power | 6100 |
| Torque, Nm | 320 |
| RPM at max torque | 2000-4000 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
300 4Matic 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.4 |
|---|---|
| Top speed, km/h | 240 |
| Acceleration 0-100 km/h, s | 6.2 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i Mild Hybrid |
|---|---|
| Engine code | M 254 E 20 DEH LA |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1999 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 258 |
| RPM at max power | 5800 |
| Torque, Nm | 400 |
| RPM at max torque | 2000–3200 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
220d 4Matic 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.2 |
|---|---|
| Top speed, km/h | 219 |
| Acceleration 0-100 km/h, s | 8 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDI Mild Hybrid |
|---|---|
| Engine code | OM654 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1993 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 197 |
| RPM at max power | 3600 |
| Torque, Nm | 440 |
| RPM at max torque | 1800-2800 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
200d 4MATIC 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.9 |
|---|---|
| Top speed, km/h | 208 |
| Acceleration 0-100 km/h, s | 8.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDI Mild Hybrid |
|---|---|
| Engine code | OM 654.820 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1993 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 163 |
| RPM at max power | 3200-4400 |
| Torque, Nm | 380 |
| RPM at max torque | 1600-2800 |
| Number of electric motors | 1 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 205 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
300d 4MATIC 40 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.2 |
|---|---|
| Top speed, km/h | 243 |
| Acceleration 0-100 km/h, s | 6.3 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDI Mild Hybrid |
|---|---|
| Engine code | OM 654.820 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1993 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Compression ratio | 15.5:1 |
| Power, hp | 269 |
| RPM at max power | 4200 |
| Torque, Nm | 550 |
| RPM at max torque | 1800-2200 |
| Number of electric motors | 1 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
450d 4MATIC 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0d Mild Hybrid |
|---|---|
| Engine code | OM656 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2989 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 367 |
| RPM at max power | 4000 |
| Torque, Nm | 750 |
| RPM at max torque | 1350-2800 |
| Number of electric motors | 1 |
| Electric motor power, hp | 20 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
300e 4MATIC 44 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 0.8 |
|---|---|
| Top speed, km/h | 218 |
| Acceleration 0-100 km/h, s | 6.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i Plug-in Hybrid |
|---|---|
| Engine code | M254 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1999 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 10:1 |
| Power, hp | 313 |
| Torque, Nm | 550 |
| Number of electric motors | 1 |
| Electric motor power, hp | 129 |
| Combustion engine power, hp | 204 |
| Combustion engine RPM at max power | 6100 |
| Combustion engine torque, Nm | 320 |
| Combustion engine RPM at max torque | 2000-4000 |
| Electric motor torque, Nm | 440 |
| Electric motor RPM at max power | 2100 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
300de 4MATIC 42 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 0.7 |
|---|---|
| Top speed, km/h | 217 |
| Acceleration 0-100 km/h, s | 6.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi Plug-in Hybr |
|---|---|
| Engine code | OM 654 M |
| Engine type | Hybrid |
| Fuel type | Diesel |
| Engine displacement, cc | 1993 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Compression ratio | 15.5:1 |
| Power, hp | 335 |
| Torque, Nm | 750 |
| Number of electric motors | 1 |
| Electric motor power, hp | 136 |
| Combustion engine power, hp | 197 |
| Combustion engine RPM at max power | 3600 |
| Combustion engine torque, Nm | 440 |
| Combustion engine RPM at max torque | 1800-2800 |
| Electric motor torque, Nm | 440 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
AMG 43 4MATIC 40 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 10.2 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i Mild Hybrid |
|---|---|
| Engine code | M 139 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1991 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Compression ratio | 10:1 |
| Power, hp | 421 |
| RPM at max power | 6750 |
| Torque, Nm | 500 |
| RPM at max torque | 5000 |
| Number of electric motors | 1 |
| Electric motor power, hp | 14 |
| Electric motor torque, Nm | 150 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
400e 4MATIC 42 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 0.8 |
|---|---|
| Top speed, km/h | 237 |
| Acceleration 0-100 km/h, s | 5.6 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i Plug-in Hybrid |
|---|---|
| Engine code | M254 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1999 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Compression ratio | 10:1 |
| Power, hp | 381 |
| Torque, Nm | 650 |
| Number of electric motors | 1 |
| Electric motor power, hp | 129 |
| Combustion engine power, hp | 252 |
| Combustion engine RPM at max power | 5800 |
| Combustion engine torque, Nm | 400 |
| Combustion engine RPM at max torque | 3200-4000 |
| Electric motor torque, Nm | 440 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
GLC 200 4Matic 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.3 |
|---|---|
| Top speed, km/h | 221 |
| Acceleration 0-100 km/h, s | 7.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i Mild Hybrid |
|---|---|
| Engine code | M254 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1999 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 204 |
| RPM at max power | 6100 |
| Torque, Nm | 320 |
| RPM at max torque | 2000-4000 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
GLC 200d 4Matic 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.9 |
|---|---|
| Top speed, km/h | 208 |
| Acceleration 0-100 km/h, s | 8.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDI Mild Hybrid |
|---|---|
| Engine code | OM 654.820 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1993 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 163 |
| RPM at max power | 3200-4400 |
| Torque, Nm | 380 |
| RPM at max torque | 1600-2800 |
| Number of electric motors | 1 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 205 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
GLC 220d 4Matic 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.9 |
|---|---|
| Top speed, km/h | 208 |
| Acceleration 0-100 km/h, s | 8.9 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDI Mild Hybrid |
|---|---|
| Engine code | OM 654.820 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1993 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Power, hp | 163 |
| RPM at max power | 3200-4400 |
| Torque, Nm | 380 |
| RPM at max torque | 1600-2800 |
| Number of electric motors | 1 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 205 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
GLC 300 4Matic 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7.4 |
|---|---|
| Top speed, km/h | 240 |
| Acceleration 0-100 km/h, s | 6.2 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i Mild Hybrid |
|---|---|
| Engine code | M 254 E 20 DEH LA |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1999 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 258 |
| RPM at max power | 5800 |
| Torque, Nm | 400 |
| RPM at max torque | 2000–3200 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
GLC 300d 4Matic 40 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 6.2 |
|---|---|
| Top speed, km/h | 243 |
| Acceleration 0-100 km/h, s | 6.3 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDI Mild Hybrid |
|---|---|
| Engine code | OM 654.820 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1993 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Compression ratio | 15.5:1 |
| Power, hp | 269 |
| RPM at max power | 4200 |
| Torque, Nm | 550 |
| RPM at max torque | 1800-2200 |
| Number of electric motors | 1 |
| Electric motor power, hp | 23 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
GLC 300de 4Matic 42 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 0.7 |
|---|---|
| Top speed, km/h | 217 |
| Acceleration 0-100 km/h, s | 6.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi Plug-in Hybr |
|---|---|
| Engine code | OM 654 M |
| Engine type | Hybrid |
| Fuel type | Diesel |
| Engine displacement, cc | 1993 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Compression ratio | 15.5:1 |
| Power, hp | 335 |
| Torque, Nm | 750 |
| Number of electric motors | 1 |
| Electric motor power, hp | 136 |
| Combustion engine power, hp | 197 |
| Combustion engine RPM at max power | 3600 |
| Combustion engine torque, Nm | 440 |
| Combustion engine RPM at max torque | 1800-2800 |
| Electric motor torque, Nm | 440 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
GLC 300e 4Matic 44 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 0.8 |
|---|---|
| Top speed, km/h | 218 |
| Acceleration 0-100 km/h, s | 6.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i Plug-in Hybrid |
|---|---|
| Engine code | M254 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1999 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 10:1 |
| Power, hp | 313 |
| Torque, Nm | 550 |
| Number of electric motors | 1 |
| Electric motor power, hp | 129 |
| Combustion engine power, hp | 204 |
| Combustion engine RPM at max power | 6100 |
| Combustion engine torque, Nm | 320 |
| Combustion engine RPM at max torque | 2000-4000 |
| Electric motor torque, Nm | 440 |
| Electric motor RPM at max power | 2100 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
GLC 400e 4Matic 42 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 0.8 |
|---|---|
| Top speed, km/h | 237 |
| Acceleration 0-100 km/h, s | 5.6 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i Plug-in Hybrid |
|---|---|
| Engine code | M254 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1999 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Compression ratio | 10:1 |
| Power, hp | 381 |
| Torque, Nm | 650 |
| Number of electric motors | 1 |
| Electric motor power, hp | 129 |
| Combustion engine power, hp | 252 |
| Combustion engine RPM at max power | 5800 |
| Combustion engine torque, Nm | 400 |
| Combustion engine RPM at max torque | 3200-4000 |
| Electric motor torque, Nm | 440 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
GLC 450d 4Matic 39 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 7 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.7 |
| Emissions standard | Euro VI |
Engine
| Engine | 3.0d Mild Hybrid |
|---|---|
| Engine code | OM656 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 2989 |
| Cylinder layout | V-type |
| Number of cylinders | 6 |
| Valves | 24 |
| Power, hp | 367 |
| RPM at max power | 4000 |
| Torque, Nm | 750 |
| RPM at max torque | 1350-2800 |
| Number of electric motors | 1 |
| Electric motor power, hp | 20 |
| Electric motor torque, Nm | 200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
GLC AMG 43 4MATIC 40 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 10.2 |
|---|---|
| Top speed, km/h | 250 |
| Acceleration 0-100 km/h, s | 4.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0i Mild Hybrid |
|---|---|
| Engine code | M 139 |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1991 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Compression ratio | 10:1 |
| Power, hp | 421 |
| RPM at max power | 6750 |
| Torque, Nm | 500 |
| RPM at max torque | 5000 |
| Number of electric motors | 1 |
| Electric motor power, hp | 14 |
| Electric motor torque, Nm | 150 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4716 |
| Width, mm | 2076 |
| Height, mm | 1640 |
| Wheelbase, mm | 2888 |
| Front track, mm | 1627 |
| Rear track, mm | 1640 |
| Kerb weight, kg | 1925 |
| Gross weight, kg | 2510 |
| Fuel tank capacity, L | 62 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1890 |
| Trunk capacity, L | 620 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
FAQ
Mercedes GLC-Class (X254) questions
Short answers based on the specifications and photos available in this catalog.
What are the dimensions of the X254 GLC?
It is 4716 mm long, 1890 mm wide, and 1640 mm tall, with a wheelbase of 2888 mm.
What engine options are available?
The lineup features 2.0-liter mild-hybrid petrol and diesel engines, alongside advanced plug-in hybrid variants and a more powerful 3.0-liter diesel option.
Does the new GLC have a larger trunk?
Yes, the cargo capacity has increased compared to the previous generation, now offering up to 620 liters of space.
What is the electric range of the plug-in hybrid models?
The PHEV models can achieve an estimated electric-only driving range of up to 100 km based on the WLTP cycle.
Is all-wheel drive standard?
Yes, these models utilize the 4Matic all-wheel-drive system paired with a 9-speed automatic transmission.
Explore more
Continue exploring Mercedes
Return to Mercedes models, browse the gallery, or compare the trims listed above.
