Mercedes V-Class (W447) specifications and photos
The Mercedes-Benz V-Class (W447) is a large luxury minivan available with rear-wheel or all-wheel drive. Introduced as a facelift for the third generation in 2019, it updates the popular passenger van with fresh styling and new powertrain options.
Mercedes V-Class (W447) at a glance
Quick model context before comparing photos and trim-level specifications.
The third-generation Mercedes-Benz V-Class established itself as a strong contender in the premium passenger van segment. For the 2019 update, the automaker focused on maintaining the vehicle's appeal without making radical changes to its successful formula. This facelifted model, which debuted at the Geneva Motor Show, brings subtle exterior refinements and introduces a more modern engine lineup to replace the older powertrains. Known for serving as a mobile office or a high-end family shuttle, the V-Class prioritizes space, comfort, and the brand's signature status over advanced digital gadgets, deliberately retaining established systems like the Command infotainment unit rather than switching to newer interfaces.
- Power: 163-239 hp
- Engine displacement: 1950 cc
- Transmissions: 9G-Tronic
- Seating: 6-8 seats
Mercedes V-Class (W447) overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design
Exterior updates for the 2019 facelift are relatively restrained. The most noticeable change is a redesigned front bumper featuring a single, full-width air intake. Models equipped with the AMG package also receive a slightly revised grille design. Despite being minor alterations, these updates give the van's front end a more modern and substantial presence on the road. The overall dimensions remain large, with a length of 5,140 mm and a wheelbase of 3,200 mm, dictating its classic boxy but elegant minivan silhouette.
Interior
Inside, the cabin layout remains largely unchanged from the pre-facelift model. The primary visual updates are the new air conditioning vents, which now feature a turbine-wheel design, and the introduction of new trim materials. The V-Class continues to use the older Command infotainment system rather than the newer MBUX interface, emphasizing its role as a practical passenger vehicle rather than a high-tech gadget. Seating configurations can accommodate six to eight passengers depending on the specification, with a generous cargo capacity of 1,030 liters.
Performance
The most significant changes for the 2019 V-Class are found under the hood. The previous 2.1-liter diesel engine was replaced by a newer 2.0-liter four-cylinder diesel unit (OM 654). This engine is available in three output levels: the V 220d producing 163 hp and 380 Nm of torque, the V 250d with 190 hp and 440 Nm, and the top V 300d delivering 239 hp and 500 Nm. All versions are paired with a 9G-Tronic automatic transmission. Buyers can choose between standard rear-wheel drive and optional 4Matic all-wheel drive.
Practicality
As a large premium minivan, practicality is a core strength of the V-Class. With options for up to eight seats, it offers substantial flexibility for moving large families or providing executive transport services. The cabin's generous dimensions provide ample headroom and legroom across all rows. Additionally, the 1,030-liter cargo area ensures that luggage space is not compromised even when carrying multiple passengers.
Safety and tech
The V-Class is equipped with several advanced safety and driver assistance features. Standard and available equipment includes a 360-degree Around View Monitor (AVM) to aid with parking its large footprint, Electronic Stability Program (ESP), and the Attention Assist driver fatigue monitoring system. The van also includes a comprehensive set of airbags, including side and curtain airbags, along with an electric parking brake and a hill-start assist function.
Buyer notes
When comparing V-Class trims, buyers should focus on the required engine output and seating capacity. The transition to the OM 654 diesel engine and the 9-speed automatic transmission across the range provides more efficient and smoother power delivery compared to earlier models. If the vehicle is primarily used in areas with poor weather conditions, upgrading to the 4Matic all-wheel-drive system is a practical choice. Keep in mind that equipment levels, specific seating arrangements, and features like the AMG styling package can vary significantly by market.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| V 220d | 1950 cc | 163 hp | 8 | 9G-Tronic |
| V 220d 4Matic | 1950 cc | 163 hp | 8 | 9G-Tronic |
| V 250d | 1950 cc | 190 hp | 8 | 9G-Tronic |
| V 250d 4Matic | 1950 cc | 190 hp | 8 | 9G-Tronic |
| V 300d | 1950 cc | 239 hp | 8 | 9G-Tronic |
| V 300d 4Matic | 1950 cc | 239 hp | 8 | 9G-Tronic |
| V 220d AT | 1950 cc | 163 hp | 6 | 9G-Tronic |
| V 250d AT | 1950 cc | 190 hp | 6 | 9G-Tronic |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

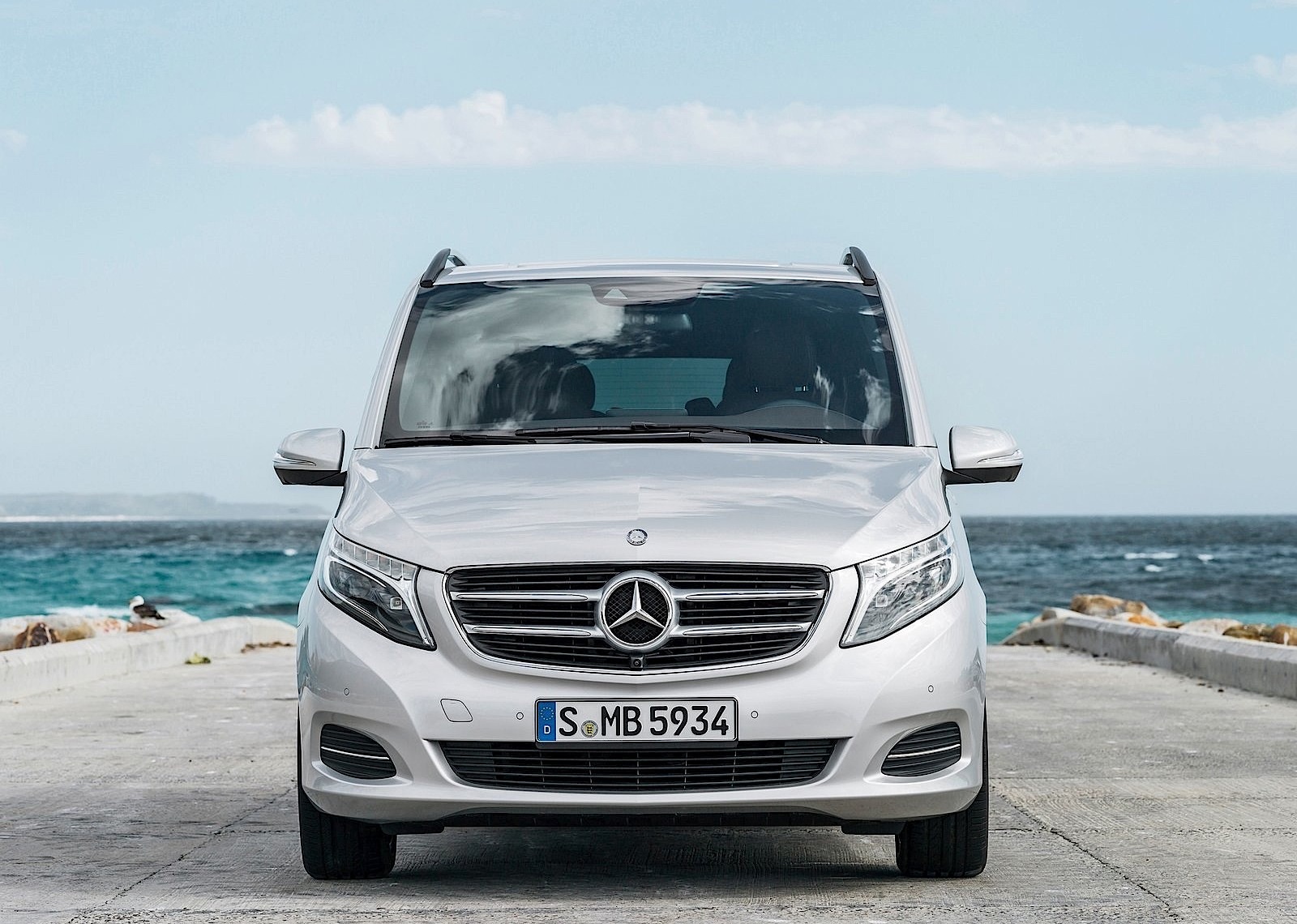

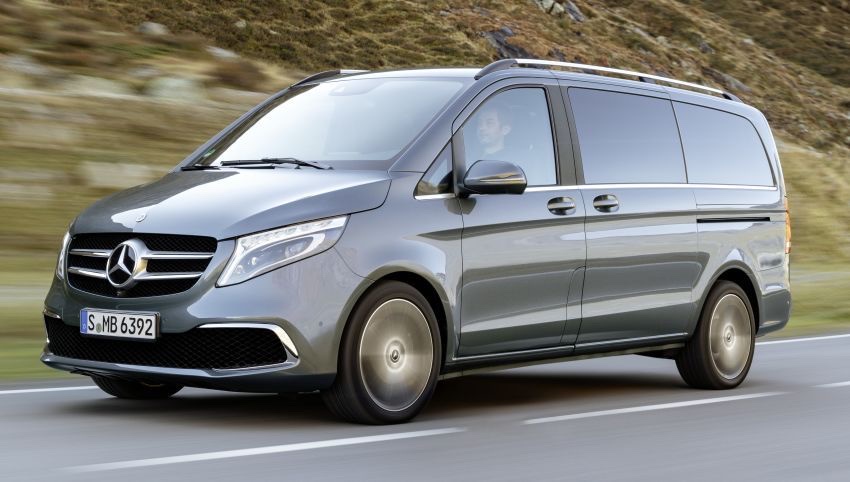

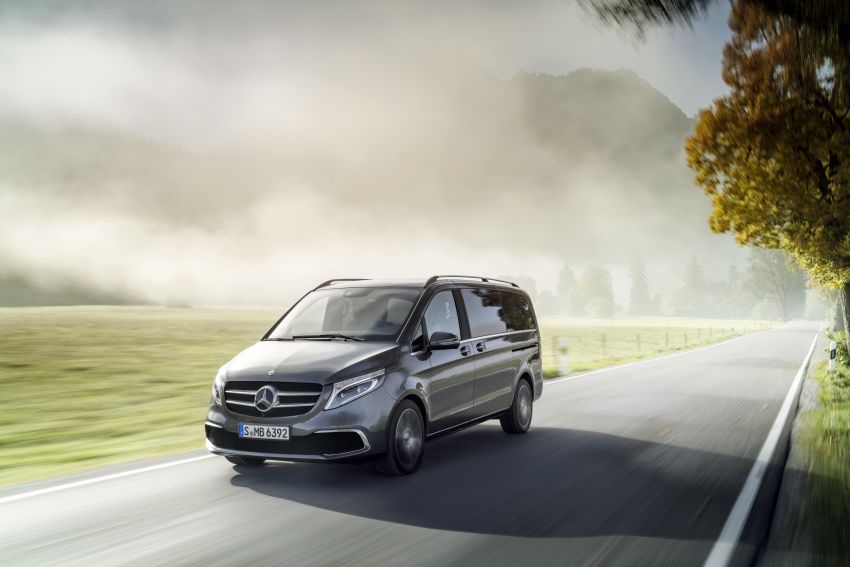

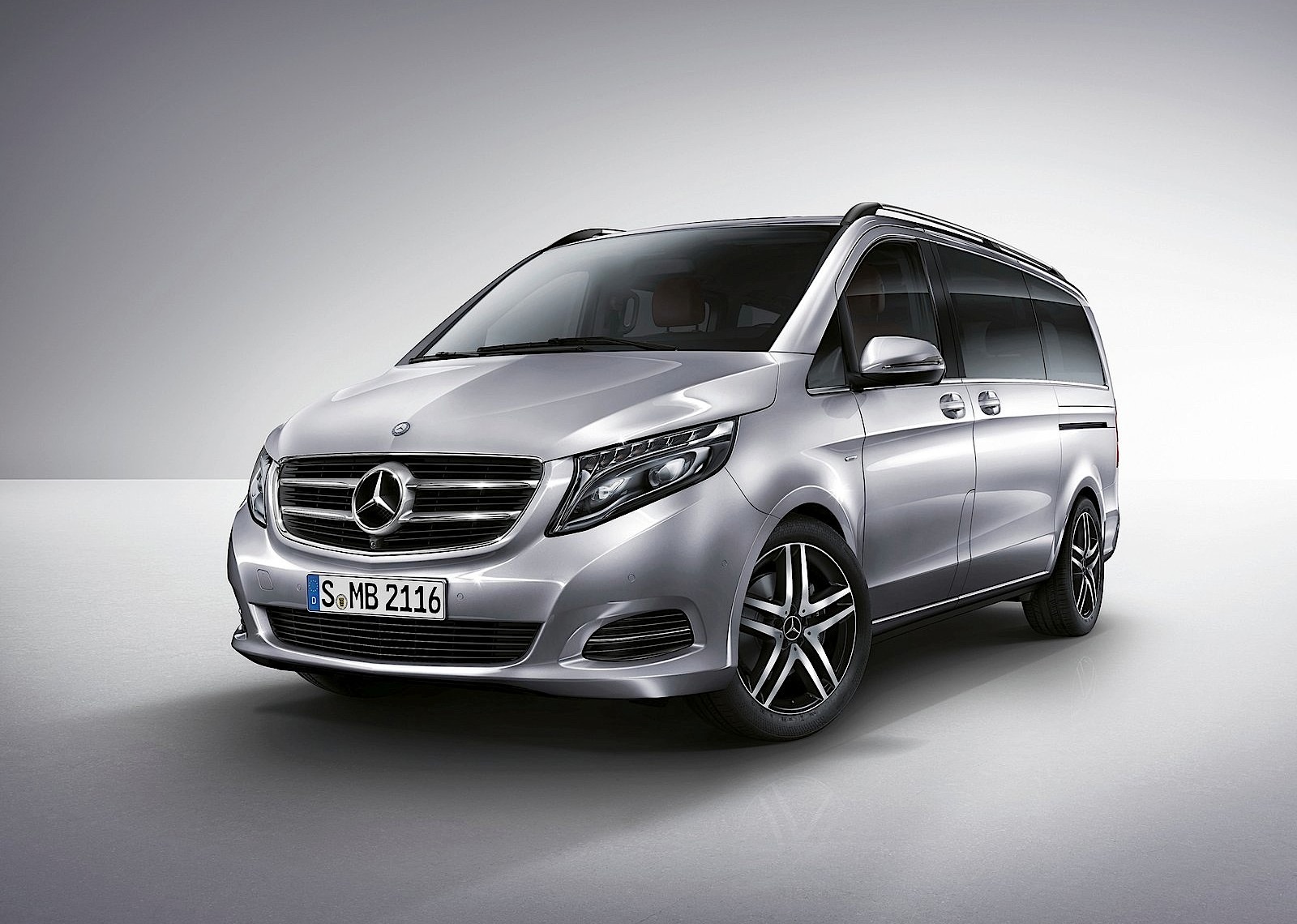

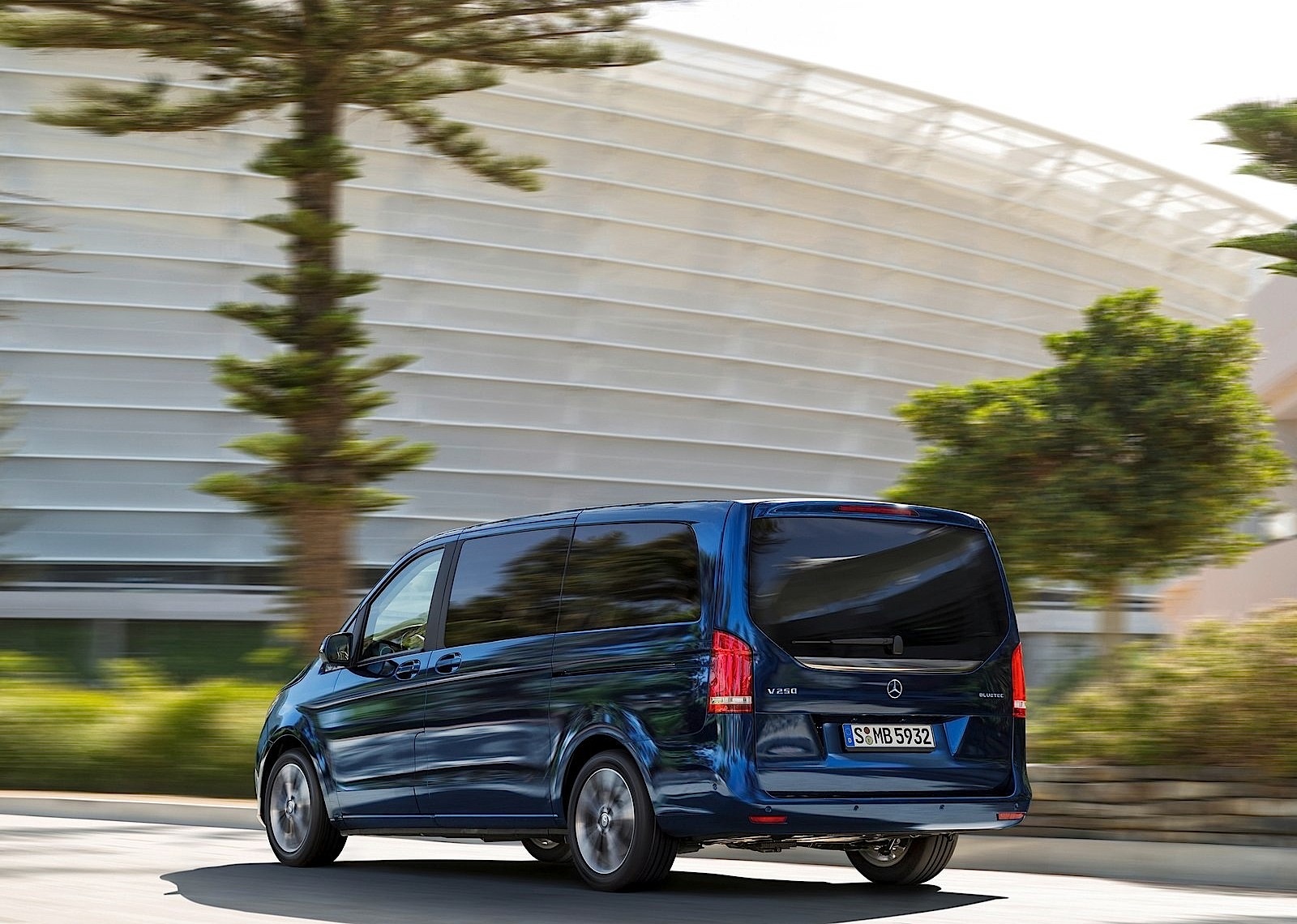

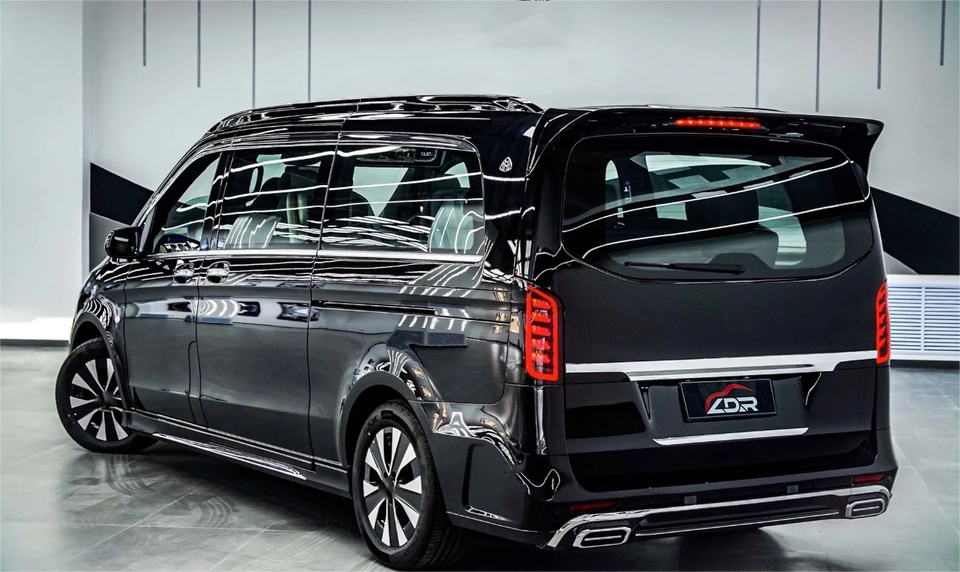

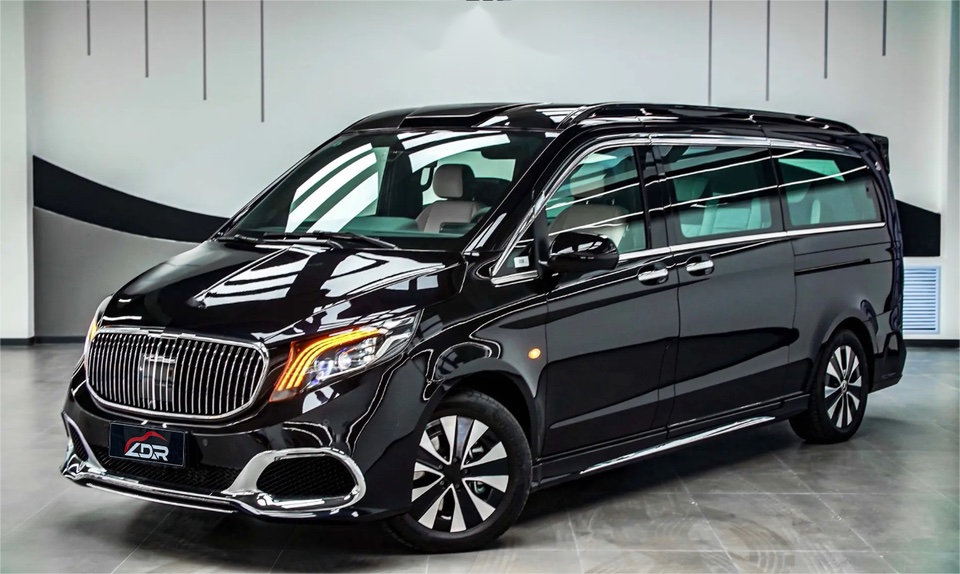

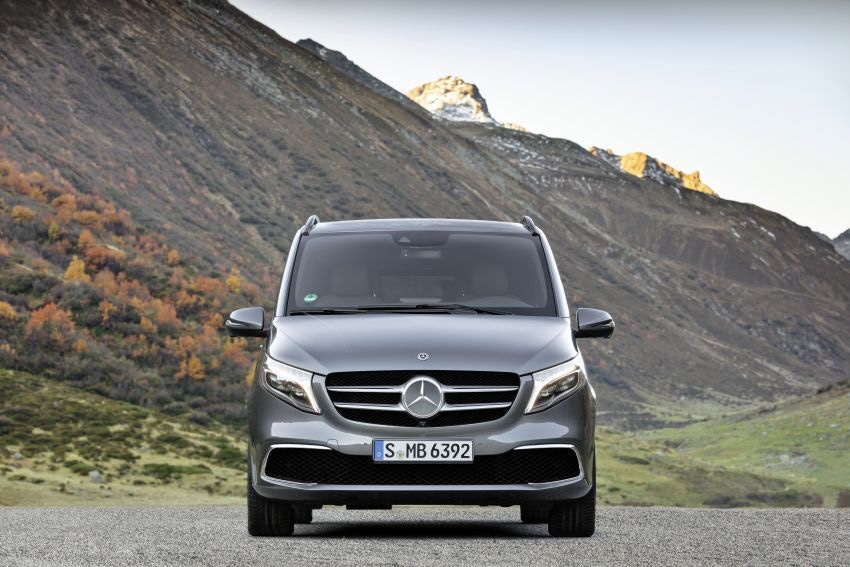

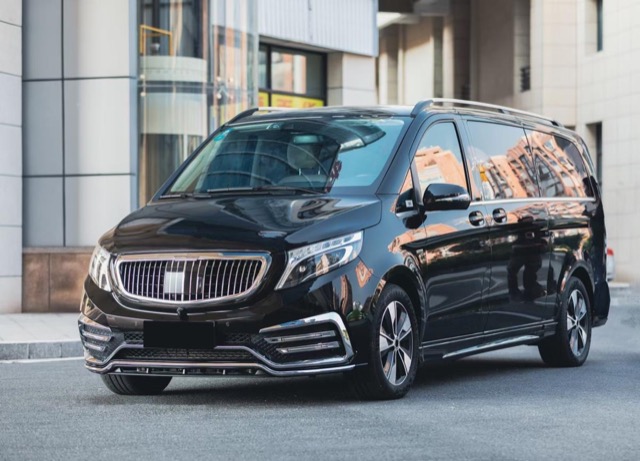

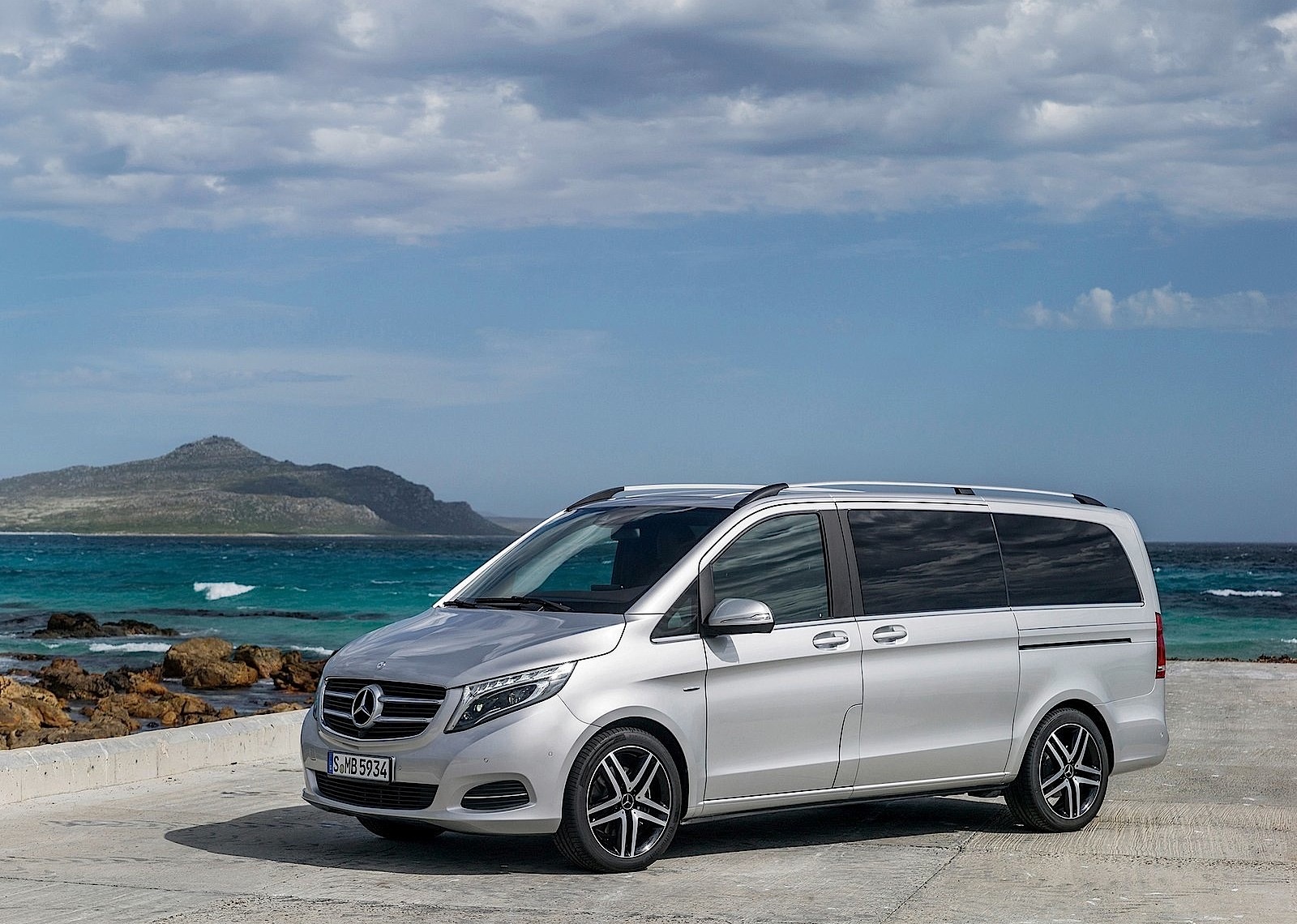

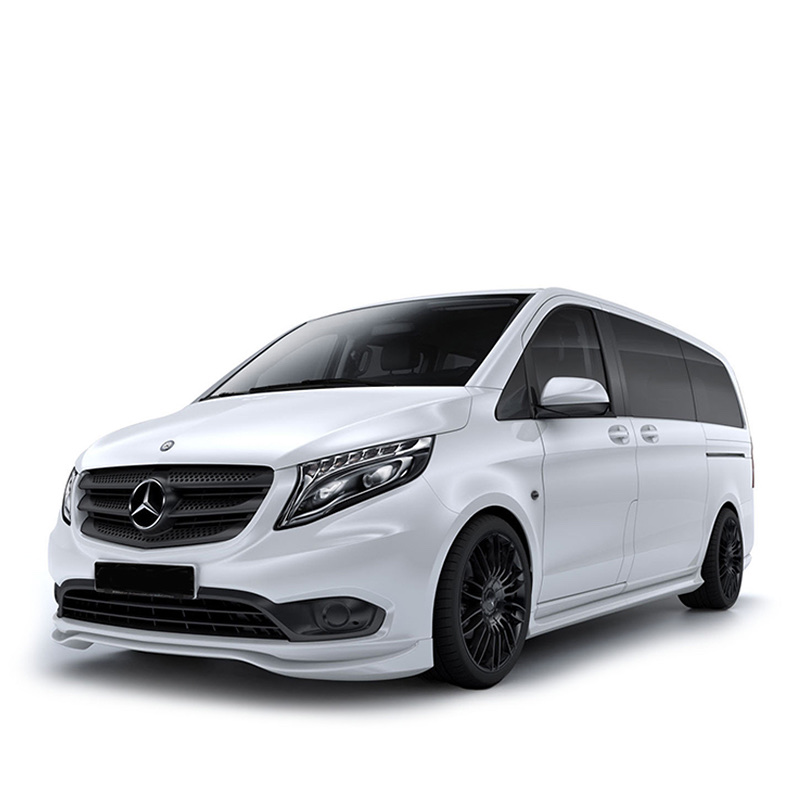

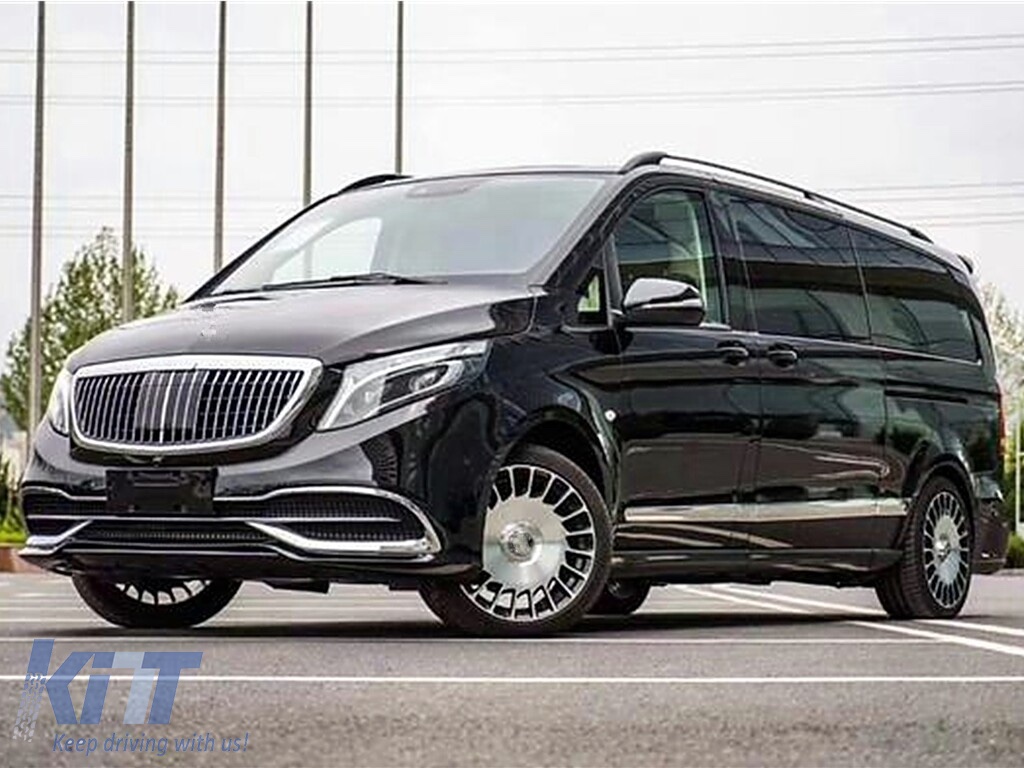

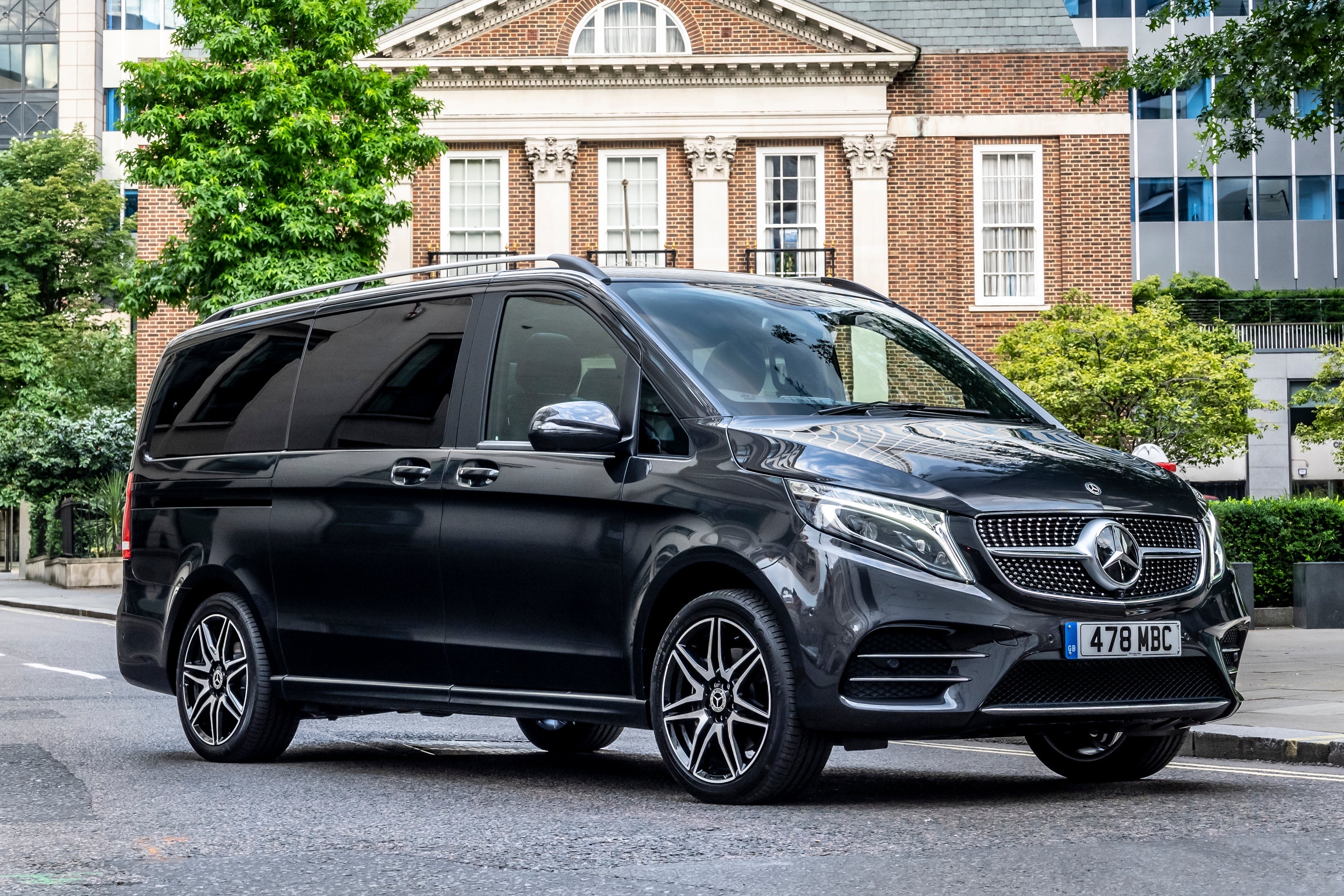

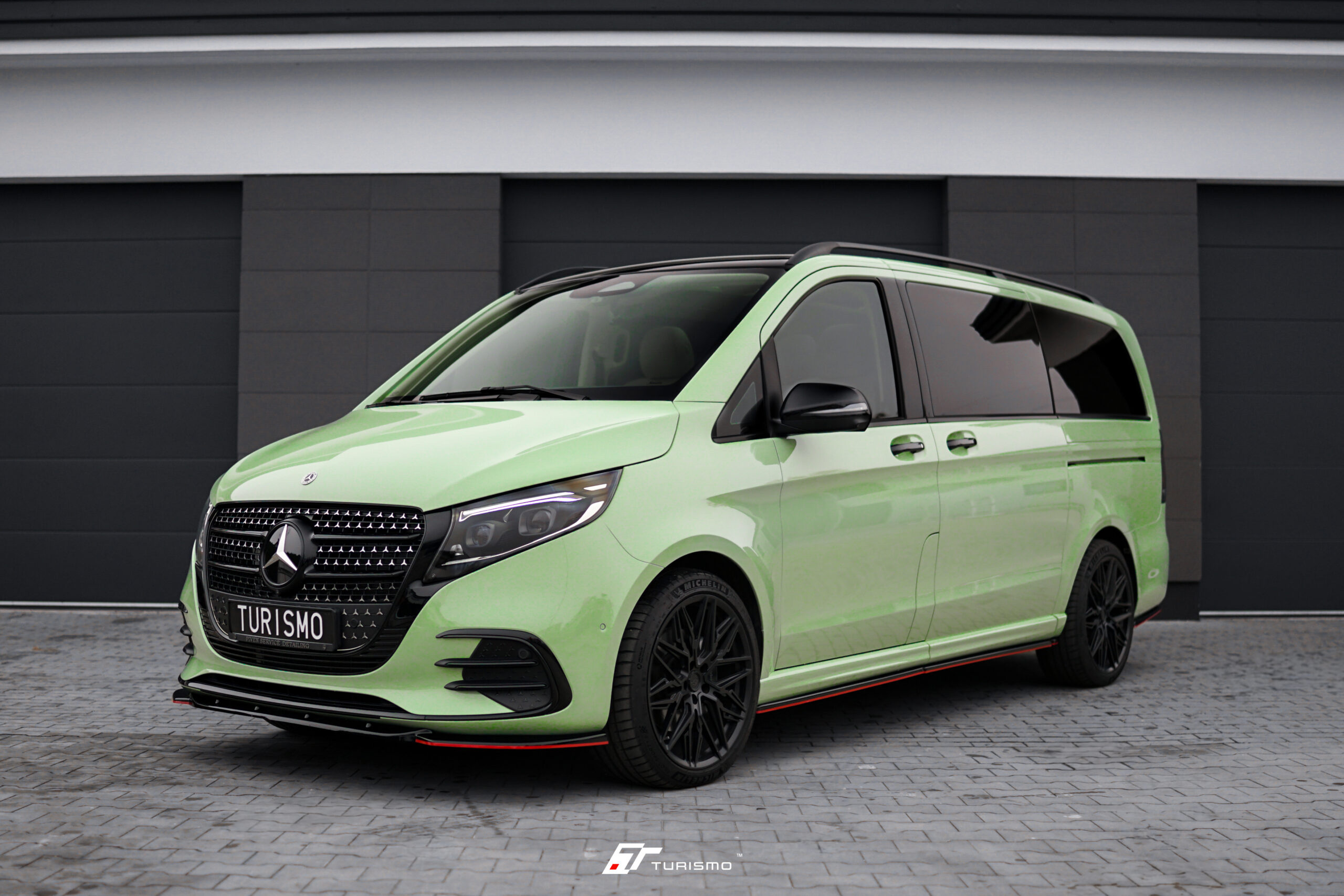

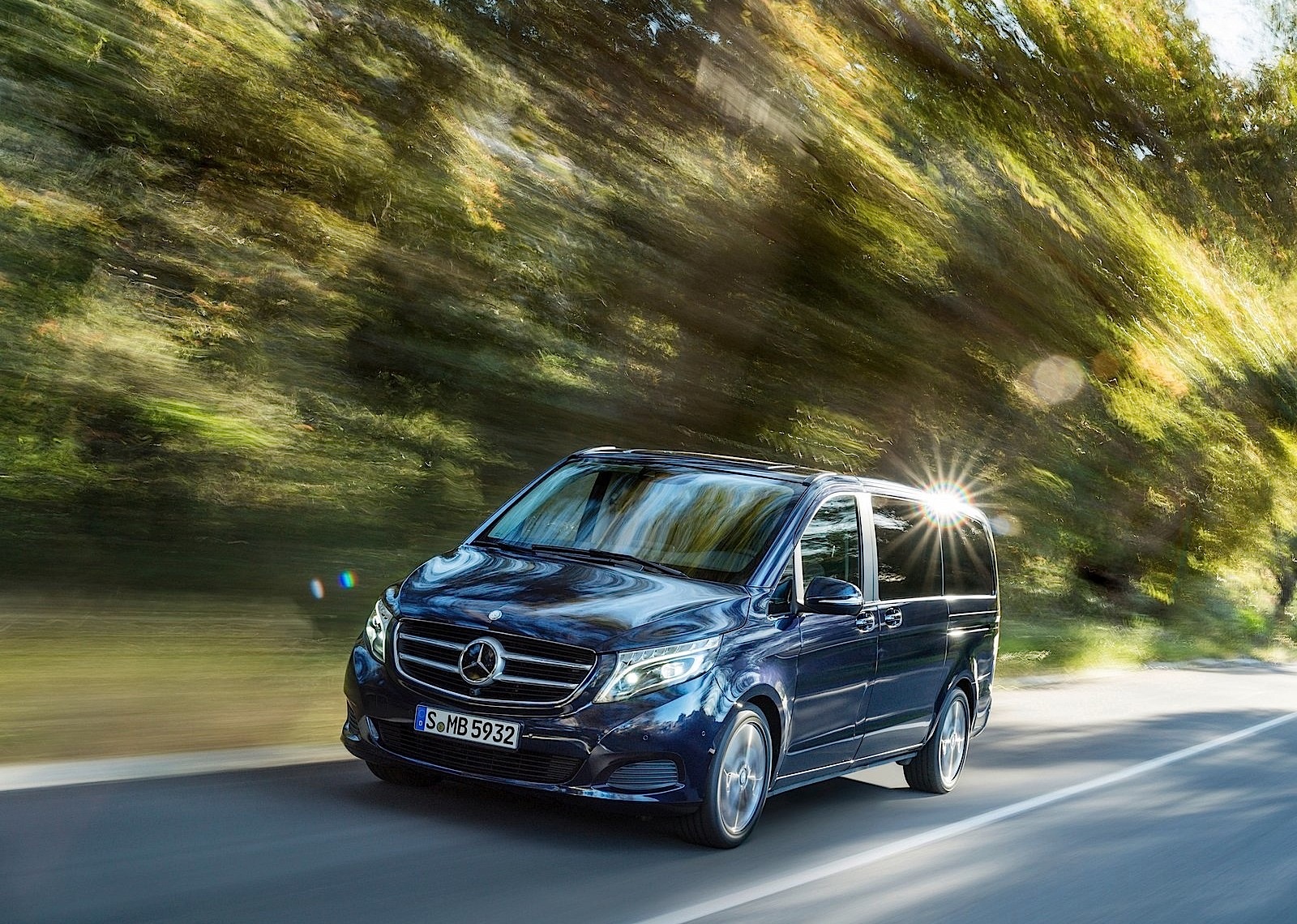

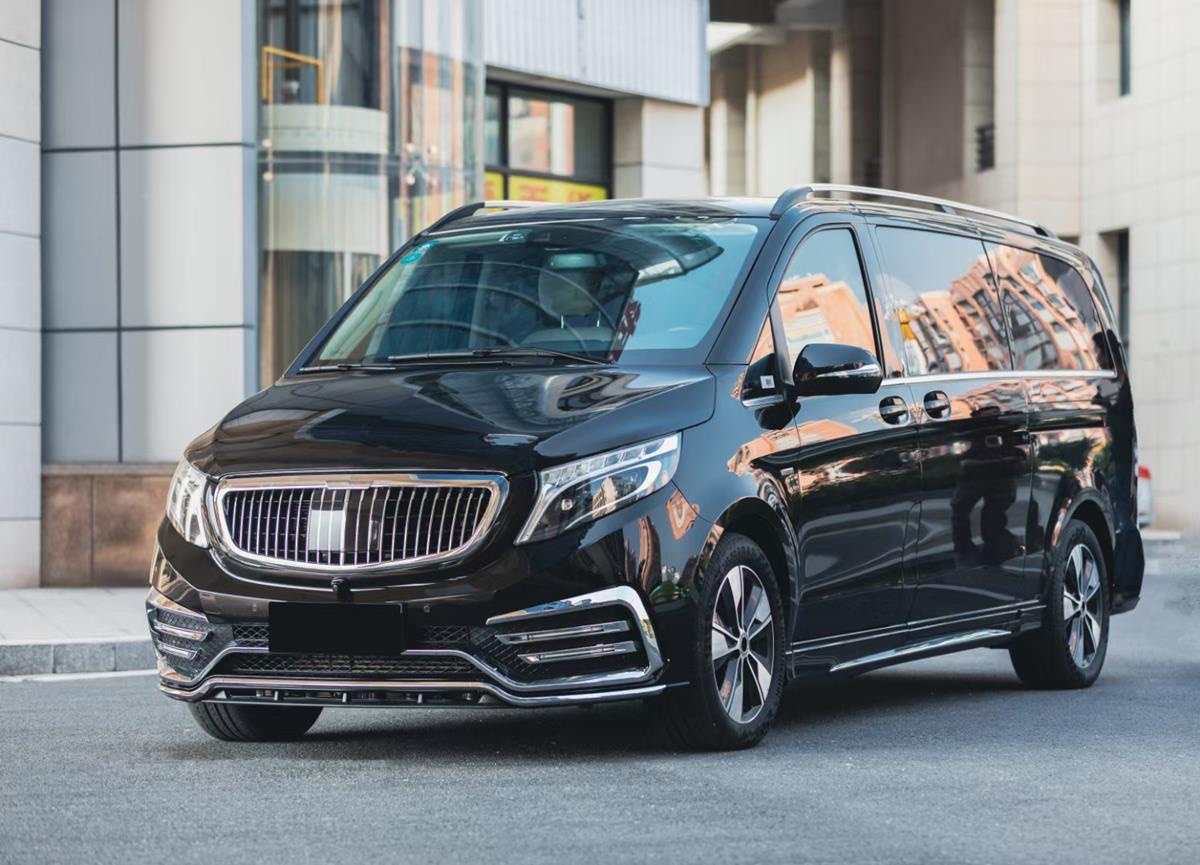

Mercedes V-Class (W447) photo gallery
16 images are collected here with the main specifications and trim data for this model.

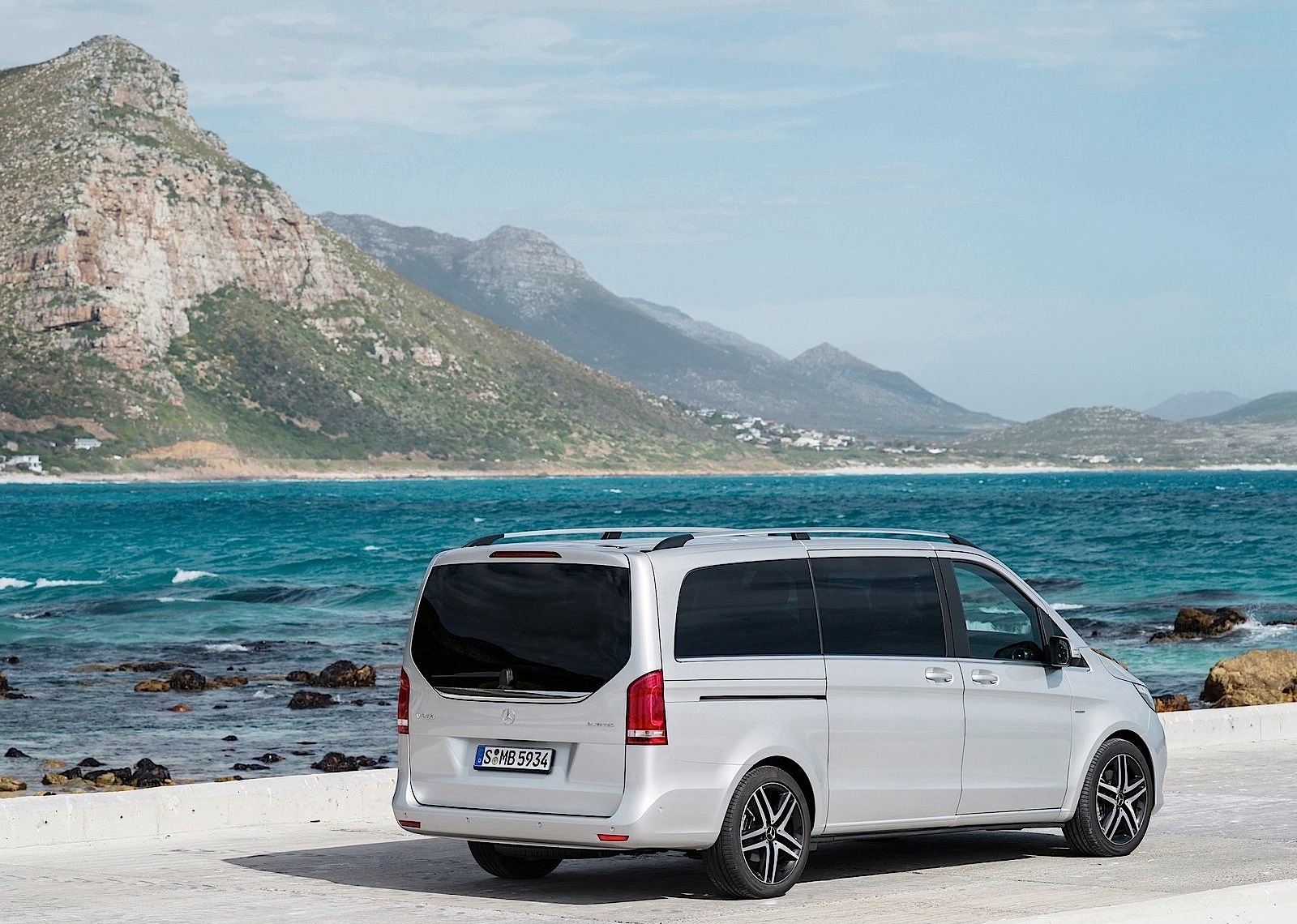

Photo Mercedes V-Class (W447)
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
V 220d 37 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 6.2 |
|---|---|
| Fuel consumption highway, L/100 km | 5.9 |
| Fuel consumption combined, L/100 km | 6 |
| Top speed, km/h | 195 |
| Acceleration 0-100 km/h, s | 11 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi |
|---|---|
| Engine code | OM 654 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1950 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 163 |
| RPM at max power | 4200 |
| Torque, Nm | 380 |
| RPM at max torque | 1200-2400 |
Dimensions
| Seats | 8 |
|---|---|
| Length, mm | 5140 |
| Width, mm | 2249 |
| Height, mm | 1880 |
| Wheelbase, mm | 3200 |
| Kerb weight, kg | 2075 |
| Gross weight, kg | 2800 |
| Fuel tank capacity, L | 70 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1928 |
| Trunk capacity, L | 1030 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
V 220d 4Matic 37 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 7.1 |
|---|---|
| Fuel consumption highway, L/100 km | 6.6 |
| Fuel consumption combined, L/100 km | 6.7 |
| Top speed, km/h | 188 |
| Acceleration 0-100 km/h, s | 12.1 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi |
|---|---|
| Engine code | OM 654 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1950 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 163 |
| RPM at max power | 4200 |
| Torque, Nm | 380 |
| RPM at max torque | 1200-2400 |
Dimensions
| Seats | 8 |
|---|---|
| Length, mm | 5140 |
| Width, mm | 2249 |
| Height, mm | 1880 |
| Wheelbase, mm | 3200 |
| Kerb weight, kg | 2075 |
| Gross weight, kg | 2800 |
| Fuel tank capacity, L | 70 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1928 |
| Trunk capacity, L | 1030 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
V 250d 36 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 6.5 |
|---|---|
| Fuel consumption highway, L/100 km | 5.6 |
| Fuel consumption combined, L/100 km | 5.9 |
| Top speed, km/h | 205 |
| Acceleration 0-100 km/h, s | 9.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1950 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 190 |
| RPM at max power | 4200 |
| Torque, Nm | 440 |
| RPM at max torque | 1350-2400 |
Dimensions
| Seats | 8 |
|---|---|
| Length, mm | 5140 |
| Width, mm | 2249 |
| Height, mm | 1880 |
| Wheelbase, mm | 3200 |
| Kerb weight, kg | 2075 |
| Gross weight, kg | 2800 |
| Fuel tank capacity, L | 70 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1928 |
| Trunk capacity, L | 1030 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
V 250d 4Matic 36 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 7.4 |
|---|---|
| Fuel consumption highway, L/100 km | 6.2 |
| Fuel consumption combined, L/100 km | 6.6 |
| Top speed, km/h | 199 |
| Acceleration 0-100 km/h, s | 10.3 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1950 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 190 |
| RPM at max power | 4200 |
| Torque, Nm | 440 |
| RPM at max torque | 1350-2400 |
Dimensions
| Seats | 8 |
|---|---|
| Length, mm | 5140 |
| Width, mm | 2249 |
| Height, mm | 1880 |
| Wheelbase, mm | 3200 |
| Kerb weight, kg | 2075 |
| Gross weight, kg | 2800 |
| Fuel tank capacity, L | 70 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1928 |
| Trunk capacity, L | 1030 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
V 300d 36 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 6.5 |
|---|---|
| Fuel consumption highway, L/100 km | 5.6 |
| Fuel consumption combined, L/100 km | 5.9 |
| Top speed, km/h | 220 |
| Acceleration 0-100 km/h, s | 7.8 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1950 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 239 |
| RPM at max power | 4200 |
| Torque, Nm | 500 |
| RPM at max torque | 1600-2400 |
Dimensions
| Seats | 8 |
|---|---|
| Length, mm | 5140 |
| Width, mm | 2249 |
| Height, mm | 1880 |
| Wheelbase, mm | 3200 |
| Kerb weight, kg | 2075 |
| Gross weight, kg | 2800 |
| Fuel tank capacity, L | 70 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1928 |
| Trunk capacity, L | 1030 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
V 300d 4Matic 36 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 7.4 |
|---|---|
| Fuel consumption highway, L/100 km | 6.2 |
| Fuel consumption combined, L/100 km | 6.6 |
| Top speed, km/h | 214 |
| Acceleration 0-100 km/h, s | 8.5 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1950 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 239 |
| RPM at max power | 4200 |
| Torque, Nm | 500 |
| RPM at max torque | 1600-2400 |
Dimensions
| Seats | 8 |
|---|---|
| Length, mm | 5140 |
| Width, mm | 2249 |
| Height, mm | 1880 |
| Wheelbase, mm | 3200 |
| Kerb weight, kg | 2075 |
| Gross weight, kg | 2800 |
| Fuel tank capacity, L | 70 |
| Turning circle, m | 11.8 |
| Width without mirrors, mm | 1928 |
| Trunk capacity, L | 1030 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | All-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
V 220d AT 62 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 6.2 |
|---|---|
| Fuel consumption highway, L/100 km | 5.9 |
| Fuel consumption combined, L/100 km | 6 |
| Top speed, km/h | 195 |
| Acceleration 0-100 km/h, s | 11 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi |
|---|---|
| Engine code | OM 654 |
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1950 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 163 |
| RPM at max power | 4200 |
| Torque, Nm | 380 |
| RPM at max torque | 1200-2400 |
Dimensions
| Seats | 6 |
|---|---|
| Length, mm | 5140 |
| Width, mm | 1928 |
| Height, mm | 1880 |
| Wheelbase, mm | 3200 |
| Kerb weight, kg | 2075 |
| Gross weight, kg | 2800 |
| Fuel tank capacity, L | 57 |
| Turning circle, m | 11.8 |
| Trunk capacity, L | 1030 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
Equipment
Exterior
| Right sliding door with window | + |
|---|
Comfort
| Tire pressure monitoring | + |
|---|---|
| Multifunction steering wheel | + |
| Electric parking brake | + |
Interior
| Multifunction instrument display | + |
|---|---|
| Color TFT display | + |
Wheels
| Rim diameter | 16 |
|---|---|
| Tires | 195/65R16 |
Climate and sound insulation
| Climate control | + |
|---|
Off-road
| Hill-start anti-rollback system | + |
|---|
Headlights and lighting
| Light sensor | + |
|---|
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| CD player | + |
| USB | + |
| SD card slot | + |
Glass, mirrors and sunroof
| Heated side mirrors | + |
|---|---|
| Power-adjustable side mirrors | + |
Visibility and parking
| Around View Monitor | + |
|---|
Security
Electronic systems
| Electronic stability control | + |
|---|---|
| Attention Assist driver fatigue monitoring | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
V 250d AT 61 specifications
Specifications
Performance and consumption
| Fuel consumption city, L/100 km | 6.5 |
|---|---|
| Fuel consumption highway, L/100 km | 5.6 |
| Fuel consumption combined, L/100 km | 5.9 |
| Top speed, km/h | 205 |
| Acceleration 0-100 km/h, s | 9.4 |
| Emissions standard | Euro VI |
Engine
| Engine | 2.0 CDi |
|---|---|
| Engine type | Internal combustion engine |
| Fuel type | Diesel |
| Engine displacement, cc | 1950 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Power, hp | 190 |
| RPM at max power | 4200 |
| Torque, Nm | 440 |
| RPM at max torque | 1350-2400 |
Dimensions
| Seats | 6 |
|---|---|
| Length, mm | 5140 |
| Width, mm | 1928 |
| Height, mm | 1880 |
| Wheelbase, mm | 3200 |
| Kerb weight, kg | 2075 |
| Gross weight, kg | 2800 |
| Fuel tank capacity, L | 57 |
| Turning circle, m | 11.8 |
| Trunk capacity, L | 1030 |
Transmission and drive
| Transmission | 9G-Tronic |
|---|---|
| Transmission type | automatic |
| Drive | Rear-wheel drive |
| Number of gears | 9 |
| Transmission manufacturer | Daimler AG |
| Automatic transmission | + |
| Transmission country | Germany |
Brake system
| Front brakes | Disc |
|---|---|
| Rear brakes | Disc |
Equipment
Exterior
| Right sliding door with window | + |
|---|
Comfort
| Tire pressure monitoring | + |
|---|---|
| Multifunction steering wheel | + |
| Electric parking brake | + |
Interior
| Multifunction instrument display | + |
|---|---|
| Color TFT display | + |
Wheels
| Rim diameter | 16 |
|---|---|
| Tires | 205/65R16 |
Climate and sound insulation
| Climate control | + |
|---|
Off-road
| Hill-start anti-rollback system | + |
|---|
Headlights and lighting
| Light sensor | + |
|---|
Multimedia and instruments
| Bluetooth hands-free | + |
|---|---|
| CD player | + |
| USB | + |
| SD card slot | + |
Glass, mirrors and sunroof
| Heated side mirrors | + |
|---|---|
| Power-adjustable side mirrors | + |
Visibility and parking
| Around View Monitor | + |
|---|
Security
Electronic systems
| Electronic stability control | + |
|---|---|
| Attention Assist driver fatigue monitoring | + |
Airbags
| Driver airbag | + |
|---|---|
| Passenger airbag | + |
| Side airbags | + |
| Curtain airbags | + |
Mercedes V-Class (W447) questions
Short answers based on the specifications and photos available in this catalog.
What kind of vehicle is the Mercedes-Benz V-Class?
The Mercedes-Benz V-Class is a large luxury passenger minivan, available with multiple seating configurations.
When was this version of the V-Class released?
This model represents the facelifted version of the third-generation V-Class, introduced in early 2019.
What engines are available in the 2019 V-Class?
The 2019 model features a 2.0-liter four-cylinder diesel engine, available in three power outputs: 163 hp (V 220d), 190 hp (V 250d), and 239 hp (V 300d).
Is the V-Class available with all-wheel drive?
Yes, while rear-wheel drive is standard, Mercedes-Benz offers the 4Matic all-wheel-drive system as an option across the engine range.
How many passengers can the V-Class carry?
Depending on the chosen specification and seating layout, the V-Class can accommodate between six and eight passengers.
Continue exploring Mercedes
Return to Mercedes models, browse the gallery, or compare the trims listed above.
