Mercedes GLB-Class (X247) specifications and photos

Mercedes GLB-Class (X247) specifications are shown with trim options, key technical data, and a model photo gallery. Compare 16 configurations by engine size, power, seating, and transmission. The gallery includes 49 photos for visual reference.

Years 2019

Body type suv

Trims 16

Photos 49

Overview

Mercedes GLB-Class (X247) at a glance

Quick model context before comparing photos and trim-level specifications.

Use this Mercedes GLB-Class (X247) page as a compact reference for photos, trim comparison, and detailed technical specifications. The current data covers 150-306 hp and 1332-1991 cc engine displacement. For exact values, open a trim section because specifications can differ between configurations.

Power: 150-306 hp
Engine displacement: 1332-1991 cc
Transmissions: 7, 8
Seating: 7 seats

Research hub

Photos, trims and specifications for Mercedes GLB-Class (X247)

This model page brings gallery images, trim comparison, and detailed technical data together for the 2019 generation.

Open photo gallery 49 images Compare trims 16 configurations View detailed specs 1332-1991 cc Explore related pages Mercedes and similar models

Configurations

Trims and key specifications

Use this table to compare the main differences between available configurations.

Power 150-306 hp

Engine displacement 1332-1991 cc

Seating 7 seats

Transmissions 7, 8

Trim / modification	Engine	Power	Seats	Transmission
200 AT	1332 cc	163 hp	7	7
250 AT	1991 cc	224 hp	7	8
250 AT 4MATIC	1991 cc	224 hp	7	8
35 AMG 4MATIC	1991 cc	306 hp	7	8
200 d AT	1950 cc	150 hp	7	8
200 d AT 4MATIC	1950 cc	150 hp	7	8
220 d AT	1950 cc	190 hp	7	8
220 d AT 4MATIC	1950 cc	190 hp	7	8
200	1332 cc	163 hp	7	7
250	1991 cc	224 hp	7	8
250 4MATIC	1991 cc	224 hp	7	8
35 AMG 4MATIC	1991 cc	306 hp	7	8
200d	1950 cc	150 hp	7	8
200d 4MATIC	1950 cc	150 hp	7	8
220d	1950 cc	190 hp	7	8
220d 4MATIC	1950 cc	190 hp	7	8

Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

Gallery

Mercedes GLB-Class (X247) photo gallery

49 images are collected here with the main specifications and trim data for this model.

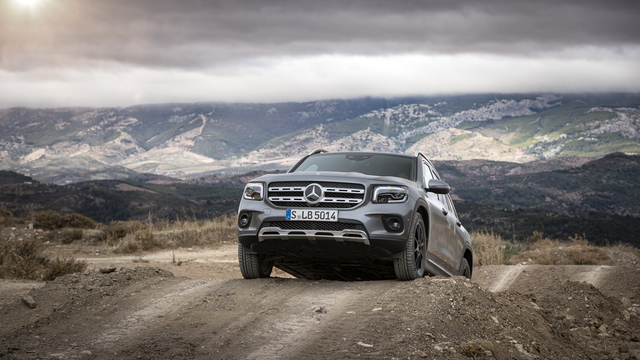

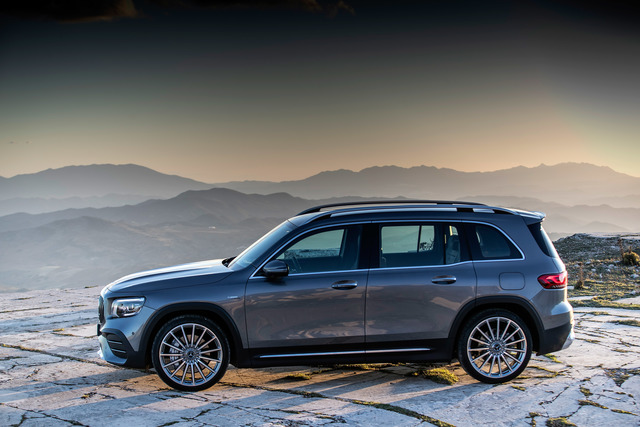

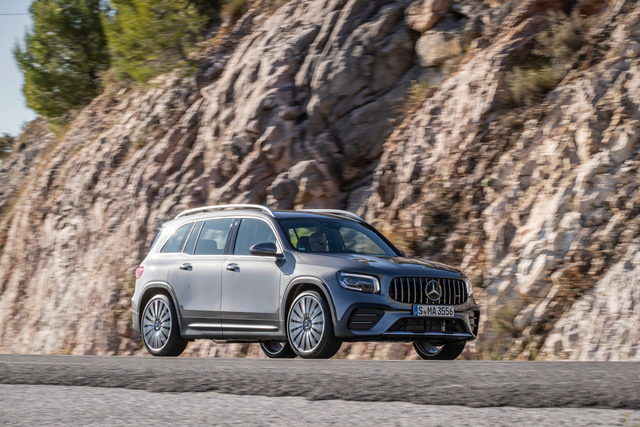

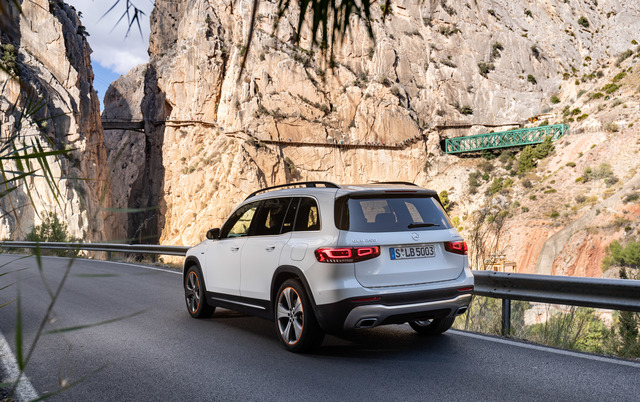

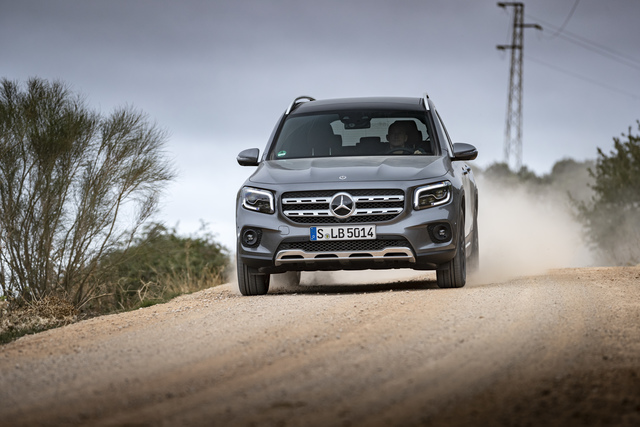

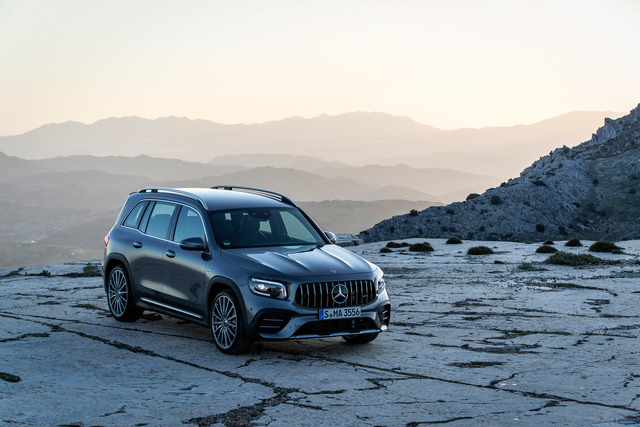

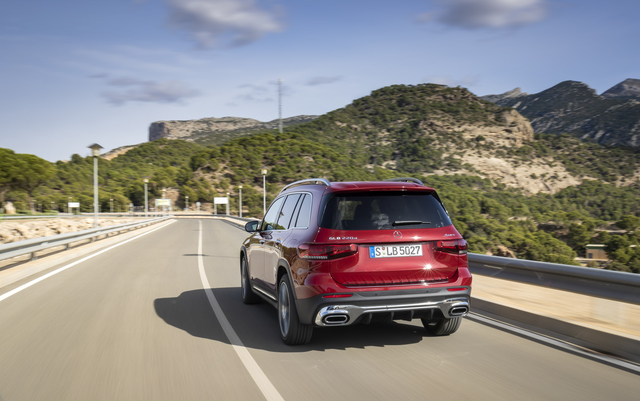

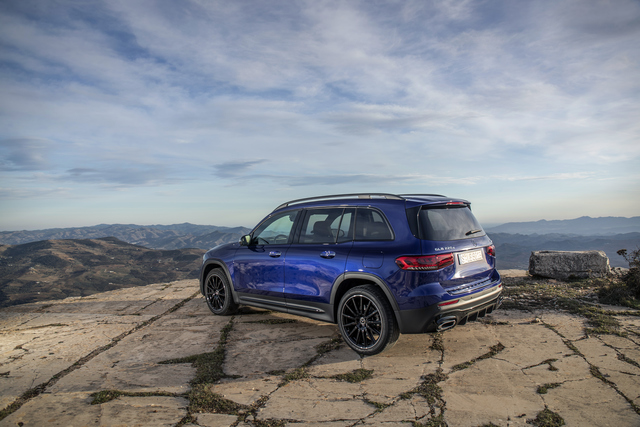

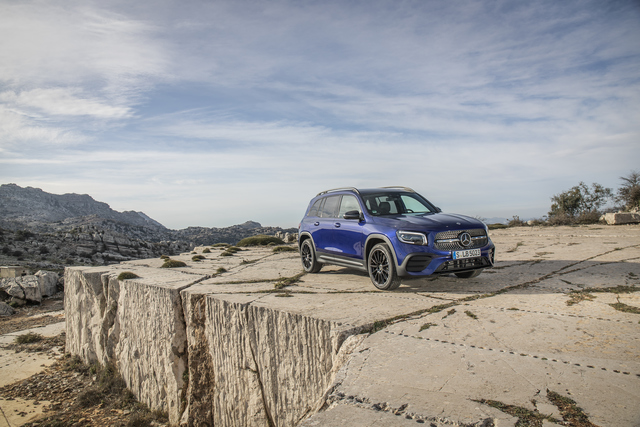

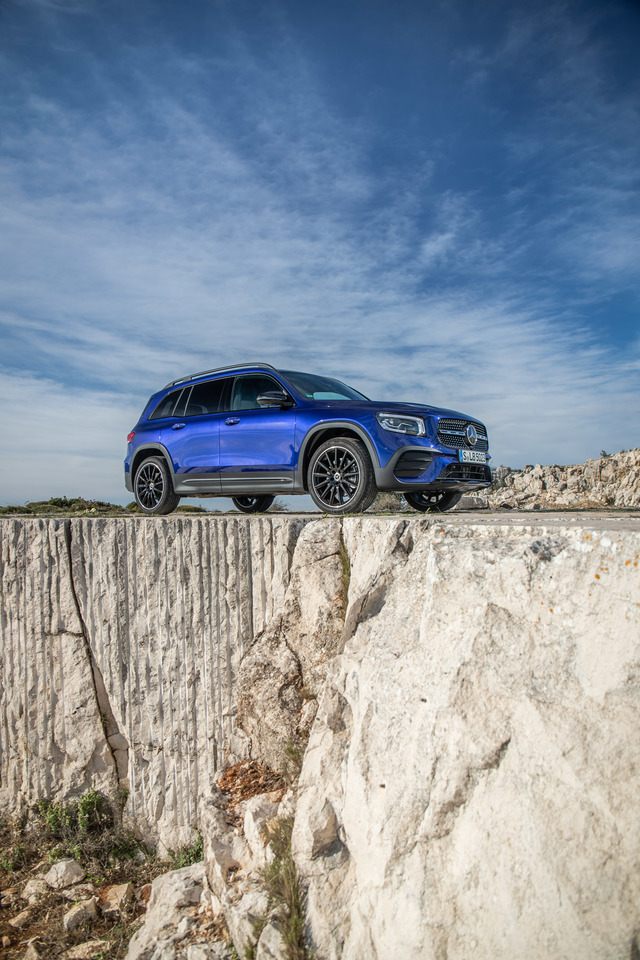

Photo Mercedes GLB-Class (X247)

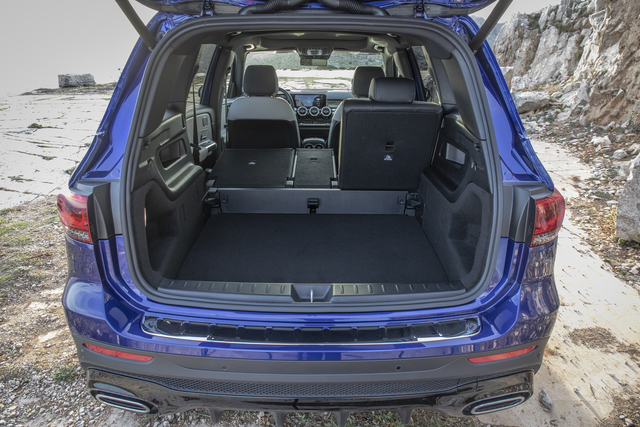

Interior of Mercedes GLB-Class (X247) 2019

Detailed specs

Specifications by trim

Choose a configuration below to open full technical data grouped by category.

200 AT 250 AT 250 AT 4MATIC 35 AMG 4MATIC 200 d AT 200 d AT 4MATIC 220 d AT 220 d AT 4MATIC 200 250 250 4MATIC 35 AMG 4MATIC 200d 200d 4MATIC 220d 220d 4MATIC

200 AT 32 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1332
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	163
Torque, Nm	250
RPM at max torque	1620-3800
Engine	1.3i
RPM at max power	5500
Turbo	+
Engine code	M282 DE14 AL

Dimensions

Seats	7
Length mm	4634
Height mm	1658
Wheelbase mm	2829
Trunk capacity, L	560
Width (without mirrors) mm	1834

Brake system

The front brakes	Disk
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (combined), l. 100 km	6.2
Acceleration (0-100 km/h), s	9.1
The maximum speed, km / h.	207
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

250 AT 30 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1991
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	224
Torque, Nm	350
RPM at max torque	1800
Engine	2.0i
RPM at max power	5500
Turbo	+
Engine code	M260 DE20 AL

Dimensions

Seats	7
Length mm	4634
Height mm	1658
Wheelbase mm	2829
Trunk capacity, L	560
Width (without mirrors) mm	1834

Brake system

The front brakes	Disk
Rear brakes	Disk

Performance and fuel consumption

Acceleration (0-100 km/h), s	7.1
The maximum speed, km / h.	240

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Front
Transmission	dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

250 AT 4MATIC 32 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1991
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	224
Torque, Nm	350
RPM at max torque	1800
Engine	2.0i
RPM at max power	5500
Turbo	+
Engine code	M260 DE20 AL

Dimensions

Seats	7
Length mm	4634
Height mm	1658
Wheelbase mm	2829
Trunk capacity, L	560
Width (without mirrors) mm	1834

Brake system

The front brakes	Disk
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (combined), l. 100 km	7.4
Acceleration (0-100 km/h), s	6.9
The maximum speed, km / h.	236
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

35 AMG 4MATIC 30 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1991
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	306
Torque, Nm	400
RPM at max torque	3000-4000
Engine	2.0i
RPM at max power	5800-6100
Turbo	+
Engine code	M260 DE20 AL

Dimensions

Seats	7
Length mm	4634
Height mm	1658
Wheelbase mm	2829
Trunk capacity, L	560
Width (without mirrors) mm	1834

Brake system

The front brakes	Disk
Rear brakes	Disk

Performance and fuel consumption

Acceleration (0-100 km/h), s	5.2
The maximum speed, km / h.	250

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

200 d AT 33 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1950
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	320
RPM at max torque	1400-3200
Engine	2.0 CDi
Compression	15.5
RPM at max power	3200-4800
Turbo	+
Engine code	OM654q DE20

Dimensions

Seats	7
Length mm	4634
Height mm	1658
Wheelbase mm	2829
Trunk capacity, L	560
Width (without mirrors) mm	1834

Brake system

The front brakes	Disk
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (combined), l. 100 km	5
Acceleration (0-100 km/h), s	9
The maximum speed, km / h.	204
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Front
Transmission	dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

200 d AT 4MATIC 33 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1950
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	320
RPM at max torque	1400-3200
Engine	2.0 CDi
Compression	15.5
RPM at max power	3200-4800
Turbo	+
Engine code	OM654q DE20

Dimensions

Seats	7
Length mm	4634
Height mm	1658
Wheelbase mm	2829
Trunk capacity, L	560
Width (without mirrors) mm	1834

Brake system

The front brakes	Disk
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (combined), l. 100 km	5.5
Acceleration (0-100 km/h), s	9.3
The maximum speed, km / h.	201
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

220 d AT 31 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1950
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1600-2800
Engine	2.0 CDi
Compression	15.5
RPM at max power	3800
Turbo	+
Engine code	OM654 D20 SCR

Dimensions

Seats	7
Length mm	4634
Height mm	1658
Wheelbase mm	2829
Trunk capacity, L	560
Width (without mirrors) mm	1834

Brake system

The front brakes	Disk
Rear brakes	Disk

Performance and fuel consumption

Acceleration (0-100 km/h), s	7.7
The maximum speed, km / h.	220

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Front
Transmission	dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

220 d AT 4MATIC 33 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1950
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1600-2800
Engine	2.0 CDi
Compression	15.5
RPM at max power	3800
Turbo	+
Engine code	OM654 D20 SCR

Dimensions

Seats	7
Length mm	4634
Height mm	1658
Wheelbase mm	2829
Trunk capacity, L	560
Width (without mirrors) mm	1834

Brake system

The front brakes	Disk
Rear brakes	Disk

Performance and fuel consumption

Fuel consumption (combined), l. 100 km	5.5
Acceleration (0-100 km/h), s	7.6
The maximum speed, km / h.	217
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

200 30 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1332
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	163
Torque, Nm	250
RPM at max torque	1620-3800
Engine	1.3i
RPM at max power	5500
Turbo	+
Engine code	M282 DE14 AL

Dimensions

Seats	7
Length mm	4634
Height mm	1658
Wheelbase mm	2829
Trunk capacity, L	560
Width (without mirrors) mm	1834

Performance and fuel consumption

Fuel consumption (combined), l. 100 km	6.2
Acceleration (0-100 km/h), s	9.1
The maximum speed, km / h.	207
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	7
Drive	Front
Transmission	dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

250 28 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1991
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	224
Torque, Nm	350
RPM at max torque	1800
Engine	2.0i
RPM at max power	5500
Turbo	+
Engine code	M260 DE20 AL

Dimensions

Seats	7
Length mm	4634
Height mm	1658
Wheelbase mm	2829
Trunk capacity, L	560
Width (without mirrors) mm	1834

Performance and fuel consumption

Acceleration (0-100 km/h), s	7.1
The maximum speed, km / h.	240

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Front
Transmission	dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

250 4MATIC 30 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1991
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	224
Torque, Nm	350
RPM at max torque	1800
Engine	2.0i
RPM at max power	5500
Turbo	+
Engine code	M260 DE20 AL

Dimensions

Seats	7
Length mm	4634
Height mm	1658
Wheelbase mm	2829
Trunk capacity, L	560
Width (without mirrors) mm	1834

Performance and fuel consumption

Fuel consumption (combined), l. 100 km	7.4
Acceleration (0-100 km/h), s	6.9
The maximum speed, km / h.	236
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

35 AMG 4MATIC 28 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Gasoline
Displacement, cc	1991
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	306
Torque, Nm	400
RPM at max torque	3000-4000
Engine	2.0i
RPM at max power	5800-6100
Turbo	+
Engine code	M260 DE20 AL

Dimensions

Seats	7
Length mm	4634
Height mm	1658
Wheelbase mm	2829
Trunk capacity, L	560
Width (without mirrors) mm	1834

Performance and fuel consumption

Acceleration (0-100 km/h), s	5.2
The maximum speed, km / h.	250

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

200d 31 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1950
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	320
RPM at max torque	1400-3200
Engine	2.0 CDi
Compression	15.5
RPM at max power	3200-4800
Turbo	+
Engine code	OM654q DE20

Dimensions

Seats	7
Length mm	4634
Height mm	1658
Wheelbase mm	2829
Trunk capacity, L	560
Width (without mirrors) mm	1834

Performance and fuel consumption

Fuel consumption (combined), l. 100 km	5
Acceleration (0-100 km/h), s	9
The maximum speed, km / h.	204
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Front
Transmission	dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

200d 4MATIC 31 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1950
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	150
Torque, Nm	320
RPM at max torque	1400-3200
Engine	2.0 CDi
Compression	15.5
RPM at max power	3200-4800
Turbo	+
Engine code	OM654q DE20

Dimensions

Seats	7
Length mm	4634
Height mm	1658
Wheelbase mm	2829
Trunk capacity, L	560
Width (without mirrors) mm	1834

Performance and fuel consumption

Fuel consumption (combined), l. 100 km	5.5
Acceleration (0-100 km/h), s	9.3
The maximum speed, km / h.	201
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

220d 29 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1950
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1600-2800
Engine	2.0 CDi
Compression	15.5
RPM at max power	3800
Turbo	+
Engine code	OM654 D20 SCR

Dimensions

Seats	7
Length mm	4634
Height mm	1658
Wheelbase mm	2829
Trunk capacity, L	560
Width (without mirrors) mm	1834

Performance and fuel consumption

Acceleration (0-100 km/h), s	7.7
The maximum speed, km / h.	220

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Front
Transmission	dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

220d 4MATIC 31 specifications

Specifications

Engine

Type of engine	ICE
Type of fuel	Diesel
Displacement, cc	1950
Cylinders location	In-line
Number of cylinders	4
Valves	16
Power, hp	190
Torque, Nm	400
RPM at max torque	1600-2800
Engine	2.0 CDi
Compression	15.5
RPM at max power	3800
Turbo	+
Engine code	OM654 D20 SCR

Dimensions

Seats	7
Length mm	4634
Height mm	1658
Wheelbase mm	2829
Trunk capacity, L	560
Width (without mirrors) mm	1834

Performance and fuel consumption

Fuel consumption (combined), l. 100 km	5.5
Acceleration (0-100 km/h), s	7.6
The maximum speed, km / h.	217
The rate of toxicity	Euro VI

Transmission and drive

Automatic transmission	+
Number of gears	8
Drive	Full
Transmission	dual-clutch
Gearbox	2 clutch robot
Transmission manufacturer	Daimler AG
Transmission country of origin	Germany

FAQ

Mercedes GLB-Class (X247) questions

Short answers based on the specifications and photos available in this catalog.

How many trims are listed for the Mercedes GLB-Class (X247)?

This page lists 16 trims for the Mercedes GLB-Class (X247), with key data shown in the comparison table and full specifications grouped below.

What is the power range for the Mercedes GLB-Class (X247)?

The listed configurations show a power range of 150-306 hp. Exact output can vary by engine, transmission, market, and model year.

What engine displacement is shown for the Mercedes GLB-Class (X247)?

The available specification data shows engine displacement from 1332-1991 cc across the trims listed on this page.

Which transmissions are listed for the Mercedes GLB-Class (X247)?

The transmission options currently shown for this model are: 7, 8. Open a trim section to see the full data for a specific configuration.

Are there photos for the Mercedes GLB-Class (X247)?

Yes. The gallery includes 49 photos for the Mercedes GLB-Class (X247), including exterior and interior views where available.

Why can specifications differ for the same model?

Automotive specifications can differ by market, production year, body style, trim package, and transmission. Use the trim selector and detailed specification sections to compare exact configurations.
