Mitsubishi ASX specifications and photos
The 2023 Mitsubishi ASX is a subcompact crossover SUV representing the second generation of the nameplate. Developed specifically for the European market, it shares its platform with other Renault-Nissan-Mitsubishi Alliance models. This version offers a diverse range of powertrains, including mild hybrid, full hybrid, and plug-in hybrid setups.
Mitsubishi ASX at a glance
Quick model context before comparing photos and trim-level specifications.
The 2023 Mitsubishi ASX represents a major shift for the subcompact crossover, moving to the Alliance CMF-B platform. Historically known as the RVR or Outlander Sport in other global markets, this second-generation model is specifically tailored for European drivers and is assembled at the Renault plant in Valladolid, Spain. By leveraging shared alliance architecture, the vehicle shifts away from its aging predecessor to offer modern packaging, updated technology, and competitive fuel efficiency. The lineup features multiple electrified powertrains to meet strict European emissions standards, ranging from a basic three-cylinder turbo to mild-hybrid and full plug-in hybrid options. This generation targets urban buyers and small families who want a maneuverable, modern SUV with flexible engine choices and updated safety systems.
- Power: 91-159 hp
- Engine displacement: 999-1598 cc
- Transmissions: 6-speed manual, 7-speed dual-clutch, CVT
- Seating: 5 seats
Photos, trims and specifications for Mitsubishi ASX
This model page brings gallery images, trim comparison, and detailed technical data together for the 2023 generation.
Estimate fuel cost
Use trim-level fuel consumption data to estimate monthly and yearly fuel spending.
Fuel costs are estimates. Real consumption can change with driving style, traffic, tires, weather, load, and market-specific equipment.
Mitsubishi ASX overview
Editorial context for design, cabin, performance, practicality, and buyer notes.
Design

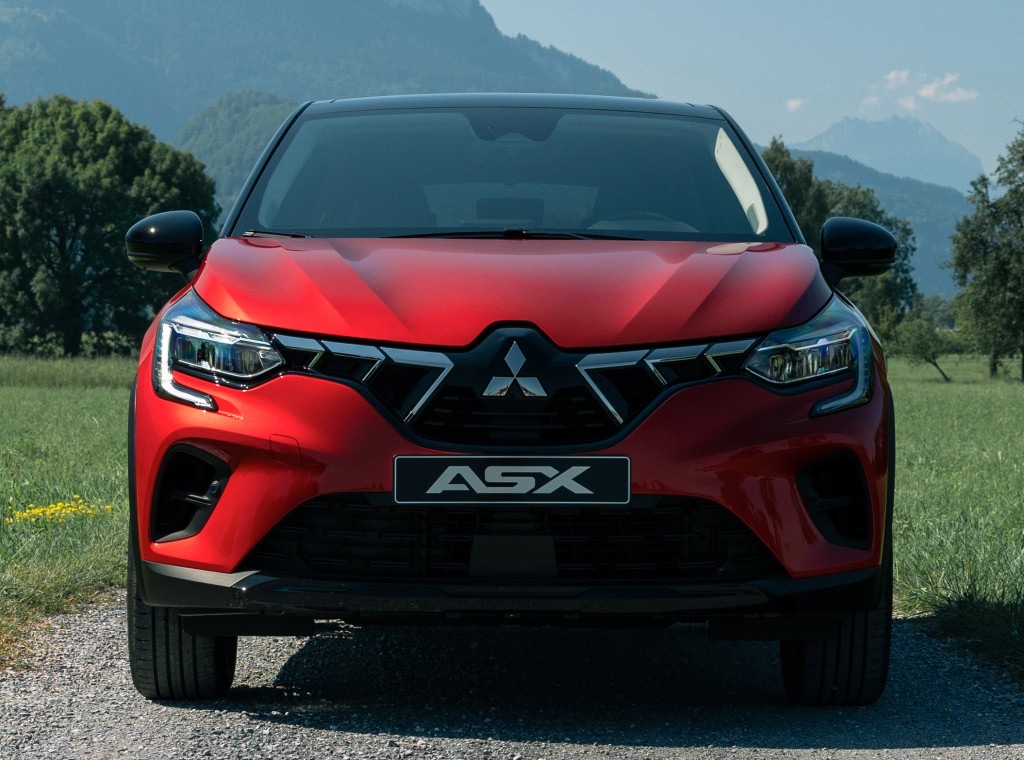

The exterior design of the 2023 Mitsubishi ASX adopts the brand's signature Dynamic Shield front-end styling. It features a prominent front grille featuring the three-diamond logo, integrated with sleek headlight housings. The vehicle displays a compact, rounded profile with flowing side lines that emphasize maneuverability and urban styling. It sits on a 2,639 mm wheelbase, with a total length of 4,227 mm and a ground clearance of 173 mm. The rear is styled to match the crossover's compact proportions, presenting a tidy look suitable for tight city streets and parking spaces.
Interior
Inside, the Mitsubishi ASX features passenger accommodations for up to five occupants. Seat upholstery varies by trim level, with options including fabric, leatherette, or genuine leather. The dashboard is configured with digital instrument displays measuring 4.2 inches, 7 inches, or 10.25 inches depending on the chosen equipment grade. The central infotainment system is driven by a smartphone-linkable audio screen, which is offered as a 7.8-inch landscape monitor or a larger 9.3-inch portrait-oriented display. Drivers can customize cabin settings and driving characteristics through the Multi-Sense system. Higher-tier trims also benefit from an upgraded Bose audio system.
Performance
The 2023 ASX is front-wheel drive and offers several engine configurations. The entry-level model is powered by a 1.0-liter three-cylinder turbo petrol engine producing 91 hp, mated to a 6-speed manual transmission. Upgrading to the 1.3-liter mild-hybrid (MHEV) variant provides either 140 hp with a 6-speed manual or 158 hp with a 7-speed dual-clutch transmission. For higher efficiency, the full hybrid (HEV) version combines a 1.6-liter engine with two electric motors and a 1.3 kWh battery for 143 hp. The flagship plug-in hybrid (PHEV) uses a similar 1.6-liter engine and dual-motor setup, but adds a larger 10.5 kWh battery pack to produce 159 hp.
Practicality
As a subcompact crossover, the ASX offers practical daily utility within a compact footprint. It measures 1,797 mm in width and 1,567 mm in height, making it easy to navigate through narrow city lanes. The five-seat layout provides passenger space for small families, while the rear liftgate opens to a versatile cargo area. The plug-in hybrid version's battery placement under the floor optimizes cabin space, although buyers should note that hybrid components can sometimes impact absolute cargo capacity compared to the standard petrol model. A 48-liter fuel tank is standard across the lineup.
Safety and tech
Technology in the ASX is highlighted by the MI-PILOT driver assist system, available on select trims. This safety suite integrates adaptive cruise control and lane centering assist to help maintain speed and lane position during highway driving. Standard driver aids and active safety features are included across the range to monitor vehicle surroundings. Infotainment connectivity is fully integrated with smartphone syncing, allowing passengers to access navigation and media directly through the central SDA touchscreen, while the Multi-Sense system adjusts steering weight and engine response based on the selected mode.
Buyer notes
When shopping for the 2023 ASX, buyers should closely compare the engine and transmission pairings, as they dictate both performance and cabin tech. The entry-level 1.0-liter and manual 1.3-liter models offer simpler mechanical setups and analog-focused displays. Those seeking maximum efficiency or electric-only commuting ranges should focus on the full hybrid or plug-in hybrid models, though these come at a higher price point. Buyers should also verify regional specifications, as screen sizes, audio systems, and advanced safety features like MI-PILOT are trim-dependent and vary by market.
Trims and key specifications
Use this table to compare the main differences between available configurations.
| Trim / modification | Engine | Power | Seats | Transmission |
|---|---|---|---|---|
| 1.0 MPI-T (91 hp) 6-speed manual | 999 cc | 91 hp | 5 | 6-speed manual |
| 1.3 DI-T MHEV (140 hp) 6-speed manual | 1332 cc | 140 hp | 5 | 6-speed manual |
| 1.3 DI-T MHEV (158 hp) 7-DCT | 1332 cc | 158 hp | 5 | 7-speed dual-clutch |
| 1.6h (143 hp) CVT | 1598 cc | 143 hp | 5 | CVT |
| 1.6 Plug-in Hybrid (159 hp) CVT | 1598 cc | 159 hp | 5 | CVT |
Specifications can vary by market, model year, and equipment package. Use the trim sections below to review the full data for each configuration.

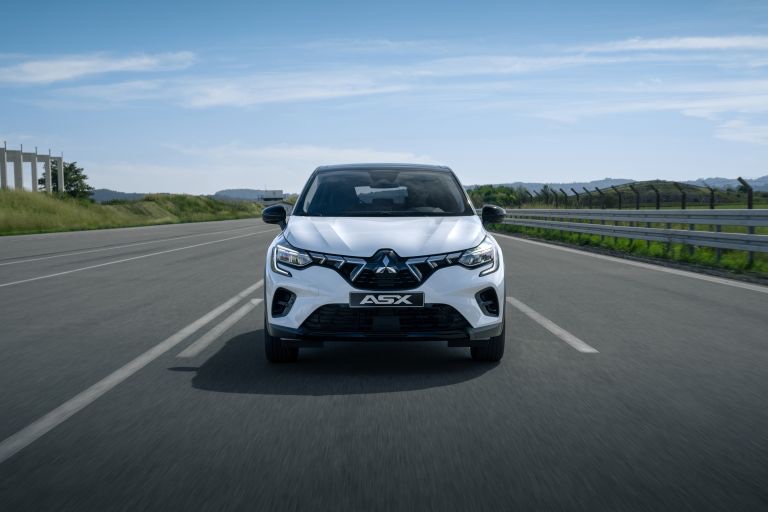

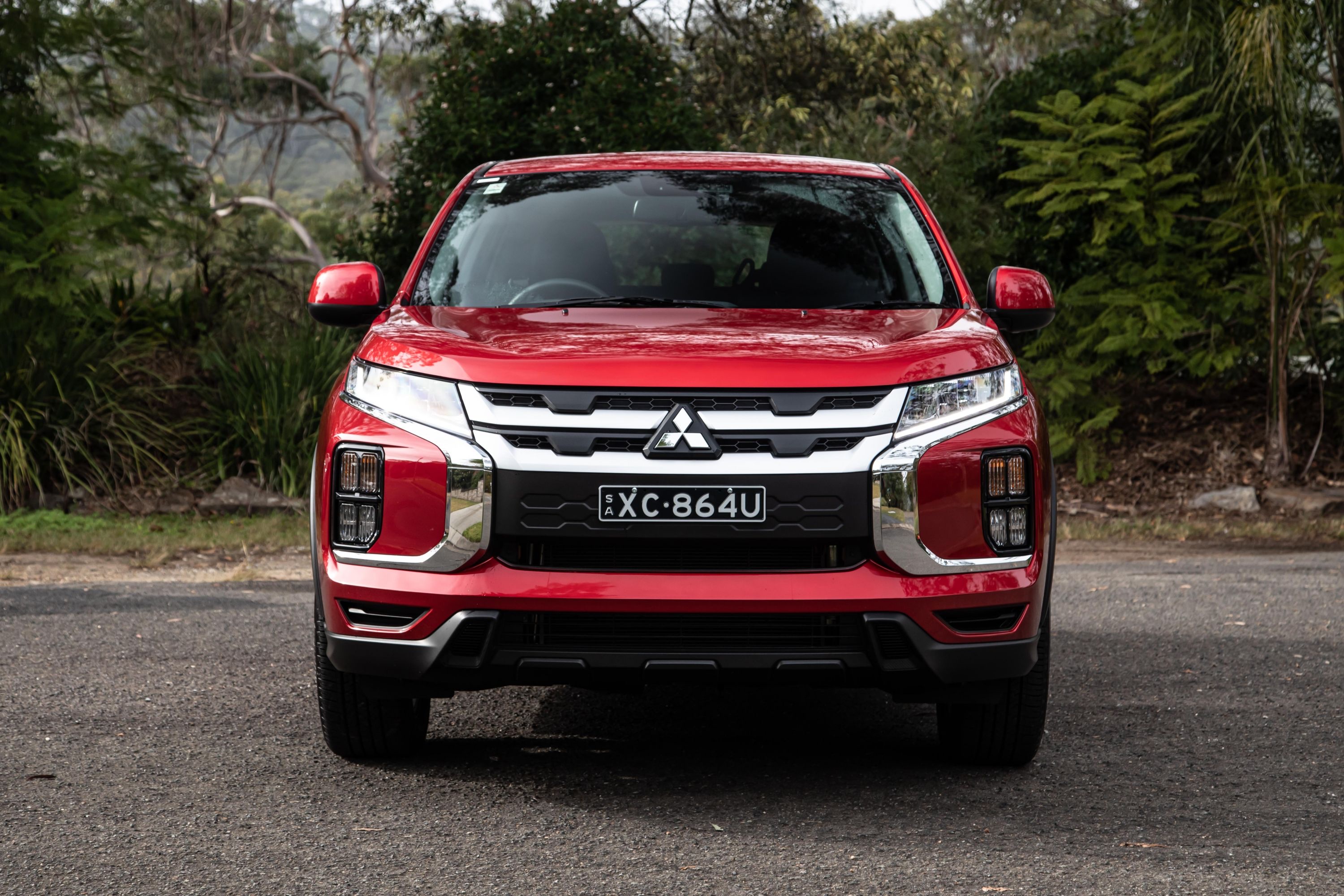

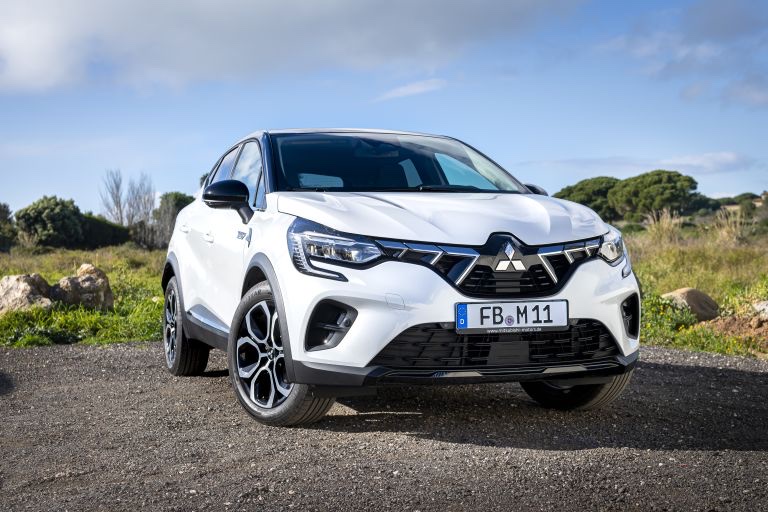

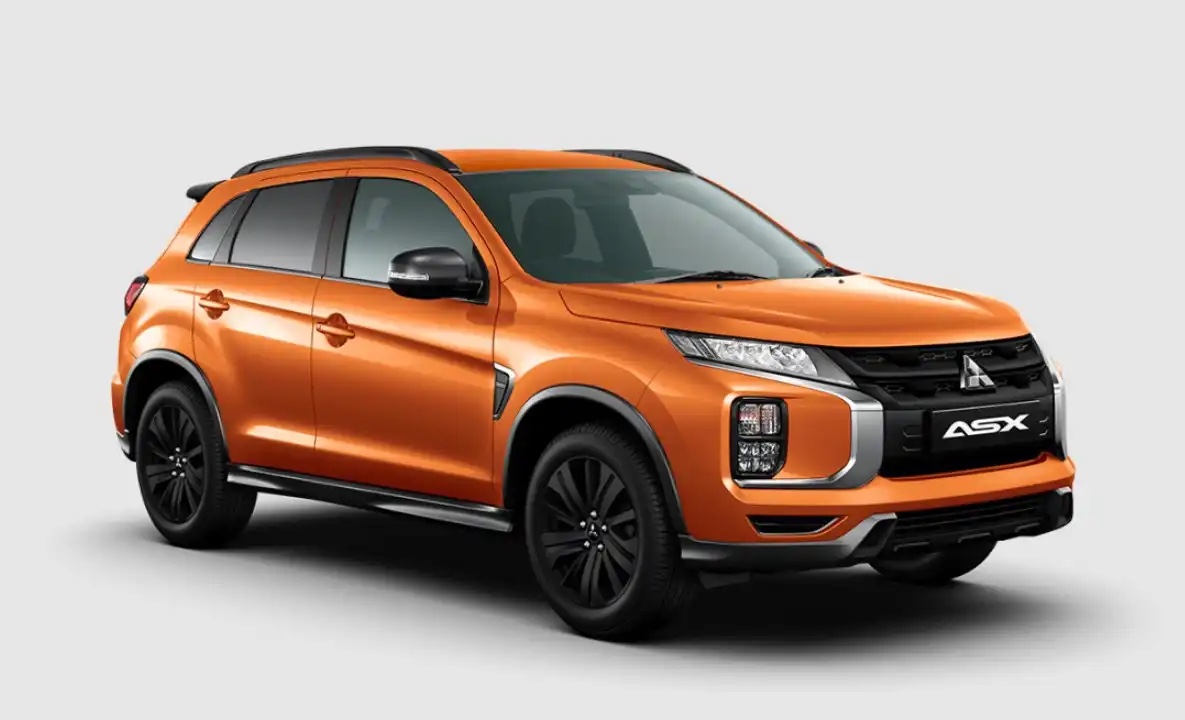

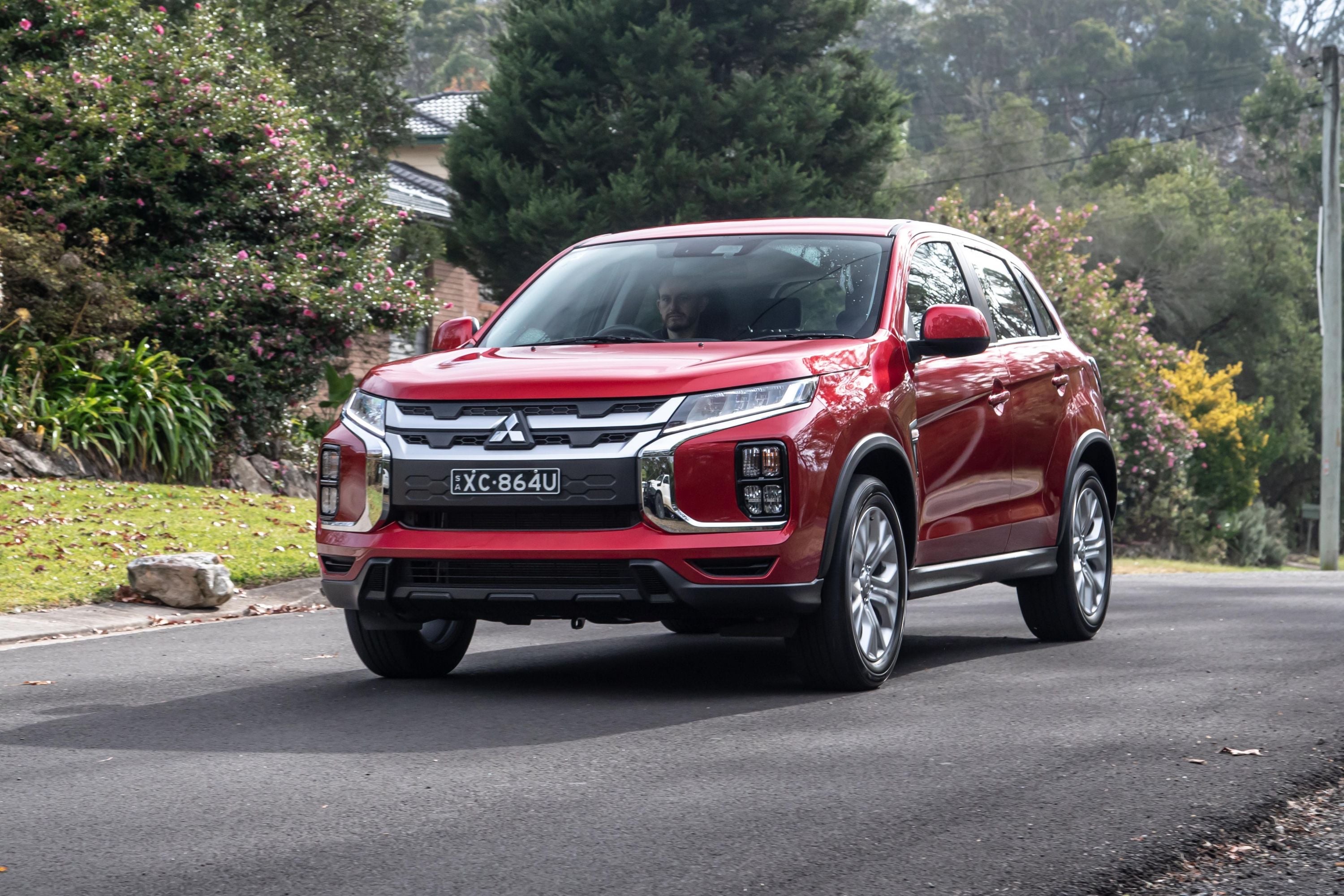

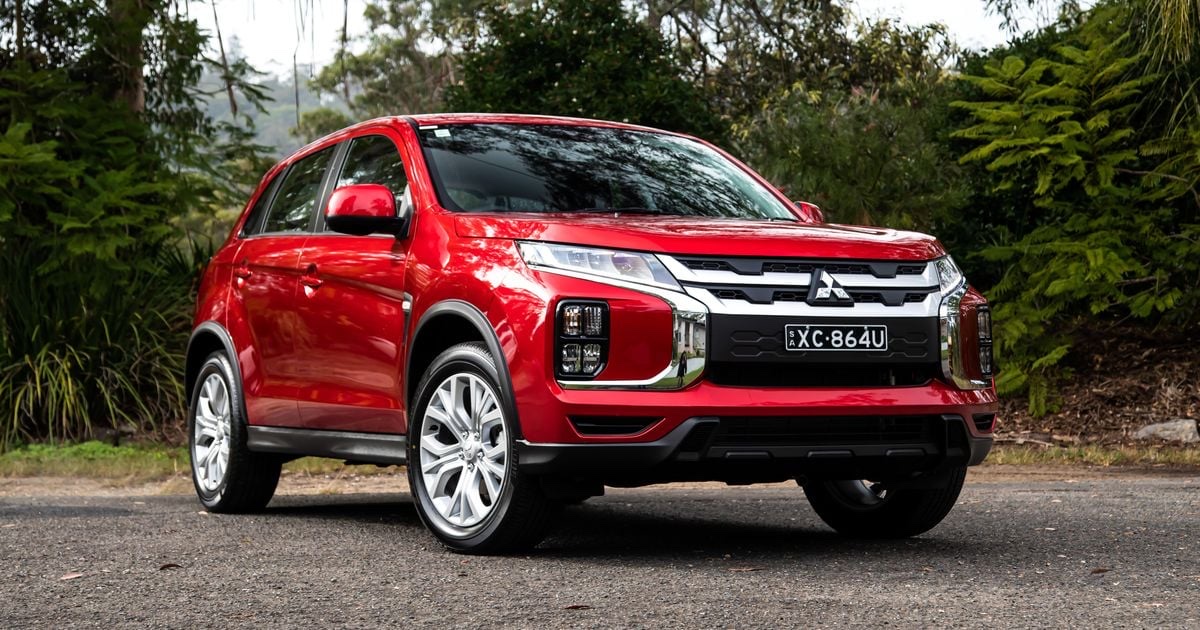

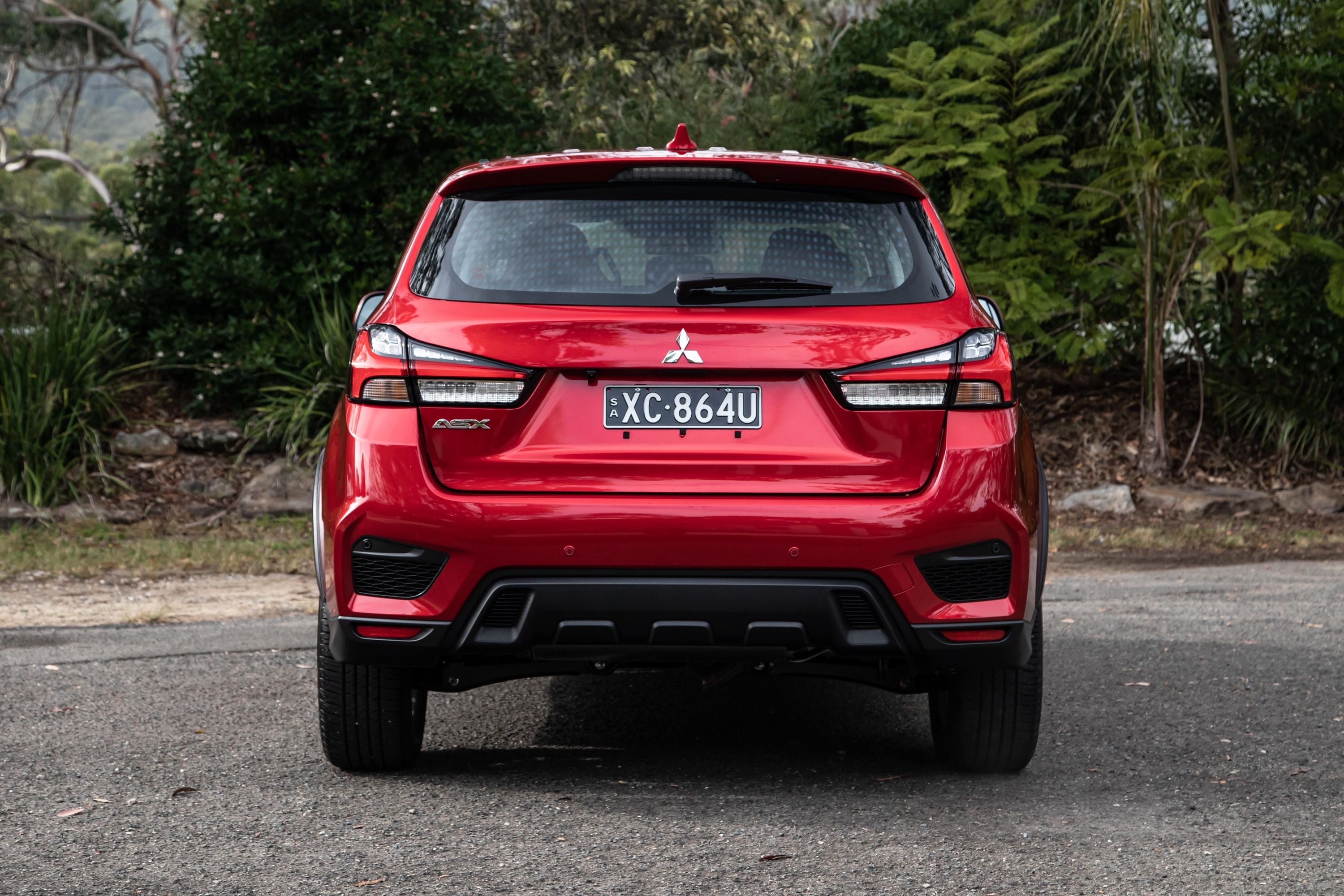

Mitsubishi ASX photo gallery
19 images are collected here with the main specifications and trim data for this model.

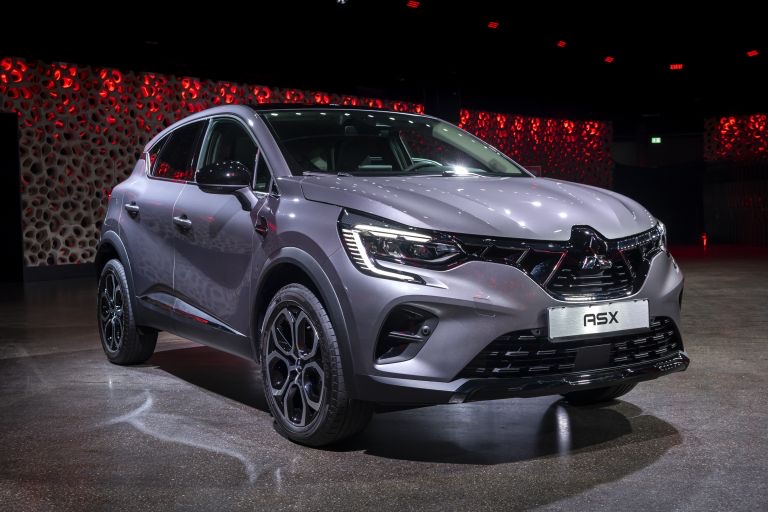

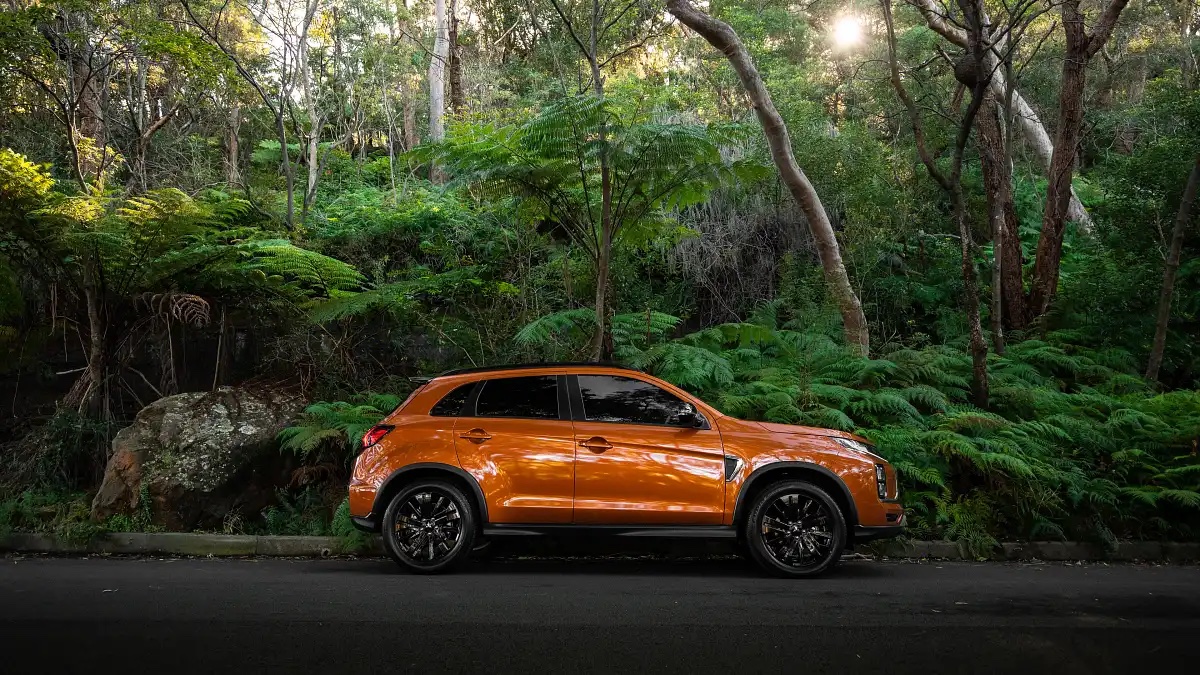

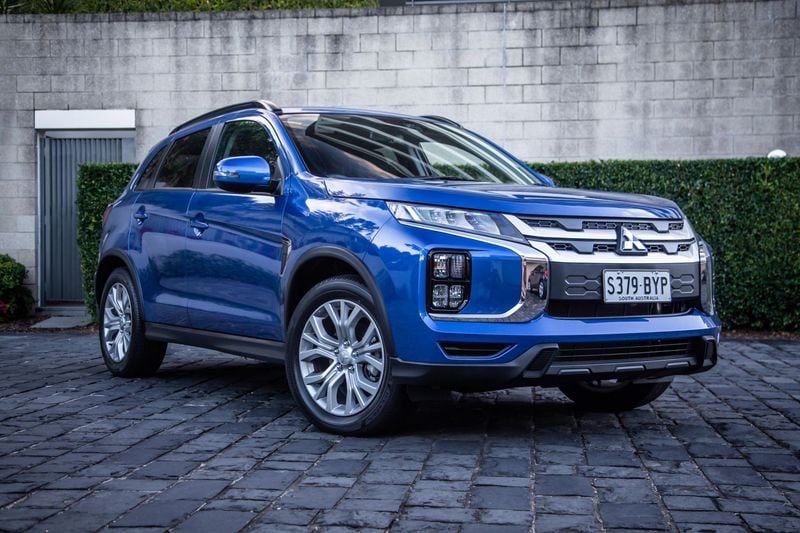

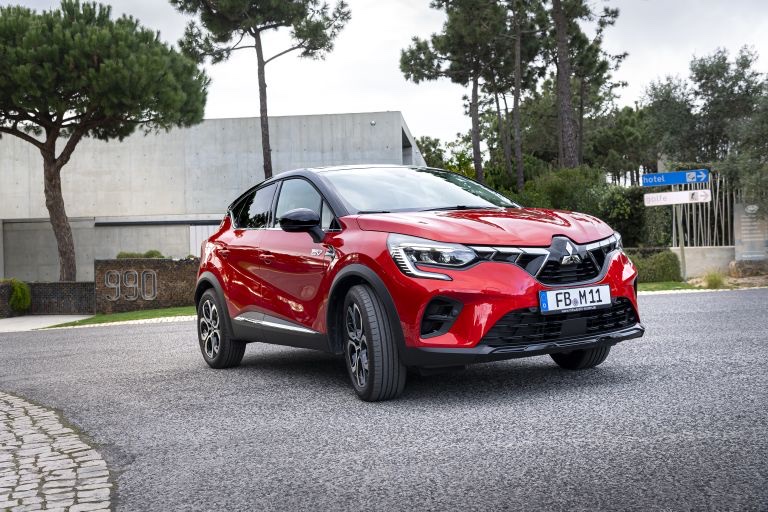

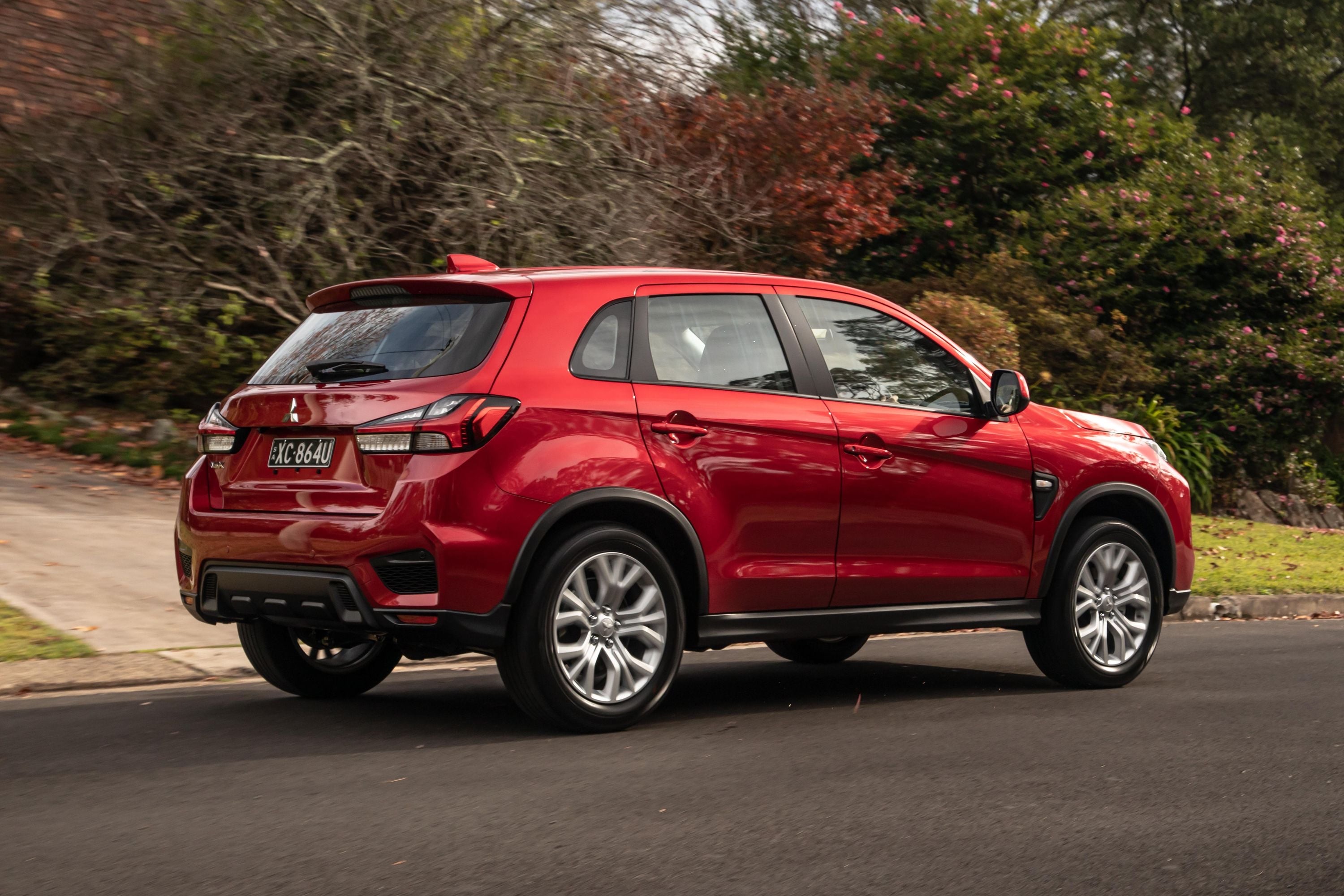

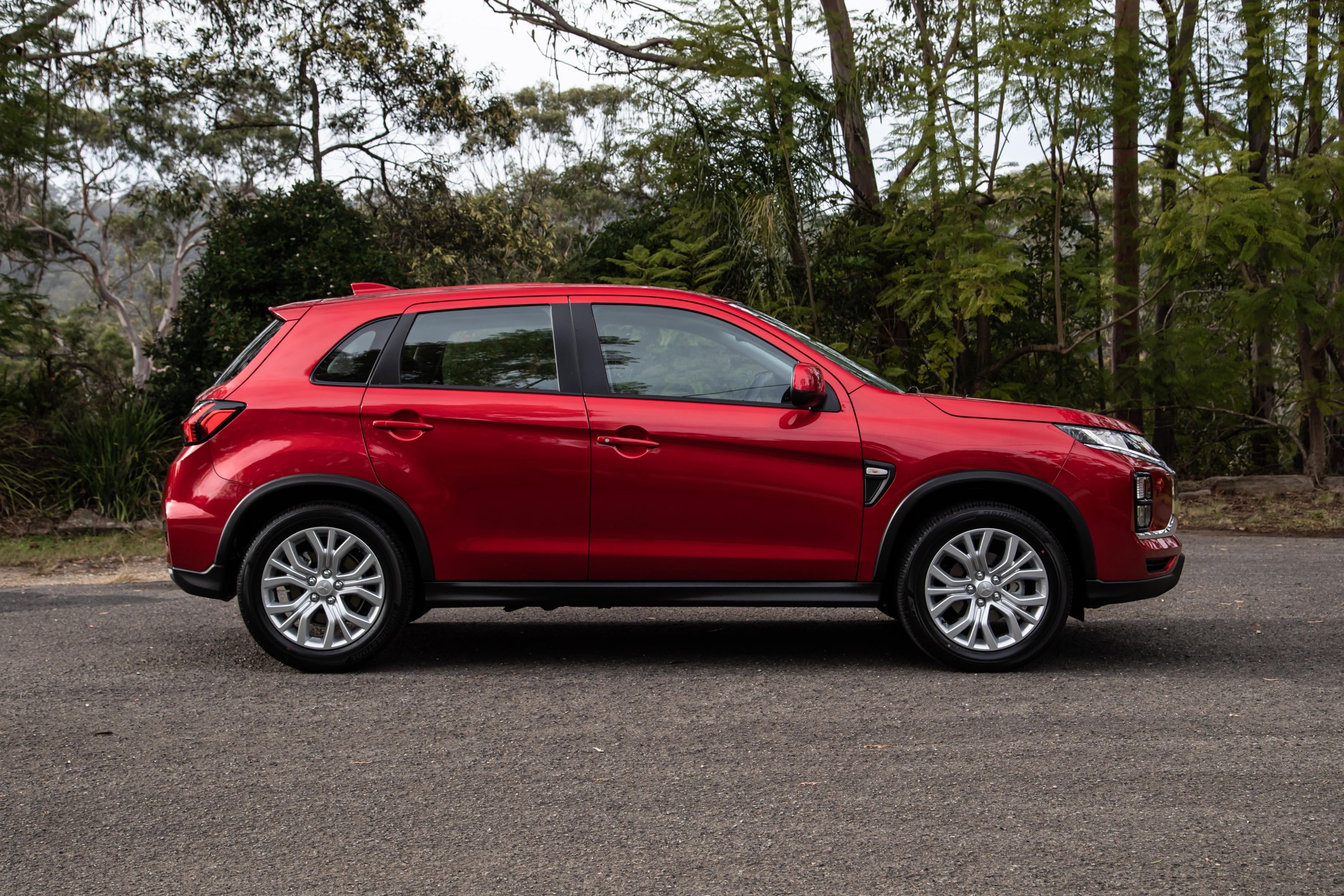

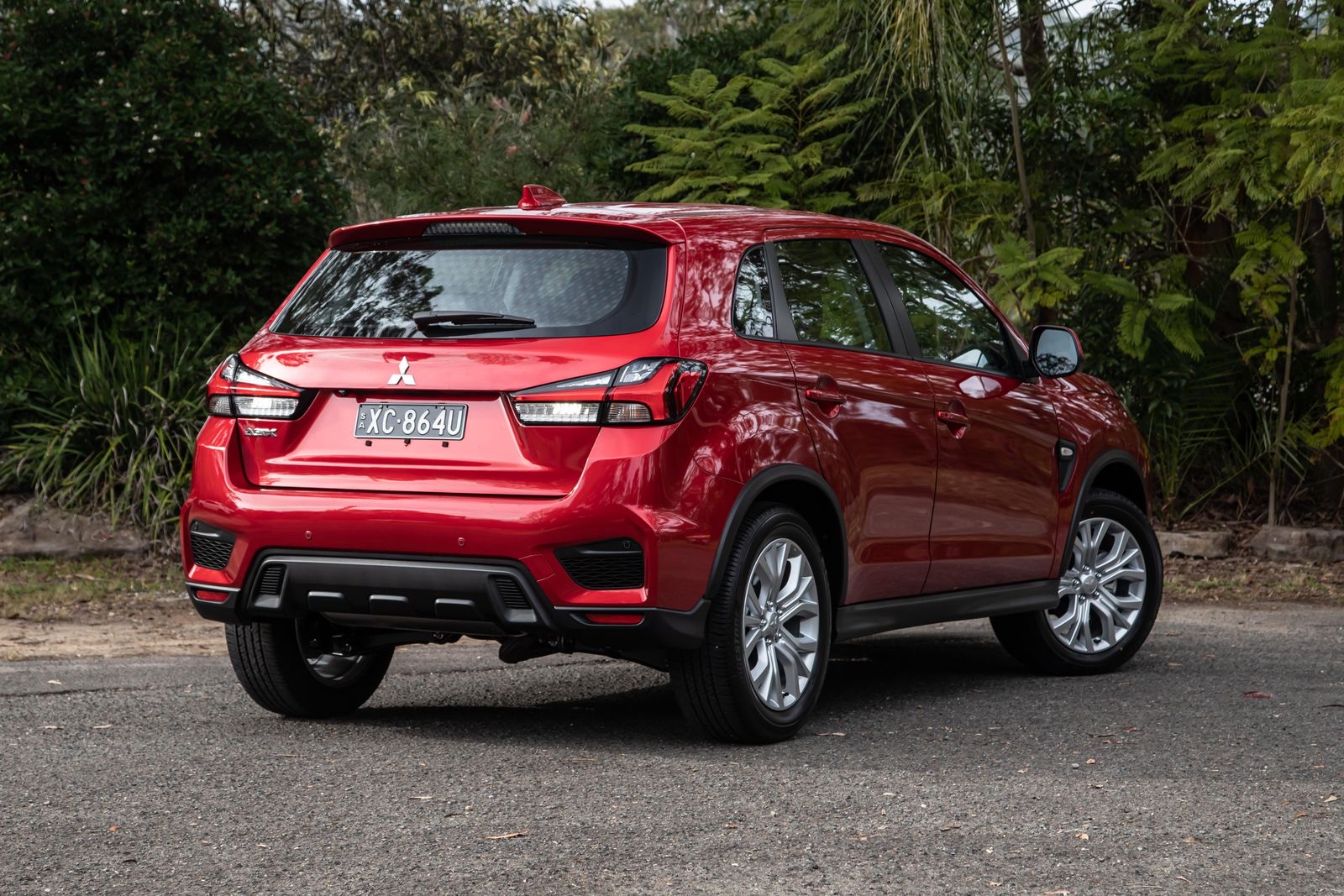

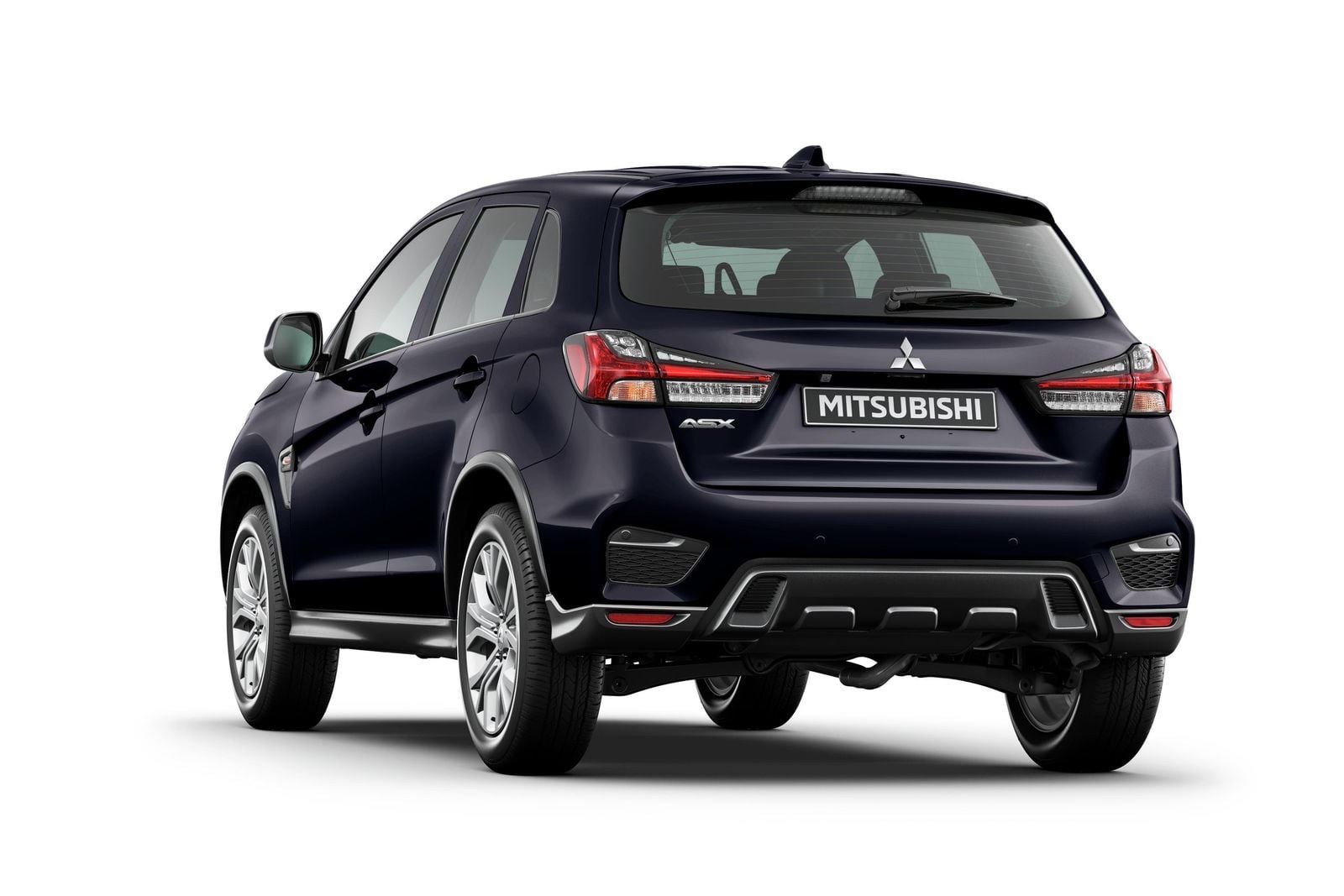

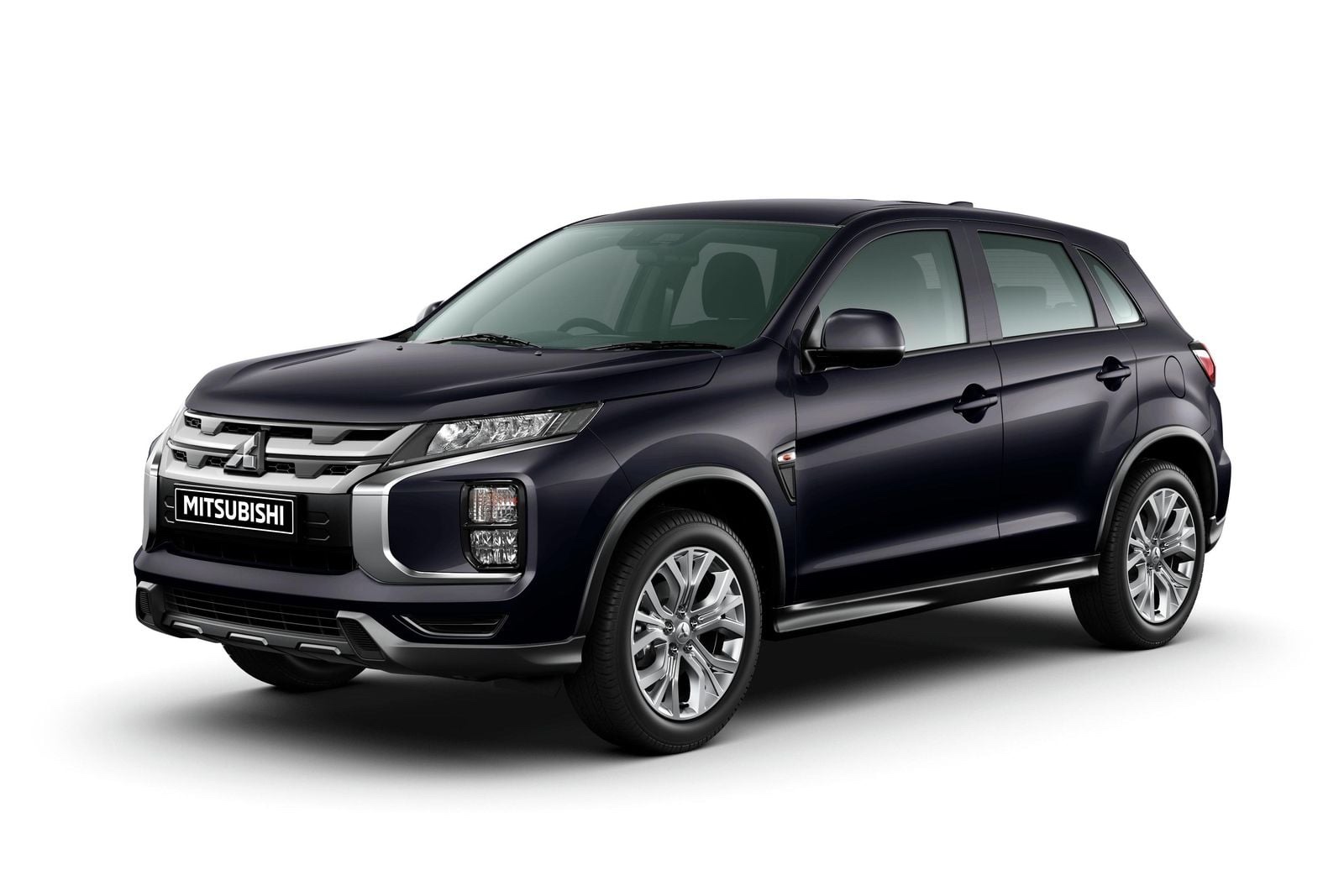

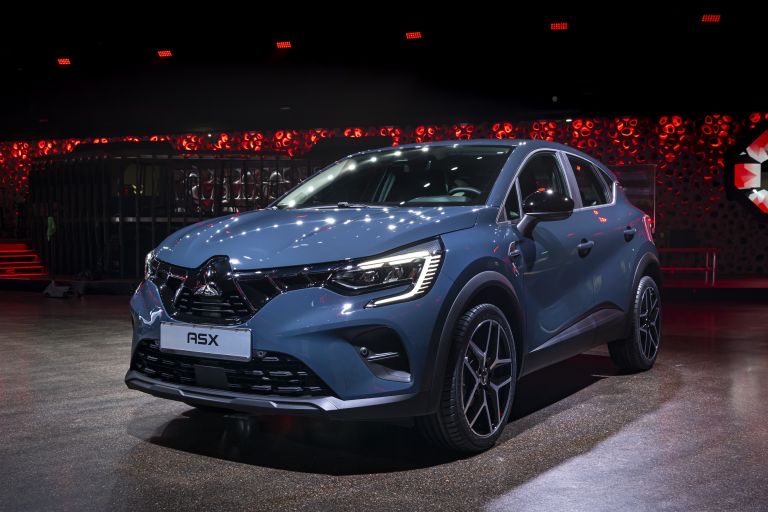

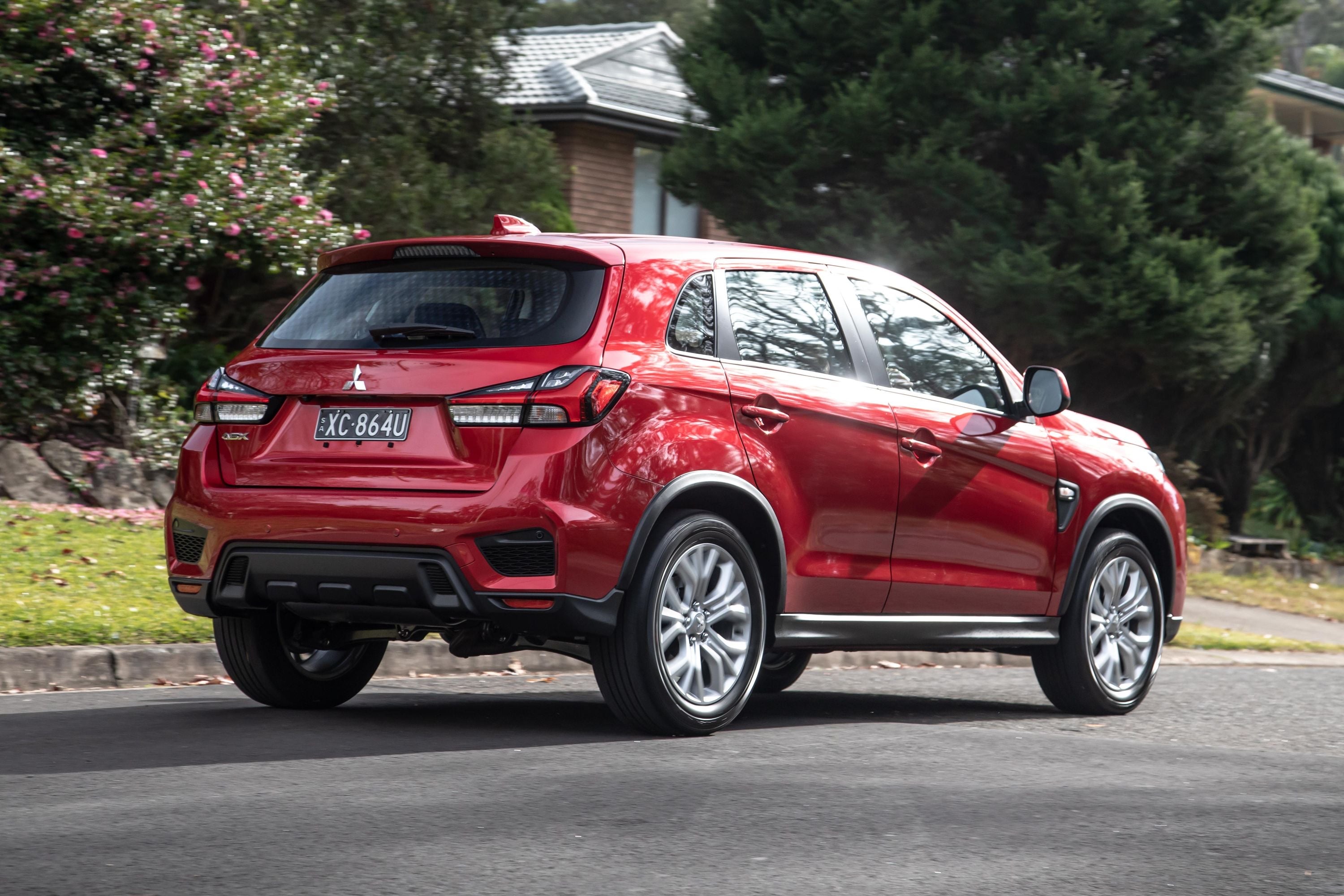

Photo Mitsubishi ASX
Specifications by trim
Choose a configuration below to open full technical data grouped by category.
1.0 MPI-T (91 hp) 6-speed manual 31 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.7 |
|---|---|
| Top speed, km/h | 168 |
| Acceleration 0-100 km/h, s | 14 |
Engine
| Engine | 1.0 MPI-T |
|---|---|
| Engine code | H4D |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 999 |
| Cylinder layout | Inline |
| Number of cylinders | 3 |
| Valves | 12 |
| Turbocharger | + |
| Compression ratio | 9.5:1 |
| Power, hp | 91 |
| RPM at max power | 4600 |
| Torque, Nm | 160 |
| RPM at max torque | 2000-3750 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4227 |
| Width, mm | 1797 |
| Height, mm | 1567 |
| Wheelbase, mm | 2639 |
| Front track, mm | 1554 |
| Rear track, mm | 1541 |
| Kerb weight, kg | 1334 |
| Fuel tank capacity, L | 48 |
| Ground clearance, mm | 173 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
1.3 DI-T MHEV (140 hp) 6-speed manual 31 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.8 |
|---|---|
| Top speed, km/h | 196 |
| Acceleration 0-100 km/h, s | 10.3 |
Engine
| Engine | 1.3 DI-T MHEV |
|---|---|
| Engine code | H5H |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1332 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 10.5:1 |
| Power, hp | 140 |
| RPM at max power | 4500-6000 |
| Torque, Nm | 260 |
| RPM at max torque | 1750-3500 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4227 |
| Width, mm | 1797 |
| Height, mm | 1567 |
| Wheelbase, mm | 2639 |
| Front track, mm | 1554 |
| Rear track, mm | 1541 |
| Kerb weight, kg | 1334 |
| Fuel tank capacity, L | 48 |
| Ground clearance, mm | 173 |
Transmission and drive
| Transmission | 6-speed manual |
|---|---|
| Transmission type | manual |
| Drive | Front-wheel drive |
| Number of gears | 6 |
1.3 DI-T MHEV (158 hp) 7-DCT 32 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 5.9 |
|---|---|
| Top speed, km/h | 204 |
| Acceleration 0-100 km/h, s | 8.5 |
Engine
| Engine | 1.3 DI-T MHEV |
|---|---|
| Engine code | H5H |
| Engine type | Internal combustion engine |
| Fuel type | Gasoline |
| Engine displacement, cc | 1332 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Turbocharger | + |
| Compression ratio | 10.5:1 |
| Power, hp | 158 |
| RPM at max power | 5500-6000 |
| Torque, Nm | 270 |
| RPM at max torque | 1750-3600 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4227 |
| Width, mm | 1797 |
| Height, mm | 1567 |
| Wheelbase, mm | 2639 |
| Front track, mm | 1554 |
| Rear track, mm | 1541 |
| Kerb weight, kg | 1334 |
| Fuel tank capacity, L | 48 |
| Ground clearance, mm | 173 |
Transmission and drive
| Transmission | 7-speed dual-clutch |
|---|---|
| Transmission type | 2-speed automated manual |
| Drive | Front-wheel drive |
| Number of gears | 7 |
| Automatic transmission | + |
1.6h (143 hp) CVT 37 specifications
Specifications
Performance and consumption
| Fuel consumption combined, L/100 km | 4.7 |
|---|---|
| Top speed, km/h | 170 |
| Acceleration 0-100 km/h, s | 9.9 |
Engine
| Engine | 1.6h |
|---|---|
| Engine code | H4M 630, 632 |
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1598 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Compression ratio | 10.8:1 |
| Power, hp | 143 |
| Electric motor power, hp | 49 |
| Combustion engine power, hp | 94 |
| Combustion engine RPM at max power | 5600 |
| Combustion engine torque, Nm | 148 |
| Combustion engine RPM at max torque | 3200-3600 |
| Electric motor torque, Nm | 205 |
| Electric motor RPM at max torque | 200-1677 |
| Electric motor RPM at max power | 1677-6000 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4227 |
| Width, mm | 1797 |
| Height, mm | 1567 |
| Wheelbase, mm | 2639 |
| Front track, mm | 1554 |
| Rear track, mm | 1541 |
| Kerb weight, kg | 1334 |
| Fuel tank capacity, L | 48 |
| Ground clearance, mm | 173 |
Transmission and drive
| Transmission | CVT |
|---|---|
| Transmission type | CVT |
| Drive | Front-wheel drive |
| Transmission manufacturer | Jatco |
| Automatic transmission | + |
| Transmission country | Japan |
1.6 Plug-in Hybrid (159 hp) CVT 32 specifications
Specifications
Performance and consumption
| Top speed, km/h | 170 |
|---|---|
| Acceleration 0-100 km/h, s | 10.1 |
Engine
| Engine | 1.6 Plug-in Hybrid |
|---|---|
| Engine type | Hybrid |
| Fuel type | Gasoline |
| Engine displacement, cc | 1598 |
| Cylinder layout | Inline |
| Number of cylinders | 4 |
| Valves | 16 |
| Compression ratio | 10.8:1 |
| Power, hp | 159 |
| Electric motor power, hp | 67 |
| Combustion engine power, hp | 92 |
| Combustion engine RPM at max power | 5600 |
| Combustion engine torque, Nm | 144 |
| Combustion engine RPM at max torque | 3200 |
Dimensions
| Seats | 5 |
|---|---|
| Length, mm | 4227 |
| Width, mm | 1797 |
| Height, mm | 1567 |
| Wheelbase, mm | 2639 |
| Front track, mm | 1554 |
| Rear track, mm | 1541 |
| Kerb weight, kg | 1334 |
| Fuel tank capacity, L | 48 |
| Ground clearance, mm | 173 |
Transmission and drive
| Transmission | CVT |
|---|---|
| Transmission type | CVT |
| Drive | Front-wheel drive |
| Transmission manufacturer | Jatco |
| Automatic transmission | + |
| Transmission country | Japan |
Mitsubishi ASX questions
Short answers based on the specifications and photos available in this catalog.
What engine options are available for the 2023 Mitsubishi ASX?
The 2023 ASX offers four main powertrains. These include a base 91-hp 1.0-liter turbo petrol engine, a 1.3-liter mild hybrid (MHEV) in 140-hp or 158-hp outputs, a 143-hp full hybrid (HEV), and a 159-hp plug-in hybrid (PHEV). Transmission choices include manual, dual-clutch, or multi-mode automatic gearboxes.
Does the 2023 Mitsubishi ASX have all-wheel drive?
No, the models detailed in the specifications are strictly front-wheel drive (2WD). While the model name has historically offered all-wheel-drive configurations, these specific European-market versions are paired with front-wheel-drive systems.
What platform is the second-generation Mitsubishi ASX built on?
The second-generation ASX is built on the Renault-Nissan-Mitsubishi Alliance CMF-B platform. This shared architecture is also used for other European compact vehicles and is assembled at the Renault factory in Spain.
What tech features are available in the cabin?
The interior features a smartphone-linkable audio display available in either a 7.8-inch landscape or a 9.3-inch portrait layout. Drivers can choose between 4.2-inch, 7-inch, or 10.25-inch instrument clusters. Select trims also offer a premium Bose audio system and the MI-PILOT driver assistance suite.
What is the difference between the hybrid and plug-in hybrid models?
The full hybrid (HEV) uses a 1.6-liter engine with a small 1.3 kWh battery and produces 143 hp, functioning without needing to be plugged in. The plug-in hybrid (PHEV) features a larger 10.5 kWh battery, produces 159 hp, and can be charged from an external power source to provide an electric-only driving range.
